NVE5736901

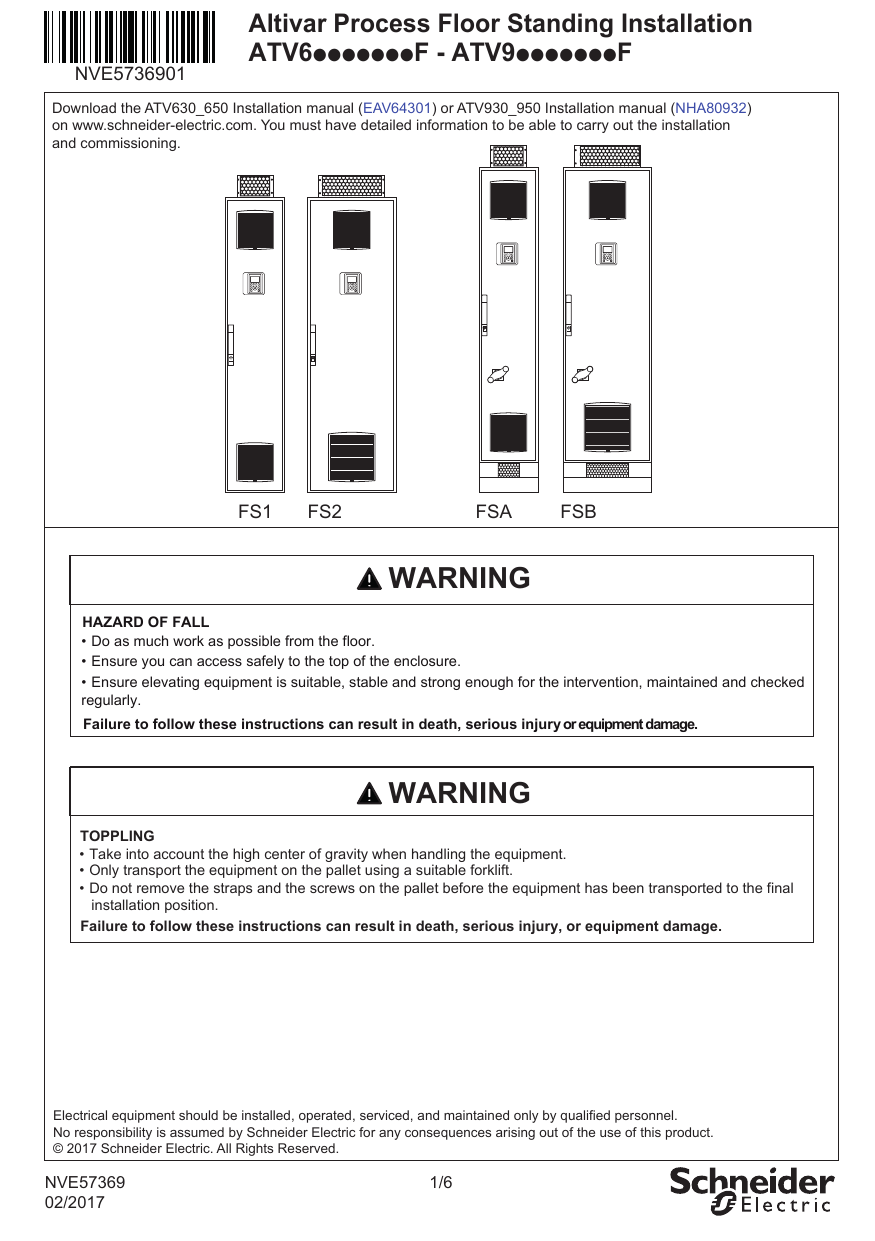

Altivar Process Floor Standing Installation
ATV6pppppppF - ATV9pppppppF
>
Download the ATV630_650 Installation manual (EAV64301) or ATV930_950 Installation manual (NHA80932)
on www.schneider-electric.com. You must have detailed information to be able to carry out the installation
and commissioning.
>
>
>
>
>
>
>
>
>
>
FS1
>
FS2
FSA
FSB
WARNING
HAZARD OF FALL
• Do as much work as possible from the floor.
• Ensure you can access safely to the top of the enclosure.
• Ensure elevating equipment is suitable, stable and strong enough for the intervention, maintained and checked
regularly.
Failure to follow these instructions can result in death, serious injury or equipment damage.
WARNING
TOPPLING
• Take into account the high center of gravity when handling the equipment.
• Only transport the equipment on the pallet using a suitable forklift.
• Do not remove the straps and the screws on the pallet before the equipment has been transported to the final
installation position.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel.
No responsibility is assumed by Schneider Electric for any consequences arising out of the use of this product.
© 2017 Schneider Electric. All Rights Reserved.
NVE57369
02/2017
1/6
1 FS1, FS2
1 FSA, FSB
B
A
2 FS1, FS2
A1
2 FSA, FSB
A1
A
B
x4
x4
x2
3 FS1, FSA


5.5 N•m
49.7 lb•in
DANGER
ELECTRIC SHOCK CAUSED BY INSUFFICIENT GROUNDING CONTINUITY
Ensure that all screws, nuts, and washers are properly mounted and tightened as specified in this document.
Failure to follow these instructions will result in death or serious injury.
NVE57369
02/2017
2/6
www.schneider-electric.com
3 FS2, FSB




5.5 N•m
49.7 lb•in
3.5 N•m
31 lb•in
DANGER
ELECTRIC SHOCK CAUSED BY INSUFFICIENT GROUNDING CONTINUITY
Ensure that all screws, nuts, and washers are properly mounted and tightened as specified in this document.
Failure to follow these instructions will result in death or serious injury.
4 FS1, FS2
(FSA, FSB:
4 p. 5/6)



x4
5 FS1, FS2
NVE57369
02/2017
3/6
www.schneider-electric.com
6 FS1, FS2





b
a
c
FS1
FS2
a = 537.5mm / 21.16in
b = min 62.5mm / 2.46in
c = 275mm / 10.82in
a = 537.5mm / 21.16in
b = min 62.5mm / 2.46in
c = 475mm / 18.70in
7 FS1, FS2



6 N•m
53 lb•in



d
e
FS1
FS2
d = 334mm / 13.14in
d = 534mm / 21.02in
e = 2032.5mm / 80.01in e = 2032.5mm / 80.01in


F
2 x M12 screws
F
NVE57369
02/2017
4/6
www.schneider-electric.com
4 FSA, FSB




B

e
c
c
d
d
FSA
c = 535mm / 21.06in
d = 335mm / 13.18in
FSB
c = 535mm / 21.06in
d = 535mm / 21.06in
5
f
ground continuity tab
on top side
e = 35mm / 1.37in
f = min 35mm / 1.37in


6 FSA, FSB
AA

NVE57369
02/2017

5/6
www.schneider-electric.com
7 FSA, FSB




AA
27 N•m
239 lb•in
AA
NVE57369
02/2017
6/6

www.schneider-electric.com
