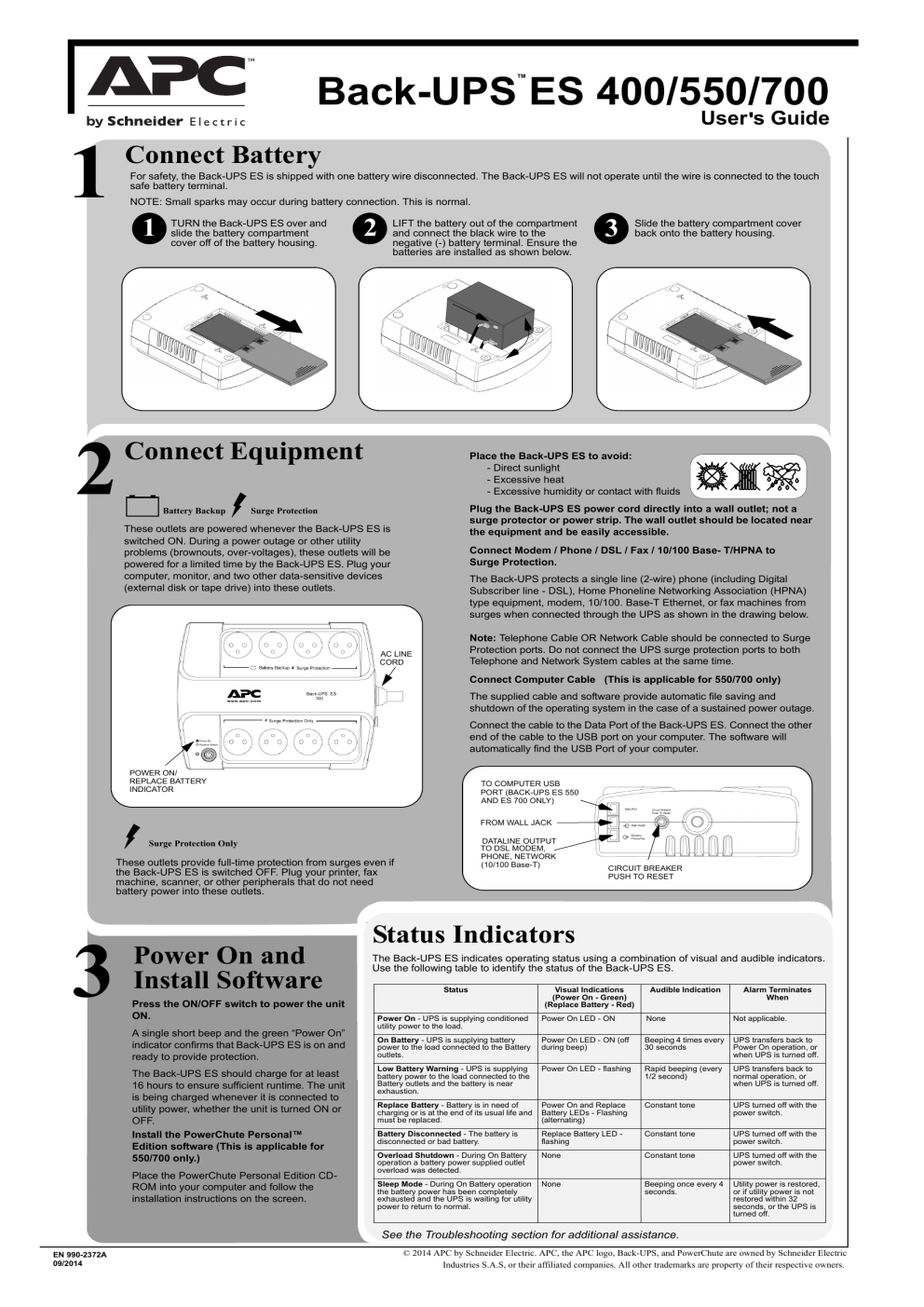

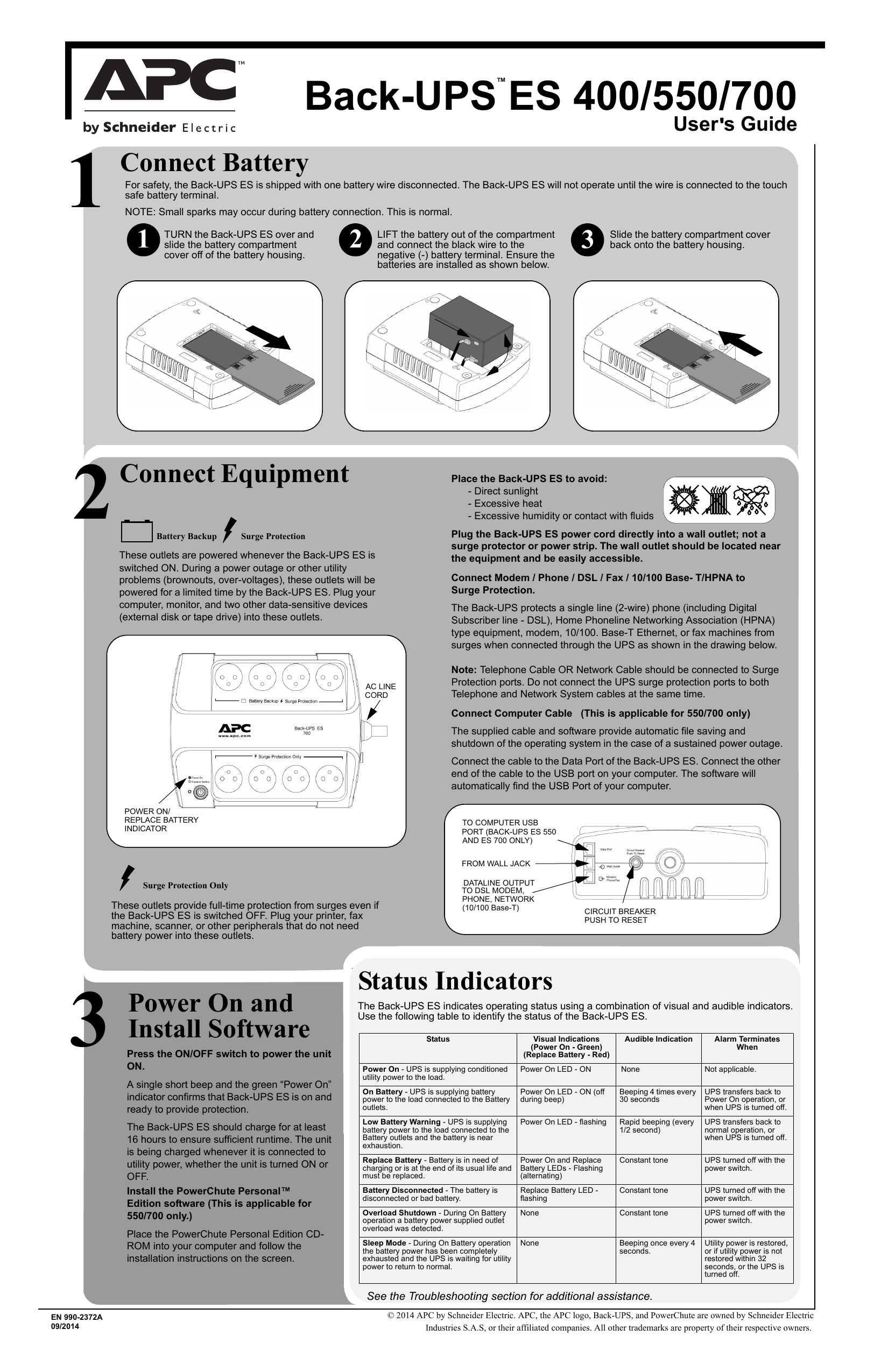

Back-UPS ES 400/550/700
User’s Guide
Connect Battery
For safety, the Back-UPS ES is shipped with one battery wire disconnected. The Back-UPS ES will not operate until the wire is connected to the touch
safe battery terminal.
NOTE: Small sparks may occur during battery connection. This is normal.
TURN the Back-UPS ES over and
slide the battery compartment
cover off of the battery housing.
LIFT the battery out of the compartment
and connect the black wire to the
negative (-) battery terminal. Ensure the
batteries are installed as shown below.
Connect Equipment
Battery Backup
Slide the battery compartment cover
back onto the battery housing.
Place the Back-UPS ES to avoid:
- Direct sunlight
- Excessive heat
- Excessive humidity or contact with fluids
Plug the Back-UPS ES power cord directly into a wall outlet; not a
surge protector or power strip. The wall outlet should be located near
the equipment and be easily accessible.
Surge Protection
These outlets are powered whenever the Back-UPS ES is
switched ON. During a power outage or other utility
problems (brownouts, over-voltages), these outlets will be
powered for a limited time by the Back-UPS ES. Plug your
computer, monitor, and two other data-sensitive devices
(external disk or tape drive) into these outlets.
Connect Modem / Phone / DSL / Fax / 10/100 Base- T/HPNA to
Surge Protection.
The Back-UPS protects a single line (2-wire) phone (including Digital
Subscriber line - DSL), Home Phoneline Networking Association (HPNA)
type equipment, modem, 10/100. Base-T Ethernet, or fax machines from
surges when connected through the UPS as shown in the drawing below.
Note: Telephone Cable OR Network Cable should be connected to Surge
Protection ports. Do not connect the UPS surge protection ports to both
Telephone and Network System cables at the same time.
Connect Computer Cable (This is applicable for 550/700 only)
The supplied cable and software provide automatic file saving and
shutdown of the operating system in the case of a sustained power outage.
Connect the cable to the Data Port of the Back-UPS ES. Connect the other
end of the cable to the USB port on your computer. The software will
automatically find the USB Port of your computer.
(10/100 Base-T)
Surge Protection Only
These outlets provide full-time protection from surges even if
the Back-UPS ES is switched OFF. Plug your printer, fax
machine, scanner, or other peripherals that do not need
battery power into these outlets.
Power On and
Install Software
Press the ON/OFF switch to power the unit
A single short beep and the green “Power On”
indicator confirms that Back-UPS ES is on and
ready to provide protection.
The Back-UPS ES should charge for at least
16 hours to ensure sufficient runtime. The unit
is being charged whenever it is connected to
utility power, whether the unit is turned ON or
Install the PowerChute Personal™
Edition software (This is applicable for
550/700 only.)
Place the PowerChute Personal Edition CDROM into your computer and follow the
installation instructions on the screen.
Status Indicators
The Back-UPS ES indicates operating status using a combination of visual and audible indicators.
Use the following table to identify the status of the Back-UPS ES.
Visual Indications
(Power On - Green)
(Replace Battery - Red)
Audible Indication
Alarm Terminates
Power On - UPS is supplying conditioned
utility power to the load.
Power On LED - ON
Not applicable.
On Battery - UPS is supplying battery
power to the load connected to the Battery
Power On LED - ON (off
during beep)
Beeping 4 times every
30 seconds
UPS transfers back to
Power On operation, or
when UPS is turned off.
Low Battery Warning - UPS is supplying
battery power to the load connected to the
Battery outlets and the battery is near
Power On LED - flashing
Rapid beeping (every
1/2 second)
UPS transfers back to
normal operation, or
when UPS is turned off.
Replace Battery - Battery is in need of
charging or is at the end of its usual life and
must be replaced.
Power On and Replace
Battery LEDs - Flashing
Constant tone
UPS turned off with the
power switch.
Battery Disconnected - The battery is
disconnected or bad battery.
Replace Battery LED flashing
Constant tone
UPS turned off with the
power switch.
Overload Shutdown - During On Battery
operation a battery power supplied outlet
overload was detected.
Constant tone
UPS turned off with the
power switch.
Sleep Mode - During On Battery operation
the battery power has been completely
exhausted and the UPS is waiting for utility
power to return to normal.
Beeping once every 4
Utility power is restored,
or if utility power is not
restored within 32
seconds, or the UPS is
turned off.
See the Troubleshooting section for additional assistance.
EN 990-2372A
© 2014 APC by Schneider Electric. APC, the APC logo, Back-UPS, and PowerChute are owned by Schneider Electric
Industries S.A.S, or their affiliated companies. All other trademarks are property of their respective owners.
Use the table below to solve minor Back-UPS ES installation or operation problems. Consult APC Online Technical Support or call APC
Technical Support for assistance with problems that cannot be resolved using the table below:
Probable Cause
Back-UPS ES will not turn on.
Battery is disconnected or utility power is not available at
the wall outlet.
Connect the battery (see Connect Battery) and ensure power is available at the wall
No power available at the Surge Protection
Only outlets.
Surge Protection Only outlets have been overloaded.
Reduce the amount of equipment plugged into Surge Protection Only outlets.
Utility power not available at the wall outlet.
Ensure the fuse or circuit breaker for the outlet is not tripped, and that the wall switch
controlling the outlet (if any) is in the ON position.
Equipment is connected to the Surge Protection Only
Ensure the equipment you want to stay powered during a power failure is plugged
into the Battery Backup/Surge Protection outlets and NOT the Surge Protection Only
The Back-UPS ES is overloaded.
Make sure the equipment plugged into the Battery Backup/Surge Protection outlets
of the unit are not overloading the capacity of the unit. Try removing some of the
equipment and see if the problem continues.
Connected equipment loses power.
PowerChute Personal Edition software has performed a
shutdown due to a power failure.
The Back-UPS ES has exhausted its available battery
The Power On indicator is lit and the BackUPS ES is beeping four times every 30
The Power On indicator flashes once per
second and the Back-UPS ES beeps once per
second at the same time.
Inadequate runtime.
The output waveform is designed for computers and computer-related equipment. It
is not designed for use with motor-type equipment.
The Back-UPS ES may require service.
Contact APC Technical Support for further troubleshooting.
The Back-UPS ES is using battery.
The Back-UPS ES is operating normally and using battery power. Once On Battery,
you should save your current work, power down your equipment, and turn the unit
OFF. Once normal power is restored, you may turn the unit back ON and power your
Battery capacity is low (about 2 minutes of use remaining).
Allow the unit to charge by leaving it plugged into the wall for at least 16 hours.
Battery is near the end of useful life.
As a battery ages, the amount of runtime available will decrease. You can replace
the battery by ordering one at Batteries also age prematurely if the
Back-UPS ES is placed near excessive heat.
Order Replacement Battery
230 Vrms Nominal
50 - 60 Hz (auto sensing)
180 Vrms, typical
Over-voltage Transfer
266 Vrms, typical
Voltage On Battery
UPS Capacity (4 outlets)
10 Amps (including UPS output)
50/60 Hz +/-1 Hz
Transfer Time
6 ms typical, 10 ms maximum
Protection and Filter AC Surge Protection
Full time, 310 joules
Phone/fax/DSL Surge
Please DO NOT RETURN Back-UPS ES to the place of purchase under any
10/100Base-T Ethernet
EMI/RFI Filter
Full time
AC Input
The standard warranty is 3 years from the date of purchase. APC’s standard
procedure is to replace the original unit with a factory reconditioned unit. Customers
who must have the original unit back due to assigned asset tags and set depreciation
schedules must declare such a need at first contact with APC Technical Support. APC
will ship the replacement unit once the defective unit is received by the repair
department or cross-ship upon the provision of a valid credit card number. The
customer pays for shipping to APC, and APC pays ground freight transportation costs
back to the customer.
Single line (2-wire)
Network Surge Protection
Replace with an APC qualified battery. Replacement batteries can be ordered from (valid credit card required). For Back-UPS ES 400, order APCRBC106
as directed by APC Technical Support. For Back-UPS ES 550, order RBC2. For BackUPS ES 700, order RBC17.
230 Vac rms +/- 8%
Frequency - On Battery
Brownout Transfer
Total Amperage (8 outlets)
The Back-UPS ES is about to shut off due to a low battery charge condition! When
the unit beeps once every second, the battery has about 2 minutes of power
remaining. Immediately power down your computer and turn the unit OFF. When
normal power returns, the unit will recharge the battery.
The battery is not fully charged.
The Back-UPS ES can only operate on battery power for a limited amount of time.
The unit will eventually turn off when the available battery power has been used.
Allow the unit to recharge for 16 hours before continuing use of the unit.
Connected equipment does not accept the stepapproximated sine waveform of the Back-UPS ES.
The Back-UPS ES is operating normally.
1. Consult the Troubleshooting section to eliminate common problems.
Resettable circuit breaker
Sealed, maintenance-free lead acid, 12V x 1, 6Ah
2. Verify the battery is connected (see Connect Battery) and that the Circuit Breaker is
not tripped (see Troubleshooting section).
Average Life
3 - 5 years depending on the number of discharge
cycles and environmental temperature
If you still have problems or questions, please contact APC via the internet or at one of
the phone numbers listed below.
Net Weight
Dimensions (H x W x D)
Operating Temperature
Storage Temperature
285 x 230 x 86 mm
(11.18” x 9.05” x 3.3 in.)
Operating Elevation
to 104
4. Be prepared to troubleshoot the problem over the telephone with a Technical
Support Representative. If this is not successful, the representative will issue a Return
Material Authorization Number (RMA#) and a shipping address.
-15 C to 45 C (5 F to 113 oF)
Operating Relative Humidity
40 oC
3. Before contacting APC, please be sure to record the date purchased, UPS model,
and serial number (on bottom of unit).
5. Pack the unit in its original packaging. If the original packaging is not available, ask
APC Technical Support about obtaining a new set. Pack the unit properly to avoid
damage in transit. Never use foam beads for packaging. Damage sustained in transit is
not covered under warranty (insuring the package for full value is recommended).
0 to 95% non-condensing
0 to 3000 m (0 to 10,000 ft)
6. Write the RMA# on the outside of the package.
Wall Mount of UPS
7. Return the unit by insured carrier to the address given to you by APC Technical
The UPS can be mounted vertically or horizontally to a wall surface. Use the template below to position the mounting
fasteners (not supplied). Wall mount the UPS as follows;
1. Hold this page against the wall in the desired mounting location.
2. Use thumbtacks or tape to hold this page in place against the wall. Use a sharp nail or pin to puncture the
center of each template circle to mark the wall.
3. Install the mounting fasteners at the marked locations. Leave the head of both fasteners 8 mm (5/16) out
from the face of the wall. The fasteners must be able to support 6.8 Kg.
APC by Schneider Electric IT
Customer Support Worldwide
For country specific customer support, go to the APC by Schneider Electric Web site,
4. Mount the UPS by positioning the key-hole slots over the mounting fasteners heads. For vertical
mounting, slide the UPS down into place. For horizontal mounting , Turn it slightly counterclockwise until it
is securly in place.
165 mm
(6.50 in.)
Wall Mounting Template
Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Download PDF
