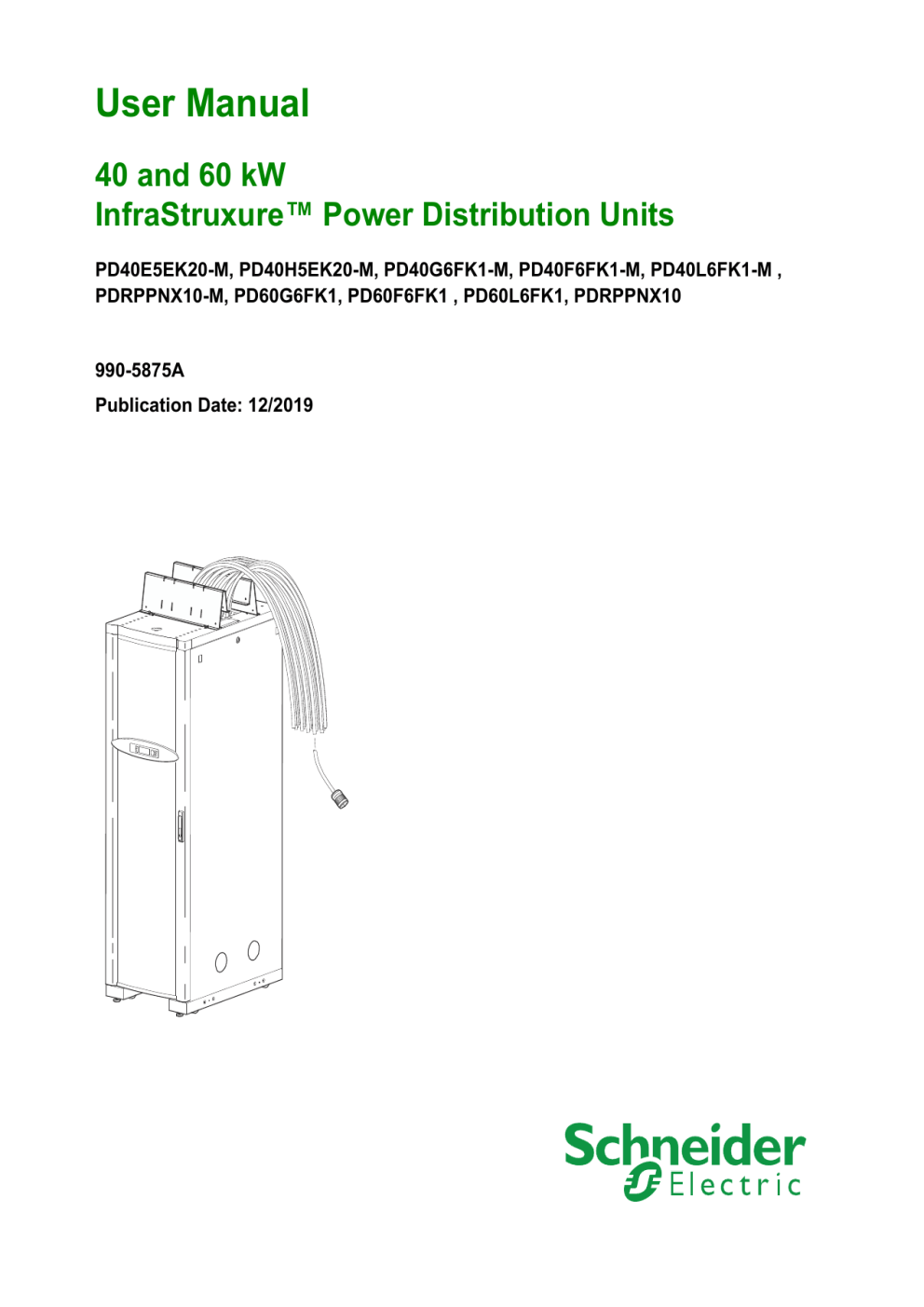

Schneider Electric 40 and 60 kW InfraStruxure™ Power Distribution Units User Manual
User Manual
40 and 60 kW
InfraStruxure™ Power Distribution Units
PD40E5EK20-M, PD40H5EK20-M, PD40G6FK1-M, PD40F6FK1-M, PD40L6FK1-M ,
PDRPPNX10-M, PD60G6FK1, PD60F6FK1 , PD60L6FK1, PDRPPNX10
990-5875A
psx0002a
Publication Date: 12/2019
Schneider Electric Legal Disclaimer
The information presented in this manual is not warranted by Schneider Electric to be authoritative, error free,
or complete. This publication is not meant to be a substitute for a detailed operational and site specific
development plan. Therefore, Schneider Electric assumes no liability for damages, violations of codes,
improper installation, system failures, or any other problems that could arise based on the use of this
Publication.
The information contained in this Publication is provided as is and has been prepared solely for the purpose of
evaluating data center design and construction. This Publication has been compiled in good faith by Schneider
Electric. However, no representation is made or warranty given, either express or implied, as to the
completeness or accuracy of the information this Publication contains.
IN NO EVENT SHALL SCHNEIDER ELECTRIC, OR ANY PARENT, AFFILIATE OR SUBSIDIARY COMPANY
OF SCHNEIDER ELECTRIC OR THEIR RESPECTIVE OFFICERS, DIRECTORS, OR EMPLOYEES BE
LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL, OR INCIDENTAL
DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS, CONTRACT,
REVENUE, DATA, INFORMATION, OR BUSINESS INTERRUPTION) RESULTING FROM, ARISING OUT,
OR IN CONNECTION WITH THE USE OF, OR INABILITY TO USE THIS PUBLICATION OR THE CONTENT,
EVEN IF SCHNEIDER ELECTRIC HAS BEEN EXPRESSLY ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. SCHNEIDER ELECTRIC RESERVES THE RIGHT TO MAKE CHANGES OR UPDATES WITH
RESPECT TO OR IN THE CONTENT OF THE PUBLICATION OR THE FORMAT THEREOF AT ANY TIME
WITHOUT NOTICE.
Copyright, intellectual, and all other proprietary rights in the content (including but not limited to software, audio,
video, text, and photographs) rests with Schneider Electric or its licensors. All rights in the content not expressly
granted herein are reserved. No rights of any kind are licensed or assigned or shall otherwise pass to persons
accessing this information.
This Publication shall not be for resale in whole or in part.
Table of Contents
Introduction ............................................................................................................1
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Connect the unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Initial setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Accessible interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Network management features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
User account overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Recover from a Lost Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Watchdog Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Network interface watchdog mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Reset the network timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Automatic logout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Command Line Interface (CLI)...............................................................................6
Log on to the CLI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Local access to the CLI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Remote access to the CLI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
CLI Home Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Sample home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Information and status fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Using the CLI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Command Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Command Response Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Command Editing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Auto-completion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Command history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Delimiter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Security lockout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Network Management Card Command Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
? or help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
about . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
alarmcount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
bye, exit, or quit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
cd . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
clrrst . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
delete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
dir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
dns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
eventlog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
ftp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
User Manual for InfraStruxure PDU with NMC 2
i
help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
lang . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
lastrst . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
ledblink . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
logzip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
netstat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ntp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
portspeed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
prompt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
pwd . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Quit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
radius . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
reboot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
resetToDef . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
smtp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
snmp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
snmpv3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
snmptrap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
tcpip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
tcpip6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
user . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
userdflt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
whoami . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
xferINI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
xferStatus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Device Command Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
pdSts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
pdOutThr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
pdInThr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
pdBrkrSts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
pdBrkrCfg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
pdBrkEdit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
envIc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
envOr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
envMap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
pduInfo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
The Web Interface ............................................................................................... 52
Supported Web browsers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Log on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Web interface features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Device menu tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Home Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Status Tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
View power distribution Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
View network status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Control Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Manage user sessions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Reset the network interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Configuration Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Configure alarm thresholds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Configure branch circuit breaker settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Configure contacts and relays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Manage user sessions, ping response, and user accounts . . . . . . . . . . . . . . . .65
Manage remote access to the web interface . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Configure a RADIUS server on UNIX® with shadow passwords . . . . . . . . . . . .69
Supported RADIUS servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
ii
User Manual for InfraStruxure PDU with NMC 2
Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Configure network settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
SNMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
SNMPv1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
SNMPv3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
FTP server configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Configure notifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Configure e-mail notifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Configure SNMP traps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
General Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Configure Syslog servers, settings, and tests . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Tests Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Logs Tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
NMC log/event log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Data log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Firewall logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Use FTP or SCP to retrieve log files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
About Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
About power distribution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
About your PDU model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
About support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Device IP Configuration Wizard ...........................................................................96
System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Launch the Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Export Configuration Settings ..............................................................................97
Retrieve and Export the .ini File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Summary of the procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Contents of the .ini file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Detailed procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
The Upload Event and Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Messages in config.ini . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Errors generated by overridden values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Related Topics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
File Transfers .....................................................................................................100
Upgrading Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Benefits of upgrading firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Firmware files (NMC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Firmware File Transfer Methods. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Use the Firmware Upgrade Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Use FTP or SCP to upgrade one unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Use XMODEM to upgrade one unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Upgrade multiple units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Verify Upgrades and Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Verify the version numbers of installed firmware . . . . . . . . . . . . . . . . . . . . . . . 104
Troubleshooting .................................................................................................105
Access Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
SNMP Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
User Manual for InfraStruxure PDU with NMC 2
iii
Introduction
Overview
Features
Your Schneider Electric InfraStruxure™ PDU provides power distribution and management of electrical power
to equipment racks. In each unit, the Network Management Card (NMC) provides full management capabilities
over a network using the following standards:
• Telnet
• Secure SHell (SSH)
• HyperText Transfer Protocol (HTTP)
• HTTP over Secure Sockets Layer (HTTPS)
• File Transfer Protocol (FTP)
• Simple Network Management Protocol (SNMP) versions 1 and 3
• TCP/IP v4 and v6
• Secure Copy (SCP)
• SMTP-based e-mail
• RADIUS (Remote Access Dial In User Service)
The unit also provides the following features:
• There are four user types; multiple users can be logged in simultaneously.
• You can export a configuration (.ini) file from a configured unit to one or more unconfigured units.
• You can use a Dynamic Host Configuration Protocol (DHCP) server to provide the network (TCP/
IP) values for the unit.
• Data and event logs are available.
• You can set up notification through the event logging, Syslog servers, e-mail, and SNMP traps
and queries, and the Schneider Electric Remote Monitoring Service. You can configure
notification for single events or groups of events, based on the severity level or category of
events.
• A selection of security protocols for authentication and encryption is available.
Getting Started
Connect the unit
A Cat-5 cable is plugged into the Ethernet port on the unit. Connect the other end of the cable to the LAN.
A local computer can be connected to the Console port (on the PDU monitoring Unit) with a serial cable (part
940-0103). Connect the other end of the serial cable to the local computer.
NOTE: Consult the Operation Manual on www.apc.com for your equipment to locate the Ethernet port and
Console port.
User Manual for InfraStruxure PDU with NMC 2
1
Initial setup
To start using the unit:
• Install the unit using the Installation Instructions on www.apc.com.
• Apply power and connect to your network. Follow the directions in the Installation Instructions.
• Establish network settings. Three TCP/IP settings must be defined for the Network Management
Card of the unit before it can operate on the network:
– IP address of the unit’s Network Management Card
– Subnet mask
– IP address of the default gateway
NOTICE
Do not use the loopback address as the default gateway. Doing so disables the unit. You
must then log on using a serial connection and reset TCP/IP settings to their defaults.
If a default gateway is unavailable, use the IP address of a computer (that is usually running)
located on the same subnet as the unit. The unit uses the default gateway to test the network
when traffic is light.
NOTE: See the Operation Manual on www.apc.com for detailed instructions.
Accessible interfaces
Begin using the unit with one of the following interfaces:
1. “The Web Interface” on page 52
2. “Command Line Interface (CLI)” on page 6
3. The display interface on the front of the unit. See the Operation Manual on www.apc.com for
instructions.
Network management features
These applications and utilities work with a PDU that connects to the network through its Network Management
Card:
• Schneider Electric StruxureWare® Data Center Expert—Provide enterprise-level power
management and management of Schneider Electric agents, PDUs, information controllers, and
environmental monitors
• APC by Schneider Electric PowerNet™ Management Information Base (MIB) with a standard MIB
browser—Perform SNMP SETs and GETs and to use SNMP traps
• APC by Schneider Electric Device IP Configuration Wizard—Configure the basic settings of one
or more units over the network
• APC by Schneider Electric Security Wizard—Create the components needed for high security for
the unit when using Secure Sockets Layer (SSL)/Transport Layer Security (TLS) and related
protocols and encryption routines
User account overview
The InfraStruxure PDU arrives configured with three user types and associated user names:
• Super User (user name: apc)
• Device (user name: device)
• Read-Only (user name: readonly).
2
User Manual for InfraStruxure PDU with NMC 2
The initial default password for each of these is apc. All levels of access require user name and password
permissions.
Both user names and passwords are case-sensitive, and have a 64 byte maximum, supporting up to 64 ASCII
characters; less for multi-byte languages.
The Super User can define additional user accounts, as well as set other variables for the additional users. It is
generally recommended that non-default user name and passwords be set.
NOTE: The Super User cannot be renamed or deleted, but it can be disabled. It is recommended that the
Super User account is disabled once any additional Administrator accounts are created. Make sure that there
is at least one Administrator account enabled before the Super User account is disabled.
To manage user settings from the web interface:
1. Enter the NMC IP address into the address bar.
2. Select Configuration > Security > Local Users > Management.
3. Click Add User.
You can add the following user types:
• Administrator: The Administrator has full access just as the Super User does, but this user type
can be deleted.
NOTE: A Super User account must be enabled before all administrator accounts are deleted or
disabled.
• Device: The Device User has read-write access to the device-related menus only. The
Administrator can enable or disable the Device User account.
• Read-Only: The Read-Only User account has read-only access, through the web interface, to
view status but not to control a device or change any configured value. The Administrator can
enable or disable the Read-Only User account.
• Network-Only: The Network-Only User has read-write access to the network-related menus only.
The Administrator can enable or disable the Network-Only User account.
Recover from a Lost Password
You can use a local computer (a computer connected to your PDU through the serial port) to access the
command line interface (CLI).
1. At the local computer, select a serial port, and disable any service that uses it.
2. Connect the provided serial cable (part 940-0103) to the selected serial port on the local
computer and the other end of the cable to the serial port on the power distribution unit.
3. Open a terminal program (such as HyperTerminal®) and configure the port for:
– 9600 bps
– 8 data bits
– no parity
– 1 stop bit
– no flow control
4. Press ENTER, repeatedly if necessary, to display the User Name prompt. If you are unable to
display the User Name prompt, verify the following:
– The serial port is not in use by another application.
– The correct cable is being used as specified in step 2.
– The terminal settings are correct as specified in step 3.
User Manual for InfraStruxure PDU with NMC 2
3
5. Press the Reset button on the back of the unit. The Status LED will flash. Press the Reset button
a second time while the LED is flashing to temporarily reset the user name and password to the
default.
6. Press ENTER as many times as necessary to redisplay the User Name prompt, then use the
default user name and password, apc. (If you take longer than 30 seconds to log on after the
User Name prompt is redisplayed, you must repeat step 5 and log on again.)
7. In the CLI, use the following commands to change the password for the Super User account.
(The user name is always apc, and the password is now temporarily apc.):
user -n apc -pw yourNewSuperUserPassword
Example: to change the Super User's password to p@ssword type:
user -n apc -pw p@ssword
NOTE: Because the Super User can also reset the password for any account, you can reset
other user's passwords as well.
Example: to change the password for user bmadmin to p@ssword type:
user -n bmadmin -pw p@ssword
NOTE: Changing user name information is no longer supported via the command line
interface. If a user name needs to be changed, it must be deleted and re-created. The Super
User will also have access now to log in and adjust any other user's password.
8. To log off, type quit, exit, or bye, and then press ENTER. Reconnect any serial cable you may
have disconnected, and restart any service you may have disabled.
Watchdog Features
Overview
To detect internal problems and recover from unanticipated inputs, the unit uses internal, system-wide
watchdog mechanisms. When it restarts to recover from an internal problem, a Network Interface Restarted
event is recorded in the event log.
Network interface watchdog mechanism
Watchdog mechanisms protect the NMC from becoming inaccessible over the network. If it does not receive
any network traffic for 9.5 minutes, it assumes there is a problem with its interface and restarts. The watchdog
mechanism is only enabled on a unit that discovers an active network interface connection at start-up.
Reset the network timer
To ensure that the unit does not restart if the network is quiet for 9.5 minutes, the unit attempts to contact the
default gateway every 4.5 minutes. If the gateway is present, it responds to the unit, and the response restarts
the 9.5-minute timer. If your application does not require or have a gateway, specify the IP address of a
computer that is running on the network and is on the same subnet. The network traffic of that computer will
restart the 9.5-minute time frequently enough to prevent the unit from restarting.
4
User Manual for InfraStruxure PDU with NMC 2
Automatic logout
By default, users will be automatically logged out of the unit’s web and command line interfaces after 3 minutes
of inactivity. The default logout time can be adjusted through the web interface Configuration > Security >
Local Users > Management.
1. Select the user name for the account you want to change.
2. Under Session Timeout, modify the number of minutes.
Automatic Logout
Duration (min)
Minimum
1
Maximum
60 (1 Hr)
User Manual for InfraStruxure PDU with NMC 2
5
Command Line Interface (CLI)
You can use the CLI to view, configure, and manage the unit settings and status. The CLI also enables you to
create scripts for automated operation. You can configure all parameters of a unit (including those for which
there are not specific CLI commands) by using the CLI to transfer an .ini file to the unit. The CLI uses
XMODEM to perform the transfer. However, you cannot read the current .ini file through XMODEM.
Log on to the CLI
To access the CLI, you can use either a local (serial) connection or a remote (Telnet or SSH) connection with a
computer on the same network as your PDU. Once you configure the network settings, you can access the
CLI through Telnet. You can also configure the network settings to enable CLI access through SSH or disable
CLI access through Telnet and SSH.
Local access to the CLI
Use a computer that connects to the unit through the serial port to access the CLI:
1. Select a serial port at the computer and disable any service that uses the port.
2. Connect the provided serial cable (part 940-0103) from the selected port on the computer to the
configuration port at the unit.
3. Run a terminal program such as HyperTerminal, and configure the selected port for 9600 bps, 8
data bits, no parity, 1 stop bit, and no flow control.
Press ENTER, and at the prompts, enter your user name and password.
Remote access to the CLI
The super user or Administrator can enable remote access to the CLI through Telnet and/or SSH.
Telnet for basic access: Telnet provides the basic security of authentication by user name and password,
but not the high-security benefits of encryption.
To access the CLI through Telnet:
1. From a computer on the same network as the unit, at a command prompt, type telnet and the
System IP address for the unit (for example, telnet 139.225.6.133, when the unit uses the
default Telnet port of 23), and press ENTER.
If the unit uses a non-default port number (5000 to 32768), you must include a colon or a
space, depending on your Telnet client, between the IP address (or DNS name) and the port
number.
2. Enter the user name and password.
SSH for high-security access: If you use the high security of SSL/TLS for the web interface, use Secure
SHell (SSH) for access to the CLI. SSH encrypts user names, passwords and transmitted data. The
interface, user accounts, and user access rights are the same whether you access the CLI through SSH or
Telnet, but to use SSH, you must first configure SSH and have an SSH client program installed on your
computer.
6
User Manual for InfraStruxure PDU with NMC 2
CLI Home Screen
Sample home screen
The following is an example of the screen that displays when you log on to the CLI.
User Name
: apc
Password
: ***
Schneider Electric
Network Management Card AOS
v6.4.6
(c) Copyright 2016 All Rights Reserved
XPDU
v6.4.0
-------------------------------------------------------------------------------Name
: apcF3821D
Date : 03/01/2016
Contact
: Raghav
Time : 13:57:38
Location
: LAB1
User : Super User
Up Time
: 0 Days 1 Hour 45 Minutes
Stat : P+ N4+ N6+ A+
Type ? for command listing
Use tcpip command for IP address<-i>, subnet<-s), and gateway<-g>
apc>
Information and status fields
Two fields identify the APC operating system (AOS) and application (XPDU) firmware versions:
Network Management Card AOS v6.4.6
XPDU v6.4.0
Three fields identify the system name, contact person, and location values:
Name: apcF3821D
Contact: Raghav
Location: LAB1
The Up Time field reports how long the unit has been running:
Up Time: 0 Days 1 Hour 45 Minutes
Two fields identify the current system Date and Time:
Date : 3/1/2016
Time : 13:57:38
• The User field identifies the type of logged user; whether Super User, Administrator or Device
User account.
User : Super User
User Manual for InfraStruxure PDU with NMC 2
7
System and network status fields
• The Stat field reports the unit status: Stat: P+ N+ A+
P+
The APC operating system (AOS) is functioning properly.
IPv4
only
IPv6
only
IPv4 and
IPv6*
Description
N+
N+
N4+ N6+
The network is functioning properly.
N?
N6?
N4? N6?
A BOOTP request cycle is in progress.
N–
N6-
N4- N6-
The InfraStruxure PDU failed to connect to the
network.
N!
N6!
N4! N6!
Another device is using the InfraStruxure PDU IP
address.
* The N4 and N6 values can be different from one another: you could, for example, have
N4- N6+.
A+
The application is functioning properly.
A–
The application has a bad checksum.
A?
The application is initializing.
A!
The application is not compatible with the AOS.
NOTE: If P+ is not displayed, contact the Schneider Electric support staff at www.apc.com/
support even if you can still access the unit.
Using the CLI
At the CLI, you can use commands to configure the InfraStruxure PDU. To use a command, type the command
and press ENTER. Commands and arguments are valid in lowercase, uppercase, or mixed case. Options are
case-sensitive.
While using the CLI, you can also do the following:
• Type ? and press ENTER to view a list of available commands. Available commands will vary
based on your account type.
• To obtain information about the purpose and syntax of a specified command, type the command,
a space, and ? or the word help. For example, to view RADIUS configuration options, type:
radius ?
or
radius help
• Press the UP arrow key to view the command that was entered most recently in the session. Use
the UP and DOWN arrow keys to scroll through a list of up to ten previous commands.
• Type at least one letter of a command and press the TAB key to scroll through a list of valid
commands that match the text you typed in the command line.
• Type exit, quit, or bye to close the connection to the command line interface.
8
User Manual for InfraStruxure PDU with NMC 2
Command Syntax
Item
Description
-
Options are preceded by a hyphen.
<>
Definitions of options are enclosed in angle brackets. For example:
-dp <device password>
[]
If a command accepts multiple options or an option accepts mutually exclusive arguments,
the values may be enclosed in brackets.
|
A vertical line between items enclosed in brackets or angle brackets indicates that the items
are mutually exclusive. You must use one of the items.
Example of a command that supports multiple options:
ftp [-p <port number>] [-S <enable | disable>]
In this example, the ftp command accepts the option -p, which defines the port number, and the option -S,
which enables or disables the FTP feature.
To change the FTP port number to 5010 and enable FTP:
1. Type the ftp command, the port option, and the argument 5010:
ftp -p 5010
2. After the first command succeeds, type the ftp command, the enable/disable option, and the
enable selection:
ftp -S enable
Example of a command that accepts mutually exclusive arguments for an option:
alarmcount {-p <all | warning | critical>]
In this example, the option -p accepts only three arguments: all, warning, or critical. For example, to view the
number of active critical alarms, type:
alarmcount [-p <critical>]
The command will fail if you type an argument that is not specified.
User Manual for InfraStruxure PDU with NMC 2
9
Command Response Codes
The command response codes enable scripted operations to detect error conditions reliably without having to
match error message text:
The CLI reports all command operations with the following format:
E [0-9] [0-9] [0-9]: Error message
Code
Message
E000
Success
E001
Successfully Issued
E002
Reboot required for change to take effect
E100
Command failed
E101
Command not found
E102
Parameter Error
E103
Command Line Error
E104
User Level Denial
E105
Command Prefill
E106
Data Not Available
E107
Serial communication with the unit has been lost
Command Editing
The BACKSPACE key will delete the last character of the command string the user is currently entering and is the
only editing function available to the user during command entry.
Auto-completion
The CLI supports command auto-completion. If a partial command is entered, the TAB key can be used to
complete the command to the first available matched command. If such a match exists, the command line shall
be completed by the CLI.
Additional presses of the TAB key will select the next available command match. Once all available commands
have been scrolled through, the original partially entered command is displayed.
Command history
Pressing the UP ARROW key presents the previously entered command onto the command line. The UP ARROW
and DOWN ARROW keys permit the user to navigate the command history. In addition, pressing the BACKSPACE
key deletes the last character of the command string the user is currently entering.
The command history buffer supports up to 10 previous commands.
Delimiter
The CLI will use <space> (ASCII 0x20) as the delimiter between commands and arguments. Extra white
space between commands and arguments will be ignored. Command responses will have all fields delimited
with commas for efficient parsing.
10
User Manual for InfraStruxure PDU with NMC 2
Security lockout
If a valid user name is used with an invalid password consecutively for the number of times specified in the web
interface (see “Password Requirements” on page 67) or CLI (see “userdflt” on page 40), the account will be
locked until a Super User re-enables it. A Super User cannot be locked out.
User Manual for InfraStruxure PDU with NMC 2
11
Network Management Card Command Descriptions
? or help
Access: Super User, Administrator, Device User, Network User, Read Only
Description: View a list of all the CLI commands available to your account type. To view help text for a
specific command, type the command followed by a question mark.
Parameters: [<command>]
Example 1:
apc> ?
System Commands:
-------------------------------------------------------------------For command help: command ?
?
about
alarmcount
boot
bye
cd
clrrst
console
date
delete
dir
dns
email
eventlog
exit
firewall
format
ftp
help
lang
lastrst
ledblink
logzip
netstat
ntp
ping
portspeed
prompt
pwd
quit
radius
reboot
resetToDef
session
smtp
snmp
snmptrap
snmpv3
system
tcpip
tcpip6
user
userdflt
web
whoami
xferINI
xferStatus
Device Commands:
--------------------------------------------------------------------
Example 2:
pdSts
pdOutThr
pdInThr
pdBrkrSts
envIc
envOr
envMap
pduInfo
pdBrkrCfg
apc> help boot
Usage: boot -- Configuration Options
boot
[-b <dhcp | bootp | manual>] (IPv4 Boot Mode)
[-c <enable | disable>]
(Require DHCP Cookie)
[-v <vendor class>]
[-i <client id>]
[-u <user class>]
Error Message: E000, E102
12
User Manual for InfraStruxure PDU with NMC 2
pdBrkEdit
about
Access: Super User, Administrator, Device User, Network User, Read Only
Description: Displays system information (Model Number, Serial Number,
Manufacture Dates, etc.)
Parameters: None
Example: apc> about
E000: Success
Hardware Factory
--------------Model Number:XXXXXXXX
Serial Number:XXXXXXXXXXXX
Hardware Revision:05
Manufacture Date:3/4/2016
MAC Address:00 00 A0 10 00 00
Management Uptime:0 Days 1 Hour 42 Minutes
Application Module
---------------
Name:xpdu
Version:v6.4.7
Date:Mar 3 2017
Time:16:39:08
APC OS(AOS)
---------------
Name:aos
Version:v6.4.6
Date:Oct 6 2016
Time:17:46:25
APC Boot Monitor
---------------
Name:bootmon
Version:v1.0.8
Date:Apr 8 2014
Time:10:59:40
Error Message: E000
User Manual for InfraStruxure PDU with NMC 2
13
alarmcount
Access: Super User, Administrator, Device User, Network User, Read Only
Description: Displays alarms present in the system.
Parameters:
Option
Argument
Description
-p
all
View the number of active alarms reported by the PDU. Information
about the alarms is provided in the event log.
warning
View the number of active warning alarms.
critical
View the number of active critical alarms.
informational View the number of active informational alarms.
Example: To view all active warning alarms, type:
apc> alarmcount -p all
E000: Success
AlarmCount: 0
Error Message: E000, E102
14
User Manual for InfraStruxure PDU with NMC 2
boot
Access: Super User, Administrator
Description: Allows the user to get/set the network startup configuration of the device, such as setting boot
mode (DHCP vs BOOTP vs MANUAL).
Parameters:
Option Argument
Description
-b
<dhcp|bootp|manual>
-c
<enable|disable>
-v
-i
<vendor class>
<client id>
-u
<user class>
Define how the IPv4 settings will be configured when the
unit turns on, resets, or restarts. See “Configure network
settings” on page 71 for information about each boot
mode setting.
dhcp and dhcpBootp boot modes only. Enable or disable
the requirement that the DHCPv4 server provide the APC
cookie.
Set the vendor class (APC by default).
The MAC address of the unit, which uniquely identifies it
on the network.
The name of the application firmware module.
Example: Use a DHCP server to obtain network settings:
apc> boot
E000: Success
Boot Mode: manual
DHCP Cookie: enabled
Vendor Class: APC
Client id: XX XX XX XX XX XX
User class: XPDU
Error Message: E000, E102
User Manual for InfraStruxure PDU with NMC 2
15
bye, exit, or quit
Access: Super User, Administrator, Device User, Network User, Read Only
Description: Exit from the CLI session.
Parameters:
Argument
Description
<exit|quit|bye>
Exit the CLI.
Example:
apc> exit
Bye
Error Message: None
cd
Access: Super User, Administrator, Device User, Network User, Read Only
Description: Allows the user to set the working directory of the file system. The working directory is set back
to the root directory ‘/’ when the user logs out of the CLI.
Parameters:
Argument
Description
<directory name>
Type the name of the directory.
apc> cd logs
E000: Success
apc> cd /
E000: Success
Error Message: E000, E102
Example:
clrrst
Access: Super User, Administrator, Device User, Network User
Description: Clear the last reset reason.
Parameters: None
Error Message: None
16
User Manual for InfraStruxure PDU with NMC 2
console
Access: Super User, Administrator
Description: Define whether users can access the command line interface using Telnet or Secure SHell
(SSH), which provides protection by transmitting user names, passwords, and data in encrypted form. You
can change the Telnet or SSH port setting for additional security. Alternately, disable network access to the
command line interface.
Parameters:
Option
Argument
Description
-t
<enable|disable>
Enable or disable Telnet.
-s
<enable|disable>
Enable or disable SSH. Enabling SSH enables SCP
and disables Telnet.
-pt
<telnet port n>
Define the Telnet port used to communicate with the
NMC of the PDU (23 by default, 5000–32768 possible).
-ps
<SSH port n>
Define the SSH port used to communicate with the
NMC of the PDU (22 by default, 5000–32768 possible).
-b
<2400|9600|19200|38400>
Configure the speed of the serial port connection (9600
bps by default).
Example 1: To enable SSH access to the command line interface, type:
console -s ssh
Example 2: To change the Telnet port to 5000, type:
apc> console -pt <5000>
E002: Success
Reboot required for change to take effect.
Error Message:E000, E102
User Manual for InfraStruxure PDU with NMC 2
17
date
Access: Super User, Administrator
Description: Get and set the date and time of the system. To configure an NTP server to define the date and
time for the InfraStruxure PDU, see “> Date/Time > Mode” on page 86.
Parameters:
Option
Argument
Description
-d
<“datestring”>
Set the current date. The format must match the current -f setting.
-t
<“timestring”>
Configure the current time, in hours, minutes, and seconds. Use the
24-hour clock format (00:00:00).
-f
<mm/dd/yy|
dd.mm.yyyy|
mmm-dd-yy|
dd-mmm-yy|
yyyy-mm-dd>
Select the numerical format in which to display all dates in this user
interface. Each letter m (for month), d (for day), and y (for year)
represents one digit. Single-digit days and months are displayed with a
leading zero.
-z
<time zone
offset>
Set the difference with GMT in order to specify your time zone. This
enables you to synchronize with other people in different time zones.
Example 1: To display the date using the format yyyy-mm-dd, type:
date -f yyyy-mm-dd
Example 2: To define the date as March 30, 2016, using the format configured in the preceding example,
type:
date -d “2016-03-30”
Example 3: To define the time as 5:21:03 p.m., type:
date -t 17:21:03
Error Message: E000, E100, E102
18
User Manual for InfraStruxure PDU with NMC 2
delete
Access: Super User, Administrator
Description: Delete a file in the file system.
Parameters:
Argument
Description
<file name>
Type the name of the file to delete.
Example:
apc> delete /db/prefs.dat
E000: Success
Error Messages: E000, E102
dir
Access: Super User, Administrator, Device User, Network User, Read Only
Description: Display the content of the working directory.
Parameters: None
Example:
apc> dir
E000: Success
3145728 Mar 3
2015 aos.bin
3145728 Mar 4 2015 app.bin
45000 Mar 6 2015 config.ini
0 Mar 3 2015 db/
0 Mar 3 2015 ssl/
0 Mar 3 2015 ssh/
0 Mar 3 2015 logs/
0 Mar 3 2015 sec/
0 Mar 3 2015 dbg/
0 Mar 3 2015 pdu/
Error Messages: E000
User Manual for InfraStruxure PDU with NMC 2
19
dns
Access: Super User, Administrator
Description: Configure the manual Domain Name System (DNS) settings.
Parameters:
Option
Argument
Description
-OM
-p
-s
-d
-n
-h
-y
<enable|disable>
<primary DNS server>
<secondary DNS server>
<domain name>
<domain name IPv6>
<host name>
<enable|disable>
Override the manual DNS settings.
Set the primary DNS server.
Set the secondary DNS server.
Set the domain name.
Set the IPv6 domain name.
Set the host name.
Enable or disable system-hostname sync.
Example:
apc> dns
E00 Success
Active primary DNS Server:XX.XXX.XX.XXX
Active secondary DNS Server:XX.XXX.XX.XXX
Override Manual DNS Settings:enabled
Primary DNS Server:XX.XXX.XX.XXX
Secondary DNS Server: XX.XXX.XX.XXX
Domain Name: example.com
Domain Name IPv6: example.com
System Name Sync: Disabled
Host Name:apcF3821D
Error Message: E000
20
User Manual for InfraStruxure PDU with NMC 2
email
Access: Super User, Administrator, Device User
Description: View and configure e-mail settings.
Parameters:
Parameters
Argument
Description
-g[n]
-t[n]
-o[n]
-l[n]
<enable|disable>
<To Address>
<long|short>
<Language Code>
Enable or disable e-mail generation.
Set the To address.
Set the format.
Set a language code supported by the current
language pack.
Set the e-mail route.
-r[n]
<Local|recipient|custom>
Custom Route Option
-f[n]
<From Address>
-s[n]
<SMTP Server>
-p[n]
<Port>
-a[n]
<enable|disable>
-u[n]
<User Name>
-w[n]
<Password>
-e[n]
<none|ifsupported|always|
implicit>
-c[n]
<enable|disable>
-i[n]
<Certificate File Name>
[n] = e-mail Recipient Number (1,2,3 or 4)
Set the From address.
Set the SMTP server address.
Set the port.
Enable or disable authentication.
Set the user name for authentication.
Set the password for authentication.
Define when to use encryption.
Enable or disable certificate requirement.
Set the certificate file name.
Example:
apc> email
E000 Success
Recipient: 1
Generation: enabled
Address: [email protected]
Format: long
Language: enUs - English
Route: local
Recipient: 2
Generation:enabled
Address: [email protected]
Format: short
Language: enUs - English
Route: local
Error Message: E000, E102
User Manual for InfraStruxure PDU with NMC 2
21
eventlog
Access: Super User, Administrator, Device User, Network User, Read Only
Description: View the date and time you retrieve the event log, the status of the InfraStruxure PDU, and the
status of sensors connected to the InfraStruxure PDU. View the most recent device events and the date and
time they occurred. Use the following keys to navigate the event log:
Key
Description
ESC
Close the event log and return to the command line interface.
ENTER
Update the log display. Use this command to view events that were recorded after you
last retrieved and displayed the log.
SPACEBAR
View the next page of the event log.
B
View the preceding page of the event log. This command is not available at the main
page of the event log.
D
Delete the event log. Follow the prompts to confirm or deny the deletion. Deleted
events cannot be retrieved.
Example:
apc> eventlog
E000: Success
---- Event Log ----------------------------------------------------Date: 03/06/2015 Time: 13:22:26
-----------------------------------PDU Status: No Alarms Present
Date Time User Event
--------------------------------------------------------------03/06/2015 13:17:22System Set Time.
03/06/2015 13:16:57 System Configuration change. Date format
preference.
03/06/2015 13:16:49 System Set Date.
03/06/2015 13:16:35 System Configuration change. Date format
preference.
03/06/2015 13:16:08 System Set Date.
03/05/2015 13:15:30 System Set Time.
03/05/2015 13:15:00 System Set Time.
03/05/2015 13:13:58 System Set Date.
03/05/2015 13:12:22 System Set Date.
03/05/2015 13:12:08 System Set Date.
03/05/2015 13:11:41 System Set Date.
<ESC>- Exit, <ENTER>- Refresh, <SPACE>- Next, <D>- Delete
Error Message: E000, E100
22
User Manual for InfraStruxure PDU with NMC 2
exit
See “bye, exit, or quit” on page 16.
firewall
Access: Super User, Administrator
Description: Establish a barrier between a trusted, secure internal network and another network.
Parameters:
Options
Argument
Description
-S
-f
-t
<enable|disable>
<file name to activate>
<file name to test>
<duration time in minutes>
No argument. List only
No argument. List only
No argument. List only
No argument. List only
No argument. List only
Enable or disable the firewall.
Name of the firewall to activate.
Set the firewall to test and duration of the test
in minutes.
Shows active file errors.
Shows test file errors.
Cancel a firewall test.
Shows active firewall rules.
Shows firewall activity log.
-fe
-te
-c
-r
-l
Example:
apc> firewall
E000: Success
Firewall: disabled
File Name: example.fwl
Error Message: E000, E102
format
Access: Super User, Administrator
Description: Format the FLASH file system. This will delete all configuration data, event and data logs,
certificates, and keys.
Parameters: None
Example:
apc> format
Format FLASH file system
Warning: This will delete all configuration data,
event and data logs, certs and keys.
Enter 'YES' to continue or <ENTER> to cancel:
apc> YES
Error Message: None
User Manual for InfraStruxure PDU with NMC 2
23
ftp
Access: Super User, Administrator
Description: Get/set the ftp configuration data.
NOTE: The system will reboot if any configuration is changed.
Parameters:
Option
Argument
Definition
-p
<port number>
Define the TCP/IP port that the FTP server uses to
communicate with the NMC of the PDU (21 by default, 500032768 possible). The FTP server uses both the specified port
and the port one number lower than the specified port.
-S
<enable|disable>
Configure access to the FTP server.
Example:To change the TCP/IP port to 5001, type:
apc> ftp -p 5001
E000: Success
apc> ftp
E000: Success
Service:
Enabled
Ftp Port:
5001
apc> ftp -p 21
E000: Success
Error Message: E000, E102
help
See “? or help” on page 12.
lang
Access: Super User, Administrator, Device User, Network User, Read Only
Description: Show language configuration options.
Parameters: None
Example:
apc> lang
E000: Success
Languages
enUs - English
Error Message: None
24
User Manual for InfraStruxure PDU with NMC 2
lastrst
Access: Super User, Administrator, Network User, Device User
Description: Last reset reason.
Parameters: None
Example:
apc> lastrst
09 Coldstart Reset
E000: Success
Error Message: None
ledblink
Access: Super User, Administrator, Network User, Device User
Description: Sets the LED on the unit to blink for a specified number of minutes.
Parameters:
Argument
Description
<duration time in minutes>
Set the number of minutes the LED will blink.
Example: To set the LED to blink for 10 minutes, type:
apc> ledblink 10
Error Message: None
logzip
Access: Super User, Administrator, Network User, Device User
Description: Place large logs into a zip file before sending.
Parameters:
Option
Argument
Description
-m
<email recipient#>
Set e-mail recipients by number(1-4).
Example:
logzip -m 1
Generating files
Compressing files into /dbg/debug_ZA1023006009.tar
E000: Success
Error Message:E000
User Manual for InfraStruxure PDU with NMC 2
25
netstat
Access: Super User, Administrator, Device User, Network User, Read Only
Description: Display incoming and outgoing network connections.
Parameters: None
Example:
apc> netstat
Current IP Information:
Family mHome Type
IPAddress Status
IPv6
4
auto
FE80::2C0:B7FF:FE51:F304/64 configured
IPv6
0
manual ::1/128 configured
0
manual 127.0.0.1/32 configured
IPv4
Error Message: None
ntp
Access:Super User, Administrator
Description:Synchronize the time to a computer client or server.
Parameters:
Option
Argument
Definition
-OM
-p
-s
-e
-u
<enable|disable>
<primary NTP server>
<secondary NTP server>
<enable|disable>
<update now>
Override the manual settings.
Specify the primary server.
Specify the secondary server.
Enable or disable NTP.
Update the time on your device.
Example 1: To enable the override of manual setting, type:
ntp -OM enable
Example 2: To specify the primary NTP server, type:
ntp -p 150.250.6.10
Error Message: E000, E102
26
User Manual for InfraStruxure PDU with NMC 2
ping
Access: Super User, Administrator, Device User
Description: Perform a network ‘ping’ to any external network device.
Parameters:
Argument
Description
<IP address or DNS name>
Type an IP address with the format xxx.xxx.xxx.xxx, or the DNS
name configured by the DNS server.
Example:
apc> ping 192.168.1.50
E000: Success
Reply from 192.168.1.50: time(ms)= <10
Reply from 192.168.1.50: time(ms)= <10
Reply from 192.168.1.50: time(ms)= <10
Reply from 192.168.1.50: time(ms)= <10
Error Message:E000, E100, E102
User Manual for InfraStruxure PDU with NMC 2
27
portspeed
Access: Super User, Administrator
Description: Get/set the network port speed.
NOTE: The system will reboot if any configuration is changed.
Parameters:
Option
Arguments
Description
-s
<auto|10H|10F|100
H|100 F>
Define the communication speed of the Ethernet port. The auto
command enables the Ethernet devices to negotiate to transmit at
the highest possible speed. See “> Port Speed:” on page 73 for more
information about port speed settings.
H = Half Duplex
10 = 10 Megabits per second (Mbps)
F = Full Duplex
100 = 100 Mbps
Example:
apc> portspeed
E000: Success
Port Speed: Auto_negotiation
Current Port Speed: 100 Full_Duplex
apc> portspeed -s 10h
E000: Success
apc> portspeed
E000: Success
Port Speed: 10 Half_Duplex
apc> portspeed -s auto
E000: Success
Error Message: E000, E102
28
User Manual for InfraStruxure PDU with NMC 2
prompt
Access:Super User, Administrator, Device User
Description:Change the format of the prompt to short or long.
Parameters:
Option
Argument
Description
-s
long
The prompt includes the account type of the currently logged-in user.
short
The default setting. The prompt is four characters long: apc>
Example:
apc> prompt –s long
E000: Success
Administrator@apc>prompt –s short
E000: Success
Error Message:E000, E102
pwd
Access: Super User, Administrator, Device User, Read Only
Description: Output the path of the current working directory.
Parameters: None
Example:
apc> pwd
/
Error Message:None
Quit
See “bye, exit, or quit” on page 16.
radius
Access: Super User, Administrator
Description: View the existing RADIUS settings, enable or disable RADIUS authentication, and configure
basic authentication parameters for up to two RADIUS servers.
For a summary of RADIUS server configuration and a list of supported RADIUS servers, see “Summary of the
Configuration Procedure:” on page 69. For detailed information about configuring your RADIUS server, see the
Security Handbook, available at www.apc.com.
Additional authentication parameters for RADIUS servers are available at the web interface of the InfraStruxure
PDU. See “> RADIUS:” on page 68 for more information.
User Manual for InfraStruxure PDU with NMC 2
29
Parameters:
Option
Argument
Description
-a
<local|
radiusLocal|
radius>
Configure RADIUS authentication:
local: RADIUS is disabled. Local authentication is enabled.
radiusLocal: RADIUS, then Local Authentication. RADIUS
and local authentication are enabled. Authentication is
requested from the RADIUS server first. If the RADIUS server
fails to respond, local authentication is used.
radius: RADIUS is enabled. Local authentication is disabled.
-p1
-p2
<server IP>
The IP address of the primary or secondary RADIUS server.
-o1
-o2
<server port>
The server port of the primary or secondary RADIUS server.
NOTE: RADIUS servers use port 1812 by default to
authenticate users. To use a different port, add a colon followed
by the new port number to the end of the RADIUS server name
or IP address. The unit supports ports 1812, 5000 to 32768.
-s1
-s2
<server secret>
The shared secret between the primary or secondary RADIUS
server and the unit.
-t1
-t2
<server timeout>
The time in seconds that the unit waits for a response from the
primary or secondary RADIUS server.
Example 1:To view the existing RADIUS settings for the InfraStruxure PDU, type radius and press ENTER.
apc>radius
E000: Success
Access: Local Only
Primary Server: 0.0.0.0
Primary Server Port: 1812
Primary Server Secret: <Password Hidden>
Primary Server Timeout: 5
Secondary Server: 0.0.0.0
Secondary Server Port: 1812
Secondary Server Secret: <Password Hidden>
Secondary Server Timeout: 5
Example 2: To enable RADIUS and local authentication, type:
radius -a radiusLocal
Example 3: To configure a 10-second timeout for a secondary RADIUS server, type:
radius -t2 10
Error Message: E000, E102
30
User Manual for InfraStruxure PDU with NMC 2
reboot
Access: Super User, Administrator
Description: Restart the NMC interface of the unit only; this forces the network device to reboot. You must
confirm this operation by entering a “YES” after the command has been entered.
Parameters: None
Example:
apc> reboot
E000: Success
Reboot Management Interface
Enter 'YES' to continue or <ENTER> to cancel : <user enters ‘YES’>
Rebooting...
Error Message: E000, E100
resetToDef
Access: Super User, Administrator
Description: Reset all parameters to their default.
Parameters:
Option
Arguments
Description
-p
<all|keepip>
all: all configuration data, including the IP address.
keepip: all configuration data, except the IP address.
Reset all configuration changes, including event actions, device
settings, and, optionally, TCP/IP configuration settings.
Example: To reset all of the configuration changes except the TCP/IP settings for the InfraStruxure PDU, type:
resetToDef -p keepip
Enter 'YES' to continue or <ENTER> to cancel : : <user enters ‘YES’>
all User Names, Passwords.
Please wait...
Please reboot system for changes to take effect!
Error Message: E000, E100
User Manual for InfraStruxure PDU with NMC 2
31
session
Access: Super User, Administrator, Device User
Description: Record which user is logged in, the interface, address, logged in time, and ID.
Parameters:
Option
Arguments
-d
-m
-a
<session ID>
<Enable | disable>
<enable | disable
Delete session ID.
Enable or disable multi-user mode.
Enable or disable remote
authentication override.
Example:
apc> session
User InterfaceAddressLogged In TimeID
---------------------------------------------------------------------------
apc Serial xx.xxx.xxx.xxx00:00:05 1
Error Message: E000, E102
32
User Manual for InfraStruxure PDU with NMC 2
smtp
Access: Super User, Administrator, Device User
Description: Internet standard for electronic mail.
Option
Argument
Description
-f
-s
-p
<From Address>
<SMTP Server>
<Port>
-a
-u
-w
-e
-c
-i
<enable|disable>
<User Name>
<Password>
<none|ifavail|always|implicit>
<enable|disable>
<Certificate File Name>
Set smtp server.
Set e-mail from address.
Set e-mail recipient port number. Port
options are 25, 465, 587, 2525, and 5000
to 32768.
Enable or disable authentication.
Set user name (authentication).
Set e-mail password (authentication).
Define when encryption is used.
Enable or disable certificate requirement.
Set the certificate file name.
Example:
apc> smtp
E000: Success
From:
Server:
Port:
Auth:
User:
Password:
Encryption:
Req. Cert:
Cert File:
Error Message: E000, E102
[email protected]
mail.example.com
25
disabled
User
<not set>
none
disabled
<n/a>
snmp
Access: Super User, Administrator
Description: Enable or disable SNMP version 1.
Option
Arguments
-S
<enable|disable>
-c[n]
<Community>
-a[n]
<read|write|writeplus|disable>
-n[n]
<IP or Domain Name>
[n] = Access Control # (1,2,3, or 4)
Description
Enable or disable SNMPv1.
Set community name for access control.
Set the access level.
Set NMS IP address for access control.
Example: To enable SNMP version 1, type:
apc> snmp -S enable
Error Message: E000, E102
User Manual for InfraStruxure PDU with NMC 2
33
snmpv3
Access: Super User, Administrator
Description: Enable or disable SNMP version 3.
Parameters:
Option
Arguments
Description
-S
-u[n]
-a[n]
<enable|disable>
<User Name>
<Auth Phrase>
-c[n]
-ap[n]
<Crypt Phrase>
<sha|md5|none>
Enable or disable SNMPv3.
Set user name for access control.
Set authentication pass phrase for access
control.
Set encryption phrase for access control.
Set authentication protocol for access
control.
Set encryption protocol for access control.
Enable or disable access control.
Set User Profile name for access control.
Set NMS IP address for access control.
-pp[n] <aes|des|none>
-ac[n] <enable|disable>
-au[n] <User Profile name>]
-n[n]
<Nms Ip>
[n] = Access Control # (1,2,3, or 4)
Example: To enable SNMP version 3, type:
apc> snmpv3 -S enable
Error Message: E000, E102
34
User Manual for InfraStruxure PDU with NMC 2
snmptrap
Access: Super User, Administrator
Description: Configure, enable, or disable SNMP trap generation.
Parameters:
Option
Argument
Description
-c[n]
-r[n]
-l[n]
-t[n]
-g[n]
<Community>
<Receiver NMS IP>
<Language>
<snmpV1|snmpV3>
<enable|disable>
-a[n]
<enable|disable>
Define the community name for trap receiver.
Enter the NMS IP address for trap receiver.
Enter the Language code for trap receiver.
Enter the trap type for trap receiver.
Enable or disable trap generation for trap
receiver.
Enable or disable trap authentication for trap
receiver.
Define user names for trap receiver.
-u[n]
<profile1|profile2|profile3
|profile4>
n = Trap receiver #(1,2,3,4,5 or 6)
Example:
apc> snmptrap
E000: Success
SNMP Trap Configuration
Index: 1
Receiver IP: xx.xxx.xxx.xx
Community: public
Trap Type: SNMPV1
Generation: enabled
Auth Traps: enabled
User Name: apc snmp profile 1
Language: enUs - English
Index: 2
Receiver IP: xx.xxx.xxx.xx
Community: public
Trap Type: SNMPV1
Generation: enabled
Auth Traps: disabled
User Name: apc snmp profile 1
Language: enUs - English
Error Message: E000, E102
User Manual for InfraStruxure PDU with NMC 2
35
system
Access: Super User, Administrator
Description: View and set the system name, contact, and location. View up time; date and time; your user
name; high-level system status P, N, A (see “CLI Home Screen” on page 7 for more information about system
status); and current versions of Bootmon, AOS, and application modules.
Parameters:
Option Argument
Description
-n
-c
-l
<system-name>
<system-contact>
<system-location>
-m
<system-message>
-s
<enable|disable>]
Define the device name, the name of the person responsible for
the device, and the physical location of the device.
NOTE: If you define a value with more than one word, you must
enclose the value in quotation marks.
These values are also used by StruxureWare and the NMC’s
SNMP agent.
When defined, a custom message will appear on the logon
screen for all users.
Allow the host name to be synchronized with the system name
so both fields automatically contain the same value.
NOTE: When enabling this feature, the system name identifier
can no longer contain a space character (since it will be
synchronized to the host name field).
Example 1: To set the device location as Test Lab, type:
system -l “Test Lab”
Example 2: To set the system name as Rack 5, type:
system -n “Rack 5”
Error messages: E000, E102
36
User Manual for InfraStruxure PDU with NMC 2
tcpip
Access: Super User, Administrator
Description: View and manually configure IPv4 settings for the InfraStruxure PDU:
Parameters:
Option
Argument
Description
-S
<enable|disable>
Enable or disable IPv4.
-i
<IP address>
Type the IP address of the unit, using the format xxx.xxx.xxx.xxx
-s
<subnet mask>
Type the subnet mask for the unit.
-g
<gateway>
Type the IP address of the default gateway. Do not use the
loopback address (127.0.0.1) as the default gateway.
-d
<domain name>
Type the DNS name configured by the DNS server.
-h
<host name>
Type the host name that the unit will use.
Example 1: To view the network settings of the unit, type tcpip and press ENTER.
apc> tcpip
E000: Success
Active IPv4 Settings
---------------------
Active IPv4 Address: 192.168.1.49
Active IPv4 Subnet Mask: 255.255.255.0
Active IPv4 Gateway: 192.168.1.1
Manually configured IPv4 Settings
---------------------------------
IPv4: enabled
Manual Settings: enabled
IPv4 Address: 192.168.1.49
Subnet Mask: 255.255.255.0
MAC Address: XX XX XX XX XX XX
Gateway: 192.168.1.1
Domain Name: example.com
Host Name: HostName
Example 2: To manually configure an IP address of 150.250.6.10 for the unit, type:
tcpip -i 10.179.229.50 -s 255.255.252.0 -g 10.179.228.1
Error messages: E000, E102
User Manual for InfraStruxure PDU with NMC 2
37
tcpip6
Access: Super User, Administrator
Description: Enable IPv6. View and configure IPv6 network settings for the InfraStruxure PDU.
Parameters:
Option
Argument
Description
-S
-i
-g
-man
-auto
-d6
<enable|disable>
<IPv6 address>
<IPv6 gateway>
<enable|disable>
<enable|disable>
<router|stateful
|stateless|never>
Enable or disable IPv6.
Set the manual IPv6 address of the unit.
Set the IPv6 address of the default gateway.
Enable manual addressing for the IPv6 address of the unit.
Enable the unit to automatically configure the IPv6 address.
Set the DHCPv6 mode, with parameters of router controlled,
stateful (for address and other information, they maintain their
status), stateless (for information other than address, the status
is not maintained), never.
Example 1: To view the network settings of the unit, enter
tcpip6
Example 2: To configure an IPv6 address of 2001:0:0:0:0:FFD3:0:57ab for the unit, enter:
tcpip6 -i 2001:0:0:0:0:FFD3:0:57ab
Error messages: E000, E102
38
-g <Valid IPv6 gateway>
User Manual for InfraStruxure PDU with NMC 2
user
Access: Super User, Administrator
Description: Configure the user name, password, and inactivity timeout for each account type. You can’t edit
a user name; you must delete it and then create a new user. For information on the permissions granted to
each account type, see “User account overview” on page 2.
Option
Argument
Description
-cp
<current password>
Required for Super User Account
-pw
<user password>
Specify the user password.
-pe
<Admninstrator|Device Set user permission.
|Read-Only|Network
Only>
-d
<user description>
Specify the user description.
-e
<enable|disable>
Enable or disable access for specified user.
-st
<session timeout>
Specify how many minutes a session lasts before logging
off a user when the keyboard is idle.
-sr
<enable|disable>
Bypass RADIUS by using the serial console (CLI)
connection, also known as Serial Remote Authentication
Override
-el
<enable|disable>
Enable or disable Event Log color coding.
-lf
<tab|csv>
Set the format for exporting a log file.
-ts
<us|metric>
Set the temperature scale, Fahrenheit or Celsius.
-df
<mm/dd/yyyy|
Set the date format.
dd.mm.yyyy|mmm-dd-yy|
dd-mmm-yy|yyyy-mm-dd>
-lg
<language code>
Set the user language(e.g. enUs).
-del
<user name>
Delete the specified user.
-l
n/a
Display the current user list.
Example 1: To change the Administrator user name to XYZ, type:
user -n XYZ
Example 2: To change the log off time to 10 minutes, type:
user -st 10
User Manual for InfraStruxure PDU with NMC 2
39
userdflt
Access: Super User, Administrator
Description: This command is a complimentary function to “user” establishing default user preferences.
There are two main features for the default user settings:
Determine the default values to populate in each of the fields when the Super User or Administrator-level
account creates a new user. These values can be changed before the settings are applied to the system.
For remote users (user accounts not stored in the system that are remotely authenticated such as RADIUS)
these are the values used for those that are not provided by the authenticating server. For example, if a
RADIUS server does not provide the user with a temperature preference, the value defined in this section will
be used.
Parameters:
40
Options
Argument
Description
-e
<enable|disable>
-pe
-d
-st
<Administrator|Device|Read-Only|
Network-Only>
<user description>
<session timeout>
-bl
<bad login attempts>
-el
-lf
-ts
<enable|disable>
<tab|csv>
<us|metrics>
-df
-lg
-sp
<mm/dd/yyyy|dd.mm.yyyy|mmm-dd-yy|
dd-mmm-yy|yyyy-mm-dd>
<language code>
<enable|disable>
By default, users will be enabled or
disabled upon creation.
Set the default permission level and
account type.
Provide a user description.
Provide a default session timeout
(minutes).
Number of incorrect login attempts a
user has before the system disables their
account. Upon reaching this limit, a
message is displayed informing the user
the account has been locked. The Super
User or an Administrator-level account is
needed to re-enable the account to allow
the user to log back in.
NOTE: A Super User account cannot be
locked out, but can be manually disabled
if necessary.
Enable or disable event log color coding.
Specify the log export format: tab or CSV.
Specify the user's temperature scale.
This setting is also used by the system
when a user preference is not available
(for example, e-mail notifications).
Specify the user's preferred date format.
-pp
<interval in days>
Set the user language (enUs, etc).
Enable or disable strong password
requirements.
Set the number of days between
required password changes.
User Manual for InfraStruxure PDU with NMC 2
Example:
apc> userdflt
E000: Success
Access: Disabled
User Permission: Administrator
User description: User Description
Session Timeout: 3 minutes
Bad Login Attempts: 0
Event Log color Coding: Enabled
Export Log Format: Tab
Temperature Scale: Metric
Date Format: mm/dd/yyyy
Language: English (enUs)
Strong Passwords: Disabled
Require Password Change: 0 day(s) (Disabled)
Error Message: E100, E102
User Manual for InfraStruxure PDU with NMC 2
41
web
Access: Super User, Administrator
Description: Enable access to the web interface using HTTP or HTTPS.
For additional security, you can change the port setting for HTTP and HTTPS to any unused port from 5000 to
32768. Users must then use a colon (:) in the address field of the browser to specify the port number. For
example, for a port number of 5000 and an IP address of 152.214.12.114, type:
http://152.214.12.114:5000
Parameters:
Option
Argument
Definition
-h
-s
<enable|disable>
<enable|disable>
Enable or disable access to the user interface for HTTP.
Enable or disable access to the user interface for HTTPS.
-ph
<http port #>
-ps
<https port #>
-mp
<SSL3.0|TLS1.0|TLS1.1|
TLS1.2>‘
When HTTPS is enabled, data is encrypted during
transmission and authenticated by digital certificate.
Specify the TCP/IP port used by HTTP to communicate
with the unit (80 by default). The other available range is
5000–32768.
Specify the TCP/IP port used by HTTPS to communicate
with the unit (443 by default). The other available range is
5000–32768.
Specify the minimum HTTPS protocol to use.
Example 1: To prevent all access to the web interface, type:
web -s disable
Example: To define the TCP/IP port used by HTTP, type:
apc> web
E000: Success
Http:
enabled
Https: disabled
Http Port:
5000
Https Port:
443
Minimum Protocaol: TLS1.1
apc> web -ph 80
E000: Success
Error Message: E000, E102
42
User Manual for InfraStruxure PDU with NMC 2
whoami
Access: Super User, Administrator, Device Only, Read Only
Description: Show the user name of the current user.
Parameters: None
Example:
apc> whoami
E000: Success
admin
Error Message: E000
xferINI
Access: Super User, Administrator
Description: Use XMODEM to upload an .ini file while you are accessing the CLI through a serial connection.
After the upload completes:
• If there are any system or network changes, the CLI restarts and you must log on again.
• If you selected a baud rate for the file transfer that is not the same as the default baud rate for the
InfraStruxure PDU, you must reset the baud rate to the default to reestablish communication with
the InfraStruxure PDU.
Parameters: None
Example:
apc> xferINI
Enter 'YES' to continue or <ENTER> to cancel : <user enters ‘YES’>
------- File Transfer Baud Rate-----------------------------1- 2400
2- 9600
3- 19200
4- 38400
> <user enters baudrate selection>
Transferring at current baud rate (9600), press <ENTER>...
<user presses <ENTER>>
Start XMODEM-CRC Transfer Now!
CC
<user starts sending INI>
150 bytes have successfully been transmitted.
apc>
Error Message: None
User Manual for InfraStruxure PDU with NMC 2
43
xferStatus
Access: Super User, Administrator
Description: View the result of the last file transfer. See “Verify Upgrades and Updates” on page 104 for
descriptions of the transfer result codes.
Parameters: None
Example:
apc> xferStatus
E000: Success
Result of last file transfer: Failure unknown
Error Message: E000
Device Command Descriptions
pdSts
Access: Super User, Administrator, Device User
Description: View detailed power distribution status.
Parameters:
Option
Description
-o
System output status
-i
System input status
-al
System alarm status
-br
System breakers status
Example: View the system output status.
apc> pdSts -o
E000: Success
L1–2 L2–3 L31 Units
---------------------------------------------------------
Voltage 209 208 209 V
L1 L2 L3Neutral Units
---------------------------------------------------------
Voltage 122 122 123 V
Curent 000 000 001 002 A
L1 L2 L3 Total Units
----------------------------------------------------------
Power 00.0 00.0 00.0 00.0 kW
Apparent Power 00.0 00.0 00.0 00.0 kVA
Power Factor 1.00 1.00 1.00 1.00
Frequency 60.0 Hz
Error Message: E102
44
User Manual for InfraStruxure PDU with NMC 2
pdOutThr
Access: Super User, Administrator, Device User
Description: Configure output thresholds. Outputs above or below the configured thresholds will generate
alarms.
Parameters:
Option
Argument
Description
-f
<0.0|0.2|0.5|1.0|
1.5|2.0|3.0|4.0|5.0|
9.0>
Set frequency deviation.
-uv
<Thresh>
Set under voltage threshold (-30 to -1%)
-ov
<Thresh>
Set over voltage threshold (1 to 30%)
-uil
<Thresh>
Set under current L threshold (1 to 100%)
-oil
<Thresh>
Set over current L threshold (1 to 110%)
-oin
<Thresh>
Set over current N threshold (1 to 110%)
NOTE: Input <Thresh> value as 0 to disable the alarm.
NOTE: Negative values are implied by option -uv; do not use a negative sign in the argument for
options -uv.
Example 1:
apc> pdOutThr
E000: Success
Frequency Thresh
Under Voltage Thresh
Over Voltage Thresh
Under Current L Thresh
Over Current L Thresh
Over Current N Thresh
:
:
:
:
:
:
Disabled
-20
12%
Disabled
80%
80%
Error Message: E102
User Manual for InfraStruxure PDU with NMC 2
45
pdInThr
Access: Super User, Administrator, Device User
Description: Configure input thresholds. Inputs above or below the configured thresholds will generate
alarms.
Parameters:
Option
Argument
Description
-uv
<Thresh>
Under voltage threshold (-30 to -1%)
-ov
<Thresh>
Over voltage threshold (1 to 30%)
-ub
<Thresh>
Under bypass threshold (-30 to -1% )
-ob
<Thresh>
Over bypass threshold (1 to 30%)
NOTE: Input <Thresh> value as 0 to disable the alarm.
NOTE: Negative values are implied by options -uv and -ub; do not use a negative sign in the
arguments for these options.
Example:
apc> pdInThr
E000: Success
Under Voltage Thresh: -10%
Over Voltage Thresh : 30%
Under Bypass Thresh : Not Installed
Over Bypass Thresh : Not Installed
Error Message: E102
pdBrkrSts
Access: Super User, Administrator, Device User
Description: View branch circuit breaker status.
Parameters:
Option
Argument
Description
-st
<pos#|p1|p2|p3|p4>
Display breaker status.
pos# indicates breaker position number
p# indicates panel number and shows status for entire panel:
• p1 for 1–41 (odd)
• p2 for 2–42 (even)
• p3 for 43–83 (odd)
• p4 for 44–84 (even)
Example:
apc> pdBrkrSts -st 1
E000: Success
Breaker Not Installed
Error Message: E102
46
User Manual for InfraStruxure PDU with NMC 2
pdBrkrCfg
Access:Super User, Administrator, Device User
Description: Add or delete circuit breakers.
Parameters:
Option 1 Argument
-add
-del
<pos#|p1|p2|p3|p4>
<pole#>
<Breaker rating>
<pos#|p1|p2|p3|p4>
Option 2 Argument
Description
-nm
<Name string>
Add breaker with name
-loc
<location
string>
Add breaker with location
-max
<Thresh>
Add breaker with
maximum threshold
-high
<Thresh>
Add breaker with high
threshold
-low
<Thresh>
Add breaker with low
threshold
-min
<Thresh>
Add breaker with
minimum threshold
n/a
n/a
Delete a breaker
• pos#: Breaker position number. To add a subfeed, append sub to pos#. If you install a subfeed in
position (31,33,35) or (37,39,41) or (32,34,36) or (38,40,42), enter SUB after the position number.
• p#: Panel number. Used to add/delete an entire panel: p1 for [1 to 41](Odd), p2 for [2 to 42](Even),
p3 for [43 to 83](Odd), p4 for [44 to 84](Even).
• pole#: Number of poles.
• Breaker rating: Enter a rating between 1A and 350A. For special panel connections, the following
may be entered:
ELCB (Earth Leakage Circuit Breaker)
NEUT (Neutral Connection)
• Threshold: Set <Thresh> value at 1-100%, or set at 0 to disable the threshold alarm
Example:
apc> pdBrkrCfg -del 1
E000 Success
Breaker group deleted (3 positions).
apc> pdBrkrCfg -add 1 3 150
E000: Success
***Breakers added with default configuration, use command pdBrkEdit
to modify the breaker information
apc> pdBrkrCfg -add 1 3 150 -nm brkr1 -loc loc1
E000 Success
***Addition of breaker done with the input configuration provided and
the rest of the parameters taken default
apc> pdBrkrCfg -add 1 3 150 -nm brkr1 -loc loc1 -min 20 -max 30 -high
80 -low 5
E000: Success
***Addition of breaker done with the input configuration provided and
the rest of the parameters taken default
Error Message: E102
User Manual for InfraStruxure PDU with NMC 2
47
pdBrkEdit
Access: Super User, Administrator, Device User
Description: Modify branch circuit breaker configuration.
Parameters:
Option
Argument
Description
-nm
<pos#> <Name string>
Configure breaker name
-loc
<pos#> <location string>
Configure breaker location
-rt
<pos#> <Breaker rating>
Configure breaker rating
-ith
<pos#> <max|high|low|min>
<Threshold>
Configure breaker threshold (1-100%). Set
threshold value to 0 to disable the threshold alarm.
NOTE: Breaker rating between 1A and 350A. For special panel connections, enter the following:
ELCB = Earth Leakage Circuit Breaker
NEUT = Neutral Connection
Example:
apc> pdBrkEdit -nm 1 Brkr1
E000: Success
Error Message: E102
envIc
Access: Super User, Administrator, Device User
Description: Configure Input contacts.
Parameters:
Option
Argument
Description
-st
<ic#>
Input contact information
-nm
<ic#> <name string>
Configure input contact name
-nor
<ic#> <open|closed>
Configure input contact normal state
NOTE: ic# = input contact of interest
Example: View Input contact status for Input Contact 1:
apc> envIc -st 1
Input Contact 1
---------------
Name : Input Contact1
State : Open
Normal State : Open
Error Message: E102
48
User Manual for InfraStruxure PDU with NMC 2
envOr
Access: Super User, Administrator, Device User
Description: Configure output relays.
Parameters:
Option
Argument
Description
-st
<or#>
Output relay status
-nm
<or#> <name string>
Configure Output relay name
-nor
<or#> <open|closed>
Configure Output relay normal state
or# = Output relay of interest
Example: View status for output relay 4:
apc> envOr -st 4
E000: Success
Output Relay 4
--------------
Name : Output Relay 4
Normal state : Closed
State : Open
Error Message: E102
User Manual for InfraStruxure PDU with NMC 2
49
envMap
Access: Super User, Administrator, Device User
Description: Enable or disable alarm mapping with output relays.
Parameters:
Option
Argument
Description
-l
<or#> <enable|disable>
Any load alarm
-ol
<or#> <enable|disable>
Overload alarm
-iv
<or#> <enable|disable>
Input voltage alarm
-ov
<or#> <enable|disable>
Output voltage alarm
-byp
<or#> <enable|disable>
PDU in bypass
-brk
<or#> <enable|disable>
Any breaker alarm
-ic1
<or#> <enable|disable>
Contact 1 alarm
-ic2
<or#> <enable|disable>
Contact 2 alarm
-ic3
<or#> <enable|disable>
Contact 3 alarm
-ic4
<or#> <enable|disable>
Contact 4 alarm
or# = Output relay of interest
Example:
apc> envMap
E000: Success
Alarm Status Relay1 Relay2 Relay3 Relay4
------------------------------------------------------------
Any Load Alarm Normal Disable Disable Disable
Overload Alarm Normal Enable Disable Disable
Input Voltage Alarm Normal Disable Disable Disable
Output Voltage Alarm Normal Disable Disable Disable
PDU in Bypass Normal Disable Disable Disable
Any Breaker Alarm Normal Disable Disable Disable
Contact 1 Normal Disable Disable Disable
Contact 2 Normal Disable Disable Disable
Contact 3 Normal Disable Disable Disable
Contact 4 Normal Disable Disable Disable
Error Message: E102
50
User Manual for InfraStruxure PDU with NMC 2
pduInfo
Access: Super User, Administrator, Device User
Description: Show PDU Information.
Parameters:
Option
Description
-dd
Display device details.
–abt
Display ISX-PDU information.
Example 1: View ISX-PDU information:
apc> pduInfo -abt
E000: Success
Serial Number : xxxxxxxxxxx
Manufacturer Date : 09/03/2015
Model Number : APxxx
Product Name : apcF3821D
Hardware Revision : 02
Firmware Revision : 01.02
Error Message: E102
User Manual for InfraStruxure PDU with NMC 2
51
The Web Interface
Supported Web browsers
To access the web interface on Windows® operating systems, use Microsoft® Internet Explorer® (IE) 8.x or
higher (with compatibility view turned on), or the latest release of Microsoft Edge®. To access the web interface
on any operating system, use the latest releases of Mozilla®, Firefox®, or Google Chrome®. Other commonly
available browsers also may work but have not been fully tested by Schneider Electric. The InfraStruxure PDU
cannot work with a proxy server. Before accessing the Web interface of the PDU, do one of the following:
• Configure the browser to disable the use of a proxy server for your PDU.
• Configure the proxy server so that it does not proxy the specific IP address of your PDU.
Log on
Use the DNS name or System IP address of the unit for the URL address of the web interface. Use your casesensitive user name and password to log on.
The default user name differs by account type:
• apc for the Super User
• device for a Device User
• readonly for a Read-Only User
The Super User or an Administrator created by the Super User should define the user names, passwords, and
other account characteristics for the lower tier users.
If you are using HTTPS (SSL/TLS) as your access protocol, your logon credentials are compared with
information in a server certificate. If the certificate was created with the APC Security Wizard, and an IP
address was specified as the common name in the certificate, you must use an IP address to log on to the unit.
If a DNS name was specified as the common name on the certificate, you must use a DNS name to log on.
URL address formats: Type the unit DNS name or IP address in the web browser and press ENTER. When
you specify a non-default web server port in Internet Explorer, you must include http:// or https:// in the URL.
Common browser error messages at log-on
Error Message
Browser
Cause of the Error
“This page cannot be displayed.”
Internet Explorer
“Unable to connect.”
Firefox
Web access is disabled,
or the URL was incorrect
URL format examples
• For a DNS name of Web1:
– http://Web1 if HTTP is your access mode
– https://Web1 if HTTPS (HTTP with SSL/TLS) is your access mode
• For a System IP address of 139.225.6.133 and the default web server port (80):
– http://139.225.6.133 if HTTP is your access mode
– https://139.225.6.133 if HTTPS (HTTP with SSL/TLS) is your access mode
• For a System IP address of 139.225.6.133 and a non-default web server port (5000):
– http://139.225.6.133:5000 if HTTP is your access mode
– https://139.225.6.133:5000 if HTTPS (HTTP with SSL/TLS) is your access mode
52
User Manual for InfraStruxure PDU with NMC 2
• For a System IPv6 address of 2001:db8:1::2c0:b7ff:fe00:1100 and a non-default web server port
(5000):
http://[2001:db8:1::2c0:b7ff:fe00:1100]:5000 if HTTP is your access mode
Web interface features
Read the following to familiarize yourself with basic web interface features for your unit.
General information: The following information is located in the upper right corner of each page:
• User name (select to change user preferences)
• Language (if available, select to change language preference)
• Log Off (select to log off of the web interface)
• Help (select to view help contents)
•
(click to set the current web page as the home page)
to revert to displaying the Home screen when you log on.
NOTE: Click
Device status icons: One or more icons and accompanying text indicate the current operating status of the
unit. These are displayed on the Home page and in the upper-right corner of every page to indicate the status
of the PDU. Critical and Warning icons are followed by the number of active alarms of each severity.
Critical: A critical alarm exists, which requires immediate action.
Warning: An alarm condition requires attention and could jeopardize data or equipment if its cause
is not addressed.
No Alarms Present: The unit is operating normally.
Quick links: At the lower left on each page, there are three configurable links. You can also
navigate to the Quick Links page: Configuration > General > Quick Links.
• Link 1: The home page of the APC by Schneider Electric web site
• Link 2: Demonstrations of Schneider Electric web-enabled products.
• Link 3: Information on Schneider Electric Remote Monitoring Services.
Tabs: Select a tab to display listed menus and sub-menus:
• Home: This is the default tab when you log on. (To change the login page to a different page, click
the push-pin button
at the top right of the browser window while on the desired page). View
active alarms; voltage, current, and power; and the most recent device events. See “Home Page”
on page 56 for more information.
• Status: Gives the user the status of the Power Distribution and Network. The Power
Distribution menu covers the status of Active Alarms and the Main PDU. Main PDU covers more
information which will be described in “Status Tab” on page 57. The Network menu covers just
the network. See “Status Tab” on page 57 for more information.
• Control: The Control tab covers Security and Network. Much more information is covered
under each of these menus and will be described in “Control Tab” on page 60.
• Configuration: The Configuration tab covers Power Distribution, Contacts/Relays, Security,
Network, Notification, General and Logs. Much more information is covered under each of
these menus and will be described in the “Configuration Tab” on page 61.
• Tests: The Tests tab covers Network. The Network menu covers LED Blink.
User Manual for InfraStruxure PDU with NMC 2
53
• Logs: The Logs section covers NMC Log, Data Log, and Firewall. The NMC Log and Data Log
menus cover more information which will be further discussed in the “Logs Tab” on page 89.
• About: The About tab covers Power Distribution, Network and Support. See “About Tab” on
page 94 for more information.
54
User Manual for InfraStruxure PDU with NMC 2
Device menu tree
Power Distribution
Control
Security
Active Alarms
Session Management
Main PDU
Network
Panel Output
Reset/Reboot
Main Input
Input Breakers
Bypass Status (type B PDU) or
Main Output Breaker (type C PDU)
Network
Network
Configuration
Tests
Logs
Power Distribution Network
NMC Log
Main PDU
Alarm Setup
Branch Circuits
01..41 (odd)
02..42 (even)
43..83 (odd)
44..84 (even)
Add Breakers
Add Sub-Feed
Global Thresholds
Global Delete
LED Blink
Log
Reverse Lookup
Size
About
Power Distribution
Network
Support
Log
Interval
Rotation
Size
Firewall
Contacts/Relays
Input Contacts
Output Relays
Alarm Relay Map
Security
Session Management
Ping Response
Local Users
Management
Default Settings
Remote Users
Authentication
RADIUS
Firewall
Configuration
Active Policy
Active Rules
Create/Edit Policy
Load Policy
Test
Network
TCP/IP
IPv4 Settings
IPv6 Settings
Port Speed
DNS
Configuration
Test
Web
Access
SSL Certificate
Console
Access
SSH Host Key
SNMPv1
Access
Access Control
SNMPv3
Access
User Profiles
Access Control
FTP Server
Notification
Event Actions
By Event
By Group
E-mail
Server
Recipients
SSL Certificates
Test
SNMP Traps
Trap Receivers
Test
pdx1154b
Home Status
General
Identification
Date/Time
Mode
Daylight Savings
Logs
Syslog
Servers
Settings
Test
User Manual for InfraStruxure PDU with NMC 2
55
Home Page
The Home page contains the following information: Active Alarms, Load information (voltage, current, and
power), and Recent Device Events. Active Alarms will show if any alarms exist. If no alarms exist, a green
check mark with the words “No Alarms Present” will show. If you want to see more events, select the More
Events link at the bottom of the list to view the Event Log, which lists the most recent events by Date, Time,
User and Event.(See “NMC log/event log” on page 89 for more information.)
56
User Manual for InfraStruxure PDU with NMC 2
Status Tab
Select Power Distribution to view the status of the unit and its breakers. Select Network to view the current
IPv4, IPv6 settings, Domain Name System Status, and Port Speed
User Manual for InfraStruxure PDU with NMC 2
57
View power distribution Status
Path: Status > Power Distribution
> Active Alarms: Lists active device alarms by severity.
> Main PDU > Panel Output: If an alarm caused by voltage or current variation exists, a status icon
and accompanying text display at the top of the page.
Measurement
Description
Frequency
Total Power
Total Apparent
Power
Total Power Factor
The frequency, in Hz, of the output
The active power, in kW, provided for the total of three phases
The apparent power, in kVA, provided for the total of three phases.
Neutral Current
The ratio between active power and apparent power (kW/kVA) for all
three phases. This ratio affects the power available to the load
The load supported by the neutral line, in A
Output Measurements
Voltage
Current
Power
Apparent Power
Power Factor
The phase-to-phase output voltage (e.g., L1-2 for phase L1 to phase
L2) and the phase-to-neutral output voltage (e.g., L1 for phase 1 to
neutral)
The load, in A, supported by each phase
The active power, in kW, provided for each phase
The apparent power, in kVA, provided for each phase
The ratio between active power and apparent power (kW/kVA) for
each phase. This ratio affects the power available to the load
> Main PDU > Main Input: Shows Main Voltage, the phase-to-phase input voltage (e.g., L1-2 for phase L1
to phase L2) for a 3-wire connection, or the phase-to-neutral voltage (e.g., L1 for phase 1 to neutral) for a
4-wire connection. If an alarm caused by voltage or current variation exists, a status icon and accompanying
text display at the top of the page.
> Main PDU > Input Breakers
Setting
Description
Main Input Breaker When the PDU is operating normally, this breaker is closed.
Bypass Breaker
When the PDU is operating normally, this breaker is closed. The
Bypass Input Switch is available on select PDU models only, and it
provides a connection for a second power source
Cross Tie Breaker When the PDU is operating normally, this breaker is closed. The
output of this breaker feeds the Bypass Input Switch of another PDU.
This feature is available on select PDU models only.
> Main PDU > Bypass Status (type B PDU)
58
Setting
Description
UPS Input Breaker
(Q1)
UPS Output
Breaker (Q2)
Maintenance
Bypass (Q3)
When the PDU is operating normally, this breaker is closed. During
Maintenance Bypass Operation, this breaker is open
When the PDU is operating normally, this breaker is closed. During
Maintenance Bypass Operation, this breaker is open
When the PDU is operating normally, this breaker is open. During
Maintenance Bypass Operation, this breaker is closed
User Manual for InfraStruxure PDU with NMC 2
> Main PDU > Main Output (type C PDU)
Setting
Description
Main output
breaker
When the PDU is operating normally, this breaker is closed. During
Maintenance Bypass Operation, this breaker is open
View network status
Path: Status > Network
> Network
Setting
Description
Current IPv4 Settings
System IP
Subnet Mask
Default Gateway
MAC Address
Mode
DHCP Server*
Lease Acquired*
Lease Expires*
The IP address of the unit
The IP address of the sub-network
The IP address of the router used to connect to the network
The Media Access Control address of the unit
How the IPv4 settings are assigned: Manual, DHCP, or BOOTP
The IP address of the DHCP server.
The date/time that the IP address was accepted from the DHCP
server.
The date/time the IP address from the DHCP server expires and will
need to be renewed.
Current IPv6 Settings
Type
IP Address
Prefix Length
How the IPv6 settings are assigned
The IP address of the unit
The range of addresses for the sub-network
Domain Name System Status
Active Primary
DNS Server
The IP address of the primary DNS server
Active Secondary
DNS Server
Active Host Name
Active Domain
Name (IPv4/IPv6)
Active Domain
Name (IPv6)
The IP address of the secondary DNS server
The host name of the active DNS server
The IPv4/IPv6 domain name that is currently in use
The IPv6 domain name that is currently in use
Port Speed
Current Speed
The current speed assigned to the Ethernet port
*These fields are only displayed if the Mode is DHCP.
User Manual for InfraStruxure PDU with NMC 2
59
Control Tab
The Control tab options enable you manage active users and the security of your network.
Manage user sessions
Path: Control > Security
> Session Management: The Session Management menu displays all users currently connected to the
unit. Select a user name to open the Session Details screen, which displays basic information about the user
including the user name, the interface they are logged into, their IP address, and their authentication type. To
end a user’s session, click the Terminate Session button.
Reset the network interface
Path: Control > Network
> Reset/Reboot: This menu gives you the option to reset and reboot various components of the network
interface.
Setting
Description
Reboot
Management
Interface
Reset All
Restart the PDU’s network interface, but not the PDU. This function
does not affect the ON/OFF status of the PDU.
Reset Only
Clear the Exclude TCP/IP check box to reset all configuration
values; select the Exclude TCP/IP check box to reset all values
except TCP/IP.
Resetting may take up to a minute. Options include
• TCP/IP settings: Set TCP/IP Configuration to DHCP, its default
setting, which requires the InfraStruxure PDU to receive its TCP/IP
settings from a DHCP or BOOTP server. See “View the result of the
test DNS in the Last Query Response field.”
• Event configuration: Reset all changes to event configuration, by
event and by group, to their default settings.
Click Apply to save your changes or Cancel to leave without saving.
60
User Manual for InfraStruxure PDU with NMC 2
Configuration Tab
Use the Configuration tab to change PDU settings.
Configure alarm thresholds
Path: Configuration > Power Distribution > Main PDU> Alarm Setup
For each measurement, a value below the Low threshold or above the High threshold generates an alarm.
Select Input Thresholds or Output Thresholds to configure alarms:
Setting
Description
Input Thresholds
Input Voltage L-L
The acceptable range for the voltage entering the PDU
Output Thresholds
Output Voltage (LN)
Output Current
High Neutral
Current
Frequency Range
The acceptable range for the voltage that the PDU provides to the
load
The acceptable range for the output current. The PDU monitors the
output current on each phase, and a threshold violation on any
phase generates an alarm
The acceptable range for the current on the output neutral line
The acceptable frequency variation for the output current, in Hertz
(Hz).
User Manual for InfraStruxure PDU with NMC 2
61
Configure branch circuit breaker settings
Path: Configuration > Power Distribution
> Branch Circuits: To view branch circuit breaker settings, select a group of circuit breakers (01..41 [odd],
02..42 [even], 43..83 [odd], or 44..84 [even]). The following information is displayed for each group:
Setting
Description
Position
The position of the breaker on the circuit breaker panel. Position
numbers correspond to numbers on the physical breaker panel
The rating of the breaker in Amperes (A). For special connections,
enter ELCB (for Earth Leakage Circuit Breakers) or NEUT (for
Neutral Connections).
The state of the breaker.
• Normal: The breaker is operating normally.
• Warning: The low or high rating threshold has been violated.
• Critical: The minimum or maximum rating threshold has been
violated.
A descriptive name for the breaker
The measured current of the breaker in A
A user-configured description of the location of the breaker (for
example, the physical location of the PDU in which it is installed)
Branch Rating
Status
Name
Current
Location
To edit the branch rating, name, or location of a breaker:
1. Select the Branch Rating, Name, or Location of the breaker. A configuration page opens.
2. Type your changes in the appropriate text fields.
3. Click Apply to save, Delete Group to delete the breaker group, or Cancel to leave the page
without saving.
To edit threshold settings for a breaker:
1. Select the Branch Rating, Name, or Location of the breaker group. A configuration page opens.
2. Select Percent Rating. A configuration page opens.
3. Select or clear the check box for each threshold to define whether that threshold will generate
breaker alarms. Define each threshold as a percentage of the rated current.
4. Click Apply to save or Cancel to leave the page without saving.
62
User Manual for InfraStruxure PDU with NMC 2
> Add Breakers
Setting
Description
Panel Position
Type in the breaker’s position number. This value is listed on the
circuit breaker panel
Select the number of poles in the breaker from the drop-down menu.
For a branch breaker, valid values are 1-pole, 2-pole, or 3-pole.
Select the value that matches the type of load (1-phase, 2-phase, or
3-phase) that is receiving power.
Number of Poles
Breaker Rating
Breaker
Identification
Branch Current
Thresholds
Set the rating of this breaker, in A. For special connections, enter
ELCB (for Earth Leakage Circuit Breakers) or NEUT (for Neutral
Connections).
Type a descriptive Name and Location (up to 19 characters each)
for the breaker. If you have added a neutral connection or Earthleakage circuit breaker, you can identify it here.
Select any Enable check box to generate an alarm when the electric
current violates the Maximum, High, Low, or Minimum threshold.
Clear any check box to disable the associated alarm. Define each
threshold as a percentage of the Breaker Rating
Click Add Branch Breaker to save or Cancel to leave the page without saving.
> Add Sub-Feed
Setting
Description
Panel Position
Select the three numbers that match the selected panel’s sub-feed
position. These values are listed on the breaker panel.
For sub-feed breakers, 3-pole is the only valid value
Set the rating of this breaker in A
Type a descriptive Name and Location (up to 19 characters each)
for the breaker
Select the Enable check box to generate an alarm when the electric
current violates a threshold, or clear the check box to disable alarms.
Define each threshold as a percentage of the Breaker Rating.
Number of Poles
Breaker Rating
Breaker
Identification
Branch Current
Thresholds
Click Add Sub-Feed to save, or Cancel to leave the page without saving.
> Global Thresholds: Change threshold settings for all branch circuit breakers
1. Select the check box associated with a threshold to apply this configuration to all of the branch
breakers, or clear the check box to disable threshold configuration.
2. Define the Maximum, High, Low, and Minimum thresholds as a percentage of the rated current.
3. Click Apply to save or Cancel to leave the page without saving.
> Global Delete: Delete all branch circuit breaker settings
Select the check box for each range of breakers you want to delete. Click Delete All Checked to delete the
breakers or Cancel to undo your changes.
User Manual for InfraStruxure PDU with NMC 2
63
Configure contacts and relays
Path: Configuration > Contacts/Relays
> Input Contacts: View and configure input contacts
View the name of each input contact, its alarm status (Normal, Warning, or Critical), and its current state (Open
or Closed). Up to 4 inputs can be connected to the PDU. Select a contact Name to open its configuration page.
Setting
Description
Name
Alarm Status
Type a descriptive user name (up to 14 characters).
When the input contact is not in a Normal State, an alarm will be
generated.
Shows whether the input contact is open or closed at this moment.
Select whether the input contact is open or closed when the PDU is
operating normally.
State
Normal State
Click Apply to save or Cancel to leave the page without saving.
> Output Relays: View the state (open or closed) of all 4 output relays. To configure an output relay
1. Select an output relay’s Name to open its configuration page.
2. In the Name field, type a descriptive name (up to 14 characters).
3. Under Normal State, select Open or Closed. See “> Alarm Relay Map:” on this page to define
alarms that will cause the relay to change from its normal state.
4. Click Apply to save or Cancel to leave the page without saving.
> Alarm Relay Map: Use the alarm relay map to set actions that will cause a relay to change its state. To
configure a relay to react to an alarm condition, select the check box that corresponds to the alarm condition
and the relay:
Setting
Description
Any Load
Change the relay state when an over-current or under-current alarm
is detected for a circuit breaker panel or branch circuit.
Overload
Change the relay state when an over-current alarm is detected for a
circuit breaker panel, branch circuit, or system ground.
Input Voltage
Change the relay state when an input voltage alarm is active.
Output Voltage
Change the relay state when an output voltage alarm is active.
PDU in Bypass
Change the relay state when the Q3 breaker on the PDU is closed.
Any Breaker
Change the relay state when the input, bypass input, or cross-tie
output breaker is not in its normal state, or a system state alarm
(such as System Off, On Battery Only, Bypass Alarm, No Panel
Feed, Bypass Alarm, or Forced Bypass) is active.
Contact 1–4 Alarms Change the relay state when the input is not in its normal state.
Click Apply to save or Cancel to leave the page without saving.
64
User Manual for InfraStruxure PDU with NMC 2
Manage user sessions, ping response, and user accounts
Path: Configuration > Security
> Session Management
• Allow Concurrent Logins: Select Enable to let two or more users log on at the same time. Each
user has equal access and each interface (HTTP, FTP, telnet console, serial console, etc.) counts
as a logged-in user.
• Remote Authentication Override: RADIUS storage of passwords on a server is supported.
However, if you enable this override, the unit will allow a local user to log on using locally stored
password on the unit. For more information on RADIUS, see “Manage remote access to the web
interface” on page 68.
> Ping Response: Select the Enable check box for IPv4 Ping Response to allow the unit to respond to
network pings. Clear the check box to disable a unit response. This does not apply to IPv6.
> Local Users > Management: The Super User or an Administrator can set access permissions for other
users. Select a User Name to configure individual user settings, or click Add User to create a new account.
• Access: Select the Enable check box to allow access to the web interface.
• User name: User names are case sensitive and can be up to 10 characters long.
• Password, New Password, and Confirm Password: Passwords are case sensitive and can be
up to 32 characters long. Blank passwords are not allowed. To change an Administrator/Super
User setting, you must enter all three password fields.
NOTE: Values greater than 64 bytes in User Name and Password fields may be truncated.
• User Type: Levels of access are protected by user name and password requirements. During
authentication, the user's credentials are compared against the Local User Database and/or are
validated against a RADIUS server (depending on configuration). If valid, access with appropriate
permissions is granted.
NOTE: This option is only available on the Add User configuration page.
User Type
Default User Name
Interface Access
Read/Write permission
Administrator
apc
web and
command line
Read/write for all menus
Device
device
web and
command line
Read/write for device-related
menus authorized by Super
User or Administrator
Read-Only
readonly
web only
Read-only for device-related
menus authorized by Super
User or Administrator
Network-Only
n/a
web and
command line
Read/write for network
menus
• User Description: Type additional identification details in this field.
User Manual for InfraStruxure PDU with NMC 2
65
• Session Timeout: Set the time (3 minutes by default) that the PDU waits before logging off an
inactive user. If you change this value, you must log off for the change to take effect.
NOTE: This timer continues to run if a user closes the browser window without first logging off by
clicking Log Off on the upper right of your screen. Because that user is still considered to be
logged on, no user can log on until the specified timeout (minutes of inactivity) expires. For
example, with the default Session Timeout (3 minutes), if a user closes the browser window
without logging off, no user can log on for 3 minutes.
• Serial Remote Authentication Override: Select the Enable check box to allow the user to
bypass RADIUS by using the serial console (CLI) connection. This screen enables Serial Remote
Authentication Override for the selected user, but it must also be enabled globally to work, (see
“Manage user sessions, ping response, and user accounts” on page 65).
> Local Users > Default Settings: Determine the default values to populate in each field when the Super
User or Administrator-level account creates a new user. These values can be changed before the settings are
applied to the system.
• Access: Select the Enable check box to allow access to the web interface.
• User Type: Levels of access are protected by user name and password requirements. During
authentication, the user's credentials are compared against the Local User Database and/or are
validated against a RADIUS server (depending on configuration). If valid, access with appropriate
permissions is granted.
User Type
Default User Name
Interface Access
Read/Write permission
Administrator
apc
web and
command line
Read/write for all menus
Device
device
web and
command line
Read/write for device-related
menus authorized by Super
User or Administrator
Read-Only
readonly
web only
Read-only for device-related
menus authorized by Super
User or Administrator
Network-Only
n/a
web and
command line
Read/write for networkrelated menus
• User Description: Type the user description in the box.
• Session Timeout: Configure the time (3 minutes by default) that the PDU waits before logging off
an inactive user.
• Bad Login Attempts: Set the number of failed login attempts the user can have (0 to 99
attempts; 0 = unlimited).
66
User Manual for InfraStruxure PDU with NMC 2
User Preferences
• Event Log Color Coding: Select the check box to enable color-coding of alarm text recorded in
the event log. System event entries and configuration change entries do not change color.
Text Color
Alarm Severity
Critical: A critical alarm exists, which requires immediate
Orange
action.
Warning: An alarm condition requires attention and could
Yellow
jeopardize your data or equipment if its cause is not
addressed.
Alarm Cleared: The conditions that caused the alarm have
Green
improved.
Normal: No alarms are present. The PDU and all
connected devices are operating normally.
Black
• Export Log Format: Configure which format the event log should be displayed in when exported
(downloaded). Tab (default) allows fields to be tab-delimited whereas CSV is comma-separated.
• Temperature scale: Select the temperature scale, US Customary (Fahrenheit) or Metric
(Celsius), in which to display all temperature measurements in this user interface.
• Date Format: Select the numerical format in which to display all dates in this user interface. Each
letter—m (for month), d (for day), and y (for year)—represents one digit. Single-digit days and
months are displayed with a leading zero.
Password Requirements
• Strong Passwords: When enabled, new passwords require at least one lowercase character,
one uppercase character, one number, and one symbol.
• Password Policy: Enter the number of days after which users will be required to change their
passwords. A value of 0 days disables this feature.
User Manual for InfraStruxure PDU with NMC 2
67
Manage remote access to the web interface
Path: Configuration > Security > Remote Users
> Authentication: Specify how you want remote users to be authenticated at log on. Schneider Electric
supports the authentication and authorization functions of RADIUS (Remote Access Dial-In User Service).
• When a user accesses a PDU that has RADIUS enabled, an authentication request is sent to the
RADIUS server to determine the user’s permission level.
• RADIUS user names used with the PDU are case-sensitive, and have a 64 byte maximum,
supporting up to 64 ASCII characters; less for multi-byte languages. Passwords with no
characters (blank passwords) are not allowed.
Select one of the following:
Setting
Description
Local
RADIUS is disabled. Local authentication is enabled. For information
Authentication Only about local authentication (not using the centralized authentication of
a RADIUS server), see the Security Handbook, available at
www.apc.com.
RADIUS, then
RADIUS and local authentication are enabled. Authentication is
Local
requested from the RADIUS server first. If the RADIUS server fails to
Authentication
respond, local authentication is used.
RADIUS Only
RADIUS is enabled. Local authentication is disabled.
NOTE: If RADIUS Only is selected and the RADIUS server is unavailable, improperly
identified, or improperly configured, you must use a serial connection to the CLI and
change the Access setting to Local Authentication Only or RADIUS, then Local
Authentication to regain access. See “Manage user sessions, ping response, and user
accounts” on page 65 to enable users to override RADIUS authentication in the case of an
unresponsive server.
> RADIUS: Specify up to two properly configured RADIUS servers. To add a server, click Add Server. To
modify an existing server, select the server name.
Setting
Description
RADIUS Server
Port
The name or IP address of the RADIUS server
The port (1812 by default) that the RADIUS server listens on
NOTE: You can change the port setting to any unused port from
5000 to 32768.
Secret
The shared secret between the RADIUS server and the
InfraStruxure PDU.
Reply Timeout
The time (in seconds) the PDU waits for a response from the
RADIUS server.
Test Settings
Enter the Administrator user name and password to test the RADIUS
server path that you have configured.
Skip Test and Apply Do not test the RADIUS server path (not recommended).
Switch Server
Change which RADIUS server will authenticate users if two
Priority
configured servers are listed and RADIUS, then Local
Authentication or RADIUS Only is the enabled authentication
method.
68
User Manual for InfraStruxure PDU with NMC 2
Summary of the Configuration Procedure: You must configure your RADIUS server to work with the
PDU. For examples of the RADIUS users file with the Vendor Specific Attributes (VSAs) and an example of an
entry in the dictionary file on the RADIUS server, see the Security Handbook (available online at
www.apc.com).
1. Add the IP address of the unit to the RADIUS server client list (file).
2. Users must be configured with Service-Type attributes unless Vendor Specific Attributes (VSAs)
are defined. If no Service-Type attributes are configured, users will have read-only access (on the
web interface only).
NOTE: See your RADIUS server documentation for information about the RADIUS users file.
3. Vendor Specific Attributes (VSAs) can be used instead of the Service-Type attributes provided by
the RADIUS server. VSAs require a dictionary entry and a RADIUS users file. In the dictionary
file, define the names for the ATTRIBUTE and VALUE keywords, but not for the numeric values.
If you change numeric values, RADIUS authentication and authorization will fail. VSAs take
precedence over standard RADIUS attributes.
Configure a RADIUS server on UNIX® with shadow passwords
If UNIX shadow password files are used (/etc/passwd) with the RADIUS dictionary files, the following methods
can be used to authenticate users:
– If all UNIX users have administrative privileges, add the following to the RADIUS “user” file. To
allow only Device Users, change the Service-type to Device.
DEFAULTAuth-Type = System
APC-Service-Type = Admin
– Add user names and attributes to RADIUS “user” file. Verify passwords against /etc/
passwd. The following example is for users bconners and thawk:
bconnersAuth-Type = System
APC-Service-Type = Admin
thawkAuth-Type = System
APC-Service-Type = Device
Supported RADIUS servers
FreeRADIUS v1.x and v2.x, and Microsoft Server 2008 and 2012 Network Policy Server (NPS) are supported.
Other commonly available RADIUS applications may work, but may not have been fully tested.
User Manual for InfraStruxure PDU with NMC 2
69
Firewall
Path: Configuration > Security > Firewall
A configurable network firewall is provided. The firewall can allow or deny network traffic to and from the
device, based on user-configured rules that are ordered by priority. A sample firewall policy (.fwl) is provided in
the file system for reference. It is available for download via FTP or SCP from the /fwl directory of the file
system. In the web interface, you can use the firewall policy editor to create or edit a custom firewall policy.
NOTE: The firewall is disabled by default.
> Configuration: Enable or disable the overall firewall functionality. Any configured policy is also listed, even
if the firewall is disabled.
> Active Policy: Select an active policy from the available firewall policies and view policy validity.
> Active Rules: When a firewall is enabled, this lists the individual rules that are being enforced by a current
active policy. You can add rules, delete rules, or edit existing rules here.
> Create/Edit Policy: Create a new policy or edit an existing one. Multiple firewall policies can be stored, but
only one policy can be active at once.
> Load Policy: Load a policy (with the .fwl suffix) from a source external to this device.
NOTE: When a firewall is enabled and a custom policy file is applied, the policy is checked for syntax errors. If
an error is found, the policy will not be loaded.
> Test: Test and verify a custom firewall policy by specifying a number of minutes to enforce the rules of the
chosen policy. It is recommended that a firewall policy is tested before it is applied to a production environment.
70
User Manual for InfraStruxure PDU with NMC 2
Configure network settings
Path: Configuration > Network
> TCP/IP > IPv4 Settings: View the current IPv4 address, subnet mask, default gateway, MAC address, and
boot mode of the unit. For information on DHCP and BOOTP options, see RFC2131 and RFC2132.
Configure the following IPv4 Settings
Setting
Description
Enable
Manual
Select the check box to enable IPv4
Configure IPv4 manually by entering the IP address, subnet mask,
and default gateway.
A BOOTP server provides the TCP/IP settings. At 32-second
intervals, the unit requests network assignments from any BOOTP
server:
• If the unit receives a valid response, it starts the network services.
• If the unit finds a BOOTP server, but a request to that server fails or
times out, the unit stops requesting network settings until it is
restarted.
• By default, if previously configured network settings exist, and the
unit receives no valid response to five requests (the original and
four retries), it uses the previously configured settings so that it
remains accessible.
BOOTP
Click Next>> to access the BOOTP Configuration page and change
the number of retries allowed or the action to take if all retries fail:
• Maximum retries: Enter the number of retries that will occur when
no valid response is received, or zero (0) for an unlimited number of
retries.
• If retries fail: Select Use prior settings (the default) or Stop
BOOTP request.
DHCP
NOTE: The default values for these three settings on the
configuration pages generally do not need to be changed:
• Vendor Class: APC
• Client ID: The MAC address of the NMC, which uniquely identifies
it on the local area network (LAN)
• User Class: The name of the application firmware module
The default setting. At 32-second intervals, the PDU requests
network assignments from any DHCP server.
• If the PDU receives a valid response, it does not (as previously)
require the APC cookie from the DHCP server in order to accept the
lease and start the network services.
• If the PDU finds a DHCP server, but the request to that server fails
or times out, it stops requesting network settings until it is restarted.
• Require vendor specific cookie to accept DHCP Address:
Select this check box to require the DHCP server to provide a
cookie, which supplies information to the InfraStruxure PDU.
User Manual for InfraStruxure PDU with NMC 2
71
DHCP response options
Each valid DHCP response contains options that provide the TCP/IP settings the unit needs to operate on a
network, and other information that affects the operation of the unit.
Vendor Specific Information (option 43): The unit uses this option in a DHCP response to determine
whether the DHCP response is valid. This option contains an APC-specific option in a TAG/LEN/DATA format,
called the APC Cookie. This is disabled by default.
• APC Cookie. Tag 1, Len 4, Data “1APC”
Option 43 communicates to the InfraStruxure PDU that a DHCP server is configured to service devices.
Following, in hexadecimal format, is an example of a Vendor Specific Information option that contains the APC
cookie:
• Option 43 = 0x01 0x04 0x31 0x41 0x50 0x43
TCP/IP options: The unit uses the following options within a valid DHCP response to define its TCP/IP
settings. All of these options except the first are described in RFC2132.
Option
Description
IP Address
From the yiaddr field of the DHCP response, described in RFC213:
The IP address that the DHCP server is leasing to the unit
The Subnet Mask value that the unit needs to operate on the network
Subnet Mask
(option 1)
Router, i.e., Default
Gateway (option 3)
IP Address Lease
Time (option 51)
Renewal Time, T1
(option 58)
Rebinding Time, T2
(option 59)
The default gateway address that the unit needs to operate on the
network
The time duration for the lease of the IP Address to the unit
The time that the unit must wait after an IP address lease is assigned
before it can request a renewal of that lease
The time that the unit must wait after an IP address lease is assigned
before it can seek to rebind that lease
Other options: The unit also uses these options within a valid DHCP response. All of these options, except
Boot File Name, are described in RFC2132.
72
Option
Description
Network Time
Protocol Servers
(option 42)
Time Offset (option
2)
Domain Name
Server (option 6)
Host Name (option
12)
Domain Name
(option 15)
Boot File Name
Up to two NTP servers (primary and secondary) the unit can use
The offset of the unit subnet, in seconds, from Coordinated Universal
Time (UTC)
Up to two Domain Name System (DNS) servers (primary and
secondary) the unit can use
The host name the unit will use (32-character maximum length)
The domain name the unit will use (64-character maximum length)
From the file field of the DHCP response, described in RFC2131:
The fully qualified directory-path to a user configuration file (.ini file)
to download. The siaddr field of the DHCP response specifies the IP
address of the server from which the InfraStruxure PDU will
download the .ini file. After the download, the .ini file is used as a
boot file to reconfigure the settings.
User Manual for InfraStruxure PDU with NMC 2
> TCP/IP > IPv6 settings: Configure the following IPv6 settings:
Setting
Description
IPv6
Manual
Configuration
Auto Configuration
Enable or disable IPv6 with this check box.
Select the Enable check box, then enter the IP address and default
gateway.
When the Auto Configuration check box is selected, the system
obtains addressing prefixes from the router (if available). It uses
those prefixes to automatically configure IPv6 addresses.
Router Controlled: Selecting this option means that DHCPv6 is
controlled by the Managed (M) and Other (O) flags received in IPv6
router advertisements (as opposed to being controlled by the user).
When a router advertisement is received, the NMC checks whether
the M or the O flag is set. The NMC interprets the state of the M
(Managed Address Configuration Flag) and O (Other Stateful
Configuration Flag) "bits" for the following cases:
• Neither is set: Indicates the local network has no DHCPv6
infrastructure. The NMC uses router advertisements and manual
configuration to get addresses that are not link-local and other
settings.
• M, or M and O are set: In this situation, full DHCPv6 address
configuration occurs. DHCPv6 is used to obtain addresses AND
other configuration settings. This is known as DHCPv6 stateful.
Once the M flag has been received, the DHCPv6 address
configuration stays in effect until the interface in question has been
closed. This is true even if subsequent router advertisement
packets are received in which the M flag is not set.
If an O flag is received first, then an M flag is received
subsequently, the NMC performs full address configuration upon
receipt of the M flag
• Only O is set: In this situation, the NMC sends a DHCPv6 InfoRequest packet. DHCPv6 will be used to configure “other” settings
(such as location of DNS servers), but NOT to provide addresses.
This is known as DHCPv6 stateless.
DHCPv6 Mode
Address and Other Information: With this selected, DHCPv6 is
used to obtain addresses AND other configuration settings. This is
known as DHCPv6 stateful.
Non-Address Information Only: With this selected, DHCPv6 will be
used to configure "Other" settings (such as location of DNS servers),
but NOT to provide addresses. This is known as DHCPv6
stateless.
Never: Select Never to disable DHCPv6.
> Port Speed: Define the communication speed of the TCP/IP port.
• For Auto-negotiation (the default), Ethernet devices negotiate to transmit at the highest possible
speed. If the supported speeds of two devices are unmatched, the slower speed is used.
• Choose 10 Mbps or 100 Mbps, with the option of half-duplex (communication in only one direction
at a time) or full-duplex (communication in both directions simultaneously).
User Manual for InfraStruxure PDU with NMC 2
73
> DNS > Configuration: Use these options to manually configure DNS settings:
Setting
Description
Override Manual
DNS Settings
Primary DNS
Server or
Secondary DNS
Server
Select this option to make configuration data from other sources
(typically DHCP) take precedence over manual configurations.
Type the IPv4 or IPv6 addresses of the primary and optional
secondary DNS server in these fields. For the InfraStruxure PDU to
send e-mail, you must at least define the IP address of the primary
DNS server.
• The system waits up to 15 seconds for a response from the primary
DNS server or secondary DNS server (if specified). If the
InfraStruxure PDU does not receive a response within that time, email cannot be sent. Use DNS servers on the same segment as the
InfraStruxure PDU or on a nearby segment (but not across a widearea network [WAN]).
• To look up the IP address for that computer and verify correct
operation, define the IP addresses of the DNS servers, then enter
the DNS name of a computer on your network.
Allow the system name to be synchronized with the host name so
both fields automatically contain the same value. Select System
Name to open the Identification page (See “General Options” on
page 85).
NOTE: When enabling this feature, the system name identifier can
no longer contain a space character (since it will be synchronized to
the host name field).
System Name
Synchronization
• Host Name: Enter a host name here. When you have configured
both a host name and a domain name (in either Domain Name
field), users can enter a host name in any field in the interface
(except e-mail address fields) that accepts a domain name.
NOTE: To override the expansion of a specific host name entry,
include a trailing period. The NMC recognizes a host name with a
trailing period (such as mySnmpServer.) as if it were a fullyqualified domain name and does not append the domain name.
• Domain Name (IPv4/IPv6) or Domain Name IPv6: Configure the
domain name in one of these fields. In all other fields in the
interface (except e-mail address fields) that accept domain names,
the unit adds this domain name when only a host name is entered.
To override every instance where a host name is appended to the
domain name, set the domain name field to its default,
example.com, or to 0.0.0.0.
Click Apply to save your changes or Cancel to leave the page without saving.
74
User Manual for InfraStruxure PDU with NMC 2
> DNS > Test: Use this option to send a DNS query that tests the setup of your DNS servers by looking up the
IP address. View the result of a test in the Last Query Response field.
Setting
Description
Query Type
Select the method to use for the DNS query:
• by Host: the URL name of the server
• by FQDN: the fully qualified domain name
• by IP: the IP address of the server
• by MX: the Mail Exchange used by the server
Identify the value to be used for the selected query type:
• by Host: the URL
• by FQDN: The fully qualified domain name,
my_server.my_domain
• by IP: the IP address
• by MX: the Mail Exchange address
Query Question
Click Apply to send a query or Cancel to leave the page without sending a query.
> Web > Access
Use the following options to configure access to the web interface:
Setting
Description
Enable HTTP
Enable Hypertext Transfer Protocol (HTTP), which provides web
access by user name and password, but does not encrypt user
names, passwords, and data during transmission.
Enable HTTPS
Enable Hypertext Transfer Protocol (HTTP) over Secure
Sockets Layer (SSL)/Transport Layer Security (TLS). SSL/TLS
encrypts user names, passwords, and data during
transmission, and authenticates the InfraStruxure PDU by digital
certificate. When HTTPS is enabled, your browser displays a
small lock icon. (See “Creating and Installing Digital
Certificates” in the Security Handbook, available at
www.apc.com.)
HTTP Port
The TCP/IP port (80 by default) used by HTTP to communicate with
the unit.
The TCP/IP port (443 by default) used by HTTPS to communicate
with the unit.
For either port, you can change the port setting to any unused port
from 5000 to 32768 for additional security. Users must then use a
colon (:) in the address field of the browser to specify the port
number. For example, for a port number of 5000 and an IP address
of 152.214.12.114:
http://152.214.12.114:5000
https://152.214.12.114:5000
The minimum HTTPS protocol to use. Select SSL 3.0, TLS 1.0, TLS
1.1 or TLS 1.2.
Select the check box to enable this feature.
HTTPS Port
Minimum Protocol
Require
Authentication Cookie
Limited Status Access Select Enable to display a read-only, public web page with basic
device status. Select Use as default page to show this page when a
user accesses the device with just the IP/hostname (before logon).
Click Apply to save your changes or Cancel to leave without saving.
User Manual for InfraStruxure PDU with NMC 2
75
> Web > SSL Certificate: Add, replace, or remove a security certificate.
Setting
Description
Status
View the SSL certificate status
• Not installed: A certificate is not installed, or was installed by FTP
or SCP to an incorrect location. Using Add or Replace Certificate
File installs the certificate to the correct location, /ssl on the unit.
NOTE: If you install an invalid certificate, or if no certificate is
loaded when you enable SSL, the unit generates a default
certificate, which delays access to the interface for up to one
minute. You can use the default certificate for basic encryptionbased security, but a security alert message displays whenever you
log on.
• Generating: The unit is generating a certificate because no valid
certificate was found.
• Loading: A certificate is being activated on the unit.
• Valid certificate: A valid certificate was installed or was generated
by the unit. Select this link to view the contents of the certificate.
(See the Security Handbook on www.apc.com for more
information about SSL Certificates.)
Enter or browse to the certificate file created with the Security
Wizard.See “Creating and Installing Digital Certificates” in the
Security Handbook, available at www.apc.com, to choose a method
for using digital certificates created by the Security Wizard or
generated by the unit.
Delete the current certificate
Add or Replace
Certificate File
Remove
Click Apply to save your changes or Cancel to leave without saving.
> Console > Access: Configure access to the CLI:
Setting
Description
Telnet
Select the check box to enable telnet or clear the check box to
disable it. Telnet transmits user names, passwords, and data without
encryption.
Select the check box to enable SSH or clear the check box to disable
it. SSH transmits user names, passwords, and data in encrypted
form, providing protection from attempts to intercept, forge, or alter
data during transmission.
The Telnet port used to communicate with the unit (23 by default).
You can change the port setting to any unused port from 5000 to
32768 for additional security. Users must then use a colon (:) or a
space, as required by your Telnet client program, to specify the nondefault port. For example, for port 5000 and an IP address of
152.214.12.114, your Telnet client requires one of the these
commands:
telnet 152.214.12.114:5000
telnet 152.214.12.114 5000
The SSH port used to communicate with the unit (22 by default). You
can change the port setting to any unused port from 5000 to 32768
for additional security. See the documentation for your SSH client for
the command line format required to specify a non-default port.
SSH
Telnet Port
SSH Port
Click Apply to save your changes or Cancel to leave without saving.
76
User Manual for InfraStruxure PDU with NMC 2
> Console > SSH Host Key: View the status of an installed SSH host key. Add, replace, or remove a host
key:
Setting
Description
Status
Indicates whether the current SSH host key is valid.
• SSH Disabled: No host key in use: When disabled, SSH cannot
use a host key.
• Generating: The InfraStruxure PDU is creating a host key because
no valid host key was found.
• Loading: A host key is being activated on the InfraStruxure PDU.
• Valid: A 2048-bit host key generated by the NMC. (See the Security
Handbook on www.apc.com for more information on SSH host
keys.)
To use a host key you created with the Security Wizard, load the host
key before you enable SSH. Browse to or enter the path name of the
host key file created with the Security Wizard, and click Apply.
Add or Replace
Host Key
Fingerprint
Remove
If the host key has been removed, or if no host key was loaded, and
you enable SSH, the device restarts and generates a host key.
Allowing the device to generate its own host key could make the SSH
server unavailable for use for up to1 minute.
A fingerprint helps authenticate a server. If the Security Wizard is
used to generate the host key, it also generates the fingerprint, which
is displayed here when SSH is enabled and the host key is in use.
When you first connect to the device using SSH, compare the
fingerprint presented by the SSH client to the fingerprint that the
Security Wizard generated to ensure that they match. (Almost all
SSH clients display the fingerprint.)
Remove the current host key.
Click Apply to save your changes or Cancel to leave without saving.
NOTE: To use SSH, you must have an SSH client installed. Most Linux and other UNIX platforms include an
SSH client, but Microsoft Windows operating systems do not. Clients are available from various vendors.
SNMP
All user names, passwords, and community names for SNMP are transferred over the network as plain text. If
your network requires the high security of encryption, disable SNMPv1 and enable SNMPv3 instead.
When using StruxureWare to manage a unit on the public network, you must have the same version of SNMP
enabled in the interface and in StruxureWare Data Center Expert. Read access will allow StruxureWare to
receive traps from the InfraStruxure PDU, but Write access is required while you use the interface to set
StruxureWare as a trap receiver.
For detailed information on enhancing and managing the security of your system, see the Security Handbook,
available at www.apc.com.
User Manual for InfraStruxure PDU with NMC 2
77
SNMPv1
Path: Configuration > Network > SNMPv1
> Access: Select Enable SNMPv1 Access to enable SNMP version 1 as a method of communication with
this device.
> Access Control: Configure up to four access control entries to specify which NMSs have access to this
device. The access control opening page, by default, assigns one entry to each of the four SNMPv1
communities. If you leave a default entry unchanged, that community will have access from anywhere on the
network. You can also edit the access control settings to apply more than one entry to any community to grant
access by several specific IP addresses, host names, or IP address masks.
NOTE: Multiple access control entries for one community name means one or more of the other communities
will have no access control entry. If no access control entry is listed, that community has no access to the
device.
To edit a community’s access control settings, select the Community Name and use the following options:
Setting
Description
Community Name
The name that a NMS uses to access the community. The maximum
length is 15 ASCII characters. The default names are public,
private, public2, and private2.
NMS IP/Host Name The IP address, IP address mask, or host name that controls access
by NMSs. A host name or a specific IP address allows access only
by the NMS at that location. IP addresses that contain 255 restrict
access as follows:
• 149.225.12.255: Access only by an NMS on the 149.225.12
segment.
• 149.225.255.255: Access only by an NMS on the 149.225 segment.
• 149.255.255.255: Access only by an NMS on the 149 segment.
• 0.0.0.0 (default) can also be expressed as 255.255.255.255:
Access by any NMS on any segment.
Access Type
The actions an NMS can perform through the community.
• Read: GETs only, at any time.
• Write: GETs at any time, and SETs when no user is logged onto the
web interface.
• Write+: GETs and SETs at any time.
• Disabled: No GETs or SETs at any time.
SNMPv3
Path: Configuration > Network > SNMPv3
For SNMP GETs, SETs, and trap receivers, SNMPv3 uses a system of user profiles to identify users. An
SNMPv3 user must have a user profile assigned in the MIB software program to perform GETs and SETs,
browse the MIB, and receive traps.
You must have a MIB program that supports SNMPv3. The NMC supports only MD5 authentication and DES
encryption.
> Access: Select SNMPv3 Access to enable SNMPv3 as a method of communication with this device.
78
User Manual for InfraStruxure PDU with NMC 2
> User Profiles: By default, this page lists the settings of four user profiles, configured with the user names
apc snmp profile1 through apc snmp profile4, no authentication, and no privacy (no encryption). To edit the
following settings for a user profile, select a User Name in the list.
Setting
Description
User Name
The identifier of the user profile. SNMP version 3 maps GETs, SETs,
and traps to a user profile by matching the user name of the profile to
the user name in the data packet being transmitted. A user name can
have up to 32 ASCII characters.
A phrase of 15 to 32 ASCII characters (hidden auth.
phrase, by default) that verifies that the NMS communicating
Authentication
Passphrase
Privacy
Passphrase
Authentication
Protocol
Privacy Protocol
with this device through SNMPv3 is the NMS it claims to be,
that the message has not been changed during transmission,
and that the message was communicated in a timely manner,
indicating that it was neither delayed nor copied and sent again
later at an inappropriate time.
A phrase of 15 to 32 ASCII characters (hidden crypt. phrase,
by default) that ensures the privacy of the data (by means of
encryption) an NMS is sending to this device or receiving from this
device through SNMPv3.
Supports SHA or MD5 authentication. Authentication will not occur
unless SHA or MD5 is selected as the authentication protocol.
Supports AES or DES as the protocol for encrypting and decrypting
data. Privacy of transmitted data requires that AES or DES is
selected.
> Access Control: Configure up to four access control entries to specify which NMSs have access to this
device. The access control opening page, by default, assigns one entry to each of the four user profiles. If you
leave a default entry unchanged, all NMSs using that profile will have access to this device. You can also edit
the access control settings to apply more than one entry to any user profile to grant access by several specific
IP addresses, host names, or IP address masks.
NOTE: If there are multiple access control entries for one user profile, one or more of the other user profiles
will have no access control entry. If no access control entry is listed, NMSs using that profile have no access to
the device.
To edit the access control settings for a user profile, select its User Name:
Setting
Description
Access
User Name
Select the Enable check box to activate access control.
Select the user profile to which access control will apply. The choices
are the four user names configured in the User Profiles page (see “>
User Profiles:” on page 79).
NMS IP/Host Name The IP address, IP address mask, or host name that controls access
by the NMS. A host name or a specific IP address allows access only
by the NMS at that location. An IP address mask that contains 255
restricts access as follows:
• 149.225.12.255: Access only by an NMS on the 149.225.12
segment.
• 149.225.255.255: Access only by an NMS on the 149.225 segment.
• 149.255.255.255: Access only by an NMS on the 149 segment.
• 0.0.0.0 (the default) or 255.255.255.255: Access by any NMS on
any segment.
User Manual for InfraStruxure PDU with NMC 2
79
FTP server configuration
Path: Configuration > Network > FTP Server
The FTP Server settings enable or disable access to the FTP server and specify the TCP/IP port (21 by
default) that the FTP server uses to communicate with the unit. The FTP server uses both the specified port
and the port one number lower than the specified port.
You can change the Port setting to the number of any unused port from 5001 to 32768 for added security.
Users must then use a colon (:) to specify the non-default port number. For example, for port 5001 and IP
address 152.214.12.114, the command would be ftp 152.214.12.114:5001.
NOTE: FTP transfers files without encryption. For higher security, disable the FTP server, and transfer files
with SCP. Selecting and configuring Secure SHell (SSH) enables SCP automatically.
NOTE: To configure and update the PDU with StruxureWare, you must enable the same protocol (FTP or
SCP) on both the PDU and StruxureWare Data Center Expert.
For detailed information on enhancing and managing the security of your system, see the Security Handbook,
available at www.apc.com.
Configure notifications
Path: Configuration > Notification > Event Actions
Types of notification: You can configure event actions to occur in response to an event or group of events.
These actions notify users of the event in any of several ways:
• Automatic notification. Specified users or monitoring devices are contacted directly.
– E-mail notification
– SNMP traps
– Remote Monitoring Service
– Syslog notification
• Indirect notification
– Event log: If no direct notification is configured, users must check the log to determine which
events have occurred.
– You can also log system performance data to use for device monitoring. See “Configure
Syslog servers, settings, and tests” on page 87 for information on how to configure and use
this data logging option.
– Queries (SNMP GETs): SNMP enables an NMS to perform informational queries. For
SNMPv1, which does not encrypt data before transmission, configuring the most restrictive
SNMP access (READ) enables informational queries without the risk of allowing remote
configuration changes. (See “SNMP” on page 77.)
> By Event: To define event actions for an individual event:
• Find an event: select a column heading to see the lists under the InfrastruXure Power
Distribution or System Events categories. You can also select a sub-category under these
headings, such as Security or Temperature.
• Possible events for the selected category are listed by severity. Select the event name to view or
change the current configuration:
– Event Log: Select the check box for events to appear in the Event Log. (See “NMC log/event
log” on page 89.)
– Syslog: Select a Syslog server to log events and send alerts.
80
User Manual for InfraStruxure PDU with NMC 2
– E-mail: Select users to be notified by e-mail.
– Traps: Configure Network Management Systems (NMSs) as recipients to be notified by
SNMP traps.
NOTE: If no Syslog server is configured, items related to Syslog configuration are not displayed.
NOTE: When viewing details of an event configuration, you can enable or disable event logging or Syslog, or
disable notification for specific e-mail recipients or trap receivers, but you cannot add or remove recipients
or receivers. To add or remove recipients or receivers, see the following:
• “Configure Syslog servers, settings, and tests” on page 87
• “> Recipients:” on page 82
• “Path: Configuration > Notification > SNMP Traps” on page 84
> By Group: To configure a group of events simultaneously:
1. Select how to group events for configuration:
– Select Events by Severity, and then select one or more severity levels. You cannot change
the severity of an event.
– Select Events by Category, and then select events in one or more pre-defined categories.
2. Click Next to select an event action. To select any action except Logging (the default), you must
first have at least one relevant recipient or receiver configured.
3. Click Next to do one of the following:
– If you selected Logging on the previous screen and have not configured a Syslog server,
select the Configure Event Log check box.
– If you selected Logging on the previous screen and have configured a Syslog server, select
Event Log or Syslog. To configure a Syslog server, see “Configure Syslog servers, settings,
and tests” on page 87.
– If you selected E-mail Recipients on the previous screen, select the e-mail recipients to
configure.
– If you selected Trap Receivers on the previous screen, select the trap receiver to configure.
4. Click Next to configure notification parameters. These configuration fields define e-mail
parameters for sending notifications of events:
– If you are configuring Logging settings, select Enable Notification or Disable Notification.
– If you are configuring E-mail Recipients or Trap Receivers, select Enable Notification or
Disable Notification and set the notification timing settings (see “Configure notifications” on
page 80 for more information on these settings).
5. Click Next to move to the next screen, and do one of the following:
– View the pending actions and click Apply to accept the changes.
– Click Cancel to revert to the previous settings.
Configure e-mail notifications
Path: Configuration > Notification > E-mail
Use Simple Mail Transfer Protocol (SMTP) to send e-mail to a maximum of four recipients when an event
occurs. To use the e-mail feature, you must define the following settings:
• The IP addresses of the primary and, optionally, the secondary Domain Name System (DNS)
servers. (See “> DNS > Configuration:” on page 74.)
• The From Address and IP address or DNS name for the SMTP Server.
• A maximum of four recipient e-mail addresses.
You can use the To Address setting of the Recipients option to send e-mail to a text-based screen.
User Manual for InfraStruxure PDU with NMC 2
81
> Server: View and configure the following fields:
Setting
Description
Active Primary and Select either server to go to its configuration page (see “> DNS >
Secondary DNS
Configuration:” on page 74).
Server
From Address
The contents of the From field in e-mail messages sent by the unit:
• Use the format user@ [IP_address] (if an IP address is specified as
Local SMTP Server).
• Use the format user@domain (if DNS is configured and the DNS
name is specified as Local SMTP Server) in the e-mail messages.
SMTP Server
Port
Authentication
Use SSL/TLS
Require CA Root
Certificate
File Name
NOTE: The local SMTP server may require that you use a valid user
account on the server for this setting. See the server documentation.
The IPv4/IPv6 address or DNS name of the local SMTP server.
NOTE: This definition is required only when the SMTP server is set
to Local.
The SMTP port number, with a default of 25. Acceptable ports
include 25, 465, 587, 2525, and 5000 to 32768.
Enable this if the SMTP server requires authentication.
User Name, Password, and Confirm Password: If your mail server
requires authentication, enter your user name and password here.
This performs simple authentication, not SSL/TLS.
Select when encryption is used from the drop-down list.
• Never: The SMTP server neither requires nor supports encryption.
• If Supported: The SMTP server advertises support for STARTTLS
but doesn't require the connection to be encrypted. The STARTTLS
command is sent after the advertisement is given.
• Always: The SMTP server requires the STARTTLS command to be
sent on connection to it.
• Implicitly: The SMTP server only accepts connections that begin
encrypted. No STARTTLS message is sent to the server.
This should only be enabled if the security policy of your
organization does not allow for implicit trust of SSL/TLS
connections. If this is enabled, a valid root CA certificate must
be loaded onto the unit for encrypted e-mails to be sent.
This field is dependent on the root CA certificates installed on
the unit and whether or not a root CA certificate is required.
Select the file name to upload or configure a new SSL/TLS
certificate (see “> SSL Certificates:” on page 84).
> Recipients: Specify up to four e-mail recipients. Click Add Recipient or select a name to configure the
following settings:
• Generation: Enables (default) or disables sending e-mail to the recipient.
• To Address: The user name and domain name of the recipient. To use e-mail for paging, use the
e-mail address for the recipient’s pager gateway account (for example,
[email protected]). The pager gateway will generate the page.
To bypass the DNS lookup of the IP address of the mail server, use the IP address in brackets
instead of the e-mail domain name, e.g., use jsmith@[xxx.xxx.x.xxx] instead of
[email protected]. This is useful when DNS lookups are not working correctly.
82
User Manual for InfraStruxure PDU with NMC 2
• Format: The long format contains name, location, contact, IP address, serial number of the
device, date and time, event code, and event description. The short format provides only the
event description.
• Language: The language which the e-mail notification will be sent in. This is dependent on the
installed language pack (if applicable).
• Port: The SMTP port number, with a default of 25. The range is 25, 465, 587, 5000 to 32768.
• Server: Select one of these methods for routing e-mail:
– Local: This is through the site-local SMTP server. This recommended setting ensures that the
e-mail is sent using the site-local SMTP server. Choosing this setting limits delays and network
outages and retries sending e-mail for many hours. When selecting the Local setting, you
must also enable forwarding at the SMTP server of your device and set up a special external
e-mail account to receive the forwarded e-mail. Check with your SMTP server administrator
before making these changes.
– Recipient: This is the SMTP server of the recipient. The unit performs an MX record look-up
on the recipients e-mail address and uses that as its SMTP server. The e-mail is only sent
once, so it can be lost more easily than with Local or Custom settings.
– Custom: This enables each e-mail recipient to have its own server settings. These settings
are independent of the settings given under “Configure e-mail notifications” on page 81.
Setting
Description
From Address
The contents of the From field in e-mail messages sent by the unit:
• If an IP address is specified as Local SMTP Server, use the format
user@ [IP_address].
• If DNS is configured and the DNS name is specified as Local SMTP
Server, use the format user@domain.
NOTE: The local SMTP server may require that you use a valid
user account on the server for this setting. See the server
documentation.
The IPv4/IPv6 address or DNS name of the local SMTP server.
NOTE: This definition is required only when the SMTP server is set
to Local.
The SMTP port number, with a default of 25. The range is 25, 465,
587, 5000 to 32768.
Enable this if the SMTP server requires authentication.
If your mail server requires authentication, enter your user name and
password here. This performs simple authentication, not SSL/TLS.
SMTP Server
Port
Authentication
User Name,
Password, and
Confirm Password
Use SSL/TLS
Require CA Root
Certificate
File Name
Select when encryption is used from the drop-down list.
• Never: The SMTP server neither requires nor supports encryption.
• If Supported: The SMTP server advertises support for
STARTTLS but doesn't require the connection to be encrypted. The
STARTTLS command is sent after the advertisement is given.
• Always: The SMTP server requires the STARTTLS command to
be sent on connection to it.
• Implicitly: The SMTP server only accepts connections that begin
encrypted. No STARTTLS message is sent to the server.
This should only be enabled if the security policy of your organization
does not allow for implicit trust of SSL/TLS connections. If this is
enabled, a valid root CA certificate must be loaded onto the unit for
encrypted e-mails to be sent.
This field is dependent on the root CA certificates installed on the unit
and whether or not a root CA certificate is required. Select the file
name to upload or configure a new SSL/TLS certificate (see “> SSL
Certificates:” on page 84).
User Manual for InfraStruxure PDU with NMC 2
83
> SSL Certificates: Load a mail SSL certificate on the unit for greater security. The file must have an
extension of .crt or .cer. Up to five files can be loaded at any given time.
When installed, the certificate details are displayed on this page. An invalid certificate will display “n/a” for all
fields except File Name.
Certificates can be deleted using this screen. Any e-mail recipients using deleted certificates should be
manually modified to remove reference to the deleted certificates.
> E-mail > Test: Send a test message to a configured recipient, and view the result under Last Test Result
and Last Server Response.\
Configure SNMP traps
Path: Configuration > Notification > SNMP Traps
With Simple Network Management Protocol (SNMP) traps, you can generate automatic notifications for
significant unit events. These notifications, or Traps, are a useful tool for monitoring devices on your network.
> Trap Receivers: The trap receivers are displayed by NMS IP/Host Name, where NMS stands for Network
Management System. You can configure up to six trap receivers.
To configure a new trap receiver, click Add Trap Receiver. To edit (or delete) one, select its IP address/host
name.
Setting
Description
Trap Generation
Enable (the default) or disable trap generation for this trap receiver.
NMS IP/Host Name The IPv4/IPv6 address or host name of this trap receiver. The
default, 0.0.0.0, leaves the trap receiver undefined.
Language
Select a language from the drop-down list. This can differ from the
web or command line interfaces and from other trap receivers.
Select an SNMP version to specify the trap type. For an NMS to
SNMPv1 or
SNMPv3
receive both types of traps, you must separately configure two trap
receivers for that NMS, one for each trap type.
SNMPv1 settings:
• Community Name: The name (“public” by default) used as an
identifier when SNMPv1 traps are sent to this trap receiver.
• Authenticate Traps: When this option is enabled (the default), the
NMS identified by the NMS IP/Host Name setting will receive
authentication traps (traps generated by invalid attempts to log on
to this device).
SNMPv3 settings:
• User Name: Select the user profile for this trap receiver.
If you delete a trap receiver, all notification settings configured under “Configuring event actions” for the
deleted trap receiver are set to their default values.
Click Apply to save your changes or Cancel to leave without saving.
84
User Manual for InfraStruxure PDU with NMC 2
> Test
Setting
Description
Last Test Result
The result of the most recent SNMP trap test. A successful SNMP
trap test verifies only that a trap was sent; it does not verify that the
trap was received by the selected trap receiver. A trap test succeeds
if all of the following are true:
• The SNMP version (SNMPv1 or SNMPv3) configured for the
selected trap receiver is enabled on this device.
• The trap receiver itself is enabled.
• If a host name is selected for the To address, that host name can be
mapped to a valid IP address.
Select the IP address or host name to which a test SNMP trap will be
sent. If no trap receiver is configured, a link to the Trap Receiver
configuration screen is displayed.
To
Click Apply to test the selected trap or Cancel to leave without testing.
General Options
Path: Configuration > General
> Identification: Configure NMC identification.
Setting
Description
Host Name
Synchronization
When enabled, this allows the host name to be synchronized
with the system name so both fields automatically contain the
same value.
NOTE: When enabling this feature, the system name identifier
can no longer contain a space character (since it will be
synchronized to the host name field).
Define values for Name (the device name), Contact (the
person responsible for the device), and Location (the physical
location) used by the InfraStruxure PDU’s SNMP agent. These
settings are the values used for the MIB-II sysName,
sysContact, and sysLocation Object Identifiers (OIDs).
When defined, a custom message will appear on the logon
screen for all users.
Name, Contact,
and Location
System Message
Click Apply to save your changes or Cancel to leave without saving.
User Manual for InfraStruxure PDU with NMC 2
85
> Date/Time > Mode: Set the time and date used by the InfraStruxure PDU. You can change the current
settings manually or through a Network Time Protocol (NTP) Server:
Setting
Description
Time Zone
Select your local time difference from Coordinated Universal Time
(UTC), also known as Greenwich Mean Time (GMT).
Do one of the following
• Enter the date and time for the PDU
• Select the Apply Local Computer Time check box to apply the
date and time settings of the computer you are using
Have an NTP (Network Time Protocol) server define the date and
time for the PDU. By default, any PDU on the private side of a
StruxureWare server obtains its time settings by using StruxureWare
as an NTP server.
• Override Manual NTP Settings: If you select this, data from other
sources (typically DHCP) take precedence over the NTP
configurations you set here.
• Primary NTP Server: Enter the IP address or domain name of the
primary NTP server.
• Secondary NTP Server: Enter the IP address or domain name of
the secondary NTP server if a secondary server is available.
• Update Interval: Define, in hours, how often the PDU accesses the
NTP server for an update. Minimum: 1; Maximum: 8760 (1 year).
• Update Using NTP Now: Initiate an immediate update of the date
and time by the NTP Server.
Manual Mode
Synchronize with
NTP Server
Click Apply to save your changes or Cancel to leave without saving.
> Date/Time > Daylight Savings: Enable traditional United States daylight saving time (DST), or enable and
configure a customized daylight saving time to match how daylight saving time is implemented in your local
area. DST is disabled by default.
When customizing daylight saving time (DST):
• If the local DST always starts or ends on the fourth occurrence of a specific weekday of a month
(the fourth Sunday of June, for example), select Fourth/Last from the first Date
drop-down list. If a fifth Sunday occurs in that month in a subsequent year, the time setting still
changes on the fourth Sunday.
• If the local DST always starts or ends on the last occurrence of a specific weekday of a month,
whether it is the fourth or the fifth occurrence, choose Fifth/Last.
> User Config File: Use the settings from one InfraStruxure PDU to configure another. Retrieve the config.ini
file from the configured PDU, customize that file (e.g., to change the IP address), and upload the customized
file to the new PDU. The file name can be up to 64 characters, and must have the.ini suffix.
• Status: Reports the progress of the upload. The upload succeeds even if the file contains errors,
but a system event reports the errors in the event log.
• Upload: Browse to the customized file and upload it so the current InfraStruxure PDU can use it
to set its configuration.
• Download: Download a configuration file (config.ini) directly through the web browser to your
computer.
Instead of uploading the file to one InfraStruxure PDU, you can export the file to multiple InfraStruxure PDUs by
using an FTP script or a batch file and the APC .ini file utility, available from www.apc.com/tools/download.
Click Apply to save your changes or Cancel to leave without saving.
86
User Manual for InfraStruxure PDU with NMC 2
> Quick Links: View and change the URL links displayed at the bottom left of each page of the interface.
By default, these links access the following web pages:
• Link 1: The home page of the APC by Schneider Electric web site.
• Link 2: A page where you can use samples of web-enabled products.
• Link 3: The home page for Schneider Electric Remote Monitoring Service.
Select a link Name to go to the Quick Links configuration page. There, enter a new link Name and Address, or
click Reset to Defaults to restore the default links.
Configure Syslog servers, settings, and tests
Path: Configuration > Logs > Syslog
> Servers: Select a server to change it’s configuration, or click Add Server to configure a new Syslog server.
Setting
Description
Syslog Server
Use IPv4/IPv6 addresses or host names to identify up to four servers
that will receive Syslog messages sent by the unit.
The port the unit will use to send Syslog messages. The default UDP
port assigned to Syslog is 514.
Select the language for any Syslog messages.
Select either UDP or TCP.
Port
Language
Protocol
Click Apply to save your changes or Cancel to leave without saving.
> Settings
Setting
Description
Message
Generation
Facility Code
Enable the generation and the logging of Syslog messages for
events that have Syslog configured as a notification method.
Selects the facility code assigned to the Syslog messages of the unit
(User, by default).
NOTE: User best defines the Syslog messages sent by the unit. Do
not change this selection unless advised to do so by the Syslog
network or system administrator.
This section maps each severity level of the unit or environment
events to available Syslog priorities. The local options are Critical,
Warning, and Informational. You should not need to change
severity mappings.
• Critical is mapped to Critical (critical conditions)
• Warning is mapped to Warning (warning conditions)
• Informational is mapped to Info (informational messages)
Severity Mapping
Other options include
• Emergency: The system is unusable.
• Alert: Action must be taken immediately.
• Error: Error conditions
• Notice: Normal but significant conditions
• Debug: Debug-level messages
Click Apply to save your changes or Cancel to leave without saving.
User Manual for InfraStruxure PDU with NMC 2
87
> Test
Send a test message to the Syslog servers. The result will be sent to all configured Syslog servers.
Select a severity to assign to the test message, and then define the test message. Format the message to
consist of the event type (for example: APC, System, or Device) followed by a colon, a space, and the event
text. The message can have a maximum of 50 characters.
Example: APC: Test Syslog.
The test message should have the following fields:
• The priority (PRI): the Syslog priority assigned to the message event, and the facility code of
messages sent by the unit.
• The Header: a time stamp and the IP address of the unit.
• The message (MSG) part:
• The TAG field, followed by a colon and space, identifies the event type.
• The CONTENT field is the event text, followed (optionally) by a space and the event code.
Example: APC: Test Syslog is valid.
Tests Tab
Path: Tests > Network > LED Blink
If you are having trouble finding your unit, enter a number of minutes in the LED Blink Duration field, and then
click Apply. The Status LED on the Ethernet port will blink for the specified number of minutes. (The Ethernet
port is on the user connection plate; see the Operation Manual on www.APC.com).
88
User Manual for InfraStruxure PDU with NMC 2
Logs Tab
NMC log/event log
Path: Logs > NMC Log
The NMC Log, or Event Log, displays all events recorded during the past few days, including events that send
SNMP traps (with the exception of SNMP authentication failures and abnormal internal system events).
> Log: By default, the event log displays the most recent events first. To see the events listed together on a
web page, click Launch Log in New Window. To open the log in a text file or save the log to your computer,
click the floppy disk icon( ) on the same line as the Event Log heading.
NOTE: You can also use FTP or Secure CoPy (SCP) to view the event log. See “Use FTP or SCP to retrieve
log files” on page 92.
NOTE: You can enable color coding for events. See “> Local Users > Default Settings:” on page 66.
Filter event logs: Use filtering to omit information you don’t want to display.
• Filter the log by date or time: Use the Last or From buttons. (The filter configuration is saved until
the PDU restarts.)
• Filter the log by event severity or category:
a. Click Filter Log.
b. Clear a check box to remove events of a certain severity or category from view.
c. Do one of the following:
• Click Apply to activate your filter. After you click Apply, text at the upper right
corner of the Event Log page indicates that a filter is active. The filter is active
until you clear it or until the PDU restarts.
• Click Cancel to leave the page without activating your filter.
• Click Clear Filter (Show All) to deactivate any filters in use.
• Click Save As Default to make your filter the default setting for all users.
NOTE: This option is only available for Administrators.
Important points on filtering:
• Events are processed through the filter using OR logic. If you apply a filter, it works regardless of
the other filters.
• Events that you cleared in the Filter By Severity list never display in the filtered Event Log, even
if selected in the Filter by Category list. Similarly, events that you clear in the Filter by Category
list never display in the filtered Event Log.
To delete all events, click Clear Log. Deleted events cannot be retrieved.
To disable the logging of events based on their assigned severity level or their event category, see “> By
Event:” on page 80.
> Reverse Lookup: With reverse lookup enabled, when a network-related event occurs, both the IP
address and the domain name for the networked device are logged in the event log. If no domain name entry
exists for the device, only its IP address is logged with the event.
Since domain names generally change less frequently than IP addresses, enabling reverse lookup can
improve the ability to identify addresses of networked devices that are causing events.
User Manual for InfraStruxure PDU with NMC 2
89
Reverse lookup is disabled by default. You should not need to enable it if you have no DNS server configured
or have poor network performance because of heavy network traffic.
> Size: Specify the maximum number of log entries: type a number between 25 and 1500 into the Event Log
Size field. Click Apply to save your changes or Cancel to leave the page without saving.
NOTE: When you resize the event log in order to specify a maximum size, all existing log entries are deleted.
When the log subsequently reaches the maximum size, the oldest entries are deleted.
Data log
Path: Logs > Data Log
Use the data log to display measurements about the unit, the power input to the unit, and the ambient
temperature of the unit.
90
User Manual for InfraStruxure PDU with NMC 2
> Log: By default, the most recent data is displayed first. To see data listed on a separate web page, click
Launch Log in New Window.
To open the log in a text file or to save the log to disk, click the floppy disk icon(
Data Log heading.
) on the same line as the
NOTE: You can also use FTP or Secure CoPy (SCP) to view the data log. See “Use FTP or SCP to retrieve
log files” on page 92.
Filter data logs: Use filtering to omit unneeded information from view.
• Filter by breaker group: In the Filter Log drop-down list, select the desired range of breaker
positions.
• Filter by data time: Use the Last or From buttons to define the time in which the data was logged.
(The filter configuration is saved until the unit restarts.)
– Last: Select the number of recent hours, days, or weeks to show recorded data for.
– From: Specify a range of time to show recorded data for.
To delete all data log records, click Clear Data Log. Deleted data log records cannot be retrieved.
> Interval: Define, in the Log Interval fields, how frequently data is searched for and stored in the data log.
When you click Apply, the number of possible storage days is recalculated and displays at the top of the
screen. When the log is full, the oldest entries are deleted.
NOTE: Because the interval specifies how often the data is recorded, smaller intervals cause the log to fill
more quickly.
> Rotation: Rotation causes the contents of the data log to be appended to a file you specify by name and
location. To enable rotation, select the Data Log Rotation check box. Use the following options to set up
password-protection and other parameters:
Setting
Description
FTP Server
User Name/
Password
The IP address or host name of the server where the file will reside.
The user name and password required to send data to the repository
file. This user must also be configured to have read and write access
to the data repository file and the directory (folder) in which it is
stored.
The path to the repository file.
The name of the repository file (an ASCII text file), e.g. datalog.txt.
Any new data is appended to this file; it does not overwrite the file.
Select this check box to save the log as mmddyyyy_<filename>.txt,
File Path
Filename
Unique Filename
Delay n hours
between uploads
Upon failure, try
uploading every n
minutes
where filename is what you specified in the Filename field
above. Any new data is appended to the file, but each day has
its own file.
The number of hours between uploads of data to the file (max. 24
hours).
The number of minutes between attempts to upload data to the file
after a failed upload.
• Maximum attempts: The maximum number of times the upload
will be attempted after it fails initially.
• Until upload succeeds: Attempt to upload the file until the transfer
is completed.
Click Apply to save your changes, Cancel to leave without saving, or Upload Now! to rotate data immediately.
User Manual for InfraStruxure PDU with NMC 2
91
> Size: Specify the maximum number of log entries.
NOTE: When you re-define the maximum log size, all existing log entries are deleted. When the log
subsequently reaches the maximum size, the oldest entries are deleted.
Firewall logs
Path: Logs > Firewall
If you create a firewall policy, firewall events will be logged here.
The information in the firewall policy log can help the technical support team solve problems. Log entries
contain information about the traffic and the rules action (allowed, discarded). When logged here, these events
are not logged in the main Event Log (see “NMC log/event log” on page 89).
A firewall log contains up to 50 of the most recent events. The firewall log is cleared when the management
interface reboots.
Use FTP or SCP to retrieve log files
A Super User, Administrator, or Device User can use FTP or SCP to retrieve a tab-delineated event log file
(event.txt) or data log file (data.txt) and import it into a spreadsheet.
• The file reports all events or data recorded since the log was last deleted or (for the data log)
truncated because it reached maximum size.
• The file includes information that the event log or data log does not display.
– The version of the file format (first field)
– The date and time the file was retrieved
– The Name, Contact, and Location values and IP address of the InfraStruxure PDU
– The unique Event Code for each recorded event (event.txt file only)
NOTE: The file uses a four-digit year for log entries. You may need to select a four-digit date
format in your spreadsheet application to display all four digits.
If you are using the encryption-based security protocols for your system, use SCP to retrieve the log file. If you
are using unencrypted authentication methods for the security of your system, use FTP to retrieve the log file.
See the Security Handbook, available at www.apc.com, for information on available protocols and methods
for setting up the type of security you need.
Use SCP to retrieve the files
To retrieve the event.txt file, use the following command:
scp username@hostname_or_ip_address:event.txt ./event.txt
To use SCP to retrieve the data.txt file, use the following command:
scp username@hostname_or_ip_address:data.txt ./data.txt
92
User Manual for InfraStruxure PDU with NMC 2
Use FTP to retrieve the files
To retrieve the event.txt or data.txt files
1. At a command line, type ftp and the IP address of the InfraStruxure PDU, and press ENTER.
If the Port setting for the FTP Server option (set through the ftp -p command in the CLI or
Configuration > Network > FTP server on the web interface) has been changed from its
default (21), you must use the non-default value in the FTP command. For Windows FTP
clients, use the following command, including spaces. (For some FTP clients, you must use a
colon instead of a space between the IP address and the port number.)
ftp>open ip_address port_number
To set a non-default port value to enhance security for the FTP Server, see “FTP server
configuration” on page 80. You can specify any port from 5001 to 32768.
2. Use the case-sensitive User Name and Password for a Super User, Administrator, or Device
User to log on. The default User Name for a Super User and Administrator is apc. For a Device
User, the default User Name is device.
3. Use the get command to transmit the text of a log to your local drive.
ftp>get event.txt
or
ftp>get data.txt
4. Type quit at the ftp> prompt to exit FTP.
User Manual for InfraStruxure PDU with NMC 2
93
About Tab
About power distribution
Path: About > Power Distribution
Power distribution information shows ratings for main breakers and panel breakers, which optional features
have been installed, and the installed version of power-metering firmware.
About your PDU model
Path: About > Network
The Hardware Factory information is useful to Schneider Electric Customer Support for troubleshooting
problems with the unit. The serial number and MAC address are also available on the PDU.
Management Uptime is the length of time the web interface has been running continuously.
Factory information for the Application Module, APC OS (AOS), and APC Boot Monitor indicates the name, the
firmware version, and the date and time each firmware module was created. This information is also useful in
troubleshooting and enables you to determine if updated firmware is available at www.apc.com.
94
User Manual for InfraStruxure PDU with NMC 2
About support
Path: About > Support
This page provides links to Support Resources including:
• Knowledge Base
• Company Contact Information
• Firmware Downloads
The Technical Support Debug Information Download feature is provided at the bottom of the page. This
feature captures an assortment of debug data into a single file and then allows the user to download that file to
a local computer intended for technical support use.
User Manual for InfraStruxure PDU with NMC 2
95
Device IP Configuration Wizard
The APC by Schneider Electric Device IP Configuration Wizard configures the IP address, subnet mask, and
default gateway of one or more units. You can use the Wizard in either of the following ways:
• Remotely over your TCP/IP network: discover and configure unconfigured units on the same
network segment as the computer running the Wizard.
• Through a direct connection from a serial port: configure or reconfigure the unit.
System requirements
The Device IP Configuration Wizard runs on Microsoft® Windows® 2000, Windows Server® 2003, Windows
Server® 2012, and on 32- and 64-bit versions of Windows XP, Windows Vista, Windows 2008, Windows 7,
Windows 8, and Windows 10 operating systems.
Installation
Install the Wizard from a downloaded executable file:
1. Go to www.apc.com.
2. Download the latest version of the Device IP Configuration Wizard.
3. Run the executable file (DeviceIPConfigurationWizard.exe).
Launch the Wizard
The installation creates a shortcut link in the Windows Start menu to launch the Wizard. Most software
firewalls must be temporarily disabled for the Wizard to discover unconfigured units.
96
User Manual for InfraStruxure PDU with NMC 2
Export Configuration Settings
Retrieve and Export the .ini File
Summary of the procedure
A Super User/Administrator can retrieve the .ini file of a unit and export it to another unit or to multiple units.
The steps are below; see details in the following sections.
1. Configure a unit with the desired settings and export them.
2. Retrieve the .ini file from that unit.
3. Customize the file to change the TCP/IP settings at least.
4. Use a file transfer protocol supported by the unit to transfer a copy to one or more other units. For
a transfer to multiple units, use an FTP or SCP script or the .ini file utility.
Each receiving unit uses the file to reconfigure its own settings and then deletes it.
NOTE: Users are no longer managed via the config.ini in any form. Users are now managed via a separate file
with the .csf extension. For further information on this topic, refer to article ID FA176542 in the Knowledge
Base at www.apc.com.
Contents of the .ini file
The config.ini file you retrieve from a unit contains the following:
• Section headings and keywords (only those supported for the particular device from which you
retrieve the file): Section headings are category names enclosed in brackets ([ ]). Keywords,
under each section heading, are labels describing specific unit settings. Each keyword is followed
by an equals sign and a value (either the default or a configured value).
• The Override keyword: With its default value, this keyword prevents the exporting of one or
more keywords and their device-specific values. For example, in the [NetworkTCP/IP] section,
the default value for Override (the MAC address of the PDU) blocks the exporting of values for
the SystemIP, SubnetMask, DefaultGateway, and BootMode.
Detailed procedures
Retrieving: To set up and retrieve an .ini file to export:
1. If possible, use the interface of a unit to configure it with the settings to export. (Directly editing
the .ini file risks introducing errors).
2. To use FTP to retrieve config.ini from the configured unit:
a. Open a connection to the unit using its IP address:
ftp> open ip_address
b. Log on using the Super User/Administrator user name and password.
c. Retrieve the config.ini file containing the settings of the unit:
ftp> get config.ini
The file is written to the folder from which you launched the FTP.
To retrieve configuration settings from multiple InfraStruxure PDUs and export them to other
units, see Release Notes: ini File Utility, version 2.0, available at www.apc.com.
User Manual for InfraStruxure PDU with NMC 2
97
Customizing: You must customize the file before exporting it to other units.
1. Use a text editor to customize the file.
– Section headings, keywords, and pre-defined values are not case-sensitive, but string values
that you define are case-sensitive.
– Use adjacent quotation marks to indicate no value. For example, LinkURL1="" indicates that
the URL is intentionally undefined.
– Enclose in quotation marks any values that contain leading or trailing spaces or are already
enclosed in quotation marks.
– To export scheduled events, configure the values directly in the .ini file.
– To export a system time with the greatest accuracy, if the receiving units can access a Network
Time Protocol server, configure enabled for NTPEnable:
NTPEnable=enabled
Alternatively, reduce transmission time by exporting the [SystemDate/Time] section as a
separate .ini file.
– To add comments, start each comment line with a semicolon (;).
2. Copy the customized file to another file name in the same folder:
– The file name can have up to 64 characters and must have the .ini suffix.
– Retain the original customized file for future use. The file that you retain is the only record
of your comments.
Exporting the file to a single unit: To export the .ini file to another unit, do either of the following:
• From the web interface of the receiving unit, select Configuration > General >
User Config File. Enter the full path of the file, or use Browse on your local PC.
• Use any file transfer protocol supported by units, i.e., FTP, FTP Client, SCP, or TFTP. The
following example uses FTP:
a. From the folder containing the copy of the customized .ini file, use FTP to log in to
the unit to which you are exporting the .ini file:
ftp> open ip_address
b. Export the copy of the customized .ini file to the root directory of the receiving unit:
ftp> put filename.ini
Exporting the file to multiple units: To export the .ini file to multiple units:
• Use FTP or SCP, but write a script that incorporates and repeats the steps used for exporting the
file to a single unit.
• Use a batch processing file and the .ini file utility.
• To create the batch file and use the utility, see Release Notes: ini File Utility, version 2.0, available
at www.apc.com.
98
User Manual for InfraStruxure PDU with NMC 2
The Upload Event and Error Messages
The following event occurs when the receiving unit completes using the .ini file to update its settings.
Configuration file upload complete, with number valid values
If a keyword, section name, or value is invalid, the upload by the receiving unit succeeds, and additional event
text states the error.
Event text
Description
Configuration file warning: Invalid keyword A line with an invalid keyword or value is ignored.
on line number.
Configuration file warning: Invalid value on
line number.
Configuration file warning: Invalid section
on line number.
Configuration file warning: Keyword found
outside of a section on line number.
Configuration file warning: Configuration
file exceeds maximum size.
If a section name is invalid, all keyword/value pairs in that
section are ignored.
A keyword entered at the beginning of the file (i.e., before
any section headings) is ignored.
If the file is too large, an incomplete upload occurs.
Reduce the size of the file, or divide it into two files, and try
uploading again.
Messages in config.ini
A unit from which you download the config.ini file must be discovered successfully in order for its configuration
to be included. If the unit is not present or is not discovered, the config.ini file contains a message under the
appropriate section name instead of keywords and values.
For example: xPDU not discovered
If you did not intend to export the unit configuration as part of the .ini file import, ignore these messages.
Errors generated by overridden values
The Override keyword and its value will generate error messages in the event log when it blocks the
exporting of values. See “Contents of the .ini file” on page 97 for information about which values are
overridden.
Because the overridden values are device-specific and not appropriate to export to other units, ignore these
error messages. To prevent these error messages, delete the lines that contain the Override keyword and
the lines that contain the values that they override. Do not delete or change the line containing the section
heading.
Related Topics
On Windows operating systems, instead of transferring .ini files, you can use the Device IP Configuration
Wizard to update the basic TCP/IP settings of the unit and configure other settings through the web or
command line interfaces. See “Device IP Configuration Wizard” on page 96.
User Manual for InfraStruxure PDU with NMC 2
99
File Transfers
Upgrading Firmware
Benefits of upgrading firmware
When you upgrade the firmware on the NMC:
• You obtain the latest bug fixes and performance improvements.
• New features become available for immediate use.
Keeping the firmware versions consistent across your network ensures that all NMCs support the same
features in the same manner.
Firmware files (NMC)
A firmware version consists of two modules: An APC Operating System (AOS) module and an application
module. Each module contains one or more Cyclical Redundancy Checks (CRCs) to protect its data from
corruption during transfer.
The APC Operating System (AOS) and application module files used with the NMC share the same basic
format:
apc_hardware-version_type_firmware-version.bin
• apc: Indicates that this is an APC file.
• hardware-version: hw0x identifies the version of the hardware on which you can use this
binary file.
• type: Identifies whether the file is for the APC Operating System (AOS) or the application
module for the NMC.
• version: The version number of the file.
• bin: Indicates that this is a binary file.
Firmware File Transfer Methods
NOTE: Upgrade the bootmon module first, then the AOS module, and finally, the application module by
placing them on the unit in that order.
Obtain the free, latest firmware version from the APC by Schneider Electric web site. To upgrade the firmware
of one or more units, use 1 of these 5 methods:
• On a Windows operating system, use the Firmware Upgrade Utility downloaded from the web
site www.apc.com.
• On any supported operating system, use FTP or SCP to transfer the individual AOS and
application firmware modules.
• For a unit that is NOT on your network, use XMODEM through a serial connection to transfer the
individual firmware modules from your computer to the unit.
• For upgrades to multiple units, see “Upgrade multiple units” on page 103.
100
User Manual for InfraStruxure PDU with NMC 2
Use the Firmware Upgrade Utility
This Firmware Upgrade Utility is part of the firmware upgrade package available on www.apc.com. (Never use
an Upgrade Utility designated for one product to upgrade the firmware of another product).
Use the Utility for upgrades on Windows-based systems: On any supported Windows operating
system, the Firmware Upgrade Utility automates the transferring of the firmware modules in the correct module
order.
Unzip the downloaded firmware upgrade file and double-click the .exe file. Then enter the IP address, the user
name, and the password in the dialog fields and click Upgrade Now. You can use the Ping button to test your
entered details.
Use the Utility for manual upgrades, primarily on Linux: On non-Windows operating systems, the
Firmware Upgrade Utility extracts the individual firmware modules, but does not upgrade the unit.
To extract the firmware files:
1. After extracting files from the downloaded firmware upgrade file, run the Firmware Upgrade
Utility (the .exe file).
2. At the prompts, click Next, and then specify the directory location to which the files will be
extracted.
3. When the Extraction Complete message displays, close the dialog box.
Use FTP or SCP to upgrade one unit
FTP: To use FTP to upgrade a unit over the network:
• The unit must be on the network, with its system IP, subnet mask, and default gateway configured.
• The FTP server must be enabled at the unit.
NOTE: The file-transfer procedure assumes the bootmon module does not need upgrading. However, it is
always necessary to upgrade the AOS and application modules.
To transfer the files:
1. The firmware module files must be extracted.
2. At a computer on the network, open a command prompt window. Go to the directory that contains
the firmware files, and list the files:
C:\>cd apc
C:\apc>dir
3. Open an FTP client session:
C:\apc>ftp
4. Type open with the IP address of the unit, and press ENTER. If the port setting for the FTP
Server has changed from its default of 21, you must use the non-default value in the FTP
command.
• For Windows FTP clients, separate a non-default port number from the IP address by a
space. For example (showing a space before 21000):
ftp> open 150.250.6.10 21000
• Some FTP clients require a colon instead before the port number.
5. Log on as Administrator (apc is the default user name).
User Manual for InfraStruxure PDU with NMC 2
101
6. Upgrade the AOS (always upgrade the AOS before the application module):
ftp> bin
ftp> put apc_hw05_aos_nnn.bin (where nnn is the firmware version number)
7. When FTP confirms the transfer, type quit to close the session.
8. After 20 seconds, repeat steps 3 through 7, using the application module file name from step 6.
NOTE: The following procedure assumes the bootmon module does not need upgrading. However, it is always
necessary to upgrade the AOS and application modules.
SCP: To use Secure CoPy (SCP) to upgrade firmware for the unit:
1. Locate the firmware modules, see “Use the Utility for manual upgrades, primarily on Linux:” on
page 101.
2. Use an SCP command line to transfer the AOS firmware module to the unit. The following
example uses nnn to represent the version number of the AOS module:
scp apc_hw05_aos_nnn.bin [email protected]:apc_hw05_aos_nnn.bin
3. Use a similar SCP command line, with the name of the application module, to transfer the
application firmware module to the unit. (Always upgrade the AOS before the application
module).
Use XMODEM to upgrade one unit
To use XMODEM to upgrade one unit that is not on the network, you must extract the firmware files from the
Firmware Upgrade Utility (see “Use the Firmware Upgrade Utility” on page 101).
NOTE: The following procedure assumes the bootmon module does not need upgrading. However, it is always
necessary to upgrade the AOS and application modules
To transfer the files:
1. Select a serial port at the local computer and disable any service that uses the port.
2. Connect the provided serial configuration cable (part number 940-0144A) to the selected port
and to the RJ-12 style serial port at the unit.
3. Run a terminal program such as HyperTerminal, and configure the selected port for 57600 bps, 8
data bits, no parity, 1 stop bit, and no flow control.
4. Press the pinhole Reset button on the PDU monitoring unit, then immediately press the Enter
key twice, or until the Boot Monitor prompt displays: BM>
5. Type XMODEM, then press ENTER.
6. From the terminal program’s menu, select XMODEM, then select the binary AOS firmware file to
transfer using XMODEM. After the XMODEM transfer is complete, the Boot Monitor prompt
returns.
(Always upgrade the AOS before the application module).
7. To install the application module, repeat steps 5 and 6. In step 6, use the application module file
name.
8. Type reset or press the Reset button to restart the unit’s management interface.
102
User Manual for InfraStruxure PDU with NMC 2
Upgrade multiple units
Use one of these methods:
• Firmware Upgrade Utility: Use this for multiple firmware updates in IPv4 if you have Windows.
The utility records all upgrade steps in a log as a reference to validate the upgrade.The Utility is
available from the Knowledge Base: www.apc.com/support.
• Export configuration settings: You can create batch files and use a utility to retrieve
configuration settings from multiple units and export them to other units. See Release Notes: ini
File Utility, version 2.0, available in the Knowledge Base at www.apc.com
• Use FTP or SCP to upgrade multiple units: To upgrade multiple units using an FTP client or
using SCP, write a script which automatically performs the procedure.
Use the Firmware Upgrade Utility for multiple upgrades
After downloading the Upgrade Utility, double click on the .exe file to run the utility (which ONLY works with
IPv4) and follow these steps to upgrade your firmware:
1. Type in an IP address, a user name, and a password, and click Ping if you need to verify an IP
address.
2. Click the Device List button to open the iplist.txt file. This should list any device IP, user
name, and password.
For example,
SystemIP=192.168.0.1
SystemUserName=apc
SystemPassword=apc
You can use an existing iplist.txt file if it already exists.
3. Select the Upgrade From Device List check box to use the iplist.txt file.
4. Click Upgrade Now to start the firmware version update(s).
5. Select View Log to verify any upgrade.
User Manual for InfraStruxure PDU with NMC 2
103
Verify Upgrades and Updates
To verify a firmware upgrade succeeded, do one of the following:
• In the web interface, navigate to Configuration > Network > FTP Server to view Last Transfer
Result.
Last Transfer Result
Code
Description
Successful
The file transfer was successful.
Result not available
There are no recorded file transfers.
Failure unknown
The last file transfer failed for an unknown reason.
Server inaccessible
The TFTP or FTP server could not be found on the network.
Server access denied The TFTP or FTP server denied access.
File not found
The TFTP or FTP server could not locate the requested file.
File type unknown
The file was downloaded but the contents were not recognized.
File corrupt
The file was downloaded but at least one Cyclical Redundancy Check
(CRC) failed.
• Use an SNMP GET to the mfiletransferStatusLastTransferResult OID.
Verify the version numbers of installed firmware
Verify the versions of the upgraded firmware modules: In the web interface, navigate to Configuration >
General > About >Network, or use an SNMP GET to the MIB II sysDescr OID.
104
User Manual for InfraStruxure PDU with NMC 2
Troubleshooting
Access Problems
For problems that persist or are not described here, contact Schneider Electric Customer Care at
www.apc.com.
Problem
Solution
Unable to ping the unit
The unit supports the ability to disable IPv4 Ping Response for security
reasons.
This setting is located in the web interface under Configuration >
Security > Ping Response or can be located in the config.ini file. Check
this setting or verify other access methods such as HTTPS, FTP, Telnet, or
SSH.
If the unit’s Status LED is green, try to ping another node on the same
network segment as the unit. If that fails, it is not a problem with the unit. If
the Status LED is not green, or if the ping test succeeds, perform the
following checks:
• Verify all network connections.
• Verify the IP addresses of the unit and the NMS.
• If the NMS is on a different physical network (or subnetwork) from the unit,
verify the IP address of the default gateway (or router).
• Verify the number of subnet bits for the unit’s subnet mask.
Cannot allocate the
Before you can use a terminal program to configure the unit, you must shut
communications port through a down any application, service, or program using the communications port.
terminal program
Cannot access the command Make sure that the correct serial cable (part 940-0103) is connected to the
line interface through a serial
serial port.
connection
Make sure that you did not change the baud rate. Try 2400, 9600, 19200, or
38400.
Cannot access the command • Make sure you are using the correct access method, Telnet or Secure
SHell (SSH). These can be enabled or disabled independently. The Super
line interface remotely
User or an Administrator can enable these access methods.
• For SSH, the unit may create a host key. The unit can take up to one
minute to create the host key, and SSH is inaccessible for that time.
Cannot access the web
interface
• Verify that HTTP or HTTPS access is enabled.
• Make sure you are specifying the correct URL — one that is consistent
with the security system used by the unit. SSL/TLS requires https, not
http, at the beginning of the URL.
• Verify that you can ping the unit.
• Verify that you are using a web browser supported for the unit.
• If the unit has just restarted and SSL/TLS security is being set up, the unit
may be generating a server certificate. The unit can take up to one minute
to create this certificate, and the SSL/TLS server is not available during
that time.
User Manual for InfraStruxure PDU with NMC 2
105
SNMP Problems
Problem
Solution
Unable to perform a GET • Verify the read (GET) community name (SNMPv1) or the user profile
configuration (SNMPv3).
• Use the command line interface or web interface to ensure that the NMS has
access.
Unable to perform a SET • Verify the read/write (SET) community name (SNMPv1) or the user profile
configuration (SNMPv3).
• Use the command line interface or web interface to ensure that the NMS has
write (SET) access (SNMPv1) or is granted access to the target IP address
through the access control list (SNMPv3).
Unable to receive traps at • Make sure the trap type (SNMPv1 or SNMPv3) is correctly configured for the
the NMS
NMS as a trap receiver.
• For SNMP v1, query the mconfigTrapReceiverTable MIB OID to verify that
the NMS IP address is listed correctly and that the community name defined for
the NMS matches the community name in the table. If either is not correct, use
SETs to the mconfigTrapReceiverTable OIDs, or use the command line
interface or web interface to correct the trap receiver definition.
• For SNMPv3, check the user profile configuration for the NMS, and run a trap
test.
Traps received at an
See your NMS documentation to verify that the traps are properly integrated in the
NMS are not identified
alarm/trap database.
106
User Manual for InfraStruxure PDU with NMC 2
Worldwide Customer Support
Customer support for this product is available at www.apc.com.
© 2019 Schneider Electric. APC, InfraStruxure, PowerNet, and StruxureWare are trademarks
owned by Schneider Electric, S.A.S. All other trademarks are property of their respective owners.
990-5875A
12/2019
