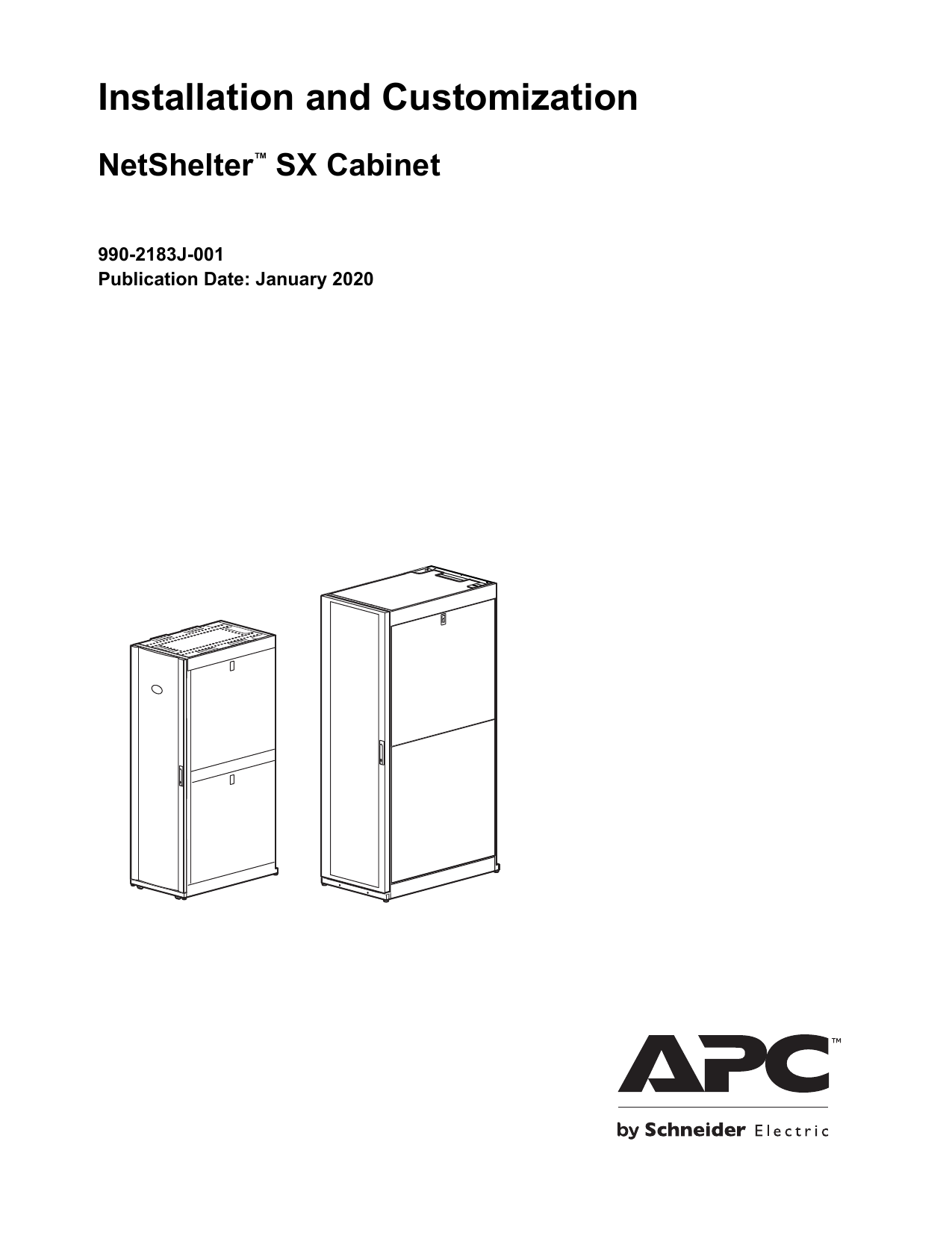

Installation and Customization
NetShelter™ SX Cabinet
990-2183J-001
Publication Date: January 2020
APC by Schneider Electric Legal Disclaimer
The information presented in this manual is not warranted by APC by Schneider Electric to be authoritative,
error free, or complete. This publication is not meant to be a substitute for a detailed operational and site
specific development plan. Therefore, APC by Schneider Electric assumes no liability for damages, violations of
codes, improper installation, system failures, or any other problems that could arise based on the use of this
Publication.
The information contained in this Publication is provided as is and has been prepared solely for the purpose of
evaluating data center design and construction. This Publication has been compiled in good faith by APC by
Schneider Electric. However, no representation is made or warranty given, either express or implied, as to the
completeness or accuracy of the information this Publication contains.
IN NO EVENT SHALL APC BY SCHNEIDER ELECTRIC, OR ANY PARENT, AFFILIATE OR SUBSIDIARY
COMPANY OF APC BY SCHNEIDER ELECTRIC OR THEIR RESPECTIVE OFFICERS, DIRECTORS, OR
EMPLOYEES BE LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL, OR
INCIDENTAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS,
CONTRACT, REVENUE, DATA, INFORMATION, OR BUSINESS INTERRUPTION) RESULTING FROM,
ARISING OUT, OR IN CONNECTION WITH THE USE OF, OR INABILITY TO USE THIS PUBLICATION OR
THE CONTENT, EVEN IF APC BY SCHNEIDER ELECTRIC HAS BEEN EXPRESSLY ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. APC BY SCHNEIDER ELECTRIC RESERVES THE RIGHT TO MAKE
CHANGES OR UPDATES WITH RESPECT TO OR IN THE CONTENT OF THE PUBLICATION OR THE
FORMAT THEREOF AT ANY TIME WITHOUT NOTICE.
Copyright, intellectual, and all other proprietary rights in the content (including but not limited to software, audio,
video, text, and photographs) rests with APC by Schneider Electric or its licensors. All rights in the content not
expressly granted herein are reserved. No rights of any kind are licensed or assigned or shall otherwise pass to
persons accessing this information.
This Publication shall not be for resale in whole or in part.
Table of Contents
Introduction ............................................................................................................1
Important Safety Information..................................................................................2
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Labels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Component Identification .......................................................................................4
Cabinet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Tools provided . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Cabinet Installation ................................................................................................6
Move the Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Level the Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Join the Cabinets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Ground the Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Secure the Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Install Side Panels, Roof and Doors ....................................................................11
Side Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Door Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Door Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Reverse the Front Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Equipment Installation..........................................................................................15
Adjust the Vertical Mounting Flanges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Position the Vertical Mounting Flanges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Vertical Mounting Flange Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Install the Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
To install rack-mount equipment in the cabinet: . . . . . . . . . . . . . . . . . . . . . . . . .19
Cage nuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Remove the Cable Cutout Covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Cable Management..............................................................................................21
Accessory Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Specifications.......................................................................................................22
Five-Year Factory Warranty.................................................................................23
Terms of warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Non-transferable warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Exclusions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Warranty claims . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
NetShelter SX Cabinet - Installation and Customization Manual
i
Introduction
The Schneider Electric NetShelter SX cabinets are high-quality cabinets for storage of industry-standard
(EIA/ECA-310), 19 in. (483 mm) rack-mount hardware, which includes servers and voice, data,
networking, internetworking, and power protection equipment.
This manual covers the general installation and the customization of the NetShelter SX Premium
Datacenter Cabinets. Refer to the NetShelter SX specification manual for detailed measurements and
ratings of specific models.
These cabinets are available in 600 mm (23.6 in.), 700 mm (27.6 in.), 750 mm (29.5 in.), and
800 mm (31.5 in.) widths. Optional vertical mounting flanges are available for the 750 mm (29.5 in.) and
800 mm (31.5 in.) cabinets to accommodate 23 in. EIA / ECA telecommunications equipment.
NetShelter SX Cabinet - Installation and Customization Manual
1
Important Safety Information
Read the instructions carefully to become familiar with the equipment before trying to install, operate,
service or maintain it. The following messages may appear throughout this manual or on the equipment
to warn of potential hazards or to call attention to information that clarifies or simplifies a procedure.
The addition of this symbol to a Danger or Warning safety label indicates that an electrical
hazard exists which will result in personal injury if the instructions are not followed.
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
DANGER
DANGER indicates an imminently hazardous situation which, if not avoided, will result in death
or serious injury.
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided, can result in death
or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided, can result in minor or
moderate injury.
CAUTION
CAUTION, used without the safety alert symbol, indicates a potentially hazardous situation
which, if not avoided, can result in equipment damage.
NOTICE
NOTICE addresses practices not related to physical injury including certain environmental
hazards, potential damage or loss of data.
2
NetShelter SX Cabinet - Installation and Customization Manual
Safety Instructions
This manual contains important instructions that must be followed during the installation and
customization of the cabinet.
WARNING
TIP / HEAVY EQUIPMENT HAZARD
• This cabinet is easily tipped. Use extreme caution when unpacking or moving.
• At least two people are required to unpack and move the cabinet.
• Before moving the cabinet on its casters, load 158 kg (350 lb) of equipment into the bottom of the
cabinet for extra stability.
• Make sure the leveling feet are up and push the cabinet only from the front or rear when moving
the cabinet on its casters. Never push the cabinet from the sides.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
Labels
Look for additional safety information affixed to the cabinet. See “Labels” on page 6 for more information.
NetShelter SX Cabinet - Installation and Customization Manual
3
Component Identification
ns0609d
Cabinet

Adjustable vertical 0 U accessory channel*

Casters

Removable rear split doors

Removable and reversible front door

Removable side panel with lock

Key for doors and side panels

Cabinet frame

Vertical mounting flanges

Adjustable leveling feet

Roof
Hardware bag (see page 5)

Not shown: Cable Cutouts, 750 mm (29.5 in.) and 800 mm (31.5 in.) wide models only. See
“Remove the Cable Cutout Covers” on page 20.
* 1200 mm (47.24 in.) deep cabinets include four vertical 0U Accessory Channels.
4
NetShelter SX Cabinet - Installation and Customization Manual
Hardware
Plastic cup
washer (60)
M6 x 16 Phillips
slot screw (60)
M5 x 12
screw (4)
Cage nut (60)
7 mm (0.28 in.)
hole plug (4)
Tools provided
Torx® T30 / #2 Phillips tool
Cage nut tool (1)
NetShelter SX Cabinet - Installation and Customization Manual
5
Cabinet Installation
Move the Cabinet
WARNING
TIP HAZARD
• This cabinet is easily tipped. Use extreme caution when unpacking or moving.
• At least two people are required to unpack and move the cabinet.
• Before moving the cabinet on its casters, load 158 kg (350 lb) of equipment into the bottom of the
cabinet for extra stability.
• Make sure the leveling feet are up and push the cabinet only from the front or rear when moving
the cabinet on its casters. Never push the cabinet from the sides.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
Labels: The following labels can be found on the cabinet, and serve to
communicate the following information:
Label : Generic Tip Hazard
Casters
2250 lbs Max
(1020 kg)
Label : Extend Slide-Mounted Hardware One Piece at a Time
Casters: The cabinet can be moved on its casters with up to
1 020.58 kg (2,250 lb) of equipment installed. Once in place, lower the
leveling feet. With the leveling feet lowered, the static cabinet can be
loaded to 1 704.97 kg (3,750 lb).
U.S. Patent No.
初⦌₢Ⓒ⚆
7,293,666


NOTE: Some labels on cabinet indicate caster related information.
See label  to right.
Leveling Feet:
3000 lbs Max
(1361 kg)

Eye bolts: The cabinet can be lifted using eye bolts with up to 567 kg
(1,250 lb) of
equipment installed. Use M10 eye bolts with a shoulder rated for 181 kg
(400 lb).
ns2378a
NOTE: Use appropriate lifting hardware to assure straight-line pull on lifting
eye bolts.
6
NetShelter SX Cabinet - Installation and Customization Manual
Level the Equipment
The leveling feet at the corners of the equipment provide a stable base if the floor is uneven, but they
cannot compensate for a badly sloped surface.
Ensure the cabinet is in its intended location. Remove the front and rear doors. See “Door Removal” on
page 12 for instruction.
NOTE: Before removing the front door, unplug the ground wires and any other wire connections that may
interfere with the removal of the doors.
Insert a Phillips head screwdriver into the
screw above the leveling foot. Turn the screw
clockwise to extend the leveling foot until it
makes firm contact with the floor.
NOTE:
• This method works best with an empty,
or near empty, cabinet.
• Door removal is not required if using the
13 mm open-ended wrench.
ns1632b
• A13 mm open ended wrench can also
be used to lower the leveling feet if the
cabinet is loaded with equipment.
Adjust each foot and, using a level, adjust the
feet until the cabinet is level and plumb.
Do not install the doors until after the cabinet is
joined to others in the row
NetShelter SX Cabinet - Installation and Customization Manual
7
Join the Cabinets
Join cabinets with the provided brackets to provide alignment and added stability. Cabinets may be
joined with or without the side panels installed.
WARNING
TIP HAZARD
Joining cabinets provides limited stability to the cabinets. Secure the cabinet to the floor before
installing equipment.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
If installed, remove the front and rear
doors. See “Door Removal” on
page 12 for instructions.
Choose between 24 in. centers or
600 mm centers.
600 mm
24 in.
Align the cabinets and locate the
joining brackets. There are two
brackets on the front and two
brackets on the back of each
cabinet.
X4
Install the doors. See “Door
Removal” on page 12 for
instructions.
8
NetShelter SX Cabinet - Installation and Customization Manual
ns1594b
Cabinets are joined using a M5 x 12
countersunk screw, provided in the
hardware bag. Using the Phillips
head end of the provided tool or a
similar tool, insert the screw into the
designated hole and tighten.
Ground the Cabinet
DANGER
HAZARD OF ELECTRIC SHOCK
Connection of the cabinet to building Common Bonding Network (CBN) is required.
Failure to follow these instructions will result in death or serious injury.
Each cabinet should be bonded directly to a common ground using one of the designated grounding
locations (two M6 threaded inserts) at the top or bottom of the cabinet.
• Use a Common Bonding Network Jumper kit (for example, Listed [KDER] Panduit®
RGCBNJ660PY or equivalent).
• Use paint-piercing washers between the ground terminal and the cabinet frame, or remove the
paint on the frame under the ground terminals, per NEC NFPA 70 Article 250.12.
ns1617b
• Torque the screws to 6.9 N•m (60 lb-in.).
Bonding Locations on the Cabinet
ns2306b
NOTE: If needed, additional functional grounding points
are available at the top of the cabinet. Do not connect
the building CBN to these functional grounding points.
NetShelter SX Cabinet - Installation and Customization Manual
9
Secure the Cabinet
WARNING
TIP HAZARD
Secure the cabinet to the floor before installing equipment.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
The cabinet can be bolted to the floor internally or externally, as shown below. See www.apc.com for a
complete list of available stabilization options.
NOTE: Only use the stabilization accessories with the casters or leveling feet installed.
Part Number
Description
Pallet/bolt-down Provided
brackets
Attaches to the rack and floor, internally
or externally, to provide additional
stability without blocking cable access.
Designed for use in low and moderate
seismic regions.
NetShelter SX
stabilizer plate
Option
(AR7700)
Attaches externally to the rack and floor
to provide additional stability. Designed
for use in low and moderate seismic
regions.
Option
(AR7701)
Attaches to the rack and floor, internally
or externally, to provide additional
stability without blocking cable access.
Designed for use in low and moderate
seismic regions.
Option
(AR7701A-S)
Attaches to rack and floor, internally and
externally, to provide additional stability
without blocking cable access. With the
appropriate mounting hardware, meets
high seismic region (UBC Zone-4)
requirements.
NOTE: Not a substitute for racks
designed to meet UBC Zone-4
requirements.
Bolt-down kit
ns1780b
High-seismic
region
bolt-down kit
ns0702a
Accessory
10
NetShelter SX Cabinet - Installation and Customization Manual
Install Side Panels, Roof and Doors
na2591a
Side Panels
Roof
ns1724b
X2
NetShelter SX Cabinet - Installation and Customization Manual
11
Door Removal
1. Unlock the cabinet front door handle and
open the door.
ns2283a
2. Disconnect the ground wire and any other
wire connections that may interfere with the
removal of the doors.
ns1604b
3. The hinges come apart by lifting upward and
outward. Slowly lift and pull the door from the
cabinet until the hinge pins on the door are
free of the hinges on the cabinet frame.
Door Installation
2. Slowly lower the door into the
cabinet frame ensuring that the
door hinges correctly align to
the cabinet frame hinges.
ns2284a
1. The doors self-align on hinge
pins when properly installed.
With the door at a 90 degree
angle to the front of the
cabinet, position the door over
the hinge pins .
ns2285a
3. Connect the ground wire and
any other wire connections.
Reverse the Front Door
12
NetShelter SX Cabinet - Installation and Customization Manual
Reverse the Front Door
NOTE: The front door can be reversed so that the door opens in the other direction. This procedure
assumes that initially, when facing the cabinet, the hinges are on the left and the door is opening from
right.
ns1758b
1. Remove the handle by
removing the screw-plate. Pull
the handle from the door.
ns1752b
2. Disconnect the ground wire,
and any other wire connections.
Remove the door from the
frame. See “Door Removal” on
page 12 for more information.
ns1824a
3. Locate the upper hinge on the
cabinet frame. Remove the two
screws holding the hinge in
place. Install the hinge onto the
other side of the cabinet frame.
Repeat this step for the lower
hinge.
NetShelter SX Cabinet - Installation and Customization Manual
13
4. Rotate the door . Remove the
hinges  from the door, and install
them to the alternate hole location
. The hinges on door should now
align with the hinges on the
cabinet.
5. Install the door to the hinges now
on the reverse side of the cabinet
frame. See “Door Removal” on
page 12 for instruction. Connect
the ground wire and any other wire
connections previously
disconnected.
ns2289a
ns1779b
Rotate the cam
washer 90 degrees,
and the latch 180
degrees.
Install the handle on
the door.
ns1766a
6. Locate the lock
handle.
Remove the cam
screw, cam washer,
and cam.
14
NetShelter SX Cabinet - Installation and Customization Manual
Equipment Installation
NOTE: NetShelter SX cabinets are intended for use with Listed equipment. If you install un-Listed
equipment, you should evaluate the safety of your configuration.
Adjust the Vertical Mounting Flanges
Vertical mounting flanges come factory-installed at 737 mm (29 in.),
the proper location for use with rack-mountable equipment.
The mounting flanges are adjustable towards the front or the rear of
the cabinet to accommodate different rails or equipment with other
depths.
ns1621b
A common application for the 750 mm (29.5 in.) or 800 mm (31.5 in.)
wide cabinet is to move the flanges to a depth of 476 mm (18.75 in.)
to accommodate networking and telecommunications equipment.
Position the Vertical Mounting Flanges
• Configuration 1: The Accessory Channel is installed. The
Vertical Mounting Flanges can be installed a minimum
distance of (a) and can extend as far as (b).
Accessory Channel
b
D
D
a
ns2293a
• Configuration 2: The Accessory Channel is removed. The
Vertical Mounting Flanges can extend as far as (c).
c
W
W
Top View
Cabinet
Width (W)
Cabinet
Depth (D)
600/700 mm
1070 mm
750/800 mm
1070 mm
600/700 mm
1200 mm
750/800 mm
1200 mm
a
b
c
190 mm
(7.5 in.)
286 mm
(11.25 in.)
190 mm
(7.5 in.)
286 mm
(11.25 in.)
781 mm
(30.75 in.)
781 mm
(30.75 in.)
781 mm
(30.75 in.)
781 mm
(30.75 in.)
921 mm
(36.25 in.)
921 mm
(36.25 in.)
1035 mm
(40.75 in.)
1048 mm
(41.25 in.)
NetShelter SX Cabinet - Installation and Customization Manual
15
Vertical Mounting Flange Adjustment
WARNING
FALLING EQUIPMENT
Remove all equipment installed on the vertical mounting flanges before performing any adjustments.
Failure to follow these instructions can result in serious injury or equipment damage.
1. Use the provided Torx T30
tool to loosen the top,
middle, and bottom Torx
screws  holding the
vertical mounting flange in
place. The brackets, all held
in place by the Torx screws,
will now be loose. Move all
three brackets to the
designated unlocked
position .
ns1622b
600 mm wide cabinet
700 mm wide cabinet
16
750 mm wide cabinet
800 mm wide cabinet
NetShelter SX Cabinet - Installation and Customization Manual
ns0977a
ns0715b
na0715a
NOTE: The cabinets have different brackets.
See the illustrations below.
3. To align the vertical mounting flange,
note the symbol
(for example, a diamond) visible through
one of the three holes. Only one symbol
will be visible. In the factory standard
position, a circle symbol is visible.
ns1623a
2. Move the mounting flange to the desired
location. Vertical mounting flanges adjust
in 6 mm (1/4 in.) increments.
ns0718a
Make sure the same symbol is visible
through the corresponding hole at both
the top and the bottom of the flange.
NetShelter SX Cabinet - Installation and Customization Manual
17
4. When the vertical mounting flange is in
the desired location at the top, middle,
and bottom, raise the flat bracket to the
lock position. The teeth in the bracket will
engage fully with the teeth in the side
brace . Tighten the Torx screws .
NOTE: On the 750 mm (29.5 in.) and
800 mm (31.5 in.) wide cabinets there are
circle symbols 476 mm (18.75 in.) behind
the front mounting flange. These circle
symbols designate rear vertical mounting
flange positions required for installation of
particular networking and
telecommunications equipment.
ns2292a
18
NetShelter SX Cabinet - Installation and Customization Manual
Install the Equipment
WARNING
TIP HAZARD
• This cabinet is easily tipped. Make sure you have secured the cabinet to the floor before installing
equipment.
• Install the heaviest equipment first and toward the bottom of the cabinet to prevent the cabinet
from becoming top-heavy.
• Do not extend equipment on sliding rails until you have installed 158 kg (350 lb) of equipment into
the bottom of the cabinet for stability or until you have installed the stabilizer plate or bolt-down
brackets. Do not extend more than one piece of equipment on sliding rails at a time.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
To install rack-mount equipment in the cabinet:
7
1. Review the equipment manufacturer’s installation instructions.
2. Locate the top and bottom U space on the vertical mounting rails.
Every third hole on the mounting rails is numbered to indicate the
middle of a U space.
3. Install the cage nuts on the interior of the vertical mounting rail;
then install the equipment.
1U
6
APC by Schneider Electric offers a cage nut hardware kit (AR8100) for
use with square holes.
5
ns0014a
Cage nuts
CAUTION
FALLING EQUIPMENT HAZARD
Do NOT install cage nuts vertically with the ears engaging the top and bottom of the square hole.
Failure to follow these instructions can result in minor or moderate injury.
• Install cage nuts horizontally, with the ears engaging
the sides of the square hole.
ns1768a
• Install the cage nuts on the interior of the vertical
mounting rail.
Installation:
1. From inside of the cabinet, insert the cage nut into the
square hole.
2. Hook one ear of the cage nut assembly through the far
side of the hole.
gen0188a
3. Place the cage nut tool on the other side of the cage nut
and pull to snap into position.
Removal:
1. Remove any attached screw.
2. Grasp the cage nut and squeeze the sides to release it from the square hole.
NetShelter SX Cabinet - Installation and Customization Manual
19
Remove the Cable Cutout Covers


ns1071b
NetShelter SX 750 mm
(29.5 in.) and 800 mm (31.5 in.)
wide cabinets include cable
cutouts. For equipment
requiring side airflow, on the
side of the cabinet nearest the
air intake for the equipment,
remove the cable cutout covers
from the front vertical mounting
flange. Reinstall the covers in
the cable cutout holes on the
rear vertical mounting flange on
the same side of the cabinet.
20
NetShelter SX Cabinet - Installation and Customization Manual
Cable Management
The NetShelter SX cabinet has multiple cable access openings, including on the roof, sides, and bottom.
Route, secure, and organize cables using these openings.
In addition, two rear vertical 0U cable organizers, or accessory channels, are included with the cabinet.
Further cable management accessories are available. Please go to www.schneider-electric.com, or
contact a Schneider Electric
reseller for more information.
Accessory Channel
The accessory channels provide toolless mounting capabilities for
Rack Power Distribution Units and cable management
accessories.
There are four Accessory Channels included with the 1200 mm
(47.24 in.) deep cabinet. There are two included with all other
cabinets. The factory-default position for the accessory channels is
in the rear of the cabinet, as shown in the graphic to the right.
The channels also provide tie-off locations for cables, as well as
other specific holes for managing cables with many NetShelter
brackets, fasteners, and toolless mounting equipment.
NOTE: If needed, the accessory channels can be removed.
Additional vertical 0U accessory channels are available for order.
NetShelter SX Cabinet - Installation and Customization Manual
ns1923a
Similar to the mounting flanges, the accessory channel can be
moved anywhere along the side braces. See “Adjust the Vertical
Mounting Flanges” on page 15 for more instruction.
21
Specifications
General specifications for SX cabinets:
(For detailed dimensions and weights refer to the NetShelter SX Specification manuals.)
Height
Width
Depth
U
mm
in.
mm
in.
mm
in.
42U
1 991
78.4
600
23.6
1 070
42.1
45U
2 124
83.6
700*
27.6
1 200
47.2
48U
2 258
88.9
750
29.5
50U
2 347
92.4
800
31.5
52U
2 436
95.9
* 700 mm models in Japan only
54U*
2 525
99.4
* 54U models have not been evaluated
by UL.
Door Perforation pattern
69% open area
Clearance for wiring between
front door and vertical rail
60.96 mm (2.40 in.)
Weight rating: static load1
1 704.97 kg (3,750 lb)
Weight rating: rolling2
1 020.58 kg (2,250 lb)
1
2
Lower the leveling feet if the static weight is over 1 020.58 kg (2,250 lb).
Rolling rating valid only for rolling the cabinet into position.
NOTE: Additional packaging is required if the cabinet is being shipped with equipment installed.
See the NetShelter SX product family page at www.apc.com for details on cabinets with shock
packaging.
22
NetShelter SX Cabinet - Installation and Customization Manual
Five-Year Factory Warranty
The limited warranty provided by APC by Schneider Electric in this Statement of Limited Factory
Warranty applies only to products you purchase for your commercial or industrial use in the ordinary
course of your business.
Terms of warranty
APC by Schneider Electric warrants its products to be free from defects in materials and workmanship
for a period of five years from the date of purchase. The obligation of APC by Schneider Electric under
this warranty is limited to repairing or replacing, at its sole discretion, any such defective products. This
warranty does not apply to equipment that has been damaged by accident, negligence, or misapplication
or has been altered or modified in any way. Repair or replacement of a defective product or part thereof
does not extend the original warranty period. Any parts furnished under this warranty may be new or
factory- remanufactured.
Non-transferable warranty
This warranty extends only to the original purchaser who must have properly registered the product. The
product may be registered at the APC by Schneider Electric Web site, www.apc.com.
Exclusions
APC by Schneider Electric shall not be liable under the warranty if its testing and examination disclose
that the alleged defect in the product does not exist or was caused by end user’s or any third person’s
misuse, negligence, improper installation or testing. Further, APC by Schneider Electric shall not be
liable under the warranty for unauthorized attempts to repair or modify wrong or inadequate electrical
voltage or connection, inappropriate on-site operation conditions, corrosive atmosphere, repair,
installation, start-up by non-APC by Schneider Electric designated personnel, a change in location or
operating use, exposure to the elements, Acts of God, fire, theft, or installation contrary to APC by
Schneider Electric recommendations or specifications or in any event if the APC by Schneider Electric
serial number has been altered, defaced, or removed, or any other cause beyond the range of the
intended use.
THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, BY OPERATION OF LAW OR
OTHERWISE, OF PRODUCTS SOLD, SERVICED OR FURNISHED UNDER THIS AGREEMENT OR
IN CONNECTION HEREWITH. APC BY SCHNEIDER ELECTRIC DISCLAIMS ALL IMPLIED
WARRANTIES OF MERCHANTABILITY, SATISFACTION AND FITNESS FOR A PARTICULAR
PURPOSE. APC BY SCHNEIDER ELECTRIC EXPRESS WARRANTIES WILL NOT BE ENLARGED,
DIMINISHED, OR AFFECTED BY AND NO OBLIGATION OR LIABILITY WILL ARISE OUT OF, APC
BY SCHNEIDER ELECTRIC RENDERING OF TECHNICAL OR OTHER ADVICE OR SERVICE IN
CONNECTION WITH THE PRODUCTS. THE FOREGOING WARRANTIES AND REMEDIES ARE
EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES AND REMEDIES. THE WARRANTIES
SET FORTH ABOVE CONSTITUTE APC BY SCHNEIDER ELECTRIC’S SOLE LIABILITY AND
PURCHASER'S EXCLUSIVE REMEDY FOR ANY BREACH OF SUCH WARRANTIES. APC BY
SCHNEIDER ELECTRIC WARRANTIES EXTEND ONLY TO PURCHASER AND ARE NOT
EXTENDED TO ANY THIRD PARTIES.
IN NO EVENT SHALL APC BY SCHNEIDER ELECTRIC, ITS OFFICERS, DIRECTORS, AFFILIATES
OR EMPLOYEES BE LIABLE FOR ANY FORM OF INDIRECT, SPECIAL, CONSEQUENTIAL OR
PUNITIVE DAMAGES, ARISING OUT OF THE USE, SERVICE OR INSTALLATION, OF THE
PRODUCTS, WHETHER SUCH DAMAGES ARISE IN CONTRACT OR TORT, IRRESPECTIVE OF
FAULT, NEGLIGENCE OR STRICT LIABILITY OR WHETHER APC BY SCHNEIDER ELECTRIC HAS
BEEN ADVISED IN ADVANCE OF THE POSSIBLY OF SUCH DAMAGES. SPECIFICALLY, APC BY
SCHNEIDER ELECTRIC IS NOT LIABLE FOR ANY COSTS, SUCH AS LOST PROFITS OR
REVENUE, LOSS OF EQUIPMENT, LOSS OF USE OF EQUIPMENT, LOSS OF SOFTWARE, LOSS
OF DATA, COSTS OF SUBSTITUENTS, CLAIMS BY THIRD PARTIES, OR OTHERWISE.
NetShelter SX Cabinet - Installation and Customization Manual
23
NO SALESMAN, EMPLOYEE OR AGENT OF APC BY SCHNEIDER ELECTRIC IS AUTHORIZED TO
ADD TO OR VARY THE TERMS OF THIS WARRANTY. WARRANTY TERMS MAY BE MODIFIED, IF
AT ALL, ONLY IN WRITING SIGNED BY AN APC BY SCHNEIDER ELECTRIC OFFICER AND
LEGAL DEPARTMENT.
Warranty claims
Customers with warranty claims issues may access the APC by Schneider Electric customer support
network through the Support page of the APC by Schneider Electric Web site, www.apc.com/support.
Select your country from the country selection pull-down menu at the top of the Web page. Select the
Support tab to obtain contact information for customer support in your region.
24
NetShelter SX Cabinet - Installation and Customization Manual
Worldwide Customer Support
Customer support for this product is available at www.apc.com.
© 2020 APC by Schneider Electric. APC, the APC logo, and NetShelter are owned by Schneider Electric SE
or its subsidiaries. All other brands may be trademark of their respective owners.
990-2183J-001
1/2020

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
