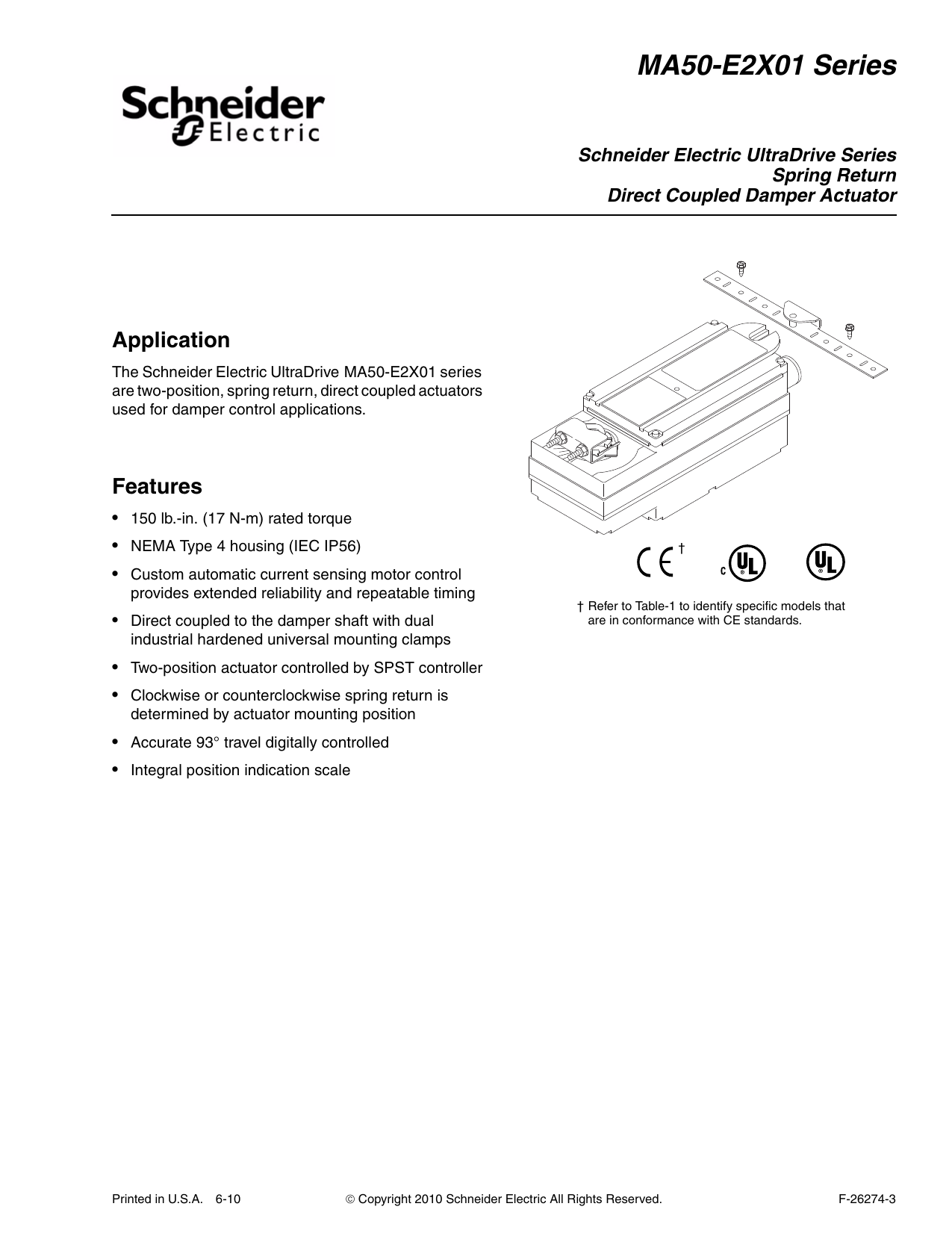

MA50-E2X01 Series
Schneider Electric UltraDrive Series
Spring Return
Direct Coupled Damper Actuator
Application
The Schneider Electric UltraDrive MA50-E2X01 series
are two-position, spring return, direct coupled actuators
used for damper control applications.
Features
• 150 lb.-in. (17 N-m) rated torque
• NEMA Type 4 housing (IEC IP56)
†
• Custom automatic current sensing motor control
provides extended reliability and repeatable timing
• Direct coupled to the damper shaft with dual
† Refer to Table-1 to identify specific models that
are in conformance with CE standards.
industrial hardened universal mounting clamps
• Two-position actuator controlled by SPST controller
• Clockwise or counterclockwise spring return is
determined by actuator mounting position
• Accurate 93° travel digitally controlled
• Integral position indication scale
Printed in U.S.A.
6-10
Copyright 2010 Schneider Electric All Rights Reserved.
F-26274-3
SPECIFICATIONS
Inputs
Control Signal: Two wire, SPST or Triacs. See Figure-1, Figure-1, and Figure-1.
Power Input: See Table-1. All 24 Vac circuits are Class 2. All circuits 30 Vac and above are
Class 1.
Connections:
Power, 24 inch (61 cm) long, 18 AWG color coded pigtail leads.
Outputs
Electrical:
Stroke, Electronically limited to 93° ±1°.
Torque See Table-1.
Duty Cycle 100%.
Timing See Table-1.
Mechanical:
Anti-Rotation Bracket,
Standard 9" long x 13/16" wide (229 x 21 mm), included with the actuator.
Optional Order AM-752 (4" long x 1-11/16" wide) for mounting the actuator in narrow
spaces.
Universal Mounting Clamps, Two clamps are required for all mounting configurations.
Standard 3/8" to 1/2" (10 to 13 mm) round and square shaft mounting clamps are
included with the actuator.
Optional Order AM-753 for 5/8" (16 mm) square and 3/4" to 1" (19 to 25 mm) round
damper shafts, two per package.
Minimum Damper Shaft Length,
Standard Damper shaft must be at least 4-5/8" (117 mm) long for standard mounting.
Optional Shorter than standard length shafts require the AM-676 shaft extension
(order separately).
Position Indicator, Scale numbered from 0 to 95°, provided for position indication.
Nominal Damper Area, Actuator sizing should be done in accordance with damper
manufacturer’s specifications.
Direction of Rotation, The zero (0) position on the position indicator is the normal or
spring return position. Counterclockwise rotation is provided when the actuator is
mounted with the “R” side facing the installer. Clockwise rotation is provided when the
actuator is mounted with the “L” side facing the installer.
Environment
Ambient Temperature Limits:
Shipping & Storage, -40 to 160°F (-40 to 71°C).
Operating, -25 to 140°F (-32 to 60°C).
Humidity: 15 to 95% RH, non-condensing.
Location: NEMA Type 1. NEMA Type 4 (IEC IP56) with customer supplied water tight
conduit connectors.
Agency Listings
UL 873: Underwriters Laboratories Inc. listed (File # E9429 Category TemperatureIndicating and Regulating Equipment).
CUL: UL Listed to Canadian safety standards. Canadian Standard C22.2 No. 24-93.
European Community: EMC Directive (89/336/EEC). Low Voltage Directive (72/23/EEC).
Machinery Directive (89/392/EEC). Safety Directive (92/59/EEC). See Table-1 for specific
models.
Table-1 Model Chart.
Actuator Power Input
Part
Number
Voltage
MA50-E2301a
24 Vac ±20%
MA50-E2001
120 Vac ±10%
MA50-E2101a
240 Vac ±10%
a
2
Hz
50 60
Watts
VA
Running
Holding
5.4
9.6
4.1
7.2
11.4
9.4
7.4
11.8
9.5
Approximate 93° Rotation
Timing in Seconds @ 70° F (21°
C)
for Rated Torque
Minimum
Maximum Stall
145
150 (17)
450 (51)
Output Torque Rating
lb.-in. (N-m)
This model is in conformance with CE standards.
Copyright 2010 Schneider Electric All Rights Reserved.
F-26274-3
ACCESSORIES
AM-676
AM-751
AM-752
AM-753
AM-754
AM-756
TF-711-02
TF-713-02
X-5521
Universal shaft extension, approximately 9-1/2" (242 mm) long for use on 3/8" to
11/16"(10 to 17 mm) round shafts, 3/8" to 9/16" (10 to 14 mm) square shafts
(AM-753 clamps required)
Standard anti-rotation bracket 9" long x 13/16" (229 x 21 mm) wide (229 x 21 mm),
included with actuator
Optional anti-rotation bracket 4" long x 1-11/6" wide (102 x 43 mm), for narrow
spaces
Optional universal mounting clamps for 5/8"(16 mm) square shaft, 3/4" and 1"
(19 to 25 mm) round shafts (two per package)
Standard universal mounting clamps for 3/8" to 1/2" (10 to 13 mm) round and
square shafts, two included with actuator
Metric conduit adaptor M20 x 1.5 to 1/2" NPT (two per package)
1/2" Sealtight water tight conduit connector (straight)
1/2" Sealtight water tight conduit connector (90°)
1/2" Pipe plug, included with actuator
TYPICAL APPLICATIONS (wiring diagrams)
1
MA50-E2001
Black
L1
White
L2
Green/Yellow
GRD
120 Vac
3
2
1 SPST or Triac Controller.
2 Unused conduit port must remain plugged with a water tight pipe
plug as shipped from factory to maintain NEMA 4 or IP56 rating.
3 Ground wire may be Green on some models.
Figure-1 Typical MA50-E2001 Wiring Diagram.
MA50-E2101
1
Brown
240 Vac
3
L1
Light Blue
L2
Green/Yellow
GRD
2
1 SPST or Triac Controller.
2 Unused conduit port must remain plugged with a water tight pipe
plug as shipped from factory to maintain NEMA 4 or IP56 rating.
3 Ground wire may be Green on some models.
Figure-2 Typical MA50-E2101 Wiring Diagram.
MA50-E2301
1
24 Vac
3
Black
24H
Black/Blue
24G
Green/Yellow
GRD
2
1 SPST or Triac Controller. Multiple MA50-E2301 actuators may be
powered by a single 24 Vac transofrmer.
2 Unused conduit port must remain plugged with a water tight pipe plug as
shipped from factory to maintain NEMA 4 or IP56 rating.
3 Ground wire may be Green on some models.
Figure-3 Typical MA50-E2301 Wiring Diagram.
F-26274-3
Copyright 2010 Schneider Electric All Rights Reserved.
3
INSTALLATION
Inspection
Requirements
Inspect the package for damage. If damaged, notify the appropriate carrier immediately.
If undamaged, open the package and inspect the device for obvious damage. Return
damaged products.
• Job wiring diagrams
• Tools (not provided)
– Socket wrench 1/2 inch, used for universal mounting clamp nuts
– Open-end wrench 10 mm, used for installing AM-676 universal shaft extension
– Slotted screwdriver, used for installing anti-rotation brackets
• Appropriate accessories
– Water tight 1/2 inch conduit seals Schneider Electric part number TF-711-02 or T&B
#5332 (straight, Schneider Electric part number TF-713-02 or T&B #5352 (90°), or
equivalent.
– Water tight 1/2 inch flexible conduit (e.,g. Anaconda: Sealtight) or 20 mm flexible
water tight conduit when using AM-756 metric conduit adapter with appropriate
metric water tight seals.
– Water tight 1/2 inch flexible conduit (Anaconda: Sealtight) or 20 mm flexible water
tight conduit when using AM-756 metric conduit adapter
– Two #8 1/2 inch (13 mm) sheet metal screws for mounting anti-rotation bracket
(optional)
• Training: Installer must be a qualified, experienced technician
Precautions
Warning:
• Electrical shock hazard! Disconnect the power supply (line power) before and during
installation to prevent electric shock and equipment damage.
• Make all connections in accordance with the wiring diagram and in accordance with
national and local electrical codes. Use copper conductors only.
Caution: General
• Actuator is not recommended for applications needing multiple actuators mounted on a
common jackshaft.
• Avoid electrical noise interference. Do not install near large contactors, electrical
machinery, or welding equipment.
• Avoid locations where excessive moisture, corrosive fumes, vibration, or explosive
vapors are present.
Caution: NEMA 4 or IP56
• To maintain NEMA Type 4 rating, use water tight 1/2" flexible conduit only, with 1/2"
•
•
4
conduit connector of the water tight type, Schneider Electric part number TF-711-02 or
T&B #5332 (straight), Schneider Electric part number TF-713-02 or T&B #5352 (90°),
or equivalent.
For metric conduit applications using AM-756 conduit adapters, use the appropriate
metric water tight seals to maintain compliance with IP56 or NEMA Type 4 rating.
Use a water tight 1/2" pipe plug in any unused actuator conduit ports and seal with
water tight tape to stay in compliance with NEMA Type 4 or IP56 rating. Use Schneider
Electric part number X-5521, Grinnell #8700159257 (black), Grinnell #8700159851
(galvanized), or equivalent. Actuators with unused conduit ports are shipped with the
unused port plugged.
Copyright 2010 Schneider Electric All Rights Reserved.
F-26274-3
Federal Communications Commission (FCC)
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in residential installations. This
equipment generates, uses, and can radiate radio frequency energy and may cause
harmful interference if not installed and used in accordance with the instructions. Even
when instructions are followed, there is no guarantee that interference will not occur in a
particular installation. If this equipment causes harmful interference to radio or television
reception— which can be determined by turning the equipment off and on—the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/television technician for help.
Canadian Department of Communications (DOC)
Note: This class B digital apparatus meets all requirements of the Canadian InterferenceCausing Equipment Regulations.
Cet appareil numerique de la classe B respecte toutes les exigences du Reglement sur le
material broilleur du Canada.
European Standard EN 55022
Warning: This is a class B (European Classification) product. In a domestic environment
this product may cause radio interference in which case the user may be required to take
adequate measures.
F-26274-3
Copyright 2010 Schneider Electric All Rights Reserved.
5
Mounting
Damper Actuator Sizing
Correct sizing of the actuator is necessary for proper control of dampers. The area of
damper that can be controlled by a given actuator is dependent upon the type of damper,
the quality of the damper, the pressure drop across the damper in the closed position, and
the velocity of the air flow through the damper. To obtain actual damper torque requirements,
contact the damper manufacturer.
Damper Shaft Sizing
Use the “Long Damper Shaft” mounting instructions if the damper shaft is at least 4-5/8" 
(117 mm) long.
Use the “Short Damper Shaft” mounting instructions if the damper shaft is shorter than
4-5/8" or the area around the damper shaft is too narrow to allow standard mounting, as
described in the “Long Damper Shaft” mounting section. See Figure-4 for minimum shaft
length.
Min. 4-5/8" (117 mm)
Figure-4 Long Damper Shaft Dimensions.
Caution: The MA50-E2X01 actuator is not designed to be used on aluminum damper
shafts, solid steel shafts smaller than 1/2" diameter round or 1/2" square, or hollow steel
shafts smaller than 3/4" round. The actuator can produce up to 450 in-lbs (51 N-m)
maximum stall torque, which could result in the actuator snapping off an aluminum damper
shaft or an improperly sized steel damper shaft. Refer to Table-2 for nominal damper shaft
sizes.
Table-2 Steel Damper Shaft Specifications.
Damper Shaft Shape
Round
Square
a
6
Damper Shaft Type
O.D. (Nominal)a
Solid bar
1/2" to 1"
0
3/4"
0.375
13/16"
0.683
27/32"
0.626
Hollow tubing
Solid bar
I.D. (Maximum)
7/8"
0.805
15/16"
0.808
1"
0.930
1/2" to 5/8"
0
Damper shaft sizes over 1/2" (13 mm) O.D. require AM-753 universal mounting clamps.
Copyright 2010 Schneider Electric All Rights Reserved.
F-26274-3
Mounting the Actuator for Clockwise or Counterclockwise Spring Return
Long Damper Shaft
1. Move the damper to the normal position (usually closed).
– If the damper shaft rotates clockwise to the closed position, mount the actuator with
the side marked “R” facing the installer. See Figure-5.
– If the damper shaft rotates counterclockwise to the closed position, mount the
actuator with the side marked “L” facing the installer. See Figure-6.
Note: The actuator comes equipped with two AM-754 universal mounting clamps. For
damper shafts larger than 1/2" (13 mm) in diameter, the AM-753 universal mounting clamps
are required (order separately). The AM-753 clamps accommodate round shaft sizes
ranging from 3/4" to 1" (19 to 25 mm) or 5/8" (16 mm) square shafts.
2. Slide the actuator over the shaft and into its desired final mounting position. See
Figure-5 or Figure-6.
3. Hand tighten the nuts on both of the actuator’s universal mounting clamps.
4. Align the actuator at 90° (perpendicular) to the damper shaft. See Figure-7.
5. Slide the anti-rotation bracket pin into the mounting slot on the actuator and drill
mounting holes. See Figure-7. For narrow spaces, the AM-752 anti-rotation bracket is
recommended (order separately).
6. Attach one side of the anti-rotation bracket to the mounting surface with one of the
screws provided. Leave the screw loose so that the bracket can be rotated. See
Figure-5 for clockwise or Figure-6 for counterclockwise spring return.
7. Pivot the anti-rotation bracket away from the actuator. See Figure-5 or Figure-6.
8. Loosen the universal mounting clamps, making sure not to move the damper shaft.
Rotate the actuator approximately 5° in the direction which would open the damper. See
Figure-5 or Figure-6.
9. Tighten all of the universal mounting clamp nuts with a 1/2" socket wrench. Apply 
4 to 6 ft. -lbs (5 to 8 N-m) of torque.
10. Manually rotate the actuator toward the full-closed position to apply pressure to the
damper seals. See Figure-5 or Figure-6.
11. Pivot the anti-rotation bracket into place and secure the other side of the bracket onto
the mounting surface with the other screw provided with the actuator. See Figure-5 or
Figure-6.
12. Verify that the damper is in its full-closed position and actuator at 90° (perpendicular) to
the damper shaft. See Figure-5 or Figure-6.
F-26274-3
Copyright 2010 Schneider Electric All Rights Reserved.
7
CENTERLINE
1
R
1
1 Two AM-754 Universal Mounting Clamp Assemblies
are provided with each actuator. Each clamp
assembly includes 1 universal mounting clamp and
1 retaining clip.
5°
Note: Two Universal Mounting Clamp Assemblies
are required for all mounting configurations.
Figure-5 Long Damper Shaft Mounting with Clockwise Spring Return for Normally Closed Damper.
8
Copyright 2010 Schneider Electric All Rights Reserved.
F-26274-3
CENTERLINE
1
1 Two AM-754 Universal Mounting Clamp Assemblies
are provided with each actuator. Each clamp
assembly includes 1 universal mounting clamp and
1 retaining clip.
5°
Note: Two Universal Mounting Clamp Assemblies
are required for all mounting configurations.
Figure-6 Long Damper Shaft Mounting with Counterclockwise Spring Return for Normally Closed Damper.
Actuator Mounting Slot
AM-751
Anti-rotation Bracket
90°
90°
Figure-7 Mounting Anti-rotation Bracket to Actuator.
F-26274-3
Copyright 2010 Schneider Electric All Rights Reserved.
9
Short Damper Shaft
See Figure-8 for installation of actuator using the AM-676 Universal Shaft Extension.
Installation requires AM-676 Universal Shaft Extension and AM-753 Universal Mounting
Clamps for 3/4" to 1" (19 to 25 mm) shafts, these items must be ordered separately.
1. Loosen the V-clamp nuts on the AM-676 universal shaft extension.
2. Fit the universal shaft extension fully onto the damper shaft. Tighten the universal shaft
extension V-clamp nuts with a 10 mm open-end wrench. Apply 4 to 6 ft. lbs 
(5 to 8 N-m) of torque.
3. Move the damper to the normal position (usually closed).
– If the damper shaft rotates clockwise to the closed position, mount the actuator with
the side marked “R” facing the installer. See Figure-5.
– If the damper shaft rotates counterclockwise to the closed position, mount the
actuator with the side marked “L” facing the installer. See Figure-6.
4. Remove the mounting clamps from the actuator and replace them with the AM-753
universal mounting clamps.
5. Loosen the nuts on both of the AM-753 universal mounting clamps on the damper
actuator.
6. Assemble the damper actuator onto the universal shaft extension, allowing the
extension to slide through the actuator’s universal mounting clamps. Make sure the
actuator is 90° (perpendicular) to the damper shaft. Then, hand tighten the nuts on both
of the actuator’s universal mounting clamps. See Figure-7
Note: If the universal shaft extension protrudes excessively above the damper actuator's
top universal mounting clamp:
•
•
•
•
remove the damper actuator from the universal shaft extension,
remove the extension from the damper shaft,
shorten the universal shaft extension by cutting it to the desired length,
then proceed to follow mounting instructions.
7. Slide the anti-rotation bracket pin into the mounting slot on the actuator. See Figure-7.
For narrow spaces, the AM-752 anti-rotation bracket is recommended (order
separately).
8. Position the actuator and bracket in the desired final mounting position on the mounting
surface and drill mounting holes. See Figure-8.
9. Attach one side of the anti-rotation bracket to the mounting surface with one of the
screws provided. Leave the screw loose so that the bracket can be rotated. See
Figure-5 for clockwise or Figure-6 for counterclockwise spring return.
10. Pivot the anti-rotation bracket away from the actuator. See Figure-5 or Figure-6.
11. Loosen the universal mounting clamps, making sure not to move the damper shaft.
Rotate the actuator approximately 5° in the direction which would open the damper. See
Figure-5 or Figure-6.
12. Tighten all of the universal mounting clamp nuts with a 1/2" socket wrench. Apply 
4 to 6 ft. -lbs (5 to 8 N-m) of torque.
13. Manually rotate the actuator toward the full-closed position to apply pressure to the
damper seals. See Figure-5 or Figure-6.
14. Pivot the anti-rotation bracket into place and secure the other side of the bracket onto
the mounting surface using the other screw provided with the actuator. See Figure-5 or
Figure-6.
15. Verify that the damper is in its full-closed position and actuator at 90° (perpendicular) to
the damper shaft. See Figure-5 or Figure-6.
10
Copyright 2010 Schneider Electric All Rights Reserved.
F-26274-3
Actuator
Anti-rotation
Bracket
(included with
actuator)
AM-753
Universal
Mounting Clamp
Assemblies
1
AM-676
Universal Shaft
Extension
Mounting Surface
V-clamp
Duct
1 The AM-676 extends the
damper shaft approximately
9" (229 mm).
Damper Shaft
Figure-8 Installation of Universal Shaft Extension.
Wiring Requirements
Control and Power Leads
Remove blue plastic thread protectors before installing conduit fittings. See Figure-1 through
Figure-1 for typical wiring applications and Table-3 for maximum wire lengths.
Note: Class 2 control and power lead wiring must be routed separately from line voltage
wiring and any other non-class 2 circuits.
Table-3 Control and Power Wiring Data.
Actuator
Voltage
Part
Number
24 Vac
MA50-E2301
120 Vac
MA50-E2001
240 Vac
MA50-E2101
Maximum Wire Run in ft. (m)
(5% Voltage Drop)
14 AWG
16 AWG
18 AWG
1165
(355)
733
(223)
461
(141)
CHECKOUT
This procedure is for checking out a normally closed actuator that is typically mounted
unpowered. It is possible to mount the actuator with power applied for special applications.
After the entire system has been installed and the actuator has been powered up, the
following check can be made for proper system operation. Check for correct operation of the
damper while actuator is being stroked.
1. Apply power to the actuator.
2. Set the controller to cause the actuator to drive open.
3. Check to see that the actuator travels to the full-open position.
4. Remove power from actuator to cause the actuator to drive closed.
5. Check to see that the actuator travels to the fully closed position.
Note: If anticipated damper operation does not occur, verify the Long Damper Shaft or
Short Damper Shaft mounting procedures. Also, verify that the controller has the proper
action (direct or reverse) to match the damper required operation.
F-26274-3
Copyright 2010 Schneider Electric All Rights Reserved.
11
THEORY OF OPERATION
The actuator is, by means of dual mounting clamps, directly mounted onto the damper shaft.
The anti-rotation bracket supplied with the actuator prevents lateral movement of the
actuator. The damper actuator is not provided with and does not require, any limiting
switches, but is electronically protected against overloading.
The angle of rotation is electronically limited to 93° ±1°. When reaching the damper or
actuator end position, the motor stops automatically. The position of the actuator is indicated
by means of scale reading 0 to 95°.
MAINTENANCE
Regular maintenance of the total system is recommended to assure sustained optimum
performance. The MA50-E2X01 actuator is maintenance free.
FIELD REPAIR
None. Replace with functional actuator.
DIMENSIONAL DATA
Figure-9 dimensions are in inches (mm).
R
4"
(102)
4"
(102)
1-27/64"
(36)
10-27/32" (275)
Figure-9 MA50-E2X01 Damper Actuator.
On October 1st, 2009, TAC became the Buildings business of its parent company Schneider Electric. This document reflects the visual identity of Schneider Electric,
however there remains references to TAC as a corporate brand in the body copy. As each document is updated, the body copy will be changed to reflect appropriate
corporate brand changes.
Copyright 2010, Schneider Electric
All brand names, trademarks and registered
trademarks are the property of their respective
owners. Information contained within this
document is subject to change without notice.
F-26274-3
Schneider Electric
1354 Clifford Avenue
P.O. Box 2940
Loves Park, IL 61132-2940
www.schneider-electric.com/buildings

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
