Schneider Electric EASY RACK 1U BLANKING PANEL KIT ER7BP1U Instruction Sheet

Installation
990–91449 Release date: 01/2021

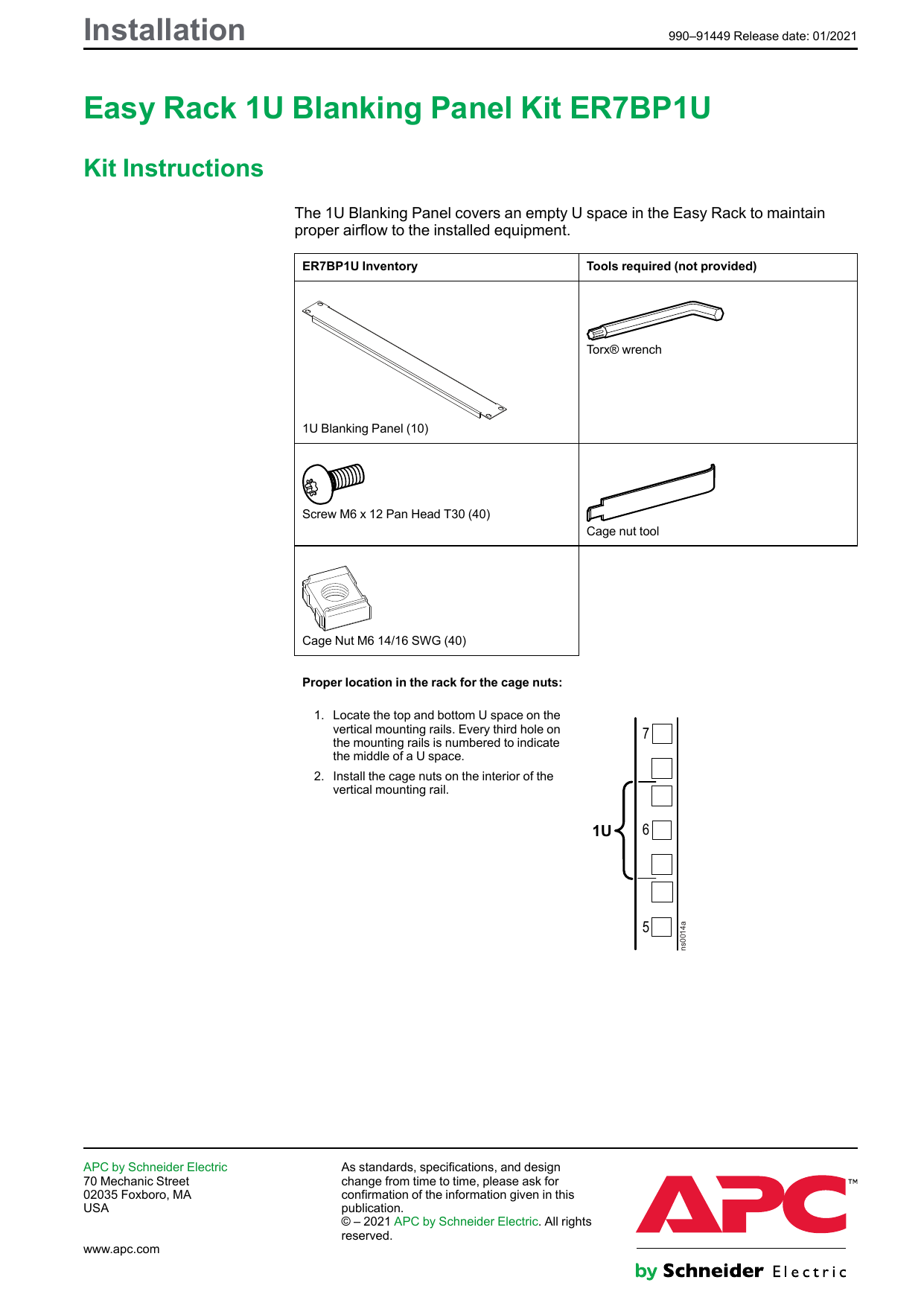

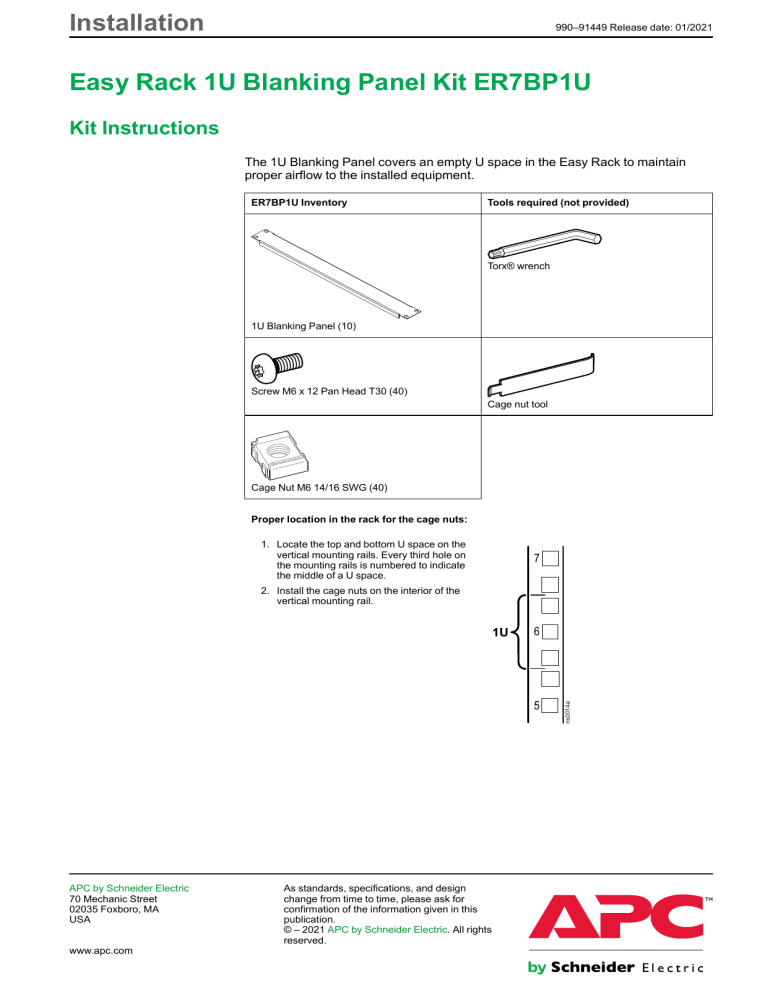

Easy Rack 1U Blanking Panel Kit ER7BP1U
Kit Instructions
The 1U Blanking Panel covers an empty U space in the Easy Rack to maintain
proper airflow to the installed equipment.
ER7BP1U Inventory
Tools required (not provided)
Torx® wrench
1U Blanking Panel (10)
Screw M6 x 12 Pan Head T30 (40)
Cage nut tool
Cage Nut M6 14/16 SWG (40)
Proper location in the rack for the cage nuts:
1. Locate the top and bottom U space on the
vertical mounting rails. Every third hole on
the mounting rails is numbered to indicate
the middle of a U space.
7
2. Install the cage nuts on the interior of the
vertical mounting rail.
6
5
APC by Schneider Electric
70 Mechanic Street
02035 Foxboro, MA
USA
www.apc.com
As standards, specifications, and design
change from time to time, please ask for
confirmation of the information given in this
publication.
© – 2021 APC by Schneider Electric. All rights
reserved.
ns0014a
1U
Easy Rack 1U Blanking Panel Kit ER7BP1U
CAUTION
FALLING EQUIPMENT HAZARD
Do NOT install cage nuts vertically with the tabs engaging the top and bottom of
the square hole.
Failure to follow these instructions can result in injury or equipment
damage.
•
Install cage nuts horizontally, with the tabs engaging
the sides of the square hole.
•
Install the cage nuts on the interior of the vertical
mounting rail.
ns1768a
Proper installation position for the cage nuts:
Install the cage nut:
1. From the inside of the rack, insert the cage nut into
the square hole.
2. Hook one tab of the cage nut assembly through the
far side of the hole.
gen0188a
3. Place the cage nut tool on the other side of the cage
nut and pull to snap into position.
Remove the cage nut:
1. Remove any attached screw.
2. Grasp the cage nut, squeeze the tabs on the sides, and push to release it from the square hole.
Install the Blanking panel:
The 1U Blanking panel can be installed in an empty U space in your Easy Rack. Each blanking panel
is installed to the vertical mounting rails using four (4) M6 x 12 Pan head screws and four (4) cage
nuts.
1U Blanking Panel Installed
The Easy Rack in the illustration above is shown without doors or side panels for clarity.
2
990–91449
