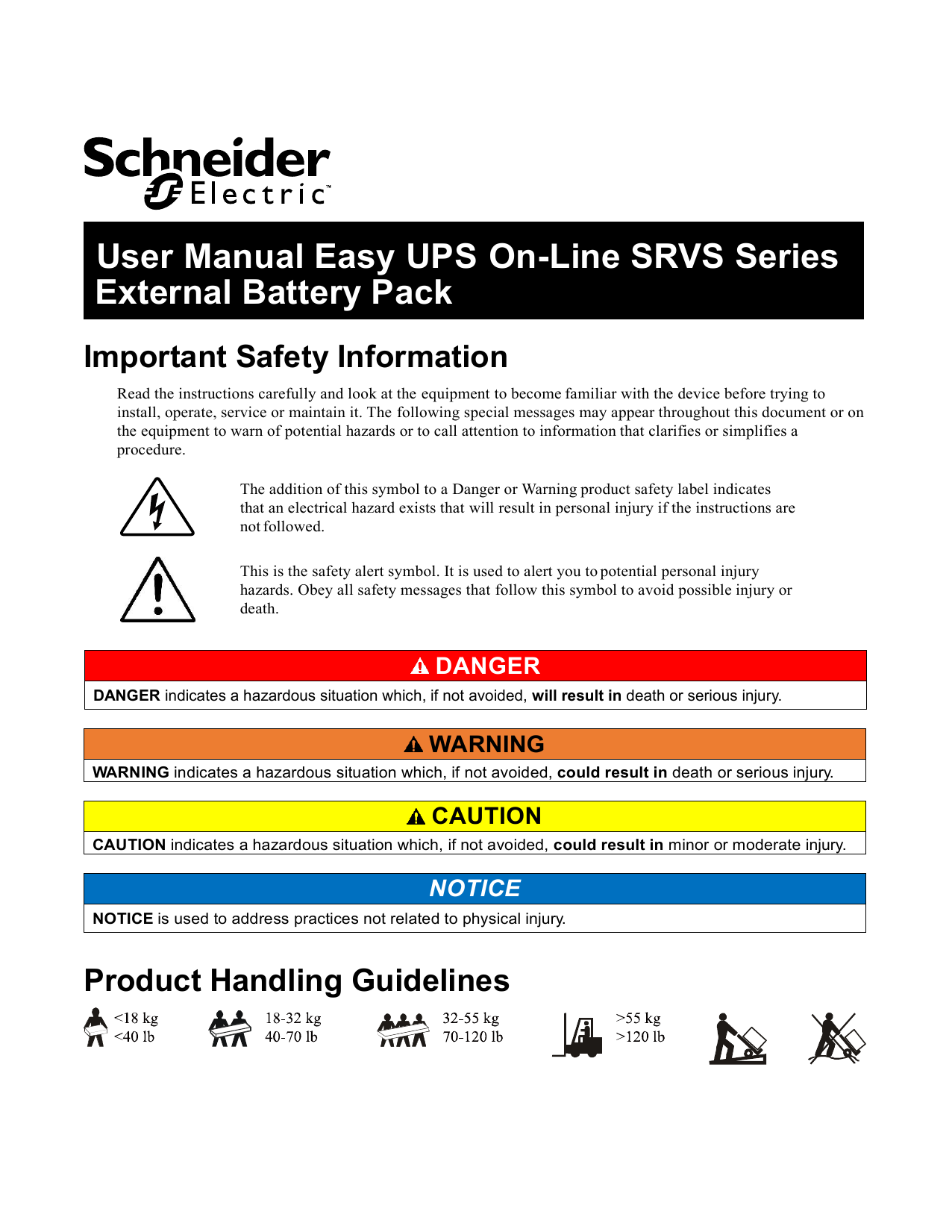

User Manual Easy UPS On-Line SRVS Series
External Battery Pack
Important Safety Information
Read the instructions carefully and look at the equipment to become familiar with the device before trying to
install, operate, service or maintain it. The following special messages may appear throughout this document or on
the equipment to warn of potential hazards or to call attention to information that clarifies or simplifies a
procedure.
The addition of this symbol to a Danger or Warning product safety label indicates
that an electrical hazard exists that will result in personal injury if the instructions are
not followed.
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury or
death.
DANGER
DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
NOTICE
NOTICE is used to address practices not related to physical injury.
Product Handling Guidelines
Safety and General Information
SAVE THESE INSTRUCTIONS
This manual contains important instructions that should be followed during installation and maintenance of the battery
pack.
Inspect the package contents upon receipt. Notify the carrier and dealer if there is any damages.
• This external battery pack is for indoor use only.
• Do not operate this battery pack in direct sunlight, in contact with fluids, or where there is excessive dust
or high humidity.
• Do not operate the battery pack near open windows or doors.
• Be sure the air vents on the battery pack are not blocked. Allow adequate space for proper ventilation.
Note: Allow a minimum of 20 cm clearance on all four sides of the external battery pack.
• Environmental factors impact battery life. Elevated ambient temperatures, poor quality utility power, and
frequent discharges will shorten battery life. Follow the battery manufacturer recommendations.
Battery Safety
CAUTION
RISK OF HYDROGEN SULPHIDE GAS AND EXCESSIVE SMOKE
•
•
•
•
•
Replace the battery at least every 5 years.
Replace the battery immediately when the UPS indicates battery replacement is necessary.
Replace battery at the end of its service life.
Replace batteries with the same number and type of batteries as originally installed in the equipment.
Replace the battery immediately when the UPS indicates a battery over-temperature condition, or UPS internal overtemperature, or when there is evidence of electrolyte leakage. Power off the UPS, unplug it from the AC input, and
disconnect the batteries. Do not operate the UPS until the batteries have been replaced.
• *Replace all battery modules (including the modules in External Battery Packs) which are older than one year, when
installing additional battery packs or replacing the battery module(s).
Failure to follow these instructions can result in minor or moderate injury and equipment damage.
* Contact Schneider Electric Worldwide Customer Support to determine the age of the installed battery modules.
• Servicing of user replaceable batteries should be performed or supervised by personnel knowledgeable
about batteries and required precautions. In this case, batteries is not user replaceable.
• Schneider Electric uses Maintenance-Free sealed Lead Acid batteries. Under normal use and handling, there
is no contact with the internal components of the batteries. Over charging, over heating or other misuse of
batteries can result in a discharge of battery electrolyte. Released electrolyte is toxic and may be harmful to
the skin and eyes.
• Use tool with insulated handles.
• Wear rubber gloves and boots.
• Determine if battery is either intentionally or inadvertently grounded. Contact with any part of a grounded battery
can result in electric shock and burns by high short-circuit current. The risk of such hazards can be reduced if
grounds are removed during installation and maintenance by a skilled person.
• This equipment contains potentially hazardous voltages. Do not attempt to disassemble the unit. The unit
contains no user serviceable parts. Repairs are must performed only by factory trained service personnel.
• Do not dispose of batteries in a fire. The batteries may explode.
• Do not open or mutilate batteries. They contain an electrolyte that is toxic and harmful to the skin and eyes.
• Do not connect the terminals of a battery or battery pack with a wire or other electrically conductive objects.
2
Easy UPS SRVS Series External Battery Pack
Product Description
The Schneider Electric external battery pack connects to selected Schneider Electric Uninterruptible Power Supply
(UPS) models. The UPS and the external battery pack provide extended protection for electronic equipment from utility
power blackouts, brownouts, sags, and surges. The external battery pack provides continuous power until utility power
returns to normal levels or the batteries are fully discharged. The UPS and the external battery pack are packed
separately.
This user manual is available on the Schneider Electric website, www.schneider-electric.com.
Package Contents
Read the Safety Guide before installing the battery pack.
The packaging is recyclable; save it for reuse or dispose of it properly.
SRVS240RLBP-9A
(1)
Battery pack
(1)
User manual
(8)
Flat head screws
(2)
Rack-mount
bracket
(1)
User documentation
CD
(1)
Battery cable
NOTE: The model and serial numbers are located on a small, rear panel label.
Optional Accessories
For optional accessories, refer to the Schneider Electric Website at www.schneider-electric.com.
Easy UPS SRVS Series External Battery Pack
3
Specifications
Environment Specifications
NOTICE
RISK OF EQUIPMENT DAMAGE
• Battery pack must be used indoors only.
• The installation location should be sturdy to withstand the weight of the battery pack.
• Do not operate battery pack where there is excessive dust or where the temperature or humidity are outside specified limits.
Failure to follow these instructions can result in equipment damage.
Temperature
Discharge
Recharge
Storage
Elevation
Operating
Storage
Humidity
IP Rating
-15° to 50°C
0° to 40°C
-15° to 40°C
During storage, charge the battery pack
every 4 months.
0 - 1,000 m: normal operation
0 - 15,000 m
0 to 95% relative humidity, noncondensing
IP20
This unit is intended for indoor use
only. Select a location sturdy enough
to handle the weight.
Do not operate the battery pack
where there is excessive dust or
where the temperature or humidity
are outside specified limits.
Be sure the air vents on the battery
pack are not blocked. Allow
adequate space for proper ventilation.
Physical Specifications
Model
Dimensions with package
Width x Height x Depth
Dimensions without package
Width x Height x Depth
Weight with package
Weight without package
Lifting guidelines
SRVS240RLBP-9A
580 mm (22.83in) x 250 mm (9.84 in) x 870 mm
(34.25 in)
438 mm (17.2 in) x 133mm (5.24 in) x 606 mm
(23.86 in)
70kg
63kg
>55 kg (>120lb)
Battery
Model
Type
Battery Numbers
Battery Bank Voltage
4
SRVS240RLBP-9A
Sealed maintenance free (SMF) 12 V, 9 Ah
20 pcs
240 V
Easy UPS SRVS Series External Battery Pack
Rear Panel Features
SRVS240RLBP-9A
Battery connector
Circuit breaker
Rack-Mount Installation
Refer to the below chart to install battery pack into 19” rack enclosure.
CAUTION
RISK OF DROPPED OR FALLING EQUIPMENT
• Practice correct lifting techniques adequate for the weight of the equipment.
• Install battery pack at the bottom of the rack.
• Install the UPS above the battery pack.
• Secure the rack-mount brackets to the unit using all of the screws supplied for this purpose.
• Secure the unit in the rack using all of the screws supplied for this purpose.
Failure to follow these instructions could result in equipment damage and minor or moderate injury.
Secure two brackets to the battery pack. Use 8
screws in each bracket.
Lift the battery module and slide it into rack
enclosure. Secure the battery module to the rack with
screws, nuts and washers (not supplied in the
package) through its mounting brackets into the rails.
NOTE: Given the heavy weight, the use of rack-mount brackets is mandatory during rack installation (guide with
L-shaped support). For the same reason, it is recommended that the battery pack be installed in the lower part of
the rack cabinet. Optional rail kit accessory could be purchased separately if required.
Easy UPS SRVS Series External Battery Pack
5
Install The Battery Pack
Connect to the UPS
Connect UPS to the external battery pack with a battery cable. Refer to below chart for external battery
connection.


Please connect the battery according to the battery voltage indicated on the rear panel. If the connected battery
voltage is incorrect, UPS may be damaged and cannot be repaired. Therefore, be sure to confirm that the battery
voltage is in accordance with the UPS specification.
Be sure to respectively connect red cable to the positive terminal and black cable to the negative terminal of
external battery system. Be sure grounding (green cable) is connected firmly.
Connect a battery pack to another battery pack
If more than one battery pack connected to the UPS,
Step 1: Connect UPS to the #1 external battery pack with one battery cable (A).
Step 2: Use another battery cable (B) and plug one end into rear connector
Step 3: Plug the other end of battery cable (B) into the rear connector
Be sure grounding is connected firmly.
on the #1 battery pack.
on the #2 battery pack.
UPS
#1 battery pack
#2 battery pack
6
Easy UPS SRVS Series External Battery Pack
Troubleshooting
Use the table below to solve minor installation and operation problems.
Problem and/or Possible Cause
Solution
UPS, when connected to battery, is not supplying power to the connected equipment
The battery is not connected.
Connect battery to the UPS. See “Start Up Settings” section
in UPS manual.
Low battery cut off. UPS may have
Wait for the utility power to return and charge the battery. To
discharged the battery due to utility power
turn on the output power after utility power returns, press
outage and turned the output off due to low
button.
battery condition.
UPS emits an audible beeping sound at long intervals
The UPS is operating normally when running
UPS has detected an error. See “Alarms” section in UPS
on battery.
manual.
UPS is not providing expected backup time.
The UPS battery is discharged due to a recent The batteries require recharging after extended outages.
power outage.
Batteries can wear faster when put into service without
proper recharging or when operated at elevated
temperatures.
The battery is near the end of its service life.
If the battery is near the end of its service life, consider
replacing the battery, even if the replace battery indicator is
not illuminated. See “Start Up” section in UPS manual.
Easy UPS SRVS Series External Battery Pack
7
Transport
1. Shut down and disconnect all connected equipment.
2. Disconnect the unit from mains power.
3. Disconnect all internal and external batteries (if applicable).
4. Follow the shipping instructions outlined in the Service section of this manual.
Service
If the unit requires service, do not return it to the dealer. Follow these steps:
1. Review the Troubleshooting section of the manual to eliminate common problems.
2. If the problem persists, contact Schneider Electric Customer Support through the Schneider
Electric website, www.apc.com.
a.
Note the model number and serial number and the date of purchase. The model and serial
numbers are located on the rear panel of the unit.
b. Call Customer Support. A technician will attempt to solve the problem over the phone. If
this is not possible, the technician will issue a Returned Material Authorization Number
(RMA#).
c.
If the unit is under warranty, the repairs are free.
d. Service procedures and returns may vary internationally. For country specific instructions
refer to the Schneider Electric website, www.apc.com.
3. Pack the unit properly to avoid damage in transit. Never use foam beads for packaging.
Damage sustained in transit is not covered under warranty.
4. Write the RMA# provided by Customer Support on the outside of the package.
5.
8
Return the unit by insured, prepaid carrier to the address provided by Customer Support.
Easy UPS SRVS Series External Battery Pack
Limited Factory Warranty
Schneider Electric IT Corporation (SEIT), warrants its products to be free from defects in materials and
workmanship for a period of two (2) years from the date of purchase. The SEIT obligation under this warranty
is limited to repairing or replacing, at its own sole option, any such defective products. Repair or replacement
of a defective product or part thereof does not extend the original warranty period.
This warranty applies only to the original purchaser who must have properly registered the product within 10
days of purchase. Products may be registered online at warranty.apc.com.
SEIT shall not be liable under the warranty if its testing and examination disclose that the alleged defect in the
product does not exist or was caused by end user or any third person misuse, negligence, improper installation,
testing, operation or use of the product contrary to SEIT recommendations of specifications. Further, SEIT
shall not be liable for defects resulting from: 1) unauthorized attempts to repair or modify the product, 2)
incorrect or inadequate electrical voltage or connection, 3) inappropriate on site operation conditions, 4) Acts
of God, 5) exposure to the elements, or 6) theft. In no event shall SEIT have any liability under this warranty
for any product where the serial number has been altered, defaced, or removed.
EXCEPT AS SET FORTH ABOVE, THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, BY
OPERATION OF LAW OR OTHERWISE, APPLICABLE TO PRODUCTS SOLD, SERVICED OR
FURNISHED UNDER THIS AGREEMENT OR IN CONNECTION HEREWITH.
SEIT DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY, SATISFACTION AND
FITNESS FOR A PARTICULAR PURPOSE.
SEIT EXPRESS WARRANTIES WILL NOT BE ENLARGED, DIMINISHED, OR AFFECTED BY AND
NO OBLIGATION OR LIABILITY WILL ARISE OUT OF, SEIT RENDERING OF TECHNICAL OR
OTHER ADVICE OR SERVICE IN CONNECTION WITH THE PRODUCTS.
THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND IN LIEU OF ALL
OTHER WARRANTIES AND REMEDIES. THE WARRANTIES SET FORTH ABOVE CONSTITUTE
SEIT’S SOLE LIABILITY AND PURCHASER EXCLUSIVE REMEDY FOR ANY BREACH OF
SUCH WARRANTIES. SEIT WARRANTIES EXTEND ONLY TO ORIGINAL PURCHASER AND
ARE NOT EXTENDED TO ANY THIRD PARTIES.
IN NO EVENT SHALL SEIT, ITS OFFICERS, DIRECTORS, AFFILIATES OR EMPLOYEES BE
LIABLE FOR ANY FORM OF INDIRECT, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES,
ARISING OUT OF THE USE, SERVICE OR INSTALLATION OF THE PRODUCTS, WHETHER SUCH
DAMAGES ARISE IN CONTRACT OR TORT, IRRESPECTIVE OF FAULT, NEGLIGENCE OR
STRICT LIABILITY OR WHETHER SEIT HAS BEEN ADVISED IN ADVANCE OF THE POSSIBILITY
OF SUCH DAMAGES. SPECIFICALLY, SEIT IS NOT LIABLE FOR ANY COSTS, SUCH AS LOST
PROFITS OR REVENUE, WHETHER DIRECT OR INDIRECT, LOSS OF EQUIPMENT, LOSS OF
USE OF EQUIPMENT, LOSS OF SOFTWARE, LOSS OF DATA, COSTS OF SUBSTITUANTS, CLAIMS
BY THIRD PARTIES, OR OTHERWISE.
NOTHING IN THIS LIMITED WARRANTY SHALL SEEK TO EXCLUDE OR LIMIT SEIT
LIABILITY FOR DEATH OR PERSONAL INJURY RESULTING FROM ITS NEGLIGENCE OR ITS
FRAUDULENT MISREPRESENTATION OF TO THE EXTENT THAT IT CANNOT BE EXCLUDED
OR LIMITED BY APPLICABLE LAW.
To obtain service under warranty you must obtain a Returned Material Authorization (RMA) number from customer
support. Customers with warranty claims issues may access the SEIT worldwide customer support network through
the Schneider Electric website: www.schneider-electric.com. Select your country from the country selection drop
down menu. Open the Support tab at the top of the web page to obtain information for customer support in your
region. Products must be returned with transportation charges prepaid and must be accompanied by a brief
description of the problem encountered and proof of date and place of purchase.
Easy UPS SRVS Series External Battery Pack
9
Schneider Electric Worldwide Customer Support
Customer support for this or any other Schneider Electric product is available at no charge in any of the
following ways:
• Visit the Schneider Electric website to access documents in the Schneider Electric Knowledge Base and
to submit customer support requests.
– www.apc.com (Corporate Headquarters)
Connect to localized Schneider Electric websites for specific countries, each of which provides
customer support information.
– www.apc.com/support/
Global support searching Schneider Electric Knowledge Base and using e-support.
• Contact the Schneider Electric Customer Support Center by telephone or e-mail.
– Local, country specific centers: go to www.apc.com/support/contact
for contact information.
For information on how to obtain local customer support, contact the Schneider Electric representative or
other distributor from whom you purchased your Schneider Electric product.
© 2018 Schneider Electric. The Schneider Electric logo is owed by Schneider Electric Industries
S.A.S., or their affiliated companies. All other trademarks are property of their respective owners.
EN 990-91178
08/2018

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
