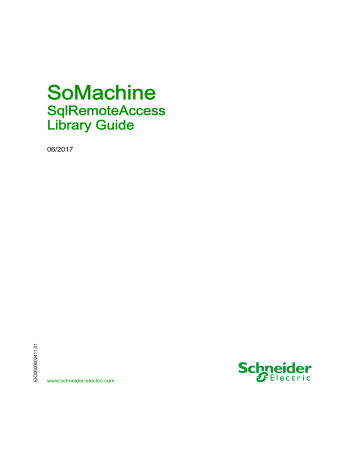

SoMachine
EIO0000002411 06/2017
SoMachine
SqlRemoteAccess
Library Guide
EIO0000002411.01
06/2017
www.schneider-electric.com
The information provided in this documentation contains general descriptions and/or technical
characteristics of the performance of the products contained herein. This documentation is not
intended as a substitute for and is not to be used for determining suitability or reliability of these
products for specific user applications. It is the duty of any such user or integrator to perform the
appropriate and complete risk analysis, evaluation and testing of the products with respect to the
relevant specific application or use thereof. Neither Schneider Electric nor any of its affiliates or
subsidiaries shall be responsible or liable for misuse of the information contained herein. If you
have any suggestions for improvements or amendments or have found errors in this publication,
please notify us.
You agree not to reproduce, other than for your own personal, noncommercial use, all or part of
this document on any medium whatsoever without permission of Schneider Electric, given in
writing. You also agree not to establish any hypertext links to this document or its content.
Schneider Electric does not grant any right or license for the personal and noncommercial use of
the document or its content, except for a non-exclusive license to consult it on an "as is" basis, at
your own risk. All other rights are reserved.
All pertinent state, regional, and local safety regulations must be observed when installing and
using this product. For reasons of safety and to help ensure compliance with documented system
data, only the manufacturer should perform repairs to components.
When devices are used for applications with technical safety requirements, the relevant
instructions must be followed.
Failure to use Schneider Electric software or approved software with our hardware products may
result in injury, harm, or improper operating results.
Failure to observe this information can result in injury or equipment damage.
© 2017 Schneider Electric. All Rights Reserved.
2
EIO0000002411 06/2017
Table of Contents
Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
About the Book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Part I General Information . . . . . . . . . . . . . . . . . . . . . . . . .
Chapter 1 Specific Safety Information . . . . . . . . . . . . . . . . . . . . . . .
Qualification of Personnel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Proper Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Related Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chapter 2 Presentation of the Library . . . . . . . . . . . . . . . . . . . . . . .
General Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chapter 3 How to Transfer Data Via SQL Gateway Between
SoMachine and Any Database . . . . . . . . . . . . . . . . . . . .
How Does It Work? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Part II Enumerations and Structures . . . . . . . . . . . . . . . . . .
Chapter 4 Enumerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ET_Result . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chapter 5 Structures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ST_ConnectionSettings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chapter 6 ALIAS (DUT). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ALIAS - Device Unit Types (DUT) . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Part III Global Variables . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chapter 7 Global Constants List . . . . . . . . . . . . . . . . . . . . . . . . . . .
Global Constants List (GCL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chapter 8 Global Parameter List . . . . . . . . . . . . . . . . . . . . . . . . . . .
Global Parameter List (GPL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Part IV Program Organization Units (POU) . . . . . . . . . . . . .
Chapter 9 Function Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FB_SqlDbRead. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FB_SqlDbWrite. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chapter 10 Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FC_EtResultToString . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Appendices
EIO0000002411 06/2017
.........................................
5
9
11
13
14
14
15
19
19
23
23
27
29
29
33
33
35
35
37
39
39
41
41
43
45
46
49
51
51
53
3
Appendix A Function and Function Block Representation . . . . . . . . .
Differences Between a Function and a Function Block . . . . . . . . . . . .
How to Use a Function or a Function Block in IL Language . . . . . . . .
How to Use a Function or a Function Block in ST Language. . . . . . . .
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
55
56
57
61
65
69
EIO0000002411 06/2017
Safety Information
Important Information
NOTICE
Read these instructions carefully, and look at the equipment to become familiar with the device
before trying to install, operate, service, or maintain it. The following special messages may appear
throughout this documentation or on the equipment to warn of potential hazards or to call attention
to information that clarifies or simplifies a procedure.
EIO0000002411 06/2017
5
PLEASE NOTE
Electrical equipment should be installed, operated, serviced, and maintained only by qualified
personnel. No responsibility is assumed by Schneider Electric for any consequences arising out of
the use of this material.
A qualified person is one who has skills and knowledge related to the construction and operation
of electrical equipment and its installation, and has received safety training to recognize and avoid
the hazards involved.
BEFORE YOU BEGIN
Do not use this product on machinery lacking effective point-of-operation guarding. Lack of
effective point-of-operation guarding on a machine can result in serious injury to the operator of
that machine.
WARNING
UNGUARDED EQUIPMENT


Do not use this software and related automation equipment on equipment which does not have
point-of-operation protection.
Do not reach into machinery during operation.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
This automation equipment and related software is used to control a variety of industrial processes.
The type or model of automation equipment suitable for each application will vary depending on
factors such as the control function required, degree of protection required, production methods,
unusual conditions, government regulations, etc. In some applications, more than one processor
may be required, as when backup redundancy is needed.
Only you, the user, machine builder or system integrator can be aware of all the conditions and
factors present during setup, operation, and maintenance of the machine and, therefore, can
determine the automation equipment and the related safeties and interlocks which can be properly
used. When selecting automation and control equipment and related software for a particular
application, you should refer to the applicable local and national standards and regulations. The
National Safety Council's Accident Prevention Manual (nationally recognized in the United States
of America) also provides much useful information.
In some applications, such as packaging machinery, additional operator protection such as pointof-operation guarding must be provided. This is necessary if the operator's hands and other parts
of the body are free to enter the pinch points or other hazardous areas and serious injury can occur.
Software products alone cannot protect an operator from injury. For this reason the software
cannot be substituted for or take the place of point-of-operation protection.
Ensure that appropriate safeties and mechanical/electrical interlocks related to point-of-operation
protection have been installed and are operational before placing the equipment into service. All
interlocks and safeties related to point-of-operation protection must be coordinated with the related
automation equipment and software programming.
6
EIO0000002411 06/2017
NOTE: Coordination of safeties and mechanical/electrical interlocks for point-of-operation
protection is outside the scope of the Function Block Library, System User Guide, or other
implementation referenced in this documentation.
START-UP AND TEST
Before using electrical control and automation equipment for regular operation after installation,
the system should be given a start-up test by qualified personnel to verify correct operation of the
equipment. It is important that arrangements for such a check be made and that enough time is
allowed to perform complete and satisfactory testing.
WARNING
EQUIPMENT OPERATION HAZARD



Verify that all installation and set up procedures have been completed.
Before operational tests are performed, remove all blocks or other temporary holding means
used for shipment from all component devices.
Remove tools, meters, and debris from equipment.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
Follow all start-up tests recommended in the equipment documentation. Store all equipment
documentation for future references.
Software testing must be done in both simulated and real environments.
Verify that the completed system is free from all short circuits and temporary grounds that are not
installed according to local regulations (according to the National Electrical Code in the U.S.A, for
instance). If high-potential voltage testing is necessary, follow recommendations in equipment
documentation to prevent accidental equipment damage.
Before energizing equipment:
 Remove tools, meters, and debris from equipment.
 Close the equipment enclosure door.
 Remove all temporary grounds from incoming power lines.
 Perform all start-up tests recommended by the manufacturer.
EIO0000002411 06/2017
7
OPERATION AND ADJUSTMENTS
The following precautions are from the NEMA Standards Publication ICS 7.1-1995 (English
version prevails):
 Regardless of the care exercised in the design and manufacture of equipment or in the selection
and ratings of components, there are hazards that can be encountered if such equipment is
improperly operated.
 It is sometimes possible to misadjust the equipment and thus produce unsatisfactory or unsafe
operation. Always use the manufacturer’s instructions as a guide for functional adjustments.
Personnel who have access to these adjustments should be familiar with the equipment
manufacturer’s instructions and the machinery used with the electrical equipment.
 Only those operational adjustments actually required by the operator should be accessible to
the operator. Access to other controls should be restricted to prevent unauthorized changes in
operating characteristics.
8
EIO0000002411 06/2017
About the Book
At a Glance
Document Scope
This document describes the library SqlRemoteAccess.
The library provides SQL (Structured Query Language) client function blocks that allow your
controller to connect to an SQL database in order to run SQL queries for reading and writing data.
As a prerequisite for using SQL functions, you have to install the SQL Gateway that is supplied with
SoMachine as an optional component and that requires a specific license.
The SqlRemoteAccess library uses system functions and resources which are supported on
specific controller platforms:





Modicon M241 Logic Controller
Modicon M251 Logic Controller
Modicon M258 Logic Controller
Modicon LMC078 Motion Controller
Modicon LMC058 Motion Controller
Validity Note
This document has been updated for the release of SoMachine V4.3.
The technical characteristics of the devices described in this document also appear online. To
access this information online:
Step
1
2
Action
Go to the Schneider Electric home page www.schneider-electric.com.
In the Search box type the reference of a product or the name of a product range.
 Do not include blank spaces in the reference or product range.
 To get information on grouping similar modules, use asterisks (*).
3
If you entered a reference, go to the Product Datasheets search results and click on the
reference that interests you.
If you entered the name of a product range, go to the Product Ranges search results and click
on the product range that interests you.
4
If more than one reference appears in the Products search results, click on the reference that
interests you.
5
Depending on the size of your screen, you may need to scroll down to see the data sheet.
6
To save or print a data sheet as a .pdf file, click Download XXX product datasheet.
EIO0000002411 06/2017
9
The characteristics that are presented in this manual should be the same as those characteristics
that appear online. In line with our policy of constant improvement, we may revise content over time
to improve clarity and accuracy. If you see a difference between the manual and online information,
use the online information as your reference.
Related Documents
Document title
Reference
SoMachine Functions and Libraries User Guide
EIO0000000735 (ENG);
EIO0000000792 (FRE);
EIO0000000793 (GER);
EIO0000000795 (SPA);
EIO0000000794 (ITA);
EIO0000000796 (CHS)
SoMachine Programming Guide
EIO0000000067 (ENG);
EIO0000000069 (FRE);
EIO0000000068 (GER);
EIO0000000071 (SPA);
EIO0000000070 (ITA);
EIO0000000072 (CHS)
SQL Gateway User Guide
EIO0000002417 (ENG);
EIO0000002418 (FRE);
EIO0000002419 (GER);
EIO0000002421 (SPA);
EIO0000002420 (ITA);
EIO0000002422 (CHS)
You can download these technical publications and other technical information from our website
at http://www.schneider-electric.com/en/download.
10
EIO0000002411 06/2017
SoMachine
General Information
EIO0000002411 06/2017
Part I
General Information
General Information
What Is in This Part?
This part contains the following chapters:
Chapter
Chapter Name
Page
1
Specific Safety Information
13
2
Presentation of the Library
19
3
How to Transfer Data Via SQL Gateway Between SoMachine and Any
Database
23
EIO0000002411 06/2017
11
General Information
12
EIO0000002411 06/2017
SoMachine
Specific Safety Information
EIO0000002411 06/2017
Chapter 1
Specific Safety Information
Specific Safety Information
Overview
This section contains information regarding working with the SqlRemoteAccess library. Personnel
working with the SqlRemoteAccess library must read and observe this information.
What Is in This Chapter?
This chapter contains the following topics:
Topic
Page
Qualification of Personnel
14
Proper Use
14
Product Related Information
15
EIO0000002411 06/2017
13
Specific Safety Information
Qualification of Personnel
Overview
Electrical equipment should be installed, operated, serviced, and maintained only by qualified
personnel.
No responsibility is assumed by Schneider Electric for any consequences arising out of the use of
this material.
A qualified person is one who has skills and knowledge related to the construction and operation
of electrical equipment and the installation, and has received safety-related training to recognize
and avoid the hazards involved.
The qualified person must be able to detect possible hazards that may arise from parameterization,
modifying parameter values and generally from mechanical, electrical, or electronic equipment.
The qualified person must be familiar with the standards, provisions, and regulations for the
prevention of industrial accidents, which they must observe when designing and implementing the
system.
Proper Use
Overview
This product is a library to be used together with the control systems and servo amplifiers intended
solely for the purposes as described in the present documentation as applied in the industrial
sector.
Always observe the applicable safety-related instructions, the specified conditions, and the
technical data.
Perform a risk evaluation concerning the specific use before using the product. Take protective
measures according to the result.
Since the product is used as a part of an overall system, you must ensure the safety of the
personnel by means of the concept of this overall system (for example, machine concept).
Any other use is not intended and may be hazardous. Electrical devices and equipment must only
be installed, operated, maintained, and repaired by qualified personnel.
14
EIO0000002411 06/2017
Specific Safety Information
Product Related Information
Product Related Information
WARNING
LOSS OF CONTROL





The designer of any control scheme must consider the potential failure modes of control paths
and, for certain critical control functions, provide a means to achieve a safe state during and
after a path failure. Examples of critical control functions are emergency stop and overtravel
stop, power outage and restart.
Separate or redundant control paths must be provided for critical control functions.
System control paths may include communication links. Consideration must be given to the
implications of unanticipated transmission delays or failures of the link.
Observe all accident prevention regulations and local safety guidelines.1
Each implementation of this equipment must be individually and thoroughly tested for proper
operation before being placed into service.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
1
For additional information, refer to NEMA ICS 1.1 (latest edition), "Safety Guidelines for the
Application, Installation, and Maintenance of Solid State Control" and to NEMA ICS 7.1 (latest
edition), "Safety Standards for Construction and Guide for Selection, Installation and Operation of
Adjustable-Speed Drive Systems" or their equivalent governing your particular location.
Before you attempt to provide a solution (machine or process) for a specific application using the
POUs found in the library, you must consider, conduct and complete best practices. These
practices include, but are not limited to, risk analysis, functional safety, component compatibility,
testing and system validation as they relate to this library.
EIO0000002411 06/2017
15
Specific Safety Information
WARNING
IMPROPER USE OF POUS






Perform a safety-related analysis for the application and the devices installed.
Ensure that the POUs are compatible with the devices in the system and have no unintended
effects on the proper functioning of the system.
Use appropriate parameters, especially limit values, and observe machine wear and stop
behavior.
Verify that the sensors and actuators are compatible with the selected POUs.
Thoroughly test all functions during verification and commissioning in all operation modes.
Provide independent methods for critical control functions (emergency stop, conditions for limit
values being exceeded, etc.) according to a safety-related analysis, respective rules, and
regulations.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
WARNING
UNINTENDED EQUIPMENT OPERATION


Only use software approved by Schneider Electric for use with this equipment.
Update your application program every time you change the physical hardware configuration.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
WARNING
UNINTENDED EQUIPMENT OPERATION
Update your application program as required, paying particular attention to I/O address
adjustments, whenever you modify the hardware configuration.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
Incomplete file transfers, such as data files, application files and/or firmware files, may have
serious consequences for your machine or controller. If you remove power, or if there is a power
outage or communication interruption during a file transfer, your machine may become inoperative,
or your application may attempt to operate on a corrupted data file. If a an interruption occurs,
reattempt the transfer. Be sure to include in your risk analysis the impact of corrupted data files.
16
EIO0000002411 06/2017
Specific Safety Information
WARNING
UNINTENDED EQUIPMENT OPERATION, DATA LOSS, OR FILE CORRUPTION



Do not interrupt an ongoing data transfer.
If the transfer is interrupted for any reason, re-initiate the transfer.
Do not place your machine into service until the file transfer has completed successfully,
unless you have accounted for corrupted files in your risk analysis and have taken appropriate
steps to prevent any potentially serious consequences due to unsuccessful file transfers.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
EIO0000002411 06/2017
17
Specific Safety Information
18
EIO0000002411 06/2017
SoMachine
Presentation
EIO0000002411 06/2017
Chapter 2
Presentation of the Library
Presentation of the Library
General Information
Introduction
The library SqlRemoteAccess provides SQL (Structured Query Language) client function blocks
that allow your controller to connect to an SQL database in order to run SQL queries for reading
and writing data.
The communication between the controller that acts as an SQL client and the SQL database
server is running via the Schneider Electric SQL Gateway. Therefore, you have to install the
SQL Gateway that is supplied with SoMachine as an optional component and that requires a
specific license before you can use the SQL function. For further information, refer to the
SQL Gateway User Guide (see page 10).
1
2
3
4
5
1...n controllers (SQL clients)
Read data
Write data
SQL Gateway
1...n database servers
After successful installation, the controller can send a customized SQL query to the database
server, for example:
 Querying data from tables.
 Inserting, changing, and deleting data in tables.
 Executing database procedures.
EIO0000002411 06/2017
19
Presentation
The following table indicates the characteristics of the library:
Characteristic
Value
Library title
SqlRemoteAccess
Company
Schneider Electric
Category
Communication
Component
SQL Library
Default namespace
SE_SQL
Language model attribute
Qualified-access-only (see SoMachine, Functions
Forward compatible library
Yes (FCL (see SoMachine, Functions and Libraries
User Guide))
and Libraries User Guide)
NOTE: For this library, qualified-access-only is set. This means, that the POUs, data structures,
enumerations, and constants have to be accessed using the namespace of the library. The default
namespace of the library is SE_SQL.
General Considerations
Consider the following limitations for SQL communications:
Only IPv4 (Internet Protocol version 4) is supported.
 Only database data types supported which conform to IEC 61131-3.
 Read and write BLOB (Binary Large Objects) objects from and into a database is not supported.

The library described in this document internally uses the TcpUdpCommunication library.
The TcpUdpCommunication (Schneider Electric) and the CAA Net Base Services library (CAA
Technical Workgroup) use the same system resources on the controller. The simultaneous use of
both libraries in the same application may lead to disturbances during the operation of the
controller.
WARNING
UNINTENDED EQUIPMENT OPERATION
Do not use the library TcpUdpCommunication (Schneider Electric) together with the library CAA
Net Base Services (CAA Technical Workgroup) simultaneously in the same application.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
Considerations Concerning Cyber Security
The SqlRemoteAccess library functions do not support secure connections such as TLS
(Transport Layer Security) or SSL (Secure Socket Layer) to the SQL Gateway. Communication
must only be performed inside your industrial network, isolated from other networks inside your
company, and protected from the Internet.
20
EIO0000002411 06/2017
Presentation
NOTE: Schneider Electric adheres to industry best practices in the development and implementation of control systems. This includes a "Defense-in-Depth" approach to secure an Industrial
Control System. This approach places the controllers behind one or more firewalls to restrict
access to authorized personnel and protocols only.
WARNING
UNAUTHENTICATED ACCESS AND SUBSEQUENT UNAUTHORIZED MACHINE
OPERATION







Evaluate whether your environment or your machines are connected to your critical
infrastructure and, if so, take appropriate steps in terms of prevention, based on Defense-inDepth, before connecting the automation system to any network.
Limit the number of devices connected to a network to the minimum necessary.
Isolate your industrial network from other networks inside your company.
Protect any network against unintended access by using firewalls, VPN, or other, proven
security measures.
Monitor activities within your systems.
Prevent subject devices from direct access or direct link by unauthorized parties or unauthenticated actions.
Prepare a recovery plan including backup of your system and process information.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
Overview of the POUs
Function block / function
Use
FB_SqlDbRead (see page 46)
Performs SQL requests that read data from the SQL database.
FB_SqlDbWrite (see page 49)
Performs SQL requests that update or modify the SQL database.
FC_EtResultToString (see page 51)
Converts an enumeration element of type ET_Result to a string
variable.
Overview of the Structures in the Module-Specific Interface
Structure
Use
ST_ConnectionSettings (see page 33)
Contains the information for connecting to an SQL Gateway and
information on the SQL database.
Overview of the Enumerations
Enumeration
Use
ET_Result (see page 29)
Contains the possible values that indicate the result of operations
executed by the function block.
EIO0000002411 06/2017
21
Presentation
22
EIO0000002411 06/2017
SoMachine
How to Transfer Data Via SQL Gateway Between SoMachine and Any Database
EIO0000002411 06/2017
Chapter 3
How to Transfer Data Via SQL Gateway Between SoMachine and Any Database
How to Transfer Data Via SQL Gateway Between SoMachine
and Any Database
How Does It Work?
System Requirements
The following system requirements are needed:
Server (for example, MySQL, not supplied by Schneider Electric)
 SQL Client (for example, MySQL Workbench, not supplied by Schneider Electric)
 Database, created with the SQL Client (for example, MySQL Workbench)
 SQL Gateway (is a separate installation on SoMachine DVD)
 SqlRemoteAccess Library (is part of the SoMachine installation)

How to Transfer Data Via SQL Gateway from SoMachine to Any Database
Before data can be transferred, the SQL connection must be built with the SQL Gateway. For
detailed information, refer to the SQL Gateway User Guide (see page 10).
In order to interface with the SQL Gateway, you may need information about the SQL Gateway and
about the database from the administrator of the SQL environment. You need the IP address of
the SQL Gateway, the connection name configured in the SQL Gateway, and the name of the
database.
NOTE: The SQL syntax in code examples in this description depends on a MySQL server, if you
use another SQL server, the commands can be different.
Write Data from SoMachine to the Database
Declaration:
PROGRAM WriteData
VAR
fbWrite
: SE_SQL.FB_SqlDbWrite;
stConnSettings
: SE_SQL.ST_ConnectionSettings;
refRequestWstring : SE_SQL.RequestWstring;
END_VAR
Implementation:
EIO0000002411 06/2017
23
How to Transfer Data Via SQL Gateway Between SoMachine and Any Database
stConnSettings.wsDbConnectionName
:= "ConnectionCountry";
stConnSettings.wGwPort
:= 3457;
stConnSettings.wsGwIpAddress
:= "10.128.154.47";
stConnSettings.timSqlTimeout
:= T#20S;
//SQL Command to insert a new Country - MySQLSyntax: INSERT INTO <database name>.<table name> (column1...columnN) va
lues (value1...valueN)
//SQLite-Syntax: without "<database name>.")
refRequestWstring[1]
:= "INSERT INTO world.countries (C
ountry, CapitalCity, Language)";
refRequestWstring[2]
:= "values ('Germany', 'Berlin', '
german')";
fbWrite(
i_xExecute
iq_stConnSettings
i_refRequestWstring
i_uiNumOfWstrings
);
:=
:=
:=
:=
TRUE,
stConnSettings,
refRequestWstring,
2
Description of the parameters used
Step
Action
1
In the ST_ConnectionSettings (see page 33), set the IP address (wsGwIpAddress
(see page 33)) of your PC where the gateway is running, for example, 10.128.154.47.
2
In the ST_ConnectionSettings (see page 33), set the port (wGwPort (see page 33)) of the
gateway (default: 3457).
3
In the ST_ConnectionSettings (see page 33), set the connection name (wsDbConnectionName
(see page 33)) which is configured in the SQL Gateway, for example, ConnectionCountry.
4
In the ST_ConnectionSettings (see page 33), set the time-out (timSqlTimeout (see page 33))
for example, T#20S.
5
Write your request for writing in the refRequestWstring (see page 46), for example, INSERT
INTO world.countries (Country) values ('France').
6
In the i_uiNumOfWstrings (see page 46), set your lines in the refRequestWstring (see page 46),
for example, 2.
7
Call the FB_SqlDbWrite (see page 49) with the settings/parameters/variables above.
NOTE: It is only possible to send one request per function block call.
24
EIO0000002411 06/2017
How to Transfer Data Via SQL Gateway Between SoMachine and Any Database
Read Data from SoMachine to the Database
Declaration:
PROGRAM ReadData
VAR
fbRead
stConnSettings
refRequestWstring
refUserData
END_VAR
:
:
:
:
SE_SQL.FB_SqlDbRead;
SE_SQL.ST_ConnectionSettings;
SE_SQL.RequestWstring;
SE_SQL.UserData;
Implementation:
stConnSettings.wsDbConnectionName
stConnSettings.wGwPort
stConnSettings.wsGwIpAddress
stConnSettings.timSqlTimeout
:=
:=
:=
:=
"ConnectionCountry";
3457;
"10.128.154.47";
T#1 M;
//SQL Command to read all Countries in the database - MySQLSyntax: SELECT (column1...columnN) FROM <database name>.<table name> [w
here <column>=<value>]
//SQLite-Syntax: without "<database name>."
refRequestWstring[1]
:= "SELECT * FROM world.countries";
fbRead
(
i_xExecute
iq_stConnSettings
i_refRequestWstring
i_uiNumOfWstrings
i_refUserData
:=
:=
:=
:=
:=
TRUE,
stConnSettings,
refRequestWstring,
1,
refUserData
);
EIO0000002411 06/2017
25
How to Transfer Data Via SQL Gateway Between SoMachine and Any Database
Description of the parameters used
Step
Action
1
In the ST_ConnectionSettings (see page 33), set the IP address (wsGwIpAddress
(see page 33)) of your PC where the SQL Gateway is running, for example, 10.128.154.47.
2
In the ST_ConnectionSettings (see page 33), set the port (wGwPort (see page 33)) of the
gateway (default: 3457).
3
In the ST_ConnectionSettings, (see page 33), set the connection name
(wsDbConnectionName (see page 33)) which is configured in the SQL Gateway, e.g
ConnectionCountry.
4
In the ST_ConnectionSettings (see page 33), set the time-out (timSqlTimeout (see page 33)),
for example, T#20S.
5
Write your request for reading in the refRequestWstring (see page 46), for example, SELECT *
FROM world.countries.
6
In the i_uiNumOfWstrings (see page 46), set your lines in the refRequestWstring (see page 46),
for example, 1.
7
In the i_refUserData (see page 46), set your UserData (see page 46) Array.
8
Call the FB_SqlDbRead (see page 46) with the settings/parameters/variables above.
Advanced Settings for the Data Buffer / Request with the Global Parameters
NOTE: The advanced settings can be overwritten specifically for your project in the Library
Manager.
Step
26
Action
1
In the Gc_uiMaxRows (see page 42), set the maximum number of rows for the ARRAY of
UserData (only needed for FB_SqlDbRead (see page 46)), for example, 20.
Result: 20 rows from the configured database can be read.
2
In the Gc_uiMaxColumns (see page 42), set the maximum number of columns for the ARRAY
of UserData (only needed for FB_SqlDbRead), for example, 10.
Result: 10 columns from the configured database can be read.
3
In the Gc_uiTableWstringLength (see page 42), set the maximum number of characters in the
2-dimensional ARRAY of UserData (only needed for FB_SqlDbRead (see page 46)), for
example, 200.
Result: One field with 200 characters from the configured database can be read.
4
In the Gc_uiMaxRequest (see page 42), set the maximum lines of the ARRAY of
RequestWstring, for example, 20.
Result: The request can be split into 20 lines of WSTRINGs.
5
In the Gc_uiRequestWstringLength (see page 42), set the maximum number of characters in
the ARRAY of RequestWstring, for example, 200.
Result: One request line can include 200 characters.
EIO0000002411 06/2017
SoMachine
Enumerations and Structures
EIO0000002411 06/2017
Part II
Enumerations and Structures
Enumerations and Structures
What Is in This Part?
This part contains the following chapters:
Chapter
Chapter Name
Page
4
Enumerations
29
5
Structures
33
6
ALIAS (DUT)
35
EIO0000002411 06/2017
27
Enumerations and Structures
28
EIO0000002411 06/2017
SoMachine
Enumerations
EIO0000002411 06/2017
Chapter 4
Enumerations
Enumerations
ET_Result
Overview
Type:
Enumeration
Available as of:
V1.0.0.0
Description
The enumeration ET_Result contains the possible values that indicate the result of operations
executed by the function block.
Enumeration Elements
Name
Data type Value
Description
If q_xError of a function block (see page 45) is FALSE, the following status message is shown.
Ok
DINT
0
Operation completed successfully.
If q_xError of a function block (see page 45) is TRUE, one of the following status messages is shown.
TcpClientIssue
DINT
1
The TCP operation was not completed successfully.
General TCP issue, refer to the
TcpUdpCommunication Library Guide
(see SoMachine, TcpUdpCommunication, Library
Guide).
InvalidIP
DINT
26
The given IP address is not valid. Verify the setting
of the iq_stConnSettings.wsGpIpAddress
(see page 33) input.
ClientNotConnected
DINT
28
The client is not connected to the TCP server. Verify
that the SQL Gateway is installed and running within
the specified IP address and port.
ConnectionTimedOut
DINT
41
Remote system is not available or is not answering
the request. Verify that the SQL Gateway is installed
and running within the specified IP address and port.
DbConnectionNameNull
DINT
61
DbConnectionName is empty (Null). Element
wsDbConnectionName from input
iq_stConnSettings (see page 33) is blank.
EIO0000002411 06/2017
29
Enumerations
Name
Data type Value
Description
DataBufferTooSmall
DINT
63
User buffer is insufficient for returning data.
Matching the returning numbers of rows and
columns with the settings in the global parameter list
(see page 41), you can find the minimum settings at
q_uiRetNumOfRows (q_uiRetNumOfColumns)
of FB_SqlDbRead (see page 46) after each
execution.
SqlDatabaseBusy
DINT
64
A former request is currently being processed.
Another instance with the same input for
iq_stConnSettings is currently executed
(output q_xBusy = TRUE).
SqlGwToPlcCorruptedMessage
DINT
65
Controller received an invalid message from the
SQL Gateway. Contact your local Schneider
Electric support.
TimeoutExpired
DINT
66
Function block operation timeout expired. Verify the
setting of the input
iq_stConnSettings.timSqlTimeout
(see page 33) depending on the system
configuration the default value must be increased.
TransactionNumMismatch
DINT
67
Transaction number mismatch. Contact your local
Schneider Electric support.
TransmissionNumMismatch
DINT
68
Transmission number mismatch. Contact your local
Schneider Electric support.
ConnectionNotIdle
DINT
69
TcpUdp client connection already occupied with
another service.Verify that no other instance of
TCPUDP.FB_TCPClient inside your application
occupies the connection.
SocketNotClosed
DINT
70
Method Shutdown or Close from TcpUdp client not
successful. TCP connection issue. Restart your
controller.
NoDataReturned
DINT
71
The function block FB_SqlDbGetData does not
provide any data. The SQL request was executed
successfully but no data returned. Verify that the
assigned database contains data.
NotConnected
DINT
72
TcpUdp client system is not ready to receive or
transmit data. TCP connection issue. Restart your
controller.
InvalidPort
DINT
80
The given port number is equal to zero. Verify the
iq_stConnSettings.wGwPort (see page 33)
input. Usually, the default value 3457 is used.
30
EIO0000002411 06/2017
Enumerations
Name
Data type Value
Description
InvalidWstringNumber
DINT
81
The input i_uiNumOfWstrings is less than 1 or
greater than GPL.Gc_uiMaxRequest.
Verify the i_uiNumOfWstrings input. At least one
WSTRING is required.
Also verify that the given number is greater than the
limit GPL.Gc_uiMaxRequest (GPL)
(see page 41).
InvalidRequestWstring
DINT
82
Empty request string or invalid reference (NULL).
Verify the i_refRequestWstring (see page 49)
input. The first WSTRING
(i_refRequestWstring[1]) must contain any
character. Verify that if the input is assigned.
InvalidUserDataWstring
DINT
83
Invalid user data reference (NULL). Verify that the
i_refUserData (see page 46) input is assigned.
GplMaxRowsExceedsLimits
DINT
85
GPL.Gc_uiMaxRows is out of range. Verify the
settings of Global Parameter List (see page 41).
GplMaxColumnsExceedsLimits
DINT
86
GPL.Gc_uiMaxColumns is out of range. Verify the
settings of Global Parameter List (see page 41).
GplTableWstringExceedsLimits
DINT
87
GPL.Gc_uiTableWstringLength is out of
range. Verify the settings of Global Parameter List
(see page 41).
GplRequestWstringExceedsLimits
DINT
88
GPL.Gc_uiRequestWstringLength is out of
range. Verify the settings of Global Parameter List
(see page 41).
GplMaxRequestExceedsLimits
DINT
89
GPL.Gc_uiMaxRequest is out of range. Verify the
settings of Global Parameter List (see page 41).
GplMaxRecBufferExceedsLimits
DINT
91
GPL.Gc_uiRecBufferLength is out of range.
Verify the settings of Global Parameter List
(see page 41).
GplMaxSendBufferExceedsLimits
DINT
92
GPL.Gc_uiSendBufferLength is out of range.
Verify the settings of Global Parameter List
(see page 41).
ConnectionNameNotExisting
DINT
100
SQL Gateway connection name does not exist.
Verify available database connections from
SQL Gateway console.
DbConfigurationInvalid
DINT
101
SQL Gateway connection configuration does not
match. Execute Test Database Connection
from SQL Gateway console.
DbConnectionNotAvailable
DINT
102
SQL Gateway connection to the database does not
work. Execute Test Database Connection from
SQL Gateway console.
EIO0000002411 06/2017
31
Enumerations
Name
Data type Value
Description
SqlGwProtocolError
DINT
120
Protocol error between SQL library and gateway
detected. Contact your local Schneider Electric
support.
CommandExecutionIssue
DINT
150
Execution of the SQL request not successful. Verify
i_refRequestWString (see page 46) input
according to the required SQL syntax. Refer to SQL
server manual.
NoQueryResultAvailable
DINT
151
SQL Gateway does not provide an answer. Verify
that the addressed database contains any data with
an additional application.
SqlGwInvalidLicense
DINT
170
SQL Gateway license issue. Open the License
Manager to verify that SQL for SoMachine is valid.
SqlGwUnexpectedError
DINT
199
SQL Gateway error detected. Contact your local
Schneider Electric support.
NOTE: The results in the range 100...199 are messages from SQL Gateway. Refer to SQL
Gateway User Guide (see page 10).
Used By


32
FB_SqlDbRead
FB_SqlDbWrite
EIO0000002411 06/2017
SoMachine
Structures
EIO0000002411 06/2017
Chapter 5
Structures
Structures
ST_ConnectionSettings
Overview
Type:
Structure
Available as of:
V1.0.0.0
Inherits from:
–
Description
The structure ST_ConnectionSettings contains the information for connecting to an
SQL Gateway and information on the SQL database.
Structure Elements
Name
Data type
Description
wsDbConnectionName
WSTRING[40]
The value of this element must match the connection
name configured in the SQL Gateway. Refer to SQL
Gateway User Guide (see page 10).
wsGwIpAddress
WSTRINGGPL.Gc_uiIpSt
ringSize
The IP address of the SQL Gateway. This is the
IP address of the server on which the gateway is
running.
wGwPort
WORD
The port number of the SQL Gateway.
Default value: 3457
timSqlTimeout
TIME
The timeout value that is applied to the
SQL requests.
Default value: 60s
Used By


FB_SqlDbRead
FB_SqlDbWrite
EIO0000002411 06/2017
33
Structures
34
EIO0000002411 06/2017
SoMachine
ALIAS (DUT)
EIO0000002411 06/2017
Chapter 6
ALIAS (DUT)
ALIAS (DUT)
ALIAS - Device Unit Types (DUT)
Overview
Type:
ALIAS (DUT)
Available as of:
V1.0.0.0
Inherits from:
–
Description
The ALIAS RequestWstring and UserData combines complex data structures into a data type
to help simplify the user interface.
RequestWstring
Name
Data type
Description
RequestWstring
ARRAY
[1..GPL.Gc_uiMaxRequest] OF
WSTRING(GPL.Gc_uiRequest
WstringLength)
The RequestWstring is an ALIAS for an array of
WSTRINGS. The request STRING contains the SQL query
request.
Any SQL request must be divided into individual strings that
do not exceed a length of 200 characters each.
Adapt the size of the global parameters (see page 41)
Gc_uiMaxRequest and
Gc_uiRequestWstringLength according to the length
of the SQL requests that you use in your application.
Name
Data type
Description
UserData
ARRAY
[1..GPL.Gc_uiMaxRows,
1..GPL.Gc_uiMaxColumns] OF
WSTRING(GPL.Gc_uiTableWst
ringLength)
The UserData is an array of WSTRING that must be
available on the controller for storing the SQL data read
from the database.
Adapt the size of the global parameters (see page 41)
Gc_uiMaxRows, Gc_uiMaxColums, and
GPL.Gc_uiTableWstringLength according to the
maximum of size of UserData to receive in your
application.
UserData
EIO0000002411 06/2017
35
ALIAS (DUT)
36
EIO0000002411 06/2017
SoMachine
Global Variables
EIO0000002411 06/2017
Part III
Global Variables
Global Variables
What Is in This Part?
This part contains the following chapters:
Chapter
Chapter Name
Page
7
Global Constants List
39
8
Global Parameter List
41
EIO0000002411 06/2017
37
Global Variables
38
EIO0000002411 06/2017
SoMachine
Global Constants List
EIO0000002411 06/2017
Chapter 7
Global Constants List
Global Constants List
Global Constants List (GCL)
Overview
Type:
Global constants
Available as of:
V1.0.0.0
Description
The global constants list contains the global constants of the SqlRemoteAccess library.
Global Constants
Variable
Data type
Gc_sLibraryVersion
STRING[80]
1
Value
Description
1
Vx.x.x.0
Library version
This value varies to indicate the version of the library.
EIO0000002411 06/2017
39
Global Constants List
40
EIO0000002411 06/2017
SoMachine
Global Parameter List
EIO0000002411 06/2017
Chapter 8
Global Parameter List
Global Parameter List
Global Parameter List (GPL)
Overview
Type:
Global parameters
Available as of:
V1.0.0.0
Description
The global parameter list contains the global parameters of the SqlRemoteAccess library. They
can be overwritten specifically for your project in the Library Manager.
The global parameters of the SqlRemoteAccess library allow you to define the size of the following
ALIAS for data buffers:
 UserData (see page 35) that must be available in the controller for storing the SQL data read
from the SQL database.
 RequestData (see page 35) that must be available in the controller in order to segment the
SQL requests into separate strings of a maximum of 200 characters before they are sent to the
SQL database.
EIO0000002411 06/2017
41
Global Parameter List
Global Parameters
Variable
Data
type
Value
range
Description
Gc_uiIpStringSize
UINT
–
Upper limit of the WSTRING for the element
wsGwIpaddress in the
ST_ConnectionSettings structure
(see page 33).
Default value: 15
Gc_uiMaxRows
UINT
1...50
Maximum number of rows for the ARRAY of user
data (see page 48).
Default value: 20
Gc_uiMaxColumns
UINT
1...50
Maximum number of columns for the ARRAY of
user data (see page 48).
Default value: 10
Gc_uiTableWstringLength
UINT
20...200
Length of the WSTRING in the ARRAY of user
data (see page 48).
Default value: 200
Gc_uiRequestWstringLength UINT
20...200
Length of the WSTRING in the ARRAY of request
data.
Configure a value that corresponds to the length
of the SQL requests that you use in your
application
Default value: 200
Gc_uiMaxRequest
UINT
1...40
Upper limit of the ARRAY of request data.
Configure a value that corresponds to the length
of the SQL requests that you use in your
application
Default value: 20
Gc_uiRecBufferLength
UINT
512...20
00
Length of the response buffer in bytes.
Default value: 1000
Gc_uiSendBufferLength
UINT
512...20
00
Length of the send buffer in bytes.
Default value: 1000
NOTE: The variables Gc_uiRecBufferLength and Gc_uiSendBufferLength define the size
of the internal buffers for sending and receiving data. The sizes of these buffers determine the
number of cycles that are required to transfer a complete request or response between the
controller and the SQL Gateway. Those values you chose may have an impact on the execution
time of SQL services and memory, and thus on the overall performance of your application.
42
EIO0000002411 06/2017
SoMachine
Program Organization Units (POU)
EIO0000002411 06/2017
Part IV
Program Organization Units (POU)
Program Organization Units (POU)
What Is in This Part?
This part contains the following chapters:
Chapter
9
10
EIO0000002411 06/2017
Chapter Name
Page
Function Blocks
45
Functions
51
43
Program Organization Units (POU)
44
EIO0000002411 06/2017
SoMachine
Function Blocks
EIO0000002411 06/2017
Chapter 9
Function Blocks
Function Blocks
What Is in This Chapter?
This chapter contains the following topics:
Topic
Page
FB_SqlDbRead
46
FB_SqlDbWrite
49
EIO0000002411 06/2017
45
Function Blocks
FB_SqlDbRead
Overview
Type:
Function block
Available as of:
V1.0.0.0
Task
The FB_SqlDbRead function block is used to perform SQL requests that read data from the
SQL database. The return data is provided in a two-dimensional array of data whose size is
defined with global parameters (see page 42).
Functional Description
The FB_SqlDbRead function block is the user-interface for reading data from the SQL database.
After a rising edge on i_xExecute has been detected, a connection to the SQL Gateway is
established using the parameters defined in the structure ST_ConnectionSettings. As soon as
the connection has been established, the function block is capable of sending an SQL request to
the SQL database.
As long as the function block is executed, the output q_xBusy is set to TRUE. After a command
has been successfully completed, the output q_xDone is set to TRUE.
Status messages and diagnostic information are provided using the outputs q_xError (TRUE if
an error has been detected), q_etResult, and q_etResultMsg.
46
EIO0000002411 06/2017
Function Blocks
Interface
Input
Data type
Description
i_xExecute
BOOL
The function block performs an SQL request
in order to read data from the SQL database
upon rising edge of this input.
i_refRequestWstring
REFERENCE TO
[RequestWstring]
Reference to the request data that contains
one SQL query request (such as
Select * from DB limit 10;).
Any SQL request must be divided into
individual strings that do not exceed a length
of 200 characters each.
Adapt the size of the global parameters
(see page 42) Gc_uiMaxRequest and
Gc_uiRequestWstringLength
according to the length of the SQL requests
that you use in your application.
(see page 35)
NOTE: To concatenate WSTRINGS, use
the WCONCAT function of Standard64
library.
i_uiNumOfWstrings
UINT
The number of needed WSTRINGS that
contain the split SQL request.
The maximum number is limited by the
global parameter (see page 42)
Gc_uiMaxRequest.
i_refUserData
REFERENCE TO
[UserData] (see page 35)
Reference to the UserData (see page 48)
that must be available on the controller for
storing the SQL data read from the
database.
In_Out
Data type
Description
iq_stConnSettings
ST_ConnectionSettings
Contains the information for connecting to
an SQL Gateway and information on the
SQL database.
(see page 33)
EIO0000002411 06/2017
47
Function Blocks
Output
Data type
Description
q_xBusy
BOOL
If this output is set to TRUE, the function
block execution is in progress.
q_xDone
BOOL
If this output is set to TRUE, the execution
has been completed successfully.
q_xError
BOOL
If this output is set to TRUE, an error has
been detected. For details, refer to
q_etResult and q_etResultMsg.
q_etResult
ET_Result
Provides diagnostic and status information.
q_sResultMsg
STRING[255]
Provides additional diagnostic and status
information.
q_uiRetNumOfRows
UINT
Number of rows in the returning data.
This output is updated with the number of
records which was received from the
SQL database.
q_uiRetNumOfColumns
UINT
Number of columns in the returning data.
This output is updated with the number of
records which was received from the
SQL database.
Defining an ARRAY of User Data
A 2-dimensional ARRAY must be available on the controller for intermediate storage of SQL data
read from the database. The two-dimensional ARRAY is defined in ALIAS UserData
(see page 35).
The size of the ARRAY can be adapted via the global parameters (see page 41) Gc_uiMaxRows,
Gc_uiMaxColumns, and Gc_uiTableWstringLength.
When you configure these parameters, consider the amount of SQL data that you expect to be
received. Before data transfer is started, SQL data is segmented according to the size of this
buffer.
If the SQL data that is received exceeds the size of the ARRAY, the SQL data transfer is stopped
and the function block signals a detected error.
48
EIO0000002411 06/2017
Function Blocks
FB_SqlDbWrite
Overview
Type:
Function block
Available as of:
V1.0.0.0
Task
The FB_SqlDbWrite function block is used to perform SQL requests that update or modify the
SQL database. The requests do not return any data.
Functional Description
The FB_SqlDbWrite function block is the user-interface for updating or modifying the
SQL database.
After a rising edge on i_xExecute has been detected, a connection to the SQL Gateway is
established using the parameters defined in the structure ST_ConnectionSettings
(see page 33). As soon as the connection has been established, the function block is capable to
send one SQL request (given to input i_refRequestWstring) to the SQL database.
As long as the function block is executed, the output q_xBusy is set to TRUE. After a command
has been successfully completed, the output q_xDone is set to TRUE.
Status messages and diagnostic information are provided using the outputs q_xError (TRUE if
an error has been detected), q_etResult, and q_etResultMsg.
EIO0000002411 06/2017
49
Function Blocks
Interface
Input
Data type
Description
i_xExecute
BOOL
The function block performs an SQL request in order to
update or modify the SQL database upon rising edge of this
input.
i_refRequestWstring
REFERENCE TO
[RequestWstring]
Reference to the request data that contains one
SQL update request.
The following SQL query types are supported:
 INSERT INTO
 UPDATE
 DELETE FROM
 CREATE TABLE
 CREATE VIEW
 CREATE INDEX
 ALTER TABLE
 DROP TABLE
 TRUNCATE TABLE
(see page 35)
Any SQL request must be divided into individual strings that
do not exceed a length of 200 characters each.
Adapt the size of the global parameters (see page 42)
Gc_uiMaxRequest and
Gc_uiRequestWstringLength according to the length
of the SQL requests that you use in your application.
NOTE: To concatenate WSTRINGS, use the CONCAT
function of Standard64 library.
i_uiNumOfWstrings
UINT
The number of needed WSTRINGS that contain the split
SQL request.
The maximum number is limited by the global parameter
(see page 42) Gc_uiMaxRequest.
In_Out
Data type
Description
iq_stConnSettings
ST_ConnectionSettings Contains the information for connecting to an
SQL Gateway and information on the SQL database.
(see page 33)
Output
Data type
Description
q_xBusy
BOOL
If this output is set to TRUE, the function block execution is in progress.
q_xDone
BOOL
If this output is set to TRUE, the execution has been completed successfully.
q_xError
BOOL
If this output is set to TRUE, an error has been detected. For details, refer to
q_etResult and q_etResultMsg.
q_etResult
ET_Result
Provides diagnostic and status information.
q_sResultMsg
STRING[255]
Provides additional diagnostic and status information.
50
EIO0000002411 06/2017
SoMachine
Functions
EIO0000002411 06/2017
Chapter 10
Functions
Functions
FC_EtResultToString
Overview
Type:
Function
Available as of:
V1.0.0.0
Inherits from:
–
Implements:
–
Task
Convert an enumeration element of type ET_Result to a variable of type STRING.
Functional Description
Using the function FC_EtResultToString, you can convert an enumeration element of type
ET_Result to a variable of type STRING.
Interface
Input
Data type
Description
i_etResult
ET_Result
Enumeration with the result.
Return Value
Data type
Description
STRING(80)
The ET_Result converted to text.
EIO0000002411 06/2017
51
Functions
52
EIO0000002411 06/2017
SoMachine
EIO0000002411 06/2017
Appendices
EIO0000002411 06/2017
53
54
EIO0000002411 06/2017
SoMachine
Function and Function Block Representation
EIO0000002411 06/2017
Appendix A
Function and Function Block Representation
Function and Function Block Representation
Overview
Each function can be represented in the following languages:
IL: Instruction List
 ST: Structured Text
 LD: Ladder Diagram
 FBD: Function Block Diagram
 CFC: Continuous Function Chart

This chapter provides functions and function blocks representation examples and explains how to
use them for IL and ST languages.
What Is in This Chapter?
This chapter contains the following topics:
Topic
Page
Differences Between a Function and a Function Block
56
How to Use a Function or a Function Block in IL Language
57
How to Use a Function or a Function Block in ST Language
61
EIO0000002411 06/2017
55
Function and Function Block Representation
Differences Between a Function and a Function Block
Function
A function:
is a POU (Program Organization Unit) that returns one immediate result.
 is directly called with its name (not through an instance).
 has no persistent state from one call to the other.
 can be used as an operand in other expressions.

Examples: boolean operators (AND), calculations, conversion (BYTE_TO_INT)
Function Block
A function block:
 is a POU (Program Organization Unit) that returns one or more outputs.
 needs to be called by an instance (function block copy with dedicated name and variables).
 each instance has a persistent state (outputs and internal variables) from one call to the other
from a function block or a program.
Examples: timers, counters
In the example, Timer_ON is an instance of the function block TON:
56
EIO0000002411 06/2017
Function and Function Block Representation
How to Use a Function or a Function Block in IL Language
General Information
This part explains how to implement a function and a function block in IL language.
Functions IsFirstMastCycle and SetRTCDrift and Function Block TON are used as
examples to show implementations.
Using a Function in IL Language
This procedure describes how to insert a function in IL language:
Step
1
Action
Open or create a new POU in Instruction List language.
NOTE: The procedure to create a POU is not detailed here. For more information, refer to Adding
and Calling POUs (see SoMachine, Programming Guide).
2
Create the variables that the function requires.
3
If the function has 1 or more inputs, start loading the first input using LD instruction.
4
Insert a new line below and:
 type the name of the function in the operator column (left field), or
 use the Input Assistant to select the function (select Insert Box in the context menu).
5
If the function has more than 1 input and when Input Assistant is used, the necessary number of lines
is automatically created with ??? in the fields on the right. Replace the ??? with the appropriate
value or variable that corresponds to the order of inputs.
6
Insert a new line to store the result of the function into the appropriate variable: type ST instruction
in the operator column (left field) and the variable name in the field on the right.
To illustrate the procedure, consider the Functions IsFirstMastCycle (without input parameter)
and SetRTCDrift (with input parameters) graphically presented below:
Function
Graphical Representation
without input parameter:
IsFirstMastCycle
with input parameters:
SetRTCDrift
EIO0000002411 06/2017
57
Function and Function Block Representation
In IL language, the function name is used directly in the operator column:
Function
Representation in POU IL Editor
IL example of a function
without input parameter:
IsFirstMastCycle
IL example of a function
with input parameters:
SetRTCDrift
58
EIO0000002411 06/2017
Function and Function Block Representation
Using a Function Block in IL Language
This procedure describes how to insert a function block in IL language:
Step
Action
1
Open or create a new POU in Instruction List language.
NOTE: The procedure to create a POU is not detailed here. For more information, refer to Adding
and Calling POUs (see SoMachine, Programming Guide).
2
Create the variables that the function block requires, including the instance name.
3
Function Blocks are called using a CAL instruction:
 Use the Input Assistant to select the FB (right-click and select Insert Box in the context menu).
 Automatically, the CAL instruction and the necessary I/O are created.
Each parameter (I/O) is an instruction:
 Values to inputs are set by ":=".
 Values to outputs are set by "=>".
4
In the CAL right-side field, replace ??? with the instance name.
5
Replace other ??? with an appropriate variable or immediate value.
To illustrate the procedure, consider this example with the TON Function Block graphically
presented below:
Function Block
Graphical Representation
TON
In IL language, the function block name is used directly in the operator column:
EIO0000002411 06/2017
59
Function and Function Block Representation
Function Block
Representation in POU IL Editor
TON
60
EIO0000002411 06/2017
Function and Function Block Representation
How to Use a Function or a Function Block in ST Language
General Information
This part explains how to implement a Function and a Function Block in ST language.
Function SetRTCDrift and Function Block TON are used as examples to show implementations.
Using a Function in ST Language
This procedure describes how to insert a function in ST language:
Step
Action
1
Open or create a new POU in Structured Text language.
NOTE: The procedure to create a POU is not detailed here. For more information, refer to Adding
and Calling POUs (see SoMachine, Programming Guide).
2
Create the variables that the function requires.
3
Use the general syntax in the POU ST Editor for the ST language of a function. The general syntax
is:
FunctionResult:= FunctionName(VarInput1, VarInput2,.. VarInputx);
To illustrate the procedure, consider the function SetRTCDrift graphically presented below:
Function
Graphical Representation
SetRTCDrift
The ST language of this function is the following:
Function
Representation in POU ST Editor
SetRTCDrift
PROGRAM MyProgram_ST
VAR myDrift: SINT(-29..29) := 5;
myDay: DAY_OF_WEEK := SUNDAY;
myHour: HOUR := 12;
myMinute: MINUTE;
myRTCAdjust: RTCDRIFT_ERROR;
END_VAR
myRTCAdjust:= SetRTCDrift(myDrift, myDay, myHour, myMinute);
EIO0000002411 06/2017
61
Function and Function Block Representation
Using a Function Block in ST Language
This procedure describes how to insert a function block in ST language:
Step
Action
1
Open or create a new POU in Structured Text language.
NOTE: The procedure to create a POU is not detailed here. For more information on
adding, declaring and calling POUs, refer to the related documentation
(see SoMachine, Programming Guide).
2
Create the input and output variables and the instance required for the function block:
 Input variables are the input parameters required by the function block
 Output variables receive the value returned by the function block
3
Use the general syntax in the POU ST Editor for the ST language of a Function Block.
The general syntax is:
FunctionBlock_InstanceName(Input1:=VarInput1,
Input2:=VarInput2,... Ouput1=>VarOutput1,
Ouput2=>VarOutput2,...);
To illustrate the procedure, consider this example with the TON function block graphically
presented below:
Function Block
Graphical Representation
TON
62
EIO0000002411 06/2017
Function and Function Block Representation
This table shows examples of a function block call in ST language:
Function Block
Representation in POU ST Editor
TON
EIO0000002411 06/2017
63
Function and Function Block Representation
64
EIO0000002411 06/2017
SoMachine
Glossary
EIO0000002411 06/2017
Glossary
A
application
A program including configuration data, symbols, and documentation.
B
byte
A type that is encoded in an 8-bit format, ranging from 00 hex to FF hex.
C
CFC
(continuous function chart) A graphical programming language (an extension of the IEC 61131-3
standard) based on the function block diagram language that works like a flowchart. However, no
networks are used and free positioning of graphic elements is possible, which allows feedback
loops. For each block, the inputs are on the left and the outputs on the right. You can link the block
outputs to the inputs of other blocks to create complex expressions.
configuration
The arrangement and interconnection of hardware components within a system and the hardware
and software parameters that determine the operating characteristics of the system.
controller
Automates industrial processes (also known as programmable logic controller or programmable
controller).
E
expansion bus
An electronic communication bus between expansion I/O modules and a controller.
F
FB
(function block) A convenient programming mechanism that consolidates a group of programming
instructions to perform a specific and normalized action, such as speed control, interval control, or
counting. A function block may comprise configuration data, a set of internal or external operating
parameters and usually 1 or more data inputs and outputs.
EIO0000002411 06/2017
65
Glossary
function block diagram
One of the 5 languages for logic or control supported by the standard IEC 61131-3 for control
systems. Function block diagram is a graphically oriented programming language. It works with a
list of networks where each network contains a graphical structure of boxes and connection lines
representing either a logical or arithmetic expression, the call of a function block, a jump, or a return
instruction.
I
I/O
IL
INT
(input/output)
(instruction list) A program written in the language that is composed of a series of text-based
instructions executed sequentially by the controller. Each instruction includes a line number, an
instruction code, and an operand (refer to IEC 61131-3).
(integer) A whole number encoded in 16 bits.
L
LD
(ladder diagram) A graphical representation of the instructions of a controller program with symbols
for contacts, coils, and blocks in a series of rungs executed sequentially by a controller (refer to
IEC 61131-3).
P
POU
(program organization unit) A variable declaration in source code and a corresponding instruction
set. POUs facilitate the modular re-use of software programs, functions, and function blocks. Once
declared, POUs are available to one another.
program
The component of an application that consists of compiled source code capable of being installed
in the memory of a logic controller.
S
SQL
66
SQL (Structured Query Language) is a programming language for managing data stored in
relational database management systems.
EIO0000002411 06/2017
Glossary
ST
(structured text) A language that includes complex statements and nested instructions (such as
iteration loops, conditional executions, or functions). ST is compliant with IEC 61131-3.
V
variable
A memory unit that is addressed and modified by a program.
EIO0000002411 06/2017
67
Glossary
68
EIO0000002411 06/2017
SoMachine
Index
EIO0000002411 06/2017
Index
A
ALIAS - device unit types (DUT), 35
E
ET_Result, 29
ClientNotConnected, 29
CommandExecutionIssue, 32
ConnectionNameNotExisting, 31
ConnectionNotIdle, 30
ConnectionTimedOut, 29
DataBufferTooSmall, 30
DbConfigurationInvalid, 31
DbConnectionNameNull, 29
DbConnectionNotAvailable, 31
GplMaxColumnsExceedsLimits, 31
GplMaxRecBufferExceedsLimits, 31
GplMaxRequestExceedsLimits, 31
GplMaxRowsExceedsLimits, 31
GplMaxSendBufferExceedsLimits, 31
GplRequestWstringExceedsLimits, 31
GplTableWstringExceedsLimits, 31
InvalidIP, 29
InvalidPort, 30
InvalidRequestWstring, 31
InvalidUserDataWstring, 31
InvalidWstringNumber, 31
NoDataReturned, 30
NoQueryResultAvailable, 32
NotConnected, 30
Ok, 29
SocketNotClosed, 30
SqlDatabaseBusy, 30
SqlGwInvalidLicense, 32
SqlGwProtocolError, 32
SqlGwToPlcCorruptedMessage, 30
SqlGwUnexpectedError, 32
TcpClientIssue, 29
TimeoutExpired, 30
TransactionNumMismatch, 30
TransmissionNumMismatch, 30
EIO0000002411 06/2017
F
FB_SqlDbRead, 46
FB_SqlDbWrite, 49
FC_EtResultToString, 51
functions
differences between a function and a
function block, 56
how to use a function or a function block
in IL language, 57
how to use a function or a function block
in ST language, 61
G
GCL (Global Constants List)
SqlRemoteAccess, 39
GPL (Global Parameter List)
SqlRemoteAccess, 41
L
libraries
SqlRemoteAccess, 19
Q
qualification of personnel, 14
S
SQL communications
considerations, 20
SqlRemoteAccess, 19
FB_SqlDbRead, 46
FB_SqlDbWrite, 49
GCL (Global Constants List), 39
GPL (Global Parameter List), 41
ST_ConnectionSettings, 33
69
