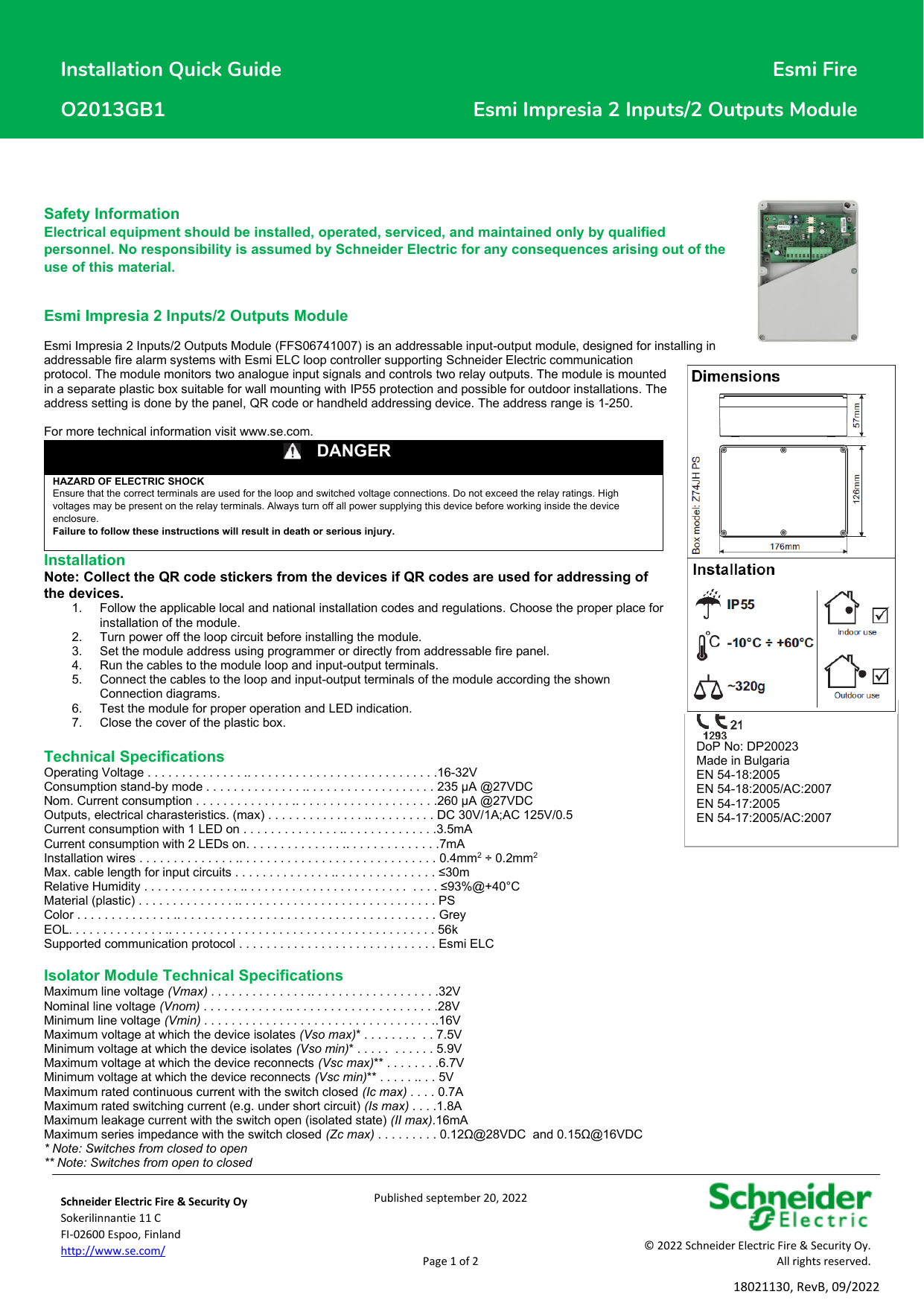

Schneider Electric O2013GB Esmi Impresia 2 Inputs_2 Outputs Module Instruction Sheet

Installation Quick Guide
Esmi Fire
O2013GB1
Esmi Impresia 2 Inputs/2 Outputs Module
Safety Information
Electrical equipment should be installed, operated, serviced, and maintained only by qualified
personnel. No responsibility is assumed by Schneider Electric for any consequences arising out of the
use of this material.
Esmi Impresia 2 Inputs/2 Outputs Module
Esmi Impresia 2 Inputs/2 Outputs Module (FFS06741007) is an addressable input-output module, designed for installing in
addressable fire alarm systems with Esmi ELC loop controller supporting Schneider Electric communication
protocol. The module monitors two analogue input signals and controls two relay outputs. The module is mounted
in a separate plastic box suitable for wall mounting with IP55 protection and possible for outdoor installations. The
address setting is done by the panel, QR code or handheld addressing device. The address range is 1-250.
For more technical information visit www.se.com.
DANGER
HAZARD OF ELECTRIC SHOCK
Ensure that the correct terminals are used for the loop and switched voltage connections. Do not exceed the relay ratings. High
voltages may be present on the relay terminals. Always turn off all power supplying this device before working inside the device
enclosure.
Failure to follow these instructions will result in death or serious injury.
Installation
Note: Collect the QR code stickers from the devices if QR codes are used for addressing of
the devices.
1.
2.
3.
4.
5.
6.
7.
Follow the applicable local and national installation codes and regulations. Choose the proper place for
installation of the module.
Turn power off the loop circuit before installing the module.
Set the module address using programmer or directly from addressable fire panel.
Run the cables to the module loop and input-output terminals.
Connect the cables to the loop and input-output terminals of the module according the shown
Connection diagrams.
Test the module for proper operation and LED indication.
Close the cover of the plastic box.
Technical Specifications
Operating Voltage . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . .16-32V
Consumption stand-by mode . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . 235 µA @27VDC
Nom. Current consumption . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . .260 µA @27VDC
Outputs, electrical charasteristics. (max) . . . . . . . . . . . . . . .. . . . . . . . . . DC 30V/1A;AC 125V/0.5
Current consumption with 1 LED on . . . . . . . . . . . . . . .. . . . . . . . . . . . . .3.5mA
Current consumption with 2 LEDs on. . . . . . . . . . . . . . .. . . . . . . . . . . . . .7mA
Installation wires . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.4mm2 ÷ 0.2mm2
Max. cable length for input circuits . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . ≤30m
Relative Humidity . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . ≤93%@+40°C
Material (plastic) . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . PS
Color . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Grey
EOL. . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56k
Supported communication protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Esmi ELC
DoP No: DP20023
Made in Bulgaria
EN 54-18:2005
EN 54-18:2005/AC:2007
EN 54-17:2005
EN 54-17:2005/AC:2007
Isolator Module Technical Specifications
Maximum line voltage (Vmax) . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . .32V
Nominal line voltage (Vnom) . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . .28V
Minimum line voltage (Vmin) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..16V
Maximum voltage at which the device isolates (Vso max)* . . . . . . . . . . 7.5V
Minimum voltage at which the device isolates (Vso min)* . . . . . . . . . . . 5.9V
Maximum voltage at which the device reconnects (Vsc max)** . . . . . . . .6.7V
Minimum voltage at which the device reconnects (Vsc min)** . . . . . .. . . 5V
Maximum rated continuous current with the switch closed (Ic max) . . . . 0.7A
Maximum rated switching current (e.g. under short circuit) (Is max) . . . .1.8A
Maximum leakage current with the switch open (isolated state) (II max).16mA
Maximum series impedance with the switch closed (Zc max) . . . . . . . . . 0.12Ω@28VDC and 0.15Ω@16VDC
* Note: Switches from closed to open
** Note: Switches from open to closed
Schneider Electric Fire & Security Oy
Sokerilinnantie 11 C
FI-02600 Espoo, Finland
http://www.se.com/
Published september 20, 2022
Page 1 of 2
© 2022 Schneider Electric Fire & Security Oy.
All rights reserved.
18021130, RevB, 09/2022
Installation Quick Guide
Esmi Fire
O2013GB1
Esmi Impresia 2 Inputs/2 Outputs Module
2. Device will be
software addressed
from Fire panel. The
address must be in
the range from 1 to
250.
When you use the
integrated short circuit
isolation module connect
one of the “+Loop” leads to
the “Isolator” terminal
instead of the “Line+”
terminal.
Schneider Electric Fire & Security Oy
Sokerilinnantie 11 C
FI-02600 Espoo, Finland
http://www.se.com/
Published september 20, 2022
Page 2 of 2
© 2022 Schneider Electric Fire & Security Oy.
All rights reserved.
18021130, RevB, 09/2022
