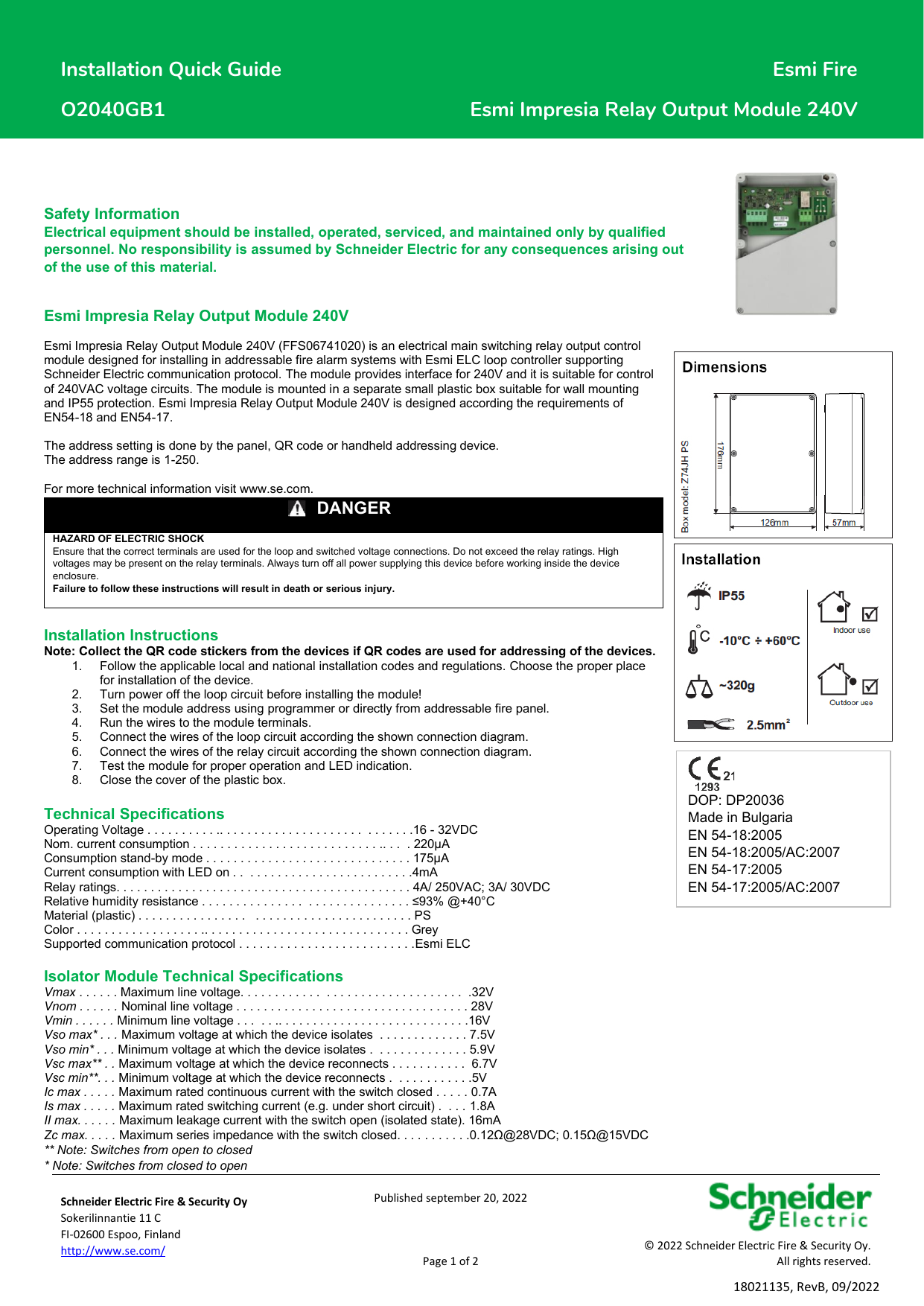

Schneider Electric O2040GB Esmi Impresia Relay Output Module 240V Instruction Sheet

Installation Quick Guide
Esmi Fire
O2040GB1
Esmi Impresia Relay Output Module 240V
Safety Information
Electrical equipment should be installed, operated, serviced, and maintained only by qualified
personnel. No responsibility is assumed by Schneider Electric for any consequences arising out
of the use of this material.
Esmi Impresia Relay Output Module 240V
Esmi Impresia Relay Output Module 240V (FFS06741020) is an electrical main switching relay output control
module designed for installing in addressable fire alarm systems with Esmi ELC loop controller supporting
Schneider Electric communication protocol. The module provides interface for 240V and it is suitable for control
of 240VAC voltage circuits. The module is mounted in a separate small plastic box suitable for wall mounting
and IP55 protection. Esmi Impresia Relay Output Module 240V is designed according the requirements of
EN54-18 and EN54-17.
The address setting is done by the panel, QR code or handheld addressing device.
The address range is 1-250.
For more technical information visit www.se.com.
DANGER
HAZARD OF ELECTRIC SHOCK
Ensure that the correct terminals are used for the loop and switched voltage connections. Do not exceed the relay ratings. High
voltages may be present on the relay terminals. Always turn off all power supplying this device before working inside the device
enclosure.
Failure to follow these instructions will result in death or serious injury.
Installation Instructions
Note: Collect the QR code stickers from the devices if QR codes are used for addressing of the devices.
1. Follow the applicable local and national installation codes and regulations. Choose the proper place
for installation of the device.
2. Turn power off the loop circuit before installing the module!
3. Set the module address using programmer or directly from addressable fire panel.
4. Run the wires to the module terminals.
5. Connect the wires of the loop circuit according the shown connection diagram.
6. Connect the wires of the relay circuit according the shown connection diagram.
7. Test the module for proper operation and LED indication.
8. Close the cover of the plastic box.
DOP: DP20036
Made in Bulgaria
EN 54-18:2005
EN 54-18:2005/AC:2007
EN 54-17:2005
EN 54-17:2005/AC:2007
Technical Specifications
Operating Voltage . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . .16 - 32VDC
Nom. current consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 220μA
Consumption stand-by mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175μA
Current consumption with LED on . . . . . . . . . . . . . . . . . . . . . . . . . .4mA
Relay ratings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4A/ 250VAC; 3A/ 30VDC
Relative humidity resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≤93% @+40°C
Material (plastic) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PS
Color . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Grey
Supported communication protocol . . . . . . . . . . . . . . . . . . . . . . . . . .Esmi ELC
Isolator Module Technical Specifications
Vmax . . . . . . Maximum line voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32V
Vnom . . . . . . Nominal line voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28V
Vmin . . . . . . Minimum line voltage . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . .16V
Vso max* . . . Maximum voltage at which the device isolates . . . . . . . . . . . . . 7.5V
Vso min* . . . Minimum voltage at which the device isolates . . . . . . . . . . . . . . 5.9V
Vsc max** . . Maximum voltage at which the device reconnects . . . . . . . . . . . 6.7V
Vsc min**. . . Minimum voltage at which the device reconnects . . . . . . . . . . . .5V
Ic max . . . . . Maximum rated continuous current with the switch closed . . . . . 0.7A
Is max . . . . . Maximum rated switching current (e.g. under short circuit) . . . . 1.8A
II max. . . . . . Maximum leakage current with the switch open (isolated state). 16mA
Zc max. . . . . Maximum series impedance with the switch closed. . . . . . . . . . .0.12Ω@28VDC; 0.15Ω@15VDC
** Note: Switches from open to closed
* Note: Switches from closed to open
Schneider Electric Fire & Security Oy
Sokerilinnantie 11 C
FI-02600 Espoo, Finland
http://www.se.com/
Published september 20, 2022
Page 1 of 2
© 2022 Schneider Electric Fire & Security Oy.
All rights reserved.
18021135, RevB, 09/2022
Installation Quick Guide
O2040GB1
Esmi Fire
Esmi Impresia Relay Output Module 240V
Wiring
Description of the Connection Diagram
-Loop IN - Connect the negative wire of the input communication line.
+Loop IN - Connect the positive wire of the input communication line.
-Loop OUT - Connect the negative wire of the output communication line.
+Loop OUT - Connect the positive wire of the output communication line.
NC (Normal Close) - Normal Close relay contact
NO (Normal Open) - Normal Open relay contact
Common - Common ground
Note: When you use the integrated short circuit isolation module connect one of the “+Loop” loop lead to the “Isolator” terminal of the
module!
