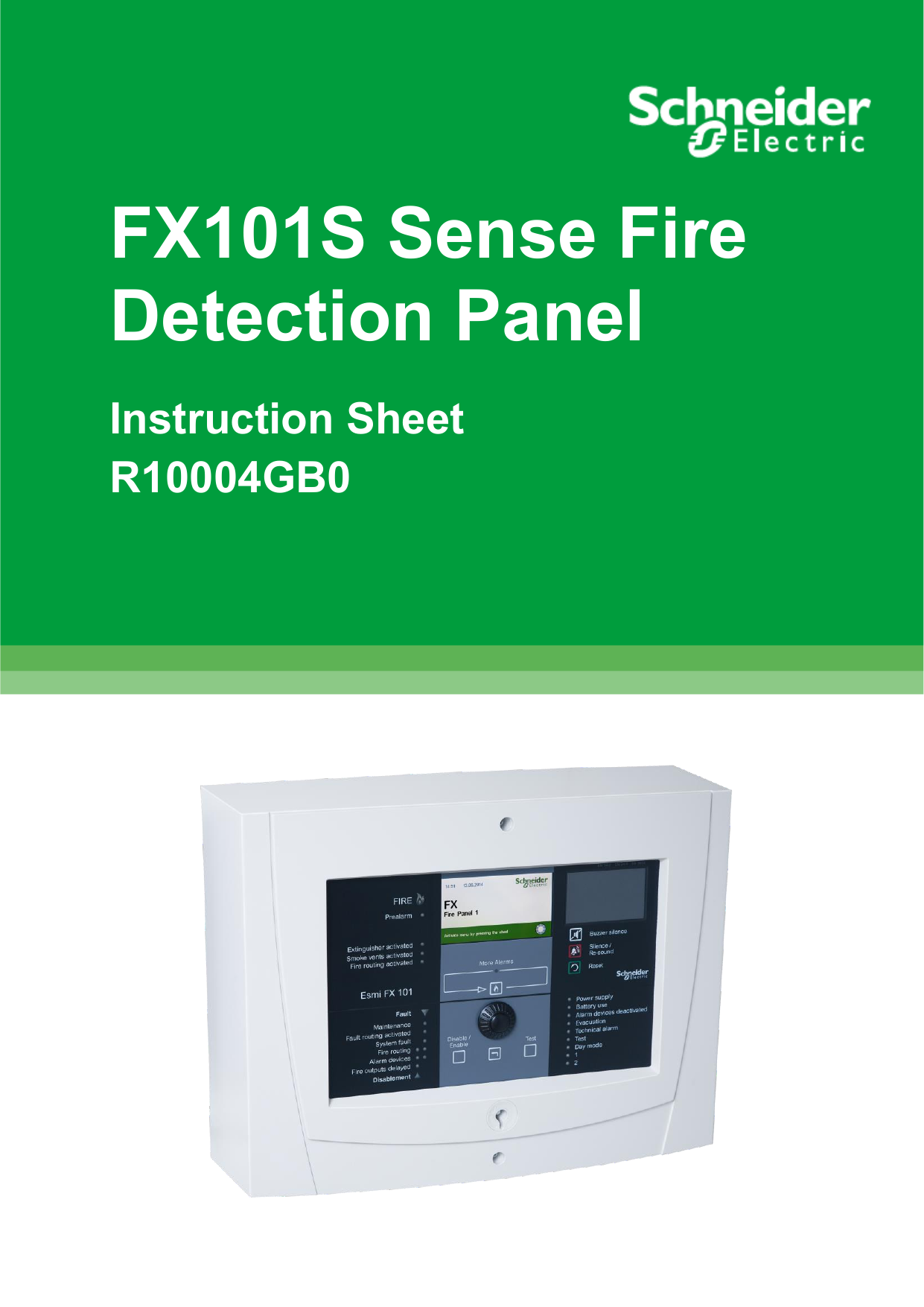

Schneider Electric R10004GB0 FX101S Sense Fire Detection Panel Instruction Sheet

FX101S Sense Fire
Detection Panel
Instruction Sheet
R10004GB0
Schneider Electric Fire & Security Oy
Sokerilinnantie 11 C
FI-02600 Espoo, Finland
Tel: +358 10 446 511
Website: www.schneider-electric.com
Document number: R10004
Published: 06.03.2019
© 2018 – Schneider Electric. All Rights Reserved. This information is only to be used as guidance. Subject to changes and errors.
2
R10004GB0
Contents
Contents
1
FX101S Sense Fire Detection overview ...............................................4
2
FX101S panel external connections .....................................................6
R10004GB0
3
1 FX101S Sense Fire Detection overview
1
FX101S Sense Fire Detection overview
FX101S is a powerful one loop fire detection control panel. The full range of Schneider
Electric’s SLC compatible intelligent detectors can be connected to the system.
Versatile built-in control logic enables easy control of both passive as well as active fire
protective equipment and even a three-stage alert and evacuation alarm.
The panel is compatible with other fire detection equipment, such as the FMP Sense
Fireman’s Panel, zone led panel ZLPX, DAP Sense Delay Alarm Panel, REP Sense
Protocol Repeater and MCO Sense Multi Logic Control Unit, as well as alarm
management system ESGRAF. The system also provides an interface to the building
management system.
Product
Product code
FX101s Sense Fire Detection Panel
FFS00703803
Panel installation
The FX101S panel is installed on a surface with the display at a height of approximately
170 cm. The wall has to be strong enough to support the weight of the panel and the
batteries.
Connections
See overleaf for general overview of the connections of the FX101S panel.
Cable entries are from behind, from above and from below.
Commissioning and Configuration
The system can be started after the jumper settings are verified. For customer/site
specific settings and entry of alarm texts, a PC and licensed software “WinFX3Net” is
used. For further information, see the Installation and commissioning manual.
4
R10004GB0
1 FX101S Sense Fire Detection overview
R10004GB0
5
2 FX101S panel external connections
2
FX101S panel external connections
Figure 2. FX101S Sense Fire Detection panel external connections
Note!
The max. 24 V current consumption of the FX101S Sense Fire Detection Panel
(SCC-board, loop and all addresses and control panel outputs) is 0,5 A in standby
condition and 1,4 A in alarm condition. The standby time required for the system may
limit the max. load of the outputs.
