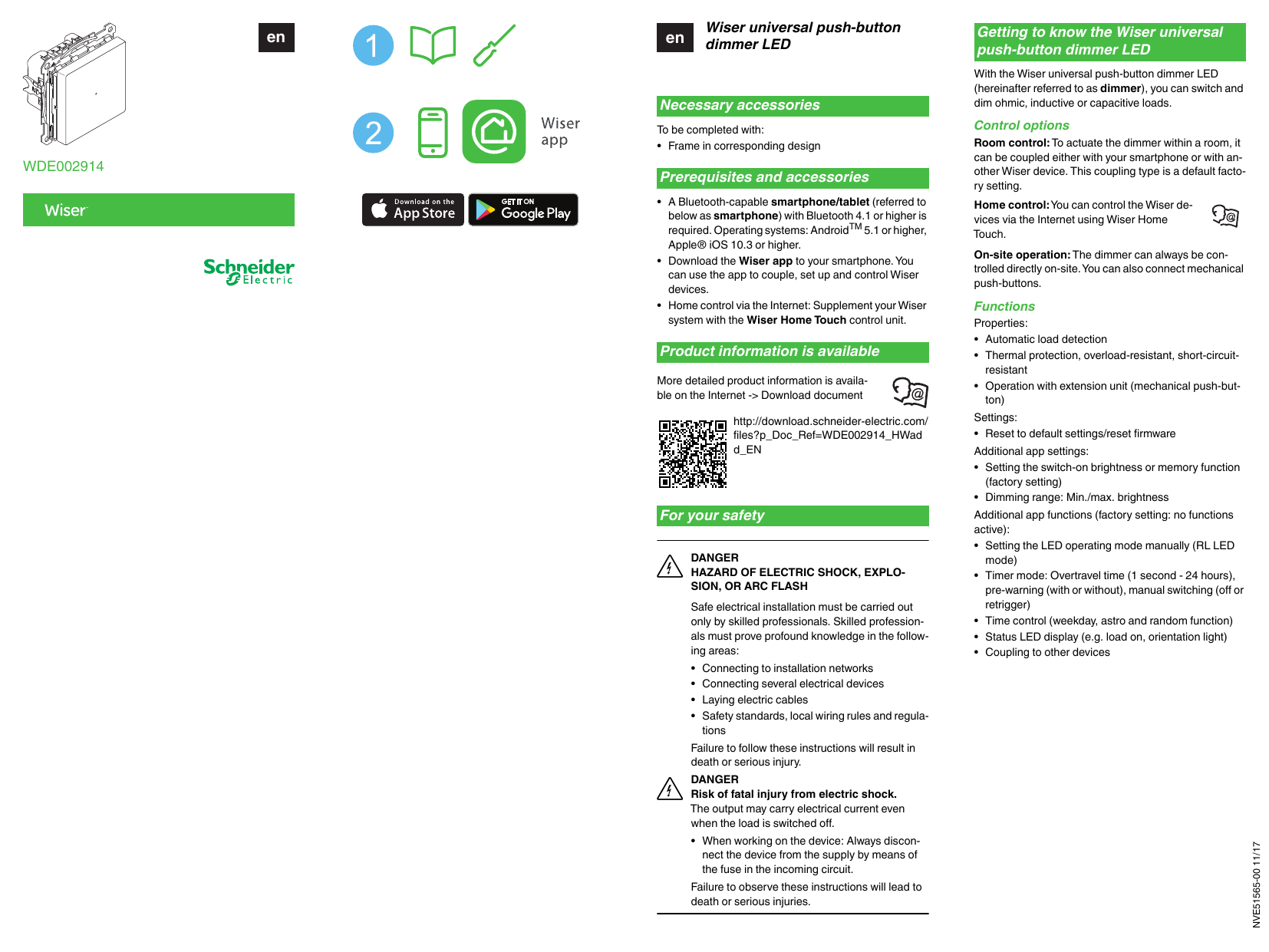

Schneider Electric Exxact User Guide

Wiser universal push-button
dimmer LED
Art.-Nr. WDE002914© Schneider-Electric 2014NVE51565-0011/17
en
Necessary accessories
To be completed with:
• Frame in corresponding design
WDE002914
Art.-Nr. WDE002914© Schneider-Electric 2014NVE51565-0011/17
Prerequisites and accessories
• A Bluetooth-capable smartphone/tablet (referred to
below as smartphone) with Bluetooth 4.1 or higher is
required. Operating systems: AndroidTM 5.1 or higher,
Apple® iOS 10.3 or higher.
• Download the Wiser app to your smartphone. You
can use the app to couple, set up and control Wiser
devices.
• Home control via the Internet: Supplement your Wiser
system with the Wiser Home Touch control unit.
Product information is available
More detailed product information is available on the Internet -> Download document
http://download.schneider-electric.com/
files?p_Doc_Ref=WDE002914_HWad
d_EN
For your safety
¼
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
Safe electrical installation must be carried out
only by skilled professionals. Skilled professionals must prove profound knowledge in the following areas:
•
•
•
•
Connecting to installation networks
Connecting several electrical devices
Laying electric cables
Safety standards, local wiring rules and regulations
Getting to know the Wiser universal
push-button dimmer LED
With the Wiser universal push-button dimmer LED
(hereinafter referred to as dimmer), you can switch and
dim ohmic, inductive or capacitive loads.
Control options
Room control: To actuate the dimmer within a room, it
can be coupled either with your smartphone or with another Wiser device. This coupling type is a default factory setting.
Home control: You can control the Wiser devices via the Internet using Wiser Home
Touch.
On-site operation: The dimmer can always be controlled directly on-site. You can also connect mechanical
push-buttons.
Functions
Properties:
• Automatic load detection
• Thermal protection, overload-resistant, short-circuitresistant
• Operation with extension unit (mechanical push-button)
Settings:
• Reset to default settings/reset firmware
Additional app settings:
• Setting the switch-on brightness or memory function
(factory setting)
• Dimming range: Min./max. brightness
Additional app functions (factory setting: no functions
active):
• Setting the LED operating mode manually (RL LED
mode)
• Timer mode: Overtravel time (1 second - 24 hours),
pre-warning (with or without), manual switching (off or
retrigger)
• Time control (weekday, astro and random function)
• Status LED display (e.g. load on, orientation light)
• Coupling to other devices
Failure to follow these instructions will result in
death or serious injury.
¼
DANGER
Risk of fatal injury from electric shock.
The output may carry electrical current even
when the load is switched off.
• When working on the device: Always disconnect the device from the supply by means of
the fuse in the incoming circuit.
Failure to observe these instructions will lead to
death or serious injuries.
NVE51565-00 11/17
en
Installing the dimmer
/
A Mechanical push-button at extension unit connection (optional)
• Always operate the product in compliance with
the specified technical data.
• Never connect any mixed inductive/capacitive
loads.
• Only connect dimmable loads.
• Danger of overload! Dimming socket outlets is
prohibited.
Choosing the installation location
|
L
N
16 A
A [
Please note: In case of reduced thermal dissipation, you will need to reduce the load.
Load reduced by
When installed
0%
In a standard flush-installation mounting
box
25%
In cavity walls*
30%
In a 1-gang or 2-gang surface-mounted
housing
50%
In a 3-gang surface-mounted housing
Several installed in combination*
PL
* If more than one factor applies, add the load reductions
together.
L
Setting the dimmer
Coupling the dimmer
A Status LED (red/green)
3 x < 0,5 s
A
14 x
3 x < 0,5 s
+ 1x > 10 s
A
4x
B
14 x
3 x < 0,5 s
+ 1 x > 20 s
Room control:
Dimmer <-> smartphone
Select the function to add new devices in the Wiser app.
Follow the instructions in the Wiser app.
|
First set the controlling Wiser device and then the Wiser
device to be controlled into coupling mode.
Coupling mode:
Coupling takes place automatically.
|
You can couple a maximum of 10 Wiser devices
with each other.
Multiway switching is possible with coupled Wiser devices.
Home control:
Dimmer <-> smartphone
-> See product information
Changing operating mode
A Setting the RL LED mode
B Resetting to automatic load detection
The insert automatically recognises the connected
loads. In some cases, the connected LED lamps may
not work correctly with the automatic load detection. In
this case, you can switch the operating mode to “RL LED
mode” (from trailing edge phase to leading edge phase).
|
In the operating mode “leading edge phase for
LED lamps” (RL LED mode), LED lamps can only
be connected up to a lower dimmer load.
Standard: automatic load detection
Resetting to default settings
All configuration data, user data and network data are
deleted.
All settings are then set to default settings (see functions).
Resetting to Bluetooth
The device is reset to the default settings and to Bluetooth.
Please note:
• You can couple a maximum of 15 smartphones
with the dimmer.
• Keep both devices within Bluetooth range of
one another during coupling.
• Coupling mode is active for 30 s.
NVE51565-00 11/17
½
CAUTION
The device may be damaged!
Room control:
Controlling Wiser device <-> Wiser device
A Switch the load on and off.
B Dim switched-on load.
B
C Switch the load on and off or dim the load with the
extension unit.
A
What should I do if there is a problem?
Fault
> 0,5 s
Switching on not pos- Allow dimmer to cool
sible
Reduce load,
change load,
check: Short-circuit, consumer
faulty,
In the case of an external pushbutton, check the wiring,
In the case of coupled Wiser devices, re-couple
< 0,5 s
C
> 0,5 s
Solution
Dimming up not pos- Reduce/increase load
sible
Allow dimmer to cool
< 0,5 s
Dimming down to
minimum brightness
Reduce/increase load
Reduce max. brightness
Flickering at minimum Increase min. brightness
brightness
14-210 VA
15-50 VA
RC
RL
20-420 W
R
20-420 W
20-420 VA
C
40-420 VA
L
Flickering
Change load
Set RL LED mode,
reset to default settings
Only slight dimming
capability
Change dimming range
Set RL LED mode
R
Technical data
Nominal voltage:
Nominal power:
AC 220/230 V ∼, 50/60 Hz
Neutral conductor:
Connecting terminals:
not required
Screw terminals for
max. 2 x 2.5 mm2
0.5 Nm
Single push-button, max.
100 m
16 A circuit breaker
2.4 GHz
2.5 mW
Extension unit:
Fuse protection:
Frequency band:
Transmission capacity:
Dispose of the device separately from household waste at an official collection point. Professional recycling protects people and the
environment against potential negative effects.
Trademarks
• Apple® and App Store® are brand names or registered trademarks of Apple Inc.
• Google Play™ Store and Android™ are brand names
or registered trademarks of Google Inc.
Other brands and registered trademarks are the property of the relevant owners.
EU Declaration of conformity
Hereby, Schneider Electric Industries, declares that this
product is in compliance with the essential requirements
and other relevant provisions of RADIO EQUIPMENT
DIRECTIVE 2014/53/EU. Declaration of conformity can
be downloaded on: schneider-electric.com/docs.
Schneider Electric Industries SAS
If you have technical questions, please contact the Customer Care Centre in your country.
schneider-electric.com/contact
NVE51565-00 11/17
