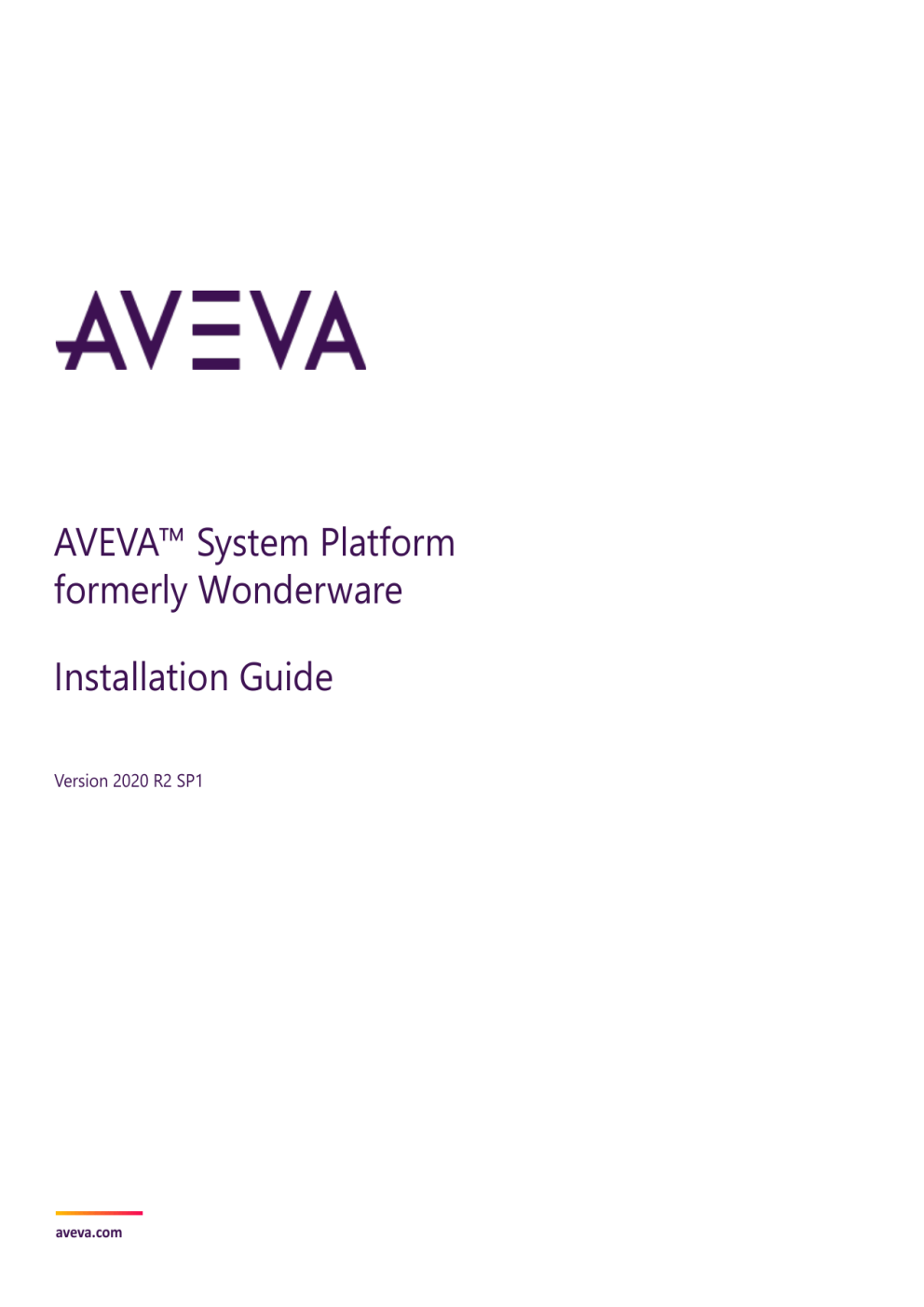

Schneider Electric AVEVA System Platform Installation Guide

AVEVA™ System Platform
formerly Wonderware
Installation Guide
Version 2020 R2 SP1
aveva.com
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
No part of this documentation shall be reproduced, stored in a retrieval system, or transmitted by any means,
electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of AVEVA.
No liability is assumed with respect to the use of the information contained herein.
Although precaution has been taken in the preparation of this documentation, AVEVA assumes no responsibility
for errors or omissions. The information in this documentation is subject to change without notice and does not
represent a commitment on the part of AVEVA. The software described in this documentation is furnished under
a license agreement. This software may be used or copied only in accordance with the terms of such license
agreement.
ArchestrA, Avantis, Citect, DYNSIM, eDNA, EYESIM, InBatch, InduSoft, InStep, IntelaTrac, InTouch, OASyS,
PIPEPHASE, PRiSM, PRO/II, PROVISION, ROMeo, SIM4ME, SimCentral, SimSci, Skelta, SmartGlance, Spiral
Software, WindowMaker, WindowViewer, and Wonderware are trademarks of AVEVA and/or its subsidiaries. An
extensive listing of AVEVA trademarks can be found at: . All other brands may be trademarks of their respective
owners.
Publication date: Wednesday, October 20, 2021
Contact Information
AVEVA Group plc
High Cross
Madingley Road
Cambridge
CB3 0HB. UK
https://sw.aveva.com/
For information on how to contact sales and customer training, see https://sw.aveva.com/contact.
For information on how to contact technical support, see https://sw.aveva.com/support.
To access the AVEVA Knowledge and Support center, visit https://softwaresupport.aveva.com.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 2
Contents
Chapter 1 Preparing for System Platform Installation. . . . . . . . . . . . . . . . . . . . . . . . . . 8
Important Notice: Windows Updates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Important Notice for for Highly Secured Environments (TLS 1.2 Exclusively). . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
License Installation and Activation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
AVEVA System Monitor Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Supported Operating Systems for System Platform 2020 R2 SP1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Supported Operating Systems for InTouch Access Anywhere Server and Secure Gateway. . . . . . . . . . . . . . . 12
Supported InTouch Access Anywhere Clients. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
System Sizing Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Supported and Recommended Node Hardware Types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Required Installation Order of Additional Products. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Common Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Windows Network Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Web Help Display and Video Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
System Platform Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
About SQL Server Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Unsupported SQL Server Version Error Message. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Selecting a Type of Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
About Product-Based Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
About Role-Based Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Network Account. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
About Network Account Privileges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Chapter 2 Installing System Platform. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Configuring System Platform Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configuring the System Management Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing Ports for the System Management Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Import a Certificate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
User Credentials for Configuring the System Management Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configuring the Galaxy License Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configuring the Industrial Graphic Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configuring Databases and Data File Locations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configuring the AVEVA Enterprise License Server Location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configuring the AVEVA System Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
42
43
47
48
48
48
49
50
55
56
Page 3
AVEVA™ System Platform Installation Guide
Contents
System Monitor Manager Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Email Server Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Restart after Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing InTouch Access Anywhere. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Install InTouch Access Anywhere Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Secure Gateway Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configuring Ports for the InTouch Access Anywhere Secure Gateway. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Install the Secure Gateway and Authentication Server Separately or Together. . . . . . . . . . . . . . . . . . . . . . . .
Install All Components on a Single Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Modifying an Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Repairing an Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Uninstalling AVEVA System Platform. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Uninstall a System Platform Component. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Uninstall All Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Upgrading System Platform. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
57
59
61
61
62
63
64
65
67
68
70
72
72
73
74
Chapter 3 Security and Permissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Enhanced Security for Connecting to a Galaxy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Modifying the Network Account. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Change the Network Account from the CLI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SQL Server Rights Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the SQL Server Security Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Restoring Required SQL Server Accounts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the FIPS Security Policy Option. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
80
80
80
81
82
83
83
Chapter 4 Configuring SQL Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
SQL Server Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Working with SQL Server Versions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SQL Server not found on node: small configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SQL Server not found on node: medium and larger configurations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Compatible version of SQL Server already installed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
New version of SQL Server already installed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Incompatible version of SQL Server already installed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using a Non-Default Port for SQL Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting a Windows Firewall Exception for the SQL Server Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
84
86
86
86
86
87
87
87
88
Chapter 5 AVEVA Application Server Upgrade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
About Upgrading Application Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windows Upgrades. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SQL Server Upgrades. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Issues with Legacy Common Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Basic Upgrade Sequence. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Upgrading a Galaxy Repository Node. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
89
92
92
92
93
93
Page 4
AVEVA™ System Platform Installation Guide
Contents
Upgrading an IDE-only Node. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Migrating the Galaxy Database. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Upgrading Run-Time Nodes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Upgrading Redundant Pairs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Upgrade Considerations for Multi-Galaxy Communication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Chapter 6 AVEVA InTouch HMI Requirements and Prerequisites. . . . . . . . . . . . . . . 102
Installing OI Gateway and Upgrading from FS Gateway . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Compatibility with Existing FS Gateway Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Licensing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FS Gateway Installation Scenarios. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
102
103
104
105
Chapter 7 AVEVA Historian Server Requirements and Recommendations. . . . . . . . 109
Server Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
High Availability Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Requirements for Historian Management Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Remote IDAS Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Security Considerations for a Remote IDAS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disk Sizing and Data Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Hardware Recommendations for Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Planning for Disk Space Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disk Space Requirements for Database Files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disk Space Requirements for Historical Data Files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage and Network Transmission Sizes for Tags. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disk Space Estimation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bandwidth Estimation for Streaming Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bandwidth Estimation for Store-and-Forward Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Time Estimation for Store-and-Forward Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
About Data Compression and the Buffer Age Limit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Performance Considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Server Loading. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
IDAS Performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tiered Historians. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage Subsystem Performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Networking Recommendations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Client Access. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Support for Non-English Operating Systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Integration with Other AVEVA Products. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Sizing Examples. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Process Historian Sizing Examples. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Server 1 (Non-Tiered): 2.4 GHz Single Processor Quad-Core CPU. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Server 2 (Non-Tiered): Four Dual-Core 2.7 GHz CPUs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Server 3 (Non-Tiered): Four Dual-Core 3.4 GHz CPUs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Server 4 (Tier-2): Eight Dual-Core 2.67 GHz CPUs (Hyper Threaded). . . . . . . . . . . . . . . . . . . . . . . . . . .
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
109
111
111
111
112
112
113
113
113
114
114
116
116
117
118
118
118
119
120
120
121
121
122
122
123
123
123
123
125
127
128
Page 5
AVEVA™ System Platform Installation Guide
Contents
SCADA (Tiered) Historian Sizing Examples. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Topology 1: Centralized Tiered Historian Topology on a Slow/Intermittent Network. . . . . . . . . . . . . .
Topology 2: Centralized Tiered Historian Topology for a Single Physical Location. . . . . . . . . . . . . . . .
Topology 3: Simple Tiered Historian Topology for a Modem Configuration. . . . . . . . . . . . . . . . . . . . .
129
129
131
133
Chapter 8 AVEVA Historian Server Installation and Configuration. . . . . . . . . . . . . . 136
Preparing for the Historian Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Microsoft SQL Server Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Historian Installation Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
About Historian Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Testing the Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antivirus Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Historian Menu Shortcuts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Repairing the Historian. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Modifying the Historian Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using HTTPS Instead of HTTP for Historian Client, Insight, and REST APIs. . . . . . . . . . . . . . . . . . . . . . . . . . .
Uninstalling the Historian. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Upgrading from a Previous Version. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
About Database Migration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Upgrading the Historian Version (Microsoft SQL Server 32-bit). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Upgrading the Historian Version. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Migration of History Data Stored in SQL Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
136
136
137
138
139
139
139
140
140
140
145
145
145
146
146
147
Chapter 9 AVEVA Historian Client Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
About the Historian Client. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Historian Client Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Desktop Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Microsoft Office Add-Ins. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ActiveX and .NET Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Requirements and Recommendations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Support for Operating System Language Versions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
148
148
148
149
149
149
149
Chapter 10 AVEVA Historian Client Installation and Configuration. . . . . . . . . . . . . . 150
About Historian Client Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using Historian Client Software with Roaming Profiles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Repairing the Historian Client Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Uninstalling Historian Client. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Upgrading from a Previous Version. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
150
150
151
151
151
Appendix A Using Silent Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Starting Silent Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 6
AVEVA™ System Platform Installation Guide
Contents
Using Response Files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configure SQL SysAdmin Permissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Creating a Response File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Response File Entry to Acknowledge Installation Change Information (Redistributable Libraries). . . . . . . .
Response File Entry to Install Out-of-Support Redistributables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Response File Entry to Acknowledge Compatibility Requirement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Response File Entries to Configure the License Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Response File Entries to Configure the System Management Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Response File Samples. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Role-Based Response Files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product-Based Response Files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
155
156
156
159
159
160
160
160
161
162
163
Appendix B Single Product Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Guidelines for Creating a Compact Installation Source. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Upgrading from a Previous Version. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preparation for Installing a Single Product. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Optional Folder for Historian. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Creating the Installation Source and Installing the Selected Component. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
165
166
166
169
169
Appendix C Ports Used by System Platform Products. . . . . . . . . . . . . . . . . . . . . . . . 170
System Platform Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Appendix D Common System Platform Processes. . . . . . . . . . . . . . . . . . . . . . . . . . . 175
AVEVA System Platform Processes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Appendix E User Accounts and Groups Created by System Platform Installation. . 177
Application Server OS Groups and Accounts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
InTouch HMI OS Groups and Accounts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
InTouch Web Client OS Groups and Accounts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Historian Server OS Groups and Accounts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Platform Common Services Accounts and OS Groups. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AVEVA License Manager OS Groups and Accounts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Monitor OS Groups and Accounts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
177
178
179
179
181
183
183
Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 7
Chapter 1
Preparing for System Platform
Installation
This guide describes how to install the AVEVA™ System Platform, formerly Wonderware.
You can use the System Platform installation program to install the entire suite of products, or any of the
component products.
Before you begin the installation program, you need to prepare your system, and you should plan your
installation according to the two installation types available to you, product-based and role-based. See Selecting
a Type of Installation for additional information.
Make sure that your computer meets or exceeds the hardware and software requirements. System Platform
2020 R2 SP1 is not supported on 32-bit operating systems or 32-bit versions of SQL Server. If the installed SQL
Server version is not compatible for any reason, installation stops and an error message is displayed. For more
information, see Unsupported SQL Server Version Error Message.
Important Notice: Windows Updates
Before installing System Platform, download and install the latest Microsoft updates to enhance security and
ensure product compatibility. Allow the Windows update process to finish before you start installing System
Platform. This recommendation applies to all Windows versions.
Important Notice for for Highly Secured Environments (TLS 1.2
Exclusively)
Affected Systems
This information is applicable to a small subset of highly secured environments, in which operating systems and
supporting networks have been configured to enable TLS 1.2 and where TLS 1.0 and 1.1 have been purposefully
disabled. In these rare instances, some additional configuration is required to ensure that System Platform will
work as expected.
System Platform 2020 R2 SP1 includes various measures to strengthen security, including the ability to leverage
the latest version of transport layer security (TLS 1.2), provided that TLS 1.2 has been enabled and configured in
the host operating system.
As of the System Platform 2020 R2 SP1 release date, Microsoft Windows Server 2016 does not support TLS 1.2
by default. You must enable it by applying Microsoft updates and several manual edits to the system registry. The
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 8
AVEVA™ System Platform Installation Guide
Chapter 1 – Preparing for System Platform Installation
tasks of applying all Microsoft updates and editing the system registry must be completed before you install
System Platform 2020 R2 SP1. These instructions also apply to any other software products that support TLS 1.2.
Follow the instructions listed below.
If you are required to enable TLS 1.2 and disable TLS 1.0 and TLS 1.1:
1. Before installing System Platform 2020 R2 SP1 on a Windows Server 2016 computer, make sure that your
computer is up to date by downloading and installing all applicable Microsoft updates.
2. If required by the updates, restart your computer.
3. Edit the system registry. The .REG file shown below sets registry keys to their safest values.
For additional information about these registry changes, see https://docs.microsoft.com/en-us/dotnet/
framework/network-programming/tls#configuring-security-via-the-windows-registry.
Windows Registry Editor Version 5.00
[HKEY_LOCAL_MACHINE\SOFTWARE\WOW6432Node\Microsoft\.NETFramework\v4.0.30319]
"SystemDefaultTlsVersions"=dword:00000001
"SchUseStrongCrypto"=dword:00000001
[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\.NETFramework\v4.0.30319]
"SystemDefaultTlsVersions"=dword:00000001
"SchUseStrongCrypto"=dword:00000001
4. Restart your computer to ensure that all changes take effect.
5. Install System Platform 2020 R2 SP1.
License Installation and Activation
A valid product license is required to enable product functionality. The AVEVA Enterprise License Server and
Enterprise License Manager are automatically selected when you select Application Server or InTouch, or any
role (if you select About Role-Based Installation) that includes the Application Server Galaxy Repository. In some
cases, such as when you install a Runtime Client, the Galaxy Repository is installed "silently" (without any notice
it is being installed).
While the Application Server Galaxy Repository is selected for installation, you cannot deselect the Enterprise
License components. The License Server and License Manager are installed on the Galaxy Repository node by
default.
Note: If you are using a workgroup, the License Manager and License Server must be installed on the same node.
You will need to configure the License Server and activate your product licenses before using the products you
install. For detailed information about product licensing and activation, refer to the AVEVA Enterprise Licensing
Guide (AELicenseManagerGuide.pdf). You can access it after installation is complete from the AVEVA Enterprise
License Manager node, under the AVEVA start directory.
AVEVA Enterprise Licensing
The AVEVA Enterprise License Server acquires, stores, and serves licenses for all installed AVEVA software,
including all System Platform products. The AVEVA Enterprise License Server and Manager work together to
provide centralized management of all your product licenses.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 9
AVEVA™ System Platform Installation Guide
Chapter 1 – Preparing for System Platform Installation
For products and roles that do not install the License Server on the same node, you will have to provide the
location (node name) of the License Server.
The basic product installation and license activation workflow is:
1. Install System Products, along with the AVEVA Enterprise License Server and License Manager. See Installing
System Platform.
2. Configure the AVEVA Enterprise License Server (and Historian, if installed). See Configuring the AVEVA
Enterprise License Server Location.
3. Start the License Manager. The License Manager is browser-based, and is located in the AVEVA folder (Start >
AVEVA > Enterprise License Manager). The License Manager uses the following URL:
http://localhost/AELicenseManager
Note: If you are running the License Manager from a remote node (not the License Server/Galaxy Repository
node), substitute the node name for localhost.
The License Manager opens in your browser.
4. If a License Server is displayed, click on it to select it. If no License Servers are displayed, click the Add Server
button, and then enter the computer name of the License Server, or select the computer name from the
drop down.
5. Refer to the AVEVA Enterprise Licensing Help for options and procedures to activate licenses.
Note: Changes to licensing, such as switching license servers or activating a new license, should not be done
for a product that is already running. Depending on the product, it may take up to 30 minutes to acquire a
new or changed license. To immediately acquire a license, restart the affected product. However, product
interdependencies may require you to restart the node to force the immediate acquisition of the license.
AVEVA System Monitor Installation
The AVEVA System Monitor constantly checks the License Server to ensure that it is accessible. In the event that
the software on a node is unable to acquire a license, the System Monitor sends a warning so you can quickly fix
licensing acquisition issues to ensure that operations are not interrupted.
The AVEVA System Monitor consists of the following components:
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 10
AVEVA™ System Platform Installation Guide
Chapter 1 – Preparing for System Platform Installation
• System Monitor Agent: The System Monitor Agent maintains the manifest of user-defined rules, handles
monitoring of the machine to detect unhealthy conditions, and securely communicates with the System
Monitor Manager to report those conditions. The System Monitor Agent is installed by the System Monitor
Agent Install Manager on every System Platform node, including the System Monitor Manager node.
The System Monitor Agent communicates with the System Monitor to monitor the license acquisition from
the node to the license server.
• System Monitor Manager: The System Monitor is automatically selected for installation whenever the
Galaxy Repository feature is selected. Note that you can use the Customize Installation option to deselect the
System Monitor, and then select for installation on a different node. The System Monitor also has an SMTP
server that can send email notifications if a process it is monitoring requires attention.
For each System Platform node, configuration of the System Monitor is required after installation. The System
Monitor Agent on each System Platform node must be configured to point to the System Monitor node. The
System Monitor node must be configured to point to itself (the System Monitor Manager Name is the node
name). The System Monitor Manager node also requires configuration of its SMTP server and email addresses
for notifications. See Advanced System Monitor Configuration for additional information.
In addition to the license monitoring functionality that the System Monitor provides by default, your System
Platform licenses include the ability to configure System Monitor on a single node to monitor and manage the
performance and availability of the core AVEVA software, the engineered software application(s), and the related
hardware and network infrastructure. To configure this additional functionality, see the AVEVA System Monitor
User Guide.
Important: If you have a System Monitor license and are running a full version of SQL Server (not Express), you
can configure System Monitor Reports. This feature is only available for fully-licensed System Monitor
installations, not basic mode, and is not available if you are running SQL Server Express. If your System Monitor
installation will be fully licensed, the SQL Server Reporting Services (SSRS) server should be configured and the
services started before initiating installation of the System Monitor Manager. This will enable deployment of
System Monitor Reports. If SSRS is not configured before installation of the System Monitor Manager, reports will
have to be manually deployed. See the AVEVA System Monitor User Guide for additional information.
Supported Operating Systems for System Platform 2020 R2 SP1
Important! System Platform 2020 R2 SP1 supports 64-bit operating systems only.
The following operating systems (64-bit only) were supported at the time of release of System Platform 2020 R2
SP1:
• Windows 8.1 Enterprise, Professional
• Windows 10 1909 SAC Enterprise and IoT Enterprise
• Windows 10 2004 SAC Professional, Enterprise, and IoT Enterprise
• Windows 10 20H1 SAC Professional, Enterprise, and IoT Enterprise
• Windows 10 20H2 SAC Professional, Enterprise, and IoT Enterprise
• Windows 10 LTSB Enterprise, IoT Enterprise 2015 (1507 (RTM)) - with Extended Support
• Windows 10 LTSB Enterprise, IoT Enterprise 2016 (1607)
• Windows 10 LTSC Enterprise, IoT Enterprise 2019 (1809)
• Windows Server 2012 Data Center (Not Standard Edition)
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 11
AVEVA™ System Platform Installation Guide
Chapter 1 – Preparing for System Platform Installation
• Windows Server 2012 R2 Standard and Data Center
• Windows Server 2012 R2 Embedded (64-bit) (Full image)
• Windows Server 2016 LTSC Standard and Datacenter
• Windows Server 2019 LTSC (Datacenter, Essentials, Standard)
• Windows Server IoT 2016 LTSC
• Windows Server IoT 2019 LTSC
Note: System Platform 2020 R2 SP1 is not supported on any Windows 10 version prior to version 1909. For
Windows 10 Professional, the minimum version is 2004.
Supported Operating Systems for InTouch Access Anywhere Server and
Secure Gateway
The following operating systems (64-bit only) were supported at the time of release of System Platform 2020 R2
SP1 for InTouch Access Anywhere server nodes. This includes Secure Gateway and InTouch Access Anywhere
Server:
• Windows 8.1 Enterprise, Professional
• Windows 10 1909 SAC Enterprise and IoT Enterprise
• Windows 10 2004 SAC Professional, Enterprise, and IoT Enterprise
• Windows 10 20H1 SAC Professional, Enterprise, and IoT Enterprise
• Windows 10 20H2 SAC Professional, Enterprise, and IoT Enterprise
• Windows 10 LTSB Enterprise, IoT Enterprise 2015 (1507 (RTM)) - with Extended Support
• Windows 10 LTSB Enterprise, IoT Enterprise 2016 (1607)
• Windows 10 LTSC Enterprise, IoT Enterprise 2019 (1809)
• Windows Server 2012 Data Center (Not Standard Edition)
• Windows Server 2012 R2 Standard and Data Center
• Windows Server 2016 LTSC Standard and Datacenter
• Windows Server 2019 LTSC (Datacenter, Essentials, Standard)
• Windows Server IoT 2016 LTSC
• Windows Server IoT 2019 LTSC
Supported InTouch Access Anywhere Clients
InTouch Access Anywhere can run in any HTML5-capable browser, including but not limited to:
• Google Chrome version 72.0.3626 and newer
• Firefox version 60.9 ESR and newer
• Microsoft Edge version 40.15063 and newer
• Safari version 11 and newer (Mac and iOS only, not Windows)
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 12
AVEVA™ System Platform Installation Guide
Chapter 1 – Preparing for System Platform Installation
• Opera version 50 (2018) and newer
System Sizing Guidelines
The following table provides guidelines for hardware configurations suitable for System Platform 2020 R2 SP1,
based on application size. These guidelines are subject to the limitations of your Windows operating system, and
if applicable, to the SQL Server edition (Express, Standard, or Enterprise). See the Technology Matrix on the
AVEVA Global Customer Support website for supported versions of Windows operating systems and SQL Server.
• The Intel Itanium 2 processor is not supported.
• An HD display is recommended for engineering tools such as the Integrated Development Environment (IDE).
• A Windows Server operating system is required for large installations.
• A 64-bit operating system is required, regardless of system size.
• SQL Server Express is not supported for installations with more than 25,000 I/O per node (small installations
only).
• Pagefile.sys, the Windows paging file (also called the swap file or virtual memory file), must be enabled. The
Windows default setting is enabled.
The following guidelines are provided for reference only. The system configuration required for your
application will depend on multiple factors, including but not limited to the size and complexity of the
application, and the features and components used.
Application
Level
Logical
Processors
RAM
Free Disk
Space
Network Speed
Minimum
4
2 GB
100 GB
100 Mbps
Recommended
8
4 GB
200 GB
1 Gbps
Minimum
8
8 GB
200 GB
1 Gbps
Recommended
16
12 GB
500 GB
1 Gbps
Minimum
16
16 GB
500 GB
1 Gbps
Recommended
32
24 GB
1 TB
Dual 1 Gbps
Minimum
4
2 GB
100 GB
100 Mbps
Recommended
8
4 GB
200 GB
1 Gbps
Minimum
8
8 GB
200 GB
1 Gbps
Recommended
16
12 GB
500 GB
1 Gbps
Minimum
16
16 GB
500 GB
1 Gbps
Recommended
32
24 GB
1 TB
Dual 1 Gbps
Application Server Nodes
Small Application
(1 - 25,000 I/O per Node)
Medium Application
(25,000- 50,000 I/O per Node)
Large Application
(> 50,000 I/O per Node)
Galaxy Repository Nodes
Small Galaxy
(1 - 50,000 I/O per Node)
Medium Galaxy
(50,000 - 200,000 I/O per Node)
Large Galaxy
(> 200,000 I/O per Node)
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 13
AVEVA™ System Platform Installation Guide
Chapter 1 – Preparing for System Platform Installation
Level
Logical
Processors
RAM
Free Disk
Space
Network Speed
Minimum
4
2 GB
100 GB
100 Mbps
Recommended
8
4 GB
200 GB
1 Gbps
Medium Application
(50,000 - 200,000 Historized Tags per
Node)
Minimum
8
8 GB
200 GB
1 Gbps
Recommended
16
12 GB
500 GB
1 Gbps
Large Application
(> 200,000 Historized Tags per Node)
Minimum
16
16 GB
500 GB
1 Gbps
Recommended
32
24 GB
1 TB
Dual 1 Gbps
Minimum
2
512 MB
N/A
100 Mbps
Recommended
4
2 GB
N/A
100 Mbps
Minimum
4
1 GB
100 GB
100 Mbps
Recommended
8
4 GB
200 GB
1 Gbps
Basic RDS, ITAA Server
Supports up to 15 concurrent remote
sessions
Minimum
8
8 GB
200 GB
1 Gbps
Recommended
16
12 GB
500 GB
1 Gbps
Large RDS, ITAA Server
Supports up to 30 concurrent remote
sessions
Minimum
16
16 GB
500 GB
1 Gbps
Recommended
32
24 GB
1 TB
Dual 1 Gbps
Minimum
8
8 GB
200 GB
100 Mbps
Recommended
12
12 GB
500 GB
1 Gbps
Minimum
12
16 GB
500 GB
1 Gpbs
Recommended
16
32 GB
1 TB
1 Gbps
Minimum
20
32 GB
2 TB
1Gbps
Recommended
24
64 GB
4 TB
1 Gbps
Application
Historian Server Nodes
Small Historian
(1 - 50,000 Historized Tags per Node)
Thin Client Nodes
RDP clients, ITAA browsers, mobile
devices
Client Nodes
WindowViewer, ViewApp, Historian
Client, Remote IDE
Remote Desktop Server Nodes
All-In-One Nodes (all products on a single node)
Small Application:
1,000 I/O max
Medium Application:
20,000 I/O max
Large Application
100,000 I/O max
1) To calculate the number of logical processors: multiply the number of physical cores by the number of threads each core can run.
A four core CPU that runs two threads per core provides eight logical processors. The terms "Hyper-Threading and "simultaneous
multithreading" (SMT) are also used to describe logical processors.
2) SSD drives are highly recommended.
3) In redundant environments, increase CPU and RAM to maintain a maximum of 40% typical resource utilization.
4) For optimal performance of all-in-one nodes, a high clock speed (>2.8 GHz) is recommended.
5) For Application Server platform nodes, it is recommended that you deploy no more than two AppEngines per logical processor
(typically one primary AppEngine and one backup).
6) For large applications on all-in-one nodes, dual XEON processors are recommended.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 14
AVEVA™ System Platform Installation Guide
Chapter 1 – Preparing for System Platform Installation
Supported and Recommended Node Hardware Types
Product
Server Node
Thin ClientServer Node
Client Node
Thin Client
All-In-One
Galaxy Repository
Preferred
Supported
Supported
No
Supported
Application Engine
Preferred
Supported
Supported
No
Supported
IDE
Preferred
Supported
Supported
RDP
Supported
AVEVA OMI ViewApp Runtime
Supported
Supported
Preferred
ITAA/RDP
Supported
WindowMaker (No Modern Apps)
Supported
Supported
Preferred
RDP
Supported
WindowMaker (with Modern Apps)
Preferred
Supported
Supported
RDP
Supported
WindowViewer / InTouch ViewApp (runtime
only)
Supported
Supported
Preferred
ITAA/RDP
Supported
WindowMaker (with Managed Apps)
Preferred
Supported
Supported
RDP
Supported
WindowViewer / InTouch ViewApp (runtime
only)
Supported
Supported
Preferred
ITAA/RDP
Supported
InTouch Access Anywhere Server
Supported
Preferred
No
No
Supported
InTouch Access Anywhere Client (HTML5
Browser)
Browser
Browser
Browser
Browser
Browser
InTouch Access Anywhere Secure Gateway
Supported
No
No
No
No
Historian Server
Preferred
Supported
Supported
No
Supported
AVEVA Insight
Browser
Browser
Browser
Browser
Browser
Historian Client
Supported
Supported
Preferred
RDP
Supported
OI Gateway
Preferred
Supported
Supported
No
Supported
AVEVA Enterprise License Server
Preferred
Supported
Supported
No
Supported
AVEVA Enterprise License Manager
Preferred
Supported
Supported
No
Supported
AVEVA Enterprise License Manager Client
Browser
Browser
Browser
Browser
Browser
Application Server
InTouch Standalone
InTouch for System Platform
InTouch Access Anywhere
Historian
Support Components
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 15
AVEVA™ System Platform Installation Guide
Chapter 1 – Preparing for System Platform Installation
Required Installation Order of Additional Products
Some AVEVA products released prior to System Platform 2020 R2 SP1 must be installed before you install System
Platform. These are:
• Alarm Adviser (2014 R2 SP1 and prior versions)
• Intelligence (2017 SP1 and prior versions)
• Recipe Manager Plus (2017 Update 1 and prior versions)
• Skelta BPM (2017 R2 Update 1 and prior versions)
If any of the above products will be installed on the same system as System Platform 2020 R2 SP1:
1. Install the product (Alarm Adviser, Intelligence, etc.) first.
2. Then, install System Platform 2020 R2 SP1.
InBatch 2017 or prior versions must installed after installing System Platform 2020 R2 SP1.
1. Install System Platform 2020 R2 SP1.
2. Then, install InBatch.
Common Components
System Platform 2020 R2 SP1 includes several shared modules that are needed for the products to operate. You
will see some or all of the following common components listed under Programs and Features in the Windows
Control Panel after installation is complete, depending on your installation selections for the node:
Component
Version
Required/
Optional
AVEVA Communication Drivers Pack 2020 R2
7.2.000
Required
Platform Common Services 4.6.2
4.6.21215.1
Required
AVEVA Enterprise License Manager
3.7.00000
Required
AVEVA Enterprise License Server
3.7.00002
Optional (see
note)
AVEVA Enterprise Licensing Platform
3.7.00002
Required
System Monitor Agent Install Manager
1.4.0
Required
System Monitor Manager
1.4.0
Optional
Note: The License Server is required on nodes with the Galaxy Repository.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 16
AVEVA™ System Platform Installation Guide
Chapter 1 – Preparing for System Platform Installation
Windows Network Configuration
If you are installing System Platform products on more than one node, we recommend that you use domain
based networking. Domain based (client-server) networks provide better user account security and management
than workgroup based (peer to peer) networks.
System Platform does not support mixed Windows workgroup/domain environments. While workgroups are
supported, you cannot use workgroup nodes within a domain environment.
Note: Do not install the Galaxy Repository on a computer that is used as a domain controller or an Active
Directory server.
Operations that rely on inter-node communications may not function correctly in a workgroup based Application
Server installation. Examples of this type operation include connecting to a remote IDE, or viewing the status of a
remote platform.
If you must use workgroup based networking, you can avoid communications issues by enabling "everyone
permissions" for anonymous users. To enable these permissions, go to:
Local Security Policy > Local Policies > Security Options > Network Access: Let everyone
permissions apply to anonymous.
Web Help Display and Video Playback
Web Help - Browser-based User Assistance
Web help components have been delivered in this release. Web help opens in the default browser on your local
computer. Help displayed in a browser allows more dynamic and searchable user assistance including standard
web browser navigation and tutorial videos.
Typically, help content is installed on your local machine as part of the documentation library, and displays in
your browser without requiring an Internet connection. When you install the Application Server IDE, a link to the
AVEVA OMI Web Help is added to the Windows start menu. To open the help, use one of the following methods
(depending on the editor/UI you are using):
• Press F1 from the ViewApp editor, Screen Profile editor, or Layout editor.
• From the System Platform IDE, select a Layout, ViewApp, Screen Profile, AVEVA OMI app, or External Content
object and:
• press Ctrl+F1, or
• right-click, then select Help from the short-cut menu.
• To open AVEVA OMI help from its installed location:
C:\Program Files (x86)\ArchestrA\Framework\Docs\1033\NGX\index.htm
• To open AVEVA OMI help from the start menu, go to:
Start > AVEVA Documentation > AVEVA OMI Help
Browser Requirements and Recommendations
Internet Explorer is recommended.
• Microsoft Edge will not load help content, unless you use the "Open with Internet Explorer" option in the
Edge browser.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 17
AVEVA™ System Platform Installation Guide
Chapter 1 – Preparing for System Platform Installation
• Chrome and Chromium-based browsers, such as Vivaldi, will not load help content unless you install and use
an IE-rendering extension (for example, IE Tab).
Browser Permissions for Displaying Web Help
Each browser and Windows operating system combination has its own security permissions. Using Internet
Explorer as an example, you may see a dialog requesting that you "Allow blocked content" each time you invoke
the web help. This dialog is triggered by the presence in the help system of JavaScript components that control
internal navigation and topic display elements such as pop-up or in-place-expanding display blocks that contain
text and graphical images. The text and image content is itself non-active.
You can accept each occurrence of this dialog, or you can set the following option in Internet Explorer, depending
on your IT security requirements: In Internet Options, click the Advanced tab, then navigate to the Security
section. Enable the "Allow active content to run in files on My Computer." Permissions and security settings will
vary depending on your specific browser.
Playback of Tutorial Videos
The web help may contain a number of brief tutorial videos. To play these videos, you must have Microsoft
Media Player installed on your local machine. In Windows Server operating systems, you must enable the
"Desktop Experience" feature using Server Manager.
Internet Explorer (or IE-rendering in other browsers) may be required for viewing video content. If using a
browser other than Internet Explorer without IE rendering enabled, videos may not be visible.
System Platform Prerequisites
Operating System and SQL Server
A 64-bit Windows operating system is required for installing and running System Platform 2020 R2 SP1 and its
component products. Some System Platform 2020 R2 SP1 components, such as the Application Server Galaxy
Repository and the AVEVA Historian, formerly Wonderware, also require a 64-bit version of Microsoft SQL.
Check the AVEVA GCS Technology Matrix website for more information about supported Windows and SQL
Server versions for the System Platform 2020 R2 SP1 component products you are installing.
Note: If you are using silent (command line) installation, all prerequisites, including the .NET Framework and SQL
Server, must be installed before launching the System Platform setup program. See Using Silent Installation for
more information.
.NET Framework
• System Platform requires Microsoft .NET® Framework 4.8. Prior to any other installation task, System
Platform checks if .NET version 4.8 is installed. If it is not, you are prompted to allow its installation. A system
restart may be required when .NET installation is complete. If the System Platform installation program does
not automatically resume after the system restart, you will need to restart it manually.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 18
AVEVA™ System Platform Installation Guide
Chapter 1 – Preparing for System Platform Installation
• If an error occurs during setup that stops .NET Framework 4.8 installation, you can try manually installing
from the System Platform installation DVD:
\InstallFiles\Redist\DOTNET\4.8\NDP48-x86-x64-AllOS-ENU.exe
To check installed .NET versions:
Open a command prompt and enter
cmd /k reg query "HKLM\SOFTWARE\Microsoft\NET Framework Setup\NDP" /s /v Version
The installed versions of .NET are listed.
Prerequisites Automatically Installed by System Platform
The System Platform installation program analyzes the software installed on your computer and lists any
software that is required but not currently installed, and any installed software that is incompatible. The
following prerequisites are installed by the System Platform installation program, if not already present on the
system:
• Microsoft .NET® Framework 4.8
• SQL Server: SQL Server is required for products or roles that you select for installation that include GR node
or Historian Server. If a supported version of SQL Server is not found, you are given the option to install SQL
Server 2017 Express as part of System Platform installation. However, SQL Server Express supports only
small installations with less than 25,000 I/O per node.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 19
AVEVA™ System Platform Installation Guide
Chapter 1 – Preparing for System Platform Installation
If you have a medium or large installation, a copy of SQL Server 2017 Standard Edition is supplied with
System Platform. You must install it or another supported version of SQL Server separately, before you install
System Platform. See the Technology Matrix on the AVEVA Global Customer Support website for the current
list of supported SQL Server versions.
If you do not want to install SQL Server, and you have product or role selections that include the GR node by
default, you can select the Customize Installation checkbox and deselect the Galaxy_Repository. However,
this will limit any database-related product functionality, such as the Application Server IDE, that uses the
Galaxy Repository.
See SQL Server Requirements for more information about the limitations of using SQL Server Express instead
of a standard or enterprise edition.
The following tables summarize which System Platform products and roles require SQL Server.
Product Selections
SQL Required
Application Server
Yes
Application Server and AVEVA OMI Runtime
No
Application Server Development
No
Application Server Galaxy Repository
Yes
InTouch HMI
Yes
InTouch Development and Runtime
Yes
InTouch Runtime Only
No
InTouch Access Anywhere Server
No
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 20
AVEVA™ System Platform Installation Guide
Chapter 1 – Preparing for System Platform Installation
Product Selections
SQL Required
InTouch Access Anywhere Secure Gateway
No
InTouch Access Anywhere Authentication Server
No
Historian
Yes
Historian Client
No
Licensing
No
Role Selections
SQL Required
Runtime Client
No
Remote System Platform Development Client
No
System Platform Development Server
Yes
• Without Galaxy Repository (custom installation)
No
Historian Server Node
Yes
Historian Client Node
No
InTouch Access Anywhere Secure Gateway Node
No
All-In-One-Node
Yes
• Without Galaxy Repository and Historian Server (custom No
installation)
Note: System Platform will allow you to install an InTouch development system without a Galaxy Repository.
However, InTouch Modern Applications will not work without the Galaxy Repository.
While installing System Platform, if the logged-on user (the installer) is not a SQL Server administrator, the SQL
Access Configurator opens (the dialog box is labeled "aaConfig SQL") and requests SQL Server administrator
credentials. Enter valid SQL Server administrator credentials when requested. For more information about
setting user privileges with the SQL Access Configurator, see Setting the SQL Server Security Mode. For more
information about SQL Server installation, see About SQL Server Requirements.
The System Platform installation program installs both system-specific and product-specific prerequisites. It also
checks for incompatible software that will prevent installation from proceeding, (for example, if InTouch Access
Anywhere was previously installed). You do not have to exit from the System Platform installation program to
install the prerequisite software, with the exception of standard or enterprise versions of SQL Server. You will
need to exit and perform any uninstall operations that are indicated before continuing with installation.
For information on prerequisites and software requirements for the specific products, see the System Platform
Readme, the Readme files of the specific products located in your documentation directory, or the specific
product information chapter in this installation guide.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 21
AVEVA™ System Platform Installation Guide
Chapter 1 – Preparing for System Platform Installation
About SQL Server Requirements
The exception to the prerequisites installation workflow is the SQL Server requirement for System Platform
products. In most cases, SQL Server is required when you install:
• Application Server
• Historian
• InTouch HMI (when used with modern applications)
If a supported version of SQL Server is not already installed, you must exit the installation program, install the
supported SQL Server version, then resume the installation. We recommend that you install and configure the
supported SQL Server version before you begin the System Platform installation program.
Note: If you are installing a small system (less than 25,000 I/O), you can use SQL Server Express instead of a
standard version of SQL Server. You can elect to install SQL Server Express as part of the System Platform
installation process; you do not have to install it separately.
For more information about SQL Server prerequisites, see SQL Server Requirements.
Unsupported SQL Server Version Error Message
If an error message about an unsupported SQL Server version is displayed while installing System Platform, check
the following:
• Your installed version of SQL Server is no longer supported, for example, SQL Server 2008.
• How to fix: Upgrade SQL Server to a supported version. Refer to the following Microsoft resource for
more information: Upgrade SQL Server.
• Your installed version of SQL Server is supported but requires a service pack. For example, you have SQL
Server 2014 but Service Pack 3 is not installed.
• How to Fix: Download and install the required Microsoft SQL Server service pack.
• You have a 32-bit version of SQL Server installed.
• How to Fix: See "Install/Uninstall and Galaxy Migration Issues" in the System Platform 2020 R2 SP1
Readme, and refer to Issue 1249251.
Selecting a Type of Installation
The System Platform installation program offers you a choice of two types of installation— product-based or
role-based.
About Product-Based Installation
Product-based installation provides a combination of features not specific to a node. This is the preferred
installation type for a stand-alone product installation.
If you are familiar with System Platform products and their associated components, you can opt for a productbased installation, and then choose the components that you need. For example if you need to install InTouch®
with the default options, then select a product-based installation.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 22
AVEVA™ System Platform Installation Guide
Chapter 1 – Preparing for System Platform Installation
Important: Product-based installation includes an option to install the InTouch Access Anywhere Secure
Gateway. The Secure Gateway can only be installed on a computer running a supported version of the Windows
Server operating system (minimum: Windows Server 2012). To ensure security, no other System Platform
components should be installed on the node.
In the table below, components that are selected by default when you select the corresponding product are
indicated by the letters R (for required), and O (for optional). Required means that the component must remain
selected to install the product. Optional means that you can deselect the component and retain the remaining
product functionality. Products definitions (columns 2 through 9) are as follows:
• AS + GR: Application Server (with Galaxy Repository)
• AS no GR: Application Server (without Galaxy Repository)
• IT: InTouch (HMI)
• ITAA: InTouch Access Anywhere
• ITAA SG: InTouch Access Anywhere Secure Gateway
• ITAA AS: InTouch Access Anywhere Authentication Server
• HS: Historian Server
• HC: Historian Client
Product / Component
AS + GR AS w/o
GR
IT
ITAA
System Platform
R
R
R
R
• ASB Runtime
R
O
R
R
R
R
• Bootstrap
O
O
R
• IDE
O
O
O
ITAA SG ITAA AS HS
HC
R
O
• ASB Service Repository
Application Server
R
• Galaxy Repository
Insight Publisher
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
R
R
Page 23
AVEVA™ System Platform Installation Guide
Chapter 1 – Preparing for System Platform Installation
Product / Component
AS + GR AS w/o
GR
IT
ITAA
InTouch HMI
R
R
• Runtime
O
R
• Development
R
R
• Alarm DB Logger
O
R
• Demo Apps
O
R
• Recipe Manager
O
R
• SQL Access
O
R
• 16 PenTrend
R
• Symbol Factory
R
ITAA SG ITAA AS HS
HC
• Industrial Graphics Server
(InTouch Web Client)
• OI Gateway
InTouch Access Anywhere
R
R
R
• ITAA Server
• ITAA Secure Gateway
• ITAA Authentication
Historian
R
• Historian Server
R
• IDAS
R
• Active Event
R
• Configuration Tools
R
• Historian Extensions
Historian Client
R
R
R
R
R
O
R
O
R
O
R
O
Client Components
R
R
R
R
Server Components
R
R
R
R
OI Server Simulator
R
R
R
R
R
• Trend/Query Clients
• Microsoft Add-Ins
Licensing
• License Manager
• License Server
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 24
AVEVA™ System Platform Installation Guide
Chapter 1 – Preparing for System Platform Installation
Product / Component
AS + GR AS w/o
GR
IT
ITAA
ITAA SG ITAA AS HS
HC
System Monitor
R
R
R
O
R
• System Monitor Manager
R
O
R
R
• System Monitor Agent
R = Required
O = Optional
About Role-Based Installation
Role-based installation provides a combination of features specific to a node. If you are uncertain about the
specific products or components you need, but you know what role your computer will play, you can opt for a
role-based installation. For example, if your computer is a run-time node or a development node, you can select
those roles in the role-based installation program. The System Platform installation program will install all
components required for the roles that you have selected. It is recommended that you define the node you are
installing and select the appropriate role before starting the installation program. During the installation, you can
click a role to see its description, as described in Installing System Platform.
Important: Role-based installation includes an option to install an InTouch Access Anywhere Secure Gateway
node. The Secure Gateway can only be installed on a computer running a supported version of the Windows
Server operating system (minimum: Windows Server 2012). To ensure security, no other System Platform
components should be installed on the node.
In the table below, components that are selected by default when you select the corresponding product are
indicated by the letters R (for required), and O (for optional). Required means that the component must remain
selected to install the product. Optional means that you can deselect the component and retain the remaining
product functionality.
Note: In some cases, you can still deselect a product category to remove all components under it, even if
components are marked as required. For example, if you are installing a System Platform Development Server,
and will be using the AVEVA OMI run time only, you can deselect the InTouch HMI category to remove all the
components listed under it, including components that are marked as required. As another example, if you are
installing Security Server, it is possible to deselect the ASB Management Server, but the resulting installed
product will not result in a Security Server.
Products definitions (columns 2 through 9) are as follows:
• RT Client: Runtime Client. Install only the necessary components required to run a visualization client,
Historian client, and Application Server server run-time components.
• Dev Client: Remote System Development Workstation. Install the components required for a remote
engineering development workstation with only the required components to allow the node to connect to
an existing development server; GR is not installed by default. It allows development and testing of InTouch
and System Platform applications.
• Dev Servr: System Platform Development Server. Install the components required to host the development
server, and develop and test InTouch and System Platform applications.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 25
AVEVA™ System Platform Installation Guide
Chapter 1 – Preparing for System Platform Installation
• HS Node: Historian Server Node. Install the necessary components to store historical data in a System
Platform environment.
• HC Node: Historian Client Node. Install the components required to connect to an existing Historian Server
and analyze the data.
• ITAA SG: InTouch Access Anywhere Secure Gateway Node. Install the components to access InTouch
applications hosted on Terminal Servers by using HTML5 compatible web browsers. This component cannot
be installed on a computer that has other System Platform components installed.
• Lic Srvr: License Server. Installs the components required to create a stand-alone license server that installed
products on other nodes can access for their licenses.
• Sys Mtr: System Monitor Manager . Installs the System Monitor Manager and Agent components. The
System Manager monitors the License Server. It also includes a single node license to monitor the health of
the computer on which it is installed.
Note: The System Monitor Manager is automatically selected for installation whenever the Galaxy
Repository component is selected. You use the "Customize Installation" dialog to deselect it. The System
Monitor Agent automatically installs on all System Platform nodes. It cannot be deselected and is a required
component.
Not Listed: The following roles are not defined in the table below:
• All-in-One Node: All products, except InTouch Anywhere, are installed on a single node.
• Custom: Allows you to customize the components that are installed. No components are selected by default;
you must select any component that you want to install.
Role
RT
Client
Dev
Client
Dev
Servr
HS
Node
HC
Node
System Platform
R
R
R
R
R
O
O
• ASB Runtime
ITAA
SG
Lic
Srvr
Snt
Mgr
R
• ASB Service Repository
Application Server
R
• Bootstrap
R
R
R
R
• IDE
O
• Galaxy Repository
Insight Publisher
R
R
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
R
Page 26
AVEVA™ System Platform Installation Guide
Chapter 1 – Preparing for System Platform Installation
Role
RT
Client
Dev
Client
Dev
Servr
HS
Node
InTouch HMI
R
R
R
R
• Runtime
R
O
O
R
• Development
O
R
R
R
• Alarm DB Logger
O
O
O
R
• Demo Apps
O
O
O
R
• Recipe Manager
R
O
O
R
• SQL Access
O
O
• 16 PenTrend
R
R
HC
Node
ITAA
SG
Lic
Srvr
Snt
Mgr
• Symbol Factory
• Industrial Graphics Server
(InTouch Web Client)
InTouch Access Anywhere
R
• ITAA Server
• ITAA Secure Gateway
• ITAA Authentication
Historian
R
• Historian Server
R
• IDAS
R
• Active Event
R
• Configuration Tools
R
• Historian Extensions
Historian Client
R
R
R
O
O
R
O
O
R
R
R
• Trend/Query Clients
• Microsoft Add-Ins
Licensing
• License Manager
O
R
• License Server
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 27
AVEVA™ System Platform Installation Guide
Chapter 1 – Preparing for System Platform Installation
Role
RT
Client
Dev
Client
Dev
Servr
HS
Node
HC
Node
Operation Integration
R
R
R
R
R
• Client Components
R
R
R
R
R
• Server Components
R
R
R
R
R
• OI Server Simulator
R
R
R
R
R
R
R
R
ITAA
SG
Lic
Srvr
Snt
Mgr
R
R
R
• OI Gateway
System Monitor
• System Monitor Manager
R
R
R
• System Monitor Agent
R = Required
O = Optional
Network Account
The Network Account is a user name and password combination that enables inter-node communication
between all System Platform computers. You must specify the same Network Account on every node when you
install the System Platform components for the first time on computers that communicate with each other.
Wherever a Network Account is required, the System Platform Installation dialog box appears and you will need
to provide a valid user name and password.
WARNING! The Network Account is a Windows operating system account located on the local computer or on
a domain. Do not delete this account with operating system account management tools. If you do, System
Platform software may stop functioning properly.
• If no other System Platform software is installed on the computer, you are prompted to create a new
Network Account or specify an existing user account during the System Platform installation.
• If you use an existing account, it must have a permanent password that does not expire, and the password
cannot be changed. By default, the local machine name is displayed. To use a domain user account, enter the
short domain name. Do not use the fully qualified domain name (FQDN). For example, use "DomainName"
and not "DomainName.com" or "DomainName.local."
Important: To enhance security, the Network Account is blocked from logging on to the Galaxy locally or
through Remote Desktop Services by default. This is configured in the operating system user rights
management.
About Network Account Privileges
When you install System Platform, you can choose to have the system automatically create the Network Account
as a local account. The Network Account cannot be used to interactively log on to the computer.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 28
AVEVA™ System Platform Installation Guide
Chapter 1 – Preparing for System Platform Installation
If you specify a pre-existing user account as the Network, it is added to the group aaAdministrators. Any SQL
Server privileges that Application Server requires are also added. See SQL Server Rights Requirements for more
information.
Note: Members of the aaAdministrators group do not have system admin privileges.
See Modifying the Network Account if you need to change or recreate the Network Account.
System Platform Upgrade
If you are upgrading from an earlier version of System Platform, and the existing Network Account (called
ArchestrA User in prior releases) is a system Administrator, you are prompted to:
• Remove the Network Account from the Administrators group to enhance security.
• Keep the Network Account as a system Administrator. You may want to keep the Network Account as a
system Administrator, if it is leveraged by other applications and needs elevated privileges.
See Upgrading System Platform for more information.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 29
Chapter 2
Installing System Platform
IMPORTANT! We strongly recommend that you log into Windows as a user with administrative privileges when
launching setup.exe. Once all selected System Platform products are installed and configured, you can use a
lower-privileged account to operate the system.
If you use a standard user account with temporary administrator credentials instead of an administrator account
to run setup.exe, a registry flag associated with the temporary administrator account may remain after the
system prompts for a mid-installation restart. This flag is used to notify the operating system that setup should
resume the next time that particular user logs into the system. Since product installation may have already
completed the next time the user logs in, the "modify" setup screen appears instead. If this occurs, simply cancel
the modify setup screen. This scenario, if it occurs, will only happen once, since the registry flag will be cleared.
This will not affect the products or their installation.
You can select a product-based or a role-based installation for your computer.
Note: Prerequisites are installed as part of product installation and not in a separate workflow.
Compatibility Alert
If AVEVA™ Manufacturing Execution System or certain versions of AVEVA™ Recipe Management are detected on
the node, you will be prompted during installation to apply a patch to the products to ensure compatibility with
System Platform 2020 R2 SP1. The patch is required for:
• Manufacturing Execution System 6.2.0. Older versions must be updated to version 6.2 and then patched.
• Recipe Management 4.5.0 and 4.6.0. These two most recent versions must be patched. Versions prior to 4.5
are compatible with System Platform 2020 R2 SP1 and do not require patching.
To install System Platform
1. Insert the DVD into your DVD-ROM drive. Navigate to the root directory of the DVD and run setup.exe.
Depending on your computer's security settings, Windows User Access Control may ask for permission to run
the installation program. Allow it to run, and the startup screen appears.
If your computer is configured to allow AutoRun, setup.exe may start immediately after inserting the DVD.
▪ If the operating system is not supported, you blocked from continuing. A 64-bit operating system is
required. For additional information about supported operating systems, see Supported Operating
Systems for System Platform 2020 R2 SP1
▪ If the operating system is supported, basic installation requirements are checked. .NET Framework 4.8 is
installed if it or a later version is not already present.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 30
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
Note: You are prompted to restart your computer after the .NET Framework is installed. You may
need to manually restart the setup program. If the .NET Framework does not install successfully, see
System Platform Prerequisites for additional information.
2. You are prompted to manually confirm that your operating system is compatible with System Platform. Refer
to the System Platform Readme (for a list of compatible operating systems, as of the System Platform 2020
R2 SP1 release), or the Technology Matrix in the AVEVA Global Customer Support website (for an updated list
of compatible operating systems, including newly-released Windows versions).
Note: This compatibility check was added to System Platform 2020 R2 SP1, to ensure installation is not
blocked for compatible Windows versions released after the System Platform release, under Microsoft's
Long-Term Servicing Channel (LTSC) and Semi-Annual Channel (SAC).
3. After some automatic configuration occurs, the select installation mode dialog box appears.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 31
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
4. Select whether you want a product-based or a computer role-based installation, and then click Next. The
select options dialog box appears. Its appearance will vary, depending on whether you chose product-based
or role-based installation.
▪ For information about product-based installation, see About Product-Based Installation.
▪ For information about role-based installation, see About Role-Based Installation.
▪ If you are installing any of the InTouch Access Anywhere options available under Product-Based
Installation, see Installing InTouch Access Anywhere.
If you select the Product Based Selection option, the product based installation dialog box appears.
Select the product(s) you want to install on the node.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 32
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
If you select the System Platform Computer Roles option, the role based installation dialog box appears.
Select the role(s) you want to install on the node.
You can select multiple products or roles. All the selected components will be installed together. If you
are installing InTouch Access Anywhere Secure Gateway, it should be installed by itself, without any other
System Platform components.
5. When you select the Galaxy Repository for installation, the following components are automatically selected
for installation and cannot be deselected:
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 33
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
• Platform Common Services Framework. The PCS Framework includes a System Management Server,
used for establishing a trust relationship between machines. See Configuring the System Management
Server for additional information.
• AVEVA Enterprise Licensing Framework. Every node should be configured to point to a single License
Server. See Configuring the AVEVA Enterprise License Server Location for additional information.
• AVEVA System Monitor. Every node should be configured to point to a single System Monitor Manager.
See Configuring the AVEVA System Monitor for additional information.
Note: If you have multiple Galaxy Repository nodes, the Configurator lets you select which node(s) to
use for the above components at the end of installation. See Configuring System Platform Components
for more information.
6. After you have made your product or role selections and click Next, an important notification appears.
The notification screen describes important security-related changes in this release of System Platform
related to third-party components that are installed to support System Platform. Components that are near
or beyond their official support dates are not installed, unless you explicitly choose to install them. These
changes have been implemented to improve System Platform security.
7. Click Next to proceed. The verify selection dialog box appears.
▪ To make changes to your selections or to install out-of-support components, select the Customize
Installation check box. You can change your selections to:
• Install the out-of-support components if you are migrating a project with custom-built executable
components that leverage these components (NOT RECOMMENDED). See step 8 for additional
information.
• Install other components, such as the InTouch 16-Pen Trend Wizard supplementary component. See step
9 for additional InTouch information.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 34
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
• Remove components from a node in multi-node Application Server configurations, such as the IDE or
Galaxy Repository.
▪ To proceed with your selections without making any changes, click Next.
8. Optional installation of out-of-support assemblies: Security changes in this release include the removal of
certain assemblies from Microsoft and other third-parties that have reached their end-of-life and are now
out of support. Installing these assemblies may increase your security risk. Some assemblies have been
removed completely as they are no longer needed to support System Platform installation. Other assemblies
and executables, listed in the following table, are still included with the installation media. You are given the
option to install the following assemblies if needed to support custom-built objects that you may be
migrating to the new system. Select the checkbox to install them.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 35
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
Important: Do not elect to install these components unless absolutely required. Instead, AVEVA
recommends that you recompile any custom components using the latest redistributable libraries, and/or
contact vendor for up-to-date versions.
Redistributable Description
Folder/Assembly Name
Microsoft SQL Server 2012
Management Objects SP2
(11.2.5058.0)
SQL2012SP2FeaturePack\ SharedManagementObjects.msi (x64
and x86 versions)
Microsoft Visual C++ 2008
Redistributable
VC90SP1/vcredist_x86.exe
Microsoft Visual C++ 2010
Redistributable
VC10SP1/vcredist_x64.exe
SQL2012SP2FeaturePack\ SQLSysClrTypes.msi
(x64 and x86 versions)
VC10SP1/vcredist_x86.exe
Note: You can locate these assemblies on the installation DVD under the InstallFiles\OutOfSupportRedist
folder. If you select the option to install them now, they will be automatically installed during the installation
process.
Important: Installation of out-of-support assemblies is NOT recommended.
Instead of installing the out-of-support assemblies, we recommend that you use currently-supported
software versions to rebuild any custom ApplicationObjects or applications. You may elect include these outof-support components when you install System Platform if you will be migrating a project that contains:
• Custom ApplicationObjects built with the Application Object Toolkit
• Remote Response Ojbects
• The discontinued ApplicationObjects $FieldReference or $Switch
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 36
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
• Custom script libraries or custom .NET controls built with these out-of-support components
• Any other component that leverages the out-of-support assemblies
Note: If you do not install the out-of-support assemblies and import objects that have dependencies on
them, you may see errors from the aaPim and WWPackageServer components while importing the
objects.
9. Optional installation of InTouch Supplementary Components: When the customize installation dialog box
appears, scroll down to the InTouch Supplementary Components section to install InTouch HMI
supplementary components or make other changes.
▪ Select InTouch 16 PenTrend from the list.
▪ Make any other product and component selections.
▪ You can click Browse on the customize installation dialog box to change the program installation
destination folder.
Click Next to continue the remainder of the installation procedure.
10. Optional installation of AVEVA Communication Drivers: When you select Application Server or InTouch HMI
for installation, the AVEVA Communication Drivers Pack Simulator (SIM) and Gateway are also selected for
installation. Select Customize Installation and then scroll down to add any other drivers that you need.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 37
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
11. If you have selected an InTouch HMI features, the language selection dialog box appears. Select the language
for your InTouch HMI installation. The InTouch language versions are supported only for the matching
operating system language. For example, the German version of the InTouch HMI is only supported on the
German operating system.
12. Click Next. The End User License Agreement dialog box appears.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 38
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
13. Review the license(s). Click I have read and accept the terms of the license agreement(s), and then click
Agree.
14. If the products or roles you selected require it, the Off Node Communications (Network Account) dialog box
appears.
Note: If a Network Account for off-node communications is NOT required (for example, if you are only
installing Historian Client), you will be prompted to click Install. If this is the case, skip to step 18.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 39
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
15. Specify a new or pre-existing Network Account for off-node communications. This account is used for
encrypted communication between different System Platform nodes and software components. See
Network Account for more information.
▪ To select an existing account, clear the Create Local Account check box. When you clear the check box,
the Domain/Local Machine text box displays the default domain name. Specify a different domain/local
machine name if necessary. Then, enter the user name and password for the existing Network Account.
Click Next to complete the Network Account setup.
▪ To create a new account, click the Create Local Account check box if not already selected. By default, the
Domain/Local Machine box displays your computer name. Then, enter a user name and password.
▪ Network Accounts must meet the following requirements:
• The account must have a permanent password that does not expire.
• The account must have a password that cannot be changed.
Note: If necessary, you can change the Network Account credentials through the Change Network
Account utility. The Start Menu includes a short cut to the utility. It is listed under the AVEVA folder.
16. If the products or roles you selected require Microsoft SQL Server, and a supported version of SQL Server is
not already installed, you will be prompted to select either automatic installation of SQL Server Express, or to
exit and manually install a full version of SQL Server.
Caution: If you select SQL Server Express, System Platform will automatically grant you (the logged in user)
SQL sysadmin privileges. This level of access is required to proceed with SQL Server Express installation. You
will retain sysadmin privileges even after installation. If you need to remove sysadmin privileges from the
logged in account, be sure to create a sysadmin account first.
▪ Click Yes to use SQL Server Express. SQL Server Express is adequate for systems with less than 25,000 IO.
It will be installed automatically along with the other prerequisites and the selected System Platform
components.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 40
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
▪ Click No to skip SQL Server Express installation. Then, click Exit and manually install SQL Server. System
Platform for medium and large installations includes a separate DVD with a full version of SQL Server
2017 Standard. However, you can install any supported version of SQL Server. See the AVEVA Global
Customer Support (GCS) Technology Matrix for a list of supported SQL Server versions.
When you have finished SQL Server installation, restart the System Platform installation program.
17. A list of missing prerequisite components (if any) and the System Platform products to be installed are
displayed.
Note: Any prerequisites required for the products selected for installation will be listed above the list of
products and components. The prerequisites will be installed first, and the product and components will be
installed immediately after installation of the prerequisites has finished. If you elected to install SQL Server
Express, it will be installed along with any other prerequisites.
18. Click Install to proceed. The progress bar appears.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 41
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
19. After the installation is over, the installation completed dialog box appears.
▪ Select View Readme for important information, including hardware and software requirements, new
features, and known and resolved issues.
▪ Select Configure to continue. See Configuring System Platform Components for the final steps to
complete installation .
Configuring System Platform Components
The AVEVA Enterprise License Server, security (System Management Server), and the Historian Server require
post-installation configuration for initial setup. You need to configure your products using the Configurator dialog
box after you have installed them. The Configurator dialog box lists all product components that require postinstallation configuration. You can configure the locations for the product database and the data files.
You must have administrative rights to use the Configurator.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 42
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
To start the Configurator
• Click Configure on the final installation dialog box. The Configurator dialog box appears. The product feature
tree expands by default. Most features will show as Not Configured the first time you open the Configurator.
• You can also start the Configurator at any time from the Windows Start menu.
The status of each item in the Configurator is displayed when the Configuration opens and as items are
configured. The status indicators are:
• Error
- Indicates that an error occurred during configuration.
• Not Configured
• Warning
- Indicates that the feature is installed, but not configured.
- Indicates that configuration is complete, but with warnings.
• Configured
• Not Installed
- Indicates that configuration completed successfully.
- Indicates that the feature is not installed.
• Non Configurable
- Indicates there is nothing to be configured.
Configuring the System Management Server
Security measures for System Platform 2020 R2 SP1 include support for the TLS 1.2 protocol for secure encrypted
communications between nodes, single sign on (SSO), and certificate management. These features, available
since the release of System Platform 2017 Update 3, are enabled through a component of the Common Platform
called the System Management Server. To enable security, every System Platform node must communicate with
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 43
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
the System Management Server, and there should only be a single System Management Server in your System
Platform topology. The System Management Server stores shared security certificates and establishes a trust
relationship between machines.
If some nodes have not been upgraded to System Platform 2017 Update 3 or later, communication with those
older nodes will continue to utilize unsecured communication. However, communication between nodes running
System Platform 2017 Update 3 or later will be encrypted, as long as the nodes are configured to communication
with the System Management Server.
To configure the System Management Server
1. In the Configurator, select System Management Server under Common Platform in the left pane.
Note: If you are prompted for user credentials for the System Management Server, use the following format
to enter the user name: DomainName\UserName. The prompt for user credentials may be displayed if you
have domain admin privileges but are not an admin on the local machine. You must be a member of the
Administrators or aaAdministrators OS group to configure the System Management Server. For more
information, see User Credentials for Configuring the System Management Server.
2. You are presented with three choices:
▪ Connect to an existing System Management Server: This is the default option. The System Platform
discovery service looks for an existing System Management Server on its network. If any are found, they
are displayed in a drop down list. Select the server you want to use, or enter the machine name of the
server. All computers in your System Platform topology should connect to the same server.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 44
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
The machine name must comply with Active Directory naming conventions. Windows does not permit
computer names that exceed 15 characters, and you cannot specify a DNS host name that differs from
the NETBIOS host name. The maximum length of the host name and of the fully qualified domain name
(FQDN) is 63 bytes per label and 255 bytes per FQDN. For more information, refer to the following
Microsoft information page that provides Active Directory naming conventions and name/character
limitations:
https://docs.microsoft.com/en-us/troubleshoot/windows-server/identity/naming-conventions-forcomputer-domain-site-ou
Note: The redundant SSO server option is not implemented and is not configurable in System
Platform 2020 R2 SP1.
▪ This machine is the System Management Server: Select this option if this computer will be the System
Management Server. All other computers in your System Platform topology should be configured to
connect to this server by using the Connect to an existing System Management Server option. A
security code is shown when you configure this option. When you configure other nodes using the
"Connect to an existing System Management Server" option, verify that the codes match. You can view
the certificate by clicking the Details... button.
▪ No System Management Server configured. (NOT RECOMMENDED): Select this option to set up your
computer without encryption and secure communications. You can still configure other computers in the
topology to use a System Management Server.
3. Advanced settings: This opens the Advanced Configuration dialog window.
▪ Certificate Source: Select either Automatically Generated (default), or Provided by IT. If your IT
department is providing the certificate, press the Import button and navigate to the certificate file. For
more information, see Import a Certificate.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 45
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
Certificate: The certificate name is displayed. If you imported a certificate, you view it by pressing the
Details button. The certificate is periodically renewed through an automatic update process, both on the
server node and on remote nodes.
▪ System Management Server: If you are connecting to an existing System Management Server, the name
and port number of the server you selected is shown.
▪ Common Platform Ports: The ports for the common platform are used for communications with certain
AVEVA software, such as the AVEVA System Monitor. Generally, you can use the default settings. Remote
nodes must be configured with the same port numbers as configured here. To change the default ports,
click the Advanced button, then edit the port numbers as needed. See Changing Ports for the System
Management Server for more information.
Default HTTP port: 80
Default HTTPS port: 443
Some Application Server communications drivers require some additional, manual configuration if you
change the default port(s) used for the System Management Server. This manual configuration is
required if you changed a port for the System Management Server and are using either the MQTT
Communications Driver or the Auto Build function in Application Server. See Changing Ports for the
System Management Server for more information.
Important! If you have installed InTouch Access Anywhere Secure Gateway on the same node as
other System Platform components, there will be a port conflict if you keep the default port settings
for System Management Server. You can either (1) change the Common Platform Port number(s) in
the Advanced Configuration dialog to proceed or, (2) edit the configuration file for the Secure
Gateway. See Configuring Ports for the InTouch Access Anywhere Secure Gateway for information on
changing the port number.
4. Press the Configure button.
▪ If you are connecting to an existing System Management Server, the Security Warning window is
displayed:
By establishing trust between machines, communications can pass freely. This will be a security concern
if you are not sure of the identity of the remote computer. If you have any doubt about the computer
you are connecting to, verify the security code and certificate details by selecting the Details... button in
the Advanced Configuration dialog to open the certificate.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 46
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
5. Select the next item in the left pane that requires configuration. When all required items have been
configured, press the Close button to complete installation. See System Restart after Configuration.
Changing Ports for the System Management Server
Some communication drivers used with Application Server require additional, manual configuration if you
change one or both of the default port(s) used for the System Management Server during initial configuration, or
a port used by the System Management Server is changed at any time after that. This additional configuration is
required if you use either of the following:
• The Auto Build function in Application Server. The Auto Build function uses either the ABCIP or SIDirect
Communications Driver.
• MQTT Communications Driver.
This configuration is not required if you do not change the default System Management ports (HTTP port 80 and
HTTPS port 443). However, if a non-default port is configured and then changed back to the default port number,
manual configuration is required.
Configure the ports after you have completed all installation and configuration steps, and anytime you change a
port number for the System Management System.
To configure a port for System Management Server
1. As Administrator, open a command prompt or Windows PowerShell window.
2. Run the following command:
▪ If you changed the HTTP port, run this command:
netsh http add urlacl url=http://localhost:<changed HTTP port number>/oi/
user=”NT SERVICE\GDIWebServer”
▪ If you changed the HTTPS port, run this command:
netsh http add urlacl url=https://localhost:<changed HTTPS port number>/oi/
user=”NT SERVICE\GDIWebServer”
3. Open the Windows Control Panel and select Services.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 47
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
4. Select Aveva Communication Backend Service and restart the service.
Import a Certificate
To import a signed CA certificate, select the Provided by IT option from the Certificate Source drop down menu.
The Import Certificate dialog window opens.
1. Navigate to the Certificate file by pressing the browser
The Certificate file must have a .PFX extension.
button. Select the Certificate file and press Open.
2. Select the Certificate Store in which to save the Certificate, as directed by your IT department.
3. Enter the Certificate password.
User Credentials for Configuring the System Management Server
In some circumstances, when configuring the System Management Server, you may be prompted to enter your
user credentials. This may happen if the logged in user does not belong to the aaAdministrators or
Administrators OS group. If you are a member of either of these groups, enter your user name as DomainName
\UserName.
If you are not a member of aaAdministrators or Administrators on the local machine, you can obtain
configuration privileges by editing the file appsettings.json, and adding the name of the OS group to the file. The
full path for this file is:
C:\Program Files (x86)\AVEVA\Platform Common Services\Management Server\appsettings.json.
To add configuration privileges for the System Management Server to an OS group, add the name of the OS
group to the json file, after "aaAdministrators."
"AppSetting": {
"AllowGroups": [
"aaAdministrators",
"insert new group name here"
]
Configuring the Galaxy License Mode
The Galaxy License Mode sets licensing mode for the Galaxy Repository. This can be perpetual (Non-Flex) license
mode or subscription (Flex) license mode. This setting must match the type of license that has been activated for
the License Server. The default setting is Non-Flex mode.
To configure the Galaxy License Mode
1. In the Configurator, select Galaxy License Mode under AVEVA System Platform in the left pane.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 48
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
2. Select the licensing mode to used for the Galaxy Repository:
▪ Disable Flex Mode: Select this mode if you are using perpetual licenses (non-Flex).
▪ Enable Flex Mode: Select this mode if you are using subscription-based Flex licenses.
Note: Once the licensing mode has been configured, changing modes will require a restart of the GR
process.
3. Select the next item in the left pane that requires configuration. When all required items have been
configured, press the Close button to complete installation. See System Restart after Configuration.
Configuring the Industrial Graphic Server
The Industrial Graphic Server is installed whenever the InTouch run-time component is installed on a node, and
lets users view InTouch HMI applications in a web browser. There are two configuration items for the Industrial
Graphic Server:
• Client Settings: This sets how frequently the Web Client refreshes graphics and alarms.
• Authentication Settings: This establishes the credentials that the Web Client will use for connecting to the
web server.
Note: If a System Management Server is configured, the InTouch Web Client will use the security certificate
and utilize the HTTPS protocol for secure communications. See Configuring the System Management Server
for additional information.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 49
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
To configure Client Settings
1. Under Graphic Refresh Rate, set the screen refresh interval. This determines how frequently the web
browser will query the web server for graphic data. A longer interval reduces network traffic and may be
needed for very low-bandwidth networks or intermittent connections.
▪ Default: 1000 ms (1 second)
▪ Minimum: 250 ms
▪ Maximum: 60000 ms (60 seconds)
Note: The Graphic Refresh Rate cannot be less than the Alarm Refresh Rate. If you lengthen the Graphic
Refresh Rate, the Alarm Refresh Rate will automatically synchronize with the Graphic Refresh Rate.
2. Under Alarm Refresh Rate, set the alarm refresh interval. This determines how frequently the web browser
will query the web server for alarm data. By default, the Alarm Refresh Rate is the same as the Graphic
Refresh rate. You can make the refresh interval longer for alarms than for graphics, but the Alarm Refresh
Rate cannot be shorter than the Graphic Refresh Rate. A longer interval may be needed for very lowbandwidth networks or intermittent connections.
▪ Default: 1000 ms (1 second)
▪ Minimum: Graphic Refresh Rate
▪ Maximum: 60000 ms (60 seconds)
To configure Authentication Settings
1. In the Configurator, select Authentication Settings. There are two options:
▪ Windows Authentication (default). Skip to step 3 if you are using Windows Authentication.
▪ User Authentication. User Authentication lets you configure the Web Client to use Single Sign-On using
the AVEVA Identity Manager. The System Management Server must be configured before selecting this
option, and is used as the AVEVA Identity Manager.
2. User Authentication configuration (optional): To allow access outside the plant network, enter the Secure
Gateway URL, which is a secure reverse proxy server installed in the DMZ.
3. Press the Configure button.
4. Select the next item in the left pane that requires configuration. When all required items have been
configured, press the Close button to complete installation. See System Restart after Configuration.
Configuring Databases and Data File Locations
You can use the Configurator to configure Historian settings.
Note: Before running the Configurator, be sure SQL Server is installed and running. Also, be sure you have SQL
Server administrator rights.
You can start the Configurator at any time from the Windows Start menu on the Historian computer.
• To configure Common Platform (PCS) settings, see Configuring the System Management Server.
• To configure licensing, see Configuring the AVEVA Enterprise License Server Location.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 50
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
To configure the databases and data file folders
1. Start Configurator from the Start menu.
2. In the left pane, click Server. Then configure the databases as follows.
a. Under Database Information, specify the SQL Instances and database path.
• SQL Instance
Name the SQL Instance associated with this historian.
• Database Path
Unless you have specific requirements, keep the default SQL Server database path. This is the path
where the configuration database is deployed. Click the ellipsis button to specify a different directory
in which to install the historian database files.
b. Under Existing Database Conflict, read any notices.
If the database is created for the first time, then this option is not available. When reconfiguration is
done, then the Drop and Create New Database option is available. If you select this check box, then the
existing database is dropped and a new database is created. If this check box is cleared, then the
database is not dropped, but configured for changes, if any.
c. Under Alarms & Events Storage, configure how you want to store alarm and events.
Important: If you want to change this setting later after the Historian is running, you must first shut
down and disable the historian using the Management Console. Then, after making the change, you
can restart and enable the historian.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 51
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
• High-speed (default/recommended)
The high speed setting for storing alarms and events in history blocks provides several advantages.
You can manage the data using simple operations such as moving, copying, or deleting folders,
instead of using database management software.With this storage method, you no longer need to
purge to sustain storage.This method offers significantly higher storage rates. Also, the capacity for
alarm and event storage is only limited by disk space, not by insertion rate.
• Traditional
The traditional setting stores alarms and events in the A2ALMDB SQL Server database. This works
well for smaller applications. Alarm and event data stored in the A2ALMDB database can be
retrieved using SQL queries. You can also use SQL Server tools, such as Reporting Services, to query
alarm and event history.
d. Under Network, accept the default ports or change these settings. The ports you specify are added to
the exclusions list of Windows Firewall.
• Historian TCP port is used for replication data.
If you are configuring a tiered historian server, specify the port number for tag replication between
the tier-1 and tier-2 servers. You must use the same port for all the tier-1 and tier-2 systems working
together in the tiered configuration.
• Insight/REST TCP port is used for data queries via Insight or the Historian REST API to the Historian
Server.
Type the number for the port used by Insight and REST interface queries.
Note: To allow the correct functioning of the Alarm Control History Blocks, the firewall must be
configured to permit inbound and outbound network traffic on the InSight\Rest TCP Port.
• Search port is used for data searches. This field is for reference only.
e. Under Security, Check the box if you want to allow remote access of this server's System Management
Console (SMC).
When you check Allow Remote Access for SMC, Historian allows remote connection to the SMC. Specifically,
this allows remote launch and remote activation permissions for the aahCfgSvc and aahEventSvc Historian
COM services. (By default, these are set to local launch and local activation.) The permissions are limited to
the aaAdministrators, aaPowerUsers, and aaUsers groups. Anyone who is not a member of these groups on
the server will not see that Historian remotely via SMC.
3. In the left pane, click Security. Configure the security options as follows.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 52
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
a. Under Historian Users, review the existing users and roles for this server. Make adjustments to the list as
needed:
• To create a new user account, click Create Users and then specify account details.
• To add existing user accounts to this list, click Add Users and then select the account criteria to use.
• If you don't need this account anymore, mark the Delete Account check box.
b. Under SQL Logins, do one of the following to ensure your SQL Server logins are secure:
• If you want to keep using a default account listed, type a new password.
• If you don't need this account, mark the Delete Account check box.
Note: Secure Development Lifecycle (SDL) guidelines recommend against using automatically
created users like aaUser and aaAdminUser with well-known or publicly documented passwords.
When you migrate from an older version of the Historian Server, this area is populated with all
preexisting SQL Server accounts and gives you the option to change account password and to
delete unused accounts to ensure strong security for your system.
4. In the left pane, click Search. Then configure the search options as follows.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 53
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
Under Search Configuration, specify file locations.
• Data Path
Accept the default path, or click the ellipsis button to specify a different directory for the historian
history blocks.
Make sure that you have plenty of space on this drive most of your plant data will be stored here. (The
SQL Server database files typically take less disk space.)
• Log Path
Accept the default path, or click the ellipsis button to specify a different directory for the log files.
• Mark the Reindex Search Documents check box to create a new index of all existing tags.
5. In the left pane, click Reporting. Then mark the appropriate check boxes to configure OData extensions for
SQL Reporting Studio or Visual Studio Report Designer on your system.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 54
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
6. In the Configuration Messages area, read messages regarding prerequisite checks, current configuration
state, and configuration activities that are logged.
7. Click Configure. The Processing SQL Script dialog box appears. You can see the historian database
configuration scripts running. Multiple scripts run during the configuration.
8. After the system finishes running the SQL scripts, the Historian node and Historian Server node are shown
with a green status indicator if the database is successfully configured.
9. Click All Messages to see all the configuration messages.
Configuring the AVEVA Enterprise License Server Location
Detailed information about configuring the AVEVA Enterprise License Server is contained in the AVEVA Enterprise
License Platform Guide. This guide can be accessed from the AVEVA Enterprise License Manager (see License
Installation and Activation for additional information). The basic steps to configure the location of the AVEVA
Enterprise License Server are:
1. In the left pane, select AVEVA Enterprise License Server. Then, in the right pane enter:
▪ Primary Server Name: if the License Server is not installed on the local node, enter the License Server
name, or select a server name from the drop down list of previously-configured License Servers (if any).
▪ Server Port: default is 55555.
▪ Agent Port: default is 59200.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 55
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
Note: To see if the license server can be found after entering the Server Name and Port, you can press
Test Connection.
▪ Backup: If you have configured a backup server (secondary server), select the checkbox to enable
backup. Then, enter the secondary server name.
2. Press the Configure button.
Note: If you change a license server name after configuring it, you are prompted to release licenses from the
old server name.
3. Select the next item in the left pane that requires configuration. When all required items have been
configured, press the Close button to complete installation. See System Restart after Configuration.
Configuring the AVEVA System Monitor
The AVEVA System Monitor contains two configuration items:
• System Monitor Manager: The System Monitor Manager configuration item specifies the name of the
System Monitor Manager node. By default, the System Monitor Manager is selected for installation on the
Galaxy Repository node, but you have to configure the name of the System Monitor Manager on each node
in the System Platform topology. This allows the System Monitor Agent, which is automatically installed on
each System Platform node, to communicate with the System Monitor Manager node. There should be only
one System Monitor Manager node in a System Platform topology. See AVEVA System Monitor Installation
for more information.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 56
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
• Alert Email Server: The name of the email server and accounts that will be used to send and receive alerts
from the System Monitor Manager. This is configured on the System Monitor Manager node only. You must
have SQL Server administrator rights to configure the email server. The email server sends email alerts
generated by the System Monitor Manager to notify personnel that an issue has been detected and may
require attention.
System Monitor Manager Configuration
By default, the System Monitor Manager is installed on the Galaxy Repository node. There should only be one
System Monitor Manager per System Platform topology, and each node should be configured to point to it.
1. In the Configurator, select System Monitor Manager, under AVEVA System Monitor.
▪ If the System Platform node does not include Historian or MES, the initial System Monitor Manager
Configuration window contains a single field for the System Monitor Manager name (node name).
▪ If the System Platform node includes Historian or MES, the initial System Monitor Manager
Configuration window contains additional fields to define credentials for MES and/or the Historian.
2. In the System Monitor Manager Name field, enter either the computer name (preferred) or IP address of
the node that will act as the System Monitor Manager. If you are configuring the current node as the System
Monitor Manager, enter its name or IP address. If you have configured secure communications for the
Common Platform, the machine name must be used (IP address is not supported for secure
communications). See the AVEVA System Monitor User Guide for additional information.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 57
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
Note: TCP/IP is used for communications between System Monitor Agents and the System Monitor Manager.
Use the Advanced settings configuration dialog to configure the TCP/IP port numbers. See Advanced System
Monitor Configuration for additional information.
3. If either Historian or MES is installed on the node, the Configurator detects the installation. It allows you to
specify credentials for these programs to use to increase security. If MES or Historian is not installed,
credential fields are not displayed and you can skip this step.
▪ If MES is installed on the node: To enable secure communication between MES and the System Monitor
Manager, select the checkbox next to "Enter the MES credentials." If you do not select the checkbox,
communication between MES and the System Monitor Manager is unsecured.
If you selected the checkbox, enter the user name and password of a configured MES user. The System
Monitor Manager uses the configured user to communicate with MES.
▪ If the Historian is installed on the node: To enable secure communication between the Historian and
the System Monitor Manager, select the checkbox next to "Enter the Historian credentials." If you do not
select the checkbox, communication between the Historian and the System Monitor Manager is
unsecured.
If you selected the checkbox, enter the user name and password that was configured for the Network
Account. The System Monitor Manager uses the Network Account to communicate with the Historian.
See Network Account for more information.
4. You can use the Test Connection button to check that the node you are configuring can reach the System
Monitor Manager node.
5. Press the Configure button.
6. Select the next item in the left pane that requires configuration. When all required items have been
configured, press the Close button to complete installation. See System Restart after Configuration.
Advanced System Monitor Configuration
An instance of the System Monitor Agent is installed on every node. Each agent communicates with the System
Monitor Manager through TCP/IP and uses the Common Platform settings. Each System Monitor Agent must use
the same port number that was configured for the System Monitor Management Server. See Configuring the
System Management Server for additional information.
If you have changed the default port settings for the System Management Server, use the Advanced
Configuration settings to configure the TCP/IP port numbers for the System Monitor.
To configure the System Monitor Manager TCP/IP Port Numbers
Note: Configure the System Management Server before you configure the System Monitor Manager ports.
1. In the Configurator, select the System Monitor Manager entry, under AVEVA System Monitor.
2. Click the Advanced button. The Advanced Configuration dialog window opens.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 58
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
3. Set the port number. Unless you changed default port numbers, no changes should be needed.
▪ If System Platform is configured to use a secure mode of operations, that is, if the System Management
Server option is configured, set the SSL port to the same number that was configured for Common
Platform communications. The default SSL port is 443.
▪ If security is not configured for System Platform, that is, if no System Management Server option is
configured, set the HTTP port to the same number that was configured for Common Platform
communications. The default HTTP port is 80.
4. Press OK, and then Close to exit Advanced Configuration.
5. Select the next item in the left pane that requires configuration. When all required items have been
configured, press the Close button to complete installation. See System Restart after Configuration.
Email Server Configuration
Configuring an Alert Email Server is optional. This procedure establishes an existing email server that the System
Monitor Manager can use to send alerts. This is configured on the System Monitor Manager node only.
Note: You must have SQL Server sysadmin rights to configure the email server. No warning will be displayed, but
without the proper user rights, configuration changes you make to the Alert Email Server in the Configurator will
not be accepted.
1. In the Configurator, select Alert Email Server, under AVEVA System Monitor.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 59
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
2. Select one of the email alert details options.
▪ To skip email server configuration, choose the option to enter email server details in the System Monitor
Manager web interface.
▪ To configure the email server, choose the option to "Enter Email server details now."
1. In the SMTP Server Name or IP field, enter either the computer name or IP address of the email server to be
used for System Monitor alerts.
2. In the SMTP Server Port field, enter the port number of the email server (default: 25).
▪ Use port number 25 for an unsecured SMTP server.
▪ Use port number 465 for a secured SMTP server.
See the AVEVA System Monitor User Guide for additional configuration information.
3. In the SMTP Server Secured field, enter yes if the server is secured, or no if it is not.
4. If you are using a secured email server, enter the user name and password to access the server. The user
name and password field are only applicable to a secured email server.
5. In the From Email ID field, enter the email address that will be used to send system alerts from the System
Monitor.
6. In the Default Recipient Email ID field, enter the email address(es) that will receive system alerts from the
System Monitor.
7. Press the Configure button.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 60
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
8. Select the next item in the left pane that requires configuration. When all required items have been
configured, press the Close button to complete installation. See System Restart after Configuration.
System Restart after Configuration
When you have configured all the listed components, click Close. The system will prompt you to restart. You can
restart now or later.
Note: The installed programs may not function properly until you restart the system.
After the system restarts, and before you start using System Platform, make sure that you have activated your
product licenses. See License Installation and Activation.
Installing InTouch Access Anywhere
InTouch Access Anywhere does not allow you to remotely install it. Therefore, you must run the installation
program locally for each instance.
Three InTouch Access Anywhere installation options are available from the System Platform product-based
installation menu. These can be installed separately or together.
• Install InTouch Access Anywhere Server
• Secure Gateway Installation
• Install the Secure Gateway and Authentication Server Separately or Together
See the following documents for for additional information, including configuration steps that should be
performed prior to installation. These documents are located on the System Platform Installation DVD under
InstallFiles\CD-Intouch\UserDocs.
• InTouch Access Anywhere Secure Gateway Administrator Manual (file name: ITAA_Server_AdminManual.pdf)
• InTouch Access Server Administrator Manual (file name: ITAA_Gateway_AdminManual.pdf)
Before installing the InTouch Access Anywhere server, verify the following requirements have been met:
• The computer that will host the InTouch Access Anywhere server must be running a 64-bit version of
Windows Server.
• Windows Server 2012 Data Center
• Windows Server 2012 R2 Data Center and Standard
• Windows Server 2016 Data Center and Standard
• Windows Server 2019 Data Center, Essentials and Standard
• Windows Server IoT 2019
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 61
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
Note: Embedded operating systems are not supported by InTouch Access Anywhere Server.
• .NET Framework 4.8 or later must be installed on the computer that will host the InTouch Access Anywhere
server. You can allow the setup program to install it automatically if it is not present. See System Platform
Prerequisites for detailed information.
• InTouch applications must be built with version 10.6 or later to be viewed through InTouch Access Anywhere
• The InTouch Access Anywhere server must be installed on the same computer that hosts InTouch
WindowViewer.
• Remote Desktop Services must be configured on the host computer.
Important: InTouch Access Anywhere leverages RDP and translates RDP to WebSockets. RDS access must be
enabled on the computer hosting InTouch Access Anywhere.
• Make sure the anticipated users of InTouch Access Anywhere are members of the Remote Desktop Users
group to be granted the right to log on to the Access Anywhere server remotely.
• The host computer’s firewall is configured to permit inbound and outbound network traffic on port 8080.
Make sure no other application installed on the InTouch Access Anywhere server also uses port 8080.
• On host computers running Windows Server 2012, the InTouch WindowViewer executable file (view.exe)
must be added to the host computer’s RemoteApp list and configured to support command-line arguments.
• The corresponding TSE (RDS) Concurrent license is activated on the host computer.
• If upgrading to a newer version of InTouch Access Anywhere, first back up any custom components of the
existing installation, then uninstall the existing version before installing the new version.
• InTouch Access Anywhere Server cannot be installed on computers in which the host name contains nonEnglish characters.
• InTouch applications cannot be listed by InTouch Access Anywhere if application names or folder paths
contain an ampersand (&) character.
Install InTouch Access Anywhere Server
A basic installation of the InTouch Access Anywhere Server usually takes about five minutes. When you select the
InTouch Access Anywhere Server, several InTouch run-time and complementary components are auto-selected.
These are required for installation with the InTouch Access Anywhere Server, and include:
• Insight Publisher
• InTouch Runtime
• InTouch Alarm DB Logger (Alarm Logger and Purge Archive components)
• InTouch Supplementary Components (Recipe Manager, SQL Access, and Symbol Factory)
• InTouch Web Client
Make sure that all installation prerequisites have been met before starting the installation procedure. The
following procedure explains the basic steps to install the InTouch Access Anywhere Server on a computer
running a supported version of Windows Server.
Before placing InTouch Access Anywhere into a secure, production environment, you may want to do some
internal testing. Install All Components on a Single Server describes an alternative installation method to place
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 62
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
the InTouch Access Anywhere Server, the Secure Gateway, and the Authentication Server on a single server
computer.
To install InTouch Access Anywhere Server
1. Log on as a Windows administrator on the computer where you are installing InTouch Access Anywhere
Server.
2. Insert the System Platform DVD in your computer and run setup.exe.
3. Select Product-Based Selection.
4. Select InTouch Access Anywhere Server. You will see the additional components auto-selected. Click Next to
continue.
5. Click Next on the dialog box that shows the components to be installed.
6. Select the check box that acknowledges you have read and accepted the terms of the license agreement and
select Agree.
7. Click Install to begin installing InTouch Access Anywhere and InTouch Runtime.
8. A horizontal bar shows the progress of the installation.
9. Click Finish to complete the installation.
10. Configure (or disable) the Windows Firewall for use with InTouch Access Anywhere. For details, see
Configuring a Firewall Program Exception in the InTouch Access Server Administrator Manual.
Secure Gateway Installation
This section describes the procedure to install the Secure Gateway on a computer running a supported version of
Windows server. The Secure Gateway supports other installation configurations. For more information, see
Other Secure Gateway Installation Configurations in the InTouch Access Anywhere Secure Gateway
Administrator Manual.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 63
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
After verifying all installation prerequisites, start the installation procedure.
Note: Secure Gateway cannot be upgraded by installing a newer version on a computer hosting an existing
version. The existing version of Secure Gateway must be uninstalled first before attempting to install another
version on the same computer. To uninstall Secure Gateway, see Uninstall a System Platform Component.
To install InTouch Access Anywhere Secure Gateway
1. Insert the System Platform DVD in your computer and run setup.exe.
2. Select Product-Based Selection.
3. Select InTouch Access Anywhere Secure Gateway, then click Next.
4. A checkbox appears that lets you customize installation. Select this if you wish to change the default
installation folder.
Otherwise, the Secure Gateway is installed to the default installation folder, C:\Program Files (x86).
5. Accept the license agreement by selecting the I have read and accept the terms of the license agreement
option, and then click Agree.
The Ready to Install the Application screen appears.
6. Review the installation details and click Install.
7. Click Finish after the installer indicates that the Installation has completed successfully.
Configuring Ports for the InTouch Access Anywhere Secure Gateway
The InTouch Access Anywhere Secure Gateway uses several ports for communication. The following ports are
used and must be configured on the computer hosting the Secure Gateway if a conflict exists:
• Port 443 (default): This is a dedicated port between the Secure Gateway Server and the external network.
Check for port conflicts, and change port numbers if necessary. This is a common port that is also used by:
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 64
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
• Microsoft Internet Information Services (IIS).
• Remote Desktop, if Remote Desktop itself is enabled.
• System Management Server, if a System Platform product (Application Server, InTouch HMI, Historian,
etc.) is installed on the same computer as the Secure Gateway Server.
• Port 8080: A port between the Secure Gateway Server and the InTouch Access Anywhere Server. The default
port number is 8080, and can be changed.
• Port 80: The Secure Gateway includes an HTTP proxy that listens on port 80 by default. The port can be
disabled after installing the Secure Gateway.
Resolving Secure Gateway Port Conflicts
A complete list of ports used by System Platform products and components is provided in an Appendix to this
document: Ports Used by System Platform Products. Refer to that list when modifying default port settings to
ensure that you are not creating a new conflict.
The System Management Server is a required component for running System Platform products. By default, it
uses port 443, the same as the Secure Gateway default. Therefore, a conflict results if you are installing any other
System Platform component products on the same node as the Secure Gateway. You must change the port
number for either the System Management Server or the Secure Gateway. If you change the System
Management Server port, you must also change the port number for the System Monitor. In addition, other
System Platform nodes must be configured to use the same System Management Server port.
• Port assignments for both the System Management Server and the System Monitor can be changed during
System Platform configuration, immediately following installation. See Configuring the System Management
Server and Configuring the AVEVA System Monitor for more information about changing the port numbers
for these components.
• To change the port number for the InTouch Access Anywhere Secure Gateway:
a. Locate the Secure Gateway configuration file, EricomSecureGateway.Config and open it for editing. The
default file location is:
C:\Program Files (x86)\Wonderware\InTouch Access Anywhere Secure Gateway\InTouch Access
Anywhere Secure Gateway
b. Change the value for the SecuredPort to a different, unused port number. The Secure Gateway does not
permit port sharing.
c. Save the file.
• Refer to the InTouch Access Anywhere Secure Gateway Administrator Guide, located in the AVEVA
Documentation folder for additional information.
• If Microsoft IIS is running on the same server that will host the Secure Gateway, either change the IIS ports to
values other than 80 and 443, or change the Secure Gateway port to a value other than 443 and disable the
HTTP auto redirect feature after the installation. If there is a port conflict on either the HTTP or HTTPS port,
the Secure Gateway does not operate properly.
Install the Secure Gateway and Authentication Server Separately or
Together
The Authentication Server provides an additional layer of security by authenticating end-users before they can
contact the Access Anywhere server. When the Authentication Server is enabled, only domain users will be able
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 65
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
to authenticate. Local system users (such as Administrator) will not be able to logon through the Authentication
Server. The Authentication server is an optional InTouch Access Anywhere component and is disabled by default.
The Secure Gateway and Authentication servers can be installed separately or together on one of the supported
Windows Server operating systems, or on a Windows workstation running 64-bit versions of Windows 8.1
Professional or Enterprise, or Windows 10 Professional or Enterprise, Build 1909 and later. Follow these
requirements when installing the Authentication server:
• The Authentication Server must be installed on a computer that is a member of the domain that it will use to
authenticate users.
• The Authentication server can only be configured for one domain at a time.
• The Authentication server should be installed on the safe side of a firewall rather than the DMZ for best
security practice.
To install the Secure Gateway and Authentication server on the same or separate computers
1. Log on as a Windows administrator of the computer that will host either the Secure Gateway, the
Authentication server, or both.
2. Insert the System Platform DVD in your computer and run setup.exe.
3. Select Product-Based Selection.
4. Determine how you want to install the Secure Gateway and the Authentication server.
Install the Secure Gateway and the Authentication server on separate computers
• Install the Secure Gateway by following the steps described in Secure Gateway Installation. The
Authentication server must be configured by setting options from the Secure Gateway Configuration
portal.
• Install the Authentication server on another computer that meets the requirements listed above this
procedure.
Install the Secure Gateway and the Authentication server together on the same computer
• Select the Secure Gateway and Authentication server options from the installation dialog box and
following the installation instructions.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 66
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
5. After installing the Authentication server and the Secure Gateway, see the section, Built-In Authentication
Server, in the InTouch Access Anywhere Secure Gateway Administrator Manual for descriptions of the
options to configure the Secure Gateway to work with an Authentication server.
Install All Components on a Single Server
All InTouch Access Anywhere server components can be installed on a single computer running a supported
version of Windows server. The Secure Gateway, the Authentication server, and the InTouch Access Anywhere
server can be installed simultaneously.
To install all InTouch Access Anywhere Components on a single server
1. Log on as a Windows administrator on the computer where you are installing InTouch Access Anywhere.
2. Insert the System Platform DVD in your computer and run setup.exe.
3. Select Product-Based Selection and select the checkbox for each of the three InTouch Access Anywhere
installation options:
▪ Install InTouch Access Anywhere Server
▪ Secure Gateway Installation
▪ Install the Secure Gateway and Authentication Server Separately or Together
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 67
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
4. Click Next on the dialog box that shows all components have been select to be installed.
5. Select the check box that acknowledges you have read and accepted the terms of the license agreement and
select Agree.
6. Click Install to begin installing the InTouch Access Anywhere components.
A horizontal bar shows the progress of the installation.
7. Click Finish to complete the installation.
Modifying an Installation
You can change the System Platform components installed on your computer. You can add new components or
remove the existing ones. You can modify any component of System Platform.
You must have the installation DVD inserted in the DVD-ROM drive before you can modify a program.
To modify an installation
1. Select the Modify option from the System Platform Modify, Repair or Remove Installation dialog box. You
can open the dialog by doing either of the following:
▪ Run Setup.exe from the System Platform installation DVD.
▪ Navigate to Uninstall or Change a Program in the Windows Control Panel. Then, select any System
Platform component and then click the Uninstall/Change button.
Note: The name of the Uninstall/Change option may vary depending on which Windows operating
system is installed on your computer.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 68
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
2. Click the Modify option, and then click Next.
3. A message describing functional changes to System Platform installation behavior, and considerations for
existing projects, is displayed. Read and acknowledge this message, then click Next to proceed. The list of
System Platform components appears.
4. Select or clear the components that you want to add or remove, and then click Next. The verify change
dialog box appears.
5. Click Modify. The selected components are added or removed. If the added components require
configuration, the Configurator opens. If not, the complete modification dialog box appears. See Configuring
System Platform Components for information about the Configurator.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 69
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
6. Click Finish.
Note: The system may not prompt you to restart the system after Modify is successful. However, if you have
added a new product or feature, a system restart is recommended.
Repairing an Installation
You can repair the installation of any System Platform component to fix missing or corrupt files, registry keys or
shortcuts. You can also reset the registry key to the default value.
You must have the installation DVD inserted in the DVD-ROM drive before you can repair a System Platform
installation.
To repair an installation
1. Select the Repair option from the System Platform Modify, Repair or Remove Installation dialog box. You
can open the dialog by doing either of the following:
▪ Run Setup.exe from the System Platform installation DVD.
▪ Navigate to Uninstall or Change a Program in the Windows Control Panel. Then, select any System
Platform component and then click the Uninstall/Change button.
Note: The name of the Uninstall/Change option may vary depending on which Windows operating
system is installed on your computer.
2. Select the Repair option, the click Next. The Confirm Repair dialog box appears.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 70
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
3. Click the Repair button. A message describing functional changes to System Platform installation behavior,
and considerations for existing projects, is displayed. Read and acknowledge this message, then click Next to
proceed.
4. If any System Platform services are running, the Stop Running Services dialog box appears. Click the Stop
Services button to proceed.
5. When all services stop, the Next button becomes active. Click the button to proceed.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 71
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
6. A progress bar is displayed as the system updates and repairs itself.
7. When the update has finished, the Process Complete dialog box appears.Click Finish to close the dialog box
and complete the process.
Uninstalling AVEVA System Platform
Uninstall a System Platform Component
You can uninstall any System Platform component that is installed on your computer.
To uninstall a System Platform component
1. Click the Uninstall or Change a Program option in Windows Control Panel. The list of software installed on
your computer appears.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 72
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
2. Select the System Platform component that you want to uninstall, and then click the Uninstall/Change
button. The Modify, Repair or Remove Installation dialog box appears.
3. Click the Remove option, and then click Next. The confirmation dialog box appears.
4. Click Uninstall. The component is uninstalled and the complete uninstallation dialog box appears.
5. Click Finish.
Uninstall All Components
To uninstall AVEVA System Platform (remove all components)
Begin by opening the Windows Control Panel, and select Programs and Features. Uninstall components by
selecting the component, and then click Uninstall. You must uninstall components in the following order:
Note: Ignore components that are listed below if they have not been installed on your system.
1. AVEVA Application Server
2. AVEVA InTouch HMI
3. InsightPublisher
4. AVEVA Historian
5. AVEVA Historian Client
6. AVEVA Communications Drivers Pack
7. Platform Common Services
8. System Monitor Manager
9. System Monitor Agent Install Manager
10. AVEVA Enterprise License Manager
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 73
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
11. AVEVA Enterprise License Server
12. AVEVA Enterprise Licensing
13. AVEVA Enterprise Licensing (x86)
Upgrading System Platform
Direct upgrade to System Platform 2020 R2 SP1 is supported from System Platform 2014 R2 SP1 and later
versions.
The upgrade process lets you upgrade only components that were previously installed. You cannot choose to add
components that were not already installed, and you cannot deselect components. That is, if a newer version of
a component is included on the installation DVD, the previously installed component is automatically upgraded.
After the upgrade is complete, you can add new components or remove existing components, as needed.
Important Upgrade Information
• 64-bit operating system required: A 64-bit operating system is required to install System Platform 2020 R2
SP1.
• 64-bit SQL Server required: For components that require SQL Server, such as Application Server and
Historian, you must have a 64-bit version of SQL Server installed.
• .NET Framework: System Platform 2020 R2 SP1 requires .NET Framework 4.8. If your system does not have
this version or a newer version installed, the .NET Framework will be installed prior to product installation. A
restart may be required, after which setup.exe will resume automatically. See System Platform Prerequisites
for additional information.
• Licensing Change: If you are upgrading from System Platform 2014 R2 SP1, you will be changing to the new
licensing system. This new "Activated License System" requires a License Server to be hosted on a machine
that can be accessed by all nodes in the system. Additional license servers can be installed for more granular
licensing management or redundancy.
Since the License Server is a new component, it is not added during the upgrade process. Upgrade the
Galaxy Repository node first, and then use the Modify workflow to add the License Server after the node has
been upgraded. See License Installation and Activation for additional information.
Only one License Server is required per overall system.
Note: The Galaxy Repository node is the default installation location for the License Server. You can,
however, select a different node, or install the License Server on a standalone node, depending on your
system size and architecture.
• Network Account: In System Platform 2017 Update 2 and prior releases, the Network Account (previously
called the ArchestrA User) was a member of the system Administrators group. Starting with System Platform
2017 Update 3, the Network Account was removed the Administrators group to enhance system security.
When you upgrade from System Platform 2017 Update 2 or an earlier version, a security warning asks if you
want to remove the Network Account from the Administrators group. This is the best option for security.
However, you can leave the Network Account as a system administrator, if the account is used by another
application and if removing administrator rights will affect that application.
• AVEVA System Monitor: The System Monitor Manager tracks the availability of the License Server and
provides email notification of its status to ensure uninterrupted system operations. A System Monitor agent,
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 74
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
also called the Sentinel Agent, is installed on each node and communicates with the System Monitor
Manager if there is an issue with the connection between the System Platform node and the License Server.
The System Monitor Manager is not automatically added during the upgrade process. To add the System
Monitor Manager, upgrade the Galaxy Repository node first, and then use the Modify workflow to add the
System Monitor Manager when the upgrade completes. The System Monitor agent is automatically added to
each upgraded node. Configure the System Monitor agent on each remote node to point to the System
Monitor Manager. See AVEVA System Monitor Installation for additional information.
Only one System Monitor Manager is required per overall system.
• InTouch Access Anywhere: If you plan to upgrade System Platform on a computer that has InTouch Access
Anywhere Server or InTouch Access Anywhere Gateway installed, you must first uninstall the InTouch Access
Anywhere Server or Gateway. Then, upgrade System Platform and finally, reinstall InTouch Access Anywhere.
Note that the uninstall/reinstall process normally takes only several minutes.
• Common Platform: The System Management Server, a security component, was added for System Platform
2017 Update 3. If you are upgrading from a prior version that did not have the System Management Server, it
is automatically installed on the GR node when you upgrade to System Platform 2020 R2 SP1. There should
be only one System Management Server in your System Platform topology, and every node should be
configured to point to it. See Configuring the System Management Server for additional information. If some
nodes will not be upgraded, communication with non-upgraded nodes will continue to use legacy
communication protocols.
In multi-galaxy environments, configure only one GR node as the System Management Server, and configure
the other nodes to point to it.
About the Modify Workflow
The upgrade process can only upgrade System Platform components that are already installed on your system.
Since upgrading may introduce new components that were not part of prior releases, you need to run setup.exe
and launch the Modify option to install new components that may not have been available in prior versions of
System Platform. The components that you may need to install through the Modify option include:
• AVEVA System Monitor Manager
• AVEVA License Server
To add components through the Modify option
1. Upgrade the node and configure it.
2. Run the installation program again from the installation DVD (setup.exe).
3. Select the Modify option.
4. Select the component(s) you want to install.
To upgrade a System Platform component
Note: Upgrade the GR node first, followed by remote IDE nodes, and then run-time nodes. See Upgrading an
IDE-only Node and Upgrading Run-Time Nodes for additional information.
1. Insert the DVD into your DVD-ROM drive and run setup.exe to start the set-up program. The startup screen
appears, followed by the upgrade feature dialog box that lists any prerequisites and products to be
upgraded. If new version of the .NET Framework is required, it is installed first and then setup resumes after
a restart.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 75
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
Note: You can only upgrade the products that are already installed, and you will not be able to install
additional products during the upgrade process.
2. Click OK to proceed. A list of all System Platform components appears. The installed components that need
to be upgraded are selected and disabled. You cannot clear these check boxes or select more components
during the upgrade.
3. Click Next. If you are upgrading from System Platform 2017 Update 2 or a prior version, a security warning is
displayed.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 76
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
▪ To improve security, leave the checkbox selected (default option). This removes the Network Account
from the system Administrators group.
▪ If you have other applications that use the Network Account, and the account needs Administrator
access to function properly, deselect the checkbox. The Network Account permissions will not change.
4. You may get a message to stop one or more running processes or services before proceeding, such as the
ArchestrA Watchdog Service. If this occurs, click Stop Services, and when the processes stop, click Next.
5. Another list of recommended steps to take before upgrading may be shown, such as backing up Galaxies.
Complete the recommended steps, then click Next.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 77
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
6. The upgrade dialog box appears.
7. Click Upgrade to proceed with the upgrade. The progress bar appears.
8. After the installation is over, the Configurator starts. Any items that were previously configured retain their
configurations. If new items require configuration, configure them now. See Configuring System Platform
Components for more information.
▪ Select View Readme for important information about System Platform 2020 R2 SP1, including hardware
and software requirements, new features, and known and resolved issues.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 78
AVEVA™ System Platform Installation Guide
Chapter 2 – Installing System Platform
Note: You may see a Cybersecurity Notice that instances of a Microsoft XML processing library were
found. For information on removing MSMXML 4.0, see the Microsoft Support web page:
https://support.microsoft.com/en-us/help/925672/ms06-061-security-update-for-microsoft-xml-coreservices-4-0-sp2
If you are upgrading from a prior version of Application Server, and a galaxy is deployed, the Galaxy Patcher will
start as soon as you connect to the galaxy from the Application Server IDE. Undeployed galaxies are not patched
until you connect to them.
Important: Galaxy patching may take several minutes. Do not shut down the node while the patching operation
is in progress.
• If you are upgrading from System Platform 2014R2 SP1, a new icon for the Application Manager is installed
on the desktop. Use Application Manager to select and run deployed AVEVA OMI ViewApps.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 79
Chapter 3
Security and Permissions
Enhanced Security for Connecting to a Galaxy
Users must belong to the OS group aaConfigTools to connect to a Galaxy from the IDE. Assign users to this group
as needed through the Windows Control Panel.
Modifying the Network Account
After you install the System Platform, you can use the Change Network Account utility to change or recreate the
Network Account. The Change Network Account Utility is a tool to manage credentials for node-to-node
communications between System Platform computers. See Network Account for more information. A short cut
to the Change Network Account utility is created in the AVEVA folder after you install the System Platform
products.
After opening the utility, select the domain name from the drop down menu if necessary. If the domain name
does not appear on the drop down menu, enter the short domain name. Do not use the fully qualified domain
name (FQDN). For example, use "DomainName" and not "DomainName.com" or "DomainName.local."
To run the utility from the command line, open the command window as Administrator. See Change the Network
Account from the CLI for more information. You must have administrator privileges to run the utility through the
GUI or from the command line.
Important: When you change or recreate the Network Account, a system restart is required. Close all
applications and click OK to proceed.
Note: If you recreate the user account using the Change Network Account utility, the Microsoft Windows security
component on the computer can take several minutes to update this information on the Galaxy Repository node.
Until that occurs, inter-node communications may not function properly. Restarting the Galaxy Repository node
updates this information immediately.
Change the Network Account from the CLI
You can run the Change Network Account utility from the command line by invoking aaAdminUser.exe. If you
open aaAdminUser.exe from a command prompt without any flags, it opens the Change Network Account GUI. If
you open aaAdminUser.exe with flags, it runs from the command prompt. Any changes require that you restart
the computer to complete the change.
The default installed location for aaAdminUser.exe is:
C:\Program Files (x86)\Common Files\ArchestrA.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 80
AVEVA™ System Platform Installation Guide
Chapter 3 – Security and Permissions
Note: As is the case for the Change Network Account utility, you must have system administrator privileges to
run aaAdminUser.exe from the command prompt.
Options you can specify with aaAdminUser.exe are:
Option
Flag
Example
Help
/h, -h, or /?
aaAdminUser.exe /h
User name
-u
aaAdminUser.exe -u user -p password
Account password
-p
aaAdminUser.exe -u user -p password
Create local account
-c
aaAdminUser.exe -user -p password -c
Domain account
-d
aaAdminUser.exe -user -p password -d example.com
Open GUI
<none>
When no flags are specified, the Change Network Account
utility (GUI) opens
SQL Server Rights Requirements
When you install a Galaxy Repository or Historian node, the installation process creates or modifies new user
groups, SQL Server logins, and a user account (Network Account). These provide support for Galaxy
communications, system security, and connection to SQL Server. The new/modified SQL Server logins used by
System Platform are:
• <NodeName>\aaAdministrators
• <NodeName>\aaGalaxyOwner
• NT AUTHORITY\SYSTEM
The Network Account, created when you installed Application Server, is required for Galaxy operations. This
account:
• Is a member of the System Platform aaAdministrators group.
• Has one of the following SQL Server roles:
• Has the SQL Server bulkadmin role, if Enhanced Security Mode is enabled (default).
• Has the SQL Server sysadmin role, if Legacy Security Mode is enabled.
See Network Account and Setting the SQL Server Security Mode for additional information.
The automated process that creates the aaAdministrators group, Network Account, and aaGalaxyOwner user
account also provides the rights required for operations within the GR. The aaAdministrators group, Network
Account, and aaGalaxyOwner user account must all be present and enabled for Galaxy operations.
Caution: aaGalaxyOwner and ASBService are reserved OS user names. aaAdministrators and ASBSolution are
reserved OS group names. Do not create users or groups with these names.
Note: The aaGalaxyOwner account is the owner (dbo) of all Galaxy databases in your system. It does not have a
system login.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 81
AVEVA™ System Platform Installation Guide
Chapter 3 – Security and Permissions
• If you accidentally delete the aaAdministrators group or the Network Account from the Windows operating
system, you can run either the Change Network Account utility or the SQL Access Configurator to restore it.
You can access these utilities from the Start Menu, under the AVEVA folder.
• If you accidentally delete the aaGalaxyOwner account from the Windows operating system, you must run the
SQL Access Configurator to restore it.
• If you accidentally delete the aaAdministrators group, Network Account, or aaGalaxyOwner from the SQL
Server security logons, you must run the SQL Access Configurator to restore it.
Setting the SQL Server Security Mode
If you are a SQL administrator, you can use the SQL Access Configurator to set user privileges within SQL Server
for accessing and using Galaxy databases (the Galaxy Repository). A short cut to the SQL Access Configurator is
created in the AVEVA folder when you install Application Server or Historian.
User privileges are determined by the security mode. Two security modes are available:
• Legacy Mode. Authenticated users have the sysadmin privilege and are not restricted from any SQL Server
activity, including creating, modifying, and deleting any SQL Server database.
Select Legacy mode to ensure that users can perform all Galaxy operations. If users will frequently be
restoring Galaxies created with previous versions of Application Server, this may be the preferred setting.
• Enhanced Security Mode. This is the default setting. This mode removes the sysadmin privilege from
Application Server users, and retains only the minimum privileges needed for normal operations.
Select Enhanced Security mode for compliance with corporate or other IT security requirements or
guidelines.
If you use Enhanced Security Mode, you may be prompted to provide SQL sysadmin user credentials when
restoring a Galaxy that was created with an older version of Application Server. You do not need sysadmin
credentials to restore Galaxies created with the current version of Application Server.
Enhanced Security Mode removes the SQL sysadmin role from, and adds the bulkadmin role to the following
SQL logins:
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 82
AVEVA™ System Platform Installation Guide
Chapter 3 – Security and Permissions
• NTAUTHORITY\SYSTEM
• <NodeName>aaAdminstrators (local security group that contains the Network Account)
To change the SQL security mode with the SQL Access Configurator
WARNING! The SQL Access Configurator automatically restarts the computer to ensure system stability. If you
press OK, you will not be able to cancel the restart.
1. Select the SQL Server security mode:
▪ Legacy Mode.
▪ Enhanced Security Mode (default).
2. Select the authentication type:
▪ Windows authentication.
▪ SQL Server authentication.
3. Provide SQL sysadmin login credentials (User Name and Password).
4. Click OK. The system will restart automatically.
5. Optional: If you selected Enhanced Security Mode, open SQL Server Management Studio and look under
Security\Logins. Check that the NTAUTHORITY\SYSTEM and <NodeName>aaAdminstrators logins do not
have the sysadmin server role.
Note: The system performs a check prior to changing to Enhanced Security Mode. This is to ensure that at
least one account will exist with the SQL sysadmin privilege after the change. If the system check determines
that no accounts with the SQL sysadmin privilege will remain after changing modes, an error message will be
displayed and security will remain in Legacy Mode.
Restoring Required SQL Server Accounts
If you delete the aaAdministrators group, Network Account, or the aaGalaxyOwner account, restore them by
running the SQL Access Configurator. You do not have to do anything else to restore the missing group or
account. The missing group or account is created automatically when you run the utility. Running the utility does
force a system restart, however, even if you retain the same security configuration.
Setting the FIPS Security Policy Option
Application Server does not support the FIPS (Federal Information Processing Standards) security policy option in
Microsoft Windows.The Federal Information Processing Standards are United States Government standards that
provide a benchmark for implementing cryptographic software. If your system has FIPS enabled in the Local
Security Policy settings, you should disable it. The security setting for FIPS is listed under Security Settings> Local
Policies> Security Options> System cryptography, or as part of Group Policy.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 83
Chapter 4
Configuring SQL Server
SQL Server Requirements
System Platform 2020 R2 requires a 64-bit version of SQL Server. In a typical configuration, you should install
Microsoft SQL Server before you install Application Server. It is important to take into consideration the
requirements of the different versions of SQL Server. Follow Microsoft installation instructions for your particular
edition of SQL Server. See TechNote TN548, available on the AVEVA Global Customer Support web site, for
detailed SQL Server installation instructions. While TechNote TN548 describes the installation process for SQL
Server 2012, the installation process is similar for other versions of SQL Server.
If no version of SQL Server is installed on your system when you install System Platform, and you install a product
or role that includes either Historian Server or a Galaxy Repository, you can choose to allow System Platform to
automatically install SQL Server 2017 Express as it installs other prerequisites.
Note: SQL Server Express is limited for use with small installations only (25,000 I/O per node or less). For
information about the versions of SQL Server supported by Application Server and other System Platform
products, see the System Platform Readme.
Supported SQL Server Versions (64-bit only)
• SQL Server Express 2012 SP4-SSMSE (small systems only)
• SQL Server 2012 SP4 Standard or Enterprise
• SQL Server Express 2014 SP3-SSMSE (small systems only)
• SQL Server 2014 SP3 Standard or Enterprise
• SQL Server Express 2016 SP2 (or SP2 plus all cumulative updates)-SSMSE (small systems only
• SQL Server 2016 Standard or Enterprise SP2 (or SP2 plus all cumulative updates)
• [DEFAULT] SQL Server 2017 Express Core or Express with Advanced Tools and all cumulative updates (small
systems only)
• SQL Server 2017 Standard or Enterprise with all cumulative updates
• SQL Server 2019 Express (small systems only)
• SQL Server 2019 Standard or Enterprise, no Service Pack
For more information about specific requirements for SQL Server configuration, see SQL Server Rights
Requirements, or see the Microsoft documentation available online.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 84
AVEVA™ System Platform Installation Guide
Chapter 4 – Configuring SQL Server
• A supported version of SQL Server must be installed on the computer designated as the Galaxy Repository
(GR) node before you install Application Server. If you select a product or role that requires the Galaxy
Repository, and SQL Server is not installed on the computer, you have the option to install SQL Server Express
2017.
• You cannot install and use a GR on a computer that has both Microsoft SQL Server 2000 and Microsoft SQL
Server 2008 or later versions installed.
• The GR locks the SQL Server maximum memory usage to 65% of the computer's physical memory.
• TCP/IP must be enabled on the computer hosting a SQL Server database. The TCP/IP protocol setting can be
verified from the SQL Server Network Configuration under SQL Server Configuration Manager. Do the
following steps to enable TCP/IP.
To enable the TCP/IP protocol for the SQL Server database instance
1. Open the SQL Server Configuration Manager.
2. In the tree pane, click SQL Server Services.
3. If any services are displayed in the results pane, verify that each service under is in the Running state.
If a service is Stopped, right-click the name of the service, and click Start.
4. In the tree pane, click SQL Server Network Configuration to expand it, and then click Protocols for
MSSQLServer/<InstanceName>.
If you specified the default instance during installation, the instance name will be MSSQLSERVER.
5. In the results pane, verify that each protocol is Enabled:
▪ Shared Memory
▪ Named Pipes
▪ TCP/IP
If Disabled appears, right-click on the protocol name and enable it.
6. In the tree pane, click SQL Native Client Configuration to expand it, and then click Client Protocols.
7. In the results pane, verify that each client protocol is Enabled:
▪ Shared Memory
▪ Named Pipes
▪ TCP/IP
If Disabled appears, right-click on the protocol name and enable it.
8. If you had to enable any services:
a. Start Task Manager.
b. Go to the Services tab.
c. Restart MSSQLServer/<InstanceName>.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 85
AVEVA™ System Platform Installation Guide
Chapter 4 – Configuring SQL Server
Working with SQL Server Versions
The installation workflow will vary, depending on whether or not SQL Server is already installed. The version of
SQL Server that is installed can also make a difference in the workflow. If SQL Server is not already installed, the
System Platform installation program will install a 64-bit version of SQL Server Express. This is adequate for small
configurations, but not for medium and large configurations. For these, install SQL Server before installing
System Platform. The following workflow scenarios are described:
• SQL Server not found on node: small configuration
• SQL Server not found on node: medium and larger configurations
• Compatible version of SQL Server already installed
• New (untested) version of SQL Server already installed
• Incompatible version of SQL Server already installed
Note: Nodes are defined as follows: Small = up to 25,000 I/O per node; Medium = 25,000 to 50,000 I/O per
node; Large = 50,000 to 400,000 I/O per node.
SQL Server not found on node: small configuration
If you install the Application Server Galaxy Repository and SQL Server is not found on the computer, SQL Server
2017 Express (64-bit) is installed as part of the installation process. This version of SQL Server is suited for small
configurations, and is best for a single-node system. A small configuration is defined as one that has less than
25,000 I/O. See the System Platform Readme for additional information.
SQL Server not found on node: medium and larger configurations
For medium and larger systems, the following 64-bit versions of SQL Server are supported:
• SQL Server 2012 SP4 Standard or Enterprise
• SQL Server 2014 SP3 Standard or Enterprise
• SQL Server 2016 Standard or Enterprise SP2 (or SP2 plus all cumulative updates)
• SQL Server 2017 Standard or Enterprise with all cumulative updates
• SQL Server 2019 Standard or Enterprise, no Service Pack
See the System Platform Readme for additional information.
For more information about the comparative capabilities of SQL Server versions, see the following URL:
https://docs.microsoft.com/en-us/sql/sql-server/editions-and-components-of-sql-server-version-15?view=sqlserver-ver15
Compatible version of SQL Server already installed
If a compatible version of SQL Server is already installed, System Platform installation will continue without
interruption (SQL Server Express 2017 is not installed).
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 86
AVEVA™ System Platform Installation Guide
Chapter 4 – Configuring SQL Server
New version of SQL Server already installed
If a new version of SQL Server is already installed that has not yet been fully tested with System Platform 2020
R2 SP1 products, a warning is displayed stating that the installed SQL version has not yet been tested. You can
proceed with the installation, but we recommend that you contact AVEVA Global Customer Support before
proceeding to check if any issues have been found.
Incompatible version of SQL Server already installed
If an older version of SQL Server is already installed that is not supported with the current version of System
Platform products, installation will stop and a warning will be displayed stating the SQL Server version is not
compatible. You must upgrade to a supported version of SQL Server before you can resume installation.
Using a Non-Default Port for SQL Server
The default port for SQL Server is 1433. If you want to use a different port number, use SQL Server Configuration
Manager to set the port number.
If you are using the SQLData object to store and retrieve data, you will need to enter the non-default SQL Server
port number as you enter other database connection information. See the SQLData Object help file, available
through the System Platform IDE, for additional information.
To change to a non-default SQL Server port number
1. If you are upgrading from a prior version of System Platform, upgrade all nodes. See Basic Upgrade Sequence
for more information. If this is a new installation, continue to step 2.
2. Launch SQL Server Configuration Manager.
3. Select SQL Server Network Configuration, then select Protocols for MSSQLSERVER.
4. In the list of protocol names to the right, select and open TCP/IP Properties.
5. In the TCP/IP Addresses tab, scroll down to IPAll.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 87
AVEVA™ System Platform Installation Guide
Chapter 4 – Configuring SQL Server
6. Change the TCP Port number from 1433 to the desired number.
7. Click OK or Apply to commit the changes.
8. Reboot the GR node.
Setting a Windows Firewall Exception for the SQL Server Port
You will need to set a Windows Firewall exception for a non-default SQL Server port number if you are using a
remote node. Without access through the firewall, remote nodes will be unable to connect to the database.
To allow access through the Windows Firewall
1. Open Allow an app through Windows Firewall.
2. Select SQLServer from the list of applications. Double click to open the Edit a Port window.
3. Change the port number to match the port number listed in SQL Server Configuration Manager.
4. Click Network types... and select the checkbox that matches the network type to which you are connected
(typically Domain).
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 88
Chapter 5
AVEVA Application Server Upgrade
Direct upgrade to AVEVA Application Server 2020 R2 SP1 is supported from Application Server 2014 R2 SP1 and
later versions.
About Upgrading Application Server
Important: Direct upgrade to Application Server 2020 R2 SP1 is supported from Application Server 2014 R2 SP1
and later, up through and including Application Server 2020. Your system must meet the minimum system
requirements, including operating system version, SQL Server version, and .NET Framework version. Note that
only 64-bit operating systems are supported. For more information, see Supported Operating Systems for System
Platform 2020 R2 SP1, the System Platform Readme, and the website.
Note: Users must belong to the OS group aaConfigTools to connect to a Galaxy from the IDE. Assign users to this
group as needed through the Windows Users must belong to the OS group aaConfigTools to connect to a Galaxy
from the IDE. Assign users to this group as needed through the Windows Control Panel.
Important Upgrade Information
• 64-bit operating system required: A 64-bit operating system is required to install System Platform 2020 R2
SP1.
• 64-bit SQL Server required: For components that require SQL Server, such as Application Server and
Historian, you must have a 64-bit version of SQL Server installed.
• .NET Framework: System Platform 2020 R2 SP1 requires .NET Framework 4.8. If your system does not have
this version or a newer version installed, the .NET Framework will be installed prior to product installation. A
restart may be required, after which setup.exe will resume automatically. See System Platform Prerequisites
for additional information.
• Licensing Change: If you are upgrading from System Platform 2014 R2 SP1, you will be changing to the new
licensing system. This new "Activated License System" requires a License Server to be hosted on a machine
that can be accessed by all nodes in the system. Additional license servers can be installed for more granular
licensing management or redundancy.
Since the License Server is a new component, it is not added during the upgrade process. Upgrade the
Galaxy Repository node first, and then use the Modify workflow to add the License Server after the node has
been upgraded. See License Installation and Activation for additional information.
Only one License Server is required per overall system.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 89
AVEVA™ System Platform Installation Guide
Chapter 5 – AVEVA Application Server Upgrade
Note: The Galaxy Repository node is the default installation location for the License Server. You can,
however, select a different node, or install the License Server on a standalone node, depending on your
system size and architecture.
• Network Account: In System Platform 2017 Update 2 and prior releases, the Network Account (previously
called the ArchestrA User) was a member of the system Administrators group. Starting with System Platform
2017 Update 3, the Network Account was removed the Administrators group to enhance system security.
When you upgrade from System Platform 2017 Update 2 or an earlier version, a security warning asks if you
want to remove the Network Account from the Administrators group. This is the best option for security.
However, you can leave the Network Account as a system administrator, if the account is used by another
application and if removing administrator rights will affect that application.
• AVEVA System Monitor: The System Monitor Manager tracks the availability of the License Server and
provides email notification of its status to ensure uninterrupted system operations. A System Monitor agent,
also called the Sentinel Agent, is installed on each node and communicates with the System Monitor
Manager if there is an issue with the connection between the System Platform node and the License Server.
The System Monitor Manager is not automatically added during the upgrade process. To add the System
Monitor Manager, upgrade the Galaxy Repository node first, and then use the Modify workflow to add the
System Monitor Manager when the upgrade completes. The System Monitor agent is automatically added to
each upgraded node. Configure the System Monitor agent on each remote node to point to the System
Monitor Manager. See AVEVA System Monitor Installation for additional information.
Only one System Monitor Manager is required per overall system.
• InTouch Access Anywhere: If you plan to upgrade System Platform on a computer that has InTouch Access
Anywhere Server or InTouch Access Anywhere Gateway installed, you must first uninstall the InTouch Access
Anywhere Server or Gateway. Then, upgrade System Platform and finally, reinstall InTouch Access Anywhere.
Note that the uninstall/reinstall process normally takes only several minutes.
• Common Platform: The System Management Server, a security component, was added for System Platform
2017 Update 3. If you are upgrading from a prior version that did not have the System Management Server, it
is automatically installed on the GR node when you upgrade to System Platform 2020 R2 SP1. There should
be only one System Management Server in your System Platform topology, and every node should be
configured to point to it. See Configuring the System Management Server for additional information. If some
nodes will not be upgraded, communication with non-upgraded nodes will continue to use legacy
communication protocols.
In multi-galaxy environments, configure only one GR node as the System Management Server, and configure
the other nodes to point to it.
About the Modify Workflow
The upgrade process can only upgrade System Platform components that are already installed on your system.
Since upgrading may introduce new components that were not part of prior releases, you need to run setup.exe
and launch the Modify option to install new components that may not have been available in prior versions of
System Platform. The components that you may need to install through the Modify option include:
• AVEVA System Monitor Manager
• AVEVA License Server
To add components through the Modify option
1. Upgrade the node and configure it.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 90
AVEVA™ System Platform Installation Guide
Chapter 5 – AVEVA Application Server Upgrade
2. Run the installation program again from the installation DVD (setup.exe).
3. Select the Modify option.
4. Select the component(s) you want to install.
If you plan to upgrade system components in addition to Application Server, keep the following in mind:
• After Application Server is installed, operating system migration is not supported, with the following upgrade
exceptions:
• Windows 8.1 to Windows 10
• Windows Server 2012 to Windows Server 2012 R2
Other than the above exceptions, System Platform products must be uninstalled prior to upgrading the
operating system.
• You can upgrade SQL Server after Application Server is installed. Refer to Microsoft’s SQL Server resources for
guidelines and procedures.
To upgrade SQL Server after Application Server is installed, we recommend that you undeploy any galaxies
deployed on the relevant computer, and that you undeploy all Platform Common Services. For more
information, see the Application Server User Guide.
You can upgrade the following Application Server components:
• Bootstrap
You will see a warning message if you attempt to upgrade a computer with a deployed WinPlatform. You
have the choice to continue with the upgrade or to cancel. If you continue with the Bootstrap upgrade, the
deployed WinPlatform object is removed from run time and upgraded.
If an InTouchViewApp instance is deployed for a managed InTouch application, the folder is undeployed and
deleted. You are prompted to stop InTouch WindowViewer from running the managed application.
• IDE and Bootstrap
You will see a warning message if you attempt to upgrade a computer with a deployed WinPlatform. You
have the choice to continue with the upgrade or to cancel. If you continue with the upgrade, the current IDE
and Bootstrap are removed and the new versions are installed.
If an installed InTouchViewApp instance is deployed for a managed InTouch application, the folder is
undeployed and deleted. You are prompted to stop InTouch WindowViewer from running the managed
application.
• Galaxy Repository (GR) and Bootstrap
You will see a warning message if you attempt to upgrade a computer with a deployed WinPlatform or a
client application is connected to the GR node. You can choose to continue with the upgrade or to cancel. If
you continue, the components are removed and upgraded.
Upgraded IDE/Client nodes cannot connect to a non-upgraded GR node. The GR node is undeployed before
it is upgraded.
• IDE, GR, and Bootstrap
A warning message is displayed if you attempt to upgrade a computer with a deployed WinPlatform or if a
client application is connected to the GR node. You can choose to continue with the upgrade or to cancel. If
you continue, all components are removed and upgraded.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 91
AVEVA™ System Platform Installation Guide
Chapter 5 – AVEVA Application Server Upgrade
• Run-time node
Upgrading the Bootstrap on any computer removes the running WinPlatform and AppEngine. Both of these
system objects are marked as undeployed if they are running on any Galaxy node.
Note: No system objects are removed on non-GR nodes when migrating from earlier versions of Application
Server.
If a remote node is disconnected from the GR node, or if you upgrade the remote node before you upgrade the
GR node, the remote Platform is not marked as undeployed. You must undeploy and redeploy the Platform.
The run-time functionality of Application Server continues throughout the upgrade process, except during a runtime node upgrade. Configuration, however, must be done using components that are at the same version level.
For example, you cannot use the Galaxy Browser in the InTouch HMI on a non-upgraded node to view or select
attributes from an upgraded Galaxy. You can, though, view or modify run-time data using an InTouch window or
the Object Viewer.
Special considerations apply if you are upgrading both the Application Server and the Historian. For more
information about upgrading the Historian, see Upgrading from a Previous Version.
Windows Upgrades
If you plan to upgrade system components in addition to Application Server, keep the following in mind:
After Application Server is installed, operating system migration is not supported, with the following upgrade
exception:
• Windows 8.1 to Windows 10
• Windows Server 2012 to Windows Server 2012 R2
Other than the above exception, System Platform products must be uninstalled prior to upgrading the operating
system.
SQL Server Upgrades
You can upgrade SQL Server after Application Server is installed, provided that the version of SQL Server that is
installed is supported by Application Server. Refer to Microsoft’s SQL Server resources for guidelines and
procedures.
To upgrade SQL Server after Application Server is installed, we recommend that you undeploy any galaxies
deployed on the relevant computer, and that you undeploy all Platform Common Services (previously called ASB
services). For more information, see the Application Server User Guide.
Issues with Legacy Common Components
Application Server uses the latest version of the System Platform common components, which are installed to
the following folder:
C:\Program Files (x86)\Common Files\ArchestrA
Legacy common components are installed to the following folder:
C:\Program Files (x86)\FactorySuite\Common
It is possible to install duplicate common components on a computer if you install an System Platform product
that still uses the legacy common components after you install Application Server. Unexpected behavior can
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 92
AVEVA™ System Platform Installation Guide
Chapter 5 – AVEVA Application Server Upgrade
occur if duplicate common components are installed. The system components may not run properly, or may not
run at all. Contact technical support for further assistance.
Basic Upgrade Sequence
Important: Back up the Galaxy before starting an upgrade. Also, upload any run-time changes for critical objects.
You cannot upload any run-time change from non-upgraded nodes after you upgrade the system.
.NET Framework 4.8 is installed if it or a later version is not already present. You will be prompted to restart your
computer after the .NET framework is installed.
The basic upgrade steps are:
1. Upgrade your hardware and prerequisite software such as the operating system or Microsoft SQL Server to
the required versions. For information on hardware and software requirements, see the System Platform
Readme file.
If you are upgrading the SQL Server database on the GR node, you must undeploy the GR node before
starting the SQL Server upgrade.
2. Upgrade and configure the GR node. If you are upgrading from System Platform 2017 Update 2 or prior
version, the Common Platform System Management Server is automatically installed on the GR node. For
more information, see Upgrading a Galaxy Repository Node.
3. Upgrade and configure at least one IDE installation. If you upgrade the GR node, that IDE installation is
upgraded. However, if you have any IDE-only nodes, you will have to upgrade them separately. For more
information, see Upgrading an IDE-only Node.
4. Migrate the Galaxy database. Connect to the upgraded GR node from the upgraded IDE to migrate the
galaxy to the new version automatically.
5. Deploy the GR Platform.
6. Upgrade and configure run-time nodes.
▪ Upgrade non-redundant run-time nodes one at a time and redeploy them. For more information, see
Upgrading Run-Time Nodes.
▪ Upgrade redundant pairs one at a time. For more information, see Upgrading Redundant Pairs.
If you upgrade a remote Platform node before you migrate the Galaxy database, the remote Platform and hosted
objects show the software upgrade pending icon after you migrate and deploy the Galaxy. To resolve this,
undeploy and redeploy the remote Platform.
Important: After you have upgraded the GR node to Application Server 2020 R2 SP1, you will not be able to
deploy or undeploy from the GR node to non-upgraded remote nodes. Also, an IDE node that has been upgraded
will not be able to connect to a GR node that has not been upgraded.
Note: As long as the operating system and SQL requirements are met, upgrade is supported.
Upgrading a Galaxy Repository Node
Important: Upgrade the GR node before upgrading other nodes.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 93
AVEVA™ System Platform Installation Guide
Chapter 5 – AVEVA Application Server Upgrade
When you upgrade a GR node, the local Platform and all hosted objects are undeployed and the database
schema is migrated from the existing schema to the Application Server 2020 R2 SP1 schema. Existing data from
the GR is also migrated to the new schema.
You must upgrade all Application Server components (IDE, Bootstrap, and GR) to the same version that are
installed on the GR node.
SQL Server Considerations
If the GR node contains less than the recommended RAM amount, system performance may be impacted as SQL
Server will use more CPU to compensate for the lower amount of available memory. To improve system
performance, set the SQL Server minimum memory (min server memory) to 1/3 of total physical memory. See
the Application Server User Guide, "Allocating Galaxy Repository Node Memory," for additional information.
To upgrade the GR node
1. Review the status of objects deployed in the system and take appropriate action, if needed.
2. Run Setup.exe from the DVD. See Upgrading System Platform for information about the installation process.
Note: If you are upgrading from System Platform 2014 R2 SP1, the License Server and Manager will be
automatically selected and installed during the upgrade the process (GR node only). If you are upgrading
from System Platform 2017 Update 2 or earlier, you can optionally add the AVEVA System Monitor at this
point. Adding or deleting other components requires that you run the Modify workflow after the upgrade
process is complete. Components that cannot be selected or deselected are locked and can only be added or
removed through the Modify workflow. See Modifying an Installation for more information.
3. When the Installation Complete dialog box appears, click Configure to continue. See Configuring System
Platform Components for more information.
Important: Configure all GR nodes in multi-galaxy environments to point to a single System Management
Server.
4. Close the Configurator and restart the computer to complete the upgrade. See System Restart after
Configuration.
5. When the GR node has been upgraded, open the IDE and connect to the galaxy. The galaxy will be
automatically migrated to System Platform 2020 R2 SP1.
Note: If you are using a remote IDE node to connect to the galaxy, make sure that you have upgraded the IDE
node before connecting to the galaxy.
Upgrading an IDE-only Node
Important: Upgrade the GR node before upgrading IDE-only nodes.
If you have IDE-only installations on nodes other than the GR node, you need to upgrade them separately.
Important: An IDE node that has been upgraded will not be able to connect to a GR node that has not been
upgraded. Conversely, an IDE node that has not been upgraded cannot connect to a GR node that has been
upgraded.
To upgrade an IDE-only node
1. Run Setup.exe from the DVD. See Upgrading System Platform for information about the installation process.
When the Installation Complete dialog box appears, click Configure to continue.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 94
AVEVA™ System Platform Installation Guide
Chapter 5 – AVEVA Application Server Upgrade
2. Configuration: Configure licensing, the System Management Server, and other installed features, such as the
Historian and the InTouch Web Client.
▪ Configure the System Management Server to point to the GR node. See Configuring the System
Management Server for additional information.
▪ Under AVEVA System Monitor, enter the name of the node that has the System Monitor Manager
installed. By default, it is installed on the GR node. See Advanced System Monitor Configuration for
additional information.
3. When prompted, click Restart Now to complete the upgrade.
Migrating the Galaxy Database
To migrate the database:
• The IDE you use to migrate the database must be the current version.
• The GR node must already be upgraded to the current version.
Make sure that all connections to the Galaxy database are closed before migrating the database.
After you migrate the Galaxy, deployed objects on a non-upgraded node are marked with pending software
upgrade status.
SQL Server Considerations
If the GR node contains less than the recommended RAM amount, system performance may be impacted as SQL
Server will use more CPU to compensate for the lower amount of available memory. To improve system
performance, set the SQL Server minimum memory (min server memory) to 1/3 of total physical memory. See
the Application Server User Guide, "Allocating Galaxy Repository Node Memory," for additional information.
To migrate the Galaxy database
1. Start the IDE.
2. Connect to the Galaxy database to migrate. You are prompted to migrate it.
3. Follow the prompts to complete the migration.
Migration errors
Migration of a very large Galaxy may fail, with various (and sometimes misleading) warnings and errors displayed
in the Logger. This is due to the Galaxy database transaction log expanding over its maximum allocated size.
Before making the changes described here, use the Event Viewer to check if the transaction log is full. If you
confirm that the transaction log has exceeded its maximum file size restriction, remove the restriction as follows:
1. In SQL Server Management Studio, right click the Galaxy database, then click Properties on the shortcut
menu.
2. In the Database Properties dialog, select the Files page.
3. Locate Log ... in the File Type column.
4. Click the ellipsis (...) button in the Autogrowth column on the same line.
5. In the Change Autogrowth for Base_Application_Server_log dialog, click the Unrestricted File Growth radio
button under the Maximum File Size parameter, then click OK.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 95
AVEVA™ System Platform Installation Guide
Chapter 5 – AVEVA Application Server Upgrade
6. After the Galaxy migration is finished, repeat steps 1 through 5 to reinstate the file size limit on the
transaction log.
Upgrading Run-Time Nodes
Important: Upgrade the GR node and any IDE-only nodes before upgrading run-time nodes.
After you upgrade the GR and IDE, all run-time nodes continue to run. This enables you to upgrade the run-time
nodes individually when it is convenient.
Important: After you have upgraded the GR node, and you have migrated the galaxy, you will not be able to
deploy or undeploy from the GR node to remote nodes which have not yet been upgraded. Once remote node
upgrade is complete, deployment functionality returns. Also, an upgraded IDE node will not be able to connect
to a GR node that has not been upgraded.
Upgrading a run-time node will remove (undeploy) any deployed Platforms from that node.
After you upgrade and then deploy a run-time node, it continues to function with other run-time nodes as long
as the other nodes are the current version or from the previous version.
The run-time node does not function while you are upgrading it. You cannot roll back the upgrade.
After you upgrade the run-time node and all hosted objects, you need to redeploy the WinPlatform and all
hosted objects to the node.
The GR node migration fails if the GR node is used as a run-time node for another GR.
To upgrade a run-time node
1. Run Setup.exe from the DVD. See Upgrading System Platform for information about the installation process.
When the Installation Complete dialog box appears, click Configure to continue.
2. Configuration: Configure licensing, the System Management Server, and other installed features, such as the
Historian and the InTouch Web Client.
▪ Configure the System Management Server to point to the GR node. See Configuring the System
Management Server for additional information.
▪ Configure the AVEVA System Monitor to point to the System Monitor Manager node. By default, this is
the GR node. See Advanced System Monitor Configuration for additional information.
3. When prompted, click Restart Now to complete the upgrade.
Upgrading Redundant Pairs
You can reduce plant down time by upgrading the two partner nodes in a redundant pair, one at a time.
Platforms hosting redundant pairs may be deployed even when a partner platform is not the same software
version as the Galaxy Repository (GR) platform, or is in the Software Upgrade Pending (SUP) state.
When upgrading a redundant pair, we recommend upgrading the standby partner first. This way, only one
failover of the redundant engines is needed, thus minimizing the period of time in which process data is not
collected. After upgrading the first node, upgrade the second as soon as possible. When only one node is
upgraded, backup and failover are not available. Both nodes must be at the same software version to enable
redundancy.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 96
AVEVA™ System Platform Installation Guide
Chapter 5 – AVEVA Application Server Upgrade
The following table illustrates the workflow for upgrading a Galaxy Repository and one redundant pair, consisting
of different nodes, from software version 1 (v1) to version 2 (v2). Action items are shaded. In this example, the
redundant pair is comprised of Node B and Node C, as a redundant Application Engine is hosted by the platform
on each node. Use the Platform Manager to determine which platform (P1 or P2) is hosting the active
Application Engine. See the Platform Manager User’s Guide for additional information.
To upgrade a redundant pair
Follow the actions listed in the table to upgrade a GR node and redundant pair. These instructions assume an
initial state where the primary engine (E1) is active. At the conclusion of this procedure, all three nodes are
upgraded and the backup engine (E1b) is active.
Node A
Node B
Node C
Galaxy Repository (GR)
Platform 0 (P0)
Primary AppEngine (E1)
Platform 1 (P1)
Backup AppEngine (E1b)
Platform 2 (P2)
Step
Action
Resulting
State
---
(Initial state)
Deployed.
1
Upload runtime changes
Changes
made at runtime now
stored in the
database.
2
Upgrade (with All objects on
AppServer
P0 become
deployed but undeployed.
shut down)
3
Reboot when
prompted
4
Open IDE and Galaxy
migrate
database now
database
at v2.
Action
Resulting
State
E1 Deployed –
Active.
Action
Resulting
State
E1b Deployed
– Standby.
Software is
now at v2.
IDE shows P1
and P2 in SUP
state.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 97
AVEVA™ System Platform Installation Guide
Chapter 5 – AVEVA Application Server Upgrade
Node A
Node B
Node C
Galaxy Repository (GR)
Platform 0 (P0)
Primary AppEngine (E1)
Platform 1 (P1)
Backup AppEngine (E1b)
Platform 2 (P2)
Resulting
State
Step
Action
5
Optional:
Open and
migrate
InTouch
ViewApps
InTouch
ViewApps
now at v2.
6
Cascade
deploy P0
All objects on
P0 are
deployed.
Action
Resulting
State
Action
Resulting
State
7
Upgrade (with
AppServer
deployed but
shut down)
P2 and its
hosted
engines and
objects
become
undeployed.
8
Cascade
Deploy P2
E1b becomes
active; hosted
objects are
now running
under v2.
E1 becomes
undeployed.
E1 shows as
undeployed,
but objects
under E1
show as
deployed.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Note: This
action results
in a brief
downtime for
objects on E1
and E1b as E1
becomes
undeployed (a
few seconds
to a few
minutes,
depending on
number of
objects).
Note: E1b
does NOT
start from the
checkpointed state
of nonupgraded E1.
Page 98
AVEVA™ System Platform Installation Guide
Chapter 5 – AVEVA Application Server Upgrade
Step
Node A
Node B
Node C
Galaxy Repository (GR)
Platform 0 (P0)
Primary AppEngine (E1)
Platform 1 (P1)
Backup AppEngine (E1b)
Platform 2 (P2)
Action
Resulting
State
Action
Resulting
State
9
Upgrade (with P1 becomes
AppServer
undeployed.
deployed but
shut down)
10
Cascade
deploy P1
Action
E1 is deployed
as part of P1
deployment.
E1 starts as
standby and
fully syncs
with active
engine.
---
Final state
Deployed.
E1 Deployed –
Standby.
Resulting
State
No downtime for
objects on
E1b as E1b
continues to
run as active.
E1b Deployed
– Active.
After you have upgraded to System Platform 2020 R2 SP1, you can enable CPU load balancing to improve the
performance of redundant AppEngines during failover. See the Application Server User Guide, Working with
Redundancy, for additional information.
The following table describes the behaviors associated with specific upgrade actions and states.
Action or State
Behavior
Cascade deploy a Platform after If the upgraded platform hosts a backup redundant engine with
upgrade
a partner in the SUP state, then during the deploy operation, it
will extract the hosted objects from the partner and deploy
them along with the backup redundant engine.
Deploy a redundant engine with The deploy operation is always a Cascade Deploy.
a partner in the SUP state.
Multi-selection for a cascade
deployment includes a
redundant engine with a
partner in SUP state
The cascade deploy operation skips the redundant engine in
SUP state and logs a message.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 99
AVEVA™ System Platform Installation Guide
Chapter 5 – AVEVA Application Server Upgrade
Action or State
Behavior
Select a backup redundant
partner engine for deployment
The backup redundant engine extracts the hosted objects from
the primary redundant engine and deploys them along with the
backup redundant engine.
The hosted objects are under the primary redundant engine on
a partner platform which is in SUP state. The hosted objects will
be forced to deploy with the newer software version during the
deployment of the backup redundant engine.
A dialog displays with the option to continue deployment or to
cancel.
Partner engine is deployed but
not reachable or not ready to
sync.
Redundant engine deployment fails.
Partner engine has older
software version.
The partner engine is detected and recognized as having an
older software version. It is automatically stopped and
unregistered.
Primary engine transitions into Active – Partner not Upgraded
redundancy status.
Primary and backup partners cannot sync, but references to a
redundant engine with this status—or with Active or Active –
Standby not Available redundancy statuses—will resolve.
Application Objects can be deployed to a redundant partner
with Active – Partner Not Upgraded redundancy status.
You will not be able to deploy the partner engine until you have
upgraded it.
Upgrade Considerations for Multi-Galaxy Communication
Important: In multi-galaxy environments, add a System Management Server to only one GR node, and configure
the other nodes to point to it. See Configuring the System Management Server for additional information.
Setting up a multiple galaxy environment requires a unique name for each galaxy in the environment. This may
require you to rename one or more galaxies if you plan to include galaxies with the same name in your multigalaxy communication environment. We recommend performing all necessary renaming prior to upgrading
System Platform. This will prepare your galaxies for use in a multi-galaxy environment without disrupting the
upgrade workflow.
Important: It is very important that you follow the galaxy name change procedure provided in the following
steps and in the Application Server User Guide. You must create a new galaxy with a new, unique name, from a
backup .cab file rather than creating a galaxy and performing a restore of the backup .cab file.
For more information about creating and backing up galaxies, see "Getting Started with the IDE," and "Managing
Galaxies," in the Application Server User Guide.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 100
AVEVA™ System Platform Installation Guide
Chapter 5 – AVEVA Application Server Upgrade
To rename a galaxy for use in a multi-galaxy environment
1. Select a galaxy with a duplicate name, undeploy it and back it up to create a .cab file.
2. Use the .cab file as a "template" by placing it in C:\Program Files (x86)\ArchestrA\Framework\Bin
\BackupGalaxies.
3. Create a new galaxy with a new name, based on the backup .cab file. The name must be unique, not in use
anywhere else in the multi-galaxy environment.
4. Repeat the preceding steps for each galaxy to be renamed with a unique name.
5. Redeploy each newly created galaxy.
6. Delete the original galaxy from the GR node.
7. Upgrade to Application Server 2020 R2 SP1.
Your galaxy can now be configured for use in a multi-galaxy environment.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 101
Chapter 6
AVEVA InTouch HMI Requirements and
Prerequisites
You need to meet the requirements and prerequisites for products.
Installing OI Gateway and Upgrading from FS Gateway
Operations Integration Gateway (OI Gateway) is automatically installed as an InTouch component when InTouch
is selected for installation. OI Gateway replaces Factory Suite (FS) Gateway, which was supplied with prior
versions of System Platform. Like FS Gateway, OI Gateway acts as a communications protocol converter, provides
OPC connectivity and also supports OPC UA connectivity. Default configurations for both OPC and OPC UA are
included.
See the Operations Integration Gateway Help for information about connecting to OPC and OPC UA servers, as
well as for information about linking clients and data sources that communicate using different protocols.
In addition to installing OI Gateway as part of installing InTouch, you can install OI Gateway as a stand-alone
application. There are three common installation scenarios:
"Clean" System without
OI Gateway or FS
Gateway
Older version of OI Gateway FS Gateway is installed
is installed
OI Gateway is installed as The System Platform
part of InTouch
installation program
installation.
upgrades the existing OI
Gateway version to the new
version and exits.
The installation program removes FS
Gateway, but saves the existing FS
Gateway configuration.
Two instances of OI Gateway are
installed. The existing FS Gateway is
Restart the System Platform replaced by the second OI Gateway
installation program after OI instance, which uses the existing FS
Gateway has been
Gateway application name.
upgraded.
After the upgrade to System Platform
This installs the remaining
2020 R2 SP1 is complete, activate the
System Platform
instance that has replaced FS Gateway.
components, including
There is no change in behavior for
InTouch.
InTouch users that use the pre-existing
OPC access name.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 102
AVEVA™ System Platform Installation Guide
Chapter 6 – AVEVA InTouch HMI Requirements and Prerequisites
"Clean" System without
OI Gateway or FS
Gateway
Older version of OI Gateway FS Gateway is installed
is installed
See Compatibility with Existing FS
Gateway Applications.
Compatibility with Existing FS Gateway Applications
If you are upgrading from InTouch 2014 R2 SP1 where FSGateway has been installed, OI Gateway will continue to
maintain the FSGateway application name in the Access Name definition. The application name is preserved to
enhance compatibility with existing applications.
• If you are upgrading from InTouch 2014 R2 SP1, FS Gateway will appear in the SMC (System Management
Console) under DAManager.
• After upgrading from InTouch 2014 R2 SP1, two new Gateway servers are installed. The first OI Gateway is
installed under Operations Integration Supervisory Servers as OI.GATEWAY.n. A second instance replaces the
existing FS Gateway instance, but preserves the existing configuration and name, even though FS Gateway
has been deleted and the new OI Gateway has been installed in its place. Since the new gateway instance is
in a deactivated state, you must activate it (select the instance, right-click, and select "Activate Server").
Note that the component names are changed from "FSGateway" to "Gateway." This does not affect
references or change the behavior of the gateway.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 103
AVEVA™ System Platform Installation Guide
Chapter 6 – AVEVA InTouch HMI Requirements and Prerequisites
Product Licensing
NOTICE: LIMITATIONS TO LICENSING FOR INTOUCH AND APPLICATION SERVER:
PROPER USE OF LICENSED PRODUCTS MUST BE STRICTLY FOLLOWED TO ENSURE A FULLY FUNCTIONING
PRODUCTION SYSTEM. READ THIS ENTIRE NOTICE.
If you are licensed for System Platform or the Application Server, you can use all the functionality in these
products, up to the limits in your license files.
If you are licensed for only InTouch development and run time, you are licensed to use:
• All InTouch product software capabilities
• InTouch tags up to the licensed limit
• Industrial Graphics
• System Platform IDE
Important: You are not licensed to use or deploy in production any Object templates in the System Platform
IDE other than InTouchViewApp Object.
However, you can use the additional functionality in the Application Server in a Demo mode as you learn about
its capabilities and consider the advantages of upgrading to a full System Platform license.
You can use most or all of System Platform products in a demonstration, or "Demo," mode. Demo mode lets you
learn about and experience the full breadth of System Platform products, technology, and capabilities without
requiring a legal license file to run the software.
You can use the License Information utility to see whether the current local or remote I/O counts exceed the
maximum specified by your product license.To view license information from the System Platform IDE, on the
Help menu, click About, and then click View License.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 104
AVEVA™ System Platform Installation Guide
Chapter 6 – AVEVA InTouch HMI Requirements and Prerequisites
In addition, carefully read the License Certificate documentation, which describes the licensed products you
received. The License Certificate is included with your Licensing CD.
Important: Attempting to deploy unlicensed functionality to a production environment is illegal and results in
problems when upgrading to a future version. Deploying unlicensed functionality is not supported.
For further explanation of licensing compliance, see Appendix B of the InTouch Data Management Guide
installed with the software. Or, contact your local AVEVA distributor or AVEVA Technical Support.
FS Gateway Installation Scenarios
The following table shows the possible combinations for installing FS Gateway and System Platform. See the
System Platform Readme and the InTouch Readme for information about upgrading and migrating to System
Platform 2020 R2 SP1 with InTouch HMI 2020 R2 SP1 from earlier versions of InTouch.
I have...
A clean system
I want to...
Install FS Gateway 3.0 SP2 Standalone
Install System Platform 2020 R2 SP1
with InTouch and FS Gateway 3.0
SP2
• FS Gateway is preconfigured
with a predefined OPC access
Name.
• FS Gateway is preconfigured
with a predefined OPC access
Name.
• FS Gateway is installed as standalone product.
• FS Gateway is installed as a
hidden feature.
• FS Gateway appears in Uninstall/
Change Programs.
• InTouch appears in Uninstall/
Change Programs.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 105
AVEVA™ System Platform Installation Guide
Chapter 6 – AVEVA InTouch HMI Requirements and Prerequisites
I have...
I want to...
Install FS Gateway 3.0 SP2 Standalone
FS Gateway 2.0.0 or
previous installed
(Stand-alone)
Install System Platform 2020 R2 SP1
with InTouch and FS Gateway 3.0
SP2
• Existing FS Gateway
Configuration is retained.
• Existing FS Gateway
Configuration is retained.
• FS Gateway is upgraded.
• InTouch is installed.
• FS Gateway appears in Uninstall/
Change Programs.
• FS Gateway is installed as a
hidden feature.
• FS Gateway is upgraded.
• FS Gateway appears in Uninstall/
Change Programs.
• InTouch appears in Uninstall/
Change Programs.
InTouch 10.0.0 or
previous installed
• FS Gateway is preconfigured
with a predefined OPC access
Name.
• FS Gateway is preconfigured
with a predefined OPC access
Name.
• FS Gateway is installed as standalone product.
• FS Gateway is installed as a
hidden feature.
• FS Gateway appears in Uninstall/
Change Programs.
• InTouch is upgraded.
• InTouch appears in Uninstall/
Change Programs.
FS Gateway 2.0.0
(Stand-alone) or
previous and InTouch
10.0.0 or previous
• InTouch appears in Uninstall/
Change Programs.
• Existing FS Gateway
Configuration is retained.
• Existing FS Gateway
Configuration is retained.
• FS Gateway is upgraded.
• FS Gateway is upgraded.
• FS Gateway appears in Uninstall/
Change Programs.
• InTouch is upgraded.
• InTouch appears in Uninstall/
Change Programs.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
• FS Gateway appears in Uninstall/
Change Programs.
• InTouch appears in Uninstall/
Change Programs.
Page 106
AVEVA™ System Platform Installation Guide
Chapter 6 – AVEVA InTouch HMI Requirements and Prerequisites
I have...
I want to...
Install FS Gateway 3.0 SP2 Standalone
FS Gateway 2.0.1
Stand-alone
Install System Platform 2020 R2 SP1
with InTouch and FS Gateway 3.0
SP2
• Existing FS Gateway
Configuration is retained.
• Existing FS Gateway
Configuration is retained.
• FS Gateway is upgraded.
• FS Gateway is installed as a
hidden feature.
• FS Gateway appears in Uninstall/
Change Programs.
• InTouch is installed.
• FS Gateway appears in Uninstall/
Change Programs.
• InTouch appears in Uninstall/
Change Programs.
System Platform 2012
with InTouch 10.5 and
FS Gateway 2.0.1
• FS Gateway 2.0.1 must be
manually uninstalled (after
doing this, it is equivalent to
installing FS Gateway on a clean
system).
• Existing FS Gateway
Configuration is retained.
• FS Gateway is installed as a
hidden feature.
• InTouch is upgraded.
• InTouch appears in Uninstall/
Change Programs.
FS Gateway 3.0.0
Stand-alone
• FS Gateway is preconfigured
with a predefined OPC access
Name.
• FS Gateway is installed as standalone product.
• FS Gateway appears in Uninstall/
Change Programs.
• Existing FS Gateway
Configuration is retained.
• InTouch is installed.
• FS Gateway is installed as a
hidden feature.
• FS Gateway appears in Uninstall/
Change Programs.
• InTouch appears in Uninstall/
Change Programs.
System Platform 2012
R2 with InTouch 10.6
and FS Gateway 3.0.0
• Existing FS Gateway
Configuration is retained.
• Existing FS Gateway
Configuration is retained.
• FS Gateway is installed as standalone product.
• InTouch is installed.
• FS Gateway appears in Uninstall/
Change Programs.
• InTouch appears in Uninstall/
Change Programs.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
• FS Gateway is installed as a
hidden feature.
• FS Gateway appears in Uninstall/
Change Programs.
• InTouch appears in Uninstall/
Change Programs.
Page 107
AVEVA™ System Platform Installation Guide
Chapter 7 – AVEVA Historian Server Requirements and Recommendations
Chapter 7
AVEVA Historian Server Requirements
and Recommendations
For the AVEVA Historian to achieve maximum performance, make sure your hardware and software meet the
following requirements. Because the Historian is a high-performance relational database, it is also important to
size your system to handle the level of data that you expect to store.
The Historian is tightly integrated with Microsoft products, and a working knowledge of both Microsoft SQL
Server and Microsoft Windows operating systems is required. For more information on Microsoft SQL Server or
Windows operating systems, see your Microsoft documentation.
Server Requirements
The minimum hardware and software requirements for the Historian are based on the tag count and the
anticipated data throughput rate. These requirements are divided into four levels, which are outlined in this
section.
You need to ensure that the memory that SQL Server reserves for the Historian is adequate for the expected
load. Based on your particular environment, you may need to adjust the SQL Server MemToLeave allocation. For
more information on MemToLeave, see the Microsoft documentation.
You can install the Historian on operating systems that have the User Account Control (UAC) turned on.
If you are running the Historian on a virtual server, the historian must have an adequate CPU, adequate network
memory, and disk I/O resources at all times. Overloading the virtual server leads to unpredictable behavior. See
System Sizing Guidelines for general hardware requirements.
Operating Systems
Any supported 64-bit operating system. See the AVEVA Global Customer Support (GCS) Technology Matrix.
Microsoft SQL Server
For supported 64-bit Microsoft SQL Server versions, see the AVEVA GCS Technology Matrix.
Disk Space
• 300 MB of free disk space to install the Historian
• Appropriate space for history block storage. For more information, see Disk Sizing and Data Storage.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 109
AVEVA™ System Platform Installation Guide
Chapter 7 – AVEVA Historian Server Requirements and Recommendations
Level 1 Server - Hardware
A Level 1 server can handle a load of about 5,000 tags. For example, 2,600 analogs, 2,200 discretes, 300 strings,
and 20 non-I/O Server (manual) tags.
When replicating to AVEVA Insight, each Level 1 server can support up to 15,000 tags and 5,000 values per
second.
The requirements are:
• Processor:
• Minimum: P4 3.2 GHz CPU
• Recommended: dual-core CPU
• RAM:
• Minimum: 2 GB
• Recommended: 4 GB
• 100 Mbps network interface card (NIC)
Level 2 Server - Hardware
A Level 2 server can handle a load of about 100,000 tags, with 50% analog, 45% discrete, and 5% string tags. The
requirements are:
• Processor:
• Minimum: P4 3.0 GHz dual CPU
• Recommended: quad-core CPU
• RAM:
• Minimum: 4 GB
• Recommended: 8 GB
• 1 Gbps network interface card (NIC)
Level 3 Server - Hardware
A Level 3 server can handle a load of 150,000 tags, with 50% analog, 45% discrete, and 5% string tags. The
requirements are:
• Processor:
• Minimum: P4 2.7 GHz Xeon quad CPU
• Recommended: dual processor, quad-core CPUs
• RAM:
• Minimum: 6 GB
• Recommended: 12 GB
• 1 Gbps network interface card
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 110
AVEVA™ System Platform Installation Guide
Chapter 7 – AVEVA Historian Server Requirements and Recommendations
Level 4 Server - Hardware
A Level 4 server can handle a load of 2,000,000 tags, with 50% analog, 45% discrete, and 5% string tags. The
requirements are:
• Processor:
• Recommended: two quad-core CPUs
• RAM:
• Minimum: 24 GB
• Recommended: 48GB
• 1 Gbps network interface card
A performance report for different historian systems is provided in System Sizing Examples.
High Availability Support
The Historian provides built-in support for Stratus ft3500 fault-tolerant servers. Other high availability features
include:
• Tiering - using the "replication" functionality with a small "local" Historian on site that replicates to two "tier
2" Historians.
• Virtualization - using HyperV or VMware high availability options with Historian running on a virtual
machine. For more information, see the System Platform in a Virtualized Environment Implementation Guide.
• Redundancy - the Application Server can send data to two Historians at once and maintains independent
store-and-forward channels to each.
Requirements for Historian Management Tools
The management tools include the Historian System Management Console and the Historian Database Export/
Import Utility. If you are installing the tools on a remote computer, the following requirements apply:
• Any supported operating system. See the AVEVA Global Customer Support (GCS) Technology Matrix.
• MDAC 2.7
• Any supported browser. See the AVEVA GCS Technology Matrix.
• 20 MB of free disk space
Note: The Historian Data Importer is installed as part of the server installation.
Remote IDAS Requirements
A remote IDAS runs on all supported operating systems: domain member, stand-alone workstation, or server.
To determine the CPU and memory needed for a remote IDAS, use the same guidelines of the Historian
computer. For more information, see Server Requirements.
The IDAS computer does not necessarily have to be as powerful as the server computer, because it will not be
performing all of the same functions (for example, processing SQL Server transactions), but it should be powerful
enough to handle the tag load that you expect.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 111
AVEVA™ System Platform Installation Guide
Chapter 7 – AVEVA Historian Server Requirements and Recommendations
The amount of free disk space required depends on whether or not you will have store-and-forward enabled for
the IDAS. If store-and-forward is enabled, you need to make sure that the disk space on the remote IDAS
computer is sufficient to store cached data if the network connection to the historian fails. Estimate the disk
space requirements for a remote IDAS as that of the historian. For more information, see Disk Space
Requirements for Historical Data Files.
A remote IDAS configured for store-and-forward has more stringent requirements on memory to ensure that the
IDAS local storage engine has sufficient resources to run properly. In general, estimate memory requirements for
a remote IDAS configured for store-and-forward the same as you would for a historian having the corresponding
tag count.
Security Considerations for a Remote IDAS
If you set up a remote IDAS, you need to configure security settings that allow access permissions between the
remote IDAS and the Historian. For example, the historian needs to access the remote computer to start and
stop the IDAS. Also, the remote IDAS needs to access the historian computer to send data. These are
administrative tasks, which require administrative permissions.
When you install the historian, you must specify an administrative user account under which all of the historian
services run. Make sure that this same user account is added to the Administrators security group on the remote
IDAS computer. The existence of the same administrative user account on both the computers, allows the
historian to access the remote IDAS, and vice versa.
Note: A remote IDAS only requires the same administrative account to exist on the local computer and the
historian. It is not required for you to log on to the remote IDAS computer using the administrator account.
If you change the Windows login using the System Management Console, after installing the historian, make sure
that the user account change is reflected on the remote IDAS computer.
If you are running the historian in a domain environment (recommended), you can create the administrative user
account on the domain controller and add the account to the Administrators group on the historian computer
and the remote IDAS computer. Do not create a local user on any computer with the same name and/or
password as the administrative user account.
If you are running a remote IDAS in a workgroup environment, there is no centralized management and
authentication of user accounts (no domain controller). Create the same administrative user account on each
individual computer running a historian component. For example, if you have a computer running the historian
and plan to install remote IDASs on two other computers, create the user account (that is, matching user names
and passwords) on all three computers.
For information on workgroups, domains, creating user accounts, and adding accounts to the Administrators
security group, see your Microsoft operating system documentation.
Disk Sizing and Data Storage
A number of storage-related questions must be answered when setting up the Historian. They include:
• How important is the data? Is it acceptable that four weeks of data is stored online and is then over-written?
• How important is the configuration and event data? This type of information is stored in the Microsoft SQL
Server database.
• How often is data in the Microsoft SQL Server database changing?
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 112
AVEVA™ System Platform Installation Guide
Chapter 7 – AVEVA Historian Server Requirements and Recommendations
• Is anyone in the organization going to require operating data that is older than a month? Older than a year?
• How much is the SQL Server component of the historian expected to be used (for example, for the event
system)?
• How long can the system be off-line because of a component failure?
• What happens if the system stops storing data?
• What happens if stored data is lost because of a hard drive failure?
• Can the server equipment be taken off-line to perform repairs?
Ask yourself questions like these to help you determine disk space requirements and how you should plan to
protect your data.
A performance report for different historian systems is provided in System Sizing Examples.
General Hardware Recommendations for Storage
The following are the general recommendations for the hardware used for storage:
• SCSI drives configured using hardware RAID is optimum. The disk space required is a function of data rate
and the desired history duration.
• NTFS is the only officially supported file system for a production environment.
Planning for Disk Space Requirements
There are a number of factors to consider when estimating the amount of disk space required to run the
Historian:
• Disk space required to install the required software components and files needed to run the historian.
• Disk space required to store the historian database files.
• Disk space required to store the historian data files.
• If a remote IDAS is used, the disk space required on the local IDAS computer to store cached data if the
network connection to the historian fails.
• We recommend that you keep sufficient free disk space (around 20%) so that you can run a disk
defragmenting utility without negatively affecting the historian performance.
A performance report for different historian systems is provided in System Sizing Examples.
Disk Space Requirements for Database Files
The Historian installation program adds the Runtime and Holding databases to the Microsoft SQL Server by
default. If you choose to store events to SQL Server, the A2ALMDB database is created.
Note: Historical plant data is not stored in the database files. This type of data is stored in special files called
history blocks.
• The Runtime database stores all historian configuration data and classic event data. The information in the
Runtime database is stored to disk as a database file named RuntimeDat_116_<server_name>.mdf. Its
associated log file is RuntimeLog_116_<server_name>.ldf.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 113
AVEVA™ System Platform Installation Guide
Chapter 7 – AVEVA Historian Server Requirements and Recommendations
The configuration data in the database file remains relatively static and usually never causes the file size to
go above 20 MB. However, if you set up classic events, records of event detections and the results of any
data summaries or snapshots increase the size of the Runtime database file because the tables are filling up.
Also, entries are created in the log file for event-related transactions. If the database files are set to auto-size,
the Runtime database file expands to accommodate event-related data until the hard drive is full.
Note: In a 2,000,000 tag system, 2.5 GB of space should be preallocated for data files when modification
tracking is not used. When modification tracking is used, 20 GB should be preallocated.
• The Holding database temporarily stores tag definitions being imported from InTouch® HMI software. The
information in the Holding database is stored to a database file named HoldingDat_116_<server_name>.mdf.
Its associated log file is HoldingLog_116_<server_name>.ldf.
• The A2ALMDB database stores alarm and event data. The information in the A2ALMDB database is stored to
a database file named A2LMDat_115_<server_name>.mdf. Its associated log file is A2ALMDB_LOG.ldf.
The Runtime and Holding databases are set to automatically expand at a 10% rate (the default).
You cannot change these defaults during the installation. The databases can be resized later using Microsoft SQL
Server utilities. For more information on sizing databases, see your Microsoft SQL Server documentation for
guidelines.
Note: If you are upgrading a previous version of the Historian, the installation program needs space to save a
copy of the old Runtime database while it creates the new one. To upgrade, the database space required is twice
the size of the old database, plus the database size for the new install.
Disk Space Requirements for Historical Data Files
The Historian stores historical plant data to hard disk in special files called history blocks. When you install the
historian, you are required to specify a storage location (directory) in which these files will be dynamically
created and subsequently filled. You must have at least 200 MB of free disk space for these files to install the
historian.
After the historian is up and running, when the free space on the drive containing the storage directory drops
below a minimum threshold, the oldest data is overwritten. It is very important that you allocate enough disk
space to store your plant data for the desired length of time.
The amount of data that can be stored to disk before running out of space is dependent upon the number of tag
values that are stored and how often they are stored. That is, the more tags you have, the fewer values you can
store per tag before you need to archive off the oldest data. Likewise, the higher the specified storage rate per
tag, the faster the system runs out of space.
Important: You must have sufficient disk space in the circular storage area to hold at least two full history blocks,
plus the space specified for the minimum threshold for the circular storage area. Use the System Management
Console to view or change the minimum threshold value.
A performance report for different historian systems is provided in System Sizing Examples.
Storage and Network Transmission Sizes for Tags
The following table lists the storage and network transmission sizes for various tag types.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 114
AVEVA™ System Platform Installation Guide
Chapter 7 – AVEVA Historian Server Requirements and Recommendations
Tag Type
Storage Engine - Storage Item
Size (Bytes)
Storage Engine - Network
Transmission Item Size (Bytes)
Analog - Integer
8
34
Analog - Floating Point
8
34
Analog - Double
12
38
Discrete
5
31
String
5+AvgStringLength
(5+AvgStringLength)+26
Analog Summary
37
63
Discrete State Summary
40
66
Analog State Summary
28 * NumberOfStates
(28*NumberOfStates)+26
String State Summary
(28+AvgStringLength) *
NumberOfStates
((28+AvgStringLength) *
NumberOfStates)+26
Alarm
325
6061
Acknowledgement
325
6066
Event
300
5048
The storage size is used for estimating the space required for storage.
The network transmission size is used for calculating the network bandwidth required between HCAL and the
historian.
If you enable compression on the AppEngine from which events are originating, then the network size is reduced
by approximately 80%.
For alarms and events, the network transmission size assumes that the average name length for each of the
alarm properties is 20 characters.
The following table provides some sizing examples.
Tag Type
Storage Engine - Storage Item
Size (Bytes)
Storage Engine - Network
Transmission Item Size (Bytes)
String Tags (32 byte string)
5+32 = 37
(5+32)+26 = 63
State Summary for Analog (for
10 states)
28*10 = 280
71*10 = 710
State Summary for Discrete (for 20*2 = 40
2 states)
68*2 = 136
State Summary for String (10
states and 32 byte string)
(69+32)*10 = 1010
(1+32)*10 = 330
Note: Current space calculations are different than the calculations used by the classic storage system.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 115
AVEVA™ System Platform Installation Guide
Chapter 7 – AVEVA Historian Server Requirements and Recommendations
Disk Space Estimation
This section provides guidance on how to determine the appropriate history block duration. A history block
duration can range from 1 hour to 24 hours, with a default of 24 hours.
For retrieval performance, it is better to have longer block durations. However, if the incoming data rate is too
high during a 24-hour period, the Original.dat file in which data collects may grow so large that issues occur for
history block management and other aspects of the storage subsystem.
We recommend that you tune the history block duration so that the size of the Original.dat file does not exceed
8 GB per history block.
You can estimate how many bytes this data rate generates in one hour by using the following formula:
N kbps = (N / 8) bytes per second = (450 * N) bytes per hour
Where N is the transmission item size for the type of data that you are storing. For information on calculating
this number, see Storage and Network Transmission Sizes for Tags.
If you multiply this by the history block duration, you can get an estimate of the biggest data file containing
streamed and forwarded data, Original.dat.
If that estimate is larger than 8 GB, keep reducing the history block duration until the estimate is under the 8 GB
limit.
Bandwidth Estimation for Streaming Data
The network bandwidth required can be estimated by adding the data transmission rate for all data types and
the network overhead. Network overhead is approximately 4% of the total transmission rate, assuming the data
rate is above 1000 points/sec. The estimated bandwidth would be the minimum bandwidth required for
replication with reliable network (always connected). However, if there are network disconnections/
reconnections, using only the minimum required bandwidth would make the "catch-up" process take a long time
if possible. It is recommended that you add a 30% safe margin to the estimated bandwidth to ensure that the
forwarding process can complete quickly if an unexpected network outage occurs.
The formula for estimated bandwidth is as follows:
BandwidthStreaming = 1.04 * 8 * SEach Tag Type (Data Rate * Transmission Item Size)
BandwidthRecommendedStreaming = 1.3 * BandwidthStreaming
For example, with the following replication configuration:
1. Simple Replication - 798 4-byte analog tags changing every second.
2. Simple Replication - 815 discrete tags changing every second.
3. Simple Replication - 187 string tags (20 bytes string) every second.
4. 1 Minute Analog Summary - 800 tags
5. 1 Hour Analog Summary - 800 tags
6. 1 Minute State Summary (Analog, 10 states) - 800 tags
7. 1 Hour State Summary (Analog, 10 states) - 800 tags
The average number of bytes transmitted every second for each of the above replication types is as follows. For a
table of transmission sizes, see Storage and Network Transmission Sizes for Tags.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 116
AVEVA™ System Platform Installation Guide
Chapter 7 – AVEVA Historian Server Requirements and Recommendations
1. 798 * 34 = 27132 Bytes
2. 815 * 31 = 25265 Bytes
3. 187 * 52 = 9724 Bytes
4. 800 * 96 / 60 = 1280 Bytes
5. 800 * 96 / 3600 = 21 Bytes
6. 800 * 710 / 60 = 9467 Bytes
7. 800 * 710 / 3600 = 157.8 Bytes
BandwidthStreaming = 1.04 * 8 * (27132 + 25265 + 9724 + 1280 + 21 + 9467 + 158) = 608 Kbps
BandwidthRecommendedStreaming = 1.3 * 608 Kbps = 790 Kbps
Bandwidth Estimation for Store-and-Forward Data
If there is a network disconnection, HCAL sends data to local storage and later forwards the data to the historian.
After the forwarding process starts, HCAL will try to send as much as data as possible with a large packet. The
forwarding bandwidth is the bandwidth required to stream the store-and-forward data.
The store-and-forward storage size is the same as for local historian storage. The following table lists the average
sizes used for bandwidth estimation used in this example.
Tag Type
Storage Item Size (Bytes)
Discrete Tags
5
Analog Tags (4 byte data)
8
String Tags (32 byte string)
37
Analog Summary (4 byte analog)
37
State Summary for Analog (for 10 states)
28 * 10 = 280
State Summary for Discrete (for 2 states)
20 * 2 = 40
State Summary for String (10 states and 32 byte string)
(1 + 32) * 10 = 330
The forwarding bandwidths are calculated using the following formulas:
BandwidthForwarding = 1.04 * 8 * SEach Tag Type (Data Rate * Storage Item Size)
BandwidthRecommendedForwarding = 1.3 * BandwidthForwarding
For this example, if all are stored in the local storage engine and forwarded later, the number of bytes required
for every second is as follows:
1. 798 * 8 = 6384 Bytes
2. 815 * 5 = 4075 Bytes
3. 187 * 25 = 4675 Bytes
4. 800 * 37 / 60 = 493 Bytes
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 117
AVEVA™ System Platform Installation Guide
Chapter 7 – AVEVA Historian Server Requirements and Recommendations
5. 800 * 37 / 3600 = 8 Bytes
6. 800 * 280 / 60 = 3733 Bytes
7. 800 * 280 / 3600 = 62 Bytes
BandwidthForwarding = 1.04 * 8 * (6384 + 4075 + 4675 + 493 + 8 + 3733 + 62) = 162 Kbps
BandwidthRecommendedForwarding = 1.3 * 162 Kbps = 211 Kbps
Time Estimation for Store-and-Forward Data
The actual time taken to forward store-and-forward snapshots depends on the amount of data accumulated and
the bandwidth limit. HCAL typically waits for about 30 second to attempt forwarding process after reconnection.
It may need to wait for a longer time if the historian is busy.
To simplify the calculation, the following is assumed:
• HCAL can start forwarding immediately without interruption
• The bandwidth is 30% above the data rate before disconnection
The time taken to forward is as follows:
TimeForwarding = TimeInStoreforward * RatioForwardingDataSize / 0.3
Where RatioForwardingDataSize = Forwarding data Size / Streaming data size
For example, the date rate is 1 Mbps and the bandwidth is 1.3 Mbps. Assume you have simple replication for
analog tags and store-and-forward data has been accumulating for 1 hour.
RatioForwardingDataSize = 8 / 34 = 0.235
TimeForwarding = 60 (minutes) * 0.235 / 0.3 = 47 minutes
About Data Compression and the Buffer Age Limit
Bandwidth usage is reduced by about 80% if compression is enabled. This assumes that the data rate is high
enough to keep the buffer (64K) filled to have better compression ratio. For analog tags, the data rate is roughly
2000 values/second.
When the data rate is low, enabling compression may not be effective. To fill the buffer with low data rate, you
can select the Wait to send incomplete packets option (BufferAgeLimit attribute) for the AppEngine
configuration. This attribute is not applicable to replication.
Performance Considerations
For a complete Historian system, the following components put a demand on memory.
• Internal historian subsystems, such as the Configuration Manager, data acquisition, and data storage
• The associated Microsoft SQL Server
• The operating system
• Client access (data retrieval), which includes caching
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 118
AVEVA™ System Platform Installation Guide
Chapter 7 – AVEVA Historian Server Requirements and Recommendations
When determining the amount of memory to purchase, remember that adding more memory is the cheapest
and easiest thing that you can do to improve performance. Increasing the amount of memory reduces the
amount the server has to use virtual memory, thus lowering the load on the storage subsystem. Even if you have
a large amount of memory, additional memory is used as additional disk cache, speeding up disk access and
therefore file service. Also, processes needed by the server become faster because they are memory-resident.
A major factor in system performance is the amount of plant data you anticipate storing in the system, including
considerations about how often that data is stored and retrieved. In general, the more you store, the more often
you store it, and the more you retrieve it, the slower the system. The major storage factors affecting the
performance of the system are:
• Effective analog flow rate (analog updates per second).
• Period of online data storage required.
• Effective discrete variable flow rate.
• Number of concurrent end users required.
• Complexity of end user queries.
• Number and size of string tags, as well as the effective flow rate of string values.
• Number and duration of string tag retrieval queries, as well as the frequency at which these queries are
executed.
A performance report for different historian systems is provided in System Sizing Examples.
Server Loading
When a user connects to the Historian with a client, configuration information is immediately requested from
the historian. This information includes the tags that the server stores, their descriptions, engineering units, and
other tag data. SQL Server reads this information from the database (stored on disk) and places it in memory.
As the user selects time periods to trend, the historian reads data from files located on the disk and prepares the
results of the client's data request to be transmitted back to the client. The ability of the server to quickly handle
subsequent requests for data from the same client and others is dependent on the server's ability to keep as
much information in memory without having to again access data from the disk.
As a higher load is placed for memory, a higher load is placed on the disk I/O system as the server has to use disk
caching and read from the data files.
The following table summarizes the loading for various systems.
System
Load Description
Acquisition and
storage
Base load of the historian. This load exists as long as the system is running.
However, this load is not affected by client activity.
Retrieval
Variable loading caused by data retrieval from client applications. When the
client initially connects, the data requested is configuration data, which is
stored in SQL Server. The historian requests data from SQL Server, causing its
loading to increase. As the client requests historical data, the disk time
increases as information from the data files is transferred to memory. This
continues as the client requests additional data. If the client application
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 119
AVEVA™ System Platform Installation Guide
Chapter 7 – AVEVA Historian Server Requirements and Recommendations
System
Load Description
requests data that has already been transferred to memory, there is no
associated disk activity and transfer of data to memory.
The server must be able to adequately handle the variation on loading caused by the client applications. To
accomplish this, make sure that your hardware is sized so that it can handle the base load created by the
acquisition and storage systems and that there are adequate resources still available for the retrieval system.
IDAS Performance
An IDAS can acquire an unlimited number of real-time data values, from an unlimited number of I/O Servers,
each with an unlimited number of topics. However, IDASs are subject to the following limitations.
• The maximum sustained data throughput for any single IDAS is 30,000 items per second for real-time data.
For late or old data, the maximum throughput is 9,000 items per second. The total combined throughput
(real-time data plus late or old data) cannot exceed 30,000 items per second. For higher-volume applications,
you can set up multiple IDASs to serve a single storage subsystem.
• The size of any data value is limited to 64,000 bytes.
• The maximum number of tags supported by any single IDAS is 30,000.
Tiered Historians
If you are installing a tiered historian, tier-1 nodes use the same basic configuration for the number and types of
tags and data collection rates.
The tier 1 configuration should be "delta" data collected and stored:
• 12,000 analog tags every 2 seconds
• 2,900 discrete tags every 2 seconds
• 100 32-character string tags every 30 seconds
For the analog and discrete tags, the averages and value state aggregates are:
• 6000 tags with an hourly calculation performed at the top of each hour
• 6000 tags with 1-minute calculations performed at the top of each minute
plus
• 1500 tags replicated (not aggregated) in tier 2
• 1500 tags stored only in tier 1 (no aggregates or replication)
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 120
AVEVA™ System Platform Installation Guide
Chapter 7 – AVEVA Historian Server Requirements and Recommendations
Storage Subsystem Performance
The storage subsystem can support a continuous data acquisition rate of 150,000 updates per second. The
storage sub-system also supports a burst rate of 300,000 updates per second up to 1 second.
The classic storage subsystem can support a continuous real-time data acquisition rate of 30,000 updates per
second and a burst rate of 60,000 updates per second up to 1 second.
The storage subsystem processes all real-time data as a high-priority task that is never interrupted. However,
data received from "manual" methods (such as UPDATE/INSERT commands, CSV file imports, or store-andforward) is handled by a low priority task. If the system is generally busy, then it may take some time for the
manual data to be posted.
Networking Recommendations
The Historian is a highly configurable package that can be set up in many different ways depending on your
needs.
The Historian can use any protocol currently supported by Microsoft SQL Server 2012. You can use the default
Microsoft SQL Server 2012 protocol (named pipes) with TCP/IP. TCP/IP is required if SuiteLink™ is used.
Do not use the historian computer as a domain controller.
It is highly recommended that you run the historian on a dedicated computer. For example, running the historian
on a mail server or an Internet server may impact performance.
Generally, it is recommended that you split the process and IS networks to ensure that the process network does
not become overloaded. The following illustration shows one possible network architecture where the historian
is the link between the process network and the business LAN/WAN
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 121
AVEVA™ System Platform Installation Guide
Chapter 7 – AVEVA Historian Server Requirements and Recommendations
For this architecture, install two network cards on a server computer and configure them to segment the IS
network from the process network.
Note: All tags to be stored in historian are on "advise" all the time. This may cause heavy load conditions on the
process network. Before you install the historian, investigate the possible load impact of installing the historian
on your network.
Client Access
All clients should connect to the Historian using the default Microsoft SQL Server connection. Usually, this means
using the name of the computer on which the historian is running as the server name when logging on.
To change the default network protocol used by Microsoft SQL Server to something other than named pipes,
configure the client network access using the SQL Server Client Network Utility. For more information, see your
Microsoft SQL Server documentation.
Support for Non-English Operating Systems
The English version of the Historian, the Historian Database Export/Import Utility, and the Historian Data
Importer run on localized versions of all the supporting operating systems for the following languages. Set the
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 122
AVEVA™ System Platform Installation Guide
Chapter 7 – AVEVA Historian Server Requirements and Recommendations
regional settings before you install SQL Server. The corresponding version of Microsoft SQL Server for the
required language must be used.
• German
• French
• Japanese
• Simplified Chinese
The following entities are not supported in double-byte languages:
• Domain names, user names, and passwords (including SQL Server login names and passwords).
• Names of I/O Server host machines, I/O Server application names, topic names, and item names.
• Any text associated with licensing.
Integration with Other AVEVA Products
The Historian is an open relational database for plant and process data. Many of the features of the historian
allow it to be used with many of other products from AVEVA.
The historian can store data from any application that supports SuiteLink™. Examples of AVEVA applications that
can send data to the historian are Application Server, I/O Servers, and InTouch® WindowViewer™.
Any client application that can retrieve information using SQL can retrieve data from Historian. For example,
some AVEVA products that can retrieve data by means of SQL queries are the InTouch HMI, Historian Client
applications and controls, Manufacturing Execution Module, and InBatch™ products. The Historian further
extends SQL to improve the ability to handle time series data.
Also, the Historian I/O Server (aahIOSvrSvc.exe) is an interface for clients to access current data values a historian
by means of the SuiteLink protocol. The Historian I/O Server can update items with current values for given
topics, providing "real-time" I/O Server functionality.
Finally, you can use InTouch to configure the historian by importing tag definitions and I/O Server definitions
from the InTouch Tagname.x file into the Runtime database.
System Sizing Examples
To help you determine how to size your system, performance reports are provided for different Historian
configurations.
Important: The information presented here is a guideline only. The actual results in your environment may vary.
Process Historian Sizing Examples
Performance reports are provided for various levels of a Historian.
Server 1 (Non-Tiered): 2.4 GHz Single Processor Quad-Core CPU
Historian Specifications
• DELL OptiPlex 755 with 2.4 GHz single processor quad-core CPU
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 123
AVEVA™ System Platform Installation Guide
Chapter 7 – AVEVA Historian Server Requirements and Recommendations
• 4 GB RAM
• 512 MB Virtual Memory
• 1 Gbps NIC
• Microsoft SQL Server 2017 Standard Edition
• SQL memory clamped @ 512 MB
• 12-hour history block duration
Tag Information
Tag count (total) = 5,187
Analog tags = 2,607
Discrete tags = 2,285
String tags = 295
Manual tags = 17
Update rate of +/- 5,000 updates/second
Remote IDAS
None.
Event Information
• 3 snapshot events, each having:
• 1 analog snapshot
• 1 discrete snapshot
• 1 string snapshot
• 2 summary events, each having:
• 1 AVG calculation (1 tag every 8 hours)
• 1 MAX calculation (1 tag every 8 hours)
• 1 MIN calculation (1 tag every 8 hours)
• 1 SUM calculation (1 tag every 8 hours)
• 1 SQL insert every 4 hours
• 2 SQL multi-point updates every hour
Query Load
For the following seven queries, each are occurring at different times in the hour:
• 1 query (trend):
• live mode - 1 second update
• 1-hour duration
• 10 tags (7 analogs, 3 discretes)
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 124
AVEVA™ System Platform Installation Guide
Chapter 7 – AVEVA Historian Server Requirements and Recommendations
• 1 query: 1-hour range / hour (1 tag)
• 4 queries: 15-minute range / hour (1 tag)
• 1 query: 24-hour report every 24 hours (25 to 30 tags)
Performance Results
Category
Value
Average CPU load (%)
1.896
Historian memory (Private Bytes) consumption (MB)
714
Number of online history blocks
18
Uncompressed hard drive disk space per history block (MB)
1002
Server 2 (Non-Tiered): Four Dual-Core 2.7 GHz CPUs
Historian Specifications
• DELL Precision WorkStation T5400 with four dual-core Intel Xeon 2.7 GHz CPUs
• 4 GB RAM
• 3072 MB Virtual Memory
• 1 Gbps NIC
• Microsoft SQL Server 2017 Standard Edition
• SQL memory clamped @ 1024 MB
• 4-hour history block duration
Tag Information
Tag count (total) = 63,000
Analog tags = 39,359
Discrete tags = 19,734
String tags = 295
Manual tags = 5,057
Update rate of +/- 30,000 updates/second
Remote IDAS
One remote IDAS:
• P4 1.7 GHz
• 1 GB RAM
• 34,000 tags via the remote IDAS and the rest via the local IDAS
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 125
AVEVA™ System Platform Installation Guide
Chapter 7 – AVEVA Historian Server Requirements and Recommendations
Note: Because this configuration was used for performance and stress testing, the remote IDAS tag count is
more than the recommended 30,000 maximum.
Event Information
• 3 snapshot events, each having:
• 1 analog snapshot
• 1 discrete snapshot
• 1 string snapshot
• 2 summary events, each having:
• 1 AVG calculation (1 tag every 8 hours)
• 1 MAX calculation (1 tag every 8 hours)
• 1 MIN calculation (1 tag every 8 hours)
• 1 SUM calculation (1 tag every 8 hours)
• 1 SQL insert every 4 hours
• 2 SQL multi-point updates every hour
Query Load
For the following seven queries, each are occurring at different times in the hour:
• 1 query (trend):
• live mode - 1 second update
• 1- hour duration
• 10 tags (7 analogs, 3 discretes)
• 1 query: 1-hour range / hour (1 tag)
• 4 queries: 15-minute range / hour (1 tag)
• 1 query: 24-hour report every 24 hours (25 to 30 tags)
Performance Results
Category
Value
Average CPU load (%)
5.38
Historian memory (Private Bytes) consumption (MB)
1174
Number of online history blocks
20
Uncompressed hard drive disk space per history block (GB)
4.12
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 126
AVEVA™ System Platform Installation Guide
Chapter 7 – AVEVA Historian Server Requirements and Recommendations
Server 3 (Non-Tiered): Four Dual-Core 3.4 GHz CPUs
Historian Specifications
• DELL PowerEdge 6800 with four dual-core Intel Xeon 3.4 GHz CPUs
• 16 GB RAM
• 4096 MB Virtual Memory
• 1 Gbps NIC
• Microsoft SQL Server 2017 Standard Edition
• SQL memory clamped @ 3967 MB
• 2-hour history block duration
Tag Information
Tag count (total) = 133,941
Analog tags = 73,600
Discrete tags = 53,560
String tags = 6920
Update rate of +/- 50,000 updates/second
MDAS
In the total tag count, 4,009 tags originated from Application Server.
Remote IDAS
Two remote IDASs:
• Remote IDAS 1: P4 1.9 GHz, 1 GB RAM
• Remote IDAS 2: P4 2.5 GHz, 512 MB RAM
44,370 tags via the remote IDAS 1
45,584 tags via the remote IDAS 2
44,383 tags via the local IDAS
Note: Because this configuration was used for performance and stress testing, the remote IDAS tag counts are
more than the recommended 30,000 maximum.
Event Information
• 3 snapshot events, each having:
• 1 analog snapshot
• 1 discrete snapshot
• 1 string snapshot
• 2 summary events, each having:
• 1 AVG calculation (1 tag every 8 hours)
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 127
AVEVA™ System Platform Installation Guide
Chapter 7 – AVEVA Historian Server Requirements and Recommendations
• 1 MAX calculation (1 tag every 8 hours)
• 1 MIN calculation (1 tag every 8 hours)
• 1 SUM calculation (1 tag every 8 hours)
• 1 SQL insert every 4 hours
• 2 SQL multi-point updates:
• 1 every 15 minutes
• 1 every 30 minutes
Query Load
For the following seven queries, each are occurring at different times in the hour:
• 1 query (trend):
• live mode - 1 second update
• 15-minute duration
• 15 tags (10 analogs, 5 discretes)
• 1 query: 1-hour range / hour (1 tag)
• 4 queries: 15-minute range / hour (1 tag)
• 1 query: 24-hour report every 24 hours (25 to 30 tags)
Performance Results
Category
Value
Average CPU load (%)
10
Historian memory (Private Bytes) consumption (MB)
360
Number of online history blocks
10
Uncompressed hard drive disk space per history block
(average GB)
1.81
Server 4 (Tier-2): Eight Dual-Core 2.67 GHz CPUs (Hyper Threaded)
Historian Specifications
• DELL PowerEdge T610 with Eight Dual-Core 2.67 GHz CPUs (Hyper Threaded)
• 48 GB RAM
• 48 GB Virtual Memory
• 1 Gbps NIC
• Windows Server 2019 Data Center Edition
• Microsoft SQL Server 2017 Standard or Enterprise
• SQL memory clamped @ 4096 MB
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 128
AVEVA™ System Platform Installation Guide
Chapter 7 – AVEVA Historian Server Requirements and Recommendations
• 1-hour history block duration
Tag Information
Tag count (total) = 2,000,000
Analog tags = 1,000,000
Discrete tags = 900,000
String tags = 100,000
Update rate of +/- 150,000 updates/second
Query Load
The following query is occurring at different times in the hour:
• 1 query (trend):
• live mode - 1 second update
• 15-minute duration
• 500 tags (250 analogs, 225 discretes, 25 strings)
Performance Results
Category
Value
Average CPU load (%)
26.444
Historian memory (Private Bytes) consumption (MB)
11,124
Number of online history blocks
246
Uncompressed hard drive disk space per history block
(average GB)
10.00
SCADA (Tiered) Historian Sizing Examples
Performance reports are provided for various levels of a multiple Historian SCADA configuration.
Topology 1: Centralized Tiered Historian Topology on a Slow/Intermittent
Network
This topology consists of ten tier-1 historians performing simple and summary replication of the same tags
independently to two tier-2 historians. This topology is targeted to reflect the requirements of geographically
distributed SCADA applications operating on slow and intermittent networks.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 129
AVEVA™ System Platform Installation Guide
Chapter 7 – AVEVA Historian Server Requirements and Recommendations
The 400 Kbps data transfer limit reflects a typical data transfer speed between remote locations over the
Internet. The data transfer from each tier-1 historian to a tier-2 historian is assumed to be through a dedicated
400 Kbps connection; multiple tier-1 historians do not share the same 400 Kbps connection. It is assumed that
the 400 Kbps is a bandwidth that can be fully used.
Tier 2 Historian Specifications
• DELL PowerEdge 6800 with four dual-core Intel Xeon 3.4 GHz CPUs
• 16 GB RAM with enabled PAE or 4 GB RAM
• Disk I/O subsystem of a 100MB/s throughput, 6 ms access time.
• 100/1000 Base-T network card
• 400 Kbps network connection (actual usable bandwidth)
Tier 1 Historian Specifications
• DELL Precision WorkStation T5400 with dual processor quad-core Intel Xeon 2.7 GHz CPUs
• 4 GB RAM
• Disk I/O subsystem of a 60MB/s throughput, 16 ms access time.
• 100/1000 Base-T network card
Loading Information
Assume that the total tag count on the tier-1 historian is 15,000.
The tier-1 historian receives 15,000 tags from I/O Servers of the following types and data rates:
• 12,000 4-byte analog delta tags changing every 2 seconds: (10,000 always fitting the real-time window and
2,000 falling outside of the real-time window being 50 minutes late).
• 2,800 1-byte discrete delta tags changing every 2 seconds
• 200 variable-length string delta tags of 32-character length changing every 30-seconds
The tier-2 historian stores the following:
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 130
AVEVA™ System Platform Installation Guide
Chapter 7 – AVEVA Historian Server Requirements and Recommendations
• 6,000 tags with hourly analog summary calculations performed at the top of each hour (using 6,000 4-byte
analog tags as tier-1 tags)
• Another 6,000 tags with 1-minute analog summary calculations performed at the top of each minute (using
6,000 4-byte analog tags as tier-1 tags)
• 1,500 tags replicated (as simple replication) to tier-2 (using 1,400 1-byte discrete tags and 100 variablelength string delta tags as tier-1 tags)
• Another 1,500 tags only stored on tier-1 (using 1,400 1-byte discrete tags and 100 variable-length string delta
tags as tier-1 tags)
Performance Results for the Tier-2 Historian
Category
Value
Average CPU load (%) (with no queries executing)
1%
Historian memory (Virtual Bytes) consumption (GB)
3.05 GB
Number of online history blocks
312
Uncompressed hard drive disk space per history block
(average MB)
888 MB
Latency Results
Category
Value
Fastload (1 day fastload)
10.33 hours
Simple replication
4 seconds
Summary replication
4.6 seconds
Latency is the difference in time between when the value is received by the tier-1 historian and when it is
received by the tier-2 historian.
Topology 2: Centralized Tiered Historian Topology for a Single Physical Location
A 100 Mbps data transfer limit reflects a typical data transfer speed within one location, but distributed over
several buildings. In this case the 100 Mbps bandwidth is a physical characteristic of the connection. It is
assumed that up to 33% of that physical bandwidth can be used.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 131
AVEVA™ System Platform Installation Guide
Chapter 7 – AVEVA Historian Server Requirements and Recommendations
Tier-2 Historian
Tier-2 Historian
100-Base T
Tier-1 Historians
(standard configurations)
Tier 2 Historian Specifications
• DELL PowerEdge 6800 with four dual-core Intel Xeon 3.4 GHz CPUs
• 16 GB RAM with enabled PAE or 4 GB RAM
• Disk I/O subsystem of a 100MB/s throughput, 6 ms access time.
• 100/1000 Base-T network card
• 100 Kbps network connection (actual usable bandwidth)
Tier 1 Historian Specifications
• DELL Precision WorkStation T5400 with dual processor quad-core Intel Xeon 2.7 GHz CPUs
• 4 GB RAM
• Disk I/O subsystem of a 60MB/s throughput, 16 ms access time.
• 100/1000Base-T network card
Loading Information
Assume that the total tag count on the tier-1 historian is 15,000.
The tier-1 historian receives 15,000 tags from I/O Servers of the following types and data rates:
• 12,000 4-byte analog delta tags changing every 2 seconds: (10,000 always fitting the real-time window and
2,000 falling outside of the real-time window being 50 minutes late).
• 2,800 1-byte discrete delta tags changing every 2 seconds
• 200 variable-length string delta tags of 32-character length changing every 30-seconds
The tier-2 historian stores the following:
• 6,000 tags with hourly analog summary calculations performed at the top of each hour (using 6,000 4-byte
analog tags as tier-1 tags)
• Another 6,000 tags with 1-minute analog summary calculations performed at the top of each minute (using
6,000 4-byte analog tags as tier-1 tags)
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 132
AVEVA™ System Platform Installation Guide
Chapter 7 – AVEVA Historian Server Requirements and Recommendations
• 1,500 tags replicated (as simple replication) to tier-2 (using 1,400 1-byte discrete tags and 100 variablelength string delta tags as tier-1 tags)
• Another 1,500 tags only stored on tier-1 (using 1,400 1-byte discrete tags and 100 variable-length string delta
tags as tier-1 tags)
Performance Results for the Tier-2 Historian
Category
Value
Average CPU load (%) (with no queries executing)
1.55%
Historian memory (Virtual Bytes) consumption (GB)
3.3 GB
Number of online history blocks
312
Uncompressed hard drive disk space per history block
(average MB)
888 MB
Latency Results
Category
Value
Fastload (1 day fastload)
9.92 hours
Simple replication
1.65 seconds
Summary replication
1.51 seconds
Latency is the difference in time between when the value is received by the tier-1 historian and when it is
received by the tier-2 historian.
Topology 3: Simple Tiered Historian Topology for a Modem Configuration
In a modem configuration, the network bandwidth between the tier-1 and the tier-2 historians is limited by 56
Kbps. Because the tag count and the replication data rate of the tier-1 historian should be very limited, it would
be sufficient to consider only one tier-1 historian performing simple replication to one tier-2 historian over a
modem network.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 133
AVEVA™ System Platform Installation Guide
Chapter 7 – AVEVA Historian Server Requirements and Recommendations
Tier-2 Historian
56 Kbps
Tier-1 Historian
(modem configuration)
Tier 2 Historian Specifications
• DELL Precision WorkStation T5400 with dual processor quad-core Intel Xeon 2.7 GHz CPUs
• 4 GB RAM
• Disk I/O subsystem of a 60MB/s throughput, 16 ms access time.
• 100/1000Base-T network card
• 56K modem
Tier 1 Historian Specifications
• OptiPlex 755 with single processor quad-core CPU 2.4 GHz
• 4 GB RAM
• Disk I/O subsystem of a 60MB/s throughput, 16 ms access time.
• 100/1000Base-T network card
• 56K modem
Loading Information
In the tier-1 historian modem configuration, the tier-1 historian receives 3,000 tags from I/O Servers of the
following types with average update rate 300 items per second:
• 1,500 4-byte analog delta tags (1,400 always fitting the real-time window and 100 falling outside of the realtime window being 50 minutes late)
• 1,350 1-byte discrete delta tags
• 150 variable-length string delta tags of 32 bytes each
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 134
AVEVA™ System Platform Installation Guide
Chapter 7 – AVEVA Historian Server Requirements and Recommendations
Performance Results for the Tier-2 Historian
Category
Value
Average CPU load (%) (with no queries executing)
1%
Historian memory (Virtual Bytes) consumption (GB)
1.86 GB
Number of online history blocks
30
Uncompressed hard drive disk space per history block
(average GB)
43 MB
Latency Results
Category
Value
Fastload (1 day fastload)
n/a
Simple replication
5 seconds
Summary replication
n/a
Latency is the difference in time between when the value is received by the tier-1 historian and when it is
received by the tier-2 historian.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 135
Chapter 8
AVEVA Historian Server Installation and
Configuration
Preparing for the Historian Installation
A complete AVEVA Historian system consists of the following software components:
• Microsoft SQL Server
• Historian program files, database files, and history data files
• System Management Console, the configuration and control tool
• One or more local or remote IDASs (at least one must be defined)
• Historian documentation.
You should have a definite plan for implementing the historian in your plant environment before you start the
installation process. This plan should include the type of network architecture for the historian system, the
amount of disk space required for data storage, and the amount of space required for the historian database files
and log files.
Also, any administrative security accounts that you specify for either the Microsoft SQL Server or the historian
should be accounts that do not change often, if ever. In particular, do not change an administrative password
during any part of the installation process.
You must have administrative rights on the local computer to install the historian. The account with which you
log on to the computer must also be a sysadmin for the SQL Server or you must be able to provide a sysadmin
account for the SQL Server when prompted for it during the installation.
The installation program detects any previous versions of the historian and notifies you of your migration
options.
Microsoft SQL Server Installation
You need to install and run the required version of Microsoft SQL Server before installing the Historian.
Configure the following Microsoft SQL Server options before installing the historian. If you already have
Microsoft SQL Server installed, you can run the Microsoft SQL Server setup program to change these options.
Microsoft SQL Server options should only be configured by a qualified Windows or SQL Server administrator. For
more information, see your Microsoft SQL Server documentation.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 136
AVEVA™ System Platform Installation Guide
Chapter 8 – AVEVA Historian Server Installation and Configuration
• Microsoft Client Utilities must be installed.
• The historian must run with the Microsoft SQL Server default instance name (that is, the computer name).
• During the Database Engine Configuration step of the SQL Server installation, make sure to add the Network
Account and/or the local Administrators group as authorized users.
• Remote Microsoft SQL Servers are not supported by the historian.
• For networking support, use named pipes and any other support required at your site. However, you must
select at least named pipes and TCP/IP sockets (the defaults). It is highly recommended that you do not
modify the default configuration for named pipes and TCP/IP sockets.
• As you select the path to the data files, you must consider that the historian Runtime database will grow,
especially if you are going to use the event subsystem (including summaries) or storing data in the
ManualAnalog, ManualDiscrete, or ManualString tables.
• The Microsoft SQL Server services should be installed using the local system account. The account you
specify should be an account that does not change often, if ever.
• For obvious security reasons, you should not use a blank password for Microsoft SQL Server.
• Both case-sensitive and case-insensitive SQL Servers are supported. However, you should avoid mixing casesensitive collations in tiered historian topologies.
• The SQL Server e-mail functionality requires a Windows domain user account. You can change the service
account after SQL Server is installed. However, it is highly recommended that you use an account for which
the password does not change often. For more information on SQL Server e-mail, see your Microsoft SQL
Server documentation.
Historian Installation Features
The Historian installation program allows you to install some of the features of the system separately. The
following table describes the various historian features that can be installed. The online help is installed with all
the features.
For information on hardware and software requirements for installing any of these features, see the Historian
Readme file.
Feature
Description
Historian
This option installs or re-installs the historian, configuration tools and
selected subcomponents.
IDAS
An IDAS, which can be used remotely. The IDAS is always installed if you
select to install a complete historian.
Configuration Tools
The server management tools include Historian Configuration Editor and
Historian Management Console. Both of these applications are MMC snapins that are contained in the System Management Console. These tools are
always installed on the same computer as the historian and can also be
installed on a different computer on the network. The Historian Database
Export/Import Utility is also an installed configuration tool.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 137
AVEVA™ System Platform Installation Guide
Chapter 8 – AVEVA Historian Server Installation and Configuration
Feature
Description
ActiveEvent
ActiveEvent is an ActiveX control that allows you to notify the historian
classic event system when an event has occurred in another application,
such as InTouch HMI software.
Insight Client
Historian Insight is a browser client included with the Historian. It is the onpremises version of AVEVA Insight, and provides instant access to
production and performance data.
Historian Extensions This option installs historian extensions for OData and SQL Server Reporting
Services (SSRS).
About Historian Installation
Historian installation is performed in two phases. In the first phase, the installation program performs the
following operations:
• Deploys the common components, such as SuiteLink and the License Viewer, unless they are already
installed and validated.
• Locates the required version of a running Microsoft SQL Server on the local computer.
• Logs on to the installed Microsoft SQL Server using the account of the person who is currently logged on.
This account must be an administrative account on the local computer.
• Checks for required disk space based on the features that you select.
• Creates the historian directories on the hard disk, installs program files for the selected features, and
registers components. For more information, see Historian Installation Features.
• Populates the historian program or startup group with icons.
The Database Configuration Utility automatically runs after the historian program file installation is complete.
This utility:
• Creates and/or configures the required databases.
• Creates the directory for the history data files (history blocks).
To install the Historian for use in a tiered historian environment, install the Historian on the individual computers,
then implement them as described in the "Managing and Configuring Replication" chapter of the Historian
Administration Guide.
Use the System Platform installation program to install the entire system or any of the features. It is assumed
that you are familiar with the installation options. The installation program does not log any errors that may
occur.
You must have administrative rights on the local computer to install the historian. The account with which you
log on to the computer must also be a sysadmin for the SQL Server or you must be able to provide a sysadmin
account for the SQL Server when prompted for it during the installation.
Important: Do not install the Historian on a computer named INSQL, because this conflicts with the name of the
Historian OLE DB provider and the installation eventually fails.
For detailed instructions on installing, see Installing System Platform.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 138
AVEVA™ System Platform Installation Guide
Chapter 8 – AVEVA Historian Server Installation and Configuration
After the installation completes, configure the server using the instructions in Configuring Databases and Data
File Locations.
Refer to the System Platform Readme before using the historian.
Testing the Installation
Test the Historian installation to make sure that everything is installed correctly and is working properly.
To test the installation
1. Start the Historian.
2. Start the storage system and check that the system is receiving data from the system tags.
After the historian is installed, no additional configuration is required to run client tools against the server using
named pipes. However, you may want to change the system or server configuration using the System
Management Console.
Antivirus Software
After installing the Historian, configure your antivirus software. Be sure to exclude any folder that contains
history blocks. Refer to TechNote TN2865, available from the AVEVA Global Customer Support (GCS) web site, for
important information about antivirus software. Enter your GCS credentials to access the Tech Note.
Historian Menu Shortcuts
The following Start menu shortcuts are created in the AVEVA Historian folder.
• Administration
• Configuration Export and Import
• Data Import
• Historian Client Web
• Query
• Trend
The following Start menu shortcuts are created in the AVEVA folder:
• Change Network Account
• Configurator
• SQL Access Configurator
• System Platform Management Console
Note: If you performed a complete historian installation, the System Management Console is configured so
that the local SQL Server is already registered. However, if you only installed the client tools, the console is
empty.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 139
AVEVA™ System Platform Installation Guide
Chapter 8 – AVEVA Historian Server Installation and Configuration
Repairing the Historian
For a repair, the installation program automatically detects if you have an existing copy of the Historian on your
computer and then reinstalls missing or corrupt program files, registry keys, and shortcuts.
For detailed repair instructions, see Repairing an Installation.
To repair a database, use the Database Configurator. For more information, see Configuring Databases and Data
File Locations.
Modifying the Historian Installation
You can modify the Historian features that are already installed.
For detailed modification instructions, see Modifying an Installation.
To modify the disk directories for the database files and/or the history data files (history blocks), use the
Database Configurator. For more information, see Configuring Databases and Data File Locations.
Using HTTPS Instead of HTTP for Historian Client, Insight, and REST APIs
Typically, customers using the Open Data (OData) protocol can connect to a Historian server from a Historian
Client or other client application using an unencrypted (HTTP) connection. (Even without an encrypted
connection, the user credentials exchanged during login are still encrypted.) It is possible to use an encrypted
connection (HTTPS) for OData, but in that case, you must first install and configure a TLS (transport layer
security) certificate.
The following sections describe how to install and configure a TLS certificate.
About TLS Certificates
If you use an HTTPS connection with the Historian, you will need a TLS certificate. The certificate can be from a
trusted authority or a self-signed certificate.
TLS allows for encrypted authentication credentials to be passed between a server and client. A TLS certificate
containing a private key is passed between the client and server to verify identification and allow access.
Creating Self-Signed Certificates
If you choose to use a self-signed certificate with the Historian, you are responsible for configuring all clients to
trust that certificate. Consult you operating system and/or browser documentation for details about how to trust
a self-signed certificate.
To create a self-signed certificate
• In Windows PowerShell, run this command:
New-SelfSignedCertificate -DnsName <hostname> -CertStoreLocation "cert:\LocalMachine
\My"
Where
• <hostname> is the name or IP address of the computer running Insight.
Note: Remote users of Insight must use the name or IP address used in the certificate while browsing to
avoid receiving TLS warnings.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 140
AVEVA™ System Platform Installation Guide
Chapter 8 – AVEVA Historian Server Installation and Configuration
Acquiring a Certificate Thumbprint
To acquire a thumbprint (certhash) for your certificate
1. In Microsoft Management Console (MMC), double-click the certificate to open it.
2. From the Details tab, select Thumbprint.
3. Copy the thumbprint and paste it into a text editor, such as Notepad, and remove any spaces from between
the hexadecimal digits.
4. Save the file in ANSI format.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 141
AVEVA™ System Platform Installation Guide
Chapter 8 – AVEVA Historian Server Installation and Configuration
5. Copy the resulting thumbprint for use with the certhash parameter when you bind certificates to the port.
Binding Certificates to Secure Socket Layer Ports
Once you have a certificate to be used for HTTPS communication, you need to bind it to the port used for that
communication. The port acts as a self-hosted endpoint for communication with the server.
To bind a certificate to an SSL port for self-hosting
• In a command prompt, run this command as administrator (all on one line):
netsh http add sslcert ipport=0.0.0.0:<port> appid={12345678db90-4b66-8b01-88f7af2e36bf} certhash=<certificate_hash>
For every endpoint mapping, you need to supply three values:
• ipport -- identifies the ip and port
Specified as ipport=0.0.0.0:<port>, where the zeros mean all IP addresses on that port. If you are using
HTTPS and a gateway, this is port 32569. So, in that case, you would use " 0.0.0.0:32569", which means
all IP addresses on port 32569.
• certhash -- the certificate's thumbprint
The certhash comes from the specific certificate you're using. Certhash is the identifier that maps the
certificate to the specified IP endpoint. This identifier is contained in the TLS certificate (also called a SSL
certificate).
Type your certificate’s identifier in this location.
• AppID -- fixed for HttpListener Hosting
This value is static, so always use appid={12345678-db90-4b66-8b01-88f7af2e36bf}
Next, view the binding to confirm the steps above worked.
To view the binding
1. Select the Windows Start button.
2. In the command box, type the netsh command using this syntax (all on one line):
netsh http show sslcert ipport=0.0.0.0:<port>
where "<port>" is the port you configured above.
You will see a display like this one:
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 142
AVEVA™ System Platform Installation Guide
Chapter 8 – AVEVA Historian Server Installation and Configuration
Updating appsettings.json to Enable Secured Mode
Once the binding is completed, you must modify the configuration file (appsettings.json) for AVEVA Historian
Client Web to enable secure connections.
To update the AVEVA Historian Client Web configuration file
1. Locate the appsettings.json file and open it in a text editor, such as Notepad. The file is located in the
%ProgramFiles(x86)%\Wonderware\HistorianInsight\Server folder.
2. Locate the NCHServerUrl and ContentsUrl settings, and update their values to change the URL prefix from
http to https as shown in the following example:
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 143
AVEVA™ System Platform Installation Guide
Chapter 8 – AVEVA Historian Server Installation and Configuration
3. Save your changes to appsettings.json.
Updating the Registry for OWINHost to Start in Secured Mode
Once the binding is completed and the configuration file has been updated, you can modify the Windows
Registry to start OWINHost in secured mode.
To update the Registry
1. Open Regedit.
2. In the left pane, navigate to this location:
HKEY_LOCAL_MACHINE\SOFTWARE\ArchestrA\Historian\Setup
3. Update the GatewayArgs value as follows:
GatewayArgs = -port 32569 -secured 1
4. Launch the configurator, and select the Historian Server node.
5. Click Configure.
Note: To enable the Configure button, you may need to temporarily change a configured setting. For
example, toggle the Allow remote access for SMC setting, click Configure, return the setting to its original
value, then click Configure once more.
6. Restart the AVEVA Historian Client Web and AVEVA Historian Gateway services.
You can now use an encrypted connection to the server.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 144
AVEVA™ System Platform Installation Guide
Chapter 8 – AVEVA Historian Server Installation and Configuration
Uninstalling the Historian
The uninstall program allows you to remove all the historian program files. The Runtime, Holding, and A2ALMDB
databases and the history blocks are not deleted.
During the uninstall, you have the option to delete the configuration files (idatacfg_*.dat) created by IDAS and
the Configuration Service.
For detailed uninstall instructions, see Uninstalling AVEVA System Platform.
Upgrading from a Previous Version
You can upgrade directly to the current version of the Historian (2020 R2 SP1) from Historian 2014 R2 (version
11.6.12100) SP1 and later versions.
You should upgrade the Historian Server before upgrading Historian remote IDAS nodes. Remote IDAS nodes that
are not upgraded to 2020 R2 SP1 will remain fully functional. However, it is strongly recommended that you
upgrade them to 2020 R2 SP1 to incorporate minor improvements and simplify further upgrades and
maintenance.
If you have been using replication, when upgrading Historian nodes, upgrade the tier-2 Historian node first and
then the tier-1 Historian node. A tier-2 node must use the same release of the Historian, or one release newer
than its tier-1 nodes. A tier-1 node cannot replicate to a tier-2 node running an earlier version of the Historian.
About Database Migration
The data in an existing Runtime database can be migrated to a new Runtime database. The old Runtime
database is not deleted. Keep the old database until the Historian migration is validated.
Important: Back up the Runtime database before performing the migration.
There is no migration for the content of the Holding database, because this database is used only to temporarily
hold data when importing an InTouch data dictionary.
Any configuration data associated with obsolete system tags is not migrated.
For the event subsystem, all SQL-based detectors and actions are migrated to the OLE DB syntax. If you have any
custom SQL-based detectors or actions, you need to rewrite them using the OLE DB syntax.
History data that is stored in SQL Server tables (not history blocks) can be migrated after the general upgrade has
been performed.
The scripts are created when you first run the database setup utility so that you can run them at any time. The
file path is:
To migrate your database
1. On a new Historian server, use SQL Management Studio to:
a. Delete any empty Runtime database that was created as part of the installation.
b. Restore the old Runtime database from a backup.
2. Run the Configurator.
3. In the left pane, select Historian and then select Server.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 145
AVEVA™ System Platform Installation Guide
Chapter 8 – AVEVA Historian Server Installation and Configuration
4. Configure the server. See Configuring Databases and Data File Locations for details.
Upgrading the Historian Version (Microsoft SQL Server 32-bit)
Beginning with Historian 2020, only 64-bit versions of Microsoft SQL Server are supported. If your existing
databases are hosted on a 32-bit version of Microsoft SQL Server, you must migrate them to a 64-bit version.
To upgrade the Historian when using 32-bit Microsoft SQL Server:
1. Shut down and disable the Historian using the Management Console. Any remote IDAS nodes will go into
store-and-forward mode.
2. Back up the Runtime, Holding, and A2ALMDB databases.
3. Uninstall the 32-bit version of Microsoft SQL Server.
4. Install a supported 64-bit version of Microsoft SQL Server that is compatible with your database backups.
5. Restore the Runtime, Holding, and A2ALMDB databases.
6. Run the System Platform installation program to perform the upgrade. For more information, see Upgrading
System Platform.
7. In the configurator, configure 'Server' without selecting the 'Drop and Create' option. Provide the correct
path to the data files for the restored databases. For example, C:\Program Files\Microsoft SQL Server
\MSSQL12.MSSQLSERVER\MSSQL\DATA.
8. Configure the remaining components, if not already configured.
9. Start the Historian. The Historian will start acquiring and storing the store-and-forward data from the existing
remote IDASs.
10. After the Historian Server node is upgraded, you can upgrade any remote IDAS nodes.
Upgrading the Historian Version
Refer to Upgrading from a Previous Version to see which versions can be directly upgraded to Historian 2020 R2
SP1.
The existing Runtime and A2ALMDB databases are automatically migrated to during the installation, preserving
all existing settings and tag configuration.
History blocks created using a previous version of the Historian do not require any migration and can be copied
to and used with Historian 2020 R2 SP1, as long as the tags they contain are present in the Runtime database.
To upgrade the Historian
1. Back up the Runtime database.
2. Shut down and disable the Historian using the Management Console. Any remote IDAS nodes will go into
store-and-forward mode.
3. Run the System Platform installation program to perform the upgrade. For more information, see Upgrading
System Platform.
4. The installation program detects the previous version of the Runtime database and prompts you to keep the
existing database or recreate the new database.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 146
AVEVA™ System Platform Installation Guide
Chapter 8 – AVEVA Historian Server Installation and Configuration
5. If you re-create the database, existing Runtime database will not be re-named but will be overwritten with a
new Runtime database. If you do not re-create the database, the existing database will remain intact.
6. Finish the installation of the Historian.
7. Restart the computer.
8. Start the Historian. The Historian will start acquiring and storing the store-and-forward data from the existing
remote IDASs.
9. After the Historian Server node is upgraded, you can upgrade any remote IDAS nodes.
Migration of History Data Stored in SQL Server
The normal SQL Server tables in the Runtime database contain configuration data and certain types of history
data. History data that is stored in the normal SQL Server tables includes:
• Data in the AnalogManualHistory, DiscreteManualHistory, and StringHistory tables.
• Classic event and summary data, which is stored in the EventHistory, SummaryHistory, SummaryData,
AnalogSnapshot, DiscreteSnapshot, and StringSnapshot tables.
These tables can contain hundreds of thousands of rows, if not millions of rows. Depending of the amount of
data to be migrated, migrating this data can take a few minutes to many hours, and in some cases, days.
Important: You MUST perform the database migration before the server goes back into production, because the
history table content will be truncated. Be sure that you have disk space equivalent to two times the size of the
Runtime database on the drive to which the history data will be migrated; otherwise, the migration may fail.
Back up the Runtime database with the migrated configuration data before migrating the history data.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 147
Chapter 9
AVEVA Historian Client Information
About the Historian Client
You can use the Historian Client software to address specific data representation and analysis requirements. The
Historian Client software maximizes the value of the data present in the Historian and helps you organize,
explore, analyze, present, and distribute process data in a variety of formats.
With the Historian Client software, you can:
• Explore data graphically to find important information
• Analyze data
• Develop and execute ad hoc queries against any data stored in the Historian database
• Visualize the current process state
Historian Client Components
The Historian Client software comprises of tools that eliminate the need to be familiar with the SQL and provides
intuitive point-and-click interfaces to access, analyze, and graph both current and historically acquired timeseries data.
Desktop Applications
The Historian Client software includes the following stand-alone applications:
Historian Client Trend
• Allows plotting of historical and recent data over time
• Allows you to compare data over different time periods
Historian Client Query
• Allows you to query the Historian database
• Provides complex, built-in queries
• Eliminates the need to be familiar with the database structure or SQL
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 148
AVEVA™ System Platform Installation Guide
Chapter 9 – AVEVA Historian Client Information
Microsoft Office Add-Ins
The Historian Client software includes the following add-ins for Microsoft Excel and Microsoft Word. The add-ins
support only 32-bit versions of these applications.
Historian Client Workbook
• Allows display and analysis of historical and recent data from a Historian database using the Excel
spreadsheet format
Historian Client Report
• Allows advanced reporting of historical and recent data from a Historian database using the Word document
format
ActiveX and .NET Controls
The aaHistClientTrend and aaHistClientQuery controls provide the essential functionality of the Historian Client
Trend and Historian Client Query. You can use these controls in container applications, such as InTouch® HMI
software, Visual Studio (Visual Basic .NET or C#), and Internet Explorer. You can also use Historian Client "building
block" controls (such as aaHistClientTagPicker, aaHistClientTimeRangePicker, and so on) in your custom
applications.
Requirements and Recommendations
You must log on to the computer as an administrator to install the Historian Client software. Be sure that you
read the hardware and software requirements in the System Platform Readme before starting the installation.
Support for Operating System Language Versions
The English version of the Historian Client software runs on the following operating system languages:
• English
• French
• German
• Japanese
• Simplified Chinese
Note: The SQL Server locale language must be the same as the operating system locale language.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 149
Chapter 10
AVEVA Historian Client Installation and
Configuration
The System Platform installation program allows you to install the Historian Client software. The System Platform
installation program copies the files from the setup DVD to the target computer.
For more information on the components installed, see Historian Client Components.
About Historian Client Installation
Before installing the Historian Client software, log on to the computer as an administrator. Before copying the
software files, the System Platform installation program checks for the basic system prerequisites.
You can individually select or deselect features of Historian Client for installation. These are:
• Trend/Query Clients: This feature lets you view and analyze data and trends.
• Microsoft Office (32-bit) Add-ins: This feature installs Historian Client add-ins for Microsoft Word and Excel.
You must have a 32-bit version of these programs installed.
• PDF Documents
The System Platform installation program checks if a Microsoft Excel process is running. If Excel is running, a
message appears informing you that an Excel process and the aaHistClientReportingService.exe service are
running.
To continue with the installation, you need to manually stop the services and click Retry. Click Close if you want
to stop the installation.
Note: In some cases, depending upon the operating system and the prerequisite, you may have to restart the
system after the prerequisites are installed. In such cases, the setup automatically continues after the restart.
For instructions on installing the Historian Client software files, see Installing System Platform.
After the Historian Client software is installed on the computer, you must install the Language Packs manually.
Using Historian Client Software with Roaming Profiles
If your network environment uses roaming user profiles, you must change a registry key so that changes to any
Historian Client software options are saved in the user profiles.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 150
AVEVA™ System Platform Installation Guide
Chapter 10 – AVEVA Historian Client Installation and Configuration
To save software options in the roaming user's profile, add a DWORD key named "EnableRoaming" to the user's
HKEY_CURRENT_USER\Software\ArchestrA\ActiveFactory registry folder and change its value to 1.
Repairing the Historian Client Installation
You can use the System Platform installation program to repair corrupt files of the installed features. For more
information, see Repairing an Installation.
Note: You can also use the standard Windows Uninstall/Change Programs feature from the Control Panel to
repair the Historian Client software installation.
Uninstalling Historian Client
You can use the System Platform installation program to remove the Historian Client software that exists on your
computer. For more information, see Uninstalling AVEVA System Platform.
Note: You can also use the standard Windows Uninstall/Change Programs feature from the Control Panel to
remove the Historian Client software installation.
Upgrading from a Previous Version
You can upgrade directly to the current version of the Historian (2020 R2 SP1) from Historian 2014 R2 (version
11.6.12100) SP1 and later versions.
You should upgrade the Historian Server before upgrading Historian remote IDAS nodes. Remote IDAS nodes that
are not upgraded will remain fully functional. However, it is strongly recommended that you upgrade them to
Historian 2020 R2 SP1 to incorporate minor improvements and simplify further upgrades and maintenance.
If you have been using replication, when upgrading historian nodes, upgrade the tier-2 historian node first and
then the tier-1 historian node.
Upgrading From a Version Earlier Than Historian 2014 R2
You must make some changes manually if you need to upgrade from a version of Historian prior to version 2014
R2. When you run the Configurator, it generates SQL scripts that you can use for manually migrating older
releases.
To upgrade from an earlier version of Historian (before v.2014 R2)
1. Install Historian 2020 R2 SP1 and run Configurator.
2. From the System Management Console, shutdown and disable Historian.
3. Locate SQL scripts that you'll need for intermediate migration in this folder:
C:\ProgramData\ArchestrA\Historian\Install\Scripts
4. From SQL Server Management Studio:
a. Drop the Runtime database.
b. Restore a backup of the Runtime from your previous version of Historian.
5. Disable any triggers or constraints that would prevent schema changes. This prepares your database for
changes.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 151
AVEVA™ System Platform Installation Guide
Chapter 10 – AVEVA Historian Client Installation and Configuration
6. Run the scripts you need to update Historian.
If you are upgrading from a much older version, you may have to run scripts to incrementally upgrade
versions.Run the scripts in the order they appear (when sorted alphanumerically).
7. Restore any changes (triggers and other constraints) that you made to settings in step #5.
8. Shut down the old server's remote IDAS.
9. From the new server, force an update to the remote IDAS configuration.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 152
Appendix A
Using Silent Installation
System Platform supports silent (command line) installation. This feature uses plain text files called "Response
Files" and enables you to install System Platform products without user interaction.
Important: If prerequisite software is required for the System Platform products you are installing, all
prerequisites must be installed before starting silent installation.
Prerequisite software includes .NET Framework and SQL Server. Details about prerequisite software are provided
in System Platform Prerequisites. See SQL Server Requirements for additional information about supported
versions of SQL Server.
Setup.exe is run from the command line and accepts as an argument the name and path of a response file
containing pre-scripted responses to System Platform installation prompts.
System Platform 2020 R2 SP1 incorporates a functional change to the installation workflow. By default, some
redistributable libraries from Microsoft and other vendors are not installed by default because of the support
status of these libraries. You must acknowledge this change to successfully install System Platform. This applies
both to GUI-based installation and to silent installation. See Response File Entry to Acknowledge Installation
Change Information (Redistributable Libraries).
Additionally, a patch for AVEVA Manufacturing Execution System and certain versions of AVEVA Recipe
Management is required to ensure compatibility with System Platform 2020 R2 SP1. You must acknowledge this
requirement to successfully install System Platform. See Response File Entry to Acknowledge Compatibility
Requirement for more information.
Important: Use silent installation only to install a new system or upgrade an existing one. Adding or removing
components during an upgrade is NOT supported.
Starting Silent Installation
To run silent installation, open a command prompt using Run as administrator. The basic syntax of the silent
installation command consists of the full path to the setup.exe file (typically the DVD drive designation on your
local computer), the command line switch for silent installation, and the full path to the response file. In the
examples that follow, C:\ is the system drive and D:\ is the DVD drive.
To see descriptions of the switches and options available, enter /? after the setup command.
D:\setup.exe /?
Setup.exe will install products in UI and Silent mode.
Setup.exe [/silent] [/silentmodify] [/silentrepair] [/silentuninstall]
[/silentnoreboot] [/silentpatch] [/mingui] [responsefile] [/nowait]
/silent specifies the installation is silent Install
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 153
AVEVA™ System Platform Installation Guide
Appendix A – Using Silent Installation
and doesn't show UI.
/silentmodify specifies the installation is silent modify
and doesn't show UI.
/silentrepair specifies the installation is silent repair
and doesn't show UI.
/silentuninstall specifies this is silent uninstall.
/silentnoreboot specifies the installation is silent Install
and doesn't show UI with no reboot.
/silentpatch specifies the installation is silent patch Install.
/mingui specifies the installation is silent with mingui.
/nowait specifies with silent Install/modify/repair/uninstall
with immediate return to command line.
responsefile specifies the response file.
Examples:
setup.exe /silent responsefile.txt
setup.exe /silentmodify responsefile.txt
setup.exe /silentrepair {productguid}
setup.exe /silentrepair {productguid}.{ownerguid}
setup.exe /silentuninstall {productguid}
setup.exe /silentnoreboot responsefile.txt
setup.exe /silentpatch
setup.exe /mingui responsefile.txt
setup.exe /silent responsefile.txt /nowait
setup.exe /silentmodify responsefile.txt /nowait
setup.exe /silentrepair {productguid} /nowait
setup.exe /silentrepair {productguid}.{ownerguid} /nowait
setup.exe /silentuninstall {productguid} /nowait
Silent installation syntax:
D:\setup.exe /silent "<path\response-file-name>"
Note that the full filespec of the response file (filename plus location of file) must be included. For example:
D:\setup.exe /silent "C:\docs\WSPInstall\response.txt"
The /silent switch completely disables the graphical user interface of Setup.exe. There is no input from or
feedback to the end user. However, the installation will output progress to a log file. The log is usually found
here:
C:\Program Files (x86)\Common Files\ArchestrA\Install\ {<FolderName>}
\ILog<timestamp>.log
Silent installation with minimal GUI syntax:
D:\setup.exe /MINGUI <path\response-file-name>
Running setup with the /MINGUI switch will cause setup to install without any input from the end user, but it will
display the progress of the installation on screen.
Silent installation with automatic system restart disabled:
D:\setup.exe /silentnoreboot <path\response-file-name>
Running with the /silentnoreboot switch will keep the command window open so you can preserve messages
from the installation process. A manual reboot will be required after installation completes.
Silent installation command-line help:
D:\setup.exe /?
Running setup with the /? switch will display the silent installation command-line help.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 154
AVEVA™ System Platform Installation Guide
Appendix A – Using Silent Installation
Using Response Files
Response files are plain text files. They specify which System Platform products, and even which features of a
product that Setup.exe will install. For example, one response file could be used to install the components for a
run-time environment. A different response file might be used to install the components for a development
server.
Response files can install more than one product at a time, enabling you to install all the necessary products for a
given role.
Because the user will get little feedback on error conditions, it is necessary for the user to perform the following
checks before installing via command line:
1. The operating system must be a supported version with all of the correct service packs.
2. SQL Server must be a supported version.
3. The user running installation must have administrator rights.
4. SQL Server SysAdmin permissions must be configured. See Configure SQL SysAdmin Permissions for more
information.
5. You must acknowledge the changes to System Platform 2020 R2 SP1, as compared to prior versions,
regarding which redistributable assemblies are installed. To acknowledge this, set the parameter
"OutOfSupportRedistConsentForm.SRedistConsent=true" in the response file. See Response File Entry to
Acknowledge Installation Change Information (Redistributable Libraries) for more information.
6. You must acknowledge that a patch may be needed to ensure compatibility with AVEVA Manufacturing
Execution System and AVEVA Recipe Management, even if you do not have these products installed. To
acknowledge this, set the parameter "CompatibilityAlert.SProductCompatibilityConsent=true" in the
response file. See Response File Entry to Acknowledge Compatibility Requirement for more information.
If it is needed, apply the patch(es) to Manufacturing Execution System and/or Recipe Management, not to
System Platform. See the Compatibility Readme, located in the InstallFiles>CoexistenceUpdates folder on
the System Platform Installation media for more information.
Any issues that would stop a normal GUI-based installation, such as the presence of incompatible software, will
also prevent successful completion of a command-line installation. You can keep the command prompt open
during installation by specifying the /silentnoreboot switch. This will let you view messages related to
installation issues. Installation messages are lost when the system restarts. With the /silentnoreboot switch, you
will need to manually restart the system after installation completes. If you allow the system to restart
automatically, as it will if you use the /silent switch, you can search the log file for error conditions that may have
stopped the installation from completing successfully.
Note: If the GUI installer would install any necessary prerequisites, the command line installer will also install
these items.
All the sample response files contain information to create the Network Account for system communication. If
another System Platform product was previously installed and the the Network Account was already created,
subsequent installations will retain the original Network Account. A new account is not created.
For example, under those conditions, Setup.exe ignores the following properties in the response file:
AdminUserForm.SUserName
AdminUserForm.SPassword
AdminUserForm.SCreateLocal
AdminUserForm.SDomainName
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 155
AVEVA™ System Platform Installation Guide
Appendix A – Using Silent Installation
AdminUserForm.SEnhancedSecurity
A good approach for testing is to first run the setup.exe in GUI mode on a typical computer and confirm that no
incompatibilities exist that would stop the installation, then cancel and run by command line.
Note: If the GUI-based installation requires a system restart after the installation is complete, installing by
command line will also require a system restart. Using the /silent switch allows the system to restart
automatically. The /silentnoreboot switch suppresses the automatic restart, but will require a manual restart.
Configure SQL SysAdmin Permissions
The information in this section applies only if the logged-in Windows user for installation does not have SQL
SysAdmin permissions. If this is the case, use one of the following options.
Option 1: Use SQL authentication (SA). Add the following properties to the response file and configure them as
indicated:
ConfigureSQL.SUserName=<SA User>
ConfigureSQL.SPassword=<SA Password>
ConfigureSQL.SQLAuthentication=true
Option 2: Provide a Windows User who has SQL SysAdmin permissions. Add the following properties to the
response file and configure them as indicated:
ConfigureSQL.SUserName=<DOMAIN\USER>
ConfigureSQL.SPassword=<PASSWORD>
ConfigureSQL.SQLAuthentication=false
Creating a Response File
Response files consist of an INSTALL section and a CONFIGURATOR section. See Response File Samples for
examples that you can use after making minor edits.
Install Section
The INSTALL section defines the items that would be selected through the GUI installation dialog windows. These
are:
• The root installation directory. The default path is C:\Program Files (x86).
• Example:
FeatureForm.SInstallDir=C:\Program Files (x86)
• The Network Account (name and password), used for inter-node and inter-product communications.
• Example:
AdminUserForm.SUserName=NetworkAccount
AdminUserForm.SPassword=Password123
• Other Settings (not included in Response File Samples; add these manually if needed):
AdminUserForm.SDomainName=YourDomain
AdminUserForm.SEnhancedSecurity=True/False
• If True, the Network Account is NOT added to the system Administrators group.
• If False, the Network Account is added to the system Administrators group.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 156
AVEVA™ System Platform Installation Guide
Appendix A – Using Silent Installation
• Acknowledgement of change to installation behavior:
• OutOfSupportRedistConsentForm.SRedistConsent=false
• Setting the parameter to true indicates that you acknowledge this information. If the parameter is left at
its default, installation fails. See Response File Entry to Acknowledge Installation Change Information
(Redistributable Libraries) for more information.
• Acknowledgement that a patch may be required for AVEVA Manufacturing Execution System and AVEVA
Recipe Management to ensure compatibility with System Platform:
• CompatibilityAlert.SProductCompatibilityConsent=false
• Setting the parameter to true indicates that you acknowledge this information. If the parameter is left at
its default, installation fails. See Response File Entry to Acknowledge Compatibility Requirement for
more information.
• The components and related requirements that will be installed. You can specify by inclusion or exclusion:
• Install by inclusion example:
FeatureForm.SFeatureList=AVEVA System Platform.ASBRuntime,Application
Server.Bootstrap,Application Server.IDE
• To specify products by exclusion, first add ALL products with an inclusion statement, then list the ones
that should be left out.
Install by exclusion example:
FeatureForm.SFeatureList=ALL
FeatureForm.SExcludeFeatureList=InTouch Access Anywhere Secure
Gateway.SecurityServer_Files,InTouch Access Anywhere Authentication
• Use the following language setting when installing System Platform on a non-English operating system:
• Example:
LanguageForm.Language=French
Other options are German, Japanese, and SimplifiedChinese
Configurator Section
The CONFIGURATOR section defines the components that would be configured through the Configurator GUI.
These include the following:
• Product licensing example (to install a license server, define the license server name and port number):
AVEVA Enterprise Licensing.LicAPI2.NewServerName=SE_LICENSE_SERVER_NAME
AVEVA Enterprise Licensing.LicAPI2.NewPortNumber=55555
• ASB runtime examples. These entries are used to configure the System Management Server.
Common Platform.ASBRuntime.HttpPort = 80
Common Platform.ASBRuntime.HttpsPort = 443
Common Platform.ASBRuntime.ManagementServerPort = 443
Common Platform.ASBRuntime.ManagementServerName = MachineName
Common Platform.ASBRuntime.AsbManagedCertificates = true
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 157
AVEVA™ System Platform Installation Guide
Appendix A – Using Silent Installation
Common Platform.ASBRuntime.BindingCertificateThumbprint = thumbprint (optional required if
AsbManagedCertificates = false, otherwise remove this parameter)
Common Platform.ASBRuntime.UserName = username
Common Platform.ASBRuntime.Password = password
• AVEVA System Monitor examples. These entries are used to configure the System Monitor Manager and
Agent, formerly called Sentinel Manager and Agent.
AVEVA System Monitor.System Monitor Manager.AgentServerName=ServerName
AVEVA System Monitor.System Monitor Manager.HttpPort =httpPort (optional, if required input the
httpPort value, otherwise remove this parameter (plugin will use the default httpPort value))
AVEVA System Monitor.System Monitor Manager.SslPort =sslPort (optional, if required input the sslport
value, otherwise remove this parameter (plugin will use the default sslPort value))
AVEVA System Monitor.Alert Email Server.SmtpOneClickConfigure = false (set true, if the SMTP email
server details enter later from System Monitor web interface and remove
SmtpServerNameorIp,SmtpServerPort,SmtpServerSecured,SmtpUserName,SmtpPassword,
SmtpFromRecipientEmailID and SmtpRecipientEmailID)
AVEVA System Monitor.Alert Email Server.SmtpServerNameorIp = MachineName or IP Address
AVEVA System Monitor.Alert Email Server.SmtpServerPort = portNo
AVEVA System Monitor.Alert Email Server.SmtpServerSecured = false (set true, if the SMTP server
needs user credentials to access the SMTP server)
AVEVA System Monitor.Alert Email Server.SmtpUserName = username
AVEVA System Monitor.Alert Email Server.SmtpPassword = password (UserName and Password
parameters are not required, if the SMTP server needs user credentials to access the SMTP, you can
remove the parameters if they are not required)
AVEVA System Monitor.Alert Email Server.SmtpFromRecipientEmailID = from_EmailID
AVEVA System Monitor.Alert Email Server.SmtpRecipientEmailID = email address for receiving alerts
from the System Monitor Manager. Use a semicolon to separate multiple addresses
AVEVA System Monitor.Alert Email Server.HttpPort =httpPort (optional, if required input the httpPort
value, otherwise remove this parameter (plugin will use the default httpPort value))
AVEVA System Monitor.Alert Email Server.SslPort =sslPort (optional, if required input the sslport value,
otherwise remove this parameter (plugin will use the default sslPort value))
• Historian examples. These entries are used to configure the Historian.
AVEVA Historian.Historian.SilentTCPPort=32568
AVEVA Historian.Historian.SilentchkBoxAutoStartHistorian=true
AVEVA Historian.Historian.SilentDBOption=REBUILD
AVEVA Historian.Historian.SilentDBPath=C:\Program Files\Microsoft SQL Server\MSSQL10.SERVER
\MSSQL\DATA
AVEVA Historian.Historian.SilentDataPath=C:\Historian
AVEVA Historian.Historian.SilentSQLUserName=SQLUserName
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 158
AVEVA™ System Platform Installation Guide
Appendix A – Using Silent Installation
AVEVA Historian.Historian.SilentSQLPassword=SQLUserPW
AVEVA Historian.Historian.SilentBlockStorageMode=1
AVEVA Historian.Search.SilentSearchInstall=true
AVEVA Historian.Extensions.SilentExtensionInstall=true
Response File Entry to Acknowledge Installation Change Information
(Redistributable Libraries)
This release of System Platform does not install certain components from Microsoft and other third-parties that
were installed in prior versions because they are now out-of-support. If you have custom-built objects or controls
that rely on these components, you can still choose to install them. However, you must acknowledge this change
before you can install System Platform. The GUI-based installation process displays a form describing the change
in behavior. Silent install of System Platform requires that you change the setting of a parameter, as described
below:
IMPORTANT CHANGE TO INSTALLATION BEHAVIOR
With this release of System Platform, AVEVA no longer installs older, out-of-support redistributable libraries from
Microsoft or other vendors. For the long term sustainability and security of your system, AVEVA strongly
recommends that you do not elect to install these libraries, which are outside their published support life cycle
and will not necessarily receive any further functional or security-related fixes from their vendors in the future.
CONSIDERATIONS FOR EXISTING PROJECTS
If upgrading an existing project which includes custom-built executable components, which were added to the
system after installation, consider that they may rely on these older libraries. Examples include but are not
limited to:
• Objects developed using the Application Object Toolkit (AOT)
• Custom script libraries (DLLs)
• Third-party custom-built .NET controls
AVEVA recommends you recompile these custom components using the latest redistributable libraries. You
should request updates/upgrades for third-party controls, libraries, and components from their vendors.
Set the following parameter to true in your response file to indicate that you have read and acknowledged this
information:
OutOfSupportRedistConsentForm.SRedistConsent=true
Installation will not succeed if the parameter is left at its default value, if the parameter is not present in the
response file, or if the parameter has an invalid configuration.
Response File Entry to Install Out-of-Support Redistributables
If there are custom-built components in your solution, and in the rare case that you cannot update them before
installing System Platform, you can install them silently by adding a parameter, "AVEVA System
Platform.RedistInstall" to the SFeatureList, in the <Install> section of your response file:
FeatureForm.SFeatureList=AVEVA System Platform.RedistInstall,AVEVA System Platform.ASBRuntime,AVEVA
System Platform.ASBServiceRepository,Application Server.Bootstrap,Application Server.Galaxy_Repository,AVEVA
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 159
AVEVA™ System Platform Installation Guide
Appendix A – Using Silent Installation
Enterprise Licensing Platform.AELicenseManager,AVEVA Enterprise Licensing Platform.AELicenseServer,AVEVA
System Monitor.SIM,AVEVA System Monitor.PSMSConsoleService
See Response File Entry to Acknowledge Installation Change Information (Redistributable Libraries) for more
information about out-of-support redistributables and the limited number of reasons to install them.
Response File Entry to Acknowledge Compatibility Requirement
A patch must be applied to the following products and versions to ensure compatibility with System Platform
2020 R2 SP1:
• Manufacturing Execution System 6.2.0. Older versions must be updated to version 6.2 and then patched.
• Recipe Management 4.5.0 and 4.6.0. These two most recent versions must be patched. Versions prior to 4.5
are compatible with System Platform 2020 R2 SP1 and do not require patching.
Even if your system does not include Manufacturing Execution System or Recipe Management, you must
acknowledge that you are aware of this potential incompatibility and the need to fix it by applying the patch. The
GUI-based installation process displays an alert if it detects either of these products on the node where you are
installing System Platform. Please review the Compatibility Readme, located in the
InstallFiles>CoexistenceUpdates folder on the System Platform Installation media for more information.
Silent installation of System Platform requires that you change the setting of a parameter, as described below,
whether or not the products are installed:
Set the following parameter to true in your response file to indicate that you have read and acknowledged this
information:
CompatibilityAlert.SProductCompatibilityConsent=true
Installation will not succeed if the parameter is left at its default value, if the parameter is not present in the
response file, or if the parameter has an invalid configuration.
Response File Entries to Configure the License Server
You can configure licensing through the silent install process by using a response .txt file. To configure the License
Server, add the following entry to your .txt response file:
<configurator>
AVEVA Enterprise Licensing Platform.LicAPI2.NewServerName=SE_LICENSE_SERVER_NAME
AVEVA Enterprise Licensing Platform.LicAPI2.NewPortNumber=55555
</configurator>
Replace "SE_LICENSE_SERVER_NAME" with the name of your License Server. If you need change the port
number, replace the default entry "55555" with the new port number.
Response File Entries to Configure the System Management Server
The System Management Server (SMS) is used to establish machine trust between nodes. See Configuring the
System Management Server for additional information. To configure the SMS silently, add the following entries
to your .txt response file:
<configurator>
Common Platform.ASBRuntime.HttpPort=80
Common Platform.ASBRuntime.HttpsPort=443
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 160
AVEVA™ System Platform Installation Guide
Appendix A – Using Silent Installation
Common Platform.ASBRuntime.ManagementServerPort=443
Common Platform.ASBRuntime.ManagementServerName=MachineName (input the Managment Server
name if need to configure to this Community Management Server)
Common Platform.ASBRuntime.AsbManagedCertificates=true
Common Platform.ASBRuntime.BindingCertificateThumbprint=thumbprint (optional required if
AsbManagedCertificates = false, otherwise remove this parameter)
Common Platform.ASBRuntime.UserName=username
Common Platform.ASBRuntime.Password=password (UserName and Password parameters are not
required if the current logged in user is authenticated to access the Management Server,
you can remove the parameters if they are not required)
Common Platform.ASBRuntime.IsRedundantSsoServer = true (Note: ensure ManagementServerName
to be the remote node machine name, not the local node machine name)
AVEVA System Monitor.System Monitor Manager.AgentServerName=ServerName
</configurator>
• HttpPort and HttpsPort: Edit the port numbers if necessary.
• ManagementServerName: Replace ManagementServerName with the name of the SMS node.
• AsbManagedCertificates: If you do not want the SMS to manage certificates, set the
AsbManagedCertificates parameter to false. Note that if AsbManagedCertificates is false, you must enter the
thumbprint value for the BindingCertificateThumbprint parameter. For information about acquiring a
certificate thumbprint, see Using HTTPS Instead of HTTP for Historian Client, Insight, and REST APIs.
• UserName and Password: If you have not have a Network Account already configured, you must add the
user name and password. If the Network Account already exists, the username and password parameters are
ignored.
• IsRedundantSsoServer: The Redundant SSO Server feature is not available in this release. The
IsRedundantSsoServer parameter is therefore ignored.
Response File Samples
The response file samples are provided as .txt files on the installation DVD within the following directory path:
\InstallFiles\ResponseFiles\Samples\
These samples can be used as templates to initiate the installation of certain products or features during the
silent install process.
To use the response file samples as templates
1. In Notepad or a similar text editor, open the appropriate response .txt file from the installation DVD. Refer to
the Role-Based Response Files or the Product-Based Response Files sections to determine the correct .txt file
to use.
2. Edit the response file as necessary.
a. Edit the UserName, Password and CreateLocal (true or false) responses. The templates contain sample
responses on these lines. Delete the sample responses, located to the right of the equal sign (=), and
replace with your own response.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 161
AVEVA™ System Platform Installation Guide
Appendix A – Using Silent Installation
b. If you install Historian components, provide the SQL Server user name and password.
c. Acknowledge the change to the installation of out-of-support third party libraries by setting
OutOfSupportRedistConsentForm.SRedistConsent to true. For important details, see Response File Entry
to Acknowledge Installation Change Information (Redistributable Libraries).
d. Acknowledge that a patch to Manufacturing Execution System and/or Recipe Management may be
needed to ensure compatibility with System Platform by setting
CompatibilityAlert.SProductCompatibilityConsent to true. For important details, see Response File Entry
to Acknowledge Compatibility Requirement.
3. Save the file to a directory on your local computer. Note the path and full name of the file.
4. From the command line, type the install command and provide the path and filename of the response file
you want to use.
Example: D:\setup.exe /silent c:\Documents\DevNode.txt.
In this example, the setup.exe file is in the root directory of the DVD, and the development node response
file is on the local C: drive in the specified directory.
5. Press Enter to start the specified installation.
Role-Based Response Files
The following response files install and configure System Platform products to perform the functions of specific
roles. All response files listed here can be found on the installation DVD under InstallFiles\ResponseFiles
\Samples.
Response File
Description
All
Installs and configures every product included with System Platform,
except InTouch Access Anywhere Secure Gateway and InTouch
Access Anywhere Authentication Server. Since this response file
installs the Galaxy Repository, the License Server, System
Management Server, and System Monitor Manager are also
installed.
AVEVA Enterprise License
Server Node
Installs and configures the AVEVA License Server, System Monitor
Manager and other required components. The License Manager is
not installed.
AVEVA Historian Client
Node
Installs and configures the components required to connect to an
existing Historian Server, analyze the data, and provide Application
Server run-time components.
AVEVA Historian Server
Node
Installs and configures the components required to host a Historian
server, analyze the data with a Historian Client, and provide
Application Server run-time components.
AVEVA InTouch Access
Anywhere Secure Gateway
Node
Installs and configures the AVEVA InTouch Access Anywhere Secure
Gateway. No other components are installed.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 162
AVEVA™ System Platform Installation Guide
Appendix A – Using Silent Installation
Response File
Description
AVEVA System Platform
Development Server
Installs and configures the components required to host the
development server, in order to develop and test InTouch HMI and
AVEVA OMI applications.
This response file includes the Galaxy Repository, License Server,
System Monitor Manager, and System Management Server.
Remote AVEVA System
Platform Development
Client
Installs and configures the components required to connect to an
existing development server in order to develop and test InTouch
and System Platform applications.
Runtime Client
Installs and configures the components required to run InTouch
HMI, the Historian client, and AppObject server run time.
System Monitor Manager
Node
Installs and configures the System Monitor Manager and other
required components.
Product-Based Response Files
The following response files install and configure the selected product or products of System Platform. All
response files listed here can be found on the installation DVD under InstallFiles\ResponseFiles\Samples.
Response File
Description
AVEVA Application Server
Installs and configures the components needed for Application
Server run time and development. Since this response file installs
the Galaxy Repository, the License Server, System Management
Server, and System Monitor Manager are also installed.
AVEVA Application Server
and AVEVA OMI Runtime
Installs and configures the components needed for Application
Server and AVEVA OMI run-time.
AVEVA Application Server
Development
Installs and configures the components needed for Application
Server development.
AVEVA Application Server
Galaxy Repository
Installs and configures the components needed for the Galaxy
Repository. Since this response file installs the Galaxy Repository,
the License Server, System Management Server, and System Monitor
Manager are also installed.
AVEVA Enterprise License
Server Node
Installs and configures the AVEVA License Server and System
Monitor Manager and other required components.
AVEVA Historian
Installs and configures the components needed for the Historian.
AVEVA Historian Client
Installs and configures the components needed for the Historian
Client.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 163
AVEVA™ System Platform Installation Guide
Appendix A – Using Silent Installation
Response File
Description
AVEVA InTouch HMI
Installs and configures the components needed for InTouch run time
and development. Since this response file installs the Galaxy
Repository, it also installs the License Server, System Management
Server, and System Monitor Manager.
AVEVA InTouch HMI
Development and Runtime
Installs and configures the components needed for InTouch run time
and development. Since this response file installs the Galaxy
Repository, it also installs the License Server, System Management
Server, and System Monitor Manager.
AVEVA InTouch HMI
Runtime Only
Installs and configures the components needed for InTouch run time
only.
AVEVA InTouch Access
Anywhere and Runtime
Installs and configures the components needed to run InTouch
Access Anywhere and the InTouch run-time.
AVEVA InTouch Access
Anywhere Authentication
Server
Installs and configures the InTouch Access Anywhere Authentication
Server. No other components are installed.
AVEVA InTouch Access
Anywhere Secure Gateway
Installs the InTouch Access Anywhere Secure Gateway. No other
components are installed.
AVEVA Enterprise Licensing Installs the AVEVA License Server, License Manager, System Monitor
Platform
Manager and other required components.
System Monitor Manager
Installs the System Monitor Manager and other required
components.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 164
Appendix B
Single Product Installation
You can create an alternative installation media source if you are installing only Historian, Historian Client, or the
Application Server runtime, and you want to reduce network usage. This alternative installation source will be
much smaller than the full set of installation files, and thus will be easier to send to remote locations. This is of
particular value if your network connection to the remote site is slow or unreliable, and any of the following, or
similar circumstances, apply:
• You have multiple nodes at a remote site on which you want to install only Historian, Historian Client, or the
Application Server runtime.
• A firewall at the remote site restricts most off-site access, and having a local copy of the installation files is
easier to manage than having to modify the firewall.
• Installing from a WAN-based share is impossible due to the speed or reliability of the network connection.
With this procedure, you will:
1. Create a new installation source that contains a subset of the installation files contained on the System
Platform installation DVD.
2. Install Historian, Historian Client, or the Application Server runtime from this subset of files.
Copying the files, rather than installing from a remote location, eliminates the possibility of a time-out during
installation.
Guidelines for Creating a Compact Installation Source
Important: This process can only be used for installing Historian, Historian Client, or the Application Server
runtime. Other product configurations are not supported.
The workflow for creating the compact installation source is:
1. Copy the entire contents of the System Platform installation DVD.
2. Delete language and product components that are not needed.
3. Copy the directory containing the remaining components to either:
▪ To the node where you will install the product.
▪ To a CD or DVD to be used as the installation disk.
When you run the installation program, components that were deleted will show as disabled (grayed-out) and
unavailable for selection.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 165
AVEVA™ System Platform Installation Guide
Appendix B – Single Product Installation
Upgrading from a Previous Version
Do not delete folders for products that are already installed. The upgrade process will not complete if you do not
upgrade all products previously installed on the node. For example, if both Historian and Historian Client are
installed on the node, you must upgrade both.
Preparation for Installing a Single Product
To install Historian, Historian Client, Application Server, or InTouch, you can choose not to install or copy
unnecessary files.
• The root directory contains the installation program (setup.exe) and several document files. Two files in the
root directory are absolutely required: Autorun.inf (1 KB) and Setup.exe (about 2,200 KB). The remaining
files are documents: Getting Started with AVEVA Licensing, the System Platform Installation Guide, the
System Platform Virtual Implementation Guide, the System Platform Getting Started Guide, and the System
Platform Readme.
• The entire InstallITK folder (about 9 MB) is required.
The following table shows which subfolders in the InstallFiles folder are required for Historian, Historian
Client, Application Server (including AVEVA OMI run time), and InTouch HMI development and run time. You
can delete folders that are not required for the product you are installing. All file and folder sizes are
approximate and provided for reference only.
InTouch
InstallFiles Folder
(Component)
Approx
Folder Size Historian
Historian
Client
Application
Server
(Run time only or
run time and
development)
CD-ApplicationServer
1.44 GB
Required
Optional
Required
Required
CD-ASBFramework
361 MB
Required
Required
Required
Required
CD-Gateway
67 MB
Optional
Optional
Optional
Optional
CD-Historian
539 MB
Required
Optional
Optional
Optional
CD-HistorianClient
56 MB
Optional
Required
Required
Required
CD-InSightPublisher
30 MB
Optional
Optional
Optional
Optional
CD-Intouch
369 MB
Optional
Optional
Optional
Required for
English
If InTouch is required, delete language folders that are not needed (CD-InTouch = English). CD-IntouchCommon and CDIntouchWebClient are required when InTouch is installed (all languages).
CD-IntouchCommon
334 MB
Optional
Optional
Optional
Required
CD-IntouchFrench
354 MB
Optional
Optional
Optional
Required for
French
CD-IntouchGerman
350 MB
Optional
Optional
Optional
Required for
German
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 166
AVEVA™ System Platform Installation Guide
Appendix B – Single Product Installation
InTouch
InstallFiles Folder
(Component)
Approx
Folder Size Historian
Historian
Client
Application
Server
(Run time only or
run time and
development)
CD-Intouch Japanese
356 MB
Optional
Optional
Optional
Required for
Japanese
CD-Intouch SChinese
359 MB
Optional
Optional
Optional
Required for
Chinese
CD-IntouchWebClient
79 MB
Optional
Optional
Optional
Required
CD-IntouchWebClient is required when InTouch is installed (all languages).
CD-Language Assistant
162 MB
Optional
Optional
Optional
Optional
CD-LicAPI
113 MB
Required
Required
Required
Required
CD-Licensing
115 MB
Required
Required
Required
Required
CD-NGVisualization
443 MB
Optional
Optional
Required
Required
CD-OIEngine
157 MB
Required
Required
Required
Required
CD-OIGATEWAY
20 MB
Required
Required
Required
Required
CD-SentinelAim
7 MB
Required
Required
Required
Required
CD-SentinelManager
33 MB
Optional
Optional
Optional
Optional
CD-Server
50 MB
Required
Optional
Optional
Optional
CD-UnsupportedRedist
0 MB
Optional
Optional
Optional
Optional
CoexistenceUpdates
258 MB
Optional
Optional
Optional
Optional
External
2 MB
Required
Required
Required
Required
OutofSupportRedist
41 MB
Optional
Optional
Optional
Optional
538 MB
See note
(DOTNET)
See note
(DOTNET)
See note
(DOTNET)
See note
(DOTNET)
175 MB
Optional
Optional
Optional
Optional
More details shown below
More details shown below
Redist
• DOTNET
If .NET version 4.8 or higher is already installed, you can remove the DOTNET folder from Redist.
• MSOLEDBSQL
11 MB
Required
Required
Required
Required
• PreReqInstaller
0 MB
Required
Required
Required
Required
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 167
AVEVA™ System Platform Installation Guide
Appendix B – Single Product Installation
InTouch
InstallFiles Folder
(Component)
•
SQL2017EXPRESSCORE
Approx
Folder Size Historian
Historian
Client
Application
Server
(Run time only or
run time and
development)
275 MB
Optional
Optional
Optional
Optional
See Note, below, about removing subfolder SQL2017EXPRESSCORE from Redist.
• VC2012U4
13 MB
Required
Required
Required
Required
• VC2013U4
26 MB
Required
Required
Required
Required
• VC2019
37 MB
Required
Required
Required
Required
ResponseFiles
0 MB
Required
Required
Required
Required
Support
0 MB
Required
Required
Required
Required
UpgradeSupport
38 MB
Required
Required
Required
Required
Note: The Redist folder contains SQL Server Express in folder SQL2017EXPRESSCORE. You can remove Redist if:
- You are installing Historian Client. SQL Server is not required.
- You are installing Application Server, InTouch, or Historian, and SQL Server is already installed.
See SQL Server Requirements for information about supported versions of SQL Server.
CoexistenceUpdates: If AVEVA™ Manufacturing Execution System or certain versions of AVEVA™ Recipe
Management are present, you may need the contents of this folder to ensure compatibility with System Platform
2020 R2 SP1. Affected products are:
• Manufacturing Execution System 6.2.0. Older versions must be updated to version 6.2 and then patched.
• Recipe Management 4.5.0 and 4.6.0. These two most recent versions must be patched. Versions prior to 4.5
are compatible with System Platform 2020 R2 SP1 and do not require patching.
Out-of-Support assemblies: If needed for compatibility with migrated galaxies or custom objects, you may
need to include this folder which includes the following assemblies:
Redistributable Description
Folder/Assembly Name
Microsoft SQL Server 2012
Management Objects SP2
(11.2.5058.0)
SQL2012SP2FeaturePack\ SharedManagementObjects.msi (x64
and x86 versions)
Microsoft Visual C++ 2008
Redistributable
VC90SP1/vcredist_x86.exe
Microsoft Visual C++ 2010
Redistributable
VC10SP1/vcredist_x64.exe
SQL2012SP2FeaturePack\ SQLSysClrTypes.msi
(x64 and x86 versions)
VC10SP1/vcredist_x86.exe
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 168
AVEVA™ System Platform Installation Guide
Appendix B – Single Product Installation
Optional Folder for Historian
The CD-InTouch folder contains a database purge utility that Historian uses (this utility is not called when blockbased event history is utilized). Without this folder, Historian cannot purge the A2ALMDB alarm database and an
error will be generated (this does not occur with block-based history). If you are installing Historian Client only,
this utility is not called and the folder can be deleted without any issues.
Note: If you are installing Historian and the CD-Intouch has been deleted, you will not be able to purge the
A2ALMDB alarm database and an error will be generated (does not apply if you are using block-based history).
However, the installation will complete successfully.
Creating the Installation Source and Installing the Selected
Component
To create an installation source
1. Copy the entire contents of the System Platform installation DVD to a local folder on your computer or to a
network share location.
This location will be used to prepare for the installation or upgrade of the product you are installing.
Important: You must copy the entire DVD. The root directory from the DVD and all files in it must be in place
and completely intact.
2. Navigate to the location where you copied the DVD. Delete the files, components and language folders that
you do not need.
Now you are ready to install or upgrade the product(s) using either of the methods described below.
To install or upgrade a single product
Direct installation from the copy location (install locally or on a different network node):
1. Remove the original System Platform installation DVD from the drive.
Important: When you run setup.exe, it checks for the System Platform installation DVD. If the installation
DVD is available, it will be used instead of the copy location.
2. Navigate to the copy location.
3. Make sure you have deleted the folders you do not need.
4. Run setup.exe. Components that were deleted will be grayed-out and unavailable for installation.
5. If this is a new installation (not an upgrade), select the target location when you are prompted.
Installation from a CD or DVD:
1. Create a CD or DVD from the copy location after deleting the folders you do not need.
2. Run setup.exe from the CD/DVD on each node. Components that were deleted will be grayed-out and
unavailable for installation.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 169
Appendix C
Ports Used by System Platform Products
System Platform Ports
The following table lists ports used by System Platform products.
Configurable
Description
Protocol
30000
Yes
Local redundancy
primary port
(WinPlatform)
TCP and
UDP
30001
Yes
Local redundancy
message port
(WinPlatform)
TCP
49152 to
65535
No
DCOM Port Range
TCPV6
135
No
DCOM and RPC
TCP
139
No
DCOM and Netbios
(Bootstrap)
TCP
445
No
DCOM and Netbios
(Bootstrap)
TCP
aaGlobalDataCache
MonitorSvr.exe
49152 to
65535
No
DCOM Port Range
TCPV6
aaGR.exe
49152 to
65535
No
DCOM Port Range
TCPV6
8090
Yes
Configurable through TCP
registry: HKLM
\SOFTWARE
\ArchestrA
\Framework
\Remoting with key
"defaultPort" and
Product
Process Name
Port
Application
Server
aaBootstrap.exe
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Add'l
Port
Page 170
AVEVA™ System Platform Installation Guide
Appendix C – Ports Used by System Platform Products
Product
Process Name
Port
Add'l
Port
Configurable
Description
Protocol
Value as <port
number> string
49152 to
65535
No
DCOM Port Range
TCP and
TCPV6
aaEngine.exe
32568
Yes
"TCP Port"
(WinPlatform Engine
advanced settings)
TCP
aaObjectViewer.exe
49152 to
65535
No
DCOM Port Range
TCPV6
aaPIM.exe
49152 to
65535
No
DCOM Port Range
TCPV6
aaPlatformInfoSvr.
exe
49152 to
65535
No
DCOM Port Range
TCPV6
aaUserValidator.exe
49152 to
65535
No
DCOM Port Range
TCPV6
NmxSvc.exe
5026
Yes
Message Exchange
port number
(WinPlatform)
TCP
Multi Galaxy
808
No
ASBMxDataProvider
Service
TCP
808
No
Galaxy Pairing
TCP
808
No
ASBGRBrowsing
Service
TCP
808
No
ASBAuthentication
Service
TCP
Yes
ASBOPCUAClient
Service, ASB Core
Service and others
who use net tcp port
sharing service (808
port)
TCP
PCS
808
PCS/ Historian
3575
Yes
Event Service
TCP
PCS/ Historian
Service (PCS
InProc Hosting)
3586
Yes
EventHistorian
Service
TCP
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
4600
Page 171
AVEVA™ System Platform Installation Guide
Appendix C – Ports Used by System Platform Products
Product
Process Name
Port
PCS
PCS.IdentityManager.
Host.exe SSDP
1900
Yes
UDP
Asb.Discovery.exe,
PCS.IdentityManager
.Host.exe
443
Yes
HTTPS
7084
Yes
System
TCP
authentication (Only
available during node
registration)
7085
Yes
System
TCP
authentication (Only
available during node
pairing)
80
Yes
any
Yes
Asb.Watchdog.exe,
Asb.ServiceManager
.exe,
PCS.IdentityManager
.Host.exe
Historian
Add'l
Port
Configurable
Description
Protocol
HTTP
OPC UA Server
TCP
135
MDAS -Used by client TCP and
nodes prior to ASP
UDP
2012 R2
136
IDAS and Remote
IDAS prior to
Historian 2017
TCP and
UDP
137
IDAS and Remote
IDAS prior to
Historian 2017
TCP and
UDP
138
IDAS and Remote
IDAS prior to
Historian 2017
TCP and
UDP
139
IDAS and Remote
IDAS prior to
Historian 2017
TCP and
UDP
445
File and printer
sharing
TCP
445
Remote IDAS prior to TCP and
Historian 2017
UDP
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 172
AVEVA™ System Platform Installation Guide
Appendix C – Ports Used by System Platform Products
Product
Process Name
Port
1433
Add'l
Port
Configurable
Description
Protocol
Yes
SQL Server - Used by
Historian Client.
Historian and
Historian Client 2017
and later support
non-default ports.
TCP
SQL Server Browser
UDP
TCP
1434
aahClientAccess
Point.exe
32568
Yes
Historian, Remote
IDAS 2017 and later,
and Redundant
AppServer node./
HCAL/HCAP
Historian
Insight, OData
aahGateway.exe
32569
Yes
Configured in
TCP
Historian System
Parameter
“GatewayTcpPort.”Configurable
in Historian 2017 and
later
Licensing
License Manager
80
Yes
License Manager
License Server Core
Service
55555
Yes
License Server Core
Service
License Agent
59200
Yes
License Agent
License Manager to
Activation server
outbound
443
Yes
License Manager to
Activation server
outbound
SI Direct
102
OI Server
MBTCP
502
OI Server
ABTCP
2221
OI Server
2222
OI Server
2223
OI Server
S/L OI Servers
5413
OI Server
DBServer
5481
ABCIP
GESRTP OI Server
OI Server
ATS
TCP
44818
OI Server
TCP
18245
OI Server
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Yes
Page 173
AVEVA™ System Platform Installation Guide
Appendix C – Ports Used by System Platform Products
Product
Process Name
Port
OI Gateway
OI Gateway
1883,
8883
InTouch Access
Anywhere
AccessServer64.
exe
8080
Server
TCP
57733
Server
TCP
57734
Server
TCP
57735
Server
TCP
3399
Server
TCP
EricomSecure
Gateway.exe
443
Secure Gateway
TCP
57111
Secure Gateway
UDP
InTouchWeb.
ContentHost.exe
60152
60153
InTouch Web Client
TCP
InTouchWeb.Host.
exe
60236
60237
60238
60311
60312
InTouch Web Client
TCP
InTouchWeb.Server.
exe
60161
60162
InTouch Web Client
TCP
InTouchDataService.
exe, used for
InTouchiData
58398
60118
InTouchiData
TCP
Intouch Web
Client
Intouch
Suitelink
Alarm Logger
aaLogger.exe
Alg.exe
Add'l
Port
Configurable
Description
Yes
OI Gateway MQTT
connectivity
Protocol
5413
TCP
49152 to
65000
TCP
1041
Alarm Logger
TCP
5004
Alarm Logger
TCP
1087
Alarm Logger
TCP
Alarm Manager Alarmmgr.exe
51218
System Monitor
80
Yes
HTTP
443
Yes
HTTPS
25
Yes
SMTP
587
Yes
SMTPS
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
TCP
Page 174
Appendix D
Common System Platform Processes
AVEVA System Platform Processes
The following table describes AVEVA Application Server other required System Platform processes. For a
description of services associated the the AVEVA Historian, see the AVEVA Historian Administration Guide.
Service/Process Name
Executable Name
Description
Application Server/ArchestrA Services
ArchestrA Bootstrap
(aaBootstrap)
aaBootstrap.exe
Utility to bootstrap an ArchestrA run time
to support code-module deployment and
process monitoring.
Engine Module (aaEngine)
aaEngine.exe
Supports the creation, deletion, startup,
and shutdown of objects hosted by the
Engine object as the hosted objects are
deployed and undeployed.
ArchestrA Galaxy
Repository
(aaGR)
aaGR.exe
The Galaxy Repository service to process
requests to the ArchestrA configuration
subsystem.
ArchestrA Global Data
Cache Monitor Server
(aaGlobaldata
CacheMonitorSvr)
aaGlobaldata
CacheMonitorSvr.exe
Global Data Cache Monitor service to
process file change notifications.
ArchestrA Logger Service
(aaLogger)
aaLogger.exe
Receives log messages from System
Platform component products and stores
them in a file.
ArchestrA User Validator
(aaUserValidator)
aaUserValidator.exe
User validator service to process user
validations for the ArchestrA framework.
Platform Info Server
Module
(aaPlatformInfoSvr)
aaPlatformInfoSvr.exe
Server module for the Network Account.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 175
AVEVA™ System Platform Installation Guide
Appendix D – Common System Platform Processes
Service/Process Name
Executable Name
Description
PCS Framework Server
Launcher Service
Asb.Service
Manager.exe
Starts and stops hosted services on behalf
of the watchdog. The Watchdog is a highprivilege process, which for security
purposes, is not intended for hosted
services. Therefore, the Watchdog
delegates the tasks of starting and
stopping monitored services to this
lower-privileged process.
PCS Framework Watchdog
Service
Asb.Watchdog.exe
Ensure services that provide discoverable
endpoints are running. The Watchdog is
for responsible for starting these services,
monitors their health, restarts them as
needed, and stops them when the
Watchdog stops. The Watchdog also
hosts other services such as the Deploy
Service and Service Content Provider.
LicServer.Windows
Service.exe
Provides the data model to operate the
License Server.
PCS/ASB Services
Licensing Services
License Server Agent
Service
License Server Core Service AELicServer.exe
License Manager Web
Service
LMWeb.Windows
Service.exe
Provides the data model for the FNE
Manager.
Provides web access for the License
Manager.
For more information on Windows services, see your Microsoft documentation.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 176
Appendix E
User Accounts and Groups Created by
System Platform Installation
This section describes the user accounts and groups used by System Platform It is divided by product.
Application Server OS Groups and Accounts
For System Platform 2020 R2 SP1, Application Server creates and uses the following user accounts, service
accounts, and user groups.
Name
Category
Description
aaConfigTools
Group
Provides permissions to users to connect to a Galaxy
from the IDE.
Performance
Monitor Users
Group
Membership in the Performance Monitor Users group
allows the Network Account to function without
elevated privileges. See Network Account Membership,
below, for more information.
PSMS
Administrators
Group
Membership in the PSMS Administrators group allows
the Network Account to function without elevated
privileges. See Network Account Membership, below,
for more information.
aaGalaxyOwner
User Account
This user account is the owner (dbo) of all Galaxy
databases in your system.
NT SERVICE\ aaPIM Windows Service
Account
This is the platform installation manager. It is
responsible for installing platforms. It is added to the
Administrators group as a service account.
Network Account Membership
The Network Account, also known as the ArchestrA Account, is used for off-line communications between
System Platform nodes. To support Application Server, it may have membership in some or all of the following OS
Groups, with the requirements and limitations as described below. Note that membership in some of these
groups is dependent on whether or not this is a new installation or an upgrade of an older version of System
Platform.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 177
AVEVA™ System Platform Installation Guide
Appendix E – User Accounts and Groups Created by System Platform Installation
Group Name
Description
Administrators
The Network Account will be part of the Administrators group ONLY if you
are upgrading from System Platform 2017 Update 2 or prior release. If only
Application Server is installed, you can remove the Network Account from
this group.
Distributed COM
Users
The Network Account will be part of the Distributed COM Users group ONLY
if you are upgrading from System Platform 2017 Update 2 or prior release. If
only Application Server is installed, you can remove the Network Account
from this group.
Performance
Monitor Users
This is a new OS Group added for System Platform 2017 Update 3 and later
releases. It allows the Network Account to function without elevated
privileges. Do not remove this group, and do not remove the Network
Account from this group.
PSMS
Administrators
This is a new OS Group added for System Platform 2017 Update 3 and later
releases. It allows the Network Account to function without elevated
privileges. Do not remove this group, and do not remove the Network
Account from this group.
InTouch HMI OS Groups and Accounts
For System Platform 2020 R2 SP1, InTouch HMI creates and uses the following user accounts, service accounts,
and user groups.
Name
Category
Description
aaInTouchUsers
Group
Membership in this user group is required for viewing
graphics from an application in the web browser.
ArchestrA
WebHosting
Group
This user group supports the HTTPS protocol for the
InTouch Web Client.
ASBSolution
Group
This user group provides the File System and Registry
permissions required by the PCS (a.k.a ASB) Framework.
Administrators
Group
The Network Account may be included in the
Administrators group if you have upgraded from version
System Platform 2017 Update 2 or earlier.
NT SERVICE\
InTouchData
Service
Windows Service
Account
This Service Account is used by the InTouch Web Client
or AVEVA OMI ViewApps to access InTouch tags.
NT SERVICE\
InTouchWeb
Windows Service
Account
This Service Account is used by the InTouch Web Client
to browse application graphics from a web browser.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 178
AVEVA™ System Platform Installation Guide
Appendix E – User Accounts and Groups Created by System Platform Installation
InTouch Web Client OS Groups and Accounts
To support the HTTPS protocol for InTouch Web Client, Service Accounts added for InTouch HMI are given
membership in the following OS Groups:
Group
Account
Description
ArchestrAWeb
Hosting
InTouchData
Service
You can remove these service accounts from group if
you are not using the InTouch Web Client or accessing
InTouch tags from an AVEVA OMI ViewApp
.
InTouchWeb
ASBSolution
InTouchData
Service
InTouchWeb
You can remove these service accounts from the group
if you are not using the InTouch Web Client or accessing
InTouch tags from an AVEVA OMI ViewApp.
Performance
Monitor Users
Network Account
This is a new OS Group added for System Platform 2017
Update 3 and later releases. It allows the Network
Account to function without elevated privileges. Do not
remove this group, and do not remove the Network
Account from this group.
PSMS
Administrators
Network Account
This is a new OS Group added for System Platform 2017
Update 3 and later releases. It allows the Network
Account to function without elevated privileges. Do not
remove this group, and do not remove the Network
Account from this group.
Historian Server OS Groups and Accounts
For System Platform 2020 R2 SP1, Historian Server creates and uses the following user accounts, service
accounts, and user groups.
Name
Category
Description
aaAdministrators
Group
This user group provides read/write access for Historian
Data, Batch Logon Privilege, write access to ArchestrA
registry Hive and additional privileges on Runtime
Database. A SQLServer service account (MSSQLServer) is
added to this group to allow permitted users to perform
data insertion to Historian through SQL.
aaPowerUsers
Group
Membership in this user group provides read/write
access for Historian Data and Batch Logon Privilege. This
user group also supports the HTTPS protocol for the
InTouch Web Client.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 179
AVEVA™ System Platform Installation Guide
Appendix E – User Accounts and Groups Created by System Platform Installation
Name
Category
Description
aaReplicationUsers
Group
Membership in this user group allows its members to
replicate data (Tier 2), and provides Batch Logon
privilege.
aaUsers
Group
Membership in this user group provides read access for
Historian data.
NT SERVICE\
Windows Service
aahClientAccessPoint Account
The Client Point Access Point Service is the data ingest
layer.
NT SERVICE\
aahSearch Indexer
Windows Service
Account
The Search Indexer Service indexes the tags to Historian
Server.
NT SERVICE\
Windows Service
InSQLConfiguration Account
The InSQL Configuration Service manages the Historian
Services.
NT SERVICE\
InSQLEvent System
Windows Service
Account
The InSQL Event Service is the account for the Classic
Event System service.
NT SERVICE\
InSQLManual
Storage
Windows Service
Account
The InSQL Manual Storage Service is the data import
service that processes CSV file imports.
NT SERVICE\
InSQLStorage
Windows Service
Account
The InSQL Storage Service is the Classic Storage Service
that transforms data from the legacy IDAS service.
NT SERVICE\
InSQLIndexing
Windows Service
Account
The InSQL Indexing Service is for indexing the History
Blocks.
NT SERVICE\
InSQLIOServer
Windows Service
Account
The InSQL IO Service provides access to data through
Suitelink.
NT SERVICE\
InSQLSystemDriver
Windows Service
Account
The InSQL System Driver Service captures data for
System Tags.
NT SERVICE\
aahInSight
Windows Service
Account
The aahInSight Service is for AVEVA InSight.
NT SERVICE\
aahSupervisor
Windows Service
Account
The aahSupervisor Service is for the InSight Publisher
host process.
Historian Account Group Membership
The following accounts and groups support Historian functionality
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 180
AVEVA™ System Platform Installation Guide
Appendix E – User Accounts and Groups Created by System Platform Installation
Group
Account
Description
ArchestrAWeb
Hosting
aahClientAccessPoint aahClientAccessPoint is added to this group to allow
access to the PCS certificate used for encrypting the
transport.
InSQLIOServer
InSQLIOServer is added to this group to allow Secure
Suitelink communication.
Performance
Monitor Users
Historian Service
(multiple Windows
Service Accounts)
The Historian services are added to this group to acquire
the performance counter information that will be
historized as system tags.
Performance Log
Users
Historian Service
(multiple Windows
Service Accounts)
The Historian services are added to this group to allow
logging performance counters.
Platform Common Services Accounts and OS Groups
For System Platform 2020 R2 SP1, Platform Common Services, also referred to as ASB, creates and uses the
following user accounts, service accounts, and user groups.
Name
Category
Description
AsbCoreServices
Group
This user group contains the file system and registry
permissions required by the core services of the PCS
(ASB) framework. Since these processes are started by
the ASB Watchdog, the only user account in this group
should be the NT SERVICE\Watchdog_Service virtual
service account.
ArchestrAWeb
Hosting
Group
Members of this user group can listen to the shared
HTTP (default=80) and HTTPS ports (default=443).
Members of this group also have access to the private
key of the security certificate used to bind to the HTTPS
port.
To enable a secure SuiteLink connection, add the
standard user to this group on the server side. For
details, see the AVEVA Communication Drivers Pack User
Guide, "Secured SuiteLink Connection" for details,
available at [Installation Media]\InstallFiles\CD-OIEngine
\Docs\OICore.pdf
ASBSolution
Group
Membership in this user group provides the File System
and Registry permissions required by the PCS/ASB
Framework.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 181
AVEVA™ System Platform Installation Guide
Appendix E – User Accounts and Groups Created by System Platform Installation
Name
Category
Description
NT SERVICE\
Watchdog_Service
Windows Service
Account
Watchdog_Service runs as a high-privileged virtual
service account. The group policy for this service
requires AeServiceLogonRight.
NT SERVICE\
AsbService
Manager
Windows Service
Account
AsbServiceManager runs as the low-privileged virtual
service account. The group policy for this service
requires AeServiceLogonRight.
ASBCertificate
RenewalService
Local Service
Account
ASBCertificateRenewalService runs a local account, and
is normally in a stopped state. It is only triggered by the
Asb.Watchdog process, based on the validity of the local
certificate. When the certificate is renewed, the service
is stopped. The group policy for this service requires
AeServiceLogonRight.
NT SERVICE\
AIMTokenHost
Windows Service
Account
AIMTokenHost runs as a virtual service account once the
System Management Server is configured. This is for the
PCS.IdentityManager.Host.
NT SERVICE\
Windows Service
ArchestraData Store Account
ArchestraDataStore runs as a virtual service account. It
starts and should continue to run once the installation is
complete.
PCS Account Group Membership
The following accounts and groups support Historian functionality
Group
Account
Description
ArchestrAWeb
Hosting
AIMTokenHost
All processes which need access to the private key of
certificates should be part of the ArchestrAWebHosting
user group.
ASBSolution
AsbService
Manager
InTouchData
Service
InTouchWeb
To enable a secure SuiteLink connection, add the
standard user to this group on the server side. For
details, see the AVEVA Communication Drivers Pack User
Guide, "Secured SuiteLink Connection," available at
[Installation Media]\InstallFiles\CD-OIEngine\Docs
\OICore.pdf.
These two Windows Service Accounts are not
technically PCS services, but are added to this group to
support the InTouch Web Client.
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 182
AVEVA™ System Platform Installation Guide
Appendix E – User Accounts and Groups Created by System Platform Installation
Group
Account
Description
Users
AsbService
Manager
NT SERVICE\AsbServiceManager is added to Users
group is for backward compatibility. The legacy
ASBService user was part of the Users group, and was
replaced by the AsbServiceManager as of ASB version
4.2. If not needed for compatibility, AsbServiceManager
can be removed.
AVEVA License Manager OS Groups and Accounts
For System Platform 2020 R2 SP1, AVEVA License Manager installs the following User Group. No users are added
to the group by default. This group can be deleted if the user(s) accessing the License Server and License
Manager is an administrator on that computer.
Name
Category
Description
AELicMgr
Group
Members of this group are granted non-administrator
permission to access the License Server and/or License
Manager installed on that node.
System Monitor OS Groups and Accounts
For System Platform 2020 R2 SP1, AVEVA System Monitor creates and uses the following service accounts.
Name
Category
Description
Windows Service
Account
These Windows services are added to the local
Administrators user group when System Monitor is
installed.
NT SERVICE\
psmsconsolSrv
NT SERVICE\
simHostSrv
NT SERVICE\
adpHostSrv
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 183
Index
1
• 16 Pen Trend 30
A
•
•
•
•
•
•
•
•
•
•
•
•
A2ALMDB database 113
aaAdministrators group 81
aaConfigSQL 82
aaGalaxyOwner user account 81
acquistion
◦ loading 119
ActiveEvent 137
ActiveX and .NET Controls 149
◦ aaHistClientQuery 149
◦ aaHistClientTrend 149
Antivirus Software 139
Application Server
◦ hardware requirements 93
◦ user account requirements 28
ArchestrA user account
◦ requirements for use with Application Server 28
ASBService 84
ASBSolution 84
B
• Bootstrap
◦ upgrading 89
• building block controls
◦ aaHistClientTagPicker 149
◦ aaHistClientTimeRangePicker 149
C
•
•
•
•
Change Network Account utlity 80
common components 138, 92
configuration utility 50
configuring products 42
D
• database
◦ configuring 50
◦ disk space requirements 113
• disk sizing 112
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 184
AVEVA™ System Platform Installation Guide
Index
• disk space
◦ history blocks 114
◦ planning 113
E
• Enhanced Security Mode 82
• event data
◦ migrating from older versions 147
F
• fault-tolerant servers 111
G
• Galaxy database, migrating 95
• Galaxy Repository
◦ upgrading 93
◦ upgrading with the Bootstrap 89
◦ upgrading with the Bootstrap and IDE 89
H
• hardware recommendations
◦ storage 113
• Historian
◦ components 137
◦ installation 138
◦ loading 119
◦ memory requirements 109, 118
◦ repair 151
◦ requirements 109
◦ upgrading 151
• Historian Client 148
• Historian Client
◦ Query 148
◦ Report 149
◦ Trend 148
◦ Workbook 149
◦ components 148
• Historian Database Export/Import Utility
◦ requirements 111
• history blocks
◦ disk space requirements 114
• history data
◦ disk space requirements 114
◦ migrating from older versions 145
• Holding database
◦ disk space 113
I
• IDASs
◦ installing 137
◦ performance 120
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 185
AVEVA™ System Platform Installation Guide
Index
•
•
•
•
L
•
•
•
•
•
•
M
•
•
•
•
•
N
•
•
•
•
•
◦ requirements 111
◦ security 112
IDE 94
◦ upgrading 94
◦ upgrading with the Bootstrap and Galaxy Repository 89
InBatch 123
installation 136
◦ Historian 136
◦ Historian Client 150
◦ Historian installation 136
◦ modifying 68
◦ repairing 70
◦ silent 153
◦ System Platform 30
InTouch
◦ Window Viewer 123
LAN 121
legacy mode 82
legacy software 92
License Viewer 138
licensing 102
loading
◦ Wonderware Historian 119
Management Console 137
Manufacturing Execution Module 123
memory requirements 109, 118
Microsoft Client Utilities 136
Microsoft SQL Server
◦ installation 136
named pipes 136
network cards 121
network protocol 122
networking 121
NTFS 113
O
• operating system
◦ non-English 122
◦ upgrading 93
P
• performance 118
◦ examples 123
◦ IDASs 120
• physical memory 109
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 186
AVEVA™ System Platform Installation Guide
Index
• port
◦ SQL Server 87
• port, non-default
◦ SQL Server 87
• process network 121
• products
◦ configuring 42
• protocols 122
◦ recommendations 121
R
• RAID 113
• repair 151
◦ Wonderware Historian 140
◦ Wonderware Historian Client 151
• requirements 109, 149, 93
◦ disk space 113
◦ Historian 109
◦ IDASs 111
◦ System Management Console 111
• reserved names
◦ system 84
• response files 155
• retrieval
◦ loading 119
• roaming profiles 150
• Runtime database
◦ disk space 113
◦ migration 145
S
• SCSI 113
• security
◦ modes 82
◦ remote IDASs 112
• silent installation 153
• software requirements 93
◦ Historian 109
◦ IDASs 111
◦ System Management Console 111
• SPCPro 123, 30
• SQL Server
◦ Historian installation 136
◦ incompatible version installed 87
◦ SQL Server language 149
◦ SQL Server 87, 93
◦ SQL Server, not found 86
◦ SQL Server, untested version installed 87
◦ versions 86
• storage
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 187
AVEVA™ System Platform Installation Guide
Index
•
•
•
•
•
◦ disk sizing 112
◦ hardware recommendations 113
◦ loading 119
SuiteLink 121
summary data
◦ migrating from older versions 147
system
◦ sizing 123
System Management Console
◦ installing 137
◦ requirements 111
System Platform 30
T
• TCP/IP 121, 136
• tiered historian
◦ sizing 129
U
• uninstall
◦ Historian Client 151
◦ System Platform component 72
• upgrade
◦ basic steps 93
◦ Galaxy Repository 93
◦ IDE 94
◦ operating system 93
◦ redundant pairs 96
◦ run-time nodes 96
◦ SQL Server 93
V
• virtual memory 109
W
• WAN 121
Version 2020 R2 SP1
© 2021 AVEVA Group plc and its subsidiaries. All rights reserved.
Page 188
