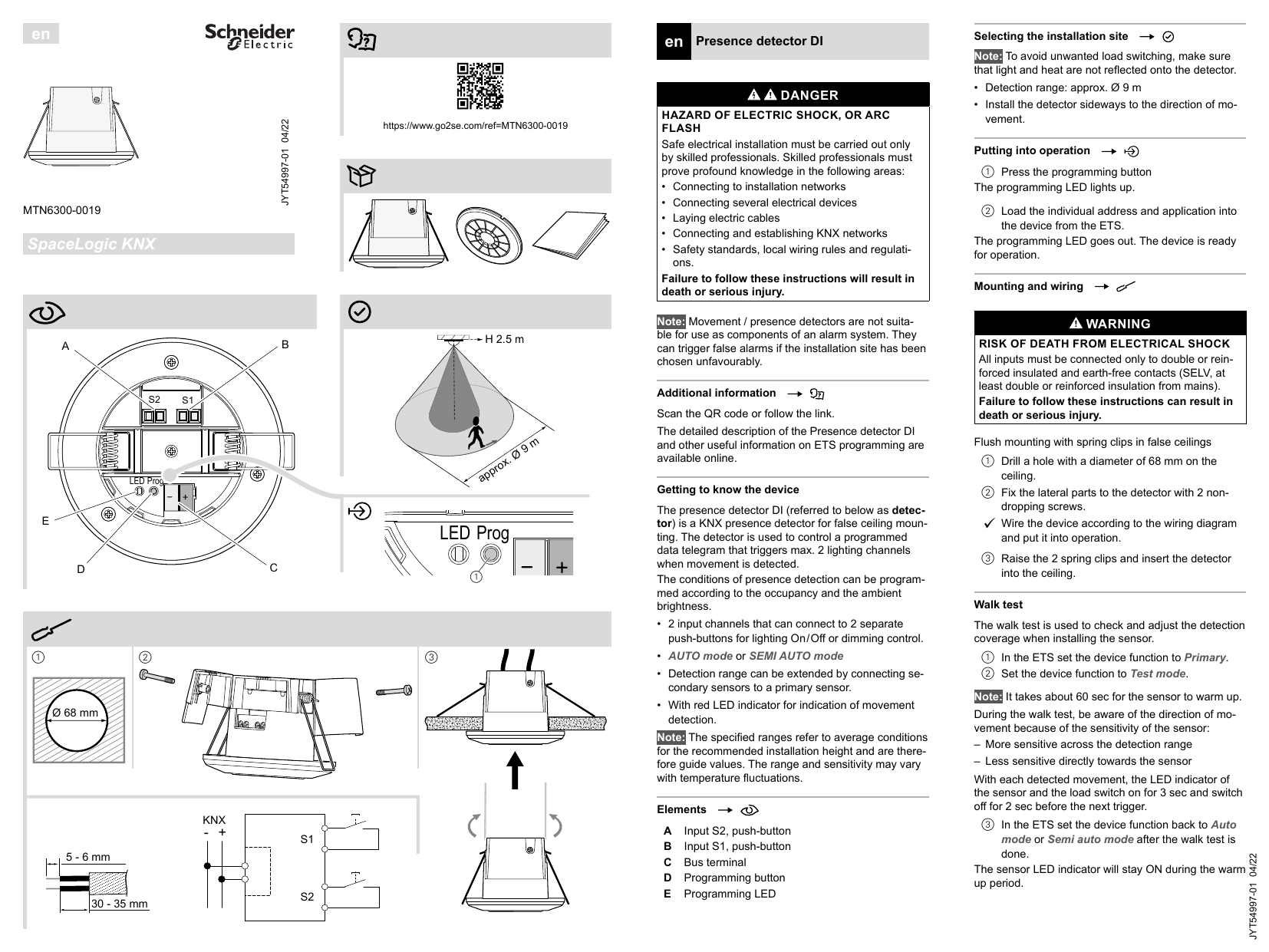

Schneider Electric SpaceLogic KNX Instruction Sheet

en
Presence detector DI
JYT54997-01 04/22
DANGER
MTN6300-0019
https://www.go2se.com/ref=MTN6300-0019
SpaceLogic KNX
H 2.5 m
S2
B
A
S2
Note: Movement / presence detectors are not suitable for use as components of an alarm system. They
can trigger false alarms if the installation site has been
chosen unfavourably.
Additional information
S1
Scan the QR code or follow the link.
ap
LED Prog
E
pro
Ø
x.
LED Prog
C
D
1
S1
HAZARD OF ELECTRIC SHOCK, OR ARC
FLASH
Safe electrical installation must be carried out only
by skilled professionals. Skilled professionals must
prove profound knowledge in the following areas:
• Connecting to installation networks
• Connecting several electrical devices
• Laying electric cables
• Connecting and establishing KNX networks
• Safety standards, local wiring rules and regulations.
Failure to follow these instructions will result in
death or serious injury.
1
2
3
9m
The detailed description of the Presence detector DI
and other useful information on ETS programming are
available online.
Getting to know the device
5 - 6 mm
30 - 35 mm
S2
1 Press the programming button
The programming LED lights up.
2 Load the individual address and application into
the device from the ETS.
The programming LED goes out. The device is ready
for operation.
Mounting and wiring
WARNING
RISK OF DEATH FROM ELECTRICAL SHOCK
All inputs must be connected only to double or reinforced insulated and earth-free contacts (SELV, at
least double or reinforced insulation from mains).
Failure to follow these instructions can result in
death or serious injury.
Flush mounting with spring clips in false ceilings
1 Drill a hole with a diameter of 68 mm on the
ceiling.
2 Fix the lateral parts to the detector with 2 nondropping screws.
9 Wire the device according to the wiring diagram
and put it into operation.
The walk test is used to check and adjust the detection
coverage when installing the sensor.
• AUTO mode or SEMI AUTO mode
Elements
S1
Putting into operation
Walk test
Note: The specified ranges refer to average conditions
for the recommended installation height and are therefore guide values. The range and sensitivity may vary
with temperature fluctuations.
- +
• Install the detector sideways to the direction of movement.
• 2 input channels that can connect to 2 separate
push-buttons for lighting On / Off or dimming control.
• With red LED indicator for indication of movement
detection.
KNX
• Detection range: approx. Ø 9 m
The presence detector DI (referred to below as detector) is a KNX presence detector for false ceiling mounting. The detector is used to control a programmed
data telegram that triggers max. 2 lighting channels
when movement is detected.
The conditions of presence detection can be programmed according to the occupancy and the ambient
brightness.
• Detection range can be extended by connecting secondary sensors to a primary sensor.
Ø 68 mm
Selecting the installation site
Note: To avoid unwanted load switching, make sure
that light and heat are not reflected onto the detector.
A
B
C
D
E
Input S2, push-button
Input S1, push-button
Bus terminal
Programming button
Programming LED
3 Raise the 2 spring clips and insert the detector
into the ceiling.
1 In the ETS set the device function to Primary.
2 Set the device function to Test mode.
Note: It takes about 60 sec for the sensor to warm up.
During the walk test, be aware of the direction of movement because of the sensitivity of the sensor:
– More sensitive across the detection range
– Less sensitive directly towards the sensor
With each detected movement, the LED indicator of
the sensor and the load switch on for 3 sec and switch
off for 2 sec before the next trigger.
3 In the ETS set the device function back to Auto
mode or Semi auto mode after the walk test is
done.
The sensor LED indicator will stay ON during the warm
up period.
JYT54997-01 04/22
en
Usage of lens shield
Dimension
Undesired detection areas can be shielded off by fixing
the enclosed lens shield onto the lens.
Trim the lens shield with scissors either horizontally or
vertically until the desired detection area is obtained.
Troubleshooting
Unit is not function at all / Lights don’t turn on
– Check wiring to make sure KNX voltage is correctly
applied to the unit.
– Check the lamp and the wiring of the load.
– Check if the ambient light control is set to the desired level.
UK Representative
Schneider Electric Limited
Stafford Park 5
Telford, TF3 3 BL, UK
Schneider Electric Industries SAS
If you have technical questions, please contact the
Customer Care Centre in your country.
se.com/contact
Detector detects motion, light is not switched on
– Check if lamps are broken.
– Check if lamps are tight in lampholders.
Lights go on and off quickly
– Check that light and heat are not reflected onto the
detector. Check for white or reflective surfaces that
could cause the problem.
– Note the detector is more sensitive in cold weather.
– Check that the sensor is not installed near an air
conditioner.
66.1 mm
74.1 mm
108.0 mm
Lights stay on
– Set the time to a minimum and check that the unit is
firmly attached to a fixed object with no moving objects in the field of view.
– Check that the detector is not activated by moving
heat sources eg. heating outlets.
Cleaning
– Clean the lens of the detector and the outer casing
with a damp cloth.
99.2 mm
Technical data
Supply voltage:
Bus current:
Number of channels:
Binary inputs:
Mounting height:
Detection range:
Ambient temperature:
Storage temperature:
Transport temperature:
Relative humidity:
Protection type:
Protection class:
Function modes:
Sensitivity:
Light sensor:
Timer adjustment:
KNX bus voltage
approx. 10 mA
2
2
2 m ... 3 m (optimal 2.5 m)
360°, Ø 9 m at 2.5 m mounting height and 20 °C
-20 °C ... +45 °C
-5 °C ... +55 °C
-25 °C ... +70 °C
5 % ... 95 %
IP20
III (mounted as intended)
Auto mode(Presence),
Semi auto mode (Absence),
Test mode
adjustable
10 ... 2000 Lux
1 minute to 255 minutes
JYT54997-01 04/22
13.3 mm
