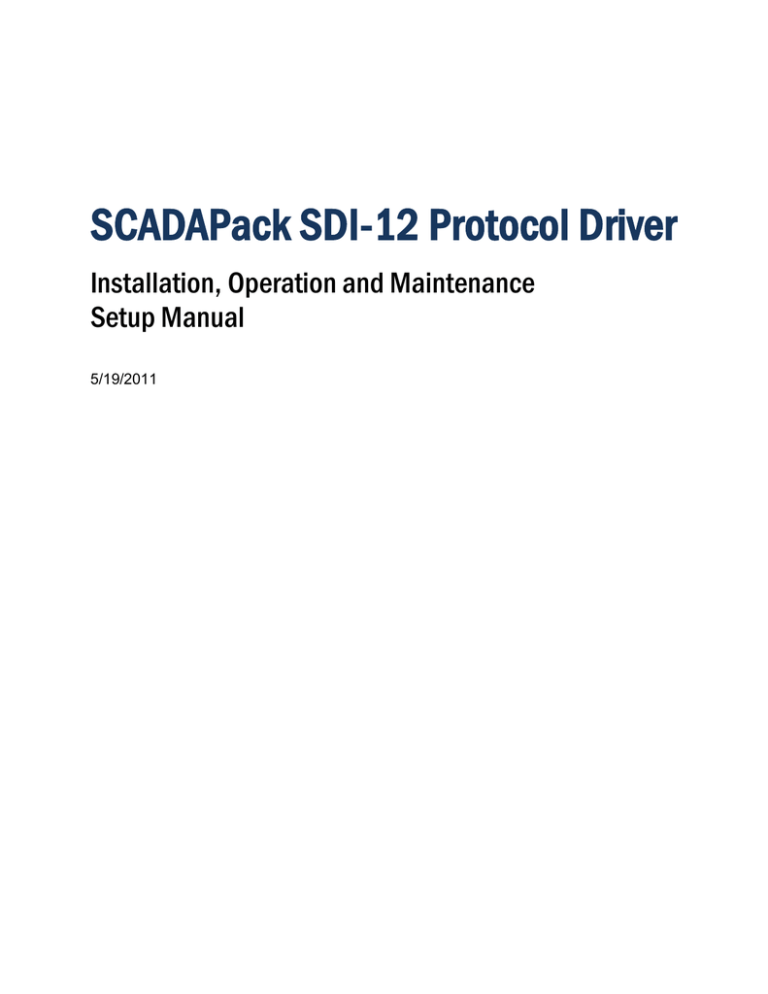

SCADAPack SDI-12 Protocol Driver

Installation, Operation and Maintenance

Setup Manual

5/19/2011

The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein. This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications. It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof. Neither Schneider

Electric nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein. If you have any suggestions for improvements or amendments or have found errors in this publication, please notify us.

No part of this document may be reproduced in any form or by any means, electronic or mechanical, including photocopying, without express written permission of Schneider Electric.

All pertinent state, regional, and local safety regulations must be observed when installing and using this product. For reasons of safety and to help ensure compliance with documented system data, only the manufacturer should perform repairs to components.

When devices are used for applications with technical safety requirements, the relevant instructions must be followed. Failure to use Schneider Electric software or approved software with our hardware products may result in injury, harm, or improper operating results.

Failure to observe this information can result in injury or equipment damage.

© 2010 Schneider Electric. All rights reserved.

Document (Version #.##.#) 5/19/2011

Table of Contents

Safety Information .........................................................................3

About The Book .............................................................................6

At a Glance ............................................................................................................ 6

Overview .........................................................................................7

SCADAPack SDI-12 Protocol Operation ......................................8

Load SDI-12 C/C++ Program ................................................................................. 8

Load Telepace or IEC 61131-1 application ........................................................... 8

Supported Commands ........................................................................................... 9

C/C++ Application Interface ................................................................................. 11

Document (Version 2.24.1.84) 5/19/2011 2 2

Safety Information

Read these instructions carefully, and look at the equipment to become familiar with the device before trying to install, operate, or maintain it. The following special messages may appear throughout this documentation or on the equipment to warn of potential hazards or to call attention to information that clarifies or simplifies a procedure.

The addition of this symbol to a Danger or Warning safety label indicates that an electrical hazard exists, which will result in personal injury if the instructions are not followed.

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will

result in death or serious injury.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, can

result in death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, can

result in minor or moderate.

CAUTION

CAUTION used without the safety alert symbol, indicates a potentially hazardous situation which, if not avoided, can result in equipment damage..

Document (Version 2.24.1.84) 5/19/2011 3 3

PLEASE NOTE

Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel. No responsibility is assumed by Schneider Electric for any consequences arising out of the use of this material.

A qualified person is one who has skills and knowledge related to the constructi on and operation of electrical equipment and the installation, and has received safety training to recognize and

avoid the hazards involved.

BEFORE YOU BEGIN

Do not use this product on machinery lacking effective point-of-operation guarding. Lack of effective point-of-operation guarding on a machine can result in serious injury to the operator of that machine.

CAUTION

EQUIPMENT OPERATION HAZARD

Verify that all installation and set up procedures have been completed.

Before operational tests are performed, remove all blocks or other temporary holding means used for shipment from all component devices.

Remove tools, meters, and debris from equipment.

Failure to follow these instructions can result in injury or equipment damage.

Follow all start-up tests recommended in the equipment documentation. Store all equipment documentation for future references.

Software testing must be done in both simulated and real environments.

Verify that the completed system is free from all short circuits and grounds, except those grounds installed according to local regulations (according to the

National Electrical Code in the U.S.A, for instance). If high-potential voltage testing is necessary, follow recommendations in equipment documentation to prevent accidental equipment damage.

Before energizing equipment:

Remove tools, meters, and debris from equipment.

Close the equipment enclosure door.

Remove ground from incoming power lines.

Perform all start-up tests recommended by the manufacturer.

OPERATION AND ADJUSTMENTS

The following precautions are from the NEMA Standards Publication ICS 7.1-

1995 (English version prevails):

Document (Version 2.24.1.84) 5/19/2011 4 4

Regardless of the care exercised in the design and manufacture of equipment or in the selection and ratings of components, there are hazards that can be encountered if such equipment is improperly operated.

It is sometimes possible to misadjust the equipment and thus produce unsatisfactory or unsafe operation. Always use the manufacturer’s instructions as a guide for functional adjustments. Personnel who have access to these adjustments should be familiar with the equipment manufacturer’s instructions and the machinery used with the electrical equipment.

Only those operational adjustments actually required by the operator should be accessible to the operator. Access to other controls should be restricted to prevent unauthorized changes in operating characteristics.

Document (Version 2.24.1.84) 5/19/2011 5 5

About The Book

About The Book

At a Glance

Document Scope

This manual describes the SDI-12 protocol for SCADAPack controllers.

Validity Notes

This document is valid for all supported SCADAPack controllers.

Product Related Information

WARNING

UNINTENDED EQUIPMENT OPERATION

The application of this product requires expertise in the design and programming of control systems. Only persons with such expertise should be allowed to program, install, alter and apply this product.

Follow all local and national safety codes and standards.

Failure to follow these instructions can result in death, serious injury or equipment damage.

User Comments

We welcome your comments about this document. You can reach us by e-mail at [email protected]

Document (Version 2.24.1.84) 5/19/2011 6 6

Overview

Overview

SDI-12 is a serial communication protocol. SDI-12 is the acronym for Serial Data

Interface at 1200 Baud. The SDI-12 protocol is used primarily by environmental monitoring equipment, such as rain gauges, anemometers, etc that are collectively referred to as SDI-12 devices. The SDI-12 protocol is a master-slave protocol with the SCADAPack 32 or SCADAPack 350 controller acting as a master to data monitoring slave SDI-12 devices. The SCADAPack SDI-12 master can communicate with multiple slave devices.

SDI-12 encompasses both a hardware communication layer and a software layer. The hardware layer will be accommodated through third party devices.

This user manual describes the SDI-12 driver for the SCADAPack 32 and

SCADAPack 350 controllers.

The SDI-12 protocol is described in SDI-12: A Serial-Digital Interface Standard

for Microprocessor-Based Sensors published by the SDI-12 Support Group.

Document (Version 2.24.1.84) 5/19/2011 7 7

SCADAPack SDI-12 Protocol Operation

SCADAPack SDI-12 Protocol Operation

The SCADAPack SDI-12 protocol support is achieved using a custom C/C++ application for SCADAPack 32 and SCADAPack 350 controllers. The C/C++ application is referred to as the SCADAPack SDI-12 driver in this document. The

SCADAPack SDI-12 driver enables the SCADAPack 32 or SCADAPack 350 controller to communicate with SDI-12 devices.

The SCADAPack SDI-12 driver supports the commands listed in section

Supported Commands.

The configuration of the SCADAPack SDI-12 driver is achieved using Telepace or IEC 61131-1 logic programs to write values to Modbus registers. The Modbus registers used by the SCADAPack SDI-12 driver are listed in the table in section

C/C++ Application Interface. Sample Telepace and IEC 61131-1 applications

are included with this documentation package to demonstrate the use of Modbus registers to configure the SCADAPack SDI-12 driver.

Load SDI-12 C/C++ Program

Using Telepace or IEC 61131-1 load the SCADAPack SDI-12 C/C++ application into the SCADAPack 32 or SCADAPack 350 controller. The C/C++ application will depend on the controller and firmware type you are using.

For SCADAPack 32 controller with Telepace firmware load

sp32Telepace.mot

For SCADAPack 32 controller with IEC 61131-1 firmware load

sp32ISaGRAF.mot

For SCADAPack 350 controller with Telepace firmware load

sp350Telepace.out

For SCADAPack 350 controller with IEC 61131-1 firmware load

sp350ISaGRAF.out

Once the program is written to the SCADAPack controller check that the Run button is clicked in the C/C++ Program Loader.

Load Telepace or IEC 61131-1 application

The SCADAPack SDI-12 package includes an example Telepace application and an example IEC 61131-1 application. These example applications can be used as a basis for a complete SDI-12 interface.

For SCADAPack 32 or SCADAPack 350 controllers with Telepace firmware the example program is sdi12.lad.

For SCADAPack 32 or SCADAPack 350 controllers with IEC 61131-1 firmware the example program is sdi12.pia.

Document (Version 2.24.1.84) 5/19/2011 8 8

SCADAPack SDI-12 Protocol Operation

The logic application, either Telepace or IEC 61131-1, is programmed to use the

Modbus registers defined in the C/C++ Application Interface section.

Supported Commands

The SCADAPack SDI-12 driver includes the basic SDI-12 commands listed in

Table 5 of the SDI-12: A Serial-Digital Interface Standard for

Microprocessor-Based Sensors Version 1.3 document. A brief description of each supported command is listed in the table below.

Command

Send Identification (I)

Change Address (A)

Address Query (?)

Start Measurement (M)

Start Measurement and Request

CRC

Send Data

Additional Measurements

Description

This command is used to query sensors for their SDI-12 compatibility level, model number, and firmware version number.

This command is used to change the address of a connected sensor.

This command is used to query the address of a connected sensor.

This command tells the sensor to take a measurement. The sensor does not return the measurement data to the

SCADAPack after this command. The sensor returns the time until one or more measurements will be ready and the number of measurements that it will make. The Send Data command needs to be issued to get the measurement(s).

This command is identical to the Start

Measurement command with a request that the data be returned with a 16 bit

Cyclical Redundancy Check (CRC) appended to it.

This command is used to get groups of data from the sensor. The Send Data command is sent automatically by the

SCADAPack SDI-12 driver after a Start

Measurement and Request CRC,

Start Concurrent Measurement, Start

Concurrent Measurement and

Request CRC or Start Verification command is enabled in the user logic application. The SDI-12 device responds by sending data.

The Additional Measurements commands provide a means to request

Document (Version 2.24.1.84) 5/19/2011 9 9

SCADAPack SDI-12 Protocol Operation

Command

Additional Measurements and

Request CRC

Start Verification (V)

Start Concurrent Measurement

(C)

Start Concurrent Measurement and Request CRC

Additional Concurrent

Measurements

Additional Concurrent

Measurements and Request CRC

Continuous Measurements (R)

Description

different types of measurements from a sensor or to instruct a sensor to do a calibration or control function.

This command is identical to the

Additional Measurements command with a request that the data be returned with a 16 bit Cyclical Redundancy

Check (CRC) appended to it.

This command tells the sensor to return verification in response to a subsequent send data command.

This command tells the sensor to take a concurrent measurement. A concurrent measurement is one which occurs while other SDI-12 sensors on the bus are also taking measurements. The sensor does not return the measurement data to the SCADAPack after this command.

The sensor returns the time until one or more measurements will be ready and the number of measurements that it will make. The Send Data command needs to be issued to get the measurement(s).

This command is identical to the Start

Concurrent Measurement command with a request that the data be returned with a 16 bit Cyclical Redundancy

Check (CRC) appended to it.

The Additional Concurrent

Measurements commands provide a means to request different types of measurements from a sensor or to instruct a sensor to do a calibration or control function

This command is identical to the

Additional Concurrent

Measurements command with a request that the data be returned with a

16 bit Cyclical Redundancy Check

(CRC) appended to it.

A Start Measurement command is not needed for sensors that are able to continuously monitor the phenomena to be measured, such as a shaft encoder

Document (Version 2.24.1.84) 5/19/2011 10 10

Command

Continuous Measurements and

Request CRC

SCADAPack SDI-12 Protocol Operation

Description

They can be read directly with the

Continuous Measurements command.

This command is identical to the

Continuous Measurements command with a request that the data be returned with a 16 bit Cyclical Redundancy

Check (CRC) appended to it.

C/C++ Application Interface

The C application will interface with other user logic through a table of Modbus registers. The structure for this table is defined below.

SDI-12 Function Description Modbus

Register

41001

Comm Port

41003

41005

Control

Address

This register defines which serial communications port will be used for SDI-

12 protocol.

1 = Com 1

2 = Com 2

3 = Com3

4 = Com 4

Set the SCADAPack Com port to use writing a value to this register at start-up.

Com3 on the SCADAPack 32 is not

supported for SDI-12.

This register defines sending a command, or to restart the SDI-12 driver.

1 = Send Data Command

2 = Restart SDI-12 Driver

This register is set by user logic. Set the control type to 0 at start up to restart the

SCADAPack SDI-12 driver. Set the control type to 1 to initiate a command to the SDI-

12 device.

The SCADAPack SDI-12 driver resets the register to 0 when the command has been initiated.

This register indicates the address of the slave SDI device.

This register will be written by the

SCADAPack SDI-12 after a restart or an

Document (Version 2.24.1.84) 5/19/2011 11 11

Modbus

Register

SCADAPack SDI-12 Protocol Operation

SDI-12 Function Description

41007

41009

41011

41013

41015

Command

Address Query command.

This register defines the SDI-12 command to send to the SDI-12 device.

1 = Address Query command (?)

2 = Send Identification command (I)

3 = Change Address command (A)

4 = Start Measurement command (M)

Checksum

Timeout

5 = Start Concurrent Measurement command (C)

6 = Continuous Measurement command

(R)

7 = Start Verification command (V)

8 = Start Additional Measurement command (Mn) (see Note 2)

9 = Start Additional Concurrent

Measurement command (Cn)

This register is set by user logic to indicate which command to send.

This register defines whether to request

CRC on slave SDI-12 response messages.

0 = No CRC requested

1 = CRC requested

This register is set by user logic to indicate whether a CRC is requested or not.

This register defines how long the

SCADAPack SDI-12 driver will wait for a response from the SDI-12 device.

This register is set in units of 100 mS i.e. a value of 100 represents 10 seconds.

Status The SCADAPack SDI-12 driver will write to this register to indicate the status of the SDI message transaction:

0 = command completed OK

1 = message pending

2 = data error

Success Counter The SCADAPack SDI-12 driver will write to this register indicating the umber of

Document (Version 2.24.1.84) 5/19/2011 12 12

SCADAPack SDI-12 Protocol Operation

Modbus

Register

SDI-12 Function Description

41017

41019

41021

41023

Fail Counter successful SDI messages.

The SCADAPack SDI-12 driver will write to this register indicating the number of failed

SDI messages.

New Fail Counter The SCADAPack SDI-12 driver will write to this register indicating the number of failed messages since the last successful message.

Data length Indicates the number of data bytes in the

SDI-12 response message.

This will be written by the SCADAPack

SDI-12 driver after each received SDI-12 response message.

Poll Delay The number of milliseconds to delay polling a device. This parameter is used to allow devices that are slower to wake from low power mode to be communicated with.

41100 -

41139

Data Values Floating point values representing the data values returned from the SDI-12 slave device. Up to a maximum of 20 data values can be returned.

First data value FP register 41100 (41100 and 41101)

Second data value FP register 41102

(41102 and 41103)

Third data value FP register 41104 (41104 and 41105)

……….

Twentieth data value FP register 41138

(41138 and 41139)

IEC 61131-1 register ordering is used.

41200 -

41239

Raw Data Values The raw data bytes returned from the SDI device will be stored in these registers.

This is useful for storing the SDI-12 identification string from the SDI-12 slave device.

The Modbus Register numbers are spaced apart to allow for IEC 61131-1 applications to assign each variable to a (32-bit) integer variable without overlap.

Document (Version 2.24.1.84) 5/19/2011 13 13

SCADAPack SDI-12 Protocol Operation

The first SDI Raw Data Register (Modbus address 41200) is used to send the data value for the following commands:

Change Address

Start Additional Measurement

Start Additional Concurrent Measurement

Document (Version 2.24.1.84) 5/19/2011 14 14

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
