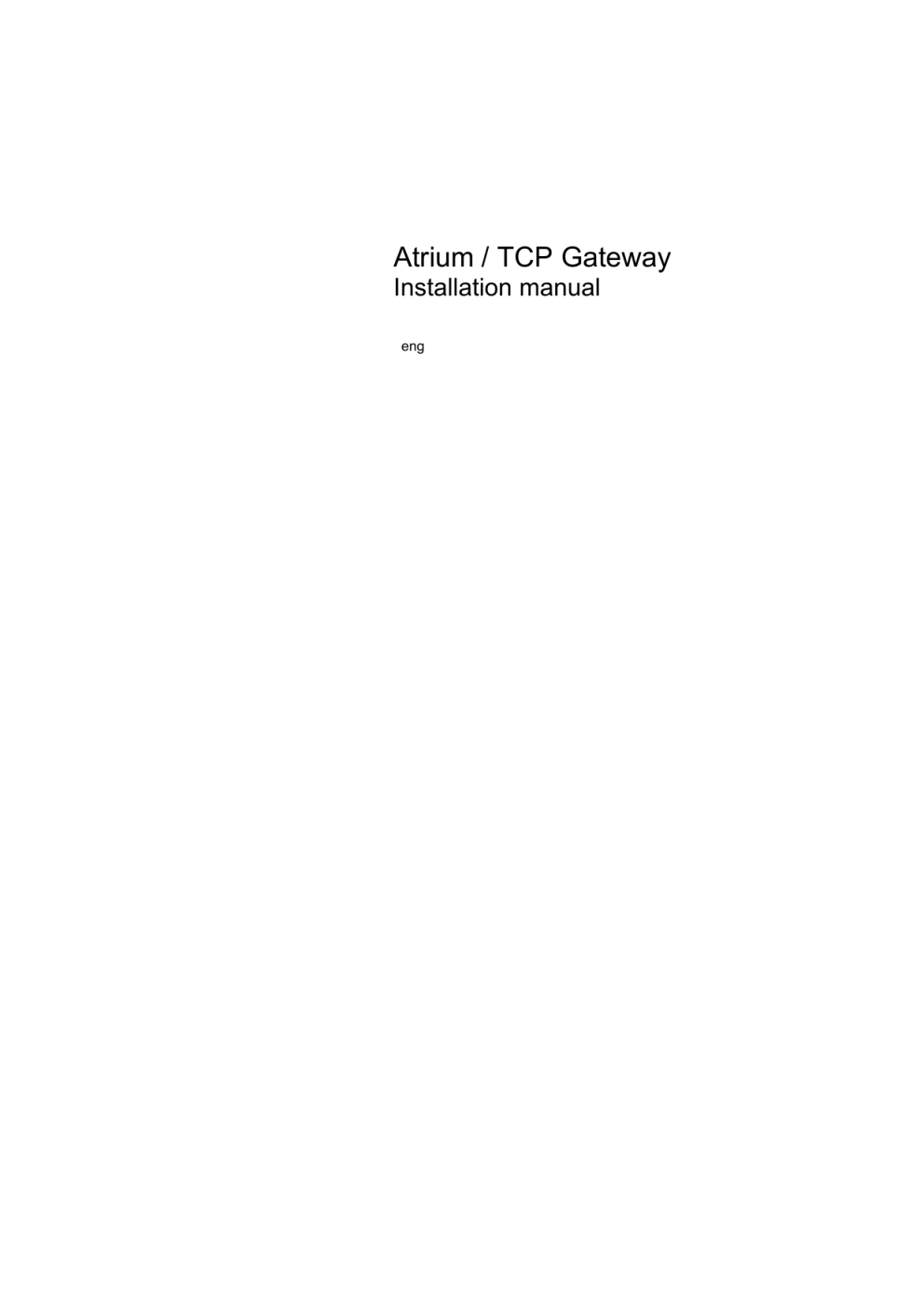

Atrium / TCP Gateway

Installation manual

eng

2

Table of Contents

About the Book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Chapter 1

General presentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

At a Glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Examples of use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Compatibility and standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Operate mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Chapter 2

Product configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

At a Glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Configuring the "General" screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Configuring the "Ethernet profile" screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Configuring the "RAS profile" screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Chapter 3

Uni-TE and Modbus message handling . . . . . . . . . . . . . . . . . . 27

At a Glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Uni-TE message handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Programming examples on an Ethernet profile in Uni-TE. . . . . . . . . . . . . . . . . . 29

Programming example via an STN Modem in Uni-TE . . . . . . . . . . . . . . . . . . . . 33

Example of X-Way transparency. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Modbus messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Programming example on an Ethernet profile in Modbus . . . . . . . . . . . . . . . . . . 37

Chapter 4

Online mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

At a Glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

"TCP/IP" screen in online mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

"RAS" screen in online mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

"Tune" screen in online mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Chapter 5

Performance and limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

At a Glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Chapter 6

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

3

4

Example: how to create a connection to other computers and networks using

Windows 2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Glossary

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

About the Book

At a Glance

Document Scope This document explains how to install, operate and configure Atrium / TCP Gateway software.

Related

Documents

Title of Documentation

X-Way installation manual

TSX Micro Modules ETZ 410/510 User manual

Installation manual - Communication -

Reference Number

TSX DR NET

TSX DM 57-T4

User Comments We welcome your comments about this document. You can reach us by e-mail at

[email protected]

5

About the Book

6

General presentation

1

At a Glance

Subject of this

Chapter

What's in this

Chapter?

This chapter describes the specifications of the Atrium / TCP Gateway product. It provides a general view of the product's functionalities and architecture.

This chapter contains the following topics:

Topic

General

Examples of use

Compatibility and standards

Operate mode

Page

8

9

14

15

7

8

General presentation

General

Definition of

Gateway

The Atrium / TCP Gateway (simply referred to as Gateway , throughout this document) is a software application used to connect an Atrium coprocessor to the

TCP network using existing PC connections (software and hardware connections).

It runs on Windows 2000 or XP operating systems.

It can either use an Ethernet or modem connection.

With a modem connection, you need to use the RAS for Atrium (See Configuring the

"RAS profile" screen, p. 22) function and communicate using the PPP protocol.

The communication initiative can come from a PLC connected on the X-Way network.

Existing PC connections, as well as Ethernet and modem connections, can be used simultaneously.

Software and hardware architecture:

PC

PC Applications

X-Way Network

Atrium

Gateway

Modem

Network interface

STN Ethernet TCP/IP

The Gateway can be used to communicate on the Ethernet network in Modbus and

Uni-TE.

Modbus and Uni-TE messaging services are identical to those of Ethernet Premium communication modules, whatever the Ethernet connection: l with the ISA card: TSXETHPC101M, l with the PCI card: TCCETH01.

The user can also use applications such as OPC, PL7 and Vijeo Look simultaneously.

General presentation

Examples of use

At a Glance In this section, we describe how and in what context the Gateway is to be used.

Atrium to PC or

PLC

Communication is possible using the Modbus or Uni-TE protocols.

l the X-Way local address is configured in the "global parameters" (See

Configuring the "General" screen, p. 18) configuration screen, or obtained

l through the server, as for Ethernet TSXETY network modules, the configuration screens are used to define the remote IP addresses.

OFS

PL7

SCADA

Ethernet

TCP/IP network

Uni-TE

PC

Atrium Standard

Ethernet

Card

Gateway Modbus

The Gateway provides access control, based on remote IP addresses (as for the

TSXETY).

9

General presentation

Atrium to Atrium Communication between Atriums is possible using the Uni-TE protocol.

X-Way transparency is possible between X-Way sub-networks.

X-Way Network

PC

Atrium Standard

Ethernet

Card

Gateway

Ethernet TCP/IP Network

X-Way Network

Uni-TE

Uni-T

E

PC

Atrium

Standard

Ethernet

Card

Gateway

Uni-TE

10

General presentation

X-Way transparency via the Atrium

Using the X-Way remote address and the IP address of the Gateway, a remote station can communicate in Uni-TE with a station on the X-Way sub-network connected to the Atrium.

SCADA

Ethernet TCP/IP

X-Way

PC

Atrium Standard

Ethernet

Card

Gateway

Uni-TE

Uni-TE

11

General presentation

The Atrium behaving as an I/

O scanner

Write / read requests managed using an Atrium application: using Modbus on the TCP/IP protocol, Atrium applications are capable of communicating with peripheral units such as Momentum, Altivar, or any other product supporting a Modbus server.

The Gateway does not support the FDR service (Faulty device Replacement).

Ethernet

TCP/IP

Network

Modbus

R/W

PC

Atrium Standard

Ethernet

Card

Gateway

Atrium to

Modbus

The Gateway authorizes communication between the Atrium application and all remote Modbus devices through the 174CEV30010 gateway.

Ethernet TCP/IP Network

PC

Atrium Standard

Ethernet

Card

Gateway

Modbus

Modb us

12

RAS

General presentation

Transparent remote access to Atrium PLCs: the Gateway can be configured to communicate using PPP protocol on a Modem of the PC.

l it offers transparent routing to/from the local PC application using the Uni-TE or

Modbus protocol (example: through ISAway or PCIway). The X-Way subl networks are also accessible.

standard Windows routing is used to guarantee routing to/from a remote station on Ethernet.

The Gateway uses the RAS service of Windows.

Mo dbu s

Uni-TE

Uni-TE

SCADA

Ethernet TCP/IP

Network

PC

Atrium

PPP Standard

Ethernet

Card

Gateway

Note: to use the Windows RAS service, the user should be familiar with Windows configurations.

13

General presentation

Compatibility and standards

Atrium TCP

Gateway

Software l compatible with all Ethernet ports or serial links of the PC:

The Gateway can use Ethernet PCI (TCCETH01) or ISA (TSXETHPC101M) cards supplied by Schneider or any other card on the market. It is also compatible with embedded Ethernet ports.

l management of the Uni-TE and Modbus protocols: as for the Ethernet TSXETY410x module, the Gateway supports Ethernet Uni-TE and Modbus communications for the message handling service. The Atrium card is therefore able to communicate with Quantum PLCs, or any other product that supports the Modbus protocol. l RAS (Remote Access protocol) connection: the Gateway uses the Windows RAS function to communicate on the STN modem link. l compatibility and transparency with X-Way drivers:

X-Way transparency is provided with the Atrium card.

14

General presentation

Operate mode

Installation

Hardware and software configuration

Online mode

The Gateway software is installed using a CD-ROM which, once inserted in the drive, automatically starts the installation of the software onto the hard disk of a PC or Magelis iPC (if the CD-ROM automatic start-up option under Windows is activated).

This software is based on Windows interfaces enabling easy configuration of the parameters according to needs. This tool is used to set up a static configuration of the Gateway.

During validation, all parameters are checked and recorded in a file.

There is no dynamic reconfiguration of the Gateway. All reconfigurations require the l l

Gateway software to be restarted.

The Gateway operates under the following Windows operating systems:

Windows 2000,

Windows XP.

It can only be run on a PC or Magelis iPC with a built-in Intel processor. PCs with built-in multi-processors are also supported.

There is no version of Online mode (Run Time) for platforms without a built-in Intel processor.

This mode can be launched automatically (See

Detailed description, p. 19) on start-

up of the system (PC or Magelis iPC). A service window opens before user identification and provides information on the status of remote PLCs on the network.

Once the configuration has been recorded, no user operation is required on starting up the system.

15

General presentation

16

Product configuration

2

At a Glance

Subject of this

Chapter

What's in this

Chapter?

This chapter provides a general description of the services and configurations offered by Gateway.

This chapter contains the following topics:

Topic

Configuring the "General" screen

Configuring the "Ethernet profile" screen

Configuring the "RAS profile" screen

Page

18

20

22

17

Product configuration

Configuring the "General" screen

Illustration This screen allows you to set up the overall parameters of Gateway.

XWA X-Way/TCP Gateway Configuration

General Ethernet profile RAS profile

Global parameters

XWay Parameters

XWA

Driver Name :

PCIWAY01

Access Control

Enable

Name :

Add >

< Remove

Add >

From :

To :

000.000.000.000

000.000.000.000

TCP Server Port

502

Auto run at startup

Local Network :

0

Authorize so-surf1

Default

Local Station :

2

Exclude

OK Cancel Apply

18

Detailed description

Product configuration l l

X-Way Parameters: l Driver Name: this field is used to select the PCIWAY01 driver (on Atrium) or

ISAWAY01 driver (on PCX57).

Local Network: is used to select the network used by Gateway (0 to 127),

Local Station: is used to select the station used by Gateway (0 to 63),

Access control: in server mode, this part is used to check and validate the incoming IP addresses.

l Enable: authorizes or excludes the IP addresses and remote domain names configured in the server's connection table.

This table is updated using the "Add >" and "< Remove" fields: l l

Add: is used to add an IP address interval or domain name,

Remove: is used to remove an IP address interval or domain name.

Meaning of "Authorize" and "Exclude": l Authorize: is used to set up incoming IP addresses or domain names of authorized remote stations. These IP addresses are configured using the l

"from / to" field.

The "Name" field is used to set up a domain name for the remote station.

Exclude: is used to set up incoming IP addresses or domain names of any non-accepted remote stations. These IP addresses are configured using the

"from / to" field.

The "Name" field is used to set up a domain name for the remote station. All other addresses are accepted.

In both cases, the IP addresses and remote domain names configured appear in the server's connection table.

TCP Server port: set by default to 502 (Schneider Electric port).

Auto run at startup: determines whether the software is launched automatically when the system starts up (PC or Magelis iPC).

19

Product configuration

Configuring the "Ethernet profile" screen

Illustration

XWA XWay/TCP Gateway Configuration

General Ethernet profile RAS profile

Network adapters

[ 3 ] All Network Adapters

Connections parameters

->

X-Way Addr

0.0

0.1

IP Address

192.168.002.051

so-etz1

Protocol

Uni-TE

Uni-TE

Port TCP

00502

00502

Add...

Edit...

Delete

OK Cancel Apply

Detailed description

Network adapters: this field is used to select a network Ethernet adapter. To do this, you can choose all the adapters or a specific adapter. The Ethernet adapter lets you communicate with remote modules.

Connections parameters: these are TCP connection parameters in client mode.

The table describes the client part of Gateway. To configure this, simply click "Add" to add a remote station, "Edit" to edit or modify a remote station, or "Delete" to delete a remote station.

20

Product configuration

Ethernet Client

Parameters screen

This window appears when you click "Add" or "Edit":

XWA Ethernet Client Parameters

XWay Address

Network : 0 Station : 0

TCP/IP Parameters

DNS

Name :

IP Address : 192.168.002.051

TCP Port

00502 Default

Protocol

MODBUS Slave : 0

OK Cancel l l l l

X-Way address: X-Way address of the remote station,

IP address: IP address of the remote station.

IP addresses can be configured formally (e.g.: 139.160.234.153) or by domain name (DNS).

Protocol: to be used with the remote station: Modbus or Uni-TE,

The "Slave" parameter is used to set up (in Modbus only) the Modbus slave number you want to reach using a serial TCP/Modbus bridge.

TCP Port: is used to obtain a connection. Set by default to 502 (Schneider

Electric port).

21

Product configuration

Configuring the "RAS profile" screen

At a Glance The Gateway supports the management of the RAS (Remote Access Service), used normally for communication by modem via the PPP protocol. Its operation is limited to an output modem and an input modem.

Note: before each configuration the modem(s) must be installed first of all on the

PC.

l l

Characteristics integrated in the Gateway: initialize the RAS connection in order to accept a remote PPP connection, initialize the RAS connection in order to create a PPP connection to a remote

RAS server: l dynamically, when it is necessary to establish a remote TCP connection.

In the case where there are two modems, a client link and a server link can both be active at the same time.

If several modems (internal or external) are installed, all incoming connections will be accepted regardless of the modem used.

Once communication is established, the communication is two-way (See Uni-TE

and Modbus message handling, p. 27).

22

Illustration

XWA X-Way/TCP Gateway Configuration

General Ethernet profile RAS profile

Modem Adapters

[ 1 ] Modem Standard 56000 bps V90-COM1

Server Parameters

Enable

Users granted to dialin :

Administrator

Guest

USER

Client Parameters

Idle time before hanging up (s) : 1

>

<

Users not granted to dialin :

TESTPCIX

Max Connection Time (s) :

Modem

10

->

X-Way Addr

0.1

0.0

0.2

IP Address Protocol

IP Served UNITE

IP Served UNITE

Port TCP

00502

Phone Number

2695

2695

User Name

USER

USER

Product configuration

OK

Add...

Cancel Apply

Edit...

Delete

Detailed description

Modem Adapters: l this zone allows you to select the modem on which the PC's outgoing calls are made (dial out or Atrium clients).

For incoming (Dial in) calls, the Gateway accepts all calls from all the modems configured on the PC. However, the PC must be configured to accept incoming l calls. This configuration is set up using the Windows "Network and Dial-up

Connections" window.

the "Modem" button activates the Windows "Modems" window.

Note: if two STN lines are available, one modem can be used for outgoing calls

(Atrium Clients), and the other for incoming calls, for remote connections to Atrium.

Server parameters: these parameters enable you to configure controls for incoming calls (dial in).

23

Product configuration

RAS Client

Parameters screen

24

Note: the PC must be configured to accept incoming calls.

l l

the "Enable" checkbox enables or disables incoming calls. If the box is not checked (disabled) all incoming calls are ignored.

The "Users granted to dial in / Users not granted to dial in" field allows you to select the user accounts that are authorized or not to connect to the PC. To define new users, use the Windows "User manager" program.

The right/left arrows are used to to move user names from one side to the other, depending on whether they are authorized to connect or not.

Client Parameters: these parameters are used to to configure the PC's outgoing calls activated by

Atrium.

l Idle Time before Hanging up: the modem will disconnect automatically when it reaches maximum idle time allowed on the modem link. This time is configured in seconds. For it never to hang up, configure it to 0.

l Max connection time: the modem will disconnect automatically when it reaches the maximum connection time. This time is configured in seconds. For it never to disconnect, configure it to 0.

l to configure the table, click "Add" to add a remote station, "Edit" to edit or modify a remote station, or "Delete" to delete a remote station.

This window appears when you click "Add" or "Edit":

XWA RAS Client Parameters

Remote X-Way Address

Network 0 Station 2

TCP/IP Parame-

Server Assigned IP

DNS Name :

IP Address : 000.000.000.000

TCP Port

00502 Default

Protocol

UNITE

RAS Parame-

Phone Number

User Name

Password :

2695

USER

USER

OK

Slave

Cancel

Product configuration

Remote X-Way address:

X-Way address of the remote station.

TCP/IP Parameters: l if the box "Server Assigned IP Address" is checked, the Atrium client can only l communicate with the RAS server called (for example, a call to an ETZ or another

Atrium).

if the box "Server Assigned IP Address" is unchecked, the user must specify an

IP address or a name. The Atrium client can then only communicate with a station other than the RAS server (for example, a call to an ETY connected to an RAS server via Internet).

TCP Port: enables you to obtain a connection. Set by default to 502 (Schneider Electric port).

Protocol: the Modbus or Uni-TE application protocol is used with the remote station.

The "Slave" zone is used to set up (in Modbus only) the Modbus slave number you want to reach using a serial TCP/Modbus bridge. l l

RAS Parameter:

Phone Number: telephone number of remote server,

User Name and password: identifier and password used to identify a user account on the remote server.

25

Product configuration

26

Uni-TE and Modbus message handling

3

At a Glance

Subject of this

Chapter

What's in this

Chapter?

This chapter provides an overview of the message handling service.

The Gateway supports X-way, Uni-TE and Modbus communication in client / server mode. For more details, consult "Communication Specific-Applications Volume 3 -

TCP/IP message handling".

This chapter contains the following topics:

Topic

Uni-TE message handling

Programming examples on an Ethernet profile in Uni-TE.

Programming example via an STN Modem in Uni-TE

Example of X-Way transparency

Modbus messaging

Programming example on an Ethernet profile in Modbus

Page

28

29

33

35

36

37

27

Uni-TE and Modbus message handling

Uni-TE message handling

TCP server mode The Gateway is awaiting a remote connection on the previously configured port (port

502 by default). In this case, it acts as server for the exchanges initiated by the remote stations.

On a Client TCP request, the Gateway opens a connection according to which access rights are set as "authorized / excluded". This mode is frequently used for a typical client connection such as PL7 / Unity Pro programming tools.

Note: A maximum of 53 simultaneous connections in server mode are accepted by the Gateway.

Client TCP mode The Gateway opens a connection with a remote station on the previously configured port (port 502 by default) according to the connection parameters in client TCP mode for a given X-Way address.

In this mode, the Atrium initiates an exchange to a remote station using the

SEND_REQ() communication functions.

When using the Gateway in client mode, a table of 6 bytes corresponding to the destination address needs to be placed at the start of the send buffer. For further information, consult the TSX DR NET manual.

Word 1

Word 2

Word 3

0

0

Byte 1 (most significant)

Station No.

0

0

Byte 1 (least significant)

Network No.

Example: transmission to the system gate of a remote PLC (network2.station3):

Word 1

Word 2

Word 3

0

0

Byte 1 (most significant)

3

0

0

Byte 1 (least significant)

2

28

Note: in client mode, only the request SEND_REQ is used. This request does not carry out a consistency check of the input parameters (e.g.: check the number of data items to be written against the size of the data buffer). This must be checked by the user.

Uni-TE and Modbus message handling

Programming examples on an Ethernet profile in Uni-TE.

Configuration example

Namely the following configuration:

Unity Pro / PL7

TSX Premium

TSX ETY configuration:

X-Way Address: 2.4

IP Address: 84.0.8.4

Ethernet TCP/IP

Configuration of the Gateway

X-Way Address: 2.1

IP Address: 84.0.8.1

X-Way/IP table:

2.4 / 84.0.8.4

Example of

Programming a

Mirror Request

If Atrium is in client mode: l in the General (See

Configuring the "General" screen, p. 18) screen:

l Driver Name: PCIWAY01

Local Network: 2 l l l

Local Station: 1 do not check the Enable box l l TCP Server Port: 502 in the Ethernet profile (See

Configuring the "Ethernet profile" screen, p. 20)

l l screen:

Network adapters: choose the appropriate network card, in the "Connection parameters" table, add the remote station server with: X-

Way address = 2.4, IP address = 84.0.8.4, Protocol = Uni-TE and TCP Port =

502.

On the server side, open the PL7 Pro software and configure the X-Way address and IP address of the TSXETY:

- X-Way address: 2.4

- IP address: 84.0.8.4 (configure also the sub-network mask and Gateway address).

In the "Configuration of connections" table of the "Message handling" tab, configure the client address, i.e.:

29

Uni-TE and Modbus message handling l l l

X-Way Address: 2.1

IP Address: 84.0.8.1

Protocol: Uni-TE

Using the configuration below, the programming is the following:

(*Atrium in client mode, Mirror request exchange to the Premium system gate*)

%MW10:=16#0402;

%MW11:=16#0000;

%MW12:=16#0000;

(*Start of Mirror request input parameters*)

%MW13:=...;

(*ADR#0.3 corresponds to ADR#rack-Module.channel*)

Send_Req(ADR#0.3,#FA,%MW10:13,%MW100:10,%MW0:4)

Note: under Unity Pro, the Send_Req request is:

Send_Req(ADDR(‘0.0.3’),#FA,%MW10:13,%MW0:4,%MW100:10)

Example of word reading programming in

UNI-TE

This program is used to send a Uni-TE request to a remote device with an X-Way address: 2.4 (16#0402). The request allows the words %MW10000, %MW10001,

%MW10002. to be read

(*Atrium in client mode*)

(*read request for three words (UNITE)*)

If NOT %MW300:X0 THEN

%MW302:=60;(*time out by 100ms*)

%MW303:=12;(*length in bytes of data to transmit*)

%MW100:=16#0402;(*network-station: XWAY address (Modbus)*)

%MW101:=16#0000;

%MW102:=16#0000;

%MW103:=16#0768;(*segment type: internal word*)

%MW104:=10000;(*address of the first word to read*)

%MW105:=3;(*no. of words to read*)

(*%MW200:4 = 4 word reception table: type of object on 1 byte

+ 3 data words*)

SEND_REQ(ADR#0.3,16#0036,%MW100:6,%MW200:4,%MW300:4);

END_IF

30

Uni-TE and Modbus message handling

Note: under Unity Pro, the Send_Req request is:

Send_Req(ADDR(‘0.0.3’),16#0036,%MW100:6,%MW300:4,%MW200:4)

The confirmation of the correct report is: 16#6600

Note: Caution: in the reception table, the most significant byte of the first data word read is contiguous with the object type byte.

Example of bits reading programming in

UNI-TE

This program is used to send a Uni-TE request to a remote device with an X-Way address: 2.4 (16#0402). The request allows 3 bits to be read: %M100, %M101,

%M102.

(*Atrium in client mode*)

(*request for the reading of 3 bits (UNITE)*)

If NOT %MW1500:X0 THEN

%MW1502:=60;(*time out by 100ms*)

%MW1503:=12;(*length in bytes of data to transmit*)

%MW1300:=16#0402;(*network-station: XWAY address (UNITE)*)

%MW1301:=16#0000;

%MW1302:=16#0000;

%MW1303:=16#0564;(*segment type: internal bit*)

%MW104:=100;(*address of the 1st bit to read*)

%MW1305:=8;(*no. of words to read (multiple of 8)*)

SEND_REQ(ADR#0.3,16#0036,%MW1300:6,%MW1400:2,%MW1500:4);

END_IF

Note: under Unity Pro, the Send_Req request is:

Send_Req(ADDR(‘0.0.3’),16#0036,%MW1300:6,%MW1500:4,%MW1400:2)

The confirmation of the correct report is: 16#6600

Note: the reading is performed by modulo 8. In our example, we wish to read 3 bits.

In all cases, the reception table must be capable of reading 8 bits (%MW1305:=8;).

31

Uni-TE and Modbus message handling

Atrium server If Atrium is in server mode: l l l l l consult the screen enabling you to configure the global parameters (See

Configuring the "General" screen, p. 18) with:

l Driver Name: PCIWAY01

Local Network: 2

Local Station: 1 do not check the Enable box

TCP Server Port: 502

On the client side (TSXETY), open the PL7Pro software and configure the X-Way address and IP address of the TSXETY:

- X-Way address: 2.4

- IP address: 84.0.8.4 (configure also the sub-network mask and Gateway address).

In the "configuration of connections" table of the "Message handling" tab, configure l l l the server address, i.e.:

X-Way Address: 2.1

IP Address: 84.0.8.1

Protocol: Uni-TE

All requests are possible.

The Atrium system gate is accessible from stations on the Ethernet network using the following address: {2.1}SYS

32

Programming example via an STN Modem in Uni-TE

Uni-TE and Modbus message handling

Configuration example

Unity Pro / PL7

Namely the following configuration:

Configuration of the Atrium:

X-Way Address: 2.1

IP Address: 84.0.8.1

X-Way/IP table:

2.4 / 84.0.8.1

Modem configuration:

No. to be dialed: 04 93 20 •• ••

Dialing modem

Modem dialed:

No.: 04 93 20 •• ••.

Switched telephone network

Serial link gateway to Ethernet TCP/IP

Ethernet TCP/IP

TSX Premium

TSX ETY configuration:

X-Way Address: 2.4

IP Address: 84.0.8.4

Programming example 1

If Atrium is in client mode: l use the same configuration as the previous example (See

examples on an Ethernet profile in Uni-TE., p. 29).

Programming l in the "RAS Profile" tab, define the modem to be used then fill in the "RAS Client parameters" server table indicating your use of the Uni-TE protocol.

In the "RAS parameters" field, enter the telephone number, identifier and l password.

The default TCP port is port 502.

On the server side, open the PL7 Pro software and configure the X-Way address and IP address of the TSXETY:

- X-Way address: 2.4

- IP address: 84.0.8.4 (configure also the sub-network mask and Gateway address).

Using the configuration below, the programming is the following:

33

Uni-TE and Modbus message handling

(*Atrium in client mode, Mirror request exchange to the Premium system gate - @X-way:2.4*)

%MW10:=16#0402;

%MW11:=16#0000;

%MW12:=16#0000;

(*Start of Mirror request input parameters*)

%MW13:=...;

(*Connection establishment time = 160 seconds*)

%MW2:=1660;

Send_Req(ADR#0.3,#FA,%MW10:13,%MW100:10,%MW0:4)

Note: under Unity Pro, the Send_Req request is:

Send_Req(ADDR(‘0.3’),#FA,%MW10:13,%MW0:4,%MW100:10)

Note: Programming via a modem connection is the same as on the Ethernet profile. Only the Atrium configuration changes.

Programming example 2

If Atrium is in server mode: l use the same configuration as the previous example (See Programming l

examples on an Ethernet profile in Uni-TE., p. 29).

in the "RAS Profile" tab, define the modem to be used and check the "Enable" box in order to activate server mode.

l on the client side, use the same configuration as the previous example (See

Programming examples on an Ethernet profile in Uni-TE., p. 29).

The Atrium system gate in the above example is accessible from stations on the

Ethernet network using the following address: {2.1}SYS

34

Uni-TE and Modbus message handling

Example of X-Way transparency

At a Glance

PC + PL7 Pro

Premium PLC

Atrium Gateway + PL7 Pro

X-Way :2.4

IP: 84.0.8.4

Ethernet TCP/IP network #2

X-Way :2.1

IP: 84.0.8.1

X-Way :3.1

Configuration of the XIP driver.

3.3 / 84.0.8.1

(X-Way TSX Premium / IP Gateway)

Configuration of the Gateway

X-Way/IP table:

2.4 / 84.0.8.4

Fipway network #3

Premium PLC

X-Way: 3.3

Sending a mirror request: l communication between a PLC on the Fipway network and a PLC on the

Ethernet network:

%MW10:=16#0402;(*network-station*)

%MW11:=16#0000;

%MW12:=16#0000;

Send_Req(ADR#{3.1}0.3,#FA,%MW10:13,%MW100:10,%MW0:4)

Note: using Unity Pro, the Send_Req request is:

Send_Req(ADDR(‘{3.1}0.0.3’),#FA,%MW10:13,%MW0:4,%MW100:10) l communication between a PLC on the Fipway network and a PLC on the

Ethernet network:

Send_Req(ADR#{3.3}SYS,#FA,%MW10:13,%MW100:10,%MW0:4)

Note: using Unity Pro, the Send_Req request is:

Send_Req(ADDR(‘{3.3}SYS’),#FA,%MW10:13,%MW0:4,%MW100:10)

35

Uni-TE and Modbus message handling

Modbus messaging

At a Glance

Server mode

The Gateway uses the Uni-TE messaging service to communicate with the Atrium.

A Modbus / Uni-TE conversion (or vice versa) is automatically carried out by the

Gateway for both modes (client and server) as described below.

If a Modbus frame is recognized by the Gateway, Modbus to Uni-TE conversion is carried out before the request is sent to the PLC. This conversion enables the reply to be sent back.

Note: for each Modbus remote station, the couple (IP address, {station network}

X-Way) must be configured in the correspondence table:

Client mode The Uni-TE to Modbus conversion is carried out by Gateway only if the client connection is identified as a Modbus connection and the X-Way addressing complies with the Uni-TE to Modbus format.

Modbus commands

Read Coils

Read Input Discrete

Read Multiple Registers

Read Input Registers

Write Single Coil

Write Single Register

Force Multiple Coils

Write Multiple Registers

The correspondence between Modbus function codes and Uni-TE requests is described in the table below:

Modbus function codes

0X01

0X02

0X03

0X04

0X05

0X06

0X0F

0X10

Uni-TE requests

Read object

Read object

Read object

Read object

Write object

Write object

Write object

Write object

Uni-TE parameters

Code Segment Type

PL7 object

0X36

0X36

100

100

5

5

%Mi

%Mi

0X36

0X36

0X37

0X37

0X37

0X37

104

104

100

104

100

104

7

7

5

7

5

7

%MWi

%MWi

%Mi

%MWi

%Mi

%MWi

The Gateway does not support other Modbus codes.

36

Uni-TE and Modbus message handling

Programming example on an Ethernet profile in Modbus

Configuration example

Namely the following configuration:

Unity Pro / PL7

TSX Premium

TSX ETY configuration:

X-Way Address: 2.104

IP Address: 84.0.8.4

Ethernet TCP/IP

Configuration of the Gateway

X-Way Address: 2.1

IP Address: 84.0.8.1

X-Way/IP table:

2.4 / 84.0.8.4

37

Uni-TE and Modbus message handling

Example of word writing programming in

Modbus

If Atrium is in client mode: l l in the General (See

Configuring the "General" screen, p. 18) screen:

l Driver Name: PCIWAY01 l Local Network: 2 l Local Station: 1 l do not check the Enable box l TCP Server Port: 502 in the Ethernet profile (See

Configuring the "Ethernet profile" screen, p. 20)

screen: l Network adapters: choose the appropriate network card, l in the "Connection parameters" table, add the remote station server with: X-

Way address = 2.4, IP address = 84.0.80.1, Protocol = Modbus and the TCP

Port = 502.

On the server side, open the PL7 Pro software and configure the X-Way address and IP address of the TSXETY:

- X-Way address: 2.104 (add 100 to the X-Way address: 2.4)

- IP address: 84.0.8.1 (configure also the sub-network mask and Gateway address).

In the "Configuration of connections" table of the "Message handling" tab, configure the client address, i.e.: l l l

X-Way Address: 2.1

IP Address: 84.0.8.1

Protocol: Modbus

This program is used to send a write request in Modbus messaging to the same remote device. The X-Way address of the TSXETY is 2.4 (16#0402). The request is used to write the values 4, 5 and 6 in words %MW10006, %MW10007, %MW10008 respectively.

(*Atrium in client mode*)

(*Request to write 3 words (Modbus)*)

If NOT %MW1200:X0 THEN

%MW1202:=60;(*time out by 100ms*)

%MW1203:=18;(*length in bytes of data to transmit*)

%MW1000:=16#0402;(*network-station: XWAY address*)

%MW1001:=16#0000;

%MW1002:=16#0000;

%MW1003:=16#0768;(*segment type: internal word*)

%MW1004:=10009;(*address of the 1st word to write*)

%MW1005:=3;(*no. of words to write*)

%MW1006:=4;(*value of data to write*)

%MW1007:=5;(*value of data to write*)

%MW1008:=6;(*value of data to write*)

(*%MW1100:1 = 1 word reception table: report on 1 byte*)

38

Uni-TE and Modbus message handling

SEND_REQ(ADR#0.3,16#0037,%MW1000:9,%MW1100:1,%MW1200:4);

END_IF

Note: using Unity Pro, the Send_Req request is:

Send_Req(ADDR(‘0.0.3’),16#0037,%MW1000:9,%MW1200:4,%MW1100:1)

The confirmation of the correct report is: 16#FE00

Example of bit writing programming in

Modbus

This program is used to send a Modbus request to the same remote device. The X-

Way address of the TSXETY is 2.4 (16#0402). The request is used to write 16 bits:

%M400 to %M415 in the remote device.

(*Atrium in client mode*)

(*Request to write 16 bits (MODBUS)*)

If NOT %MW2400:X0 THEN

%MW2402:=60;(*time out by 100ms*)

%MW2403:=14;(*length in bytes of data to transmit*)

%MW2200:=16#0402;(*network-station: XWAY address*)

%MW2201:=16#0000;

%MW2202:=16#0000;

%MW2203:=16#0564;(*segment type: internal bit*)

%MW2204:=400;(*address of 1st bit to write*)

%MW2205:=16;(*no. of bits to write*)

%MW2206:=16#00A5;(*value of bits to write*)

SEND_REQ(ADR#0.3,16#0037,%MW2200:7,%MW2300:1,%MW2400:4);

END_IF

Note: using Unity Pro, the Send_Req request is:

Send_Req(ADDR(‘0.0.3’),16#0037,%MW2200:7,%MW2400:4,%MW2300:1)

The confirmation of the correct report is: 16#FE00

39

Uni-TE and Modbus message handling

40

Online mode

4

At a Glance

Subject of this

Chapter

What's in this

Chapter?

The Gateway is easy to use, both for configuration interfaces and for interfaces in online mode. It uses Windows standards.

This chapter contains the following topics:

Topic

"TCP/IP" screen in online mode

"RAS" screen in online mode

"Tune" screen in online mode

Page

42

44

46

41

Online mode

"TCP/IP" screen in online mode

Illustration

XWA X-Way/TCP Gateway RunTime

TCP/IP RAS Tune About

Adapter & Address

All Network Adapters

** 192.168.2.50 ** 139.160.66.116 **

Communication

Remote Connections

Remote Clients Connected

Atrium Connections

Connections 2 Connected

Modbus Frames

Send/Receive

Send/Receive Errors

X-Way Frames

Send/Receive

Send/Receive Errors

0

0

632

0

1

1

+

+

OK

The "OK" button enables you to iconize the window in the task bar.

42

Detailed description

Online mode

Adapter & address: this zone displays the name of the Ethernet adapter and the local IP addresses for communication.

Communication: l Remote connections: number of remote clients connected on the Atrium card.

By clicking on "+" the "Remote Client Connections" window opens,

Remote Client Connections

@IP: 139.160.66.116 CONNECTED ON ATRIUM

OK l Atrium Connections: number of client connections and number of connected clients.

By clicking on "+" the "Atrium client connections" window opens,

Atrium Client Connections

ATRIUM CONNECTED ON @IP: 192.168.002.051

ATRIUM DISCONNECTED ON @IP: so-etz1

OK l Modbus Frames and X-Way Frames: these fields correspond to request counters. They indicate the total number of transactions performed (requests sent and received as well as request errors).

43

Online mode

"RAS" screen in online mode

Illustration

XWA X-Way/TCP Gateway RunTime

TCP/IP RAS Tune About

Modem Line Status

No dialin connection configured

DialOut Running on Modem standard 56000 bps V90 COM1

Modem

Activity

Connections :

Bytes In :

Bytes Out :

Errors :

1

36240

68777

30

+

OK

44

Detailed description

Online mode

Modem Line Status: this zone gives the current status of modem connections, and can contain the following messages:

- No Modem configured for dial in: the PC is not configured to accept incoming calls (there is no modem),

- No dialin connection configured: no dialin connection configured,

- COM1- Listening (Standard V90 56K modem): the modem is awaiting a call,

- COM1- not operational (Standard V90 56K modem): the modem is not able to reply to calls (problem on the STN line, etc.),

- COM1- connected (Standard V90 56K modem): a remote client is connected on the PC,

DialOut running on Modem standard V90-COM1: the Atrium is connected on a remote server.

Activity: this zone provides information on the activity of the modem link(s).

l Connections: number of active modem connections.

By clicking on "+" the "RAS Users" window opens and the following information appears:

- the name of the user and the type of connection (DialIn or DialOut),

- the IP address of the client station

- the IP address of the server station

RAS Users

Username: gege (Dial-out connection)

Local IP: 100.32.0.102

Server IP: 100.32.0.100

===========

OK l l l

Bytes In: number of bytes correctly received,

Bytes Out: number of bytes correctly sent,

Errors: number of bytes received or sent in error.

45

Online mode

"Tune" screen in online mode

Illustration

XWA X-Way/TCP Gateway RunTime

TCP/IP RAS Tune About

Refresh Period

0 s (fastest) (slowest) 1 s

Log File

X:\Drivers\atriumgateway\runtime\debug\gateway

Empty

Start Log

Full

Configure X-Way/TCP Gateway

Detailed description

OK

Refresh Period: corresponds to the frequency with which the displays of all counters are updated.

Log file: this is the trace journal file. This file records the transient events during connection.

Start Log: the "Start Log" button enables the user to start recording events in the file. The maximum size of this file is 1 Mb.

46

Performance and limits

5

At a Glance

Subject of this

Chapter

What's in this

Chapter?

This chapter describes the performance and limits of the Gateway software.

This chapter contains the following topics:

Topic

Performance

Limits

Page

48

49

47

Performance and limits

Performance

At a Glance Performance is that of the TSXETY410x modules used by Premium PLCs.

l 53 simultaneous connections are possible in server mode, and 128 simultaneous connections are possible in client mode.

l message handling performance is identical to that for a configuration based on an Atrium using an extension rack and a TSXETY410x.

For direct PPP or WAN connections, performance will be determined by the actual data transfer speed between the client and the server.

Note: due to the wide variety of PC architectures, performance may vary from one

PC to another.

48

Performance and limits

Limits

Message handling

SNMP agent a maximum of 53 simultaneous connections are possible in server mode, and a maximum of 128 simultaneous connections are possible in client mode.

The Gateway has no SNMP agent.

The PC supporting the Gateway is capable of managing the Microsoft SNMP agent

(MIB II standard), but the private TF MIB is not supported.

Global data

Web diagnostic

Bandwidth management

Global data is not supported.

If necessary, you can use an external rack and Ethernet TSXETY4102/5102 communication modules.

Web diagnostic is not supported.

Bandwidth management is not supported.

Security, access verification

Access to the PLCs is verified using the IP entry address. The list of authorized IP addresses is declared on configuration of the software.

Security management is Microsoft Windows standard.

I/O Scanning The I/O Scanning function is not supported. It can be carried out for each application

(See

The Atrium behaving as an I/O scanner, p. 12).

49

Performance and limits

50

Example

6

Example: how to create a connection to other computers and networks using

Windows 2000

Description This example allows you to configure the PC in order to create connections to other computers and networks enabling the applications to function.

Note: the modem(s) must be configured on the PC. To install the modem(s), consult the help manual "Installing a new modem" using Windows 2000 or XP.

51

Example l Activate the "Network and Dial-up Connections" window using the control panel.

Connexions réseau et accès à distance

File Edit View Favorites Tools Advanced

Back Search Folders

Help

History

Address Connexions réseau et accès à distance Go Liens

>>

Connexions réseau et accès à distance

Ce dossier contient des connexions réseau pour cet ordinateur et un

Assistant pour vous aider à créer une nouvelle connexion.

Pour créer une nouvelle connexion, cliquez sur Nouvelle connexion.

Pour établir une connexion, cliquez sur son icône.

Pour accéder aux paramètres et aux composants d’une connexion, cliquez à l’aide du bouton droit de la souris sur son icône, puis sur

Propriétés.

Pour identifier votre ordinateur sur le réseau, cliquez sur :

Identification réseau .

Pour ajouter des composants de mise en réseau supplémentaires, cliquez sur Ajouter des composants réseau .

Sélectionnez un élément pour obtenir une description.

5 object(s)

Make New

Connection

Connexion à

1234

Local Area

Connection

Local Area

Connection 2

USBCON

52

l Active the "Make New Connection" icon.

Network Connection Wizard

Welcome to the network

Connection Wizard

Using this wizard you can create a connection to other computers and networks, enabling applications such as e-mail, Web browsing, file sharing, and printing.

To continue, clic Next.

Example

< Back Next > l Choose "Accept incoming connections".

Network Connection Wizard

Network Connection Type

You can choose the type of network connection you want to create, based on

your network configuration and your networking needs.

Cancel

Dial-up to private network

Connect using my phone line (modem or ISDN).

Dial-up to the Internet

Connect to the Internet using my phone line (modem or ISDN).

Connect to a private network through the Internet

Create a Virtual Private Network (VPN) connection or "tunnel" through the Internet.

Accept incoming connections

Let other computers connect to mine by phone line, the Internet, or direct cable.

Connect directly to another computer

Connect using my serial, parallel, or infrared port.

< Back Next > Cancel

53

Example l Select the modem(s) to be used.

Network Connection Wizard

Devices for Incoming Connections

You can choose the devices your computer uses to accept incoming connections.

Select the check box next to each device you want to use for incoming connections.

Connection devices:

Deskline V90 56K

Parallèle direct (LPT1)

Properties

< Back Next > Cancel l Select "Do not allow virtual private connections".

Network Connection Wizard

Incoming Virtual Private Connection

Another computer can create a virtual private connection to your computer

through the Internet or another public network.

Virtual private connections to your computer through the Internet are possible only if

your computer has a known name or IP address on the Internet.

Choose whether to allow virtual private connections:

Allow virtual private connections

Do not allow virtual private connections

< Back Next > Cancel

54

Example l Use the "Add" button to select or create user accounts authorized to connect.

Network Connection Wizard

Allowed Users

You can specify which users can connect to this computer.

Select the check box next to the name of each user you want to allow to connect to this computer. Note that other factors, such as a disabled user account, may affect a user’s ability to connect.

Users allowed to connect:

Administrator

Guest

Add...

New User

User name:

Full name:

Password:

Confirm password:

Delete

USER

PcxUSER

****

****

OK

Properties

< Back Next >

?

Cancel

Cancel

55

Example l Select the "Clients for Microsoft, TCP/IP...." network components.

Select "Internet Protocol (TCP/IP)", then give the list of IP addresses that are to be assigned to clients.

Network Connection Wizard

Networking Components

Networking components enable this computer to accept connections from other

kinds of computers.

Select the check box next to the name of each networking component you want to enable for incoming connections.

Networking components:

Internet protocol (TCP/IP)

File and Printer Sharing for Microsoft Networks

Client for Microsoft Networks

Install...

Uninstall Properties

Description:

Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks.

Cancel < Back

Incoming TCP/IP Properties

Network access

Allow callers to access my local area network

TCP/IP address assignment

Assign TCP/IP addresses automatically using DHCP

Specify TCP/IP addresses

From: 90 . 0 . 0 . 1

To: 90 . 0 . 0 . 5

Total: 5

Allow calling computer to specify its own IP address

OK Cancel

?

Next >

56

Network Connection Wizard

Completing the Network

Connection Wizard

The connection will be named:

Incoming Connections

To create this connection and save it in the

Network and Dial-up Connections folder, click

Finish.

To edit this connection in the Network and Dial-up

Connections folder, select it, click File, and then click

Properties.

< Back Finish Cancel l A new icon is created in the "Network and Dial-up Connections" window.

Example

57

Example

58

Glossary

C

Client

D

DNS

An application installed on your computer which receives data from a remote server.

Domain Name Service: each station has its own IP address. However, users do not want to work with IP addresses such as 193.174.142.38, but rather with more explicit station names and addresses.

For this reason, TCP/IP is used to associate everyday language names with numerical addresses using the DNS (Domain Names Service) system.

F

FDR Faulty Device Replacement: service offered by the module allowing automatic configuration retrieval.

59

P

PL7

PPP

60

M

MIB

Modem

Glossary

G

Gateway

IP

I

L

LAN

Gateway between networks of different kinds.

Internet Protocol: communication protocol used by Internet.

Local Area Network: local network situated in a collapsed zone or a common environment. A local area network becomes part of an extended network when a link is established (using modems, remote routers, telephone lines, satellites or wireless connection) with a larger system.

Management Information Base: network management databases using SNMP protocol containing information on data transmission, station or router components, etc.

Device that enables a computer to be linked to another computer via a telephone line.

Schneider Automation PLC programming software.

Point-to-Point Protocol: point-to-point communication protocol used in the case of modem connection.

T

TCP

W

WAN

Glossary

Premium

S

Server

SNMP

STN

Schneider Automation TSXP57xxx family of programmable PLCs.

Computer system used to provide services to users (Clients) connected to the network.

Simple Network Management Protocol: network management protocol enabling you to control a remote network by polling the stations on their status and modify their configuration, carry out security tests and observe different data transmission information. It can also be used to remotely manage software and databases.

Switched Telephone Network: network shared by several computers enabling one computer to communicate with any of the others. Example: the standard telephone network.

Transmission Control Protocol: network data transmission protocol.

Wide Area Network: this network can extend worldwide, in contrast to the LAN

(Local Area Network) network.

61

Glossary

62

advertisement

Related manuals

advertisement
