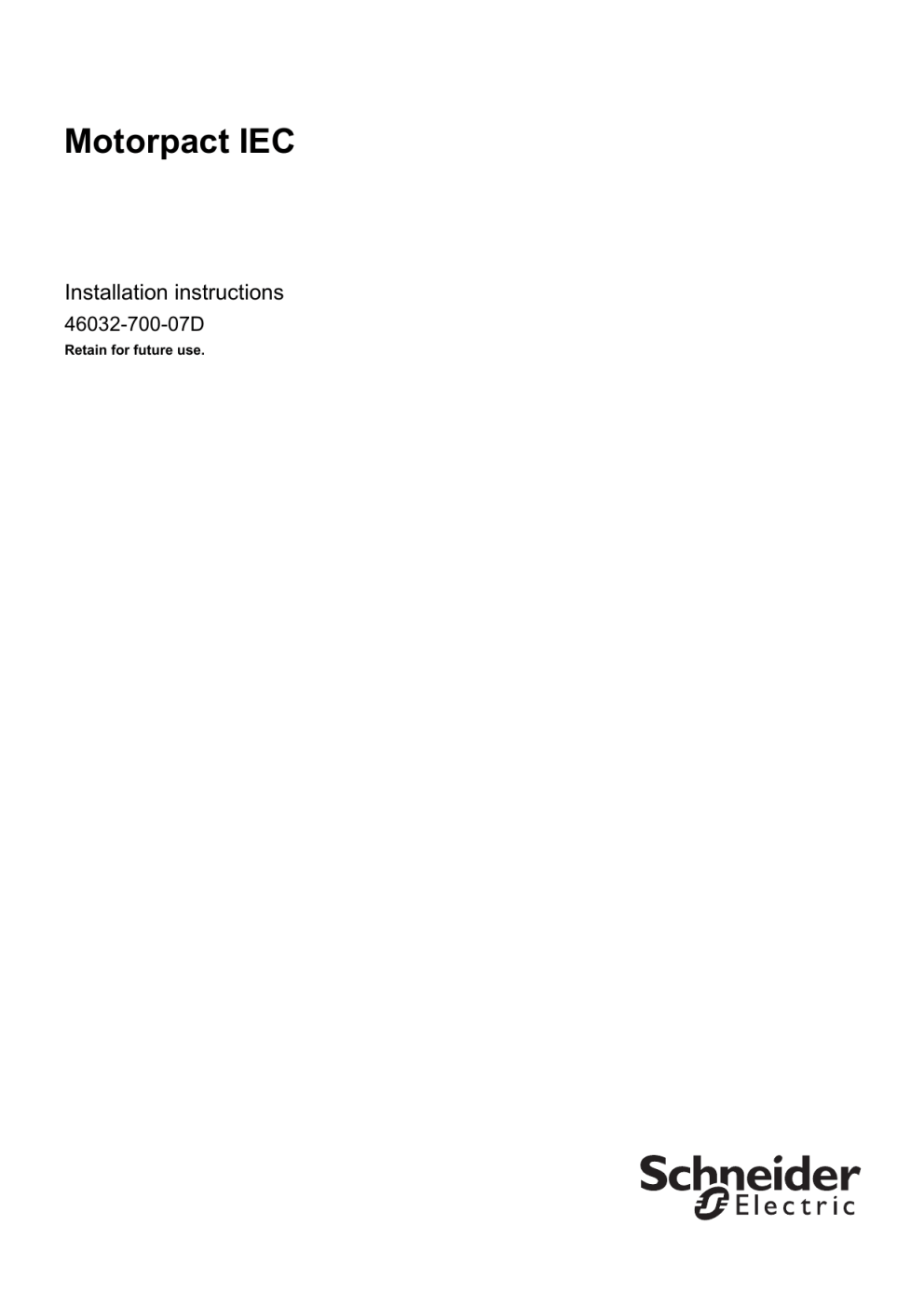

Schneider Electric Civil engineering User Guide

Motorpact IEC
Installation instructions
46032-700-07D
Retain for future use.
0
0
Contents
Dimensions and weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FVNR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FVR/FVS/2S1W/2S2W/Star Delta . . . . . . . . . . . . . . . . . . .
RVSS soft start section . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RVAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Incoming sections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Approximate weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
5
5
5
6
6
7
7
Switchboard with gas discharge tunnel . . . . . . . . . . . . . . . . .
Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ceiling clearance for installing an anti-arcing tunnel
or IPX-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation above the switchboard . . . . . . . . . . . . . . . . . . .
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wall mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Middle of room mounting . . . . . . . . . . . . . . . . . . . . . . . . . .
9
9
Space to be provided around switchboard . . . . . . . . . . . . . .
Civil engineering with maintenance space . . . . . . . . . . . . . .
Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . .
FVNR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Incoming section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Civil engineering with duct space . . . . . . . . . . . . . . . . . . . . .
Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . .
FVNR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Space to be provided around a switchboard . . . . . . . . . . . . .
9
9
9
9
9
11
11
11
11
11
12
12
12
13
Position of MV cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
FVNR (375, 500, and 750), FVR bidirectional, FVS, DDS,
2S1W, 2S2W, and Star Delta—2 cables per phase . . . . . . 15
Maximum external cable . . . . . . . . . . . . . . . . . . . . . . 15
FVNR (375, 500, and 750), FVR bidirectional, FVS, DDS,
2S1W, 2S2W, and Star Delta—1 cable per phase . . . . . . . 15
Maximum external cable . . . . . . . . . . . . . . . . . . . . . . 15
FVNR (375, 500, and 750), FVR bidirectional, FVS, DDS,
2S1W, 2S2W, and Star Delta—dual triplex . . . . . . . . . . . . 15
Maximum external cable . . . . . . . . . . . . . . . . . . . . . . 15
FVNR (375, 500, and 750), FVR bidirectional, FVS, DDS,
2S1W, 2S2W, and Star Delta—single triplex . . . . . . . . . . . 15
Maximum external cable . . . . . . . . . . . . . . . . . . . . . . 15
Incoming section (500)– 6 cables per phase . . . . . . . . . . . 16
Maximum external cable . . . . . . . . . . . . . . . . . . . . . . 16
Incoming section (500)– 3 cables per phase . . . . . . . . . . . 16
Maximum external cable . . . . . . . . . . . . . . . . . . . . . . 16
Incoming section (500)–dual triplex . . . . . . . . . . . . . . . . . 17
Maximum external cable . . . . . . . . . . . . . . . . . . . . . . 17
Incoming section (500)–single triplex . . . . . . . . . . . . . . . . 17
Maximum external cable . . . . . . . . . . . . . . . . . . . . . . 17
Incoming section (750)–6 cables per phase . . . . . . . . . . . 18
Maximum external cable . . . . . . . . . . . . . . . . . . . . . . 18
Incoming section (750)–3 cables per phase . . . . . . . . . . . 18
Maximum external cable . . . . . . . . . . . . . . . . . . . . . . 18
Incoming section (750)–dual triplex . . . . . . . . . . . . . . . . . 19
Maximum external cable . . . . . . . . . . . . . . . . . . . . . . 19
Incoming section (750)–single triplex . . . . . . . . . . . . . . . . 19
Maximum external cable . . . . . . . . . . . . . . . . . . . . . . 19
46032-700-07D.fm
3
0
Content
Floor finishing and section mounting . . . . . . . . . . . . . . . . . .
Floor finishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Surface conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quality of flooring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Summary of different mounting methods . . . . . . . . . . . . . . . .
21
21
21
21
21
21
Base layout—mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
FVNR, RVSS, DDS, RVAT, and incoming section base
layouts–standard and earthquake . . . . . . . . . . . . . . . . . . . . . . . .23
FVNR (375, 750), FVR bidirectional, FVS, 2S1W, 2S2W,
Star Delta, and DDS base layout–standard mounting . . . 23
Reserved space over all civil engineering . . . . . . . . . . 23
FVNR (375, 750), FVR bidirectional, FVS, 2S1W, 2S2W,
Star Delta, and DDS base layout–earthquake mounting . . . .24
Reserved space over all civil engineering . . . . . . . . . . . . .24
RVSS soft start section (750) base layout–standard
mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Reserved space over all civil engineering . . . . . . . . . . . . .25
RVAT (1125) base layout–standard mounting . . . . . . . . . 26
Reserved space over all civil engineering . . . . . . . . . . 26
RVAT (1125) base layout–earthquake mounting . . . . . . . 27
Reserved space over all civil engineering . . . . . . . . . . 27
RVAT (1500) base layout–standard mounting . . . . . . . . . 28
Reserved space over all civil engineering . . . . . . . . . . 28
RVAT (1500) base layout–earthquake mounting . . . . . . . 29
Reserved space over all civil engineering . . . . . . . . . . 29
Incoming section (500) base layout–standard mounting . 30
Reserved space over all civil engineering . . . . . . . . . . . . .30
Incoming section (500) base layout–earthquake mounting 31
Reserved space over all civil engineering . . . . . . . . . . . . .31
Incoming section (750) base layout–standard mounting . 32
Reserved space over all civil engineering . . . . . . . . . . 32
Incoming section (750) base layout–earthquake mounting 33
Reserved space over all civil engineering . . . . . . . . . . . . . . . . . . .33
Base layout—other installation methods . . . . . . . . . . . . . . . .
Other methods of installation . . . . . . . . . . . . . . . . . . . . . . . . .
RVSS soft start section (750) base layout–alternate
mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Incoming section (500) base layout–alternate mounting .
Incoming section (750) base layout–alternate mounting .
RVAT (1125) base layout–alternate mounting . . . . . . . . .
RVAT (1500) base layout–alternate mounting . . . . . . . . .
RVSS soft start section (750) base layout–alternate
mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
35
35
35
36
37
38
39
40
46032-700-07D.fm
0
Dimensions and weights
Dimensions and weights
This section includes dimensions/weights for the following equipment:
•
•
•
•
•
•
•
•
•
•
Full voltage non reversing (FVNR)
Full voltage reversing (FVR) bidirectional
FVS (dual voltage transfer starter)
2-Speed, 1-Winding (2S1W)
2-Speed, 2-Winding (2S2W)
Star Delta
Reduced voltage soft starter (RVSS) soft start section
Dual disconnect section (DDS)
Reduced voltage autotransformer (RVAT)
Incoming sections
(All dimensions in mm)
FVNR
2300
750
375
946
508
79 For NEMA
only
FVR/FVS/2S1W/2S2W/Star Delta
2300
750
946
79
RVSS soft start section
2300
750
2300
946
79
1225
79
Optional rear extension and rear reactors
46032-700-07D.fm
5
0
Dimensions and weights
DDS
2300
750
946
79
RVAT
2300
1125
946
79
2300
1500
6
946
79
46032-700-07D.fm
Dimensions and weights
0
Incoming sections
2300
508
946
79
554
416
2300
946
749
79
Approximate weights
Motor Starter Type
FVNR
Section
Approximate
Width (mm) Weight (kg)
375
472
500■
549■
750
653.2
FVR, FVS, 2S1W, 2S2W, and Star Delta
750
673.2
RVSS soft start section
750
622
RVSS soft start section with extension and
rear reactors
750
690
DDS
750
425
1125
728
1500
885
500
350
750
900
RVAT*
Incoming section
■
500 mm (549 kg) FVNR for NEMA only
* Autotransformer weight to be added
46032-700-07D.fm
7
0
8
46032-700-07D.fm
0
Recommendations
Ceiling clearance for
installing an anti-arcing
tunnel or IPX-1
Installation above the
switchboard
Switchboard with gas
discharge tunnel
The connection between the gas
discharge tunnel and the outside
will be studied case by case. As
far as possible, make this
connection at the end of the
switchboard.
If H > 4 m: installation of tunnel
not necessary for internal arc
withstand. H must be 2.80 m or
over for a standard tunnel to be
installed.
All installation of equipment,
such as lamps or light fittings, is
prohibited to avoid stepping on
the switchboard cover plates.
Installation
Wall mounting
MC set (beyond)
Note: To use the standard
tunnel, the wall surface must be
able to support brackets.
992
2730
804
946
Middle of room
mounting
MC set (beyond)
992
2730
946
46032-700-07D.fm
9
10
46032-700-07D.fm
Space to be provided
around switchboard
0
Civil engineering with
maintenance space
Recommendations
The depth of the maintenance
space can be reduced, but it
must respect the bending radius
of the cables.
The bending radius of the cable
must be compliant with the
minimum bending requirements
of the cable manufacturer.
FVNR
A:
Access to room
B:
Main earth lead
C:
Reserved slab space, if
necessary, for routing of LV
cables
D:
Reserved slab space for
routing of MV cables
MC set (beyond)
A
992
1520–1720
2800
2500
804
B
946
D
425
825
1450
208
C
1200
Incoming section
A:
Access to room
B:
Main earth lead
C:
Reserved slab space for
routing of MV cables
A
2800
2500
B
C
825.00
1658.00
46032-700-07D.fm
1100
11
Space to be provided
around switchboard
0
Civil engineering with
duct space
Recommendations
The depth of the maintenance
space can be reduced, it must
respect the bending radius of
the cables
FVNR
A:
Access to room
B:
Main earth lead
C:
Reserved slab space, if
necessary, for routing of LV
cables
D:
MC set (beyond)
A
992
Reserved slab space for
routing of MV cables
2800
2500
804
B
946
D
425
825
1450
12
208
C
1200
46032-700-07D.fm
0
Space to be provided
around switchboard
Space to be provided around
a switchboard
(*):
minimum dimension (in mm)
A.
This dimension must be equal to:
main earth lead
16 x 51
E
500*
37
FVNR
• 545 mm* for operation (extraction
and positioning of moving parts)
• 1745 mm* for the extraction of one
functional unit without displacing the
other. (1925 mm* for functional units
with a depth of 1725 mm)
B.
D
RVAT
F
This dimension must be equal to:
FVNR
• 800 mm* for the 900 mm wide
functional unit at the end of the
switchboard
Transition
• 500 mm* for all other functional units
C.
Main
incoming
circuit
breaker
This dimension must be equal to:
• 200 mm* for a 1500 mm deep
functional unit with internal arcing
withstand on three sides
A
Coupling
circuit
breaker
• 50 mm* for a 1700 mm deep section
with internal arcing withstand on
three sides
D.
Access to the room
E.
Side end sheets
F.
Access required for installation of
earthquake resistant hardware
L
Main
incoming
circuit
breaker
Transition
FVNR
FVNR
L.
This dimension will differ, depending on
the width of the cubicles selected.
F
RVAT
37
235
E
C
46032-700-07D.fm
main earth lead
16 x 51
B
13
0
14
46032-700-07D.fm
0
FVNR (375, 500, and 750), FVR
bidirectional, FVS, DDS, 2S1W,
2S2W, and Star Delta—2 cables per
phase
Position of MV cables
946
861
783
Maximum external cable
• Single–conductor
70 mm
84 Typ
187
FVNR (375, 500, and 750), FVR
bidirectional, FVS, DDS, 2S1W,
2S2W, and Star Delta—1 cable per
phase
946
822
Maximum external cable
• Single–conductor
70 mm
84 Typ
187
FVNR (375, 500, and 750), FVR
bidirectional, FVS, DDS, 2S1W,
2S2W, and Star Delta—dual triplex
946
822
Maximum external cable
• Three–conductor
90 mm
110
132
FVNR (375, 500, and 750), FVR
bidirectional, FVS, DDS, 2S1W,
2S2W, and Star Delta—single
triplex
946
822
Maximum external cable
• Three–conductor
90 mm
132
46032-700-07D.fm
15
0
Position of MV cables
Incoming section (500)–
6 cables per phase
946
781
Maximum external cable
• Single–conductor
70 mm
703
556
478
331
253
84 Typ
508
225
Incoming section (500)–
3 cables per phase
Maximum external cable
• Single–conductor
946
70 mm
703
478
253
84 Typ
508
225
16
46032-700-07D.fm
0
Incoming section (500)–
dual triplex
Position of MV cables
946
Maximum external cable
• Three–conductor
742
90 mm
517
292
508
100
175
Incoming section (500)–
single triplex
946
Maximum external cable
• Three–conductor
742
90 mm
517
292
508
175
46032-700-07D.fm
17
0
Position of MV cables
Incoming section (750)–
6 cables per phase
946
Maximum external cable
• Single–conductor
781
70 mm
703
556
478
331
253
84 Typ
750
375
Incoming section (750)–
3 cables per phase
946
703
Maximum external cable
• Single–conductor
478
70 mm
253
84 Typ
750
375
18
46032-700-07D.fm
0
Incoming section (750)–
dual triplex
Position of MV cables
946
Maximum external cable
• Three–conductor
742
90 mm
517
292
750
100
325
Incoming section (750)–
single triplex
946
Maximum external cable
• Three–conductor
742
90 mm
517
292
750
325
46032-700-07D.fm
19
20
46032-700-07D.fm
0
Floor finishing
Surface conditioning
Floor finishing and section mounting
The floor’s surface evenness
must allow for a 2 m rule to be
placed on it in any direction
and on all sides so that there
are no deflections greater
than 5 mm.
Quality of flooring
To roll extraction tool for
moving parts (ERT, OESD,
etc.) without damaging the
floor, it must meet the
following criteria:
Section mounting
For standard or earthquakeresistant civil engineering,
see installation manual
46032-700-08_.
Must have rear access for
earthquake-resistant
hardware.
Summary of different
mounting methods
A:
Front rail, supply on switchboard
installation
B:
MV functional unit cable opening
C:
LV cable opening
D:
Horizontal adjustment with the rear
actuators
E:
Rear rail
F:
Rear rail, supply on switchboard
installation
• compressive strength
33 MPa
For civil engineering
structure built with a false floor
or beams, consult our technical
department.
Standard civil engineering
A
D
E
B
C
Earthquake–resistant civil
engineering
A
F
B
46032-700-07D.fm
C
21
22
46032-700-07D.fm
Base layout–mounting
0
FVNR, RVSS, DDS, RVAT, and
incoming section base layouts–
standard and earthquake
203
86
FVNR (375, 500, and 750), FVR
bidirectional, FVS, 2S1W, 2S2W,
Star Delta, and DDS base layout–
standard mounting
Front rail
B:
MV cable opening
C:
LV cable opening
D:
Rear supporting plate
E:
Positioning of front anchors
F:
Positioning of rear anchors
G:
Positioning of rear actuator
86
F
Reserved space over all civil engineering
A:
337
B
F
B
C
C
See LV
cable
opening
detail at
left
See LV
cable
opening
detail at
left
E A
A
E
19
51
95
C
178
95
190
318
375
500
288
940
E (22 h x 36 w)
E
65
65
A
+1
38 3
LV cable opening detail
G
578
D
86
B
C
70
102
B
310
510
935
C
See LV cable
opening detail
above
A
E
95
559
749
46032-700-07D.fm
23
0
Base layout–mounting
FVNR (375, 500, and 750), FVR
bidirectional, FVS, 2S1W, 2S2W,
Star Delta, and DDS base layout–
earthquake mounting
203
86
Reserved space over all civil engineering
A:
Front rail
B:
Rear rail
C:
MV cable opening
D:
LV cable opening
E:
Positioning of front anchors
F:
Positioning of rear anchors
337
86
F
B
C
F
B
C
D
D
19
See LV
cable
opening
detail at
left.
51
E A
A
D
See LV
cable
opening
detail at
left.
E
178
288
95
95
E (22 h x 36 w)
190
318
65
375
500
LV cable opening detail
940
578
E
65
A
86
+1
38 3
F
B
C
C
D
70
102
D
See LV cable
opening detail
above
A
310
510
935
E
95
559
749
24
46032-700-07D.fm
0
RVSS soft start section (750)
base layout–standard mounting
Base layout–mounting
578
Reserved space over all civil engineering
86
A:
Front rail
B:
MV cable opening
C:
LV cable opening
D:
Rear supporting plate
E:
Positioning of front anchors
F:
Positioning of rear anchors
G:
Positioning of rear actuator
B
19
C
51
See LV cable
opening detail at left
C
178
A
288
E
E (22 h x 36 w)
95
65
559
LV cable opening detail
749
940
65
E
A
+1
38 3
G
D
B
C
70
102
310
510
935
46032-700-07D.fm
25
0
Base layout–mounting
RVAT (1125) base layout–
standard mounting
952
Reserved space over all civil engineering
A:
Front rail
B:
MV cable opening
C:
LV cable opening
D:
Rear supporting plate
E:
Positioning of front anchors
F:
Positioning of rear anchors
G:
Positioning of rear actuator
H:
Transformer rails (2 places)
I:
Positioning of transformer anchors
86
206
737
F
I
B
H
C
E
A
95
308
533
933
1124
940
E
65
A
+1
38 3
F
G
D
70
559
26
131
46032-700-07D.fm
0
RVAT (1125) base layout–
earthquake mounting
Base layout–mounting
952
Reserved space over all civil engineering
86
A:
Front rail
206
B:
Rear rail
C:
MV cable opening
D:
LV cable opening
E:
Positioning of front anchors
F:
Positioning of rear anchors
G:
Transformer rails (2 places)
H:
Positioning of transformer anchors
737
B
F
H
C
G
D
E
A
95
308
533
933
1124
940
E
65
A
F
+1
3
38
B
70
559
46032-700-07D.fm
131
27
0
Base layout–mounting
RVAT (1500) base layout–
standard mounting
1327
Reserved space over all civil engineering
A:
Front rail
B:
MV cable opening
C:
LV cable opening
D:
Rear supporting plate
E:
Positioning of front anchors
F:
Positioning of rear anchors
G:
Positioning of rear actuator
H:
Transformer rails (2 places)
I:
Positioning of transformer anchors
86
381
736
F
B
H
G
C
E
A
95
438
533
1308
1499
940
E
65
A
F
G
D
+1
3
38
70
559
28
154
46032-700-07D.fm
0
RVAT (1500) base layout–
earthquake mounting
1327
Reserved space over all civil engineering
A:
Front rail
B:
Rear rail
C:
MV cable opening
D:
LV cable opening
E:
Positioning of front anchors
F:
Positioning of rear anchors
G:
Transformer rails (2 places)
H:
Positioning of transformer anchors
Base layout–mounting
86
381
736
B
F
C
H
G
D
A
E
95
438
533
1308
1499
E
940
A
65
F
+1
38 3
B
70
559
46032-700-07D.fm
154
29
0
Base layout–mounting
Incoming section (500) base
layout–standard mounting
336
Reserved space over all civil engineering
A:
Front rail
B:
MV cable opening
C:
LV cable opening
D:
Rear supporting plate
E:
Positioning of front anchors
F:
Positioning of rear anchors
G:
Positioning of rear actuator
279
86
F
759
660
B
19
C
51
C
See LV
cable
opening
detail at
left.
178
288
E
A
E (22 h x 36 w)
65
95
318
LV cable opening detail
508
940
65
E
+1
38 3
F
G
D
B/C
70
102
935
30
46032-700-07D.fm
0
Incoming section (500) base
layout–earthquake mounting
Base layout–mounting
336
Reserved space over all civil engineering
A:
Front rail
B:
Rear rail
C:
MV cable opening
D:
LV cable opening
E:
Positioning of front anchors
F:
Positioning of rear anchors
279
86
F
B
759
660
19
C
51
D
D
See LV
cable
opening
detail at
left.
178
288
E
A
(22 h x 36 w)
E
65
95
LV cable opening detail
318
508
940
65
E
A
+1
38 3
F
B
C/D
70
102
935
46032-700-07D.fm
31
0
Base layout–mounting
Incoming section (750) base
layout–standard mounting
578
Reserved space over all civil engineering
86
A:
Front rail
B:
MV cable opening
C:
LV cable opening
D:
Rear supporting plate
E:
Positioning of front anchors
F:
Positioning of rear anchors
G:
Positioning of rear actuator
246
279
F
759
660
B
19
C
51
C
See LV
cable
opening
detail at
left.
178
288
E
A
E (22 h x 36 w)
95
65
559
749
LV cable opening detail
940
F
65
A
+1
F
38 3
G
D
B/C
70
102
935
32
46032-700-07D.fm
0
Base layout–mounting
Incoming section (750) base
layout–earthquake mounting
578
Reserved space over all civil engineering
86
A:
Front rail
B:
Rear rail
C:
MV cable opening
D:
LV cable opening
E:
Positioning of front anchors
F:
Positioning of rear anchors
246
279
B
F
759
19
660
C
51
D
D
178
See LV
cable
opening
detail at
left.
288
E (22 h x 36 w)
E
A
65
95
LV cable opening detail
559
749
940
E
65
A
F
+1
38 3
B
C/D
70
102
935
46032-700-07D.fm
33
34
46032-700-07D.fm
0
Base layout–other installation methods
Other methods of
installation
Preparing the site
Bottom cable installation with
conduit.
Ensure that the floor is level
within 2 mm per 305 mm, or a
maximum of 6 mm within the
area of the contactor line-up.
Top cable entry installation:
— Direct on line (FVNR)
— Reduced voltage
sutotransformer (RVAT)
— Reduced voltage soft
starter (RVSS) soft start
section
— Incoming line section
RVSS soft start section (750)
base layout–alternate mounting
998
946
Control conduit area
161
110
51
749
254
Top View
86
59
Alternate rear mounting location.
Use (2) 10 mm mounting bolts.
60
18
657
946
881
835
856
Control Conduit Area
Designates mounting locations.
Use (4) 12 mm mounting bolts
with DIN9021B washers.
19
92
749
92
70
Floor Plan
46032-700-07D.fm
35
0
Base layout–other installation methods
Incoming section (500) base
layout–alternate mounting
998
946
Control conduit area
161
110
51
254
508
Top View
365
Power cable
conduit area
Alternate rear mounting location.
Use (2) 10 mm mounting bolts.
86
59
60
99
18
657 759
946
88
856
Designates mounting locations.
Use (4) 12 mm mounting bolts
with DIN9021B washers
835
Control conduit area
92
19
70
508
Floor Plan
36
46032-700-07D.fm
0
Base layout–other installation methods
Incoming section (750)
base layout–alternate
mounting
70
Power cable conduit area
(See suggested conduit arrangements)
Suggested top entry
conduit arrangements
(1) 150 mm
Electro Mechanical
Tubing (EMT)
conduit area
122
478
Control
conduit
area
998
946
A. (2) 400 mm 2
(3) 240 mm 2
(5) 185 mm 2
(6) 120 mm 2
per phase
per phase
per phase
per phase
161
110
(2) 100 mm
EMT conduit area
76.2
51
76.2
254
749
Top View
Power cable
conduit area
59
235
86
60
B. (2) 400 mm 2 per phase
(3) 240 mm 2 perphase
(4) 185 mm 2 per phase
(4) 120 mm 2 per phase
Alternate rear mounting location.
Use (2) 10 mm mounting bolts.
127.0 127.0
99
(2) 100 mm
EMT conduit area
18
657
946
881 856
759
835
C. (4) 750 mm 2
(4) 400 mm 2
(6) 240 mm 2
(6) 120 mm 2
per phase
perphase
per phase
per phase
152.4 152.4
(6) 100 mm
EMT conduit area
76.2
Control
conduit area
Designates
mounting locations. 92
Use (4)12 mm
mounting bolts
with DIN9021B
washers.
76.2
749
19
92
70
D. (6) 400 mm 2 per phase
Floor Plan
Notes:
1. For top entry, if cable is led from cable tray, all cables sizes will require a 432 mm pullbox.
2. Due to the minimum required cable bending space, when cable is fed from conduit, a 432 mm pullbox is required for all
cables above 120 mm2.
3. Current transformers may be used with conduit plans “A” and “B” or cables fed from cable trays only.
46032-700-07D.fm
37
0
Base layout–other installation methods
RVAT (1125) base layout–
alternate mounting
998
946
Control conduit area
161
110
51
1124
254
Top View
86
Alternate rear mounting location.
Use (2) 10 mm mounting bolts.
60
59
18
946
881 856
Designates mounting locations.
Use (4) 12 mm mounting bolts
with DIN9021B washers
92
92
1124
Floor Plan
38
46032-700-07D.fm
0
Base layout–other installation methods
RVAT (1500) base layout–
alternate mounting
998
946
Control
conduit
area
161
110
51
254
1499
Top View
86
59
Alternate rear
mounting location.
Use (2) 10 mm
mounting bolts.
60
18
856
881
946
Designates mounting locations.
Use (4) 12 mm mounting bolts
with DIN9021B washers
92
92
1499
Floor Plan
46032-700-07D.fm
39
0
Base layout–other installation methods
RVSS soft start section (750) base
layout–alternate mounting
998
946
Control conduit area
161
110
51
254
749
Top View
Alternate rear mounting location.
Use (2) 10 mm mounting bolts.
86
60
59
18
657
946
881
835
856
Control conduit area
95
Designates mounting locations.
Use (4) 12 mm mounting bolts
with DIN9021B washers
19
70
749
92
Floor Plan
40
46032-700-07D.fm
46032-700-07D.fm
41
42
46032-700-07D.fm
43
46032-700-07D.fm
The Schneider group service centers are at your service for:
-engineering and technical assistance,
-commissioning,
-training,
-preventive and corrective maintenance,
-adaptation, and
-spare parts.
Schneider Electric Industries SAS
35, rue Joseph Monier
CS 30323
F - 92506 Rueil Malmaison Cedex (France)
Tél. : +33 (0)1 41 29 70 00
RCS Nanterre 954 503 439
Capital social 896 313 776 €
www.schneider-electric.com
46032-700-07D
As standards, specifications, and designs change from time to time, please ask for confirmation
of the information given in this publication.
This document has been printed on ecological paper.
10/2011
46032-700-07D © 2004–2011 Schneider Electric All rights reserved.
Contact your sales representative who will put you in touch with your nearest
Schneider group service center or call us on 33 (0)4 76 57 60 60
(Grenoble, France).

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
