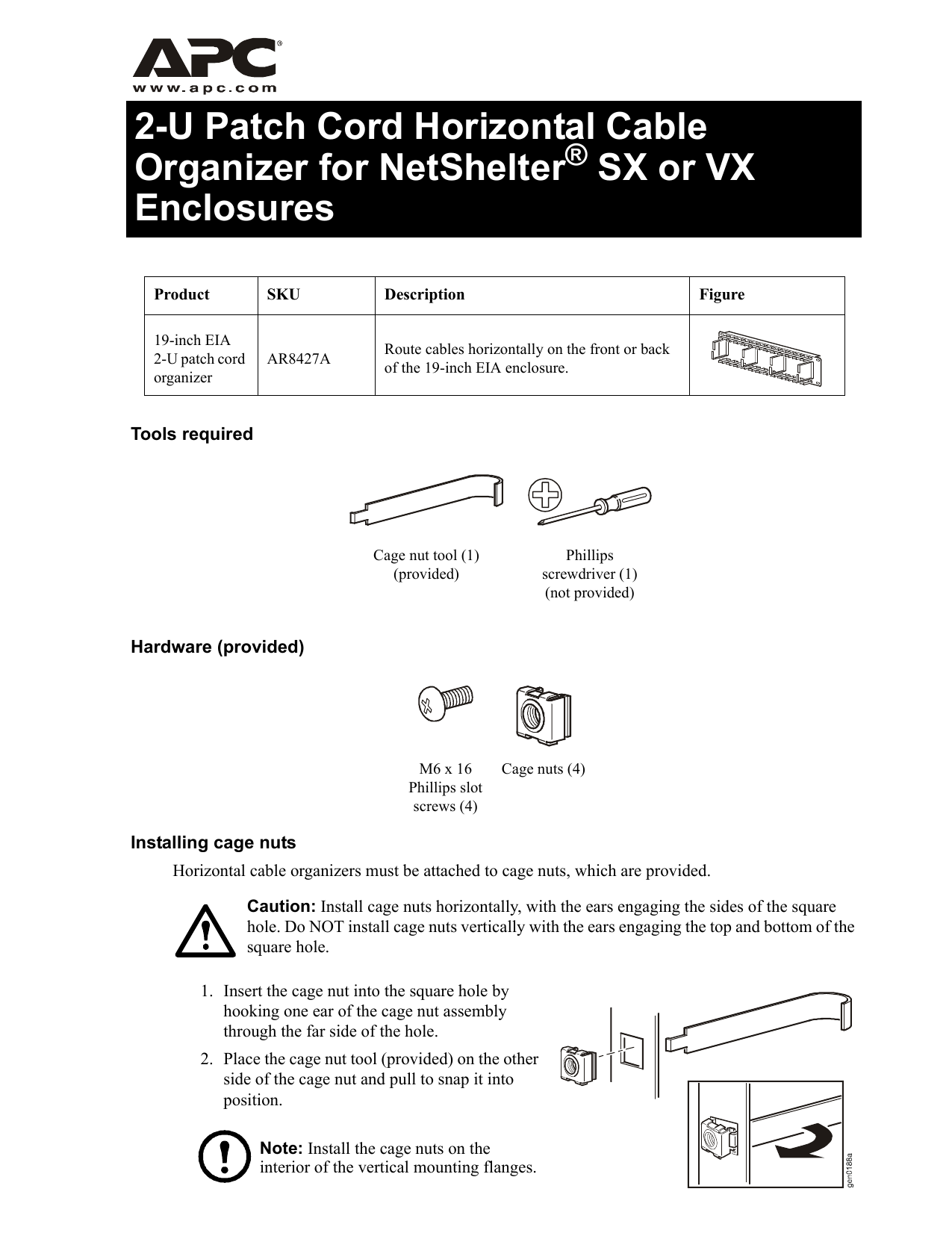

Schneider Electric 2-U Patch Cord Horizontal Cable Organizer Instruction Sheet

2-U Patch Cord Horizontal Cable
Organizer for NetShelter® SX or VX
Enclosures
Product
SKU
Description
Figure
19-inch EIA
2-U patch cord
organizer
AR8427A
Route cables horizontally on the front or back
of the 19-inch EIA enclosure.
Tools required
Cage nut tool (1)
(provided)
Phillips
screwdriver (1)
(not provided)
Hardware (provided)
M6 x 16
Phillips slot
screws (4)
Cage nuts (4)
Installing cage nuts
Horizontal cable organizers must be attached to cage nuts, which are provided.
Caution: Install cage nuts horizontally, with the ears engaging the sides of the square
hole. Do NOT install cage nuts vertically with the ears engaging the top and bottom of the
square hole.
1. Insert the cage nut into the square hole by
hooking one ear of the cage nut assembly
through the far side of the hole.
2. Place the cage nut tool (provided) on the other
side of the cage nut and pull to snap it into
position.
Note: Install the cage nuts on the
interior of the vertical mounting flanges.
Installing the horizontal cable organizer
Customer support and warranty information is available at the APC Web site, www.apc.com.
© 2006 American Power Conversion. All rights reserved. All APC trademarks are property of American Power
Conversion. Other trademarks are property of their respective owners.
990-3070
12/2006
*990-3070*
