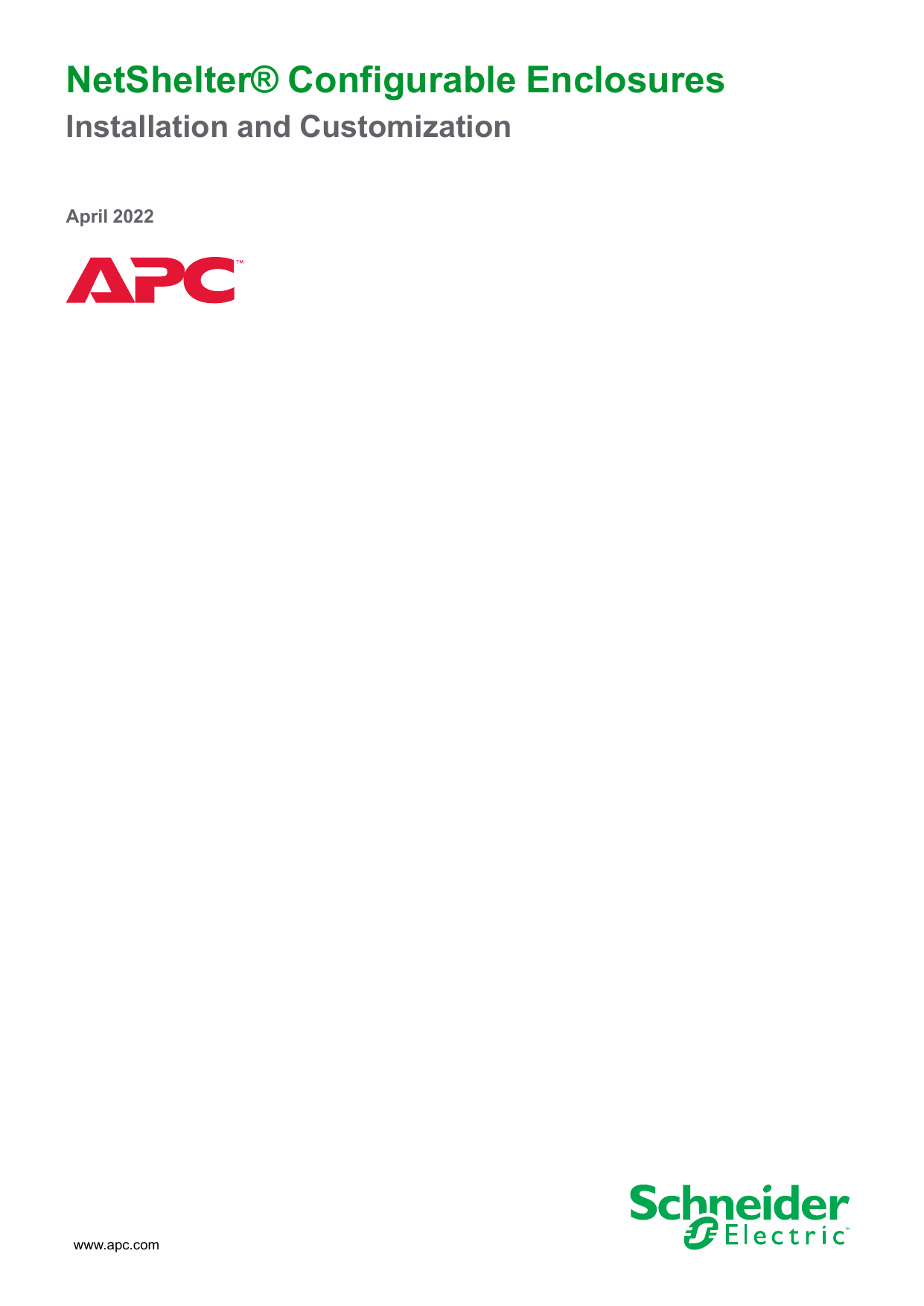

NetShelter® Configurable Enclosures
Installation and Customization
April 2022
www.apc.com
Legal Information
The Schneider Electric brand and any trademarks of Schneider Electric SE and its
subsidiaries referred to in this guide are the property of Schneider Electric SE or its
subsidiaries. All other brands may be trademarks of their respective owners.
This guide and its content are protected under applicable copyright laws and
furnished for informational use only. No part of this guide may be reproduced or
transmitted in any form or by any means (electronic, mechanical, photocopying,
recording, or otherwise), for any purpose, without the prior written permission of
Schneider Electric.
Schneider Electric does not grant any right or license for commercial use of the guide
or its content, except for a non-exclusive and personal license to consult it on an "as
is" basis. Schneider Electric products and equipment should be installed, operated,
serviced, and maintained only by qualified personnel.
As standards, specifications, and designs change from time to time, information
contained in this guide may be subject to change without notice.
To the extent permitted by applicable law, no responsibility or liability is assumed by
Schneider Electric and its subsidiaries for any errors or omissions in the informational
content of this material or consequences arising out of or resulting from the use of the
information contained herein.
Table of Contents
Introduction ..................................................................................................5
Safety ............................................................................................................6
Important Safety Information .......................................................................6
Component Identification ...........................................................................8
Enclosure Installation ...............................................................................10
Move the Enclosure ..................................................................................10
Level the Enclosure .................................................................................. 11
Join the Enclosures ..................................................................................12
Ground the Enclosure ...............................................................................13
Secure the Enclosure................................................................................14
Side Panels, Roof, and Doors....................................................................15
Locking Side Panels............................................................................15
Roof...................................................................................................17
Doors.................................................................................................20
Equipment Installation ..............................................................................27
Adjust the Vertical Mounting Flanges..........................................................27
Install the Equipment ................................................................................30
Cable Management ..................................................................................32
Specifications ............................................................................................33
Five-Year Factory Warranty.....................................................................34
990–91548
3
Introduction
Introduction
APC NetShelter™ Configurable Enclosures are high-quality enclosures for
storage of industry-standard (EIA/ECA-310), 19 in (483 mm) rack-mount
hardware, including servers and voice, data, networking, internetworking, and
power protection equipment.
This manual covers the general installation and the customization of NetShelter
Configurable Enclosures.
Refer to the NetShelter Configurable Enclosures Specifications page in this
manual for detailed measurements and ratings of specific models.
NetShelter Configurable Enclosures are available in 600 mm (23.6 in), 750 mm
(29.5 in), and 800 mm (31.5 in) widths.
990–91548
5
Safety
Safety
Important Safety Information
Read the following safety information carefully. Safety messages will appear
throughout this manual and on labels on the enclosure to warn of potential
hazards, provide important weight and safe usage notifications, or to call attention
to information that clarifies a procedure.
WARNING
TIP/HEAVY EQUIPMENT HAZARD
•
The enclosure is easily tipped. Use extreme caution when unpacking or
moving.
•
At least two people should move or unpack the enclosure.
•
Before moving the enclosure on its casters, load at least 200 lbs. of
equipment into the bottom of the enclosure for extra stability.
•
When moving the enclosure on its casters, make sure the leveling feet are in
the fully raised position and push the enclosure from the front or rear only.
Never push the enclosure from the sides.
Failure to follow these instructions can result in death, serious injury, or
equipment damage.
NOTICE
Caster loads: The enclosure can be moved on its casters with up to 1020.58 kg
(2,250 lb) of equipment installed. Once in place, lower the leveling feet. With the
leveling feet lowered, the static enclosure can be loaded to 1704.5 kg (3,750 lb).
Failure to follow these instructions can result in equipment damage.
6
990–91548
Safety
Labels
The labels in the illustration below can be found on the enclosure and serve to
communicate important information.
Label : Install heavy equipment to the enclosure starting from the bottom. Load
at least 200 lbs. of weight in the bottom of the enclosure before moving the
enclosure on its casters to lessen the possibility of tipping.
Label : Tip hazard, moving on an uneven floor hazard, and read instructions
notice.
ns3425a
Label : Warning to install support brackets to the enclosure before installing
equipment.
990–91548
7
Component Identification
Component Identification
ns0609d
Enclosure
Adjustable vertical 0U
accessory channel
Casters
Rear doors
Front door
Side panels with locks
Key
Frame
Vertical mounting rails
Leveling feet
Roof
Hardware bag
Hardware (Provided)
M6 x 16 Phillips head screw
(50)
8
M5 x 12 Flat head Phillips
screw (4)
M6 Cage nut (50)
990–91548
Component Identification
Tools Required (Not Provided)
990–91548
Phillips head screwdriver
Level
Flat tip screwdriver
14–mm open-ended wrench
9
Enclosure Installation
Enclosure Installation
Move the Enclosure
Move the Enclosure on its Casters
WARNING
TIP/HEAVY EQUIPMENT HAZARD
•
The enclosure is easily tipped. Use extreme caution when unpacking or
moving.
•
At least two people should move or unpack the enclosure.
•
Before moving the enclosure on its casters, load 158 kg (350) lb) of
equipment into the bottom of the enclosure for extra stability.
•
When moving the enclosure on its casters, make sure the levelling feet are in
the fully raised position and push the enclosure from the front or rear only.
Never push the enclosure from the sides.
Failure to follow these instructions can result in death, serious injury, or
equipment damage.
The enclosure can be rolled on its casters to move it. Follow all Safety information
when moving the enclosure in this manner.
Lift the Enclosure
ns3427a
An empty enclosure can be lifted using M8 eye bolts installed to the threaded
holes located in each corner of the roof.
NOTE: Use appropriate lifting hardware to ensure a straight-line pull on the
lifting eye bolts.
10
990–91548
Enclosure Installation
Level the Enclosure
The leveling feet at the corners of the enclosure provide a stable base if the floor is
uneven, but they cannot compensate for a badly sloped surface.
Tools Required (not provided)
14–mm Open-ended wrench
Level
1. Ensure the enclosure is in its intended location.
2. Use a 14–mm open-ended wrench to lower the leveling feet.
ns3429a
3. Use a level while you adjust the feet of the enclosure until it is level and
plumb.
990–91548
11
Enclosure Installation
Join the Enclosures
WARNING
TIP HAZARD
Joining racks in the row with the provided joining brackets provides limited
stability to the racks. Secure the enclosure to the floor to provide additional
stability.
Failure to follow these instructions can result in death, serious injury, or
equipment damage.
Tools Required (not provided)
Phillips head screwdriver
Join two or more enclosures with the provided brackets to assist in alignment and
increase stability. Enclosures can be joined with or without the side panels
installed.
1. Make sure that the leveling feet are down and the enclosures are level.
2. If installed, remove the front and rear doors. Disconnect any grounding wires
and cables that may interfere with door removal. Refer to the Door Removal
section in this manual for more information.
3. Locate the joining brackets. There are two (2) brackets on the front and two
(2) brackets on the rear of each enclosure.
ns3415a
4. Join the enclosures using one (1) M5 x 12 countersunk screw (provided) per
bracket. Insert a screw into the hole on each bracket and into the tapped hole
in the frame of the adjoining enclosure. Use a Phillips head screwdriver to
tighten the screws.
5. Re-install the doors. Refer to the Door Installation section in this manual for
more information.
DANGER
HAZARD OF ELECTRIC SHOCK
When installing the doors, connect all ground and other connection wires.
Failure to follow these instructions will result in death or serious injury.
12
990–91548
Enclosure Installation
Ground the Enclosure
DANGER
HAZARD OF ELECTRIC SHOCK
The enclosure must be connected to the building Common Bonding Network
(CBN).
Failure to follow these instructions will result in death or serious injury.
Each enclosure should be bonded directly to a common ground using one of the
designated grounding locations (two M6 threaded inserts) at the bottom of the
enclosure.
Use a Common Bonding Network Jumper kit (for example, Listed [KDER]
Panduit® RGCBNJ660PY or equivalent).
•
Use paint-piercing washers (not provided) between the ground terminal and
the enclosure frame, or remove the paint on the frame under the ground
terminal, per NEC NFPA 70 Article 250.12.
•
Do not ground one enclosure to another in a cascading style. Ground each
enclosure directly to the building ground.
ns1617b
•
Bonding Locations on the Enclosure
990–91548
13
Enclosure Installation
Secure the Enclosure
WARNING
TIP HAZARD
Secure the enclosure to the floor before installing equipment.
Failure to follow these instructions can result in death, serious injury, or
equipment damage.
ns1780d
The enclosure can be bolted to the floor internally or externally, as shown below.
Description
Pallet/bolt-down
brackets (provided)
Attaches to the enclosure and floor, internally or
externally, to provide additional stability without
blocking cable access. Designed for use in low
and moderate seismic regions.
NetShelter
Configurable
Enclosure stabilizer
plate (option)
Attaches externally to the enclosure and floor to
provide additional stability.
Bolt-down kit
(option)
Attaches to the enclosure and floor, internally or
externally, to provide additional stability without
blocking cable access. Designed for use in low
and moderate seismic regions.
High-seismic region
bolt-down kit
(option)
Attaches to the enclosure and floor, internally
and externally, to provide additional stability
without blocking cable access.
ns0702a
Accessory
NOTE: Not a substitute for enclosures
designed to meet OSHPD* and IBC high
seismic region requirements.
14
990–91548
Enclosure Installation
Side Panels, Roof, and Doors
Locking Side Panels
DANGER
HAZARD OF ELECTRIC SHOCK
When installing the side panels, ensure all ground wires are reconnected.
Failure to follow these instructions will result in death or serious injury.
CAUTION
HEAVY EQUIPMENT HAZARD
The panels are heavy. Use care when removing. Two people are recommended
for this task.
Failure to follow these instructions can result in injury or equipment
damage.
ns3418a
All four side panels have ground wires attached. Disconnect the ground wires as
shown in the illustration below.
990–91548
15
Enclosure Installation
Top Panel
ns3435a
The top panels on each side of the enclosure are locked and must be unlocked
with a key (provided) before they can be opened or removed. After unlocking the
panel, tip the panel out and lift up to remove.
Bottom Panel
ns3430a
The bottom panel is removed in the same manner as the top. The panel must first
be unlocked, then, the panel can be tilted out and lifted up out of its channel in the
frame of the enclosure.
16
990–91548
Enclosure Installation
Roof
DANGER
HAZARD OF ELECTRIC SHOCK
When the roof is installed, ensure the ground wire is connected.
Failure to follow these instructions will result in death or serious injury.
CAUTION
HEAVY EQUIPMENT HAZARD
The roof is heavy. It is recommended that two people perform the removal and
installation tasks.
Failure to follow these instructions can result in injury or equipment
damage.
Roof Removal
ns3437a
Disconnect the ground wire attached to the roof before removing the roof.
990–91548
17
Enclosure Installation
To remove the roof pull back the spring loaded pins then push up. The springloaded pins can be accessed from inside the enclosure or by reaching through the
brushed access openings at the rear of the roof from the outside.
ns3431b
X2
18
990–91548
Enclosure Installation
Installation
To install the roof:
1. Insert the tabs at the front of the roof into the openings in the top of the frame.
2. Lower the rear of the roof to the frame. The spring-loaded pins should be
pulled out to clear the top of the frame.
ns3431a
3. Check that when the roof is fully lowered that the spring-loaded pins are
secure to the frame.
ns3437b
Connect the ground wire.
990–91548
19
Enclosure Installation
Doors
The removal and installation tasks can be used to remove and install the front or
rear doors.
Door Removal
CAUTION
HEAVY EQUIPMENT HAZARD
The doors are heavy. Use care when removing. Two people are recommended
for this task.
Failure to follow these instructions can result in injury or equipment
damage.
1. Unlock the door handle and open the door.
ns2283a
2. Disconnect the ground wire and any other wire connections that may interfere
with the removal of the door.
ns3145b
3. The hinges separate by lifting upward and outward. Carefully lift the door up
until the hinge brackets on the door are free of the hinge pins on the
enclosure frame then pull the door away from the enclosure.
20
990–91548
Enclosure Installation
Door Installation
DANGER
HAZARD OF ELECTRIC SHOCK
When installing the doors, ensure all ground wires and any other cables have
been reconnected.
Failure to follow these instructions will result in death or serious injury.
CAUTION
HEAVY EQUIPMENT HAZARD
The doors are heavy. Use care when installing. Two people are recommended
for this task.
Failure to follow these instructions can result in injury or equipment
damage.
ns2284a
1. The doors self-align on hinge pins when properly installed. With the door at a
90 degree angle to the front of the enclosure, position the door over the hinge
pins . Carefully lower the door to the enclosure frame, ensuring that the
door hinge brackets correctly align to the enclosure frame hinge pins.
1
ns2285a
2. Connect the ground wire and any other wire connections.
990–91548
21
Enclosure Installation
Reverse the Front Door
DANGER
HAZARD OF ELECTRIC SHOCK
Ensure all ground wires and any other cables are reconnected following
completion of this task.
Failure to follow these instructions will result in death or serious injury.
CAUTION
HEAVY EQUIPMENT HAZARD
The doors are heavy. Two people are recommended for this task.
Failure to follow these instructions can result in injury or equipment
damage.
The front door can be reversed so that the door opens in the other direction. This
procedure assumes that initially, when facing the enclosure, the hinges are on the
left and the door is opening from the right.
ns3422a
1. Remove the handle by removing the two screws securing the screw-plate and
remove the screw-plate. Pull the handle from the door.
22
990–91548
Enclosure Installation
2. Disconnect the ground wire and any other wire connections that may interfere
with door removal.
ns1405c
3. Carefully lift the door vertically from the enclosure until the hinge brackets on
the door are free of the hinge pins on the enclosure frame then pull the door
away from the enclosure.
990–91548
23
Enclosure Installation
ns1824a
4. Locate the upper hinge on the enclosure frame. Remove the two screws
holding the hinge in place. Install the hinge onto the other side of the
enclosure frame. Repeat this step for the lower hinge.
5. Rotate the door . Remove the hinges from the door, and install them to
the alternate hole location . The hinges on the door should now align with
the hinges on the enclosure.
2
1
ns2289a
3
24
990–91548
Enclosure Installation
6. Install the door to the hinges now on the reverse side of the enclosure frame.
The doors self-align on hinge pins when properly installed. With the door at a
90 degree angle to the front of the enclosure, position the door over the hinge
pins .
Carefully lower the door into the hinges on the enclosure frame. Ensure that
the door hinges correctly align to the enclosure frame hinges.
ns3432a
1
ns1752f
7. Reconnect the ground wire.
990–91548
25
Enclosure Installation
ns3416a
8. Rotate the door handle 180 degrees from its original position so that the latch
properly engages the rack frame.
ns3433a
9. Remove the logo from the bottom of the door and place it on the top using the
dimensions in the illustration below.
241 m
m (9.5
in.)
ns3434a
300 m
m
375 m (11.8 in.)
6
m
400 m (14.8 in.) 00 mm wid
7
e
m (15
.74 in 50 mm wid
.) 800
e
mm w
ide
26
990–91548
Equipment Installation
Equipment Installation
NOTE: NetShelter Configurable Enclosures are intended for use with Listed
equipment. If you install un-Listed equipment, you should evaluate the safety
of your configuration.
Adjust the Vertical Mounting Flanges
Vertical mounting flanges come factory-installed at 741 mm (29.17 in), the proper
location for use with rack-mountable equipment.
The mounting flanges are adjustable towards the front or the rear of the enclosure
to accommodate different rails or equipment with other depths.
ns1621b
A common application for the 750 mm (29.5 in) or 800 mm (31.5 in) wide
enclosure is to move the rails to a depth of 476 mm (18.75 in) to accommodate
networking and telecommunications equipment.
990–91548
27
Equipment Installation
Position the Vertical Mounting Rails
•
Configuration 1: The Accessory Channel is installed. the vertical mounting
flanges can be installed a minimum distance of (a) and can extend as far as
(b).
•
Configuration 2: The Accessory Channel is removed. The vertical mounting
rails can extend as far as (c).
1
2
c
b
D
D
ns2293a
a
W
28
W
Enclosure
Width (W)
Enclosure
Depth (D)
a
b
c
600/750/800 mm
1092.4 mm
200 mm (7.87 in)
741 mm (29.17 in)
890 mm (35.0 in)
600/750/800 mm
1221.4 mm
200 mm (7.87 in)
741 mm (29.17 in)
1019 mm (40.12)
990–91548
Equipment Installation
Vertical Mounting Flange Adjustment
WARNING
FALLING EQUIPMENT HAZARD
Remove all equipment installed on the vertical mounting flanges before
performing any adjustments.
Failure to follow these instructions can result in death, serious injury, or
equipment damage.
ns3424b
The vertical mounting flanges are secured at the top, bottom, and center with two
(2) Phillips head screws at each end. The vertical mounting flanges can be moved
to accommodate your equipment. Make sure to align the vertical mounting flange
at the top and bottom of the enclosure. To ensure the vertical mounting flanges
are aligned to the same depth, the horizontal struts have numbers with will be
visible through the square center hole in the vertical mounting flange. To verify
that the two vertical mounting flanges at the front or rear of the enclosure are
positioned to the same depth, the number visible through the square center hole
will be the same.
990–91548
29
Equipment Installation
Install the Equipment
WARNING
TIP HAZARD
•
The enclosure is easily tipped. Make sure you have secured the cabinet to
the floor before installing equipment.
•
Install the heaviest equipment first and toward the bottom of the enclosure.
•
Do not extend any equipment on sliding rails until you have installed
equipment into the enclosure (starting at the bottom of the rack and weighing
approximately 200 lbs) or until you have installed the stabilizer plate or boltdown brackets.
•
Never extend more than one piece of equipment on sliding rails at a time.
Failure to follow these instructions can result in death, serious injury, or
equipment damage.
Install Rack-mount Equipment in the Enclosure
1. Review the equipment manufacturer’s
installation instructions.
7
1U
6
5
30
ns0014a
2. Locate the top and bottom U-space on the
vertical mounting rails. Every third hole on
the mounting rails is numbered to indicate
the middle of a U-space.
990–91548
Equipment Installation
Cage Nuts
CAUTION
FALLING EQUIPMENT HAZARD
Do NOT install cage nuts vertically with the tabs engaging the top and bottom of
the square hole.
Failure to follow these instructions can result in injury or equipment
damage.
If needed, APC offers a cage nut hardware kit, AR8100, (not provided) for use with
square holes. You can order the kit at www.apc.com.
ns1768a
Install cage nuts horizontally, with the tabs
engaging the sides of the square hole.
Installation:
Install the cage nuts on the interior of the vertical mounting rail.
1. From the inside of the cabinet, insert the
cage nut into the square hole.
ns3436a
2. Hook one tab of the cage nut through the
far side of the hole and pull the opposite
tab through the square hole to snap the
cage nut into position.
Removal:
1. Remove any attached screw.
2. Grasp the cage nut and squeeze the sides to release it from the square hole.
990–91548
31
Equipment Installation
Cable Management
The NetShelter Configurable Enclosure has multiple cable access openings,
including the roof and floor. Route, secure, and organize cables using these
openings.
In addition, two rear vertical 0U cable organizers, or accessory channels, are
included with the enclosure. Deeper enclosures can accommodate four 0U
vertical cable organizers. Additional cable management accessories are available.
Please go to www.apc.com or contact your APC or Schneider Electric reseller for
more information.
Accessory Channel
The accessory channels provide toolless mounting capabilities for Rack Power
Distribution Units and cable management accessories.
There are four Accessory Channels included with the 1200 mm (47.24 in) deep
enclosure. There are two included with all other enclosures. The factory-default
position for the accessory channels is in the rear of the enclosure.
The Accessory Channels also provide tie-off locations for cables, as well as other
specific holes for managing cables with NetShelter brackets, fasteners, and
toolless mounting equipment.
Similar to the mounting flanges, the accessory channel can be moved anywhere
along the side braces.
ns1923a
NOTE: If needed, the accessory channels can be removed. Additional vertical
0U accessory channels are available for order.
32
990–91548
Specifications
Specifications
General specifications for NetShelter Configurable Enclosures:
990–91548
Model
Available U
Space
Height
Width
Depth
42U6001070
42U
1994 mm (78.5 in)
600 mm (23.6 in)
1091 mm (43.0 in)
45U6001070
45U
2127 mm (83.7 in)
600 mm (23.6 in)
1091 mm (43.0 in)
48U6001070
48U
2260 mm (89.0 in)
600 mm (23.6 in)
1091 mm (43.0 in)
52U6001070
52U
2438 mm (96.0 in)
600 mm (23.6 in)
1091 mm (43.0 in)
42U6001200
42U
1994 mm (78.5 in)
600 mm (23.6 in)
1221 mm (48.1 in)
45U6001200
45U
2127 mm (83.7 in)
600 mm (23.6 in)
1221 mm (48.1 in)
48U6001200
48U
2260 mm (89.0 in)
600 mm (23.6 in)
1221 mm (48.1 in)
52U6001200
52U
2438 mm (96.0 in)
600 mm (23.6 in)
1221 mm (48.1 in)
42U7501070
42U
1994 mm (78.5 in)
750 mm (29.5 in)
1091 mm (43.0 in)
45U7501070
45U
2127 mm (83.7 in)
750 mm (29.5 in)
1091 mm (43.0 in)
48U7501070
48U
2260 mm (89.0 in)
750 mm (29.5 in)
1091 mm (43.0 in)
52U7501070
52U
2438 mm (96.0 in)
750 mm (29.5 in)
1091 mm (43.0 in)
42U7501200
42U
1994 mm (78.5 in)
750 mm (29.5 in)
1221 mm (48.1 in)
45U7501200
45U
2127 mm (83.7 in)
750 mm (29.5 in)
1221 mm (48.1 in)
48U7501200
48U
2260 mm (89.0 in)
750 mm (29.5 in)
1221 mm (48.1 in)
52U7501200
52U
2438 mm (96.0 in)
750 mm (29.5 in)
1221 mm (48.1 in)
42U8001070
42U
1994 mm (78.5 in)
800 mm (31.5 in)
1091 mm (43.0 in)
45U8001070
45U
2127 mm (83.7 in)
800 mm (31.5 in)
1091 mm (43.0 in)
48U8001070
48U
2260 mm (89.0 in)
800 mm (31.5 in)
1091 mm (43.0 in)
52U8001070
52U
2438 mm (96.0 in)
800 mm (31.5 in)
1091 mm (43.0 in)
42U8001200
42U
1994 mm (78.5 in)
800 mm (31.5 in)
1221 mm (48.1 in)
45U8001200
45U
2127 mm (83.7 in)
800 mm (31.5 in)
1221 mm (48.1 in)
48U8001200
48U
2260 mm (89.0 in)
800 mm (31.5 in)
1221.4 mm (48.08 in)
52U8001200
52U
2438 mm (96.0 in)
800 mm (31.5 in)
1221.4 mm (48.08 in)
Door Perforation Pattern
69% open area
Clearance for wiring between front door and
vertical rail
60.96 mm (2.40 in)
Weight rating: static load1
1704.97 kg (3750 lb)
Weight rating: dynamic (rolling) load2
1020.58 kg (2250 lb)
1
Lower the leveling feet if the static weight is over 1020.58 kg (2250 lb)
2
Dynamic (rolling) rating valid only for rolling the enclosure into position.
33
Five-Year Factory Warranty
Five-Year Factory Warranty
The limited warranty provided by APC in this Statement of Limited Factory
Warranty applies only to products you purchase for your commercial or industrial
use in the ordinary course of your business.
Terms of Warranty
APC warrants its products to be free from defects in materials and workmanship
for a period of five years from the date of purchase. The obligation of APC under
this warranty is limited to repairing or replacing, at its sole discretion, any such
defective products. This warranty does not apply to equipment that has been
damaged by accident, negligence, or misapplication or has been altered or
modified in any way. Repair or replacement of a defective product or part thereof
does not extend the original warranty period.
Non-transferable warranty
This warranty extends only to the original purchaser who must have properly
registered the product. The product may be registered at the APC website, www.
apc.com.
Exclusions
APC shall not be liable under the warranty if its testing and examination disclose
that the alleged defect in the product does not exist or was caused by end user’s
or any third person’s misuse, negligence, improper installation or testing. Further,
APC shall not be liable under the warranty for unauthorized attempts to repair or
modify wrong or inadequate electrical voltage or connection, inappropriate on-site
operation conditions, corrosive atmosphere, repair, installation, start-up by nonAPC designated personnel, a change in location or operating use, exposure to the
elements Acts of God, fire, theft, or installation contrary to APC serial number has
been altered, defaced, or removed, or any other cause beyond the range of the
intended use.
THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, BY OPERATION OF
LAW OR OTHERWISE, OF PRODUCTS SOLD, SERVICED OR FURNISHED
UNDER THIS AGREEMENT OR IN CONNECTION HEREWITH. APC
DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY,
SATISFACTION AND FITNESS FOR A PARTICULAR PURPOSE. APC
EXPRESS WARRANTIES WILL NOT BE ENLARGED, DIMINISHED, OR
AFFECTED BY AND NO OBLIGATION OR LIABILITY WILL ARISE OUT OF,
APC RENDERING OF TECHNICAL OR OTHER ADVICE OR SERVICE IN
CONNECTION WITH THE PRODUCTS. THE FOREGOING WARRANTIES AND
REMEDIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES
AND REMEDIES. THE WARRANTIES SET FORTH ABOVE CONSTITUTE
APC’S SOLE LIABILITY AND PURCHASER’S EXCLUSIVE REMEDY FOR ANY
BREACH OF SUCH WARRANTIES. APC BY SCHNEIDER ELECTRIC
WARRANTIES EXTEND ONLY TO PURCHASER AND ARE NOT EXTENDED
TO ANY THIRD PARTIES.
IN NO EVENT SHALL APC, ITS OFFICERS, DIRECTORS, AFFILIATES OR
EMPLOYEES BE LIABLE FOR ANY FORM OF INDIRECT, SPECIAL,
CONSEQUENTIAL OR PUNITIVE DAMAGES, ARISING OUT OF THE USE,
SERVICE OR INSTALLATION, OF THE PRODUCTS, WHETHER SUCH
DAMAGES ARISE IN CONTRACT OR TORT, IRRESPECTIVE OF FAULT,
NEGLIGENCE OR STRICT LIABILITY OR WHETHER APC HAS BEEN
ADVISED IN ADVANCE OF THE POSSIBILITY OF SUCH DAMAGES.
SPECIFICALLY, APC IS NOT LIABLE FOR ANY COSTS, SUCH AS LOST
PROFITS OR REVENUE, LOSS OF EQUIPMENT, LOSS OF USE OF
EQUIPMENT, LOSS OF SOFTWARE, LOSS OF DATA, COSTS OF
SUBSTITUTES, CLAIMS BY THIRD PARTIES, OR OTHERWISE.
34
990–91548
Five-Year Factory Warranty
NO SALESMAN, EMPLOYEE OR AGENT OF APC IS AUTHORIZED TO ADD
TO OR VARY THE TERMS OF THIS WARRANTY. WARRANTY TERMS MAY
BE MODIFIED, IF AT ALL, ONLY IN WRITING SIGNED BY AN APC OFFICER
AND LEGAL DEPARTMENT.
Warranty Claims
Customers with warranty claims issues may access the APC customer support
network through the Support page of the APC website, www.apc.com/support.
Select your country from the country selection pull-down menu at the top of the
Web page. Select the Support tab to obtain contact information for customer
support in your region.
990–91548
35
APC
70 Mechanic Street
02035 Foxboro, MA
USA
www.apc.com
As standards, specifications, and design change from time to time,
please ask for confirmation of the information given in this publication.
© 2022 – Schneider Electric. All rights reserved.
990–91548

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
