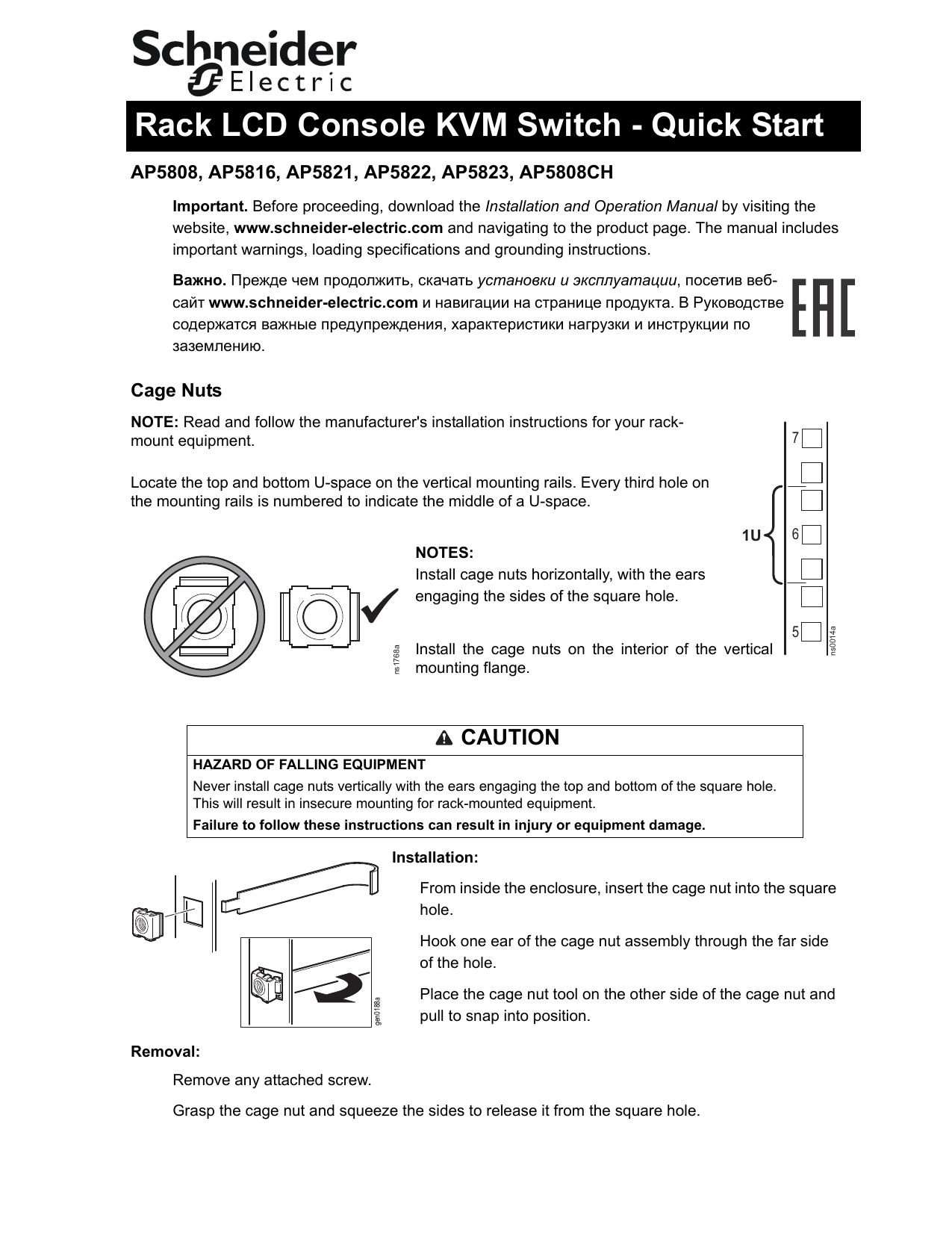

Schneider Electric Rack LCD Console KVM Switch Instruction Sheet

Rack LCD Console KVM Switch - Quick Start
AP5808, AP5816, AP5821, AP5822, AP5823, AP5808CH
Important. Before proceeding, download the Installation and Operation Manual by visiting the
website, www.schneider-electric.com and navigating to the product page. The manual includes
important warnings, loading specifications and grounding instructions.
Важно. Прежде чем продолжить, скачать установки и эксплуатации, посетив вебсайт www.schneider-electric.com и навигации на странице продукта. В Руководстве
содержатся важные предупреждения, характеристики нагрузки и инструкции по
заземлению.
Cage Nuts
NOTE: Read and follow the manufacturer's installation instructions for your rackmount equipment.
7
Locate the top and bottom U-space on the vertical mounting rails. Every third hole on
the mounting rails is numbered to indicate the middle of a U-space.
1U
Install the cage nuts on the interior of the vertical
mounting flange.
6
5
ns0014a
ns1768a
NOTES:
Install cage nuts horizontally, with the ears
engaging the sides of the square hole.
CAUTION
HAZARD OF FALLING EQUIPMENT
Never install cage nuts vertically with the ears engaging the top and bottom of the square hole.
This will result in insecure mounting for rack-mounted equipment.
Failure to follow these instructions can result in injury or equipment damage.
Installation:
From inside the enclosure, insert the cage nut into the square
hole.
gen0188a
Hook one ear of the cage nut assembly through the far side
of the hole.
Place the cage nut tool on the other side of the cage nut and
pull to snap into position.
Removal:
Remove any attached screw.
Grasp the cage nut and squeeze the sides to release it from the square hole.
Installation

aem0347a
aem0346a

aem0348a

Configuration
1
CHAIN OUT
8
7
6
5
0
POWER
4
3
2
1
aem0349a
Customer support and warranty information is available at www.schneider-electric.com.
© 2016 Schneider Electric. All Rights Reserved.
990-3796B
3/2016
