Schneider Electric TV / Sat/ FM outlet User Manual

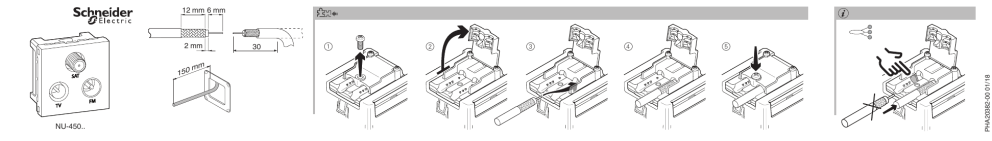

12 mm 6 mm
2 mm
NU-450..
1
2
3
4
5
mm
PHA20382-00 01/18
150
30
Ports
Ports
Puertos
Порты
NU-450..
TV IEC m
R IEC f
SAT Ff
Insertion loss (dB)
Perte d'insertion (dB)
Pérdida de inserción (dB)
Вносимые потери (дБ)
Frequency (MHz)
Fréquence (MHz)
Frecuencia (MHz)
Частота (МГц)
IN-OUT
IN-TV
-
47-75 / 170-862
IN-R
IN-SAT
88-110 950-2200
IN-OUT
-
Isolation (dB)
Isolation (dB)
Aislamiento (dB)
Изоляция (дБ)
Return loss (dB)
Facteur d’adaptation (dB)
Factor de adaptación (dB)
Обратные потери (дБ)
IN-TV IN-R IN-SAT FM <-> TV SAT <-> TV
< 2,5
<2
<2
> 12
>6
IN
OUT
> 12
(8 min)
-
TV
R
> 8 > 10
DC / 22 kHz pass (V/mA)
Passage 22 kHz/DC (V/mA)
Paso DC / 22 kHz (V/mA)
Переход DC/22 кГц (В/мА)
SAT
SAT
>8
50 V / 500 mA
Impedance
Impédance
Impedancia
Импеданс
75 Ω
Operating temperature
Température de fonctionnement
Temperatura de servicio
Рабочая температура
-25 °C … + 55°C
Schneider Electric Industries SAS
If you have technical questions, please contact
the Customer Care Centre in your country.
schneider-electric.com/contact
PHA20382-00 01/18
Art. no.
Réf.
Ref.
арт. №
