These photo-electric sensors from Schneider Electric are versatile devices that can be used in a variety of industrial applications. They are perfect for detecting the presence or absence of objects, and can be used for tasks such as counting, sorting, and positioning.
The sensors are available in a variety of models, each with its own unique features. Some of the most popular models include:
- The XULA080214 is a thru-beam sensor with a range of up to 8 meters. It is ideal for applications where long-range detection is required.
Advertisement
Advertisement

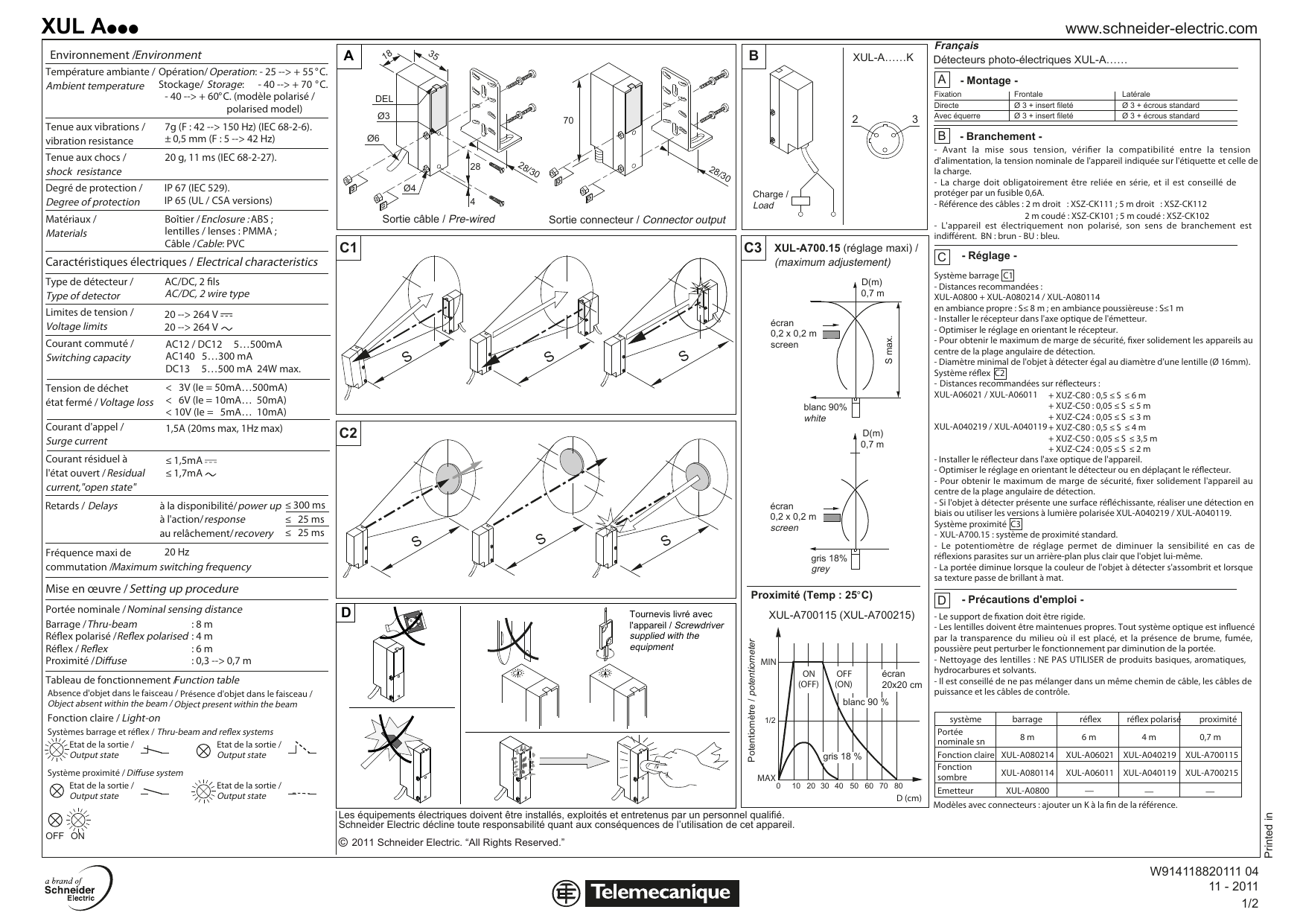

XUL A
ppp
Environnement /
Environment
Température ambiante /
Ambient temperature
Opération/ Operation : - 25 --> + 55 ° C.
Stockage/ Storage : - 40 --> + 70 ° C.
- 40 --> + 60 ° C. (modèle polarisé /
polarised model)
Tenue aux vibrations / vibration resistance
Tenue aux chocs / shock resistance
Degré de protection /
Degree of protection
Matériaux /
Materials
7g (F : 42 --> 150 Hz) (IEC 68-2-6).
± 0,5 mm (F : 5 --> 42 Hz)
20 g, 11 ms (IEC 68-2-27).
IP 67 (IEC 529).
IP 65 (UL / CSA versions)
Boîtier / Enclosure : ABS ; lentilles / lenses : PMMA ;
Câble / Cable : PVC
Caractéristiques électriques /
Electrical characteristics
Type de détecteur /
Type of detector
Limites de tension /
Voltage limits
Courant commuté /
Switching capacity
Tension de déchet
état fermé / Voltage loss
AC/DC, 2 fils
AC/DC, 2 wire type
20 --> 264 V
20 --> 264 V
AC12 / DC12 5…500mA
AC140 5…300 mA
DC13 5…500 mA 24W max.
< 3V (Ie = 50mA…500mA)
< 6V (Ie = 10mA… 50mA)
< 10V (Ie = 5mA… 10mA)
1,5A (20ms max, 1Hz max) Courant d'appel /
Surge current
Courant résiduel à l'état ouvert / Residual current,"open state"
Retards / Delays
≤ 1,5mA
≤ 1,7mA
à la disponibilité/ power up
à l'action/ response au relâchement/ recovery
≤ 300 ms
≤ 25 ms
≤ 25 ms
Fréquence maxi de 20 Hz commutation / Maximum switching frequency
Mise en œuvre /
Setting up procedure
Portée nominale / Nominal sensing distance
Barrage / Thru-beam
Réflex polarisé / Reflex polarised
Réflex / Reflex
Proximité / Diffuse
: 8 m
: 4 m
: 6 m
: 0,3 --> 0,7 m
A
C1
C2
D
18
DEL
Ø3
Ø6
35
28
Ø4
4
Sortie câble / Pre-wired
S
S
Absence d'objet dans le faisceau /
Object absent within the beam /
Présence d'objet dans le faisceau /
Object present within the beam
Fonction claire / Light-on
Systèmes barrage et réflex / Thru-beam and reflex systems
Etat de la sortie /
Output state
Etat de la sortie /
Output state
Système proximité / Diffuse system
Etat de la sortie /
Output state
Etat de la sortie /
Output state
28/30
S
Sortie connecteur / Connector output
S
70
S
S
28/30
Tournevis livré avec l'appareil / Screwdriver supplied with the equipment
B
Charge /
Load
C3 XUL-A700.15
(réglage maxi) /
(maximum adjustement)
D(m)
0,7 m
écran
0,2 x 0,2 m screen
écran
0,2 x 0,2 m screen
Proximité (Temp : 25 ° C)
XUL-A700115 (XUL-A700215)
MIN blanc 90% white gris 18% grey
XUL-A……K
2
D(m)
0,7 m
3
www.schneider-electric.com
Français
Détecteurs photo-électriques XUL-A……
A - Montage -
Fixation
Directe
Avec équerre
Frontale
Ø 3 + insert fileté
Ø 3 + insert fileté
Latérale
Ø 3 + écrous standard
Ø 3 + écrous standard
B - Branchement -
- Avant la mise sous tension, vérifier la compatibilité entre la tension d'alimentation, la tension nominale de l'appareil indiquée sur l'étiquette et celle de la charge.
- La charge doit obligatoirement être reliée en série, et il est conseillé de protéger par un fusible 0,6A.
- Référence des câbles : 2 m droit : XSZ-CK111 ; 5 m droit : XSZ-CK112
2 m coudé : XSZ-CK101 ; 5 m coudé : XSZ-CK102
- L'appareil est électriquement non polarisé, son sens de branchement est indifférent. BN : brun - BU : bleu.
C - Réglage -
Système barrage C1
- Distances recommandées :
XUL-A0800 + XUL-A080214 / XUL-A080114 en ambiance propre : S ≤ 8 m ; en ambiance poussièreuse : S ≤ 1 m
- Installer le récepteur dans l'axe optique de l'émetteur.
- Optimiser le réglage en orientant le récepteur.
- Pour obtenir le maximum de marge de sécurité, fixer solidement les appareils au centre de la plage angulaire de détection.
- Diamètre minimal de l'objet à détecter égal au diamètre d'une lentille (Ø 16mm).
Système réflex C2
Distances recommandées sur réflecteurs :
XUL-A06021 / XUL-A06011 + XUZ-C80 : 0,5 ≤ S ≤ 6 m
+ XUZ-C50 : 0,05 ≤ S ≤ 5 m
+ XUZ-C24 : 0,05 ≤ S ≤ 3 m
+ XUZ-C80 : 0,5 ≤ S ≤ 4 m XUL-A040219 / XUL-A040119
+ XUZ-C50 : 0,05 ≤ S ≤ 3,5 m
+ XUZ-C24 : 0,05 ≤ S ≤ 2 m
- Installer le réflecteur dans l'axe optique de l'appareil.
- Optimiser le réglage en orientant le détecteur ou en déplaçant le réflecteur.
- Pour obtenir le maximum de marge de sécurité, fixer solidement l'appareil au centre de la plage angulaire de détection.
- Si l'objet à détecter présente une surface réfléchissante, réaliser une détection en biais ou utiliser les versions à lumière polarisée XUL-A040219 / XUL-A040119.
Système proximité C3
XUL-A700.15
: système de proximité standard.
- Le potentiomètre de réglage permet de diminuer la sensibilité en cas de réflexions parasites sur un arrière-plan plus clair que l'objet lui-même.
- La portée diminue lorsque la couleur de l'objet à détecter s'assombrit et lorsque sa texture passe de brillant à mat.
D - Précautions d'emploi -
- Le support de fixation doit être rigide.
- Les lentilles doivent être maintenues propres. Tout système optique est influencé par la transparence du milieu où il est placé, et la présence de brume, fumée, poussière peut perturber le fonctionnement par diminution de la portée.
- Nettoyage des lentilles : NE PAS UTILISER de produits basiques, aromatiques, hydrocarbures et solvants.
- Il est conseillé de ne pas mélanger dans un même chemin de câble, les câbles de puissance et les câbles de contrôle.
ON
(OFF)
OFF
(ON)
écran
20x20 cm blanc 90 %
1/2
MAX
0 gris 18 %
10 20 30 40 50 60 70 80
D (cm) système
Portée nominale sn barrage
8 m réflex
6 m réflex polarisé
4 m proximité
0,7 m
Fonction claire XUL-A080214 XUL-A06021 XUL-A040219 XUL-A700115
Fonction sombre
XUL-A080114 XUL-A06011 XUL-A040119 XUL-A700215
Emetteur XUL-A0800 — —
Modèles avec connecteurs : ajouter un K à la fin de la référence.
—
OFF ON
©
2011 Schneider Electric. “All Rights Reserved.”
W914118820111 04
11 - 2011
1/2
XUL A
ppp
Environnement /
Environment
Température ambiante /
Ambient temperature
Opération/ Operation : - 25 --> + 55 ° C.
- 13 --> + 131°F
Stockage/ Storage : - 40 --> + 70 ° C.
- 40 --> + 158°F
- 40 --> + 60 ° C. (modèle polarisé /
- 40 --> + 140°F polarised model)
Tenue aux vibrations / vibration resistance
Tenue aux chocs / shock resistance
7g (F : 42 --> 150 Hz) (IEC 68-2-6).
± 0,5 mm (F : 5 --> 42 Hz)
20 g, 11 ms (IEC 68-2-27).
Degré de protection /
Degree of protection
IP 67 (IEC 529).
IP 65 (UL / CSA versions)
Matériaux /
Materials
Boîtier / Enclosure : ABS ; lentilles / lenses : PMMA ;
Câble / Cable : PVC
Caractéristiques électriques /
Electrical characteristics
Type de détecteur /
Type of detector
AC/DC, 2 fils
AC/DC, 2 wire type
Limites de tension /
Voltage limits
20 --> 264 V
20 --> 264 V
Courant commuté /
Switching capacity
Tension de déchet
état fermé / Voltage loss
AC12 / DC12 5…500mA
AC140 5…300 mA
DC13 5…500 mA 24W max.
< 3V (Ie = 50mA…500mA)
< 6V (Ie = 10mA… 50mA)
< 10V (Ie = 5mA… 10mA)
Courant d'appel /
Surge current
Courant résiduel à l'état ouvert / Residual current,"open state"
Retards / Delays
1,5A (20ms max, 1Hz max)
≤
≤
1,5mA
1,7mA
à la disponibilité/ power up
à l'action/ response au relâchement/ recovery
Fréquence maxi de 20 Hz commutation / Maximum switching frequency
≤ 300 ms
≤ 25 ms
≤ 25 ms
Mise en œuvre /
Setting up procedure
Portée nominale / Nominal sensing distance
Barrage / Thru-beam
Réflex polarisé / Reflex polarised
Réflex / Reflex
Proximité / Diffuse
: 8 m
: 4 m
: 6 m
: 0,3 --> 0,7 m
Tableau de fonctionnement / Function table
Absence d'objet dans le faisceau /
Object absent within the beam
Présence d'objet dans le faisceau /
Object present within the beam
Fonction claire / Light-on
Systèmes barrage et réflex / Thru-beam and reflex systems
Etat de la sortie /
Output state
Etat de la sortie /
Output state
Système proximité / Diffuse system
Etat de la sortie /
Output state
Etat de la sortie /
Output state
A
C1
C2
D
18
DEL
Ø3
Ø6
35
28
Ø4
4
Sortie câble / Pre-wired
S
S
28/30
S
Sortie connecteur / Connector output
S
70
S
S
28/30
Tournevis livré avec l'appareil / Screwdriver supplied with the equipment
B
XUL-A……K
www.schneider-electric.com
English
Photo-electric detectors XUL-A……
A - Mounting -
Fixing
Direct
Onto bracket
Front
Ø 3 + tapped insert
Ø 3 + tapped insert
Side
Ø 3 + nuts
Ø 3 + nuts
2 3
Charge /
Load
C3 XUL-A700.15
(réglage maxi) /
(maximum adjustement)
D(m)
0,7 m
écran
0,2 x 0,2 m screen blanc 90% white
écran
0,2 x 0,2 m screen
D(m)
0,7 m
B - Wiring -
- Before switching on, check that the supply voltage, the device's rated voltage shown on the nameplate, and that of the load are compatible.
- The load must be in serie, and it's recommended to protect the device using a
0,6A fuse.
- Cable's Reference : 2 m straight : XSZ-CK111 ; 5 m straight : XSZ-CK112
2 m 90 ° : XSZ-CK101 ; 5 m 90 ° : XSZ-CK102
- This device is electrically non polarity sensitive. BN : brown - BU : blue
C - Setting up -
Thru-beam system C1
- Recommended distances :
XUL-A0800 + XUL-A080214 / XUL-A080114 in clean atmospheres : S ≤ 8 m ; in dusty atmospheres : S ≤ 1 m
- Install the receiver in the transmittor's optical axis.
- Optimise the settting by turning the receiver.
- To obtain the maximum safety margin, fix the devices firmly in the centre of the angular sensing range.
- The minimum size of the object must be at least equal to the diameter of the lens
(16 mm).
Reflex system C2
Recommended range on reflectors :
XUL-A06021 / XUL-A06011 + XUZ-C80 : 0,5 ≤ S ≤ 6 m
+ XUZ-C50 : 0,05 ≤ S ≤ 5 m
+ XUZ-C24 : 0,05 ≤ S ≤ 3 m
+ XUZ-C80 : 0,5 ≤ S ≤ 4 m XUL-A040219 / XUL-A040119
+ XUZ-C50 : 0,05 ≤ S ≤ 3,5 m
+ XUZ-C24 : 0,05 ≤ S ≤ 2 m
- Set the reflector in the optical axis of the device.
- Optimise the settting by turning the receiver or moving the reflector.
- To obtain the maximum safety margin, fix the device firmly in the centre of the angular sensing range.
- If the target is very reflective, align unit so bean is not at a 90 polarized versions XUL-A040219 / XUL-A040119.
Note : polarized units need regular reflector or special tape XUZ-B11 or XUZ-B15.
Diffuse system C3
XUL-A700.15
: standard proximity system.
- The adjustment potentiometer permits the lowering of the sensitivity in the case of interference reflections from a background brighter than the object itself.
- The range diminishes when the colour of the object to be detected is dark or is matt rather than glossy.
gris 18% grey
Proximité / Proximity
(Temp : 25 ° C)
XUL-A700115 (XUL-A700215)
MIN
1/2
MAX
0
ON
(OFF)
OFF
(ON)
écran
20x20 cm blanc 90 % gris 18 %
10 20 30 40 50 60 70 80
D (cm)
D - Safety precautions -
- The fixing support must be rigid.
- The lenses must be kept clean. Every optical system is influenced by the clarity of the location in which it is situated, and the presence of mist, smoke or dust can affect operation by reducing the effective range.
- Cleaning of lenses : DO NOT use alkaline or aromatic products, hydrocarbons or solvents.
- It is recommended that power and control cables should not be installed in the same cable run.
system
Nominal sensing distance
Light-on thru-beam
8 m reflex
6 m reflex polarised
4 m diffuse
0,7 m
XUL-A080214 XUL-A06021 XUL-A040219 XUL-A700115
Dark-on XUL-A080114 XUL-A06011 XUL-A040119 XUL-A700215 transmittor XUL-A0800 — —
Micro connector types : add K at the end of part number.
—
OFF ON
W914118820111 04
11 - 2011
2/2
