Schneider Electric Network Set-up User Guide

PL7-NET V6
Network setup
Section

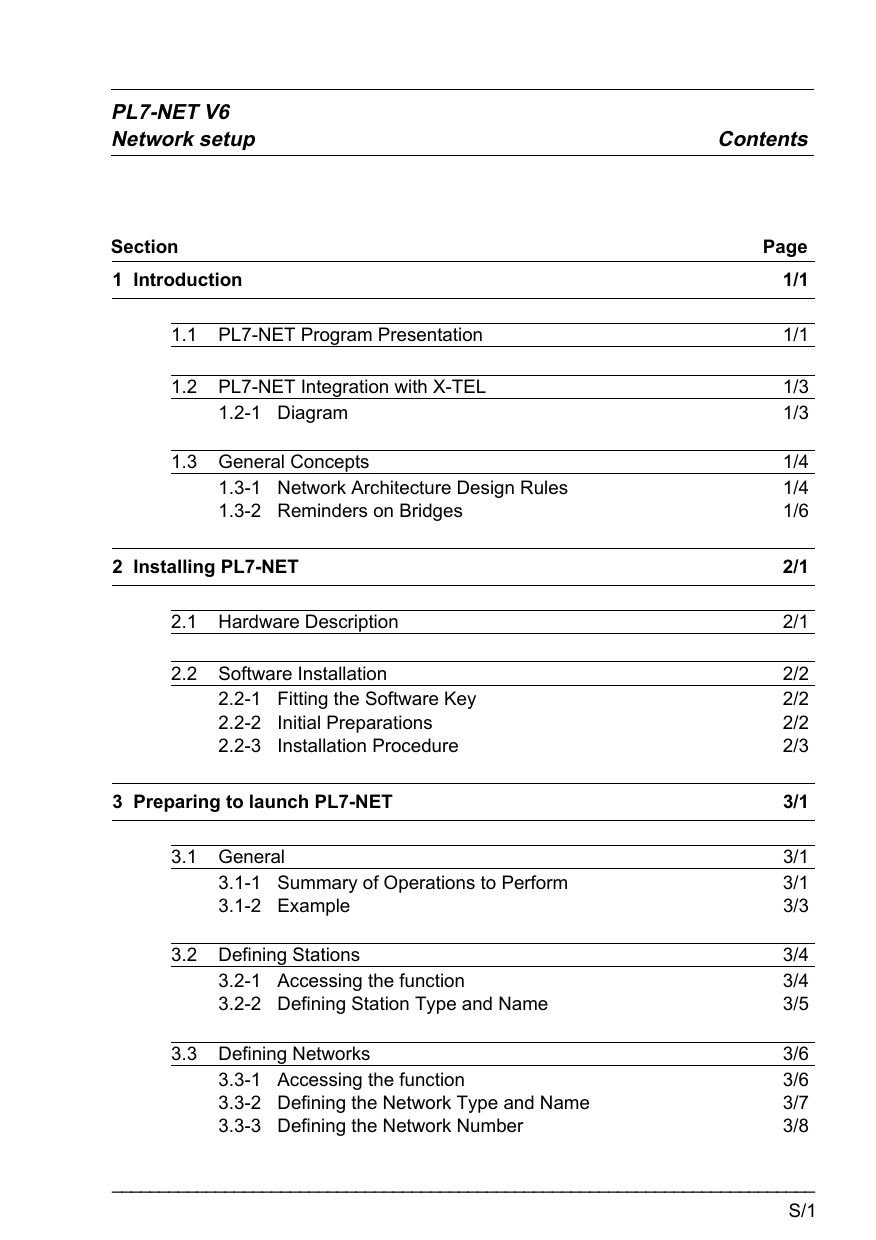

Contents
Page
1 Introduction
1/1
1.1
PL7-NET Program Presentation
1/1
1.2
PL7-NET Integration with X-TEL
1.2-1 Diagram
1/3
1/3
1.3
General Concepts
1.3-1 Network Architecture Design Rules
1.3-2 Reminders on Bridges
1/4
1/4
1/6
2 Installing PL7-NET
2/1
2.1
Hardware Description
2/1
2.2
Software Installation
2.2-1 Fitting the Software Key
2.2-2 Initial Preparations
2.2-3 Installation Procedure
2/2
2/2
2/2
2/3
3 Preparing to launch PL7-NET
3/1
3.1
General
3.1-1 Summary of Operations to Perform
3.1-2 Example
3/1
3/1
3/3
3.2
Defining Stations
3.2-1 Accessing the function
3.2-2 Defining Station Type and Name
3/4
3/4
3/5
3.3
Defining Networks
3.3-1 Accessing the function
3.3-2 Defining the Network Type and Name
3.3-3 Defining the Network Number
3/6
3/6
3/7
3/8
___________________________________________________________________________
S/1
PL7-NET V6
Network setup
Section
3.4
Connecting Stations to Each Network
3.4-1 Accessing the function
3.4-2 Selecting Connectable Stations
4 PL7-NET Program
Contents
Page
3/9
3/9
3/10
4/1
4.1
General
4.1-1 Accessing PL7-NET
4.1-2 Diagram
4/1
4/1
4/2
4.2
Using PL7-NET
4.2-1 Define Menu
4.2-2 Validate Menu
4.2-3 Transfer Menu
4.2-4 Compare Menu
4.2-5 Documentation Menu
4/3
4/3
4/8
4/10
4/14
4/16
___________________________________________________________________________
S/2
___________________________________________________________________________
Preface
___________________________________________________________________________
The main enhancements to the PL7-NET software reference TXT L PL7-NET V6E
since the PL7-NET software reference TXT L PL7-NET V5E are :
• Inclusion in the NET PACK software package, which also comprises NETDIAG.
• The FIPWAY network module, TSX MPM100 is now taken into account.
Documentation referred to :
Setting up a PL7-NET application may require reference to one of the following
manuals :
• "V6 software installation", for the installation procedure.
• "XTEL Software workshop", reference TXT DM XTEL V4E for managing software
keys and using MEM and TRANSFER station tools (when creating a V4 level bridge),
• "PL7-3 Programming languages, Operating Modes V4" for configuring the I/O (when
creating a V4 level bridge),
• "XTEL Software Workshop", reference TXT DM XTEL V5E for managing software
keys and using CONF and TRANSFER station tools (when creating a V5 level bridge
and managing software keys).
• "XTEL Software Workshop", reference TXT DM XTEL V6E.
_______________________________________________________________________________________
P / 1
___________________________________________________________________________
Preface
___________________________________________________________________________
_______________________________________________________________________________________
P / 2
Introduction
Section 11
1 Introduction
_______________________________________________________________________________________
1.1
PL7-NET Program Presentation
__________________________________________________________________________________________
PL7-NET is an X-TEL Software Workshop option for design, configuration, coherence
checking and documentation of TSX 7, PMX 7, TSX Micro, TSX Premium and Series
1000 PLC network architectures. It is designed to run in the X-TEL environment on an
FTX 507, FTX 417, CCX 57/77, IBM PC-AT or compatible terminal.
Indispensable for configuring multinetwork system architectures, PL7-NET enables :
• Complete description of a multinetwork architecture :
- Network selection (802-3, MAPWAY, FIPWAY, ETHWAY or TELWAY) and entry of
the name (1 to 8 characters) and number (0 to 127) assigned to each segment,
- Selection of stations on a segment and station address (0 to 63) assignment,
- Interconnection of segments by selecting bridge PLC stations (a bridge ensures the
routing of messages between network segments),
- Assignment for each bridge of its network modules to the different network segments
(up to four network modules per bridge PLC, including the integrated FIP module).
This data is used by PL7-NET to automatically generate the routing tables for each
bridge in the network architecture.
_______________________________________________________________________________________
1/1
_______________________________________________________________________________________
• Transfer of files generated by PL7-NET describing the network architecture to the
bridge PLCs :
- This data is stored in the user memory zone of the bridge PLC processor,
- The compare function lets the user check coherence between the network description
entered on the terminal and that stored in the bridges.
• Network architecture documentation :
A text file can be generated after the network architecture description. This file can
also be printed out. It lists all of the elements in the network architecture (and their
links) :
- Networks,
- Stations,
- Bridges.
The PL7-NET program is protected and is supplied with a software key. Refer to the Key
Manager documentation in the X-TEL Software Workshop documentation.
_______________________________________________________________________________________
1/2
Introduction
1
_______________________________________________________________________________________
1.2
PL7-NET Integration with X-TEL
1.2-1 Diagram
X-TEL
Select a
volume
Select a
project
1
2
Stations window
Networks window
Define
stations
Define
networks
3
Project Tools
window
Start
PL7-NET
(NET Icon)
PL7-NET Program
Connection of
stations to
networks
• Define
• Validate
• Transfer
• Compare
• Documentation
_______________________________________________________________________________________
1/3
_______________________________________________________________________________________
1.3
General Concepts
1.3-1 Network Architecture Design Rules
When an automation system network architecture is designed, there should be only one
path from one station to another.
Example :
0
1
n
Network N1
Bridge station
N1/N2
2/3
Address 2 on Network N1
Address 3 on Network N2
Network N2
0
Bridge
station
N2/N3
1
4/5
Address 4 on Network N2
Address 5 on Network N3
Network N3
0
1
n
Important
All of the stations and networks that form a multinetwork architecture must be
defined in the same X-TEL project.
_______________________________________________________________________________________
1/4
Introduction
1
_______________________________________________________________________________________
When the configuration of a bridge PLC is modified using PL7-NET, the sequence must
proceed so that the bridge, seen from the terminal, is crossed from left to right (from
the module with the lowest address in the rack to the module with the highest address).
Example :
FTX 507
0
1
n
Network N1
Bridge PLC
N1/N2
Network N2
0
Bridge PLC
N2/N3
1
Network N3
0
1
n
Architecture modification
When a multinetwork architecture is modified, the following sequence must always be
followed :
• Disable the architecture using PL7-NET,
• Make hardware modifications (installation of a new PLC, creation of a new network,
etc.),
• Define new stations, new networks and their connections,
• Validate then transfer the new network architecture using PL7-NET.
_______________________________________________________________________________________
1/5
_______________________________________________________________________________________
1.3-2 Reminders on Bridges
A bridge is a device that can interconnect up to four segments (or networks) transparently
at data link level. There is addressing continuity between the two network segments on
either side of the bridge.
The primary function of a bridge is to ensure proper control of the data flow.
Telemecanique TSX and PMX 67/87/107 Model 40 PLCs can be used as bridges in a
multinetwork architecture.
These PLCs can be fitted with the following network interfaces :
•
•
•
•
•
•
TSX MAP 1074 module for connection to a MAPWAY network,
TSX MPT 104 module for connection to a TELWAY network,
TSX ETH 200 module for connection to a 802-3 network,
TSX ETH 107 module for connection to an ETHWAY network,
A processor comprising a built-in FIP link for connection to a FIPWAY network,
TSX MPM 100 module for connection to a FIPWAY network.
The table below lists the maximum number of modules that can be installed in a PLC :
TSX and PMX 67-40
Slots 0 to 7
2 modules max. (inc. FIPWAY
CPU daughter board)
__________________________________________________________________________________________________________
TSX and PMX 87-40
Slots 0 to 7
4 modules max. (inc. FIPWAY
CPU daughter board)
__________________________________________________________________________________________________________
TSX and PMX 107-40
Slots 0 to 7
4 modules max. (inc. FIPWAY
CPU daughter board)
Once the network architecture is defined, PL7-NET automatically generates the
routing tables required by the bridge PLC.
Important
A bridge PLC must be dedicated to data routing between the various networks. No
application programs can be loaded.
In a PLC with several types of communication module, TELWAY modules must be
located to the right of the other modules.
A Telemecanique V4 level PLC must be a V4.4 or higher version in order to operate
as a bridge.
_______________________________________________________________________________________
1/6
Introduction
1
_______________________________________________________________________________________
Bridge PLC addresses
A bridge PLC is connected to more than one network. It therefore has as many network
addresses as connected networks. A "primary address" is used to identify the bridge.
The primary address is the address (network/station) of the module used for routing that
is located closest to the PLC processor (even if the processor comprises a built-in
network module).
This address is used by the PLC for all application message handling. Once a station
becomes a bridge, the PLC will always respond to any question sent by returning a
response to the primary address.
Example :
Network N1
Station 4
Bridge PLC
N1/N2/N3
Station 12
Network N2
Station 2
Network N3
In this example, the primary address of the bridge PLC is : Network 2, Station 12.
TELWAY network special case
The TSX MPT10 module and its terminal block do not support hardware definition of a
TELWAY network address. The address must be defined using PL7-NET (Network
Definition).
The TELWAY network address will only be known to the bridge station after the network
architecture has been uploaded. The bridge PLC must then send this network address
to all other TELWAY network stations. This action is user transparent.
A TELWAY module is an NSA (Network Server Agent) when it must send its own
address to other TELWAY stations on the network. The other TELWAY modules are
then NUAs (Network User Agents).
_______________________________________________________________________________________
1/7
_______________________________________________________________________________________
_______________________________________________________________________________________
1/8
Installing PL7-NET
Section 22
2 Installing PL7-NET
_______________________________________________________________________________________
2.1
Hardware Description
To run PL7-NET software requires a machine with a 386 microprocessor as a minimum
equipped with :
• The OS/2 operating system version 2.1, 2.11, 3.0, Blue or Red WARP or WARP
Connect.
• The X-TEL Software Workshop, ref. TXT L BASE V6.
This means that you must have at least 12 MB of RAM and a 240 MB hard disk.
PL7-NET forms part of the NET PACK software package which comprises :
• Two 3 1/2" diskettes,
• A software key,
• This manual, ref. TXT DM PL7 NET V6E,
• The documentation associated with NETDIAG, ref. TXT L NTD V6E.
_______________________________________________________________________________________
2 / 1
_______________________________________________________________________________________
2.2
Software Installation
2.2-1 Fitting the Software Key
Fit the software key into the empty location in the software key holder.
Ensure that the microcomputer is powered-down before inserting the software
key.
Note
The software key contains the right of use required to access the PL7-NET program.
The Key Manager tool, supplied with X-TEL, lets the user transfer this right of use
to the working key, freeing the corresponding key holder slot. For further information
on the use of the Key Manager tool, refer to the X-TEL operating modes manual.
2.2-2 Initial Preparations
Before installing the NET PACK software package on the hard disk, it is recommended
that the user :
• Read the licence and guarantee certificate concerning copying and installation
restrictions on the software.
• Makes copies of the disks required for installation in order to protect against accidental
damage, and only work with the copy.
Important
The PL7-NET program diskettes are supplied write protected. Do not change the
position of the write protect tab on the diskette.
_______________________________________________________________________________________
2 / 2
Installing PL7-NET
2
_______________________________________________________________________________________
2.2-3 Installation Procedure
The installation procedure for the software packages is standard regardless of the type
of package being installed.
However, the NET PACK software package must be installed on a station already
equipped with the X-TEL V6 Software Workshop.
To install the NET PACK software package, the terminal must be running under OS/2,
preferably with all applications closed.
The installation procedure for V6 software packages is detailed in full in the "V6 Software
Installation" manual.
_______________________________________________________________________________________
2 / 3
_______________________________________________________________________________________
_______________________________________________________________________________________
2 / 4
Preparing to Launch PL7-NET
Section 33
3 Preparing to launch PL7-NET
_______________________________________________________________________________________
3.1
General
3.1-1 Summary of Operations to Perform
Before launching PL7-NET the user must be sure that the complete network architecture
that is to be used is fully defined. Depending on the versions of the PLCs used, which
will be defined as bridges, there are two possible cases.
A TSX or PMX Model 40 V5 or higher bridge PLC
The following procedure applies :
• In X-TEL, define the multinetwork architecture as described in this section,
• Launch the "conf" station tool for each of the bridges, to define their processor type
and I/O etc. This operation is described in the X-TEL Software Workshop V5 and V6
manuals,
• Launch PL7-NET to generate the routing information required for each of the bridges.
This operation is described in section 4 of this manual, Define and Validate functions,
• Launch the "conf" station tool once again for each of the bridges, to generate the
Bridge space and take into account the routing information provided by PL7-NET
(menu Generate, item Automatic),
• Launch the Transfer station tool for each of the bridges, to transfer all the data to the
bridges. This operation is described in the X-TEL Software Workshop V5 and V6
manuals (Transfer tool, Complete Transfer),
• Launch PL7-NET once again to transfer the network architecture (see section 4).
A TSX or PMX Model 40 V4.4 bridge PLC
The following procedure applies :
• In X-TEL, define the multinetwork architecture as described in this section,
• Launch the "mem" tool for each of the V4 level bridges, to define their PLC processor
type. This operation is described in the X-TEL Software Workshop V4 manual,
• Launch PL7-3 for each of the V4 level bridges, to define their I/O. This operation is
described in the PL7-3 Language Operating Modes V4 manual,
• Launch PL7-NET to generate the routing information required for each of the bridges.
This operation is described in section 4 of this manual, Define and Validate functions,
• Launch "mem" station tool once again for each of the V4 level bridges, to generate the
Bridge field and take into account the routing information provided by PL7-NET,
• Launch the Transfer station tool for each of the bridges, to transfer all of the data to
the bridges. This operation is described in the X-TEL Software Workshop V4 manual
(Transfer tool, Disk --> Station transfer function),
• Launch PL7-NET once again to transfer the network architecture (see section 4).
_______________________________________________________________________________________
3/1
_______________________________________________________________________________________
Creating the multinetwork architecture
The multinetwork architecture is created in X-TEL and comprises the following steps :
• Definition of each station in the network architecture
- Station type,
- Station name.
• Definition of each network in the architecture
- Network type,
- Network name,
- Network number.
• Connection of stations to each network
- Assigning an address to each connected station.
Definition
of
stations
→ type,
Definition
of
networks
→ type,
→ name,
→ number,
Connection
of stations
to each
network
→ name,
→ connection,
→ assignment
of station
numbers,
Accessing
the PL7-NET
program
Each of these procedures is described in detail in the following sections.
_______________________________________________________________________________________
3/2
Preparing to Launch PL7-NET
3
_______________________________________________________________________________________
3.1-2 Example
The network example described below is used solely as an example and will be used
throughout this manual to illustrate how to use PL7-NET.
The factory shown produces component parts. The network architecture comprises a
CCX 77 supervisor and an FTX 507 terminal (for programming, diagnostics, debug,
etc.). The network architecture comprises three networks :
• An ETHWAY network for assembly,
• A MAPWAY network for manufacturing,
• A FIPWAY network for parts handling.
Diag
Control
(1)
N1 (ASSEMB)
(2)
(3)
(5)
(4)
(1) Routing1
(10)
ETHWAY
Mounting 1
Mounting 2
N2 (MANUF)
Routing2
(1)
MAPWAY
(4)
(2)
(3)
Paint
N3 (TRANS)
(2)
Moulding
Machine
FIPWAY
(3)
(4)
Trolley1
Trolley2
Stock
The Paint and Moulding stations are TSX Model 40 V4.3 PLCs, the Router2 bridge is
a TSX Model 40 V4.4 PLC, the Stock station is a TSX 17-20 Micro-PLC, the other PLCs
are
TSX Model 40 V5 stations.
_______________________________________________________________________________________
3/3
_______________________________________________________________________________________
3.2
Defining Stations
3.2-1 Accessing the function
Network stations are defined from the Station presentation zone in the XTEL:Project
main window.
X-TEL
Select
volume Workshop
XTEL a: Software
Select
project
XTEL :aVolume
Select
a stationStations
from thepresentation
Stations window.
XTEL:Project
zone
Since this window is already described in the X-TEL Operating Modes manual, this
manual only describes how to name a station and define its type.
Primary window
As no stations have been created, the Stations zone is blank.
_______________________________________________________________________________________
3/4
Preparing to Launch PL7-NET
3
_______________________________________________________________________________________
3.2-2 Defining Station Type and Name
For each station, its type and name is defined from the Stations presentation zone.
Select <Stations> on the menu bar and then <Create> in the associated sub-menu.
Under the Type heading, the different types of station available in the X-TEL Software
Workshop are displayed.
Select a type of station from the list. Only TSX and PMX 67/87/107 V4.4 or higher
stations can be declared as bridges.
The station name is entered in the dialog box under the New heading. The station name
is a string of up to 8 alphanumeric characters.
OK
Creates the station.
Cancel
Cancels the operation and returns the user to the primary window.
Example : Creating the TSX V4 station called Trolley1 :
Repeat this operation for all the stations to be created in the network architecture
example shown in section 3.1-2. Once all the stations have been created, the Stations
window displays the icons and names of each of the stations present :
_______________________________________________________________________________________
3/5
_______________________________________________________________________________________
3.3
Defining Networks
3.3-1 Accessing the function
Networks are defined from the Networks presentation zone in the XTEL:Project main
window.
X-TEL
Select
volume Workshop
XTEL :aSoftware
Select
project
XTEL :aVolume
Select a station
from the
Stations window.
XTEL:Project
Network
presentation
zone
This zone is only displayed if PL7-NET is already installed.
Primary window
As no networks have been created yet, the Networks zone is still blank.
_______________________________________________________________________________________
3/6
Preparing to Launch PL7-NET
3
_______________________________________________________________________________________
3.3-2 Defining the Network Type and Name
The type and name of each network is defined in the Networks presentation zone.
Select <Networks> on the menu bar and then <Create> in the associated sub-menu.
The Type field in this window lets the user select from the types of network available in
the X-TEL workshop (802-3, ETHWAY, FIPWAY, MAPWAY or TELWAY).
Select a type of network from the list, then enter the network name in the New entry field.
OK
Creates the new network.
Cancel
Cancels the operation and returns the user to the primary window.
Example : Creating the MAPWAY network called Manuf :
Repeat this sequence for all other networks to be created in the architecture.
In the architecture example shown in section 3.1-2, once all of the stations and networks
have been created, the following screen is displayed :
_______________________________________________________________________________________
3/7
_______________________________________________________________________________________
3.3-3 Defining the Network Number
The network number is assigned once the network is created (type and name).
Accessing the Function
The network number is defined from the Network presentation zone in the XTEL:Project
window.
Click once (right mouse button) on the icon of a network to select it. Select <Configure
parameters> in the menu or select the icon and press the F4 key on the keyboard, enter
the address, then close the window via the system menu or Alt F4 and confirm the
modifications made.
Address
Assigns the network number.
Description Enables a comment to be entered.
Name
Enables a the network name to be modified.
Important
In a multinetwork architecture, network number 0 is not allowed.
_______________________________________________________________________________________
3/8
Preparing to Launch PL7-NET
3
_______________________________________________________________________________________
3.4
Connecting Stations to Each Network
3.4-1 Accessing the function
Stations are connected to networks from the XTEL: Networks window.
Double click on the icon of the network where the connections are to be made. The
following screen then appears :
It consists of three zones :
• Connectables, which gives access to the selection of connectable stations,
• Connections, which shows stations connected to the network,
• Network Tools, which displays all the network tools available to the user.
_______________________________________________________________________________________
3/9
_______________________________________________________________________________________
3.4-2 Selecting Connectable Stations
From the Connections menu, select the Create function :
Screen description
The screen is split into two parts :
• "Connectable Stations", displays the names of the stations that can be connected to
the selected network,
• "Connected Stations", displays a list of stations that are already connected to the
selected network.
Selecting a station and its network address
A station is selected by clicking on its name. The network address of the selected station
is entered in the Address field. The network number is entered first followed by the
station address.
Example :
Connecting the stations defined in the example of architecture defined in section 3.1-2,
to the Trans network (network number 03).
The stations to connect to this network are Routing1 (address 01), Trolley1 (address 02),
Trolley2 (address 03) and Stock (address 04).
In the Connections menu :
Delete
Disconnects the selected station from the network.
Modify
Allows the address of the selected station to be modified.
_______________________________________________________________________________________
3/10
Preparing to Launch PL7-NET
3
_______________________________________________________________________________________
After selecting the station Trolley2 and entering its network address, the following
screen is displayed :
Connection Validates connection of the station Trolley2.
Repeat the procedure for the other three stations. Once all stations are defined, the
following screen is displayed :
Exit
Returns to the XTEL: Network window.
_______________________________________________________________________________________
3/11
_______________________________________________________________________________________
The Connections zone will then display the icons of the stations connected to the Trans
network :
The XTEL: Project window is then :
The "+" sign to the left of the network icon means that there are stations connected to
this network.
_______________________________________________________________________________________
3/12
3
Preparing to Launch PL7-NET
_______________________________________________________________________________________
By clicking once on the "+" sign, the stations connected to the Trans network are
displayed in the Networks presentation zone which now looks like this :
By clicking once on the "-" sign, the Trans network icon returns to its original form.
Comment :
A station can be connected by dragging its icon onto the icon of the selected
network. The connection dialog box will then open.
A station icon can also be dragged from the "Connectables" zone to the "Connected" zone of an XTEL: Network window.
_______________________________________________________________________________________
3/13
_______________________________________________________________________________________
_______________________________________________________________________________________
3/14
Section 44
PL7-NET Program
4 PL7-NET Program
_______________________________________________________________________________________
4.1
General
4.1-1 Accessing PL7-NET
PL7-NET is launched from the "Project Tools" window.
X-TEL
Select
volume Workshop
XTEL a
: Software
Select
project
XTEL a: Volume
Select
Project
Tools
window zone
XTEL: the
Project
Tools
presentation
Select
Select the
the Net
"net"icon.
icon
Primary window
This window displays the list of defined bridges for the selected project. If no bridges are
defined, the screen is blank.
The user can select the function to be performed from the five pulldown menus
accessible from the selection bar.
Important
PL7-NET can only be accessed by users with Program min. or Program Max.
access rights. For further information on access levels, refer to the X-TEL Software
Workshop manual.
_______________________________________________________________________________________
4/1
_______________________________________________________________________________________
4.1-2 Diagram
net
Define
New
bridge
Validate
Validate the
architecture
Transfer
Compare
Documentation
Exit
Help
Upload
a bridge
Check
a bridge
ASCII
file output
Exit F3
Help F1
Modify
a bridge
Upload the
architecture
Check the
architecture
Semi-Graphic
file output
Resume
About ....
Delete
a bridge
Invalidate
a bridge
XTEL-DOC
output
Invalidate the
architecture
ASCII
printer output
Semi-Graphic
printer output
Creation, modification or deletion of bridges is only effective after validation by the
Validate the Architecture action in the VALIDATE menu.
_______________________________________________________________________________________
4/2
PL7-NET Program
4
_______________________________________________________________________________________
4.2
Using PL7-NET
4.2-1 Define Menu
This menu lets the user create, modify and delete bridge stations.
New bridge function
This function is used to generate bridge stations from the list of stations connected to
more than one network.
By clicking on this function, a list of stations able to become bridge stations is displayed.
In the network architecture example described in section 3.1-2 the display would be :
Once a station is selected to become a bridge :
OK
Calls up a screen where the user can connect a network to each module
in the selected station.
Cancel
Cancels the action and returns the user to the PL7-NET primary window.
PL7-NET controls the creation of a bridge to the I/O description file for the selected
station (station .IOC file generated by PL7-3 for V4 level stations or cniorack.BIN file
generated by the "Conf" tool for V5 level stations).
_______________________________________________________________________________________
4/3
_______________________________________________________________________________________
If these files do not exist, an error message is generated :
For a V5 level PLC
WARNING
The station I/O configuration file
(CNIORACK.BIN) cannot be found.
Create this file before making the
station a bridge.
For a V4 level PLC
WARNING
The station I/O configuration file
(Station_Name.IOC) cannot be
found.
Create this file before making the
station a bridge.
If these files are present, PL7-NET will, wherever possible, ensure consistency between
the I/O description and the station network connections as defined previously in X-TEL
(see section 3).
The modules for which network connection was performed automatically are shown
grayed out (no action can be performed on them). In the architecture example used, the
configuration described in the cniorack.BIN file for bridge station Routing1 comprises :
• FIPWAY module integrated into the PLC processor,
• TSX ETH 107 module in module 1.
The resulting screen is displayed below :
Note that PL7-NET automatically connected the Trans network to the processor with the
FIPWAY link and the Assemb. network to module 1.
_______________________________________________________________________________________
4/4
PL7-NET Program
4
_______________________________________________________________________________________
When the correspondence cannot be ensured in only one way, a question mark is
displayed to warn the user that action is required. If for example, a new ETHWAY
network (network 4 called Factory) is added along with a TSX ETH 107 module in slot 3
of station Routing1, the following screen is displayed :
PL7-NET leaves the user the option of connecting this module to either of the two
ETHWAY networks present (Assemb or Factory). To do this, simply click on the module
numbers that are not grayed out to display the list of networks that can be connected to
these modules :
Connect
Connects the network to the selected module, the network name and its
address are displayed under the module.
Disconnect Disconnects the network, its address is deleted and a question mark is
displayed in place of the network name.
Cancel
Closes the list of networks display and makes no changes to the
connections.
_______________________________________________________________________________________
4/5
_______________________________________________________________________________________
OK
This option is given once all the modules are connected to a network. A
check is performed to ensure that each connection made is different.
Cancel
Cancels any entries made and returns the user to the primary window.
If a network is connected to at least two modules, a message indicates the error :
WARNING
The station description is incorrect.
Ensure that all configured modules
are connected to a single network.
If one or more errors are encountered during the coherence test, a message warns the
user. The Create a Bridge window is not displayed and the affected station cannot be
designated a bridge until the incoherence is resolved.
WARNING
An incoherence was found
between the I/O description in the
Station_Name.IOC or CNIORACK.BIN
file and the PL7-NET configuration.
It is necessary to make this file
compatible with the station
network connections.
Incoherence example : A station is connected to an 802.3 network and no TSX ETH 200
module is defined in the I/O configuration file.
If all the operations performed are correct, the following screen is displayed :
_______________________________________________________________________________________
4/6
PL7-NET Program
4
_______________________________________________________________________________________
For the example used, the Create a Bridge screen that is specific to the Routing2 station
is shown below :
Modify a bridge function
This function lets the user modify the network connections of modules whose number
is not grayed out. The connection and confirm procedure is the same as that described
previously.
Delete a bridge function
This function lets the user delete the selected bridge.
OK
Confirms the delete action and returns the user to the PL7-NET primary
window.
Cancel
Cancels the delete action and returns the user to the PL7-NET primary
window.
_______________________________________________________________________________________
4/7
_______________________________________________________________________________________
4.2-2 Validate Menu
This function validates actions performed from the Define menu.
Reminder :
All Create, Modify or Delete actions must be validated using this menu
before they are accepted in the architecture.
The new screen displayed shows a list of operations performed :
YES
Validates the operations performed.
NO
Cancels the operations performed and makes no changes to the current network
architecture.
Once the actions are validated, the "List of Defined Bridges" screen is displayed.
_______________________________________________________________________________________
4/8
PL7-NET Program
4
_______________________________________________________________________________________
In some cases, PL7-NET will request that the user validate the network architecture as
soon as PL7-NET is launched. This occurs if actions that affect the coherence of the
network architecture in the X-TEL environment have been performed since the end of
the last PL7-NET session. In this case, the program requests user validation to restore
architecture coherence.
INCOHERENT ARCHITECTURE
Certain actions performed outside
of NET MUST be validated to
ensure architecture coherence!
You can choose to VALIDATE or
to EXIT.
If validation is requested by the user (Validate the Architecture action in the Validate
menu), the previously stored configuration is replaced by the current configuration as
read by PL7-NET in the X-TEL Software Workshop.
When the user quits PL7-NET, (Exit action in the Exit menu), the previous configuration
is restored.
_______________________________________________________________________________________
4/9
_______________________________________________________________________________________
4.2-3 Transfer Menu
To perform actions from this menu, on-line connection with the network architecture
is required.
Before starting the transfer of a bridge or of the network architecture, check that the
bridge PLCs can be accessed from the terminal and that they have already been
configured using the "mem" and "transfer" station tools in the X-TEL Software
Workshop for a V4 level PLC or using the "conf" and "transfer" station tools for a V5
level PLC (creation of an .APP file that contains the bridge function).
This menu lets the user access upload and download functions and the ability to
invalidate the configuration of a bridge or of all bridges in the network architecture.
Upload a bridge function
This function is used to upload a single bridge selected from the list of bridges in the
network architecture. Once the bridge to upload is selected :
Cancel
Cancels uploading and returns the user to the PL7-NET primary window.
Ok
Starts uploading of the selected bridge. When uploading is completed,
the following message is displayed :
TRANSFER Router 1
Uploading completed
Enter
Returns the user to the primary window of the program.
If the PLC to upload to does not have a declared bridge function field, the following
message is displayed :
TRANSFER ERROR
The accessed PLC does not have
the declared Bridge function space.
Generate a new application image
(.APP file).
The user must first generate the bridge field as described in section 3.1-1.
_______________________________________________________________________________________
4/10
PL7-NET Program
4
_______________________________________________________________________________________
Upload architecture function
This action uploads all of the bridges in the architecture. Messages are displayed giving
the results of each upload action performed (they are performed automatically, one after
another). Once the procedure is complete, the "Upload Results" menu is displayed,
summarizing the results achieved. In the architecture example shown previously, the
following screen is displayed :
Cancel
Returns the user to the PL7-NET primary window.
Zoom
When a problem is encountered when uploading a bridge, this button can
be selected to display a screen that lists the cause of failure when
transferring to the selected station.
TRANSFER ERROR
The accessed PLC does not
have the declared Bridge
function space.
Generate a new application
image (.APP file).
Download completed
Download impossible
_______________________________________________________________________________________
4/11
_______________________________________________________________________________________
If a problem occurs while uploading one of the bridges in the architecture, uploading of
the other bridges is still completed normally (if the bridge stations are accessible).
Reminder :
When uploading the network architecture, bridge PLCs must
be crossed, as seen from the terminal, from left to right (from the module
with the lowest hardware address in the rack to the one with
the highest hardware address in the rack).
Invalidation of a bridge function
This function cancels the configuration of a single bridge selected from the list of bridges
in the architecture. Once the bridge to invalidate is selected,
Cancel
Cancels invalidation and returns the user to the PL7-NET primary
window.
OK
Invalidates the selected bridge. An invalidated bridge becomes a
"multiple module" PLC and continues to operate without dialog between
networks. Once invalidation is complete, the following dialog box is
displayed :
INVALIDATE Router2
Invalidate completed
Enter
Returns the user to the PL7-NET primary window.
Invalidation of the architecture function
This function cancels the configurations of all of the bridges in the architecture.
Messages show the result of each invalidation. The invalidations are performed
automatically, one after the other.
Cancel
Cancels invalidation and returns the user to the PL7-NET primary
window.
OK
Invalidates the architecture. Once the procedure is complete, the
"Invalidation Results" menu is displayed, summarizing the results achieved
and displaying error messages if invalidation could not be completed. In
the architecture example shown previously, the following screen will be
displayed :
_______________________________________________________________________________________
4/12
PL7-NET Program
4
_______________________________________________________________________________________
Cancel
Returns the user to the PL7-NET primary window.
Zoom
When a problem is encountered, this button can be selected to display a
screen that gives the reasons why the selected station could not be
invalidated.
Reminder :
When invalidating the architecture, bridge PLCs must be crossed, as
seen from the terminal, from left to right (from the module with the lowest
hardware address in the rack to the one with the highest hardware
address in the rack).
_______________________________________________________________________________________
4/13
_______________________________________________________________________________________
4.2-4 Compare Menu
This function compares the configuration of a bridge or of the architecture in the terminal
memory with the configuration currently loaded in the specified bridge or in the network
architecture.
Check a bridge function
This function checks a single bridge selected from the list of bridges in the architecture.
When the check is completed, there are two possible results :
• The configurations in the terminal and the bridge are identical :
COMPARE A BRIDGE
Local configuration
Last modification
date: 15-06-1993 17:17
Router1
INDENTICAL
PLC Configuration
Last modification
date: 15-06-1993 17:17
Enter
Enter
Returns the user to the PL7-NET primary window.
• The configurations in the terminal and the bridge are different :
COMPARE A BRIDGE
Local configuration
Last modification
date: 15-06-1993 17:17
Router1
DIFFERENT
PLC Configuration
Last modification
date: 15-06-1993 17:17
Enter
_______________________________________________________________________________________
4/14
PL7-NET Program
4
_______________________________________________________________________________________
The configurations can be slightly different, as shown in the example (where the update
dates are different, etc.) or completely different (different modules, different slots, etc.).
Depending on the case and the user's requirements, it will be necessary to transfer the
affected bridge so that their configurations become identical.
Checking the architecture function
This function checks all of the bridges in the architecture. Messages are displayed with
the results of each check performed. These are performed automatically, one after
another. The "Check Results" screen summarizes the results achieved and displays
details of the configurations. In the same way as when checking a bridge, there are two
possible cases,
• The configurations of the terminal and the bridge are identical,
• The configurations of the terminal and the bridge are different (as in the example
shown below) :
Zoom
Displays the details of the two configurations for the selected station. The
screen displayed is the same as the one displayed by the Check a Bridge
function.
Cancel
Returns the user to the PL7-NET primary window.
_______________________________________________________________________________________
4/15
_______________________________________________________________________________________
4.2-5 Documentation Menu
This function lets the user document single or multinetwork architectures. The
documentation generated forms a part of the general application file.
Documentation comprises :
• A title page that is the header of the documentation file where general information on
the application is entered.
• Description of each network in the architecture :
- Network name,
- Network number,
- Network type,
- Number of stations connected,
- List of stations connected.
• Description of each bridge in the architecture :
- Bridge name,
- Bridge type,
- Primary bridge address,
- Number of connections and parameters assigned to the connections.
• A footer across the bottom of each page, comprising :
- Application name,
- Section name,
- Documentation creation date,
- Page numbering,
- Three fields available to the user.
ASCII file output function
This function outputs the document in ASCII format for printing from the file :
D :\XPROPRJ\Project_Name\NET\ARCHITEC.DOC
XTEL-DOC or SEMI-GRAPHIC output file function
This function outputs the document in extended ASCII format for printing from the file :
D:\XPROPRJ\Project_Name\NET\ARCHITEC.DOC
ASCII printer function
This function prints the document to an ASCII printer.
SEMI-GRAPHIC printer function
This function prints the document to a semi-graphic printer.
_______________________________________________________________________________________
4/16
PL7-NET Program
4
_______________________________________________________________________________________
Title page entry
Title page data is entered after selecting the type of document output required (printer
print-out or output to file). When Documentation is selected for the first time, the title page
is displayed blank :
Title Page
Title:
Company
Designer:
User:
Maintenance:
REV DATE
OK
UPDATE
Department
DESIGNER
Manager
EXECUTED
CANCEL
Once the various fields are filled-in,
Cancel
Cancels the entries made and calls-up the footer entry screen.
OK
Saves the data entered to the GARDE.TIT file. If this file already
exists, the user is asked to confirm the replacement action before the
file is overwritten. The following screen is displayed once the title page
data has been saved :
Generation of .TIT file
completed!
Enter
Lets the user access the footer entry screen.
_______________________________________________________________________________________
4/17
_______________________________________________________________________________________
Footer entry
The footer data is entered after the user validates (or exits) the title page. When
Documentation is selected for the first time, the footer screen is blank :
Footer
FOOTER TOP:
rev.:
FOOTER BOTTOM:
TELEMECANIQUE
← FOOTER TOP →
application
rev
Telemecanique
←
FOOTER BOTTOM
Ok
date
page
→
Cancel
After filling in the two available fields (top and bottom of the footer) :
Cancel
Cancels the modifications made and returns the user to the PL7-NET
primary window.
OK
Saves the data entered to the CARTOUCH.CRT file. If this file already
exists, the user is asked to confirm the replacement action before the file
is overwritten. The following screen is displayed once footer data is
stored :
Generation of .CRT file
completed!
Enter
Returns the user to the PL7-NET primary window.
_______________________________________________________________________________________
4/18
PL7-NET Program
4
_______________________________________________________________________________________
77777777777777777777777
7777777777777777777777
77
SSSSSSSSS 77
SS
777
SS
777
SSSSSSSSS
7SS
77SS
SSSSSSSSS
77777
777777
7777777
7777777
TTTTTTTTTTTT
TT
TT
TT
TT
TT
TT
PL7-NET
Title
XX
X
XX
X
XX X
XX
X XX
X
XX
X
XX
: FACTORY1
Designer
:
User
:
Maintenance :
——Company———
Telemecanique
C.D
J.F
——Department———
PLC DIV
JP.T
LOG.
REV
DATE
UPDATE
1.0 10.06.93 Creation
application
Project Factory1
NET
TITLE PAGE
TSX Manufacture
DESIGNER
D.A
rev
1.0
——Manager————
B.W
F.P
J.D
EXECUTION
M.O
date
23/06/93
page
1- 1
1
_______________________________________________________________________________________
4/19
_______________________________________________________________________________________
Network
Network number
Type of network
Number of connected stations
List of connected stations
Name
Address
Type
routing1
routing2
line1
line2
001.02
001.03
001.04
001.05
TSXV5
TSXV4
TSXV5
TSXV5
Application
:
:
:
:
:
Project Factory1
NET
NETWORK
TSX Manufacture
assemb
001
ETHWAY
4
rev
1.0
date
23/06/93
page
2- 1
2
_______________________________________________________________________________________
4/20
PL7-NET Program
4
_______________________________________________________________________________________
Network
Network number
Type of network
Number of stations connected
List of connected stations
:
:
:
:
:
Name
Address
Type
routing2
paint
moulding
machine
002.01
002.02
002.03
002.04
TSXV4
TSXV4
TSXV4
NUM1060
Application
Project Factory1
NET
NETWORK
TSX Manufacture
Assemb
002
MAPWAY
4
rev
1.0
date
23/06/93
page
2- 2
3
_______________________________________________________________________________________
4/21
_______________________________________________________________________________________
Network
Network number
Type of network
Number of stations connected
List of stations connected
Name
Address
Type
trolley1
routing1
stock
trolley2
003.02
003.01
003.04
003.03
TSXV5
TSXV5
TSX17
TSXV5
Application
:
:
:
:
:
Project Factory1
NET
NETWORK
TSX Manufacture
trans
003
FIPWAY
4
rev
1.0
date
23/06/93
page
2- 3
4
_______________________________________________________________________________________
4/22
PL7-NET Program
4
_______________________________________________________________________________________
Bridge
Type of bridge
Primary address
Number of connections
:
:
:
:
routing1
TSXV5
001.02
2
Connection Network Address Type of connection Rack/Module AddressStatus
0
1
001.02
003.01
ETHWAY
FIPWAY
Bridge
Type of bridge
Primary address
Number of connections
01
FF
:
:
:
:
routing2
TSXV4
001.03
2
Connection Network Address Type of connection Rack/Module AddressStatus
0
1
001.03
002.01
Application
ETHWAY
MAPWAY
Project Factory1
NET
BRIDGE
TSX Manufacture
01
06
rev
1.0
date
23/06/93
page
3- 1
5
_______________________________________________________________________________________
4/23
_______________________________________________________________________________________
CONTENTS :
Application
heading
page
TITLE PAGE
NETWORK
BRIDGE
FILE CONTENTS
1
2
5
6
Project Factory1
NET
BRIDGE
TSX Manufacture
rev
1.0
date
23/06/93
page
3- 1
5
_______________________________________________________________________________________
4/24

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
