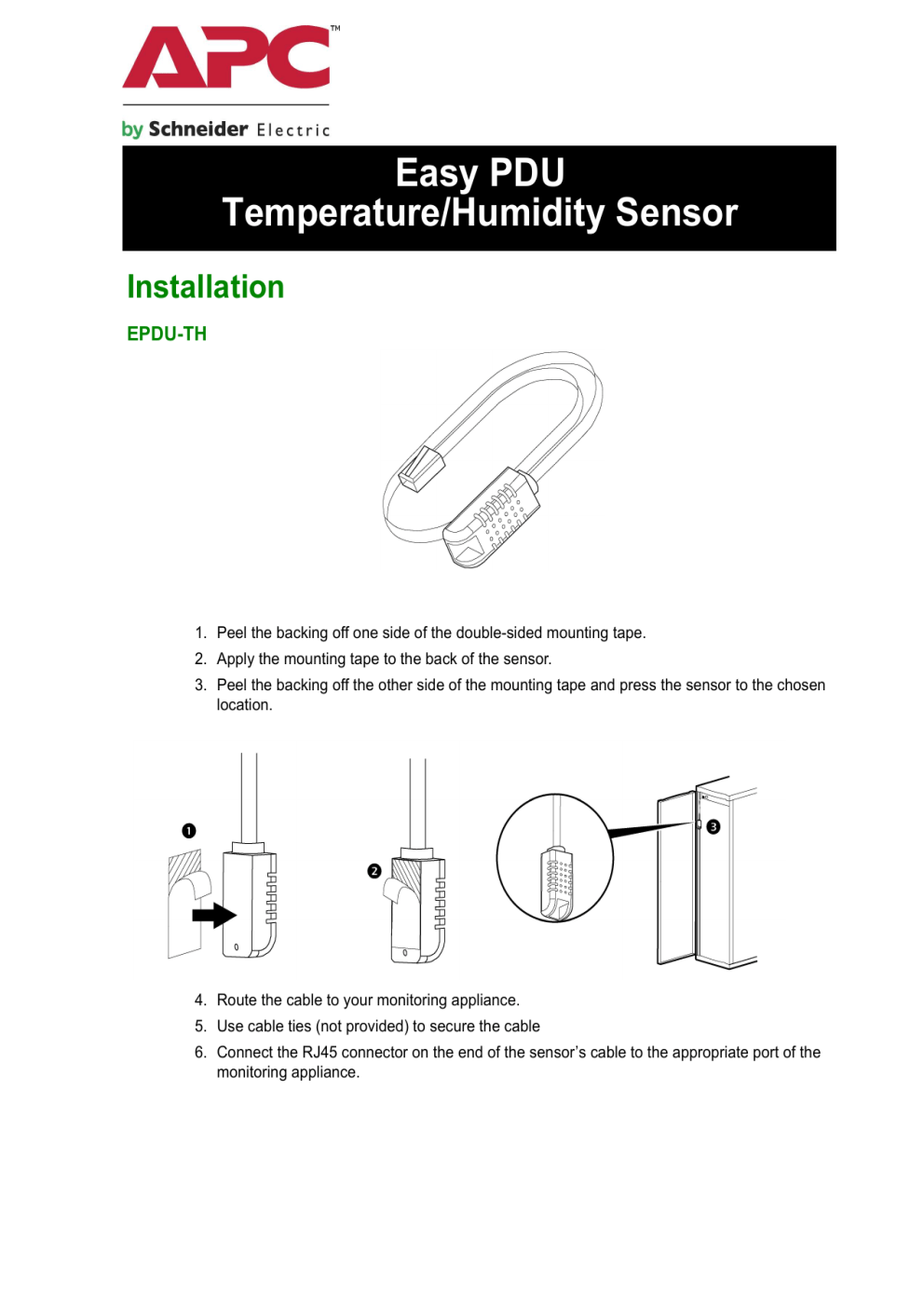

Schneider Electric EPDU-TH Instruction Sheet

Easy PDU
Temperature/Humidity Sensor
Installation
EPDU-TH
1. Peel the backing off one side of the double-sided mounting tape.
2. Apply the mounting tape to the back of the sensor.
3. Peel the backing off the other side of the mounting tape and press the sensor to the chosen
location.
4. Route the cable to your monitoring appliance.
5. Use cable ties (not provided) to secure the cable
6. Connect the RJ45 connector on the end of the sensor’s cable to the appropriate port of the
monitoring appliance.
Specifications
Electrical
Supply Voltage
3.3 - 5.5 VDC
Output
Digital (1 WIRE)
Physical
Cable Length
2.0 m (6.5 ft)
Dimensions (L x W x H)
44.4 x 20.0 x 13.0 mm
(17.5 x 0.8 x 0.5 in)
Shipping dimensions (L x W x H)
185 x 125 x 38 mm
(7.28 x 4.92 x 1.50 in)
Weight
0.05 kg (0.11 lb)
Shipping weight
0.22kg (0.5 lb)
Environmental
Temperature: Operating range
–40 to +80°C
Typical accuracy
±0.5°C
Temperature response time
5 seconds
Resolution
0.1°C
Relative Humidity: Operating Range
0~99.9% RH
Typical accuracy
±3% RH
Humidity response time
5 seconds
Resolution
0.1% RH
Compliance
Safety verification
CE
Environmental
RoHS and Reach
Customer support and warranty information are available on the APC by Schneider Electric website, www.apc.com.
© 2020 APC by Schneider Electric. APC and the APC logo are owned by Schneider Electric S.E. All other trademarks
are property of their respective owners.
990-6334
3/2020
