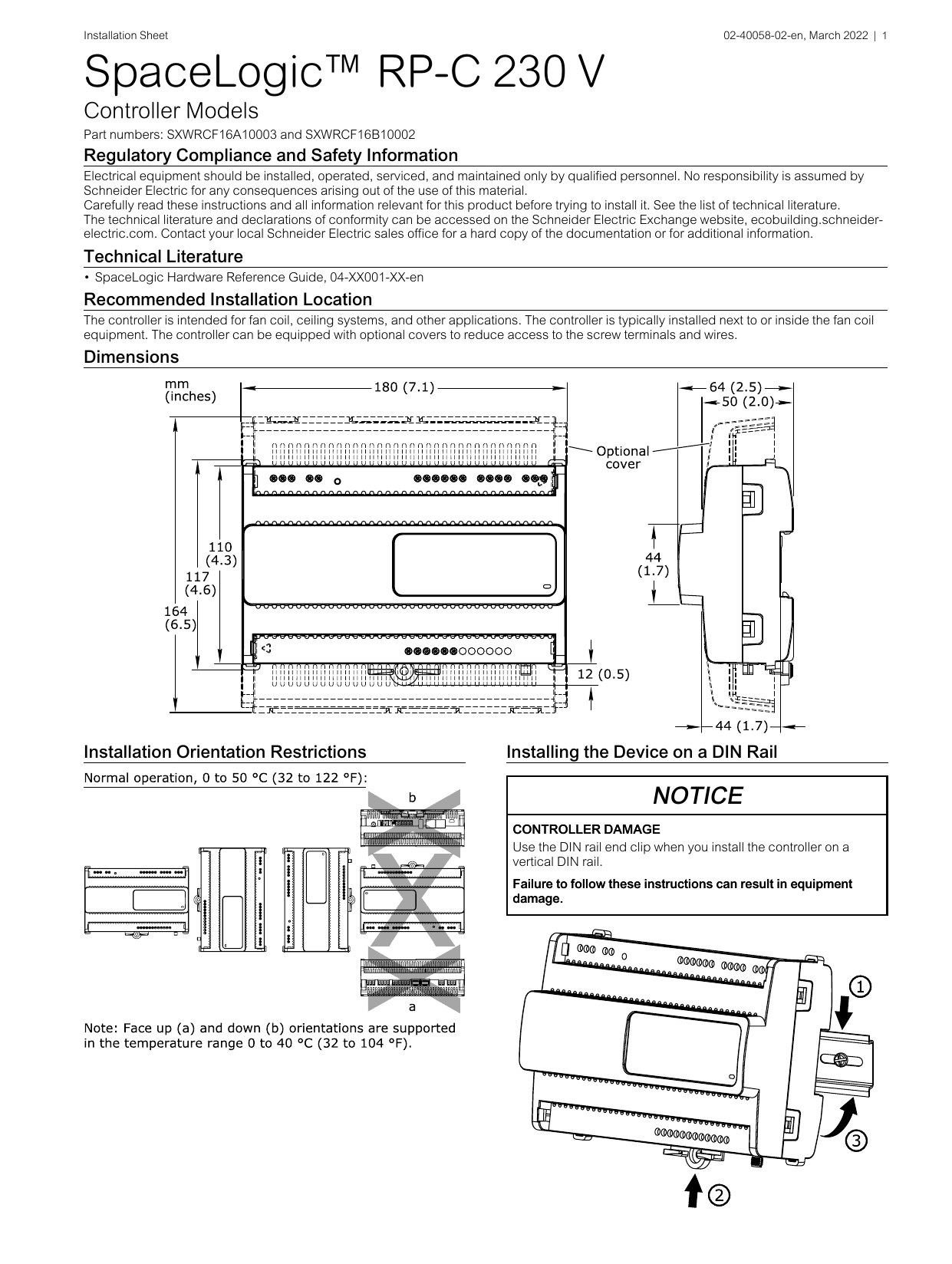

02-40058-02-en, March 2022 | 1
Installation Sheet
SpaceLogic™ RP-C 230 V
Controller Models
Part numbers: SXWRCF16A10003 and SXWRCF16B10002
Regulatory Compliance and Safety Information
Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel. No responsibility is assumed by
Schneider Electric for any consequences arising out of the use of this material.
Carefully read these instructions and all information relevant for this product before trying to install it. See the list of technical literature.
The technical literature and declarations of conformity can be accessed on the Schneider Electric Exchange website, ecobuilding.schneiderelectric.com. Contact your local Schneider Electric sales office for a hard copy of the documentation or for additional information.
Technical Literature
• SpaceLogic Hardware Reference Guide, 04-XX001-XX-en
Recommended Installation Location
The controller is intended for fan coil, ceiling systems, and other applications. The controller is typically installed next to or inside the fan coil
equipment. The controller can be equipped with optional covers to reduce access to the screw terminals and wires.
Dimensions
Installation Orientation Restrictions
Installing the Device on a DIN Rail
NOTICE
CONTROLLER DAMAGE
Use the DIN rail end clip when you install the controller on a
vertical DIN rail.
Failure to follow these instructions can result in equipment
damage.
02-40058-02-en, March 2022 | 2
Installing the Device on a Flat Surface
Installing and Removing the Optional Covers
Connections
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• Disconnect all line voltage connected to the controller and its relay outputs before working on the device.
• More than one disconnect switch may be required to de-energize this equipment before servicing.
• Connect only devices with safe extra low voltage equipment (SELV/PELV) inputs/outputs to the controller universal inputs/outputs.
Failure to follow these instructions will result in death or serious injury.
02-40058-02-en, March 2022 | 3
Connections, continued
WARNING
HAZARD OF ELECTRIC SHOCK
For RP-C-16A-F-230V hardware version 9 and earlier, do not connect signal ground (RET terminals, USB shield, Ethernet network shield, or
antenna shield) between RP-C controllers without connecting at least one of the RET terminals to protective earth ground.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
NOTICE
EQUIPMENT DAMAGE
Do not connect signal ground (RET terminals, USB shield, Ethernet network shield, or antenna shield) between RP-C controllers.
Failure to follow these instructions can result in equipment damage.
NOTICE
CONTROLLER DAMAGE
Before powering up the controller, ensure that the input power voltage level meets the specifications of the controller.
Failure to follow these instructions can result in equipment damage.
Wiring
Recommended screw tightening torque: 0.56 to 0.79 Nm (5 to 7 lbf.in)
For information on wiring, including connection diagrams, rating of and location of fuses (circuit breakers), and cable specifications, see the
SpaceLogic Hardware Reference Guide.
02-40058-02-en, March 2022 | 4
Part Numbers
Product
Part number
RP-C-16A-F-230V
SXWRCF16A10003
RP-C-16B-F-230V
SXWRCF16B10002
Optional covers
SXWRPCCOV10001
DIN-rail end clip, 25 pieces
SXWDINEND10001
Isolated RS-485 adapter (cable not included)
SXWISORS48510001
Non-isolated RS-485 adapter (cable not included)
SXWNISORS48510001
RS-485 power adapter (cable not included)
SXWNISORS485P10001
For more information on the RS-485 adapters and the cable required, see the Isolated and Non-isolated RS-485 Adapter Installation Sheet.
Specifications
AC input
Nominal voltage
230 VAC 50/60 Hz
Maximum power consumption
65 VA
Power consumption without load
5W
Overvoltage category
III
Pollution degree
2
AC output
Type
Isolated Class 2 output
Nominal voltage
24 VAC 50/60 Hz
Power rating
19 VA
Port types
USB device port
Mini-B
USB host port
Type-A, 5 VDC, 0.5 A
Ethernet port 1 and 2
10/100BASE-TX RJ45
RS-485 port Com A and Com B
24 VDC, 3 W, RS-485 (RJ45)
Wireless connectivity
Bluetooth® Low Energy (Bluetooth® 5)
2.402 to 2.480 GHz, max. 10 dBm output
power, 100 m (328 ft) line-of-sight range
Antenna
Integrated antenna
Approved external antenna (optional)
Manufacturer: Linx Technologies, Model:
ANT-2.4-WRT-MON-SMA, Gain: 0.8 dBi,
Type: Monopole, Impedance: 50 ohm,
Connector: SMA
Operation environment
Ambient temperature, operating
0 to 50 °C (32 to 122 °F)
See section Installation Orientation
Restrictions.
Humidity
Maximum 95 % RH non-condensing
Mechanical
Ingress protection rating
IP 20
Plastic flame rating
UL94-5VB
IP networking
IP address assignment methods
Static, DHCP (default), Auto-IP (address
range 169.254.0.1 to 169.254.255.254,
subnet mask 255.255.0.0)
Ub – Universal I/O
Input rating
24 VDC
, 2.4 mA
Voltage output rating
0 to 10 VDC
, 2.4 kohm (min.)
Channels
8
DO – Relay outputs
Relay contact rating
Pilot Duty (C300)
Min. current: 100 mA (5 VDC)
Resistive: 250 VAC
/ 30 VDC
4 A (cos phi = 1)
Inductive: 250 VAC
/ 30 VDC
4 A (cos phi = 0.4)
Channels
3
,
,
DO – High power relay outputs
Relay contact rating
Pilot Duty (B300)
Normally Open, resistive: 250 VAC
/ 24 VDC
, 12 A (cos phi = 1)
Normally Closed, inductive: 250 VAC
/ 24 VDC
, 3 A (cos phi = 0.4)
Channels
1
DO – Solid-state relay outputs
Output rating
30 VAC
/ 30 VDC
Max. 4 A total load
Channels
4
,2A
Differences from Previous Hardware Versions
For information on differences from previous versions, see the SpaceLogic Hardware Reference Guide.
eu.bac Approved Controller Applications
A eu.bac approved controller application must operate in the controller to maintain compliance with the eu.bac certification. Approved
controller applications can be downloaded from the Schneider Electric BMS Applications website, bms-applications.schneider-electric.com.
