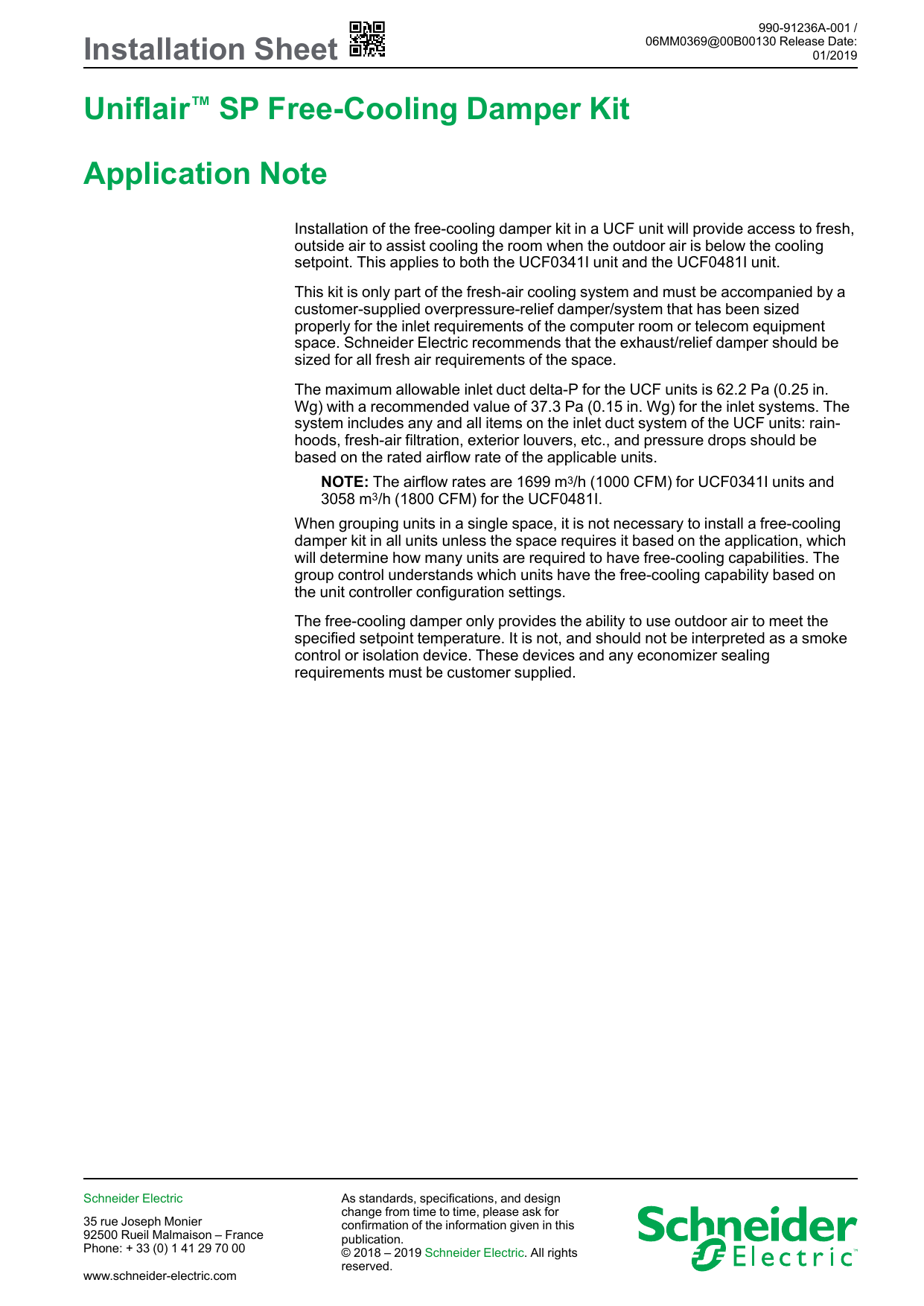

Installation Sheet
Uniflair™ SP Free-Cooling Damper Kit
Application Note
Installation of the free-cooling damper kit in a UCF unit will provide access to fresh,
outside air to assist cooling the room when the outdoor air is below the cooling
setpoint. This applies to both the UCF0341I unit and the UCF0481I unit.
This kit is only part of the fresh-air cooling system and must be accompanied by a
customer-supplied overpressure-relief damper/system that has been sized
properly for the inlet requirements of the computer room or telecom equipment
space. Schneider Electric recommends that the exhaust/relief damper should be
sized for all fresh air requirements of the space.
The maximum allowable inlet duct delta-P for the UCF units is 62.2 Pa (0.25 in.
Wg) with a recommended value of 37.3 Pa (0.15 in. Wg) for the inlet systems. The
system includes any and all items on the inlet duct system of the UCF units: rainhoods, fresh-air filtration, exterior louvers, etc., and pressure drops should be
based on the rated airflow rate of the applicable units.
NOTE: The airflow rates are 1699 m3/h (1000 CFM) for UCF0341I units and
3058 m3/h (1800 CFM) for the UCF0481I.
When grouping units in a single space, it is not necessary to install a free-cooling
damper kit in all units unless the space requires it based on the application, which
will determine how many units are required to have free-cooling capabilities. The
group control understands which units have the free-cooling capability based on
the unit controller configuration settings.
The free-cooling damper only provides the ability to use outdoor air to meet the
specified setpoint temperature. It is not, and should not be interpreted as a smoke
control or isolation device. These devices and any economizer sealing
requirements must be customer supplied.
Schneider Electric
35 rue Joseph Monier
92500 Rueil Malmaison – France
Phone: + 33 (0) 1 41 29 70 00
www.schneider-electric.com
As standards, specifications, and design
change from time to time, please ask for
confirmation of the information given in this
publication.
© 2018 – 2019 Schneider Electric. All rights
reserved.
Uniflair™ SP Free-Cooling Damper Kit
Inventory
na7184a
Inventory
Item
2
Description
Quantity
Duct adapter—long edge
2
Duct adapter—short edge
2
Actuator
1
Remote temperature and humidity
sensor
1
M4, self-drilling screws
4
M4 x 10 pan head screws
3
Damper diverter
1
990-91236A-001 / 06MM0369@00B00130
Uniflair™ SP Free-Cooling Damper Kit
Dimensions
Dimensions
na7220a
250 mm
(9.8 in.)
675 mm (26.6 in.)
990-91236A-001 / 06MM0369@00B00130
3
Uniflair™ SP Free-Cooling Damper Kit
Installation
Installation
NOTE: Some components not shown for easier viewing.
1. Remove the damper connection cover panel from the rear of the unit.
na7185a
NOTE: Keep the screws for use later in the installation process.
2. Remove the service access panel.
See the Uniflair SP Installation Manual for instructions on removing
the panel.
3. Remove the actuator mounting bracket from the unit.
na7186a
NOTE: Keep the bracket and screws for re-installation later.
4
990-91236A-001 / 06MM0369@00B00130
Uniflair™ SP Free-Cooling Damper Kit
Installation
4. Insert the damper diverter into the unit through the rear or through the filter
access panel opening.
NOTE: Some panels not shown for easier viewing.
See the “Panel Removal” section in the Uniflair SP Installation
Manual for instructions on opening the filter access panel.
2
na7187a
1
na7189a
5. Attach the actuator to the bracket with the three M4 x 10 pan head screws.
na7188a
6. Re-install the bracket with the actuator inside the unit with the screws from
step 3.
990-91236A-001 / 06MM0369@00B00130
5
Uniflair™ SP Free-Cooling Damper Kit
Installation
na7222a
7. Connect the actuator wire to the connector provided inside the unit.
na7190a
8. Attach the duct adapters to the rear of the unit with the screws saved from
step 1.
na7191a
9. Connect the corners of the duct adapter pieces with the M4, self-drilling
screws.
6
990-91236A-001 / 06MM0369@00B00130
Uniflair™ SP Free-Cooling Damper Kit
Installation
10. Install the remote temperature and humidity sensor.
a. Remove the cover of the sensor.
b. Use two field-supplied screws to mount the sensor to the selected
location.
B
na7209a
A
NOTE: Make sure the sensor is in a location with access to outdoor
air. The below image shows an example of the application.
BAROMETRIC
RELIEF
DAMPER
EXTERNAL DAMPER
(OPTIONAL)
RAIN HOOD
UCF
DUCTING
FAN ASSIST
(OPTIONAL)
na7221a
OUTDOOR
SENSOR
c. Connect the wiring for the sensor to the cooling unit.
See the wiring diagram for wiring information.
d. Replace the sensor cover.
11. Replace the service access panel and close any open panels.
990-91236A-001 / 06MM0369@00B00130
7
