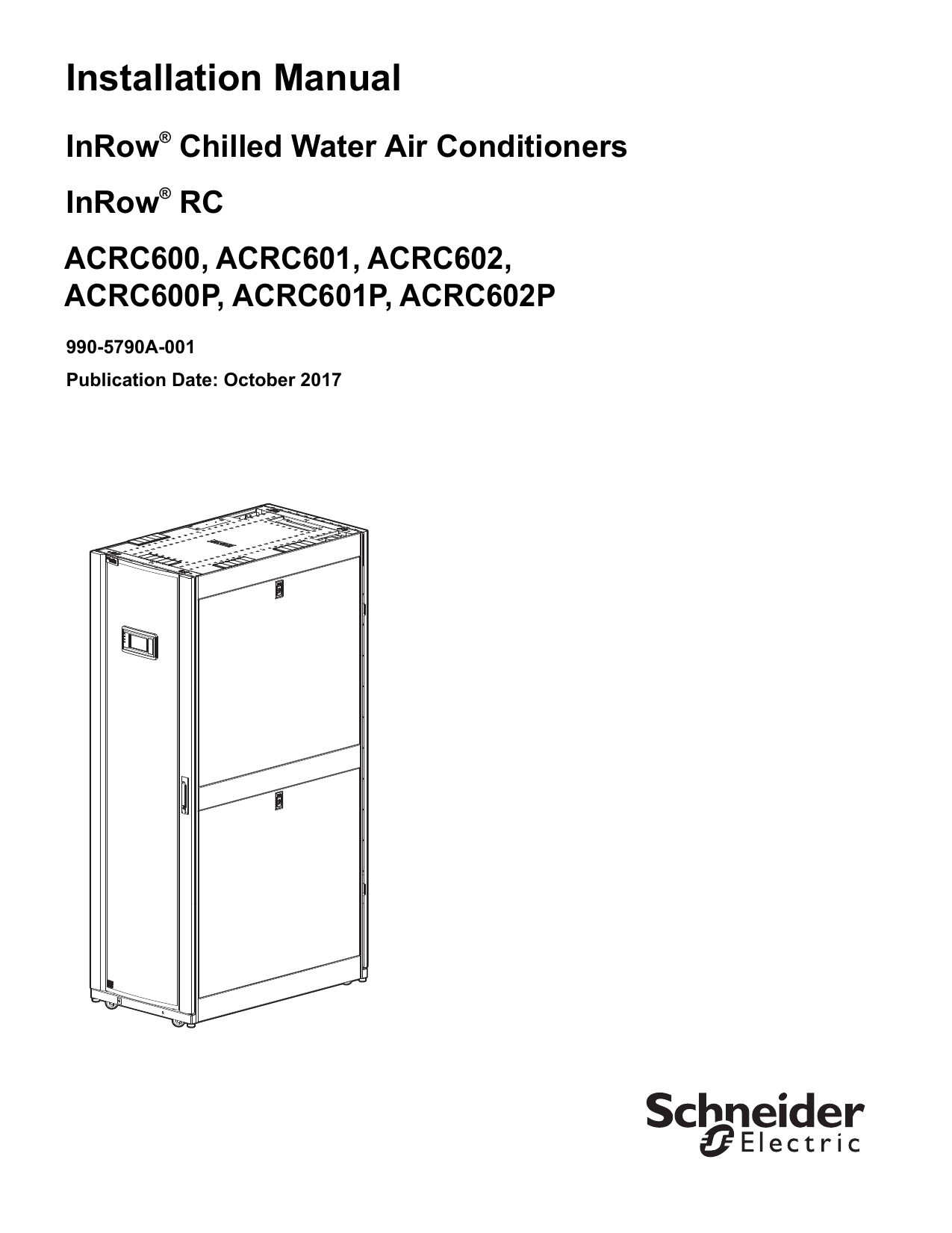

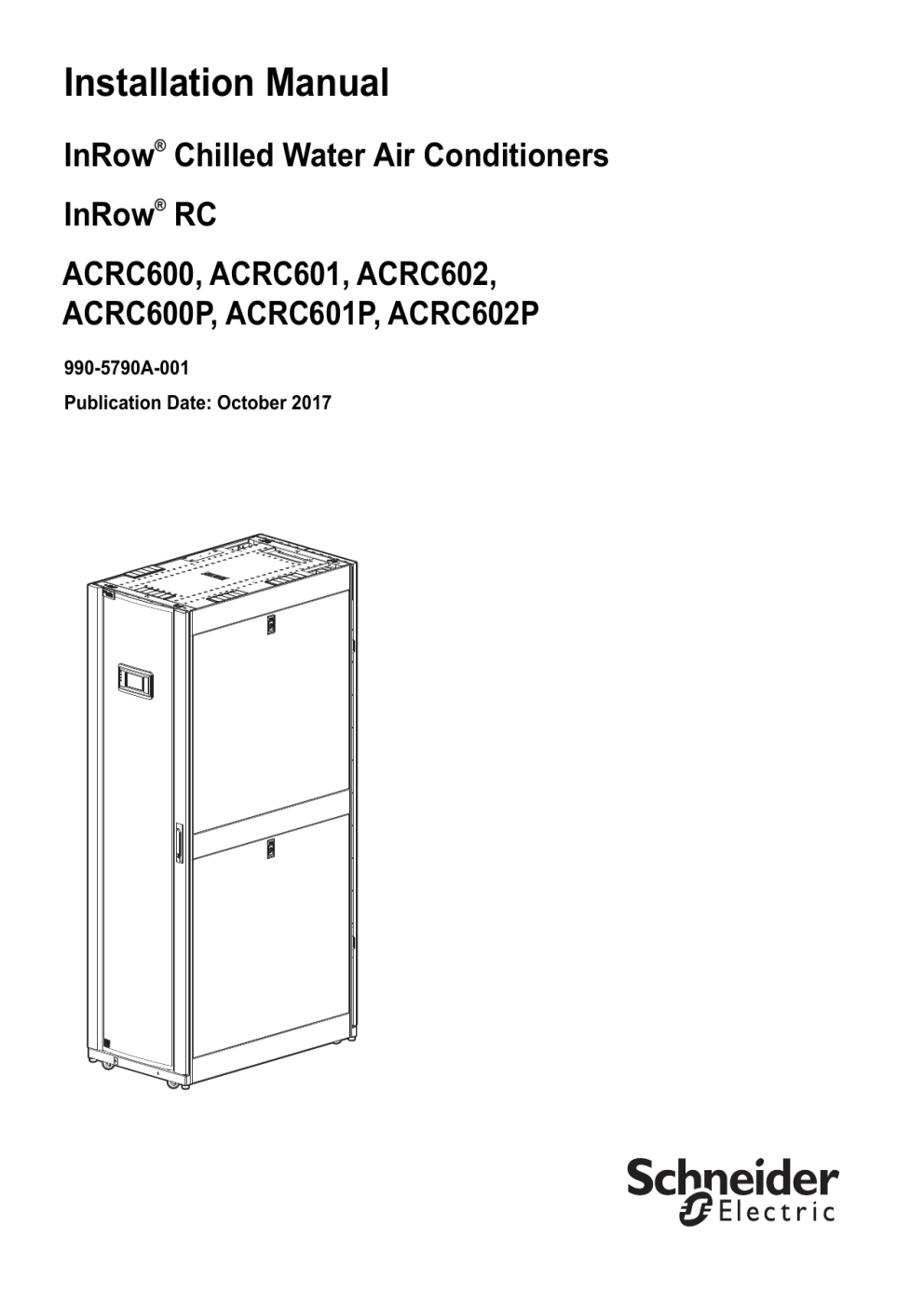

Installation Manual
InRow® Chilled Water Air Conditioners
InRow® RC
ACRC600, ACRC601, ACRC602,
ACRC600P, ACRC601P, ACRC602P
990-5790A-001
Publication Date: October 2017
Schneider Electric IT Corporation Legal Disclaimer
The information presented in this manual is not warranted by the Schneider Electric IT Corporation to be
authoritative, error free, or complete. This publication is not meant to be a substitute for a detailed operational
and site specific development plan. Therefore, Schneider Electric IT Corporation assumes no liability for
damages, violations of codes, improper installation, system failures, or any other problems that could arise
based on the use of this Publication.
The information contained in this Publication is provided as is and has been prepared solely for the purpose of
evaluating data center design and construction. This Publication has been compiled in good faith by Schneider
Electric IT Corporation. However, no representation is made or warranty given, either express or implied, as to
the completeness or accuracy of the information this Publication contains.
IN NO EVENT SHALL SCHNEIDER ELECTRIC IT CORPORATION, OR ANY PARENT, AFFILIATE OR
SUBSIDIARY COMPANY OF SCHNEIDER ELECTRIC IT CORPORATION OR THEIR RESPECTIVE
OFFICERS, DIRECTORS, OR EMPLOYEES BE LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL,
PUNITIVE, SPECIAL, OR INCIDENTAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR
LOSS OF BUSINESS, CONTRACT, REVENUE, DATA, INFORMATION, OR BUSINESS INTERRUPTION)
RESULTING FROM, ARISING OUT, OR IN CONNECTION WITH THE USE OF, OR INABILITY TO USE THIS
PUBLICATION OR THE CONTENT, EVEN IF SCHNEIDER ELECTRIC IT CORPORATION HAS BEEN
EXPRESSLY ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SCHNEIDER ELECTRIC IT
CORPORATION RESERVES THE RIGHT TO MAKE CHANGES OR UPDATES WITH RESPECT TO OR IN
THE CONTENT OF THE PUBLICATION OR THE FORMAT THEREOF AT ANY TIME WITHOUT NOTICE.
Copyright, intellectual, and all other proprietary rights in the content (including but not limited to software, audio,
video, text, and photographs) rests with Schneider Electric IT Corporation or its licensors. All rights in the
content not expressly granted herein are reserved. No rights of any kind are licensed or assigned or shall
otherwise pass to persons accessing this information.
This Publication shall not be for resale in whole or in part.
Table of Contents
Safety................................................................................. 5
Important Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety Notices During Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
General Information ...........................................................8
Inspecting the Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Storing the Equipment Before Installation . . . . . . . . . . . . . . . . . . . . . . . 8
Moving the Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Moving the equipment to its final location . . . . . . . . . . . . . . . . . 8
Waste Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Waste Electrical and Electronic Equipment (WEEE) disposal . 9
Model Identification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Component Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Install kit inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Exterior components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior components (front) . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior components (rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main controller board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
................................................
Display interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10
11
12
14
15
17
17
18
Piping Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Pre-Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Room preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air distribution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Incoming power supply requirements . . . . . . . . . . . . . . . . . . .
Automatic transfer switch (ATS) . . . . . . . . . . . . . . . . . . . . . . .
21
21
22
22
Dimensions and Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Service access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
InRow RC Installation Manual
3
Piping and Power Access Locations . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Top piping and power access locations (top view) . . . . . . . . . 24
Bottom piping and power access locations (bottom view) . . . . 25
Installation........................................................................26
Removing the Doors and Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Removing the front door . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removing the rear doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removing and installing the side panels . . . . . . . . . . . . . . . . .
Removing the electrical panel cover . . . . . . . . . . . . . . . . . . . .
26
27
28
29
Joining the Equipment to Enclosures. . . . . . . . . . . . . . . . . . . . . . . . . . 30
Joining to NetShelter™ SX enclosures . . . . . . . . . . . . . . . . . . 30
Joining to NetShelter VX and VS enclosures . . . . . . . . . . . . . 30
Leveling the Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Mechanical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Top water piping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bottom water piping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Humidifier (ACRC60xP units only) . . . . . . . . . . . . . . . . . . . . .
Condensate overflow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Leak sensor (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32
33
34
35
36
Filling and Purging the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Chiller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Cooling unit requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Customer interface connections . . . . . . . . . . . . . . . . . . . . . . .
Description of customer interface connectors . . . . . . . . . . . . .
Rack temperature sensors . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water outlet temperature sensors . . . . . . . . . . . . . . . . . . . . . .
Communication connections . . . . . . . . . . . . . . . . . . . . . . . . . .
Network port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
39
40
41
42
42
44
Power Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Wiring configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Install power cords (ACRC600 and ACRC602 only) . . . . . . . .
Top routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bottom routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Strain relief (ACRC602 and ACRC602P only) . . . . . . . . . . . .
Voltage selection—ACRC60x units . . . . . . . . . . . . . . . . . . . . .
Voltage selection—ACRC60xP units . . . . . . . . . . . . . . . . . . .
4
45
45
46
46
47
48
49
InRow RC Installation Manual
Safety
Important Safety Information
Read the instructions carefully to become familiar with the equipment before trying to install, operate, service,
or maintain it. The following special messages may appear throughout this manual or on the equipment to warn
of potential hazards or to call attention to information that clarifies or simplifies a procedure.
The addition of this symbol to a Danger or Warning safety label indicates that an electrical hazard
exists which will result in personal injury if the instructions are not followed.
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all
safety messages that follow this symbol to avoid possible injury or death.
DANGER
DANGER indicates an imminently hazardous situation which, if not avoided, will result in death
or serious injury.
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided, can result in death
or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided, can result in minor
or moderate injury.
NOTICE
NOTICE addresses practices not related to physical injury including certain environmental
hazards, potential damage or loss of data.
InRow RC Installation Manual
5
Safety Notices During Installation
Read and adhere to the following important safety considerations when working with this equipment.
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• Apply appropriate personal protective equipment (PPE) and follow safe electrical work
practices. See NFPA 70E or CSA Z462.
• This equipment must be installed and serviced by qualified personnel only.
• Turn off all power supplying this equipment before working on or inside the equipment.
• Always use a properly rated voltage sensing device to confirm power is off.
• Replace all devices, doors, and covers before turning on power to this equipment.
Failure to follow these instructions will result in death or serious injury.
WARNING
HAZARD OF EQUIPMENT FALLING OVER
• Use two or more persons at all times to move or turn this equipment.
• Always push, pull, or turn while facing the front and rear of this equipment. Never push,
pull, or turn while facing the sides of this equipment.
• Slowly move this equipment across uneven surfaces or door thresholds.
• Lower leveling feet to floor when this equipment is at rest.
• Lower leveling feet and attach joining brackets to adjacent racks when this equipment is
in final position.
Failure to follow these instructions can result in death, serious injury, or
equipment damage.
WARNING
HAZARD FROM MOVING PARTS
Keep hands, clothing, and jewelry away from moving parts. Check the equipment for
foreign objects before closing the doors and starting the equipment.
Failure to follow these instructions can result in death, serious injury, or
equipment damage.
CAUTION
UNPROTECTED OUTPUTS
Apply circuit protection to all outputs.
Failure to follow these instructions can result in injury or equipment damage.
6
InRow RC Installation Manual
CAUTION
HAZARD TO EQUIPMENT OR PERSONNEL
Ensure that all spare parts and tools are removed from the equipment before operating it
Failure to follow these instructions can result in injury or equipment damage.
NOTICE
FREEZE HAZARD
External water piping must have adequate freeze protection and must be correctly
applied based on local climatic conditions and best practices. Install insulation and
electric heat tracing (not supplied) on all exposed piping.
Failure to follow these instructions can result in equipment damage.
NOTICE
STATIC ELECTRICITY HAZARD
Circuit boards contained within this unit are sensitive to static electricity. Use one or more
electrostatic-discharge device while handling the boards.
Failure to follow these instructions can result in equipment damage.
NOTICE
UV HAZARD
Avoid exposing cross-linked polyethylene (PEX) piping to direct sunlight. PEX piping can
be damaged by direct sunlight. Store PEX piping in its carton to avoid dirt accumulation
and extended exposure to direct sunlight.
Failure to follow these instructions can result in equipment damage.
InRow RC Installation Manual
7
General Information
Inspecting the Equipment
Your Schneider Electric InRow RC air conditioner has been tested and inspected for quality assurance before
shipment from Schneider Electric. Carefully inspect both the exterior and interior of the equipment immediately
upon receipt to ensure that the equipment has not been damaged during transit.
Verify that all parts ordered were received as specified and that the equipment is the correct type, size and
voltage.
Filing a claim: If damage is identified on receipt of the equipment, note the damage on the bill of lading and file
a damage claim with the shipping company. Contact Schneider Electric Worldwide Customer Support at one of
the numbers listed on the Web page on the back page of this manual for information on how to file a claim with
the shipping company. The shipping claim must be filed at the receiving end of the delivery.
NOTE: In case of shipping damage, do not operate the equipment. Keep all packaging for inspection by the
shipping company and contact Schneider Electric.
Storing the Equipment Before Installation
If the equipment will not be installed immediately, store it in a safe place, protected from the weather.
NOTICE
HAZARD TO EQUIPMENT
Leaving the equipment uncovered and exposed to possible damage from the
environment will void the factory warranty.
Failure to follow these instructions can result in equipment damage.
Moving the Equipment
Moving the equipment to its final location
The recommended tools for moving the equipment while it is still on the pallet include the following:
Pallet Jack
Forklift
NOTE: The equipment can be rolled to its final location using its casters if the floor is smooth and clean.
8
InRow RC Installation Manual
Waste Disposal
Waste Electrical and Electronic Equipment (WEEE) disposal
Schneider Electric products comply with international directives on the Restriction of
Hazardous Substances (RoHS) in electronic and electrical equipment and the disposal of
Waste Electrical and Electronic Equipment (WEEE). Dispose of any waste electronic or
electrical equipment with the appropriate recycling center. Contact Schneider Electric for
assistance.
Model Identification
The model number can be found on the outside of the shipping crate and on the nameplate located inside the
unit as shown. Use the table below to verify that the unit is the correct size and voltage.
Model
Configuration
Voltage
Reheat
Humidifier
Air Pattern
ACRC600
ACRC601
ACRC602
ACRC600P
ACRC601P
ACRC602P
Chilled water
Chilled water
Chilled water
Chilled water
Chilled water
Chilled water
200-240/3~/50-60 Hz
460-480/3~/60 Hz
380-415/3~/50-60 Hz
200-240/3~/50-60 Hz
460-480/3~/60 Hz
380-415/3~/50-60 Hz
N/A
N/A
N/A
Electric
Electric
Electric
N/A
N/A
N/A
Steam canister (replaceable)
Steam canister (replaceable)
Steam canister (replaceable)
Back to front
Back to front
Back to front
Back to front
Back to front
Back to front
na2600b
NAMEPLATE
InRow RC Installation Manual
9
Component Identification
na5923a
Install kit inventory
Item Description
Qty.
Item

Union end
2


1

1



Humidifier PLC pipe thread, shutoff, 1/4in. NPT*
(ACRC600P and ACRC601P only)
Humidifier PLC pipe thread, shutoff, 1/4in. BSPT** (identified with notches on the
hex head portion) (ACRC600P and
ACRC602P only)
Condensate pump HFC35 pipe thread,
shutoff, 3/8-in. BSPT**
Hose adapter clamp (ACRC60xP only)
Extension adapter
Ring seal








Description
Qty.
M6 x 10-mm self-tapping TORX
screw (spare parts)
M6 x 16-mm TORX screw with
washer (spare parts)
5

Strain relief, metal
(ACRC602 and ACRC602P only)
2
1

Wire clip
9
2
2
4



10
10
3
Reducer, 3/8-in. to 1/2-in. BSPT**
Reducer, 3/8-in. to 1/2-in. NPT*
Hose adapter (ACRC60xP only)
1
1
1



M5 x 12 mm screw (ACRC60x only)
(spare parts)
M5 x 10-mm TORX® screw with washer
(spare parts)
M6 x 12-mm TORX screw with washer
(spare parts)
1

Cable tie
Tie wrap, 200 mm (8 in.)
Tie wrap – field wiring, 390 mm (15.3
in.)
Resistor, 150 Ohm
Temperature sensor
Top power cord set
(ACRC600 and ACRC602 only)
Voltage jumper
5

Up-connection adapter
5
1
3
1
***
1
5
*National Pipe Thread
**British Standard Pipe Thread
***Quantity varies depending on model number. See “Voltage selection—ACRC60x units” on page 48 and see “Voltage selection—
ACRC60xP units” on page 49
10
InRow RC Installation Manual
na5724a
Exterior components
Item




Description
Removable rear doors
Side panel lock
Removable side panel
Caster
InRow RC Installation Manual
Item




Description
Adjustable leveling foot
Door handle and lock
Removable front door
Display interface
11
Interior components (front)
ACRC60x
A
F
EDB
na5926a
D
F EE
Item





12
Description
Fan
Fan guard
Condensate drain pan
Condensate pump
Electrical panel
Item





Description
Main feed breakers
Customer interface connectors
Ground wire
Supply air humidity sensor
Supply air temperature sensor
InRow RC Installation Manual
ACRC60xP
DB
FEE
DA
na5925a
FEE
Item






Description
Electrical heater
Fan
Fan guard
Humidifier
Condensate drain pan
Condensate pump
InRow RC Installation Manual
Item






Description
Electrical panel
Main feed breakers
Customer interface connectors
Ground wire
Supply humidity sensor
Supply air temperature sensors
13
Interior components (rear)
na2105a
ACRC60x—ACRC60xP
Item





14
Description
Chilled water coil
Chilled water control actuator
Chilled water three-way valve body
Flow meter
Pipe chase
Item




Description
Rear doors
Air filters
Return humidity sensor (ACRC60xP only)
Return temperature sensor
InRow RC Installation Manual
Electrical panel
ACRC60x
Item











Transformers
Customer interface connectors
Display interface connection
Main controller board
Relay board
Ground lug
Main circuit breaker — power feed A
Main circuit breaker — power feed B
Automatic transfer switch (ATS) contactors
ATS timers
ATS transformer (ACRC601 and ACRC602
only)
ATS timer circuit breakers
Fan circuit breakers
Controller fuse assembly
na2729b



Description
InRow RC Installation Manual
15
ACRC60xP
Item











Transformers
Customer interface connectors
Display interface connection
Main controller board
Relay board
Ground lug
Main circuit breaker — power feed A
Main circuit breaker — power feed B
Automatic transfer switch (ATS) contactors
ATS timers
ATS transformer (ACRC601P and
ACRC602P only)
ATS timer circuit breakers
Fan circuit breakers
Controller fuse assembly
Humidifier circuit breaker
Heater circuit breaker
Heater contactors
Humidifier contactor
na2008b







Description
16
InRow RC Installation Manual
Main controller board
Item
Display interface connection
R2 SIMM card
Differential pressure SIMM
Internal RS485 SIMM
OPTO-isolated input SIMM
Temperature sensor connectors
na5927a






Description
InRow RC Installation Manual
17
Display interface
Display
Reset
10/100
USB
Console
Item
Description
Function

LCD display
4.3-in. touch-screen color display.
Power LED
The cooling unit is powered when the LED is illuminated.
Unit firmware is updating when LED is blinking.
Check Log LED
When this LED is illuminated, a new entry has been made
to the event log.

Alarm LED
Displays current alarm condition of unit.

Status LED
Displays current network management card status.
Display Reset button
Resets the display microprocessor. This has no effect on
the air conditioner controller.

Link-RX/TX (10/100) LED
Displays current network link status.

Micro SD card slot
Memory card expansion slot.

Service port
USB-B port used only by service personnel.

USB-A port
Supports firmware upgrades.
Serial Configuration port
Connects the display to a local computer to configure initial
network settings or access the command line interface
(CLI).




18
na4820a
Micro
SD
Service
Port
InRow RC Installation Manual
Piping Diagrams
BOTTOM PIPING
Flex hose or copper
INROW
RC
Copper tubing
INROW
RC
Y-strainer with 20 mesh
screen (field installed)
NOTE: Blow down may be
installed on Y-strainer.
Circuit setter (field installed)
Hose end drain with cap
RETURN
SUPPLY
Isolation valve
TOP PIPING
SUPPLY
RETURN
INROW
RC
na2572b
INROW
RC
NOTE: Top or bottom entry can be
selected individually for each type of connection: power, condensate drain, humidifier water supply, chilled
water supply, and chilled water return. Top piping configuration will have the same valves and strainers as
bottom piping configuration.
InRow RC Installation Manual
19
Connections
All connections to and from the equipment can be made through either the top or the bottom of the equipment.
All connections are made with quick-disconnect connectors so no soldering, welding, or gluing is necessary.
See the following tables for information about the sizes and types of connectors.
Power Connections for Power Feed A and Power Feed B
Model
ACRC600
ACRC601
ACRC602*
ACRC600P
ACRC601P
ACRC602P*
Minimum Circuit
Ampacity (MCA)
Maximum Overload
Protection (MOP)
Full Load
Amperes (FLA)
Rated Load
Amperes (RLA)
11.1
6.8
7.0
50.1
24.8
–
15
15
15
60
30
–
–
–
5.8**
–
–
24**
–
–
5.8
–
–
–
*Consult local and national codes for wire size, conduit requirements, and overload protection.
**Local or national codes may require the installation of external disconnects. Two disconnects would be required and must be rated
properly for equipment.
Piping Connection
Type
Chilled water supply
Chilled water return
Union*
Union*
Condensate drain
Quick coupling
Humidifier water
supply
Quick coupling
ACRC600
ACRC601
ACRC602
ACRC600P
ACRC601P
ACRC602P
1 1/2 in. NPSM
1 1/2 in. NPSM
1/2 in. female NPT or
BSPT fitting
1 1/2 in. NPSM
1 1/2 in. NPSM
1/2 in. female NPT
or BSPT fitting
1 1/2 in. NPSM
1 1/2 in. NPSM
1/2 in. female NPT
or BSPT fitting
1/4 in. NPT or BSPT
1/4 in. NPT
1/4 in. BSPT
*If the ring seal is damaged, use a new seal (supplied) to prevent leakage. Torque union to 20 Nm (15 lb ft).
Communication Connections
Type
Minimum Wire Size
Maximum Wire Size
Torque
Rack temperature 1
Rack temperature 2
Rack temperature 3
A-Link IN
A-Link OUT
Network port
Customer output, NC—Normally
Closed
Customer output, COM—Common
Customer output, NO—Normally
Open
Supply GND
Supply 12 VDC
Supply 24 VDC
Customer input +
RJ-45
RJ-45
RJ-45
RJ-45
RJ-45
RJ-45
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
Screw connector
0.2 mm2 (AWG 24)
0.75 mm2 (AWG 18)
0.6 Nm
Screw connector
0.2 mm2 (AWG 24)
0.75 mm2 (AWG 18)
0.6 Nm
Screw connector
0.2 mm2 (AWG 24)
0.75 mm2 (AWG 18)
0.6 Nm
Screw connector
Screw connector
Screw connector
Screw connector
0.75 mm2 (AWG 18)
0.75 mm2 (AWG 18)
0.75 mm2 (AWG 18)
0.6 Nm
0.6 Nm
0.6 Nm
Customer input Modbus D1
Screw connector
Screw connector
0.2 mm2 (AWG 24)
0.2 mm2 (AWG 24)
0.2 mm2 (AWG 24)
0.2 mm2 (AWG 24)
0.2 mm2 (AWG 24)
0.2 mm2 (AWG 24)
0.75 mm2 (AWG 18)
0.75 mm2 (AWG 18)
0.75 mm2 (AWG 18)
0.6 Nm
0.6 Nm
0.6 Nm
20
InRow RC Installation Manual
Communication Connections
Modbus D0
Modbus GND
Temperature sensor (front)
Humidity sensor (front)
Type
Minimum Wire Size
Maximum Wire Size
Torque
Screw connector
Screw connector
RJ-45
RJ-45
0.2 mm2 (AWG 24)
0.2 mm2 (AWG 24)
–
–
0.75 mm2 (AWG 18)
0.75 mm2 (AWG 18)
–
–
0.6 Nm
0.6 Nm
–
–
Pre-Installation
Room preparation
ACCEPTABLE
OPERATING
RANGE
15
20
25
30
35
40
45
AMBIENT TEMPERATURE (°C)
50
60
50
40
30
20
10
0
60
ACCEPTABLE
OPERATING
RANGE
65
70
75
80
85
90
95 100 105 110 115
na2544a
60
50
40
30
20
10
0
10
RELATIVE HUMIDITY (% RH)
RELATIVE HUMIDITY (% RH)
During the design of the data center, consider ease of entry for the equipment, floor loading factors, and
accessibility to piping and wiring. In addition, the room temperature and humidity combination should conform
to the environmental operating envelope as defined in the following graphics.
90
90
UNACCEPTABLE
UNACCEPTABLE
80
80
OPERATING LIMITS
70
70
OPERATING LIMITS
AMBIENT TEMPERATURE (°F)
Seal the room with a vapor barrier to minimize moisture infiltration. Polyethylene film is recommended for
ceiling and wall applications. Apply rubber- or plastic-based paints to concrete walls and floors.
Insulate the room to minimize the influence of exterior heat loads. Reduce fresh air to the minimum required by
local and national codes and regulations. Fresh air imposes extreme load variation on the cooling equipment
from summer to winter and causes increased system operating costs.
Air distribution
The equipment distributes air in a back-to-front discharge pattern, removing hot air from a hot aisle and
discharging cooled air into a cold aisle.
NOTE: The equipment is designed for free air discharge or for use with the Rack Air Containment System or
Hot Aisle Containment System. The equipment is not intended to be connected to a duct system.
InRow RC Installation Manual
21
Incoming power supply requirements
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• Apply appropriate personal protective equipment (PPE) and follow safe electrical work
practices. See NFPA 70E or CSA Z462.
• This equipment must be installed and serviced by qualified personnel only.
• Turn off all power supplying this equipment before working on or inside the equipment.
• Always use a properly rated voltage sensing device to confirm power is off.
• Replace all devices, doors, and covers before turning on power to this equipment.
Failure to follow these instructions will result in death or serious injury.
Automatic transfer switch (ATS)
The function of the ATS is to transfer load from feed A to feed B if
the power is lost on feed A.
• Feed A (Primary Power Feed) supplies power to all
functions in the equipment.
• Feed B (Redundant Power Feed) supplies power to all
functions in the equipment.
FEED A
22
FEED B
InRow RC Installation Manual
Dimensions and Weights
Dimensions
600 (2
42.1)
3.6)
1070 (
1991
(78.4)
na1822b
2156
(84.9)
4.8)
879 (3
4
1137 (
4.6)
Weights
Model
ACRC600, ACRC601, ACRC602
ACRC600P, ACRC601P, ACRC602P
Packed Weight – kg (lb)
Unpacked Weight – kg (lb)
405 (892)
412 (907)
345 (760)
352 (776)
Service access
An area of minimum 900 mm (36 in.) of clear floor space in front of and behind the equipment is recommended
for service. All required normal maintenance can be performed from the front or back of the equipment. An area
of minimum 1200 mm (48 in.) of clear floor space in front of or behind the equipment is recommended to roll the
equipment out of a row.
NOTE: Check local and national codes and regulations for further service access requirements.
ACCESS
REQUIRED TO
REMOVE FROM
ROW
na1825b
ACCESS
REQUIRED TO
SERVICE WITHIN
ROW
.00)
1200 (48
0)
900 (36.0
0)
900 (36.0
.00)
1200 (48
DIMENSIONS ARE SHOWN IN MM (IN.).
InRow RC Installation Manual
23
Piping and Power Access Locations
Top piping and power access locations (top view)
554 (21.81)
554 (21.81)
40 (1.58)
59 (2.32)
59 (2.32)
160 (6.3)
112 (4.4)
635 (24.99)
380 (14.98)
325 (12.81)
na3816b
177 (6.97)
737 (29.02)
0
0
73 (2.86)
105 (4.12)
40 (1.58)
REAR—HOT AISLE
211 (8.29)
176 (6.92)
FRONT—COLD AISLE
NOTE: Dimensions are shown in mm (in.).
Item Description






24
Chilled water inlet
Chilled water outlet
Trough for communication cables
Power connections—dual feed
Humidifier supply (ACRC60xP only)
Condensate drain
InRow RC Installation Manual
Bottom piping and power access locations (bottom view)
345 (13.58)
0
796 (31.34)
172 (6.77)
138 (5.43)
345 (13.58)
397 (15.63)
0
184 (7.24)
425 (16.72)
187 (7.35)
479 (18.86)
REAR—HOT AISLE
na3809b
156 (6.13)
115 (4.53)
141 (5.54)
57.25 (2.25)
176 (6.91)
FRONT—COLD AISLE
NOTE: Dimensions are shown in mm (in.).
Item Description







InRow RC Installation Manual
Humidifier supply (ACRC60xP only)
Condensate drain
Power connections—dual feed
Communication connections—27.80 mm (1.09 in.)
Condensate overflow
Chilled water inlet
Chilled water outlet
25
Installation
Removing the Doors and Panels
WARNING
MOVING PARTS HAZARD
All doors and side panels must be locked during normal operation. Do not open the side
panels while the fans are operating.
Failure to follow these instructions can result in death, serious injury, or
equipment damage.
NOTICE
EQUIPMENT DAMAGE
Do not lean the doors against a wall with the side panel latches facing the wall. This can
deform the latches and prevent them from properly working.
Failure to follow these instructions can result in equipment damage.
Removing the front door
1. Unlock and open the door
90 degrees.
2. Unplug the ground wires.
na5812a
3. Lift the door up and off the
hinges.
26
InRow RC Installation Manual
Removing the rear doors
1. Unlock and open the doors.
2. Unplug the ground wires.
na5928a
3. Lift the door up and off the hinges.
InRow RC Installation Manual
27
Removing and installing the side panels
REMOVING THE SIDE PANEL
na5720b
INSTALLING THE SIDE PANEL
28
InRow RC Installation Manual
Removing the electrical panel cover
WARNING
ELECTRICAL HAZARD
Ensure all wiring is not energized before routing cables into this equipment. Only qualified
service and maintenance personnel should work on this equipment.
Failure to follow these instructions can result in death, serious injury, or equipment
damage.
Remove the electrical panel cover to install the main power cable.
1. Remove the five M4 screws securing the cover.
na2194a
2. Remove the cover by opening it and sliding it toward the front of the equipment.
InRow RC Installation Manual
29
Joining the Equipment to Enclosures
Joining to NetShelter™ SX enclosures
The equipment comes with four joining brackets (two for the front and two for the rear).
1. Remove the front and rear doors.
See “Removing the front door” and
Removing the rear doors”.
ns0618a
2. Locate the four joining brackets.
Rotate each bracket ninety degrees
toward the adjoining enclosure so
the bracket is parallel to the floor and
install using the screws provided
with the enclosure.
For more information, see the Unpacking, Installation, and Customization manual for the NetShelter
SX Enclosure.
Joining to NetShelter VX and VS enclosures
For information on joining the equipment to NetShelter VX and VS enclosures, see the installation
sheet NetShelter™ SX to VX or VS External Joining Kit—AR7601, AR7602.
30
InRow RC Installation Manual
Leveling the Equipment
NOTICE
WIRING HAZARD
After re-installing the front door, reconnect all wires previously disconnected.
Failure to follow these instructions can result in equipment damage.
NOTE: The leveling feet at the corners of the equipment provide a stable base if the floor is uneven, but they
cannot compensate for a badly sloped surface.
1. Remove the front and rear doors.
NOTE: Before removing the front door, unplug the ground wires and any other wire connections that
may interfere with the removal of the doors.
2. For each leveling foot, insert a Phillips PH2 or standard
screwdriver into the screw above the leveling foot. Turn
the screw to the right to extend the leveling foot until it
makes firm contact with the floor.
NOTE: Use a 13-mm open-ended wrench to level the
equipment without removing the doors.
na1572b
3. Re-install the front and rear doors.
InRow RC Installation Manual
31
Mechanical Connections
Top water piping
NOTE: The top chilled water supply pipe is supplied with the equipment and must be installed on-site.
NOTE: You may need to remove the top panel from the equipment to gain access to the water connections.
1. Remove the air filters.
2. Loosen the two screws holding the rear condensate
drain pan bracket  and remove the bracket.
3. Loosen the two screws holding the air filter bracket 
located on the left side of the unit and remove the
bracket.
4. Remove the insulation cap from the union (not
shown).
5. From both supply and return connections, remove the
union nuts  and save for reuse. Remove and
discard the union end blank plates  and the gaskets
.
na2027a
6. Position the insulated chilled water supply pipe  in
the equipment. Mount a new gasket  and connect
the pipe to the union. Tighten the union to 20 Nm
(14.8 ft-lb).
7. Insulate the joint with the provided
insulation (not shown).
8. Connect the water supply pipe  to
the field-installed pipe  using a
gasket , union end , and union
nut .
9. Connect the cold water return fitting
to the field-installed pipe  using
two gaskets , union end , union
nut , and extension adapter .
10.Reinstall air filter bracket .
na2576a
11. Reinstall the rear condensate drain
pan bracket  and the air filters.
12.Reinstall the top panel, if removed.
32
InRow RC Installation Manual
Bottom water piping
1. Remove the insulation cap from the union 
(not shown).
2. Remove the union nut , and save it for
reuse. Remove and discard the union end
blank plate , and the ring seal .
NOTE: New items are provided with the
equipment.
na2745b
3. Install the union nuts  to field-supplied tubing
.
4. Install new ring seals , extension adapters
, and insertion adapters , as shown.
Connect the pipe to the union. Tighten the
union to 20 Nm (14.8 ft-lb).
InRow RC Installation Manual
33
Humidifier (ACRC60xP units only)
The humidifier water supply line is routed to the unit in flexible tubing (or alternative tubing
approved by local building codes) that will allow the humidifier water supply line connector
to be moved approximately 25 mm (1 in.) away from the equipment. This facilitates
removing the equipment from a row.
na2193a
A factory-installed quick-connector for connecting the tubing to the equipment is supplied.
The quick connector has a male 1/4-in. NPT or male 1/4-in. BSPT to connect to a
compression fitting. The quick-connector has a shut-off function, so no separate shut-off
valve is necessary.
Water pressure should be between 100
and 800 kPa (15 and 115 psi) for proper
humidifier operation. Dirty water must be
filtered before it is supplied to the
humidifier. Water temperature must be
between 1°C and 40°C (34°F and
104°F). Do not use softened,
de-mineralized, or de-ionized water.
na2345a
The humidifier water supply line can be
connected through either the top or the
bottom of the equipment as shown. Male
quick-connectors are positioned in both
the top and the bottom of the equipment.
CONNECTION
THROUGH
BOTTOM
CONNECTION
THROUGH TOP
See the manual included with the humidifier for more information about water quality, mineral
content, hardness, and minimum/maximum levels for conductivity.
NOTE: Before making any connections, clear any debris that may have accumulated during assembly from the
humidifier water supply line.
NOTE: It is recommended that a solenoid water valve be installed in the humidifier supply line, connected to a
leak detector.
NOTE: Perform all piping in accordance with applicable industry guidelines as well as local and national codes
and regulations.
Connect the fittings to the humidifier water supply line as shown, then connect the water
supply line quick-connector to the top or bottom humidifier input.
Item
Description
Flexible tubing (field supplied and installed)
Compression fitting (field supplied and installed)
Straight reduction (supplied)
Quick-connector (supplied)
na2536a




34
InRow RC Installation Manual
Condensate overflow
NOTICE
WATER DAMAGE
Failing to perform the following procedure may result in condensate pan overflow and
possible damage to the data center.
Failure to follow these instructions can result in equipment damage.
na2538a
Connect the equipment condensate overflow line to an external drain using the fittings, as shown.
Item




InRow RC Installation Manual
Description
InRow RC
Hose adapter clamp (supplied)
Hose adapter (supplied)
7/8-in. copper tubing (field supplied and installed)
35
Leak sensor (optional)
na1584a
Install up to four leak sensors (AP9326) in series, as needed.
1. Connect the leak sensor to the equipment using the plug located as shown.
ACRC60xP UNITS
na5930a
LEAK
DETECT
ACRC60x UNITS
2. Position the leak sensor inside or outside the
equipment.
NOTE: Install leak sensors on a clean surface,
and do not allow them to touch metal that is in an
air stream.
3. Route the leak sensor to the outside of the
equipment through the hole provided in the base.
na2073a
4. Secure the leak sensor wire to surfaces using
cable ties and cable tie holders (provided with the
leak detector).
36
InRow RC Installation Manual
Filling and Purging the Unit
When the unit has been properly piped, begin the filling process (top piping configuration shown).
WARNING
ELECTRICAL SHOCK HAZARD
Ensure that all electrical connections are unplugged before you introduce water into the
unit.
Failure to follow these instructions can result in death, serious injury, or equipment
damage.
1. Open the 2-way bypass shutoff valve by
turning the handle 90° to the right. Using
a 2.5-mm hex key, turn the flow control
actuator to the fully open position.
TOP COIL
VENT
2. Remove the cap from the top coil vent
and push the vent.
3. At the water supply, open the
appropriate valves to begin letting water
slowly into the unit.
FLOW
CONTROL
ACTUATOR
4. Stop pushing the top coil vent when
water begins slowly flowing out of the
vent.
OPEN
BYPASS
5. At the water supply:
a. Open all valves no greater than
113 l/m (30 GPM), and allow the
water supply to reach the highest
possible flow to the unit for 45
seconds.
b. Close the valves to a
3.8–11.4 l/m (1–3 GPM) flow for
60 seconds.
na2031c
c. Open the valves to maximum flow
for another 45 seconds.
d. Balance the system to provide the
designed flow rate to all
equipment.
OPEN
2-WAY BYPASS
SHUTOFF VALVE
InRow RC Installation Manual
37
Chiller
Three types of chillers can be connected to the unit:
• Schneider Electric size-matched chiller/thermal storage system
• Building chilled water system
• Existing dedicated chiller
Cooling unit requirements
Entering water temperature
Weight of unit fully flooded with chilled water (ACRC60x units)
Weight of unit fully flooded with chilled water (ACRC60xP units)
Flow rate
7.2–12.8°C (45–55°F)
363 kg (800 lb)
370 kg (816 lb)
1.2–2.5 l/s (19.0–39.6 GPM)
See the chiller Installation Manual, and Operation and Maintenance Manual for proper installation
procedures.
Electrical Connections
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• Potentially dangerous and lethal voltages exist within this equipment. More than one
disconnect switch may be required to energize or de-energize this equipment. Observe all
cautions and warnings. Failure to do so could result in serious injury or death. Only
qualified service and maintenance personnel may work on this equipment.
• Three-phase electrical service is required. Electrical service must conform to local and
national electrical codes and regulations. The equipment must be grounded. Check the
equipment nameplate for correct ratings.
• Use a voltmeter to ensure that power is turned off before making any electrical
connections.
Failure to follow these instructions will result in death or serious injury.
The following electrical connections are required in the field:
• Controls (customer interface connections, Network Management Card)
• Communication (A-Link, Building Management System)
• Power to the InRow RC cooling unit (3-phase plus ground)
All electrical connections must be in accordance with applicable industry guidelines as well as local and
national codes and regulations.
See the equipment nameplate for voltage and current requirements.
Make all low-voltage connections, including data and control connections, with properly insulated wires.
Insulation of low-voltage wiring must be rated for at least the voltage of any adjacent wiring.
38
InRow RC Installation Manual
Customer interface connections
NOTE: Wire all input and output connections as Class 2 circuits.
Depending on the configuration, additional customer interface connections may be required for the A-Link
remote communications through the Network Management Card support or traditional equipment-monitoring
software.
Item

















Description
Rack inlet temperature sensors 1, 2, 3
A-Link IN
A-Link OUT
Network port
Customer output, NC (normally closed)
Customer output, COM (common)
Customer output, NO (normally open)
Supply GND (Ground)
Supply 12 Vdc (current limit: 20 mA)
Supply 24 Vdc (current limit: 20 mA)
Customer input + (12–30 Vac/Vdc, 24 Vdc @ 11 mA)
Supply COM
Modbus D1
Modbus D0
Modbus GND
Supply air temperature sensor (front)
Supply air humidity sensor (front)
NOTE: For a top installation, route control wiring through the wire channel located at the
top left hand corner just above the customer interface connectors.
na5931a
For a bottom installation, route the control wiring to the customer access hole in the
bottom of the equipment through wire clamps from the interface connectors. Then, route
the wiring down along the electrical panel and secure with wire clamps.
InRow RC Installation Manual
39
Description of customer interface connectors
Item
Description
Function
Rack temperature sensors 1, 2, 3
Three temperature sensors, which must be installed on the
cold aisle side of the server racks. See “Rack temperature
sensors” on page 41.


A-Link IN

A-Link OUT
In and out connections for A-Link. The terminators supplied
with the equipment must be plugged into the first A-link port
and the final A-Link port for the system.
10/100 Base-T Network port. Connects the equipment to the
network; Status and Link LEDs indicate network traffic.

Network port
Status LED—blinks orange and green at startup; indicates
the status of the network connection (solid green—IP
address established; blinking green—attempting to obtain an
IP address).
Link LED—blinks to indicate network traffic (green—
operating at 10 mbps; orange—operating at 100 mbps).

Customer output, Normally Closed (NC)

Customer output, Common (COM)

Customer output, Normally Open (NO)

Supply GND
Can be used for customer input and output interface.
Supply 12 Vdc
Can be used for customer input and output interface. Current
limit is 20 mA.
Supply 24 Vdc
Can be used for customer input and output interface. Current
limit is 20 mA.
Remote shutdown+
Used for remote shutdown of the InRow RC. Voltage is
applied from the internal power supply or by using an
external power supply.

Remote shutdown-
Ground connection point for remote shutdown supply source.

Modbus D1 (RXTX+)

Modbus D0 (RXTX–)

Modbus GND

Supply air temperature sensor (front)
Temperature sensor installed on the front of the equipment.

Supply air humidity sensor (front)
Humidity sensor installed on the front of the equipment.



40
Customer-configurable output relay which can be activated
for all types of alarms or critical alarms. The relay can be
connected to external equipment using 30 Vac/dc, 2 A.
Connections for Building Management System. Wire a 150
Ohm terminator resistor (supplied) into the final InRow RP,
between Modbus D0 and Modbus D1.
InRow RC Installation Manual
Rack temperature sensors
The rack temperature sensors control the equipment airflow and ensure adequate supply of cooling air to the
server racks in the data center.
The equipment is supplied with three external rack temperature sensors.
See “Install kit inventory” on page 10. These sensors, along with cable ties
and wire clips, are included in the installation kit shipped with the
equipment.
How to install the rack temperature sensors
1. Insert the rack temperature sensor connector in the temperature sensor port customer interface
connections. See “Customer interface connections” on page 39.
a. For a top installation, push the rack temperature sensor
through the wire channel located at the top of the
equipment in the left hand side just above the customer
interface connectors.
b. For a bottom installation, route the sensor through the
wire clamps along the electrical panel and then push
the sensor through the customer access hole in the
bottom of the equipment.
2. Route the sensor through either the top or the bottom of the
adjacent server rack.
TEMPERATURE
SENSOR
WIRE CLIP
gen0767a
3. Secure the temperature sensor cable to the front door of the
adjacent server rack at multiple locations using the provided
wire clips as shown. See “Install kit inventory” on page 10.
NOTE: Remote rack temperature sensors must be installed
for proper operation.
The sensors should be located on racks that are adjacent to the cooling unit. The optimum position of
the rack temperature sensors will vary from installation to installation but should be located in close
proximity to fan-cooled IT equipment to ensure accurate readings.
Servers most likely to have insufficient or inadequately cooled air due to the recirculation of hot air from
the hot aisle include the following:
a. Servers positioned at the top of a rack
b. Servers positioned at any height in the last rack at an open end of a row
c. Servers positioned behind flow-impairing obstacles such as building elements
d. Servers positioned in a bank of high-density racks
e. Servers positioned next to racks with Air Removal Units (ARU)
f. Servers positioned very far from the equipment
g. Servers positioned very close to the equipment
InRow RC Installation Manual
41
Water outlet temperature sensors
There are two water outlet temperature sensors, one for top
connection and one for bottom connection. These sensors
are wired to the main board on the electrical panel.
TOP CONNECTION:
WIRE WITH GREEN
TIE WRAP IN J23
The unit is delivered with top connection as the default
configuration, i.e., the wire with a green tie wrap is positioned
in connector J23 (marked with green) on the main board. If
the configuration is changed from top to bottom, switch the
wire already positioned in the connector J23 with the wire
labeled with a green and a white tie wrap. This wire is part of
the wire harness inside the electrical panel.
na2263a
J23
BOTTOM CONNECTION:
WIRE WITH GREEN AND
WHITE TIE WRAPS IN
J23
Communication connections
A-Link connections: The A-Link bus connection allows communication between cooling units. Only one
InRow RC unit needs to be defined through the display. The numbering of the other InRow RC units (up to a
maximum of twelve) will take place automatically.
To enable the equipment to work as a group, link the units using the supplied cables or CAT-5 cables with
RJ-45 connectors as shown. Terminators (120 Ohm, 1/4 W) must be inserted into the open A-Link ports at the
first and last InRow RC unit.
The maximum wire length for the entire group may not exceed 1000 m (3,280 ft).
SECOND INROW RC
LAST INROW RC
na0733a
FIRST INROW RC
Item



42
Description
A-Link in (with provided RJ-45 terminator)
InRow A-Link cable (CAT-5 Ethernet cable)
A-Link out
Item Description


A-Link in
A-Link out (with provided RJ-45 terminator)
InRow RC Installation Manual
Building Management System (BMS): The Modbus interface allows each cooling unit to communicate with
the BMS. Use a three-wire cable to connect each cooling unit in turn. Wire a terminator resistor (150 Ohm, 1/4
W) into the Modbus master and the final cooling unit between Modbus D0 and Modbus D1. This terminator is
included in the installation kit (see “Install kit inventory” on page 10).
Each cooling unit has a three-wire Modbus terminal on the display interface. A connector with screw terminals
is used to attach wiring. See “Customer interface connections” on page 39 for specific layout of the customer
interface.
For information on setup of Modbus parameters, see the InRow RC Operation and Maintenance
Manual.
FIRST INROW RC
SECOND INROW RC
LAST INROW RC
na1766a
MODBUS MASTER
Item


InRow RC Installation Manual
Description
Termination resistor (provided)
Modbus cable (RS-485)
43
Network port
The network port allows communication from the InRow RC unit to the network.
SECOND INROW RC
LAST INROW RC
na2554a
FIRST INROW RC
SWITCH/HUB
Item Description


Network port
LAN cable (10/100 Base-T)
Power Connections
WARNING
ELECTRICAL HAZARD
• Electrical service must conform to local and national electrical codes and regulations.
• The equipment must be grounded.
Failure to follow these instructions can result in death, serious injury, or
equipment damage.
WARNING
HAZARD TO EQUIPMENT OR PERSONNEL
All work must be performed by Schneider Electric qualified personnel.
Failure to follow these instructions can result in death, serious injury, or
equipment damage.
44
InRow RC Installation Manual
Wiring configurations
Route incoming power from the PDU to the electrical panel located in the left side of the equipment. Power can
be routed either through the top or the bottom. For ACRC600 and ACRC602 units, incoming power may be
supplied to the equipment using the supplied power cords through the top only.
Install power cords (ACRC600 and ACRC602 only)
NOTICE
POWER SUPPLY CONNECTION
Only qualified personnel may connect the equipment to utility power using direct wiring.
All wiring must be done in compliance with local and national codes.
Failure to follow these instructions can result in equipment damage.
1. Remove the factory-installed knockout plate from
the top of the equipment. See “Top piping and
power access locations (top view)” on page 24.
Save the screw for later use.
2. Remove the electrical panel cover. See “Removing
the electrical panel cover” on page 29.
3. Observe the markings on the two power cords.
Insert feed A in the conduit closest to the front of
the equipment, and feed B in the conduit closest to
the rear of the equipment.
5. Secure the connection plate to the top panel of the
equipment using the screw you removed earlier.
na2742a
4. Connect the L1, L2, and L3 leads of feed A and
feed B to the two circuit breakers per the label
above the breakers. Torque the screws per the
torque values marked on the breakers. Connect
the grounds to the terminal above the circuit
breakers.
6. Reinstall the electrical panel cover.
InRow RC Installation Manual
45
Top routing
1. Remove the electrical panel cover. See “Removing the electrical panel cover” on
page 29.
FEED
A
ED B
FE
3. Enlarge the two pilot holes in the knockout plate as needed to accept conduit
connectors.
na2309a
2. Remove the factory-installed knockout plate from the top of the equipment. See
“Top piping and power access locations (top view)” on page 24. Save the screw
for later use.
4. Attach the conduit connectors to the knockout plate.
5. Secure the knockout plate to the top of the equipment.
6. Route power cabling to the main breakers as shown.
7. Connect feed A and B power wiring to the tops of the two main circuit breakers using the torque
specified on the breakers. Connect the phases of the two power feeds as marked next to the terminals.
8. Connect the ground wires to the ground terminal block located above the main circuit breakers.
9. Reinstall the connection plate and the electrical panel cover.
Bottom routing
1. Locate the supplied knockout plate.
2. Install the knockout plate on the top of the equipment where you removed the
power connection plate and power cords.
3. Locate the power connection plate in the bottom of the unit. See “Bottom piping
and power access locations (bottom view)” on page 25.
4. Loosen the screw securing the connection plate, and remove the plate.
5. Enlarge the two pilot holes in the connection plate as needed to accept conduit
connectors.
6. Attach the conduit connectors to the connection plate. Secure the connection plate
to the bottom of the equipment.
7. Route the cabling to the main breakers as shown.
8. Fasten the cabling inside the unit with the provided tie wraps.
10.Connect the ground wires to the ground terminal block located just above the main
circuit breakers.
na2328a
9. Connect feed A and feed B power wiring to the tops of the two main circuit breakers
using the torque specified on the breakers. Connect the phases of the two power
feeds as marked next to the terminals.
11. Reinstall the connection plate and the electrical panel cover.
46
InRow RC Installation Manual
Strain relief (ACRC602 and ACRC602P only)
1. Hook one strain relief into a pair of slots in each of the
two locations shown. See “Install kit inventory” on
page 10.
2. Route the electrical cable up from the bottom of the
equipment, passing through each strain relief.
3. Tighten the screw on each strain relief to capture the
electrical cable, taking the weight off of the inner
conductors.
na2542a
4. Continue connecting electrical wiring to the circuit
breaker.
InRow RC Installation Manual
47
Voltage selection—ACRC60x units
na2540b
Your equipment can operate at various supply voltages,
provided the proper voltage jumpers are connected to the input
transformers. Read the part number on the jumpers connected
at the factory and compare that number to the table below. If
the correct jumpers for your input voltage are not connected,
remove them and connect the proper jumper.
Jumper Connections
 Transformer A connected to J50 ()
SKU
ACRC600
ACRC601
ACRC602
48
Input Voltage
Use Jumper Part Number
208 (50/60 Hz)
230 (50/60 Hz)
460 (60 Hz)
480 (60 Hz)
380 (50/60 Hz)
400 (50/60 Hz)
415 (50/60 Hz)
0W2540 (default)
0W2541
0W2545
0W2546 (default)
0W2542
0W2543 (default)
0W2544
InRow RC Installation Manual
Voltage selection—ACRC60xP units
na2540a
Your equipment can operate at various supply voltages, provided the proper
voltage jumpers are connected to the input transformers. Read the part number on
the jumpers connected at the factory and compare that number to the table below.
If the correct jumpers for your input voltage are not connected, remove them and
connect the proper jumper.
Jumper Connections

Transformer B connected to J51 ()

Transformer A connected to J50 ()
SKU
ACRC600P
ACRC601P
ACRC602P
InRow RC Installation Manual
Input Voltage
Use Jumper Part Number
208 (50/60 Hz)
230 (50/60 Hz)
460 (60 Hz)
480 (60 Hz)
380 (50/60 Hz)
400 (50/60 Hz)
415 (50/60 Hz)
0W2540 (default)
0W2541
0W2545
0W2546 (default)
0W2542
0W2543 (default)
0W2544
49
Worldwide Customer Support
Customer support for this or any other product is available at no charge in any of the following ways:
• Visit the Schneider Electric Web site to access documents in the Schneider Electric Knowledge Base
and to submit customer support requests.
– www.schneider-electric.com (Corporate Headquarters)
Connect to localized Schneider Electric Web sites for specific countries, each of which provides
customer support information.
– www.schneider-electric.com/support/
Global support searching Schneider Electric Knowledge Base and using e-support.
• Contact the Schneider Electric Customer Support Center by telephone or e-mail.
– Local, country-specific centers: go to www.schneider-electric.com > Support > Operations
around the world for contact information.
For information on how to obtain local customer support, contact the representative or other distributors
from whom you purchased your product.
As standards, specifications, and designs change from time to time, please ask for confirmation of the information given in this publication.
All trademarks owned by Schneider Electric Industries SAS or its affiliated companies.
990-5790A-001
10/2017
