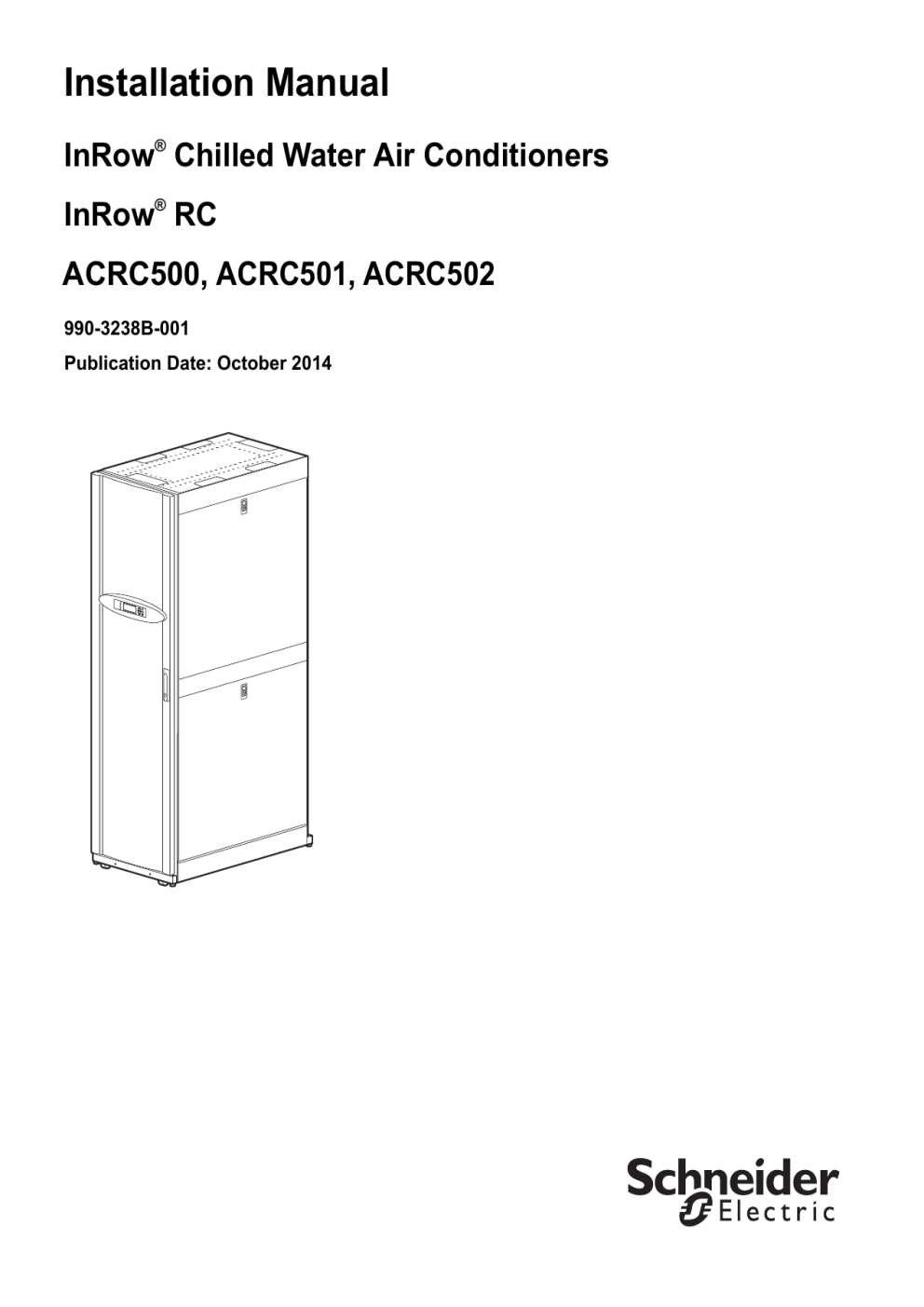

Schneider Electric InRow RC User Guide

Installation Manual
InRow® Chilled Water Air Conditioners
InRow® RC
ACRC500, ACRC501, ACRC502
990-3238B-001
Publication Date: October 2014
Schneider Electric IT Corporation Legal Disclaimer
The information presented in this manual is not warranted by the Schneider Electric IT Corporation to be
authoritative, error free, or complete. This publication is not meant to be a substitute for a detailed operational
and site specific development plan. Therefore, Schneider Electric IT Corporation assumes no liability for
damages, violations of codes, improper installation, system failures, or any other problems that could arise
based on the use of this Publication.
The information contained in this Publication is provided as is and has been prepared solely for the purpose of
evaluating data center design and construction. This Publication has been compiled in good faith by Schneider
Electric IT Corporation. However, no representation is made or warranty given, either express or implied, as to
the completeness or accuracy of the information this Publication contains.
IN NO EVENT SHALL SCHNEIDER ELECTRIC IT CORPORATION, OR ANY PARENT, AFFILIATE OR
SUBSIDIARY COMPANY OF SCHNEIDER ELECTRIC IT CORPORATION OR THEIR RESPECTIVE
OFFICERS, DIRECTORS, OR EMPLOYEES BE LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL,
PUNITIVE, SPECIAL, OR INCIDENTAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR
LOSS OF BUSINESS, CONTRACT, REVENUE, DATA, INFORMATION, OR BUSINESS INTERRUPTION)
RESULTING FROM, ARISING OUT, OR IN CONNECTION WITH THE USE OF, OR INABILITY TO USE THIS
PUBLICATION OR THE CONTENT, EVEN IF SCHNEIDER ELECTRIC IT CORPORATION HAS BEEN
EXPRESSLY ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SCHNEIDER ELECTRIC IT
CORPORATION RESERVES THE RIGHT TO MAKE CHANGES OR UPDATES WITH RESPECT TO OR IN
THE CONTENT OF THE PUBLICATION OR THE FORMAT THEREOF AT ANY TIME WITHOUT NOTICE.
Copyright, intellectual, and all other proprietary rights in the content (including but not limited to software, audio,
video, text, and photographs) rests with Schneider Electric IT Corporation or its licensors. All rights in the
content not expressly granted herein are reserved. No rights of any kind are licensed or assigned or shall
otherwise pass to persons accessing this information.
This Publication shall not be for resale in whole or in part.
Table of Contents
Safety................................................................................. 3
Important Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety Notices for All Installation Procedures. . . . . . . . . . . . . . . . . . . . . 4
General Information ...........................................................6
Inspecting the Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Storing the Equipment Before Installation . . . . . . . . . . . . . . . . . . . . . . . 6
Moving the Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Moving the equipment to its final location . . . . . . . . . . . . . . . . . 6
Model Identification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Component Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Install kit inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Exterior components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Interior components (front) . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Interior components (rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Electrical panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Piping Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Pre-Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Room preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Air distribution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Service access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Dimensions and Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Piping and Power Access Locations . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Top piping and power access locations (top view) . . . . . . . . . 19
Bottom piping and power access locations (bottom view) . . . 20
InRow RC Installation Manual
i
Installation........................................................................21
Removing the Doors and Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Removing the front and rear doors . . . . . . . . . . . . . . . . . . . . .
Removing the side panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the side panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removing the electrical panel cover . . . . . . . . . . . . . . . . . . . .
21
22
22
23
Joining the Equipment to Enclosures. . . . . . . . . . . . . . . . . . . . . . . . . . 23
Joining to NetShelter™ SX enclosures . . . . . . . . . . . . . . . . . . 23
Joining to NetShelter VX and VS enclosures . . . . . . . . . . . . . 23
Leveling the Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Mechanical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Top water piping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bottom water piping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Condensate pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Leak sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
25
26
28
29
Filling and Purging the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Chiller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
InRow RC requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
User interface connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Description of user interface connectors . . . . . . . . . . . . . . . . .
Rack temperature sensors . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water outlet temperature sensors . . . . . . . . . . . . . . . . . . . . . .
Communication connections . . . . . . . . . . . . . . . . . . . . . . . . . .
Network port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
33
34
34
36
36
38
Power Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Wiring configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Install power cords (ACRC500 and ACRC502 only) . . . . . . . .
Top routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bottom routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Strain relief (ACRC502 only) . . . . . . . . . . . . . . . . . . . . . . . . . .
Voltage selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ii
39
40
40
41
41
42
InRow RC Installation Manual
Safety
Important Safety Information
Read the instructions carefully to become familiar with the equipment before trying to install, operate, service,
or maintain it. The following special messages may appear throughout this manual or on the equipment to warn
of potential hazards or to call attention to information that clarifies or simplifies a procedure.
The addition of this symbol to a Danger or Warning safety label indicates that an electrical hazard
exists which will result in personal injury if the instructions are not followed.
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all
safety messages that follow this symbol to avoid possible injury or death.
DANGER
DANGER indicates an imminently hazardous situation which, if not avoided, will result in death
or serious injury.
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided, can result in death
or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided, can result in minor
or moderate injury.
NOTICE
NOTICE addresses practices not related to physical injury including certain environmental
hazards, potential damage or loss of data.
InRow RC Installation Manual
3
Safety Notices for All Installation Procedures
Read and adhere to the following important safety considerations when working with this equipment. Follow all
local and national regulations when handling refrigerants.
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• Apply appropriate personal protective equipment (PPE) and follow safe electrical work
practices. See NFPA 70E or CSA Z462.
• This equipment must be installed and serviced by qualified personnel only.
• Turn off all power supplying this equipment before working on or inside the equipment.
• Always use a properly rated voltage sensing device to confirm power is off.
• Replace all devices, doors, and covers before turning on power to this equipment.
Failure to follow these instructions will result in death or serious injury.
WARNING
HAZARD OF EQUIPMENT FALLING OVER
• Use two or more persons at all times to move or turn this equipment.
• Always push, pull, or turn while facing the front and rear of this equipment. Never push
pull, or turn while facing the sides of this equipment.
• Slowly move this equipment across uneven surfaces or door thresholds.
• Lower leveling feet to floor when this equipment is at rest.
• Lower leveling feet and attach joining brackets to adjacent racks when this equipment is
in final position.
Failure to follow these instructions can result in death, serious injury, or
equipment damage.
WARNING
HAZARD FROM MOVING PARTS
Keep hands, clothing, and jewelry away from moving parts. Check the equipment for
foreign objects before closing the doors and starting the equipment.
Failure to follow these instructions can result in death, serious injury, or
equipment damage.
CAUTION
UNPROTECTED OUTPUTS
Apply circuit protection to all outputs.
Failure to follow these instructions can result in injury or equipment damage.
4
InRow RC Installation Manual
CAUTION
HAZARD TO EQUIPMENT OR PERSONNEL
Ensure that all spare parts and tools are removed from the equipment before operating it
Failure to follow these instructions can result in injury or equipment damage.
NOTICE
FREEZE HAZARD
External water piping must have adequate freeze protection and must be correctly
applied based on local climatic conditions and best practices. Install insulation and
electric heat tracing (not supplied) on all exposed piping.
Failure to follow these instructions can result in equipment damage.
NOTICE
STATIC ELECTRICITY HAZARD
Circuit boards contained within this unit are sensitive to static electricity. Use one or more
electrostatic-discharge device while handling the boards.
Failure to follow these instructions can result in equipment damage.
NOTICE
UV HAZARD
Avoid exposing cross-linked polyethylene (PEX) piping to direct sunlight. PEX piping can
be damaged by direct sunlight. Store PEX piping in its carton to avoid dirt accumulation
and extended exposure to direct sunlight.
Failure to follow these instructions can result in equipment damage.
InRow RC Installation Manual
5
General Information
Inspecting the Equipment
Your Schneider Electric InRow RC Full Rack air conditioner has been tested and inspected for quality
assurance before shipment from Schneider Electric. Carefully inspect both the exterior and interior of the
equipment immediately upon receipt to ensure that the equipment has not been damaged during transit.
Verify that all parts ordered were received as specified and that the equipment is the correct type, size and
voltage.
Filing a claim: If damage is identified on receipt of the equipment, note the damage on the bill of lading and file
a damage claim with the shipping company. Contact Schneider Electric Worldwide Customer Support at one of
the numbers listed on the back page of this manual for information on how to file a claim with the shipping
company. The shipping claim must be filed at the receiving end of the delivery.
NOTE: In case of shipping damage, do not operate the equipment. Keep all packaging for inspection by the
shipping company and contact Schneider Electric.
Storing the Equipment Before Installation
If the equipment will not be installed immediately, store it in a safe place, protected from the weather.
NOTICE
HAZARD TO EQUIPMENT
Leaving the equipment uncovered and exposed to possible damage from the
environment will void the factory warranty.
Failure to follow these instructions can result in equipment damage.
Moving the Equipment
Moving the equipment to its final location
The recommended tools for moving the equipment while it is still on the pallet include the following:
Pallet Jack
Forklift
NOTE: The equipment can be rolled to its final location using its casters if the floor is smooth and clean.
6
InRow RC Installation Manual
Model Identification
The model number can be found on the outside of the shipping crate and on the nameplate located inside the
unit as shown. Use the table below to verify that the unit is the correct size and voltage.
Model
Configuration
Voltage
Frequency
Air Pattern
ACRC500
ACRC501
ACRC502
Chilled water
Chilled water
Chilled water
200-240
460-480
380-415
50-60 Hz
60 Hz
50-60 Hz
Back to front
Back to front
Back to front
na2600a
NAMEPLATE
InRow RC Installation Manual
7
Component Identification
na2732a
Install kit inventory
Item Description
Item

Union end
2


Top power cord set (ACRC500 and
ACRC502 only)
PLC pipe thread, shutoff, 3/8-in.
BSPT* for condensate drain
connection
Extension adapter
Temperature sensor
Ring seal
M5 x 12 mm screw
M5 x 10-mm TORX® screw with
washer
M6 x 12-mm TORX screw with
washer
M6 x 10-mm self-tapping TORX
screw
M6 x 16-mm TORX screw with
washer
1









8
Quantity
Description
Quantity

Strain relief, metal (ACRC502
only)
Wire clip
2
9
1

Tie wrap
10
2
3
4
1
5





Tie wrap (field wiring)
Resistor, 150-Ohm
Cable tie
Reducer, 3/8-in. to 1/2-in. BSPT*
Reducer, 3/8-in. to 1/2-in. NPT**
3
1
10
1
1
5

Voltage jumper
***
5

Up-connection adapter
1
5
InRow RC Installation Manual
na1824a
Exterior components
Item




Description
Removable rear doors
Side panel lock
Removable side panel
Adjustable leveling foot
InRow RC Installation Manual
Item




Description
Caster
Door handle and lock
Display interface
Removable front door
9
Interior components (front)
DA
DB
FEE
na2727a
FEE
Item
10
Description
Item
Description

Fan

Main feed breakers

Fan guard

User interface connectors

Condensate drain pan

Ground wire

Condensate pump

Supply air humidity sensor

Electrical panel

Supply air temperature
sensor
InRow RC Installation Manual
na2728a
Interior components (rear)
Item




Description
Chilled water coil
Chilled water control actuator
Chilled water three-way valve body
Flow meter
InRow RC Installation Manual
Item




Description
Pipe chase
Rear doors
Air filters
Return air temperature sensor
11
Electrical panel
Item
Transformers
User interface connectors
Main controller board
Relay board
Ground lug
Main circuit breaker — power feed A
Main circuit breaker — power feed B
Automatic transfer switch (ATS) contactors
ATS timers
ATS transformer (ACRC501 only)
ATS timer circuit breakers
Fan circuit breakers
Controller circuit breaker
na2729a













Description
12
InRow RC Installation Manual
Piping Diagrams
INROW
RC
INROW
RC
BOTTOM PIPING
RETURN
SUPPLY
TOP PIPING
SUPPLY
RETURN
INROW
RC
na2572a
INROW
RC
Item
Description
Item
Description
Flex hose or copper
Circuit setter (field-installed)
Copper tubing
Hose end drain with cap
Y-strainer with 20 mesh screen
(field-installed)*
*Blow down may be installed on Y-strainer.
NOTE: Top or bottom entry can be chosen individually for each type of connection, i.e. power, condensate
drain, chilled water supply, and chilled water return. The top piping configuration will have the same valves and
strainers as the bottom piping configuration.
InRow RC Installation Manual
13
Connections
All connections to and from the equipment can be made through either the top or the bottom of the equipment.
All connections are made with quick-disconnect connectors so no soldering, welding, or gluing is necessary.
See the following tables for information about the sizes and types of connectors.
Power Connections for Power Feed A and Power Feed B
Model
Minimum Circuit
Ampacity (MCA)
Maximum Overload
Protection (MOP)
10.9
6.8
7
15
15
15
ACRC500
ACRC501
ACRC502*
Full Load Amperes Rated Load Amperes
(FLA)
(RLA)
5.8
5.8
*Consult local and national codes for wire size, conduit requirements and overload protection.
Piping Connections
Type
ACRC500
ACRC501
ACRC502
Chilled water supply
Chilled water return
Condensate drain
Union*
Union*
1 1/2 in. NPSM
1 1/2 in. NPSM
1/2 in. female NPT
or 1/2 in. female
BSPT fitting
1 1/2 in. NPSM
1 1/2 in. NPSM
1/2 in. female NPT
or 1/2 in. female
BSPT fitting
1 1/2 in. NPSM
1 1/2 in. NPSM
1/2 in. female NPT or
1/2 in. female BSPT
fitting
* If the ring seal is damaged, use a new seal (supplied) to prevent leakage. Torque union to 20 Nm (15 ft-lb).
Communication Connections
Type
Minimum Wire Size
Maximum Wire Size
Torque
Rack temperature 1
Rack temperature 2
Rack temperature 3
A-Link IN
A-Link OUT
Network port
Console port
Customer output, NC—Normally
Closed
RJ-45
RJ-45
RJ-45
RJ-45
RJ-45
RJ-45
DB 9
Screw connector
0.2 mm2 (AWG 24)
-
-
0.75 mm2 (AWG 18)
0.6 Nm
Customer output, COM—Common
Customer output, NO—Normally
Open
Screw connector
Screw connector
0.2 mm2 (AWG 24)
0.2 mm2 (AWG 24)
0.75 mm2 (AWG 18)
0.75 mm2 (AWG 18)
0.6 Nm
0.6 Nm
Supply GND
Supply 12 VDC
Supply 24 VDC
Customer input +
Customer input Modbus D1
Modbus D0
Modbus GND
Temperature sensor (front)
Humidity sensor (front)
Display interface
Screw connector
Screw connector
Screw connector
Screw connector
Screw connector
Screw connector
Screw connector
Screw connector
RJ-45
RJ-45
RJ-45
0.2 mm2 (AWG 24)
0.2 mm2 (AWG 24)
0.2 mm2 (AWG 24)
0.2 mm2 (AWG 24)
0.2 mm2 (AWG 24)
0.2 mm2 (AWG 24)
0.2 mm2 (AWG 24)
0.2 mm2 (AWG 24)
-
0.75 mm2 (AWG 18)
0.75 mm2 (AWG 18)
0.75 mm2 (AWG 18)
0.75 mm2 (AWG 18)
0.75 mm2 (AWG 18)
0.75 mm2 (AWG 18)
0.75 mm2 (AWG 18)
0.75 mm2 (AWG 18)
-
0.6 Nm
0.6 Nm
0.6 Nm
0.6 Nm
0.6 Nm
0.6 Nm
0.6 Nm
0.6 Nm
-
14
InRow RC Installation Manual
Pre-Installation
Room preparation
UNACCEPTABLE
OPERATING
LIMITS
ACCEPTABLE
OPERATING
15
20
25
30
35
40
45
AMBIENT TEMPERATURE (°C)
50
90
80
70
60
50
40
30
20
10
0
60
UNACCEPTABLE
OPERATING
LIMITS
ACCEPTABLE
OPERATING
RANGE
65
70
75
80
85
90
95 100 105 110 115
na2544a
90
80
70
60
50
40
30
20
10
0
10
RELATIVE HUMIDITY (% RH)
RELATIVE HUMIDITY (%
During the design of the data center, consider ease of entry for the equipment, floor loading factors, and
accessibility to piping and wiring. In addition, the room temperature and humidity combination should conform
to the environmental operating envelope as defined in the following graphics.
AMBIENT TEMPERATURE (°F)
Seal the room with a vapor barrier to minimize moisture infiltration. Polyethylene film is recommended for
ceiling and wall applications. Apply rubber- or plastic-based paints to concrete walls and floors.
Insulate the room to minimize the influence of exterior heat loads. Reduce fresh air to the minimum required by
local and national codes and regulations. Fresh air imposes extreme load variation on the cooling equipment
from summer to winter and causes increased system operating costs.
Air distribution
The equipment distributes air in a back-to-front discharge pattern, removing hot air from a hot aisle and
discharging cooled air into a cold aisle.
NOTE: The equipment is designed for free air discharge or for use with the Rack Air Containment System or
Hot Aisle Containment System. The equipment is not intended to be connected to a duct system.
Incoming power supply requirements
WARNING
ELECTRICAL HAZARD
• Electrical service must conform to local and national electrical codes and regulations.
• The equipment must be grounded.
Failure to follow these instructions can result in death, serious injury, or
equipment damage.
InRow RC Installation Manual
15
Automatic Transfer Switch (ATS): The function of the ATS is to transfer the
load from feed A to feed B if the power is lost on feed A.
na2252a
• Feed A (Primary Power Feed) supplies power to all functions in the
equipment.
• Feed B (Redundant Power Feed) supplies power to all functions in the
equipment.
FEED A
16
FEED B
InRow RC Installation Manual
Service access
An area of minimum 900 mm (36 in.) of clear floor space in front of and behind the equipment is recommended
for servicing (208V equipment), or 1067 mm (42 in.) for servicing 400V and 480V equipment. All required
normal maintenance can be performed from the front or rear of the equipment while in the row.
An area of minimum 1200 mm (48 in.) of clear floor space in front of or behind the equipment is recommended
to roll the equipment out of a row.
NOTE: Check local and national codes and regulations for further service access requirements.
ACCESS
REQUIRED TO
ROLL OUT OF
THE ROW
na1825a
MAINTENANCE
ACCESS
REQUIRED
WHEN
LOCATED IN
THE ROW
.00)
1200 (48
0)
900 (36.0
0)
900 (36.0
.00)
1200 (48
Dimensions are shown in mm (in.).
InRow RC Installation Manual
17
Dimensions and Weight
Dimensions
2.1)
1070 (4
600 (23
.6)
1991
(78.4)
na1822a
2156
(84.9)
4.8)
879 (34
1137 (4
.6)
Weight
Model
ACRC500, ACRC501, ACRC502
Weight of Equipment,
Packed
Weight of Equipment,
Unpacked
405 kg (892 lb)
345 kg (760 lb)
Dimensions are shown in mm (in.).
Piping and Power Access Locations
Top piping and power access locations (top view)
554 (21.81)
554 (21.81)
40 (1.58)
59 (2.32)
59 (2.32)
112 (4.4)
160 (6.3)
na3816a
177 (6.97)
737 (29.02)
0
635 (24.99)
380 (14.98)
325 (12.81)
0
73 (2.86 )
105 (4.12)
40 (1.58)
REAR—HOT AISLE
211 (8.29)
176 (6.92)
FRONT—COLD AISLE
Item
Description

Chilled water inlet

Chilled water outlet

Trough for communication cables

Power connections—dual feed

Condensate drain
Dimensions are shown in mm (in.).
InRow RC Installation Manual
19
Bottom piping and power access locations (bottom view)
345 (13.58)
397 (15.63)
0
0
796 (31.34)
172 (6.77)
184 (7.24)
187 (7.35)
425 (16.72)
479 (18.86)
REAR—HOT AISLE
)31.6( 651
na2104a
115 (4.53)
141 (5.54)
57.25 (2.25)
176 (6.91)
FRONT—COLD AISLE
Item
Description

Condensate drain

Power connections—dual feed

Communication connections—27.80 mm (1.09 in.)

Condensate overflow

Chilled water inlet

Chilled water outlet
Dimensions are shown in mm (in.).
20
InRow RC Installation Manual
Installation
Removing the Doors and Panels
WARNING
MOVING PARTS HAZARD
All doors and side panels must be locked during normal operation. Do not open the side
panels while the fans are operating.
Failure to follow these instructions can result in death, serious injury, or
equipment damage.
NOTICE
EQUIPMENT DAMAGE
• Unplug the display interface cables.
• Do not lean the doors against a wall with the side panel latches facing the wall. This can
deform the latches and prevent them from properly working.
Failure to follow these instructions can result in equipment damage.
Removing the front and rear doors
1. Unlock and open the door 90 degrees.
2. Unplug the ground wires and display
connection cables.
na2010a
3. Lift the door up and off the hinges.
InRow RC Installation Manual
21
na2315a
Removing the side panel
na2316a
Installing the side panel
22
InRow RC Installation Manual
Removing the electrical panel cover
Remove the electrical panel cover to install the main power cable.
1. Remove the five M4 screws securing the cover.
2. Remove the cover by opening it and sliding it toward the front of the equipment.
WARNING
ELECTRICAL HAZARD
Ensure all wiring is not energized before routing cables into this equipment. Only qualified
service and maintenance personnel should work on this equipment.
Failure to follow these instructions can result in death, serious injury, or equipment
damage.
Joining the Equipment to Enclosures
Joining to NetShelter™ SX enclosures
na2194a
The equipment comes with four joining brackets (two for the front and two for the rear).
1. Remove the front and rear doors.
See “Removing the front and rear
doors”.
ns0618a
2. Locate the four joining brackets.
Rotate each bracket ninety degrees
toward the adjoining enclosure so
the bracket is parallel to the floor and
install using the screws provided
with the enclosure.
For more information, see the Unpacking, Installation, and Customization manual for the NetShelter
SX Enclosure.
Joining to NetShelter VX and VS enclosures
For information on joining the equipment to NetShelter VX and VS enclosures, see the installation
sheet NetShelter™ SX to VX or VS External Joining Kit—AR7601, AR7602.
InRow RC Installation Manual
23
Leveling the Equipment
CAUTION
SHOCK HAZARD
After reinstalling the front door, reconnect the ground wire and other wire connections.
Failure to follow these instructions can result in injury or equipment damage.
NOTE: The leveling feet at the corners of the equipment provide a stable base if the floor is uneven, but they
cannot compensate for a badly sloped surface.
1. Remove the front and rear doors. See “Removing the front and rear doors” on page 21.
NOTE: Before removing the front door, unplug the ground wires and any other wire connections that
may interfere with the removal of the doors.
2. For each leveling foot, insert a Phillips PH2 or slotted
screwdriver into the screw above the leveling foot. Turn
the screw to the right to extend the leveling foot until it
makes firm contact with the floor.
na1572a
3. Reinstall the front and rear doors.
NOTE: Use a 13-mm open-ended wrench to level the equipment without removing the doors.
24
InRow RC Installation Manual
Mechanical Connections
Top water piping
NOTE: The top chilled water supply pipe is supplied with the equipment and must be installed on-site.
NOTE: You may need to remove the top panel from the equipment to gain access to the water connections.
1. Remove the air filters.
2. Loosen the two screws holding the rear condensate
drain pan bracket  and remove the bracket.
3. Loosen the two screws holding the air filter bracket 
located on the left side of the unit and remove the
bracket.
4. Remove the insulation cap from the union (not
shown).
na2027a
5. From both supply and return connections, remove the
union nuts  and save for reuse. Remove and
discard the union end blank plates  and the gaskets
.
6. Position the insulated chilled water supply pipe  in
the equipment. Mount a new gasket  and connect
the pipe to the union. Tighten the union to 20 Nm
(14.8 ft-lb).
7. Insulate the joint with the provided
insulation (not shown).
8. Connect the water supply pipe  to
the field-installed pipe  using a
gasket , union end , and union
nut .
9. Connect the cold water return fitting
to the field-installed pipe  using
two gaskets , union end , union
nut , and extension adapter .
10.Reinstall air filter bracket .
11. Reinstall the rear condensate drain
pan bracket  and the air filters.
na2576a
12.Reinstall the top panel, if removed.
InRow RC Installation Manual
25
Bottom water piping
1. Remove the insulation cap from the union 
(not shown).
2. Remove the union nut , and save it for
reuse. Remove and discard the union end
blank plate , and the ring seal .
NOTE: New items are provided with the equipment.
na2745a
3. Install the union nuts  to field-supplied tubing
.
4. Install new ring seals , extension adapters
, and insertion adapters , as shown.
Connect the pipe to the union. tighten the
union to 20 Nm (14.8 ft-lb).
26
InRow RC Installation Manual
5. Position the insulated chilled water
supply pipe  in the equipment.
Mount the gasket  and connect the
pipe to the union. Tighten the union to
20 Nm (14.8 ft-lb).
6. Insulate the joint with the provided
insulation (not shown).
7. Reinstall the air filter bracket .
8. Reinstall the rear condensate drain
pan bracket  and the air filters.
na2576a
9. Connect the water supply pipe  to
the field-installed water supply 
using the gasket  saved from step
5, union end , and union nut .
InRow RC Installation Manual
27
Condensate pump
na2345a
The pump is factory-wired and piped
internally to the condensate drain pan.
The pump can move liquid a maximum of
18 m (60 ft), which may include a
maximum lift of 3.5 m (11.5 ft) at a flow
rate of 87 l/hr (23 gph). For example, if
your lift is 3 m (10 ft), you will have 15 m
(50 ft) of usable run remaining. The pump
uses an on-board condensate high level
float switch wired into the equipment for
alarm capabilities.
CONNECTION
THROUGH TOP
CONNECTION
THROUGH BOTTOM
The condensate drain line can be
connected through either the top or the bottom of the equipment using factory-installed male
quick connectors and tubing approved by local building codes that will allow the drain line
connector to be moved approximately 25 mm (1 in.) away from the equipment. This facilitates
removing the equipment from a row. Female quick connectors and reduction fittings are
supplied with the equipment. Connect the fittings as shown, then connect the drain line quick
connector to the top or bottom condensate pump output line.




Description
Tubing (field supplied and installed)
1/2-in. male NPT or 1/2-in. male BSPT fitting
(field supplied and installed)
Straight reduction (supplied)
Quick connector (supplied)
na2534a
Item
NOTE: Perform all piping in accordance with applicable industry guidelines as well as local and national codes
and regulations.
NOTICE
WATER DAMAGE
• Failure to properly route the condensate pump drain line before operation could result in
water damage.
• Do not route drain or supply lines above computer equipment, Uninterruptible Power
Supply (UPS) units, Power Distribution Units (PDUs), or light fixtures.
Failure to follow these instructions can result in equipment damage.
Condensate overflow.
NOTICE
WATER DAMAGE
Failure to properly route condensate drain line before operation could result in water
damage.
Failure to follow these instructions can result in equipment damage.
28
InRow RC Installation Manual
Leak sensor
na1584a
Install up to four optional leak sensors (AP9326) as needed.
1. Connect the leak sensor to the equipment using the
plug located as shown.
na2758a
LEAK
DETECT
2. Position the leak sensor inside or outside the
equipment.
NOTE: Install leak sensors on a clean surface, and do not
allow them to touch metal that is in an air stream.
3. Route the leak sensor to the outside of the
equipment through either the bottom plate or the
door.
LOAD ON
ON-BATT
BYPASS
FAULT
ESC
?
na2073a
4. Secure the leak sensor wire to surfaces using cable
ties and cable tie holders (provided with the leak
detector).
InRow RC Installation Manual
29
Filling and Purging the Unit
When the unit has been properly piped, begin the filling process (top piping configuration shown).
WARNING
ELECTRICAL HAZARD
Ensure that all electrical connections are unplugged before you introduce water into the
unit.
Failure to follow these instructions can result in death, serious injury, or
equipment damage.
1. Open the 2-way bypass shutoff valve by
turning the handle 90° to the right. Using a
2.5-mm hex key, turn the flow control
actuator to the fully open position.
TOP COIL
VENT
2. Remove the cap from the top coil vent and
push the vent.
3. At the water supply, open the appropriate
valves to begin letting water slowly into
the unit.
FLOW
CONTROL
ACTUATOR
4. Stop pushing the top coil vent when water
begins slowly flowing out of the vent.
OPEN
5. At the water supply:
BYPASS
a. Open all valves no greater than 113
l/m (30 GPM), and allow the water
supply to reach the highest possible
flow to the unit for 45 seconds.
b. Close the valves to a
3.8–11.4 l/m (1–3 GPM) flow for 60
seconds.
c. Open the valves to maximum flow
for another 45 seconds.
na2031b
d. Balance the system to provide the
designed flow rate to all equipment.
OPEN
2-WAY
BYPASS
SHUTOFF
VALVE
30
InRow RC Installation Manual
Chiller
Three types of chillers can be connected to the unit:
• Schneider Electric size-matched chiller/thermal storage system
• Building chilled water system
• Existing dedicated chiller
InRow RC requirements
Entering water temperature
7.2–12.8°C (45–55°F)
Weight of unit fully flooded with chilled water
363 kg (800 lb)
Flow rate
1.2–2.5 l/s (19.0–39.6 GPM)
See the chiller installation, operation, and maintenance manuals for proper installation procedures.
InRow RC Installation Manual
31
Electrical Connections
The following electrical connections are required in the field:
• Controls (user interface, Network Management Card)
• Communication (A-Link, Building Management System)
• Power
NOTE: All electrical connections must be in accordance with local and national codes and regulations.
See the equipment nameplate for voltage and current requirements.
All low-voltage connections, including data and control connections, must be made with properly insulated
wires. Low-voltage wiring must be insulated based on the wiring with which it is routed. Wiring does not require
300-V insulation if it is separated from line voltage wiring. However, it will need 600-V insulation if it is wired in
the same cable tray as 480-VAC wiring.
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
Potentially dangerous and lethal voltages exist within this unit. More than one disconnect
switch may be required to energize or de-energize this equipment. Observe all cautions
and warnings. Failure to do so could result in serious injury or death. Only qualified
service and maintenance personnel may work on this equipment.
Failure to follow these instructions will result in death or serious injury.
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• Apply appropriate personal protective equipment (PPE) and follow safe electrical work
practices. See NFPA 70E or CSA Z462.
• This equipment must be installed and serviced by qualified personnel only.
• Turn off all power supplying this equipment before working on or inside the equipment.
• Always use a properly rated voltage sensing device to confirm power is off.
• Replace all devices, doors, and covers before turning on power to this equipment.
Failure to follow these instructions will result in death or serious injury.
32
InRow RC Installation Manual
User interface connectors
Item



















Description
Rack inlet temperature sensors 1, 2, 3
A-Link IN
A-Link OUT
Network port
Console port
Customer output, NC (normally closed)
Customer output, COM (common)
Customer output, NO (normally open)
Supply GND (Ground)
Supply 12 Vdc (current limit: 20 mA)
Supply 24 Vdc (current limit: 20 mA)
Customer input + (12–30 Vac/Vdc, 24 Vdc @ 11 mA)
Supply COM
Modbus D1
Modbus D0
Modbus GND
Supply air temperature sensor (front)
Supply air humidity sensor (front)
Display interface
NOTE: For a top installation, route control wiring through the wire channel located at
the top left hand corner just above the user interface connectors.
na2009a
For a bottom installation, route the control wiring to the customer access hole in the
bottom of the equipment through wire clamps from the interface connectors. Then,
route the wiring down along the electrical panel and secure with wire clamps.
InRow RC Installation Manual
33
Description of user interface connectors
Item
Description

Rack temperature sensors 1, 2, 3

A-Link IN

A-Link OUT

Network port

Console port

Customer output, Normally Closed (NC)

Customer output, Common (COM)

Customer output, Normally Open (NO)
Three temperature sensors which must be installed on
the cold aisle side of the server racks. See “Rack
temperature sensors” on page 34.
In and out connections for A-Link. The terminators
supplied with the equipment must be plugged into the
first A-link port and the final A-Link port for the group.
10/100 Base-T Network port. Connects the equipment
to the network; Status and Link LEDs indicate network
traffic.
• Status LED—blinks orange and green at start-up;
indicates the status of the network connection (solid
green—IP address established; blinking green—
attempting to obtain an IP address).
• Link LED—blinks to indicate network traffic (green—
operating at 10 mbps; orange—operating at 100 mbps).
RS-232 communication port used for local service
access to the equipment. Use configuration cable
(Schneider Electric part number 940-0103) to connect
to this port.
Customer-configurable output relay which can be
activated for all types of alarms or critical alarms. The
relay can be connected to external equipment using 30
VAC/DC, 2 A.

Supply GND
Can be used for customer input and output interface.

Supply 12 Vdc

Supply 24 Vdc

Customer input +

Supply COM-

Modbus D1 (RXTX+)

Modbus D0 (RXTS–)

Modbus GND
Can be used for customer input and output interface.
Current limit is 20 mA.
Can be used for customer input and output interface.
Current limit is 20 mA.
Used for remote shutdown of the InRow RC. Voltage is
applied from the internal power supply or by using an
external power supply.
Ground connection point for remote shutdown supply
source.
Connections for Building Management System. Wire a
150-Ohm terminator resistor (supplied) into the final
InRow RC, between Modbus D0 and Modbus D1.

Supply air temperature sensor (front)

Supply air humidity sensor (front)

Display interface
Temperature sensor installed on the front of the
equipment.
Humidity sensor installed on the front of the equipment.
Connection for the display interface installed on the
front door of the equipment.
Rack temperature sensors
The rack temperature sensors control the unit airflow and ensure adequate supply
of cooling air to the server racks in the data center.
The unit is supplied with three external rack temperature sensors. These sensors,
along with wire clamps and wire clips, are included in the installation kit supplied
with the unit in a separate box.
34
InRow RC Installation Manual
Installing the rack temperature sensors
1. Insert the rack temperature sensor connector in the temperature sensor port at the user interface. See
“User interface connectors” on page 33.
b. For a bottom installation, route the sensor
through the wire clamps along the electrical
panel and then push the sensor through
the customer access hole in the bottom of
the equipment.
TEMPERATURE
SENSOR
2. Route the sensor through either the top or the
bottom of the adjacent server rack.
WIRE CLIP
3. Secure the temperature sensor cable to the front
door of the adjacent server rack at multiple
locations using the provided wire clips as shown.
gen0767a
a. For a top installation, push the rack
temperature sensor through the wire
channel located at the top of the equipment
in the left hand side just above the user
interface connectors.
NOTE: Remote rack sensors must be installed for proper operation.
The sensors must be installed where lack of sufficient cooling air is most likely. The optimum position of
the rack temperature sensors will vary from installation to installation. Servers most likely to have
insufficient or inadequately-cooled cooling air due to the recirculation of hot air from the hot aisle
include:
a. Servers positioned at the top of a rack.
b. Servers positioned at any height in the last rack at an open end of a row.
c. Servers positioned behind flow-impairing obstacles such as building elements.
d. Servers positioned in a bank of high-density racks.
e. Servers positioned next to racks with Air Removal Units (ARU).
f. Servers positioned very far from the equipment.
g. Servers positioned very close to the equipment.
InRow RC Installation Manual
35
Water outlet temperature sensors
There are two water outlet temperature sensors, one for top
connection and one for bottom connection. These sensors
are wired to the main board on the electrical panel.
TOP CONNECTION:
WIRE WITH GREEN
TIE WRAP IN J23
The unit is delivered with top connection as the default
configuration, i.e., the wire with a green tie wrap is positioned
in connector J23 (marked with green) on the main board. If
the configuration is changed from top to bottom, switch the
wire already positioned in the connector J23 with the wire
labeled with a green and a white tie wrap. This wire is part of
the wire harness inside the electrical panel.
na2263a
J23
BOTTOM CONNECTION:
WIRE WITH GREEN AND
WHITE TIE WRAPS IN
J23
Communication connections
A-Link connections: The A-Link bus connection allows communication between cooling units. Only one
InRow RC needs to be defined through the display. The numbering of the other InRow RCs (up to a maximum
of twelve) will take place automatically.
To enable the equipment to work as a group, link the units using the supplied cables or CAT-5 cables with RJ45 connectors as shown. Terminators (120 Ohm, 1/4 W) must be inserted into the open A-Link ports at the first
and last InRow RC.
The maximum wire length for the entire group may not exceed 1000 m (3,280 ft).
SECOND INROW RC
LAST INROW RC
na0733a
FIRST INROW RC
Item



36
Description
A-Link in (with provided RJ-45 terminator)
InRow A-Link cable (CAT-5 Ethernet cable)
A-Link out
Item Description


A-Link in
A-Link out (with provided RJ-45 terminator)
InRow RC Installation Manual
Building Management System (BMS): The Modbus interface allows each InRow RC to communicate with the
BMS. Use a three-wire cable to connect each InRow RC in turn. Wire a terminator resistor (150 Ohm, 1/4 W)
into the Modbus master and the final InRow RC between Modbus D0 and Modbus D1. This terminator is
included in the installation kit (see “Install kit inventory” on page 8).
Each InRow RC has a three-wire Modbus terminal on the user interface. A connector with screw terminals is
used to attach wiring. See “User interface connectors” on page 33 for specific layout of the user interface.
For information on setup of Modbus parameters, see the InRow RC Operation manual.
LAST INROW RC
FIRST INROW RC
SECOND INROW RC
na1766a
MODBUS MASTER
Item


InRow RC Installation Manual
Description
Termination resistor (provided)
Modbus cable (RS-485)
37
Network port
The Network port allows communication from the InRow RC to the network.
LAST INROW RC
na2554a
FIRST INROW RC SECOND INROW RC
SWITCH/HUB
Item Description


38
Network port
LAN cable (10/100 Base-T)
InRow RC Installation Manual
Power Connections
Wiring configurations
Incoming power may be supplied to the equipment using the supplied power cords (ACRC500 and ACRC502,
top only). Incoming power may alternately be supplied by field wiring (top or bottom routing).
WARNING
ELECTRICAL HAZARD
• Electrical service must conform to local and national electrical codes and regulations.
• The equipment must be grounded.
Failure to follow these instructions can result in death, serious injury, or
equipment damage.
WARNING
HAZARD TO EQUIPMENT OR PERSONNEL
All work must be performed by Schneider Electric qualified personnel.
Failure to follow these instructions can result in death, serious injury, or
equipment damage.
InRow RC Installation Manual
39
Install power cords (ACRC500 and ACRC502 only)
NOTICE
POWER SUPPLY CONNECTION
Only qualified personnel may connect the equipment to utility power using direct wiring.
All wiring must be done in compliance with local and national codes.
Failure to follow these instructions can result in equipment damage.
1. Remove the factory-installed knockout plate from
the top of the equipment. See “Top piping and
power access locations (top view)” on page 19.
Save the screw for later use.
2. Remove the electrical panel cover. See “Removing
the electrical panel cover” on page 23.
3. Observe the markings on the two power cords.
Insert feed A in the conduit closest to the front of
the equipment, and feed B in the conduit closest to
the rear of the equipment.
na2742a
4. Connect the L1, L2, and L3 leads of feed A and
feed B to the two circuit breakers per the label
above the breakers. Torque the screws per the
torque values marked on the breakers. Connect
the grounds to the terminal above the circuit
breakers.
5. Secure the connection plate to the top panel of the
equipment using the screw you removed earlier.
6. Reinstall the electrical panel cover.
Top routing
1. Remove the factory-installed knockout plate from the top of the equipment.
2. Enlarge the two pilot holes in the knockout plate as needed to accept conduit
connectors.
FEED
A
FEED
B
3. Attach the conduit connectors to the knockout plate.
na2309a
4. Secure the knockout plate to the top of the equipment.
5. Route power cabling to the main breakers as shown.
6. Connect feed A and B power wiring to the tops of the two main circuit breakers
using the torque specified on the breakers. Connect the phases of the two power
feeds as marked next to the terminals.
7. Connect the ground wires to the ground terminal block located above the main circuit breakers.
8. Reinstall the connection plate and the electrical panel cover.
40
InRow RC Installation Manual
Bottom routing
1. Locate the supplied knockout plate.
2. Install the knockout plate on the top of the equipment where you removed the
power connection plate and power cords.
3. Locate the power connection plate in the bottom of the unit. See “Bottom piping
and power access locations (bottom view)” on page 20.
4. Loosen the screw securing the connection plate, and remove the plate.
5. Enlarge the two pilot holes in the connection plate as needed to accept conduit
connectors.
6. Attach the conduit connectors to the connection plate. Secure the connection plate
to the bottom of the equipment.
7. Route the cabling to the main breakers as shown.
8. Fasten the cabling inside the unit with the provided tie wraps.
10.Connect the ground wires to the ground terminal block located just above the main
circuit breakers.
na2328a
9. Connect feed A and feed B power wiring to the tops of the two main circuit breakers
using the torque specified on the breakers. Connect the phases of the two power
feeds as marked next to the terminals.
11. Reinstall the connection plate and the electrical panel cover.
Strain relief (ACRC502 only)
1. Hook one strain relief into a pair of slots in each of the
two locations shown. See “Install kit inventory” on
page 8.
2. Route the electrical cable up from the bottom of the
equipment, passing through each strain relief.
3. Tighten the screw on each strain relief to capture the
electrical cable, taking the weight off of the inner
conductors.
na2542a
4. Continue connecting electrical wiring to the circuit
breaker.
InRow RC Installation Manual
41
Voltage selection
na2540b
Your equipment can operate at various supply voltages, provided the proper
voltage jumpers are connected to the input transformers. Read the part number on
the jumpers connected at the factory and compare that number to the table below.
If the correct jumpers for your input voltage are not connected, remove them and
connect the proper jumper.
Jumper Connections
 Transformer A connected to J50 ()
SKU
Input Voltage
208 (50/60 Hz)
230 (50/60 Hz)
460 (60 Hz)
ACRC501
480 (60 Hz)
380 (50/60 Hz)
ACRC502 400 (50/60 Hz)
415 (50/60 Hz)
ACRC500
42
Use Jumper Part Number
0W2540 (default)
0W2541
0W2545
0W2546 (default)
0W2542
0W2543 (default)
0W2544
InRow RC Installation Manual
Worldwide Customer Support
Customer support for this or any other product is available at no charge in any of the following ways:
• Visit the Schneider Electric Web site to access documents in the Schneider Electric Knowledge Base
and to submit customer support requests.
– www.schneider-electric.com (Corporate Headquarters)
Connect to localized Schneider Electric Web sites for specific countries, each of which provides
customer support information.
– www.schneider-electric.com/support/
Global support searching Schneider Electric Knowledge Base and using e-support.
• Contact the Schneider Electric Customer Support Center by telephone or e-mail.
– Local, country-specific centers: go to www.schneider-electric.com > Support > Operations
around the world for contact information.
For information on how to obtain local customer support, contact the representative or other distributors
from whom you purchased your product.
As standards, specifications, and designs change from time to time, please ask for confirmation of the information given in this publication.
All trademarks owned by Schneider Electric Industries SAS or its affiliated companies.
990-3238B-001
10/2014

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
