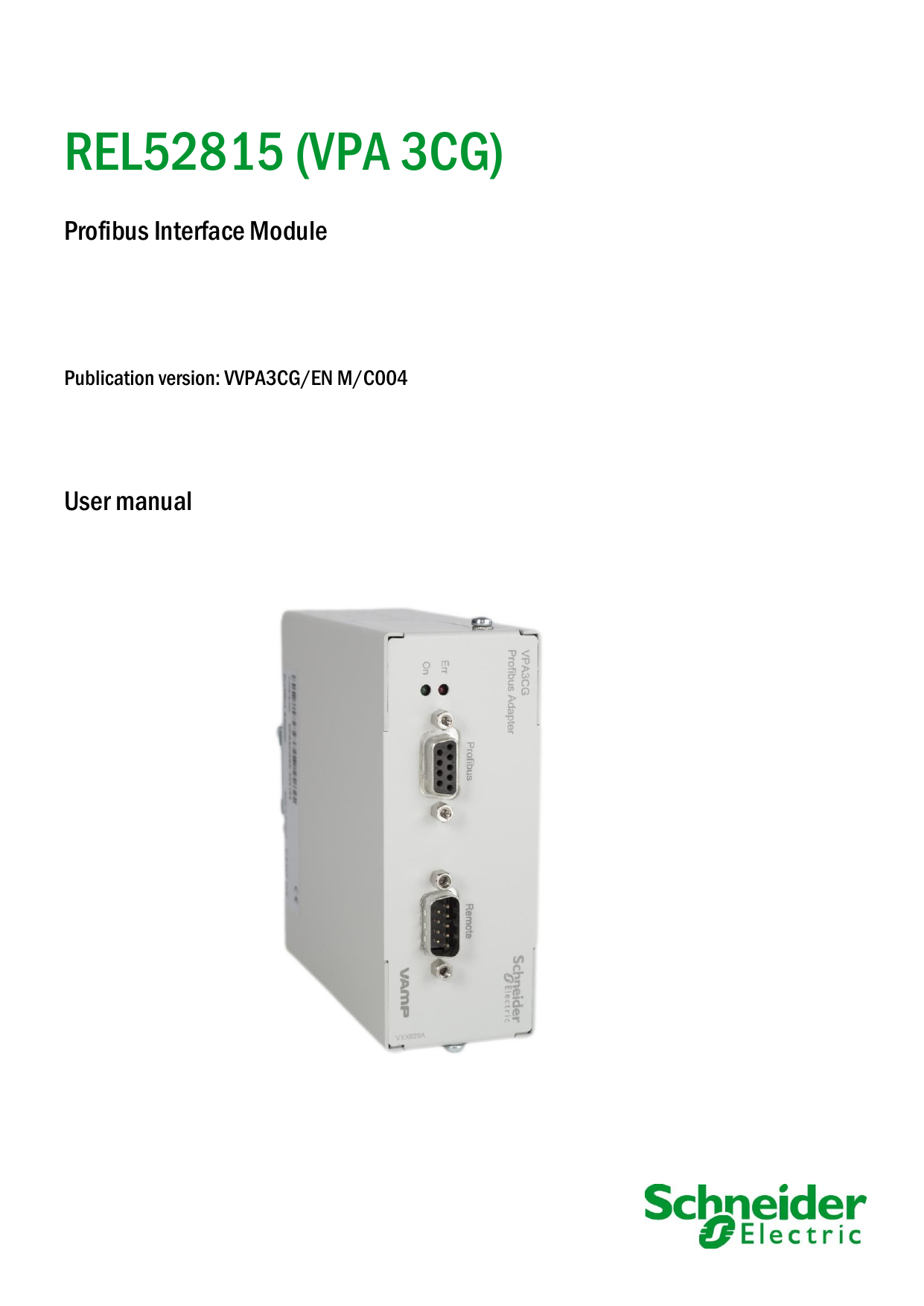

REL52815 (VPA 3CG)
Profibus Interface Module
Publication version: VVPA3CG/EN M/C004
User manual
1 Important information
REL52815
Table of Contents
1. Important information ............................................................ 3
1.1. Hazard categories and special symbols .............................. 3
1.2. Legal notice......................................................................... 4
1.3. EU directive compliance ..................................................... 5
2. General .................................................................................... 6
3. Specifications ......................................................................... 7
3.1. General ............................................................................... 7
3.2. Profibus cable ..................................................................... 7
4. Profibus DP ............................................................................. 9
4.1. General ............................................................................... 9
4.2. Profibus User Organization ............................................... 10
5. Profibus DP device profiles ................................................. 11
5.1. Continuous mode with fixed data set ................................ 11
5.1.1. Calculation of the Profibus DP buffer length in
continuous mode with fixed data set ........................ 11
5.2. Request mode................................................................... 12
5.2.1. Data request message from the Profibus master ..... 13
5.2.2. Data response message from the relay ................... 13
5.2.3. Examples of request and response messages ........ 13
6. Installation and commissioning .......................................... 15
6.1. Cables for the Profibus interface module .......................... 15
6.2. Connecting the interface module to Easergy P3 Standard 16
6.3. Connecting the interface module to Easergy P3 Advanced
16
6.4. Setting the Profibus address and other parameters .......... 17
6.5. Dimension drawing ........................................................... 18
7. Type files ............................................................................... 19
7.1. GSD file ............................................................................ 19
2
VVPA3CG/EN M/C004
REL52815
1 Important information
1.1 Hazard categories and special
symbols
1.
Important information
1.1.
Hazard categories and special
symbols
Important information
Read these instructions carefully and look at the equipment to
become familiar with the device before trying to install, operate,
service or maintain it. The following special messages may appear
throughout this bulletin or on the equipment to warn of potential
hazards or to call attention to information that clarifies or simplifies
a procedure.
VVPA3CG/EN M/C004
3
1 Important information
REL52815
Protective grounding
The user is responsible for compliance with all the existing
international and national electrical codes concerning protective
grounding of any device.
Please Note
Use the device's password protection feature to prevent untrained
persons from interacting with this device.
1.2.
Legal notice
Copyright
2018 Schneider Electric. All rights reserved.
Disclaimer
No responsibility is assumed by Schneider Electric for any
consequences arising out of the use of this document. This
document is not intended as an instruction manual for untrained
persons. This document gives instructions on device installation,
commissioning and operation. However, the manual cannot cover
all conceivable circumstances or include detailed information on all
topics. In the event of questions or specific problems, do not take
any action without proper authorization. Contact Schneider Electric
and request the necessary information.
Contact information
35 rue Joseph Monier
92500 Rueil-Malmaison
FRANCE
Phone: +33 (0) 1 41 29 70 00
Fax: +33 (0) 1 41 29 71 00
www.schneider-electric.com
4
VVPA3CG/EN M/C004
REL52815
1.3.
VVPA3CG/EN M/C004
1 Important information
1.3 EU directive compliance
EU directive compliance
5
2 General
2.
REL52815
General
Easergy P3 protection relays (later called relays) can be
connected to Profibus DP with an external REL52815 (VPA3CG)
Profibus interface module (also called Profibus adapter). The relay
can then be monitored from the host system.
6
VVPA3CG/EN M/C004
3 Specifications
REL52815
3.
Specifications
3.1.
General
3.1 General
Table 1. Profibus DP communication data
Profibus DP –
connections
Interface
Transfer method
Transfer cable
Electrical isolation
Safety
Table 1. Specifications
Communication mode
Communication parameters
Address
Baud Rate
3.2.
9-pin DSUB connector (female)
RS-485, Half-duplex
Twisted pair(1 pair and shield)
500 VDC
Fulfils EN50178 Standard
Profibus DP
1 to 126
9.6 kBaud to 12 MBaud
Profibus cable
Profibus devices are connected in a bus structure. Up to 32
stations (master or slaves) can be connected in one segment. The
bus is terminated by an active bus terminator at the beginning and
end of each segment (see Figure 1. Cabling and bus termination).
To ensure error-free operation, both bus terminations must always
be powered. When more than 32 stations are used, repeaters (line
amplifiers) must be used to connect the individual bus segments.
The maximum cable length depends on the transmission speed
and cable type (see
Table 2. Line parameters and Table 3. Line length for different
transmission speeds). The specified cable length can be increased
by the use of repeaters. Using more than three repeaters in a
series is not recommended.
Table 2. Line parameters
VVPA3CG/EN M/C004
Parameter
Impedance
Line A
135 … 165 
(3 to 20 MHz)
Line B
100 … 130 
(f > 100 kHz)
Capacity
< 20 pF / m
< 60 pF / m
Resistance
110  / km
-
Wire gauge
> 0,64 mm
> 0,53 mm
Conductor area
> 0,34 mm2
> 0,22 mm2
7
3.2 Profibus cable
3 Specifications
REL52815
Table 3. Line length for different transmission speeds
Baud rate
(kbit/s)
Length line
A (m)
Length line
B (m)
9.6
19.2
93.75
187.5
500
1500
3000-12000
1200
1200
1200
1000
400
200
100
1200
1200
1200
600
200
-
-
For example the following cables can be used:
Belden
Profibus Data Cable
3079A
Olflex
Profibus Cable
21702xx
Siemens
SINEC L2 LAN cable for
6XV1 830-0AH10
Profibus
Station 1
Station 2
VP(6)
RxD/TxD-P (3)
(3) RxD/TxD-P
(3)(3)
DGND (5)
390 
(5) DGND
VP (6)
(6) VP
RxD/TxD-N (8)
Data Line
RxD/TxD-P (3)
(8) RxD/TxD-N
220 
RxD/TxD-N (8)
Protective
ground
Data Line
Protective
ground
390 
DGND (5)
Cabling
Figure 1. Cabling and bus termination
Bus Termination
Table 4. D9 connector pins
Pin.
No.
1
2
3
4
5
6
7
8
8
Signal
Designation
nc
nc
RxD/TxD-P
nc
DGND
VP
nc
RxD/TxD-N
Not connected
Not connected
Receive data/transmission data plus
Not connected
Data transmission potential (ground to 5 V)
Supply voltage of the terminating resistance-P, (P5V)
Not connected
Receive data/transmission data negative
VVPA3CG/EN M/C004
3 Specifications
REL52815
9
VVPA3CG/EN M/C004
nc
3.2 Profibus cable
Not connected
9
4.1 General
4 Profibus DP
4.
Profibus DP
4.1.
General
REL52815
Profibus is a vendor-independent, open fieldbus standard for a
wide range of applications in manufacturing, process and building
automation. Vendor-independence and openness are guaranteed
by the Profibus standard EN 50 170. With Profibus, devices of
different manufactures can communicate without special interface
adjustments. Profibus can be used for both high-speed, timecritical data transmission and extensive complex communication
tasks. The Profibus family consists of three compatible versions.
Profibus DP
Optimised for high speed and inexpensive hook-up, this Profibus
version is designed especially for communication between
automation control systems and distributed I/O at the device level.
Profibus DP can be used to replace parallel signal transmission
with 24 V or 0 to 20 mA.
Profibus PA
Profibus PA is designed especially for process automation. It
permits sensors and actuators to be connected to one common
bus line even in intrinsically safe areas. Profibus PA permits data
communication and power over the bus using 2-wire technology
according to the international standard IEC 1158-2.
Profibus FMS
Profibus FMS is the general-purpose solution for communication
tasks at the cell level. Powerful FMS services open up a wide
range of applications and provide great flexibility. Profibus FMS
can also be used for extensive and complex communication tasks.
Profibus specifies the technical and functional characteristics of a
serial Fieldbus system with which decentralized digital controllers
can be networked together from the field level to the cell level.
Profibus distinguishes between master devices and slave devices.
Master devices determine the data communication on the bus. A
master can send messages without an external request when it
holds the bus access rights (the token). Masters are also called
active stations in the Profibus protocol.
Slave devices are peripheral devices. Typical slave devices
include input/output devices, valves, drives and measuring
transmitters. They do not have bus access rights and they can
only acknowledge received messages or send messages to the
10
VVPA3CG/EN M/C004
4 Profibus DP
REL52815
4.2 Profibus User Organization
master when requested to do so. Slaves are also called passive
stations.
4.2.
Profibus User Organization
World market leaders in automation technology have joined
together to form the Profibus User Organization. Since its
establishment, 15 countries have formed national user
organizations. These national organizations have been united
under an organization called Profibus International (PI). The
organization represents the interests of Profibus users and
manufacturers. Together with its members, this association is
pushing to establish the international use of Profibus. Several
hundred companies are members of the association. Their primary
tasks and goals are:
•
joint marketing activities
• public relations work
• spreading of information
• further development of the technology
• preparation of certificates confirming conformance to the
standard
• assignment and administration of the ident numbers
• definition of user profiles
• preparation of testing guidelines for test laboratories
• taking care of members
As a member of the Profibus international organization, you are
kept informed of current developments in the area of Fieldbuses.
Membership is open to all users and manufacturers as well as
technical and scientific institutes.
VVPA3CG/EN M/C004
11
5.1 Continuous mode with fixed data
set
5 Profibus DP device profiles
REL52815
5.
Profibus DP device profiles
5.1.
Continuous mode with fixed data set
In this mode, the protection relay is sending a configured set of
parameters continuously to the Profibus DP master.
5.1.1.
Calculation of the Profibus DP buffer length in
continuous mode with fixed data set
The needed buffer length for Profibus DP data transfer depends
on the biggest offset of any activated parameter and the size of
this parameter. The offset and the activation for each available
parameter are configurable.
The relay calculates the needed buffer length. For example, if the
relay’s display shows:
InBuf
OutBuf
32 byte
0 byte,
you have to select the corresponding module “INPUT: 32 Byte”
from the .gsd file (for example VPA_00F7.gsd) when configuring
the Profibus DP master for this relay.
The following example reveals the algorithm used by a relay to
calculate the needed Profibus DP buffer length:
Example:
• The parameter Eimp (imported active energy) has the
biggest offset, 30, of all activated Profibus DP data items
in InBuf.
• The size of Eimp item is 4 bytes.
• The parameter DirectO5C ( Direct Operate Object 5
Close) has the biggest offset,13 , of all activated Profibus
data items in OutBuf.
• The size of DirectO5C is 1 byte.
• Both buffers are forced to the same length.
Input:
Offset of the last occupied byte:
30 + (4 - 1) = 33
Round up to next 2n (n is an integer):
log2 33 = log 33 / log 2 = 5.044.
Round up to next integer → 6.
26 = 64
12
VVPA3CG/EN M/C004
5 Profibus DP device profiles
REL52815
5.2 Request mode
Output:
Offset of the last occupied byte:
13 + (1- 1) = 13
Round up to next 2n (n is an integer):
log2 13 = log 13 / log 2 = 3.700.
Round up to next integer → 4.
24 = 16
After restarting, the relay displays the following buffer sizes:
InBuf
OutBuf
64 byte
64 byte
If both buffers are in use in the continuous mode, the length of the
smaller buffer is forced to match the longer buffer. In the example :
24 = 16 is forced to 26 = 64
Select the corresponding module “INPUT/OUTPUT : 64 Byte” from
the .gsd file (for example VPA_00F7.gsd) when configuring the
Profibus DP master for this relay.
Note!
It is recommended that the maximum size for output buffer in
continuous mode is 64 bytes.
5.2.
Request mode
Using the request mode, it is possible to read all available data
from the relay and still use only a short buffer for Profibus data
transfer. The drawback is the slower overall speed of the data
transfer and the need of increased data processing at the Profibus
master as every data item must be separately requested by the
master from the slave.
Note!
It is not possible to read continuously only one single data item. In
request mode, you have to request at least two items in turn to get
updated data from the relay.
After setting the Profibus driver of the relay into request mode, the
relay is restarted (wait for approximately 30 seconds). After
restarting, the relay ignores parameter offsets and displays the
following fixed buffer sizes:
InBuf
OutBuf
8byte
8byte.
Select the corresponding module “INPUT/OUTPUT:8 Byte” from
the .gsd file (for example VPA_00F7.gsd) when configuring the
Profibus DP master for this relay.
VVPA3CG/EN M/C004
13
5.2 Request mode
5.2.1.
5 Profibus DP device profiles
REL52815
Data request message from the Profibus
master
The request is 8 bytes long consisting of three fields:
ID
byte0
byte1
ID
IND
IND
byte2
VALUE
byte4 byte5
byte3
byte6
byte7
Type and number of the requested data
Index 0…65535 of the parameter member to be
requested or 0 if the parameter is scalar
Not used
Value
The identifier word, ID, consists of three bit fields:
b15
Request type
b14 b13 b12
SM
b11
Request type
SM
Parameter number
5.2.2.
b10
b9
0001
0
0..2047
b8
Parameter number
b7 b6 b5 b4 b3
b2
b1
b0
Read (0010 = Write)
Spontaneous bit(not used)
Each available data item in
the relay has a fixed
parameter number
Data response message from the relay
The response message is 8 bytes long consisting of three fields:
ID
byte0
byte1
ID
IND
Value
IND
byte2
VALUE
byte4 byte5
byte3
byte6
byte7
Type and number of the requested data
Requested index
Value of the requested data or error code
The identifier word, ID, consists of three bit fields:
Response type
b15 b14 b13 b12
Respone type
SM
Parameter number
SM
b11
b10
b9
0001
0111
0
0..2047
b8
Parameter number
b7 b6 b5 b4 b3
b2
b1
Value is ready
Request rejected
Spontaneous bit(not used)
The number of the
requested parameter.
Error codes in value field in case of response type 0111:
0
Illegal parameter
18
Other fault
101
Unknown request type
5.2.3.
Examples of request and response messages
Example 1: Active power
14
VVPA3CG/EN M/C004
b0
5 Profibus DP device profiles
REL52815
5.2 Request mode
The master requests the measured active power from the relay.
The hexadecimal byte values are:
ID
10
00
ID:
1
0 00
IND:
00 00
VALUE:
00 00 00 00
IND
00
00
VALUE
00
00
00
00
Request type is read
Parameter number of active power P is 0
Index is 0
Dummy value
The slave responses with the active power value. The
hexadecimal byte values are:
ID
10
00
ID:
1
0 00
IND:
00 00
VALUE:
00 00 0D 7A
VVPA3CG/EN M/C004
IND
00
00
VALUE
00
00
0D
7A
Response type is ‘Value is ready’
Parameter number is 0. (Copy of request
message parameter number)
Index is 0. (Copy of request message index)
The active power is 3450 kW (0D7A16 =
345010)
15
6.1 Cables for the Profibus interface
module
6.
6 Installation and commissioning
REL52815
Installation and
commissioning
Use the Profibus interface module with Easergy P3 Standard and
Advanced relays whenever Profibus is required in the system.
6.1.
Cables for the Profibus interface
module
Depending on the Easergy P3 relay type, a dedicated cable is
needed for connecting the Profibus interface module (VPA 3CG
adapter) to the relay.
Table 5. Required Profibus cables with Easergy P3 relays
Relay
Cable type
Easergy P3
Standard
Easergy P3
Advanced
REL52827 VX084 RS232 - VPA 3CG cable
(Profibus)
REL52824 VX072 Profibus cable
Figure 2. Prorfibus cable REL52827 (VX084) for Easergy P3 Standard
Figure 3.. Profibus cable REL52824 (VX072) for Easergy P3 Advanced
16
VVPA3CG/EN M/C004
REL52815
6.2.
6 Installation and commissioning
6.2 Connecting the interface module
to Easergy P3 Standard
Connecting the interface module to
Easergy P3 Standard
The Profibus interface module VPA-3CG is connected to the
‘REMOTE’ port (connector X5) on an Easergy P3 Standard relay’s
rear panel with the Profibus cable. The X4 (I/O with comms) option
must be either E or F.
The Profibus interface module must be powered from an external
12 V power supply through the cable. The continuous power
consumption is 1W.
See the relay’s user manual for more detailed information on
ordering the communication modules.
Figure 4. Connecting VPA-3CG to Easergy P3 Standard
6.3.
Connecting the interface module to
Easergy P3 Advanced
The Profibus interface module VPA-3CG can be connected to an
Easergy P3 Advanced relay’s RS-232 connector in slot 6 or slot 9
with the Profibus cable.
The following optional communication modules are needed:
• for slot 6 (option card I), option K
• for slot 9 (communication interface I), option B, C, or D
See the relay’s user manual for more detailed information on
ordering the communication modules.
VVPA3CG/EN M/C004
17
6.4 Setting the Profibus address and
other parameters
6 Installation and commissioning
REL52815
Figure 5. Connecting VPA-3CG to Easergy P3 Advanced
Note!
Use REL52824 (VX072) cable for connecting VPA-3CG to
Easergy P3 Advanced.
6.4.
Setting the Profibus address and other
parameters
The Profibus parameters can be changed from the relay front
panel or by Easergy Pro.
The parameters are:
Mode
bit/s
InBuf*
OutBuf*
Addr
Conv*
*)
**)
18
Profibus mode: Continous / Request
Speed between the relay and adapter
Input** buffer length
Output** buffer length
Profibus address (range 1-126)
Type of Profibus adapter (VE, HMS, -)
Parameters are read only
Input: Relay → Profibus master
Output: Profibus master → Relay
VVPA3CG/EN M/C004
REL52815
6.5.
6 Installation and commissioning
6.5 Dimension drawing
Dimension drawing
Figure 6. Dimension drawing
VVPA3CG/EN M/C004
19
7.1 GSD file
7 Type files
7.
Type files
7.1.
GSD file
REL52815
;===================================================================
;GSD file for VPA
;
;2002-07-22 JPH/Vaasa Electronics Ltd.
;
;File : VPA_00F7.GSD
;===================================================================
#Profibus_DP
; Unit-Defination-List:
GSD_Revision
= 1
Vendor_Name
= "Vaasa Electronics Ltd."
Model_Name
= "VPA"
Revision
= "1.0"
Ident_Number
= 0x00F7
Protocol_Ident
= 0
Station_Type
= 0
; DP-Slave
FMS_supp
= 0
; no FMS/DP Mixed
Device
Hardware_Release
= "HW1.0"
Software_Release
= "SW1.0"
;
9.6_supp
= 1
;baud rate supported
19.2_supp
= 1
;baud rate supported
93.75_supp
= 1
;baud rate supported
187.5_supp
= 1
;baud rate supported
500_supp
= 1
;baud rate supported
1.5M_supp
= 1
;baud rate supported
3M_supp
= 1
;baud rate supported
6M_supp
= 1
;baud rate supported
12M_supp
= 1
;baud rate supported
; Duration to answer a request by a responder
MaxTsdr_9.6
= 60
MaxTsdr_19.2
= 60
MaxTsdr_93.75
= 60
MaxTsdr_187.5
= 60
MaxTsdr_500
= 100
MaxTsdr_1.5M
= 150
MaxTsdr_3M
= 250
MaxTsdr_6M
= 450
MaxTsdr_12M
= 800
;
Redundancy
= 0
; redund. Transceiver
not supp.
Repeater_Ctrl_Sig
= 2
; TTL
24V_Pins
= 0
; Not connected
;
Implementation_Type
= "SPC3"
Bitmap_Device
= "DP_NORM"
;
; Slave-Specification:
Freeze_Mode_supp
= 1
; Freeze-Mode
supported
Sync_Mode_supp
= 1
; Sync-Mode supported
Auto_Baud_supp
= 1
; auto. Baud. detec.
supp.
Set_Slave_Add_supp
= 0
; Set_Slave_Add not
supported
Min_Slave_Intervall
= 10
;
Modular_Station
= 1
Max_Module
= 24
Max_Input_Len
= 200
Max_Output_Len
= 200
Max_Data_Len
= 400
Modul_Offset
= 200
;
20
VVPA3CG/EN M/C004
REL52815
7 Type files
Fail_Safe
= 0
without data in
;
accepted
Slave_Family
= 0
Max_Diag_Data_Len
= 16
;
Unit_Diag_Bit(0)
= "OK"
Unit_Diag_Bit(1)
= "ERROR 1"
Unit_Diag_Bit(2)
= "ERROR 2"
Unit_Diag_Bit(3)
= "ERROR 3"
Unit_Diag_Bit(4)
= "ERROR 4"
Unit_Diag_Bit(127)
= "ERROR 127"
;
Module = "INPUT/OUTPUT: 1 Byte" 0x30
EndModule
Module = "INPUT/OUTPUT: 2 Byte " 0x70
EndModule
Module = "INPUT/OUTPUT: 4 Byte " 0x71
EndModule
Module = "INPUT/OUTPUT: 8 Byte" 0x73
EndModule
Module = "INPUT/OUTPUT: 16 Byte" 0x77
EndModule
Module = "INPUT/OUTPUT: 32 Byte" 0x7F
EndModule
Module = "INPUT/OUTPUT: 64 Byte" 0xC0,0x5F,0x5F
EndModule
Module = "INPUT/OUTPUT: 128 Byte" 0xC0,0x7F,0x7F
EndModule
Module = "INPUT: 1 Byte" 0x10
EndModule
Module = "INPUT: 2 Byte" 0x50
EndModule
Module = "INPUT: 4 Byte" 0x51
EndModule
Module = "INPUT: 8 Byte" 0x53
EndModule
Module = "INPUT: 16 Byte" 0x57
EndModule
Module = "INPUT: 32 Byte" 0x5F
EndModule
Module = "INPUT: 64 Byte" 0x40,0x5F
EndModule
Module = "INPUT: 128 Byte" 0x40,0x7F
EndModule
Module = "OUTPUT: 1 Byte" 0x20
EndModule
Module = "OUTPUT: 2 Byte" 0x60
EndModule
Module = "OUTPUT: 4 Byte" 0x61
EndModule
Module = "OUTPUT: 8 Byte" 0x63
EndModule
Module = "OUTPUT: 16 Byte" 0x67
EndModule
Module = "OUTPUT: 32 Byte" 0x6F
EndModule
Module = "OUTPUT: 64 Byte" 0x80,0x5F
EndModule
Module = "OUTPUT 128 Byte" 0x80,0x7F
EndModule
VVPA3CG/EN M/C004
7.1 GSD file
; data telegram
; state CLEAR not
21
Customers Care Center
© 2018 Schneider Electric. All rights reserved
http://www.schneider-electric.com/ccc
Schneider Electric
35 rue Joseph Monier
92506 Rueil-Malmaison
FRANCE
Phone: +33 (0) 1 41 29 70 00
Fax: +33 (0) 1 41 29 71 00
www.schneider-electric.com
Publication version: VVPA3CG/EN M/B004
Publishing: Schneider Electric
09/2018

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
