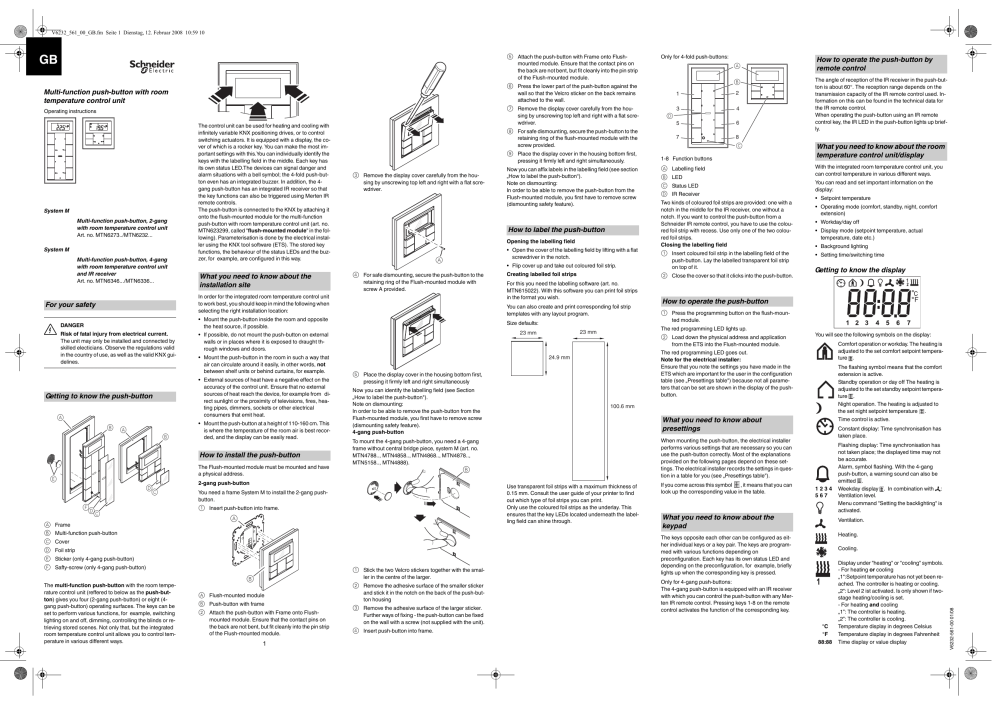

Multi-function push-button with room temperature control unitKapitel3:Taster3.1Taster Plus© Merten2005V6232-561-0001/08
5 Attach the push-button with Frame onto Flushmounted module. Ensure that the contact pins on
the back are not bent, but fit cleanly into the pin strip
of the Flush-mounted module.
7 Remove the display cover carefully from the housing by unscrewing top left and right with a flat screwdriver.
Operating instructions
Multi-function push-button, 2-gang
with room temperature control unit
Art. no. MTN6273../MTN6232...
System M
Multi-function push-button, 4-gang
with room temperature control unit
and IR receiver
Art. no. MTN6346.../MTN6336...
¼
The control unit can be used for heating and cooling with
infinitely variable KNX positioning drives, or to control
switching actuators. It is equipped with a display, the cover of which is a rocker key. You can make the most important settings with this.You can individually identify the
keys with the labelling field in the middle. Each key has
its own status LED.The devices can signal danger and
alarm situations with a bell symbol; the 4-fold push-button even has an integrated buzzer. In addition, the 4gang push-button has an integrated IR receiver so that
the key functions can also be triggered using Merten IR
remote controls.
The push-button is connected to the KNX by attaching it
onto the flush-mounted module for the multi-function
push-button with room temperature control unit (art. no.
MTN623299, called "flush-mounted module" in the following). Parameterisation is done by the electrical installer using the KNX tool software (ETS). The stored key
functions, the behaviour of the status LEDs and the buzzer, for example, are configured in this way.
What you need to know about the
installation site
8 For safe dismounting, secure the push-button to the
retaining ring of the flush-mounted module with the
screw provided.
9 Place the display cover in the housing bottom first,
pressing it firmly left and right simultaneously.
3 Remove the display cover carefully from the housing by unscrewing top left and right with a flat screwdriver.
DANGER
Risk of fatal injury from electrical current.
The unit may only be installed and connected by
skilled electicians. Observe the regulations valid
in the country of use, as well as the valid KNX guidelines.
Opening the labelling field
• Open the cover of the labelling field by lifting with a flat
screwdriver in the notch.
A
• Flip cover up and take out coloured foil strip.
4 For safe dismounting, secure the push-button to the
retaining ring of the Flush-mounted module with
screw A provided.
Getting to know the push-button
A
B
A
B
• Mount the push-button at a height of 110-160 cm. This
is where the temperature of the room air is best recorded, and the display can be easily read.
How to install the push-button
The Flush-mounted module must be mounted and have
a physical address.
E
D
C
F
DC
A Frame
C Cover
D Foil strip
E Sticker (only 4-gang push-button)
1 Stick the two Velcro stickers together with the smaller in the centre of the larger.
B
A Flush-mounted module
B Push-button with frame
2 Attach the push-button with Frame onto Flushmounted module. Ensure that the contact pins on
the back are not bent, but fit cleanly into the pin strip
of the Flush-mounted module.
1
2 Remove the adhesive surface of the smaller sticker
and stick it in the notch on the back of the push-button housing
3 Remove the adhesive surface of the larger sticker.
Further ways of fixing - the push-button can be fixed
on the wall with a screw (not supplied with the unit).
4 Insert push-button into frame.
5
6
7
8
C
1-8 Function buttons
A Labelling field
B LED
C Status LED
D IR Receiver
Two kinds of coloured foil strips are provided: one with a
notch in the middle for the IR receiver, one without a
notch. If you want to control the push-button from a
Schneider IR remote control, you have to use the coloured foil strip with recess. Use only one of the two coloured foil strips.
Closing the labelling field
1 Insert coloured foil strip in the labelling field of the
push-button. Lay the labelled transparent foil strip
on top of it.
What you need to know about the room
temperature control unit/display
With the integrated room temperature control unit, you
can control temperature in various different ways.
You can read and set important information on the
display:
• Setpoint temperature
• Operating mode (comfort, standby, night, comfort
extension)
• Workday/day off
• Display mode (setpoint temperature, actual
temperature, date etc.)
• Background lighting
• Setting time/switching time
Getting to know the display
How to operate the push-button
1 Press the programming button on the flush-mounted module.
You will see the following symbols on the display:
Comfort operation or workday. The heating is
adjusted to the set comfort setpoint temperature .
The flashing symbol means that the comfort
extension is active.
Standby operation or day off The heating is
adjusted to the set standby setpoint temperature .
Night operation. The heating is adjusted to
the set night setpoint temperature .
What you need to know about
presettings
Time control is active.
Constant display: Time synchronisation has
taken place.
When mounting the push-button, the electrical installer
performs various settings that are necessary so you can
use the push-button correctly. Most of the explanations
provided on the following pages depend on these settings. The electrical installer records the settings in question in a table for you (see „Presettings table").
Use transparent foil strips with a maximum thickness of
0.15 mm. Consult the user guide of your printer to find
out which type of foil strips you can print.
Only use the coloured foil strips as the underlay. This
ensures that the key LEDs located underneath the labelling field can shine through.
A
4
The angle of reception of the IR receiver in the push-button is about 60°. The reception range depends on the
transmission capacity of the IR remote control used. Information on this can be found in the technical data for
the IR remote control.
When operating the push-button using an IR remote
control key, the IR LED in the push-button lights up briefly.
100.6 mm
B
1 Insert push-button into frame.
3
D
How to operate the push-button by
remote control
The red programming LED goes out.
Note for the electrical installer:
Ensure that you note the settings you have made in the
ETS which are important for the user in the configuration
table (see „Presettings table") because not all parameters that can be set are shown in the display of the pushbutton.
To mount the 4-gang push-button, you need a 4-gang
frame without central bridge piece, system M (art. no.
MTN4788.., MTN4858.., MTN4868.., MTN4878..,
MTN5158.., MTN4888).
You need a frame System M to install the 2-gang pushbutton.
2
2 Load down the physical address and application
from the ETS into the Flush-mounted module.
5 Place the display cover in the housing bottom first,
pressing it firmly left and right simultaneously
Now you can identify the labelling field (see Section
„How to label the push-button").
Note on dismounting:
In order to be able to remove the push-button from the
Flush-mounted module, you first have to remove screw
(dismounting safety feature).
4-gang push-button
1
The red programming LED lights up.
23 mm
24.9 mm
2-gang push-button
F Safty-screw (only 4-gang push-button)
For this you need the labelling software (art. no.
MTN615022). With this software you can print foil strips
in the format you wish.
23 mm
B Multi-function push-button
The multi-function push-button with the room temperature control unit (reffered to below as the push-button) gives you four (2-gang push-button) or eight (4gang push-button) operating surfaces. The keys can be
set to perform various functions, for example, switching
lighting on and off, dimming, controlling the blinds or retrieving stored scenes. Not only that, but the integrated
room temperature control unit allows you to control temperature in various different ways.
B
2 Close the cover so that it clicks into the push-button.
Size defaults:
• If possible, do not mount the push-button on external
walls or in places where it is exposed to draught through windows and doors.
• External sources of heat have a negative effect on the
accuracy of the control unit. Ensure that no external
sources of heat reach the device, for example from direct sunlight or the proximity of televisions, fires, heating pipes, dimmers, sockets or other electrical
consumers that emit heat.
Creating labelled foil strips
You can also create and print corresponding foil strip
templates with any layout program.
• Mount the push-button inside the room and opposite
the heat source, if possible.
• Mount the push-button in the room in such a way that
air can circulate around it easily, in other words, not
between shelf units or behind curtains, for example.
Now you can affix labels in the labelling field (see section
„How to label the push-button“).
Note on dismounting:
In order to be able to remove the push-button from the
Flush-mounted module, you first have to remove screw
(dismounting safety feature).
How to label the push-button
In order for the integrated room temperature control unit
to work best, you should keep in mind the following when
selecting the right installation location:
For your safety
A
6 Press the lower part of the push-button against the
wall so that the Velcro sticker on the back remains
attached to the wall.
Multi-function push-button with room
temperature control unit
System M
Only for 4-fold push-buttons:
If you come across this symbol
, it means that you can
look up the corresponding value in the table.
1234
567
What you need to know about the
keypad
Flashing display: Time synchronisation has
not taken place; the displayed time may not
be accurate.
Alarm, symbol flashing. With the 4-gang
push-button, a warning sound can also be
emitted .
Weekday display . In combination with :
Ventilation level.
Menu command "Setting the backlighting" is
activated.
Ventilation.
Heating.
The keys opposite each other can be configured as either individual keys or a key pair. The keys are programmed with various functions depending on
preconfiguration. Each key has its own status LED and
depending on the preconfiguration, for example, briefly
lights up when the corresponding key is pressed.
Cooling.
Only for 4-gang push-buttons:
The 4-gang push-button is equipped with an IR receiver
with which you can control the push-button with any Merten IR remote control. Pressing keys 1-8 on the remote
control activates the function of the corresponding key.
°C
°F
88:88
Display under "heating" or "cooling" symbols.
- For heating or cooling
„1“:Setpoint temperature has not yet been reached. The controller is heating or cooling.
„2“: Level 2 ist activated. Is only shown if twostage heating/cooling is set.
- For heating and cooling
„1”: The controller is heating.
„2”: The controller is cooling.
Temperature display in degrees Celsius
Temperature display in degrees Fahrenheit
Time display or value display
V6232-561-00 01/08
GB
V6232_561_00_GB.fm Seite 1 Dienstag, 12. Februar 2008 10:59 10

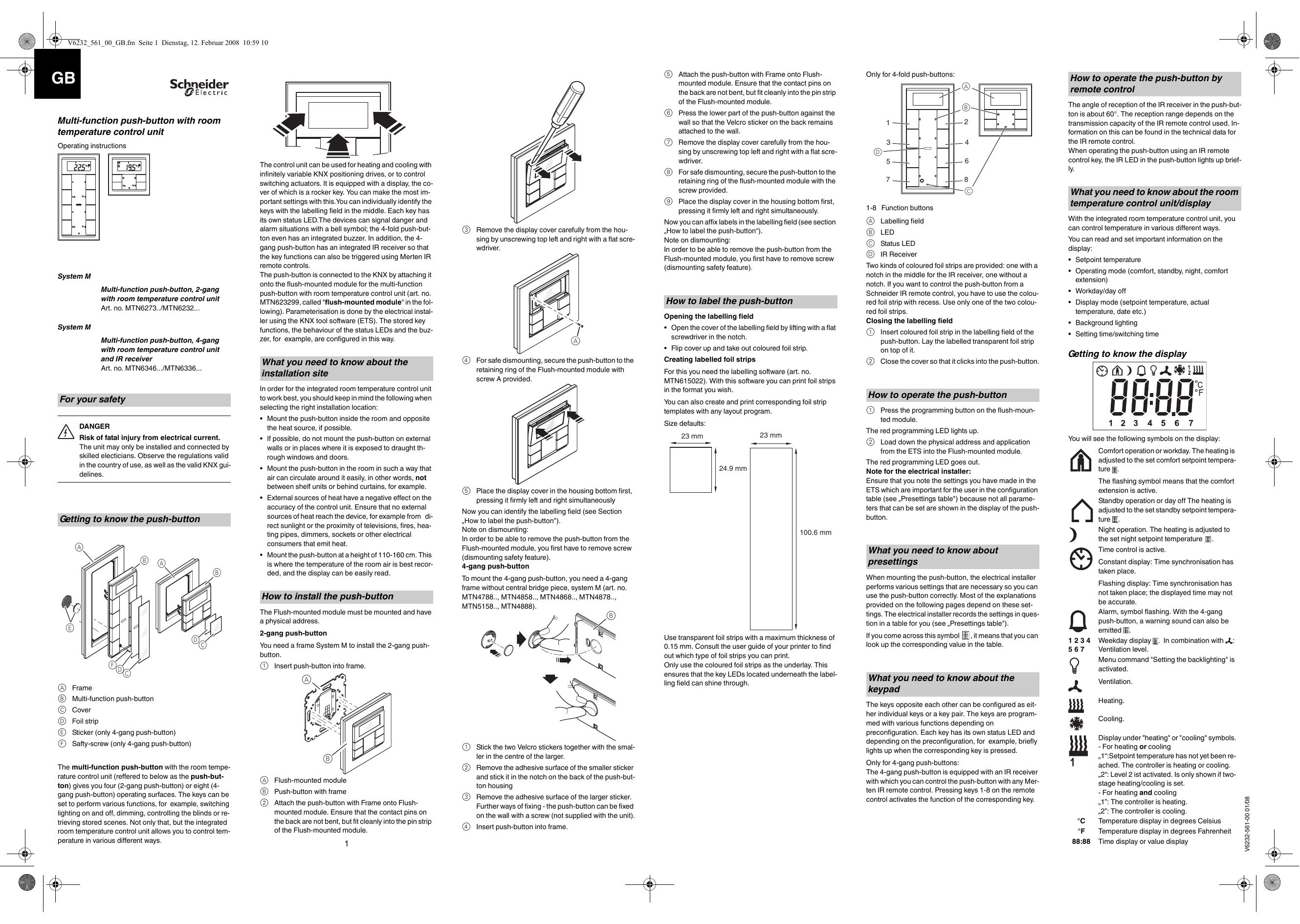

Multi-function push-button with room temperature control unitKapitel3:Taster3.1Taster Plus© Merten2005V6232-561-0001/08
5 Attach the push-button with Frame onto Flushmounted module. Ensure that the contact pins on
the back are not bent, but fit cleanly into the pin strip
of the Flush-mounted module.
7 Remove the display cover carefully from the housing by unscrewing top left and right with a flat screwdriver.
Operating instructions
Multi-function push-button, 2-gang
with room temperature control unit
Art. no. MTN6273../MTN6232...
System M
Multi-function push-button, 4-gang
with room temperature control unit
and IR receiver
Art. no. MTN6346.../MTN6336...
¼
The control unit can be used for heating and cooling with
infinitely variable KNX positioning drives, or to control
switching actuators. It is equipped with a display, the cover of which is a rocker key. You can make the most important settings with this.You can individually identify the
keys with the labelling field in the middle. Each key has
its own status LED.The devices can signal danger and
alarm situations with a bell symbol; the 4-fold push-button even has an integrated buzzer. In addition, the 4gang push-button has an integrated IR receiver so that
the key functions can also be triggered using Merten IR
remote controls.
The push-button is connected to the KNX by attaching it
onto the flush-mounted module for the multi-function
push-button with room temperature control unit (art. no.
MTN623299, called "flush-mounted module" in the following). Parameterisation is done by the electrical installer using the KNX tool software (ETS). The stored key
functions, the behaviour of the status LEDs and the buzzer, for example, are configured in this way.
What you need to know about the
installation site
8 For safe dismounting, secure the push-button to the
retaining ring of the flush-mounted module with the
screw provided.
9 Place the display cover in the housing bottom first,
pressing it firmly left and right simultaneously.
3 Remove the display cover carefully from the housing by unscrewing top left and right with a flat screwdriver.
DANGER
Risk of fatal injury from electrical current.
The unit may only be installed and connected by
skilled electicians. Observe the regulations valid
in the country of use, as well as the valid KNX guidelines.
Opening the labelling field
• Open the cover of the labelling field by lifting with a flat
screwdriver in the notch.
A
• Flip cover up and take out coloured foil strip.
4 For safe dismounting, secure the push-button to the
retaining ring of the Flush-mounted module with
screw A provided.
Getting to know the push-button
A
B
A
B
• Mount the push-button at a height of 110-160 cm. This
is where the temperature of the room air is best recorded, and the display can be easily read.
How to install the push-button
The Flush-mounted module must be mounted and have
a physical address.
E
D
C
F
DC
A Frame
C Cover
D Foil strip
E Sticker (only 4-gang push-button)
B
A Flush-mounted module
B Push-button with frame
2 Attach the push-button with Frame onto Flushmounted module. Ensure that the contact pins on
the back are not bent, but fit cleanly into the pin strip
of the Flush-mounted module.
1 Stick the two Velcro stickers together with the smaller in the centre of the larger.
2 Remove the adhesive surface of the smaller sticker
and stick it in the notch on the back of the push-button housing
3 Remove the adhesive surface of the larger sticker.
Further ways of fixing - the push-button can be fixed
on the wall with a screw (not supplied with the unit).
5
6
8
7
C
1-8 Function buttons
What you need to know about the room
temperature control unit/display
With the integrated room temperature control unit, you
can control temperature in various different ways.
A Labelling field
B LED
You can read and set important information on the
display:
C Status LED
D IR Receiver
Two kinds of coloured foil strips are provided: one with a
notch in the middle for the IR receiver, one without a
notch. If you want to control the push-button from a
Schneider IR remote control, you have to use the coloured foil strip with recess. Use only one of the two coloured foil strips.
Closing the labelling field
1 Insert coloured foil strip in the labelling field of the
push-button. Lay the labelled transparent foil strip
on top of it.
• Setpoint temperature
• Operating mode (comfort, standby, night, comfort
extension)
• Workday/day off
• Display mode (setpoint temperature, actual
temperature, date etc.)
• Background lighting
• Setting time/switching time
Getting to know the display
How to operate the push-button
1 Press the programming button on the flush-mounted module.
You will see the following symbols on the display:
Comfort operation or workday. The heating is
adjusted to the set comfort setpoint temperature .
The flashing symbol means that the comfort
extension is active.
Standby operation or day off The heating is
adjusted to the set standby setpoint temperature .
Night operation. The heating is adjusted to
the set night setpoint temperature .
What you need to know about
presettings
Time control is active.
Constant display: Time synchronisation has
taken place.
When mounting the push-button, the electrical installer
performs various settings that are necessary so you can
use the push-button correctly. Most of the explanations
provided on the following pages depend on these settings. The electrical installer records the settings in question in a table for you (see „Presettings table").
Use transparent foil strips with a maximum thickness of
0.15 mm. Consult the user guide of your printer to find
out which type of foil strips you can print.
Only use the coloured foil strips as the underlay. This
ensures that the key LEDs located underneath the labelling field can shine through.
A
4
The angle of reception of the IR receiver in the push-button is about 60°. The reception range depends on the
transmission capacity of the IR remote control used. Information on this can be found in the technical data for
the IR remote control.
When operating the push-button using an IR remote
control key, the IR LED in the push-button lights up briefly.
100.6 mm
B
1 Insert push-button into frame.
3
D
How to operate the push-button by
remote control
The red programming LED goes out.
Note for the electrical installer:
Ensure that you note the settings you have made in the
ETS which are important for the user in the configuration
table (see „Presettings table") because not all parameters that can be set are shown in the display of the pushbutton.
To mount the 4-gang push-button, you need a 4-gang
frame without central bridge piece, system M (art. no.
MTN4788.., MTN4858.., MTN4868.., MTN4878..,
MTN5158.., MTN4888).
You need a frame System M to install the 2-gang pushbutton.
2
2 Load down the physical address and application
from the ETS into the Flush-mounted module.
5 Place the display cover in the housing bottom first,
pressing it firmly left and right simultaneously
Now you can identify the labelling field (see Section
„How to label the push-button").
Note on dismounting:
In order to be able to remove the push-button from the
Flush-mounted module, you first have to remove screw
(dismounting safety feature).
4-gang push-button
1
The red programming LED lights up.
23 mm
24.9 mm
2-gang push-button
F Safty-screw (only 4-gang push-button)
For this you need the labelling software (art. no.
MTN615022). With this software you can print foil strips
in the format you wish.
23 mm
B Multi-function push-button
The multi-function push-button with the room temperature control unit (reffered to below as the push-button) gives you four (2-gang push-button) or eight (4gang push-button) operating surfaces. The keys can be
set to perform various functions, for example, switching
lighting on and off, dimming, controlling the blinds or retrieving stored scenes. Not only that, but the integrated
room temperature control unit allows you to control temperature in various different ways.
B
2 Close the cover so that it clicks into the push-button.
Size defaults:
• If possible, do not mount the push-button on external
walls or in places where it is exposed to draught through windows and doors.
• External sources of heat have a negative effect on the
accuracy of the control unit. Ensure that no external
sources of heat reach the device, for example from direct sunlight or the proximity of televisions, fires, heating pipes, dimmers, sockets or other electrical
consumers that emit heat.
Creating labelled foil strips
You can also create and print corresponding foil strip
templates with any layout program.
• Mount the push-button inside the room and opposite
the heat source, if possible.
• Mount the push-button in the room in such a way that
air can circulate around it easily, in other words, not
between shelf units or behind curtains, for example.
Now you can affix labels in the labelling field (see section
„How to label the push-button“).
Note on dismounting:
In order to be able to remove the push-button from the
Flush-mounted module, you first have to remove screw
(dismounting safety feature).
How to label the push-button
In order for the integrated room temperature control unit
to work best, you should keep in mind the following when
selecting the right installation location:
For your safety
A
6 Press the lower part of the push-button against the
wall so that the Velcro sticker on the back remains
attached to the wall.
Multi-function push-button with room
temperature control unit
System M
Only for 4-fold push-buttons:
If you come across this symbol
, it means that you can
look up the corresponding value in the table.
1234
567
What you need to know about the
keypad
Ventilation.
Heating.
The keys opposite each other can be configured as either individual keys or a key pair. The keys are programmed with various functions depending on
preconfiguration. Each key has its own status LED and
depending on the preconfiguration, for example, briefly
lights up when the corresponding key is pressed.
Cooling.
Only for 4-gang push-buttons:
The 4-gang push-button is equipped with an IR receiver
with which you can control the push-button with any Merten IR remote control. Pressing keys 1-8 on the remote
control activates the function of the corresponding key.
4 Insert push-button into frame.
2
Flashing display: Time synchronisation has
not taken place; the displayed time may not
be accurate.
Alarm, symbol flashing. With the 4-gang
push-button, a warning sound can also be
emitted .
Weekday display . In combination with :
Ventilation level.
Menu command "Setting the backlighting" is
activated.
°C
°F
88:88
Display under "heating" or "cooling" symbols.
- For heating or cooling
„1“:Setpoint temperature has not yet been reached. The controller is heating or cooling.
„2“: Level 2 ist activated. Is only shown if twostage heating/cooling is set.
- For heating and cooling
„1”: The controller is heating.
„2”: The controller is cooling.
Temperature display in degrees Celsius
Temperature display in degrees Fahrenheit
Time display or value display
V6232-561-00 01/08
GB
V6232_561_00_GB.fm Seite 2 Dienstag, 12. Februar 2008 10:59 10
Using the control menu
Setting setpoint temperature
Setting workday/day off
Setting background illumination
There is a control menu to access the individual functions of the room temperature control unit.
From the standard display:
Aus der Basisanzeige:
From the standard display:
1 1 x key centre – long key press.
1 1 x key medium – longer key press.
1 1 x key medium – longer key press.
A 3-way rocker is integrated into the display cover: left,
centre and right. With these keys you can access the
control menu, scroll backwards and forwards and
change individual values.
The menu command "setting the setpoint temperature"
is shown with the value last set, for example 24 °C.
2 2 x key centre – short key press.
2 4 x key centre – short key press.
The "setting working day/day off" menu command is
shown, for example, h 1 = Working day (h = here).
The "setting the backlighting" menu command is shown
with the brightness level last set, for example, L 8 =
brightness level 8 (l = luminosity).
Operation mode
Workday/
day off
Start
Standard
Display
t2.1 ... t2.4
t1.1 ... t1.4
t0
Backlighting
Time/
switching time
Key press
Function triggered
The control menu open.
Within the menu:
Medium -long
key press
This enables you to save a value and
return to the standard display automatically.
Within the menu this opens the next
menu command.
Medium -short
key press
This changes the individual values in
the control menu incrementally.
Left/right -short
key press
Left/right -long This changes the individual values
key press
automatically (fast forward or back).
If you don't press any key within a period of approx.
1 min., the room temperature control unit automatically
returns to the standard display. The values that were set
before the control menu was opened are restored; changes that you may have made are not save.
Your electrical installer has defined six setpoint temperatures
:
• One comfort setpoint temperature (for comfort operation) each for heating and cooling
• One standby setpoint temperature (for standby operation) each for heating and cooling
• Night setpoint temperature (for night operation) for
both heating and cooling
You see the setpoint temperature of the current operation
mode. You can only change this setpoint temperature. In
order to change the setpoint temperature of another operating mode, you have to switch operating mode first
(see „Setting the operation mode“).
This new setpoint temperature is valid either until the
next time the operating mode is switched or permanently, depending on preconfiguration .
Your electrical installer has specified
within which limits this value can be changed, for example, within a minimum of 16°C to a maximum of 26°C. You cannot set a
value below or under these limit values.
If the electrical installer has made the appropriate setting
, the 4-gang push-button will give a warning sound as
soon as you try to exceed these limit values.
2 ou can change the value in 0.5 degree increments
by pressing the left or right key on the display.
3 Save the new desired setpoint temperature by giving the centre key a long press.
Setting the operating mode
How to operate the push-button
1 Press the programming button on the flush-mounted module.
2 1 x key centre – short key press.
2 Load down the physical address and application
from the ETS into the Flush-mounted module.
The red programming LED goes out.
Note for the electrical installer:
Ensure that you note the settings you have made in the
ETS which are important for the user in the configuration
table (see „Presettings table") because not all parameters that can be set are shown in the display of the pushbutton.
Setting the room temperature control
unit/display view
Standard display
Here you see an example of the standard display:
•
"Comfort" operating mode.
• Actual temperature
.
• Heating
is active in order to reach the comfort setpoint temperature .
•
is constantly displayed: Time synchronisation with
the timer (e.g., annual timer REG-K)
• Weekday display3 = Wednesday
Remember that the display of the weekday depends on
the pre-settings. Your electrical installer has set
a
specific weekday to 1. In some countries the first day of
the week is not Monday, but Sunday, for example. The
other numbers have different meanings accordingly
(e. g., 2 = Monday, 3 = Tuesday etc.)
3 Switch by pressing the left or right key on the display.
1 1 x key medium – longer key press.
• b 2 = Night operation
The heating is set to the night setpoint temperature
(e. g., to 15 °C
).
• b 3 = Comfort extension
(flashes)
Select this operating mode if you want to suppress the
night operation temporarily. The heating is set to the
comfort setpoint temperature (for example, 21 °C ).
Your electrical installer may have set , the times at
which the operating mode switches automatically from
night operation to comfort mode and vice versa.
4 Save the new desired operation mode by giving the
centre key a long press.
The new operating mode is stored; the standard display
can be seen.
3
ER...
From the standard display:
1 1 x key centre – long key press.
The new setting is stored; the standard display is shown.
The clock symbol and "t 0" are displayed (t = time).
2 5 x key centre – short key press.
This message is shown together with an
error number when an error occurs, e. g.
after an initialisation, after a power failure or
if, for example, the current temperature is
not correctly recorded.
If such an error message appears, always
contact your electrician
A 1 ... A 5 This message is shown during the initialisation phase (for approx. 1 minute). No action is necessary.
Setting display mode
Presettings table
From the standard display:
Stored key function:
1 1 x key medium – longer key press.
2 3 x key medium – longer key press
The "setting the display mode" menu command is shown
with the display mode last set, for example, d 0 = actual
temperature (d = display).
3 By pressing the left or right key on the display, you
can now scroll through to adjust the time or switching time:
• t 0 = time (either transmitted from the external time
switch or from the internal clock)
• t 1.1 to t 1.4 = time channel 1, switching time 1-4
• t 2.1 to t 2.4 = time channel 2, switching time 1-4
With this menu command you can specify which values
you want to see in the standard display view.
3 Switch to the next display mode by pressing the left
or right key on the display.
• d 1 = Setpoint temperature (to 0.5 degree accuracy)
• d 2 = Temperatur from external temperature sensor
• d 3 = Date
• d 4 = Time
If the time is updated by an external time switch, the updated time is displayed here. If you change this time manually, it will be overwritten again by the time switch
during the next update.
The control menu allows you to adjust only the switching
times which have been preprogrammed via the ETS. Unspecified switching times in the ETS are shown when
they are called up in the display with
„--:--“ and cannot be set using the keys on the display.
4 Press the centre key for a long time. The hour display for the selected time/switching time starts to
flash.
• d 8 = Actual and setpoint temperature alternatel
5 Press the left or right key on the display to set the
hours as required (short key press = step-by-step
adjustment, long key press = continuous adjustment).
• d 9 = Actual/setpoint temperature and time (alternating)
6 Press the centre key briefly. The minute digits now
flash.
• d 10 = Actual/setpoint temperature and ventilation level alternately
7 Press the left or right key on the display to set the minutes as required (short key press = step-by-step
adjustment, long key press = continuous adjustment).
• d 7 = Date, time and ventilation level alternatel
• b 1 = Standby mode
Select this operation mode when you are not in the
room over a longer period of time. The heating is set to
the standby setpoint temperature (e. g., to 18 °C ).
The new brightness level is saved; the standard display
is shown.
4 Save the new desired setting by giving the centre
key a long press.
• d 6 = Date and time alternately
• b 0 = Comfort mode
Select this operation mode if you are staying in the
room. The heating is set to the comfort setpoint temperature (e. g., 21 °C
).
The menu command "setting the setpoint temperature"
or "setting the operating mode" is displayed with the last
set value. Change the value by pressing the left or right
key on the display. The value is directly applied; you don't
have to save separately. After approx. 5 seconds the
room temperature control unit returns automatically to
the standard display.
Other display views
• h 1 = working day
• d 5 = Ventilation level
3 Switch to the next operation mode by pressing the
left or right key on the display.
1 1 x key leftt/right – short key press.
4 Save the new level of brightness by giving the centre
key a long press.
• h 0 = day off
• d 0 = Actual temperature (without decimal point)v
The "setting the operating mode" menu command is
shown with the last operating mode set and the corresponding symbol, for example, b 0, house with person =
operating mode (b = base mode) comfort.
3 Switch to the desired level of brightness from 0
(dark) to 9 (bright) by pressing the left or right key on
the display.
Setting the internal time and switching
times
The new setpoint temperature is saved; the standard display reopens.
From the standard display:
The red programming LED lights up.
Your electrical installer can set the room temperature
control unit with an external time switch in such a way
that certain weekdays are considered as workdays (for
example, Mon-Fri), and others as days off. Depending
on the setting, the heating is for example turned down on
days off also during the day in order to save energy. If you
nevertheless want to heat the room on a day considered
a day off or vice versa, you can make the appropriate setting here.
Your electrical installer has specified
whether you can
access and adjust the setpoint temperature or the operating mode directly by pressing the right/left key, or whether none of these functions is activated.
• d 11 = Temperatur from external temperature sensor
and
actual temperature
• d 12 = TTemperatur from external temperature sensor,
actual temperature and time (alternating)
• d 13 = Actual/setpoint temperature, date and time (alternating)
• d 14 = Actual/setpoint temperature, ventilation level
and time (alternating)
• d 15 = Temperatur from external temperature sensor,
actual temperature, ventilation level and time (alternating)
8 Press the centre key briefly. The selected time/
switching time (t...) reappears.
9 Save the new desired setting by giving the centre
key a long pres.
The new time/switching time is saved; the standard display is shown.
We recommend that you synchronise the time via an external time switch to guarantee precision over a long period of time.
Key 1
Key 3
Key 5
Key 7
______________
______________
______________
______________
Key 2
Key 4
Key 6
Key 8
______________
______________
______________
______________
Time control channel 1
Switching time
Function:
1
2
3
4
___:__ ___:___ ___:__ ___:__
____________________________
Time control channel 2
Switching time
Function:
1
2
3
4
___:___ ___:__ ___:__ ___:__
____________________________
Alarm functions
Alarm sounds if current temperature is less
than the frost protection temperature or greater
than the heat protection temperature or
Alarm sounds when the setpoint shift limit is exceeded
Others: ______________________________
Setpoint values heating
Comf
ort:
____
Stan
dby:
____
Night ____
:
Adjust°C ment
_____ °C max ____ °C
limit
min
Adjust°C ment
_____ °C max ____ °C
limit
min
Adjust°C ment
_____ °C max ____ °C
limit
min
Setpoint values cooling
Comfort:
Adjust____ °C ment
limit
min
StandAdjustby:
____ °C ment
limit
min
AdjustNight: ____ °C ment
limit
min
Frost
Heat
protec- ____ °C protection:
tio:
____ °C max ____ °C
____ °C max ____ °C
____ °C max ____ °C
____ °C
Setpoint adjustment valid until: Operation mode
change / permanent
Week starts (1): on Fri / Sat / Sun / Mon
Direct selection: Setpoint temperature / operating
mode / none
Technical data
Power supply:
Connection:
Display elements:
from Flush-mounted module
AI, 10-pole strip
4 status LED (art.
no.MTN6232...)
8 status LED (art. no.
MTN6236...)
1Operating LED
Display
Piezo buzzer (art. no.
MTN6236...)
Operating elements: 4 keys (art. no. MTN6232...)
8 keys (art. no. MTN6236...)
3 keys for navigate menu
IR receiver (art. no.
MTN6236...)
Measurement range: 0 to 40 °C
Measurement accu
racy:
± 1 K, depends on installation
location
Offset can be parameterised
Controller type:
2-point controller
continuous PI controller
switching PI controller (PWM)
Controller mode:
Heating with 1 controller output
Cooling with 1 controller output
Heating and cooling with seperate controller outputs
2-stage heating with 2 controller
outputs
2-stage cooling with 2 controller
outputs
Protection type:
IP 20
Schneider Electric Industries SAS
If you have technical questions, please contact the Customer Care Center in your country.
www.schneider-electric.com
This product must be installed, connected and used in
compliance with prevailing standards and/or installation
regulations. As standards, specifications and designs
develop from time to time, always ask for confirmation of
the information given in this publication.
4 Save the new desired setting by giving the centre
key a long press.
The new setting is stored; the standard display is shown.
V6232-561-00 01/08
Setpoint
temperature
Selecting the setpoint temperature or
operation mode directly
V6232_561_00_GB.fm Seite 2 Dienstag, 12. Februar 2008 10:59 10
Using the control menu
Setting setpoint temperature
Setting workday/day off
Setting background illumination
There is a control menu to access the individual functions of the room temperature control unit.
From the standard display:
Aus der Basisanzeige:
From the standard display:
1 1 x key centre – long key press.
1 1 x key medium – longer key press.
1 1 x key medium – longer key press.
A 3-way rocker is integrated into the display cover: left,
centre and right. With these keys you can access the
control menu, scroll backwards and forwards and
change individual values.
The menu command "setting the setpoint temperature"
is shown with the value last set, for example 24 °C.
2 2 x key centre – short key press.
2 4 x key centre – short key press.
The "setting working day/day off" menu command is
shown, for example, h 1 = Working day (h = here).
The "setting the backlighting" menu command is shown
with the brightness level last set, for example, L 8 =
brightness level 8 (l = luminosity).
Operation mode
Workday/
day off
Start
Standard
Display
t2.1 ... t2.4
t1.1 ... t1.4
t0
Backlighting
Time/
switching time
Key press
Function triggered
The control menu open.
Within the menu:
Medium -long
key press
This enables you to save a value and
return to the standard display automatically.
Within the menu this opens the next
menu command.
Medium -short
key press
This changes the individual values in
the control menu incrementally.
Left/right -short
key press
Left/right -long This changes the individual values
key press
automatically (fast forward or back).
If you don't press any key within a period of approx.
1 min., the room temperature control unit automatically
returns to the standard display. The values that were set
before the control menu was opened are restored; changes that you may have made are not save.
Your electrical installer has defined six setpoint temperatures
:
• One comfort setpoint temperature (for comfort operation) each for heating and cooling
• One standby setpoint temperature (for standby operation) each for heating and cooling
• Night setpoint temperature (for night operation) for
both heating and cooling
You see the setpoint temperature of the current operation
mode. You can only change this setpoint temperature. In
order to change the setpoint temperature of another operating mode, you have to switch operating mode first
(see „Setting the operation mode“).
This new setpoint temperature is valid either until the
next time the operating mode is switched or permanently, depending on preconfiguration .
Your electrical installer has specified
within which limits this value can be changed, for example, within a minimum of 16°C to a maximum of 26°C. You cannot set a
value below or under these limit values.
If the electrical installer has made the appropriate setting
, the 4-gang push-button will give a warning sound as
soon as you try to exceed these limit values.
2 ou can change the value in 0.5 degree increments
by pressing the left or right key on the display.
3 Save the new desired setpoint temperature by giving the centre key a long press.
Setting the operating mode
How to operate the push-button
1 Press the programming button on the flush-mounted module.
2 1 x key centre – short key press.
2 Load down the physical address and application
from the ETS into the Flush-mounted module.
The red programming LED goes out.
Note for the electrical installer:
Ensure that you note the settings you have made in the
ETS which are important for the user in the configuration
table (see „Presettings table") because not all parameters that can be set are shown in the display of the pushbutton.
Setting the room temperature control
unit/display view
Standard display
Here you see an example of the standard display:
•
"Comfort" operating mode.
• Actual temperature
.
• Heating
is active in order to reach the comfort setpoint temperature .
•
is constantly displayed: Time synchronisation with
the timer (e.g., annual timer REG-K)
• Weekday display3 = Wednesday
Remember that the display of the weekday depends on
the pre-settings. Your electrical installer has set
a
specific weekday to 1. In some countries the first day of
the week is not Monday, but Sunday, for example. The
other numbers have different meanings accordingly
(e. g., 2 = Monday, 3 = Tuesday etc.)
3 Switch by pressing the left or right key on the display.
1 1 x key medium – longer key press.
• b 2 = Night operation
The heating is set to the night setpoint temperature
(e. g., to 15 °C
).
• b 3 = Comfort extension
(flashes)
Select this operating mode if you want to suppress the
night operation temporarily. The heating is set to the
comfort setpoint temperature (for example, 21 °C ).
Your electrical installer may have set , the times at
which the operating mode switches automatically from
night operation to comfort mode and vice versa.
4 Save the new desired operation mode by giving the
centre key a long press.
ER...
From the standard display:
1 1 x key centre – long key press.
The new setting is stored; the standard display is shown.
The clock symbol and "t 0" are displayed (t = time).
2 5 x key centre – short key press.
This message is shown together with an
error number when an error occurs, e. g.
after an initialisation, after a power failure or
if, for example, the current temperature is
not correctly recorded.
If such an error message appears, always
contact your electrician
A 1 ... A 5 This message is shown during the initialisation phase (for approx. 1 minute). No action is necessary.
Setting display mode
Presettings table
From the standard display:
Stored key function:
1 1 x key medium – longer key press.
2 3 x key medium – longer key press
The "setting the display mode" menu command is shown
with the display mode last set, for example, d 0 = actual
temperature (d = display).
3 By pressing the left or right key on the display, you
can now scroll through to adjust the time or switching time:
• t 0 = time (either transmitted from the external time
switch or from the internal clock)
• t 1.1 to t 1.4 = time channel 1, switching time 1-4
• t 2.1 to t 2.4 = time channel 2, switching time 1-4
With this menu command you can specify which values
you want to see in the standard display view.
3 Switch to the next display mode by pressing the left
or right key on the display.
• d 1 = Setpoint temperature (to 0.5 degree accuracy)
• d 2 = Temperatur from external temperature sensor
• d 3 = Date
• d 4 = Time
If the time is updated by an external time switch, the updated time is displayed here. If you change this time manually, it will be overwritten again by the time switch
during the next update.
The control menu allows you to adjust only the switching
times which have been preprogrammed via the ETS. Unspecified switching times in the ETS are shown when
they are called up in the display with
„--:--“ and cannot be set using the keys on the display.
4 Press the centre key for a long time. The hour display for the selected time/switching time starts to
flash.
• d 8 = Actual and setpoint temperature alternatel
5 Press the left or right key on the display to set the
hours as required (short key press = step-by-step
adjustment, long key press = continuous adjustment).
• d 9 = Actual/setpoint temperature and time (alternating)
6 Press the centre key briefly. The minute digits now
flash.
• d 10 = Actual/setpoint temperature and ventilation level alternately
7 Press the left or right key on the display to set the minutes as required (short key press = step-by-step
adjustment, long key press = continuous adjustment).
• d 7 = Date, time and ventilation level alternatel
• b 1 = Standby mode
Select this operation mode when you are not in the
room over a longer period of time. The heating is set to
the standby setpoint temperature (e. g., to 18 °C ).
The new brightness level is saved; the standard display
is shown.
4 Save the new desired setting by giving the centre
key a long press.
• d 6 = Date and time alternately
• b 0 = Comfort mode
Select this operation mode if you are staying in the
room. The heating is set to the comfort setpoint temperature (e. g., 21 °C
).
The menu command "setting the setpoint temperature"
or "setting the operating mode" is displayed with the last
set value. Change the value by pressing the left or right
key on the display. The value is directly applied; you don't
have to save separately. After approx. 5 seconds the
room temperature control unit returns automatically to
the standard display.
Other display views
• h 1 = working day
• d 5 = Ventilation level
3 Switch to the next operation mode by pressing the
left or right key on the display.
1 1 x key leftt/right – short key press.
4 Save the new level of brightness by giving the centre
key a long press.
• h 0 = day off
• d 0 = Actual temperature (without decimal point)v
The "setting the operating mode" menu command is
shown with the last operating mode set and the corresponding symbol, for example, b 0, house with person =
operating mode (b = base mode) comfort.
3 Switch to the desired level of brightness from 0
(dark) to 9 (bright) by pressing the left or right key on
the display.
Setting the internal time and switching
times
The new setpoint temperature is saved; the standard display reopens.
From the standard display:
The red programming LED lights up.
Your electrical installer can set the room temperature
control unit with an external time switch in such a way
that certain weekdays are considered as workdays (for
example, Mon-Fri), and others as days off. Depending
on the setting, the heating is for example turned down on
days off also during the day in order to save energy. If you
nevertheless want to heat the room on a day considered
a day off or vice versa, you can make the appropriate setting here.
Your electrical installer has specified
whether you can
access and adjust the setpoint temperature or the operating mode directly by pressing the right/left key, or whether none of these functions is activated.
• d 11 = Temperatur from external temperature sensor
and
actual temperature
• d 12 = TTemperatur from external temperature sensor,
actual temperature and time (alternating)
• d 13 = Actual/setpoint temperature, date and time (alternating)
• d 14 = Actual/setpoint temperature, ventilation level
and time (alternating)
• d 15 = Temperatur from external temperature sensor,
actual temperature, ventilation level and time (alternating)
8 Press the centre key briefly. The selected time/
switching time (t...) reappears.
9 Save the new desired setting by giving the centre
key a long pres.
The new time/switching time is saved; the standard display is shown.
We recommend that you synchronise the time via an external time switch to guarantee precision over a long period of time.
Key 1
Key 3
Key 5
Key 7
______________
______________
______________
______________
Key 2
Key 4
Key 6
Key 8
______________
______________
______________
______________
Time control channel 1
Switching time
Function:
1
2
3
4
___:__ ___:___ ___:__ ___:__
____________________________
Time control channel 2
Switching time
Function:
1
2
3
4
___:___ ___:__ ___:__ ___:__
____________________________
Alarm functions
Alarm sounds if current temperature is less
than the frost protection temperature or greater
than the heat protection temperature or
Alarm sounds when the setpoint shift limit is exceeded
Others: ______________________________
Setpoint values heating
Comf
ort:
____
Stan
dby:
____
Night ____
:
Adjust°C ment
_____ °C max ____ °C
limit
min
Adjust°C ment
_____ °C max ____ °C
limit
min
Adjust°C ment
_____ °C max ____ °C
limit
min
Setpoint values cooling
Comfort:
Adjust____ °C ment
limit
min
StandAdjustby:
____ °C ment
limit
min
AdjustNight: ____ °C ment
limit
min
Frost
Heat
protec- ____ °C protection:
tio:
____ °C max ____ °C
____ °C max ____ °C
____ °C max ____ °C
____ °C
Setpoint adjustment valid until: Operation mode
change / permanent
Week starts (1): on Fri / Sat / Sun / Mon
Direct selection: Setpoint temperature / operating
mode / none
Technical data
Power supply:
Connection:
Display elements:
from Flush-mounted module
AI, 10-pole strip
4 status LED (art.
no.MTN6232...)
8 status LED (art. no.
MTN6236...)
1Operating LED
Display
Piezo buzzer (art. no.
MTN6236...)
Operating elements: 4 keys (art. no. MTN6232...)
8 keys (art. no. MTN6236...)
3 keys for navigate menu
IR receiver (art. no.
MTN6236...)
Measurement range: 0 to 40 °C
Measurement accu
racy:
± 1 K, depends on installation
location
Offset can be parameterised
Controller type:
2-point controller
continuous PI controller
switching PI controller (PWM)
Controller mode:
Heating with 1 controller output
Cooling with 1 controller output
Heating and cooling with seperate controller outputs
2-stage heating with 2 controller
outputs
2-stage cooling with 2 controller
outputs
Protection type:
IP 20
Schneider Electric Industries SAS
If you have technical questions, please contact the Customer Care Center in your country.
www.schneider-electric.com
This product must be installed, connected and used in
compliance with prevailing standards and/or installation
regulations. As standards, specifications and designs
develop from time to time, always ask for confirmation of
the information given in this publication.
4 Save the new desired setting by giving the centre
key a long press.
The new setting is stored; the standard display is shown.
The new operating mode is stored; the standard display
can be seen.
4
V6232-561-00 01/08
Setpoint
temperature
Selecting the setpoint temperature or
operation mode directly
Multi-function with 1814/3.1
● Setting the display
Multi-function with 1814/3.1
Here you can make all the settings required for the
multi-function push-button display. You can disable the
control menu so that the display push-buttons cannot
be used to make further changes to the settings.
You can specify the content of the display (actual
value, setpoint, time, date, external temperature, and
fan speed). You can display these values either
individually or in alternation. You can also set the
display rhythm for alternating displays. The display
mode can also be set using the control menu on the
push-button.
General
Application 1814/3.1 has been developed for the multifunction push-button with RTCU. The multi-function
push-button with RTCU is a convenient push-button
with: time control, scene functions, temperature
control, disable functions, and various display
functions.
With this application, two objects are available per
push-button.
The "push-button pair" concept is not applied here - in
other words, you can parameterise the push-buttons
independently of each other. Previously, for example,
one switch object would appear in the ETS for one
switching function per "push-button pair". In order to
realise the same function with this software, you must
connect two switch objects belonging to the two
push-buttons in question in the ETS.
Group addresses are managed dynamically. Maximum
no. of group addresses and associations: 150.
For the weekday display, you can set day "1". This
means that the first weekday can be defined as: Friday,
Saturday, Sunday or Monday. Each weekday is then
shown in the display with a different number
accordingly. You can also set the time format.
You can set the unit of temperature display (degrees/
Fahrenheit).
The first operating level is shown when the controller
is switched on ("General controller" tab - "Controller").
Here, you can set the setpoint adjustment, operation
mode adjustment or no adjustment by brief pushbutton action on the display push-button.
The background lighting on the display can either be
switched off or on at all times, or can be switched on
during operation. You can also set the persistence
period and the brightness of the background lighting.
Device selection:
| hardware used, since when the device
First you must adapt the application to the
selection is toggled, parameter settings and
related group addresses are changed by the
ETS. Select the "2-gang" or "4-gang" setting for
multi-function push-buttons for System M or
System Design. Select the "3-gang" setting for
the Plantec multi-function push-button.
| display mode set here can be changed using the
The parameters for the background lighting and
display push-buttons on the multi-function pushbutton (see operating instructions).
Parameter
Parameter
General
Parameter
Setting
Multi-function push-button with
RTCU
2-gang
Display
3-gang
4-gang
Operational LED (only visible for
2-gang or 4-gang setting)
Switched on
Acoustic push-button
acknowledgement
Switched on
IR range
1 - 8, 11 - 18, 21 - 28, 31 - 38, 41 48
Parameter
Setting
Enable control menu
Yes
No
Display mode
Switched off
Actual temperature
Setpoint temperature
External temperature
Switched off
Date
Time
Fan speed
● Push-button info
Date/time
The push-button info lets you see which designations
are used in the ETS for the push-buttons on the multifunction push-button. The designations cannot be
changed.
Actual temperature, setpoint
temperature
Date, time, fan speed
Actual temperature, setpoint
temperature, time
Actual temperature, setpoint
temperature, fan speed
External temperature, actual
temperature
External temperature, actual
temperature, time
Actual temperature, setpoint
temperature, date, time
© 2008 Schneider Electric
5
Multi-function with 1814/3.1
● Transmit 1/8 bit toggle commands
Display
Parameter
Setting
You can simultaneously address two actuator groups
with 1 or 8 bits.
With a 1 bit object type, the object value is first
inverted with each push-button action, then
transmitted to the bus, i. e. a "0" becomes a "1", and
when the same push-button is pushed again, a "1"
becomes a "0". The device is thus switched on and off
alternately. This switching behaviour is called
"toggling". An update or change to the 1 bit/1 byte
object value is possible via the bus when another
sensor switches the actuator (e .g. via a two-way
circuit or a central command). To prevent "incorrect"
toggling, you must load the status of the actuator ("1"
or "0") in the push-button. To do this, connect the group
address of the second sensor to the switch/value
object of the multi-function push-button.
For 1 byte object types, you can set two values, which
are transmitted alternately after each press.
Two objects can also be transmitted in any
combination when the push-button is activated (1 bit /
1 byte).
Actual temperature, setpoint
temperature, fan speed, time
External temperature, actual
temperature, fan speed, time
Display rhythm
3 - 10 sec., 5 sec.
preconfiguration
Time display
00:00 ... 23:59
01:00 ... 12:59 (AM/PM)
Only when controller on:
first control level
None
Setpoint change
Operation mode change
Unit of temperature display
°C/°F
Display "1" corresponds to
Friday
Saturday
Sunday
Monday
Background lighting
Always switched off
Always switched on
Switched on during operation
+ persistence
Persistence period in seconds
(1-254)
1 - 254, 10 preconfiguration
Brightness of background lighting 1 - 10, 5 preconfiguration
(1 = very dark/10 = very bright)
Status indication
The status LED can
– Light up when pressed (for long period), and go out
when released,
– Be on or off continuously,
– Flash,
– Display the status of the switch/value object. When
a 1 byte object type is used, the LED lights up when
value 1 is greater than zero,
– Display the status of the status feedback object.
Communication objects
You can select the following communication objects:
Function
Object name
Type
Prio
Flags Behaviour
Time control Time object
3 byte Low
WC
Receive
Time control Date object
3 byte Low
WC
Receive
Time control Time request
1 bit
CT
Transmit
Low
Communication objects
You can select the following communication objects:
Per push-button:
© 2008 Schneider Electric
6
Function
Object name
Type
Prio
Flags Behaviour
Pushbutton X
Switch object A/B 1 bit
Low
WCT Transmit/
receive
Pushbutton X
Value object A/B 1 byte Low
WCT Transmit/
receive
Pushbutton X
Status feedback
object
WC
1 bit
Low
Receive
Multi-function with 1814/3.1
Parameter
Status indication
Push-button X
The status LED can
– Light up when pressed (for long period), and go out
when released,
– Be on or off continuously,
– Flash,
– Display the status of the switch/value object. When
a 1 byte object type is used, the LED lights up when
the value is greater than zero,
– Display the status of the status feedback object.
Parameter
Setting
Functional selection
Toggle
Number of objects
One
Two
With two objects:
Activation of status LED
Switched on
Switched off
From switch/value object A
From switch/value object B
From status feedback object
For actuation = ON/release =
OFF
Communication objects
For prolonged actuation = ON/
release = OFF
You can select the following communication objects:
Flashes
Per push-button:
Flashes if switch/value object A
not equal to 0
Flashes if switch/value object B
not equal to 0
Flashes if switch/value object A
equal to 0
Flashes if switch/value object B
equal to 0
Flashes if status feedback
object equal to 1
Object A/B
Function
Object name
Type
Prio
Flags Behaviour
Pushbutton X
Switch object A/B 1 bit
Low
WCT Transmit/
receive
Pushbutton X
Value object A/B
1 byte Low
WCT Transmit/
receive
Pushbutton X
Status feedback
object
1 bit
WC
Low
Flashes if status feedback
object equal to 0
Parameter
Operation = flash/release = OFF
Push-button X
Long operation = flash/release =
OFF
Parameter
Functional selection
Switching
1 bit
Number of objects
One
1 byte in levels 0 % - 100 %
Receive
Setting
Two
1 byte infinitely 0 - 255
With two objects:
Activation of status LED
Value 1/2 (only for object "in levels 100 % for value 1, 0 % for
0 % - 100 %")
value 2
Switched on
Switched off
From switch/value object A
Adjustable in steps of ten as
well as 25% and 75%
respectively
From switch/value object B
From status feedback object
Value 1/2 (only for object "infinitely 255 for value 1, 0 for value 2
0 - 255")
Adjustable in steps of one
respectively
Operation = ON/release = OFF
Long operation = ON/release =
OFF
Flashes
● Transmitting 1/8 bit switching commands
Flashes if switch/value object A
not equal to 0
You can simultaneously address two actuator groups
with 1 or 8 bits.
Depending on the parameter settings, one of the
following
– An ON or OFF telegram
– 1 byte values (0% - 100% in levels)
– 1 byte values (0 - 255) infinitely
– Two objects, (1 bit / 1 byte) in any combination
will be transmitted via the switch/value object
whenever a push-button is pressed.
Flashes if switch/value object B
not equal to 0
Flashes if switch/value object A
equal to 0
Flashes if switch/value object B
equal to 0
Flashes if status feedback
object equal to 1
Flashes if status feedback
object equal to 0
Operation = flash/release = OFF
Long operation = flash/release =
OFF
Object A/B
1 bit
1 byte in steps 0 % - 100 %
1 byte infinitely 0 - 255
Value (only for "1 bit" object)
ON telegram
OFF telegram
© 2008 Schneider Electric
7
Multi-function with 1814/3.1
Push-button X
Push-button X
Parameter
Setting
Parameter
Value (only for object "in steps
0 % - 100 %")
100 %
Only with cyclical transmission of 0.1 second
the dimming levels:
1 second
Base for cyclic interval
1 minute
Adjustable in steps of ten as
well as 25% and 75%
Value (only for object "infinitely 0 - 255
255")
Adjustable in single steps
1 hour
1 day
Only with cyclical transmission of 3 - 255, 8 preconfiguration
the dimming steps:
Factor for cyclic interval (3-255)
● Dimming
You can use the dimming function for the following:
– Dim brighter and darker via one push-button
(single-button dimming)
– Either dim brighter or darker. You need a second
push-button to dim in the other direction (twobutton dimming).
Additional parameters for single-button dimming
You can dim lighter or darker and also switch on or off
using a single push-button.
The current switching or dimming direction is always
dependent on the previous action, i. e. if switched off,
pressing the push-button briefly will switch the light on
and vice versa, and if the light has been dimmed up,
prolonged actuation of the push-button will dim the
light down again. On release after prolonged actuation,
a stop telegram will be transmitted via the 4 bit
dimming object, thus terminating the dimming
procedure in the dimming actuator.
An update or change to the switch/object value is
possible via the bus when another sensor switches or
dims the actuator (e.g. via a two-way circuit or a central
command). To prevent "incorrect" switching/dimming
activity, you must load the state of the actuator into
the push-button. To do this, connect the group address
of the second sensor to the switch/dimming object of
the multi-function push-button.
A single command is sufficient to cycle through the
dimming range. This dimming procedure can be used
for most applications. The other possible dimming
levels (1/2 - 1/64 brighter or darker) dim brighter or
darker by the selected level. For example, to dim from
min. to max. brightness, you would need to press the
push-button for a prolonged period four times in
succession if the level set is 1/4.
Common parameters for single-button and twobutton dimming
You can use the corresponding push-button to switch
the light on or off (brief press) or dim it (longer press,
the exact period can be parameterised). During
switching, an ON/OFF telegram is transmitted via the
switch object. When dimming, dimming up or
dimming down is carried out via the 4 bit dimming
object; the parameters for the dimming steps can be
set. You can also transmit the corresponding dimming
step cyclically for a period of time which can be set as
required.
Push-button X
Parameter
Setting
Functional selection
Dimming
Detection of actuation time from 4 - 250, 6 preconfiguration
100 ms * factor (4-250)
Activation of status LED
Switched on
Switched off
From switch/value object A
From status feedback object
Operation = ON/release = OFF
Dimming
Long operation = ON/release =
OFF
Parameter
Setting
Flashes
Dimming direction
Brighter and darker
Flashes if switch/value object A
not equal to 0
Dimming levels (brighter)
To max. brightness
1/2 brighter
Flashes if switch/value object A
equal to 0
1/4 brighter
Flashes if status feedback
object equal to 1
1/16 brighter
1/8 brighter
1/32 brighter
Flashes if status feedback
object equal to 0
1/64 brighter
Operation = flash/release = OFF
Dimming levels (darker)
Long operation = flash/release =
OFF
Dimming direction
1/4 darker
Brighter
1/8 darker
1/16 darker
Brighter and darker
© 2008 Schneider Electric
To min. brightness
1/2 darker
Darker
Cyclical transmission of the
dimming levels
Setting
1/32 darker
Yes
1/64 darker
No
8
Multi-function with 1814/3.1
Additional parameters for two-button dimming
Communication objects
A single push-button is used to dim either brighter or
darker and switch on or off. A second push-button for
the opposite direction must be parameterised.
You can specify whether a stop telegram is to be
transmitted when the push-button is released. When
you have enabled the transmission of a stop telegram,
a stop telegram will be transmitted via the 4 bit
dimming object after prolonged actuation of the pushbutton, thus terminating the dimming procedure in the
dimming actuator.
A single command is sufficient to cycle through the
dimming range. This dimming procedure can be used
for most applications. The other possible dimming
steps (1/2 - 1/64 brighter or darker) dim brighter or
darker by the selected step. For example, to dim from
min. to max. brightness, you would need to push the
push-button for a prolonged period four times in
succession if the level set is 1/4.
You can select the following communication objects:
Function
Setting
Dimming direction
Brighter
Type
Prio
Flags Behaviour
1 bit
Low
WCT Transmit/
receive
Push-button Dimming object 4 bit
X
Low
WCT Transmit/
receive
push-button Status feedback 1 bit
X
object
Low
WC
Receive
● Blind control
You can use the blind control function to do the
following:
– Move the blind using an individual push-button and
adjust the slats (single-button blind operation).
– Raise the blinds/adjust the slats using a single pushbutton and lower the blinds/adjust the slats using a
second push-button (two-button blind operation).
– Move the blind to a pre-specified position.
– Move the blind back and forth between two
previously specified positions.
Dimming
Parameter
Object name
Push-button Switch object
X
Darker
For "brighter" dimming direction
only:
Dimming steps (brighter)
Push-button X
To max. brightness
1/2 brighter
1/4 brighter
Switched on
From status feedback object
1/32 brighter
Operation = ON/release = OFF
(preconfiguration for direction of
movement with positioning
values)
1/64 brighter
To min. brightness
1/2 darker
Only with the direction of
movement up, down, or up and
down:
ON after movement telegram
1/4 darker
1/8 darker
1/16 darker
Enabled
Only for direction of movement
with the following position
values:
Long operation = ON/release =
OFF
Disabled
Flashes
1/32 darker
1/64 darker
Flashes if status feedback
object equal to 1
Status indication
Flashes if status feedback
object equal to 0
The status LED can
– Display the status of the switch/value object,
– Light up when pressed (for long period), and go out
when released,
– Be on or off continuously,
– Flash,
– Display the status of the status feedback object.
© 2008 Schneider Electric
Blind control
Switched off
1/16 brighter
Stop telegram after release
Setting
Functional selection
Activation of status LED
1/8 brighter
For "darker" dimming direction
only:
Dimming steps (darker)
Parameter
Operation = flash/release = OFF
Long operation = flash/release =
OFF
9
Multi-function with 1814/3.1
Moving the blind to a pre-specified position
Blind function "up" or "down" with one pushbutton (two-button blind operation)
If the blind actuator is capable of approaching a
specific position, you can define one or two positions
using this function, which can be approached by the
blind using 1 byte position values with a push-button
action. The position values can be set in steps
between 0% and 100%, or infinitely from 0-255.
When approaching a position, the set value for the
blind position and the slat position is transmitted using
a short (or long) push-button action.
To address two positions, enter the required blind
position and slat position for both. Position value 1 is
transmitted with a short push-button action, while
position value 2 is transmitted with a long push-button
action. No movement or stop/step objects exist with
these set parameters.
After the corresponding push-button is pressed for a
short time, a stop/step telegram will be transmitted;
after the push-button is activated for a prolonged
period (the parameters for the exact period can be
set), a movement telegram will be transmitted. With
this function, you must parameterise a second pushbutton with the corresponding settings for blind
movement in the opposite direction. Both pushbuttons must be given the same group addresses.
Blind control
Parameter
Setting
Detection of long activation time 4 - 250, 6 preconfiguration
from 100 ms * Factor (4-250)
Direction of movement
Up
Down
Push-button X
Blind function "up" or "down" with one pushbutton (single-button blind operation)
One position (press briefly)
Position value 1 (short operation) In steps of 0% - 100%
Infinitely 0-255
Value for blind position
For "in steps": 0% - 100 % in
steps of 10, 100%
preconfiguration
For "infinitely": 0 - 255 in single
steps, 255 preconfiguration
Value for slat position
For "in steps": 0 % - 100 % in
steps of 10, 0 %
preconfiguration
For "infinitely": 0 - 255 in single
steps, 0 preconfiguration
Only for "two positions":
Position value 2 (press for long
period)
In steps of 0% - 100%
Infinitely 0-255
Status indication
The status LED can
– Flash,
– Lights up when pressed, and goes out when
released,
– Be on or off continuously,
– Light up when a movement telegram is transmitted,
– Display the status of the status feedback object.
Setting
Detection of long activation time 4 - 250, 6 preconfiguration
from 100 ms * Factor (4-250)
Up and down
Change in direction for slat
5 - 50, 10 preconfiguration
adjustment from 100 ms * Factor
(5-50)
© 2008 Schneider Electric
With position values
Two positions (differentiation
between short/long operation)
Blind control
Direction of movement
Setting
Direction of movement
Selecting the positioning
The current direction of movement of the blind, or the
direction of the slat adjustment, always depends on
the previous action, i. e. when the blind has just been
moved downwards, it will move upwards the next
time the push-button is activated for a long period
(parameters for the period can be set).
After a stop/step telegram has been transmitted to
adjust the slats, a stop/step telegram for the same
direction of movement can be created by pressing the
push-button again, as long as this subsequent pushbutton action is carried out within a time period, the
parameters for which can be set. If this time period
has elapsed, the direction of rotation of the slats will
change when the push-button is pressed briefly.
The push-button can receive telegrams via the stop/
step movement objects, and can create corresponding
telegrams when the push-button is pressed,
depending on the values received. An update or
change to the switch/object value is possible via the
bus when another sensor switches the actuator (e .g.
via a two-way circuit or a central command). To prevent
"incorrect" movement, you must load the status of the
actuator into the push-button. To do this, connect the
group address of the second sensor to the movement
object of the multi-function push-button.
Parameter
Parameter
10
Multi-function with 1814/3.1
Communication objects
Push-button X
You can select the following communication objects:
Parameter
Setting
Functional selection
Edges 1 bit, 2 bit (priority), 1byte values
Edge function
Normal (pressed, released)
Function
Type
Prio
Flags Behaviour
Push-button Stop/step object 1 bit
X
Object name
Low
WCT Transmit/
receive
Push-button Movement
X
object
1 bit
Low
WCT Transmit/
receive
Push-button Blind position
X
1 byte Low
CT
Transmit
Only for extended edge function: 4 - 250, 6 preconfiguration
Detection of a long activation time
from 100 ms * Factor (4-250)
Push-button Slat position
X
1 byte Low
CT
Transmit
Number of objects
WC
Receive
Activation of status LED
Push-button Status feedback 1 bit
X
object
Extended (long and short
activation)
One
Two
Low
Switched on
Switched off
From object A/B
● Transmit 1 bit, 2 bit (priority control) or 1 byte
edge commands
From status feedback object
You can use these edge functions to parameterise
different object actions. You can transmit one or two
objects simultaneously, and select the size of the
objects required (1 bit, 2 bit priority control or 1 byte in
steps or infinitely) as needed. This enables you to
parameterise a large number of application options.
You can specify which actions should be carried out
when a push-button is pressed, and which should be
carried out when a push-button is released. These
actions could include:
– Transmit 1 or 0 (with 1 bit)
– Transmit value 1 or value 2 (with 2 bits or 1 byte):
You can enter two values and set whether and how
they are to be transmitted.
– Transmitting a value:
The object transmits the value which it has currently
been given. You can therefore transfer a value e. g.
with the transmitting group address which was
previously received by another group address.
– Toggling:
The current object value is inverted and then
transmitted. It is therefore alternately switched on
and off (toggled). The value can be modified via the
bus.
– No action
Long operation = ON/release =
OFF
© 2008 Schneider Electric
Operation = ON/release = OFF
Flashes
Flashes when object A not equal
to 0
Flashes when object A equal to
0
Flashes if status feedback
object equal to 1
Flashes if status feedback
object equal to 0
Operation = flash/release = OFF
Long operation = flash/release =
OFF
11
Multi-function with 1814/3.1
Normal edge function
Object A = 1 Bit
action at pressed/released
With the standard edge function, you can transmit
1 bit, 2 bit priority control or 1 byte in steps or
infinitely.
non / send 0
send 1 / non
press
Push-button X - (object A&B)
Parameter
Setting
Object A/B
1 bit
press
release
release
t
t
2 bit (priority control)
Object A
1 byte in steps 0 % - 100 %
0
1
1
0
1
Object A
0
0
1
0
1
0
1
1 byte infinitely 0 - 255
Action when activated
t
Only for 1 bit:
transmits 1
Only for 1 bit:
transmits 0
t
Object A = 1 Bit
action at pressed/released
Only for 2 bit/1 byte:
transmits value 1
non / send 0
send 1 / non
Only for 2 bit/1 byte:
transmits value 2
press
press
Toggles
Transmits its value
release
release
Action on release
t
t
None
Only for 1 bit:
transmits 1
Object A
0
1
Object A
1
Only for 1 bit:
transmits 0
0
1
0
t
t
Only for 2 bit/1 byte:
transmits value 1
action at pressed/released
Only for 2 bit/1 byte:
transmits value 2
send value 1 / send value 2
deathman circuit
Toggles
Transmits its value
switching / non
switching under force
press
press
None
Only for 2 bit (priority control):
value 1/value 2
release
Switch on with priority control
(11)
release
t
t
255
Switch off with priority control
(10)
255
255
Object A
255
Object A
50
Remove priority control (00)
50
50
t
t
Only for 1 byte in steps 0 - 100%: 0 - 100% in 10% steps
value 1/value 2
100% preconfiguration value 1,
0% preconfiguration value 2
Only for 1 byte infinitely 0-255:
value 1/value 2
0-255 in single steps
255 preconfiguration value 1,
0 preconfiguration value 2
Example: Function "death man circuit" or "switching under force"
Principle of the edge function
Object A = 2 Bit (guidance under force)
value 1 = 11 (switching on under force)
value 2 = 10 (switching off under force)
Action at pressed/released
Using the following diagrams, you can see how the
edge function behaves when edges rise or fall.
send value 1 / send value 2
Object A = 1 Bit
action at pressed/released
switching / non
press
press
non / send 0
send 1 / non
release
press
release
t
press
release
Object A
release
t
11
10
11
Object A
10
1
1
Object A
1
t
© 2008 Schneider Electric
11
10
11
t
t
Object A
t
0
0
0
t
12
t
Multi-function with 1814/3.1
Extended edge function
Push-button X - (object A /
object B)
With the extended edge function, you have a wider
range of functions available. For example, you can set
different actions with a shorter or longer period of
push-button pressure, which apply both when the
push-button is pressed and when it is released. You
can also set a cycle time which can be parameterised
for each object.
Parameter
Direct action when activated
Action on release before the
long activation time has
elapsed
Action when the long
activation time is reached
| need to set all four types of push-button
When parameterising, bear in mind that you
Setting
Only for 1 bit:transmits 1
Only for 1 bit: transmits 1
immediately and then cyclically
Only for 1 bit:
transmits 1 only cyclically
Only for 1 bit: sets object value to 1
(readable only)
Only for 1 bit:transmits 0
Action on release after the
long activation time has been
Only for 1 bit: transmits 0
completed
immediately and then cyclically
operation (brief/long, pressing and releasing the
push-button) in order to ensure that the pushbutton functions as required.
Only for 1 bit:
transmits 0 only cyclically
Only for 1 bit: sets object value to 0
(readable only)
Push-button X - (object A /
object B)
Parameter
Setting
Object A/B
1 bit
Only for 2 bit/1 byte:
transmits value 1
Only for 2 bit/1 byte:
transmits value 1 immediately and
then cyclically
2 bit (priority control)
1 byte in steps 0 % - 100 %
Only for 2 bit/1 byte:
transmits value 1 only cyclically
1 byte infinitely 0 - 255
Only for 2 bit/1 byte:
sets object value to value 1
(readable only)
Only for 2 bit/1 byte:
transmits value 2
Only for 2 bit/1 byte:
transmits value 2 immediately and
then cyclically
Only for 2 bit/1 byte:
transmits value 2 only cyclically
Only for 2 bit/1 byte:
sets object value to value 2
(readable only)
Toggles
Toggles, transmits immediately,
then cyclically
Toggles, only transmits cyclically
Toggles and is not transmitted
Toggles cyclically, transmits
immediately, then cyclically
Toggles cyclically, only transmits
cyclically
Toggles cyclically and is not
transmitted
Only for 1 bit:
transmits its value
Only for 1 bit:
transmits its value immediately and
then cyclically
Only for 1 bit:
transmits 1 immediately and then
transmits 0 after one cycle time
Only for 2 bit/1 byte
transmits value 1 and after a cyclic
interval value 2
Only for 1 byte
increase the current object value by
value 1 cyclically
Only for 1 byte
reduce the current object value by
value 2 cyclically
None (stops cyclical transmission)
No change
None (stop after current cycle
time has elapsed)
© 2008 Schneider Electric
13
Multi-function with 1814/3.1
– Toggles and is not transmitted:
The toggled value is written into the object and is
not transmitted. An active cycle time is terminated.
– Toggles cyclically, transmits immediately, then
cyclically:
The value is toggled (see "toggles") if no cycle time
is running, transmitted immediately and a new cycle
time is started. If a cycle time is already running,
this is interrupted, the toggled value is transmitted
and a new cycle time is started. Subsequently, it is
always toggled cyclically and the new value is
transmitted.
– Toggles cyclically, only transmits cyclically:
If no cycle time is running, the toggled value is
transmitted immediately and a new cycle time is
started. If a cycle time is already running, this is not
interrupted, the toggled value is transmitted after
the current cycle time has elapsed, and a new cycle
time is started. Subsequently, it is always toggled
cyclically and the new value is transmitted.
– Toggles cyclically and is not transmitted:
The toggled value is written into the object and is
not transmitted. Subsequently, it is always toggled
cyclically and the new value is written into the
object.
– Transmits its value:
The current object value is transmitted. An active
cycle time is terminated.
– Transmits its value immediately and then cyclically:
If no cycle time is running, the current object value
is transmitted immediately and a new cycle time is
started. If a cycle time is already running, this is
interrupted, the current object value is transmitted
and a new cycle time is started. Subsequently, the
current object value is always transmitted cyclically.
– Increases the current object value by [value]
cyclically:
If no cycle time is running, [value] is added to the
current object value, the object value is transmitted,
and a new cycle time is started. If a cycle time is
already running, this is not interrupted, the current
object value with [value] added is transmitted and a
new cycle time is started.
– Reduces the current object value by [value]
cyclically:
If no cycle time is running, [value] is subtracted from
the current object value, the object value is
transmitted, and a new cycle time is started. If a
cycle time is already running, this is not interrupted,
the current object value with [value] subtracted is
transmitted and a new cycle time is started.
– Transmits [value A] and after one cycle time [value
B]:
[value A] is transmitted immediately, and [value B] is
transmitted after one cycle time, regardless of
whether a cycle time is already running or not
(staircase timer function).
– None (stops cyclical transmission):
No action is carried out, and any active cycle time is
stopped.
Push-button X - (object A /
object B)
Parameter
Setting
Only for 2 bit (priority control): Switch on with priority control (11)
value 1/value 2
Switch off with priority control (10)
Remove priority control (00)
Only for 1 byte in steps 0 100%:
value 1/value 2
0 - 100% in 10% steps
100% preconfiguration value 1,
0% preconfiguration value 2
Only for 1 byte infinitely 0-255: 0-255 in single steps
value 1/value 2
255 preconfiguration value 1,
0 preconfiguration value 2
Base for cycle time
0.1 second
1 second
1 minute
1 hour
1 day
Factor for cyclic interval (3255)
3-255, 10 preconfiguration
A description of the most important actions is given
below:
– Transmits [value]:
transmits the current value and stops a cyclical
transmission.
– Transmits [value] immediately and then cyclically:
If no cycle time is running, [value] is transmitted
immediately and a new cycle time is started. If a
cycle time is already running, this is interrupted,
[value] is transmitted and a new cycle time is
started.
– Transmits [value] only cyclically:
If no cycle time is running, [value] is transmitted
immediately and a new cycle time is started. If a
cycle time is already running, this is not interrupted,
[value] is transmitted after the current cycle time
has elapsed, and a new cycle time is started.
– Sets object value to [value] (readable only)
[value] is written into the object and is not
transmitted. An active cycle time is terminated.
– Toggles:
compares the current object value with [value]. If
both are the same, value 1 or value 2 is transmitted.
If both are different, [value] is transmitted.
– Toggles, transmits immediately, then cyclically:
The value is toggled (see "toggles") if no cycle time
is running, transmitted immediately and a new cycle
time is started. If a cycle time is already running,
this is interrupted, the toggled value is transmitted
and a new cycle time is started. Subsequently, the
value which has already been toggled is always
transmitted cyclically.
– Toggles, only transmits cyclically:
If no cycle time is running, the toggled value is
transmitted immediately and a new cycle time is
started. If a cycle time is already running, this is not
interrupted, the toggled value is transmitted after
the current cycle time has elapsed, and a new cycle
time is started. Subsequently, the value which has
already been toggled is always transmitted
cyclically.
© 2008 Schneider Electric
14
Multi-function with 1814/3.1
To do this, connect object A with the switch object and
object B with the disable object of the switch actuator.
– No change:
The current action remains unchanged (e. g.
"transmits value 1 and after a cycle time, transmits
value 2").
– None (stop after current cycle time has elapsed):
No action is currently carried out, but any active
cycle time is not stopped. It runs through until the
end, and then transmits the corresponding value.
press
release
t
Object A
1
For read-only actions, the L flag must be
| manually set!
t
Object B
1
0
t
Examples of use for the edge function
The following activation sequence diagram shows the
phases into which the edge function is divided:
switch actuator
relais
t stairs
t
button
action direct
at pressing
action at arrive of
long activation time
Example: short and long staircase time
You can use this function to produce a brief and a long
staircase time with the push-button. The switch
actuator requires no staircase lighting function for this
request.
With a brief push-button action, the switch actuator
switches on the light, and after a parameterised cycle
time (e. g. 3 minutes), it switches it back off again.
With a long push-button action, the same function is
carried out, but with a longer cycle time (e. g. 6
minutes).
Number of objects = 2 (object A/B)
Object A/B = 1 bit
Object A: Action on release before the long activation
time has elapsed = transmits 1. After a cycle time has
elapsed (here 3 minutes) = transmits 0
Object B: Action on release when the long activation
time is completed = transmits 1. After a cycle time has
elapsed (here 6 minutes) = transmits 0
To do this, connect object A and object B with the
switch object of the switch actuator.
press
action at release
before arriving long
activation time
action at release
after arriving long
activation time
release
t
long activation time
Example: Staircase lighting function with cleaning
light function
With a brief push-button action, the switch actuator
switches on the light. A long push-button action
extends the staircase lighting function (= cleaning light
function) until a second, long push-button action
switches off the actuator. The switch actuator requires
a staircase lighting function and a disable function for
this function.
Number of objects = 2 (object A/B)
Object A/B = 1 bit
Object A: Action on release before the long activation
time has elapsed = transmits 1
Object B: Action on completion of the long activation
time = toggles
press
release
t
object A
1
0
t
t cycle short
object B
0
1
t cycle long
t
switch actuator
relais
t
© 2008 Schneider Electric
15
Multi-function with 1814/3.1
Example: Effect lighting
This example shows you how to program effect
lighting, for example for a display window. A long
push-button action switches between two different
lighting scenes. A short push-button action stops the
toggling and transmits a scene which switches off
everything. The scene module of the multi-function
push-button is used to retrieve the scene.
Number of objects = 2 (object A/B)
Object A/B = 1 byte infinite 0-255
Object A: Direct action when activated = none (stops
cyclical transmission). Action on release before the
long activation time has elapsed = transmits 1. Action
when the long activation time is completed = none
(stops cyclical transmission). Action on release after
the long activation time is completed = none (stops
cyclical transmission). Value 1 = 3.
Object B: Direct action when activated = none (stops
cyclical transmission). Action on release before the
long activation time has elapsed = none (stops cyclical
transmission). Action when the long activation time is
completed = none (stops cyclical transmission). Action
on release after the long activation time has been
completed = toggles cyclically, transmits immediately,
then cyclically. Value 1 = 1, value 2 = 2nd cycle time =
e. g. 1 minute.
To do this, connect object A and object B with the
extension unit object of the scene function.
Example: Switch the light on/off permanently, or
switch off after a cycle time has elapsed
With a brief push-button action, the switch actuator
switches the light on or off permanently. With a long
push-button action, the light switches on, and after a
parameterised cycle time (e .g. 6 minutes), it switches
back off again. Due to the cycle time in the push-button
which can be parameterised, the switch actuator
requires no staircase lighting function for this function.
Number of objects = 2 (object A/B)
Object A/B = 1 bit
Object A: Action on release before the long activation
time has elapsed = toggles
Object B: Action when the long activation time is
completed = transmits 1. After a cycle time has
elapsed (here 6 minutes) = transmits 0. Action on
release when the long activation time is completed =
no change.
To do this, connect object A and object B with the
switch object of the switch actuator.
Example: electronic protection against theft
This example will show you how to program electronic
theft protection for the push-button. It is activated by a
brief push-button action and then transmits cyclically.
As soon as the push-button is forcibly separated from
the flush-mounted module, this can be shown on a
display, or an alarm can be triggered.
Number of objects = 1 (object A)
Object A = 1 bit
Object A: Action on release before the long activation
time has elapsed = transmits 1 immediately and then
cyclically. Action when the long activation time is
completed = no change. Action on release after the
long activation time is completed = no change. Cycle
time = e. g. 10 minutes.
To do this, connect object A with an object expecting
cyclic telegrams (e. g. a safety object). The monitoring
time set on the safety object must be longer than the
cycle time of the push-button. If the safety object
receives no telegrams from the push-button during
this time, a reaction which can be parameterised is
activated (e. g. the channel is switched on).
press
release
t
t
Object B
t cycle
Safetyobject
(received)
1
1
1
t controlling
1
t cycle
t
t controlling
t
t cycle
1
reaction
t
© 2008 Schneider Electric
t cycle
t cycle
1
t
The status LED can
– Flash,
– Light up when pressed (for long period), and go out
when released,
– Be on or off continuously,
– Display the status of the status feedback object,
– Display the status of the switch/value object.
t
1
2
1
2
Status indication
release
1
1
t cycle
press
Object A
3
Object A
16
Multi-function with 1814/3.1
Communication objects
Push-button X
You can select the following communication objects:
Parameter
Setting
Action when activated
Transmits value 1
Function
Object name
Type
Prio
Flags Behaviour
Push-button Object A/B
X
1 bit
Low
WCT Transmit/
receive
Push-button Object A/B
X
2 bit
Low
WCT Transmit/
receive
Push-button Object A/B
X
1 byte Low
WCT Transmit/
receive
Push-button Status feedback 1 bit
X
object
Low
WC
Only for extended edge
function:
transmits value 1 immediately
and then cyclically
Only for extended edge
function:
transmits value 1 only cyclically
Only for extended edge
function:
sets object value to value 1
(readable only)
Receive
Transmits value 2
● Transmit 2 byte edge commands via an object
Only for extended edge
function:
transmits value 2 immediately
and then cyclically
You can also use these edge functions to parameterise
different object actions. However, in contrast to edge
functions with 1 bit, 2 bits, 4 bits or 1 byte, you can
only transmit one object .
You can transmit normal or extended edge commands.
With normal edge commands, you can specify which
actions should be carried out when a push-button is
pressed, and which should be carried out when a
push-button is released. With extended edge
commands, you can also set the actions before and
after the long activation time is completed.
You can transmit floating point numbers and whole
numbers, without or without a sign.
Only for extended edge
function:
transmits value 2 only cyclically
Only for extended edge
function:
sets object value to value 2
(readable only)
Transmits its value
Only for extended edge
function:
transmits value 1 and after a
cyclic interval value 2
Only for extended edge
function:
none (stops cyclical
transmission)
Push-button X
Parameter
Setting
Functional selection
Edges with 2 byte values
Edge function
Normal (pressed, released)
None
Action on release
Only for extended edge function:
Action on release before the long
activation time has elapsed
Action when the long activation
time is reached
Action on release after the long
activation time has been
completed
Extended (long and short
activation)
Only for extended edge function: 4 - 250, 6 preconfiguration
Detection of a long activation time
from 100 ms * Factor (4-250)
Activation of status LED
Switched on
Transmits value 1
Only for extended edge
function:
transmits value 1 immediately
and then cyclically
Only for extended edge
function:
transmits value 1 only cyclically
Only for extended edge
function:
sets object value to value 1
(readable only)
Switched off
From status feedback object
Operation = ON / release =
OFF
Transmits value 2
Only for extended edge
function:
transmits value 2 immediately
and then cyclically
Long operation = ON/release =
OFF
Flashes
Flashes if status feedback
object equal to 1
Only for extended edge
function:
transmits value 2 only cyclically
Flashes if status feedback
object equal to 0
Only for extended edge
function:
sets object value to value 2
(readable only)
Operation = flash/release = OFF
Long operation = flash/release =
OFF
Transmits its value
Only for extended edge
function:
transmits value 1 and after a
cyclic interval value 2
Only for extended edge
function:
none (stops cyclical
transmission)
None
Explanation of actions: See 1 bit edges.
© 2008 Schneider Electric
17
Multi-function with 1814/3.1
Push-button X - values
Push-button X
Parameter
Setting
Parameter
Setting
Object type value
Floating point
Functional selection
8 bit sliding controller
Whole number with sign (32768 ... 32767)
Detection of long activation time 4 - 250, 6 preconfiguration
from 100 ms * Factor (4-250)
Whole number without sign (0
... 65535)
Activation of status LED
Only with floating point:
value 1/2
Basic value, adjustable value
range in brackets
Different values between
0.01 and 327.68 in different step
intervals
0.01 (0 to 20.47)
preconfiguration
From switch/value object A
From status feedback object
Operation = ON/release = OFF
Long operation = ON / release =
OFF
Only for whole number with sign: -32768 - 32767
value 1/2 (-32768 - 32767)
Only for whole number without
sign:
value 1/2 (0 - 65535)
Flashes
0 - 65535
Flashes if switch/value object A
not equal to 0
Flashes if switch/value object A
equal to 0
Status indication
Flashes if status feedback
object equal to 1
The status LED can
– Flash,
– Light up when pressed (for long period), and go out
when released,
– Be on or off continuously,
– Display the status of the status feedback object.
Flashes if status feedback
object equal to 0
Operation = flash/release = OFF
Long operation = flash/release =
OFF
| manually set!
For read-only actions, the L flag must be
Communication objects
You can select the following communication objects:
Function
Object name
Push-button Object A
X
Type
Prio
2 byte Low
Push-button Status feedback 1 bit
X
object
Low
Flags Behaviour
WCT Transmit/
receive
WC
Receive
button
action direct
at pressing
action at arrive of
long activation time
press
action at release
before arriving long
activation time
action at release
after arriving long
activation time
release
t
long activation time
● Setting the parameters for the 8 bit sliding
controller
You can use the 8 bit sliding controller function to
program a push-button as a sliding controller. You can
parameterise all four actions when pressing/releasing
with a shorter or longer operating time in each case.
You can establish the function with or without limit
values (start/end value).
© 2008 Schneider Electric
Switched on
Switched off
18
Multi-function with 1814/3.1
– Increase the current object value cyclically:
Increase the current object value cyclically by the
parameterised step interval.
– Increase the current object value once:
Increase the current object value once by the
parameterised step interval. An active cycle time is
terminated.
– Reduce the current object value cyclically:
Reduce the current object value cyclically by the
parameterised step interval.
– Reduce the current object value once:
Reduce the current object value once by the
parameterised step interval. An active cycle time is
terminated.
– Reverse the slide direction and transmit cyclically:
If no cycle time is running, the slide is pushed in the
opposite direction (of this push-button) and a new
cycle time is started. If a cycle time is already
running, it is interrupted, the slide is immediately
pushed in the opposite direction (of this pushbutton) and a new cycle time is started. Cyclic
transmission is stopped when the maximum/
minimum value is reached.
– Reverse the slide direction and cyclically increase/
decrease:
If no cycle time is running, the slide is pushed in the
opposite direction (of this push-button) and a new
cycle time is started. If a cycle time is already
running, it is interrupted, the slide is immediately
pushed in the opposite direction (of this pushbutton) and a new cycle time is started. Cyclic
transmission is not stopped when the maximum/
minimum value is reached. When an incrementing
value reaches the maximum value, the value is set
to the minimum value and cyclic transmission
continues. When an decrementing value reaches
the minimum value, the value is set to the
maximum value and cyclic transmission continues.
– Move step-by-step to the limit values, and then back
again:
The limit values are approached by one step interval
at a time. When a limit is reached, the slide direction
is reversed for the next action.
– Stepwise increment within the limits:
The value is incremented, one step interval at a
time, within the limits. The limits are not exceeded,
the value is set 1 after the last possible step.
Example: Value 1: "0", value 2: "255", step size: "100",
the following values are transmitted:
39%, 78%, 0%, 39%, 78%, 0%, etc.
– Reduce stepwise within the limits:
The value is reduced, one step interval at a time,
within the limits. The limits are not exceeded, the
value is set 2 after the last possible step.
Example: Value 1: "0", value 2: "255", step size:
„100“. The following values are transmitted:
100%, 61%, 22%, 100%, 61%, 22%, etc.
– None (stops cyclical transmission):
No action is carried out, and any active cycle time is
stopped.
push-button 1 (2)
Parameter
Setting
Sliding controller function
With limit values
Without limit values
Direct action when activated
Action on release before the long
activation time has elapsed
Action when the long activation
time is reached
Action on release after the long
activation time has been
completed
Only for "with limit values"
Transmit value 1, then increase
the cycle by the step interval
Only for "with limit values"
Transmit value 2, then reduce
the cycle by the step interval
Increase the current object
value cyclically
Increase the current object
value once
Reduce the current object value
cyclically
Reduce the current object value
once
Reverse the slide direction and
transmit cyclically
Only for "without limit values"
Reverse the slide direction and
cyclically increase/decrease
Only for "with limit values"
Stepwise to the limits and then
back again
Only for "with limit values"
Stepwise increase within the
limits
Only for "with limit values"
Stepwise decrease within the
limits
None (stops cyclical
transmission)
No change
Only for "with limit values": Value 0 - 255 in single steps
1
Step value
0 - 255 in single steps
Only for "with limit values":
Value 2
0 - 255 in single steps
Base for cycle time
0.1 second
1 second
1 minute
1 hour
1 day
Factor for cyclic interval (3-255)
3 - 255 in single steps, 5
preconfiguration
A description of the actions is given below:
– Transmit value 1, then increase the cycle by the step
interval:
If no cycle time is running, value 1 is transmitted
immediately and a new cycle time is started. If a
cycle time is already running, this is interrupted,
value 1 is transmitted and a new cycle time is
started.
– Transmit value 2, then reduce the cycle by the step
interval:
If no cycle time is running, value 2 is transmitted
immediately and a new cycle time is started. If a
cycle time is already running, this is interrupted,
value 2 is transmitted and a new cycle time is
started.
© 2008 Schneider Electric
19
Multi-function with 1814/3.1
Communication objects
– No change:
No action is carried out, and any active cycle time is
continued.
|
You can select the following communication objects:
Function
You can only maintain the limit values and the
toggling to a new slide direction with on-site
operation!
Object name
Push-button Value object
X
Type
Prio
1 byte Low
Push-button Status feedback 1 bit
X
object
Low
Flags Behaviour
WCT Transmit/
receive
WC
Receive
Example: Implementing a "Step dimmer" with
sliding controller function
It is possible to dim a dimmer actuator in several steps
using a push-button on the multi-function push-button.
Example: push-button 1 of the multi-function pushbutton is used as an 8 bit sliding controller. The status
LED can be controlled from the status feedback
object.
1 Set the 8 bit sliding controller in the "push-button 1"
tab of the multi-function push-button.
2 Make the following settings in the tab "Button 1(2)":
Sliding controller function: "with limit values", direct
action when activated: "Stepwise to the limits and
then back again"; action on release or after the long
activation time has been completed: "no change",
value 1: "0", step size: "51"; value 2: „255“. The cycle
time is not required for this function.
3 Connect the push-button value object to the
dimmer actuator value object.
4 Every new press of the push-button sends a new
dimmer value in the steps: 20%, 40%, 60%, 80%,
100%, 80%, 60%, 40%, 20%, 0%, 20%, etc. This
parameter setting implements a stepwise dimmer.
button
action direct
at pressing
action at arrive of
long activation time
press
action at release
before arriving long
activation time
action at release
after arriving long
activation time
release
t
long activation time
● Scenes
Retrieving scenes by push-button does not access the
internal scene module, but only accesses the bus
externally via communication objects. If you therefore
wish to retrieve scenes stored in the internal scene
module using a push-button, you must connect the
corresponding communication object with the
extension unit object of the scene function.
There are two types of scene function:
– Normal
– Extended
With the standard scene function, a scene is retrieved
by a brief push-button action and a long push-button
action is used to save a scene. Simply set the time
after which a push-button action is detected as a
prolonged operation; how the status LED is to be
triggered must also be set, as must the scene number.
Status indication
The status LED can
– Flash,
– Light up when pressed (for long period), and go out
when released,
– Be on or off continuously,
– Display the status of the status feedback object,
– Display the status of the switch/value object.
Push-button X
Parameter
Setting
Functional selection
Scene
Detection of long activation time 4 - 250 in single steps, 30
from 100 ms * Factor (4-250)
preconfiguration
Scene function
Normal (short = output/long =
save)
Extended
Only for "extended"
Number of objects
Activation of status LED
One
Two
Switched on
Switched off
Only for "extended"
from object A
Only for "extended"
from object B
From status feedback object
For actuation = ON/release =
OFF
For prolonged actuation = ON/
release = OFF
Flashes
© 2008 Schneider Electric
20
Multi-function with 1814/3.1
Push-button X
Parameter
push-button 1 - (object A/B)
Setting
Parameter
Setting
Only for "extended"
flashes when object A not equal
to 0
Action on release after the long
activation time has been
completed
Transmits value 1
Transmits value 2
Only for "extended"
Flashes when object B not equal
to 0
Toggles
Flashes if status feedback
object equal to 1
Transmits value 1 and after a
cyclic interval value 2
Flashes if status feedback
object equal to 0
None (stops cyclical
transmission)
Toggles cyclically, transmits
immediately, then cyclically
For actuation = flash/release =
OFF
No change
For prolonged actuation = flash/
release = OFF
Only with "normal scene function" 0 - 63 in single steps
Scene value (0-63)
Value 1 Scene address (0-63)
Value 2 Scene address (0-63)
0 - 63 in single steps
Scene value 1 should
Scene value 2 should
Retrieve the scene (set by
default to value 1)
Store the scene (set by default
to value 2)
Base for cycle time
With the extended scene function, a wider range of
functions are available. You can set actions for a
shorter or longer activation time, for both pressing and
releasing the push-buttons. You can also program a
cycle time.
Depending on how many objects you have set in the
scene function, you must make the settings in a tab
("key 1 - object A") or in an additional tab ("key 1 - object
B):
1 minute
1 hour
1 day
Factor for cyclic interval (3-255)
Setting
Action when activated
Transmits value 1
The status LED can
– Flash,
– Light up when pressed (for long period), and go out
when released,
– Be on or off continuously,
– Display the status of the status feedback object,
– Display the status of the switch/value object.
Transmits value 2
Toggles
Toggles cyclically, transmits
immediately, then cyclically
Transmits value 1 and after a
cyclic interval value 2
None (stops cyclical
transmission)
No change
Action on release before the long Transmits value 1
activation time has elapsed
Transmits value 2
Toggles
Toggles cyclically, transmits
immediately, then cyclically
Transmits value 1 and after a
cyclic interval value 2
None (stops cyclical
transmission)
No change
Action when the long activation
time is reached
Transmits value 1
Transmits value 2
Toggles
Toggles cyclically, transmits
immediately, then cyclically
Transmits value 1 and after a
cyclic interval value 2
None (stops cyclical
transmission)
No change
© 2008 Schneider Electric
3 - 255 in single steps, 10
preconfiguration
Status indication
push-button 1 - (object A/B)
Parameter
0.1 second
1 second
21
Multi-function with 1814/3.1
Communication objects
Scene module
You can select the following communication objects:
Parameter
Setting
Scene module
Switched on
Function
Object name
Push-button Object A
X
Type
Prio
1 byte Low
Push-button Status feedback 1 bit
X
object
Low
Flags Behaviour
Switched off
WCT Transmit/
receive
WC
Only when scene function on:
Save scenes
Receive
Enabled
If enable object is equal to "1"
Disabled
Interval between two actuator
read telegrams
100 ms * Factor (2-255)
2 - 255 in single steps, 10
preconfiguration
button
action direct
at pressing
The following scene tabs only appear when the scene
module is switched on.
action at arrive of
long activation time
press
| maximum of five output objects. A special
In this tab, you can specify the data type of a
action at release
before arriving long
activation time
action at release
after arriving long
activation time
feature is the actuator group four, with which
you can also transmit values that are larger than
8 bits.
release
t
long activation time
| actuator group is no longer valid, since it is
When the alarm function is active, the fifth
● Parameterising scenes in the scene module
reserved for the alarm function.
The multi-function push-button is fitted with its own
scene module, which enables you to save up to eight
scenes permanently. The saved scenes can be
overwritten if you have parameterised a release for
this purpose.
The entire scene function is controlled via the
extension unit object (1 byte). You also have an object
for programming release, as well as seven 1/8 bit
objects and one object for values up to 16 bits, in order
to transmit scene values to the bus.
You can set the time between the actuator read
telegrams. This makes sense, e. g. when the
anticipated response can last a long time (line coupler,
area coupler).
If a read request is lost, or is not responded to, the
scene from the current object value is saved (either
through a read request, or written via an output). To
check the correct saving procedure, you should
retrieve the scene last saved on the push-button. If this
remains unchanged, the individual saving procedure
has been completed free of errors. If there is a
difference, an incorrect response has been made to a
read request.
If the multi-function push-button works through a
scene, and a further scene is retrieved, the current
process is interrupted and the scene last retrieved is
worked through.
Scene actuator groups
Parameter
Actuator group 1-5
Setting
Switch object
Value object (8 bit in steps)
Value object (8 bit infinitely)
Priority control object
Only for actuator group 4:
Value object (16 bit whole
number without sign)
Only for actuator group 4:
Value object (16 bit whole
number with sign)
Only for actuator group 4:
Value object (16 bit floating point
value)
For each scene, you specify the code via which the
scene on the scene-input object should be retrieved.
You also specify the time between the individual scene
telegrams.
| addresses for this device, i. e. no scene address
Make sure that you always enter unique scene
should be allocated more than once.
Scene 1-5
Parameter
Setting
Scene is retrieved with the
following value (0-63)
0 - 63 in single steps
Interval between scene
telegrams
100 ms * Factor (2-60)
2 - 60 in single steps
Finally, specify the actuator groups and their values for
this scene. These only remain valid up to the first time
the scene is saved.
The value range which can be set depends on the data
type set for the "scene actuator groups".
© 2008 Schneider Electric
22
Multi-function with 1814/3.1
● Setpoint adjustment
Scene 1-5 values
Parameter
Setting
A freely parameterisable push-buttonpair of the multifunction push-button can be used to implement
setpoint adjustment for the integrated room
temperature controller. Setpoint adjustment can also
be performed over the bus, using two 1 bit objects.
One object for increasinging the setpoint and one
object for reducing the setpoint. With this application,
the setpoint can be changed by a separate bus pushbutton.
Only for "Switch object" data type: ON telegram
value 1 to value 5
OFF telegram
Do not transmit a telegram
Only for data type "Value object (8 Do not transmit a telegram
bit in steps)":
0 - 100% in 10% steps,
value 1 to value 5
additionally 25% and 75%
Only for data type "Value object (8 Do not transmit a telegram
bit infinite)":
0 - 254 in single steps
value 1 to value 5
Only for data type "Priority control Switch on with priority control
object":
(11)
value 1 to value 5
Switch off with priority control
(10)
Status indication
The status LED may do one of the following:
– Flash,
– Light up when pressed (for long period), and go out
when released,
– Be on or off continuously,
– Display the status of the status feedback object,
– Display the status of the setpoint adjustment
object.
Remove priority control (00)
Do not transmit a telegram
Only for 16 bit value object:
Value 4
Transmit telegram
Do not transmit a telegram
Only for Value object 16 bit whole 0 - 65535
number without sign:
Value 4
Only for Value object 16 bit whole -32768 - 32767
number with sign:
Value 4
Only for 16 bit floating point value
object:
Value 4
Value 4 = base value * base value
factor, value range in brackets
0.01 (0 to 20.47)
0.02 (0 to 40.94)
0.04 (0 to 81.88)
0.08 (0 to 163.76)
0.16 (0 to 327.52)
0.32 (0 to 655.04)
0.64 (0 to 1310.08)
1.28 (0 to 2620.16)
2.56 (0 to 5240.32)
5.12 (0 to 10480.)
10.24 (0 to 20961.28)
20.48 (0 to 41922.56)
40.96 (0 to 83845.12)
81.92 (0 to 167690.24)
163.84 (0 to 335380.48)
327.68 (0 to 670760.96)
Push-button X
Parameter
Setting
Functional selection
Setpoint adjustment
Activation of status LED
Switched on
Switched off
From the setpoint adjustment
object
From status feedback object
For actuation = ON/release =
OFF
Long operation = ON/release =
OFF
Flashes
Only for 16 bit floating point value 0 to 1000 to 2047
object:
Value 4
Value 4 factor (0 - 2047)
Flashes when the setpoint
adjustment object is not equal
to 0
Flashes when the setpoint
adjustment object equals 0
Flashes if status feedback
object equal to 1
Communication objects
Flashes if status feedback
object equal to 0
You can select the following communication objects:
Function
Object name
Type
Scene
function
Extension unit
object - scene
module
1 byte Low
WC
Transmit
value
Actuator group
1-5
1 byte Low
WCT Transmit/
receive
Transmit
value
Only for actuator 2 byte Low
group 4
WCT Transmit/
receive
Switching
Actuator group
1-5
1 bit
Low
WCT Transmit/
receive
Priority
control
Actuator group
1-5
2 bit
Low
WCT Transmit/
receive
1 bit
Low
WC
Save scenes Enable object
© 2008 Schneider Electric
Prio
For actuation = flash/release =
OFF
Flags Behaviour
Long operation = flash/release =
OFF
Receive
Setpoint adjustment
Increase setpoint
Reduce setpoint
Setpoint adjustment step size
0.5 K
1K
Receive
23
Multi-function with 1814/3.1
Communication objects
Toggle between two local scenes
You can select the following communication objects:
You can use this function to disable all multi-function
push-buttons. Specify two local scenes. When any
push-button is pressed, one or the other scene is
retrieved in alternation.
Function
Object name
Type
Prio
Flags Behaviour
1 bit
Low
WCT Transmit/
receive
Push-button Reduce setpoint 1 bit
X
Low
WCT Transmit/
receive
Push-button Increase
X
setpoint
| the internal scene module of the multi-function
The scene numbers entered must be known to
push-button, and must be identical to the scene
numbers in the module. The scene numbers
entered with this function are not transmitted to
the bus.
● Activating the disable function
You can use the disable function to disable the multifunction push-button (not the display push-buttons) in
three different ways:
1. Separately for each push-button
2. All push-buttons function as master push-buttons
3. Toggle between two local scenes
You can determine whether disable object = 0 or = 1
should be disabled. You can also parameterise
disabling on the display push-buttons separately.
Disable function
Parameter
Disable function
0 - 63
You can use this function to disable all display pushbuttons.
Disable function
Setting
Parameter
Setting
Enabled
Disable function for the display
push-button
Switched on
Disabled
Block
For object value "0"
Type of blocking
Separately for each push-button
Switched off
For object value "1"
Disable function for the display
push-button
0 - 63
and scene address
Disable function for the display push-button
Disable function
Parameter
Setting
Toggle between scene address
Communication objects
All push-buttons function as
master push-buttons
You can select the following communication objects:
Toggle between two local
scenes
Function
Object name
Type
Prio
Flags Behaviour
Disable
function
Disable object
1 bit
Low
WC
Switched on
Receive
Switched off
| disable object, all current push-button functions
When a disable function is activated via the
Separately for each push-button
(including cyclical actions) are suppressed.
You can use this function to disable each of the four or
eight multi-function push-buttons individually. When a
push-button is disabled, it does not execute a function
when pressed.
Disable function push-buttons
Parameter
Setting
Push-button X - (integrate disable Disable
function)
Do not disable
All push-buttons function as master push-buttons
You can use this function to specify one of the four, six
(Plantec) or eight multi-function push-buttons as a
master push-button. When any push-button (not
display push-buttons) is pressed, the function which
has been parameterised for the master push-button is
carried out.
Disable function
Parameter
Setting
Master push-button =
Push-button 1 to 4, or pushbutton 6, or up to push-button 8
© 2008 Schneider Electric
24
Multi-function with 1814/3.1
● Activating the alarm function
| actual temp. is within limits again", the alarm
With the setting "The acoustic alarm stops - if
The multi-function push-button can show you different
alarm situations via the alarm function, using the bell
symbol on the display, the flashing status LEDs and via
alarm buzzer for the 3-gang and 4-gang push-buttons.
When an alarm is issued, a "1" is transmitted to the bus
via the alarm object, and a "0" is transmitted after the
alarm. The alarm object can (e.g.) be set to "1" by
another sensor and the push-button reacts as
parameterised.
cannot be acknowledged. The acoustic and
visual alarms remain until the actual
temperature is back within the parameterised
limits. It is not possible to acknowledge the
alarm when it is triggered via the alarm object.
Communication objects
You can select the following communication objects:
As soon as you switch on the alarm function,
| only four scene objects remain available, since
Function
Object name
Type
Prio
Flags Behaviour
Alarm
function
Alarm object
1 bit
Low
WCT Transmit/
receive
You can parameterise the push-button in such a way
that an alarm is triggered when the specified limits for
the setpoint adjustment on the display are not
reached/exceeded. You can also set the alarm to
triggered when the actual temperature exceeds or fails
to reach a preconfigured value.
You can specify whether an alarm should be displayed
via a flashing display, or whether an acoustic signal
should also be given with 3-gang and 4-gang pushbuttons. For this purpose, you can set the duration of
the alarm (1 to 254 seconds).
● Activating the time control
the fifth scene object is then used for the alarm
function.
Two time-switch channels are available, each with four
programmable switch times, in order to trigger actions
with minute-by-minute precision.
The push-button can be connected to an external clock
via date and time objects, an object to request the
time and an object to identify the working day/holiday,
thus synchronising the internal clock.
After a reset, the time is set to 0:00, and the time
display (time symbol in the display) flashes. When a
synchronisation has been completed (time display is lit
continuously), and it is determined that the difference
between the internal and external clock is less than 1.5
hours, switching commands which are valid for this
period are carried out. If no synchronisation is
completed within 24 hours, switching commands can
continue to be carried out or disabled, depending on
the setting. In this case, the time display also flashes.
Alarm function
Parameter
Setting
Alarm function
Switched off
Switched on
Give signal when the upper/lower Yes
limit is reached for the setpoint
No
adjustment
Alarm signal
acoustic No signal with
2-gang push-button!
Flashing display only
Flashing display and acoustic
Using the multi-function push-button as a master
clock
Only when alarm signal "flashing After an alarm duration which
and acoustic":
can be parameterised
the acoustic alarm stops
When actual temp. is within the
limits again
For "set alarm duration" only:
Alarm duration
Factor (1-254) x sec
You can use the multi-function push-button as a
master clock.
1 Make the settings in the "General" tab, "Transmit
time cyclically".
2 For the Transmit time cyclically parameter, select
either "Once per minute", "Once per hour", or "Once
per day". Once you have selected a cycle, the T flag
(transmission flag) of the "Time object-Time
control" communication object is automatically set.
3 Now make the following settings for all multifunction push-buttons used as "Slave clocks": In the
"General" tab, "Transmit time cyclically", make the
setting: "Switched off".
4 Connect the "Time object - Time control" objects to
each other.
1-254, 60 preconfiguration
Give signal when actual temp. is 20.0 °C = 68.0 °F to
above
40.0 °C = 104.0 °F
in 1 degree steps
No, no signal
Give signal when actual temp. is 0.0 °C = 32.0 °F to
below
19.0 °C = 66.2 °F
in 1 degree steps
No, no signal
With the setting "The acoustic alarm stops -
| after a set alarm duration", the acoustic signal
only sounds for the parameterised duration.
However, the visual display continues until the
alarm ends. The alarm can also be
acknowledged. To do this, press the display
push-button. The visual display remains until the
end of the alarm. It is also possible to
acknowledge the alarm when it is triggered via
the alarm object.
© 2008 Schneider Electric
25
Multi-function with 1814/3.1
| which all the other multi-function push-buttons
All that remains is to set the master clock with
Time channel 1/2 - switch time
1-4
synchronise their time.
Caution: This only applies to transmitting the
time. The date is not transmitted to the bus and
cannot be set with the display push-buttons.
Parameter
0.16 (0 to 327.52)
0.32 (0 to 655.04)
0.64 (0 to 1310.08)
Time control
Parameter
Setting
Time control
Switched on
1.28 (0 to 2620.16)
2.56 (0 to 5240.32)
5.12 (0 to 10480.64)
Switched off
10.24 (0 to 20961.28)
Request time synchronisation via Yes
the bus
20.48 (0 to 41922.56)
40.96 (0 to 83845.12)
No
81.92 (0 to 167690.24)
Behaviour when synchronisation Switching commands are still
fails
carried out
only displayed when "Request
time synchronisation via the bus"
is set to "Yes"
163.84 (0 to 335380.48)
327.68 (0 to 670760.96)
Value factor (0 - 2047)
Switching commands are
suppressed
Select scene address internally
Execute switch time
1
Time channel 1/2, number of
switching times
1-4
Time channel 1/2
Actuator group
Switch object
0 - 1000 - 2047
0 - 63
No scene
Number of time switch channels 2
On working day
On holiday
Always
Request time synchronisation via the bus
Value object (8 bit in steps)
After a download, after plugging into the BCU, or when
the bus voltage is applied, the multi-function pushbutton can transmit a telegram to the bus to request
the current time and date. This synchronises the time
and date in the multi-function push-button.
1 Connect the objects "Time object - Time control",
"Date object - Time control", and the object
"Request time - Time control" to the corresponding
objects of a year time switch.
2 In the "Time control" tab, set the "Request time
synchronisation parameter via the bus" to "Yes".
When this parameter is set to "Yes", then a further
parameter is displayed: "Behaviour when
synchronisation fails". Here you can select either
"Time switch switching commands are still carried
out" or "Time switch switching commands are
suppressed" when time synchronisation does not
occur.
Value object (8 bit continuous)
Priority object
Value object (16-bit integer
without sign)
Value object (16-bit integer with
sign)
Value object (16-bit floating
point value)
Time channel 1/2 - switch time
1-4
Parameter
Setting
Hour (0-23)
0 - 23 in one-hour steps, 13
preconfiguration
Minute (0-59)
0 - 59 in one-minute steps, 0
preconfiguration
Value ("Switch object" actuator
group)
ON telegram
OFF telegram
Value ("Value object 8-bit in steps" 0% - 100%
actuator group)
Value ("Value object 8-bit
continuous" actuator group)
0 - 255
Value ("Priority object" actuator
group)
Switch on with priority (11)
The function "Request time synchronisation via
| the bus" only works in conjunction with an
appropriate year time switch.
Switch off with priority (10)
Remove priority (00)
Value ("Value object 16-bit integer 0 - 65535
without sign" actuator group)
Value ("Value object 16-bit integer -32768 - 32767
with sign" actuator group)
Value ("Value object 16-bit floating 0.01 (0 to 20.47)
point" actuator group)
Value = base value * factor
Base value, value range in
brackets
0.02 (0 to 40.94)
0.04 (0 to 81.88)
© 2008 Schneider Electric
Setting
0.08 (0 to 163.76)
26
Multi-function with 1814/3.1
Communication objects
How the room temperature controller functions
You can select the following communication objects:
There are many factors which can affect room
temperature. The task of the controller is to detect the
actual temperature constantly, and to ensure that the
heating or cooling system receives new information
accordingly. The heating or cooling system converts
this information and adjusts the room temperature to
the preconfigured setpoints.
The actual temperature is constantly measured by the
temperature sensor integrated into the multi-function
push-button. However, you can also measure the
temperature via an external sensor and transfer it to
the controller via the bus, which then takes it fully or
partially into account when assessing the actual
temperature.
The controller can control the connected heating/
cooling systems via corresponding switch telegrams
or continuous control values. In this way, both PI
controllers and 2-step controls can be parameterised.
Four operation modes (comfort, standby, night and
frost/heat protection) for which setpoints can be set in
each case are available for differentiated control with
different requirements.
Additional functions of the room temperature control
unit are comfort extension, shared/separate control
value output, selection of the operation mode after
reset, offset of the setpoint temperatures, 1 bit/1 byte
status objects, taking into account a temperature
which has been measured separately, temperature
drop detection, and valve protection.
Function
Object name
Type
Prio
Flags Behaviour
Time control Time object
3 byte Low
WC
Receive
Time control Date object
3 byte Low
WC
Receive
Time control Time request
1 bit
Low
CT
Transmit
Time control Working day/
holiday
1 bit
Low
WC
Receive
Time control Switch object A/ 1 bit
B
Low
WCT Transmit/
receive
Time control Value object A/B 1 byte/ Low
2 byte
WCT Transmit/
receive
Time control Priority object A/ 1 byte Low
B
WCT Transmit/
receive
When a change is made from a holiday to a
| working day or vice-versa via the control menu
of the push-button, the push-button carries out
all switch times which are programmed up to
the current time, taking into account the new
"working day/holiday" setting.
| holiday"
Communication object "Working day/
The value 1 (1 bit) switches the clock to
"Working day" mode. The value 0
(1 bit) switches the clock to "Holiday" mode.
Tip: This object should be controlled by an
appropriate year time switch.
If the communication object "Working day/
holiday" does not have a group address then the
default value "0" is used. This means that the
clock is in the "Holiday" mode.
Only the switching times parameterised for "On
holiday" or "Always" are then executed.
Setpoints and operation modes
Four operation modes are available to help you control
the room temperature:
– Comfort mode
Controls the room temperature when the room is
being used.
– Standby operation
Lowers temperature slightly when the room is not
being used.
– Night operation
Lowers temperature significantly, e. g. at night or
during the weekend.
– Frost/heat protection
Automatically switches on the heating or cooling
when temperature threshold values are not reached
or are exceeded.
The additional "comfort extension" operation mode
acts in the same way as the comfort mode, but is
exited automatically after a time period that can be set.
You can switch back and forth between these
operation modes in different ways:
– Via the communication objects, by using the time
control on the multi-function push-button, for
example
– Via the control menu
You can specify a setpoint for each operation mode.
When changing the operation mode, the relevant
● Becoming familiar with and parameterising
room temperature controller
To activate the room temperature controller, you must
switch on the "Controller" parameter in the "General
controller" tab. Up to seven additional tabs, with
setting options, are then available. As for all
parameters, the recommended settings are already
specified here. However, you must check all
parameters to make sure that they are set correctly
and appropriately for the local conditions for your
installation.
© 2008 Schneider Electric
27
Multi-function with 1814/3.1
setpoint for continued room temperature control is
used. The setpoints for all operation modes, except for
frost/heat protection, can be manually altered within
adjustable limits using the control menu on the pushbutton, or can be adjusted via the "Setpoint adjustment
- Controller" object. You can also set whether or not
manual changes to the setpoints should remain valid
after you have switched to another operation mode.
The active operating state of the controller is
determined by the states of the communication
objects: "Comfort", "Night economy", "Frost/heat
protection" and "Dew point alarm".
When calculating the setpoints, the highest priority
goes to the dew point alarm. If the alarm is triggered,
heating continues to be possible, but cooling is
deactivated ("0" on the controller output). The dew
point alarm is terminated when its communication
object is set to "0".
After a reset, the preconfigured operation mode is
active. The corresponding setpoints then also apply. If
the set setpoint is changed manually via the control
menu and an attempt is made to exceed or not reach
the set limits, an acoustic signal may sound with 3gang and 4-gang push-buttons (can be set).
When the offset is received via the bus, the controller
checks whether it lies within the parameterised limits,
and if necessary, adjusts it to the corresponding limits.
Toggling between operation modes via 1 bit
Activation via the bus:
Comfort bit
Night bit
Status byte
0
0
Standby
Description
Standby
0
1
Night
Night
1
0
Comfort
Comfort
1
1
Comfort
Comfort
Activation via the display:
Comfort bit Night bit
Status byte Description Transmit
bus
0
0
Standby
Standby
Yes
0
1
Night
Night
Yes
1
0
Comfort
Comfort
Yes
1
---
Comfort
Comfort
extension
Only
comfort
Dew point alarm object
1
Cooling control value = 0%
Cooling
yes/no
Dew point alarm
0
Objects
Setpoints
Comfort
Night economy
frost/heat protection object/
detection of temperature drop
Object
Control value
Dew point alarm
Operating
mode
Night
Comfort
Standby
Offset
setpoints
1
Control
algorithm
+
Setpoint
Comfort object
Night
Comfort
Standby
Offset
Control
menu
Anzeige
Temperature drop
Frost/heat protection
Setpoints
N
night object
Menu
1 1
Comfort extension
1 0
Comfort mode
0 1
Night operation
0 0
Standby operation
Toggling between operation modes via 1 bit
Frost protection
Heat protection
Setpoint
Calculating the setpoint
© 2008 Schneider Electric
frost/heat protection
0
28
Multi-function with 1814/3.1
comfort mode symbol only flashes when
comfort extension is selected via the control
menu.
Comfort mode
The
symbol in the display indicates that the
controller is in the "Comfort" operation mode (room in
use or person present). This operation mode is used to
control the room temperature when the room is being
used.
You can set the controller to switch on automatically in
this state after a reset.
Comfort mode is active
– When (a presence detector for example) reports a
presence via the "Comfort" object. An external pushbutton is also an option.
– When the "Comfort" operation mode is selected in
the control menu.
When the comfort mode is terminated via the
"Comfort" object (value = 0), the standby or night
operation mode is activated. This setting can be useful
as an office application for centralised resetting, for
example.
Comfort extension
"Termination of comfort extension via (operation
mode) object"
Controller general
Parameter
Setting
Termination of comfort extension Deactivated
via (operation mode) object
Activated
Comfort extension when operation mode changes
1 bit
Termination Comfort Night bit Status
byte
of comfort bit
extension
via
(operation
mode)
object deactivated
(symbol flashes)
Comfort extension is indicated by the flashing
symbol. The additional comfort extension operation
mode is largely the same as the comfort mode.
Comfort extension is exited automatically after a time
period that can be set, however. It temporarily
suppresses the night operation mode when the room
is used for longer during the evening, for example.
The comfort extension is active:
– When the "Comfort extension" operation mode is
selected in the control menu.
The parameterised time for the comfort extension
runs to an end and can then be restarted by another
activation of the comfort extension in the control
menu. You can parameterise the controller so that it
switches to standby mode, night mode, or a mode
defined by the current object, once the comfort
extension has finished. A precondition for this is that
the parameter "Termination of comfort extension via
(operation mode) object" is set to "Deactivated". When
comfort extension is selected via the control menu,
the
symbol flashes.
It is terminated
– When the parameterised time has elapsed
– When the "Night operation", "Comfort" or "Standby"
operation mode is selected in the control menu.
After time
0
0
Standby Standby
No
sequence
of
0
1
Night
No
received
1
0
Comfort Comfort
No
Operation
mode
1
1
Comfort Comfort
No (when
comfort=1
while the
comfort
extension
was received
1
1
Night
Yes
(comfort=0
and night=1;
when
comfort=1
not while the
comfort
extension
was received
Setting:
Standby
0
0
Standby Standby
Yes
(comfort=0
and night=0)
Setting:
Night
0
1
Night
Yes
(comfort=0
and night=1)
Night
Night
Night
Termination Comfort Night bit Status
byte
of comfort bit
extension
via
(operation
mode)
object activated
| bus. When the controller is in the "Night"
Comfort extension can be implemented via the
Descripti A
on
telegram
is
transmitt
ed from
the multifunction
pushbutton to
the bus
After a time Last
(bit state as before comfort
Yes
period:
operation
the
extension)
mode
operation mode, the "Edges extended" function
can be used to transmit a "1" to the comfort
object and, after a time T, a "0" is transmitted to
the comfort object. The controller switches to
comfort mode for the parameterised time, after
which it switches back to night mode. Note that
when "Comfort extension" is triggered by the
"Edge function extended" then the comfort
mode symbol in the display does not flash. The
© 2008 Schneider Electric
Description A telegram is
transmitted
to the bus
from the
multifunction
push-button
29
0
0
Standby Standby
No
0
1
Night
No
1
0
Comfort Comfort
Night
No
Multi-function with 1814/3.1
Termination Comfort Night bit Status
of comfort bit
byte
extension
via
(operation
mode)
object activated
Received
Operation
mode
1
1
1
1
Comfort Comfort
Night
Comfort Operatio Status
Terminabit
n mode byte
tion of
changed
comfort
byte
extension
via
(operation
mode)
object activated
Descripti A
on
telegram
is
transmitt
ed from
the multifunction
pushbutton to
the bus
Night
After a time Last
(bit state as before comfort
Yes
period:
operation
the
extension)
mode
No (when
comfort=
1 while
the
comfort
extension
was
received)
Yes
(comfort=
0 and
night=1;
when
comfort=
1 not
while the
comfort
extension
was
received)
Received
Operation
mode
Comfort extension when operation mode changes
1 bit
Comfort Operatio Status
Terminabit
n mode byte
tion of
changed
comfort
byte
extension
via
(operation
mode)
object deactivate
d
Descripti A
on
telegram
is transmitted
from the
multifunction
pushbutton to
the bus
After time
0
Standby
(value 2)
Standby
Standby
No
sequence
of
0
Night
(value 3)
Night
Night
No
received
0
Comfort
(value 1)
Comfort
Comfort
No
Operation
mode
0
Frost/heat Frost/heat Frost/heat No
protectio protectio protection
n (value 4) n
1
Standby
(value 2)
Comfort
Comfort
No
1
Night
(value 3)
Comfort
Comfort
No
1
Comfort
(value 1)
Comfort
Comfort
No
1
Frost/heat Frost/heat Frost/heat No
protectio protectio protection
n (value 4) n
Setting:
Standby
0
Standby
(value 2)
Standby
Standby
Yes
(comfort=
0 and
night=0)
Setting:
Night
0
Night
(value 3)
Night
Night
Yes
(comfort=
0 and
night=1)
© 2008 Schneider Electric
Descripti A
on
telegram
is transmitted
from the
multifunction
pushbutton to
the bus
0
Standby
(value 2)
Standby
Standby
No
0
Night
(value 3)
Night
Night
No
0
Comfort
(value 1)
Comfort
Comfort
No
0
Frost/heat Frost/heat Frost/heat No
protectio protectio protection
n (value 4) n
1
Standby
(value 2)
Comfort
Comfort
No
1
Night
(value 3)
Comfort
Comfort
No
1
Comfort
(value 1)
Comfort
Comfort
No
1
Frost/heat Frost/heat Frost/heat No
protectio protectio protection
n (value 4) n
Standby operation
The
symbol in the display indicates that the
controller is in the "Standby" operation mode. This
operation mode enables you to reduce or increase the
room temperature to a parameterised level as soon as
the room is no longer in use. A brief heating period or
cooling period is triggered by the low difference in
temperature to the comfort mode.
You can set the controller to switch on automatically in
this state after a reset.
The standby mode is active
– When all operation mode objects equal "0", i. e. the
"Dew point alarm", "Night economy", "Frost/heat
protection" or "Comfort" operation modes are not
active.
– When the "Standby" operation mode is selected in
the control menu.
30
Multi-function with 1814/3.1
Toggling between operation modes via 1 byte
Night operation
The
symbol in the display indicates that the
controller is in the "night operation" mode. This
operation mode enables you to reduce or increase the
room temperature to a greater extent during the night
or over the weekend. In this operation mode, you use
a "1" telegram to switch via the "Night economy"
object.
The night operation mode is active when the comfort
object is set to "0" and
– The "Night economy" object is set to "1", or
– When the "Night operation" mode is selected in the
control menu.
Dew point alarm object
Cooling control value = 0%
1
Cooling
yes/no
Dew point alarm
0
frost/heat protection object or
detection of temperature drop or
operating mode = 4
1
frost/heat protection
0
Comfort object
Off
It is terminated
– When the "Night economy" object is set to "0", or
– When the "Comfort extension", "Comfort" or
"Standby" operation mode is selected in the control
menu.
Frost/heat protection
Operating mode object
On "3"
Menu
Comfort extension
1
"1", "2", "3"
Comfort mode
0
"3"
night operation
0
"2"
Standby operation
Toggling between operation modes via 1 byte
The parameterised values for frost protection (e.g.
+7°C) or heat protection (e. g. +35°C) are set as new
setpoints with a "1" telegram to the "Frost/heat
protection" object. This prevents the room from
becoming overheated or the heating from freezing. A
"0" telegram terminates "Frost/heat protection" and the
previous operation mode is set again. The operation
mode is defined by the information present in the
comfort and night bits. If no change occurs then the
previous operation mode is set. This does not apply
when the "Dew point alarm" operation mode is also
active.
Operation mode object with 1 byte:
– "4" = Frost/heat protection
– "3" = Night economy
– "2" = Standby
– "1" = Comfort
Activation via the bus:
Comfort bit
Operation
Status byte
mode
changed byte
Description
0
Standby (value Standby
2)
Standby
0
Night (value 3) Night
Night
0
Comfort (value Comfort
1)
Comfort
0
Frost/heat
protection
(value 4)
Frost/heat
protection
1
Standby (value Comfort
2)
Comfort
1
Night (value 3) Comfort
Comfort
1
Comfort (value Comfort
1)
Comfort
1
Frost/heat
protection
(value 4)
Frost/heat
protection
Dew point alarm
The dew point operation mode is used to switch off
the cooling in all circumstances. A "1" telegram via the
"Dew point alarm" object switches off the cooling
when there is condensation in the cooler. This
operation mode has the highest priority. A "0" telegram
terminates the "dew point alarm" and the new
operation mode is set again. The operation mode is
defined by the information present in the comfort and
night bits. If no change occurs then the previous
operation mode is set.
Frost/heat
protection
Frost/heat
protection
Activation via the display:
Comfort bit Operation
mode
changed
byte
© 2008 Schneider Electric
31
Status byte Description Transmit
bus
0
Standby
Standby
Standby
Yes
0
Night
Night
Night
Yes
0
Comfort
Comfort
Comfort
Yes
Multi-function with 1814/3.1
Comfort bit Operation
mode
changed
byte
Status byte Description Transmit
bus
0
Comfort
Comfort
Comfort
extension
Cooling with switching control values (e. g. switch
actuator):
– Cooling ceiling
– Air convectors
Yes
Ambient temperature
Heating
warm
cold
In the heating control mode, the current actual
temperature is compared with the current setpoint
temperature. If the actual temperature lies below the
setpoint temperature, this control difference is
counteracted by issuing a setpoint which does not
equal "0". The symbol for heating
is shown in the
display, and when a control deviation results (setpoint
does not equal "0"), an additional "1".
Heating with constant control values (e. g. EMO valve
drive):
– Radiator/convector hot water heating
– Underfloor hot water heating
– 2-circuit underfloor hot water heating
– Air convectors
Heating with switching control values (e. g. switch
actuator):
– Electric convector
– Night storage heating
– Ceiling heating
Actual value
Setpoint
100%
Control value
0%
Cooling off
Cooling controlled
Cooling on
Heating and cooling
You can use the "Switch between heating and cooling"
parameter to select whether the current control mode
(heating or cooling) should be triggered automatically
or via the "Heating/cooling" object. If you've selected
the "Heating/cooling" object, the controller is forced
into heating or cooling mode, and can only be adjusted
to another control mode by an object change.
Ambient temperature
| heating and cooling"to "Externally (via Heating/
If you have set the parameter "Switch between
warm
cold
cooling object)" then after a download, or
restoration of bus voltage, a read request is
transmitted to the bus by the "Heating/cooling"
object. If the object does not receive a status
feedback within 2 seconds, the controller sets
itself to heating mode and a "1" for heating is
transmitted to the bus. If a status feedback is
received within 2 seconds then this operation
mode is switched off.
Actual value
Setpoint
100%
Control value
Heating on
Heating controlled
0%
Heating off
If you selected automatic mode, the controller decides
which control mode is suitable based on the
parameterised setpoints, the dead zone and the
current actual temperature. The currently valid
operation mode is shown in the display with the
corresponding symbols ( comfort,
standby and
night economy). An additional "1" is shown when
the controller issues a control value which does not
equal "0" at the heating output, and a "2" when the
controller issues a control value which does not equal
"0" at the cooling output. Heating is indicated by ,
and cooling by .
To save energy, you should plan a dead zone. This
prevents the controller from switching constantly
between heating and cooling. For example, if a heater
is used for heating, it has sufficient thermal energy
after the valve has been closed to continue to heat the
room above the heating setpoint temperature. If you
Cooling
In the cooling control mode, the current actual
temperature is compared with the current setpoint
temperature. If the actual temperature is above the
setpoint temperature, this control difference is
counteracted by issuing a setpoint which does not
equal "0". The symbol for cooling
is shown in the
display, and when a control deviation results (setpoint
does not equal "0"), an additional "1".
Cooling with constant control values (e. g. EMO valve
drive):
– Cooling ceiling
– Air convectors
© 2008 Schneider Electric
32
Multi-function with 1814/3.1
For heating and cooling, move the setpoints
together
have configured the heating and cooling setpoint to be
the same, and set the dead zone to "0", the air
conditioning unit cools immediately since the setpoint
for cooling has not been exceeded. The procedure
repeats itself again and again.
| (heating and cooling) is interpreted as the dead
The difference between the two setpoints
zone for this operation mode.
Example: The upper and lower setpoint adjustment is
3K respectively. Actual value = 21 °C; Heating setpoint
= 22 °C; Cooling setpoint = 24 °C, this results in a dead
zone of 2K.
If you now adjust the setpoint temperature
downwards using the display, then the following
values are displayed: 22.0; 21.5; 20.5; 20.0; 19.5; 21.0.
The jump from 19.5 to 21.0 can be explained by the
fact that the cooling setpoint is relevant now because
the actual temperature lies above the setpoint
temperature. This is only carried out for the operation
mode that is currently active. If you are currently in
comfort mode, the comfort setpoints for heating and
cooling can be adjusted together, but the values for
standby or night operation cannot be.
Night
frost/heat protection
operation operation
Standby
operation
Comfort
mode
Setpoint heat protection
35 °C
Controller ist cooling,
if actual value > setpoint
28 °C
Setpoints
cooling
26 °C
24 °C
Dead zone
Setpoints
heating
21 °C
19 °C
17 °C
Controller ist heating,
if actual value < setpoint
7°C
Setpoint frost protection
Two-stage heating or cooling
If an error has occurred in planning (heating setpoint
higher than cooling setpoint), this is shown in the
display by the "Er 2" error message after a reset. The
controller remains inactive until you rectify the error in
the ETS and re-load the parameters.
Heating and cooling with constant control values (e. g.
EMO valve drive):
– 2-pipe fan coil
– 4-pipe fan coil (with external switching between
heating and cooling)
– 4-pipe fan coil (with automatic switching between
heating and cooling)
– 1-circuit air conditioned ceiling
– Cooling ceiling with combined hot water heating
– Cooling ceiling with combined underfloor heating
– Variable air volume
Heating and cooling with switching control values
(e. g. switch actuator):
– Cooling ceiling
– Air convectors
In order to shorten the heat-up phase with slow
heating systems (e. g. underfloor heating), a second,
more responsive heating system which heats up
faster during the long start-up period of the main
system (basic level) is frequently used.
Heating/
cooling
output
Additional level
0
warm
Actual value
Cooling setpoint
Heating setpoint
100%
Heating control value
0%
Heating on
Heating controlled
Heating off
100%
Cooling control value
Cooling off
© 2008 Schneider Electric
Cooling controlled
30
60
90 t (min)
The same behaviour applies with cooling systems.
The additional level, which is controlled via 2-step
control, remains switched on until a parameterised
interval below the basic level is reached (e. g. 2 K), and
then switches off. Only the basic level then remains
switched on.
Example:
– Setpoint temperature: 21 °C
– Interval between basic level – additional level: 2 K
– Hysteresis of additional level: 1 K
The additional level remains switched on until
"Setpoint temperature minus interval" (21 °C - 2 K = 19
°C) is reached. The additional level is then switched off.
It is only switched on again when the actual
temperature is lower than the "setpoint temperature
Ambient temperature
cold
Basic level
0%
Cooling on
33
Multi-function with 1814/3.1
Continuous 2-step control:
minus interval minus hysteresis" (21 °C - 2 K - 1 K = 18
°C).
Control value
additional level
Room temperature
control unit
Operating mode changed
Setpoint temperature
1
Hysteresis
100 %
0
18
19
21
Control value
Room temperature
(°C)
The multi-function push-button displays the active
basic level with a "1" and the active additional level with
a "2".
0%
The disadvantage of simple control, in contrast to its
advantage, is that the room temperature is not
constant, but changes continuously, reducing comfort
particularly when heating and cooling systems are
slow to react. To counteract this effect, the hysteresis
can accordingly be set small. However, this leads to an
increase in switching frequency, and therefore to
increased wear of the drives.
Controller types
The room temperature control unit transmits control
values to the bus via various communication objects,
which you can use to control different controller types
with switching commands or by specifying percentage
values:
– Continuous 2-step control
– Switching 2-step control
– Continuous PI controller
– Switching PI controller
Continuous and switching 2-step control
2-step control is the simplest type of controller. The
heating switches on as soon as the actual temperature
falls below a specific value, and switches off as soon
as a specific value has been exceeded. The two values
(above and below the setpoint temperature) are called
the hysteresis.
Switching 2-step control:
Room temperature
control unit
Hysteresis
Setpoint
temperature
Setpoint
temperature
1
Control value
0
© 2008 Schneider Electric
34
Multi-function with 1814/3.1
Continuous PI controller
The temperature overshoot above or below the
hysteresis apparent in the diagram is caused when the
heating/cooling system continues to emit heat or cold
into the room after it has been switched off.
For the continuous PI controller, the corresponding 1
byte control value is transmitted 0-100% directly via
the bus to the heating actuator (e. g. EMO valve drive),
which converts the control value directly to a degree of
opening. However, this is only transmitted when the
newly calculated control value has changed by a
specified percentage.
Setting rules for the 2-step control
"Hysteresis of the 2-step control" parameter:
– Small hysteresis:
leads to small fluctuations, but frequent switching.
– Large hysteresis:
leads to big fluctuations, but infrequent switching.
Calculated
control value
100 %
50%
| system and the room, the temperature
In general, due to the influences of the heating
0%
t
fluctuations in the room are significantly higher
than the hysteresis.
100 %
Control value
50%
Continuous and switching PI controller
For PI controller, the control value is calculated from a
proportional and an integral proportion. Parameters
such as the temperature difference between the
actual and setpoint, the proportional range and the
readjustment time are material to the calculation. In
this way, the controller can correct the room
temperature quickly and accurately. The corresponding
control value is transferred via a 1 bit/1 byte value to
the bus.
The standard control parameters for the most
common system types are already installed in the
controller:
– Hot water heating
– Underfloor heating
– Electric heating
– Air convector
– Split unit
– Cooling ceiling
You can also set the control parameters for the
proportional range and the readjustment time
manually, but you should know exactly which actuators
are connected and the control conditions in the room.
0%
t
Switching PI controller (PWM)
With the switching PI controller, also known as the
PWM controller, the control values calculated by the
controller (0-100%) are converted into a pulse-width
modulation (PWM). Within a constant, defined cycle
time, the control actuator is opened ("1") and then
closed again ("0") for the calculated percentage period.
For example, when a control value of 25% is
calculated for a cycle time of 12 minutes, a "1" is
transmitted at the beginning of the cycle time, and a
"0" is transmitted after three minutes (= 25% of 12
minutes)
.
Calculated
control value
100 %
80%
60%
40%
20%
0%
0
15
30
45
60
t (min)
1
Control value
0
t (min)
When the setpoint temperature changes, the
controller re-calculates the required control value and
transmits it still within the current cycle (broken line).
© 2008 Schneider Electric
35
Multi-function with 1814/3.1
The framework conditions for setting the cycle time
are as follows:
– For small values, the switching frequency and the
bus load are increased.
– For large values, temperature fluctuations are
created in the room.
– A short cycle time for rapid heating systems (e.g.
electric heating).
– A long cycle time for slow heating systems (e. g.
underfloor hot water heating).
Setting rules for the PI controller
Room temperature
Setpoint 2
Setpoint 1
Zeit
t1
t2
Examples
In general:
– Large system increases (e.g. high heating output,
steep characteristic curves for valves) are controlled
with large proportional ranges.
– Slow heating systems (e.g. underfloor heating) are
controlled with high-level readjustment times.
If a satisfactory control result is not achieved by
selecting an appropriate heating or cooling system,
you can improve the adjustment "via control
parameters":
– Low proportional range:
large overshoot for setpoint changes (also
continuous oscillation under certain
circumstances), rapid adjustment to the setpoint.
– Large proportional range:
no (or little) overshooting, but slow adjustment.
– Short readjustment time:
rapid correction of control deviations (ambient
conditions), risk of continuous oscillation.
– Long readjustment time:
slow correction of control deviations.
Hot water radiator heating with motorised valve
drives:
Characteristics Parameter
Setting
Heating only
Controller type
Heating
Control value output
Continuous PI controller
Adjust the controller to Hot water heating (5 K/
the heating system
150 min)
Cooling ceiling with motorised valve drives:
Characteristics Parameter
Setting
Cooling only
Controller type
Cooling
Control value output
Continuous PI controller
Adjust the controller to Adjustment via control
the cooling system
parameter
Cooling proportional
range
Approx. 5 K (depending
on the application)
Cooling readjustment
time
Approx. 240 min.
(depending on the
application)
Switching electric radiator heating:
Characteristics Parameter
Setting
Heating only
Controller type
Heating
Control value output
Switching PI controller
Adjust the controller to Electric heating (4 K/
the heating system
100 min)
Air conditioning with 4-duct (2-circuit) air convector
system (e. g. switching valve drives):
Characteristics Parameter
Setting
Heating or
cooling as
required, with
automatic
switching
Controller type
Heating and cooling
Control value output heating
e. g. switching PI
controller
Adjust the controller to Air convector (4 K/
the heating system
90 min )
Control value output cooling
e. g. switching PI
controller
Adjust the controller to Air convector (4 K/
the cooling system
90 min )
e. g.
Switch between heating automatically via the
automatically
and cooling
controller
switch between
heating and
cooling
© 2008 Schneider Electric
36
Multi-function with 1814/3.1
If you have parameterised the "Heating and cooling"
controller type, either the controller automatically
switches between heating and cooling or it is done by
the "Heating/cooling" object accordingly.
As a standard, switching between heating and cooling
is automatic. The controller is either in heating or
cooling mode. The control value of the non-active
mode is switched to 0% (off).
When switching externally, switch to the heating
mode with a "1" telegram, and to cooling mode with a
"0" telegram.
If the same transmitting group address is used for the
heating and cooling setpoints, the "0" telegrams of the
non-active controller type are automatically
suppressed.
Temperature limitation using shading facility:
Characteristics Parameter
Setting
Cooling only
Controller type
Cooling
Control value output heating
Switching 2-step control
Hysteresis
Large (e. g. 2 K)
Setting the general controller parameters
Set the controller first. Then specify which control type
you want to plan. You can set whether and how the
comfort extension should function, and which
operation mode the device should go to after a reset.
Define whether setpoint changes via the control menu
should be saved, or whether each setpoint set should
apply again when the operation mode is changed.
Finally, specify the upper and lower setpoint
adjustment.
Setting the operation mode and status
Switched on
Here you can set whether to toggle between
operation modes via 1 bit or 1 byte. You can make the
same setting for the size of the status object. This is
useful when you require the status of the system to be
displayed using visualisation software, for example.
Heating
Operation modes/status
Cooling
Parameter
Setting
Heating and cooling
1 bit
2-level heating
Toggling between operation
modes via
2-level cooling
Size of the status object
1 bit
Controller general
Parameter
Setting
Control
Switched off
Controller type
Comfort extension
Switched off
1 byte
30 min - 4.0 hours in 0.5 hour
steps, 1.0 preconfiguration, test
mode 1 minute
Only when status object = 1 bit: Bit 0: Comfort
Status selection
Bit 1: Standby
Bit 2: Night operation
Termination of comfort extension Deactivated
via (operation mode) object
Bit 3: Frost/heat protection
Activated
Bit 4: Dew point alarm
Only visible when "Termination of Standby
comfort extension" is set to
"Deactivated":
Operation mode after comfort
extension
Bit 5: Heating (1)/cooling (0)
Bit 6: Controller inactive
Bit 7: Frost alarm (1)
Night operation
Setting the setpoints
Current object values
Operation mode after reset
A setpoint which must be specified, used for
temperature control when changing operation mode
automatically or manually, is available for each
operation mode. The setpoint can be changed
manually via the control menu on the multi-function
push-button within the offset limitation (see "General
controller" tab).
There is no setpoint adjustment for frost or heat
protection. As soon as the actual temperature has
reached the respective value, the system immediately
switches to protection and the corresponding setpoint
is written to the corresponding communication object.
As soon as this objects is written externally with a "0"
again, the protection mode switches back off.
Comfort operation
Standby operation
Night economy operation
Also retain setpoint adjustment
after operation mode change
Yes
Max upper setpoint offset
0 - 10 K in 1 Kelvin steps,
3 K preconfiguration
Max lower setpoint offset
0 - 10 K in 1 Kelvin steps,
3 K preconfiguration
Only when heating and cooling:
Switch between heating and
cooling
Automatically (via the
controller)
1 byte
No
Externally (via heating/cooling
object)
Setpoints
© 2008 Schneider Electric
37
Parameter
Setting
For both heating and cooling:
Comfort setpoint
5.0 - 40 °C in 0.5 degree steps
Heating preconfiguration: 21.0
°C
Cooling preconfiguration: 24 °C
Multi-function with 1814/3.1
Setting the temperature drop
Setpoints
Parameter
Setting
For both heating and cooling:
Standby setpoint
5.0 - 40 °C in 0.5 degree steps
Heating preconfiguration: 19.0
°C
Cooling preconfiguration: 26 °C
For both heating and cooling:
Night setpoint
5.0 - 40 °C in 0.5 degree steps
Heating preconfiguration: 17.0
°C
Cooling preconfiguration: 28 °C
Frost protection setpoint
0 - 15 °C in 1 degree steps
Preconfiguration 7 °C
Heat protection setpoint
18 - 40 °C in 1 degree steps
Heating preconfiguration: 35 °C
When temperature drop detection is switched on, the
room temperature control unit checks whether the
temperature has fallen by the set temperature
difference within three minutes. If this is the case, the
system switches to frost protection mode for a period
which can be set. After this time has elapsed, the
controller switches the previously set operation mode
back on.
You can set the sensor that takes the temperature to
be measured (internal/external sensor, both or actual
value). When using an external sensor, the actual
temperature consists of the temperature measured on
the room temperature control unit and the external
temperature, depending on the parameterised
weighting (see "Setting the actual value").
Setting the actual value
Here, you can set a correction value (compensation)
for the temperature sensor installed in the room
temperature control unit. This is useful when (it is
mounted in an unsuitable place in the room or where
the temperature is different to other places in the
room (e. g. from a draught or heat sources nearby), for
example. The following formula applies:
Actual temperature = measured temperature +
compensation
You can set the temperature difference (the last
difference transmitted compared to the current actual
value) at which the actual temperature is transmitted,
and at which interval it should automatically be
transmitted (e. g. to visualisation software).
If you also use an external temperature sensor, you
can set the percentage proportion at which the
separately measured temperature should merge with
the current actual value. The external value is received
via the "Current actual value" object, read off by the
room temperature control unit and calculated
according to the set weighting. The actual value object
is then immediately overwritten again with the
calculated actual value.
Temperature drop
Setting
Compensation of the internal
actual temperature
Factor -128 ... 127) x 0.1 K
-128 - 127 in 1 Kelvin steps,
0 preconfiguration
Temperature difference for
transmitting the actual
temperature
Switched off, 0.1 -2.0 K in 0.1
Kelvin steps, 0.2 K
preconfiguration
Setting
Temperature drop detection
Switched off, -0.2 to -1.0 K in
0.1 Kelvin steps
Only when temperature drop is 10 - 60 (min) in 1 minute steps,
switched on:
20 (min) preconfiguration
duration of the frost protection
mode during temperature drop in
mins. (10-60)
Only when temperature drop is
switched on:
temperature measurement
From internal sensor
From separate sensor
From internal OR separate
sensor
From actual value
Setting the closed-loop control for heating
This tab only appears when you have set the "Heating",
"Heating and cooling" or "2-step heating" control type in
the "General controller" tab. Here, you can set which
heating control type should be activated. For PI
controllers, you can select between five standard
system types, for which the recommended
parameters have already been preconfigured.
However, if you have sufficient specialised knowledge,
you can also set the control parameters as required.
For 2-step controls, set the hysteresis here, and for
"Heating and cooling", the dead zone.
Actual value
Parameter
Parameter
Closed-loop control for
heating/
Closed-loop control for heating
(basic level)
Automatic transmission of actual Switched off, 3 min, 5 - 60 mins.
temperature every
in 5 minute steps, 10 min
preconfiguration
Taking into account the separately 0 - 100 % in 5-percent steps,
measured temperature
0 % preconfiguration
Parameter
Setting
Direction of the controller
Normal
Inverted
Control value output
PI controller (switching)
PI controller (continuous)
2-step control (switching)
2-step control (continuous)
© 2008 Schneider Electric
38
Multi-function with 1814/3.1
Closed-loop control for
heating/
Closed-loop control for heating
(basic level)
Closed-loop control for
cooling/
Closed-loop control for cooling
(basic level)
Parameter
Setting
Parameter
Setting
Only for PI controller switching/
continuous:
Adjust the controller to the
heating system
Adjustment via control
parameter
Control value output
PI controller (switching)
PI controller (continuous)
Hot water heating (5 K/
150 min)
2-step control (switching)
2-step control (continuous)
Underfloor heating (5 K/240 min
)
Only for PI controller switching/
continuous:
Adjust the controller to the
cooling system
Electric heating (4 K/100 min)
Air convector (4 K/90 min)
0.3 K - 2.0 K in 0.1 Kelvin steps,
0.5 K preconfiguration
Only for "Adjustment via control
parameter":
Proportional range for heating in
0.1 K (10-255)
10 - 255 in single steps, 40
preconfiguration
Cooling ceiling (5 K/240 min)
Only when "Adjustment via
Switched off, 1 - 255 in single
control parameter":
steps
Readjustment time for heating in
min (1-255)
Direction of the controller
Normal
Only for "Adjustment via control
parameter":
Proportional range for cooling in
0.1 K (10-255)
10 - 255 in single steps,
40 preconfiguration
Closed-loop control for cooling
(additional level)
Inverted
Control value output
0.3 K - 2.0 K in 0.1 Kelvin steps,
0.5 K preconfiguration
The following settings for the additional cooling level
only appear when you have set the "2-step heating"
control type in the "Controller general" tab. Here,
specify the settings for the second cooling level
Control heating (additional
level)
Setting
Only with 2-step control
switching/continuous:
Hysteresis
Only for "Adjustment via control Switched off, 1 - 255 in single
parameter":
steps
Readjustment time for cooling in
min (1-255)
The following settings for the additional heating level
only appear when you have set the "2-step heating"
control type in the "Controller general" tab. Here,
specify the settings for the second heating level.
Parameter
Parameter
Setting
Direction of the controller
Normal
Control value output
2-step control (switching)
Inverted
2-step control (switching)
2-step control (continuous)
Level interval
Factor 10 ... 100) x 0.1 K
10 - 100 in single steps, 20
preconfiguration
Hysteresis
0.3 K - 2.0 K in 0.1 Kelvin steps,
0.5 K preconfiguration
Air convector (4 K/90 min )
Split unit (4 K/90 min)
Split unit (4 K/90 min)
Only with 2-step control
switching/continuous:
Hysteresis
Adjustment via control
parameter
2-step control (continuous)
Setting the closed-loop control for cooling
Level interval
Factor 10 ... 100) x 0.1 K
10 - 100 in single steps,
20 preconfiguration
Hysteresis
0.3 K - 2.0 K in 0.1 Kelvin steps,
0.5 K preconfiguration
Setting the control values
This tab only appears when you have set the "cooling",
"heating and cooling" or "2-step heating" control type in
the "Controller general" tab. Here, you can set which
cooling control type should be activated. For PI
controllers, you can select between three standard
system types, for which the recommended
parameters have already been preconfigured.
However, if you have sufficient specialised knowledge,
you can also set the control parameters as required.
For 2-step control, set the hysteresis here.
Please note that different parameters must be set for
different controller types.
For "Cycle time of the switching control values", set the
duration for the PWM controller. The calculated control
value is always transmitted at the start of a cycle time.
If the valve drive has not received a value (e. g. during
commissioning), the room could continuously heat up
or cool down. To prevent this, set the cycle time for
automatic control value transmission. The control
value is transmitted again within the set time (as a
precaution).
The following settings apply for the "Heating" controller
type:
Closed-loop control for
cooling/
Closed-loop control for cooling
(basic level)
Parameter
Setting
Direction of the controller
Normal
Control values
Inverted
Parameter
Setting
Cycle time for automatic
2 - 60 in single steps,
transmission of the control value 30 preconfiguration
in min (2-60)
© 2008 Schneider Electric
39
Multi-function with 1814/3.1
The following settings apply for the "Cooling" controller
type:
Valve protection
Control values
Parameter
Setting
Cycle time of the switching
control value in min (2-60)
2 - 60 in single steps,
15 preconfiguration
Minimum control value (0% 100%)
0 - 100 % in 1-percent steps,
0 % preconfiguration
Maximum control value (0% 100%)
0 - 100 % in 1-percent steps,
100 % preconfiguration
2 - 60 in single steps,
30 preconfiguration
For both heating and cooling:
Minimum control value (0% 100%)
0 - 100 % in 1-percent steps,
0 % preconfiguration
For both heating and cooling:
Maximum control value (0% 100%)
0 - 100 % in 1-percent steps,
100 % preconfiguration
Switched off
Approach end position for .... min 1 - 30 in single steps, 4
each time (1 - 30 x min)
preconfiguration
Controller problems - what to do when
Control values
Setting
Switched on
Activate valve protection every ... 1 - 30 in single steps, 15
days (1 - 30 x days)
preconfiguration
The following settings apply for the "Heating and
cooling" controller type.
For both heating and cooling:
Cycle time of the switching
control value in min (2-60)
Setting
Valve protection
Note: Valve protection affects
both controller outputs!
Cycle time for automatic
2 - 60 in single steps,
transmission of the control value 30 preconfiguration
in min (2-60)
Parameter
Parameter
Problem
Possible solution
The controller switches
constantly between
heating and cooling.
Increase the "dead zone" parameter
between heating and cooling.
The setpoint is only
reached very slowly.
Increase the proportional range, either
by selecting a system type with a larger
proportional range in the system-specific
selection "Adjustment of the controller to
the heating/cooling system", or by
directly increasing the proportional range
via control parameters in the adjustment,
or by reducing the integral time.
The room temperature
exceeds the limits when
changes are made to the
setpoint.
Decrease the proportional range, either
by selecting a system type with a smaller
proportional range in the system-specific
selection "Adjustment of the controller to
the heating/cooling system", or by
directly reducing the proportional range
via control parameters in the adjustment,
or by increasing the integral time.
For both heating and cooling:
2 - 60 in single steps,
Cycle time for automatic
30 preconfiguration
transmission of the control value
in min (2-60)
If no improvement occurs:
Increase the readjustment time, either
by setting a different system type or by
setting the value directly.
For both heating and cooling:
2% - 3% - 100%
Changes for automatic
transmission of the control value
It is always too hot or too Compensate for the room temperature
cold in the room
measurement by changing the
"Compensation of the internal actual
temperature" parameters accordingly.
The following settings apply for the "2-step heating"
and "2-step cooling" controller types:
Communication objects
Control values
Parameter
Setting
You can select the following communication objects:
Basic level:
Cycle time of the switching
control value in min (2-60)
2 - 60 in single steps,
15 preconfiguration
Function
Object name
Type
Controller
2 byte Low
Minimum control value (0% 100%)
0 - 100 % in 1-percent steps,
0 % preconfiguration
Setpoint
adjustment
WCT Transmit/
receive
Controller
Comfort
1 bit
Low
WC
Maximum control value (0% 100%)
0 - 100 % in 1-percent steps,
100 % preconfiguration
Controller
Night economy
1 bit
Low
WC
Receive
Controller
Operation mode 1 byte Low
WC
Receive
Controller
Frost/heat
protection
WCT Transmit/
receive
Controller
Current setpoint 2 byte Low
temperature
RWC Transmit/
T
receive/read
out
Controller
Current actual
temperature
RWC Transmit/
T
receive/read
out
Controller
Heating/cooling 1 bit
Controller
Control output
for heating
1 bit/1 Low
byte
LCT
Transmit/
read out
Controller
Heating setpoint 1 bit/1 Low
(additional level) byte
LCT
Transmit/
read out
Controller
Control output
for cooling
1 bit/1 Low
byte
LCT
Transmit/
read out
Controller
Control output 1 bit/1 Low
for cooling
byte
(additional level)
LCT
Transmit/
read out
Cycle time for automatic
2 - 60 in single steps,
transmission of the control value 30 preconfiguration
in min (2-60)
Additional level:
2 - 60 in single steps,
Cycle time for automatic
30 preconfiguration
transmission of the control value
in min (2-60)
Setting the valve protection
The valve protection prevents the valves on the
heaters becoming stuck due to deposits in the heating
water when the heating is switched off for a longer
period of time (e. g. over the summer). When the valve
protection is switched on, the valves are opened for a
preset duration (100% on the controller output) after a
preset number of days, and are then closed again (0 %
on the controller output). When the function is
switched on, it is also active during normal controller
operation.
© 2008 Schneider Electric
40
1 bit
Prio
Low
2 byte Low
Low
Flags Behaviour
Receive
WCT Transmit/
receive
Multi-function with 1814/3.1
Function
Object name
Type
Controller
Status
1 bit/1 Low
byte
Prio
Controller
Dew point alarm 1 bit
Low
● Fan speeds
Flags Behaviour
LCT
Transmit/
read out
The sliding controller function in the multi-function
push-button can be used to conveniently control the
fan speeds with a single push-button. The multifunction push-button can display status feedback from
the fan coil actuator on the display or on the feedback
LEDs. The display can be used show whether the fans
of the fan coil actuator are working in automatic or
manual mode. The fan speed can also be shown in the
display. The parameters can be used to set the percent
values at which the individual speeds are displayed.
RWC Transmitted/
T
receive/read
out
The following diagrams are designed to show how the
individual communication objects are involved in the
control process.
Inputs
Outputs
Obj.: Comfort
Obj.: Status (frost / ..)
Operating
mode
Obj.: Night economy
Setpoints
offset
Obj.: Dew point alarm
Obj.: Frost/heat protection
Fan speed
Obj.: Current setpoint
Setpoint
Calculating
setpoints
Temperature drop
Control
menu
Obj.: Current setpoint
Control algorithm value
Output
Obj.: Cooling control value
continuous /
switching,
inverting
Parameter,
toggle between
heating/cooling
temperature
measurement
by external sensor
Obj.: Cooling control value
additional level
Room
temperature
Compensation,
frost alarm
1 - 7 preconfiguration 3
Display of speed 1 to
1 - 100% preconfiguration
34%
Display of speed 2 to
1 - 100% preconfiguration
67%
Display of speed 3 to
1 - 100% preconfiguration
100%
Display automatic when
Fan status automatic is "0"
Obj.: Heating control value
additional level
temperature
measurement
by internal sensor
Setting
Number of fan speeds
Value range for speed display: 1100%
Obj.: Heating control value
Control
Obj.: Offset
Obj.: Heating/cooling
Parameter
Obj.: Current actual value
Room temperature
Fan status automatic is "1"
● Display external temperature
Communication objects
You can cyclically read an external temperature value
(2-byte value) via the bus and display it. The external
temperature can be the outdoor temperature
transmitted from a weather station, for example.
You can select the following communication objects:
(The display objects that the fan coil actuator transmits
to the bus and the multi-function push-button shows
on the display or LEDs.)
External temperature
Function
Object name
Type
Prio
Flags Behaviour
Display
automatic
Fan status
automatic
1 bit
Low
WC
Receive
Display fan
speed
Fan 0 – 100%
1 byte Low
WC
Receive
Parameter
Setting
Cyclic reading of the external
temperature
Switched on
Base cycle time
1 second
Switched off
1 minute
1 hour
1 day
Factor for cyclic interval (3 - 255) 3 -255
| display, this temperature has no effect on the
The external temperature is only shown in the
control behaviour of the multi-function pushbutton.
Communication object
You can select the following communication objects:
Function
Object name
Display
External
external
temperature
temperature
© 2008 Schneider Electric
Type
Prio
2 byte Low
Flags Behaviour
WCT Transmit/
receive
41
Multi-function with 1814/3.1
● Example of the multi-function push-button
Setting the multifunction pushbutton with
RTCU
The high level of operating convenience of the multifunction push-button with RTCU should be used for
fan coil control.
From device version 3A, fan control is a functional
element of the multi-function push-button with RTCU.
The fan speed can be shown in the display of the multifunction push-button.
½
Caution: To avoid injury to persons and damage
to the system: always adjust the parameters
and settings to suit your system. This is just a
planning example!
Tab
Selection
Fan speeds
Display automatic when "Fan status automatic
1"
Push-button assignments for multi-function pushbutton with RTCU:
Multi-function
push-button with
RTCU
1 Make the following settings at the multi-function
push-button with 4-gang RTCU:
Setting the multifunction pushbutton with
RTCU
Push-button
Assignment
Push-button 1
"Reduce setpoint"
Push-button 2
"Increase setpoint"
Push-button 3
"Fan automatic ON"
Tab
Selection
Push-button 4
"Switch fan to speed 1"
Display
Display mode "Actual temperature; Setpoint
temperature; Fan speed"
Push-button 5
"Switch fan to speed 2"
Push-button 6
"Switch fan to speed 3"
Setpoint adjustment "Reduce setpoint"
Push-button 7
"Manually switch off fan"
Push-button 2
Setpoint adjustment "Increase setpoint"
Push-button 8
"Increase/reduce fan speeds stepwise"
Push-button 3
"On telegram" switch
Push-button 3
"From status feedback object" status LED
Push-button 1
Push-button 4
"On telegram" switch
Push-button 4
"From status feedback object" status LED
Push-button 5
"On telegram" switch
Push-button 5
"From status feedback object" status LED
Push-button 6
"On telegram" switch
Push-button 6
"From status feedback object" status LED
Push-button 7
"On telegram" switch
Push-button 7
"From status feedback object" status LED
Push-button 8
8 bit sliding controller
Push-button 8
"For actuation = ON/release = OFF" status LED
Push-button 8 (2)
"With limit values" sliding controller function
Push-button 8 (2)
"Stepwise to the limits and then back again"
action when actuated
Push-button 8 (2)
Action on release ... "No change"
Push-button 8 (2)
Action when reached ... "No change"
Push-button 8 (2)
Action when released after being reached ...
"No change"
Push-button 8 (2)
Value 1: "0"
Push-button 8 (2)
Step value: "85"
Push-button 8 (2)
Value 2: "255"
Controller
Switched on
Type of control
Heating and cooling
2 Perform the following settings for the fan coil
actuator:
Fan coil actuator
settings
Tab
Selection
General
Heating "active"
General
Type of heating device "Fancoil"
General
Cooling "active"
General
Type of cooling device "Fancoil"
General
"Heating valve/cooling valve" valves
Actual temperature Actual temperature monitoring time "16
minutes"
Fan
Number of fan speeds: "3"
Fan
Fan speed 1 threshold value: "10%"
Fan
Fan speed 2 threshold value: "40%"
Fan
Fan speed 3 threshold value: "70%"
3 Connect the group addresses:
Multifunction
pushbutton with
RTCU
Closed-loop
"PI controller (continuous)" control value
control for heating output
Closed-loop
"PI controller (continuous)" control value
control for cooling output
Group
address
Object
1/1/1
No. 6
1/1/2
No. 8 1 bit push-button 3 "Automatic status
feedback"
External
temperature
Switched on
External
temperature
5 minute cycle time
Fan speeds
Number of fan speeds: "3"
1/1/3
No. 9
Fan speeds
Display of speed 1 to : "34 %"
1/1/4
Fan speeds
Display of speed 2 to : "67%"
No. 11 1 bit push-button 4 "Fan speed 1 status
feedback"
Fan speeds
Display of speed 3 to : "100%"
© 2008 Schneider Electric
42
1 bit push-button 3 "Fan automatic on"
1 bit push-button 4 "Fan speed 1"
1/1/5
No. 12
1/1/6
No. 14 1 bit push-button 5 "Fan speed 2 status
feedback"
1 bit push-button 5 "Fan speed 2"
Multi-function with 1814/3.1
● Behaviour for application/recovery of bus
voltage
Multifunction
pushbutton with
RTCU
Group
address
Behaviour on application/recovery of the bus
voltage
Object
1/1/7
No. 15
1/1/8
No. 17 1 bit push-button 6 "Fan speed 3 status
feedback"
When the bus voltage is applied or recovered, the
following status information may appear in the display:
– "A 1" to "A 6" shows the operational status during
the initialisation phase of the push-button. After
approximately 30 seconds, these displays are
replaced by the standard display.
– "Er 1" is an error message and means that the actual
temperature could not be detected.
– "Er 2" is also an error message. A contradiction has
been detected in the heating parameters (setpoints
or dead zone are inconsistent).
– "Er 3" means that the software in the multi-function
push-button with RTCU is not compatible with the
ETS application.
1 bit push-button 6 "Fan speed 3"
1/1/9
No. 18
1/1/10
No. 20 1 bit push-button 7 "Fan status feedback" ON/
OFF
1 bit push-button 7 "Fan manually OFF"
1/1/11
No. 21 1 byte push-button 8 "Fan speeds stepwise
to the limits and then back again"
1/1/12 S
No. 32
1/1/13 (from
weather
station)
2 byte "External temperature"
1/1/2
No. 33 1 bit "Automatic display"
1/1/14
No. 34 1 byte "Fan speed display"
1/1/15
No. 42 1 byte "Heating control value"
1/1/16
No. 43 1 byte "Cooling control value"
1/1/17
No. 45
1 bit "Dew point alarm"
Depending on the setting
– The clock symbol may flash in the display when the
time has not yet been automatically synchronised or
manually set.
– The background lighting of the display may be
switched on.
– The status LEDs may be switched on or may flash.
– The operating LEDs may be switched on,
depending on the parameterisation. When
parameters have been set incorrectly, the two lower
status LEDs are switched on as an indication.
– A time synchronisation request telegram may be
transmitted.
– Telegrams for the control function (actual value,
control values etc.) may be transmitted.
Fan coil
actuator
Group
address
Object
1/1/12
No. 0
2 byte "Actual temperature input/output"
1/1/9
No. 9
1 bit "Fan manually OFF"
1/1/3
No. 10
1 bit "Fan manually to speed 1"
1/1/5
No. 11
1 bit "Fan manually to speed 2"
1/1/7
No. 12
1 bit "Fan manually to speed 3"
1/1/11
No. 15
1 byte "Fan manually 0-255"
1/1/1
No. 16
1 bit "Automatic mode manually ON"
1/1/2
No. 17 1 bit "Automatic status feedback"
1/1/4
No. 18
1 bit "Fan speed 1 status feedback"
1/1/6
No. 19
1 bit "Fan speed 2 status feedback"
1/1/8
No. 20
1 bit "Fan speed 3 status feedback"
1/1/15
No. 21 1 byte "Heating valve setpoint"
1/1/16
No. 22 1 byte "Cooling valve setpoint"
Behaviour when bus voltage fails
1/1/17
No. 24 1 bit "Dew point message" -"Dew point alarm"
1/1/10
No. 25
1 bit "Fan ON/OFF status feedback"
1/1/14
No. 26
1 byte "Fan 0-100% status feedback"
The operation LEDs and any status LEDs which may
be lit up are switched off together with the display
including the background lighting.
© 2008 Schneider Electric
43

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
