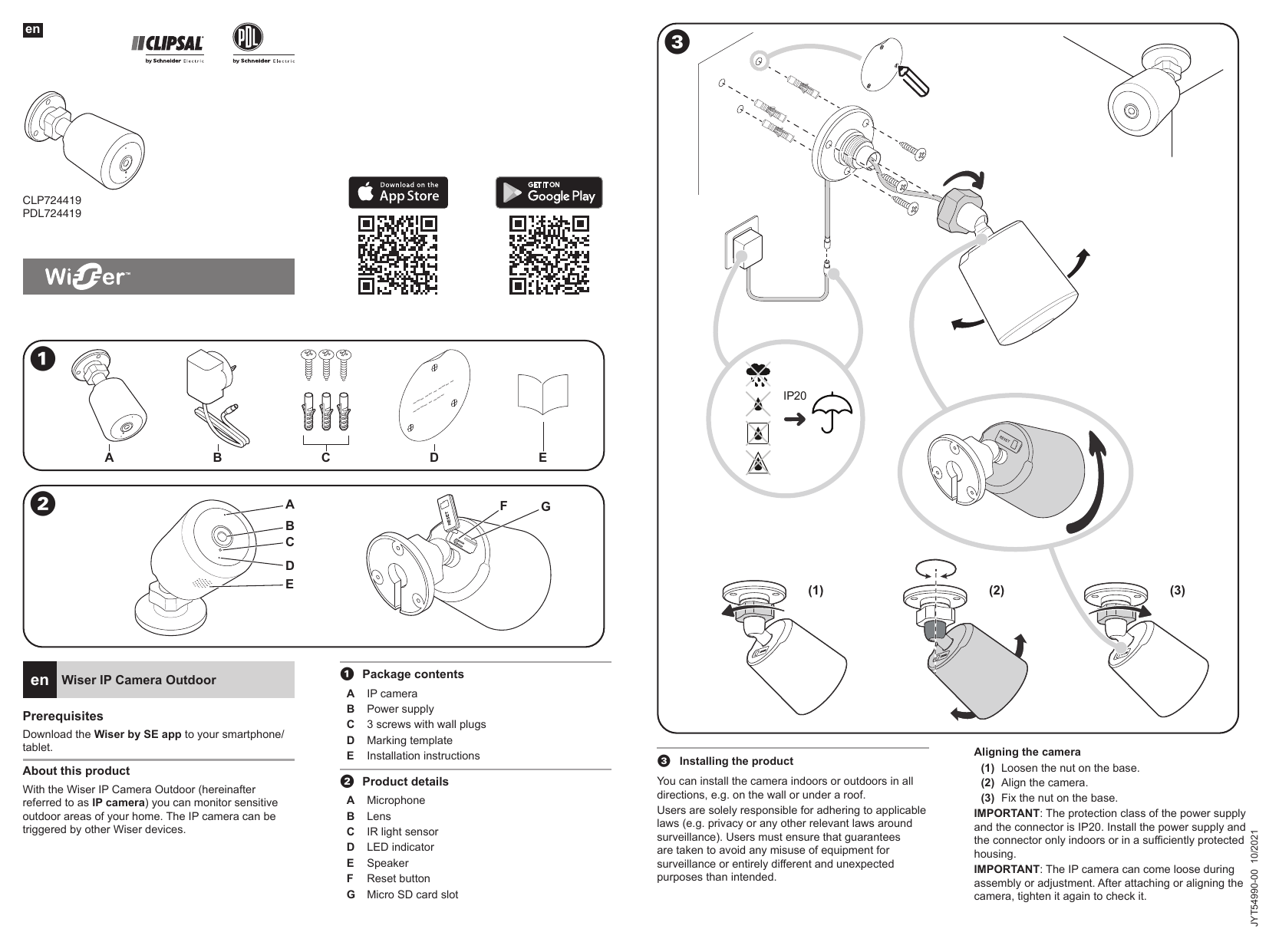

Schneider Electric Wiser IP Camera Outdoor Instruction Sheet

en
§
CLP724419
PDL724419
!
~~
~~
~~ ~
~ ~ ~~
~~ ~ ~
~
~~
A
B
„
C
IP20
D
A
E
F
G
B
C
D
E
Wiser IP Camera Outdoor
Prerequisites
Download the Wiser by SE app to your smartphone/
tablet.
About this product
With the Wiser IP Camera Outdoor (hereinafter
referred to as IP camera) you can monitor sensitive
outdoor areas of your home. The IP camera can be
triggered by other Wiser devices.
(2)
(3)
! Package contents
A
B
C
D
E
IP camera
Power supply
3 screws with wall plugs
Marking template
Installation instructions
“ Product details
A
B
C
D
E
F
G
Microphone
Lens
IR light sensor
LED indicator
Speaker
Reset button
Micro SD card slot
§ Installing the product
You can install the camera indoors or outdoors in all
directions, e.g. on the wall or under a roof.
Users are solely responsible for adhering to applicable
laws (e.g. privacy or any other relevant laws around
surveillance). Users must ensure that guarantees
are taken to avoid any misuse of equipment for
surveillance or entirely different and unexpected
purposes than intended.
Aligning the camera
(1) Loosen the nut on the base.
(2) Align the camera.
(3) Fix the nut on the base.
IMPORTANT: The protection class of the power supply
and the connector is IP20. Install the power supply and
the connector only indoors or in a sufficiently protected
housing.
IMPORTANT: The IP camera can come loose during
assembly or adjustment. After attaching or aligning the
camera, tighten it again to check it.
JYT54990-00 10/2021
en
(1)
$
au
Scan the QR code and choose your language for
complete information about the device, including
operation, configuration and using the product with a
Wiser system.
Technical data
Nominal voltage:
AC 100-240 V, 50/60 Hz
Power supply:
12 VDC, 1A
Power consumption:
max. 6 W
Ambient temperature:
-20 °C to +60 °C
Storage and transport temperature:
-30 °C to +85 °C
Relative humidity:
max. 95% non-condensing
Protection class
IP Camera:
IP56
Power supply:
IP20
Connector:
IP20
Cable length
IP camera to connector:
0.6 m
Power supply to connector:
1.5 m
Max. radio-frequency power
transmitted:
< 100 mW
Wi-Fi® standard:
IEEE 802.11 b/g/n 2.4 GHz
Wi-Fi® security:
WPA-PSK / WPA2-PSK
Channel bandwidth:
Support 20/40 MHz
Data security:
AES128
Resolution:
1080p
Wide angle lens:
103° horizontally
54° vertically
Night vision IR range:
10 m
Local storage support:
Micro SD card, max. 128 GB
Dispose of the device separately from
household waste at an official collection point.
Professional recycling protects people and
the environment against potential negative
effects.
