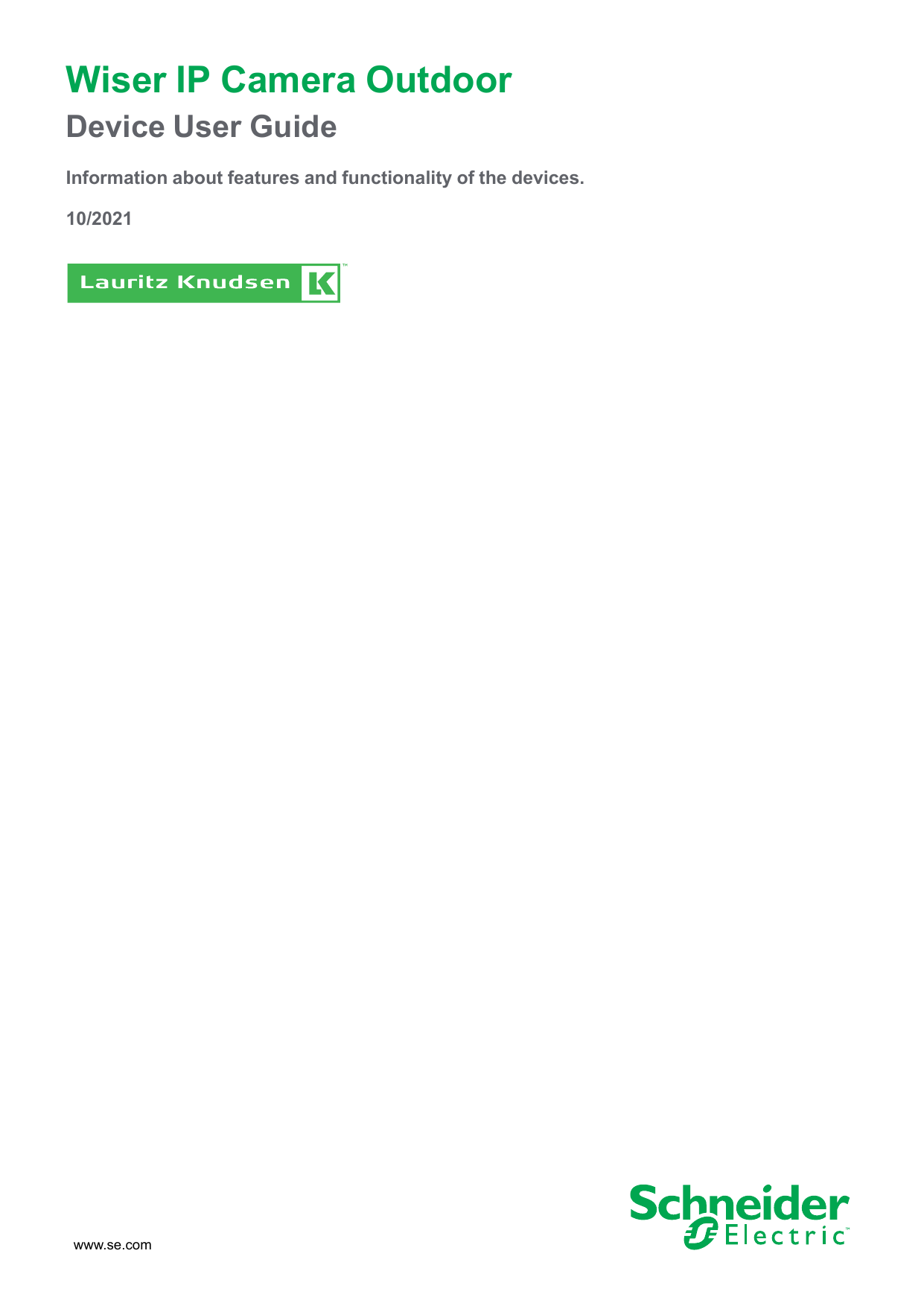

Wiser IP Camera Outdoor
Device User Guide
Information about features and functionality of the devices.
10/2021
www.se.com
Legal Information
The Schneider Electric brand and any trademarks of Schneider Electric SE and its
subsidiaries referred to in this guide are the property of Schneider Electric SE or its
subsidiaries. All other brands may be trademarks of their respective owners.
This guide and its content are protected under applicable copyright laws and
furnished for informational use only. No part of this guide may be reproduced or
transmitted in any form or by any means (electronic, mechanical, photocopying,
recording, or otherwise), for any purpose, without the prior written permission of
Schneider Electric.
Schneider Electric does not grant any right or license for commercial use of the guide
or its content, except for a non-exclusive and personal license to consult it on an "as
is" basis. Schneider Electric products and equipment should be installed, operated,
serviced, and maintained only by qualified personnel.
As standards, specifications, and designs change from time to time, information
contained in this guide may be subject to change without notice.
To the extent permitted by applicable law, no responsibility or liability is assumed by
Schneider Electric and its subsidiaries for any errors or omissions in the informational
content of this material or consequences arising out of or resulting from the use of the
information contained herein.
Table of Contents
Safety information .......................................................................................5
Wiser IP Camera Outdoor .........................................................................6
For your safety ..........................................................................................6
About the device.........................................................................................6
Installing the device ....................................................................................7
Pairing the device .......................................................................................7
Configuring the device ................................................................................8
Changing the device icon ......................................................................8
Renaming the device ............................................................................9
Changing the device location .................................................................9
Configuring basic function settings .......................................................10
Configuring IR night vision ................................................................... 11
Setting image quality........................................................................... 11
Setting offline notification.....................................................................12
Inserting a micro-SD card ....................................................................12
Removing the device ................................................................................13
Using the device.......................................................................................13
Using private mode .............................................................................14
Detection alarm setting........................................................................15
Setting privacy zone............................................................................17
Playback ............................................................................................17
Creating a moment .............................................................................19
Creating an automation .......................................................................21
LED indications ........................................................................................25
Troubleshooting .......................................................................................26
Technical Data .........................................................................................26
3
Safety information
Safety information
Important information
Read these instructions carefully and look at the equipment to become familiar
with the device before trying to install, operate, service, or maintain it. The
following special messages may appear throughout this manual or on the
equipment to warn of potential hazards or to call attention to information that
clarifies or simplifies a procedure.
The addition of either symbol to a “Danger” or “Warning” safety label indicates
that an electrical hazard exists which will result in personal injury if the
instructions are not followed.
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that accompany this symbol to avoid possible
injury or death.
DANGER
DANGER indicates a hazardous situation which, if not avoided, will result in
death or serious injury.
Failure to follow these instructions will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result
in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided, could result in
minor or moderate injury.
NOTICE
NOTICE is used to address practices not related to physical injury.
5
Wiser IP Camera Outdoor
Wiser IP Camera Outdoor
550B1026
Related Topics
•
For your safety
•
About the device
•
Installing the device
•
Pairing the device
•
Configuring the device
•
Removing the device
•
Using the device
•
LED indications
•
Troubleshooting
•
Technical Data
For your safety
NOTICE
RISK OF DAMAGE TO DEVICE
Always operate the product in compliance with the specified technical data.
Failure to follow these instructions can result in equipment damage.
Related Topics
•
Wiser IP Camera Outdoor (Parent Topic)
About the device
The Wiser IP camera outdoor (hereinafter referred to as IP Camera) is a Wi-Fi®
operated device that is used to monitor sensitive outdoor areas of your home with
a HD recording. You can install the camera indoors or outdoors in all directions (e.
g. on the wall, under the roof, etc.). The IP camera can be triggered by other Wiser
devices (such as sensors).
Advantages of using an IP camera:
6
•
Increases your overall safety
•
High resolution recording
•
Covers a wide area
Wiser IP Camera Outdoor
•
Infrared night vision for low light recording
NOTE: Users are solely responsible for adhering to applicable privacy laws (e.
g. the GDPR, Article 5). Users must ensure that guarantees are taken to avoid
any misuse of equipment for surveillance or entirely different and unexpected
purposes than intended.
Related Topics
•
Wiser IP Camera Outdoor (Parent Topic)
Installing the device
Refer to the installation instruction supplied with this product.
See Wiser IP Camera Outdoor.
Related Topics
•
Wiser IP Camera Outdoor (Parent Topic)
Pairing the device
Using the Wiser app, pair your device with the local Wi-Fi network to register on
cloud to access and control the device.
Before you pair the device, download the Wiser app to your mobile device.
Follow the steps to pair the device:
1. On the Home page, tap + icon and tap
.
2. Select the Wi-Fi network, enter the Password (A) and tap Next.
NOTE: Make sure to select 2.4 GHz network.
Cancel
Select 2.4GHz Wi-Fi Network and
enter Password.
If your Wi-Fi is 5GHz, please set it to be
2.4GHz.
A
Password
Next
3. Plug-in the power cable to a power supply to power On the device.
Make sure that the LED blinks red.
7
Wiser IP Camera Outdoor
4. In the Wiser app, select next step (B) and tap Start Configuration.
Cancel
How to pair device
1. Power on the device
next step
B
5. Wait for a few seconds until the LED blinks blue and becomes stable.
The blue LED on the IP camera shows that it is successfully connected to the
Wi-Fi network and ready to use.
6. After the device is connected, tap Done.
Related Topics
•
Wiser IP Camera Outdoor (Parent Topic)
Configuring the device
Related Topics
•
Changing the device icon
•
Renaming the device
•
Changing the device location
•
Configuring basic function settings
•
Configuring IR night vision
•
Setting image quality
•
Setting offline notification
•
Inserting a micro-SD card
•
Wiser IP Camera Outdoor (Parent Topic)
Changing the device icon
Using the Wiser app, you can change the icon of the device.
Follow the steps to change the device icon:
1. On the Home page, tap All devices > IP Camera Outdoor.
2. Tap
8
icon and tap Settings >
.
Wiser IP Camera Outdoor
3. Tap Icon to view the menu.
4. In the slide-up menu, select any one of the following (A):
– Take photo - Allows you to click photo from the mobile camera
– Select from Icon Library - Allows you to select an icon from the app library
– Select from Album - Allows you to select photo from the mobile gallery
Icon
A
Cancel
5. Tap on the required photo/icon to change the icon.
Related Topics
•
Configuring the device (Parent Topic)
Renaming the device
Using the Wiser app, you can rename your device for easy identification.
Follow the steps to rename the device:
1. On the Home page, tap All devices > IP Camera Outdoor.
2. Tap
icon and tap Settings >
.
3. Tap Name, enter the name (A) and tap Save.
Rename
Icon
A
ITRV
Cancel
Save iTRV 1
Related Topics
•
Configuring the device (Parent Topic)
Changing the device location
Using the Wiser app, you can change the location of the device.
Follow the steps to change the device location:
9
Wiser IP Camera Outdoor
1. On the Home page, tap All devices > IP Camera Outdoor.
2. Tap
icon and tap Settings >
.
3. Tap Location, select any location from the list (A) and tap Save.
Device location
Save
A
Kitchen
Related Topics
•
Configuring the device (Parent Topic)
Configuring basic function settings
The basic function settings allows you to enable the Status indicator on the
device and the Time watermark on the Wiser app.
Status indicator
Enabling the Status indicator turns On/Off the LED on the device.
Follow the steps to enable the Status indicator:
1. On the Home page, tap All devices > IP Camera Outdoor.
2. Tap
icon and tap Settings > Basic function settings.
3. Tap the toggle switch (A) to enable the Status indicator.
NOTE: The LED indicates blue on the device when the status indicator is
turned On.
Time watermark
Enabling the Time watermark displays the date and time on the live view on
control panel.
Follow the steps to enable the Time watermark:
1. On the Home page, tap All devices > IP Camera Outdoor.
2. Tap
icon and tap Settings > Basic function settings.
3. Tap the toggle switch (B) to enable the Time watermark.
10
Wiser IP Camera Outdoor
Basic Function Settings
A
B
Status Indicator
Related Topics
•
Configuring the device (Parent Topic)
Configuring IR night vision
The infrared LEDs in the camera allows you to see and record a clear black and
white video/image in the dark.
Follow the steps to configure the IR night vision:
1. On the Home page, tap All devices > IP Camera Outdoor.
2. Tap
icon and tap Settings > IR night vision.
3. Select any one of the following options:
– Auto - Turns On/Off automatically when the environmental light is below/
above a certain threshold of the lux level
– Off - Turns Off the IR night vision at all times
– On - Turns On the IR night vision at all times
IR Night Vision
Auto
On
Related Topics
•
Configuring the device (Parent Topic)
Setting image quality
Using the wiser app, you can change the image quality based on your
requirement.
TIP: You can switch to Standard Definition image quality when the Wi-Fi is
slow or the memory card storage space is less.
1. On the Home page, tap All devices > IP Camera Outdoor.
11
Wiser IP Camera Outdoor
2. Tap
icon and tap Settings > Image Quality.
3. Select any one of the options:
– Standard Definition (SD) - Captures low resolution video/image
– High Definition (HD) - Captures high resolution video/image
Image Quality
Notice:
Related Topics
•
Configuring the device (Parent Topic)
Setting offline notification
Using the wiser app, you can receive a notification when the IP camera is offline.
Follow the steps to turn on the Offline notification:
1. On the Home page, tap All devices > IP Camera Outdoor.
2. Tap
icon and tap Settings.
3. Tap the toggle switch (A) to turn On the Offline notification and tap Confirm.
Settings
Auto
On
Privacy Zone
A
Others
No updates available.
Related Topics
•
Configuring the device (Parent Topic)
Inserting a micro-SD card
The micro-SD card is inserted in the device to store the recording.
Follow the steps to insert a micro-SD card:
1. Remove the lid on the back of the camera.
2. Insert a micro-SD card in the memory card slot.
12
Wiser IP Camera Outdoor
3. Close the lid.
Once the micro-SD card is inserted, you can configure the playback settings,
page 17.
NOTE: A maximum of 128 GB SDHC and SDXC micro-SD cards are
supported.
Related Topics
•
Configuring the device (Parent Topic)
Removing the device
Using the Wiser app, you can remove a device from the device list.
Follow the steps to remove the device:
1. On the Home page, tap All devices > IP Camera Outdoor.
2. Tap
icon and tap Settings.
3. Tap Remove device (A) and tap Confirm.
Settings
Auto
On
Privacy Zone
Others
No updates available.
A
TIP: Alternatively, you can long tap on the IP Camera Outdoor on the
home page to remove the device.
NOTE:
•
Removing the device will reset the device. The LED starts blinking
red indicating that the device is ready to pair with another network.
•
If there is a problem while pairing, refer to troubleshooting, page 26
the device.
Related Topics
•
Wiser IP Camera Outdoor (Parent Topic)
Using the device
Using the control panel of the IP Camera, you can see live video of the outdoors
on the display screen and includes the following features:
13
Wiser IP Camera Outdoor
Enables audio of the live video
Makes the video fullscreen
Takes screenshot of the live view
Lets you communicate with a person near the
device
Records the live view
Enables motion detection
Enables private mode
View the stored images or videos
NOTE:
•
To view the notification/alarm messages, tap
•
To review the recordings using playback feature, refer to Playback, page
17.
> Message.
Related Topics
•
Using private mode
•
Detection alarm setting
•
Setting privacy zone
•
Playback
•
Creating a moment
•
Creating an automation
•
Wiser IP Camera Outdoor (Parent Topic)
Using private mode
The Private Mode allows you to turn off the live view, thereby disabling all the
other features on the control panel for all users connected to the same Zigbee
network. Using this mode, the user is able to stay confidential during private
moments.
Follow the steps to turn On the private mode:
1. On the Home page, tap All devices > IP Camera Outdoor.
2. Tap
icon > Settings.
3. Tap the toggle switch to turn On the Private Mode.
14
Wiser IP Camera Outdoor
4. Alternatively, tap Private Mode (A) on the control panel.
Outdoor Cam...
A
Motion
Detect
Private Mode
Related Topics
•
Using the device (Parent Topic)
Detection alarm setting
The motion detection function enables the IP camera to detect motion at the
surveillance area and sends notification on the Wiser app.
Follow the steps to enable the motion detection:
1. On the Home page, tap All devices > IP Camera Outdoor.
2. Tap
icon and tap Settings > Detection alarm settings.
3. Tap the toggle switch (A) to turn On the Motion detection alarm.
TIP: Alternatively, you can tap the
icon on the control panel.
Alarm sensitivity level
Using the Wiser app, you can adjust the sensitivity level of your motion detector.
Tap Alarm sensitivity level (B) and select any one of the following levels:
– Low
– Medium
– High
NOTE: The high sensitivity level detects the slightest movement and triggers
an alarm.
Activity area
Using the Wiser app. you can set the surveillance area for motion detection.
1. Tap the toggle switch (C) to enable the Activity area.
2. Tap Surveillance area settings (D) and drag/resize the red frame to set the
surveillance area and tap Save.
NOTE: The motion is detected only in the saved surveillance area.
15
Wiser IP Camera Outdoor
Detection Alarm Settings
Motion
A
C
Activity Area
Cancel
D
29-09-2021 15:56:35
B
Schedule
Save
Related Topics
•
Scheduling detection alarm
•
Using the device (Parent Topic)
Scheduling detection alarm
Using the Wiser app, you can add a schedule that allows you to turn off/on motion
detection automatically based on your needs.
Follow the steps to schedule the motion detection:
1. On the Home page, tap All devices > IP Camera Outdoor.
2. Tap
icon and tap Settings > Detection alarm settings > Schedule.
3. Tap Add schedule and set the time (A).
4. Tap Repeat (B) and select the days you want the schedule to repeat.
5. Tap Note (C), enter the note and tap Confirm.
6. Tap the toggle switch (D) to turn On the Notification for the schedule.
7. Tap Motion detection (E), select one of the options:
– On - Turns On the motion detection on the scheduled time
– Off - Turns Off the motion detection on the scheduled time
Edit Schedule
09
A
B
C
59
10
00
11
01
Repeat
Save
Mon, Thurs, Sun
Note
D
E
where device is located.
8. Tap Save.
16
Wiser IP Camera Outdoor
Related Topics
•
Detection alarm setting (Parent Topic)
Setting privacy zone
The Privacy Zone settings allows you to set the surveillance area for monitoring
on the live view.
Follow the steps to set the privacy zone:
1. On the Home page, tap All devices > IP Camera Outdoor.
2. Tap
icon and tap Settings > Privacy Zone.
3. Tap the toggle switch (A) to turn On the Privacy Zone.
4. Tap Surveillance area setting (B) and drag/resize the red frame to set the
surveillance area and tap Save.
The live view on the control panel will show only the saved surveillance area.
Privacy Zone
Outdoor Cam...
29-09-2021 15:56:35
A
Privacy zone
Cancel
29-09-2021 15:56:35
B
Save
Screenshot
Motion
Record
Private Mode
Related Topics
•
Using the device (Parent Topic)
Playback
Using the Wiser app, you can review the recording whenever you want with the
Playback feature.
NOTE: You need to insert a micro-SD card, page 12 (max 128 GB) to use the
playback feature.
The control panel of the playback consists of:
Select the recording date and time
2021-09-16
30
23:40
23:50
00:00
00:10
00:20
00
Click screenshot of the video
17
Wiser IP Camera Outdoor
Pause/play the recording
/
Record the video
NOTE:
•
A display screen on the control panel shows the previous recordings.
•
The screenshot/recording will be saved in the album.
Storage settings
Follow the steps to change the playback settings:
1. On the Home page, tap All devices > IP Camera Outdoor.
2. Tap
icon and tap Settings > Storage Settings.
3. In the Storage Settings section, tap the toggle switch (A) to enable the Local
recording.
NOTE: The recording will be saved to the micro-SD card.
4. Tap Recording mode (B) and select one of the options:
– Event recording - Records only when there is a motion detection
– Non-stop - Records continuously for 24 hours
5. Tap Format (C) to format the inserted micro-SD card.
NOTE: This will delete all the data stored on the micro-SD card.
Storage Settings
Storage Capacity
Total Capacity
29.80 GB
Used
12.01 GB
Remaining Capacity
17.79 GB
Storage settings
A
Local Recording
B
Recording Mode
Event recording
Schedule
Format
C
Related Topics
•
Scheduling playback
•
Using the device (Parent Topic)
Scheduling playback
Using the Wiser app, you can add a schedule that allows you to turn off/on
recording automatically based on your needs.
Follow the steps to schedule the recording:
1. On the Home page, tap All devices > IP Camera Outdoor.
2. Tap
icon and tap Settings > Storage Settings > Schedule.
3. Tap Add schedule and set the time (A).
4. Tap Repeat (B) and select the days you want the schedule to repeat.
18
Wiser IP Camera Outdoor
5. Tap Note (C), enter the note and tap Confirm.
6. Tap the toggle switch (D) to turn On the Notification for the schedule.
7. Tap Local recording (E), select one of the options:
– On - Turns On the recording on the scheduled time
– Off - Turns Off the recording on the scheduled time
NOTE: The recording will be saved to the memory card.
Add Schedule
10
10
11
11
12
12
A
B
C
Save
Repeat
Wed, Fri
Note
Graduation Party
D
E
On
where device is located.
8. Tap Save.
Related Topics
•
Playback (Parent Topic)
Creating a moment
A Moment allows you to group multiple actions that are usually done together.
Using the Wiser app, you can create moments based on your needs (such as
movie night).
Follow the steps to create a moment:
1. On the Home page, tap
icon.
2. Go to Moment > + icon to create a moment.
3. Tap Edit name, enter the name of the moment (A) and tap Save.
TIP: You can choose the cover image that best represents your moment by
tapping
Cancel
icon.
Moment Settings
Save
Edit Name
Action
(0/80)
Edit Name
A
Add Task
Cancel
Show on Home
Page
Save
4. In the Action section, tap Add task (B) to open the slide-up menu.
19
Wiser IP Camera Outdoor
5. In the Add task menu, you can do either or all of the following actions (C):
– Run the device - Select the devices that you want in a moment
– Delay - Set the delay time
NOTE: You can add one or more actions using
Cancel
Moment Settings
icon.
Save
My Settings
Action
(0/80)
B
Add Task
Show on Home PageAdd task
Run the device
C
Delay
6. Tap Run the device > IP Camera Outdoor to select either or all of the
functions to add in the moment:
– Recording Mode - Select the type of recording (D)
– Record Switch - Turn On/Off the recording (E)
– Privacy Area Switch - Turn On/Off the privacy zone (F)
Select Function
Select Function
Next
Select Function
Next
Next
D
E
Record Switch
Privacy Area Switch
Record Switch
Record Switch
F
Privacy Area Switch
Record Switch
Privacy Area Switch
On
Cancel
Save
On
Privacy Area Switch
On
Cancel
Save
Cancel
Save
7. Once all the actions are set, tap Save.
Related Topics
•
Editing a moment
•
Deleting a moment
•
Using the device (Parent Topic)
Editing a moment
Follow the steps to edit a moment:
1. On the Moment tab, locate the moment you want to edit and tap
20
icon.
Wiser IP Camera Outdoor
2. On the Edit page, you can tap each item (such as dimmer, shutter, delay,
etc.) to change the settings and tap Save.
Edit
Cancel
Save
My Settings
Action
O...
Record Switch:On
Privacy Area Switch:On
Show on Home Page
Delete
Related Topics
•
Creating a moment (Parent Topic)
Deleting a moment
Follow the steps to delete a moment:
1. On the Moment tab, locate the moment that you want to delete and tap
icon.
2. Tap Delete (A).
Edit
Cancel
Save
My Settings
Action
O...
Record Switch:On
Privacy Area Switch:On
Show on Home Page
Delete
A
Related Topics
•
Creating a moment (Parent Topic)
Creating an automation
An automation allows you to group multiple actions that are usually done together,
triggered automatically or at scheduled times. By using the Wiser app, you can
create automations based on your needs.
Follow the steps to create an automation:
1. On the Home page, tap the
icon.
2. Go to Automation > + icon to create an automation.
21
Wiser IP Camera Outdoor
3. Tap Edit name, enter the name of the automation (A) and tap Save.
TIP: You can choose the cover image that best represents your automation
by tapping
Cancel
icon.
Automation Settings
Save
My Automation
Any Condition Is Met
(0/10)
Edit Name
Add Condition
A
Action
(Added
Save 0/80)
Cancel
Add Task
All-Day
4. Tap Any condition is met to select any one of the condition type (B):
– All conditions are met - The automation is triggered when all the conditions
are met
– Any condition is met - The automation is triggered when at least one
condition is met
Cancel
Automation Settings
Save
My Automation
Any Condition Is Met
(0/10)
Add Condition
(Added 0/80)
Action
Add Task
Select Condition type
B
All-Day
All Conditions are met
Any condition is met
Cancel
5. Tap Add Condition to open the slide-up menu.
22
Wiser IP Camera Outdoor
6. In the Add Condition menu, you can do either or all of the following options
(C):
– When weather changes - Select the various weather settings
– Schedule - Set the time and day
– When device status changes - Select the device and it’s function
Note: You can add one or more conditions using
Cancel
Automation Settings
icon.
Save
My Automation
Any Condition Is Met
(0/10)
Add Condition
Add Condition
(Added 0/80)
Action
When weather changes
Add Task
C
Schedule
When device status changesAll-Day
7. Tap When device status changes > Window/Door Sensor > Open.
NOTE: : This is an example of an automation to switch On the Event
Recording when the Window/Door is Open.
8. Tap Add task to open the slide-up menu.
9. In the Add task menu, you can do either or all of the following options (D):
– Run the device - Select the devices that you want to be triggered
– Enable or disable Automation - Select the automation that you want to
enable or disable
– Send notification - Turn On notification for the automation
– Delay - Set the delay time
NOTE: You can add one or more actions using
Cancel
Automation Settings
icon.
Save
My Automation
Any Condition Is Met
(0/10)
Add Condition
(Added 0/80)
Action
Add task
Run the device
Add Task
Enable or disable Automation
Effective Period
Send notification
All-Day
D
Delay
10. Tap Run the device > IP Camera Outdoor > Recording Mode
23
Wiser IP Camera Outdoor
11. Select Event Recording and tap Save.
Select Function
Next
Recording Mode
Record Switch
Privacy Area Switch
Recording Mode
Event Recording
Continuous Recording
Cancel
Save
12. Tap on Effective period to set the time range for the automation. You can
select any one of the following (E):
– All-day - 24 hours
– Daytime - From sunrise to sunset
– Night - From sunset to sunrise
– Custom - User defined time period
Effective Period
City
Next
Block 3 Harbor Layout
Effective period
All-day
24 hours
Daytime
From sunrise to sunset
E
Night
From sunset to sunrise
Custom
User-defined time period
Repeat
Everyday
13. Once all the actions and conditions are set, tap Save.
Once the automation is saved, it is visible on the Automation tab. You can
tap the toggle switch on the automation to enable it.
Related Topics
•
Editing an automation
•
Deleting an automation
•
Using the device (Parent Topic)
Editing an automation
Follow the steps to edit an automation:
1. On the Automation tab, locate the automation you want to edit and tap
icon.
24
Wiser IP Camera Outdoor
2. On the Edit page, you can tap each item (such as dimmer, shutter, delay,
etc.) to change the settings and tap Save.
Edit
Cancel
Save
Outdoor Camera
Automation
Any Condition is Met
Action
Outdo...
All-Day
Delete
Related Topics
•
Creating an automation (Parent Topic)
Deleting an automation
Follow the steps to delete an automation:
1. On the Automation tab, locate the automation you want to delete and tap
icon.
2. Tap Delete (A).
Edit
Cancel
Save
Outdoor Camera
Automation
Any Condition is Met
Action
Outdo...
All-Day
Delete
A
Related Topics
•
Creating an automation (Parent Topic)
LED indications
LED Indication
Status
LED is Solid red
Device is initiated successfully.
LED blinks red
Device is in reset mode.
Device is ready for pairing
25
Wiser IP Camera Outdoor
Device is initiating.
LED is Solid blue
The connection is successful.
LED blinks blue
Device is pairing to the network.
The device is offline.
Related Topics
•
Wiser IP Camera Outdoor (Parent Topic)
Troubleshooting
Error
Possible cause
Solution
The device is not ready to pair after the
device is removed from the app.
The device is not reset correctly.
Remove the lid on the back of the camera
and press the reset push button for 5
seconds to reset the device.
Wrong Wi-Fi credentials are entered during
the pairing process.
The device does not respond. Check
demerit points and retry.
NOTE: You must log into 2.4 GHz
network.
Related Topics
•
Wiser IP Camera Outdoor (Parent Topic)
Technical Data
Nominal voltage
AC 100–240 V, 50/60 Hz
Power supply
12 VDC, 1A
Power consumption
max. 6 W
Operating temperature
-20 °C to 60 °C
Operating humidity
< 95% RH
Protection class
IP Camera : IP56
Power supply : IP20
Connector : IP20
Cable length
IP Camera to connector : 0.6 m
Power supply to connector : 1.5 m
Operating frequency
2405 – 2480 MHz
Max. radio-frequency power transmitted
< 100 mW
Wi-Fi® standard
IEEE 802.11 b/g/n 2.4 GHz
Wi-Fi®
WPA-PSK/WPA2–PSK
security
Channel bandwidth
Support 20/40 MHz
Data security
AES128
Resolution
1080p
Wide angle lens
128° horizontally
54° vertically
26
Wiser IP Camera Outdoor
Night vision IR range
10 m
Local storage support
Micro SD card, max. 128 GB
SDHC and SDXC type micro-SD cards are supported
Related Topics
•
Wiser IP Camera Outdoor (Parent Topic)
27
Compliance
Related Topics
•
Compliance information for Green Premium products
•
Trademarks
Compliance information for Green Premium products
Find and download comprehensive information about Green Premium products,
including RoHS compliance and REACH declarations as well as Product
Environmental Profile (PEP) and End-of-Life instructions (EOLI).
General information about Green Premium products
Click the link below to read about Schneider Electric’s Green Premium product
strategy.
https://www.schneider-electric.com/en/work/support/green-premium/
Find compliance information for a Green Premium product
Click the link below to search for a product’s compliance information (RoHS, REACH,
PEP and EOLI).
NOTE: You will need the product reference number or product range to perform
the search.
https://www.reach.schneider-electric.com/CheckProduct.aspx?cskey=
ot7n66yt63o1xblflyfj
Related Topics
•
Compliance (Parent Topic)
Trademarks
This guide makes reference to system and brand names that are trademarks of their
relevant owners.
•
Zigbee® is a registered trademark of the Connectivity Standards Alliance.
•
Apple® and App Store® are brand names or registered trademarks of Apple Inc.
•
Google Play™ Store and Android™ are brand names or registered trademarks
of Google Inc.
•
Wi-Fi® is a registered trademark of Wi-Fi Alliance®.
•
Wiser™ is a trademark and the property of Schneider Electric, its subsidiaries
and affiliated companies.
•
LK FUGA® is a registered trademark of Schneider Electric Danmark A/S.
Other brands and registered trademarks are the property of their respective owners.
Related Topics
•
Compliance (Parent Topic)
Printed in:
Schneider Electric
35 rue Joseph Monier
92500 Rueil Malmaison - France
+ 33 (0) 1 41 29 70 00
Schneider Electric
35 rue Joseph Monier
92500 Rueil Malmaison
France
+ 33 (0) 1 41 29 70 00
www.se.com
As standards, specifications, and design change from time to time,
please ask for confirmation of the information given in this publication.
© 2021 – 2021 Schneider Electric. All rights reserved.

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
