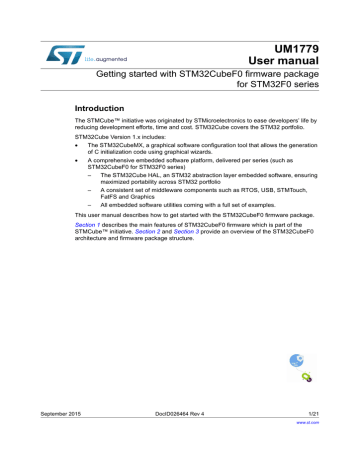

UM1779
User manual
Getting started with STM32CubeF0 firmware package
for STM32F0 series
Introduction
The STMCube™ initiative was originated by STMicroelectronics to ease developers’ life by
reducing development efforts, time and cost. STM32Cube covers the STM32 portfolio.
STM32Cube Version 1.x includes:
•
The STM32CubeMX, a graphical software configuration tool that allows the generation
of C initialization code using graphical wizards.
•
A comprehensive embedded software platform, delivered per series (such as
STM32CubeF0 for STM32F0 series)
–
The STM32Cube HAL, an STM32 abstraction layer embedded software, ensuring
maximized portability across STM32 portfolio
–
A consistent set of middleware components such as RTOS, USB, STMTouch,
FatFS and Graphics
–
All embedded software utilities coming with a full set of examples.
This user manual describes how to get started with the STM32CubeF0 firmware package.
Section 1 describes the main features of STM32CubeF0 firmware which is part of the
STMCube™ initiative. Section 2 and Section 3 provide an overview of the STM32CubeF0
architecture and firmware package structure.
September 2015
DocID026464 Rev 4
1/21
www.st.com
1
Contents
UM1779
Contents
1
STM32CubeF0 main features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2
STM32CubeF0 architecture overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3
STM32CubeF0 firmware package overview . . . . . . . . . . . . . . . . . . . . . . 9
4
3.1
Supported STM32F0 devices and hardware . . . . . . . . . . . . . . . . . . . . . . . 9
3.2
Firmware package overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Getting started with STM32CubeF0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.1
Running your first example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.2
Developing your own application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.3
Using STM32CubeMX to generate the initialization C code . . . . . . . . . . 17
4.4
Getting STM32CubeF0 release updates . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.4.1
5
6
2/21
Installing and running the STM32CubeUpdater program . . . . . . . . . . . 17
FAQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5.1
What is the license scheme for the STM32CubeF0 firmware? . . . . . . . . 18
5.2
What boards are supported by the STM32CubeF0 firmware package? . 18
5.3
Is there any link with Standard Peripheral Libraries? . . . . . . . . . . . . . . . . 18
5.4
Does the HAL layer take benefit from interrupts or DMA?
How can this be controlled? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5.5
Are any examples provided with the ready-to-use toolset projects? . . . . 18
5.6
How are the product/peripheral specific features managed? . . . . . . . . . . 19
5.7
How can STM32CubeMX generate code based on embedded software? 19
5.8
How can I get regular updates on the latest STM32CubeF0
firmware releases? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.9
How do I set the HAL drivers in Debug mode to debug my application? . 19
Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
DocID026464 Rev 4
UM1779
List of tables
List of tables
Table 1.
Table 2.
Table 3.
Table 4.
Macros for STM32F0 series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Boards for STM32F0 series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Number of examples available for each board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
DocID026464 Rev 4
3/21
3
List of figures
UM1779
List of figures
Figure 1.
Figure 2.
Figure 3.
Figure 4.
4/21
STM32CubeF0 firmware components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
STM32CubeF0 firmware architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
STM32CubeF0 firmware package structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
STM32CubeF0 examples overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
DocID026464 Rev 4
UM1779
1
STM32CubeF0 main features
STM32CubeF0 main features
STM32CubeF0 gathers together, in a single package, all the generic embedded software
components required to develop an application on STM32F0 microcontrollers. In line with
the STMCubeTM initiative, this set of components is highly portable, not only within
STM32F0 series but also to other STM32 series.
STM32CubeF0 is fully compatible with STM32CubeMX code generator that allows to
generate initialization code. The package includes a low level hardware abstraction layer
(HAL) that covers the microcontroller hardware, together with an extensive set of examples
running on STMicroelectronics boards. The HAL is available in open-source BSD license for
user convenience.
STM32CubeF0 package also contains a set of middleware components with the
corresponding examples. They come in very permissive license terms:
•
Full USB Device stack supporting many classes: Audio, HID, MSC, CDC and DFU.
•
STemWin, a professional graphical stack solution available in binary format and based
on STMicroelectronics partner solution SEGGER emWin.
•
FAT File system based on open source FatFS solution
•
•
STMTouch touch sensing library solution
CMSIS-RTOS implementation with FreeRTOS open source solution.
Several applications and demonstrations implementing all these middleware components
are also provided in the STM32CubeF0 package.
Figure 1. STM32CubeF0 firmware components
(YDOXDWLRQERDUGV
'LVFRYHU\ERDUGV
6701XFOHR
ERDUGV
ĞĚŝĐĂƚĞĚďŽĂƌĚƐ
8WLOLWLHV
$SSOLFDWLRQOHYHOGHPRQVWUDWLRQV
7&3,3
86%
7RXFK
/LEUDU\
*UDSKLFV
)$7ILOH
V\VWHP
5726
0LGGOHZDUHOHYHO
&06,6
8WLOLWLHV
+DUGZDUH$EVWUDFWLRQ/D\HU+$/
%RDUG6XSSRUW3DFNDJH%63
+$/OHYHO
670) 670)
670)
670)
670) 670)
670/
670/
670/
+DUGZDUH
06Y9
1. Not available in STM32CubeF0 package.
DocID026464 Rev 4
5/21
20
STM32CubeF0 architecture overview
2
UM1779
STM32CubeF0 architecture overview
The STM32Cube firmware solution is built around three independent levels that can easily
interact as described in Figure 2.
Figure 2. STM32CubeF0 firmware architecture
(YDOXDWLRQERDUGDQG'LVFRYHU\.LWGHPRQVWUDWLRQ
>ĞǀĞůϮ
$SSOLFDWLRQV
>ĞǀĞůϭ
/LEUDU\DQGSURWRFROEDVHGFRPSRQHQWV
IRUH[DPSOH)DW)6)UHH572686%'HYLFH
([DPSOHV
%63GULYHUV
>ĞǀĞůϬ
+$/SHULSKHUDOGULYHUV
/RZOHYHO'ULYHU&RUHRSWLRQDO
,>
06Y9
6/21
DocID026464 Rev 4
UM1779
STM32CubeF0 architecture overview
Level 0
This level is divided into three sub-layers:
•
Board Support Package (BSP)
This layer offers a set of APIs relative to the hardware components in the hardware
boards (LCD drivers, microSD, etc…). It is composed of two parts:
–
Component: this is the driver relative to the external device on the board and not
related to the STM32. The component driver provides specific APIs to the BSP
driver external components and can be ported on any other board.
–
BSP driver: it permits to link the component driver to a specific board and
provides a set of user-friendly APIs. The APIs naming rule is
BSP_FUNCT_Action():
Example: BSP_LED_Init(), BSP_LED_On()
It is based on a modular architecture allowing an easy porting on any hardware by just
implementing the low level routines.
•
Hardware Abstraction Layer (HAL)
This layer provides the low level drivers and the hardware interfacing methods to
interact with the upper layers (application, libraries and stacks). It provides generic
multi-instance feature-oriented APIs which simplify user application implementation by
providing ready-to-use process. As example, for the communication peripherals (I2S,
UART…) it includes APIs allowing to initialize and configure the peripheral, manage
data transfer based on polling, interrupt or DMA process, and handle communication
errors that may raise during communication. The HAL drivers APIs are split in two
categories:
•
–
Generic APIs which provides common and generic functions to all the STM32
series
–
Extension APIs which provides specific and customized functions for a specific
family or a specific part number.
Basic peripheral usage examples
This layer encloses the examples build over the STM32 peripheral using only the HAL
and BSP resources.
Level 1
This level is divided into two sub-layers:
•
Middleware components
Set of Libraries covering USB Device library, StemWin, STMTouch touch sensing
library, FreeRTOS, FatFS. Horizontal interactions between the components of this layer
is performed directly by calling the feature APIs while the vertical interaction with the
low level drivers is done through specific callbacks and static macros implemented in
DocID026464 Rev 4
7/21
20
STM32CubeF0 architecture overview
UM1779
the library system call interface. As example, the FatFs implements the disk I/O driver
to access microSD drive or the USB Mass Storage Class.
The main features of each middleware component are as follows:
USB Device Library
–
Several USB classes supported (Mass-Storage, HID, CDC, DFU)
–
Support of multi-packet transfer features that allows sending big amounts of data
without splitting them into maximum packet size transfers.
–
Use of configuration files to change the core and the library configuration without
changing the library code (Read Only).
–
RTOS and Standalone operation
–
Link with low level driver through an abstraction layer using the configuration file to
avoid any dependency between the Library and the low-level drivers.
STemWin Graphical stack
–
Professional grade solution for GUI development based on SEGGER’s emWin
solution
–
Optimized display drivers
–
Software tools for code generation and bitmap editing (STemWin Builder…)
FreeRTOS
–
Open source standard
–
CMSIS compatibility layer
–
Tickless operation during low-power mode
–
Integration with all STM32Cube Middleware modules
FAT File system
–
FATFS FAT open source library
–
Long file name support
–
Dynamic multi-drive support
–
RTOS and standalone operation
–
Examples with microSD.
STM32 Touch sensing library
Robust STMTouch capacitive touch sensing solution supporting proximity, touchkey,
linear and rotary touch sensor using a proven surface charge transfer acquisition
principle.
•
Examples based on the middleware components
Each middleware component comes with one or more examples (called also
Applications) showing how to use it. Integration examples that use several Middleware
components are provided as well.
Level 2
This level is composed of a single layer which consist in a global real-time graphical
demonstration based on the middleware service layer, the low level abstraction layer and
the basic peripheral usage applications for board based features.
8/21
DocID026464 Rev 4
UM1779
STM32CubeF0 firmware package overview
3
STM32CubeF0 firmware package overview
3.1
Supported STM32F0 devices and hardware
STM32Cube offers highly portable Hardware Abstraction Layer (HAL) built around a generic
architecture. It allows the build-upon layers, such as the middleware layer, to implement its
functions without knowing, in-depth, the MCU used. This improves the library code reusability and guarantees an easy portability on other devices.
In addition, thanks to its layered architecture, the STM32CubeF0 package offers full support
of all STM32F0 series. The user only has to define the right macro in stm32f0xx.h.
Table 1 shows the macro to be defined depending on the STM32F0 device used. This
macro must also be defined in the compiler preprocessor.
Table 1. Macros for STM32F0 series
Macro defined in stm32f0xx.h
STM32F0 devices
STM32F030x6
STM32F030F4, STM32F030C6, STM32F030K6
STM32F030x8
STM32F030C8, STM32F030R8
STM32F030xC
STM32F030CC, STM32F030RC
STM32F031x6
STM32F031C4, STM32F031F4, STM32F031G4,
STM32F031K4, STM32F031C6, STM32F031F6,
STM32F031G6, STM32F031K6
STM32F051x8
STM32F051K4, STM32F051C4, STM32F051R4,
STM32F051K6, STM32F051C6, STM32F051R6,STM32F051K8,
STM32F051C8, STM32F051R8
STM32F070x6
STM32F070F6, STM32F070C6
STM32F070xB
STM32F070RB, STM32F070CB
STM32F071xB
STM32F071V8, STM32F071CB, STM32F071RB,
STM32F071VB
STM32F042x6
STM32F042F4, STM32F042G4, STM32F042K4,
STM32F042T4, STM32F042C4, STM32F042F6,
STM32F042G6, STM32F042K6, STM32F042T6, STM32F042C6
STM32F072xB
STM32F072C8, STM32F072R8, STM32F072V8,
STM32F072CB, STM32F072RB, STM32F072VB
STM32F038xx
STM32F038C6, STM32F038F6, STM32F038G6, STM32F038K6
STM32F048xx
STM32F048C6, STM32F048G6, STM32F048T6
STM32F058xx
STM32F058K8, STM32F058C8, STM32F058R8
STM32F078xx
STM32F078CB, STM32F078RB, STM32F078VB
STM32F091xx
STM32F091CB, STM32F091RB, STM32F091VB,
STM32F091CC, STM32F091RC, STM32F091VC
STM32F098xx
STM32F098CC, STM32F098RC, STM32F098VC
STM32CubeF0 features a rich set of examples and applications at all levels making it easy
to understand and use any HAL driver and/or middleware components. These examples run
DocID026464 Rev 4
9/21
20
STM32CubeF0 firmware package overview
UM1779
on the STMicroelectronics boards listed in Table 2.
Table 2. Boards for STM32F0 series
Board
STM32F0 supported devices
STM32072B-EVAL
STM32F072xB
STM32091C-EVAL
STM32F091xC
STM32F072B-DISCOVERY
STM32F072xB
STM32F0308-DISCOVERY
STM32F030x8
NUCLEO-F070RB
STM32F070xB
NUCLEO-F072RB
STM32F072xB
NUCLEO-F030R8
STM32F030x8
NUCLEO-F031K6
STM32F031K6
NUCLEO-F042K6
STM32F042K6
NUCLEO-F091RC
STM32F091xC
STM32CubeF0 support both Nucleo-32 and Nucleo-64 boards.
•
Nucleo-64 boards support Adafruit LCD display Arduino™ UNO shields which embed a
microSD connector and a joystick in addition to the LCD.
•
Nucleo-32 boards support Gravitech 7-segment display Arduino™ NANO shields
which allow displaying up to four-digit numbers and characters.
The Arduino™ shield drivers are provided within the BSP component. Their usage is
illustrated by a demonstration firmware.
The STM32CubeF0 firmware can run on any compatible hardware. Simply update the BSP
drivers to port the provided examples on your board if its hardware features are the same
(e.g. LED, LCD display, buttons).
10/21
DocID026464 Rev 4
UM1779
3.2
STM32CubeF0 firmware package overview
Firmware package overview
The STM32CubeF0 firmware solution is provided in one single zip package having the
structure shown in Figure 3.
Figure 3. STM32CubeF0 firmware package structure
%63GULYHUVIRUWKHVXSSRUWHGERDUGV
(YDOXDWLRQERDUG
'LVFRYHU\NLW
1XFOHRNLW
'ULYHUVRIH[WHUQDOFRPSRQHQWV
&RQWDLQV670)[[
&06,6ILOHVWKDWGHILQHWKH
SHULSKHUDOUHJLVWHU
GHFODUDWLRQVELWGHILQLWLRQV
DQGDGGUHVVPDSSLQJ
670)[[ +$/ GULYHUV IRU DOO
SHULSKHUDOV
7RXFK6HQVLQJOLEUDU\
86% 'HYLFH /LEUDU\ RIIHULQJ WKH
IROORZLQJ FODVVHV +,' 06& &'&
DQG')8
6HWRI([DPSOHV$SSOLFDWLRQVDQG
'HPRQVWUDWLRQVRUJDQL]HGE\
ERDUGDQGSURYLGHGZLWK
SUHFRQILJXUHGSURMHFWVXVHU
PRGLILDEOHILOHV
2SHQVRXUFHVPLGGOHZDUHVWDFNV
0LVFHOODQHRXVXWLOLWLHV
06Y9
1. The components files must not be modified by the user. Only the \Projects sources can be changed by the
user.
DocID026464 Rev 4
11/21
20
STM32CubeF0 firmware package overview
UM1779
For each board, a set of examples are provided with pre-configured projects for EWARM,
MDK-ARM and TrueSTUDIO toolchains.
Figure 4 shows the project structure for the STM32091C-EVAL board.
Figure 4. STM32CubeF0 examples overview
12/21
DocID026464 Rev 4
UM1779
STM32CubeF0 firmware package overview
The examples are classified depending on the STM32Cube level they apply to, and are
named as below:
•
Examples in level 0 are called Examples. They use the HAL drivers without any
middleware component.
•
Examples in level 1 are called Applications.They provide typical use cases for each
middleware component and can call several HAL drivers.
The Template project available in the Template directory allows to quickly build any firmware
application on a given board.
All examples have the same structure:
•
\Inc folder that contains all header files
•
\Src folder for the sources code
•
\EWARM, \MDK-ARM and \TrueSTUDIO folders that contain the pre-configured project
for each toolchain
•
readme.txt describing the example behavior and needed environment to make it
working.
Table 3 gives the number of projects available for each board.
Table 3. Number of examples available for each board
Board
Examples
Applications
Demonstration
STM32072B-EVAL
40
16
N/A
STM32091C-EVAL
42
10
1
STM32F072BDISCOVERY
43
5
1
STM32F0308DISCOVERY
28
1
1
NUCLEO-F070RB
30
1
1
NUCLEO-F072RB
41
1
1
NUCLEO-F030R8
29
1
1
NUCLEO-F031K6
1
N/A
1
NUCLEO-F042K6
1
N/A
1
NUCLEO-F091RC
42
2
1
DocID026464 Rev 4
13/21
20
Getting started with STM32CubeF0
UM1779
4
Getting started with STM32CubeF0
4.1
Running your first example
This section explains how simple it is to run a first example within STM32CubeF0. It uses as
illustration the generation of a simple LED toggle running on STM32F091RC Nucleo board:
1.
Download the STM32CubeF0 firmware package. Unzip it into a directory of your
choice. Make sure not to modify the package structure shown in Figure 3. Note that it is
also recommended to copy the package at a location close to your root (e.g. C:\STM32
or G:\Tests) because some IDEs encounter problems when path length is too long.
2.
Browse to \Projects\STM32F091RC-Nucleo\Examples.
3.
Open \GPIO, then \GPIO_EXTI folder.
4.
Open the project with your preferred toolchain. A quick overview on how to open, build
and run an example with the supported toolchains is given below.
5.
Rebuild all files and load your image into target memory.
6.
Run the example: each time you press the USER push button, the LED2 toggles (for
more details, refer to the example readme file).
To open, build and run an example with the supported toolchains, follow the steps below:
•
•
•
a.
14/21
EWARM
a)
Under the example folder, open \EWARM sub-folder.
b)
Launch the Project.eww workspace(a).
c)
Rebuild all files: Project->Rebuild all.
d)
Load project image: Project->Debug.
e)
Run program: Debug->Go(F5).
MDK-ARM
a)
Under the example folder, open \MDK-ARM sub-folder.
b)
Launch the Project.uvproj workspace(a).
c)
Rebuild all files: Project->Rebuild all target files.
d)
Load project image: Debug->Start/Stop Debug Session.
e)
Run program: Debug->Run (F5).
TrueSTUDIO
a)
Open the TrueSTUDIO toolchain.
b)
Click File->Switch Workspace->Other and browse to TrueSTUDIO workspace
directory.+
c)
Click File->Import, select General->'Existing Projects into Workspace' and
then click "Next".
d)
Browse to the TrueSTUDIO workspace directory, select the project.
e)
Rebuild all project files: select the project in the "Project explorer" window then
click Project->build project menu.
f)
Run program: Run->Debug (F11).
The workspace name may changes from one example to another.
DocID026464 Rev 4
UM1779
4.2
Getting started with STM32CubeF0
Developing your own application
This section describes the steps required to create your own application using
STM32CubeF0:
1.
Create your project
To create a new project, you can either start from the Template project provided for
each board under \Projects\<STM32xxx_yyy>\Templates or from any project available
under \Projects\<STM32xxy_yyy>\Examples or \Projects\<STM32xx_yyy>\Applications
(where <STM32xxx_yyy> refers to the board name, as example STM32091C_EVAL).
The Template project provides an empty main loop function. It is a good starting point
to get familiar with project settings for STM32CubeF0. The template has the following
characteristics:
–
It contains the sources of HAL, CMSIS and BSP drivers which are the minimal
components required to develop a code on a given board.
–
It contains the include paths for all the firmware components.
–
It defines the STM32F0 device supported, thus allowing to configure the CMSIS
and HAL drivers accordingly.
–
It provides ready-to-use user files pre-configured as shown below:
HAL is initialized with default timebase with ARM Core SysTick.
SysTick ISR is implemented for HAL_Delay() purpose.
System clock configured with the minimum frequency of the device (HSI) for an
optimum power consumption.
Note:
When copying an existing project to another location, make sure to update the include
paths.
2.
Add the necessary middleware components to your project (optional)
The available middleware stacks are USB Device library, StemWin, Touch sensing
library, FreeRTOS and FatFS. To know which source files you need to add in the
project files list, refer to the documentation provided for each middleware. You can also
look at the applications Projects\STM32xxx_yyy\Applications\<MW_Stack> (where
<MW_Stack> refers to the Middleware stack, as an example USB_Device) to know
which sources files and which include paths need to be added.
3.
Configure the firmware components
The HAL and middleware components offer a set of build time configuration options
using #define macros declared in a header file. A template configuration file is provided
within each component, it has to be copied to the project folder (usually the
configuration file is named xxx_conf_template.h, the word “_template” need to be
removed when copying it to the project folder). The configuration file provides enough
information to know the impact of each configuration option; more detailed information
is available in the documentation provided for each component.
4.
Start the HAL Library
After jumping to the main program, the application code calls HAL_Init() API to initialize
the HAL Library, which performs the following tasks:
a)
Configuration of the Flash prefetch and SysTick interrupt priority (configured by
the user through macros defined in stm32f0xx_hal_conf.h).
b)
Configuration of the SysTick to generate an interrupt each 1 ms at the SysTick
TICK_INT_PRIO interrupt priority defined in stm32f0xx_hal_conf.h, which is
DocID026464 Rev 4
15/21
20
Getting started with STM32CubeF0
UM1779
clocked by the HSI (at this stage, the clock is not yet configured and thus the
system runs from the internal HSI at 8 MHz)
c)
5.
Call of HAL_MspInit() callback function defined in stm32f0xx_hal_msp.c user file
to performs global low level hardware initializations.
Configure the system clock
The system clock configuration is done by calling the two APIs described below:
6.
7.
a)
HAL_RCC_OscConfig(): this API configures the internal and/or external
oscillators, as well as PLL source and factors. The user can configure one
oscillator or all oscillators. The PLL configuration can be skipped if there is no
need to run the system at high frequency.
b)
HAL_RCC_ClockConfig(): this API configures the system clock source, the Flash
memory latency and AHB and APB prescalers.
Peripheral initialization
a)
Start by writing the peripheral HAL_PPP_MspInit function. Please proceed as
follows:
–
Enable the peripheral clock.
–
Configure the peripheral GPIOs.
–
Configure DMA channel and enable DMA interrupt (if needed).
–
Enable peripheral interrupt (if needed).
b)
Edit stm32xxx_it.c file to call the required interrupt handlers (peripheral and DMA),
if needed.
c)
Write process complete callback functions if you plan to use peripheral interrupt or
DMA.
d)
In your main.c file, initialize the peripheral handle structure then call the
HAL_PPP_Init() function to initialize your peripheral.
Developing your application process
At this stage, your system is ready and you can start developing your application code.
The HAL provides intuitive and ready-to-use APIs to configure the peripheral. It
supports polling, interrupts and DMA programming model, to accommodate any
application requirements. For more details on how to use each peripheral, refer to the
rich set of examples provided.
If your application has real time constraints, you can find a large set of examples
showing how to use FreeRTOS and integrate it with all middleware stacks provided
within STM32CubeF0. This can be a good starting point to develop your application.
You can also refer to STM32F0xx HAL drivers user manual.
Caution:
16/21
In the default HAL implementation, SysTick timer is time base source. It is used to generate
interrupts at regular time intervals. If HAL_Delay() is called from peripheral ISR process,
make sure that the SysTick interrupt has higher priority (numerically lower) than the
peripheral interrupt. Otherwise, the caller ISR process is blocked. Functions affecting
timebase configurations are declared as __weak to make override possible in case of other
implementations in user file (using a general purpose timer for example or other time
source). For more details please refer to HAL_TimeBase example.
DocID026464 Rev 4
UM1779
4.3
Getting started with STM32CubeF0
Using STM32CubeMX to generate the initialization C code
An alternative to steps 1 to 6 described in Section 4.2 consists in using the STM32CubeMX
tool to generate code to initialize system, peripherals and middleware (steps 1 to 6 above)
through a step-by-step process:
1.
Select the STMicroelectronics STM32 microcontroller that matches the required set of
peripherals.
2.
Configure each required embedded software thanks to a pinout-conflict solver, a clocktree setting helper, a power consumption calculator, and the utility performing MCU
peripheral configuration (for example GPIO, USART) and middleware stacks (for
example USB).
3.
Generate the initialization C code based on the configuration selected. This code is
ready to use within several development environments. The user code is kept at the
next code generation.
For more information, please refer to STM32CubeMX user manual (UM1718).
4.4
Getting STM32CubeF0 release updates
The STM32CubeF0 firmware package comes with an updater utility, STM32CubeUpdater,
also available as a menu within STM32CubeMX code generation tool.
The updater solution detects new firmware releases and patches available from st.com and
proposes to download them to the user’s computer.
4.4.1
Installing and running the STM32CubeUpdater program
Follow the sequence below to install and run the STM32CubeUpdater:
1.
To launch the installation, double-click the SetupSTM32CubeUpdater.exe file available
under \Utilities\PC_Software.
2.
Accept the license terms and follow the different installation steps.
3.
Upon successful installation, STM32CubeUpdater becomes available as an
STMicroelectronics program under Program Files and is automatically launched. The
STM32CubeUpdater icon appears in the system tray. Right-click the updater icon and
select Updater Settings to configure the Updater connection and perform manual or
automatic checks. For more details on Updater configuration, refer to section 3 of
STM32CubeMX User manual - UM1718).
DocID026464 Rev 4
17/21
20
FAQ
UM1779
5
FAQ
5.1
What is the license scheme for the STM32CubeF0 firmware?
The HAL is distributed under a non-restrictive BSD (Berkeley Software Distribution) license.
The middleware stacks made by STMicroelectronics (USB Host and Device Libraries,
StemWin) come with a licensing model allowing easy reuse, provided it runs on an
STMicroelectronics device.
The middleware based on well-known open-source solutions (FreeRTOS and FatFs) have
user-friendly license terms. For more details, refer to the license agreement of each
middleware.
5.2
What boards are supported by the STM32CubeF0 firmware
package?
The STM32CubeF0 firmware package provides BSP drivers and ready-to-use examples for
the following STM32F0 boards: STM32072B-EVAL, STM32091C-EVAL, STM32F072BDISCOVERY, STM32F0308-DISCOVERY, NUCLEO-F070RB, NUCLEO-F072RB,
NUCLEO-F091RC, NUCLEO-F030R8, NUCLEO-F031K6 and NUCLEO-F042K6.
5.3
Is there any link with Standard Peripheral Libraries?
The STM32Cube HAL layer is the replacement of the Standard Peripheral Library.
The HAL APIs offer a higher abstraction level compared to the standard peripheral APIs.
HAL focuses on peripheral common functionalities rather than hardware. Its higher
abstraction level allows to define a set of user friendly APIs that can be easily ported from
one product to another.
Although existing Standard Peripheral Libraries are supported, they are not recommended
for new designs.
5.4
Does the HAL layer take benefit from interrupts or DMA?
How can this be controlled?
Yes. The HAL layer supports three API programming models: polling, interrupt and DMA
(with or without interrupt generation).
5.5
Are any examples provided with the ready-to-use toolset
projects?
Yes. STM32CubeF0 provides a rich set of examples and applications (more than 50 for
STM32091C-EVAL). They come with pre-configured projects for several toolsets: IAR, Keil
and GCC.
18/21
DocID026464 Rev 4
UM1779
5.6
FAQ
How are the product/peripheral specific features managed?
The HAL layer offers extended APIs, that is specific functions as add-ons to the common
API to support features available on some products/lines only.
5.7
How can STM32CubeMX generate code based on embedded
software?
STM32CubeMX has a built-in knowledge of STM32 microcontrollers, including their
peripherals and software. This enables the tool to provide a graphical representation to the
user and generate *.h/*.c files based on user configuration.
5.8
How can I get regular updates on the latest STM32CubeF0
firmware releases?
The STM32CubeF0 firmware package comes with an updater utility, STM32CubeUpdater,
that can be configured for automatic or on-demand checks for new firmware package
updates (new releases or/and patches).
STM32CubeUpdater is also integrated within the STM32CubeMX tool. When using this tool
for STM32F0 configuration and initialization C code generation, the user can benefit from
STM32CubeMX self-updates as well as STM32CubeF0 firmware package updates.
For more details, refer to Section 4.4.
5.9
How do I set the HAL drivers in Debug mode to debug my
application?
To configure the HAL drivers in Debug mode, set the USE_FULL_ASSERT compilation
switch in your application project environment. This allows to systematically check the
parameters passed to the HAL APIs. The assert_failed() function is called when an error is
detected.
DocID026464 Rev 4
19/21
20
Revision history
6
UM1779
Revision history
Table 4. Document revision history
Date
Revision
17-Jun-2014
1
Initial release.
2
Added StemWin in Section 1: STM32CubeF0 main
features and Section 2: STM32CubeF0 architecture
overview. Updated Figure 1: STM32CubeF0 firmware
components and Figure 2: STM32CubeF0 firmware
architecture.
Added STM32F091xx and STM32F098xx in Table 1:
Macros for STM32F0 series. Updated Figure 3:
STM32CubeF0 firmware package structure and
Figure 4: STM32CubeF0 examples overview.
Added STM32091C-EVAL and NUCLEO-F091RC in
Table 2: Boards for STM32F0 series and Table 3:
Number of examples available for each board. Changed
STM32F072RB-NUCLEO and STM32F030R8NUCLEO into NUCLEO-F072RB and STM32F072RBF030R8 in Table 3: Number of examples available for
each board.
Replaced STM32F071RB by STM32F091RC in
Section 4.1: Running your first example.
Added STemWin in Section 4.2: Developing your own
application and replaced STM32072B_EVAL by
STM32091C_EVAL.
Updated Section 5.1: What is the license scheme for the
STM32CubeF0 firmware? and Section 5.2: What boards
are supported by the STM32CubeF0 firmware
package?, and added Section 5.9: How do I set the HAL
drivers in Debug mode to debug my application?.
3
Added STM32F030xC, STM32F070x6 and
STM32F070xB in Table 1: Macros for STM32F0 series.
Added NUCLEO-F070RB in Table 2: Boards for
STM32F0 series, Table 3: Number of examples
available for each board and Section 5.2: What boards
are supported by the STM32CubeF0 firmware
package?.
4
Updated Figure 1: STM32CubeF0 firmware
components.
Added NUCLEO-F031K6 and NUCLEO-F042K6 board
in Section 3.1: Supported STM32F0 devices and
hardware, Table 3: Number of examples available for
each board and Section 5.2: What boards are supported
by the STM32CubeF0 firmware package?.
30-Sep-2014
05-Dec-2014
10-Sep-2015
20/21
Changes
DocID026464 Rev 4
UM1779
IMPORTANT NOTICE – PLEASE READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and
improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on
ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order
acknowledgement.
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or
the design of Purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2015 STMicroelectronics – All rights reserved
DocID026464 Rev 4
21/21
21
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
