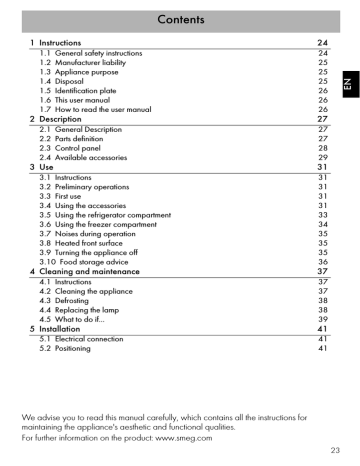

Contents 1.1 1.2 1.3 1.4 1.5 1.6 1.7 General safety instructions Manufacturer liability Appliance purpose Disposal Identification plate This user manual How to read the user manual 2 Description 2.1 2.2 2.3 2.4 General Description Parts definition Control panel Available accessories 3 Use 24 25 25 25 26 26 26 27 27 27 28 29 31 3.1 Instructions 3.2 Preliminary operations 3.3 First use 3.4 Using the accessories 3.5 Using the refrigerator compartment 3.6 Using the freezer compartment 3.7 Noises during operation 3.8 Heated front surface 3.9 Turning the appliance off 3.10 Food storage advice 4 Cleaning and maintenance 4.1 4.2 4.3 4.4 4.5 24 EN 1 Instructions Instructions Cleaning the appliance Defrosting Replacing the lamp What to do if... 5 Installation 5.1 Electrical connection 5.2 Positioning 31 31 31 31 33 34 35 35 35 36 37 37 37 38 38 39 41 41 41 We advise you to read this manual carefully, which contains all the instructions for maintaining the appliance's aesthetic and functional qualities. For further information on the product: www.smeg.com 23 Instructions 1 Instructions 1.1 General safety instructions Risk of personal injury • Never touch the heating elements during use. • Keep children under eight years of age at a safe distance if they are not constantly supervised. • Children must never play with the appliance. • Switch the appliance off immediately after use. • Never try to put out a fire or flames with water: turn off the appliance and smother the flames with a fire blanket or other appropriate cover. • The appliance must never be cleaned by unsupervised children. • Have qualified personnel carry out installation and assistance interventions according to the standards in force. • Do not modify this appliance. • Do not insert pointed metal objects (cutlery or utensils) into the slots in the appliance. 24 • Do not try to repair the appliance yourself or without the intervention of a qualified technician. • If the power supply cable is damaged, contact technical support immediately and they will replace it. Risk of damaging the appliance • Never place sharp metallic objects such as knives, forks, spoons and lids on the appliance during use. • Do not use abrasive or corrosive detergents on glass parts (e.g. powder products, stain removers and metallic sponges). • Do not sit on the appliance. • Do not use steam jets for cleaning the appliance. • Do not obstruct ventilation openings and heat dispersal slots. • Do not use the appliance to cool rooms for any reason. • Always disconnect the appliance from the power grid in the event of a breakdown, maintenance, when replacing the light bulb or during cleaning. For this appliance 1.4 Disposal • Ensure that the appliance is switched off before replacing the bulb. • Do not rest any weight or sit on the open door of the appliance. • Take care that no objects are stuck in the doors. This appliance must be disposed of separately from other waste (Directives 2002/95/EC, 2002/ 96/EC, 2003/108/EC). The appliance does not contain substances in quantities sufficient to be considered hazardous to health and the environment, in accordance with current European directives. To dispose of the appliance: • Cut the power supply cable and remove it along with the plug. 1.2 Manufacturer liability The manufacturer declines all liability for damage to persons or property caused by: • use of the appliance other than the one envisaged; • non-observance of the user manual provisions; • tampering with any part of the appliance; • use of non-original spare parts. 1.3 Appliance purpose • This appliance is for refrigeration and conservation of fresh and frozen foods in the home. Every other use is considered improper. • This appliance may be used by children aged at least 8 and by people of reduced physical and mental capacity, or lacking in experience in the use of electrical appliances, as long they are supervised or instructed by adults who are responsible for their safety. • The appliance is not designed to operate with external timers or with remote-control systems. Power voltage Danger of electrocution • Disconnect the main power supply. • Disconnect the power cable from the electrical system. • Consign the appliance to the appropriate selective collection centres for electrical and electronic equipment waste, or deliver it back to the retailer when purchasing an equivalent product, on a one for one basis. 25 EN Instructions Instructions Our appliances are packed in nonpolluting and recyclable materials. • Consign the packing materials to the appropriate selective collection centres. Plastic packaging Danger of suffocation • Do not leave the packaging or any part of it unattended. • Do not let children play with the packaging plastic bags. 1.5 Identification plate The identification plate bears the technical data, serial number and brand name of the appliance. Do not remove the identification plate for any reason. 1.6 This user manual This user manual is an integral part of the appliance and must therefore be kept in its entirety and in an accessible place for the whole working life of the appliance. Read this user manual carefully before using the appliance. 1.7 How to read the user manual This user manual uses the following reading conventions: Instructions General information on this user manual, on safety and final disposal. Description Description of the appliance and its accessories. Use Information on the use of the appliance and its accessories, cooking advice. Cleaning and maintenance Information for proper cleaning and maintenance of the appliance. Installation Information for the qualified technician: installation, operation and inspection. Safety instructions Information Advice 1. Use instruction sequence. • Single use instruction. 26 Description 2 Description EN 2.1 General Description 1 Freezer compartment 2 Fan 3 Control panel/Lamp 4 Refrigerator compartment 5 Defrost water outlet 6 Freezer door 7 Fridge door 2.2 Parts definition Control panel Interior lighting For setting the temperature inside the refrigerator and freezer compartments. The interior of the appliance is lit when the door is opened. Refrigerator compartment Freezer compartment For storing fresh foods. For storing frozen foods and freezing foodstuffs. 27 Description Fan Freezer compartment Distributes the temperature and reduces condensation on the shelves and other surfaces. For storing frozen foods, freezing fresh foods and producing ice cubes. Defrost water outlet At the back of the refrigerator compartment, under the refrigeration plate, there is a groove and a hole for collecting the water from defrosting. Check periodically that this opening is not blocked and clean it with a piece of stiff wire, if necessary. Electric energy consumption rises when the fan is operating. 2.3 Control panel 1 Oven light 2 Fan/Super Freeze button 28 3 Thermostat knob 4 Fan lamp switch Description 2.4 Available accessories Fruit and vegetable drawer EN Some models are not provided with all accessories. Shelves For storing fruit and vegetables, maintaining a constant humidity level. Freezer grid For optimising fridge space and placing foodstuffs inside the refrigerator compartment. For dividing up the freezer compartment to optimise space according to requirements. Bottle rack For storing bottles inside the refrigerator compartment. 29 Description Door balconies and shelves Egg holder Useful for storing eggs, this can be positioned in various balconies and shelves in the freezer door, according to requirements. Ice tray For storing foodstuffs in small containers. The shelf in the lower part of the door is useful for storing bottles. In some models, the internal part of the freezer door is also fitted with balconies for frozen foods which are handled more frequently (e.g. ice cream, already opened bags etc.) For producing ice cubes; to be placed in the freezer compartment. The accessories intended to come into contact with food are made of materials that comply with the provisions of current legislation. Original supplied and optional accessories can be requested to Authorised Assistance Centres. Use only original accessories supplied by the manufacturer. 30 Use 3 Use 3.1 Instructions Improper use Risk of damages to the appliance • Do not use sharp objects when removing ice and frost in order not to damage the appliance's walls. • Do not sit or lean on the door or any open drawers. • Do not touch the heating elements on the outside of the appliance. • Do not store inflammable, explosive or volatile substances. • Organic compounds, acids and essential oils can corrode the seals and plastic surfaces if left in contact with them for extended periods. • Bottles containing strong alcoholic drinks must be tightly closed and stored vertically. 1. Plug the appliance into a wall socket. 2. To turn the appliance on, turn the thermostat knob on the control panel from the 0 STOP position to position 1 7, according to the desired temperature. The higher the number set (from 1 to 7), the lower the fridge temperature will be. 3.4 Using the accessories Shelves These can be positioned at different heights on the guides according to requirements. Each shelf has a safety fitting to prevent it from being accidentally removed. To extract them fully, lift up the front part (1) and remove them (2). 3.2 Preliminary operations 1. Remove any protective film from the outside or inside of the appliance, including accessories. 2. Remove any labels (apart from the technical data plate) from the accessories and shelves. 3. Remove and wash all the appliance accessories (see 4 Cleaning and maintenance). Perishable foods should be placed on the rear part of the shelves where the temperature is lower. 31 EN 3.3 First use Use Door balconies and shelves Bottle rack Suitable for storing eggs, butter, dairy products, conserves and other small food packages/containers. The lower part of the door has a shelf for bottles. Avoid placing excessively heavy bottles on the shelf and do not let them drop onto the bottom when inserting them. May be positioned at different heights and installed with the front part raised so as to position the bottles at an angle. In order to store particularly long bottles, the bottle rack must be set at a height which will not prevent the door from being closed properly. To extract it fully, lift up the front part and remove it. Fruit and vegetable drawer Located at the bottom of the refrigerator compartment, which is fitted with a glass shelf to cover fresh foods that require constant humidity for optimum storage. In some models, the internal part of the freezer door is also fitted with balconies for frozen foods which are handled more frequently (e.g. ice cream, already opened bags etc.) 32 Use Ice tray Fill the ice tray with cold water or other liquids. Place it horizontally in one of the freezer drawers. Close the freezer door and wait a few hours. When the water has fully frozen, remove the tray from the freezer compartment and remove the ice for use. Foodstuff Time Eggs, smoked meats, marinated foods, cheese max 10 days Root vegetables max 8 days 3.5 Using the refrigerator compartment Butter max 7 days Arranging foods Pastries, fruit, ready meals, fresh meat max 2 days Fish, minced meat, seafood max 1 day Arrange the foods on the various shelves, taking care that they have an airtight wrapping or cover. This precaution ensures that: • the flavour, moisture and freshness of the foods is preserved; • any contamination of foods with odours or tastes from other foods can be avoided; • the humidity level inside the refrigerator is prevented from becoming too high as a result of the normal transpiration of food (especially fresh fruit and vegetables). In some operating conditions (rise in ambient temperature and humidity, more frequent opening of the door) this might cause condensation to form on the shelves. EN Storage life table Fan function 1. Press the fan button at the centre of the control panel. 2. When you wish to deactivate the fan function, move the button to the 0 position. We recommend using the fan function when: • room temperature exceeds 30°C; • humidity in the environment increases (in summer); • large quantities of food are stored in the freezer. Always allow hot foods and drinks to cool to room temperature before putting them in the fridge. 33 Use 3.6 Using the freezer compartment Activate the Super Freeze freezer function 24 hours before freezing fresh foodstuffs. Super Freeze Freezer Function The Super Freeze freezer function is used for quick freezing of large quantities of foodstuffs 1. Press the Super Freeze button in the centre of the control panel. 2. When you wish to deactivate the Super Freeze function, return the Super Freeze button to the 0 position. It is recommended the Super Freeze freezer function be used when first turning the appliance on and before cleaning the freezer. 3. Place the fresh foodstuffs in the freezer. In order to save energy and improve storage life, it is recommended to use the Super Freeze freezer function for no more than 24 hours. 34 Frozen foods storage life table Foodstuff Time Fruit, beef max 10-12 months vegetables, veal, poultry max 8-10 months Game max 6-8 months Pork max 4-6 months Mince max 4 months Bread, desserts, cooked foods, lean fish max 3 months Offal max 2 months Sausages, oily fish max 1 month Defrosted foods Food must be consumed as soon as possible once defrosted. Freezing foods preserves them, but it does not destroy any micro-organisms, which are activated after thawing, damaging the foods. Partial defrosting lowers the nutritional value of the foodstuffs, particularly of fruit, vegetables and ready meals. 3.7 Noises during operation 3.8 Heated front surface The refrigerator and freezer compartments are cooled by means of a compression system. In order to maintain the preset temperature inside the refrigerator and freezer compartments, the compressor comes into operation in response to the level of cooling required, and may operate continuously if necessary. When the compressor starts to function, it creates a buzzing noise which generally diminishes in intensity after a few minutes. Another normal operating noise of the appliance is a gurgling due to the coolant flowing through the pipes in the circuit. This noise is normal and does not indicate an appliance malfunction. If it becomes too loud, this may mean that there are other causes. Checks must then be made to ensure that: • The refrigerator is properly levelled on the floor and does not vibrate when the compressor is in operation: if this is not the case, adjust the appliance's feet until it is level; • The drawers, shelves and trays on the door are correctly positioned in their holders: if they are not, put them in correctly; • Bottles and containers on the various shelves are stable and not touching each other: otherwise, the vibration resulting from compressor operation could generate noise; • Do not position the fridge in such a way that it is in contact with furniture or other household appliances. There is a front surface heating system inside the cabinet to limit the formation of condensation around the door seal. EN Use 3.9 Turning the appliance off Whenever the appliance is to remain unused for long periods, it should be switched off. 1. Turn the thermostat knob on the control panel to 0 STOP. 2. Unplug the appliance from the wall socket. 3. Empty the compartments. 4. Once the freezer has fully defrosted, dry any residual accumulated moisture with a tea towel. Leave the door ajar to ensure that moisture and stagnant air do not cause unpleasant odours. 35 Use 3.10 Food storage advice Refrigerator compartment Practical energy saving advice • Keep conserves, wine, biscuits etc. in the upper part. • Keep dairy products, ready meals, pastries, fruit juices, beer etc. in the central part. • Keep meats, cold cuts etc. in the lower part. • Keep fresh and tropical fruit, vegetables, root vegetables etc. in the fruit and vegetable drawer. • Correct use of the appliance, correct packaging of foodstuffs, a constant temperature and food hygiene have significant effects on the quality of storage. • Reduce the number of times that the doors are opened and the length of time they remain open to prevent the compartments from heating up excessively. • Clean the condenser (rear of the refrigerator) periodically to prevent the appliance from losing efficiency. • Use the Super Freeze function only when strictly necessary. • Defrost frozen food in the refrigerator compartment in order to make use of the cold stored in the frozen foods. General advice • Always check the expiry date on the food packaging. • The foodstuffs must be stored in closed or pre-packaged containers and must not be able to emit or absorb moisture and odours. • Remove perishable products from the appliance if you are going away for a long period. Refrigerator compartment door • Keep eggs, butter, cheese etc. in the upper and central parts. • Keep drinks, bottles, cans etc. in the lower part. 36 Freezer compartment • The type of food, quantity and date of freezing should be marked on the container/packaging. • Use small containers, if possible already cold. • The quantity of fresh foods which can be frozen at the same time is listed on the nameplate inside the refrigerator compartment. • Use suitable freezer bags, tinfoil, clingfilm for use with food, and freezer containers. • Do not use paper bags, cellophane for non-food use, shopping bags or preused freezer bags. • Avoid frozen food coming into contact with fresh food to be frozen. Freezer compartment door • Keep bagged frozen vegetables, ice, ice cream etc. Cleaning and maintenance 4.1 Instructions Improper use Risk of damage to surfaces • Do not use steam jets for cleaning the appliance. • Do not use cleaning products containing chlorine, ammonia or bleach on steel parts or parts with metallic finishes on the surface (e.g. anodizing, nickel- or chromium-plating). • Do not use abrasive or corrosive detergents on glass parts (e.g. powder products, stain removers and metallic sponges). • Do not use rough or abrasive materials or sharp metal scrapers. Power voltage Danger of electrocution • Turn off the appliance and unplug it from the mains before cleaning. • Do not pull the cable to remove the plug. 4.2 Cleaning the appliance A special antibacterial protection on the appliance's interior walls prevents bacterial growth and keeps them clean. They must nevertheless be cleaned regularly in order to keep them in good condition. Cleaning the outside of the appliance • The appliance may be cleaned with water or alcohol-based liquid detergents (e.g. window cleaning products). • Avoid aggressive detergents and rough sponges in order not to damage the surfaces. • Use a soft brush to remove dust and fume deposits from the condenser on the rear of the appliance. • Clean the tank above the compressor. Cleaning the inside of the appliance • Clean the interior with diluted liquid detergent or with lukewarm water with a little vinegar added. • The door balconies and shelves can be removed: tap them upwards with your fist, first on one side and then on the other in the insertion zone. • Remove any ice thicker than 3-5 mm. Do not use sharp objects or spray products. 37 EN 4 Cleaning and maintenance Cleaning and maintenance 4.3 Defrosting 4.4 Replacing the lamp Defrosting the refrigerator compartment 1. Remove the bulb cover using a tool (e.g. a screwdriver). The refrigerator compartment does not require defrosting, as any ice which forms on the refrigeration plate will melt when the compressor is idle. If ice thicker than 3-5 mm should form on the inside walls of the refrigerator compartment, turn off the appliance and defrost it manually. The drainage channel opening for melted ice is located inside the refrigerator compartment under the refrigeration plate. Check regularly that it is not blocked by food scraps or anything else and clean it if necessary with a straw or stiff wire. Defrosting the freezer compartment The freezer compartment must be defrosted manually. It is recommended you further lower the temperature of the foodstuffs 24 hours before defrosting using the Super Freeze function. After 24 hours, remove the frozen foods from the freezer and protect them from thawing. 38 2. Unscrew and remove the lamp. 3. Replace the lamp with one of the same type. 4. Refit the cover. 4.5 What to do if... The appliance does not work: • Make sure that the appliance is plugged in and that the main switch is turned on. The compressor starts to function too often or functions continuously: • The room temperature is too high. • The door is being opened too often or for too long. • The door is not closing/sealing properly. • The freezer is loaded with too many fresh foods. • Check that sufficient air can circulate around the sensor on the right-hand side of the refrigerator compartment. • Check that the back of the freezer is properly ventilated and that the condenser is not too dirty. Excessive ice or condensation has built up inside the refrigerator compartment: • The door is being opened too often or for too long. • Hot foods have been placed inside the refrigerator compartment. • The foodstuffs or containers are in contact with the rear wall. • The door seal is damaged or dirty. Clean or replace it. Water is forming inside the refrigerator compartment: • The drainage channel or opening is blocked. The refrigerator compartment is not sufficiently cold: • The thermostat is set at too high a temperature. • The door is being opened too often or for too long. • The door is not closing/sealing properly. • The room temperature is too high. The temperature inside the refrigerator compartment is too cold and the foodstuffs are freezing. • The thermostat is set at too low a temperature. • Foodstuffs not contained in suitable containers or bags. • Fruit and vegetables might be too wet. • Foodstuffs placed against the rear wall of the refrigerator compartment. 39 EN Cleaning and maintenance Cleaning and maintenance Temperature inside freezer compartment not low enough to freeze foods properly: • The thermostat is set at too high a temperature. • The door is being opened too often or for too long. • The door is not closing/sealing properly. • The door seal is damaged or dirty. Clean or replace it. • The food to be frozen contains large quantities of sugar. Excessive ice has built up inside the freezer compartment: • The thermostat is set at too low a temperature. • The room temperature is too high. • The door is being opened too often or for too long. • The door is not closing/sealing properly. • The door seal is damaged or dirty. Clean or replace it. • Hot foods have been placed inside the freezer compartment. 40 Door hard to open just after closing: • If you attempt to open the door again just after closing it (especially the freezer door), considerable strength is required. This is due to the vacuum created by the cooling of the warm air which has entered the freezer. The doors are misaligned: • Check that the appliance is level. • Level the appliance using its feet. Installation 5.1 Electrical connection Power voltage Danger of electrocution • The appliance must be connected to earth in compliance with electrical system safety standards. • Do not pull the cable to remove the plug. General information • Check the grid characteristics against the data indicated on the plate. The identification plate bearing the technical data, serial number and brand name is visibly positioned inside the appliance. Do not remove this plate for any reason. • Make sure that the plug and socket are of the same type. • Avoid using adapters and shunts as these could cause overheating and a risk of burns. • The plug must always be accessible when the appliance is installed. • Leave the refrigerator standing vertically for at least two hours before turning it on for the first time. • If it is necessary to replace the power cable, this must be performed by an authorised technician from Technical Support Service. 5.2 Positioning Heavy appliance Danger of crush injuries • Position the appliance with the aid of a second person. Pressure on the open door Risk of damages to the appliance • Never use the open door to lever the appliance into place when fitting. • Avoid exerting too much pressure on the oven door when open. • The appliance must not be exposed to direct sunlight. • The appliance must not be installed near heat sources. If this is not possible, suitable insulation must be used. • Do not use the appliance outdoors. 41 EN 5 Installation Installation Choice of location Positioning Always install the refrigerator in a dry place with satisfactory ventilation. Depending on its climate class (stated on the nameplate inside the refrigerator compartment), the appliance can be used in different temperature conditions. Place the appliance on a stable and level floor. If the floor is not perfectly level, use the two adjustable feet on the front part of the appliance. Class Room temperature SN (Subnormal) + 10°C to + 32°C N (Normal) + 16°C to + 32°C ST (Subtropical) + 18°C to + 38°C T (Tropical) + 18°C to + 43°C • Install the appliance at least 3 cm away from electrical or gas cookers and at least 30 cm away from combustion heaters or radiators. • The appliance must not be installed near heat sources. If this is not possible, suitable insulation must be used. • If installed underneath wall units, at least 5 cm clearance must be left. • Ensure that the appliance is located with sufficient space for the door to open and for the internal drawers and shelves to be removed, if necessary. 42 The appliance has two small wheels on the back to allow it to be moved and positioned more easily. In any case, we recommend moving the appliance very carefully in order to avoid damaging the floor (especially in the case of wooden floors).
