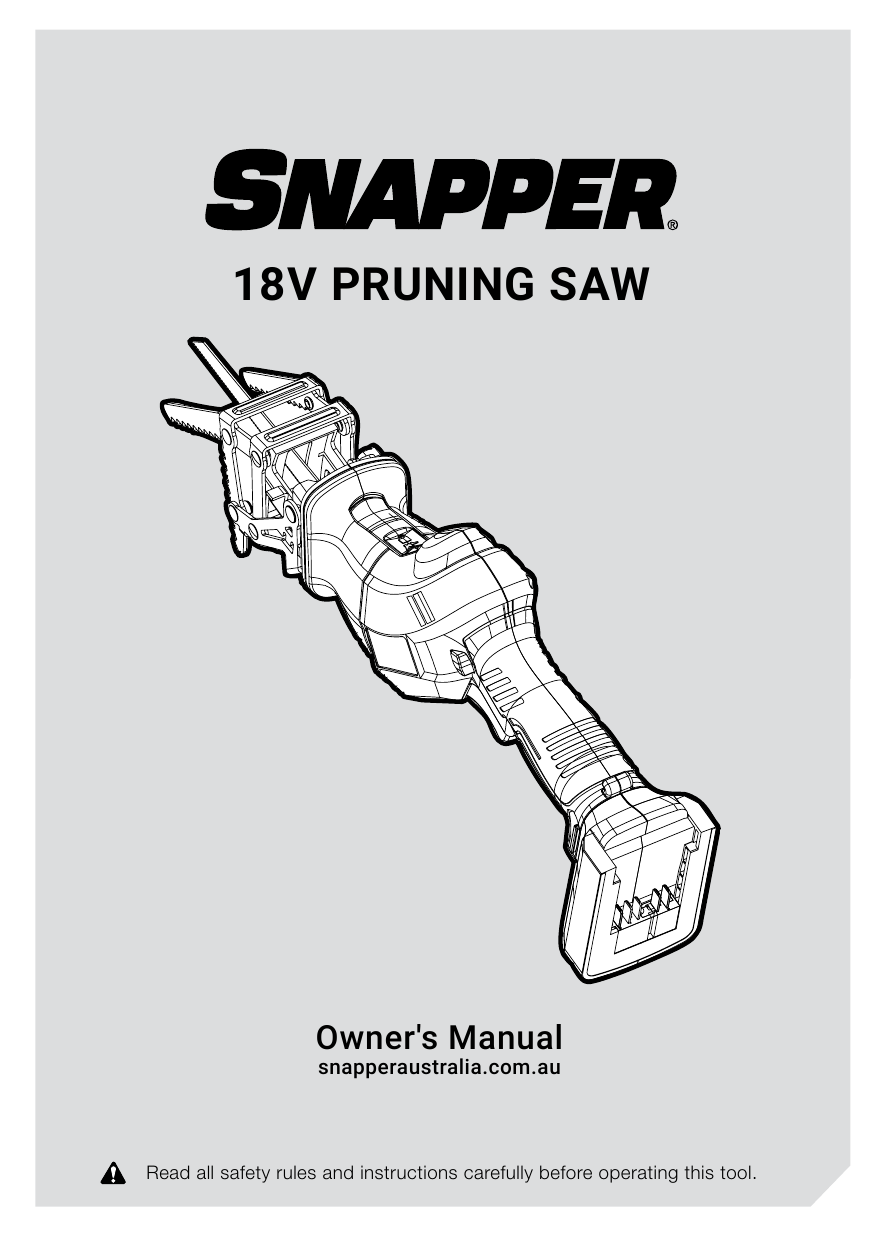

18V PRUNING SAW
Owner's Manual
snapperaustralia.com.au
Read all safety rules and instructions carefully before operating this tool.
IMPORTANT NOTES
Details
Thank you for purchasing your Snapper product. Snapper prides itself in the quality and
performance of all its products.
This instruction manual will aid in the assembly, safe operation and maintenance of your product.
Please read the following warnings to ensure safety and the long life of your product.
WARNING
Do not attempt to operate this product until you have read thoroughly and understood
completely all instructions, safety rules, etc, contained in this manual. Failure to comply may
result in accidents involving electric shock, fire, and/or serious personal injury.
INTENDED USE
This pruning saw is designed for cutting branches and beams of a diameter determined in
the specification table on page 16. It is only designed to cut wood. It is only to be used in an
domestic application by adults both indoors and outdoors.
io
n
Do not use the pruning saw for any purpose not listed in this manual. This pruning saw is not
to be used for professional tree services. It is not to be used by persons not wearing adequate
personal protective equipment and clothing.
Do not use the product for any task, except for that which it is intended.
N
R ot f
ep o
ro r
du
ct
General safety
Do not use machine in wet
conditions, protect the
machine from rain and damp.
Warning!
Wear tight-fitted protective
clothes.
To reduce the risk of injury, the
user must read the instruction
manual
Wait for all components
of the machine to completely
stop & remove the battery.
Wear safety goggles and ear
protection that meet safety
standards.
Should NOT be disposed of
with house hold items.
Wear sturdy, non-slip footwear.
max.40°C
Ambient temperature
40˚C Max.
Wear safety gloves.
Do not throw into water.
Wear respiratory protection.
22
Keep away from heat and/or
open flame.
CONTENTS
Table of Contents
Features & Definitions
Features & Supplied Items
4
Safety Features
5
General Safety
Battery Safety Warning
Charger Safety Warning
6
9
9
Installing the Jaw
Installing the Battery
Holding the Pruning saw
Starting & Stopping
Cutting Techniques
9
10
10
11
12
Safety Features
Safety & Handling
io
n
Operating Instructions
N
R ot f
ep o
ro r
du
ct
Maintenance & Care
Service
Cleaning
Transporting
Storing
Maintenance Chart
Product Disposal
12
12
13
13
13
13
Troubleshooting
14
Product Specifications
15
Troubleshooting
Technical Specifications
NOTE: WARRANTY DETAILS ARE NOT WRITTEN WITHIN THIS OPERATOR’S MANUAL.
REFER TO OTHER DOCUMENTS SUPPLIED WITH THIS MACHINE FOR WARRANTY
DETAILS.
THE WARRANTY DOCUMENTS MAY INCLUDE TECHNICAL SPECIFICATIONS THAT
ARE SPECIFIC TO EACH MODEL THAT ARE NOT WRITTEN WITHIN THIS OPERATOR’S
MANUAL.
3
FEATURES
DEFINITIONS
Features & Supplied Items
1. Blade
5. Lock-off button
8. Battery Housing
2. Clamping jaw
6. Switch trigger
9. Charger cord
3. Front guard
7. Battery pack
10. 18V Li-Ion Battery Charger
4. Quick-action blade clamp
- Battery & Charger Instruction/Safety Manual (not shown)
Mini Pruning saw
io
n
1
10
N
R ot f
ep o
ro r
du
ct
3
2
4
9
5
6
7
8
WARNING
Do not operate the product if any component is missing or damaged. Have any missing or
damaged components repaired or replaced.
44
Safety Features
All safety features shall be checked prior to every use for damage and function. If they do no work
as designed then do not use the pruning saw until they have been repaired or replaced.
Trigger lock (A)
Fitted to the side of the rear handle, this prevents
the accidental engagement of the trigger. The
trigger can only be activated after the trigger lock
has been released.
Front guard (B)
Design to protect the operator whilst cutting
and in the event of that a chain breaks or
derails.
A
N
R ot f
ep o
ro r
du
ct
io
n
B
Pruning saw
55
General Safety
WARNING.
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may
result in electric shock, fire, and/or serious injury. Save all warnings and instructions for future
reference and ensure other users read this manual before use.
Work area safety
• Keep work area clean and well lit. Avoid using pruning saw indoors and in dangerous
environments.
• Do not operate machine in presence of flammable liquids, gases or dust. Sparks from
operation may ignite dust or fumes.
• Keep children and bystanders away while operating the pruning saw.
• Thoroughly inspect area where pruning saw is to be used. Remove all objects that could be
tripped over or thrown when cutting. Thrown objects may cause serious injury.
Personal safety
io
n
• Do not use power tools in rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
N
R ot f
ep o
ro r
du
ct
• Become familiar with all controls and their proper operation before using the pruning saw.
Know how to stop the pruning saw and how to disengage the power in an emergency.
• Always wear appropriate clothing & do not wear loose clothing or jewellery that can get caught
in moving parts.
• Wear appropriate protective equipment and clothing such as dust mask, non-skid safety
shoes, and hard hat. Always wear eye protection.
• Remove all work tools from the pruning saw before turning it on.
• Stay alert & do not operate the pruning saw when tired. Pay close attention when operating
pruning saw and ensure others are aware of your intentions before using pruning saw.
• Do not operate the pruning saw while under the influence of alcohol or drugs.
• Do not overreach. Keep proper footing and balance at all times.
• Always walk & never run with the pruning saw and do not use it in a rush.
• Use extreme care when approaching blind corners, doorways or other objects that may
obscure your view & path of the pruning saw.
• Keep all parts of body away from the chain when the pruning saw is operating. Before starting
the pruning saw, make sure the chain is not in contact with anything.
• Hold the power tool by insulated gripping surfaces only. Blades in contact with metal parts or
live wire may give the operator an electric shock.
• Do not operate pruning saw while up in a tree as this may result in personal injury.
• Always keep proper footing and operate pruning saw only when standing on a fixed, secure
and level surface. Slippery or unstable surfaces such as ladders may cause loss of balance or
control of the machine.
6
• When cutting a limb under tension, be alert of spring back. When the tension in the wood
fibres is released by cutting it, the spring loaded limb may strike the operator and/or throw the
pruning saw out of control.
General Safety
• Keep handles dry, clean and free from oil and grease. Greasy or oily handles are slippery and may
cause loss of control.
• Cut wood only. Do not use machine for unintended purposes. For example, do not use pruning
saw for cutting plastic, masonry or non-wood building materials as this is hazardous.
Machine use and care
• If the machine starts to vibrate excessively or if the switch does not turn it on and off. Discontinue
use until the pruning saw has been inspected and fixed if required.
• Do not apply excessive force on the pruning saw. Use it for intended application only.
• Remove the battery pack from the pruning saw before making any adjustments, changing
accessories, inspecting, adjusting, servicing or cleaning the pruning saw. Such safety measures
reduce the risk of starting the machine unintentionally.
Additional safety warnings
io
n
• Store machine out of the reach of children. Do not allow children, persons unfamiliar with the
machine or an impaired person to use the machine.
• It is recommended that inexperienced users should be trained by an experienced operator.
N
R ot f
ep o
ro r
du
ct
• Children and juveniles, with the exception of apprentices older than 16 years and under supervision
must not operate the pruning saw.
• Operating instructions should be kept handy.
• Unfit or tired persons must not operate the pruning saw.
• The blade should come to a standstill before placing it down.
• Hold power tool by insulated gripping surfaces, when performing an operation where the cutting
accessory may contact hidden wiring. Cutting accessory contacting a “live” wire may make
exposed metal parts of the power tool “live” and could give the operator an electric shock.
• Use suitable detectors to search for hidden supply lines, or call the local utility company for
assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can
lead to explosion. Penetrating a water line causes property damage.
• Keep hands away from the sawing area. Do not grip the underside of the work piece. Contact with
the saw blade can lead to injuries.
• Keep hands away from the lifting rod and the quick-action blade clamp. Contact with the saw
blade may result in injury.
• Apply the machine to the work piece only when switched on. Otherwise there is danger of
kickback when the cutting tool jams in the work piece.
• When the cut is completed, switch off the machine and then pull the saw blade out of the cut only
after it has come to a standstill. In this manner you can avoid kickback and can place down the
machine securely.
• Use only undamaged saw blades that are in perfect condition. Bent or dull saw blades can break,
negatively influence the cut, or lead to kickback.
7
General Safety
• Do not brake the saw blade to a stop by applying side pressure after switching off. The saw
blade can be damaged, break or cause kickback.
• Clamp material well. Do not support the work piece with your hand or foot. Do not touch objects
or the floor with the saw running. Danger of kickback.
• Secure the work piece. A work piece clamped with clamping devices or in a vice is held more
secure than by hand.
• Always wait until the machine has come to a complete stop before placing it down. The tool
insert can jam and lead to loss of control over the power tool.
• Before any work on the machine (e. g. maintenance, changing the tool, etc.) as well as during its
transport and storage, lock the On/Off switch in the off position. There is danger of injury when
the On/Off switch is unintentionally actuated.
• Wear the dust mask when using the tool.
N
R ot f
ep o
ro r
du
ct
Additional Warnings
io
n
• Protect the power tool against heat, e. g., against continuous intense sunlight, fire, water, and
moisture. Danger of explosion.
It has been reported that vibrations from hand-held tools may contribute to a condition called
Raynaud’s Syndrome in certain individuals. Symptoms may include tingling, numbness and
blanching of the fingers, usually apparent upon exposure to cold. Hereditary factors, exposure
to cold and dampness, diet, smoking and work practices are all thought to contribute to the
development of these symptoms. It is presently unknown what, if any, vibrations or extent of
exposure may contribute to the condition. There are measures that can be taken by the operator to
possibly reduce the effects of vibration:
• Keep your body warm in cold weather. When operating the unit wear gloves to keep the hands
and wrists warm.
• After each period of operation, exercise to increase blood circulation.
• Take frequent work breaks. Limit the amount of exposure per day.
• Keep a tight grip on the handles.
• Only use the pruning saw as intended by design and instructions.
• Ensure the pruning saw is well maintained and in good condition.
• Maintain the pruning saw in accordance with these instructions and keep it well lubricated.
If you experience any of the symptoms of this condition, immediately discontinue use and see your
physician about these symptoms.
88
Battery safety warning
• Ensure the switch is in the off position before inserting the battery pack.
• Use only original Briggs & Stratton 18V batteries for the pruning saw. Do not use any other battery
packs as this may create a risk of injury and/or fire.
• Do not open the battery to avoid danger of short-circuiting.
• Protect the battery against water, moisture and heat (e.g. continuous intense sunlight and fire) to
avoid danger of explosion.
• In case of damage or improrer use of battery, vapours may be emitted. In this situation, ventilate
the area and seek medical help as vapours may irritate respiratory system.
• The battery can be damaged by pointed objects such as nails or by force applied externally. An
internal short circuit can occur and the battery can burn, smoke, explode or overheat.
• Do not short-circuit battery to avoid danger of explosion.
io
n
Charger safety warning
N
R ot f
ep o
ro r
du
ct
• Appliance can only be used by children 8 years and above, persons with reduced physical,
sensory or mental capabilities if given supervision, proper instructions for safe use and
understanding of safety hazards.
• Supply cord cannot be replaced. If damaged, appliance should be scrapped.
• Only charge Briggs & Stratton 18V Lithium-Ion batteries. Do not charge non-rechargeable
batteries.
Installing the Jaw
Push
jaw lock
button
99
OPERATING INSTRUCTIONS
Installing the Battery
• Place the battery in the pruning
saw battery housing by aligning the
raised ribs on battery with grooves in
the pruning saw’s battery port.
Removing the Battery
3. Press and hold the locking latch.
4. Remove battery from the pruning saw.
N
R ot f
ep o
ro r
du
ct
1. Release the trigger to stop the pruning saw.
2. Wait until chain has completely stopped.
io
n
•M
ake sure the locking latch snaps in
place and that battery pack is fully
seated and secure in the pruning
saw before beginning operation.
Holding The Pruning saw
• Always hold the pruning saw with
your right hand at the rear handle
and the other hand at the front
handle.
• Grip both handles with the thumbs
and the handles.
• Ensure that the hand is holding the
front handle so that your thumb
is underneath. This is important
so that control of the saw is
maintained and that the built in
safety features can be of the most
benefit in a kickback or unplanned
event
WARNING
It is highly recommended that you seek
professional training in the safe and effective use
of a pruning saw.
10
10
• Always be sure of your footing
and hold the pruning saw firmly
with both hands while the motor is
running.
OPERATING INSTRUCTIONS
Starting & Stopping
STARTING OPERATION
• Before starting operation, install the batteries into the machine.
• Start the machine: Press the trigger lock-off button and then pull the trigger.
STOPPING OPERATION
1. Release the power switch trigger to stop the pruning saw.
2. Press the on/off switch to deactivate the pruning saw.
WARNING
Always remove batteries from the pruning saw when not in use.
Cutting Techniques
Follow the simple direction for easy cutting:
N
R ot f
ep o
ro r
du
ct
io
n
A. Working without clamping jaw (Figure 1)
When cutting thicker branches or sawing wood, plastic or
materials, work WITHOUT clamping jaw. The piece to be
sawed must touch the front guard. Use a rocking motion
when cutting round piece.
Flush cuts:
Figure 1
When using flexible saw blades with the respective length
you can cut protruding pieces, e.g. pipes, flush with the
wall.
1. Place the saw blade directly against the wall.
2. A
pply sideways pressure to the sabre saw, bending it
so the front guard 3 touches the wall sideways.
Figure 2
3. S
witch on the tool and saw through the work piece,
applying consistent pressure.
B. Plunge sawing (Figure 2)
WARNING
RISK OF KICK-BACK! Only plunge saw soft work piece
(wood, etc.).
1. Place the bottom edge of the front guard 3 onto the
work piece. Switch on the tool.
Figure 3
2. T
ip the sabre saw forward and plunge the saw blade
into the work piece.
3. S
traighten the sabre saw into a vertical position and
continue cutting along the cutting line.
C. Using the clamping jaw (Figure 3)
Move the saw, applying slight downward pressure.
D. Plunge sawing (Figure 4)
11
11
Pruning Saw and Blade
Replacing the blade
Quick-action blade clamp
Locating slot
Saw blade
To replace the saw blade, you should
turn the knob tip in anti-clockwise to
the end with one hand, then remove the
saw blade from the locating slot with
another hand. Release the knob tip and
it will auto rotate in clockwise.
Remove
WARNING
io
n
Do not handle blades without gloves, as they are sharp and can become hot after using,
potentially causing personal injury.
Service
N
R ot f
ep o
ro r
du
ct
Servicing requires extreme care and knowledge and should be performed only by a qualified service
technician. For service we suggest you return the product to your nearest Authorized service centre
for repair. When servicing, use only genuine replacement parts.
• Keep the handles dry, clean, and free of oil and grease.
• In order to reduce the risk of fire, keep the motor free of grass, leaves, and debris build-up.
• Check the chain tension frequently.
or best and safest performance, maintain the pruning saw with care. Keep the chain sharp and
•F
clean. The chains are sharp, and can cut. Wear gloves and use extra caution when servicing.
eep all nuts, bolts, and screws tight in order to be sure that the equipment is in safe working
•K
condition.
• Never tamper with safety devices. Check them regularly for proper operation.
NOTE: Refer to warranty card supplied with this product for service contact details.
Cleaning
12
12
To prevent serious personal injury remove the battery from the machine before servicing, cleaning,
or removing debris.
• Clean the unit using a damp cloth with a mild detergent.
• Do not immerse the machine or any part of it in water.
• Moisture can cause a shock hazard. Wipe off any moisture with a soft dry cloth & ensure the machine is dry before replacing the battery & key.
• Use a small brush or vacuum cleaner to clean the air vents on the product
• Keep the air vents free of obstructions.
• Do not use solvents, strong detergents, certain aromatic oils such as pine and lemon
when cleaning plastic parts. Chemicals can damage, weaken or destroy plastic
component which may result in serious personal injury.
Transporting
Before transporting the pruning saw, always remove the battery from the pruning saw and remove the
blade.
Storing
The following steps should be taken in order to prepare the machine for storage.
• Clean the machine as described in the previous section.
• Store the machine in a dry, clean location. Do not store it next to corrosive materials,
such as fertilizer or fuel.
• Store the machine indoors, in a cool, dry place, out of the reach of children.
• Ensure battery is removed before storage.
Maintenance Chart
•
•
•
Pruning Saw
Clean (outer shell)
•
•
Blade
Replace
Product Disposal
Mobility
As Required
Refuelling bar
lub & battery
change
Visual Inspection
Damaged / Worn
After Use
Pruning Saw
Yearly
Requirements
N
R ot f
ep o
ro r
du
ct
Features
Before Use
io
n
Refer to the following chart for routine maintenance.
•
•
•
CORRECT DISPOSAL OF THE PRODUCT
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your local authority or retailer
for recycling advice.
The battery contains material which is hazardous to you and the environment. It
must be removed and disposed of separately at a facility that accepts lithium-ion
batteries.
Refer to Briggs & Stratton 18V Battery & Charger manual for further information relating to
battery and charger disposal.
Emergency Contact
In the rare case a battery is damaged & any of the contents leaks or comes into contact with
a persons skin, eyes, or is ingested, follow the first aid instructions inside the battery & charger
manual. Seek further medical attention immediately.
13
13
TROUBLESHOOTING
Troubleshooting
PROBLEM
REMEDY
Ensure that the safety switch is pressed left or right
to enable the trigger to be pressed.
The blade will not insert or remove from the
blade holder.
Ensure the blade holder is rotated completely
clockwise before trying to insert or remove the
blade.
Saw has cut out during use.
The battery may have run out of power and
requires charging. If the battery is fully charged, it
is likely that the battery’s thermal voltage protection
has been activated. This can happen when the
saw has been used for extended periods.
Place the battery on the charger for an hour. It will
need this time to cool down and for the protection
circuits to be reset.
Sparking visible through the housing air vents.
A small amount of sparking may be visible through
the housing vents.
This is normal and does not indicate a problem.
N
R ot f
ep o
ro r
du
ct
io
n
Variable speed trigger is locked.
14
TECHNICAL SPECIFICATIONS
Product Specification
PRODUCT SPECIFICATION
18V Pruning saw
MOTOR TYPE
18V DC BRUSHED
MOTOR POWER
180W
MOTOR SPEED (RPM)
16000
BLADE LENGTH (in) / (mm)
150
MAXIMUM CUTTING DIAMETER (mm)
70
STROKE LENGTH (mm)
20
CUTTING SPEED (spm)
2500
PRODUCT WEIGHT (KG)
1.45
SOUND PRESSURE LEVEL, dB(A) K = 3.0 dB(A)
79
MEASURED SOUND POWER LEVEL, dB(A) K = 3.0 dB(A)
90
GUARANTEED SOUND POWER LEVEL, dB(A)
VIBRATION1 (m/s2)
93
io
n
6
REMARKS:
N
R ot f
ep o
ro r
du
ct
¹ Value for use for assessment of user exposure. Actual vibration during use of the pruning saw
may differ depending on actual conditions. Uncertainty of measurement, K = 1.5 m/s2
• The declared vibration value has been measured with a standard test method and may be
used to compare one tool with another.
• The declared vibration value may be used in a preliminary assessment of exposure.
WARNING
The actual vibration values during use of the tool can be different from the above stated and
depend on the use of the tool; and the need to identify safety measures to protect the operator
are based on an estimation of exposure in the actual conditions of use (taking account all parts
of the operating cycle such as the times when the tool is switched off and when it is running
idle in addition to the trigger time).
15
io
n
N
R ot f
ep o
ro r
du
ct
©2022 Briggs & Stratton.
SNAPPER is a trademark of Briggs & Stratton.
All rights reserved. No part of this booklet may be reproduced by any means
without prior written permission. All information herein is subject to change without notice.
80115257-A

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
