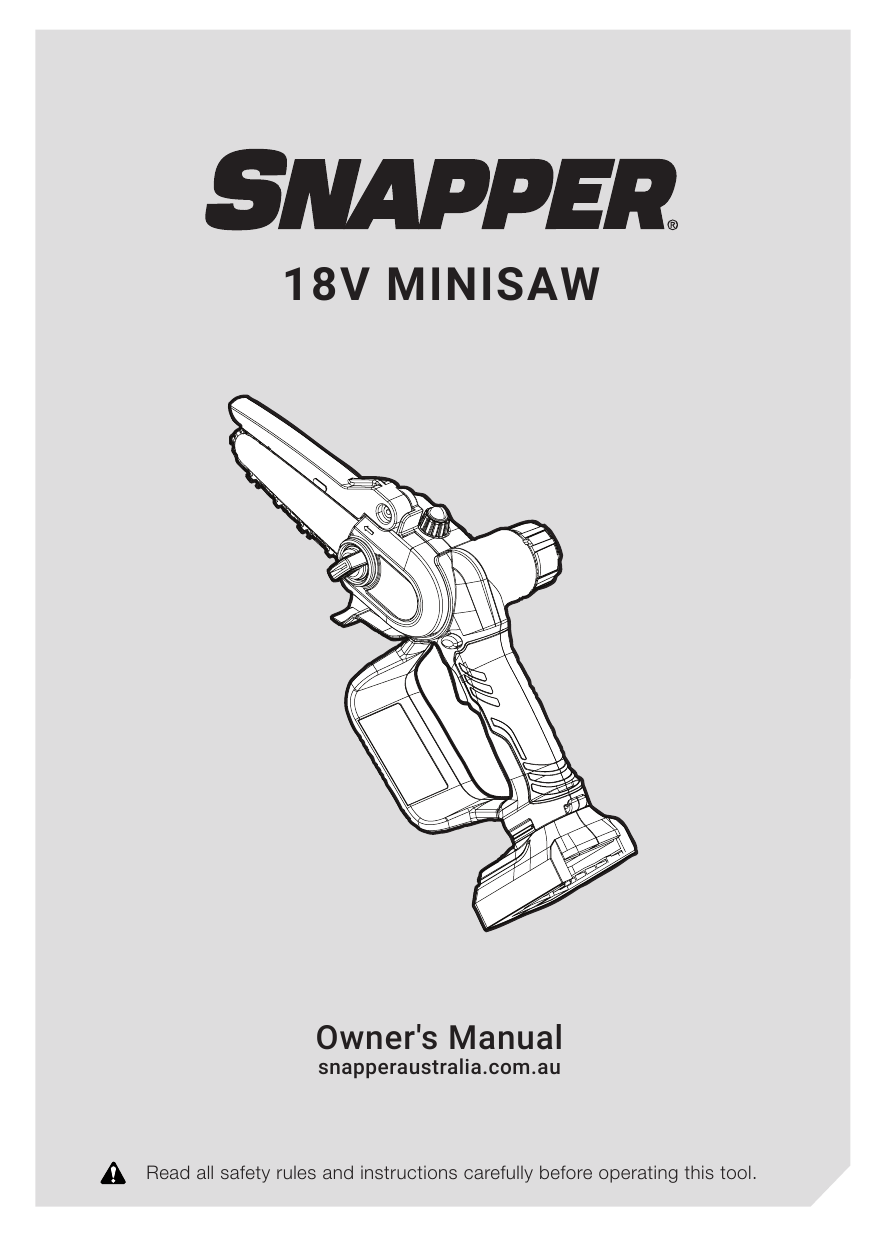

18V MINISAW
Owner's Manual
snapperaustralia.com.au
Read all safety rules and instructions carefully before operating this tool.
IMPORTANT NOTES
Details
Thank you for purchasing your Snapper product. Snapper prides itself in the quality and
performance of all its products.
This instruction manual will aid in the assembly, safe operation and maintenance of your product.
Please read the following warnings to ensure safety and the long life of your product.
WARNING
Do not attempt to operate this product until you have read thoroughly and understood
completely all instructions, safety rules, etc, contained in this manual. Failure to comply may
result in accidents involving electric shock, fire, and/or serious personal injury.
INTENDED USE
This cinisaw is designed for cutting branches, trunks, logs and beams of a diameter determined
by the cutting length of the guide bar. It is only designed to cut wood. It is only to be used in an
outdoor, domestic application by adults.
io
n
Do not use the cinisaw for any purpose not listed in this manual. This cinisaw is not to be used
for professional tree services. It is not to be used by persons not wearing adequate personal
protective equipment and clothing.
Do not use the product for any task, except for that which it is intended.
N
R ot f
ep o
ro r
du
ct
General safety
Warning!
Wear respiratory protection.
Wear tight-fitted protective
clothes.
Read the directions for use
before operating the machine.
Should NOT be disposed of
with house hold items.
Wear safety goggles and ear
protection that meet safety
standards.
max.40°C
Wear sturdy, non-slip footwear.
Wear safety gloves.
2
Ambient temperature
40˚C Max.
Do not throw into water.
Keep away from heat and/or
open flame.
ASSEMBLY PROCEDURES
General safety
Do not smoke in the work
area, around the product
and in the vicinity of
flammable materials!
Kickback! Tip contact may
cause the guide bar to
move suddenly upward and
backwards what may cause
serious injury to user.
Correct direction of cuttingteeth.
Contact of the guide bar tip
with any object should be
avoided.
Class II equipment
(Charger).
Do not use machine in wet
conditions, protect the
machine from rain and damp.
Guaranteed sound power
level.
N
R ot f
ep o
ro r
du
ct
io
n
eware of electric shock
B
hazard when charging.
3
CONTENTS
Table of Contents
Features & Supplied Items
5
Safety Features
Safety Features
7
Safety & Handling
Personal Protective Equipment
General Safety
Battery Safety Warning
Charger Safety Warning
Kickback Prevention
7
8
10
10
11
Operating Instructions
Installing the Battery
Removing the Battery
Holding the minisaw
Starting & Stopping
12
12
12
12
Maintenance & Care
Chain & Bar Lubricant
Chain Maintenance
Chain Sharpening
Bar & Chain Replacement
Service
Cleaning
Transporting
Storing
Maintenance Chart
Product Disposal
13
13
14
14
16
16
16
17
17
17
Troubleshooting
Troubleshooting
Warning Function
18
18
Technical Specifications
Product Specifications
19
N
R ot f
ep o
ro r
du
ct
io
n
Features & Definitions
NOTE: WARRANTY DETAILS ARE NOT WRITTEN WITHIN THIS OPERATOR’S MANUAL.
REFER TO OTHER DOCUMENTS SUPPLIED WITH THIS MACHINE FOR WARRANTY
DETAILS.
THE WARRANTY DOCUMENTS MAY INCLUDE TECHNICAL SPECIFICATIONS THAT
ARE SPECIFIC TO EACH MODEL THAT ARE NOT WRITTEN WITHIN THIS OPERATOR’S
MANUAL.
4
FEATURES
DEFINITIONS
Features & Supplied Items
1. Trigger
6. Battery Housing
2. Trigger Lock
7. Chain Adjuster Knob
11. 18V Li-Ion Battery
12. 18V Li-Ion Battery Charger
3. Bar
8. Sprocket Cover
13. Charger Cord
4. Oil Cap
9. Handle
14. Chain guard
5. Chain
10. Bar Cover
- Battery & Charger Instruction/Safety Manual (not shown)
- Mower Instruction/Safety Manual (not shown)
10
12
2
11
5
1
13
minisaw
14
4
7
3
9
8
WARNING
io
n
6
N
R ot f
ep o
ro r
du
ct
Do not operate the product if any component is missing or damaged. Have any missing or
damaged components repaired or replaced.
5
Safety Features
All safety features shall be checked prior to every use for damage and function. If they do no
work as designed then do not use the minisaw until they have been repaired or replaced.
Trigger lock (A)
Fitted to the side of the rear handle, this prevents
the accidental engagement of the trigger. The
trigger can only be activated after the trigger lock
has been released.
C
A
Handle guard (B)
Design to protect the operator's hand whilst
cutting and in the event of that a chain breaks or
derails.
A
B
Chain guard (C)
Design to protect the operator whilst cutting and
in the event of that a chain breaks or derails.
N
R ot f
ep o
ro r
du
ct
io
n
minisaw
6
SAFETY FEATURES
Personal Protective Equipment
F
G
H
All personal protective equipment (PPE)
must conform to the relevant standards in
your region in accordance with (EU) 2016/425.
I
The operator must check that all personal
protective equipment (PPE) is fitted correctly,
in safe working order & conforms with the
relevant standards in your region.
All mandatory personal protective equipment
must be worn at all times while operating the
equipment. It is recommended using all the
personal protective equipment shown in figure.
J
Safety Helmet (F)
• Must be replaced if cracked, damaged or past expiry date. Avoid
K
Hearing Protection (G)
• Either ear plugs or ear muffs. Be aware the ear plugs and some
L
N
R ot f
ep o
ro r
du
ct
io
n
damage caused by attaching stickers, storing in direct sunlight and
contact with solvents. A Legionnaire-style flap can be attached to
protect the back of the neck.
• Safety helmet must always be worn during operation.
cheap ear muffs may not provide sufficient protection when using
larger saws. Check with your dealer for correct level of protection required for your saw.
• Hearing protection must always be worn during operation of the minisaw.
Eye & Face Protection (H)
• Preferably non-scratch and non-fogging. Can be either clear / mesh visor & glasses to be worn
underneath face shield.
• Eye protection must always be worn during operation & maintenance of the minisaw.
High Visibility Vest / Shirt (I)
• Some vests are also available with cut resistant fabric for added protection.
• Recommended that high visibility be worn during operation & transportation of minisaw.
Cut Resistant Gloves (J)
• Should be a snug fit and of a hard wearing, protective fabric. Some gloves have a gel which helps
reduce vibration.
• Recommended that gloves be worn during operation & maintenance of the minisaw.
Cut Resistant Leg Protection (K)
• The cut resistant layers cannot be repaired and the garment should be replaced if it has been cut.
The effectiveness of the cut resistant layers maybe reduced overtime by the absorption of oil when
used regularly.
• Although not mandatory its is highly recommended to use "chaps" cut resistant leg protection
during operation of the minisaw.
Steel Capped Safety Boots (L)
• Should be non-slip & lace-up for better ankle support. Some safety boots have cut resistant
material within the boot.
• Safety boots must be worn during operation, maintenance & transportation of the minisaw.
7
General Safety
WARNING.
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result
in electric shock, fire, and/or serious injury. Save all warnings and instructions for future reference and
ensure other users read this manual before use.
Work area safety
• Keep work area clean and well lit. Avoid using minisaw indoors and in dangerous environments.
• Do not operate machine in presence of flammable liquids, gases or dust. Sparks from operation
may ignite dust or fumes.
• Keep children and bystanders away while operating the minisaw.
• Thoroughly inspect area where minisaw is to be used. Remove all objects that could be tripped
over or thrown when cutting. Thrown objects may cause serious injury.
Electrical safety
io
n
• Power tool connector must match the battery connector. Never modify the connector in any way.
Do not use any adapter plugs with earthed (grounded) power tools. Unmodified connectors and
matching battery connectors will reduce risk of electric shock.
N
R ot f
ep o
ro r
du
ct
• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock
Personal safety
• Become familiar with all controls and their proper operation before using the minisaw. Know how to
stop the minisaw and how to disengage the power in an emergency.
• Always wear appropriate clothing & do not wear loose clothing or jewellery that can get caught in
moving parts.
• Wear appropriate protective equipment and clothing such as dust mask, non-skid safety shoes,
and hard hat. Always wear eye protection.
• Remove all work tools from the minisaw before turning it on.
• Stay alert & do not operate the minisaw when tired. Pay close attention when operating minisaw
and ensure others are aware of your intentions before using minisaw.
• Do not operate the minisaw while under the influence of alcohol or drugs.
• Do not overreach. Keep proper footing and balance at all times.
• Always walk & never run with the minisaw and do not use it in a rush.
• Use extreme care when approaching blind corners, doorways or other objects that may obscure
your view & path of the minisaw.
8
• Keep all parts of body away from the chain when the minisaw is operating. Before starting the
minisaw, make sure the chain is not in contact with anything.
General Safety
• Always hold the minisaw with your right hand on the rear handle and your left hand on the front
handle. Holding in reversed hand configuration will increase the risk of personal injury.
• Hold the power tool by insulated gripping surfaces only. Chains in contact with metal parts or
live wire may give the operator an electric shock.
• Do not operate minisaw while up in a tree as this may result in personal injury.
• Always keep proper footing and operate minisaw only when standing on a fixed, secure and
level surface. Slippery or unstable surfaces such as ladders may cause loss of balance or
control of the machine.
• Use extreme caution when cutting brush or saplings. The slender material may catch the chain
and be whipped toward you or pull you off balance.
• When cutting a limb under tension, be alert of spring back. When the tension in the wood
fibres is released by cutting it, the spring loaded limb may strike the operator and/or throw the
minisaw out of control.
io
n
• Keep handles dry, clean and free from oil and grease. Greasy or oily handles are slippery and
may cause loss of control.
Machine use and care
N
R ot f
ep o
ro r
du
ct
• Cut wood only. Do not use machine for unintended purposes. For example, do not use
minisaw for cutting plastic, masonry or non-wood building materials as this is hazardous.
• If the machine starts to vibrate excessively or if the switch does not turn it on and off.
Discontinue use until the minisaw has been inspected and fixed if required.
• Do not apply excessive force on the minisaw. Use it for intended application only.
• Remove the battery pack from the minisaw before making any adjustments, changing
accessories, inspecting, adjusting, servicing or cleaning the minisaw. Such safety measures
reduce the risk of starting the machine unintentionally.
• Store machine out of the reach of children. Do not allow children, persons unfamiliar with the
machine or an impaired person to use the machine.
Additional safety warnings
• It is recommended that inexperienced users should be trained by an experienced operator.
• Children and juveniles, with the exception of apprentices older than 16 years and under
supervision must not operate the minisaw.
• Operating instructions should be kept handy.
• Unfit or tired persons must not operate the minisaw.
• The chain should come to a standstill before placing it down.
9
Additional Warnings
It has been reported that vibrations from hand-held tools may contribute to a condition called
Raynaud’s Syndrome in certain individuals. Symptoms may include tingling, numbness and
blanching of the fingers, usually apparent upon exposure to cold. Hereditary factors, exposure
to cold and dampness, diet, smoking and work practices are all thought to contribute to the
development of these symptoms. It is presently unknown what, if any, vibrations or extent of
exposure may contribute to the condition. There are measures that can be taken by the operator
to possibly reduce the effects of vibration:
• Keep your body warm in cold weather. When operating the unit wear gloves to keep the
hands and wrists warm.
• After each period of operation, exercise to increase blood circulation.
• Take frequent work breaks. Limit the amount of exposure per day.
• Keep a tight grip on the handles.
• Only use the minisaw as intended by design and instructions.
• Ensure the minisaw is well maintained and in good condition.
io
n
• Maintain the minisaw in accordance with these instructions and keep it well lubricated.
N
R ot f
ep o
ro r
du
ct
If you experience any of the symptoms of this condition, immediately discontinue use and see
your physician about these symptoms.
Battery safety warning
• Ensure the switch is in the off position before inserting the battery pack.
• Use only original Briggs & Stratton 18V batteries for the minisaw. Do not use any other battery
packs as this may create a risk of injury and/or fire.
• Do not open the battery to avoid danger of short-circuiting.
• Protect the battery against water, moisture and heat (e.g. continuous intense sunlight and fire)
to avoid danger of explosion.
• In case of damage or improrer use of battery, vapours may be emitted. In this situation,
ventilate the area and seek medical help as vapours may irritate respiratory system.
• The battery can be damaged by pointed objects such as nails or by force applied externally.
An internal short circuit can occur and the battery can burn, smoke, explode or overheat.
• Do not short-circuit battery to avoid danger of explosion.
Charger safety warning
• Appliance can only be used by children 8 years and above, persons with reduced physical,
sensory or mental capabilities if given supervision, proper instructions for safe use and
understanding of safety hazards.
• Supply cord cannot be replaced. If damaged, appliance should be scrapped.
• Only charge Briggs & Stratton 18V Lithium-Ion batteries. Do not charge non-rechargeable
batteries.
10
Kickback Prevention
CAUSES AND OPERATOR PREVENTION OF KICKBACK:
Kickback may occur when the nose or tip of the guide bar touches an object, or when the
wood closes in and pines the chain in the cut.
Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up
and back towards the operator.
Pining the chain along the top of the guide bar may push the guide bar rapidly back
towards the operator.
Either of these reactions may cause you to lose control of the minisaw which could result
in serious personal injury. Do not rely exclusively upon the safety devices built into your
minisaw. As a minisaw user, you should take several steps to keep your cutting jobs free
from accident or injury.
Kickback is the result of tool misuse and/or incorrect operating procedures or conditions
and can be avoided by taking proper precautions as given below:
io
n
• Maintain a firm grip, with thumbs and fingers encircling the chain saw handles, with
both hands on the minisaw and your body and arm positioned to allow you to resist
kickback forces.
• Kickback forces can be controlled by the operator, if proper precautions are taken. Do
not let go of the minisaw.
N
R ot f
ep o
ro r
du
ct
• Do not overreach and do not cut above shoulder height. This helps prevent
unintended tip contact and enables better control of the minisaw in unexpected
situations.
• Only use replacement bars and chains specified. Incorrect replacement bars and
chains may cause chain breakage and/or kickback. Follow the sharpening and
maintenance instructions for the chain. Decreasing the depth gauge height can lead to
increased chance of kickback.
WARNING
In order to prevent kickback, please follow these safety instructions:
Never cut with the tip of the guide bar! Be careful when continuing from previous cuts.
Always start cutting only when the chain is already running.
Make sure that the chain is always properly sharpened.
Never cut through more than one branch at a time! When lopping off branches, be
careful not to touch any other branches.
• When cross-cutting, pay attention to trunks standing very close to each other. If
possible, use a sawing trestle.
DANGER ZONE
LOG
7/1
00
sec
•
•
•
•
FORCE
KICK-BACK
ZONE
11
OPERATING INSTRUCTIONS
Installing the Battery
• Place the battery in the minisaw battery housing by
aligning the raised ribs on battery with grooves in the
minisaw’s battery port.
•M
ake sure the locking latch snaps in place and that
battery pack is fully seated and secure in the minisaw
before beginning operation.
Removing the Battery
1. Release the trigger to stop the minisaw.
2. Wait until chain has completely stopped.
WARNING
Check the chain tension before
each use of the minisaw. Remove
the battery from the minisaw before
checking the chain tension or making
adjustments to the chain. Wear
protective gloves while handling
the chain, bar or areas around the
chain. Please refer to the section
“ADJUSTING THE CHAIN TENSION”
later in this manual.
N
R ot f
ep o
ro r
du
ct
It is highly recommended
that the twin minisaw is
operated with a Briggs &
Stratton 18V battery with
at least 4.0Ah or higher
in capacity. Failure to
do so may result in poor
performance and/or void
of battery warranty.
WARNING
io
n
WARNING
3. Press and hold the locking latch.
4. Remove battery from the minisaw.
Never operate the
minisaw without
sufficient chain
lubrication as this might
damage the minisaw
and pose a threat
to safety. Check the
chain lubricant level
and function before
each use. Refer to
maintenance section for
details.
Starting & Stopping
WARNING
Always keep the chain brake on when not in use to prevent accidental operation.
STARTING OPERATION
• Before starting operation, install the batteries into the machine.
• Press the on/off switch. The minisaw will beep as the chain brake is on. Once ready turn
the chain brake off, this makes the switch trigger operational.
• Start the machine: Press the trigger lock-off button and then pull the trigger.
STOPPING OPERATION
1. Release the power switch trigger to stop the minisaw.
WARNING
Always remove batteries from the minisaw when not in use.
12
Chain & Bar Lubricant
ADDING CHAIN & BAR LUBRICANT
• Unscrew and remove the cap from the oil tank.
• Pour the oil into the oil tank and monitor the oil level gauge. Ensure that no dirt enters
the oil tank while filling the oil in.
• Put the oil cap back on and tighten it up.
• One full oil tank will enable you to use the saw for 20-40 min, depending on
application.
CHECKING THE CHAIN LUBRICANT
Check the amount of oil in the minisaw by looking at the oil level gauge. If the oil is low,
follow the steps shown in section “ADDING CHAIN & BAR LUBRICANT” of this manual.
Additionally check that the chain is being lubricated sufficiently by performing the following:
•
Position the bar nose over a light background (tree stump) and run the chain at
approximately half speed.
Make sure it throws out an increasing trace of oil as shown in the picture below.
io
n
•
N
R ot f
ep o
ro r
du
ct
WARNING
Never operate the minisaw without sufficient chain lubrication as this might damage the
minisaw and pose a threat to safety. Check the chain lubricant level before and frequently
during use. Be careful not to allow the tip of the bar to contact any surface as kick back
may occur.
Chain Maintenance
WARNING
Always remove the battery from the machine before checking the chain tension or making
adjustments to the chain. Wear protective gloves while handling the chain, bar or areas
around the chain.
ADJUSTING THE CHAIN TENSION
• Untighten slightly by turning the chain adjusting knob counterclockwise.
• To increase the chain tension, turn the chain tensioner adjustment knob clockwise and
check the chain tension frequently. To reduce the chain tension, turn the chain tensioner
adjustment knob counterclockwise and check the chain tension frequently.
• The chain tension is correct when the gap between the drive link in the chain and the
bar is between 3mm-4mm. Pull the chain in the middle of the lower side of the bar
downwards (away from the bar) and measure the distance between the bar and the
chain.
13
Chain Sharpening
GUIDE BAR MAINTENANCE
• When you have finished working, clean out the groove and the oil passages with a
scraping hook.
• Periodically trim the sides of rails using a flat file. If not done in the long run, the feather
edges might break away and damage the bar.
• If one rail is higher than the other one, it is necessary to make it even with a flat file
then smooth it with a file or fine grain abrasive paper.
When servicing, use only identical replacement parts. Use of any other parts may create a
hazard or cause product damage.
WARNING
To avoid serious personal injury, always remove the battery from the tool when cleaning or
performing any maintenance.
N
R ot f
ep o
ro r
du
ct
Bar and Chain Replacement
io
n
Contacting the dirt/earth with the chain will blunt the chain quickly.
ASSEMBLY
The user should know how to assemble the guide bar and chain. Check the chain
tensioning and add oil as described in this manual before each operation.
REPLACING THE GUIDE BAR AND CHAIN
14
Make sure you remove the battery from the unit. Wear protective gloves.
• Unscrew the sprocket cover tighten knob and remove the sprocket cover.
• The chain should face in the direction of chain rotation. If they face backwards, turn the
loop over.
• Place the chain drive links into the bar groove. Position the chain so there is a loop at the
back of the bar.
• Hold the chain in position on the bar and place the loop around the sprocket and make
sure it is correctly mounted. Make sure the bar hole fits well with bolt for chain tension.
• Replace the sprocket cover, turn the chain tension adjust knob clockwise until the chain
is properly tensioned. The guide bar must then be pushed upwards and check chain
tension again. Do not tension the chain too tight.
• After the chain is well-tensioned, tighten the knob again.
WARNING
io
n
Note: The chain is properly tensioned if, in the middle of the guide bar, it can be lifted 3mm to
4mm from the edge of the guide bar. Start the minisaw again with a new chain, allowing it to
run-in for 2~3 minutes.
WARNING
N
R ot f
ep o
ro r
du
ct
After the run-in time, check the chain tension and retighten the chain if necessary.
Ensure the chain direction is correct prior to starting the minisaw operation.
15
Service
Servicing requires extreme care and knowledge and should be performed only by a qualified service
technician. For service we suggest you return the product to your nearest Authorized service centre for
repair. When servicing, use only genuine replacement parts.
• Keep the handles dry, clean, and free of oil and grease.
• In order to reduce the risk of fire, keep the motor free of grass, leaves, and debris buildup.
• Check the chain tension frequently.
• For best and safest performance, maintain the minisaw with care. Keep the chain
sharp and clean. The chains are sharp, and can cut. Wear gloves and use extra caution when
servicing.
• Keep all nuts, bolts, and screws tight in order to be sure that the equipment is in safe
working condition.
• Never tamper with safety devices. Check them regularly for proper operation.
• For best and safest performance, maintain the minisaw by;
Cleaning
N
R ot f
ep o
ro r
du
ct
io
n
- Keeping the chain sharp and clean.
- Regularly check the bar and guides for burrs. Refer to bar maintenance.
- After each use, or as required remove the sprocket cover and blade to remove debris and
excess chain lubrication to allow free sprocket and chain movement and to prolong chain
sharpness and life.
NOTE: Refer to warranty card supplied with this product for service contact details.
To prevent serious personal injury remove the battery from the machine before servicing, cleaning, or
removing debris.
• Clean the unit using a damp cloth with a mild detergent.
• Do not immerse the machine or any part of it in water.
• Moisture can cause a shock hazard. Wipe off any moisture with a soft dry cloth & ensure the machine is dry before replacing the battery & key.
• Use a small brush or vacuum cleaner to clean the air vents on the product
• Keep the air vents free of obstructions.
• Do not use solvents, strong detergents, certain aromatic oils such as pine and lemon
when cleaning plastic parts. Chemicals can damage, weaken or destroy plastic
component which may result in serious personal injury.
• Lubricate the bar after each use. Use a suitable oil for the environment the machine is operated in e.g. silicone based oil or spray. During extended periods of operation lubrication should be applied to the blades.
• Remove the Sprocket Cover and remove debris, oil etc after each use.
• Remove chain and bar and clean thoroughly using a solvent. Ensure all solvent is removed
prior to attaching back onto the saw body.
Transporting
16
Before transporting the minisaw, always remove the battery from the minisaw and slide the chain/
bar cover over the bar and chain. If the minisaw is to be transported or stored for long periods it is
advisable to drain the chain lubrication fluid from the product.
Storing
The following steps should be taken in order to prepare the machine for storage.
• Clean the machine as described in the previous section.
• Store the machine in a dry, clean location. Do not store it next to corrosive materials,
such as fertilizer or fuel.
• Store the machine indoors, in a cool, dry place, out of the reach of children.
• Ensure battery is removed before storage.
Maintenance Chart
Sharpen
Chain & Bar
Replace
Chain Brake
Replace
Sprocket
Replace
Oil Tank
Visual Inspection
Lubrication Flow
Check
Chain Catch
Replace
Product Disposal
*
*
*
*
*
*
As Required
Chain & Bar
*
Damaged / Worn
Tension
*
*
Yearly
Chain & Bar
*
*
*
*
Monthly
Clean (outer shell)
io
n
Visual Inspection
Chainsaw
Refuelling bar
lub & battery
change
Chainsaw
After Use
Requirements
N
R ot f
ep o
ro r
du
ct
Features
Before Use
Refer to the following chart for routine maintenance.
*
*
*
*
*
*
*
*
*
*
*
CORRECT
DISPOSAL OF THE PRODUCT
3.
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your local authority or retailer
for recycling advice.
The battery contains material which is hazardous to you and the environment. It
must be removed and disposed of separately at a facility that accepts lithium-ion batteries.
Refer to Briggs & Stratton 18V Battery & Charger manual for further information
relating to battery and charger disposal.
Emergency Contact
In the rare case a battery is damaged & any of the contents leaks or comes into contact with
a persons skin, eyes, or is ingested, follow the first aid instructions inside the battery & charger
manual. Seek further medical attention immediately.
17
TROUBLESHOOTING
Troubleshooting
PROBLEM
POSSIBLE CAUSE
REMEDY
Bar and chain running hot
and smoking.
Check chain tension for
overtightened condition.
Bar lube reservoir empty.
Tension chain. Refer to Chain Tension
earlier in this manual.
Check bar lube reservoir.
Motor runs, but chain is
not rotating.
Chain tension too tight. Check
guide bar and chain assembly.
Check guide bar and chain for
damage.
Retention chain. Refer to Chain Tension
earlier in this manual.
Refer to Replacing the Bar and Chain
earlier in this manual.
Inspect guide bar and chain.
minisaw is not cutting or is
not cutting straight.
Chain is blunt.
Replace the chain.
* LOAD PROTECTION
N
R ot f
ep o
ro r
du
ct
io
n
The minisaw has built in load sensing. When the load is high, the minisaw will shut
the motor down immediately and emit beeping sound informing the user that the load
protection has been activated protecting the product and user.
18
TECHNICAL SPECIFICATIONS
Product Specification
PRODUCT
SPECIFICATION
18V Minisaw
MOTOR TYPE
DC BRUSHED
MOTOR SPEC
18V
MOTOR SPEED (RPM)
22000
BAR LENGTH (in) / (mm)
5" / 110
BAR MAKE AND MODEL
–
CHAIN MAKE AND MODEL
–
CHAIN GAUGE (in)
0.043"
CHAIN PITCH (in)
0.3"
7
BAR LUBRICATION CAPACITY (ml)
25
PRODUCT WEIGHT (KG)
1.0
PRODUCT WEIGHT WITH BAR AND CHAIN (KG)
SOUND PRESSURE LEVEL, dB(A) K = 3.0 dB(A)
N
R ot f
ep o
ro r
du
ct
MEASURED SOUND POWER LEVEL, dB(A) K = 3.0 dB(A)
io
n
CHAIN SPEED (m/s)
GUARANTEED SOUND POWER LEVEL, dB(A)
VIBRATION1 (m/s2)
1.1
81.3
89.3
93
3.4
¹ Value for use for assessment of user exposure. Actual vibration during use of the minisaw
may differ depending on actual conditions. Uncertainty of measurement, K = 1.5 m/s2
REMARKS:
• The declared vibration value has been measured with a standard test method and may be
used to compare one tool with another.
• The declared vibration value may be used in a preliminary assessment of exposure.
WARNING
The actual vibration values during use of the tool can be different from the above stated
and depend on the use of the tool; and the need to identify safety measures to protect the
operator are based on an estimation of exposure in the actual conditions of use (taking
account all parts of the operating cycle such as the times when the tool is switched off and
when it is running idle in addition to the trigger time).
19
io
n
N
R ot f
ep o
ro r
du
ct
©2022 Briggs & Stratton.
SNAPPER is a trademark of Briggs & Stratton.
All rights reserved. No part of this booklet may be reproduced by any means
without prior written permission. All information herein is subject to change without notice.
80115731-A

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
