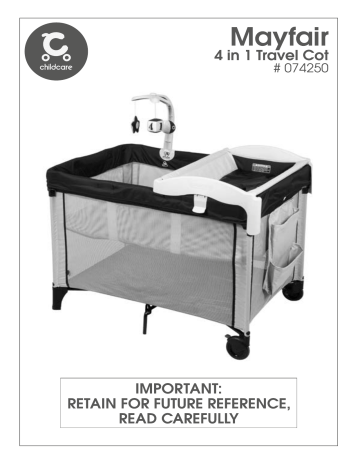

Childcare 074250-355 Mayfair 4 in 1 Travel Cot Owner's Manual

Congratulations
• Use only accessories as recommended by the supplier.
• Ensure the top rails and base are fully locked.
• Do not use this cot if any part of the cot is broken, torn or missing.
Ensure all four fasteners are threaded through and fastened onto
the underside of the mattress base.
Push down on the mattress pad to ensure base has firm contact.
Nappy Organiser
Bassinet Assembly and Use
Bassinet Assembly and Use
Bassinet
Bassinet
Corner Clip
7
3
1
Plastic
Corner
• With the bassinet support tubes facing down, place the bassinet
over the top of an end rail on the travel cot.
• Remove the mattress pad used in the travel cot from the floor
of the travel cot.
• Lift to unfasten the fasteners on the underside of the mattress
pad and remove.
Support Tube
Closed End
• Place the mattress pad into the bassinet.
Travel Cot
Post Tube
5
• Pull a bassinet corner clip down and “snap” it onto a travel cot.
post tube.
• Make sure the bassinet corner clip is firmly attached to the
travel cot post tube and it is pushing up against the bottom edge
of the plastic corner.
• Repeat this step to attach the bassinet corner clip to the other
side of the travel cot post tube.
Sleeves
Side Clip
Travel Cot
Side Rail
8
Side Clips
2
• Push down on the mattress pad to attach all the fasteners.
6
Sleeves
• Place bassinet on a flat surface with the sleeves facing up.
• First, insert the closed ends of all four of the support tubes into
the sleeves in the bassinet.
• Next, fit the bassinet support tubes with the tapered ends into
the bassinet support tubes with the open ends.
4
• Fit both bassinet side clips over the travel cot side rails.
• Stretch to fit the other end of the bassinet over the other end
rail on the travel cot.
• Repeat step 5 to attach the remaining two bassinet corners
clips to the travel cot.
8
7
Changing Table Assembly and Use
Changing Table
slot and tab
Changer bottom
board inserted
into the slot and
Tab
under the tab
Tab
1
Tab
• Open the changing table and place on a flat surface.
3
Socket
Socket
• Turn the changing table over.
• Insert the changer bottom board into the slot and under the tab
on the changing table ends.
Tube
Tube
Latch
Plastic
Corner
4
2
• Fit the tubes on one side of the changing table into the sockets
on a changing table end. Push together until they “snap”
into place.
• Pull on the changing table ends to make sure they are
securely attached.
• Turn the changing table upright.
• Place the changing table over both plastic corners on one end
of the travel cot.
• Push down on the changing table to attach the latch on the
sides of the changing table to the brackets beneath the top rail
fabric. You will hear a “click”.
• Pull up on the changing table to make sure it is securely
attached.
NOTE: Before each use, make sure the latch on the changing
table is securely fastened.
FISHER-PRICE AND ASSOCIATED TRADEMARKS ARE OWNED BY
MATTEL AND USED UNDER LICENSE FROM MATTEL EUROPA B.V.
©2013 MATTEL. ALL RIGHTS RESERVED.
