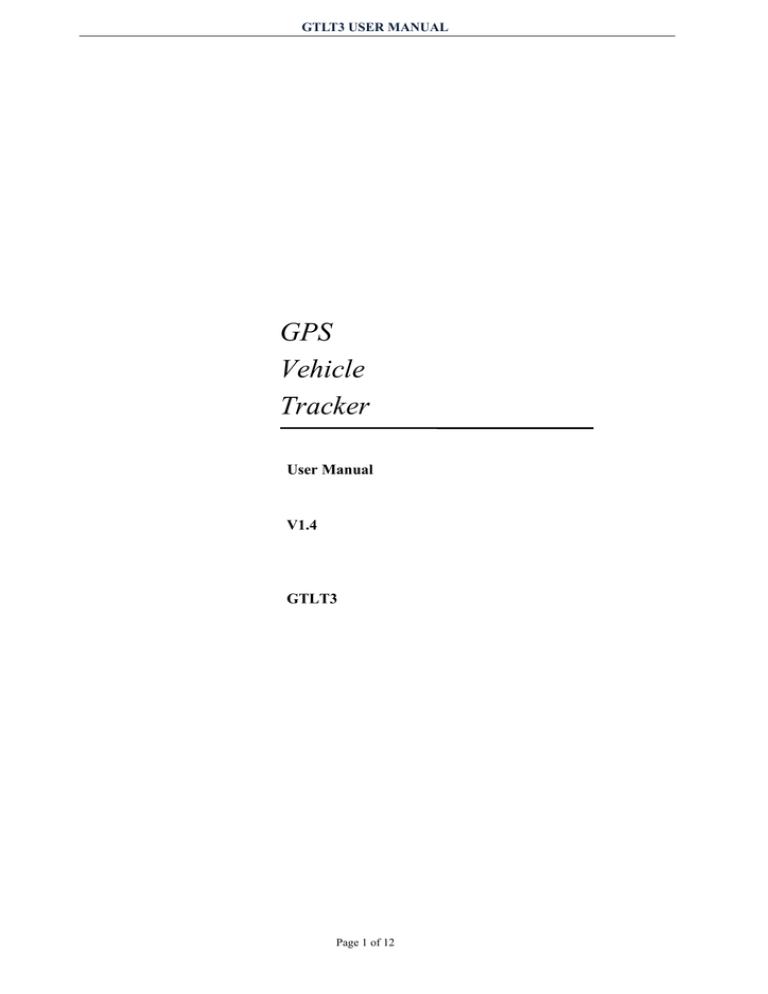

GTLT3 USER MANUAL

GPS

Vehicle

Tracker

User Manual

V1.4

GTLT3

Page 1 of 12

GTLT3 USER MANUAL

Table of Contents

1. Product Overview.................................................................................................................................................................................

…..3

2. Specification………………………………………………………………………………………………………………………………4

3. Wiring Installation......................................................................................................................................................................................4

3.1. Product Parts List .............................................................................................................................................................................5

3.2. Precaution before Installation ...........................................................................................................................................................5

3.3. Installation.........................................................................................................................................................................................5

4. SMS Command List...................................................................................................................................................................................7

5. Track by 900D web based tracking software………………………………………………………………………..……………….....10

Contacts……………………………………………………………

……………………………………....………….

12

Page 2 of 12

GTLT3 USER MANUAL

1. Product Overview

Thank you for your purchase of GTLT3 Vehicle GPS Tracker.The GTLT3 GPS/GSM Tracker is a vehicle remote position device with build-in GPS and

GSM/GPRS modules. It is a small size, high accuracy remote location tracking device. Based on GPS satellite, it provides accurate position information under dynamic conditions.

Function List:

z

GSM 850/900/1800/1900MHz z

Wide Voltage:9-70V DC z

Track on demand z

Built in memory to store historical data z

Show location directly on mobile phone or PC z

Inbuilt shock sensor for power saving,vehicle anti-theft z

ACC detectin,vehicle state hint z

SOS alarm z

Over speed alarm z

Power cut off alarm z

Remote monitoring of voice z

Remote Turn on/off Car Engine

Applications:

GTLT3 GPS/GSM vehicle tracker can be used for motorcycle, electric golf cart, car, and scooter. The devices built in antenna, integrative machine and easy to assemble.

For your safety:

In order to realize the full functions of this product, please read this manual carefully before starting to use the product.

1.

2.

3.

4.

This product can only be maintained and repaired by qualified professional service personnel. If you detach this product for maintenance or repair, your warranty will be invalidated.

When connecting the other devices, read carefully their instruction manuals, so as to carry out correct installation; do not connect incompatible device.

Please use genuine original parts and qualified batteries and peripheral equipments, so as to avoid damage to this product.

As this product is a high-tech product, please read carefully this manual before starting to use the product, so as to avoid inappropriate operation.

Drivers should not operate this product while driving a vehicle, thereby, affecting safe driving.

This product can work properly only when GSM communication is in good condition.

5.

6.

7.

8.

9.

Please reduce electromagnetic wave interference to the product; and use it properly.

GPS communication is liable to be affected by environmental shielding; may fail to carry out positioning during certain circumstances. It will resume the positioning function as soon as it leaves the shielding environment. This is normal. Please do not worry when encountering such problem.

Each signal sent out from the system will be confirmed for successful transmission in the base station of

10. the mobile operator. However, if system stoppage occurs or if the mobile telephone is preset to a switch off state by the customer, it cannot ensure successful transmission.

For safety reason, do not tell the other people your GTLT3 mobile number, without taking precautions.

Page 3 of 12

GTLT3 USER MANUAL

Otherwise, your privacy may be compromised along with other safety problem.

2. Specification

GSM 850/900/1800/1900 quad-band GPRS:Class 12,TCP/IP

GSM module

GPS sensitivity

C/A Code

Channels

GPS frequency

GPS Position Accuracy

GSM Position Accuracy

Velocity Accuracy

Time Accuracy

-164dB

1.023MHz chip rate

210 channel all-in-view tracking

L1,1575.42MHz

10m(2D RM)

Later will realize

0.1m/s

Synchronized to GPS time

Cold Start

Hot Start

Warm Start

Altitude Limit

30sec.,average

5sec.,average

29sec.,average

18,000 meters (60,000feet) max.

Velocity Limit 515 meters/second (1000knots) max.

Less than 4g Acceleration Limit

Operating temperature

-20°C-65°C

5%To 95% Non-condensing Humidity

Dimension 90mm×45mm×14mm

Average Current

LED

Out set SOS Key

25mA(12V DC)

12mA(24V DC)

Red/ Blue/ Yellow LED showing power /GPS/GSM status

One SOS emergency key: for urgent call

3. Wiring Installation

Page 4 of 12

GTLT3 USER MANUAL

3.1. Product Parts List

GPS Tracker Unit

SOS Button and

Socket cables

Mic(Optional)

Relay(Optional)

3.2. Precaution before Installation

Check if all the parts are included. 1

2

Prepare a SIM card for GSM communication. Use some other mobile phone to confirm that the PIN code has not been set and that it can dial out and receive telephone calls and SMS without problem.

3

Before install the SIM card; make sure to cut off power from the GPS Tracker unit. The correct

4 installation method is to push the tray completely into the GPS Tracker unit, until you feel it is hooked by something.

Find a suitable place inside the car for installing the unit.

Concealed installation for avoid the thieves damage

Avoid install together with the RF source, such as reversing radar, alarm and other vehicle communication equipment.

Can use ribbon or wide sponge strength double-faced adhesive stick to fix.

Equipment with GSM antenna and GPS antenna, installation shall ensure that face up (skyward), and above no metal barrier shield, suggest installation position:

Front windshield decorative below the covert,

Front panel (skin for non-metal material) around the shadow

Rear window below decorative

5

6

3.3. INSTALLATION

Check if all the wiring has been connected correctly; then connect the GPS Tracker unit to the power supply.

We don't provide the SIM card

Page 5 of 12

GTLT3 USER MANUAL

3.3.1 Step 1: Install SIM Card

1

Insert the SIM card by sliding it into the card slot.

2

3

4

5

3.3.2 Wiring Description

Make sure to turn off the power before install the SIM card.

Make sure to deactivate the PIN code, so that the SIM card can operate without PIN protection.

Before install the SIM card to the GPS Tracker, please use a mobile phone to make sure the SIM card can make & receive phone calls without problem.

Before install the SIM card to the GPS Tracker, please use a mobile phone to empty the

SMS storage of the SIM card.

3.3.3 Description of GTLT3 LED :

LED State Description

Red LED--- indicate charge sate

State Means

Page 6 of 12

GTLT3 USER MANUAL

On 0.1s, Off 2s

On 1s, Off 2s

Off

Yellow LED--- indicate the GPS signal state

Working normal

On 1s, Off 2s Low battery

Off Device sleep or device power off

Blue LED--- indicate the GPS signal state

State Means

On 0.1s, Off 2s Working and has located

Searching GPS signal

Device sleep or device power off

State Means

On 0.1s, Off 2s GSM/GPRS Working normal

On 1s, Off 2s GSM/GPRS initialization

Off Device sleep or device power off

4. SMS Command List

All of the following commands must be lowercase letters

, all of the send commands will be reply. If set successful it will reply "set success!” otherwise need to set again. Send the corresponding commands the device will reply the corresponding results.

Description SMS Command Example

Set control authorized numberDefault

1 any,1# any,1#

Remarks: if any,0# means is only authorized number can control GTLT3. admin123456,13812345678

Set the authorized number(Default null)

Delete the authorized number

noadmin123456,d admin123456,13812345678 noadmin123456,d

Remarks: Default is no authorized number, any mobile phone can set GPS tracker by SMS command; once you set authorized number, only the authorized number can set GPS tracker by SMS command. sos,no1,13412345678,no2,135123456 sos,no1,13412345678,no2,13512345678,no3,13612345678

Set SOS specific number(Default null)

78,no3,13612345678

Or sos,no1,13412345678

Or sos,no1,13412345678

Page 7 of 12

GTLT3 USER MANUAL

Delete SOS specific number

sos,no2,13512345678 sos,no3,13612345678 sos,no1,d,no2,d,no3,d or sos,no1,d sos,no2,d sos,no3,d sos,no2,13512345678 sos,no3,13612345678 sos,no1,d,no2,d,no3,d or sos,no1,d sos,no2,d sos,no3,d

Password(Default 123456)

Remarks: The password will be changed from 123456 to 444444

Set Lang and Time Zone(Default 0 0)

lang,x,zone,n lang,0,zone,8

Remarks: language options:x=0 is English,x=1 is Chinese.

Time zone options: n=8 is East eight areas 8 ,n=-3 West three areas for -3

Default language 0,time zone 0

Case 1:Set IP and Port(Default

ip58.64.205.22port8000 ip58.64.205.22port8000

ip58.64.205.22port8000)

Remarks: IP is your server’s IP and Port.

Case 2: Set Domain and Port

surl:www1.igpstracking.net,port:8000 surl:www1.igpstracking.net,port:8000

Remarks: www1.igpstracking.net is domain, 8000 is port

Set interval time of GPRS data upload

interval,t interval,12

when ACC ON(Default 12s)

Remarks: t:from 10 to 1800 in the unit of second.

Set interval time of GPRS data upload

off,t off,480

when ACC OFF(Default 480s)

Set sleep time when car stop(Default 0)

sleep,t sleep,20

Remarks: t:from 0 to 1800 in the unit of minutes. When the car stops reach the sleep time you set, GPS tracker will in sleep mode,the GPS module shut down.Platform show is invalid location.

Set wake up regularly when enter

awaker,t awaker,8

sleeping(Default 0)

Remarks : t:from 1 to 1800 in the unit of minutes. When the car stops reach the sleep time you set, GPS tracker will in sleep mode; user can set wake up interval, then GPS tracker can wake up regularly by the interval you set and upload the latest location. Default is 0 minute, means not wake up regularly in sleep mode.

Get google link

google google

Remarks:Get google link.

Set monitor number((Default null)

monitor,13112345678

Remarks: 13112345678 is mobile phone number(Sell phone number)

monitor,13112345678

SOS alarm

Remarks: press SOS button in emergency situation, then GPS tracker will call the 3 sos numbers, first sos number 1, if no answer, then call sos number 2, if no answer, then call sos number 3, if fail, then call again from sos number 1-3 one moe time.

Cut off main power alarm

Remarks: when the main power is off, GPS tracker will send main power off alarm and present location to 900d gps platform, and one alarm

SMS to authorized number, and call the 3 sos specific phone numbers by turns( call 6 times total if no one answer the call, 6 minutes interval each time)

Page 8 of 12

GTLT3 USER MANUAL

Set continuous shock will wake up and

shock,t shock,5

trigger shock alarm when sleeping(Default 5s)

Remarks: t:from 1 to 1800 in the unit of second. Default is 5 seconds.

When car power is off, the ACC status is off, if ACC off status lasts more than the time you set, GPS tracker will start the “guard situation” automatically, if car shocks multi times will trigger shock alarm status, if the car power is still off(acc status is off), the GPS tracker will send shock alarm and present location to 900d gps platform, and one alarm SMS to authorized number, and call the 3 sos specific phone numbers by turns( call 6 times total if no one answer the call, 6 minutes interval each time)

Auto Guard(Default 0)

autofortify,10 autofortify,10

Remarks: set the auto guard time, default is 0 minutes

Set ON/OFF Guard manually(Default

fortify,p fortify,1

OFF)

Remarks:p=1 on p=0 off

Disable/Enable Car Fuel

oil,p oil,1

Remarks:p=1 Disable car fuel p=0 Enable car fuel version version

Get device Version

Remarks: Get device Version

Restart GPS tracker

reboot reboot

Remarks: Received this instructions,GPS Tracker will be in 5 seconds after the restart.

List of default state:

Working Mode

Pre-set phone numbers

GPRS

Null

GPS Tracker user Password 123456

GPS ON

ACC Switch status Prompt

Press SOS button to call out

Server’s IP address and port

interval time of GPRS data upload when

12s

ACC ON

interval time of GPRS data upload when

480s

ACC OFF

ON

ON

58.64.205.22 8000

Lang and Time Zone

sleep

wake up regularly when enter sleeping

Auto Guard

En(0) 0 off not wake up (0) no

Page 9 of 12

GTLT3 USER MANUAL

Main Power Cut Alarm ON

5. Track by 900D web based tracking software Setup

5.1.

Set the authorized number and SOS number:

Command Remark

Set control authority

any,1# any,1#

Remarks: if any,0# means is only authorized number can control GTLT3.

Set the authorized

admin123456,13812345678

number

Delete the authorized

noadmin123456,d

Password is 123456

Authorized number :13812345678 d: delete the authorized number

number

For example:

admin123456,13812345678

Set SOS specific

sos,no1,13412345678,no2,13512345678,no3,13612345678

number

Or sos,no1,13412345678 sos,no2,13512345678 sos,no3,13612345678

Delete SOS specific

sos,no1,d,no2,d,no3,d

number

or sos,no1,d sos,no2,d sos,no3,d

Default is no authorized number, any mobile phone can set

GPS tracker by SMS command; once you set authorized number, only the authorized number can set GPS tracker by

SMS command. sos,no1,13412345678,no2,13512345678,no3,13612345678

Or sos,no1,13412345678 sos,no2,13512345678 sos,no3,13612345678 sos,no1,d,no2,d,no3,d or sos,no1,d sos,no2,d sos,no3,d

5.2. Set Lang and Time Zone(Default 0 0)

Command

Set Lang and Time

Zone(Default 0 0)

lang,x,zone,n

Remark

language options:x=0 is English,x=1 is Chinese.

Time zone options: n=8 is East eight areas

8 ,n=-3 West three areas for -3

Default language 0,time zone 0

For example:

lang,0,zone,8

5.3 Set APN (if can not connect to 900D platform,so need set APN, if can connect to 900D platform,please omit this step.Because GTLT3 has been built-in Global APN,GTLT3 will automatically identify APN)

Set APN (Default:cmnet)

Command Remark

Case 1:apn,apn name#

(1)If no APN username and password are required, just input APN only.

Case2:apn,apn name,user,apn user name,pd,apn

(2)Use format 2 if your APN requires APN user name and password

APN password.

(3)Use format 3 if your APN requires APN user name and

Case 3: Case2:apn,apn name,user,apn user name,pd,apn

APN password. And plmn value.

Page 10 of 12

GTLT3 USER MANUAL

For example:

password,plmn,plmn value

Case 1:apn,cmnet#

Case 2:apn,cmnet,user,zhang,pd,abc123456

Case 3:apn,cmnet,user,zhang,pd,abc123456,plmn,46000

(4) APN is gateway to connect internet, Each country is different, please contact your SIM card provider for APN name.

5.3 Please go to

http://www1.igpstracking.net

Enter the user name and password we provided.

Enter the user name and password we provided.

After log in, please go to “Vehicle Manager-Vehicle List”

You will see the below window

Please click “Add” button, you will see the below window:

License Plate: Define by yourself; you can enter A-Z number or Numeric

Very Important Note:

Terminal ID and Plate number are unique on the software, you can add once only, you need to delete it from database before adding it again. Only admin account can delete id from database, general user cannot. You do not need to delete and re-add if the device cannot work on software, because it's caused by your wrong sms setting, not the software.

Terminal Type: Do not choose.

SIM card: the SIM card phone number you put in GTLT3 or any number.

Terminal ID: On the vehicle of GTLT3, you can find the “Terminal ID”.

Page 11 of 12

GTLT3 USER MANUAL

Click "Submit", and then you add the GPS tracker GTLT3 successfully on the software 900D.

Wait few seconds, and you will see the GPS Tracker online icon on software

Put a check mark on the device, and right click, you will see the menu as below picture. Now you can track online.

Attention: For 900D GPS Software, "Monitor" and "Number Plate" must be checked till the font becomes blue, then the GPS tracker will update location automatically on map.Like below picture:

Contacts

If you encounter any problems when using our products, and cannot solve them by yourself, please contact our technical support team by writing an E-Mail to us. We will be pleased to help you.

Page 12 of 12

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
