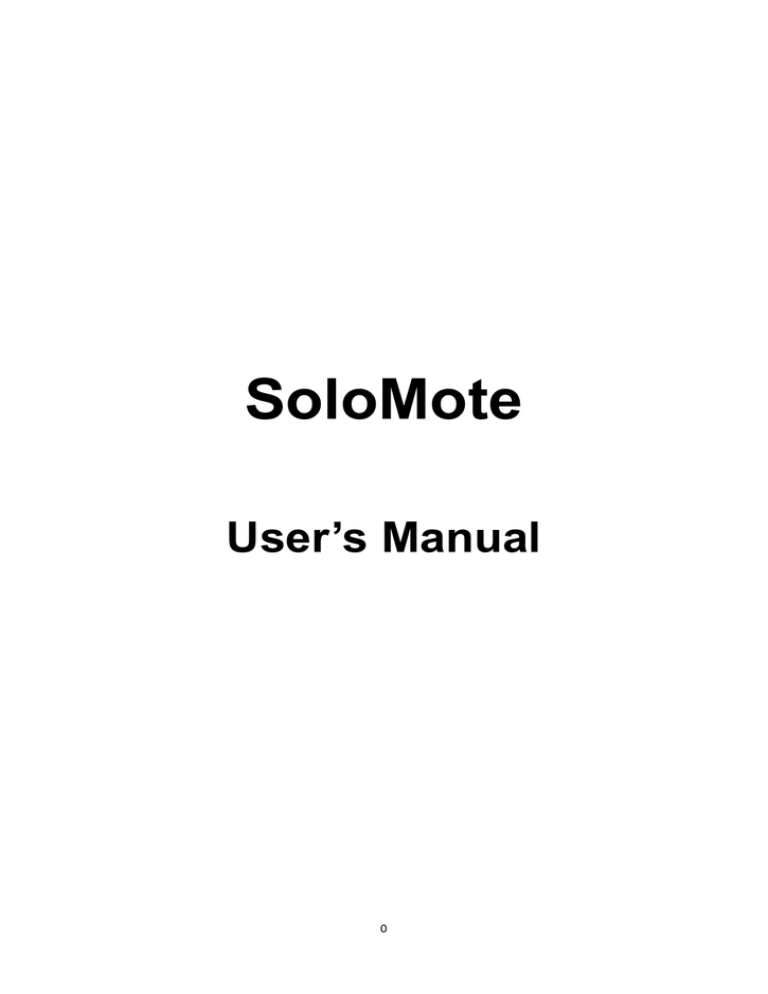

SoloMote
User’s Manual
0

Add a Device (Quick Start)
1. On “Device List” page, press “Add” to add a
new device.
2. Select device type
3. Select device brand
Use letter search or the select bar in the
right side for locating brands
Press “Unable to confirm the brand?” if
your brand is not on the list.
1
4. Select device model number
Use letter search or the select bar in the
right side for locating brands
Press “Unable to confirm the model?” if
your model is not on the list.
5. Press buttons to make sure the remote
codes have been downloaded correctly
then press “save” to complete the process
6. When the code is missing or mistake, press
“Menu” and then press “Learning” to learn
codes.
6.1 AsONE is ready to learn if its Status
Indicator flashes
6.2 SoloMote will autopilot to learn but
users themselves can appoint the
key to learn as well.
6.3 Point your remote control straight
oppositely toward the Learning Eye
of AsONE. The distance between
the two is approximately 5 to 10
cm.
6.4 Press and hold the key you want to
learn until SoloMote appears OK
message or AsONE’s Status
Indicator radiates permanently.
6.5 Release the key and a green point
will show on the lower right corner
2
of the key once the learning is
successful. The process will
automatically move to the next key
to learn.
6.6 Press “Menu” and then press “Stop
Learn” to exit.
Please refer to the manual of AsONE for
more instructions
7. Add user’s first new device after learning.
8. Repeat above steps to add other new
devices. The maximum of 7 devices is
allowed to add in SoloMote.

Start To Use
Use the remote control:
- Select the device you want to remote
control on “Device List” page.
- Press the key you want to remote control.
- Scroll up and down to select different key
pages.
- Press “Back” to back to “Device List” page.
3

Exit SoloMote
- Press “Menu” and then press “Exit” on
“Device List” page to exit SoloMote.
- Press “Back” or “Home” to leave the
screen of Solomote and run SoloMote in
the background.
Advanced Settings

IR code Learning
1. Press “Menu” on Device Page to open
“Learning” and “Delete” function.
2. Press “Learning” to start learning. AsONE is
ready to learn if its Status Indicator flashes.
3. SoloMote will autopilot to learn but users
themselves can appoint the key to learn as
well.
4. Point your remote control straight
oppositely toward the Learning Eye of
AsONE. The distance between the two is
approximately 5 to 10 cm.
5. Press and hold the key you want to learn
until SoloMote appears OK message or
AsONE’s Status Indicator radiates
permanently.
6. Release the key and a green point will
4
show on the lower right coner of the key
once the learning is successful. The
process will automatically move to the
next key to learn and repeat above steps.
7. Press “Menu” and then press “Stop Learn”
to exit.
Please refer to the manual of AsONE for
more instructions

Delete IR Code
1. Press “Menu” to open Learning & Delete
function.
2. Press “Delete”
3. Select the key where you want to delete its
IR Code.
4. Repeat step 2 & 3 to delete other IR Code.
5. Press “Menu” and then press “Stop Edit”
to exit.

Device Setting
- Press the Device Icon until the dialog box
for “Duplication”, “Modify” and “Delete”
appears.
5
Duplication:
- Press “Duplication” to add an identical
Device.
Modify:
Press “Modify” to do as below:
- revise “Device Name” & “Device Name2”
- switch “IR Shooting Port”
IR LED Out: emit IR directly from
AsONE
Port 1 – 4: assign an IR Output Port
on the back of AsONE for
IR emission; the IR Blaster
is required to plug in the
assigned port.
- Press”Cancel” to exit without change.
Delete:
- Press “Delete” to delete Device
6

Macro Setting
1. On “Device List” page, press ”Macro” into
“Marco List” page.
2. Press “Add” to begin seetings.
3. Name a set of Macro
4. Select “New Step” to begin settings
7
5. Key in Step Name
6. Select Step source
6.1 By Key
- Select a device you want to set up
- Press the buttons you want to use
- Save this set of step
6.2 By Learn
- Point your remote control straight
oppositely toward AsONE.
- Learn the key of remote control by
learning process.
8
6.3 By Delay time(sec)
- Type how many seconds you want to
between two step
- Press “OK” to save or Press “Cancel” to
exit without saving.
7. Repeat step 4 - 6 to add more Step.
8. Press “Save” to save and exit
9. Repeat step 2 - 8 to add Marco.
Use Macro function:
1. On “Device List” page, press “Marco” into
“Marco List” page.
2. Select the Marco key of remote controlled
device.
3. Press “Back” to back to “Device List” page
9

Setting
- On “Device List” page, press “Menu” and
then press “Setting” into Setting page.
Account:
- Register in SoloMote which is essential for
cloud back up.
Backup:
- Auto Backup: Tick Auto Backup box
- Backup Frequency: Set up Auto Backup
Period
- Manual Backup
- Recover: Recover previous backup
About:
- Information about SoloMote
FAQ:
- Frequently asked questions
Feedback:
- Feedback
10
Software Info:
- App Version: SoloMote Apk Version
- Box Firmware Version: AsONE Firmware
version
- Box ID: AsONE ID Number
- IR Output Port: Output port number
- Firmware upgrade: AsONE firmware
upgrade
Environment Setting:
- Key Press vibration: Tick Key press
vibration box.
11
