Glacier Bay STHMDN200U 10 Stonehaven Undermount Black Onyx Granite Composite 33 installation Guide

Home Depot Item #
1006466730
1006466886
1006466729
1006466719
1006466728
1006467046
1006466731
1006467476
1006466888
1006467022
1006466885
1006467474

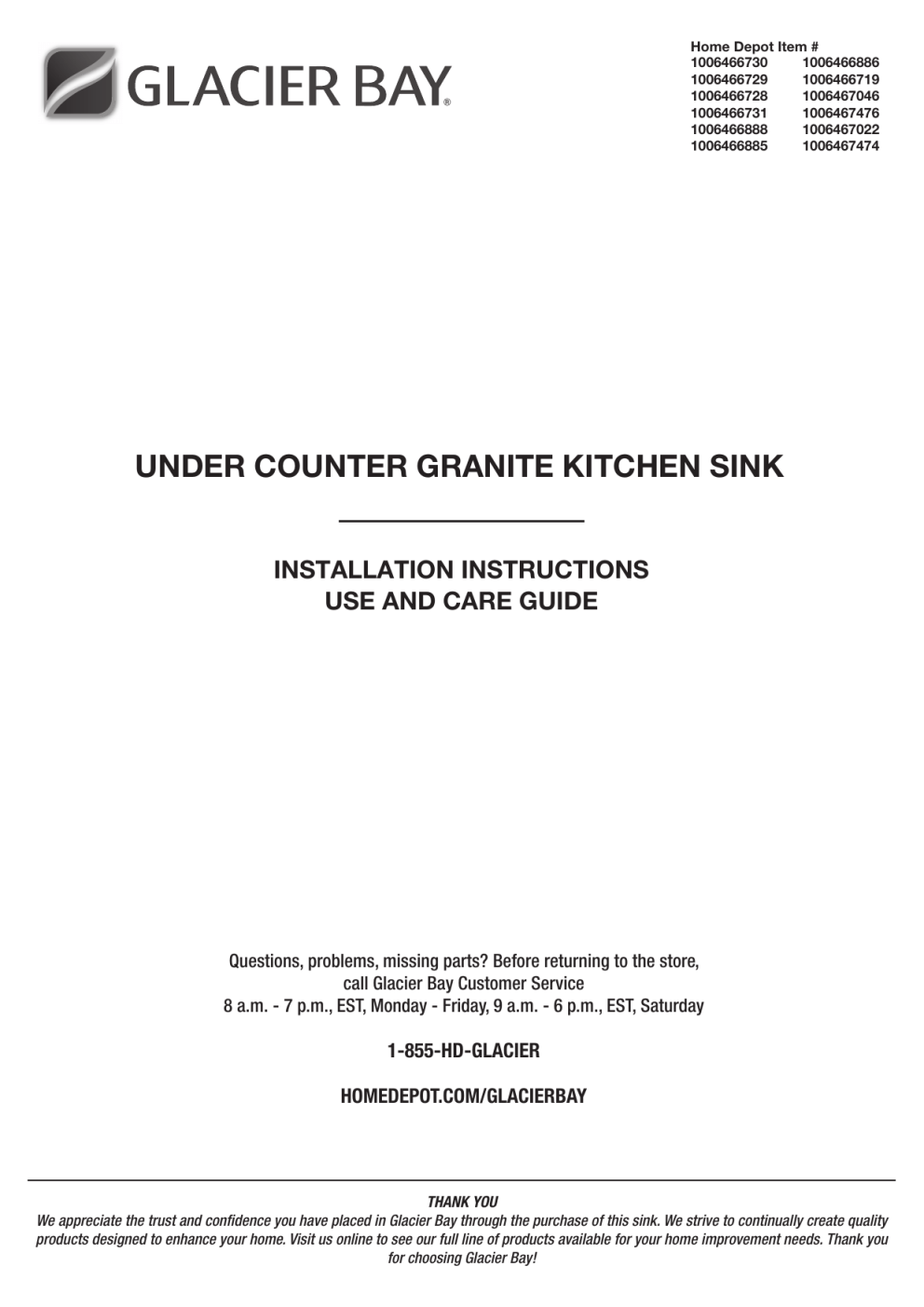

UNDER COUNTER GRANITE KITCHEN SINK
INSTALLATION INSTRUCTIONS
USE AND CARE GUIDE
Questions, problems, missing parts? Before returning to the store,
call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER
HOMEDEPOT.COM/GLACIERBAY
THANK YOU
We appreciate the trust and confidence you have placed in Glacier Bay through the purchase of this sink. We strive to continually create quality
products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you
for choosing Glacier Bay!
Table of Contents
Under-counter Installation. . . . . . . . . . . . . . . . . . . . . . . . . . 5
Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Pre-Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety Information
Before installing this sink, read this instruction manual carefully.
It contains important information concerning the safe installation,
operation, and maintenance of your sink.
WARNING: Keep all packaging materials out of the reach
of children to prevent possible choking or suffocation.
Retain this manual for future use. In the event of sale, transfer, or
relocation, ensure this manual remains with the sink.
WARNING: Use caution when installing the sink. There is
a risk of crushing your fingers when inserting the sink into
the installation location.
NOTICE: Avoid leaving wet sponges, salt, and corrosive substances
on the sink for long periods of time. Lines and scratches may be
caused by improper use of the sink.
CAUTION: Never place hot objects such as hot pans
on the sink. Wait until the object has cooled or use a heat
resistant plate when placing hot objects on the sink surface.
NOTICE: Do not place the sink on its side as there is a risk of
damage.
Warranty
LIMITED LIFETIME WARRANTY
This limited lifetime warranty is extended to the original purchaser of this sink. The manufacturer warrants this sink to be free from all
manufacturing defects in material and workmanship. The manufacturer will repair or replace, at no charge, excluding labor, any sink
that is proven to be defective under normal use. An equivalent replacement will be issued to the original owner provided the defective
sink was installed in accordance with the installation procedures, used and cleaned as recommended, and not damaged due to abuse,
misuse, or negligence. Chips, scratches, and stains are not deemed to be manufacturing defects. The manufacturer will not be held
liable for chips, scratches, and stains that can occur under normal use over a period of time. Please refer to the cleaning instructions
to maintain your sink in its original appearance. The manufacturer shall not be held liable under this warranty where the sink has been
used in a non-domestic application, improperly installed, or damaged from the impact caused by a heavy object being dropped on the
sink or from improper handling.
The manufacturer shall not be liable for any inconvenience or expense for material or labor related to the removal or replacement of a
defective sink or for any loss or damage to any person or property whatsoever resulting from the defective sink. All transportation costs
to and from the point of purchase will be the responsibility of the purchaser.
Any sink returned must be in the original packaging and include all the accompanying accessories, parts, and documentation. The
manufacturer reserves the right to inspect any sink reported to be defective prior to replacement of the sink.
WARRANTY EXCLUSIONS
Excluded are any accessories that accompany the sink (strainers, waste fittings, waste chutes, etc.). The manufacturer guarantees
all sink accessories to be free from manufacturing defects for one year. The manufacturer is not responsible or liable for indirect,
special, or consequential damages arising out of or in connection with the use or performance of its products and its liability under this
warranty is limited to the replacement of the defective material at the location of purchase.
The original dated sales receipt must be retained by the customer and is the only acceptable proof of purchase. The manufacturer
makes no additional warranties, express or implied, and any implied warranty including that of merchantability or fitness for a
particular purpose is limited in its duration to the duration of the written limited warranties set forth herein.
OBLIGATION OF THE ORIGINAL OWNER
No employee, agent, or other person is authorized to provide any warranty on behalf of The Home Depot for a Glacier Bay product that is in
addition to or different from the warranty stated above unless the warranty has been previously approved by an authorized representative.
This warranty gives you specific legal rights and you may also have other rights which may vary from province to province.
Contact the Customer Service Team at 1-855-HD-GLACIER or visit www.HOMEDEPOT.COM/GLACIERBAY.
2
Pre-Installation
PLANNING INSTALLATION
Compare all parts to the Hardware Included and Package Contents lists and verify that all parts are included. Inspect all parts for
damage. If there are missing parts or visible damage to the sink, do not install and contact the Customer Service Team at 1-855-HDGLACIER.
NOTE: You can mount this sink using either the top-mount
or under-counter procedure in this document.
TOOLS REQUIRED
Silicone
sealant
Phillips
screwdriver
Safety goggles
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
BB
Part
Description
BB
Mounting bracket
CC
Mounting screw
DD
Threaded nut
CC
DD
3
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Pre-Installation (continued)
PACKAGE CONTENTS
A
D
C
E
F
B
G
H
I
*All Pictures shown are for illustration purpose only.
Actual product may vary
Part
Description
Quantity
A
Template
1
B
Sink
1
C
Drain assembly
2
D
Ball lock basket
2
E
Body assembly
2
F
Gasket
2
G
Housing
2
H
Lock nut
2
I
Polywasher
2
J
Coupling nut
2
4
Under-counter Installation
1
2
Preparing the installation location
Preparing to mount the sink
□ From underneath the countertop, prepare 1-3/16 in. holes
around the perimeter of the installation location. A typical
installation will have two holes at each corner of the sink.
CAUTION: This sink is not suitable for installations in
particle board.
□ Place the threaded nuts (DD) securely into each of the
holes underneath the counter.
□ If necessary, remove the old sink and disconnect the
water supply lines underneath the sink.
□ If your sink does not already have an existing installation
location, place the template (A) on the sink installation
location and trace the locations to cut out.
□ Cut out the location for the sink.
A
DD
B
3
4
Mounting the sink
□ From underneath the countertop, apply silicone sealant
around the perimeter of the installation location.
Installing the drain assembly
□ Place the top gasket (G) on top of the drain hole in the
sink, followed by the body assembly (F), lock gasket (E),
and basket (D).
□ Place the sink (B) underneath the countertop by inserting
mounting screws (BB) through the mounting brackets
(AA) and into the threaded nuts (CC).
□ From underneath the sink (B), position the bottom gasket
(H) over the lock gasket (E) and twist the housing (I) into
place over the bottom gasket (H) and lock gasket (E).
□ Tighten the screws in a criss-cross pattern to ensure that
the sink is installed evenly underneath the counter.
D
E
CC
F
BB
G
B
H
I
B
5
Care and Cleaning
□ Do not use abrasive cleaning creams or powders, concentrated caustic soda, formic acid, or anything highly corrosive. For more
information on removing difficult stains, contact Customer Service at 1-855-HD-GLACIER or visit your local Home Depot store.
□ Clean with a sponge or soft dish cloth and gentle sink soap. For stains that are difficult to remove, such as calcium deposits, use
eraser sponges, vinegar-based cleaners, and lime removers.
□ Rinse the sink with hot water and dry the sink with a soft absorbent cloth.
□ Fruit juices, coffee, and tea can stain the surface of your sink if not removed. Rinse or wipe the sink promptly after these
substances make contact with the sink.
□ Never use steam or high-pressure cleaning systems to clean your sink.
6
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Questions, problems, missing parts? Before returning to the store,
call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER
HOMEDEPOT.COM/GLACIERBAY
Retain this manual for future use.
