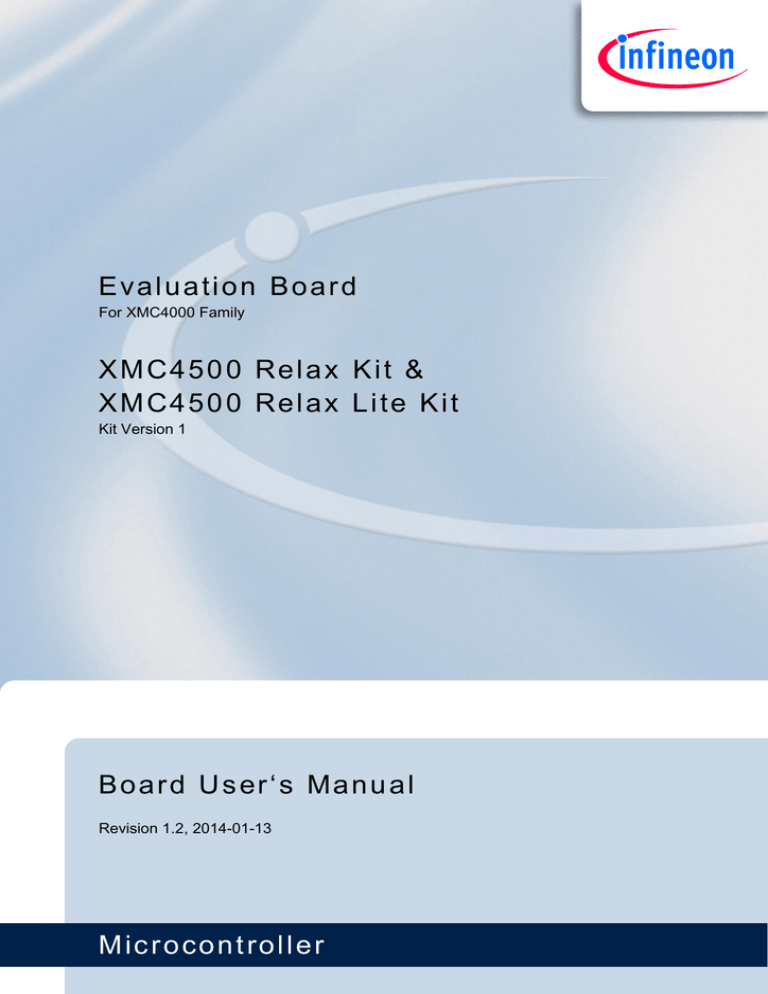

XMC4500 Relax / Relax Lite Kit

XMC4500 Relax / Relax Lite Kit

E v a l u a t i o n B o a r d

For XMC4000 Family

X M C 4 5 0 0 R e l a x K i t &

X M C 4 5 0 0 R e l a x L i t e K i t

Kit Version 1

Board User‘s Manual

Revision 1.2, 2014-01-13

M i c r o c o n t r o l l e r

Edition 2014-01-13

Published by

Infineon Technologies AG

81726 Munich, Germany

© 2014 Infineon Technologies AG

All Rights Reserved.

Legal Disclaimer

The information given in this document shall in no event be regarded as a guarantee of conditions or characteristics. With respect to any examples or hints given herein, any typical values stated herein and/or any information regarding the application of the device, Infineon Technologies hereby disclaims any and all warranties and liabilities of any kind, including without limitation, warranties of non-infringement of intellectual property rights of any third party.

Information

For further information on technology, delivery terms and conditions and prices, please contact the nearest

Infineon Technologies Office (

www.infineon.com

).

Warnings

Due to technical requirements, components may contain dangerous substances. For information on the types in question, please contact the nearest Infineon Technologies Office.

Infineon Technologies components may be used in life-support devices or systems only with the express written approval of Infineon Technologies, if a failure of such components can reasonably be expected to cause the failure of that life-support device or system or to affect the safety or effectiveness of that device or system. Life support devices or systems are intended to be implanted in the human body or to support and/or maintain and sustain and/or protect human life. If they fail, it is reasonable to assume that the health of the user or other persons may be endangered.

XMC4500 Relax Kit-V1

XMC4500 Relax Lite Kit-V1

Revision History

Page or Item

Revision 1.0,

2012-11-07

Subjects (major changes since previous revision)

Initial release

Revison 1.1,

2012-11-09

Correction of DAVE

™3 trademark

Revison 1.2,

2014-01-13

Notes have been added to Figure 5 (Pins of Pin Header X1 / X2 are partly used also for onboard circuits)

Trademarks of Infineon Technologies AG

AURIX™, C166™, CanPAK™, CIPOS™, CIPURSE™, EconoPACK™, CoolMOS™, CoolSET™,

CORECONTROL™, CROSSAVE™, DAVE™, EasyPIM™, EconoBRIDGE™, EconoDUAL™, EconoPIM™,

EiceDRIVER™, eupec™, FCOS™, HITFET™, HybridPACK™, I²RF™, ISOFACE™, IsoPACK™, MIPAQ™,

ModSTACK™, my-d™, NovalithIC™, OptiMOS™, ORIGA™, PRIMARION™, PrimePACK™, PrimeSTACK™,

PRO-

SIL™, PROFET™, RASIC™, ReverSave™, SatRIC™, SIEGET™, SINDRION™, SIPMOS™,

SmartLEWIS™, SOLID FLASH™, TEMPFET™, thinQ!™, TRENCHSTOP™, TriCore™.

Other Trademarks

Advance Design System™ (ADS) of Agilent Technologies, AMBA™, ARM™, MULTI-ICE™, KEIL™,

PRIMECELL™, REALVIEW™, THUMB™, µVision™ of ARM Limited, UK. AUTOSAR™ is licensed by

AUTOSAR development partnership. Bluetooth™ of Bluetooth SIG Inc. CAT-iq™ of DECT Forum.

COLOSSUS™, FirstGPS™ of Trimble Navigation Ltd. EMV™ of EMVCo, LLC (Visa Holdings Inc.). EPCOS™ of Epcos AG. FLEXGO™ of Microsoft Corporation. FlexRay™ is licensed by FlexRay Consortium.

HYPERTERMINAL™ of Hilgraeve Incorporated. IEC™ of Commission Electrotechnique Internationale. IrDA™ of Infrared Data Association Corporation. ISO™ of INTERNATIONAL ORGANIZATION FOR

STANDARDIZATION. MATLAB™ of MathWorks, Inc. MAXIM™ of Maxim Integrated Products, Inc.

MICROTEC™, NUCLEUS™ of Mentor Graphics Corporation. Mifare™ of NXP. MIPI™ of MIPI Alliance, Inc.

MIPS™ of MIPS Technologies, Inc., USA. muRata™ of MURATA MANUFACTURING CO., MICROWAVE

OFFICE™ (MWO) of Applied Wave Research Inc., OmniVision™ of OmniVision Technologies, Inc.

Openwave™ Openwave Systems Inc. RED HAT™ Red Hat, Inc. RFMD™ RF Micro Devices, Inc. SIRIUS™ of

Sirius Satellite Radio Inc. SOLARIS™ of Sun Microsystems, Inc. SPANSION™ of Spansion LLC Ltd.

Symbian™ of Symbian Software Limited. TAIYO YUDEN™ of Taiyo Yuden Co. TEAKLITE™ of CEVA, Inc.

TEKTRONIX™ of Tektronix Inc. TOKO™ of TOKO KABUSHIKI KAISHA TA. UNIX™ of X/Open Company

Limited. VERILOG™, PALLADIUM™ of Cadence Design Systems, Inc. VLYNQ™ of Texas Instruments

Incorporated. VXWORKS™, WIND RIVER™ of WIND RIVER SYSTEMS, INC. ZETEX™ of Diodes Zetex

Limited.

Last Trademarks Update 2011-02-24

Template: IFX_Template_2011-02-24.dot

XMC4500 Relax Kit-V1

XMC4500 Relax Lite Kit-V1

Table of Contents

Table of Contents

Introduction ............................................................................................................................................................ 7

1

1.1

1.2

Overview ............................................................................................................................................. 7

Key Features ........................................................................................................................................ 7

Block Diagram ...................................................................................................................................... 8

2

2.1

2.2

3

3.1

3.2

3.3

Hardware Description ........................................................................................................................ 9

Power Supply ..................................................................................................................................... 11

Pin Header Connector ........................................................................................................................ 12

Production Data................................................................................................................................ 14

Schematics ......................................................................................................................................... 14

Components Placement and Geometry ............................................................................................. 17

List of Material .................................................................................................................................... 18

Board Users Manual 4 Revision 1.2, 2014-01-13

XMC4500 Relax Kit-V1

XMC4500 Relax Lite Kit-V1

List of Figures

List of Figures

Figure 1 Block Diagram of the XMC4500 Relax/Relax Lite Kit-V1..................................................................... 8

Figure 2 XMC4500 Relax Lite Kit-V1 ................................................................................................................. 9

Figure 3 XMC4500 Relax Kit-V1 ...................................................................................................................... 10

Figure 4 Power Supply Concept ....................................................................................................................... 11

Figure 5 Signal mapping of the pin headers..................................................................................................... 12

Figure 6

Mapping of communication peripherals to GPIOs and it’s corresponding functions ......................... 13

Figure 7 CPU, Pin Headers, Buttons, LEDs, Reset ......................................................................................... 15

Figure 8 On-board Debugger, Power Supply, Ethernet, Quad-SPI Memory, SD Card Slot, RTC Crystal ...... 16

Figure 9 Components Placement and Geometry ............................................................................................. 17

Board Users Manual 5 Revision 1.2, 2014-01-13

XMC4500 Relax Kit-V1

XMC4500 Relax Lite Kit-V1

List of Tables

List of Tables

Table 1 Features ............................................................................................................................................... 7

Table 2 List of Material .................................................................................................................................... 18

Board Users Manual 6 Revision 1.2, 2014-01-13

XMC4500 Relax Kit-V1

XMC4500 Relax Lite Kit-V1

Overview

Introduction

This document describes the features and hardware details of the XMC4500 Relax Kit-V1 and the XMC4500

Relax Lite Kit-V1, both equipped with the ARM® Cortex

™-M4 based XMC4500 Microcontroller from Infineon

Technologies AG.

1 Overview

The XMC4500 Relax Kit-V1 and the XMC4500 Relax Lite Kit-V1 are designed to evaluate the capabilities of the

XMC4500 Microcontroller and the powerful, free of charge tool chain DAVE

™. The XMC4500 Relax Kit extends the feature set with an Ethernet-enabled communication option, e.g. to run an embedded web server. You can store your own HTML web pages on a microSD Card or control the XMC4500 via the web browser on your PC.

The XMC4500 Relax Lite Kit-V1 does not support the web server application, because the components for the

Ethernet are not assembled. Both boards are marked with “XMC4500 Relax/Relax Lite Kit-V1”. These boards are neither cost nor size optimized and do not serve as a reference design.

1.1 Key Features

Table 1 summarizes the features of both the XMC4500 Relax Kit-V1 and the XMC4500 Relax Lite Kit-V1.

Table 1 Features

Feature

XMC4500 Microcontroller

(ARM® Cortex™-M4F based)

Detachable on-board Debugger

Power over USB

2 x User Button and 2 x User LED

Reset Button

Power Regulator from 5 V to 3.3V

4 x SPI-Master, 3x I2C, 3 x I2S, 3 x UART,

2 x CAN, 17 x ADC (12 bit), 2 x DAC,

31x PMW mapped on 2 Pin Headers 2 x 20

USB-OTG (Micro USB Plug)

Ethernet PHY and RJ45 jack

Real Time Clock Crystal

32 Mbit Quad-SPI Flash Memory microSD Card Slot

XMC4500 Relax Kit-V1 XMC4500 Relax Lite Kit-V1

Board Users Manual 7 Revision 1.2, 2014-01-13

1.2 Block Diagram

XMC4500 Relax Kit-V1

XMC4500 Relax Lite Kit-V1

Overview

The block diagram in Figure 1 shows the main components of the XMC4500 Relax/Relax Lite Kit-V1 and their

interconnections. There are following main building blocks:

XMC4500 Microcontroller in a LQFP100 package

On-board USB debugger realized with a 2 nd

XMC4500 for serial wire debug

Ethernet Phy with RJ45 Plug

Two 40 pin header X1 and X2

On-board power generation for power supply of the XMC45000 Microcontroller and the debug IC

2 User Buttons and 2 User LEDs

USB Plug

 microSD Card Slot

*

XMC4500

Relax/Relax Lite

RJ45

Micro

USB micro

SD

ETH

PHY

RMII

USB

qSPI

Flash

SD/MMC

Pin Header X1

2x20, 0.1"

25 MHz

Crystal

32.768

kHz

Power

LED

*

+5V

Voltage

Regulator

+3.3V

ETH

ADC, DAC, CCU42, CCU80, POSIF0, U1C0,

U1C1, CAN0, ERU0, LEDTS

RTC EVR

USB

Debug,

U1C1

XMC4500

Microcontroller

BSL

U0C0

SDMMC OCS

PORST

#

DSD, CCU4[0..2], CCU8[0..1], POSIF0, U0C0,

U1C0, U2C0, CAN[0..2], ERU[0..1]

GPIO,

ERU0,

ERU1

12 MHz

Crystal

SWD

UART

SWV

RESET

P1.15

BUTTON2

P1.0

LED2

P1.14

BUTTON1

P1.1

LED1

XMC4500

Debug IC

Cortex

Debug

(10pin)

Debug

LED

Pin Header X2

2x20, 0.1"

Micro

USB

BlockDiag.emf

Not assembled in

Relax Lite version

Not assembled in both versions

* Simplified view on power supply

Figure 1 Block Diagram of the XMC4500 Relax/Relax Lite Kit-V1

Board Users Manual 8 Revision 1.2, 2014-01-13

2 Hardware Description

XMC4500 Relax Kit-V1

XMC4500 Relax Lite Kit-V1

Hardware Description

The following sections give a detailed description of the board hardware and how it can be used. Figure 2

shows the XMC4500 Relax Lite Kit-V1, Figure 3 shows the XMC4500 Relax Kit-V1.

Evaluation

Board

Detachable

Debugger

Pin Header X1 Reset Button

Voltage

Regulator

Power

LED

Micro USB

Pin Header X2

12 MHz XTAL

Cortex Debug

(10Pin)

XMC4500

Microcontroller

User

Buttons & LEDs

Debug

LED

XMC4500

Debug IC

Micro USB

PCB_Block_Lite.emf

Figure 2 XMC4500 Relax Lite Kit-V1

Board Users Manual 9 Revision 1.2, 2014-01-13

Ethernet

RJ45 & PHY

Pin Header X1

Evaluation

Board

RTC XTAL

Reset Button

XMC4500 Relax Kit-V1

XMC4500 Relax Lite Kit-V1

Hardware Description

Detachable

Debugger

Voltage

Regulator

Power

LED

Micro USB microSD

Pin Header X2 qSPI Flash

12 MHz XTAL

Cortex Debug

(10Pin)

XMC4500

Microcontroller

User

Buttons & LEDs

Debug

LED

XMC4500

Debug IC

Micro USB

PCB_Block.emf

Figure 3 XMC4500 Relax Kit-V1

Board Users Manual 10 Revision 1.2, 2014-01-13

2.1 Power Supply

XMC4500 Relax Kit-V1

XMC4500 Relax Lite Kit-V1

Hardware Description

The XMC4500 Relax/Relax Lite Kit-V1 must be supplied by an external 5 Volt DC power supply connected to any of the Micro UBS plugs (X3, X100). Out of the box with the pre-programmed web server application and the on-board debugger in operation the XMC4500 Relax Kit-V1 typically draws about 250 mA. The XMC4500 Relax

Lite Kit-V1 without the web server capabilities draws about 200 mA. This current can be delivered via the USB plug of a PC, which is specified to deliver up to 500 mA. The Power LED indicates the presence of the generated 3.3V supply voltage.

On-board reverse current protection diodes will ensure safe operation in case power is provided through both

USB plugs at the same time. These protection diodes allows to use the on-board debugger connected with a

PC/Notebook via X100 and a second host PC/Laptop connected with the XMC4500 Relax Kit via X3.

If the board is powered via a USB plug

, it’s not recommended to apply an additional 5 Volt power supply to one of the 5 Volt power pins (VDD5) on the pin headers X1 or X2, because there is no protection against reverse current into the external power supply. These power pins can be used to power an external circuit. But care must be taken not to draw more current than USB can deliver. A PCs as USB host typically can deliver up to

500 mA current. If higher currents are required and in order to avoid damages on the USB host the use of an external USB power supply unit which is able to deliver higher currents than 500 mA is strongly recommended.

After power-up the Debug LED starts blinking. In case there is a connection to a PC via the Debug USB plug

X100 and the USB Debug Device drivers are installed on this PC, the Debug LED will turn from blinking to constant illumination.

XMC4500

Relax/Relax Lite Kit-V1

Power

LED

IC1

X3

Micro

USB*

Infineon

+5V

IC101

Lin. Voltage

Regulator

IFX1763

Infineon

IC100

3.3V

XMC4500

Microcontroller

X100

Micro

USB**

Infineon

XMC4500

Debug IC

Infineon

IC200

Eth

Phy

Infineon

* Micro USB on Evaluation Board

** Micro USB on Detachable Debugger

Figure 4 Power Supply Concept

Pin Header X1 and X2

2x20, 0.1"

Power.emf

Board Users Manual 11 Revision 1.2, 2014-01-13

2.2 Pin Header Connector

XMC4500 Relax Kit-V1

XMC4500 Relax Lite Kit-V1

Hardware Description

The pin headers X1 and X2 can be used to extend the evaluation board or to perform measurements on the

XMC4500. Figure 5 shows the available GPIOs/signals at the pin headers. The pinning table is also printed onto

the bottom side of the PCB.

4

6

8

Pin Header X2

2 1

GND

GND

P5.7

P5.1

10 P1.15**

12 P1.13

14 P1.11

16 P1.5***

18 P1.3***

20

22

24

26

P1.1*

P1.9

P0.8

P3.4

28 P0.12

30 P0.6

32

34

P0.2

P0.4

36 GND

38 VDD3.3

40 VDD5

GND

GND

P2.6

P5.2

3

5

7

P5.0

9

P1.14** 11

P1.12

13

P1.10*** 15

P1.4*** 17

P1.2***

P1.0*

19

21

P1.8*** 23

P0.7

P3.3

P0.11

P0.5

P0.3

GND

25

27

29

31

33

35

VDD3.3

37

VDD5 39

(Top View)

Pin Header X1

2 1

4

GND

GND

6 RESET#

8 P2.10

10

P14.8

GND

GND

GND

P2.1

12 P14.9

14 P14.0

16 P14.2

18 P14.4

20

P14.6

3

5

7

P2.14

9

P2.15

11

VAREF 13

P14.1

15

P14.3

17

22 P14.12

24 P14.14

26 P15.2

28 HIB_IO_0

30

P3.0

32

34

P3.2

P0.1

36 P0.0

38 VDD3.3

40 VDD5

P14.5

19

P14.7

21

P14.13

23

P14.15

25

P15.3

27

HIB_IO_1 29

P3.1

P0.9

31

33

P0.10

35

VDD3.3

37

VDD5 39

* P1.1 is connected to LED1, P1.0 is connected to LED2 (2 mA load, ~2 V clip of input signal)

** P1.14 is connected to BUTTON1, P1.15 is connected to BUTTON 2 (both with a 100 nF capacitor in parallel)

*** These pins are connected to the on-board SPI Fash Memory (not valid for Relax Lite):

X2.23 = Port 1.8 = SPI Flash CS#

X2.15 = Port 1.10 = SPI Flash CLK

X2.16 = Port 1.5 = SPI Flash DI (IO0)

X2.17 = Port 1.4 = SPI Flash DO (IO1)

X2.18 = Port 1.3 = SPI Flash WP# (IO2)

X2.19 = Port 1.2 = SPI Flash HOLD# (IO3)

Figure 5 Signal mapping of the pin headers

The XMC4500 provides a flexible mapping of functions to different pins. Figure 6 shows an example how the

communication peripheral functions UART, I2C, SPI, CAN and I2S can be mapped to XMC

4500’s GPIOs.

GPIOs with the same colour code belong to the same group of physical pins and cannot be choosen twice. For instance UART-3 has got a pin overlap with I2C-Master1 and therefore this combination cannot work in parallel.

Please also avoid pheripheral combinations which are using the same USIC channel. For example I2C-Master2 and UART-3 utilizing USIC 0 Channel 0 (U0C0), therefore this combination does not work in parallel.

Board Users Manual 12 Revision 1.2, 2014-01-13

XMC4500 Relax Kit-V1

XMC4500 Relax Lite Kit-V1

Hardware Description

UART

UART-1

TX

P0.1 / U1C1.DOUT0

RX

P0.0 / U1C1.DX0D

I2C Master/Slave

I2C-Master1

SCL (clock)

P5.2 / U2C0.SCLKOUT

SDA (data)

P5.0 / U2C0.DOUT0 /

.DX0B

SPI Master/Slave

SPI-Master1

UART-2

P1.5 / U0C0.DOUT0

P1.4 / U0C0.DX0B

I2C-Master2

UART-3

P5.1 / U0C0.DOUT0

P5.0 / U0C0.DX0D

I2C-Master3

UART-4

P0.5 / U1C0.DOUT0

P0.4 / U1C0.DX0A

I2C-Slave1

P1.10 / U0C0.SCLKOUT

P1.5 / U0C0.DOUT0

/.DX0A

P0.11 / U1C0.SCLKOUT

P0.5 / U1C0.DOUT0

/.DX0B

P5.2 / U2C0.DX1A

P5.0 /U2C0.DOUT0 /

.DX0B

SPI-Master2 SPI-Master3 SPI-Master4

MOSI P0.1 / U1C1.DOUT0

MISO

P0.0 / U1C1.DX0D

P5.0 / U2C0.DOUT0

P5.1 / U2C0.DX0A

SCK (clock)

P0.10 / U1C1.SCLKOUT P5.2 / U2C0.SCLKOUT

CS (chip select)

P0.9 / U1C1.SELO0* P2.6 / U2C0.SELO4

I2C-Slave2

P0.11 / U1C0.DX1A

P0.5 / U1C0.DOUT0

/.DX0B

SPI-Slave1

P1.5 / U0C0.DOUT0

P1.4 / U0C0.DX0B

P0.5 / U1C0.DOUT0

P0.4 / U1C0.DX0A

P1.10 / U0C0.SCLKOUT P0.11 / U1C0.SCLKOUT

P0.0 / U1C1.DX0D

P0.1 / U1C1.DOUT0

P0.10 / U1C1.DX1A

P1.11 / U0C0.SELO0** P0.6 / U1C0.SELO0 P0.9 / U1C1.DX2A

CAN

CAN-1 CAN-2

TX

P1.12 / CAN.N1_TXD P1.4 / CAN.N0_TXD

RX

P1.13 / CAN.N1_RXDC P1.5 / CAN.N0_RXDA

I2S Master/Slave

I2C-Master1 I2C-Master2 I2C-Master3 I2C-Slave1

SCK (clock)

P5.2 / U2C0.SCLKOUT

SD (data)

P5.0 / U2C0.DOUT0 /

.DX0B

P1.10 / U0C0.SCLKOUT

P1.5 / U0C0.DOUT0

/.DX0A

P0.11 / U1C0.SCLKOUT

P0.5 / U1C0.DOUT0

/.DX0B

P0.11 / U1C0.DX1A

P5.0 / U2C0.DOUT0 /

.DX0B

WS (wait)

P2.6 / U2C0.SEL04 P1.11 / U0C0.SELO0 P0.6 / U1C0.SELO0 P0.6 / U2C0.DX2A

* more chip select signals for U1C1 can be found at P3.3, P3.4, P3.5, P3.6

** another chip select signal for U0C0 can be found at P1.8

Figure 6 Mapping of communication peripherals to

GPIOs and it’s corresponding functions

SPI-Slave2

P0.4 / U1C0.DX0A

P0.5 / U1C0.DOUT0

P0.11 / U1C0.DX1A

P0.6 / U1C0.DX2A

Board Users Manual 13 Revision 1.2, 2014-01-13

3 Production Data

XMC4500 Relax Kit-V1

XMC4500 Relax Lite Kit-V1

Production Data

3.1 Schematics

This chapter contains the schematics for the XMC4500 Relax/Relax Lite Kit-V1:

Figure 7: CPU, Pin Headers, Buttons, LEDs, Reset

Figure 8: On-board Debugger, Power Supply, Ethernet, Quad-SPI Memory, SD Card Slot, RTC Crystal

Board Users Manual 14 Revision 1.2, 2014-01-13

XMC4500 Relax Kit-V1

XMC4500 Relax Lite Kit-V1

Production Data

VDD3.3

R6

10k

LED2

LED-RT/D/0603

R4

680R

LED1

2mA LED

VDD3.3

R5

10k

LED1

LED-RT/D/0603

LED2

R3

680R

2mA LED

VDD3.3

R1

10k/0402

VDD3.3

L3

L2

BLM18PG600

BLM18PG600

VDD3.3

15pF

15pF C13

C12

AGND

AGND

VDD3.3

VDD5

VDD3.3

VDD5

VDD3.3

VDD5

VDD3.3

VDD5

Figure 7 CPU, Pin Headers, Buttons, LEDs, Reset

Board Users Manual 15

VDD3.3

VDD5

VDD3.3

ZX62-AB-5PA

2

1

D2

D1

3

10uF/10V

10uF/10V

10uF/10V

100nF

100nF

100nF

100nF

100nF

100nF

100nF

100nF

C8

C7

C9

C10

C5

C4

C3

C6

C11

C2

C1

Revision 1.2, 2014-01-13

VDD3.3

120R

120R

R207

R201

VDD3.3

VDD3.3

1

D200

2

1k

R200

BAT54-02V

R7

10k

10uF/10V

C210

VDD3.3

C204

22uF/10V

C205

100nF

L200

R203

1k

BLM18PG600

VDD3.3

R100

680R

LED-GN/D/0603

Debug

LED100

2mA LED

XMC4500 Relax Kit-V1

XMC4500 Relax Lite Kit-V1

Production Data

15pF

15pF C15

C14

100nF

100nF

C209

C208

R204

6k49

VDD3.3

R400

10k

C202

100nF

C200

22pF

100nF

22uF/10V

22pF

C201

22uF/10V

C206

C203

C207

VDD3.3

R401

10k

10k

R402

ZX62-AB-5PA

VDD3.3

VDD5 D102

C A

BAT60A

2

1

D2

D1

3

10uF/10V

100nF

100nF

C106

C19

C105

C108

C104

C103

C102

100nF

100nF

100nF

10uF/10V

VDD3.3

R302

R301

R300

R304

R303

10k

10k

10k

10k

10k

VDD3.3

VDD3.3

VDD3.3

VDD5

R106

680R/0603

ADJ

1

C109

10uF/10V

C110

10uF/10V

LED-GN/D/0603

Power

LED101

C101

C100

15pF

15pF

VDD3.3

R105

10k

2.54mm pitch

4 TH-Pads

Figure 8 On-board Debugger, Power Supply, Ethernet, Quad-SPI Memory, SD Card Slot, RTC Crystal

Board Users Manual 16 Revision 1.2, 2014-01-13

XMC4500 Relax Kit-V1

XMC4500 Relax Lite Kit-V1

Production Data

3.2 Components Placement and Geometry

X200

1

1

2

L200

C200

10

C202

C206

C203

C201

IC200

C207

R204

C205

R203

C210

IC200

C4

C8

X1

20

Q2

Q2

C7

C3

C1

30

X3

R207 L201

R201

D1

X3

L1

D2

R10

R11

IC400

R400

C400

X300

IC1

IC1

R402 C5

R12

C12

Q1

C6

C10

C11

C9

R304

R303

R302

R300

R301

C13

XMC4500 Relax/Relax Lite Kit-V1 www.infineon.com/xmc-dev

1

9 19

X2

1

ADJ_1

2

29

C20 R1

40

1

JP500

40

75.5 mm

98.52 mm

Figure 9

Components Placement and Geometry

ADJ_3

IC101

1

JP501

50x 0.4mm

drills, NPTH

IC100

R102

R101

L100

X100

Debug

X100

IC100

C108

C101

Q100

R103

C100

Q100

R105

4 3 2 1

X101

1

ADJ_2

Board Users Manual 17 Revision 1.2, 2014-01-13

3.3 List of Material

The list of material is valid for the XMC4500 Relax/Relax Lite Kit-V1.

XMC4500 Relax Kit-V1

XMC4500 Relax Lite Kit-V1

Production Data

32

33

34

35

36

11

12

13

14

7

8

9

10

15

16

17

18

19

24

25

26

27

20

21

22

23

28

29

30

31

No.

1

2

3

4

5

6

Table 2 List of Material

Qty Value Device

Reference

Designator

2 2x4

2 1k

1 2*20

1 2x20

1 3M_2908-05WB

1 6k49

12 10k

1 10k/0402

1 10nF

8 10uF/10V

2 12MHz/S/3.2X2.5

6 15pF

2 22pF

3 22uF/10V

1 25MHz/50ppm

1 32.768KHz

2 33R

2 33R/0402

1 100R

23 100nF

2 120R

1 510R

1 510R/0603

3 680R

1 680R/0603

3 BAT54-02V

Pin Header 0.1” TH

Resistor

Pin Header 0.1” TH

Pin Header 0.1” TH microSD Card Holder

Resistor

JP500, JP501

R200, R203

X2

X1

X300

R204

R5, R6, R7, R105, R300, R301, R302, R303,

R304, R400, R401, R402 Resistor

Resistor

Capacitor

Capacitor

Crystal 12 MHz

Capacitor

Capacitor

Capacitor

Crystal 12 MHz

Crystal 32 kHz

Resistor

R1

C20

C1, C2, C11, C104, C105, C109, C110, C210

Q1, Q100

C12, C13, C14, C15, C100, C101

C206, C207

C200, C202, C204

Q200

Q2

R10, R11

Resistor

Resistor

R101, R102

R104

C3, C4, C5, C6, C7, C8, C9, C10, C16, C17,

C19, C24, C25, C102, C103, C106, C108,

C201, C203, C205, C208, C209, C400 Capacitor

Resistor

Resistor

Resistor

Resistor

R201, R207

R12

R103

R3, R4, R100

Resistor R106

Schottky Diode, Infineon D3, D200, D201

2 BAT60A

6 BLM18PG600

2 ESD8V0L2B-03L

3 FIDUCIAL

Schottky Diode, Infineon

Inductor

TVS Diode, Infineon

FIDUCIAL

1 FTSH-105-01-F-D-K Connector 2x5, Samtec

1 IFX1117MEV33

Linear Voltage Regulator,

Infineon

1 KSZ8031RNL Ethernet Phy, Micrel

D2, D102

L1, L2, L3, L100, L200, L201

D1, D101

ADJ_1, ADJ_2, ADJ_3

X5

IC101

IC200

2 LED-GN/D/0603

2 LED-RT/D/0603

LED green

LED red

LED100, LED101

LED1, LED2

1 S25FL032P0XMFI01 Quad-SPI Flash, Spansion IC400

Board Users Manual 18 Revision 1.2, 2014-01-13

XMC4500 Relax Kit-V1

XMC4500 Relax Lite Kit-V1

39

40

41

42

Table 2

No.

37

38

List of Material

Qty Value

3 TMPS2-SMD

1 7499010211A

2 XMC4500-F100F1024

2 ZX62-AB-5PA

1 no ass.

1 no ass./0R

Device

Reference

Designator

Push Button SW1, SW2, SW3

Ethernet RJ45 Plug, Würth X200

Microcontroller Cortex

M4F, Infineon IC1, IC100

Micro USB Plug X3, X100

Pin Header 1x4

Resistor

X101

R206

Production Data

Board Users Manual 19 Revision 1.2, 2014-01-13

w w w . i n f i n e o n . c o m

Published by Infineon Technologies AG

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
