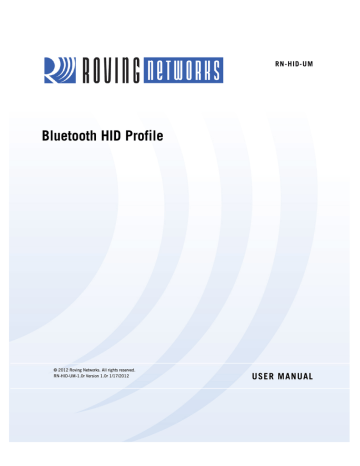

Bluetooth HID Profile

RN -W IFLYCR -U M- .01

RN-HID-UM

© 2012 Roving Networks. All rights reserved.

RN-HID-UM-1.0r Version 1.0r 1/17/2012

www.rovingnetworks.com

USER MANUAL

1

RN -H ID -U M-1.0r



OVERVIEW

Roving Networks Bluetooth modules support a variety of Bluetooth profiles, including human interface device (HID), serial port profile (SPP), DUN, HCI, and iAP for use with iPad, iPod and iPhone devices. The Bluetooth HID profile enables customers to develop wireless products such as computer keyboards and keypads, trackballs, mice, and other pointing devices, and game controllers (gamepads, joysticks, steering wheels, etc.). Additionally, Roving Networks has extended the basic HID capability to allow programmability and control of devices such as the iPad.

The HID (Human Interface Device) profile defines the protocol between:

Device (HID)—Services human data input and output to and from the host.

Host—Uses or requests the services of a Human Interface Device.

The Bluetooth HID profile allows users to control the HID descriptor, which defines the device’s feature set, and the HID report, which host uses to interpret the data as ASCII values, movement, etc. The HID report format follows the standard universal serial bus (USB) HID protocol as to leverage existing host drivers.

NOTE: This user manual focuses specifically on HID. The Roving Networks Bluetooth Advanced User Manual and

Apple User Manual cover the functionality of all supported Bluetooth profiles. Because the HID profile is derived from Roving Network’s standard firmware, many of the concepts and commands found in the

Advanced User Manual apply as well.

In a typical usage scenario such as a keyboard, a device using the Roving Networks Bluetooth HID profile replaces the

USB cable. In this case, the ASCII value of a key press is converted to a scan code in a raw HID report that the Bluetooth module sends over the Bluetooth link to the host. The host driver software decodes the raw HID report and passes the key values to the application running on the PC. Figure 1 shows some typical HID environments.

Figure 1. Typical HID Environments

The type of HID device, such as a keyboard, mouse, or joystick, is defined by the HID descriptor in the raw HID report.



www.rovingnetworks.com

2

RN -H ID -U M-1.0r



FIRMWARE OVERVIEW

To use Roving Networks’ Bluetooth HID profile, you must use a special build of firmware, version 6.03 or later. When you purchase a Roving Networks Bluetooth product, you must specify that you wish to use this firmware version so that Roving

Networks can load it into the module. The part numbers for ordering modules with the HID profile are RN-41-HID and

RN-42-HID.

NOTE: This user guide assumes the reader has an understanding of Roving Networks standard Bluetooth firmware

ASCII command interface and command set. It is recommended that you refer to the Bluetooth Advanced User

Manual prior to reading this document.

Profile Configuration

The HID firmware supports Bluetooth HID and SPP. You switch between these profiles using ASCII commands. By default, the HID profile is enabled in the HID firmware. To switch between HID and SPP, use the following commands:

S~,0

R,1

To switch back to HID, use the following command:

S~,6

R,1

// Enables SPP protocol

// Reboot to use SPP

// Enables HID profile

// Reboot to use HID profile

Device Discovery & Pairing

During pairing, the module determines the HID device type. As part of the Bluetooth protocol, the HID device sends the type. By default, the Roving Networks’ modules running the HID profile are discoverable as a keyboard. You can change the device type by setting the descriptor type using the HID flags register.

After first pairing the host to a device with the Bluetooth HID module, the host initiates a connection. However, if the initial connection is broken, as the case when the power is cycled, the device must re-connect to the host. (The host will not initiate a connection.)

Using DTR mode 4 (default) or pairing mode 6 allows the module to auto-connect back to the last paired host.

Alternatively, you can reconnect by sending the C command from command mode.

HID Flag Register



The HID flag register is a bit-mapped reregister that is configured while in command mode. To set the register, use the SH,

<value> command, where <value> is a 4-character hex word. The GH command returns the current value of the register.

The default factory setting is 0000, which corresponds to a keyboard.

www.rovingnetworks.com

3

RN -H ID -U M-1.0r



Table 1 shows the HID flag register bits; currently only the lower 9 bits are defined.

Table 1. HID Flag Register Bits

9

Force HID mode if

GPIO11 is high on power-up.

8

Toggle virtual keyboard on iOS when first connected.

7..4

Descriptor type:

0000 = Keyboard

0001 = Game Pad

0010 = Mouse

0011 = COMBO

0100 = JOYSTICK

0101 = DIGITIZER

0110 = SENSOR

0111 = USE CFG

1XXX = Reserved

3

Send output reports over UART.

2..0

Indicates number of paired devices to which the module can reconnect.

Bit 9

Bit 9 is an enable bit that overrides the profile selection mode. When this bit is set, the firmware checks the level of

GPIO11 on power up; if it is high, the module switches to HID mode. With this bit, you can set the module’s default profile to SPP mode, allowing SPP and remote configuration (for example from Bluetooth clients with SPP). Then, you can use

GPIO11 to override SPP mode and enable HID mode.

Bit 8

Bit 8 enables the toggling of the virtual keyboard on iOS devices.

Bits 7-4

Bits 7 through 4 control the following settings:

• The COD that is advertised by the module.

• The HID report descriptor and the available reports.

Bit 3

Bit 3 enables output reports, which are sent by the host to the device over Bluetooth to the UART. These reports are a feedback mechanism to the embedded microcontroller. The output record is formatted as:

<start> <number of bytes> <report>

0xFE 1 – 8 data

For example, the HID keyboard output reports the keyboard LED status as:

0xFE 0x2 0x1 <LED status byte>

www.rovingnetworks.com

4

RN -H ID -U M-1.0r



Bits 2-0

Bits 2 through 0 define the number of paired hosts to which the module attempts to reconnect after power up. After each successful pairing, the link key is stored in the Bluetooth module. Up to eight paired link keys are stored in FIFO fashion.

Upon power up, the module tries to connect to the most recently paired device. If it is not found, the module attempts to connect to the next N hosts depending upon the settings of bits 2-0 in the HID register.

HID REPORTS

The module interprets input on the UART and generates an HID report that is sent over the Bluetooth link to the host.

Input to the module is interpreted as shown in Table 2.

Table 2. Data Interpretation

Binary Input

0

0x1 - 0xF

0x10 - 0x7E

0x7F

0x80 - 0xDF

0xE0 - 0xE7

0xE8 - 0xEF

0xF0 - 0xFC

0xFD

0xFE

0xFF

Function

Disconnect if connected from the host.

Converted to special keys like home, page up, backspace, etc.

Translation mode: printable ASCII characters.

Toggle virtual keyboard on iPhone.

Interprets input as actual scan code.

Sends modifier keys Left Shift, Left Alt, Right Shift, etc.

Interprets input as actual scan code.

Reserved for custom reports.

Raw mode: input is RAW report.

Interpretive mode: input is shorthand report.

Sends output report to UART.

See “Scan Code Tables: UART (ASCII) to HID Report” on page 10 for a complete table of UART input to HID report.

Translation Mode

Translation mode is the simplest way to send HID reports for printable ASCII characters. When the Bluetooth module’s

UART receives a printable ASCII value, it is converted into a keyboard raw HID report. Two reports are sent for each character; the first report indicates that the key is pressed and the second indicates that it is released. For example: a is translated into:

0xFD 0x9 0x1 0x0 0x04 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0

Key Press

0xFD 0x9 0x1 0x0 0x00 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0

Key Release www.rovingnetworks.com

5

RN -H ID -U M-1.0r



A is translated into:

0xFD 0x9 0x1 0x2 0x0 0x04 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0

Key Press

0xFD 0x9 0x1 0x0 0x00 0x00 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0

Key Release

Notice that the scan code for A is the same as the previous raw report except the modifier byte indicates the left Shift key is pressed. If multiple scan codes are sent, the modifier applies to all of them.

Keyboard Shorthand Mode

The Roving Networks HID profile supports shorthand for implementing keyboards. The advantage of this mode is that multiple keyboard keys can be sent with minimal characters over the UART, which optimizes bandwidth because the module does not have to send a keyboard report. Shorthand reports start with 0xFE and have variable length. The shorthand format is:

0xFE Length Modifier

Scan

Code 1

Scan

Code 2

Scan

Code 3

Scan

Code 4

Scan

Code 5

Scan

Code 6

where Length = 0, 2, 3, 4, 5, 6, or 7, depending on how many keys are sent.

For example, shorthand for the a, b, and c keys is:

0xFE 0x3 0x0 0x4 0x05 0x06

The Bluetooth module converts this shorthand into the following raw HID reports that are sent over the Bluetooth link:

0x9 0x1 0x0 0x04 0x5 0x6 0x0 0x0 0x0 0x0 0x0 0x0

Shorthand to release all three keys is:

0xFE 0x0

Raw Report Mode

The start byte 0xFD indicates a raw HID report. In the Bluetooth module, the start byte is stripped and the following bytes are sent without interpretation. The Raw HID report consists of a start byte, length, descriptor type (which defines the type of HID device), and data specified in scan codes or encoded values. The format of the data depends on the descriptor type. HID reports are sent one report at a time.

The raw report format is:

Start

(1Byte)

Length

(1 Byte)

Descriptor

(1 Byte)

Data

Length – one Byte for the descriptor

www.rovingnetworks.com

6

RN -H ID -U M-1.0r



The keyboard report format is:

0xFD 9 1 Modifier 0x00

Scan code 1

Scan code 2

Scan code 3

Scan code 4

Scan code 5

Scan code 6

The modifier byte is a bit mask interpreted as shown below. For example, you can use 0x2 or 0x20 to turn a lower case a into an upper case A.

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Right

GUI

Right

Alt

Right

Shift

Right

Ctrl

The mouse raw report format is:

Left

GUI

Left

Alt

Left

Shift

Left

Ctrl

0xFD 5 2 Buttons X-stop Y-stop Wheel

The consumer report format in keyboard or combo mode is:

0xFD 3

The joystick format is:

3 Data Byte Data Byte

0xFD 6 Not used Buttons X1 Y1 X2 Y2

In combo mode, it is possible to send both for a keyboard and mouse HID reports. In this case, if you wanted to enter an A and move the mouse you can use either of the following methods:

A:

0x2 0x0 0x1 0x20 0x20 0x20 0XFD 0x5

or

0xFD 0x9 0x1 0x2 0x0 0x04 0x0 0x0 0x0 0x0 0x0 0x0 0x0 0x0

0XFD 0x5 0x2 0x0 0x1 0x20 0x20 0x20

www.rovingnetworks.com

7

RN -H ID -U M-1.0r



Special Reports & Modes

This section describes special modes and reports, including output reports, virtual keyboards, a key-map register, etc.

Output Reports

Because the host controls the modifier keys’ state, the HID device must be able to request the current status. The output report code 0xFF is reserved to return the current status of the Caps Lock, Num Lock, and Scroll Lock keys over the

UART. Because an HID device can only toggle these keys, it tells the device the state of the keys. This functionality is particularly useful when multiple HID devices are in the system and the Bluetooth device needs to update the state of these keys. The format is sent as:

0xFF

Status

Byte

Table 3 shows the status byte definitions.

Table 3. Status Byte Definitions

Key

Num Lock

Caps Lock

Scroll Lock

Status Bit

1

2

4

Apple Virtual Keyboard

When the module is connected to an iOS device, the virtual keyboard is hidden. However, in some applications it is useful or required to display the keyboard for data entry on the touch screen of the iOS device. Toggling GPIO9 displays or hides the virtual keyboard. GPIO9 must go from low to high for at least 200 ms for the toggle to occur.

NOTE: The virtual keyboard toggle must be enabled in the HID flag register for this feature to work.

Key Map Register

This register allows you to replace any ASCII code with another ASCII code. It is useful in cases where you want to toggle special keys that the device cannot generate. For example, the touch keyboard on an iOS device is 0x7F, but the device cannot generate 0x7F.

If the register is non-zero, the upper byte is the key to replace, and the lower is the replacement. The command to set the register is S=, < value>, where <value> is a 4-character hex word. To obtain the current value of the register, use the G= command. (The value also shows up in the advanced settings using the E command.) The default factory setting is 0000

(not enabled).

For example, to use the tilda (~), which is 0xfe, to toggle the keyboard, enter the command S=,7e7f.

www.rovingnetworks.com

8

RN -H ID -U M-1.0r



Disconnect Key

A special hex key value 0x00 (zero) causes a Bluetooth disconnect, which allows you to control the connection by sending a single key. To disconnect, send 0x0.

Combining the disconnect feature with the key map register, any key can be used as a disconnect key. For example to set the capital Z key (hex 5A) as the disconnect key, use the following command:

S=,5A00 // Map Z key as the disconnect key

Consumer Report

You can use a HID raw report to send additional keys as a consumer report. The format is:

0xFD 3 3

Table 4 shows the data byte format.

Low Byte High Byte

Table 4. Data Byte Format

Consumer Key Function

AC Home

AL Email Reader

AC Search

AL Keyboard Layout (Virtual Apple Keyboard Toggle)

Volume Up

Volume Down

Mute

Play/Pause

Scan Next Track

Scan Previous Track

Stop

Eject

Fast Forward

Rewind

Stop/Eject

AL Internet Browser

For example, to raise the volume, send:

0xFD 0x03 0x03 0x10 0x00

To release the key, send:

0xFD 0x03 0x03 0x00 0x00

0x80

0x100

0x200

0x400

0x800

0x1000

0x2000

0x4000

0x8000

Report Bit

0x1

0x2

0x4

0x8

0x10

0x20

0x40

www.rovingnetworks.com

9



SCAN CODE TABLES: UART (ASCII) TO HID REPORT

Table 5 shows the UART-to HID input conversion.



UART Input

28

29

30

31

32-126

127

0x80-0xDF

0xE0

0xE1

0xE2

0xE3

0xE4

0xE5

0xE6

0xE7

0xE8-0xEF

0xF0-0xFC

0xFD

0xFE

0xFF

9

10

11

12

13

14

15-26

27

4

5

6

7

8

0

1

2

3

Table 5. UART-to-HID Scan Code

HID Code

NA

0x49

0x4A

0x4B

0x4C

0x4D

0x4E

0x4F

0x2A

0x2B

0x28

0x50

0x51

0x28

0x52

0x3A-45

0x29

0x39

0x47

0x48

0x53

0x65

0x80-0xDF

0xE0

0xE1

0xE2

0xE3

0xE4

0xE5

0xE6

0xE7

0xE8-0xEF

Reserved for future

HID Function

Disconnect if Connected

Insert

Home

Page up delete end

Page down

Right arrow

Backspace

TAB

Enter

Left arrow

Down arrow

Enter

Up arrow

F1 - F12

Escape

Caps lock

Scroll lock

Break-pause

Num lock

Printable ASCII characters

Toggle iPhone virtual keyboard

Sends actual scan code

Left Control

Left Shift

Left Alt

Left GUI

Right Control

Right Shift

Right Alt

Right GUI

Sends actual scan code

Custom reports

Raw report

Shorthand report

Sends output report to UART

RN -H ID -U M-1.0r

www.rovingnetworks.com

10

RN -H ID -U M-1.0r



Table 6 shows the ASCII to HID scan codes.

Table 6. ASCII to HID Report (to Host) Scan Codes

c C d D e E f F g G h H i I

ASCII

System Power

System Sleep

System Wake

No Event

Overrun Error

POST Fail

Code

81

82

83

00

01

02

ErrorUndefined 03 a A 04 b B 05 j J k K l L

06

07

08

09

0A

0B

0C

0D

0E

0F v V w W x X y Y z Z

1 !

2 @

ASCII

m M n N o O p P q Q r R s S t T u U

3 #

4 $

5 %

19

1A

1B

1C

1D

1E

1F

Code

10

11

12

13

14

15

16

17

18

20

21

22

ASCII

6 ^

7 &

8 *

9 (

0 )

Return

Code

23

24

25

26

27

28

Escape 29

Backspace 2A

Tab 2B

Space

- _

= +

[ {

] }

\ |

Europe 1

; :

‘ “

, <

2C

2D

2E

2F

30

31

32

33

34

36

ASCII

. >

/ ?

Caps Lock

F1

F2

F3

F4

F5

F6

F7

F8

F9

F10

F11

F12

Print Screen

Scroll Lock

Break (Ctrl-Pause)

Pause

40

41

42

43

44

45

46

Code

37

38

39

3A

3B

3C

3D

3E

3F

47

48

48

REFERENCES

[1] Bluetooth SG, Human interface Profile overview

URL: https://www.bluetooth.org/Building/HowTechnologyWorks/ProfilesAndProtocols/HID.htm

[2] USB.org, HID usage tables

URL: http://www.usb.org/developers/devclass_docs/Hut1_12v2.pdf

[3] USB.org, HID technology

URL: http://www.usb.org/developers/hidpage/

RESOURCES & RELATED DOCUMENTS



For more information, refer to the following sources, which are available on the Support page on the Roving Networks website at http://www.rovingnetworks.com/support.php

:

Bluetooth Advanced User Manual

iAP Bluetooth Evaluation Kit for Developing Accessories Compatible with iOS Devices User Manual www.rovingnetworks.com

11



RN -H ID -U M-1.0r

Roving Networks, Inc.

102 Cooper Court

Los Gatos, CA 95032

+1 (408) 395-5300 www.rovingnetworks.com

www.rovingnetworks.com

Copyright © 2012 Roving Networks. All rights reserved. Roving Networks is a registered trademark of Roving Networks. Apple Inc., iPhone, iPad, iTunes, Made for iPhone are registered trademarks of Apple Computer.

Roving Networks reserves the right to make corrections, modifications, and other changes to its products, documentation and services at any time. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete.

Roving Networks assumes no liability for applications assistance or customer’s product design. Customers are responsible for their products and applications which use Roving Networks components. To minimize customer product risks, customers should provide adequate design and operating safeguards.

Roving Networks products are not authorized for use in safety-critical applications

(such as life support) where a failure of the Roving Networks product would reasonably be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement specifically governing such use.

12

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
