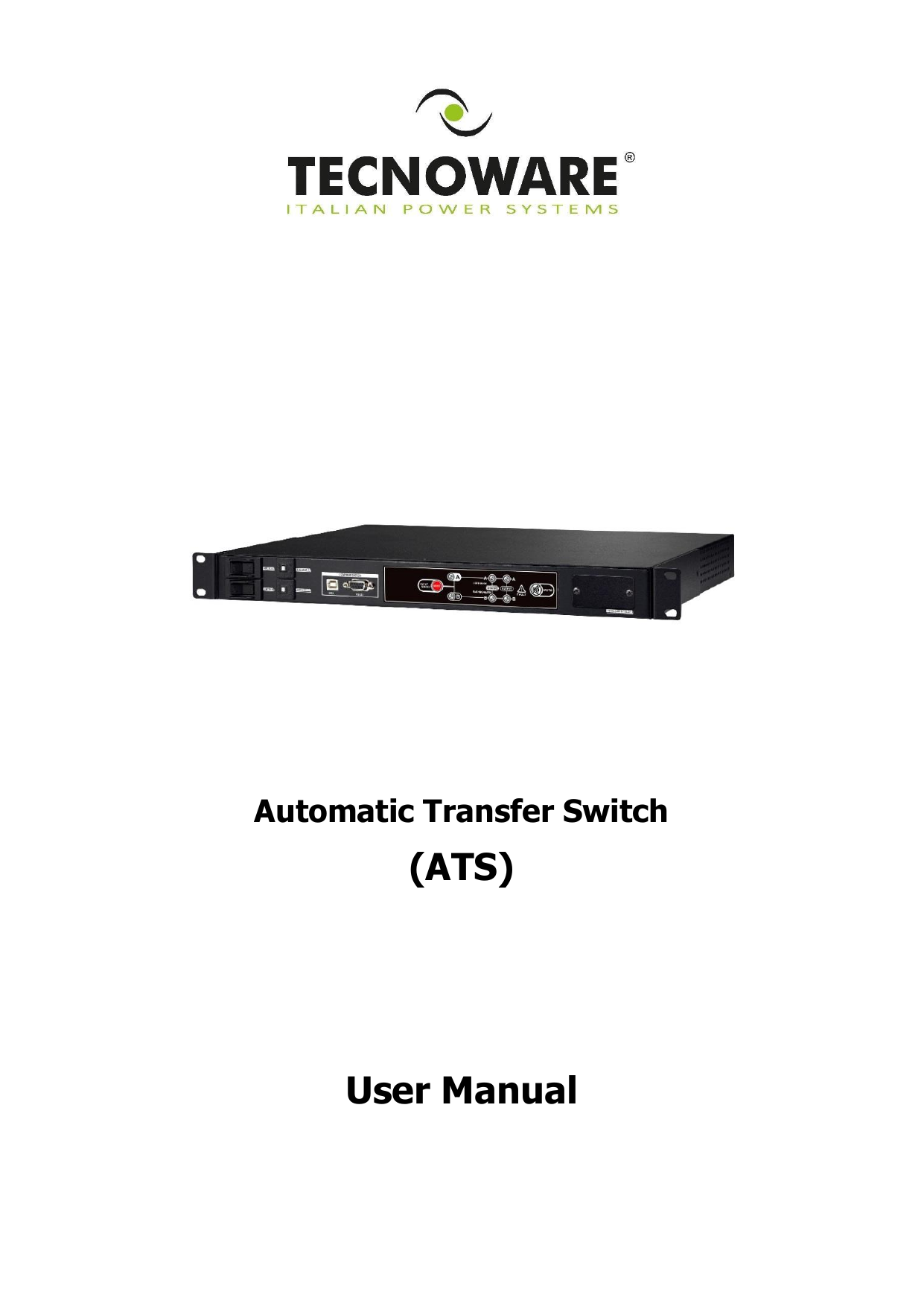

Tecnoware FGCATS1601MM Automatic Transfer Switch Manual

Automatic Transfer Switch
(ATS)
User Manual
1. Table of Contents
1.
2.
3.
4.
5.
6.
7.
Table of Contents .................................................................. 1
Introduction………………………………………………………………………..1
Product Overview .................................................................. 1
Important Safety Warnings .................................................. 2
Operation Indicators & Status ............................................. 3
Installation………………………………………………………………………….4
Operation…………………………………………………………………………….5
8. Communication Port ............................................................. 6
2. Introduction
This ATS product is designed with two independent power inlets to supply power to the load from
a primary power source. Should primarily power source fail, the secondary will automatically back
up the connected equipment without any interruption. The transfer time from one line to another
is seamless to the connected equipment. After switching to a secondary power source, the ATS
can also switch power back to the primary input when power to the primary input is restored .
Package contents:
⚫
⚫
⚫
ATS module
User manual
mounting brackets
3. Product Overview
Front View:
Power switch for input source A
Power switch for input source B
Circuit breaker for output 1
Circuit breaker for output 2
USB communication port
RS-232 communication port
Communication slot
Operation indicators (please refer to section 4 for the details)
Back View
Contact port (please refer to section 7 for the details)
Output receptacles “Output 1” (IEC 10A)
Output receptacles “Output 2” (IEC 10A)
Output receptacle “Output 3” (IEC 16A)
Input source A connector
 Input source B connector
1
4. Important Safety Warnings
Before using the unit, please read all instructions and cautionary markings on the unit, this
manual and the batteries.
WARNING!! The ATS must be connected to earth when in use.
In line with current regulations, only use the cables that have been supplied with the machine.
The power supply socket must be easily accessible to the operator.
WARNING!! The ATS has been designed exclusively to operate indoors. It is advisable to install it in
areas where no inflammable liquids or gases, or other harmful or noxious substances, have been
stored.
ATTENTION!! A soft damp cloth may be used to clean the outside of the machine (always with the
system disconnected from the mains power supply and users).
Do not use any type of solvent as this may damage the external finishing of the machine.
ATTENTION!! The ATS has been designed exclusively for professional use.
NOTE: These instructions may be modified by the wiring regulations in force in the country where
the ATS is purchased.
2
5. Operation Indicators & Status
Source preference selector
Priority setting LEDs
 Power source status LEDs
Output source LEDs
Fault indicator
 Alarm mute button
Indication type
Priority setting
LEDs
LED description
LED status
Source A ()
ON
Source B ()
OFF
Source A ()
OFF
Source B ()
ON
Status of source A ()
Power source
status
Status of source B ()
Condition
Alarm
Source A is priority
OFF
Source B is priority
OFF
OFF
Inlet A has no power input
OFF
ON
Inlet A has power input, and power is OK
OFF
Flashing
Inlet A has power input, but power is out of SPEC
OFF
OFF
Inlet B has no power input
OFF
ON
Inlet B has power, and power is OK
OFF
Flashing
Output status
Alarm
Output from source A ()
ON
Output from source B ()
OFF
Output from source A ()
OFF
Output from source B ()
ON
Output from source A ()
OFF
Output from source B ()
OFF
Fault ()
Inlet B has power input, but
power is out of SPEC
OFF
Power A is output
OFF
Power B is output
OFF
NO OUTPUT
OFF
OFF
Alarm not present
OFF
ON
Alarm present
Continuously
3
6. Installation
NOTE: Before installation, please inspect the unit. Be sure that
nothing inside the package is damaged.
Mounting the Unit
The unit can be mounted in a standard 19" rack. Fasten the mounting brackets to the unit using
the screws provided. With brackets attached securely, users can mount the unit in a standard 19"
rack as shown below.
NOTE: If the temperature around the unit will rise above 40 °C, ventilation is required
Connecting the Unit
For connecting the ATS, plug “input source A connector” and “input source B connector” to the
two independent power sources or UPSs depending using the SCHUCKO-IEC or IEC-IEC 16A cables
supplied.
Plug the user load to the output 10A (“Output 1 and 2”) or 16A (“Output 3”) sockets depending on
user’s requirements.
4
7. Operation
Power On/Off
Put the input power switch in “ON” position. The output will then be supplied by the source set as
selected.
Setting priority of power source
It is possible to set the power source preference to supply the output by pushing the button of
“source preference selector”. The default power source is “Source A”.
Function
Description
Source perference selector
Selection of input that normally supplies the
load
Default
5
Source A
Possible configuration
• Source A
• Source B
8. Communication Port
The ATS is supplied with the following communication ports:
⚫
Serial port is available with RS232 com. port and USB com. port on the front panel.
NOTE: the use of one port automatically excludes the other.
⚫
Contacts port on the rear panel.
Serial Ports: RS-232 & USB connectors
RS-232 connector
USB connector
PIN #
NAME
TYPE
SIGNAL
2
TX
OUT
Serial line TX
3
RX
IN
Serial line RX
1
4
5
GND
POWER
6
+12V
POWER
PIN #
SIGNAL
1
VBUS
2
D-
3
D+
4
GND
7
8
9
NOTE: The utilization of the communication port is optional and it is not necessary for the correct
functioning of the ATS.
6
Contact Ports
The contacts port is formed using six (6) pins numbered from left to right (see fig. 1), which can
be connected to an external monitoring system (such as a BMS) in order to monitor the operational
status of the ATS.
The external equipment must respect the voltage and current characteristics of contacts port.
Fig. 1: Focus on contacts port.
The contacts port provides the following pins:
• Pin 1: common contact.
• Pin 2: “Source B” active contact (if the contact between “pin 1” and “pin 2” is closed, output
is supplied by “Source B”).
• Pin 3: “Source A” active contact (if the contact between “pin 3” and “pin 1” is closed, output
is supplied by “Source A”).
• Pin 4: “Source A” status OK contact (if the contact between “pin 4” and “pin 1” is closed,
“Source A” is present and regular).
• Pin 5: “Source B” status OK contact (if the contact between “pin 5” and “pin 1” is closed,
“Source B” is present and regular).
• Pin 6: Status OK contact (if the contact between “pin 6” and “pin 1” is closed, ATS functioning
status is regular).
The following diagram shows the functioning of the contacts port.
Fig. 2: Contacts port basic diagram.
ATTENTION: The pins of the contact port are able to carry maximum current of 8A and maximum
voltage of 250Vac.
7
