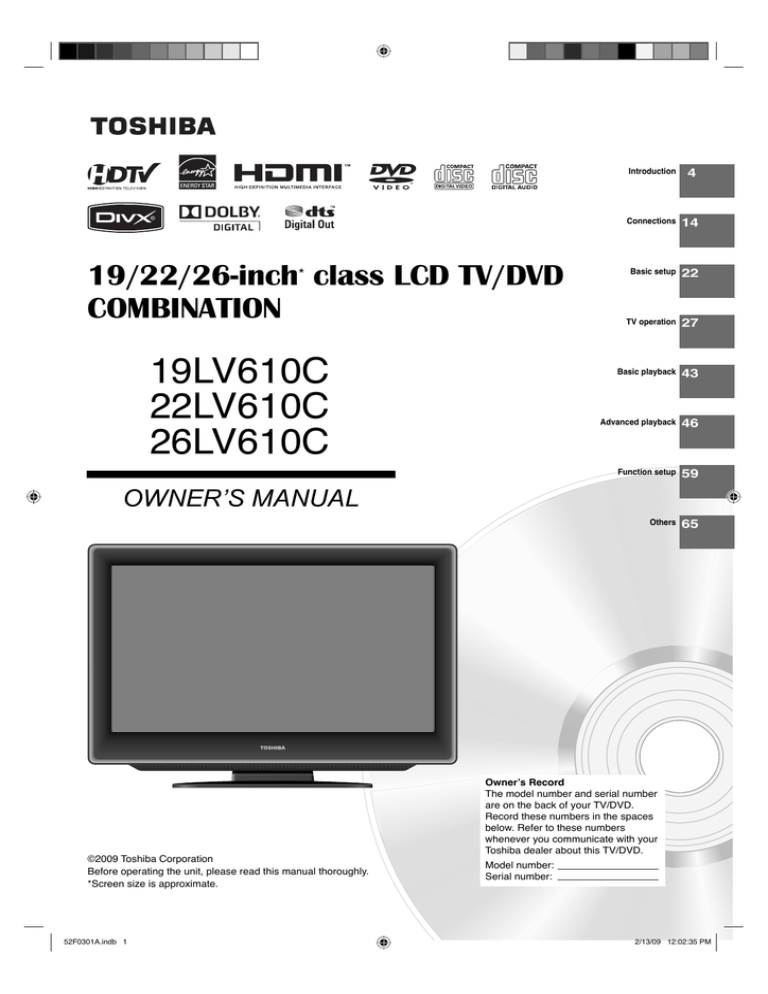

19-22-26LV610C LCD TV?DVD Combintion Television User`s Manual

Introduction 4

Connections 14

19/22/26-inch

class LCD TV/DVD

COMBINATION

19LV610C

22LV610C

26LV610C

OWNER’S MANUAL

Basic setup 22

TV operation 27

Basic playback 43

Advanced playback 46

Function setup 59

Others 65

Before operating the unit, please read this manual thoroughly.

*Screen size is approximate.

Owner’s Record

The model number and serial number are on the back of your TV/DVD.

Record these numbers in the spaces below. Refer to these numbers whenever you communicate with your

Toshiba dealer about this TV/DVD.

Model number:

Serial number:

Introduction

Dear Customer,

Thank you for purchasing this Toshiba LCD TV or TV/DVD

Combination television.

This manual will help you use the many exciting features of your new LCD TV. Before operating your LCD TV or TV/DVD

Combination, please read this manual completely, and keep it nearby for future reference.

• The examples used throughout this manual are based on

the 26LV610C model.

Safety Precautions

WARNING:

TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES

OR OPEN FLAMES AWAY FROM THIS PRODUCT AT

TIMES.

WARNING

R I S K O F E LECTR I C S HOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION:

To reduce the risk of electric shock, do not use the polarized plug with an extension cord, receptacle, or other outlet unless the blades can be inserted completely to prevent blade exposure.

WARNING: If you decide to wall mount this television, always use a UL Listed wall bracket appropriate for the size and weight of this television. The use of any wall bracket other than a UL Listed wall bracket appropriate for the size and weight of this television for wall mounting this television could result in serious bodily injury and/or property damage.

See “Choosing a location for your LCD TV” (Pg.6).

ENERGY STAR ® qualified TV. Products that earn the ENERGY STAR prevent green house gas emissions by meeting strict energy efficiency guidelines set by the U.S. Environmental

Protection Agency and the U.S. Department of

Energy. ENERGY STAR and the ENERGY STAR mark are registered U.S. marks.

NOTE TO CATV INSTALLERS

This is a reminder to call the CATV system installer’s attention to Article 820-40 of the NEC, which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to grounding system of the building, as close to the point of cable entry as practical. For additional antenna grounding information, see item 29 on page 5.

WARNING: Handling the cord on this product or cords associated with accessories sold with this product will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling.

CHILD SAFETY:

It Makes A Difference How and Where You Use Your Flat

Panel Display

Congratulations on your purchase! As you enjoy your new product, please keep these safety tips in mind:

The Issue

• The home theater entertainment experience is a growing trend and larger flat panel displays are popular purchases. However, flat panel displays are not always supported on the proper stands or installed according to the manufacturer’s recommendations.

• Flat panel displays that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests or carts may fall over and cause injury.

TOSHIBA Cares!

• The consumer electronics industry is committed to making home entertainment enjoyable and safe.

Tune Into Safety

• One size does NOT fit all. Follow the manufacturer’s recommendations for the safe installation and use of your flat panel display.

• Carefully read and understand all enclosed instructions for proper use of this product.

• Don’t allow children to climb on or play with furniture and television sets.

• Don’t place flat panel displays on furniture that can easily be used as steps, such as a chest of drawers.

• Remember that children can become excited while watching a program, especially on a “larger than life” flat panel display. Care should be taken to place or install the display where it cannot be pushed, pulled over, or knocked down.

• Care should be taken to route all cords and cables connected to the flat panel display so that they cannot be pulled or grabbed by curious children.

Wall Mounting: If you decide to wall mount your flat panel display, always:

• Use a mount that has been recommended by the display manufacturer and/or listed by an independent laboratory (such as UL, CSA, ETL).

• Follow all instructions supplied by the display and wall mount manufacturers.

• If you have any doubts about your ability to safely install your flat panel display, contact your retailer about professional installation.

• Make sure that the wall where you are mounting the display is appropriate. Some wall mounts are not designed to be mounted to walls with steel studs or old cinder block construction. If you are unsure, contact a professional installer.

• A minimum of two people are required for installation. Flat panel displays can be heavy.

CAUTION:

THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM.

TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ

THIS OWNER'S MANUAL CAREFULLY AND RETAIN FOR

FUTURE REFERENCE. SHOULD THE UNIT REQUIRE

MAINTENANCE, CONTACT AN AUTHORIZED SERVICE

LOCATION.

USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE

OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN

MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

TO PREVENT DIRECT EXPOSURE TO LASER BEAM, NEVER

OPEN THE ENCLOSURE. VISIBLE LASER RADIATION MAY BE

PRESENT WHEN THE ENCLOSURE IS OPENED. NEVER STARE

INTO BEAM.

CLASS 1

LASER PRODUCT

Location of the required Marking

The rating sheet and the safety caution are on the rear of the unit.

CERTIFICATION: COMPLIES WITH FDA RADIATION

PERFORMANCE STANDARDS, 21 CFR SUBCHAPTER J.

COMPLIES WITH FDA PERFORMANCE STANDARDS FOR

LASER PRODUCTS EXCEPT FOR DEVIATIONS PURSUANT TO

LASER NOTICE NO. 50, DATED JUNE 24, 2007.

ON DISPOSAL

The lamp(s) inside this product contain mercury. Disposal may be regulated due to environmental considerations. For disposal or recycling information, contact your local authorities or the

Electronic Industries Alliance (www.eiae.org).

Introduction

SAFETY INSTRUCTIONS

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings.

Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including amplifi ers) that produce heat.

9) Do not defeat the safety purpose of the polarized or

grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.

The wide blade or the third prong

Wide plug are provided for your safety. If the provided plug does not fi t into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specifi ed by the

manufacturer.

12) Use only with the cart, stand, tripod,

bracket, or table specifi ed by the manufacturer, or sold with the

apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning

storms or when unused for long periods of time.

14) Refer all servicing to qualifi ed service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Additional Safety Precautions

14a) CAUTION: If the TV is dropped and the cabinet or enclosure surface has been damaged or the TV does not operate normally, take the following precautions:

• ALWAYS turn off the TV and unplug the power

cord to avoid possible electric shock or fi re.

• NEVER allow your body to come in contact with

any broken glass or liquid from the damaged

television. The LCD panel inside the TV contains

glass and a toxic liquid. If the liquid comes in contact

with your mouth or eyes, or your skin is cut by

broken glass, rinse the affected area thoroughly with

water and consult your doctor.

• ALWAYS contact a service technician to inspect

the TV any time it has been damaged or dropped.

14b) WARNING: To prevent the spread of fi re, keep candles or other open fl ames away from this product at all times.

15) WARNING: NEVER expose batteries to excessive heat such as sunshine, fi re, or the like.

Installation, Care, and Service

Installation

Follow these recommendations and precautions and heed all warnings when installing your TV:

16) To avoid damage to this product, never place or store the TV in direct sunlight; hot, humid areas; or areas subject to excessive dust or vibration.

17) ALWAYS plug the product into an outlet that is located in such a manner that it can be easily unplugged in case the product requires service.

18) NEVER route the product’s power cord inside a wall or similar enclosed area.

19) Never modify this equipment. Changes or modifi cations may void: a) the warranty, and b) the user’s authority to operate this equipment under the rules of the

Federal Communications Commission.

20)

DANGER: RISK OF SERIOUS

PERSONAL INJURY, DEATH, OR

EQUIPMENT DAMAGE! Never place the TV on an unstable cart, stand, or table. The TV may fall, causing serious personal injury, death, or serious damage to the TV.

21) Never place items such as vases, aquariums, or candles on top of the TV.

22) WARNING: Always place the TV on the fl oor or a sturdy, level, stable surface that can support the weight of the unit. To secure

Sturdy tie (as short as possible; min. 4 in.)

Hooks

Clip the TV, use a sturdy strap from the hooks on the rear of the TV pedestal to a wall TV side

Band

TV top

Screw stud, pillar or other immovable structure. Make sure the strap is tight, secure, and parallel to the fl oor.

23) Never expose the apparatus to dripping or splashing liquid or place items such as vases, aquariums, any other item fi lled with liquid, or candles on top of the TV.

24) Never block or cover the slots or openings in the TV cabinet back, bottom, and sides.

Never place the TV:

• too close to drapes, curtains,

or walls; or

• in a confi ned space such as

a bookcase, built-in cabinet,

or any other place with poor ventilation.

The slots and openings are provided to protect the TV from overheating and to help maintain reliable operation of the TV.

Leave a space of at least 4 inches around the TV.

25) Always place the back of the television at least four

(4) inches away from any vertical surface (such as a wall) to allow proper ventilation.

26) Never allow anything to rest on or roll over the power cord, and never place the TV where the power cord is subject to wear or abuse.

SAFETY INSTRUCTIONS

(Continued)

Installation

(cont. from previous page)

27) Never overload wall outlets and extension cords.

28) Always operate the TV with a 120V AC, 60Hz power source only.

CAUTION: To reduce the risk of electric shock, do not use the polarized plug with an extension cord, receptacle, or other outlet unless the blades can be inserted completely with three-wire grounding type to prevent blade exposure.

29) Always make sure the antenna system is properly grounded to provide adequate protection against voltage surges and built-up static charges (see

Section 810 of the National Electric Code.)

Ground clamp

Electric service equipment

Power service grounding electrode system

(NEC Art 250 Part H)

Antenna lead-in wire

Antenna discharge unit

(NEC Section 810-20)

Grounding conductors

(NEC Section 810-21)

Ground clamps

30)

DANGER: RISK OF SERIOUS

PERSONAL INJURY OR DEATH!

• Use extreme care to make sure you are never in a position where your body

(or any item you are in contact with, accidentally touch overhead power lines.

Never locate the antenna near overhead power lines or other electrical circuits.

wires, or any home theater component

Care

For better performance and safer operation of your

TOSHIBA TV, follow these recommendations and precautions:

31) Always unplug the TV before cleaning.

Wipe the display panel surface gently using only a soft cloth (supplied.) A hard cloth may damage the surface of the panel. Avoid contact with alcohol, thinner, benzene, acidic or and alkaline solvent cleaners, abrasive cleaners, or chemical cloths, which may damage the surface. Never spray volatile compounds such as insecticide on the cabinet. Such products may damage or discolor the cabinet.

32)

WARNING: RISK OF ELECTRIC SHOCK!

Never spill liquids or push objects of any kind into the TV cabinet slots.

Care

(cont. from previous column)

33) While it is thundering, do not touch the connecting cables or apparatus.

34) For added protection of your TV from lightning and power surges, always unplug the power cord and disconnect the antenna from the TV if you leave the

TV unattended or unused for long periods of time.

35) ALWAYS unplug the TV to completely disconnect from mains power. When the TV is turned off using the on/off switch, it is not completely disconnected from power and a minute amount of current is still

consumed.

36) During normal use, the TV may make occasional snapping or popping sounds. This is normal, especially when the unit is being turned on or off.

If these sounds become frequent or continuous, unplug the power cord and contact a Toshiba

Authorized Service Center.

37) Keep your fi ngers well clear of the disc slot as it is closing.

Failure to do so may cause serious personal injury.

38) When you use headphones, keep the volume at a moderate level. Using headphones continuously at a high volume may cause hearing damage.

39) NEVER look directly into the disc slot or ventilation slots at the source of the laser beam. Doing so may cause sight damage.

40) NEVER use a cracked, deformed, or repaired disc.

Such discs are easily broken and may cause serious personal injury or product damage. SUCH DAMAGE

IS NOT COVERED UNDER YOUR WARRANTY.

41) WARNING: RISK OF SERIOUS PERSONAL

INJURY OR EQUIPMENT DAMAGE!

• Never strike the screen with a sharp or heavy object.

• Never touch, press, or place anything on the

LCD screen. These actions will damage the LCD

screen If you need to clean the LCD screen,

follow the instructions in item 31 on this page.

Service

42)

WARNING: RISK OF ELECTRIC

SHOCK! Never attempt to service

the TV yourself.

Opening and removing the covers may expose you to dangerous voltage or other hazards. Failure to follow this WARNING may result in death or serious injury.

Refer all servicing to a Toshiba Authorized

Service Center.

43) If you have the TV serviced:

Ask the service technician to use only replacement

• Upon completion of service, ask the service

technician to perform routine safety checks to

determine that the TV is in safe operating condition.

44) When the TV reaches the end of its useful life, ask a qualifi ed service technician to properly dispose of the TV.

Introduction

Precautions

Choosing a location for your LCD TV

■ Retractable pedestal stand and locating the LCD TV

Observe the following safety precautions:

1) Ensure that unpacking and transfer of the unit is carried out by two or more people.

2) Put the LCD TV on a large level area in a recumbent posture.

3) Grab the pedestal stand and lift the display up. Confi rm the pivot is locked.

4) Place the TV on a sturdy, level surface that can support the weight of the TV.

5) Be sure to secure the TV to a wall stud, pillar, surface, or other immovable structure. To secure the TV in this manner:

(1) attach a clip to an immovable structure, then (2) pass a sturdy strap through the clip and attach each end to the hooks located at the back of the TV. Be sure to leave at least 4 inches between the TV and the wall or similar structure for ventilation. See item

25, page 4 for additional details.

■ To fold the pedestal stand

1) Slide the lever on the back side of the pedestal stand to the left.

2) Lay the display down.

Slide the lever to the left

Important notes about your LCD TV

The following symptoms are technical limitations of LCD

Display technology and are not an indication of malfunction; therefore, Toshiba is not responsible for perceived defects resulting from these symptoms.

1) An after image (ghost) may appear on the screen if a fi xed, non-moving image is displayed for a long period of time.

The after image is not permanent and will disappear in a short period of time.

2) The LCD panel contained in this TV is manufactured using an extremely high level of precision technology; however, there may be an occasional pixel (dot of light) that does not operate properly

(does not light, remains constantly lit, etc.). This is a structural property of LCD technology, is not a sign of malfunction, and is not covered under your warranty. Such pixels are not visible when the picture is viewed from a normal viewing distance.

Note: Interactive video games that involve shooting a “gun” type of joystick at an on-screen target may not work on this TV.

Notes on handling

■ Do not subject the LCD panel to physical shock, such as dropping it. It may cause unit damage and malfunction.

■ When shipping the unit, the original shipping carton and packing materials come in handy. For fully protection, repack the unit as it was originally packed at the factory.

■ Do not use volatile liquids, such as insecticide, near the unit.

■ Do not leave rubber or plastic products in contact with the unit for prolonged periods of time.

Doing so will leave marks on the fi nish.

■ The top and rear panels of the unit may become warm after a long period of use. This is not a malfunction.

■ When the unit is not in use, always remove the disc and turn off

Back side of the pedestal stand

NOTE: Do not operate the LCD TV while the pedestal stand

■ To Display your LCD TV using a Wall Bracket:

If you decide to wall mount your LCD TV, always use a UL Listed wall bracket appropriate for the size and weight of the LCD TV (see page 2):

1) CAUTION: Two people are required for installation.

2) Unplug and remove any cables and/or other component connectors from the rear of the TV.

3) Follow the instructions provided with your wall bracket.

Before proceeding, make sure the appropriate bracket(s) are attached to the wall and the back of the TV as described in the instructions provided with the wall bracket.

4) After attaching the appropriate bracket(s) to the wall and the back of the TV, remove the pedestal stand from the TV as described

below.

■ Removing the Pedestal Stand

1) Carefully lay the front of the unit face down on a fl at, cushioned surface such as a quilt or blanket. Leave the stand protruding over the edge of the surface.

NOTE: Extreme care should always be used when removing the pedestal stand to avoid damage to the LCD panel.

2) Remove the two screws shown in the diagram below.

This will allow removal of the pedestal stand.

3) Once you have removed all two screws holding the pedestal stand in place, remove the pedestal stand from the TV by sliding the pedestal stand away from the TV.

Notes on locating the unit

■ When you place this unit near a TV, radio, or VCR, the playback picture may become poor and the sound may be distorted. In this case, place the unit away from the TV, radio, or VCR.

■ To avoid damage to this product, never place or store the

TV/DVD in direct sunlight; hot, humid areas; or areas subject to excessive dust or vibration.

■ The socket-outlet must be installed near the unit and easily accessible.

Two screws

Precautions (Continued)/Notes on discs

Notes on moisture condensation

Moisture condensation damages the unit. Please read the following carefully.

Moisture condensation occurs, for example, when you pour a cold drink into a glass on a warm day and drops of water form on the outside of the glass. In the same way, moisture may condense on this unit’s internal optical pick-up lens, one of the most crucial internal parts of the unit.

Exam ple of moisture condensation!

On handling discs

Do not touch the playback side of the disc.

For example, handle the disc so that it is shown in fi gure below.

Do not attach paper or tape to discs.

Playback side

Optical pick-up lens

■ Moisture condensation may occur in the following

situations:

When you move the unit from a cold area to a warm area.

When you use the unit in a room in which the heat was just turned on.

When you use the unit in an area where cold air from an air conditioner directly hits the unit.

When you use the unit in a humid area.

On cleaning discs

Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the center outwards with a soft cloth. Always keep the disc clean.

■ Never use the unit when moisture condensation

Using the unit when moisture condensation exists may damage discs and internal parts. Connect the power cord of the unit to the wall outlet, turn on the unit, remove the disc, and leave it for two or three hours.

After two or three hours, the unit will have warmed up and evaporated any moisture. Leaving the TV connected to the wall outlet will help prevent moisture condensation in the TV or DVD Player.

Do not use any type of solvent such as thinner, benzine, commercially available cleaners or antistatic spray for vinyl LPs. It may damage the disc.

On storing discs

Do not store discs in a place subject to direct sunlight or near heat sources.

Do not store discs in places subject to moisture and dust such as a bathroom or near a humidifi er.

Store discs vertically in a case. Stacking or placing objects on discs outside of their case may cause warping.

Structure of disc contents

Normally, DVD video discs are divided into titles, and the titles are sub-divided into chapters. Video CDs and

Audio CDs are divided into tracks.

DVD video disc

Title 1

Chapter 1 Chapter 2

Title 2

Chapter 1 Chapter 2 Chapter 3

Video CD/Audio CD

Track 1 Track 2 Track 3 Track 4 Track 5

Wait!

Wall outlet

Each title, chapter or track is assigned a number, which is called “title number”, “chapter number” or “track number” respectively.

There may be discs that do not have these numbers.

Introduction

Notes on discs (Continued)

Notes on copyright

The unauthorized recording, use, distribution, or revision of copyrighted materials including, without limitation, television programs, videotapes, and DVDs, is prohibited under the Copyright Laws of the United States and other countries, and may subject you to civil and criminal liability.

About this owner’s manual

This owner’s manual explains the basic instructions of this unit. Some DVD video discs are produced in a manner that allows specifi c or limited operation during playback. As such, the unit may not respond to all operating command.

This is not a defect in the unit. Refer to instruction notes of discs.

The following symbol may appear on the TV screen during operation.

It means that the operation is not permitted by the TV/DVD or the disc.

For example, sometimes it is unable to stop the playback of copyright message of the disc when the STOP (■) button is pressed. Alternatively, this symbol may also indicate that the feature is not available for the disc.

Notes on region numbers

The region number of this unit is 1. If region numbers, which stand for their playable area, are printed on your

DVD video disc and you do not fi nd

ALL

, disc playback will not be allowed by the player. (In this case, the unit will display a message on-screen.)

Some DVDs that have no region code label may still be subject to area restrictions and therefore not playable.

On Video CDs

This unit supports Video CDs equipped with the PBC

(Version 2.0) function. (PBC is the abbreviation of

Playback Control.) You can enjoy two playback variations depending on types of discs.

• Video CD not equipped with PBC function (Version 1.1)

Sound and movie can be played on this unit in the same way as a DVD.

• Video CD equipped with PBC function (Version 2.0)

In addition to operation of a Video CD not equipped with the PBC function, you can enjoy playback of interactive software with search function by using the menu displayed on the TV screen (Menu Playback). Some of the functions described in this owner’s manual may not work with some discs.

Playable discs

This unit can play the following discs.

DVD video discs

Disc Mark Contents

Audio

Video

(moving pictures)

Disc

Size

12 cm

8 cm

Maximum playback time

Approx. 4 hours

(single sided disc)

Approx. 8 hours

(double sided disc)

Approx. 80 minutes

(single sided disc)

Approx. 160 minutes

(double sided disc)

Video

CDs

DIGITAL VIDEO

Audio

Video

(moving pictures)

12 cm

8 cm

Approx. 74 minutes

(single sided disc)

Approx. 20 minutes

(single sided disc)

Audio

CDs

Audio

12 cm

8 cm

Approx. 74 minutes

(single sided disc)

Approx. 20 minutes

(single sided disc)

DivX ®

Audio

Video

(moving pictures)

12 cm

8 cm

It depends on DivX ® quality

The following discs are also available.

DVD-R/RW discs of DVD video format

CD-R/CD-RW discs of CD-DA, Video CD, MP3, WMA,

JPEG or DivX ® format

Kodak Picture CD and FUJICOLOR CD format

Some of these discs may be incompatible.

• You cannot play discs other than those listed above.

• You cannot play discs of DVD-RAM, DVD-ROM, CD-

ROM, Photo CD, etc., or non standardized discs even

if they may be labeled as above.

• Some CD-R/RWs cannot be played back depending

on the recording conditions.

• This unit uses the NTSC color system, and cannot

play DVD video discs recorded in any other color

system (PAL, SECAM, etc.).

• This unit can play an 8cm disc. Please do not use a

disc adapter. It may cause trouble.

• Please do not insert any disc of an irregular shape into

the unit, as it may interfere with the function of the unit.

You may not be able to remove it.

• Please do not use after market accessories, such as a

ring protector, as this may cause trouble with the

operation of the unit.

Because of problems and errors that can occur during the creation of DVD and CD Software and/or the manufacture of DVD and CD discs, Toshiba cannot assure that the

DVD player contained in this TV will successfully play every disc bearing the DVD and CD logos.

If you happen to experience any diffi culty playing a DVD and/or CD disc on the DVD player contained in this TV, please contact Toshiba Customer Service.

is a trademark of DVD Format/Logo Licensing

Corporation.

Introduction

SAFETY INSTRUCTIONS .................................4

Precautions........................................................6

Notes on discs ...................................................7

Contents ............................................................9

Identifi cation of controls ..................................10

Connections

Antenna connections ...................................... 14

Cable TV connections .................................... 15

Connecting to optional equipment .................. 16

Power source.................................................. 21

Basic setup

Auto Setup ...................................................... 22

Setting the language....................................... 23

To memorize channels.................................... 24

TV operation

TV operation ................................................... 27

Labeling channels........................................... 29

Labeling video inputs ...................................... 30

Setting the closed captions............................. 31

CC advanced .................................................. 32

Adjusting the picture preference ..................... 33

Picture settings ............................................... 33

Viewing the wide-screen picture formats ........ 34

Film Mode ....................................................... 35

DNR ................................................................ 35

Picture control adjustment in the PC mode .... 36

Sound control adjustment ............................... 37

Selecting Stereo/Second Audio Program (SAP) .... 37

Selecting the audio language ......................... 38

Selecting the HDMI audio input source .......... 38

Using the aspect feature................................. 39

Turning off the built-in speakers

(26LV610C only) ............................................. 40

Checking the Digital-signal strength ............... 40

Setting the Logo Light..................................... 41

Setting the Auto Shut Off ................................ 41

Resetting your settings ................................... 42

Basic playback

Playing a disc ................................................. 43

Advanced playback

Zooming.......................................................... 46

Locating desired scene................................... 46

Marking desired scenes.................................. 47

Repeat playback ............................................. 48

A-B Repeat playback ...................................... 48

Program playback........................................... 49

Random playback ........................................... 49

Changing angles..............................................50

Title selection ...................................................50

DVD menu .......................................................50

Changing soundtrack language .......................51

Subtitles ...........................................................51

Disc status .......................................................52

To turn off the PBC ..........................................52

MP3/WMA/JPEG/DivX ® and Audio CD operation ..................................53

Repeat, random and program playback using fi le browser.............................................57

Function setup

Customizing the function settings ....................59

Temporary cancel the rating level by DVD disc .....................................................64

Others

Understanding the Power Return feature ........65

Troubleshooting ...............................................65

Reception disturbances ...................................67

Language code list ..........................................68

Specifi cations ..................................................69

Limited Canadian Warranty .............................70

Introduction

Identification of controls

Front

Speaker

Remote sensor

POWER indicator

Side

Left Side

Disc slot

EJECT button

Adjusting the angle of the base

(except 26LV610C)

Approx. 10°

Approx. 3°

VOLUME (+/–) buttons

CHANNEL

PLAY button

CHANNEL

■ STOP button

MENU button

23 59

INPUT/ENTER button

POWER button

You can adjust the angle of the

TV-screen for 3° forward or for 10° backward from vertical angle.

Hold the base of the

TV while adjusting the angle.

Rear

AC INPUT COVER

(19LV610C only)

AC INPUT

HEAD PHONE jack

COLORSTREAM HD/AUDIO IN jacks

S-VIDEO/VIDEO/AUDIO IN jacks

Antenna jack

14 15

COAXIAL DIGITAL AUDIO

OUT jack

18 19

HDMI IN jack

PC AUDIO IN jack

19 20

PC MONITOR IN jack

Illustration of 19LV610C/

22LV610C

AUDIO OUT (L/R) jacks

PC IN jack

COAXIAL DIGITAL AUDIO

OUT jack

18 19

AC INPUT

Antenna jack

14 15

HDMI 1 IN jack

COLORSTREAM HD IN jacks

HDMI 2 IN jack

VIDEO IN jacks

16 17

HDMI 1/PC AUDIO IN jack

19 20

S-VIDEO IN jack

AUDIO IN (L/R) jacks

16 17

Illustration of 26LV610C

Introduction

Identification of controls (Continued)

Remote control

The instructions in this manual describe the function on the remote control. See the page in for details.

EJECT button

TV/DVD button

Direct channel selection buttons (0-9)

Numbered buttons (0-9)

DISPLAY button

28 52

CH / button

SUBTITLE button

INPUT button

ZOOM button

PLAY MODE button

48 49 52

PLAY button

MENU button

SETUP button

PAUSE button

CH RTN button

SKIP ( ) button

REV button

FF button

SLOW ( ) button

TOP MENU button

RETURN button

54 59

GAME button

POWER button

SLEEP button

JUMP button

Direct channel selection button ( )

AUDIO SELECT button

VOL +/– button

MUTE button

*DVD MENU button

ENTER button

Direction buttons ( / / / )

EXIT/CANCEL button

STOP button

CLOSED CAPTION button

SKIP ( )button

SLOW ( ) button

MARKER button

ANGLE button

REPEAT A-B button

PIC SIZE button

*DVD MENU button

Use the DVD MENU button to display the menu included on many DVD video discs.

To operate a menu, follow the instructions in “DVD menu.”

Inserting batteries

Open the battery compartment cover in the direction of the arrow.

Install two “R03/AAA” batteries

(supplied), paying attention to the polarity indicated in the battery compartment.

Replace the compartment cover.

Operation

• Aim the remote control at the remote sensor and press control buttons to operate.

• Operate the remote control within 30° angle on either side of the remote sensor, up to a distance of approx. 5 meters.

Approx. 5 meters

Caution:

• Never throw batteries into a fi re.

Note:

•

Be sure to use AAA size batteries.

• Dispose of batteries in a designated disposal area.

• Batteries should always be disposed of with the environment in mind. Always dispose of batteries in accordance with applicable laws and regulations.

• If the remote control does not operate correctly, or if the operating range becomes reduced, replace batteries with new ones.

• When necessary to replace batteries in the remote control, always replace both batteries with new ones.

Never mix battery types or use new and used batteries in combination.

• Always remove batteries from remote control if they are dead or if the remote control is not to be used for an extended period of time. This will prevent battery acid from leaking into the battery compartment.

Connections

Antenna connections

If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your antenna system.

If you are using a cable TV service (CABLE), see page

for Cable TV connections.

Combination VHF/UHF antenna (Single 75 ohm cable or 300 ohm twin-lead wire)

Antenna jack

75 ohm coaxial cable

(not supplied)

300-75 ohm matching transformer (not supplied)

Connect the 75 ohm cable from the combination

VHF/UHF antenna to the antenna jack on the back of the TV/DVD.

If your combination VHF/UHF antenna has a 300 ohm twin-lead wire, use the 300-75 ohm matching transformer (not supplied).

Combination VHF/UHF antenna (Separate VHF and UHF 300 ohm twin-lead wires)

Antenna jack

300-75 ohm matching transformer (not supplied)

Connect the UHF 300 ohm twin-lead wire to the combiner (not supplied). Connect the VHF 300 ohm twin-lead wire to the 300-75 ohm matching transformer

(not supplied). Attach the transformer to the combiner, then attach the combiner to the antenna jack on the back of the TV/DVD.

Combiner

(not supplied)

UHF 300 ohm twin-lead wire

(not supplied)

VHF 300 ohm twin-lead wire

(not supplied)

Separate VHF/UHF antennas (75 ohm VHF cable and 300 ohm UHF twin-lead wires)

Antenna jack

Connect the VHF 75 ohm cable and UHF 300 ohm twin-lead wire to the combiner (not supplied).

Attach the combiner to the antenna jack on the back of the TV/DVD.

VHF 75 ohm

(not supplied)

Combiner

(not supplied)

UHF 300 ohm twin-lead wire

(not supplied)

Cable TV connections

This TV/DVD has an extended tuning range and can tune most cable channels without using a Cable TV converter box.

Some cable companies offer “premium pay channels” in which the signal is scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device which is generally provided by the cable company.

For subscribers to basic cable TV service

Antenna jack

For basic cable service not requiring a converter/descrambler box, connect the Cable TV 75 ohm coaxial cable directly to the

Antenna jack on the back of the TV/DVD.

75 ohm coaxial cable

For subscribers to scrambled cable TV service

If you subscribe to a cable TV service which requires the use of a converter/descrambler box, connect the incoming 75 ohm coaxial cable to the converter/descrambler box. Using another 75 ohm coaxial cable, connect the output jack of the converter/descrambler box to the antenna jack on the TV/DVD. Follow the connections shown below. Set the TV/DVD to the output channel of the converter/descrambler box (usually channel 3 or 4) and use the converter/descrambler box to select channels.

Incoming 75 ohm

Cable TV

Converter/ descrambler

75 ohm cable to

TV/DVD

Antenna jack

For subscribers to unscrambled basic cable TV service with scrambled premium channels

If you subscribe to a cable TV service in which basic channels are unscrambled and premium channels require the use of a converter/descrambler box, you may wish to use a signal splitter and an A/B Switch box (available from the cable company or an electronics supply store). Follow the connections shown below. With the switch in the “B” position, you can directly tune any nonscrambled channels on your TV/DVD. With the switch in the “A” position, tune your TV/DVD to the output of the converter/descrambler box (usually channel 3 or 4) and use the converter/descrambler box to tune scrambled channels.

Incoming

75 ohm

Cable TV

Splitter

Converter/ descrambler

A/B switch

75 ohm cable to TV/DVD

Antenna jack

Connections

Connecting to optional equipment

You can enjoy VCR, camcorder or TV game with connection to external input.

0-7

INPUT

GAME

Using the audio/video inputs

Press INPUT to view a signal from another device connected to your TV/

DVD, such as a VCR player. You can select TV, Video (Video1, 2),

ColorStream HD, HDMI (HDMI1, 2) or PC depending on which input jacks you used to connect your devices.

Press INPUT on the remote control to display the current signal source.

To change the input source, press INPUT again or press Number buttons.

Connecting to a VCR

To playback from the VCR, connect the VCR to the TV/DVD as shown.

Select the “Video” (“Video1”) by pressing INPUT repeatedly.

: Signal fl ow

VCR

(yellow)

(white)

(red)

To Audio/Video OUT

Audio/Video cable (not supplied)

Source Selection

0.TV

1.Video

2.ColorStream HD

3.HDMI

4.PC

5.DVD

[0-5]:Select

Back side

Source Selection

0.TV

1.Video1

2.Video2

3.ColorStream HD

4.HDMI1

5.HDMI2

6.PC

7.DVD

[0-7]:Select

(26LV610C only)

To AUDIO/VIDEO IN

Connecting to a camcorder

To playback from the camcorder, connect the camcorder to the TV/DVD as shown.

Select the “Video” (“Video1”) by pressing INPUT repeatedly.

Back side

: Signal fl ow

Camcorder

(yellow)

(white)

To Audio/Video OUT

(red)

Audio/Video cable (not supplied)

To AUDIO/VIDEO IN

Connecting to a Game Console

You can enjoy playing a TV game on the screen by adjusting to the suitable brightness for your eyes.

1. Connect a Game Console to the TV/DVD.

2. Select Game mode by pressing GAME. The Game mode screen appears.

• If GAME is pressed during standby mode, the unit turns on automatically and the Game mode screen

appears on the screen.

Back side

: Signal fl ow

Game Console

(yellow)

(white)

(red)

To Audio/Video OUT

To AUDIO/VIDEO IN

Audio/Video cable (not supplied)

Note:

• The TV/DVD can also be used as a display device for many video games. However, due to the wide variety of different types of signal generated by these devices and subsequent hook-up variations required, they have not all been included in the suggested connection diagrams. You’ll need to consult each component’s Owner’s Manual for additional information.

• Interactive video games that involve shooting a “gun” type of joystick at on-screen target may not work on this

TV/DVD.

Connecting to an optional equipment with S-video output

If you connect a VCR with an S-Video cable to the S-VIDEO IN jack on the rear of the TV/DVD, you must also connect the audio cables to the AUDIO IN jacks as shown below. The S-Video cable only carries the video signal. The audio signal is separated.

Select the “Video” (“Video1”) by pressing INPUT repeatedly.

: Signal fl ow

Ex. VCR with S-Video

Back side

(playback)

(white)

(red)

To S-VIDEO OUT

To Audio (L/R) OUT

Audio cable (not supplied)

S-Video cable (not supplied)

To AUDIO (L/R) IN

To S-VIDEO IN

•

Note:

When the S-Video cable and the standard video cable are connected at the same time, the S-video cable takes precedence.

Connecting an optional equipment with ColorStream

(Component video) output

Your TV/DVD is capable of using ColorStream ® (component video). Connecting your TV/DVD to a component video compatible DVD player, such as a Toshiba DVD player with ColorStream ® can greatly enhance picture quality and performance.

Select the “ColorStream HD” by pressing INPUT repeatedly.

Ex. DVD player with Component video

: Signal fl ow

To COLORSTREAM HD

(Y, Pb, Pr) IN

Back side

To Audio (L/R) OUT

To Component Video OUT

Component video cable

(not supplied)

Audio cable (not supplied)

(red)

(white)

To COLORSTREAM

HD AUDIO (L/R) IN

When using the Component video cable, an Audio cable must be connected to

COLORSTREAM HD AUDIO(L/R) IN jacks.

Note:

• The ColorStream ® (component video) inputs on this unit are for use with devices that output 480i, 1080i interlaced signals and 480p, 720p progressive signals.

• Refer to the owner’s manual of the connected equipment as well.

• When you connect the unit to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections.

• If you place the unit near a tuner or radio, the radio broadcast sound might be distorted. In this case, place the unit away from the tuner and radio.

Connections

Connecting to optional equipment (Continued)

You can enjoy high quality dynamic sounds by connecting the

TV/DVD to optional audio equipment.

* This section uses the following reference mark.

: Front speaker

: Rear speaker

: Sub woofer

: Center speaker

: Signal fl ow

Connecting to an amplifi er equipped with a Dolby

Digital decoder

Dolby Digital

Dolby Digital is the surround sound technology used in theaters showing the latest movies, and is now available to reproduce this realistic effect in the home. You can enjoy motion picture and live concert DVD video discs encoded via the Dolby Digital recording system with this dynamic realistic sound by connecting the TV/DVD to a 6 channel amplifi er equipped with a Dolby

Digital decoder or Dolby Digital processor. If you have a Dolby Surround Pro Logic decoder, you will obtain the full benefi t of

Pro Logic from the same DVD movies that provide full 5.1-channel Dolby Digital soundtracks, as well as from titles with the

Dolby Surround mark.

Back side

To COAXIAL DIGITAL

AUDIO OUT

Amplifi er equipped with a

Dolby Digital decoder

To COAXIAL type digital audio input

75 Ω coaxial cable (not supplied)

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby

Laboratories.

Connecting to an amplifi er equipped with a DTS

decoder

Digital Theater Systems (DTS)

DTS is a high quality surround technology used in theaters and now available for home use, on DVD video discs or audio CDs.

If you have a DTS decoder or processor, you can obtain the full benefi t of 5.1 channel DTS encoded sound tracks on DVD video discs or audio CDs.

Back side

Amplifi er equipped with a DTS decoder

To COAXIAL type digital audio input

coaxial cable (not supplied)

To COAXIAL DIGITAL

AUDIO OUT

Manufactured under license under U.S. Patent #: 5,451,942 & other U.S. and worldwide patents issued & pending. DTS and DTS Digital Out are registered trademarks and the

DTS logos and Symbol are trademarks of DTS, Inc.

Reserved.

Connecting to an amplifi er equipped with an MPEG audio decoder

MPEG2 sound

You can enjoy motion picture and live concert DVD video discs encoded via the MPEG2 recording system with dynamic realistic sound by connecting an amplifi er equipped with an MPEG2 audio decoder or MPEG2 audio processor.

Back side

To COAXIAL DIGITAL

AUDIO OUT

Amplifi er equipped with an

MPEG2 audio decoder

To COAXIAL type digital audio input

coaxial cable (not supplied)

Connecting to an amplifi er equipped with a digital audio input

2 channel digital stereo

You can enjoy the dynamic sound of 2 channel digital stereo by connecting an amplifi er equipped with a digital audio input and speaker system (right and left front speakers).

Note: PCM audio is limited to DVD or CD playback.

Back side

Amplifi er equipped with a

Digital audio input

To COAXIAL DIGITAL

AUDIO OUT

To COAXIAL type digital audio input

coaxial cable (not supplied)

Note:

• DO NOT connect the COAXIAL DIGITAL AUDIO OUT jack of the TV/DVD to the AC-3 RF input of a Dolby Digital Receiver.

This input on your A/V Receiver is reserved for Laserdisc use only and is incompatible with the COAXIAL DIGITAL AUDIO OUT jack

• Connect the COAXIAL DIGITAL AUDIO OUT jack of the TV/DVD to the “COAXIAL” input of a Receiver or Processor.

• Refer to the owner’s manual of the connected equipment as well.

• When you connect the TV/DVD to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet

before making any connections.

• The output sound of the TV/DVD has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening level.

Otherwise, the speakers and your hearing may be damaged by a sudden high volume sound.

• Turn off the amplifi er before you connect or disconnect the TV/DVD’s power cord. If you leave the amplifi er’s power on, the speakers

may be damaged.

Connecting to an HDMI or a DVI device

About HDMI

HDMI (High Defi nition Multimedia Interface) supports both video and audio on a single digital connection for use with DVD players,

DTV, set-top boxes, and other AV devices. HDMI was developed to provide the technologies of High Bandwidth Digital Content

Protection (HDCP) as well as Digital Visual Interface (DVI) in one specifi cation. HDCP is used to protect digital content transmitted and received by DVI-compliant or HDMI-compliant displays.

HDMI has the capability to support standard, enhanced, or highdefi nition video plus standard to multi-channel surround-sound audio. HDMI features include uncompressed digital video, a bandwidth of up to 2.2 gigabytes per second (with HDTV signals), one connector (instead of several cables and connectors), and communication between the AV source and AV devices such as

DTVs.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC.

Back side

To DVI output

Audio cord (not supplied)

DVI device

HDMI device or

To HDMI out

HDMI - to - DVI adapter cable

(HDMI type A connector)

(not supplied)

HDMI cable (type A connector)

(not supplied)

To HDMI 1/PC

AUDIO IN

To HDMI IN

•

Note:

You must select the corresponding audio input source (HDMI or DVI) on the menu screen (see ”Selecting the HDMI1 audio input source” on page

). Otherwise you will only see the image with no sound.

When you connect the HDMI to a DVI device with a HDMI-to-DVI adapter cable, it only transfers the video signal, so it is necessary to use separate analogue leads to transfer the audio signals.

The HDMI-2-connection has no analogue audio input. If you want to connect a DVI appliance to it, you will not hear a sound through the TV loud speakers. If you want to hear the sound of a DVI appliance through the TV loud speakers then connect the DVI appliance to HDMI-1. (26LV610C only)

Connecting to optional equipment (Continued)

Connecting an analog audio system (26LV610C only)

This connection allows you to use external speakers with an external audio amplifier to adjust the sound level.

To control the audio:

Turn on the TV and the stereo amplifier.

Turn off the TV’s built-in speakers (see “Turning off the built-in speakers” on page

Note: To hear sound when using an external audio amplifier, the volume of both the TV and the amplifier must be set to a reasonable listening level.

Back side

To AUDIO OUT (L/R)

Analog audio amplifi er

To AUDIO IN

Connecting to a PC (Personal Computer)

Before you connect this TV/DVD to your PC, change the adjustment of your PC’s Resolution and Refresh rate (60 Hz).

Connect one end of a (male to male) VGA cable to the video card of the computer and the other end to the VGA connector PC

MONITOR on the rear of the TV/DVD. Attach the connectors firmly with the screws on the plug. In case of a Multimedia computer, connect the audio cord to the audio output of your Multimedia computer and to the AUDIO connector of the PC AUDIO IN jack of the TV/DVD. You can also connect the PC with HDMI cable. If you use HDMI cable, you don’t have to connect the audio cord. If you use HDMI-to-DVI cable, please connect audio cord as same way as VGA cable.

Select “PC” by pressing INPUT repeatedly (When you use HDMI cable, Select “HDMI”).

Switch on the computer. The TV/DVD can operate as the computer monitor

Back side

To PC IN

VGA cable (not supplied)

Audio cord (not supplied)

To HDMI 1/PC AUDIO IN or

Monitor Display modes

MODE Resolution

VGA 640x480

VGA 720x400

SVGA

XGA

800x600

1024x768

WXGA 1280x768

WXGA 1280x720

WXGA 1360x768

To return to normal mode

Press INPUT again.

60/72/75Hz

70Hz

56/60/72/75Hz

60/70/75Hz

60Hz

To HDMI IN

HDMI-to-DVI adapter cable (not supplied)

•

Note:

The on-screen displays will have a different appearance in PC mode than in TV mode.

If there is no video signal from the PC when the unit is in PC mode, “No signal” will appear on the TV/DVD-screen.

Power source

To use AC power source

Connect the AC cord plug into this TV/DVD’s AC INPUT jack.

Connect the AC cord into an AC outlet.

Wider Hole and Blade

AC Outlet

AC 120V, 60Hz

AC cord (supplied)

•

Note:

Never connect the AC line cord plug to other than the specified voltage (120V 60Hz). Use the attached power cord only.

If the polarized AC cord does not fit into a non-polarized AC outlet, do not attempt to file or cut the blade. It is the user’s responsibility to have an electrician replace the obsolete outlet.

•

If you cause a static discharge when touching the unit and the unit fails to function, simply unplug the unit from the AC outlet and plug it back in. The unit should return to normal operation.

If the AC cord plug is plugged in for the first time, wait for approx. 5 seconds before pressing POWER.

Basic setup

Auto Setup

The Auto Setup function helps to install your TV/DVD easily.

It leads you the Language selection, Air/Cable selection and Automatic channel search.

IMPORTANT: Make sure that the antenna or cable TV system connection is made!

POWER

ENTER

/ / /

EXIT/CANCEL

Auto Setup

•

To turn on the TV/DVD, press POWER.

POWER indicator on the front of the unit changes green. It may take approx. 10 seconds for a picture to appear on screen.

Auto Setup menu appears on the screen.

Press ▲ or ▼ to select “Language”, then press ◀ or ▶ to select your desired language.

Auto Setup

Language

Signal Type

Automatic Search

English

Cable

Start

: Select : Adjust

Press ▲ or ▼ to select “Signal Type”, then press ◀ or ▶ to select “Air” or “Cable”.

Auto Setup

Language

Signal Type

Automatic Search

English

Cable

Start

Now the “Automatic Search” starts.

Auto Setup

Language

Signal Type

Automatic Search

English

Cable

Start

Analog Channel Found : 0

Digital Channel Found : 0

Programming Now

EXIT : End

•

If you press EXIT/CANCEL, the Automatic

Search stops and changes to the TV screen.

After the starting setup is completed, the TV channel appears on the screen.

•

Note:

The Auto Setup function will work only when you press POWER for the first time.

The process of “Automatic Search” may take 15 to

30 minutes to complete, depending on your regional cable service.

: Select : Adjust

Air - VHF/UHF channels

Cable - Cable TV channels

Press

▲ or ▼ to select “Automatic Search”, then press

▶ or ENTER.

Auto Setup

Language

Signal Type

Automatic Search

English

Cable

Start

: Select ENTER:Set

Setting the language

This TV/DVD can display the on screen language in English, French or

Spanish.

Select the language you prefer fi rst, then proceed with the other menu options.

POWER

ENTER

/ / /

EXIT/CANCEL

Setting the language

•

To turn on the TV/DVD, press POWER.

POWER indicator on the front of the unit changes green. It may take approx. 10 seconds for a picture to appear on screen.

Press ◀ or ▶ to select the desired language:

English, French (Français) or Spanish

(Español).

Press MENU. The TV menu screen will appear. Press ▲ or ▼ to select “Setup”, then press ▶ or ENTER.

Main Menu


Audio

Channel

Setup

: Select ENTER:Set

Press ▲ or ▼ to select “Language”.

Setup

Closed Caption

Language

Video Label

Auto Shut Off

Aspect

TOSHIBA Logo Light

Reset

: Select

: Adjust

English

Off

Press EXIT/CANCEL to return to the normal screen.

•

Note:

If no buttons are pressed for more than about 60 seconds, the MENU screen will return to normal operation automatically.

The TV section has its own menu and the DVD section also has its own menu

Basic setup

To memorize channels

This TV/DVD is equipped with a channel memory feature which allows channels to skip up or down to the next channel set into memory, skipping over unwanted channels. Before selecting channels, they must be programmed into the

TV/DVD’s memory. To use this TV/DVD with an antenna, set the Signal Type option to the Air mode. When shipped from the factory, this menu option is in the Cable mode.

Air/Cable selection

Press MENU in the TV mode. The TV menu screen will appear. Press ▲ or ▼ to select

“Channel”, then press ▶ or ENTER.

ENTER

/ / /

EXIT/CANCEL

Automatic search

Press MENU in the TV mode. The TV menu screen will appear. Press ▲ or ▼ to select

“Channel”, then press ▶ or ENTER.

Main Menu


Audio

Channel

Setup

Main Menu


Audio

Channel

Setup

: Select ENTER:Set

Press ▲ or ▼ to select “Auto Ch Memory”, then press ▶ or ENTER.

Channel

Add/Delete

DTV Signal

Auto Ch Memory

Ch Label

Press ▲ or ▼ to select “Auto Ch Memory”, then press ▶ or ENTER.

Channel

Add/Delete

DTV Signal

Auto Ch Memory

Ch Label

Press ▲ or ▼ to select “Signal Type”.

Auto Ch Memory

Signal Type

Automatic Search

Cable

Start

Press ◀ or ▶ to select “Air” or “Cable”.

Auto Ch Memory

Signal Type

Automatic Search

Air

Start

Press ▲ or ▼ to select “Automatic Search”, then press ▶ or ENTER.

Auto Ch Memory

Signal Type

Automatic Search

Cable

Stop

Analog Channel Found : 0

Digital Channel Found : 0

Programming Now

: Select

ENTER:Cancel

The TV/DVD will begin memorizing all the channels available in your area.

Air - VHF/UHF channels

Cable - Cable TV channels

Press EXIT/CANCEL to return to the normal screen.

ENTER

/ / /

EXIT/CANCEL

Add/Delete channel

You can select the channel that you want to skip.

Press MENU in the TV mode. The TV menu screen will appear. Press ▲ or ▼ to select

“Channel”, then press ▶ or ENTER.

Main Menu


Audio

Channel

Setup

: Select ENTER:Set

Press ▲ or ▼ to select “Add/Delete”, then press ▶ or ENTER.

Channel

Add/Delete

DTV Signal

Auto Ch Memory

Ch Label

: Select ENTER:Set

Press ▲ or ▼ to select “Add/Delete”, then press ▶ or ENTER.

Add/Delete

Adding Channel

Add/Delete

Clear All

Press ▲ or ▼ to select the channel that you want to skip.

Add/Delete

3-001

3-002

Signal

Analog

Digital

Analog

Add

Delete

Add

Delete

: Adjust

: Select

Press ◀ or ▶ to select “Add” or “Delete”, whichever function you want to perform.

Add/Delete

3-001

3-002

Signal

Analog

Digital

Analog

Delete

Add

Delete

Add

Delete

: Select : Adjust

Repeat steps 4 - 5 for other channels you want to add or delete.

Press EXIT/CANCEL to return to the normal screen.

: Select ENTER:Set

Basic setup

To memorize channels (Continued)

Adding Channel (digital channel only)

If you find a new channel unregistered, you can add the new channel into the channel memory.

Tune in the new channel.

Press MENU in the TV mode. The TV menu screen will appear. Press ▲ or ▼ to select

“Channel”, then press ▶ or ENTER.

Main Menu


Audio

Channel

Setup

ENTER

/ /

EXIT/CANCEL

Clear All

All channels are deleted from the channel memory.

Press MENU in the TV mode. The TV menu screen will appear. Press ▲ or ▼ to select

“Channel”, then press ▶ or ENTER.

Main Menu


Audio

Channel

Setup

: Select ENTER:Set

Press ▲ or ▼ to select “Add/Delete”, then press ▶ or ENTER.

Channel

Add/Delete

DTV Signal

Auto Ch Memory

Ch Label

Press ▲ or ▼ to select “Add/Delete”, then press ▶ or ENTER.

Channel

Add/Delete

DTV Signal

Auto Ch Memory

Ch Label

: Select ENTER:Set

Press ▲ or ▼ to select “Adding Channel”, then press ▶ or ENTER. The new channel will be added into the channel memory.

Add/Delete

Adding Channel

Add/Delete

Clear All

: Select ENTER:Set

Press ▲ or ▼ to select “Clear All”, then press

▶ or ENTER.

Add/Delete

Adding Channel

Add/Delete

Clear All

: Select ENTER:Set

Press EXIT/CANCEL to return to the normal screen.

: Select ENTER:Set

Press EXIT/CANCEL to return to the normal screen.

TV operation

POWER

0–9, –

VOL +/–

ENTER

TV operation

To turn on the TV/DVD, press POWER.

(POWER indicator on the front of the unit changes green. It may take approx. 10 seconds for a picture to appear on screen.)

Adjust the volume level by pressing VOL + or – .

The volume level will be indicated on the screen by orange bars. As the volume level increases, so do the number of bars. If the volume decreases, the number of orange bars also decreases.

Set the Signal Type option to the appropriate position (see “Air/Cable selection” on page

Air - VHF/UHF channels

Cable - Cable TV channels

Press the Direct Channel Selection (0-9, –)

buttons or CH / to select the channel.

(If you press only channel number, channel selection will be delayed for a few seconds.)

TO SELECT ANALOG CHANNELS

1-9: Press 1-9 as needed. Example, to select channel 2, press 2, then press

ENTER.

10-99: Press the 2 digits in order. Example, to select channel 12, press 1, 2, then press ENTER.

100-135: Press the 3 digits in order. Example, to select channel 120, press 1, 2, 0, then press ENTER.

•

TO SELECT DIGITAL CHANNELS

Press the first 3 digits, then press the – button, followed by the remaining number.

Example, to select channel 015-001, press 0, 1,

•

5, –, 0, 0, 1.

If a channel is selected with only audio content,

“Audio only” will be displayed on the screen.

If a channel is selected with a weak digital signal, “Digital channel signal strength is low” will be displayed on the screen.

The same program may be available on either an analog channel or a digital channel. You may choose to watch either format.

If a channel is selected to which you have not subscribed, “Digital channel is encrypted” will be displayed on the screen.

VHF/UHF/CABLE CHANNELS

Air

VHF

2-13

UHF

14-69

Cable

VHF

2-13

STD/HRC/IRC

14-36 (A)

37-59 (AA)

60-85 (AAA)

86-94 (86)

(A-1)

100-135 (100)

01 (5A)

(94)

95-99 (A-5)

(135)

•

Note:

If a channel with no broadcast is selected, the sound will automatically be muted.

It may take a few seconds for a digital channel picture to appear on screen after being selected.

TV operation

TV operation (Continued)

SLEEP

DISPLAY

VOL +/–

MUTE

CH RTN

TV operation (continued)

■ DISPLAY

Press DISPLAY to display the current information on the screen.

62-001 HDTV Moving Picture1

CH-1

Digital Air

Sleep Timer

Off

English

•

When the TV/DVD receives a digital signal, the digital information will appear.

Sleep timer

Program guide

Resolution

No Program Information is available

Mono

Full

480i

Channel number • Station name

Channel label (if preset) • Broadcast program name

• Signal type

• Audio language

• Picture size

Analog Cable

Sleep Timer

Off

•

When the TV/DVD receives a analog signal, the analog information will appear.

Mono

Full

480i

Channel number • Channel label (if preset)

Sleep timer

Picture size

Resolution

• Signal type

• Audio information (Stereo, SAP or Mono)

Press DISPLAY again to clear the call display.

•

Note:

After a few seconds, DISPLAY screen will return to normal TV-operation automatically.

■ CH RTN

This button allows you to go back to the last channel selected by pressing CH RTN. Press CH RTN again to return to the last channel you were watching.

■ SLEEP

To set the TV/DVD to turn off after a preset amount of time, press

S l e e p Ti m e r

0 h 1 0 m

SLEEP on the remote control. The clock will count up 10 minutes for each press of the SLEEP button (Off, 0h 10m, 0h 20m,

..., 2h 0m). After the sleep time is programmed, the display will appear briefly every ten minutes to remind you that the sleep timer is operating. To confirm the sleep timer setting, press SLEEP and the remaining time will be displayed for a few seconds. To cancel the sleep timer, press SLEEP repeatedly until the display turns to Off.

■ HEAD PHONES (except 26LV610C)

Insert a stereo headphones (not supplied) with a 1/8” mini plug into the HEAD PHONE jack on the rear panel.

If you connect headphones, the sound from

TV/DVD speakers is muted.

■ MUTE

Press MUTE to switch off the sound. The TV/DVD’s sound will be silenced and “Mute” will appear on the screen. The sound can be switched back on by pressing this button again or the VOL + or –.

Labeling channels

Channel label appear with the channel number display each time you turn on the

TV/DVD, select a channel, or press DISPLAY.

You can choose any four characters to identify a channel.

ENTER

/ / /

EXIT/CANCEL

Labeling channels

Press MENU in the TV mode. The TV menu screen will appear. Press ▲ or ▼ to select

“Channel” menu, then press ▶ or ENTER.

Main Menu


Audio

Channel

Setup

: Select

Press ▲ or ▼ to select “Ch Label”, then press ▶ or ENTER.

The “Ch Label” menu will appear.

Channel

Add/Delete

DTV Signal

Auto Ch Memory

Ch Label

: Select

: Adjust

ENTER:Set

Press ◀ or ▶ repeatedly until the character you want appears in the first space.

Ch Label

Channel Number

Ch Label

Label Clear

15-1

: Select

The characters rotation as follows:

- , () @ / + = -

SPACE

: Adjust ENTER:Set

If the character which you desire appears, press

ENTER.

Repeat this step to enter the rest of the characters.

If you would like a blank space in the label name, you must choose the empty space from the list of characters.

When you finish inputting the label name, press EXIT/CANCEL to return to the normal screen.

: Select ENTER:Set

Press ◀ or ▶ to select a channel you want to label, then press ▼.

Ch Label

Channel Number

Ch Label

Label Clear

15-1

Repeat steps 3-5 for other channel. You can assign a label to each channel.

To clear a Ch Label

After step 3 above, press ▲ or ▼ to select “Label Clear”, then press ▶ or ENTER.

•

Note:

The channel labels will be reset after “Automatic

Search” on page

TV operation

Labeling video inputs

The Video Label feature allows you to label each input source for your TV/DVD.

ENTER

/ / /

EXIT/CANCEL

Labeling video inputs

Press MENU in the TV mode. The TV menu screen will appear. Press ▲ or ▼ to select

“Setup”, then press ▶ or ENTER.

Main Menu


Audio

Channel

Setup

: Select ENTER:Set

Press ▲ or ▼ to select “Video Label”, then press ▶ or ENTER.

Setup

Closed Caption

Language

Video Label

Auto Shut Off

Aspect

TOSHIBA Logo Light

Reset

English

Off

: Select ENTER:Set

Press ▲ or ▼ to select an input which you want to label.

Video Label

Video

ColorStream HD

HDMI

Press ◀ or ▶ to select the desired label for that input source.

Video Label

Video

ColorStream HD

HDMI

SAT

: Select : Adjust

– : Uses the default label name

VCR

: Video cassette recorder

DVD

: DVD video

DTV

: Digital TV set-top box

Satellite

CBL

: Cable box

HD

: HDMI (only for HDMI input)

Press EXIT/CANCEL to return to the normal screen.

: Select

Video Label

Video 1

Video 2

ColorStream HD

HDMI 1

HDMI 2

: Adjust

: Select : Adjust

(26LV610C only)

Setting the closed captions

WHAT IS CLOSED CAPTIONING?

This television has the capability to decode and display closed captioned television programs. Closed captioning will display text on the screen for hearing impaired viewers or it will translate and display text in another language.

ENTER

EXIT/CANCEL

CLOSED CAPTION

Setting the closed captions

Press MENU in the TV mode. Press ▲ or ▼ to select “Setup”, then press ▶ or ENTER.

Main Menu


Audio

Channel

Setup

: Select ENTER:Set

Press ▲ or ▼ to select “Closed Caption”, then press ▶ or ENTER.

The Closed Caption menu will appear.

Setup

Closed Caption

Language

Video Label

Auto Shut Off

Aspect

TOSHIBA Logo Light

Reset

English

Off

: Select ENTER:Set

Press ▲ or ▼ to select “CC Setting”, then press ◀ or ▶ to select “On”.

On: Captions will be displayed on the screen.

Off: Captions will not be displayed on the screen.

Closed Caption

CC Setting

CC Priority

Analog Caption

Digital Caption

Digital CC Preset

CC Advanced

Off

Digital CC

CS1

Default

: Select : Adjust

Press ▲ or ▼ to select “Analog Caption” or

“Digital Caption”, then press ◀ or ▶ to select the desired Closed Caption mode.

When you select “Analog Caption”, you can choose C1, C2, C3, C4, T1, T2, T3 and T4.

When you select “Digital Caption”, you can choose from CS1, CS2, CS3, CS4, CS5 and CS6.

Closed Caption

CC Setting

CC Priority

Analog Caption

Digital Caption

Digital CC Preset

CC Advanced

Digital CC

CS1

Default

: Select : Adjust

Press ▲ or ▼ to select “CC Priority”, then press ◀ or ▶ to select “Digital CC” or “Analog

CC”.

•

Note:

Depending on the broadcast signal, some

Analog Captions will function with a Digital broadcast signal. This step prevent that two kind of captions are overlapping.

Press EXIT/CANCEL to return to the normal screen.

•

Note:

You can also display the Closed Caption menu screen by pressing CLOSED CAPTION on the remote control.

Digital caption feature is not available for analog channel.

Important Note:

If text is not available in your viewing area, a black rectangle may appear on-screen. If this happens, set

“CC Setting” to “Off”.

TV operation

CC advanced

When you have selected Custom as the display method, you can adjust the various setting listed below as follows:

This feature is designed to customize Digital Captions only.

ENTER

/ / /

EXIT/CANCEL

CC advanced

Press MENU in the TV mode. Press ▲ or ▼ to select “Setup”, then press ▶ or ENTER.

Main Menu


Audio

Channel

Setup

: Select ENTER:Set

Press ▲ or ▼ to select “Closed Caption”, then press ▶ or ENTER.

The Closed Caption menu will appear.

Setup

Closed Caption

Language

Video Label

Auto Shut Off

Aspect

TOSHIBA Logo Light

Reset

: Select ENTER:Set

Press ▲ or ▼ to select “Digital CC Preset”, then press ◀ or ▶ to select “Custom”.

Closed Caption

CC Setting

CC Priority

Analog Caption

Digital Caption

Digital CC Preset

CC Advanced

English

Off

Digital CC

CS1

Custom

: Select : Adjust

Press ▲ or ▼ to select “CC Advanced”, then press ▶ or ENTER.

The CC Advanced menu will appear.

Closed Caption

CC Setting

CC Priority

Analog Caption

Digital Caption

Digital CC Preset

CC Advanced

Digital CC

CS1

Custom

: Select ENTER:Set

Press ▲ or ▼ to select the desired item, then press ◀ or ▶ to change the setting.

CC Advanced

Text Size

Text Type

Text Edge

Text Color

Text Opacity

Background Color

Background Opacity

: Select : Adjust

Auto

You can select from among the following items and parameters.

Text Size:

Auto, Small, Standard, Large

Text Type:

Auto, Style1, Style2, Style3,

Text Edge:

Style4, Style5, Style6, Style7

Auto, None, Raised, Depressed,

Text Color:

Text Opacity:

Background

Color:

Background

Opacity:

Uniform, Left Shadow, Right

Shadow

Auto, Black, White, Red, Green,

Blue, Yellow, Magenta, Cyan

Auto, Solid, Transparent,

Translucent, Flashing

Auto, Black, White, Red, Green,

Blue, Yellow, Magenta, Cyan

Auto, Solid, Transparent,

Translucent, Flashing

Press EXIT/CANCEL to return to the normal screen.

•

Note:

You cannot select “CC Advanced” in the menu before set “Digital CC Preset” to “Custom”.

You cannot set the Closed Caption “Text Color” and

“Background Color” as the same color.

You cannot set the Closed Caption “Text Opacity” and “Background Color” to “Transparent” at the same time.

Adjusting the picture preference/

Picture settings

You can select four picture modes—Sports, Standard, Movie and Memory— as described in the following table:

Picture settings are factory preset but you can adjust them individually as follows:

Adjusting the picture preference

Press MENU in the TV mode. The TV menu screen will appear. Press ▲ or ▼ to select

“Picture”, then press ▶ or ENTER.

Main Menu


Audio

Channel

Setup

: Select ENTER:Set

ENTER

/ / /

EXIT/CANCEL

Picture settings

Press MENU in the TV mode. The TV menu screen will appear. Press ▲ or ▼ to select

“Picture”, then press ▶ or ENTER.

Press ▲ or ▼ to select “Picture Setting”, then press ▶ or ENTER.

The Picture Setting menu will appear.


Picture Setting

Picture Preference

Picture Size

Film Mode

PC Setting

DNR

Sports

Press ▲ or ▼ to select “Picture Preference”.


Picture Setting

Picture Preference

Picture Size

Film Mode

PC Setting

DNR

Sports

: Select : Adjust

Press ◀ or ▶ to select a mode you want to adjust.


Picture Setting

Picture Preference

Picture Size

Film Mode

PC Setting

DNR

Standard

: Adjust

: Select

Mode

Sports

Picture Quality

Bright and dynamic picture (factory-set)

Standard Standard picture quality (factory-set)

Movie

Movie-like picture setting (factory-set)

Memory

Your personal preferences (set by you; see “Picture settings” at right).

After your desired setting, press EXIT/

CANCEL to return to the normal screen.

: Select ENTER:Set

Press ▲ or ▼ to select the item you want to adjust. Press ◀ or ▶ to adjust the setting.

Picture Setting

Brightness 25

Contrast

Sharpness

Color

Tint

Color Temperature

Backlight

: Select : Adjust

Cool

ENTER:Set

decrease contrast

◀

Brightness decrease brightness

Contrast

increase brightness increase contrast

▶

Sharpness makes picture softer

Color

Tint

be pale color makes picture clearer be brilliant color be reddish color be greenish color

Backlight

decrease brightness increase brightness

Color Temperature

Cool

Standard

Picture Quality

Bluish

Neutral

Warm

Reddish

After your desired setting, press EXIT/

CANCEL to return to the normal screen.

•

Note:

The Contrast default setting is set to maximum at the factory.

TV operation

Viewing the wide-screen picture formats

You can view programs in a variety of picture sizes— Natural, Theater

Wide1, Theater Wide2, Theater Wide3, Full and Native.

0-4

ENTER

/ /

EXIT/CANCEL

PIC SIZE

Viewing the wide-screen picture formats

Press MENU. Press ▲ or ▼ to select “Picture”, then press ▶ or ENTER.

Press ▲ or ▼ to select “Picture Size”, then press ▶ or ENTER to display Picture Size menu. Press ▲/▼ or corresponding Number button (0-4) to select the desired picture size, as described below.

Theater Wide2 picture size (for letter box programs)

The entire picture is uniformly enlarged—it is stretched the same amount both wider and taller (retains its original proportion).

The top and bottom edges of the picture may be hidden.

Picture Size

0.Natural

1.Theater Wide1

2.Theater Wide2

3.Theater Wide3

4.Full

A B C D E F G - - - - - - - - - - - - - - - -

Theater Wide3 picture size (for letter box programs with subtitles)

To fill the width of the screen, it is extended horizontally.

However; it is only slightly extended at the top and the bottom.

The top and bottom edges of the picture may be hidden.

[0-4]:Select

•

Note:

Selectable picture sizes may vary depending on the input source or broadcast signal.

You can choose the Native Picture size when your PC mode is at PC mode/HDMI mode with PC.

Picture Size menu also can be displayed by pressing

PIC SIZE on the remote control.

Press EXIT/CANCEL to return to the normal screen.

Natural picture size

In some cases, this image will display the size of standard 4:3 with a black side bar.

A B C D E F G - - - - - - - - - - - - - - - -

A B C D E F G - - - - - - - - - - - - - - - - - - - - - - - - - -

Full picture size (for 16:9 source programs)

Full will display the picture at the maximum size.

Native picture size (for PC mode/HDMI mode with PC)

When you connect the PC via PC jack or HDMI jack, you can also select the “Native” mode. “Native” mode can display dot-per-dot picture.

Theater Wide1 picture size (for 4:3 format programs)

To fill the screen, the right and left edges are extended, however; the center of the picture remains near its former ratio.

The top and bottom edges of the picture may be hidden.

•

Note:

Some High Definition and/or Digital broadcasts may not allow you to change the picture size.

In 720p, 1080i or 1080p signal, only the Theater

Wide2 and Full picture size features are available.

In PC Mode, only the Natural, Full and Native picture size features are available. Additionally this feature will not work when display mode is WXGA.

Film Mode/DNR

A smoother motion may be obtained by setting the Film Mode to “On” when you view a DVD.

DNR (Digital Noise Reduction) can reduce the roughness of the picture.

(This function is available only for analog broadcast.)

Film Mode

Press MENU in the TV mode. The TV menu screen will appear. Press ▲ or ▼ to select

“Picture”, then press ▶ or ENTER.

Main Menu


Audio

Channel

Setup

ENTER

/ / /

EXIT/CANCEL

DNR

Press MENU in the TV mode. Then press ▲ or

▼ to select “Picture”, then press ▶ or ENTER.

Main Menu


Audio

Channel

Setup

: Select ENTER:Set

Press ▲ or ▼ to select “Film Mode”.


Picture Setting

Picture Preference

Picture Size

Film Mode

PC Setting

DNR

: Select : Adjust

Press ◀ or ▶ to select “On” or “Off”.


Picture Setting

Picture Preference

Picture Size

Film Mode

PC Setting

DNR

Sports

Off

: Select : Adjust

Press EXIT/CANCEL to return to the normal screen.

Press ▲ or ▼ to select “DNR”.


Picture Setting

Picture Preference

Picture Size

Film Mode

PC Setting

DNR

: Adjust

: Select

Press ◀ or ▶ to select “On” or “Off”.


Picture Setting

Picture Preference

Picture Size

Film Mode

PC Setting

DNR

Sports

Off

: Select : Adjust

Sports

•

Note:

A smoother motion may be obtained by setting the Film

Mode to “On” when you view a DVD from the DVD player connected with ColorStream (component video) inputs.

TV operation

Picture control adjustment in the PC mode

You can adjust to optimize the performance of the TV/DVD in the PC mode.

INPUT

ENTER

/ / /

EXIT/CANCEL

Picture control adjustment in the PC mode

Press INPUT, then select the PC mode.

Press MENU. Press ▲ or ▼ to select “Picture”, then press ▶ or ENTER.

Main Menu

Press ◀ or ▶ to adjust the setting.


Audio

Channel

Setup

: Select ENTER:Set

Press ▲ or ▼ to select “PC Setting”, then press ▶ or ENTER.


Picture Setting

Picture Preference

Picture Size

Film Mode

PC Setting

DNR

Sports

Off

Hor Position: To adjust the horizontal position of the image on the PC mode.

Ver Position: To adjust the vertical position of the image on the PC mode.

Clock:

Phase:

To minimize any vertical bars or stripes visible on the screen background.

This must be adjusted after the frequency of the PC mode has been set to 60Hz to optimize picture quality

Auto Adjust: To adjust the all PC settings automatically.

After adjusting, press ENTER to return to the

PC Setting menu. Then continue to adjust the other items.

: Select ENTER:Set

Press ▲ or ▼ to select the desired item you want to adjust.

PC Setting

Hor Position

Ver Position

Clock

Phase

Auto Adjust

Press EXIT/CANCEL to return to the normal screen.

: Select : Adjust ENTER:Set

•

Note:

When you connect the PC via HDMI input, select the input source “HDMI”.

When you connect the PC via HDMI input, you can setting “Hor Position” and “Ver Position” only.

Whenever you change the PC display resolution settings and find that the characters of the PC input has rough edges or has some flickerings, please go to PC Setting and do an “Auto Adjust” to improve the display of the PC input.

Sound control adjustment/

Selecting Stereo/Second Audio Program (SAP)

The multi-channel TV sound (MTS) feature provides high-fidelity stereo sound.

MTS also can transmit a second audio program (SAP) containing a second language or other audio information.

Sound control adjustment

Press MENU in the TV mode. The TV menu screen will appear. Press ▲ or ▼ to select

“Audio” , then press ▶ or ENTER.

Main Menu


Audio

Channel

Setup

: Select ENTER:Set

ENTER

/ / /

EXIT/CANCEL

Selecting Stereo/Second

Audio Program (SAP) (analog channel only)

Press MENU in the TV mode. Press ▲ or ▼ to select “Audio”, then press ▶ or ENTER.

Main Menu


Audio

Channel

Setup

: Select ENTER:Set

Press ▲ or ▼ to select the item you want to adjust. Then press ◀ or ▶ to adjust each setting.

Audio

Bass

Treble

Balance

MTS

Surround

Audio Language

: Select : Adjust

Stereo

Off

No Info.

Press ▲ or ▼ to select “MTS”, then press ◀ or

▶ to select “Stereo”.

Audio

Bass

Treble

Balance

MTS

Surround

Audio Language

Stereo

Off

No Info.

: Select : Adjust

Press EXIT/CANCEL to return to the normal screen.

Bass:

Treble:

Balance:

Press ◀ or ▶ to adjust the bass sound.

Press ◀ or ▶ to adjust the treble sound.

Press ◀ or ▶ to obtain an equal sound level from both speakers.

Surround:

Press ◀ or ▶ to select “On” or “Off”.

On:

Off:

The dynamic presence and sound created offers a thoroughly enjoyable listening experience.

Normal sound.

After your desired setting, press EXIT/CANCEL to return to the normal screen.

•

Note:

Generally you can leave your TV in stereo mode because the TV automatically outputs the type of sound being broadcast (stereo or mono).

If the stereo sound is noisy, select “Mono” to reduce the noise.

To listen to a second audio program (SAP)

Press ◀ or ▶ to select “SAP” in step 2 above. The TV speakers will output the second audio program instead of normal audio.

•

Note:

Virtual Surround feature is not effective in the monaural audio of the tuner and external input.

TV operation

Selecting the audio language/

Selecting the HDMI audio input source

When two or more audio languages are included in a digital signal, you can select one of the audio language. (This function is available only for digital broadcast.)

When you use PC AUDIO IN jacks with HDMI or DVI device, you must select

HDMI audio input source from “HDMI” or “DVI”.

0-6

ENTER

/ / /

EXIT/CANCEL

Selecting the HDMI audio input source

Selecting the audio language

Press MENU in the TV mode. Press ▲ or ▼ to select “Audio” , then press ▶ or ENTER.

Main Menu


Audio

Channel

Setup

: Select ENTER:Set

Press MENU in the HDMI1 mode (only for

26LV610C, the rest of the models are “HDMI mode”). The TV menu screen will appear.

Press ▲ or ▼ to select “Audio” , then press ▶ or ENTER.

Main Menu


Audio

Channel

Setup

Press ▲ or ▼ to select “Audio Language”, then press ▶ or ENTER to display the Audio

Language menu.

Audio

Bass

Treble

Balance

MTS

Surround

Audio Language

Stereo

Off

English

: Select

Press ▲ or ▼ to select “HDMI1 Audio”(only for 26LV610C, the rest of the models are

“HDMI Audio”). Then press ◀ or ▶ to select

“HDMI” or “DVI”.

Audio

ENTER:Set

HDMI1 Audio

Speakers

HDMI

ENTER:Set

: Select

Press ▲/▼ or Number buttons (0-6) to select your desired language.

Audio Language

0. English

1. Language 1

2. Language 2

3. French

4. Language 3

5. Spanish

6. No Info.

[0-6]: Select

After your desired setting, press EXIT/CANCEL to return to the normal screen.

: Adjust

: Select

HDMI: When you connect the HDMI device to the TV, select this setting.

DVI:

When you connect the DVI device to the

TV with analog audio cords, select this setting.

Press EXIT/CANCEL to return to the normal screen.

Using the aspect feature

When the Aspect feature is set to On and the TV receives a 480i signal, the picture size is automatically selected (as described in the following table).

Using the aspect feature

Press MENU in the Video or ColorStream HD mode. The TV menu screen will appear. Press

▲ or ▼ to select “Setup” , then press ▶ or

ENTER.

Main Menu


Audio

Channel

Setup

: Select ENTER:Set

Press ▲ or ▼ to select “Aspect”.

Press ◀ or ▶ to select “On” or “Off”.

Setup

Closed Caption

Language

Video Label

Auto Shut Off

Aspect

TOSHIBA Logo Light

Reset

English

Off

: Select : Adjust

After your desired setting, press EXIT/CANCEL to return to the normal screen.

Aspect ratio of signal source

4:3 Normal

16:9 Full

4:3 Letter box

Not defi ned

Automatic aspect size

(When Aspect is On)

Natural

Full

Theater Wide2

User-set mode

ENTER

/ / /

EXIT/CANCEL

TV operation

Turning off the built-in speakers

(26LV610C only)/ Checking the Digitalsignal strength

Use this feature to turn the TV speakers off when you connect an audio system. (See “Connecting to an analog audio system”

This TV will allow you to view the digital signal meter for digital channels.

Turning off the built-in speakers

(26LV610C only)

Press MENU in the TV mode. Press ▲ or ▼ to select “Audio” , then press ▶ or ENTER.

ENTER

/ / /

EXIT/CANCEL

Checking the Digital-signal strength

Press MENU in the TV mode. The TV menu screen will appear. Press ▲ or ▼ to select

“Channel” menu, then press ▶ or ENTER.

Main Menu


Audio

Channel

Setup

Main Menu


Audio

Channel

Setup

: Select ENTER:Set

Press ▲ or ▼ to select “Speakers”.

Then Press ◀ or ▶ to select “On” or “Off”.

Audio

Press ▲ or ▼ to select “DTV Signal”, then press ▶ or ENTER.

The Digital-Signal strength screen will appear.

If necessary, adjust the direction of the antenna to obtain the maximum signal strength.

HDMI 1 Audio

Speakers

HDMI

DTV Signal

: Select : Adjust

Press EXIT/CANCEL to return to the normal screen.

Signal Level

Press EXIT/CANCEL to return to the normal screen.

•

Note:

If “Off” is selected, “Speaker Off” will be displayed on the screen when the volume is changed.

To turn on the built-in speakers:

Select “On” in step 2 above.

•

Note:

Signal meter feature is not available for analog channels.

After about 4 minutes, Signal Meter screen will return to normal TV-operation automatically.

Setting the Logo Light/

Setting the Auto Shut Off

When you set the “TOSHIBA Logo Light” setting to “On”, the logo

“TOSHIBA” on the front of the unit lights up. It is nice to change the mood of your room.

If the Auto Shut Off feature is On, a station being viewed stops broadcasting and the TV is not operated, the TV will automatically shut itself off after 15 minutes.

Setting the Logo Light

Press MENU in the TV mode. Press ▲ or ▼ to select “Setup”, then press ▶ or ENTER.

ENTER

/ / /

EXIT/CANCEL

Setting the Auto Shut Off

Press MENU in the TV mode. The TV menu screen will appear. Press ▲ or ▼ to select

“Setup” , then press ▶ or ENTER.

Main Menu


Audio

Channel

Setup

Main Menu


Audio

Channel

Setup

: Select ENTER:Set

Press ▲ or ▼ to select “TOSHIBA Logo Light”, then press ◀ or ▶ to select “On” or “Off”.

Setup

Closed Caption

Language

Video Label

Auto Shut Off

Aspect

TOSHIBA Logo Light

Reset

English

Off

: Adjust

: Select

Press EXIT/CANCEL to return to the normal screen.

Press ▲ or ▼ to select “Auto Shut Off”.

Press ◀ or ▶ to select “On” or “Off”.

Setup

Closed Caption

Language

Video Label

Auto Shut Off

Aspect

TOSHIBA Logo Light

Reset

English

Off

: Adjust

: Select

After your desired setting, press EXIT/CANCEL to return to the normal screen.

TV operation

Resetting your settings

The Reset function returns your settings to the factory settings.

ENTER

/ /

Resetting your settings

Press MENU in the TV mode. The TV menu screen will appear. Press ▲ or ▼ to select

“Setup” , then press ▶ or ENTER.

Main Menu


Audio

Channel

Setup

: Select ENTER:Set

Press ▲ or ▼ to select “Reset”.

Setup

Closed Caption

Language

Video Label

Auto Shut Off

Aspect

TOSHIBA Logo Light

Reset

English

Off

: Select ENTER:Set

Press ▶ or ENTER to return your settings to the factory settings.

•

Note:

The Reset function returns your adjustments to the following factory settings:

[Picture menu]

Picture Setting

Brightness ..................... center (25)

Contrast ............................max (50)

Sharpness..................... center (25)

Color ............................. center (25)

Tint .................................. center (0)

Color Temperature .................. Cool

Backlight ...........................max (16)

Backlight (26LV610C only) ..... (15)

Picture Preference ................... Sports

Film Mode ...................................... On

PC Setting

Hor Position .................. center (25)

Ver Position................... center (25)

Clock ............................... center (0)

Phase............................ center (25)

DNR ............................................... On

[Audio menu]

Bass.................................. center (15)

Treble ............................... center (15)

Balance............................... center (0)

Surround ........................................ Off

“Reset” will appear on the screen approx. 3 seconds, then it returns to the normal

Basic playback

Playing a disc

This section shows you the basics on how to play a disc.

TV/DVD

POWER

CAUTION

Keep your fi ngers well clear of the disc slot when disc is loading or unloading. Neglecting to do so may cause serious personal injury.

VOLUME +/–

PLAY

STOP

POWER

VOL

+/–

ENTER

/ / /

PLAY

STOP

DVD

VCD

Basic playback

Preparations:

• When connecting to other equipment, turn the power off.

Press POWER on the unit or on the remote con-

trol to turn on the unit.

• POWER indicator on the front of the unit changes green. It may take approx. 10 seconds for a picture to appear on screen.

• Every time you press POWER, the TV/DVD starts from TV mode.

• When using an amplifi er, switch on the amplifi er.

On the TV screen, “ ” changes to “Reading” and then playback commences.

Reading

Press TV/DVD on the remote control to select DVD mode.

The DVD startup screen will appear on the TV screen.

A menu screen will appear on the TV screen if the disc has a menu feature.

Press

/ or / on the remote control to select title, then press ENTER. Title is selected and play commences.

Press VOLUME + or – to adjust the volume.

Volume : 25

Load a disc in the disc slot.

• Load the disc in the disc slot with the label side facing forward. (If the disc has a label.) Hold the disc without touching either of its surfaces, align it with the guides, and place it in position.

• If a disc is inserted during some modes other than

DVD mode, it may switch to DVD mode and then playback may be begun automatically.

Press STOP to end playback.

■ Resuming facility

• The unit records the stopped point, depending on the disc.

“ ” appears on the screen.

Press PLAY to resume playback

(from the scene point).

• If you press STOP again

(“■” appears on the TV screen.), the unit will clear the stopped point.

■

To start playback in the stop mode

Note:

If the unit does not operate properly:

Static electricity, etc., may affect the TV/DVD’s operation. In such case, disconnect the AC cord, then connect it again.

Basic playback

Playing a disc (Continued)

To obtain a higher quality picture

Occasionally, some picture noise may appear on the TV screen while playing a

DVD video disc because the high resolution pictures on these discs include a lot of information. In such case, you may reduce the Sharpness with the Picture

Setting menu (see page

About

DVD VCD CD

The

DVD VCD CD

icons on the heading bar show the playable discs for the function described under that heading.

VCD

: You can use this function with DVD video discs.

: You can use this function with Video CDs.

: You can use this function with Audio CDs and CD-R/RW CDs.

DVD

VCD

Basic playback (continued)

To pause playback (still mode)

Press PAUSE during playback.

To resume normal playback, press PLAY.

• The sound is muted during still mode.

EJECT

POWER

PLAY

STOP

PAUSE

To remove the disc

Press EJECT.

Remove the disc after the disc comes out.

To stop playback

Press STOP.

Note:

• If a non-compatible disc is loaded, “Incorrect Disc”, “Region Code Error” or “Parental Error” will appear on the TV screen according to the type of loaded disc. In this case, check your disc again

• Some discs may take a minute or so to start playback.

• When you set a single-faced disc label downwards (ie. the wrong way up), “Reading” will appear on the display for a few minutes and then “Incorrect Disc” will continue to be displayed.

• Some discs may not work the resuming facility.

• Resuming cannot function when you play a PBC-featured Video CD while the PBC is on. To turn off the PBC, see page

• Some playback operations of DVDs may be intentionally fi xed by software producers. Since this unit plays DVDs according to the disc contents the software producers designed, some playback features may not be available. Also refer to the instructions supplied with the DVDs.

• Do not move the unit during playback. Doing so may damage the disc.

• Use the EJECT to unload and eject the disc.

• Do not put any objects other than discs on the disc slot. Doing so may cause the unit to malfunctions.

• In many instances, a menu screen will appear after playback of a movie is completed. Prolonged display of an on-screen menu may damage your television set, permanently etching that image onto its screen. To avoid this, be sure to press

POWER on the remote control once the movie is completed.

• There may be a slight delay between the button is pressed and the function activates.

PAUSE

PLAY

SKIP /

REV / FF

DVD

VCD

Playing in fast reverse or fast forward directions

Press REV or FF during playback.

To resume normal playback

Press PLAY.

REV: Fast reverse playback

FF: Fast forward playback

Each time you press REV or FF button, the playback speed changes.

Note:

• The TV/DVD mutes sound during reverse and forward scan of DVD/VCD discs.

• The playback speed may differ depending on the disc.

• You can use fast reverse/fast forward playback for mp3/

WMA/DivX ® CD.

DVD

VCD

Playing frame by frame

Press PAUSE during still playback.

Each time you press PAUSE, the picture advances one frame.

To resume normal playback

Press PLAY.

Note:

• The sound is muted during frame by frame playback.

• You can use frame by frame playback for DivX

CD.

DVD

VCD

Playing in slow-motion

Press SLOW (REVERSE) or (FORWARD) during playback.

Each time you press the button, the slow-motion speed changes.

To resume normal playback

Press PLAY.

Note:

• The sound is muted during slow-motion playback.

• You can use slow motion playback for DivX ® CD.

• Reverse slow does not work on VCD and DivX ® CD.

DVD

VCD

Locating a chapter or track

Press SKIP or repeatedly to display the chapter or track number you want.

Playback starts from the selected chapter or track.

To locate succeeding chapters or tracks.

Playback starts from the beginning of the current chapter or track.

When you press twice in quick successions, playback starts from the beginning of the preceding chapter or track.

Note:

• A “Prohibition” symbol “✕” may appear at the upper right of the screen. This symbol means either the feature you tried is not

available on the disc, or the TV/DVD cannot access the feature at this time. This does not indicate a problem with the

TV/DVD.

Advanced playback

Zooming/Locating desired scene

DVD

VCD

This unit will allow you to zoom in on the frame image. You can then make selections by switching the position of the frame.

Use the title, chapter and time recorded on the DVD disc to locate the desired point to playback. In the case of VCD/Audio CD discs, time and track are used to locate the desired point to playback.

To check the title/track, chapter and time, press DISPLAY.

Zooming

0–9

JUMP

DISPLAY

ZOOM

/ / /

ENTER

EXIT/CANCEL

DVD

VCD

Locating desired scene

Press ZOOM during playback.

The center part of the image will be zoomed in.

Each press of ZOOM will change the ZOOM 1 (x 1.3), 2 (x 1.5) and 3 (x 2.0).

Press JUMP during playback or resume stop mode.

Jump

Title

Chapter

Time

Press or to select the “Title/Track”, “Chapter” or “Time”.

Jump

Title

Chapter

Time

Press frame.

/ / /

to view a different part of the

You may move the frame from the center position to UP, DOWN,

LEFT or RIGHT direction.

Press Number buttons (0–9) to input the number.

Jump

Title

Chapter

Time

In the zoom mode, press ZOOM repeatedly to return to a 1:1 view ( Off).

• If you input a wrong number, press

EXIT/CANCEL.

• Refer to the package supplied with

the disc to check the numbers.

Note:

• You can select the Pause, Slow or Search playback in the

• Some discs may not respond to zoom feature.

• Zoom function can be used for DivX ® CD.

• When you change the title,

playback starts from Chapter 1 of

the selected title.

• Some discs may not work in the

Note:

• In case of the Audio CD and Video-CD, only Track and Time can be selected.

• In case of the Video-CD playback with PBC, the JUMP does not work. To turn off PBC, see page

• Only Time search function can be used for DivX® CD.

Marking desired scenes

The unit stores the points that you want to watch again up to 3 points.

You can resume playback from each scene.

DVD

VCD

Marking the scenes

ENTER

EXIT/CANCEL

MARKER

DVD

VCD

Returning to the scenes

Press MARKER during playback.

Press MARKER during playback or stop mode.

Select the blank Marker using or .

Then press ENTER to mark the desired scene.

• Repeat this procedure to mark the

other 2 scenes.

Press or to select the Marker 1-3.

Press MARKER to clear the display.

Press ENTER.

Playback starts from the marked scene.

Note:

• Some discs may not work with the marking operation.

• The marking is cancelled when you eject the disc or turn the power off.

• Some subtitles recorded around the marker may fail to

appear.

• In case of Video CD with PBC, Marker function is prohibited.

■ To cancel the Marker

Follow the above steps 1~2, then press EXIT/CANCEL.

Advanced playback

Repeat playback/A-B Repeat playback

PLAY MODE

ENTER

PLAY

SKIP /

REPEAT A-B

DVD

VCD

Repeat playback

Press PLAY MODE during playback or stop mode.

[DVD]

Press ENTER repeatedly to select “Chapter” or “Title”.

The unit automatically starts repeat playback after fi nishing the current title or chapter.

Play Mode

: Off Repeat

DVD

VCD

A-B Repeat playback

A-B repeat playback allows you to repeat a section between two selected points.

1 Press REPEAT A-B during playback.

The start point is selected.

[Video CD]

Press to select “Repeat”.

Press ENTER repeatedly to select “Track” or

“All”.

The unit automatically starts repeat playback after fi nishing the current track.

Play Mode

Press REPEAT A-B again.

The end point is selected. Playback starts at the point that you selected.

Playback stops at the end point and returns to Point A automatically, then starts again.

A B

To resume normal playback

• If you set the repeat mode during stop mode,

“

Off

” appears on the screen.

Press PLAY MODE again to clear the screen.

To resume normal playback

Select Repeat : “Off” in step 2.

Note:

• Some discs may not work with the repeat operation.

• In case of Video CD with PBC, Repeat function is prohibited during playback.

• Chapter/Track repeat function is canceled whenever SKIP

or is pressed.

Note:

• In A-B Repeat mode, subtitles near the A or B locations

may not be displayed.

• You cannot set the A-B Repeat for the scenes that include

• A-B Repeat playback does not work when Repeat playback

• You may not be able to set A-B Repeat during certain

scenes of the DVD.

• A-B Repeat does not work with an interactive DVD and

• In case of Video CD with PBC, A-B Repeat is prohibited.

Program playback/Random playback

You can arrange the playback order of tracks on the disc. And the unit can also select tracks at random and playback them. These features work for Video CD.

For Audio CD and MP3/WMA CD, please see “Random playback

(Audio CD/MP3/WMA/JPEG/DivX ® )”

and “Program playback

(Audio CD/MP3/WMA/JPEG/DivX ® )”

0–9

PLAY MODE

ENTER

/ / /

EXIT/CANCEL

PLAY

Program playback

Press PLAY MODE in the stop mode.

Play Mode

1 – – –

2 – – –

3 – – –

Program Playback

Press or to select “Mode”, then press

ENTER repeatedly to select “Program”.

Mode

Repeat

Play Mode

: Program

: Off

Program Playback

1 – – –

2 – – –

3 – – –

Press / to return to the left column, then

press / to select the “Program Playback”

and press ENTER.

The programs you selected will start to playback in order.

• To resume normal playback,

select Mode: “Off” in step 2.

Mode

Repeat

Play Mode

: Program

: Off

Program Playback

1 9

2 3

3 11

Press / to select the programming position.

Press / and then use Number buttons (0–9) to input the track.

■ To change the program

to select the track number you want to change, then

• To program others, repeat this step.

• If you input a wrong number, press

EXIT/CANCEL.

Mode

Repeat

Play Mode

: Program

: Off

Program Playback

1 9

2 – – –

3 – – –

number.

■ To clear the program one by one

Select Mode to “Program”, press / / / to select the track number. Then press EXIT/CANCEL.

■ To clear all the programs

At the left column, press / to select “Clear Program”.

Then press ENTER.

Note:

• In playing back the Video CD with PBC, you cannot set

Program playback.

• The program is cancelled when you eject the disc or turn the power off.

Random playback

Press PLAY MODE during playback or stop mode.

Press / to select “Mode”, then press

ENTER repeatedly to select “Random”.

Play Mode

Program Playback

1 – – –

2 – – –

3 – – –

The Random Playback will start.

• If you set “Random” during playback mode,

Random playback will begin after the track that is

currently being played has ended.

• To resume normal playback,

select Mode: “Off” in step 2.

Note:

• In case of Video CD with PBC, you cannot set Random function during playback.

• The random playback is cancelled when you eject the disc or turn the power off.

Advanced playback

Changing angles/Title selection/DVD menu

DVD MENU

/ / /

ENTER

PLAY

ANGLE

TOP MENU

Changing angles

When playing back a disc recorded with multi-angle facility, you can change the angle that you are viewing the scene from.

Press ANGLE during playback.

The current angle will appear.

Press ANGLE repeatedly until the desired angle is selected.

1/2

Note:

• Depending on the DVD, you may not be able to change the angle even if multi-angles are recorded on the DVD.

Title selection

Two or more titles are recorded on some discs. If the title menu is recorded on the disc, you can select the desired title.

Press TOP MENU during playback.

Title menu appears on the screen.

Press ENTER or PLAY.

The playback of the selected title will start.

Press / / / to select the desired title.

Press / / / to select the desired item.

Note:

• Depending on the DVD, you may not be able to select the title.

• Depending on the DVD, a “title menu” may simply be called a

“menu” or “title” in the instructions supplied with the disc.

DVD menu

Some DVDs allow you to select the disc contents using the menu.

When you playback these DVDs, you can select the subtitle language, soundtrack language, etc, using the menu.

Press DVD MENU during playback.

The DVD menu appears on the TV screen.

• Press DVD MENU again to resume

playback at the scene when you

Press ENTER.

The menu continues to another screen. Repeat steps 2 and 3 to set the item completely.

Note:

• Depending on the DVD, you may not be able to resume playback from the scene point when you press DVD MENU.

Changing soundtrack language/Subtitles

AUDIO SELECT

SUBTITLE

DVD

VCD

Changing soundtrack language

Subtitles

You can select the language when you play a multilingual disc.

When playing back a disc recorded with subtitles, you can select the subtitle language or turn the subtitle off.

Press AUDIO SELECT during playback.

The current soundtrack language will appear.

1/2 Eng Dolby Digital

Press SUBTITLE repeatedly during playback until the desired language is selected.

1/5 Eng

Press AUDIO SELECT repeatedly until the desired language is selected.

2/2 Fre Dolby Digital

To turn off the subtitle, press SUBTITLE until

“Off” appears.

Off

• The on screen display will disappear after a

• The on screen display will disappear after a few

seconds.

In case of Video CD playback

Audio type changes as follows each time you press AUDIO

SELECT.

LR L R

Note:

• Depending on the DVD, you may not be able to change subtitles, or to turn subtitles on or off.

• While playing a DVD, the subtitle may change when you loaded or eject the disc.

• In some cases, a selected subtitle language may not be changed immediately.

Note:

• If the desired language is not heard after pressing the button several times, the language is not recorded on the disc.

• The selected soundtrack language is cancelled when

you eject the disc. The initial default language or

available language will be heard if the disc is played back again.

• If you select DTS in playing DTS-encoded disc, no sound will be heard from the TV/DVD’s speakers.

Advanced playback

Disc status/To turn off the PBC

DVD

VCD

Disc status

With press of DISPLAY, the status of the disc will appear on the screen.

To cancel the display, press DISPLAY again.

DISPLAY

PLAY MODE

ENTER

VCD

To turn off the PBC

(see page 8)

Press PLAY MODE in the stop mode.

DVD

DISC OPERATION

ELAPSED

TIME

TOTAL

TIME

Press / to select “Mode”, then press

ENTER repeatedly until “Off” appear.

Play Mode

1 – – –

2 – – –

3 – – –

Program Playback

TITLE NO.

DVD

Title 1/3

1/1 Eng Dolby Digital

1/1

00:15:25 01:41:39

Chapter 2/24

1/2 Eng

CHAPTER

NO.

ANGLE NO.

SUBTITLE LANGUAGE

AUDIO LANGUAGE A KIND OF AUDIO

Video CD

DISC OPERATION

ELAPSED

TIME

TOTAL

TIME

Press PLAY MODE again to clear the screen.

■ To turn on the PBC

Follow the above steps 1~2, then press

ENTER repeatedly until “PBC” appear.

VCD

Track 3/15

00:08:32 00:51:03

TRACK NO.

MP3/WMA/JPEG/DivX

and Audio CD operation

This unit can playback the MP3/WMA/JPEG/DivX ® -data which has been recorded on CD-R or CD-RW. To produce the MP3/WMA/JPEG/DivX ® -data, you need a Windows-PC with CD-RW drive and a MP3/WMA/JPEG/DivX ® -encoding

Software (not supplied). The Apple-HFS-System cannot be played.

This player requires discs/recordings to meet certain technical standards in order to achieve optimal playback quality.

There are many different types of recordable disc formats (including CD-R containing MP3/WMA fi les). Not all recordable discs will produce optimal playback quality. The technical criteria set forth in this owner’s manual are meant only as a guide. Use of CD-RW for MP3 fi les is not recommended.

You must obtain any required permission from copyright owners to download or use copyrighted content.

Toshiba cannot and does not grant such permission.

Audio CD/MP3/WMA/JPEG/DivX

CD information

Limitations on MP3/WMA/JPEG/DivX ® CD playback

• MP3/WMA/JPEG/DivX ® CD is the disc that is standardized by ISO9660, its fi le name must include 3-digits extension letters, “.mp3”, “.wma”, “.jpg”, “.div”, “.divx”, “.avi”.

• MP3/WMA/JPEG/DivX ® CD must be correspond to the ISO standardized fi les.

• This unit can read 2000 fi les per disc. If one disc has more than 2000 fi les, it reads up to 2000 fi les, the remaining fi les will be omitted.

• MP3/WMA/JPEG/DivX

CDs cannot be used for the purpose of recording.

• It may take more than one minute for this unit to read MP3/WMA/JPEG/DivX ® fi les depending on its structure.

• Music recorded by “Joliet Recording Specifi cation” can be played back, the fi le name is displayed (within 15 letters) on the screen. Long fi le names will be condensed.

Limitations on display

• The maximum number for display is 15 letters.

Available letters for display are the following: capital or small alphabets of A through Z, numbers of 0 through 9, and _ (under score).

• Other letters than those above are replaced in hyphen.

Notes on MP3/WMA/JPEG/DivX

fi les

To playback MP3/WMA/JPEG/DivX ® CD in the recorded order,

MP3/WMA/JPEG/DivX ® software that records data alphabetically or numerically.

3. Refrain from making too many sub-folders.

CAUTION:

MP3/WMA/JPEG/DivX ® CDs cannot be played back depending on the recording conditions.

• The CD-R/RW that has no music data or non MP3/WMA/JPEG/DivX

fi les cannot be played back.

Standard, sampling frequency and the bit rate:

MP3 CD

32kHz, 44.1kHz, 48kHz

32kbps ~ 320kbps (constant bit rate or variable bit rate)

The recommend recording setting for a high-quality sound is 44.1kHz of sampling frequency and 128kbps of constant bit rate.

WMA CD

WMA version 7 and 8

32kHz/48kbps, 44.1kHz/48kbps~192kbps, 48kHz/128kbps~192kbps

DivX ® video

DivX ® version: DivX ® 3, 4, 5, and 6 (specifi cally 3.1.1, 4.1.2, 5.0.2, 5.0.5, 5.1.1, 5.2.1, 6.0 at Home Theater profi le).

Audio format: MPEG1 Layer2 (MP2), MPEG1 Layer3 (MP3)

Sampling frequencies: 32kHz, 44.1kHz, 48kHz

Bit rate: 32kbps ~ 320kbps

Resolution: Max 720 x 576 (at 25fps), Max 720 x 480 (at 30fps)

Microsoft, Windows Media, and Windows Logo are either registered trademarks or trademarks of Microsoft Corporation in the

United States and/or other countries.

DivX, DivX Certifi ed, and associated logos are trademarks of DivX, Inc. and are used under license.

MP3/WMA/JPEG/DivX

and Audio CD operation (continued)

/ / /

ENTER

STOP

PLAY

RETURN

MP3/WMA and Audio CD playback

Load an Audio CD or a disc on which MP3 or WMA fi les have been recorded in the disc slot.

A fi le browser screen will appear on the screen.

Folder-1

Folder-2

MP3-1

MP3-2

MP3-3

WMA-1

WMA-2

WMA-3

Select Files

Repeat :Off

Mode :Off

JPEG Preview

Press / to select fi le.

/MP3-2.MP3

Folder-1

Folder-2

MP3-1

MP3-2

MP3-3

WMA-1

WMA-2

WMA-3

Select Files

Repeat :Off

Mode :Off

JPEG Preview

About fi le menu

3/15 00:00:00

/WMA-11.WMA

MP3-5

MP3-6

WMA-11

WMA-12

Picture-1

Picture-2

Movie-1

Movie-2

Select Files

Repeat :Off

Mode :Off

Music Playing

• In case the current directory includes more than 8 fi les, press or to scroll in the fi le list.

• To see contents in folder, select the folder and then press ENTER. To return to the parent directory, press

RETURN or select “ Go Up ...” then press ENTER.

• When PLAY is pressed after the fi le browser displayed, playback begins automatically starting from the fi rst fi le. In this case, if the fi rst fi le is an

MP3/WMA fi le, only MP3/WMA fi les are played back in order. If the fi rst fi le is a JPEG fi le, the fi rst JPEG fi le is played back. If the fi rst fi le is a DivX fi rst DivX ®

® fi le, the

fi le is played back. If there is no fi le at a root directory, playback does not begin automatically.

Press ENTER.

The selected fi le starts playing back.

Note:

• In the case of a CD containing a mixture of MP3, WMA,

JPEG and DivX ® fi les, the fi les are played back by selecting them from the fi le browser.

Note:

• During MP3/WMA playback, you cannot use Jump and A-B

Repeat functions.

• You can use Repeat (Track or All), Random functions and

Program playback for Audio CD/MP3/WMA/JPEG/DivX ® playback

57 58

■ Select Files

The fi le type to make it display in the fi le browser can be chosen.

1.Press or to highlight “Select Files” at right column in the fi le browser.

2. Press ENTER, then press or to select fi le type from the list (Music, Picture or Movie).

3. Press ENTER to add/remove check mark. Checked fi le type will be displayed in the fi le browser.

4. Press RETURN to save the setting.

Press STOP to end playback.

• The unit records the stopped point. “ ” appears on the TV screen. Press PLAY to resume playback

(from the scene point).

• If you press STOP again or unload the disc, the unit will clear the stopped point.

ZOOM

DVD MENU

ENTER

/ / /

PAUSE

STOP

PLAY

SKIP

ANGLE

TOP MENU

JPEG playback

Slide show playback

Load a JPEG disc in the disc slot.

A fi le browser screen will appear on the screen.

/Picture-01.JPG

Picture-01

Picture-02

Picture-03

Picture-04

Picture-05

Picture-06

Picture-07

Picture-08

Select Files

Repeat :Off

Mode :Off

JPEG Preview

W: 2048 H: 1536

Press

to select the fi le.

To display a thumbnail list, press DVD MENU.

Press / / / to select the desired fi le.

(To return to the fi le browser, press TOP MENU.)

The slide show enables you to view pictures (fi les) one after another automatically.

Preparation:

• Set “JPEG Interval” setting to “5 Seconds”, “10 Seconds” or “15 Seconds”

Select your desired starting fi le for the slide show in the step 3 on left.

Press ENTER or PLAY to start slide show from the selected fi le.

• When PLAY is pressed after the fi le browser displayed, playback begins automatically starting from the fi rst fi le. In this case, if the fi rst fi le is a JPEG fi le, the fi rst JPEG fi le is played back. If the fi rst fi le is a DivX

fi le, the fi rst DivX ® fi le is played back. If the fi rst fi le is an MP3/WMA fi le, only MP3/WMA fi les are played back in order. If there is no fi le at a root directory, playback does not begin automatically.

Press ENTER or PLAY. The selected picture appears on the screen.

• If you press PAUSE during the slide show, the slide show stops temporary. “

❙❙

” appears briefl y on the TV screen.

Press again to resume the slide show.

•

If the picture appears upside down or sideways, press

ANGLE repeatedly until it’s right side up.

“ ”, “ ”, “ ” or “ ” appears on the TV screen.

• When the slide show playback fi nished, the fi le list appears.

• To stop the slide show, press STOP. The fi le browser appears.

Note:

• During JPEG playback, you cannot use Jump and A-B

Repeat functions.

• When an image exceeds 5760 x 3840 pixels, the entire image may not be displayed on a screen, preview window or thumbnail list.

• It may have a longer interval due to the size of data.

Rotating an image

You can rotate an image by 90 degrees.

Press ANGLE during playback of the image.

“ ”, “ ”, “ ” or “ ” appears on the screen.

Zooming an image

Zoom function also can be used in viewing JPEG fi les. Press ZOOM (See “Zooming”

Press STOP to end playback.

The fi le browser appears on the screen. If you want to watch the other fi le, repeat steps 3 ~ 4.

Advanced playback

MP3/WMA/JPEG/DivX

and Audio CD operation (continued)

ENTER

STOP

PLAY

DivX

playback

Load a disc on which DivX

fi les have been recorded in the disc slot.

A fi le browser screen will appear on the TV screen.

/Movie-01.DIVX

Press / to select fi le.

Movie-01

Movie-02

Movie-03

Movie-04

Movie-05

Movie-06

Movie-07

Movie-08

Select Files

Repeat :Off

Mode :Off

JPEG Preview

Playing DivX

VOD content

DivX ® VOD content is protected by DRM (Digital Rights

Management) system. This restricts playback of content to specifi c registered devices.

If the incorrect DRM fi le is loaded, “Authorization

Error This player is not authorized to play this video” will appear on the screen.

When you attempt to play

View DivX(R) VOD Rental

This rental has 5 views left.

Do you want to use one of your 5 views now?

Yes No

DivX ® VOD, the number of plays is limited and the right message will appear on the screen. If you wish to play it, select “Yes”.

• If the number of plays goes over the limit, then “Rental

Expired” will be displayed. In this case, the fi le will not be played.

• When PLAY has been pressed after the fi le browser displayed, playback begins automatically starting from the fi rst fi le. In this case, if the fi rst fi le is a JPEG fi le, the fi rst JPEG fi le is played back. If the fi rst fi le is a DivX ® fi le, the fi rst DivX ® fi le is played back. If the fi rst fi le is an MP3/WMA fi le, only MP3/WMA fi le are played back in order. If there is no fi le at a root directory, playback does not begin automatically.

Note:

• In order to play DivX ® VOD content on this unit, you fi rst need to register the unit with registration code. See page

• Depending on the recording conditions of DivX ® fi le, you may not be able to use FF, REV or JUMP function.

Press ENTER or PLAY. The selected DivX ® movie will be played back on the TV screen.

Press STOP to end playback.

• The unit records the stopped point. “ ” apears

on the TV screen. Press PLAY to resume

playback (from the scene point).

• If you press STOP again or unload the disc,

the unit will clear the stopped point. To watch

the other fi le, repeat steps 3 ~ 4.

Repeat, random and program playback using file browser

/ / /

ENTER

PLAY

SKIP /

Repeat playback (Audio CD/

MP3/WMA/JPEG/DivX

)

In the fi le browser, press / / / to select

“Repeat” during stop mode.

MP3/WMA/JPEG/DivX

)

In the fi le browser, press / / / to select

“Mode” during stop mode.

Folder-1

Folder-2

MP3-1

MP3-2

MP3-3

Select Files

Repeat :Off

Mode :Off

Press ENTER repeatedly to select “Track” or

“All”.

Folder-1

Folder-2

MP3-1

MP3-2

MP3-3

Press ENTER to select “Random”.

Select Files

Repeat

Mode

:Off

Folder-1

Folder-2

MP3-1

MP3-2

MP3 3

Select Files

Repeat :Track

Mode :Off

Press PLAY.

The unit automatically starts repeat playback after fi nishing the current track.

Folder-1

Folder-2

MP3-1

MP3-2

MP3-3

Select Files

Repeat :Off

Mode :Random

Press PLAY.

The random playback will start.

To resume normal playback

Select Repeat : “Off” in step 2.

Note:

• The repeat function is canceled when you eject the disc or turn the power off.

• Track repeat function is canceled whenever SKIP or is pressed.

• The function of A-B Repeat can be used for DivX ® CD. See

“A-B Repeat playback”

To resume normal playback

Select Mode : “Off” in step 2.

Note:

• The random function is canceled when you eject the disc or turn the power off.

Advanced playback

Repeat, random and program playback using file browser (continued)

/ / /

ENTER

PLAY

Program playback (Audio CD/MP3/WMA/JPEG/DivX

)

In the fi le browser, press / / / to select

“Edit Mode”, then press ENTER.

Press / to select “Program View”, then press

ENTER. Program View shows only the programmed fi les that you have added in step 2.

Folder-1

Folder-2

MP3-1

MP3-2

Repeat :Off

Mode :Off

Edit Mode

MP3 3

When “Edit Mode” is black color, you can mark the fi les which you want to add into

Program list.

2 add into the program list.

Folder-1

Folder-2

MP3-1

MP3-2

MP3-3

WMA-1

WMA-2

Repeat :Off

Mode :Off

Edit Mode

JPEG Previe

Press ENTER. Selected fi le was marked.

Repeat this procedure to select the other fi les.

Program View

Browser View

MP3-1

MP3-2

MP3-3

WMA-3

Folder-1

Folder-2

MP3-1

MP3-2

MP3-3

WMA-1

WMA-2

WMA-3

Edit Mode

Browser View

Clear Program

JPEG Preview

Edit Mode

Program View

Add To Program

JPEG Preview

In the Program View, press PLAY. The fi les start to playback in programed order that were added by you.

Then press ENTER. All marked fi les are added into the program list.

Folder-1

Folder-2

MP3-1

MP3-2

MP3-3

WMA-1

WMA-2

Edit Mode

Program View

Add To Program

JPEG Preview

When you fi nish storing the fi les which you want into the Program list, select “Edit Mode” and press

ENTER to release edit mode.

To remove fi le from program list in stop mode

In the Edit Mode, switch to Program View. Select fi le you want to remove, then press ENTER. Select “Clear

Program” and press ENTER. Marked fi le is removed from program list.

Note:

• The program function is canceled when you eject the disc or turn the power off.

Function setup

TV/DVD

Customizing the function settings

You can change the default settings of the DVD mode to customize performance to your preference.

Press TV/DVD on the remote control to select DVD mode.

/ / /

ENTER

SETUP

RETURN

DVD

VCD

Setting procedure

Press SETUP during stop mode.

The following on-screen display appears.

Then press or ENTER. The selectable

settings will appear.

4:3

QSound :

16:9

JPEG Interval

Screen Saver

: 5 Seconds

: On

Press or to select the desired section, then

press or .

Change the selection using or , by referring

to the corresponding pages

Press ENTER to save the setting.

•

Repeat steps 3, 4 and 5 to

change other option.

•

To select another section, go back to step 2 by pressing repeatedly.

First option will be highlighted. Press or

to select the desired option.

To clear SETUP screen, press SETUP once or press RETURN repeatedly.

Function setup

Customizing the function settings (Continued)

Setting details

Section Option Details Page

Menu

Subtitle

Audio

To select the language of “Menu”, “Subtitle” and “Audio”

if more than one language are available on the disc.

TV Screen

To select a picture size according to the aspect ratio of your TV.

Display

Picture Mode

To turn On or Off the operational status display on the TV screen.

To select a preferred picture mode from “Video”, “Film” or

“Auto”.

JPEG Interval

To select a preferred setting for the slide show playback.

Night Mode

To select “On” or “Off” for Night Mode.

Digital Out

Parental

Password

DivX(R) VOD

To select a digital output sound format corresponding to your system connection.

To select a preferred parental level for the parental setting.

To change the password.

To display your 8-character registration code.

JPEG Interval : 5 Seconds

Screen Saver : On

Menu, Subtitle, Audio

You can select the language of “Menu”, “Subtitle” and

“Audio” if more than one languages are recorded onto the disc.

English, Francais, Espanol:

The selected language will be heard or seen.

Other:

Other language can be selected (see “Language code list”

Original (Audio):

The unit will select the fi rst priority language of each disc.

Off (Subtitle):

Subtitles do not appear.

Note:

• If the selected language is not recorded on the disc, the fi rst-priority language is selected.

• If you want to change the OSD language, you can perform it by “Language” in the TV menu

TV Screen

You have the following screen sizes to choose from:

4:3 (Letter box):

When playing back a wide screen-DVD disc, it displays the wide picture with black bands at the top and bottom of screen.

4:3 (Pan & scan):

It displays the wide picture on the whole screen with left and right edges automatically cut off.

16:9 (Wide):

A wide screen picture is displayed full size.

Note:

• If the DVD disc is not formatted in the Pan & scan style, it will display 4:3 style.

Display

On screen display can be switched on or off when you press any buttons.

press any buttons.

the buttons (factory setting).

Function setup

Customizing the function settings (Continued)

Setting details (continued)

Picture Mode

There are two types of source content in pictures recorded in DVD video discs: fi lm content (pictures recorded from fi lms at 24 frames per second) and video content (video signals recorded at 30 frames per second). Make this selection according to the type of content being viewed.

Auto: Select this selection normally.

The DVD player automatically detects source content, fi lm or video of playback source, and converts that signal in an appropriate method.

Film: The DVD player converts fi lm content pictures appropriately. Suitable for playback of fi lm content pictures.

Video: The DVD player fi lters video signal and converts it appropriately.

Suitable for playback of video content pictures.

Note:

• Depending on the disc, pictures may be cut off or doubled. In this case, select “Video”.

JPEG Interval

You can continuously playback all JPEG fi les automatically.

After the selection below, the disc will start playback on

JPEG fi les which have been recorded.

Off:

Plays back one fi le at a time.

Plays back images in the form of a slide show at

5 second intervals.

■ Night Mode

JPEG Interval : 5 Seconds

Screen Saver : On

Night Mode enables you to control the dynamic range so as to achieve a suitable sound for your equipment.

Off: It plays back at the recording level on the disc.

On: Loud sound such as explosion is toned down slightly when played back. This is suitable when it is connected to a stereo.

Note:

• This function works only when the disc recorded with

•

Dolby Digital is played back.

The level of Night Mode may differ depending on DVD video disc.

■ Digital Out

You can select the digital output sound format corresponding to your system connection.

Off:

There is no sound output from DIGITAL AUDIO OUT jack.

PCM:

Change Dolby Digital to PCM for the output.

Select when connected to a 2 channel digital stereo amplifier.

Bitstream:

Disc audio bitstream data will be output.

Note:

• Even if you select “Bitstream”, MPEG Audio will be output in PCM format.

Plays back images in the form of a slide show at

10 second intervals.

Plays back images in the form of a slide show at

15 second intervals.

Picture Mode : Auto

JPEG Interval : 5 Seconds

Screen Saver : On

Parental control setting

Some discs are specifi ed as not suitable for children. Such discs can be limited not to playback with the unit.

1) Press or to select “Parental”, then press

“Enter Password” screen will appear.

2) Press “0000” using Number buttons (0–9).

(Please note, this is pre-setting password of this

unit).

• Level Off: The parental control setting does not function.

• Level 8: Virtually all DVD software can be

• Level 1: DVD software for adults cannot be

3) Press or to select from the level 1 to level 8.

The limitation will be more severe as the level number is lower. Then press ENTER.

Note:

• Depending on the discs, the unit cannot limit playback.

• Some discs may not be encoded with specifi c rating

level information though its disc jacket says “adult.”

For those discs, the age restriction will not work.

• The password is required every time when you change the parental level.

• If you input a wrong number, press EXIT/CANCEL.

■ Set the new password

1) Press or to select “Password”, then press

ENTER. “Enter Current Password” screen will appear.

2) Press Number buttons (0–9) to input the current password (If the password has not been set yet after you purchase this unit, it is “0000”).

3) Then press ENTER. “Enter New Password” screen will appear. Press Number buttons (0–9) to input the new password.

4) Press ENTER. Now your new password has been set. Be sure to remember this number!

If you forget the password

1) Press EJECT to remove the disc.

2) While holding 7 down on the remote control and appears on the screen. Now the password has been returned to the initial value (“0000”).

■ DivX

® VOD

In order to play DivX ® VOD (Video On Demand) content on this unit, you fi rst need to register the unit with your

DivX ® VOD content provider. You do this by generating a DivX ® VOD registration code, which you submit to your provider.

Press or to select “DivX(R) VOD”. Then press

ENTER. Your 8-character registration code is

displayed. Make a note of the code as you will need it when you register with a DivX ® VOD provider.

Then press ENTER to select Done.

Note:

• If each setup (pages

) has completed, the unit can always work under the same condition (especially with

DVD discs).

Each setup will be retained in the memory even if you turn the power off.

Function setup

Temporary cancel the rating level by DVD disc

Depending on the DVD disc, the disc may try to temporarily cancel the rating level that you have set.

It is up to you to decide whether to cancel the rating level or not.

EJECT

0–9

ENTER

RETURN

DVD

Temporary cancel the rating level by DVD disc

Load a DVD disc.

Note:

• This temporary cancellation of rating level will be kept until the disc is ejected.

• When the disc is ejected, the original rating level will be set again automatically.

If the DVD disc has been designed to temporarily cancel the Rating level, the screen which follows the “Reading” screen will change, depending on which disc is played.

If you select “YES” with the ENTER key, password input screen will then appear.

• If “NO” is selected, press EJECT to remove

Enter the password with Number buttons (0–9).

Then press ENTER.

To exit from the entry, press

RETURN.

Enter Password

Playback will commence if the entered password is correct.

Others

Understanding the Power Return feature

If the power is cut off while you are viewing the TV/DVD and the power is resupplied, the Power Return feature will turn the TV/DVD on automatically. If the power is going to be off for a long time or you are going to be away from the

TV/DVD for a long time, unplug the power cord from the wall outlet to prevent the TV/DVD from turning on in your absence.

Troubleshooting

Use the following check list for troubleshooting when you have problems with your unit. Consult your local dealer or service outlet if problems persist.

Be sure all connections are properly made when using with other units.

POWER

SYMPTOMS POSSIBLE SOLUTIONS

TV/DVD does not operate.

• Make sure the connection of AC cord is secured.

• Try another AC outlet.

• Unplug unit, then plug it back in.

TV BROADCAST RECEPTION

Poor sound or No sound.

Poor picture or No picture.

Poor reception on some channels.

Poor color or no color.

Picture wobbles or drifts.

No CATV reception.

Horizontal or diagonal bars on screen.

No reception above channel 13.

TV shuts off.

Closed - Caption is not activated.

Display is not shown in your language.

• Station or Cable TV may have problems, try another station.

• Check Volume adjustments or mute.

• Check for sources of possible interference.

• Station or Cable TV may have problems, try another station.

• Check antenna or Cable TV connections, reorient antenna.

• Check for sources of possible interference.

• Check Picture setting.

• Station or Cable TV may have problems, try another station.

• Station signal is weak, reorient antenna to receive weaker station.

• Check for sources of possible interference.

• Station or Cable TV may have problems, try another station.

• Make sure channels are set into memory.

• Check Picture setting.

• Check antenna or Cable TV connections, reorient antenna.

• Check for sources of possible interference.

• Station or Cable TV may have problems, try another station.

• Make sure channels are set into memory.

• Cable TV company is scrambling signal.

• Check antenna or Cable TV connections, reorient antenna.

• Check all Cable TV connections.

• Set Air/Cable selection to the Cable position.

• Station or Cable TV system problems, try another station.

• Check antenna or Cable TV connections, reorient antenna.

• Check for sources of possible interference.

• Make sure Air/Cable selection is in the appropriate position.

• If antenna is used, check UHF antenna connections.

• Auto shut off feature worked.

• Sleep Timer is set.

• Power interrupted.

• TV station experiencing problems or program tuned is not closed

captioned. Try another channel.

• Check Cable TV connection or VHF/UHF antenna, reposition or

rotate antenna.

• Set “CC Setting” to “On” to turn on the closed caption decoder.

• Select proper language in the menu options.

PAGE

27, 28

14, 15

Others

Troubleshooting (Continued)

SYMPTOMS POSSIBLE SOLUTIONS

DVD

Playback doesn’t start.

No picture.

No sound.

No subtitle.

Angle cannot be changed.

“✕” appears on the screen.

REMOTE CONTROL

• No disc is loaded.

• The disc may be dirty. Clean up the disc.

• The unit cannot play CD-ROMs, etc.

• TV/DVD selector is not set correctly.

• Check the input selector of the amplifi er is set properly.

• The unit is in the special playback mode.

• Select the correct Audio Input/Output position on AV amplifi er.

Picture is distorted during fast reverse/forward playback.

Stopping playback, search, slowmotion play, repeat play, or program play, etc. cannot be performed.

No on-screen display.

The unit or remote operation key is not functioning.

Playback does not start when the title is selected.

Audio soundtrack and/or subtitle language is not changed when you playback a DVD.

• The picture will be distorted occasionally.

• Some discs may not do some of the functions.

• Set Display to On.

• Turn off the unit and unplug the AC power cord for several minutes, then replug it.

• Check the Parental setup.

• Multilingual language is not recorded on the DVD disc.

• Some discs have no subtitles.

• Subtitles are cleared. Press SUBTITLE.

• Multi-angles are not recorded on the DVD disc.

• The function is prohibited with the unit or the disc.

The remote control does not function.

• Aim the remote control at the remote sensor.

• Operate within approx. 5 meters or reduce the light in the room.

• Clear the path of the beam.

• The batteries are weak. Replace the batteries.

• Check the batteries are inserted correctly.

PAGE

18, 19

Reception disturbances

Most types of television interference can be remedied by adjusting the height and position of the VHF/UHF antenna.

Outdoor antennas are recommended for best results. The most common types of television interference are shown below. If one of these symptoms appear when the TV/DVD is connected to a Cable TV system, the disturbance may be caused by the local Cable TV company broadcast.

IGNITION

Black spots or horizontal streaks may appear, the picture may fl utter or drift. Usually caused by interference from automobile ignition systems, neon lamps or AC powered tools and appliances such as drills or hair dryers.

GHOSTS

Ghosts are caused by the television signal following two paths. One is the direct path and the other is refl ected by tall buildings, hills or other large objects. Changing the direction or position of the antenna may improve the reception.

SNOW

If the TV/DVD is located far from the TV station, in a fringe reception area where the signal is weak, small dots may appear in the picture.

If the signal is extremely weak, the installation of a larger external antenna may be necessary.

RADIO FREQUENCY INTERFERENCE (RFI)

Caused by two-way radios, this type of interference produces moving ripples or diagonal streaks in the picture. Some cases may cause a loss of contrast in the picture. Changing the direction and position of the antenna or installing an RFI fi lter may improve the picture.

CARE AND MAINTENANCE

To prevent fi re or shock hazard, disconnect the TV/DVD from the power source before cleaning.

Use caution when cleaning or wiping the plastic parts.

Language code list

Enter the appropriate code number for the initial settings “Menu”, “Subtitle” and/or “Audio”

Language Name Code Language Name Code Language Name Code Language Name Code

Abkhazian 1112 Fiji 1620 Lingala 2224 Singhalese 2919

Afar

Afrikaans

1111

1116

Finnish

French

1619 Lithuanian

1628 Macedonian

2230 Slovak

2321 Slovenian

2921

2922

Albanian

Amharic

Arabic

Armenian

Assamese

Aymara

Azerbaijani

Bashkir

Basque

Bengali; Bangla

Bhutani

2927

1123

1128

1135

1136

1211

1531

1224

1436

Frisian

Galician

Georgian

1835 German

1129 Greek

Greenlandic

Guarani

Gujarati

Hausa

Hebrew

Hindi

1635

1722

2111

1415 Maltese

1522 Maori

2122

1724

1731

1811

Malagasy

Malay

Malayalam

Marathi

Moldavian

Mongolian

Nauru

1933 Nepali

1819 Norwegian

2317

2329

2322

2328

2325

2324

2411

2415

2425

Somali

Spanish

Sundanese

2330 Swahili

2319 Swedish

Tagalog

Tajik

Tamil

Tatar

Telugu

Thai

2925

1529

2931

2933

2932

3022

3017

3011

3030

3015

3018

Bihari

Breton

Bulgarian

Burmese

Byelorussian

Cambodian

Catalan

Chinese

Corsican

Croatian

Czech

Danish

Dutch

English

Esperanto

Estonian

Faroese

1218

1228

1217

2335 Interlingua

1215 Irish

2123

1311

3618

1325

1828

1329

1411

2422

1524

1525 Laothian

1530 Latin

1625

Hungarian

Icelandic

Indonesian

Italian

Japanese

Javanese

Kannada

Kashmiri

Kazakh

Kirghiz

Korean

Kurdish

Latvian, Lettish

1831 Oriya

1929 Panjabi

1924 Pashto, Pushto

1911

1711

Persian

Polish

2528

2611

2629

Tibetan

Tigrinya

Tonga

1611 Turkish

2622 Turkmen

1930 Portuguese

2011 Quechua

2630 Twi

2731 Ukrainian

2033 Rhaeto-Romance 2823 Urdu

2124 Romanian 2825 Uzbek

2129 Russian

2121 Samoan

2831 Vietnamese

2923 Volapük

2135

2125

2131

Sanskrit

Scots Gaelic

Serbian

2225 Serbo-Croatian

2211

2232

Shona

Sindhi

2911

1714

2928

2914

Welsh

Wolof

Xhosa

2918 Yiddish

2924 Yoruba

Zulu

1335

3325

3418

2019

3525

3631

1225

3019

3025

3028

3021

3033

3121

3128

3136

3219

3225

Specifications

Model 19LV610C 22LV610C 26LV610C

General

Power supply

Power consumption

Weight

Dimensions

AC 120V 60Hz

Operation: 38 W,

Stand by: 0.8 W

11.2 lbs (5.1 kg)

Operation: 51 W,

Stand by: 0.8 W

13.5 lbs (6.1 kg)

Width: 18-3/4 inches (476 mm)

Height: 14-5/16 inches (364 mm)

Depth: 8-1/8 inches (207 mm)

Width: 21-5/8 inches (550 mm)

Height: 16 inches (407.1 mm)

Depth: 8-1/8 inches (207 mm)

5°C-40°C (41°F-104°F)

Less than 80% RH (No condensation)

Operation: 102 W,

Stand by: 0.7 W

19.4 lbs (8.8 kg)

Width: 26-13/16 inches (681 mm)

Height: 20-1/4 inches (513.9 mm)

Depth: 8-15/16 inches (226.7 mm)

Operating temperature

Operating humidity

Television

LCD panel (Screen size is approximate.)

Display method

Number of pixels

Television system

Receiving channels

Antenna input

18.5-inch diagonal 21.6-inch diagonal

Color TFT LCD

1366 (Horizontal) x 768 (Vertical)

NTSC standard, ATSC standard (8VSB), QAM

VHF: 2-13

UHF: 14-69

CATV: 1-135 (4A, A-5~A-1, A~I, J~W, W+1~W+94)

VHF/UHF 75 Ω

26.01-inch diagonal

Speaker 1 x 2-13/16 inches (25.4 x 71.1 mm), 8 Ω x 2

1-5/8 x 4-13/16 inches

(40.6 x 121.9 mm), 8 Ω x 2

5.0W + 5.0W

Audio output power

DVD/CD player

Signal system

1.5W + 1.5W

Applicable disc

NTSC

1. DVD (12cm, 8cm)

2. CD (12cm, 8cm)

1-Lens, 2-Beams System Pickup

Input/Output

S-Video input

(Y) 1.0 V (p-p), 75 Ω, negative sync., Mini DIN 4-pin x 1

ColorStream video input

(Y) 1.0 V (p-p), 75 Ω, negative sync., pin jack x 1

(PB, PR) 0.7 V (p-p), 75 Ω, pin jack x 2

Video input 1.0 V (p-p), 75 Ω, negative sync., pin jack x 1

1.0 V (p-p), 75 Ω, negative sync., pin jack x 2

Audio input

Audio output

HDMI input

–8dBm, 50 kΩ, negative sync., pin jack (L/R) x 2

–

HDMI compliant (type A connector), HDCP compliant, E-EDID compliant

Suggested scan rates: 480i, 480p, 720p, 1080i, 1080p

HDMI Audio: 2-channel PCM, 32/44.1/48 kHz sampling frequency, 16/20/24 bits per sample

MONITOR: Mini-Dsub 15pin x 1, AUDIO: 3.5ø mm Stereo jack x 1

–12 dBm, 1 kΩ, negative sync., pin jack (L/R) x 1

PC input

Digital audio output

(Coaxial)

0.5 V (p-p), 75 Ω, pin jack x 1

Headphone

Accessories

ø3.5mm stereo mini jack x 1 –

Remote control (SE-R0305) ................................................................................................................................................................. 1

Batteries (R03/AAA) ............................................................................................................................................................................ 2

AC cord ................................................................................................................................................................................................ 1

Cleaning cloth .............................................................................. ........................................................................................................ 1

Owner’s manual (this booklet) ..................................................... ........................................................................................................ 1

• This model complies with the above specifi cations.

• Designs and specifi cations are subject to change without notice.

• This model may not be compatible with features and/or specifi cations that may be added in the future.

Others

Limited Canadian Warranty for Toshiba Brand Flat Panel Televisions

Toshiba of Canada Limited (“TCL”) makes the following limited warranties to original consumers in Canada. THESE LIMITED

WARRANTIES EXTEND TO THE ORIGINAL CONSUMER PURCHASER OR ANY PERSON RECEIVING THIS TOSHIBA

BRAND FLAT PANEL TELEVISION (the “TELEVISION(S)” or “Television(s)”) AS A GIFT FROM THE ORIGINAL

CONSUMER PURCHASER AND TO NO OTHER PURCHASER OR TRANSFEREE.

TELEVISIONS PURCHASED IN CANADA, AND USED ANYWHERE OUTSIDE OF CANADA INCLUDING, WITHOUT

LIMITATION, THE UNITED STATES AND MEXICO, ARE NOT COVERED BY THESE WARRANTIES.

TELEVISIONS PURCHASED ANYWHERE OUTSIDE OF CANADA, INCLUDING, WITHOUT LIMITATION, THE UNITED

STATES AND MEXICO, AND USED IN CANADA, ARE NOT COVERED BY THESE WARRANTIES.

Limited One (1) Year Warranty on Parts and Labour

Subject to the more limited warranty if the Television is used for any commercial or business purposes as set out below, TCL warrants the Television and its parts against material defects in materials or workmanship that result in the Television failing for a period of one (1) year after the date of original retail purchase. DURING THIS PERIOD,

TCL WILL, AT TCL’S OPTION, REPAIR OR REPLACE A DEFECTIVE

PART WITH A NEW OR REFURBISHED PART WITHOUT CHARGE

TO YOU FOR PARTS OR LABOUR.

(a) FOR TELEVISIONS 32 INCHES OR LESS: YOU MUST

DELIVER THE ENTIRE TELEVISION TO A TCL TELEVISION

AUTHORIZED SERVICE PROVIDER (“ASP”). YOU MUST PAY

FOR ALL TRANSPORTATION AND INSURANCE CHARGES

FOR THE TELEVISION TO AND FROM THE ASP.

(b) FOR TELEVISIONS OVER 32 INCHES: During this period,

ASP personnel will come to your home when warranty service is required. Depending on the type of repair required, the service will either be performed in your home or the Television will be taken to an ASP for repair and returned to your home at no cost to you.

IN-HOME SERVICE ONLY APPLIES WITHIN 100 KILOMETERS

OF AN ASP. IF YOU ARE NOT WITHIN 100 KILOMETERS OF

AN ASP, YOU MUST DELIVER THE ENTIRE TELEVISION TO

AN ASP. YOU MUST PAY FOR ALL TRANSPORTATION AND

INSURANCE CHARGES FOR THE TELEVISION TO AND FROM

THE ASP.

Limited Warranty for Commercial Units

TCL warrants Televisions that are used for any commercial or business purposes as follows: all parts are warranted against material defects in materials or workmanship that result in the Television failing for a period of ninety (90) days after the date of original retail purchase.

DURING THIS PERIOD, TCL WILL, AT TCL’S OPTION, REPAIR OR

REPLACE THE DEFECTIVE PART WITH A NEW OR REFURBISHED

PART WITHOUT CHARGE TO YOU.

THE ENTIRE TELEVISION TO AN ASP. YOU MUST PAY FOR

ALL TRANSPORTATION AND INSURANCE CHARGES FOR

THE TELEVISION TO AND FROM THE ASP.

(d) FOR TELEVISIONS OVER OVER 32 INCHES: During this period, ASP personnel will come on-site when warranty service is required. Depending on the type of repair required, the service will either be performed on-site or the Television will be taken to an

ASP for repair and returned at no cost to you. ON-SITE SERVICE

ONLY APPLIES WITHIN 100 KILOMETERS OF AN ASP. IF

YOU ARE NOT WITHIN 100 KILOMETERS OF AN ASP, YOU

MUST DELIVER THE ENTIRE TELEVISION TO AN ASP. YOU

MUST PAY FOR ALL TRANSPORTATION AND INSURANCE

CHARGES FOR THE TELEVISION TO AND FROM THE ASP.

Rental Units

The warranty for Television rental units begins with the date of fi rst rental or thirty (30) days from the date of shipment to the rental fi rm, whichever comes fi rst.

Your Responsibility

THE ABOVE WARRANTIES ARE SUBJECT TO THE FOLLOWING

CONDITIONS:

(1) You must provide your bill of sale or other proof of purchase.

(2) All warranty servicing of this Television must be performed by an

ASP.

(3) The warranties from TCL are effective only if the Television is

(i) purchased as new and unopened from TCL or from TCL’s authorized distributors, dealers or resellers (“ADR’s”) and (ii) located/operated in Canada.

(4) Labour charges for set installation, setup, adjustment of customer controls, and installation or repair of antenna systems are not covered by these warranties. Reception problems caused by inadequate antenna systems are your responsibility.

(5) Warranties extend only to material defects in materials or workmanship as limited above, and do not extend to: a. Service, repairs or replacement made necessary by accident, misuse, abuse, moisture, liquids, dust, dirt, neglect, accident, damage, 24/7 applications, improper installation, improper operation, improper cleaning, improper maintenance, normal wear and tear, screen burn or image retention caused by prolonged display of static images and/or phosphor aging, or any other external cause or event, act or omission outside the control of TCL, including fi re, theft, acts of God, alteration, power failures, power surges or power shortages, lightning, other electrical faults, or repairs, modifi cations or replacements by persons other than those authorized by TCL to service the Television; b. Replacement of missing, discarded or lost parts, the provision of retrofi ts, or preventive maintenance; c. Repair of damage that is cosmetic only or does not affect the

Television functionality, such as wear and tear, scratches and dents; d. Service on Toshiba-branded accessory items (such accessory items may be covered by their own warranty); e. Service on third party products or service made necessary by use of incompatible third party products; f. Service made necessary by the simultaneous use of this Television and connected equipment; g. Modifi cations to the Television not approved in writing by TCL, and service made necessary by the use or installation of non-Toshiba modifi cations to the Television; h. Service of a Television on which the TOSHIBA label or logo, rating label or serial number have been defaced or removed; i. On-site service and repair of the Television; and j. Damage to the Television caused by failure to follow the specifi cations, User manuals or guides as to usage and/or storage.

Disclaimer and Limitation of Remedy

TO THE EXTENT NOT PRECLUDED BY LAW, ALL OTHER

EXPRESS AND IMPLIED WARRANTIES, CONDITIONS AND

REPRESENTATIONS FOR THIS TELEVISION, INCLUDING THE

IMPLIED WARRANTIES, CONDITIONS AND REPRESENTATIONS

OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE, ARE HEREBY DISCLAIMED AND EXCLUDED.

IF THE APPLICABLE LAW, STATUTORY OR OTHERWISE,

PRECLUDES THE EXCLUSION OF ANY IMPLIED WARRANTIES,

CONDITIONS AND REPRESENTATIONS THEN SUCH IMPLIED

WARRANTIES, CONDITIONS AND REPRESENTATIONS ARE

OTHERWISE LIMITED IN DURATION TO THE TERM OF THIS

EXPRESS WRITTEN LIMITED WARRANTY. TO THE EXTENT

NOT PRECLUDED BY LAW, STATUTORY OR OTHERWISE, THIS

WRITTEN WARRANTY SUPERCEDES AND SPECIFICALLY

DISCLAIMS ANY OTHER WARRANTY, CONDITION OR

REPRESENTATION NOT STATED IN THIS WARRANTY, WHETHER

MADE BY TCL, TOSHIBA CORPORATION, THEIR AFFILIATES,

ADRs AND ASPs AND WHETHER MADE ORALLY OR IN WRITING

(INCLUDING ANY STATEMENT IN ANY BROCHURE, PRESS

RELEASE, ANNOUNCEMENT, ADVERTISEMENT, POINT OF SALE

DISPLAY, ETC.).

YOU MUST READ AND FOLLOW ALL SET-UP AND USAGE

INSTRUCTIONS IN THE APPLICABLE USER GUIDES AND/OR

MANUALS. IF YOU FAIL TO DO SO, THIS TELEVISION MAY

NOT FUNCTION PROPERLY AND YOU MAY SUFFER DAMAGE.

THIS WARRANTY WILL NOT COVER ANY SERVICE THAT IS

REQUIRED, IN PART OR IN WHOLE, AS A RESULT OF ANY

FAILURE TO FOLLOW THE SET-UP AND USAGE INSTRUCTIONS.

THIS WARRANTY DOES NOT APPLY AND SHALL BE VOID AND

UNENFORCEABLE IF THE TELEVISION IS OPENED, SERVICED,

OR REPAIRED BY PERSONS OTHER THAN THOSE AUTHORIZED

BY TCL TO SERVICE OR REPAIR THE TELEVISION.

IF THE TELEVISION FAILS TO WORK AS WARRANTED ABOVE,

YOUR SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR

REPLACEMENT OF THE DEFECTIVE PART. IN NO EVENT WILL

TCL, TOSHIBA CORPORATION, THEIR AFFILIATES, ADRs OR

ASPs (THE “RELATED PARTIES”) BE LIABLE TO YOU OR ANY

THIRD PARTY FOR ANY DAMAGES, MONEY, REIMBURSEMENT,

COSTS OR EXPENSES. THIS LIMITATION APPLIES TO DAMAGES,

MONEY, REIMBURSEMENT, COSTS OR EXPENSES OF ANY KIND

WHATSOEVER INCLUDING ANY DIRECT OR INDIRECT DAMAGES,

DAMAGE TO PROPERTY OR PERSON, LOST PROFITS, LOST

SAVINGS, INCONVENIENCE OR OTHER SPECIAL, INCIDENTAL,

EXEMPLARY OR CONSEQUENTIAL DAMAGES, WHETHER

FOR BREACH OF WARRANTY, BREACH OF CONTRACT, TORT

(INCLUDING NEGLIGENCE), UNDER A STATUTE OR UNDER ANY

OTHER LAW OR FORM OR ACTION, OR WHETHER ARISING OUT

OF THE USE OF OR INABILITY TO USE THE TELEVISION, EVEN

IF ANY OF THE RELATED PARTIES HAS BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES OR OF ANY CLAIM BY ANY

OTHER PARTY.

No person, agent, distributor, dealer or company is authorized to change, modify or extend the terms of these warranties in any manner whatsoever.

Arbitration and Dispute Resolution

To the extent not precluded by law, any claim, dispute, controversy or disagreement (whether for breach of warranty, breach of contract, tort (including negligence), under a statute or under any other law or form of action) against any of the Related Parties arising out of, or otherwise relating to: (i) this warranty; (ii) the Television; (iii) any oral or written representations, statements, brochures, press releases, advertising, announcement, point of sale display, or promotional material relating to the Television; (iv) the relationships that result from this warranty, (the foregoing claims, disputes controversies and disagreements are collectively referred to as the “Dispute”), shall be referred to and resolved by fi nal and binding arbitration (to the exclusion of the courts). To the extent not precluded by law, you agree to waive any right that you may have to commence or participate in any representative or class proceeding against the Related Parties relating to any Dispute. If and where applicable and to the extent not precluded by law, you further agree to opt out of any such representative or class proceedings.Arbitration of any Dispute will be conducted in the forum and in the manner as agreed to between you and TCL. Failing such agreement, the arbitration will be conducted by one arbitrator pursuant to the laws and rules relating to arbitration generally in force in the jurisdiction in which you reside at the time that the Dispute arises. To the extent not precluded by law, no claim, dispute, controversy or disagreement of any other person may be joined or combined with any Dispute by you, without the prior written consent of TCL.

Critical Applications

The Television you have purchased is not designed for any “critical applications.” “Critical applications” means life support systems, medical applications, connections to implanted medical devices, commercial transportation, nuclear facilities or systems or any other applications where Television failure could lead to injury to persons or loss of life or catastrophic property damage.

IF THE CUSTOMER USES THE TELEVISION IN ANY CRITICAL

APPLICATION, THE CUSTOMER – AND NOT TCL, ITS AFFILIATES,

ADRs OR ASPs – ASSUME SOLE AND FULL RESPONSIBILITY

FOR SUCH USE. TCL RESERVES THE RIGHT TO REFUSE TO

SERVICE ANY TELEVISION USED IN A CRITICAL APPLICATION.

TCL, ITS AFFILIATES, ADRs AND ASPs HEREBY DISCLAIM ANY

AND ALL LIABILITY, DAMAGES AND CONSEQUENCES ARISING

OUT OF THE SERVICE OR REFUSAL TO SERVICE SUCH

TELEVISION AND FURTHER DISCLAIM ANY AND ALL LIABILITY,

CONSEQUENCES AND DAMAGES THAT MAY ARISE OR

RESULT FROM THE USE OF THE TELEVISION IN ANY CRITICAL

APPLICATIONS.

General Provisions

If and to the extent that any provision of this limited warranty should generally be found to be unenforceable, the unenforceable provision shall be severed from the warranty and deemed not to form part of the warranty. The remaining provisions of this warranty shall be and remain valid and enforceable. If and to the extent that any provision of this limited warranty as it relates to any of the Related

Parties is found to be invalid or unenforceable in respect of that party (the “Excluded Party”), the Excluded Party shall be deemed to be severed or excluded from the provision, and the provision shall remain valid, enforceable and applicable in respect of the other or remaining Related Parties.

To the extent permitted by law, this limited warranty shall be governed and construed in accordance with the laws of Ontario.

If there is any inconsistency between this limited warranty, on the one hand, and any statement in the packaging of the Television or in any other document enclosed with, or used in the context of the promotion or sale of, the Television, on the other hand, the provisions of this limited warranty shall prevail.

How to Obtain Warranty Services

If, after following all of the operating instructions in this manual and checking the “Troubleshooting” section, you fi nd that service is needed:

(1) To fi nd the nearest ASP, visit TCL’s web site at www.toshiba.ca, or call toll free 1-800-268-3404

(2) Present your bill of sale or other proof of purchase to the ASP.

For additional information, visit TCL’s website at www.toshiba.ca

ColorStream and TheaterWide are registered trademarks of Toshiba America Consumer Products, L.L.C.

J52F0301A SH 09/02

Printed in Thailand

Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Toshiba 26LV610U Television User Guide

Toshiba 26LV61K Television User Guide
