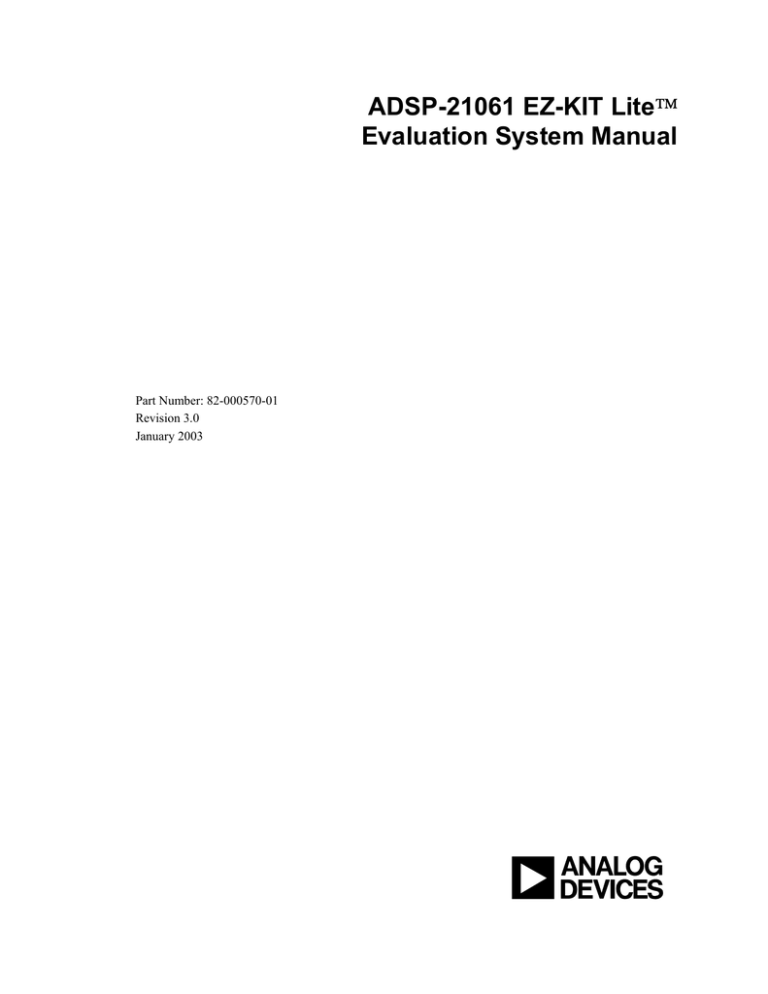

ADSP-21061 EZ-KIT Lite™ Evaluation System

ADSP-21061 EZ-KIT Lite™ Evaluation System

Part Number: 82-000570-01

Revision 3.0

January 2003

ADSP-21061 EZ-KIT Lite

Evaluation System Manual

a

Notice

Analog Devices, Inc. reserves the right to make changes to or to discontinue any product or service identified in this publication without notice.

Analog Devices assumes no liability for Analog Devices applications assistance, customer product design, customer software performance, or infringement of patents or services described herein. In addition, Analog Devices shall not be held liable for special, collateral, incidental or consequential damages in connection with or arising out of the furnishing, performance, or use of this product.

Analog Devices products are not intended for use in life-support applications, devices, or systems.

Use of an Analog Devices product in such applications without the written consent of the Analog

Devices officer is prohibited. Users are restricted from copying, modifying, distributing, reverse engineering, and reverse assembling or reverse compiling the ADSP-21061 EZ-KIT Lite operational software (one copy may be made for back-up purposes only). No part of this document may be reproduced in any form without permission.

Trademarks and Service Mark Notice

The Analog Devices logo, ADSP-21061 SHARC, the ADSP-21061 SHARC logo, JTAG, and EZ-

ICE are registered trademarks; and EZ-KIT Lite, VisualDSP++, the VisualDSP++ logo,

TigerSHARC, the TigerSHARC logo, and the DSP Collaborative are trademarks of Analog

Devices, Inc. Microsoft and Windows are registered trademarks and Windows NT is a trademark of Microsoft Corporation. Adobe and Acrobat are trademarks of Adobe Systems Incorporated. All other brands and product names are trademarks or service marks of their respective owners.

Limited Warranty

The ADSP-21061 EZ-KIT Lite hardware is warranted against defects in materials and workmanship for a period of one year from the date of purchase from Analog Devices or from an authorized dealer.

Copyright © 2001-2003, Analog Devices, Inc. All rights reserved.

ii

TABLE OF CONTENTS

LIST OF TABLES........................................................................................................................................ 5

LIST OF FIGURES...................................................................................................................................... 6

1.

INTRODUCTION ................................................................................................................................ 7

1.1.

I

NTRODUCTION

................................................................................................................................ 7

1.2.

EZ-KIT L

ITE

S

YSTEM

A

RCHITECTURE

............................................................................................ 8

1.3.

F

OR

M

ORE

I

NFORMATION

A

BOUT

A

NALOG

D

EVICES

, I

NC

. P

RODUCTS

........................................... 8

1.4.

F

OR

T

ECHNICAL OR

C

USTOMER

S

UPPORT

....................................................................................... 9

1.5.

P

URPOSE OF THIS

M

ANUAL

.............................................................................................................. 9

1.6.

I

NTENDED

A

UDIENCE

...................................................................................................................... 9

1.7.

M

ANUAL

C

ONTENTS

D

ESCRIPTION

.................................................................................................. 9

1.8.

D

OCUMENTATION AND

R

ELATED

P

RODUCTS

................................................................................ 10

2.

GETTING STARTED........................................................................................................................ 12

2.1.

O

VERVIEW

.................................................................................................................................... 12

2.2.

C

ONTENTS OF

Y

OUR

EZ-KIT L

ITE

P

ACKAGE

................................................................................ 12

2.3.

PC C

ONFIGURATION

...................................................................................................................... 12

2.4.

V

ISUAL

DSP++.............................................................................................................................. 13

2.5.

I

NSTALLATION

P

ROCEDURES

......................................................................................................... 13

2.5.1.

Installing the EZ-KIT Lite Hardware ................................................................................... 14

2.5.2.

Installing VisualDSP++....................................................................................................... 14

2.5.3.

Installing the EZ-KIT Lite License ....................................................................................... 16

2.5.4.

Default Settings .................................................................................................................... 16

2.6.

H

ARDWARE

C

ONNECTIONS

........................................................................................................... 17

2.6.1.

Serial Port (RS-232) Connector ........................................................................................... 19

2.6.2.

Stereo Audio Output ............................................................................................................. 20

2.6.3.

Stereo Audio Input................................................................................................................ 20

2.6.4.

DC Power Supply Connector ............................................................................................... 20

3.

USING THE EZ-KIT LITE SOFTWARE....................................................................................... 21

3.1.

O

VERVIEW

.................................................................................................................................... 21

3.2.

S

TANDARD

O

PERATION

................................................................................................................. 21

3.2.1.

I/O Devices ........................................................................................................................... 21

3.2.1.1.

Flags ............................................................................................................................................ 21

3.2.1.2.

3.2.1.3.

External Interrupts ....................................................................................................................... 22

Serial Ports................................................................................................................................... 23

3.2.2.

POST Routines...................................................................................................................... 23

3.2.2.1.

UART Check/Initialization.......................................................................................................... 23

3.2.3.

Monitor Program Operation ................................................................................................ 24

3.3.

R

UNNING

Y

OUR

O

WN

P

ROGRAMS

................................................................................................. 25

3.3.1.

ADSP-21061 SHARC Processor Memory Map.................................................................... 26

4.

DEMONSTRATION PROGRAMS.................................................................................................. 28

4.1.

O

VERVIEW

.................................................................................................................................... 28

4.2.

S

TARTING THE

V

ISUAL

DSP++ E

NVIRONMENT

............................................................................. 28

4.3.

IDDE D

EBUG

O

PERATION WITH THE

ADSP-21061 EZ-KIT L

ITE

................................................ 29

4.3.1.

Loading Programs................................................................................................................ 29

4.3.2.

Registers and Memory.......................................................................................................... 30

4.3.3.

Setting Breakpoints and Stepping......................................................................................... 30

4.3.4.

Resetting the EZ-KIT Lite Board .......................................................................................... 30

4.4.

D

EMONSTRATION

P

ROGRAM

......................................................................................................... 31

3

4.4.1.

Bandpass Filter Demo.......................................................................................................... 31

4.4.2.

Primes Demo ........................................................................................................................ 33

4.4.3.

Peter Gunn Demo ................................................................................................................. 34

4.4.4.

Blink Demo ........................................................................................................................... 35

5.

WORKING WITH EZ-KIT LITE HARDWARE........................................................................... 36

5.1.

O

VERVIEW

.................................................................................................................................... 36

5.2.

B

OARD

L

AYOUT

............................................................................................................................ 36

5.2.1.

ADSP-21061 SHARC Processor .......................................................................................... 37

5.2.2.

Boot PROM .......................................................................................................................... 38

5.2.3.

User Pushbutton Switches .................................................................................................... 38

5.2.4.

User LEDs ............................................................................................................................ 38

5.2.4.1.

Power LED .................................................................................................................................. 38

5.2.5.

Expansion Port Connectors.................................................................................................. 39

5.2.6.

JTAG Connector (Emulator Port) ........................................................................................ 39

5.3.

J

UMPERS

........................................................................................................................................ 40

5.3.1.

Input Source Selector ........................................................................................................... 42

5.3.2.

Boot Control Jumper Block .................................................................................................. 42

5.3.3.

EPROM Settings Jumper Block............................................................................................ 42

5.4.

UART ........................................................................................................................................... 43

5.5.

AD1847 ........................................................................................................................................ 43

6.

PROGRAMMING REFERENCE .................................................................................................... 44

6.1.

O

VERVIEW

.................................................................................................................................... 44

6.2.

DSP P

ROGRAMS

............................................................................................................................ 44

6.2.1.

Memory Map ........................................................................................................................ 44

6.2.1.1.

Internal Memory Space................................................................................................................ 45

6.2.1.2.

Multiprocessor Memory Space .................................................................................................... 45

6.2.2.

Stereo Audio Codec Programming....................................................................................... 45

6.2.3.

Kernel Compatibility ............................................................................................................ 45

7.

REFERENCE ..................................................................................................................................... 47

7.1.

OVERVIEW................................................................................................................................. 47

7.2.

SETTINGS MENU COMMANDS .............................................................................................. 47

7.2.1.

Test Communications ........................................................................................................... 47

7.3 Baud Rate and COM Port ............................................................................................................. 47

8.

SCHEMATICS ................................................................................................................................... 49

8.1.

O

VERVIEW

.................................................................................................................................... 49

8.2.

B

OARD

S

CHEMATICS

..................................................................................................................... 49

8.3.

PAL E

QUATIONS

........................................................................................................................... 72

APPENDIX ................................................................................................................................................. 79

RESTRICTIONS........................................................................................................................................ 79

INDEX ......................................................................................................................................................... 80

4

LIST OF TABLES

T

ABLE

2-1 PC M

INIMUM

C

ONFIGURATION

................................................................................................... 13

T

ABLE

2-2 U

SER

C

ONFIGURABLE

EZ-KIT L

ITE

S

ETTINGS

........................................................................... 16

T

ABLE

2-3 S

ERIAL

P

ORT

P

IN

D

ESCRIPTIONS

................................................................................................. 20

T

ABLE

3-1 F

LAG

S

UMMARY

.......................................................................................................................... 22

T

ABLE

3-2 M

EMORY

M

AP

............................................................................................................................. 26

T

ABLE

3-3 R

ESTRICTED

M

EMORY

S

PACE

..................................................................................................... 27

T

ABLE

4-1 B

ANDPASS

F

ILTER

D

EMO

– F

ILTER

R

ANGES

............................................................................... 32

T

ABLE

4-2 B

ANDPASS

F

ILTER

D

EMO

– S

OURCE

I

NPUTS

............................................................................... 33

T

ABLE

5-1 B

OOT

M

ODE

S

ELECTION

.............................................................................................................. 42

T

ABLE

5-2 EPROM J

UMPER

S

ELECTION

C

HART

.......................................................................................... 43

T

ABLE

6-1 S

UMMARY OF

EZ-KIT L

ITE

ADSP-21061 SHARC P

ROCESSOR

R

ESOURCES

............................. 44

T

ABLE

8-1 ADSP-21061 EZ-KIT L

ITE

S

CHEMATIC

C

ONTENTS

................................................................... 49

5

LIST OF FIGURES

F

IGURE

1-1 ADSP-21061 EZ-KIT L

ITE

S

YSTEM

B

LOCK

D

IAGRAM

............................................................... 8

F

IGURE

2-1 C

OMPONENT

S

ELECTION

............................................................................................................ 15

F

IGURE

2-2 H

ARDWARE

C

ONNECTIONS TO THE

ADSP-21061 EZ-KIT L

ITE

................................................ 19

F

IGURE

4-1 T

ARGET

S

ELECTION

D

IALOG

...................................................................................................... 28

F

IGURE

4-2 T

ARGET

M

ESSAGE

...................................................................................................................... 29

F

IGURE

4-3 M

EMORY

W

INDOW FOR

S

YMBOL

‘F

ILTER

’ ................................................................................ 32

F

IGURE

4-4 M

EMORY

W

INDOW FOR

S

YMBOL

‘S

OURCE

’............................................................................... 33

F

IGURE

4-5 E

XPRESSIONS

W

INDOW FOR

P

RIMES

D

EMO

................................................................................ 34

F

IGURE

5-1 M

AJOR

C

OMPONENTS OF THE

ADSP-21061 EZ-KIT L

ITE

R

EV

. 2 B

OARD

................................ 37

F

IGURE

5-2 E

XPANSION

P

ORT

C

ONNECTORS

................................................................................................. 39

F

IGURE

5-3 JTAG C

ONNECTOR WITH

J

UMPERS

I

NSTALLED

.......................................................................... 40

F

IGURE

5-4 L

OCATION OF

C

ONFIGURATION

J

UMPERS ON THE

ADSP-21061 EZ-KIT L

ITE

B

OARD

R

EV

. 2.0 41

F

IGURE

5-5 L

INE

-L

EVEL

I

NPUT

A

UDIO

(F

ACTORY

D

EFAULT

)....................................................................... 42

F

IGURE

5-6 M

ICROPHONE

-L

EVEL

I

NPUT

A

UDIO

........................................................................................... 42

F

IGURE

7-1 S

ETTINGS

M

ENU

C

OMMANDS

..................................................................................................... 47

F

IGURE

7-2 V

ISUAL

DSP++ C

ONFIGURATOR

................................................................................................ 48

F

IGURE

7-3 P

LATFORM

P

ROPERTIES

.............................................................................................................. 48

F

IGURE

8-1 S

TATE

D

IAGRAM FOR

PAL U3................................................................................................... 78

6

1. INTRODUCTION

1.1. Introduction

Thank you for purchasing the ADSP-21061 EZ-KIT Lite

 evaluation kit. The evaluation board is designed to be used in conjunction with the VisualDSP++

 development environment and is based on the ADSP-21061 SHARC

®

floating-point digital signal processor (DSP). The kit is shipped with an evaluation board and VisualDSP++ software. The VisualDSP++ that comes with the kit will only operate with the evaluation board. The complete version must be purchased separately. Using the EZ-KIT Lite with VisualDSP++, you can observe the ADSP-21061 DSP execute programs from on-chip RAM, interact with on-board devices, and communicate with other peripherals.

You can access the ADSP-21061 SHARC processor using a PC through a serial port or an optional JTAG

In-Circuit Emulator (ICE). The monitor program that runs on the EZ-KIT Lite gives you access to the ADSP-21061 SHARC processor’s internal memory space through the serial port. By contrast, the JTAG emulator allows the PC to perform in-circuit emulation through the processor’s JTAG interface. The board’s features include:

• Analog Devices ADSP-21061 DSP running at 40 MHz

• Analog Devices AD1847 16-bit Stereo SoundPort

codec

• RS-232 interface

• Socketed EPROM

• User pushbuttons

• User programmable LEDs

• Power supply regulation

• Expansion connectors

The EZ-KIT Lite board is equipped with hardware that facilitates interactive demonstrations. The pushbutton switches and user programmable LEDs provide user control and board status.

Additionally, the AD1847 SoundPort codec provides access to an audio input (selectable as line level or microphone) and an audio output (line level).

The board can run stand-alone or can connect to the RS-232 port of the PC. The EZ-KIT Lite includes a monitor program stored on the original boot EPROM. The monitor program lets you download, execute, and debug ADSP-21061 EZ-KIT Lite programs. By removing the socketed

EPROM, and replacing it with an EPROM containing code, the board can run as a stand-alone unit.

7

You can also connect an optional JTAG emulator to the ADSP-21061 EZ-KIT Lite. The emulator allows you to load programs, start and stop program execution, observe and alter registers and memory, and perform other debugging operations.

JTAG emulators are available from Analog Devices and other third-party resellers.

1.2. EZ-KIT Lite System Architecture

Figure 1-1 is a block diagram of the ADSP-21061 EZ-KIT Lite system. You can access the

ADSP-21061 SHARC processor from the PC through the RS-232 interface. The boot PROM provides when the ADSP-21061 EZ-KIT Lite is operating in stand-alone mode and loads a kernel that manages the RS-232 interface.

Figure 1-1 ADSP-21061 EZ-KIT Lite System Block Diagram

In-circuit emulation is achieved with a JTAG probe connected to the JTAG port. The AD1847

SoundPort Stereo codec is accessed through a serial port that connects directly to the ADSP-

21061 SHARC processor. The ADSP-21061 EZ-KIT Lite board has several sites for connectors, allowing you to expand the board’s capabilities. These sites are not populated with connectors when you receive the board from Analog Devices.

1.3. For More Information About Analog Devices, Inc. Products

Analog Devices is accessible on the Internet at www.analog.com

. The DSP web page is directly accessible at www.analog.com/dsp . This page provides access to DSP-specific technical information and documentation, product overviews, and product announcements.

8

1.4. For Technical or Customer Support

You can reach our Customer Support group in the following ways:

• Fill in the online support request form at: http://www.analog.com/industry/dsp/tools/form_techsupport.html

• Email questions to [email protected]

1.5. Purpose of this Manual

This manual shows how to install the evaluation board and software on the PC. Also, the manual provides guidelines for running user code on the ADSP-21061 SHARC processor.

1.6. Intended Audience

DSP programmers who are familiar with Analog Devices' DSPs are the primary audience for this manual. This manual assumes that the audience has a working knowledge of Analog Devices DSP architecture and DSP instruction set.

DSP programmers who are unfamiliar with Analog Devices DSPs can use this manual, but should supplement this manual with the ADSP-2106x User’s Manual and the VisualDSP++ tools manuals.

1.7. Manual Contents Description

This manual contains the following information:

• Chapter 1 – Introduction

Provides manual overview and Analog Devices contact information.

• Chapter 2 – Getting Started

Provides information needed to install the software and the ADSP-21061 EZ-KIT Lite evaluation board.

• Chapter 3 – Using EZ-KIT Lite Software

Provides monitor level software information on how the EZ-KIT Lite board operates with the installed software.

• Chapter 4 – Demonstration Programs

Describes loading and running the demonstration programs supplied with the ADSP-21061

EZ-KIT Lite board.

• Chapter 5 – Working with EZ-KIT Lite Hardware

Describes the hardware characteristics of the ADSP-21061 EZ-KIT Lite board.

9

• Chapter 6 – Programming Reference

Provides technical details needed when writing programs for the ADSP-21061 EZ-KIT Lite.

• Chapter 7 – Reference

This is a reference for VisualDSP++ and provides information on all of the menu selections, commands, and dialog boxes when the target is the ADSP-21061 EZ-KIT Lite evaluation board.

• Chapter 8 – Schematics

Provides design information used to build the ADSP-21061 EZ-KIT Lite board.

• APPENDIX – Restrictions

Provides restrictions that apply to release 2.0 of the ADSP-21061 EZ-KIT Lite board.

1.8. Documentation and Related Products

For more information on the ADSP-21061 SHARC processor and the components of the ADSP-

21061 EZ-KIT Lite system, see the following documents:

• ADSP-21061 SHARC Processor Data Sheet

• ADSP-2106x SHARC User’s Manual

• AD1847 Serial Port 16-Bit SoundPort Stereo Codec Data Sheet

PC16550D Universal Asynchronous Receiver/Transmitter with FIFOs Data Sheet (National

Semiconductor)

The ADSP-21061 family of processors is supported by a complete set of evaluation tools.

Software tools include the C/C++ compiler, assembler, run-time libraries, linker, loader, simulator, and PROM splitter. See the following documents:

• VisualDSP++ Getting Started Guide

• VisualDSP++ User’s Guide for the ADSP-21xxx Family DSPs

• Assembler Manual for the ADSP-21xxx Family DSPs

• C/C++ Compiler & Library Manual for the ADSP-21xxx Family DSPs

• Linker & Utilities for the ADSP-21xxx Family DSPs

• Product Bulletin for the VisualDSP++ and the ADSP-21xxx Family DSPs

10

These documents are found on the Analog Devices Technical Documentation web site at: http://www.analog.com/industry/dsp/tech_doc/gen_purpose.html#32

If you plan to use the EZ-KIT Lite with the JTAG emulator, refer to the documentation that accompanies the emulator.

Your software installation kit includes online Help as part of the Windows interface. This Help file provides information about the ADSP-21061 EZ-KIT Lite evaluation board and accompanying tools.

11

2. GETTING STARTED

2.1. Overview

This chapter provides you with the information you need to install your software and the ADSP-

21061 EZ-KIT Lite evaluation board. Install your software and hardware in the order presented for correct operation. This chapter also provides basic board information.

2.2. Contents of Your EZ-KIT Lite Package

Your ADSP-21061 EZ-KIT Lite should contain the following items. If any item is missing, contact the vendor from whom you purchased your EZ-KIT Lite.

The evaluation board contains ESD (electrostatic discharge) sensitive devices. Electrostatic charges readily accumulate on the human body and equipment and can discharge without detection. Permanent damage may occur on devices subjected to high-energy discharges.

Proper ESD precautions are recommended to avoid performance degradation or loss of functionality. Unused boards should be stored in the protective shipping package.

• ADSP-21061 EZ-KIT Lite board

• Power cable with 9V DC power supply

• 9-pin RS-232 serial port cable

• CD-ROM containing EZ-KIT Lite target .dll files, examples, Help file, and utilities

• CD-ROM with VisualDSP++

• CD-ROM (DSP Designer’s Reference) containing DSP documentation

2.3. PC Configuration

For correct operation of the VisualDSP++ software and EZ-KIT Lite demos, your computer must have the minimum configuration shown below.

12

Table 2-1 PC Minimum Configuration

Windows 98, NT, 2000, XP

Windows 98, Windows 2000 or Windows XP ,

Pentium processor 166 MHz or faster

VGA Monitor and color video card

2-button mouse

100 MB available space

32 MB RAM

CD-ROM

2.4. VisualDSP++

ADSP-21061 EZ-KIT Lite is shipped with the VisualDSP++ Integrated Development and

Debugging Environment (IDDE), and code generation tools. VisualDSP++ is limited in functionality by the EZ-KIT Lite serial number shipped with this product. The EZ-KIT Lite serial number restricts the VisualDSP++ IDDE to connect only to the ADSP-21061 EZ-KIT Lite evaluation board running the debug monitor via the serial port (no emulation or simulation support). Additionally, the linker restricts you to only 25% (4k words) of the ADSP-21061

SHARC processor’s on-chip program memory space. If you purchase the full VisualDSP++ software suite you will obtain a new serial number from Analog Devices to lift the restrictions mentioned above.

The basic components that are shipped with VisualDSP++ are:

Integrated Development and Debugging Environment (IDDE) — graphical interface for project management, allowing you to set project options, access the code generation tools and view the insides of the DSP and perform debug operations such as read/write memory, read/write registers, load programs, run, step, halt, and more.

SHARC Family Code Generation Tools — C/C++ compiler, assembler, run-time libraries and linker, loader, simulator, and PROM splitter.

Example Projects — Both VisualDSP++ and the ADSP-21061 EZ-KIT Lite are shipped with example projects and C/C++ and Assembly source code that demonstrate various features of the tools and the ADSP-21061 DSP.

2.5. Installation Procedures

The following procedures are provided for the safe and effective use of the ADSP-21061 EZ-KIT

Lite evaluation board. Follow these instructions in the order presented to ensure correct operation of your software and hardware.

13

2.5.1. Installing the EZ-KIT Lite Hardware

The ADSP-21061 EZ-KIT Lite board is designed to run outside the PC as a stand-alone unit. There is no need to remove the chassis from your computer. To connect the EZ-KIT

Lite board:

1. Remove the EZ-KIT Lite board from the package. Be careful when handling the board to avoid the discharge of static electricity, which may damage some components.

2. Connect the RS-232 cable to an available COM Port on the PC and the ADSP-21061

EZ-KIT Lite evaluation board.

3. Plug the provided 9V-power supply into a 120-Volt AC receptacle and plug the connector at the other end of the cable into P2 on the evaluation board.

The FLAG3 and FLAG2 LEDs will start to toggle. The POWER LED remains on.

If the LEDs do not light up, check the power connections. If you plug a pair of selfpowered computer speakers into the Jack J22 (Output) on the board you will be able to hear a tune.

To configure your board to take advantage of the audio capabilities of the demos:

1. Plug a set of self-powered computer speakers into Jack J22 on the board. Turn on the speakers and set the volume to an adequate level.

2. Connect the line out of an electronic audio device to Jack J23 (Input) on the board. Set jumpers JP6 and JP8 to LINE.

This completes the hardware installation.

2.5.2. Installing VisualDSP++

The EZ-KIT Lite includes the latest evaluation version of VisualDSP++ for the ADSP-

21061 SHARC DSP Family. You must install this software prior to installing the EZ-KIT

Lite software.

Insert the VisualDSP++ CD-ROM into the CD-ROM drive. This will bring up the CD browser.

Click on the “Install VisualDSP++” option. This will launch the setup wizard. When prompted, by the component selection dialog of the installation wizard, insure that the

21061 EZ-Kit Light check box is checked.

14

Figure 2-1 Component Selection

Follow this wizard with the on-screen instructions.

15

2.5.3. Installing the EZ-KIT Lite License

Before the VisualDSP++ software can be used, you must install the license software. To install the EZ-KIT Lite license software follow these steps:

1. VisualDSP++ has been installed.

2. Insert the VisualDSP++ CD-ROM into the CD-ROM drive if it is not already in the drive.

3. Once the browser appears, select the "Install License" option.

4. Follow the setup wizard instructions.

NOTE: Ensure that you have the proper serial number, which is located on the back of the

CD sleeve.

2.5.4. Default Settings

After you have installed the board and utility software, your PC and EZ-KIT Lite have the default settings shown in Table 2-2. You can change these settings through the Settings menu in the IDDE.

Table 2-2 User Configurable EZ-KIT Lite Settings

Selection

COM Port

Baud Rate

Default Setting

COM 1

115200

The VisualDSP++ IDDE comes with a complete on-line help file and Adobe .pdf files of all manuals.

16

• You can use the context help button

to get help on any command or icon

Or

• Highlight a command and press F1.

For help on commands and dialog boxes click from the toolbar Help -> Help Topics to get to the IDDE Help file.

2.6. Hardware Connections

Figure 2-1 highlights the external hardware connections to the ADSP-21061 EZ-KIT Lite. The following sections describe each of the connections.

17

18

Figure 2-2 Hardware Connections to the ADSP-21061 EZ-KIT Lite

2.6.1. Serial Port (RS-232) Connector

P1 is female 9-pin D-Sub connector used to communicate with a host computer using RS-

232 signal levels and asynchronous serial protocols. The supplied cable provides a straightthrough connection from the DCE port on the EZ-KIT Lite to the DTE port on your PC.

The DCD, DTR, and DSR signals are connected on the EZ-KIT Lite board.

19

Table 2-3 Serial Port Pin Descriptions

Pin No.

7

8

9

5

6

3

4

1

2

Signal Name

DCD

Transmit Data (output)

Receive Data (input)

DTR

Signal Ground

DSR

Request to Send (input)

Clear to Send (output)

Not Connected

2.6.2. Stereo Audio Output

The Stereo Audio Output Jack connects to the left (L) and right (R) LINE OUTPUT pins of the AD1847 codec. Use standard audio cables with 1/8 inch (3.5mm) stereo plugs to connect these signals to a set of amplified speakers.

2.6.3. Stereo Audio Input

The Stereo Audio Input jack connects directly to the left (L) and right (R) LINE 1 INPUT pins of the AD1847 codec. Use standard audio cables with 1/8 inch (3.5mm) stereo plugs to supply these inputs with line-level signals. You can also connect a microphone-level signal by changing the Input Source Selector Jumpers. (See section 5.3.1)

2.6.4. DC Power Supply Connector

The power supply connector is used to supply DC voltages to the ADSP-21061 EZ-KIT

Lite board. The DC power supply included with your board mates directly to this connector.

20

3. USING THE EZ-KIT LITE SOFTWARE

3.1. Overview

The combination of the EZ-KIT Lite board and the monitor software operate as a target for the

VisualDSP++ IDDE. The IDDE allows you to view the processor registers and memory and perform several debugging activities, such as setting breakpoints, stepping through code, and plotting a range of memory.

If VisualDSP++ is not installed, install it from the VisualDSP++ CD-ROM that came with this product. For more information, refer to Chapter 2, section “VisualDSP++”.

This chapter provides monitor level software information on how the EZ-KIT Lite board operates with the installed software. This chapter also provides information to help you run your own programs on the ADSP-21061 EZ-KIT Lite board. This information appears in the following sections:

• “Standard Operation” – Describes the operation of the EZ-KIT Lite board

• “Running You Own Programs” – Provides information about writing and running your own

DSP executables that link with the monitor program to run on the EZ-KIT Lite board

3.2. Standard Operation

This section covers the standard operation of the EZ-KIT Lite board. It describes the I/O capabilities of the on-board components, board power-up, and the on-board monitor program.

3.2.1. I/O Devices

This section describes the different I/O devices on the ADSP-21061 EZ-KIT Lite. These are flags, external interrupts, and serial ports.

3.2.1.1. Flags

The ADSP-21061 SHARC processor has four I/O flags that you can program as inputs or outputs. Bits in the MODE2 register control the direction. At reset, all of the flags are configured as inputs. Bits in the ASTAT register contain the value of each of the flag pins.

FLAG0 controls the pin on the AD1847 codec. Clearing FLAG0 (=0) holds the AD1847 in reset. Setting FLAG0 (=1) releases RESET and restarts the AD1847. The programmer should configure FLAG0 as an output and set high during program initialization. FLAG0 is also connected to LED D2 on the ADSP-21061 EZ-KIT Lite. LED D2 is lit when FLAG0 is cleared.

21

FLAG1 is connected to the pushbutton switch labeled “FLAG1” (S1) and to LED D3. The programmer should configure FLAG1 as an input during program initialization. The DSP’s

FLAG1 input value is “0” (and LED D3 will light) when the pushbutton is depressed and the value is “1” when the pushbutton is released.

FLAG2 is connected to LED D4. The programmer should configure FLAG2 as an output during program initialization. The LED D4 lights while FLAG2 is zero.

FLAG3 is connected to LED D6. The programmer should configure FLAG3 as an output during program initialization. The LED D6 lights while FLAG3 is zero.

Table 3-1 Flag Summary

FLAG

FLAG1

FLAG0, 2, and 3

USE

Pushbutton Input

LED Feedback

3.2.1.2. External Interrupts

The ADSP-21061 SHARC DSP has three external interrupt pins. They are prioritized, individually maskable (IMASK register), and can be configured to be edge sensitive or level sensitive (bits in the MODE2 register). At reset, all external interrupts are levelsensitive and masked. Other relevant ADSP-21061 SHARC DSP registers are MODE1

(NESTM and IRPTEN bits), IRPTL, and IMASKP.

Two of the ADSP-21061 SHARC DSP’s three external interrupt inputs are allocated on the

ADSP-21061 EZ-KIT Lite.

IRQ0 is not connected to any devices on the ADSP-21061 EZ-KIT Lite; however, it is connected to one of the expansion connectors.

IRQ1 is connected to a pushbutton switch on the ADSP-21061 EZ-KIT Lite board.

Pressing the pushbutton generates the interrupt.

IRQ2 is connected to the 16550 UART, which can be programmed to generate an interrupt when it requires attention.

22

3.2.1.3. Serial Ports

The ADSP-21061 SHARC processor has two high-speed, synchronous serial ports

(SPORTs). They can operate in point-to-point connection in full-duplex mode with independent transmit and receive data lines and clocks, or they can be wired together with multiple SPORTs to operate in a time division multiplexed (TDM) mode.

SPORT0 is connected to the serial port on the AD1847 SoundPort codec. This port is configured for multi-channel TDM operation.

SPORT1 is not connected to any devices on the ADSP-21061 EZ-KIT Lite; however, it is connected to one of the expansion connectors.

3.2.2. POST Routines

POST (Power On Self-Test) routines are a series of standard tests and initializations that the EZ-KIT Lite performs on a power-on reset.

3.2.2.1. UART Check/Initialization

The UART check is performed in three stages. Two of these stages are implemented in the

POST. The third is controlled by the host (PC), when it attempts to connect to the EZ-KIT

Lite. These stages are:

• Register Write

This test confirms that the ADSP-21061 SHARC processor is capable of writing to (and reading from) a register in the UART. Three patterns are written to and then read from a register in the UART, and tested. All three patterns must be read back correctly to pass this test.

• Internal Loop Back

In this test, 256 bytes are sent to and read from the UART. This test checks the functionality of the UART connections from the ADSP-21061 SHARC processor, up to and through the UART chip.

• Transmitted Loop Back

The last UART test is performed by the host after the POST is complete. In this test, the host sends the UART test protocol. This protocol specifies the number of bytes that are transmitted to the EZ-KIT Lite board, and instructs the board to echo the byte stream back to the host. This test determines whether the EZ-KIT Lite board is set to the correct baud rate and verifies the external connections between the board and the host.

23

On power up, the EZ-KIT Lite board defaults to a baud rate of 115200 with 8 data bits, 1 stop bit, and no parity. If you want to change this rate, change it after the POST is complete by using the

Settings -> Baud Rate

command from the menu bar. Note that setting the baud rate to a lower number can significantly slow the board’s response to all debug activities.

3.2.3. Monitor Program Operation

The Monitor runs on the EZ-KIT Lite board as part of the DSP executable, and provides the ability to download, debug, and run user programs. The Monitor uses VisualDSP++ as the interface. Using the EZ-KIT Lite as a target allows you to operate the board remotely.

On initial power-up of the EZ-KIT Lite board, the original monitor is booted from the

EPROM to the target board. Once you start the EZ-KIT Lite debug session using

VisualDSP++, this monitor downloads a new monitor from your PC onto the target board.

The new monitor communicates to the target dll through the serial port.

There are three main components of the new monitor program:

• Halt loop

• UART ISR

• Command Processing Kernel

The monitor program idles in the Halt loop when it is not running user code. While there, you can read/write memory, read/write registers, download programs, set breakpoints, change the UART’s baud rate, and single-step through code.

To enter the halt loop from your code, you must halt user code—either with a breakpoint or a halt instruction. At this point, the halt loop polls the UART. With every character received from the UART, the command-processing kernel verifies whether a full command has been received. If a command has been received, the kernel processes the command; otherwise control is returned to the halt loop to wait for more characters. The only method of executing your code once the halt loop has been entered is to send a Run or Single Step command in the IDDE.

The UART ISR is entered when user code is running, but the host is still interacting with the board. As the host sends bytes, the UART ISR takes the data stream from the UART and builds the command. Similar to the halt loop, each character received is passed to the command-processing kernel. Unlike the halt loop, the monitor returns to the user code immediately after the interrupt is serviced.

Be aware of the following restrictions to ensure correct board operation.

• If the user program disables the UART interrupt or changes the UART interrupt vector the host loses contact with the monitor while the user program is running.

24

• When nesting is turned off the host loses contact with the monitor while the program is running and in an ISR.

• The host loses contact with the monitor while the program is running and in the timer

ISR, provided the highest priority timer vector is used.

• The host cannot halt with the IDDE’s Debug, Halt command if global IRQ enable is disabled (IRPTEN bit); however, breakpoints work.

Command processing, initiated from either the UART ISR or the Halt Loop, is done in the command-processing kernel. This kernel parses the commands and executes the instructions. If the instruction requires that data be sent back to the host, the kernel initiates the response.

3.3. Running Your Own Programs

This section provides basic information needed to run your own programs on the ADSP-21061

EZ-KIT Lite board. Build these programs using the ADSP-21061 SHARC processor tools. This information includes rules for using processor memory.

Although there are many ways to develop programs in VisualDSP++, all program evaluation within the environment include the following steps:

1. Create a new project file

2. Set the target processor under “Project Options”

3. Add and edit project source files

4. Customize project build options

5. Build a debug version of the project

6. Debug the project

7. Build a release version of the project

By following these steps, DSP projects build consistently and accurately with minimal project management. The ADSP-2106x SHARC User’s Manual provides detailed information on programming the processor, and the VisualDSP++ manuals provide information on code development with the ADSP-21061 SHARC processor tools.

• Do not run more than one ADSP-21061 EZ-KIT Lite session at any one time. You may run an EZ-KIT Lite debug session and a simulator, or you can run a JTAG ICE session and a simulator session at the same time.

• If you are creating a C/C++ program use the 060_hdr.asm file supplied with the demo programs. This file reserves the IRQ2 interrupt vector table for the UART.

25

3.3.1. ADSP-21061 SHARC Processor Memory Map

The ADSP-21061 SHARC processor has 1M of internal SRAM that can be used for program or data storage. The configuration of on-chip SRAM is detailed in the ADSP-

2106x SHARC User’s Manual. Table 3-2 shows the memory map of the ADSP-21061 EZ-

KIT Lite.

The IMDW0 bit in the SYSCON register must be set to 1 to keep communication with the host. This bit determines whether data accesses made to internal memory block 0 are 40bit, three-column accesses (set = 1) or 32-bit, two-column accesses (cleared = 0). The monitor program requires three-column data accesses to memory block 0.

On reset, restart, and halt, the debug monitor kernel forces IMDW0 to 1 and IMDW1 to 0, but user code should also set these bits to ensure that it operates in the same way on both the simulator and the EZ-KIT Lite board. These settings affect data accesses only, not instruction fetches. Block 0 resides in three-column memory. If you are storing data in block 0, it must be in three-column format.

Table 3-2 Memory Map

0x0000 0000

0x0000 0100

0x0002 0000

0x0002 0000

0x0002 0000

0x0002 4000

0x0002 4000

0x0002 4000

0x0004 0000

0x0004 8000

End Address

0x0000 0FF

0x0001 ffff

0x0002 3FFF

0x0002 1fff

0x0002 3fff

0x0002 7fff

0x0002 5fff

0x0002 7fff

0x0004 7fff

0x0004 ffff

Content

Registers

(reserved)

Block 0 Normal Word (32/48) Addresses

Block 0 48-bit word Addressing

Block 0 32-bit word Addressing

Block 1 Normal Word (32/48) Addresses

Block 1 48-bit word Addressing

Block 1 32-bit word Addressing

Block 0 Short word (16-bit) Addressing

Block 1 Short word (16-bit) Addressing

NOTE: Use caution when accessing the boot EPROM. The EPROM chip select (BMS) has the same limitations as MS0. EPROM’s larger than 128K x 8 have restricted access to their data below address 0x020000, and their data aliases to other memory locations.

The user program can access this data from these other locations.

26

Table 3-3 shows currently used memory locations on the EZ-KIT Lite board by the monitor. You may not use these locations in programs.

Table 3-3 Restricted Memory Space

Segment

Name

seg_newrth

Description Memory

Block

Routine that will overwrite old monitor’s run-time header

(rth) with one from the new

Monitor

0 seg_rsvd_rth Run-time header for new

Monitor

0 seg_post POST routine of the Monitor

0 seg_jmp Jump Routines 0 seg_rsvd_pmco Kernel Code 0 seg_rsvd_pmda PM Data of the

Monitor

0 seg_rsvd_dmda DM Data of the

Monitor

1

Width

48

48

48

48

48

48

32

Start

Address

0x21974

0x21993

0x21a13

0x21a53

0x21a5a

0x21da1

0x27ffd

End

Address

0x21992

0x21a12

0x21a52

0x21a59

0x21da0

0x21fff

0x27fff

NOTE: In order for your program to work properly, your program must not overwrite any memory location utilized by the monitor.

27

4. DEMONSTRATION PROGRAMS

4.1. Overview

This chapter describes how to load and run the demonstration programs supplied with the ADSP-

21061 EZ-KIT Lite board. The demos are designed to run on the VisualDSP++ Environment supplied on a CD-ROM that shipped with this product. For detailed information on the IDDE features and operation, see the VisualDSP++ 3.0 User’s Guide for ADSP-21xxx DSPs.

4.2. Starting the VisualDSP++ Environment

After the VisualDSP++ software and license have been installed, click the Windows Start menu.

Select

Programs -> VisualDSP ->

VisualDSP++ Environment

from the Start menu.

From the Session menu, choose New Session. The New Session dialog box appears.

Configure the debug session as shown in Figure 4-1 and click OK.

Figure 4-1 Target Selection Dialog

A Target Message dialog box appears.

28

Figure 4-2 Target Message

Press the Reset button on the EZ-KIT Lite evaluation board.

After 5 seconds all the LEDs light up and then all of them turn off except the POWER LED.

Ensure that all LEDs turn off (except for the POWER LED) before you click OK.

During this delay, the POST test verifies operation of the UART. After the LEDs go dark,

Communication Successe” message will be displayed in Console window of IDDE.

The initialization completes and the disassembly window opens. The code in the disassembly window is the EZ-KIT Lite monitor program.

4.3. IDDE Debug Operation with the ADSP-21061 EZ-KIT Lite

The VisualDSP++ 3.0 User’s Guide for ADSP-21xxx DSPs contains most of the information you need to operate the VisualDSP++ IDDE with your EZ-KIT Lite evaluation board.

4.3.1. Loading Programs

Because you are loading programs to a hardware target through the serial port, the load process takes more time than loading using the simulator. Wait for the Load Complete message in the Output window before you attempt any debug activities.

29

To load a program:

From the File menu, choose Load. The Open a Processor Program dialog box appears.

Navigate to the folder in which the DSP executable file resides. The demos that are supplied with the EZ-KIT Lite are located in C:\Program Files\Analog

Device\VisualDSP++\21k\EZ-KITS\ADSP-21061\Demos

NOTE: All file directories assume a default installation.

Select the .dxe file and click Open. The file loads and the message Load Complete appears in the Output window when the load process has completed.

4.3.2. Registers and Memory

To see current values in registers, use the F12 key or the Window -> Refresh command.

• Values may not be changed while a user program is running.

• The current version of the VisualDSP++ IDDE does not let you view hardware stack information.

4.3.3. Setting Breakpoints and Stepping

• Breakpoints set in the last three instructions of a DO-loop are allowed, but cause improper IDDE operation.

• Breakpoints set after a delayed branch instruction and before the branch occurs cause improper IDDE operation.

• The single-step command steps through a delayed branch instruction and the last three instructions of a DO-loop.

• VisualDSP++ automatically inserts breakpoints at the function Main()and at the

_exit instruction when the Settings->Run To Main command is selected.

4.3.4. Resetting the EZ-KIT Lite Board

You can reset the EZ-KIT Lite board with the pushbutton switch on the board or with the

Debug -> Reset command in VisualDSP++. Both methods clear and reset the chip's memory and debug information, so you will need to reload any programs that were running. The Debug -> Restart command resets the processor; however, the processor retains all debug information and memory contents.

• Do not use the reset push button while the IDDE is open unless the IDDE requests you to press it.

30

NOTE: If a message in the VisualDSP++ IDDE Output window requests you to reset board, you must do the following to ensure proper download of the monitor from the PC:

1. From Session menu, choose Select Session.

2. Select your Monitor Debug session.

3. Follow on-screen dialog boxes.

4.4. Demonstration Program

As described in the previous sections, you can start the included EZ-KIT Lite demonstration programs from the File menu or from toolbar buttons. Each of the following sections describes what the demonstration programs do and how to run them.

4.4.1. Bandpass Filter Demo

This program demonstrates the effect of four bandpass filters against no filter on a codec input source or an internally-generated noise source. This demonstration starts with a talkthrough program, with the Input Source set to Codec and the Filter range set to None. The

AD1847 codec digitizes the analog input signal and transmits the data to the ADSP-21061

SHARC processor’s serial port. The ADSP-21061 SHARC processor reads data from the serial port and retransmits the data back to the codec. The codec converts the data to an analog signal that drives the output device. The sample rate for the digital data is 8 kHz.

You may change the filter range and source without changing the code:

To change the filter range:

1. From the Memory menu, choose Two Column. A two-column window appears.

2. Right click inside the Memory window and click Go To…

3. From the Go To Address dialog box, click Browse.

4. From the Browse Symbol dialog box double-click on the symbol filter. In the

Memory window you will now be at the address for filter.

31

Figure 4-3 Memory Window for Symbol ‘Filter’

The address that filter represents is right under the symbol name. In this case it is address 0x24025.

5. Change the value at this location to:

Table 4-1 Bandpass Filter Demo – Filter Ranges

Value @ Filter Address

0x00000000

0x00000001

0x00000002

0x00000003

0x00000004

Filter Range

None

Pass 328-448 Hz

Pass 521-710 Hz

Pass 825-1125 Hz

Pass 1308-1783 Hz

6. Hit run. (Note: the filter will change.)

To Change the source:

1. From the Memory menu, choose Two Column. A two-column window appears.

2. Right click inside the Memory window and click Go To…

3. From the Go To Address dialog box click on Browse.

4. From the Browse Symbol dialog box double click on the symbol source. In the

Memory window you will now be at the address for the filter.

32

Figure 4-4 Memory Window for Symbol ‘Source’

5. The address that source represents is right under the symbol name. In this case it is address 0x24026.

6. Change the value at this location to:

Table 4-2 Bandpass Filter Demo – Source Inputs

Value @ Source Address

0x00000000

0x00000001

Source

codec

Noise

7. When you change the source to Noise the ADSP-21061 SHARC processor supplies a fabricated noise source.

8. Hit run. (NOTE: Changes will occur.)

The C source code for this program is located in the Program Files\Analog

Devices\VisualDSP\21k\EZ-KITs\ADSP-21061\Demos\Bp directory.

NOTE: All directory paths are based on default installation.

4.4.2. Primes Demo

This program calculates the first twenty prime numbers. When the calculation is completed, you can view the results in the Expressions window:

Open an Expressions window from View -> Debug Window -> Expressions

Click inside the Expressions window so it is active and type the word primes inside the window. Then hit enter.

Now expand the primes by clicking on the plus sign next to the word primes.

33

Figure 4-5 Expressions Window for Primes Demo

The C source code for this program is located in the Program Files\Analog

Devices\VisualDSP\21k\EZ-KITs\ADSP-21061\Demos\primes directory.

4.4.3. Peter Gunn Demo

This program demonstrates the Karplus-Strong algorithm for simulating the sound of a

“plucked” string. The ADSP-21061 SHARC processor uses the algorithm to generate digital audio samples according to data that specifies the notes to be played. The audio samples are transmitted to the AD1847 codec over a serial port. The codec converts the data to an analog signal that drives the output device.

The demo is also contained in the boot PROM and executes when the power is first applied or when you press and release the RESET button.

The assembly source code for this program is located in the Program Files\Analog

Devices\VisualDSP\21k\EZ-KITs\ADSP-21061\Demos\gunn directory.

34

4.4.4. Blink Demo

This simple program demonstrates how to use the ADSP-21061 SHARC processor’s builtin timer to toggle two LEDs on the EZ-KIT Lite board.

The C source code for this program is located in the Program Files\Analog

Devices\VisualDSP\21k\EZ-KITs\ADSP-21061\Demos\blink directory.

35

5. WORKING WITH EZ-KIT LITE HARDWARE

5.1. Overview

This chapter describes the hardware characteristics of the ADSP-21061 EZ-KIT Lite board. It includes a description of the board’s major features and section that describes the user configurable items.

5.2. Board Layout

Figure 5-1 shows the layout of the ADSP-21061 EZ-KIT Lite board, which consists of a printed circuit board measuring 4.5 inches by 6.5 inches. Figure 5-1 highlights the locations of the major components described in the following sections.

36

Figure 5-1 Major Components of the ADSP-21061 EZ-KIT Lite Rev. 2 Board

5.2.1. ADSP-21061 SHARC Processor

This is the ADSP-21061 SHARC processor, which operates at 40 MHz. The Pin 1 Index is located in the upper-right corner.

37

5.2.2. Boot PROM

The boot PROM (U7) provides 8-bit program storage that can be loaded by the ADSP-

21061 SHARC processor at start-up. The socket mounted on this board is designed to accept EPROMs from 256K bits up to 8M bits. Jumpers JP1 through JP4 provide the necessary adjustments required to accommodate the different sizes of EPROM. When the

ADSP-21061 SHARC processor is configured for PROM booting, the first 256 instructions

(1536 bytes) are automatically loaded by the ADSP-21061 SHARC processor when reset is released.

The remaining program image must be loaded by the program that is installed in those first

256 instructions. The ldr21k utility can do this for you. Refer to the ADSP-2106x SHARC

User’s Manual for more information on program booting.

5.2.3. User Pushbutton Switches

For user input/control, there are eight pushbutton switches on the ADSP-21061 EZ-KIT

Lite board: RESET, FLAG 0-3, and IRQ 0-2.

• The RESET switch initiates a power-on reset to the DSP. There are no restrictions to when the switch can be used, so do not press the switch unless you want a complete DSP reset.

• The FLAG1 switch toggles the status of a flag pin (FLAG1) to the DSP. This lets you manually trigger the flag, providing an “event” while executing software.

• The IRQ1 switch sends an interrupt (IRQ1) to the DSP. This lets you manually cause this interrupt when executing a program. IRQ2 is shared with the UART, and IRQ0 is brought out to the expansion connector.

See “Flags” section in Chapter 3, for more information on interfacing to the pushbutton switches from DSP programs.

5.2.4. User LEDs

There are four LEDs on the ADSP-21061 EZ-KIT Lite board. Your DSP program can control them to indicate certain conditions in the software or to provide feedback. The

LEDs are controlled by processor FLAG outputs of the DSP and are labeled according to the flag that enables them.

5.2.4.1. Power LED

The Power LED, when on indicates that +5 VDC used by the DSP and digital circuitry is present.

38

5.2.5. Expansion Port Connectors

There are seven expansion connector sites that provide the signals for adding optional custom hardware. The interface contains the ADSP-21061 SHARC processor bus as well as six link ports, a synchronous serial port, interrupts, flags, and various control signals.

Figure 5-2 Expansion Port Connectors

5.2.6. JTAG Connector (Emulator Port)

The JTAG header (Figure 5-2) is the connecting point for the JTAG emulator probe. Note that one pin is missing (Pin 3) to provide keying. The Pin 3 socket in the mating connector has a plug inserted at that location.

The ADSP-21061 EZ-KIT Lite board is shipped with two jumpers installed across Pins 7 &

8 and 9 & 10. Remove these jumpers before installing the JTAG probe. When the JTAG probe is removed, replace these jumpers to ensure that the ADSP-21061 SHARC processor initializes correctly on power-up.

The proper power up sequence is:

1. JTAG Emulator

2. ADSP-21061 EZ-KIT Lite board

39

To remove power, the sequence is:

1. ADSP-21061 EZ-KIT Lite board

2. JTAG Emulator

Figure 5-3 JTAG Connector with Jumpers Installed

5.3. Jumpers

Figure 5-4 shows the locations of configuration jumpers on the ADSP-21061 EZ-KIT Lite board.

These jumpers should be checked before using the board to ensure proper operation. Each of the jumper selection blocks is described in the following sections.

40

Figure 5-4 Location of Configuration Jumpers on the ADSP-21061 EZ-KIT Lite Board Rev. 2.0

41

5.3.1. Input Source Selector

This pair of jumpers selects whether your input signal is standard line level or microphone level. If you select microphone level, the input signal is amplified before it is sampled by the AD1847 codec.

Figure 5-5 Line-Level Input Audio (Factory Default)

Figure 5-6 Microphone-Level Input Audio

5.3.2. Boot Control Jumper Block

These jumpers control three of the ADSP-21061 SHARC processor’s pins: EBOOT (JP5),

LBOOT (JP6), and ID0 (JP7). The first two define the processor’s boot mode according to the following table:

Table 5-1 Boot Mode Selection

Mode

EPROM

Host Port

Link Port

JP5

OUT

IN

IN

JP6

IN

IN

OUT

The ADSP-21061 EZ-KIT Lite is shipped with EPROM boot mode selected by default.

The pins at location JP6 are shorted on the circuit board.

The ID0 pin determines the ADSP-21061 SHARC processor’s multiprocessor ID. If JP7 is shorted, the multiprocessor ID number is 000. If JP7 is left open (the factory-shipped default), the multiprocessor ID number is 001.

5.3.3. EPROM Settings Jumper Block

These four jumpers (JP1-JP4) define the size of EPROM that you have installed in the boot

PROM socket. The ADSP-21061 EZ-KIT Lite is shipped with 27C010 selected by default.

The pins at locations JP2 and JP3 are shorted on the circuit board.

42

Table 5-2 EPROM Jumper Selection Chart

U7

27C256 (32K x 8)

27C512 (64K x 8)

27C010 (128K x 8)

27C020 (256K x 8)

27C040 (512K x 8)

27C080 (1M x 8)

JP1

OUT

IN

IN

IN

JP2 JP3 JP4

****NOT SUPPORTED****

****NOT SUPPORTED****

IN IN OUT

OUT

OUT

OUT

IN

IN

IN

OUT

OUT

OUT

5.4. UART

The UART (U4) and the line driver (U5) provide the RS-232 interface used to communicate with the PC. The PC16550D is similar to devices used in most PCs. It has a programmable bit rate and has transmit and receive FIFO registers.

The UART is attached to the ADSP-21061 SHARC processor’s external memory bus and is selected by MS1 (external memory bank 1). The UART can generate an interrupt to the ADSP-

21061 SHARC processor on IRQ2.

5.5. AD1847

The AD1847 codec (U9) provides the stereo audio input (A/D) and output (D/A) interface. It is connected to the ADSP-21061 SHARC processor via SPORT0. This high-speed synchronous serial port carries all of the data, control, and status information between the DSP and the codec.

43

6. PROGRAMMING REFERENCE

6.1. Overview

This chapter provides the technical details you need to write programs for the ADSP-21061 EZ-

KIT Lite. One section focuses on memory models, addresses, and other resources for programs that run on the ADSP-21061 SHARC processor. The other section focuses on the serial host interface so that you can write programs on the PC that talk directly to the monitor program running on the EZ-KIT Lite board.

6.2. DSP Programs

This section describes the model for EZ-KIT Lite DSP programs by focusing on the resources that are available to the ADSP-21061 SHARC processor. These resources include the memory map, the flags, the interrupts, and the serial ports . Table 6-1 summarizes these resources as they are implemented on the EZ-KIT Lite board.

Table 6-1 Summary of EZ-KIT Lite ADSP-21061 SHARC Processor Resources

MS (Memory

Select)

0 Expansion Connector LED D2 / 1847 codec RESET

1 16550 UART

FLAG

From Pushbutton

/ LED D3

IRQ

From Pushbutton

Serial Port

Expansion Connector 1847 codec

Expansion Connector

2 Expansion Connector LED D4

3 Expansion Connector LED D6

From 16550 UART

6.2.1. Memory Map

The ADSP-21061 SHARC processor memory model defines three main memory spaces.

Internal memory space addresses an ADSP-21061 SHARC processor’s on-chip dual-ported

SRAM. Multiprocessor memory space addresses the on-chip SRAM of other ADSP-21061

SHARC processors in the same cluster (i.e., ADSP-21061 SHARC processors that share a common processor bus). External memory space addresses other devices on the shared bus such as SRAM or DRAM.

44

6.2.1.1. Internal Memory Space

Since the ADSP-21061 EZ-KIT Lite has no external memory, you must store all code instructions and data in the built-in SRAM. The ADSP-21061 SHARC processor has one megabit of internal dual-ported SRAM divided into two 512-kilobit blocks. The blocks are designed so that you can configure regions of memory to be either 32 or 48 bits wide. The

ADSP-2106X SHARC User’s Manual contains detailed information about the configuration and limitations of this on-chip SRAM.

If you are writing programs to be loaded by the built-in kernel, you should be aware of how it uses memory. The .ldf file for the EZ-KIT Lite defines memory segments that are compatible with programs you write for the C/C++ compiler and the assembler.

6.2.1.2. Multiprocessor Memory Space

The multiprocessor memory space (MMS) is consumed by ADSP-21061 SHARC processors connected to the external processor bus (up to six as defined by the maximum cluster size). ADSP-21061 SHARC processors appear in specific portions of the MMS according to their multiprocessor ID. The default multiprocessor ID is one (001) for the

ADSP-21061 SHARC processor. You can change the ID to zero (000) with a jumper setting (see section 5.3.2).

Since the ADSP-21061 EZ-KIT Lite is a single-processor board, the only way to view other ADSP-21061 SHARC processors through the MMS is through the expansion connectors to your custom hardware.

6.2.2. Stereo Audio Codec Programming

The stereo audio interface built into the ADSP-21061 EZ-KIT Lite is based on the AD1847

Stereo SoundPort codec. You can find detailed programming information in the AD1847 data sheet.

The ADSP-21061 EZ-KIT Lite uses SPORT0 to communicate with the AD1847’s control and data interface. The ADSP-21061 SHARC processor’s FLAG0 port controls the

AD1847’s RESET and BM pins. You can disable the codec by clearing FLAG0 to zero.

6.2.3. Kernel Compatibility

When you write programs that run on the EZ-KIT Lite board’s ADSP-21061 SHARC processor, there are certain programming restrictions you should consider to ensure that the on-board kernel program continues to operate. If you violate any of these restrictions, the kernel may become disabled or unstable.

45

Avoid using kernel memory regions. The kernel uses two regions of the ADSP-

21061 SHARC processor’s internal SRAM. These regions are defined as separate segments in the EZ-KIT Lite’s Linker Description File (.ldf).

Avoid the UART. Since the kernel uses the RS-232 interface to communicate with the host computer, it must manage the UART chip. The UART is accessed in external memory space within external memory bank 1 (see Table 6-1).

• Your program can freely change the MSIZE setting in the SYSCON register

(potentially changing the base address of external memory bank 1) since the kernel recalculates the UART base address every time it needs to access the chip.

Do not interfere with the UART interrupt. The kernel depends on the hardware interrupt signal IRQ2 to communicate with the UART. There are several ways that your program can affect the kernel’s ability to receive interrupts from the UART.

Do not disable interrupts globally or disable interrupt nesting. Bit 12 (IRPTEN) and Bit 11 (NESTM) in the MODE1 register must remain set.

Do not mask IRQ2. The IMASK register allows your program to enable or disable individual interrupts. Bit 6 (IRQ2I) in the IMASK register must remain set.

Do not change IRQ2’s sensitivity. The UART uses this interrupt signal to indicate multiple conditions. If the kernel satisfies one condition, there may be other conditions requiring attention; however, the IRQ2 signal will not transition to the inactive state and then back to the active state. Therefore, the ADSP-21061 SHARC processor’s interrupt controller must treat IRQ2 as a level-sensitive signal. Bit 2 (IRQ2E) in the

MODE2 register must remain cleared.

46

7. REFERENCE

7.1. OVERVIEW

This chapter is a reference for VisualDSP++. Because the IDDE is dynamic, menu selections, commands, and dialog boxes change, depending on the target being used. This chapter provides information on all of the menu selections, commands, and dialog boxes when the target is the

ADSP-21061 EZ-KIT Lite evaluation board. For all other commands, see the VisualDSP++

Guide & Reference Manual. Note that grayed out commands are unavailable with this target.

7.2. SETTINGS MENU COMMANDS

All of the commands that pertain to the EZ-KIT Lite board are contained in the Settings and

Demo menus. The Settings menu provides access to the following commands:

Figure 7-1 Settings Menu Commands

7.2.1. Test Communications

Tests the PC to ADSP-21061 EZ-KIT Lite communications. Responses are

Communications Success or various error messages sent to the Output window. In most cases, resetting the ADSP-21061 EZ-KIT Lite re-establishes communication.

7.3 Baud Rate and COM Port

Sets up the baud rate of the current COM port and UART. Choices are 9600, 19200,

38400, 57600, and 115200. The default rate is 115200. (NOTE: Using a baud rate of 9600 causes the ADSP-21061 EZ-KIT Lite to operate very slowly and can also cause it to hang.)

Selects a PC communications port for the ADSP-21061 EZ-KIT Lite board. Choices are

COM (1-4). The default setting is COM 1.

To change the baud rate and COM port should follow these instructions:

47

1. Bring up the VisualDSP++ Configurator from the Windows Start menu. Click

Start->Run, then type Icecfg.

Figure 7-2 VisualDSP++ Configurator

2. In the Platform Templates box, high light the ADSP-21061 EZ-KIT Lite via

COM port, click Copy button. Figure 7-3 will appear

Figure 7-3 Platform Properties

3. Click the Baud Rate and COM Port drop-down list to change the settings. Click OK to save the settings.

48

8. SCHEMATICS

Sheet

1

6

7

8

4

5

2

3

9

10

11

12

8.1. Overview

This chapter provides the design information used to build the ADSP-21061 EZ-KIT Lite board.

The schematics are in section 8.2. The logic equations and state diagram for the 16V8 programmable logic device (U3) are listed in section 8.3.

8.2. Board Schematics

The following pages provide complete electrical schematics for the ADSP-21061 EZ-KIT Lite

Rev. 2.0 board.

Table 8-1 ADSP-21061 EZ-KIT Lite Schematic Contents

Contents

ADSP-21061 SHARC Processor

Switches & JTAG Header

EPROM & Clock Buffer

UART & UART Logic

Power

Audio Interface

Audio Interface

External Connectors

Link & SPORT Termination

External ADSP-21061 SHARC Signal Connectors

Resistor Pull-ups

Caps

Page

47

52

53

54

48

49

50

51

55

56

57

58

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

8.3. PAL Equations

Equations used to program the 16v8 PAL device U3.

" PSTATE.ABL

" ABEL code created by Visual Software Solution's StateCAD Version 3.00

" Thu Feb 06 09:23:40 1997

MODULE PSTATE

DECLARATIONS

"clock name

CLK PIN 1;

"Input variables

RD PIN 6;

RESET PIN 3;

SEL PIN 5;

WR PIN 4;

ROE PIN 11;

"Output variables

ACK PIN 12 ISTYPE 'com';

"Logic variables

UARTRST PIN 18 ISTYPE 'com';

"State variables

SV0 PIN 13 ISTYPE 'reg';

SV1 PIN 14 ISTYPE 'reg';

SV2 PIN 19 ISTYPE 'reg';

URD PIN 16 ISTYPE 'reg';

USEL PIN 17 ISTYPE 'reg';

UWR PIN 15 ISTYPE 'reg';

"Vectors

DECLARATIONS

SV=[

USEL,

URD,

UWR,

SV2,

SV1,

SV0

];

72

"State Register assignment

DECLARATIONS sreg=[ SV0,SV1,SV2,URD,USEL,UWR];

EQUATIONS sreg.clk=CLK;

!sreg.oe = ROE;

ACK.oe = !SEL;

DECLARATIONS

STATE0=[1, 1, 1, 1, 1, 1];

STATE1=[0, 0, 0, 1, 0, 1];

STATE2=[1, 0, 0, 1, 0, 1];

STATE3=[0, 0, 0, 0, 0, 1];

STATE4=[1, 0, 0, 0, 0, 1];

STATE5=[0, 0, 0, 1, 0, 0];

STATE6=[1, 0, 0, 1, 0, 0];

STATE7=[0, 1, 0, 1, 0, 0];

STATE8=[0, 1, 0, 0, 0, 1];

STATE9=[1, 1, 0, 0, 0, 1];

STATE10=[0, 0, 1, 0, 0, 1];

STATE11=[1, 0, 1, 0, 0, 1];

STATE12=[0, 1, 1, 0, 0, 1];

STATE13=[1, 1, 1, 0, 0, 1];

STATE14=[1, 1, 0, 1, 0, 0];

STATE15=[0, 0, 1, 1, 0, 0];

STATE16=[1, 0, 1, 1, 0, 0];

STATE17=[1, 1, 0, 1, 0, 1];

STATE18=[0, 0, 1, 1, 0, 1];

STATE19=[0, 1, 0, 1, 0, 1];

EQUATIONS

WHEN (!(

(sreg.FB==STATE0)

# (sreg.FB==STATE1)

# (sreg.FB==STATE2)

# (sreg.FB==STATE3)

# (sreg.FB==STATE4)

# (sreg.FB==STATE5)

# (sreg.FB==STATE6)

# (sreg.FB==STATE7)

# (sreg.FB==STATE8)

# (sreg.FB==STATE9)

# (sreg.FB==STATE10)

# (sreg.FB==STATE11)

73

# (sreg.FB==STATE12)

# (sreg.FB==STATE13)

# (sreg.FB==STATE14)

# (sreg.FB==STATE15)

# (sreg.FB==STATE16)

# (sreg.FB==STATE17)

# (sreg.FB==STATE18)

# (sreg.FB==STATE19)

) &

( RESET )) THEN {

[sreg] := [STATE0];

}

WHEN (!(

(sreg.FB==STATE0)

# (sreg.FB==STATE1)

# (sreg.FB==STATE2)

# (sreg.FB==STATE3)

# (sreg.FB==STATE4)

# (sreg.FB==STATE5)

# (sreg.FB==STATE6)

# (sreg.FB==STATE7)

# (sreg.FB==STATE8)

# (sreg.FB==STATE9)

# (sreg.FB==STATE10)

# (sreg.FB==STATE11)

# (sreg.FB==STATE12)

# (sreg.FB==STATE13)

# (sreg.FB==STATE14)

# (sreg.FB==STATE15)

# (sreg.FB==STATE16)

# (sreg.FB==STATE17)

# (sreg.FB==STATE18)

# (sreg.FB==STATE19)

) &

!( RESET )) THEN {

[sreg] := [STATE0];

} state_diagram sreg; state STATE0:

ACK=1;

IF ( RESET ) THEN STATE0;

ELSE

IF ( !SEL ) THEN STATE1;

74

IF ( SEL ) THEN STATE0; state STATE1:

ACK=1;

IF ( RESET ) THEN STATE0;

ELSE

IF ( !0) THEN STATE2; state STATE2:

ACK=1;

IF ( RESET ) THEN STATE0;

ELSE

IF ( !SEL & RD & WR # !SEL & !WR & !RD ) THEN STATE2;

IF ( SEL ) THEN STATE0;

IF ( !SEL & !RD & WR ) THEN STATE3;

IF ( !SEL & !WR & RD ) THEN STATE5; state STATE3:

ACK=0;

IF ( RESET ) THEN STATE0;

ELSE

IF ( !0) THEN STATE4; state STATE4:

ACK=0;

IF ( RESET ) THEN STATE0;

ELSE

IF ( !0) THEN STATE8; state STATE5:

ACK=0;

IF ( RESET ) THEN STATE0;

ELSE

IF ( !0) THEN STATE6; state STATE6:

ACK=0;

IF ( RESET ) THEN STATE0;

ELSE

IF ( !0) THEN STATE7; state STATE7:

ACK=0;

IF ( RESET ) THEN STATE0;

ELSE

IF ( !0) THEN STATE14; state STATE8:

ACK=0;

IF ( RESET ) THEN STATE0;

ELSE

IF ( !0) THEN STATE9; state STATE9:

75

ACK=0;

IF ( RESET ) THEN STATE0;

ELSE

IF ( !0) THEN STATE10; state STATE10:

ACK=0;

IF ( RESET ) THEN STATE0;

ELSE

IF ( !0) THEN STATE11; state STATE11:

ACK=0;

IF ( RESET ) THEN STATE0;

ELSE

IF ( !0) THEN STATE12; state STATE12:

ACK=0;

IF ( RESET ) THEN STATE0;

ELSE

IF ( !0) THEN STATE13; state STATE13:

ACK=1;

IF ( RESET ) THEN STATE0;

ELSE

IF ( !0) THEN STATE19; state STATE14:

ACK=0;

IF ( RESET ) THEN STATE0;

ELSE

IF ( !0) THEN STATE15; state STATE15:

ACK=0;

IF ( RESET ) THEN STATE0;

ELSE

IF ( !0) THEN STATE16; state STATE16:

ACK=0;

IF ( RESET ) THEN STATE0;

ELSE

IF ( !0) THEN STATE17; state STATE17:

ACK=0;

IF ( RESET ) THEN STATE0;

ELSE

IF ( !0) THEN STATE18; state STATE18:

76

ACK=1;

IF ( RESET ) THEN STATE0;

ELSE

IF ( !0) THEN STATE19; state STATE19:

ACK=1;

IF ( RESET ) THEN STATE0;

ELSE

IF ( !0) THEN STATE0;

"Logic Equations

EQUATIONS

UARTRST = RESET ;

END PSTATE

77

Figure 8-1 State Diagram for PAL U3

78

APPENDIX

RESTRICTIONS

The following restrictions apply to release 2.0 of the ADSP-21061 EZ-KIT Lite board. For information on any ADSP-21061 silicon anomalies, see the anomaly sheet that accompanied this product.

• Breakpoints set in the last three instructions of a DO-loop are allowed, but cause your code to run incorrectly.

• Breakpoints set after a delayed branch instruction and before the branch occurs causes your code to run incorrectly.

• Using the single stepping function three instructions of a DO-loop.

steps through a delayed branch instruction and the last

• The host loses contact with the monitor while the user program is running if the user program disables the UART interrupt or changes the UART interrupt vector.

• The host loses contact with the monitor while the program is running and in an ISR when nesting is turned off.

• The host loses contact with the monitor while the program is running and in the timer ISR, provided the highest priority timer vector is used.

• This current version of the EZ-KIT Lite software does not let you view hardware stack information.

• Do not use the reset button while the IDDE is open unless the IDDE requests you to. This will cause the debugger to crash.

• The IMDW0 bit in the SYSCON register must be set to 1 to keep communication with the host.

The IMDW0 bit determines if data accesses made to block 0 are 48-bit, three-column accesses

(1) or 32-bit, two-column accesses (0). The monitor program requires three-column data accesses to memory block 0.

If The IMDW0 bit is set to 0, the monitor accesses incorrect memory locations within block 0. (See

ADSP-2106x User’s Manual for further discussion of IMDW0).

• The setting of IMDW0 will have no effect on C programming as long as RND32 is not set for

40-bit, floating-point precision.

• Do not run more than one ADSP-21061 EZ-KIT Lite session in the IDDE at any one time. You may run an EZ-KIT Lite session and a simulator or ICE session at the same time, or you can open two IDDE interfaces to run more than one EZ-KIT Lite session.

• User should not remove files 61_kernelformatDM32.hex and 61_kernelformatDM32.hex from their current location, otherwise the new monitor will not be download to the target. If this occurs, there will no communication between the target board and the host.

79

INDEX

A

AD1847 ............................................................39

Architecture, EZ-KIT Lite System .....................8

Audio Interface.................................................45

B

Baud Rate command.........................................43

Board Layout....................................................34

Board Schematics .............................................45

Boot Control Jumper Block..............................38

Boot Mode Selection ........................................38

Boot PROM......................................................35

Breakpoints.......................................................28

C

Codec Programming.........................................41

Com Port command..........................................43

Command processing .....................................23

Command Processing Kernel ...........................22

Commands

Baud Rate .....................................................43

Com Port ......................................................43

Test Communications...................................43

Configurable EZ-KIT Lite Settings..................16

Configuration, Minimum Requirements...........13

Configurator ...................................................44

Connector, DC Power Supply ..........................18

Connector, JTAG .............................................36

Connectors, Expansion Port .............................36

Contents Descriptions.........................................9

Contents of EZ-KIT Lite Package....................12

Customer Support...............................................9

D

DC Power Supply Connector ...........................18

Default Settings on the EZ-Lite........................16

Demonstration ProgramS .................................26

Diagram, ADSP-21061 EZ-KIT Lite System.....8

Documentation, Related Products ....................10

DSP Programs ..................................................40

DSP web page ....................................................8

E

Electrostatic Discharge (ESD)..........................12

EPROM Settings ..............................................38

Expansion Port Connectors ..............................36

Expressions Window........................................32

External Interrupts............................................20

EZ-KIT Lite License Installation .....................16

EZ-KIT Lite package contents ........................ 12

EZ-KIT Lite Software Installation .................. 16

EZ-KIT Lite System Architecture ..................... 8

EZ-Lite default settings ................................... 16

F

Filter Ranges.................................................... 30

Flags ................................................................ 19

H

Halt loop .......................................................... 22

Hardware Connections .................................... 17

Hardware Installation ...................................... 14

I

I/O Devices...................................................... 19

IMASK register ............................................... 20

Information, More about Analog Devices, Inc.

Products ......................................................... 8

Input Source Selector ...................................... 38

Installation, EZ-KIT Lite License ................... 16

Installation, EZ-KIT Lite Software ................. 16

Installation, Hardware ..................................... 14

Installation, VisualDSP++............................... 14

Internal Loop Back .......................................... 21

Internal Memory Space ................................... 41

IRQ2 ............................................................... 42

J

JTAG Connector.............................................. 36

Jump Routines ................................................. 25

Jumpers............................................................ 37

K

Kernel Code..................................................... 25

Kernel Compatibility ....................................... 41

L

Layout, board................................................... 34

LED power ...................................................... 35

LEDs................................................................ 35

License, EZ-KIT Lite Installation ................... 16

Loading Programs ........................................... 27

Location of Configuration Jumpers................. 37

M

Major Components .......................................... 34

Manual Contents Description ............................ 9

Memory ........................................................... 28

Memory Map ............................................. 24, 40

80

Monitor program components halt loop........................................................22

Monitor Program Operation .............................22

Multiprocessor Memory Space.........................41

P

POST Routines.................................................21

Power LED.......................................................35

Power Removal Sequence ................................37

Power Supply, DC Connector ..........................18

Power Up sequence ..........................................36

Pushbutton Switches ........................................35

R

Register Write ..................................................21

Registers ...........................................................28

Remove power..................................................37

Resetting the EZ-KIT Lite Board .....................28

Resistor Pull-ups ..............................................45

Restricted Memory Space.................................25

Run-time header ...............................................25

S

Schematics, board.............................................45

Serial Port (RS-232) Connector .......................17

Serial Ports .......................................................21

Settings menu ...................................................43

Settings, Configurable ......................................16

Software Installation, EZ-KIT Lite ..................16

Source Inputs....................................................31

SPORT Termination.........................................45

Stepping........................................................... 28

Stereo Audio Input .......................................... 18

Stereo Audio Output........................................ 18

Support, Customer............................................. 9

Support, Technical............................................. 9

Switches, pushbutton....................................... 35

System Architecture, EZ-KIT Lite .................... 8

T

Technical Support.............................................. 9

Test Communications ...................................... 43

Test Communications command ..................... 43

Transmitted Loop Back ................................... 21

U

UART .............................................................. 39

UART Check/Initialization.............................. 21

Internal Loop Back ...................................... 21 register write................................................ 21

UART ISR....................................................... 22

V

VisualDSP ....................................................... 13

VisualDSP++................................................... 44

VisualDSP++ Debugger, Starting ................... 26

VisualDSP++ Installation................................ 14

W

Warranty.......................................................... ii

Web page, DSP.................................................. 8

81
