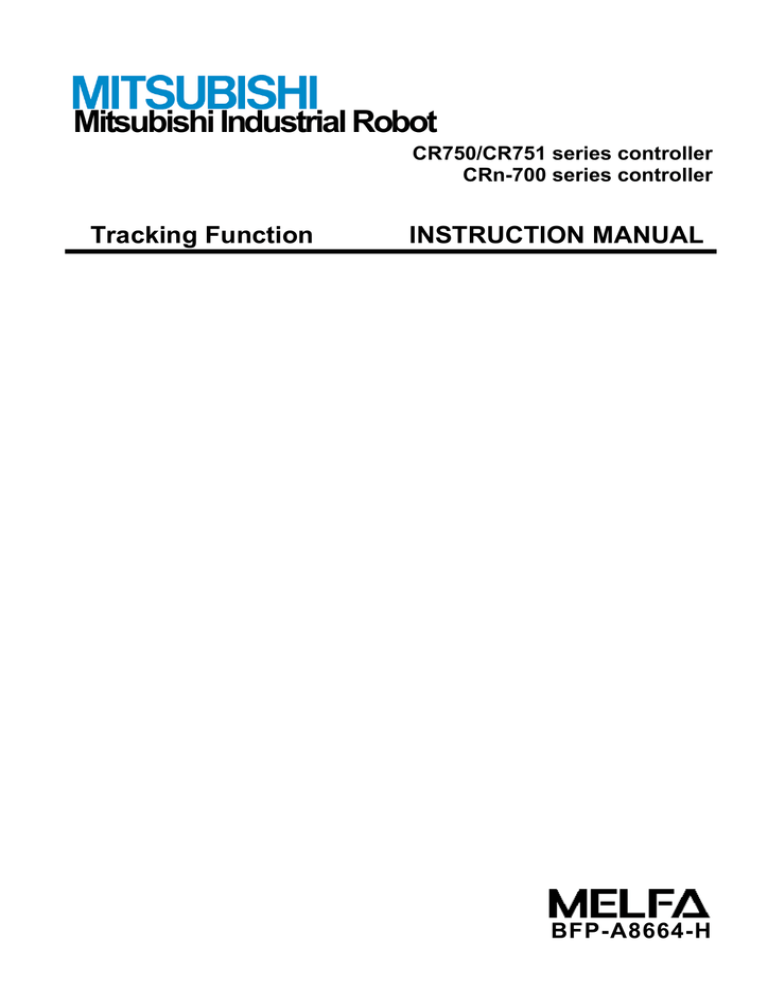

Mitsubishi Industrial Robot
CR750/CR751 series controller
CRn-700 series controller
Tracking Function
INSTRUCTION MANUAL
BFP-A8664-H
Safety Precautions
Always read the following precautions and separate "Safety Manual"
carefully before using robots, and take appropriate action when
required.
Caution
Caution
Teaching work should only be performed by those individuals who have undergone special
training.
(The same applies to maintenance work with the robot power ON.)
→ Conduct safety education.
Prepare work regulations indicating robot operation methods and procedures, and
measures to be taken when errors occur or when rebooting robots, and observe these
rules at all times.
(The same applies to maintenance work with the robot power ON.)
→ Prepare work regulations.
Warning
Only perform teaching work after first equipping the controller with a device capable of
stopping operation immediately.
(The same applies to maintenance work with the robot power ON.)
→ Equip with an EMERGENCY STOP button.
Caution
Notify others when teaching work is being performed by affixing a sign to the START
switch, etc.
(The same applies to maintenance work with the robot power ON.)
→ Indicate that teaching work is being performed.
Warning
Install fences or enclosures around robots to prevent contact between robots and workers
during operation.
→ Install safety fences.
Caution
Stipulate a specific signaling method to be used among related workers when starting
operation.
→ Operation start signal
Caution
As a rule, maintenance work should be performed only after turning OFF the power, and
other workers should be notified that maintenance is being performed by affixing a sign to
the START switch, etc.
→ Indicate that maintenance work is being performed.
Caution
Before starting operation, conduct an inspection of robots, EMERGENCY STOP buttons,
and any other related devices to ensure that there are no abnormalities.
→ Inspection before starting operation
The following precautions are taken from the separate "Safety Manual".
Refer to the "Safety Manual" for further details.
Caution
Use robots in an environment stipulated in the specifications.
Failure to observe this may result in decreased reliability or breakdown.
(Temperature, humidity, atmosphere, noise environment, etc.)
Caution
Only transport robots in the manner stipulated.
Failure to observe this may result in bodily injury or breakdown if the robot is dropped.
Caution
Install and use the robot on a secure and stable platform.
Positional displacement or vibrations may occur if the robot is unstable.
Caution
Ensure that cables are kept as far apart from noise sources as possible.
Positional displacement or malfunction may occur if in close contact with one another.
Caution
Do not apply too much force to connectors, or bend cables too much.
Failure to observe this may result in contact defects or wire damage.
Caution
Ensure that the weight of the workpiece, including the hand, does not exceed the rated
load or allowable torque.
Failure to observe this may result in alarms or breakdown.
Warning
Attach hands and tools, and grip workpieces securely.
Failure to observe this may result in bodily injury or property damage if objects are sent
flying or released during operation.
Warning
Ground the robot and controller properly.
Failure to observe this may result in malfunction due to noise, or even electric shock.
Caution
Always indicate the robot operating status during movement.
If there is no indication, operators may approach the robot, potentially leading to
incorrect operation.
Warning
If performing teaching work inside the robot movement range, always ensure complete
control over the robot beforehand. Failure to observe this may result in bodily injury or
property damage if able to start the robot with external commands.
Caution
Jog the robot with the speed set as low as possible, and never take your eyes off the
robot. Failure to observe this may result in collision with workpieces or surrounding
equipment.
Caution
Always check robot movement in step operation before commencing auto operation
following program editing. Failure to observe this may result in collision with
surrounding equipment due to programming mistakes, etc.
Caution
If attempting to open the safety fence door during auto operation, ensure that the door
is locked, or that the robot stops automatically. Failure to observe this may result in
bodily injury.
Caution
Do not perform unauthorized modifications or use maintenance parts other than those
stipulated. Failure to observe this may result in breakdown or malfunction.
Warning
If moving the robot arm by hand from outside the enclosure, never insert hands or
fingers in openings. Depending on the robot posture, hands or fingers may become
jammed.
Caution
Do not stop the robot or engage the emergency stop by turning OFF the robot controller
main power.
Robot accuracy may be adversely affected if the robot controller main power is turned
OFF during auto operation. Furthermore, the robot arm may collide with surrounding
equipment if it falls or moves under its own inertia.
Caution
When rewriting internal robot controller information such as programs or parameters, do
not turn OFF the robot controller main power.
If the robot controller main power is turned OFF while rewriting programs or parameters
during auto operation, the internal robot controller information may be destroyed.
Warning
Horizontal multi-joint robots
The hand may drop under its own weight while the robot brake release switch is
pressed, and therefore due care should be taken. Failure to observe this may result in
collision between the hand and surrounding equipment, or hands or fingers becoming
jammed if the hand falls.
Caution
Attach the cap to the SSCNET III connector after disconnecting the SSCNET III cable. If
the cap is not attached, dirt or dust may adhere to the connector pins, resulting in
deterioration connector properties, leading to malfunction.
Caution
Do not look directly at light emitted from the tip of SSCNET III connectors or SSCNET III
cables. Eye discomfort may be felt if exposed to the light. (SSCNET III employs a Class
1 or equivalent light source as specified in JISC6802 and IEC60825-1.)
Revision history
Date of print
2009-02-10
2009-10-23
Specifications No.
BFP-A8664-*
BFP-A8664-A
2010-04-30
BFP-A8664-B
2010-10-18
BFP-A8664-C
2012-03-01
BFP-A8664-D
2012-10-19
BFP-A8664-E
2013-01-22
2013-05-27
BFP-A8664-F
BFP-A8664-G
2014-02-13
BFP-A8664-H
Details of revisions
First print
The EC Declaration of Conformity was changed.
(Correspond to the EMC directive; 2006/42/EC)
The tracking function is realized to SQ series.
The notes were added about physical encoder number (List 1-1)
and No.9 (List 1-2).
CR750/CR751 series controller were added.
The note was added to Trk command.
The explanation of vision was changed from MELFA-Vision to
In-Sight Explorer for EasyBuilder.
Sample program for RH-3S*HR was added.
The explanation of parameter "TRPACL" and "TRPDCL" was
added.
"Troubleshooting" is enhanced.
The statement about trademark registration was added.
“Table 21-3 Connectors: CNENC/CNUSR Pin Assignment” was
corrected.
The explanations about Encoder distribution unit (option) were
added.
Preface
Thank you very much for purchasing Mitsubishi Electric Industrial Robot.
The tracking function allows robots to follow workpieces on a conveyer or transport, line up and process the
workpieces without having to stop the conveyer. The conveyor tracking function is the standard function in
the controller. It can use only by having the parameter "TRMODE" changed into "1."
Please be sure to read this manual carefully and understand the contents thoroughly before starting to use
the equipment in order to make full use of the tracking function.
Within this manual, we have tried to describe all ways in which the equipment can be handled, including
non-standard operations, to the greatest extent possible. Please avoid handling the equipment in any way
not described in this manual.
Tracking function is installed as standard for the controller, and the function can be used only by changing
parameter "TRMODE" from “0" to “1". However, there are different parts in the system configuration and the
way of programming in the CR750-Q/CR751-Q, CRnQ-700 series and the CR750-D/CR751-D, CRnD-700
series. Please give the attention that this manual explains these differences between CR750-Q/CR751-Q,
CRnQ-700 series and CR750-D/CR751-D, CRnD-700SD series.
Note that this manual is written for the following software version.
CR750-Q/CR751-Q series : Ver. R3 or later
CR750-D/CR751-D series : Ver. S3 or later
CRnQ-700 series : Ver. R1 or later
CRnD-700 series : Ver. P1a or later
・No part of this manual may be reproduced by any means or in any form, without prior consent from
Mitsubishi.
・The contents of this manual are subject to change without notice.
・An effort has been made to make full descriptions in this manual. However, if any discrepancies or
unclear points are found, please contact your service provider.
・The information contained in this document has been written to be accurate as much as possible.
Please interpret that items not described in this document "cannot be performed." or "alarm may
occur".
Please contact your service provider if you find any doubtful, wrong or skipped point.
・This specifications is original.
・The ETHERNET is a registered trademark of the Xerox Corp.
・All other company names and production names in this document are the trademarks or registered
trademarks of their respective owners.
Copyright(C) 2009-2014 MITSUBISHI ELECTRIC CORPORATION
[Contents]
[Part 1] Overview .................................................................................................................1-1
1.
Overview................................................................................................................................................... 1-1
1.1.
What is the Tracking Function? ........................................................................................................ 1-1
1.2.
Applications ...................................................................................................................................... 1-2
1.3.
Contents of this manual .................................................................................................................... 1-3
1.4.
The generic name and abbreviation ................................................................................................. 1-4
1.5.
System that can achieve................................................................................................................... 1-5
[Part 2] System Configuration and Setting (CR750-Q/CR751-Q series, CRnQ-700 series)
..............................................................................................................................................1-6
2.
System Configuration ............................................................................................................................... 2-6
2.1.
Components ..................................................................................................................................... 2-6
2.1.1.
Robot controller enclosure products ......................................................................................... 2-6
2.1.2.
Devices Provided by Customers ............................................................................................... 2-6
2.2.
Example of System Configuration .................................................................................................... 2-9
2.2.1.
Configuration Example of Conveyer Tracking Systems ........................................................... 2-9
2.2.2.
Configuration Example of Vision Tracking Systems ............................................................... 2-10
3. Specification ........................................................................................................................................... 3-11
3.1.
Tracking Specifications and Restriction matter .............................................................................. 3-11
4. Operation Procedure .............................................................................................................................. 4-12
5. Connection of Equipment ....................................................................................................................... 5-13
5.1.
Preparation of Equipment ............................................................................................................... 5-13
5.1.1.
Q173DPX(manual pilser input) unit specification ................................................................ 5-14
5.2.
Connection of Equipment ............................................................................................................... 5-20
5.2.1.
Connection of Unit................................................................................................................... 5-20
5.2.2.
Connection with encoder for conveyer and encoder cable..................................................... 5-21
5.2.3.
Connection of Photoelectronic Sensor ................................................................................... 5-23
6. Parameter Setting .................................................................................................................................. 6-25
6.1.
Dedicated Input/Output Parameters ............................................................................................... 6-25
6.2.
Operation Parameters .................................................................................................................... 6-25
6.3.
Tracking Parameter Setting ............................................................................................................ 6-26
6.3.1.
Robot Parameter Setting......................................................................................................... 6-26
6.3.2.
Sequencer CPU Parameter Setting ........................................................................................ 6-28
[Part 3] System Configuration and Setting (CR750-D/CR751-D series, CRnD-700 series)
............................................................................................................................................6-31
7.
System Configuration ............................................................................................................................. 7-31
7.1.
Components ................................................................................................................................... 7-31
7.1.1.
Robot controller enclosure products ....................................................................................... 7-31
7.1.2.
Devices Provided by Customers ............................................................................................. 7-31
7.2.
Example of System Configuration .................................................................................................. 7-34
7.2.1.
Configuration Example of Conveyer Tracking Systems ......................................................... 7-34
7.2.2.
Configuration Example of Vision Tracking Systems ............................................................... 7-35
8. Specification ........................................................................................................................................... 8-36
8.1.
Tracking Specifications and Restriction matter .............................................................................. 8-36
9. Operation Procedure .............................................................................................................................. 9-37
10.
Connection of Equipment ................................................................................................................. 10-38
10.1.
Preparation of Equipment ......................................................................................................... 10-38
10.2.
Connection of Equipment.......................................................................................................... 10-38
10.2.1. Connection of Conveyer Encoder ......................................................................................... 10-38
10.2.2. Installation of encoder cable ................................................................................................. 10-41
10.2.3. Connection of Photoelectronic Sensor ................................................................................. 10-45
11.
Parameter Setting ............................................................................................................................. 11-46
11.1.
Dedicated Input/Output Parameters ......................................................................................... 11-46
11.2.
Operation Parameters............................................................................................................... 11-46
11.3.
Tracking Parameter Setting ...................................................................................................... 11-47
[Part 4] Tracking Control (common function between series) ....................................11-48
12.
Sample Robot Programs .................................................................................................................. 12-48
13.
Calibration of Conveyer and Robot Coordinate Systems (“A1” program)........................................ 13-49
13.1.
Operation procedure ................................................................................................................. 13-49
13.2.
Tasks ........................................................................................................................................ 13-51
13.3.
Confirmation after operation ..................................................................................................... 13-53
13.4.
When multiple conveyers are used .......................................................................................... 13-53
14.
Calibration of Vision Coordinate and Robot Coordinate Systems (“B1” program) .......................... 14-54
14.1.
Operation procedure ................................................................................................................. 14-54
14.2.
(2) Tasks ................................................................................................................................... 14-57
14.3.
(3) Confirmation after operation ................................................................................................ 14-62
15.
Workpiece Recognition and Teaching (“C1” program) .................................................................... 15-63
15.1.
Program for Conveyer Tracking ............................................................................................... 15-63
15.2.
Program for Vision Tracking ..................................................................................................... 15-67
16.
Teaching and Setting of Adjustment Variables (“1” Program) ......................................................... 16-77
16.1.
Teaching ................................................................................................................................... 16-77
16.2.
Setting of adjustment variables in the program ........................................................................ 16-78
17.
Sensor Monitoring Program (“CM1” Program) ................................................................................. 17-84
17.1.
Program for Conveyer Tracking ............................................................................................... 17-84
17.2.
Program for Vision Tracking ..................................................................................................... 17-84
18.
Automatic Operation ......................................................................................................................... 18-85
18.1.
Preparation ............................................................................................................................... 18-85
18.2.
Execution .................................................................................................................................. 18-86
18.3.
At error occurrence ................................................................................................................... 18-86
18.4.
Ending ....................................................................................................................................... 18-86
18.5.
Adjusting method ...................................................................................................................... 18-86
19.
Maintenance of robot program ......................................................................................................... 19-87
19.1.
MELFA-BASIC V Instructions ................................................................................................... 19-87
19.1.1. List of Instructions ................................................................................................................. 19-87
19.1.2. List of Robot Status Variables............................................................................................... 19-87
19.1.3. List of Functions .................................................................................................................... 19-88
19.1.4. Explanation of Tracking Operation Instructions .................................................................... 19-88
19.2.
Timing Diagram of Dedicated Input/Output Signals ................................................................. 19-97
19.2.1. Robot Program Start Processing .......................................................................................... 19-97
20.
Troubleshooting ................................................................................................................................ 20-98
20.1.
Occurrence of Error Numbers in the Range from 9000 to 9999 .............................................. 20-98
20.2.
Occurrence of Other Errors .................................................................................................... 20-100
20.3.
In such a case (improvement example).................................................................................. 20-102
20.3.1. The adsorption position shifts. ............................................................................................ 20-102
20.3.2. Make adsorption and release of the work speedy .............................................................. 20-105
20.3.3. Make movement of the robot speedy. ................................................................................ 20-105
20.3.4. The robot is too speedy and drops the work. ..................................................................... 20-105
20.3.5. Restore backup data to another controller ......................................................................... 20-106
20.3.6. Circle movement in tracking................................................................................................ 20-106
20.3.7. Draw the square while doing the tracking. .......................................................................... 20-107
21.
Appendix......................................................................................................................................... 21-108
21.1.
List of Parameters Related to Tracking .................................................................................. 21-108
21.2.
Shine of changing parameter.................................................................................................. 21-110
21.3.
Expansion serial interface Connector Pin Assignment........................................................... 21-113
21.4.
Chart of sample program ........................................................................................................ 21-115
21.4.1. Conveyer tracking ............................................................................................................... 21-115
21.4.2. Vision Tracking ................................................................................................................... 21-121
21.5.
Sample Programs ................................................................................................................... 21-125
21.5.1. Conveyer Tracking .............................................................................................................. 21-125
21.5.2. Vision Tracking ................................................................................................................... 21-134
21.5.3. For RH-3S*HR .................................................................................................................... 21-139
1 Overview
[Part 1] Overview
1. Overview
1.1. What is the Tracking Function?
The tracking function allows a robot to follow workpieces moving on a conveyer. With this function, it
becomes possible to transport, line up and process workpieces without having to stop the conveyer. It also
eliminates the need for mechanical fixtures and so forth required to fix workpiece positions.
The features of this function are described below.
1) It is possible to follow lined-up workpieces moving on a conveyer while working on them (conveyer
tracking making use of photo electronic sensors).
2) It is possible to follow workpieces that are not in a line moving on a conveyer while working on them,
even in the case of different types of workpieces (vision tracking combined with vision sensors).
3) It is possible to follow changes of movement speed due to automatic calculation of conveyer
movement speed.
4) Tracking function can be easily achieved by using Mitsubishi’s robot command MELFA-BASIC V.
5) System construction is made easy by use of sample programs.
What is the Tracking Function?
1-1
1 Overview
1.2. Applications
Tracking is primarily intended for applications such as the following.
(1) Transfer of processed food pallets
Figure 1−1 Example of Processed Food Pallet Transfer
(2) Lining up parts
Figure 1−2 Example of Parts Lineup
(3) Assembly of small electrical products
Figure 1−3 Example of Small Electrical Products Assembly
1-2
Applications
1 Overview
1.3.
Contents of this manual
This manual explains the operation procedure when the customer use conveyer tracking system and vision
tracking system using Mitsubishi robot. The robot model are CR750-Q/CR751-Q/CRnQ-700 series and
CR750-D/CR751-D/CRnD-700 series, however there are H/W differences. Please read as following.
CR750-Q/CR751-Q/CRnQ-700 series
Part.2 System Configuration CR750-Q/CR751-Q/CRnQ-700 series(2~6)
System Configuration/ systemup/ Setting option parts/
Connection to encoder/ Parameter setting
Part.4 Tracking Control(12~21)
Sample program/ Teaching/ Automatic operation/ Trouble shooting
CR750-D/CR751-D/CRnD-700Series
Part.3 System Configuration CR750-D/CR751-D/CRnD-700 series(7~11)
System Configuration/ systemup/ Setting option parts/
Connection to encoder/ Parameter setting
Part.4 Tracking Control(12~21)
Sample program/ Teaching/ Automatic operation/ Trouble shooting
Contents of this manual
1-3
1 Overview
1.4.
The generic name and abbreviation
Generic name and abbreviation
Tracking function
Conveyer tracking
Vision tracking
Network vision sensor
Q173DPX unit
Physical encoder number
Logical encoder number
TREN signal
1-4
List 1-1
generic name and abbreviation
Contents
The tracking function allows a robot to follow workpieces moving on a
conveyer. With this function, it becomes possible to transport line up
and process workpieces without having to stop the conveyer.
The conveyer tracking allows a robot to follow workpieces lining up on
a conveyer. With this function, it becomes possible to transport,
process workpieces.
The vision tracking allows a robot to follow workpieces not lining up on
a conveyer. With this function, it becomes possible to transport line up
and process workpieces.
The network vision sensor is an option which makes it possible to
inspect or find the workpieces by using with robot controller and
processing the image.
Q173DRX unit is manual pulser input unit for motion controller. At Q
series CPU, it is used as intelligent function unit ( occupation 32
points)
Each encoder figure can be got by connection with 1 pc the manual
pulser machine (MR-HDP01) or 3pcs the incremental encoder.
Physical encoder numbers a number of the encoder physically
allocated according to a certain rule.
In the CR750-Q/CR751-Q/CRnQ-700 series, the number is allocated
by arranging the encoder connected with Q173DPX unit.
The encoder which connected with CH1 of the Q173DPX unit
specified for parameter “ENC UNIT1” is the first, the encoder which
connected with CH2 is the second and with CH3 is the third.
It becomes from 4 to 6 for the Q173DPX unit specified for
parameter”ENCUNIT2”.
It becomes from 7 to 8 for the Q173DPX unit specified for
parameter”ENCUNIT3”.
Note) The 3rd set of Q173DPX units can use only the two channels.
The physical encoder number change to the logical encoder number
by parameter “EXTENC”. The purpose of this is to change freely
number by the parameter for the encoder physically arranged. This
logical encoder number is used with the instruction and the state
variable of the robot program.
tracking enable signal
The generic name and abbreviation
1 Overview
1.5.
System that can achieve
With the tracking function of CR750-Q/CR751-Q/CRnQ-700 series, CR750-D/CR751-D/CRnD-700 series, the
example of the system that can be achieved is shown as following.
List 1-2
No.
Example of system that can be achieved by the tracking function
CR750-Q
CR751-Q
CRnQ-700
CR750-D
CR751-D
CRnD-700
●
●
Example of the system
When a robot picks the workpieces moving on a conveyer, it is tracking.
(transportation)
When a robot places workpieces which taken out from the pallet to a
2
●
●
conveyer, it is tracking (transportation). It is also possible to hang
workpieces on S character hook that moves the above of the robot.
A robot decorates (processing) the workpieces moving on a conveyer
3
●
●
while tracking.
A robot attaches the parts (assembling) with the workpieces moving on a
4
●
●
conveyer while tracking.
A robot has the vision sensor (hand eye) and it checks the workpieces
5
●
●
moving on a conveyer. (inspection) It also can check and push the button
while tracking, not the vision sensor.
When a robot picks the workpieces moving on a conveyer A, the tracking
6
●
●
is done and a robot places the workpieces while tracking to marking on a
conveyer B.
The tracking is done with an encoder of line driver (differential motion)
7
●
●
output type.
The tracking is done with an encoder of voltage output/open collector
Note1)
8
●
(●)
type.
In case of multi CPU system, it makes possible to add max 9 pcs
9
●
Q173DPX units (3 units per 1 CPU). However, in each CPU, only the
two channels can be used at the 3rd set of Q173DPX units.
Note1) This system requires the Encoder distribution unit. Please refer to the Encoder Distribution Unit
Manual (BFP-A3300) for details.
1
System that can achieve
1-5
2 System Configuration
[Part 2] System Configuration and Setting (CR750-Q/CR751-Q series,
CRnQ-700 series)
2. System Configuration
2.1. Components
2.1.1.
Robot controller enclosure products
The product structure of the tracking functional relation enclosed by the robot controller is shown in the
Table 2−1.
Table 2−1 List of Configuration in the tracking functional-related product
Product name
Model name
Remark
Tracking Function
BFP-A8664
This manual is included in instruction-manual CD-ROM
INSTRUCTION MANUAL
attached to the product.
Sample program
Please refer to "12 Sample Robot Programs" for the
−
sample robot program.
2.1.2.
Devices Provided by Customers
When configuring the system, the customers must have certain other devices in addition to this product. The
table below shows the minimum list of required devices. Note that different devices are required depending
on whether conveyer tracking or vision tracking is used. Please refer to “Table 2−2 List of Devices Provided
by Customers (Conveyer Tracking)” and “Table 2−3 List of Devices Provided by Customers (Vision
Tracking)” for further details.
Table 2−2 List of Devices Provided by Customers (Conveyer Tracking)
Name of devices to be
Model
Quantity
Remark
provided by customers
Robot part
Teaching pendant
R32TB/R33TB
or
1
R56TB/R57TB
Hand
−
Hand sensor
Used to confirm that workpieces are gripped
−
correctly. Provide as necessary.
Solenoid valve set
Different models are used depending on the robot
See the Remark
used. Check the robot version and provide as
Hand input cable
column
necessary.
(1)
Air hand interface
2A-RZ365 or
(CRnQ-700/CRnD-700 series controller)
2A-RZ375
Provide as necessary.
Calibration jig
This is a jig with a sharp tip that is attached to the
mechanical interface of the robot arm and used for
−
calibration tasks. It is recommended to use the jig if
high precision is required.
Encoder pulse unit
Manual pulser input unit for motion controller
More than [*]This unit cannot be connected with two or more
Q173DPX
1
2-6
Components
robot CPU. Please prepare for unit necessary in each
robot CPU
2 System Configuration
Name of devices to be
provided by customers
Conveyer part
Conveyer
(with encoder)
Model
Quantity
−
1
Photo electronic sensor
24V power supply
Encoder distribution unit
−
−
2F-YZ581
Personal computer part
Personal computer
RT ToolBox2
(Personal computer
support software)
(1)
−
3D-11C-WINE
3D-12C-WINE
1
Remark
Encoder:
Voltage output/open collector type
Line driver output
[Confirmed operation product]
Omron encoder (E6B2-CWZ1X-1000 or -2000)
Encoder cable (Recommended product):
2D-CBL05/2D-CBL15
[*]The Q173DPX unit supplies 5V power supply
to the encoder.
Used to synchronize tracking
+24 VDC (±10%) : For the Photo electronic sensor
The Encoder distribution unit is required when two
or more manual pulser input units are connected to
the one encoder. Provide this unit as necessary.
Refer to the Encoder Distribution Unit Manual
(BFP-A3300) for details.
Please refer to the instruction manual of RT
ToolBox2 for the details of the personal computer
specifications.
Table 2−3 List of Devices Provided by Customers (Vision Tracking)
Name of devices to be
Model
Quantity
Remark
provided by customers
Robot part
Teaching pendant
R32TB/R33TB
or
1
R56TB/R57TB
Hand
−
Hand sensor
Used to confirm that workpieces are gripped
−
correctly. Provide as necessary.
Solenoid valve set
Different models are used depending on the
See the Remark
robot used. Check the robot version and provide
Hand input cable
column
as necessary.
Air hand interface
2A-RZ365 or
(CRnQ-700/CRnD-700 series controller)
(1)
2A-RZ375
Provide as necessary.
Calibration jig
This is a jig with a sharp tip that is attached to the
mechanical interface of the robot arm and used
−
for calibration tasks. It is recommended to use
the jig if high precision is required.
Encoder pulse unit
Q173DPX
More than manual pulser input unit for motion controller
1
【*】This unit cannot be connected with two or more
robot CPU. Please prepare for unit necessary in
each robot CPU.
Components
2-7
2 System Configuration
Name of devices to be
provided by customers
Conveyer part
Conveyer
(with encoder)
Model
Quantity
Encoder:
Voltage output/open collector type
Line driver output
[Confirmed operation product]
Omron encoder (E6B2-CWZ1X-1000 or -2000)
−
1
Photo electronic sensor
24V power supply
−
−
Encoder distribution unit
2F-YZ581
Vision sensor part
Basic network vision sensor
4D-2CG5xxxx-PKG
set
In-Sight 5000 series
In-Sight Micro
−
In-Sight EZ
Lens
−
Lighting installation
−
Connection part
Hub
−
Ethernet cable (straight)
−
(1)
1
(1)
1
2-8
Components
[*]The Q173DPX unit supplies 5V power
supply to the encoder.
Used to synchronize tracking
+24 VDC (±10%) :
For the Photo electronic sensor and Vision
sensor
The Encoder distribution unit is required when
two or more manual pulser input units are
connected to the one encoder. Provide this unit
as necessary. Refer to the Encoder Distribution
Unit Manual (BFP-A3300) for details.
COGNEX Vision sensor
C-mount lens
Provide as necessary.
2
Between Robot controller and Hub
Between Personal computer and Hub
1
Please refer to the instruction manual of RT
ToolBox2 or the instruction of the network vision
sensor for details of the personal computer
specifications.
Please refer to the instruction manual of RT
ToolBox2 for the details of the personal computer
specifications.
−
3D-11C-WINE
3D-12C-WINE
Encoder cable (Recommended product):
2D-CBL05/2D-CBL15
See the instruction manual of the network vision
sensor for details
Personal computer part
Personal computer
RT ToolBox2
(Personal computer support
software)
Remark
2 System Configuration
2.2. Example of System Configuration
The following figure shows examples of conveyer tracking systems and vision tracking systems.
2.2.1.
Configuration Example of Conveyer Tracking Systems
The following figure shows a configuration example of a system that recognizes lined-up workpieces on a
conveyer passing a photo electronic sensor and follows the workpieces.
Robot
R
Controler
Robot CPU Q173DPX
DU
Photoelectric sensor
(Detected the inflow
of the work)
Encoder
(Detected the speed
of the convetor)
Workpieces
flow direction
Robot movement range
Workpieces
Figure 2−1 Configuration Example of Conveyer Tracking (Top View)
Figure 2−2 Configuration Example of Conveyer Tracking
Example of System Configuration
2-9
2 System Configuration
2.2.2.
Configuration Example of Vision Tracking Systems
The following figure shows a configuration example of a system that recognizes positions of workpieces that
are not lined up on a conveyer with a vision sensor and follows the workpieces.
Robot
Controler
Robot CPU
Q173DPX
DU
DU
Encoder
(Detected the speed
of the convetor)
R
Workpieces
flow direction
Robot movement range
Camera for vision sensors
Workpieces
(Recognized the work
of the position and inclination)
Figure 2−3 Configuration Example of Vision Tracking (Top View)
Figure 2−4 Configuration Example of Vision Tracking
2-10
Example of System Configuration
3 Specification
3. Specification
3.1. Tracking Specifications and Restriction matter
”Table 3−1 CR750-Q/CR751-Q Series, CRnQ-700 Series Controller Tracking Function Specifications”
shows the tracking specifications.
Please refer to “Standard Specifications Manual” for the specifications of the robot arm and controller to be
used.
Table 3−1 CR750-Q/CR751-Q Series, CRnQ-700 Series Controller Tracking Function Specifications
Item
Supported robots (*8)
Applicable robot controller
Robot program language
Conveyer Number of
conveyer
(*6)
Movement
Speed (*1)
Encoder
Encoder cable
Encoder unit
Photoelectronic sensor
(*3)
Vision sensor(*4)
Precision at handling
position (*5)
(*1)
(*2)
(*3)
(*4)
(*5)
(*6)
(*7)
(*8)
Specification and Restriction matter
RH-SQH series / RV-SQ series
RH-FH-Q series / RV-F-Q series
CR1Q / CR2Q / CR3Q controller
CR750-Q/CR751-Q series controller
Load commands dedicated for the tracking function
Max 8pcs (in case 1pc encoder connect to 1 pc conveyer)
Encoder 3 pcs / Q173DPX unit 1pc
Q173DPX unit 3pcs / system
Possible to support up to 300mm/s (When the robot always transport the
workpieces)
Possible to support up to 500mm/s when the interval of workpiece is wide.
Output aspect : A、A、B、 B 、Z、 Z
Output form : Voltage output/open collector type (*7)
Line driver output (*2)
Resolution(pulse/rotation)) : Up to 2000 (4000 and 8000 uncorrespond))
Confirmed operation product : Omuron E6B2-CWZ1X-1000
E6B2-CWZ1X-2000
Option:
2D-CBL05(External I/O cable 5m)
2D-CBL15(External I/O cable 15m)
Conductor size: AWG#28
Only Q173DPX unit
[*] Two or more robots CPU cannot share one Q173DPX.
One Q173DPX is necessary for each robot CPU.
Used to detect workpieces positions in conveyer tracking.
Output signal of sensor need to be connected to TREN terminal of
Q173DPX unit. (Input signal number 810~817)
And a momentary encoder value that the input enters is preserved in state
variable "M_EncL".
Mitsubishi’s network vision sensor
Approximately ±2 mm (when the conveyer speed is approximately 300
mm/s)
(Photoelectronic sensor recognition accuracy, vision sensor recognition
accuracy, robot repeatability accuracy and so on)
The specification values in the table should only be considered guidelines. The actual values
depend on the specific operation environment, robot model, hand and other factors.
The line driver output is a data transmission circuit in accordance with RS-422A. It enables the
long-distance transmission.
Please connect the output signal of a photoelectric sensor with the terminal TREN of the Q173DPX
unit. This input can be confirmed,by the input signal 810th-817th.
In the case of vision tracking, please refer to the instruction manual of network vision sensor.
The precision with which workpieces can be grabbed is different from the repeatability at normal
transportation due to the conveyer speed, sensor sensitivity, vision sensor recognition accuracy and
other factors. The value above should only be used as a guideline.
The encoder connected with the third channel of the Q173DPX unit specified for parameter
"ENCUNIT3" cannot be used.
Voltage output/open collector type is an output circuit with two output transistors of NPN and PNP.
The sample program doesn't correspond to the RV-5 axis robot.
Tracking Specifications and Restriction matter
3-11
4 Operation Procedure
4. Operation Procedure
This chapter explains the operation procedure for constructing a conveyer tracking system and a vision
tracking system using Mitsubishi Electric industrial robots CR750-Q/CR751-Q series, CRnQ-700 series.
1. Start of operation
2.
Connection of Equipment ······································································· Refer to “Chapter 5.”
It explains Q173DPX (manual pulser input) unit preparation and the connection with the encoder.
3.
Parameter Setting ················································································ Refer to “Chapter 6.”
Chapter 6 explains assignment of signals and setting of parameters related to tracking to allow an
external device to control a robot.
4.
Sample Robot Programs······································································ Refer to “Chapter 12.”
Chapter 12 explains functions related to supplemental sample programs.
5.
Calibration of Conveyer and Robot Coordinate Systems (“A1” program) ········ Refer to “Chapter 13.”
Chapter 13 explains how to calculate the amount of robot movement per encoder pulse.
6.
Calibration of Vision Coordinate and Robot Coordinate Systems (“B1” program) ··· Refer to “Chapter 14.”
Chapter 14 explains how to display the position of a workpiece recognized by the vision sensor in
the robot coordinate system.
7.
Workpiece Recognition and Teaching (“C1” program) ································ Refer to “Chapter 15.”
Chapter 15 explains how to calculate the relationship between the position of a workpiece
recognized by the vision sensor and the position at which the robot grabs the workpiece.
8.
Teaching and Setting of Adjustment Variables (“1” Program) ······················· Refer to “Chapter 16.”
Chapter 16 explains how to make settings such that the robot can follow workpieces moving by on a
conveyer and how to teach the robot origin and transportation destination at system start-up.
9.
Automatic Operation ··········································································· Refer to “Chapter 18.”
In automatic operation, the robot operates via commands from the conveyer control.
End of operation
10. Maintenance ····················································································· Refer to “Chapter 19.”
11. Troubleshooting ··············································································· Refer to “Chapter 20.”
4-12
Tracking Specifications and Restriction matter
5 Connection of Equipment
5. Connection of Equipment
This section explains how to connect each of the prepared pieces of equipment.
5.1. Preparation of Equipment
Prepare equipment by referring to “Table 2−2 List of Devices Provided by Customers (Conveyer Tracking)”
to construct a conveyer tracking system and “Table 2−3 List of Devices Provided by Customers (Vision
Tracking)” to construct a vision tracking system.
Preparation of Equipment
5-13
5 Connection of Equipment
5.1.1.
Q173DPX(manual pilser input) unit specification
Add Q173DPX unit into PLC base unit ( Q3□DB ) when the customer use CR750-Q/CR751-Q series,
CRnQ-700 series tracking function. Please refer to
"Q173DCPU/Q172DCPU user's manual" about details of this unit.
(1) External and name of Q173DPX unit
Figure 5−1 Externals of Q173DPX unit
5-14
Preparation of Equipment
5 Connection of Equipment
(2) Dip switch
By setting the dip switch, the condition of the tracking enable signal is decided.
List 5-1
Item of dip switch
Preparation of Equipment
5-15
5 Connection of Equipment
(3) Specification of hardware
7.1ms
5-16
Preparation of Equipment
5 Connection of Equipment
(4) Wiring
The pin layout of the Q173DPX PULSER connecter viewed from the unit is shown below.
Figure 5−2 Pin assignment of the PULSER connector
Preparation of Equipment
5-17
5 Connection of Equipment
Interface between PULSER connecter and manual pulse generator (Differential-output type)/ Incremental
synchoronous encoder
Figure 5−3 Wiring connection with rotary encoder
As above image, because DC5V voltage is output from Q173DPX unit, it makes possible to supply 5V from
Q173DPX unit to rotary encoder. When 24V encoder type of power supply is used, it makes possible to use
24V output from PLC power unit.
5-18
Preparation of Equipment
5 Connection of Equipment
The interface between tracking enable signal is shown follow.
This signal is used for input signal when the photoelectronic sensor is used to find workpieces so please
connect output signal of photoelectronic sensor.
Figure 5−4 Connected composition of tracking enable signal
Preparation of Equipment
5-19
5 Connection of Equipment
5.2.
Connection of Equipment
The connection with each equipments is explained as follow.
5.2.1.
Connection of Unit
Q173DPX unit is connected to base unit (Q3□DB) or Q6□B increase base unit.
Figure 5−5 Connected composition of units
The connection robot system with Q173DPX unit is shown as follow.
Item
List 5-2 Spec list of Q173DPX in robot system
Spec and Remark
Encoder
Incremental synchronous encoder 3pcs
Tracking input points
3points
Three points can be input to ± TREN1-3 in the pin assignment of the unit.
When the input of a photoelectric sensor is put, this input is used.
Slot that can be connected Connection with the base unit Possible to install I/O slot since 3
(Impossible to install CPU slot or I/O slot 0 to 2)
Connection with additional base unit Possible to install all slots.
Robot CPU unit that can be Q173DPX unit
3pcs
managed
Robot CPU encoder that Max 8pcs
can be managed
Impossible to use the third channel of the third Q173DPX unit.
And impossible to use the encoder connected with the third channel of the
unit specified for parameter「ENCUNIT3」.
5-20
Connection of Equipment
5 Connection of Equipment
5.2.2.
Connection with encoder for conveyer and encoder cable
E6B2-CWZ1X (made by Omron) is used, and the wiring for the encoder and the encoder cable for the
conveyer is shown in "Figure 5-2 the encoder for the conveyer and the wiring diagram of the encoder
cable".
The encoder for the conveyer up to 3 pcs can be connected per Q173DP unit 1pc. The signal cabels
needed in case of the connection are power supply (+、-) and encoder A,B,Z each +、-, total 8 cables.
Please refer to the manual of the encoder, please connect signal cable correctly. Also please ground shield
line (SLD).
Pin assignment of the
PULSER connector
A19
SG
B19
SG
A18 HPSEL1
B18
5V
A17 HA1P
B17
HA1N
A16 HB1P
B16
HB1N
Twisted-pair cable
SLD
Blue(+0V)
Brown(+5V)
Black
Black/Red stripe
White
White/Red stripe
SG
SG
A13 HPSEL2
B13
5V
A12 HA2P
B12
HA2N
A11 HB2P
B11
HB2N
B14
B4
エンコーダ
Ex.)Omuron
E6B2-CWZ1X
A14
A4
TREN1+
TREN1-
SLD
Blue(+0V
Brown(+5V)
エンコーダ
Black
Black/Red stripe
White
White/Red stripe
Ex.)Omuron
E6B2-CWZ1X
Photoelectric
sensor
(Example of 3 line type)
Twisted-pair cable
24V
B3
A3
TREN2+
TREN2-
0V
24V
External power supply
0V
Photoelectric
sensor
(Example of 3 line type)
Figure 5−6 the encoder for the conveyer and the wiring diagram of the encoder cable
※Please refer to "Figure 5−2 Pin assignment of the PULSER connector" with the pin crack of the PULSER
connector that arrives at the unit.
Connection of Equipment
5-21
5 Connection of Equipment
The wiring example by the thing is shown below.
(Please note that the connector shape is different depending on the controller. )
Figure 5−7 Wiring example (CR75x-Q/ CRnQ-700 series controller)
5-22
Connection of Equipment
5 Connection of Equipment
5.2.3.
Connection of Photoelectronic Sensor
If a photoelectronic sensor is used for detection of workpieces, connect the output signal of the
photoelectronic sensor to a tracking enable signal of the Q173DPX unit.
In this section, a connection example where the photoelectronic sensor signal is connected to the tracking
enable signal is shown in “
Input circuit external power supply
Controller
Connects to the tracking enable signal of the Q173DPX unit.
Photoelectric sensor
Workpiece
Figure 5−8 Photoelectronic Sensor Arrangement Example
Q173DPX PULSER connector
Photoelectric
sensor
(Example of 3 line type)
TREN1+
A4
24V
B4
TREN10V
External power supply
Figure 5−9 Photoelectronic Sensor Connection Example (6th General Input Signal is Used)
Note) The external power supply and photoelectric sensor must be
prepared
Connection of Equipment
5-23
5 Connection of Equipment
The tracking enable signal is connected to the robot input signal as follows.
List 5-3 List with signal crack of tracking enable signal (TREN)
Encoder physics
number
1
2
3
4
5
6
7
8
5-24
Connection channel
CR750-Q/CR751-Q series,
CRnQ-700 series
1st channel of Parameter
ENCUNIT1
2nd channel
3rd channel
st
1
channel of Parameter
ENCUNIT2
2nd channel
3rd channel
st
1 channel of Parameter
ENCUNIT3
2nd channel
Connection of Equipment
Robot Input signal number
810
811
812
813
814
815
816
817
6 Parameter Setting
6. Parameter Setting
This chapter explains how to set dedicated input/output signals that play the role of interface between a robot
and an external device (e.g., a Programmable Logic Controller) and parameters related to the tracking function.
Please refer to “Detailed Explanations of Functions and Operations” for how to set the parameters.
6.1. Dedicated Input/Output Parameters
“Table 11−1 List of Dedicated Input/Output Parameters” lists the setting items of dedicated input/output
parameters used to operate the robot via instructions from an external device. Set the signal numbers according
to your system using the setting values in the table as reference. It is not necessary to set these parameters
if the robot operates by itself, rather than via instructions from an external device.
Table 6−1 List of Dedicated Input/Output Parameters
Input name/output name
(parameter name)
Stop/pausing
(STOP) or (STOP2)
Servo OFF/servo ON disabled
(SRVOFF)
Error reset/error occurring
(ERRRESET)
Start/operating
(START)
Servo ON/turning servo ON
(SRVON)
Operation right/operation right
enabled (IOENA)
Program reset/program
selectable
(SLOTINIT)
General output signal reset
(OUTRESET)
User specification area 1
(USRAREA)
Explanation
Input: Stop a program
Output: Output program standby status
Input: Turn the servo off
Output: Output servo ON disabled status
Input: Cancel error status
Output: Output error status
Input: Start automatic operation
Output: Output program running status
Input: Turn the servo on
Output: Output servo on status
Input: Enable/disable operation right of external signal control
Output: Output external signal control operation enabled status
Input: Initiate a program. The program execution returns to the
first step.
Output: Output a status where program No. can be changed
Input: Reset a general output signal
Output an indication that the robot is in an area specified by a
user
Set the start number and end number
Setting
Example
(*1)
10000 ,
-1
10011 ,
-1
10009 ,
-1
10006 ,
1
10010 ,
0
10005 ,
-1
10008 ,
-1
10015 ,
-1
10064,
10071
(*1) “-1” in the Setting value column means “not set.”
6.2. Operation Parameters
“Table 11−2 List of Operation Parameter” lists the setting items of parameters required to operate the robot at
the optimal acceleration/deceleration.
Parameter name
Optimal
acceleration/
deceleration hand
data
(HANDDAT1)
Optimal
acceleration/
deceleration
workpiece data
(WRKDAT1)
Table 6−2 List of Operation Parameter
Explanation
Specify hand weight and so on to make settings that allow optimal
acceleration/deceleration operations.
For example, if the hand weighs 3 kg, changing the weight setting
value from 10 kg to 3 kg makes the robot movement faster.
(Hand weight (kg), size (mm) X, Y, Z, gravity (mm) X, Y, Z)
Specify workpiece weight and so on to make settings that allow
optimum acceleration/deceleration operations.
If a workpiece is grabbed via the HClose instruction, the
acceleration/deceleration becomes slower. If a workpiece is
released via the HOpen instruction, acceleration/deceleration
becomes faster.
(Workpiece weight (kg), size (mm) X, Y, Z, gravity (mm) X, Y, Z)
Reference value
(3,0,0,0,0,0,0)
The setting values
are different for
each robot model.
Use these values
as reference only.
(1,0,0,0,0,0,0)
The setting values
are different for
each robot model.
Use these values
as reference only.
Dedicated Input/Output Parameters
6-25
6 Parameter Setting
6.3.
Tracking Parameter Setting
Specify to which channel of the encoder connector (CNENC) an encoder of conveyer is connected.
“Table 6-3 Tracking Parameter Setting” lists the parameters to be set. Other parameters are shown in “Table
21-1 List of Tracking Parameters”, make settings as required.
6.3.1.
Robot Parameter Setting
After the installation of Q173DPX module and connection with the encoder are complete, use the following
steps to establish robot CPU parameters.
(1) Using parameter ENCUNT* (*=1~3), designate the slot in which Q173DPX module under the control of robot
CPU is installed.
(2) Change the number of the incremental synchronization encoder being physically wired into a logic number,
using parameter EXTENC.
Table 6-3 Tracking Parameter Setting
Parameter
Parameter
name
Tracking mode
TRMODE
first Q173DPX
ENCUNIT1
Second
Q173DPX
ENCUNIT2
third Q173DPX
ENCUNIT3
6-26
Number of
elements
1 integer
Tracking Parameter Setting
Explanation
Enable the tracking function
Please set it to “1" when you use the tracking
function.
0: Disable/1: Enable
The base unit-number of the first Q173DPX unit
(element 1) that robot CPU manages and slot
number (element 2) are set.
【Element 1】
-1:No connection
0 :Basic base unit
1~7 :Increase base unit
【Element 2】
0~11 : I/O Slot number
* This parameter is valid in the following
software versions.
・CRnQ-700 series: Ver. R1 or later
The base unit-number of the second Q173DPX
unit (element 1) that robot CPU manages and slot
number (element 2) are set.
【Element 1】
-1 :No connection
0 :Basic base unit
~7 :Increase base unit
【Element 2】
0~11 : I/O slot number
* This parameter is valid in the following
software versions.
・CRnQ-700 series: Ver. R1 or later
The base unit-number of the third Q173DPX unit
(element 1) that robot CPU manages and slot
number (element 2) are set.
【Element 1】
-1 :No connection
0 :Basic base unit
~7 :Increase base unit
【Element 2】
0~11 : I/O slot number
* This parameter is valid in the following
software versions.
・CRnQ-700 series: Ver. R1 or later
0
Value set
at factory
shipping
-1,0
-1,0
-1,0
6 Parameter Setting
Parameter
Encoder
number
allocation
Parameter
name
EXTENC
Number
of
element
8
integers
Explanation
Set connection destinations on the connector for
encoder numbers 1 to 8.
Parameter elements correspond to encoder number
1, encoder number 2 … encoder number 8 from the
left.
Setting value is iuput encoder physics number from
below list.
In case of CR750-D/CR751-D and CRnD-700
series, CH1 and CH2 of slot 1 to 3 are reservation.
At present, it cannot be used.
Value set
at factory
shipping
1,2,3,4,
5,6,7,8
【In case of CR750-Q/CR751-Q, CRnQ-700 series】
Encoder
physics
number
Tracking
Workpiece
judgement
distance
TRCWDST
1
integer
Connection channel
(CR750-Q/CR751-Q,
CRnQ-700 series)
st
1 channel of Parameter
1
ENCUNIT1
2
2nd channel
3
3rd channel
st
1 channel of Parameter
4
ENCUNIT2
5
2nd channel
6
3rd channel
1st channel of Parameter
7
ENCUNIT3
8
2nd channel
It is convenient to check the status variable
“M_Enc” when determining the setting value of the
“EXTENC” parameter.
Please refer to "19.1.2 List of Robot Status
Variables” for the explanation of state variable
“M_Enc".
Please refer to “Detailed Explanations of Functions
and Operations” for how to check the status
variable.
Distance to judge that the same workpiece is being
tracked (mm)
The sensor reacts many times when the workpiece
with the ruggedness passes the sensor. Then, the
robot controller judged that one workpiece is two or
more pieces.
The sensor between values [mm] set to this
parameter does not react after turning on the
sensor.
To set the measure of workpieces flow is
recommended.
5.00
Tracking Parameter Setting
6-27
6 Parameter Setting
6.3.2.
Sequencer CPU Parameter Setting
It is necessary to set multi CPU related parameters for both the sequencer CPU and robot CPU In order to use
the sequencer link function.
a) Multiple CPU setting : Set the number of CPU units.
b) I/O assignment : Select I/O units and/or Intelligent units.
c) Control PLC setting : Set the CPU Unit numbers which control the Q173DPX unit.
The setting procedure of the parameter is as below.
The following explanation assumes the case that attached Q173DPX unit to the fifth slot of baseboard.
(1) Execute the GX Works2 and select the project file.
(2) Double-click the “PLC Parameter”, then the “Q Parameter Setting” is displayd.
6-28
Tracking Parameter Setting
6 Parameter Setting
(3) Double-click the “Multiple CPU Setting”
Set the number of CPU and this system area size (K Points)
(4) Double-click the “I/O assignment”
When Q173DPX unit is attached to fifth slot, change the type of slot 5 to the “Intelligent”.
Tracking Parameter Setting
6-29
6 Parameter Setting
(5) Click the “Detailed Setting” button.
Because the robot CPU manages the Q173DPX unit, change the Control PLC of slot 5 to the
“PLC No.2” (Robot CPU).
6) Click the “END” button.
The Parameters are memorized into the sequencer CPU.
The following work is confirming the operation of the robot by the
sample program.
Please confirm "[Part 4] Tracking Control".
6-30
Tracking Parameter Setting
7 System Configuration
[Part 3] System Configuration and Setting (CR750-D/CR751-D series,
CRnD-700 series)
7. System Configuration
7.1. Components
7.1.1.
Robot controller enclosure products
The product structure of the tracking functional relation enclosed by the robot controller is shown in the
Table 2−1.
Table 7−1 List of Configuration in the tracking functional-related product
Product name
Model name
Remark
Tracking Function
BFP-A8664
This manual is included in instruction-manual
INSTRUCTION MANUAL
CD-ROM attached to the product.
Sample program
Please refer to "12 Sample Robot Programs" for
−
the sample robot program.
7.1.2.
Devices Provided by Customers
When configuring the system, the customers must have certain other devices in addition to this product. The
table below shows the minimum list of required devices. Note that different devices are required depending
on whether conveyer tracking or vision tracking is used. Please refer to “Table 2−2 List of Devices Provided
by Customers (Conveyer Tracking)” and “Table 2−3 List of Devices Provided by Customers (Vision
Tracking)” for further details.
Table 7−2 List of Devices Provided by Customers (Conveyer Tracking)
Name of devices to be
Model
Quantity
Remark
provided by customers
Robot part
Teaching pendant
R32TB/R33TB
or
1
R56TB/R57TB
Hand
−
Hand sensor
Used to confirm that workpieces are gripped
−
correctly. Provide as necessary.
Solenoid valve set
Different models are used depending on the robot
See the Remark
used. Check the robot version and provide as
Hand input cable
column
necessary.
(1)
Air hand interface
2A-RZ365 or
(CRnQ-700/CRnD-700 series controller)
2A-RZ375
Provide as necessary.
Calibration jig
This is a jig with a sharp tip that is attached to the
mechanical interface of the robot arm and used for
−
calibration tasks. It is recommended to use the jig if
high precision is required.
Conveyer part
Conveyer
Encoder:
(with encoder)
Line driver output
[Confirmed operation product]
Omron encoder (E6B2-CWZ1X-1000 or -2000)
Encoder cable. Twisted-pair cable with the shield.
−
(CRnD-700 series controller)
Recommended connector for encoder input
1
terminal:
10120-3000PE
plug made by 3M
10320-52F0-008 shell made by 3M
5V power supply
−
+5 VDC (±10%) : For the encoder
Photoelectronic sensor
Used to synchronize tracking
−
24V power supply
−
+24 VDC (±10%) : For the Photoelectronic sensor
Components
7-31
7 System Configuration
Name of devices to be
provided by customers
Encoder distribution unit
Model
2F-YZ581
Personal computer part
Personal computer
RT ToolBox2
(Personal computer
support software)
Quantity
(1)
−
3D-11C-WINE
3D-12C-WINE
1
Remark
The Encoder distribution unit is required when two
or more robot controllers are connected to the one
encoder. Provide this unit as necessary.
If the Encoder distribution unit is used, a 5V power
source for the encoder is not necessary.
Refer to the Encoder Distribution Unit Manual
(BFP-A3300) for details.
Please refer to the instruction manual of RT
ToolBox2 for the details of the personal computer
specifications.
Table 7−3 List of Devices Provided by Customers (Vision Tracking)
Name of devices to be
Model
Quantity
Remark
provided by customers
Robot part
Teaching pendant
R32TB/R33TB
or
1
R56TB/R57TB
Hand
−
Hand sensor
Used to confirm that workpieces are gripped
−
correctly. Provide as necessary.
Solenoid valve set
Different models are used depending on the robot
See the Remark
used. Check the robot version and provide as
Hand input cable
column
necessary.
(1)
Air hand interface
2A-RZ365 or
(CRnQ-700/CRnD-700 series controller)
2A-RZ375
Provide as necessary.
Calibration jig
This is a jig with a sharp tip that is attached to the
mechanical interface of the robot arm and used for
−
calibration tasks. It is recommended to use the jig if
high precision is required.
Conveyer part
Conveyer
Encoder:
(with encoder)
Line driver output
[Confirmed operation product]
Omron encoder (E6B2-CWZ1X-1000 or -2000)
Encoder cable. Twisted-pair cable with the shield.
−
(CRnD-700 series controller)
Recommended connector for encoder input
1
terminal:
10120-3000PE
plug made by 3M
10320-52F0-008 shell made by 3M
5V power supply
−
+5 VDC (±10%) : For the encoder
Photoelectronic sensor
Used to synchronize tracking
−
24V power supply
+24 VDC (±10%) :
−
For the Photoelectronic sensor and Vision sensor
Encoder distribution unit
The Encoder distribution unit is required when two
or more robot controllers are connected to the one
encoder. Provide this unit as necessary.
2F-YZ581
(1)
If the Encoder distribution unit is used, a 5V power
source for the encoder is not necessary.
Refer to the Encoder Distribution Unit Manual
(BFP-A3300) for details.
7-32
Components
7 System Configuration
Name of devices to be
provided by customers
Vision sensor part
Basic network vision
sensor set
In-Sight 5000 series
In-Sight Micro series
In-Sight EZ series
Lens
Lighting installation
Connection part
Hub
Ethernet cable (straight)
Model
Quantity
4D-2CG5xxxx-PK
G
See the instruction manual of the network vision
sensor for details
COGNEX Vision sensor
−
1
−
−
(1)
−
1
−
2
Between Robot controller and Hub
Between Personal computer and Hub
1
Please refer to the instruction manual of RT
ToolBox2 or the instruction of the network vision
sensor for details of the personal computer
specifications.
Please refer to the instruction manual of RT
ToolBox2 for the details of the personal computer
specifications.
Personal computer part
Personal computer
−
RT ToolBox2
(Personal computer
support software)
Remark
3D-11C-WINE
3D-12C-WINE
C-mount lens
Provide as necessary.
Components
7-33
7 System Configuration
7.2. Example of System Configuration
The following figure shows examples of conveyer tracking systems and vision tracking systems.
7.2.1.
Configuration Example of Conveyer Tracking Systems
The following figure shows a configuration example of a system that recognizes lined-up workpieces on a
conveyer passing a photoelectronic sensor and follows the workpieces.
Robot
Controller
Photoelectric sensor
(Detected the inflow
of the work.)
Encoder
R
(Detected the speed
of the conveyor.)
Workpieces
flow direction
Workpieces
Robot movement range
Figure 7-1 Configuration Example of Conveyer Tracking (Top View)
Paraller I/O
cable
24V power
supply
Photoelectric sensor
Vacuum hand
Controller
Conveyor
Flow direction
Robot arm
Example of CR2D controller
*It is the same by other controller
5V power
supply
Encoder cable
Figure 7-2 Configuration Example of Conveyer Tracking
7-34
Example of System Configuration
Encoder
7 System Configuration
7.2.2.
Configuration Example of Vision Tracking Systems
The following figure shows a configuration example of a system that recognizes positions of workpieces that
are not lined up on a conveyer with a vision sensor and follows the workpieces.
Robot
Controller
R
Encoder
(Detected the speed
of the conveyor.)
Workpieces
flow direction
Workpieces
Robot movement range
Camera for vision sensors
(Recognized the work of the position and inclination)
Figure 7−3 Configuration Example of Vision Tracking (Top View)
Ethernet cable
Hub
Ethernet cable
Controller
Personal
computer
24V power
supply
Cable for the visions
Vision sensor
Vacuum hand
Example of CR2D controller
*It is the same by other controller.
Lighting
Robot arm
Encoder
Flow direction
5V power
supply
Encoder cable
Figure 7−4 Configuration Example of Vision Tracking
Example of System Configuration
7-35
8 Specification
8. Specification
8.1. Tracking Specifications and Restriction matter
”Table 3−1 CR750-Q/CR751-Q Series, CRnQ-700 Series Controller Tracking Function Specifications”
shows the tracking specifications.
Please refer to “Standard Specifications Manual” for the specifications of the robot arm and controller to be
used.
Table 8−1 CR750-D/CR751-D Series, CRnD-700 Series Tracking Function Specifications
Item
Specification and Restriction matter
Supported robots (*6)
RH-SDH series / RV-SD series
RH-FH-D series / RV-F-D series
Applicable robot controller
CR1D/ CR2D/CR3D contoller
CR750-D/CR751-D series controller
Robot program language
Load commands dedicated for the tracking function
Conveyer Number of
Max 2pcs (in case 1pcs encoder connect to 1pcs conveyer)
conveyer
Encoder 2pcs / Robot controller 1pcs
The robot controller can correspond to two conveyers by the standard
specification.
Movement
Possible to support up to 300 mm/s (When the robot always transport the
speed (*1)
workpieces)
Possible to support up to 500 mm/s when the interval of workpiece is wide.
Possible to support two conveyers by one Robot controller.
Encoder
Output aspect : A, A, B, B , Z, Z
Output form
: line driver output (*2)
Highest response frequency : 100 kHz
Resolution(pulse/rotation) : Up to 2000 (4000 and 8000 uncorrespond)
Confirmed operation product : Omron E6B2-CWZ1X-1000
E6B2-CWZ1X-2000
Encoder cable
Shielded twisted-pair cable
Outside dimension : Maximum phi6mm
Conductor size: 24AWG (0.2 mm2) Cable length: Up to 25 m
Photoelectronic sensor (*3) Used to detect workpieces positions in conveyer tracking.
Vision sensor (*4)
Mitsubishi’s network vision sensor
Precision at handling
Approximately ±2 mm (when the conveyer speed is approximately 300 mm/s)
position (*5)
(Photoelectronic sensor recognition accuracy, vision sensor recognition
accuracy, robot repeatability accuracy and so on)
(*1) The specification values in the table should only be considered guidelines. The actual values
depend on the specific operation environment, robot model, hand and other factors.
(*2) The line driver output is a data transmission circuit in accordance with RS-422A. It enables the
long-distance transmission.
(*3) The output signal of a photoelectronic sensor must be connected to a general input signal (arbitrary)
of the robot controller.
(*4) In the case of vision tracking, please refer to the instruction manual of network vision sensor.
(*5) The precision with which workpieces can be grabbed is different from the repeatability at normal
transportation due to the conveyer speed, sensor sensitivity, vision sensor recognition accuracy and
other factors. The value above should only be used as a guideline.
(*6) The sample program doesn't correspond to the RV-5 axis robot.
8-36
Tracking Specifications and Restriction matter
9 Operation Procedure
9. Operation Procedure
This chapter explains the operation procedure for constructing a conveyer tracking system and a vision
tracking system using Mitsubishi Electric industrial robots CR750-D/CR751-D series, CRnD-700 series.
1. Start of operation
2.
Connection of Equipment····································································· Refer to “Chapter 10.”
Chapter 10 explains installation of option cards and connection of an encoder.
3.
Parameter Setting ·············································································· Refer to “Chapter 11.”
Chapter 11 explains assignment of signals and setting of parameters related to tracking to allow an
external device to control a robot.
4.
Sample Robot Programs ····································································· Refer to “Chapter 12.”
Chapter 12 explains functions related to supplemental sample programs.
5.
Calibration of Conveyer and Robot Coordinate Systems (“A1” program) ········ Refer to “Chapter 13.”
Chapter 13 explains how to calculate the amount of robot movement per encoder pulse.
6.
Calibration of Vision Coordinate and Robot Coordinate Systems (“B1” program) ··· Refer to “Chapter 14.”
Chapter 14 explains how to display the position of a workpiece recognized by the vision sensor in
the robot coordinate system.
7.
Workpiece Recognition and Teaching (“C1” program) ································ Refer to “Chapter 15.”
Chapter 15 explains how to calculate the relationship between the position of a workpiece
recognized by the vision sensor and the position at which the robot grabs the workpiece.
8.
Teaching and Setting of Adjustment Variables (“1” Program) ······················· Refer to “Chapter 16.”
Chapter 16 explains how to make settings such that the robot can follow workpieces moving by on a
conveyer and how to teach the robot origin and transportation destination at system start-up.
9.
Automatic Operation ··········································································· Refer to “Chapter 18.”
In automatic operation, the robot operates via commands from the conveyer control.
End of operation
10. Maintenance ····················································································· Refer to “Chapter 19.”
11. Troubleshooting ··············································································· Refer to “Chapter 20.”
Tracking Specifications and Restriction matter
9-37
10 Connection of Equipment
10. Connection of Equipment
This section explains how to connect each of the prepared pieces of equipment.
10.1. Preparation of Equipment
Prepare equipment by referring to “Table 2−2 List of Devices Provided by Customers (Conveyer Tracking)”
to construct a conveyer tracking system and “Table 2−3 List of Devices Provided by Customers (Vision
Tracking)” to construct a vision tracking system.
10.2. Connection of Equipment
This section explains how to connect each of the prepared pieces of equipment.
10.2.1. Connection of Conveyer Encoder
Wiring of the encoder for the conveyors and the encoder cable is shown in the "Figure 10−1” (CRnD-700
series) or “Figure 10−3” (CR750-D/CR751-D series). Those shows the connection between a Expansion
serial interface card connector and an encoder.(The cable uses E6B-2-CWZ1X (by OMRON).)
The a maximum of two encoders for the conveyors are connectable as standard specification. A total of 8
signal wires are required for the connection for the power supply (+ and - terminals) and the + and terminals of the differential encoders' A, B and Z phases. Refer to the instruction manual of the encoders to
be used and connect the signal wires correctly. Note that shielded wires (SLD) should be connected to the
ground of the controller and system.
10-38
Preparation of Equipment
10 Connection of Equipment
CNENC connector
Terminal
Figure 10−1 Wiring of the encoder for conveyors and encoder cable (CRnD-700 series controller)
Refer to "Table 21−3 Connectors: CNENC/CNUSR Pin Assignment" with pin assignment of connector
CNENC.
The wiring example by the thing is shown below.
(Please note that the connector shape is different depending on the controller. )
5V 電源
Figure 10−2 Wiring example (CRnD-700 series controller)
Connection of Equipment
10-39
10 Connection of Equipment
CH1
CNUSR1
CNUSR1
CNUSR1
CNUSR1
CNUSR1
CNUSR1
CNUSR1
CNUSR1
+5V power
supply unit
<CR750-D
connector>
<CR751-D
connector>
28
33
21
46
22
47
23
48
SLD
Terminal
CH1
CNUSR11 6
CNUSR12 6
CNUSR13 3
CNUSR13 4
CNUSR13 5
CNUSR13 6
CNUSR13 8
CNUSR13 10
CH1 SG
SG
LAH1
LAL1
LBH1
LBL1
LZH1
LZL1
Brown(+5V)
Blue(+0V)
Black
Black/Red stripe
Ferrite core
White
Encorder
White/Red stripe
Orange
Orange/Red stripe
+5V power
supply unit
SLD
CH2
CNUSR2
CNUSR2
CNUSR2
CNUSR2
CNUSR2
CNUSR2
CNUSR2
CNUSR2
15
40
21
46
22
47
23
48
CH2
CNUSR2
CNUSR2
CNUSR2
CNUSR2
CNUSR2
CNUSR2
CNUSR2
CNUSR2
Brown(+5V)
15
40
21
46
22
47
23
48
CH2 SG
SG
LAH2
LAL2
LBH2
LBL2
LZH2
LZL2
Blue(+0V)
Black
Black/Red stripe
Ferrite core
White
White/Red stripe
Encorder
Orange
Orange/Red stripe
Figure 10−3 Wiring of the encoder for conveyors and encoder cable (CR750-D/CR751-D series controller)
Refer to "Table 21−3 Connectors: CNENC/CNUSR Pin Assignment" with pin assignment of connector
CNUSR.
The wiring example by the thing is shown below.
(Please note that the connector shape is different depending on the controller. )
5V 電源
Figure 10−4 Wiring example (CR751-D series controller)
5V 電源
Figure 10−5 Wiring example (CR750-D series controller)
10-40
Connection of Equipment
10 Connection of Equipment
10.2.2. Installation of encoder cable
The installation method of the encoder cable is shown by controller to be used.
*CR750-D series: "Figure 10-6 Installation of encoder cable (CR750-D series) "
*CR751-D series: "Figure 10-7 Installation of encoder cable (CR751-D series)"
*CR1D-700 series: "Figure 10-8Installation of encoder cable (CR1D-700 series) "
*CR2D-700 series: "Figure 10-9Installation of encoder cable (CR2D-700 series) "
*CR3D-700 series: "Figure 10-10Installation of encoder cable (CR3D-700 series) "
And, the description about the measures against the noise is shown in the figure "Figure 10-11 Example of
noise measures of tracking system".
(1)CR750-D series
<CR750-D
series controller (rear)>
<CR750-Dシリーズコントローラ(背面)>
CNUSR13コネクタ
CNUSR11
connector
CNUSR12 connector
CNUSR13 connector
Within300mm以内
300mm
Within 300mm
CNUSR2コネクタ
CNUSR2
connector
300mm以内
1
25
フェライトコア(付属品)
Ferrite
core (attachment)
2回通し
Pass
twice
50
26
Encoder cable
エンコーダケーブル
Figure 10-6 Installation of encoder cable (CR750-D series)
Connection of Equipment
10-41
10 Connection of Equipment
(2)CR751-D series
<CR750-D series controller (front)>
<CR751-Dシリーズコントローラ(前面)>
300mm以内
Within
300mm
1
25
CNUSR2
connector
CNUSR2コネクタ
50
26
Encoder
cable
エンコーダケーブル
Ferrite
core (attachment)
フェライトコア(付属品)
2回通し
Pass
twice
Figure 10-7 Installation of encoder cable (CR751-D series)
(3)CR1D-700 series
Connect the encoder cable to the connector of the [CNENC] display. And, the ground of the cable uses the
rear cover.
10B
10A
1B
1A
Connector:CNENC
Less than 300mm
Cable ground clamp position *1
(ground clamp attachments)
Ferrite core
(attachments)
Rear cover
Encoder cable
Figure 10-8 Installation of encoder cable (CR1D-700 series)
10-42
Connection of Equipment
10 Connection of Equipment
(4)CR2D-700 series
Connect the encoder cable to the connector of the [CNENC] display. And, the ground of the cable uses the
rear cover.
Rear cover
Less than 300mm
Ferrite core
(attachments)
10B
10A
1B
1A
Connector:CNENC
Encoder
cable
Cable ground clamp position *1
(ground clamp attachments)
Figure 10-9 Installation of encoder cable (CR2D-700 series)
(5)CR3D-700 series
Connect the encoder cable to the connector of the [CNENC] display. And, the ground of the cable uses the
rear cover.
R700CPU
unit
10B
10A
1B
1A
Connector:CNENC
Less than
300mm
Ferrite core
(attachments)
Cable ground clamp position *1
(ground clamp attachments)
*1) Cable ground clamp position
*1)
The encoder cable peels the sheath and grounds the metal section
ケーブルアースクランプ位置
on the chassis of the controller.
エンコーダケーブルはシースを剥いて金属製ブレード部を筐体に接地します。
シース
Sheath
2020~30mm
to 30mm
金属製ブレード部
Metal
section
シース
Sheath
Figure 10-10 Installation of encoder cable (CR3D-700 series)
Connection of Equipment
10-43
10 Connection of Equipment
(6)Measures against the noise
The example of noise measures of the tracking system is shown in the following.
Please implement the measures against the noise if needed in the power supply periphery section for the
encoders which prepared of the customer.
1) Please insert AC line filter (recommendation: MXB-1210-33 * Densei-Lambda) in the AC input side
cable of the power supply for the encoders.
2) Please insert the ferrite core (recommendation: E04SR301334 * SEIWA ELECTRIC MFG.) in the DC
output side cable of the power supply for the encoders.
3) Please connect the power supply case for the encoders to the installation operator control panel,
connect the earth wire to grounding or the case, and insert the ferrite core (recommendation:
E04SR301334 * SEIWA ELECTRIC MFG.).
Encoder section, power supply
section for the encoders
(customer preparation)
AC
supply
power
Robot
arm
AC line filter
Encoder
AC input side
AC/DC
power
supply
Chassis
ground
Robot controller
DC input side
Relay terminal
Ferrite core
Ferrite
core
Ferrite core
(attachments
)
Encoder cable
(customer preparation)
Figure 10-11 Example of noise measures of tracking system
10-44
Connection of Equipment
10 Connection of Equipment
10.2.3. Connection of Photoelectronic Sensor
If a photoelectronic sensor is used for detection of workpieces, connect the output signal of the
photoelectronic sensor to a general input signal of the robot controller. Any general input signal number of
the robot controller can be selected.
In this section, a connection example where the photoelectronic sensor signal is connected to the 6th
general input signal is shown in “Figure 10−13 Photoelectronic Sensor Connection Example (6th General
Input Signal is Used).”
Input circuit external power supply
Controller
Connects to the controller general purpose input
Photoelectric sensor
Workpiece
Figure 10−12 Photoelectronic Sensor Arrangement Example
Controller
general-purpose input
Photoelectric
sensor
(Example of 3 line type)
24V
Parallel I/O unit
3.3K
21(General-purpose input 6)
14 (COM)
24V
0V
External power supply
Note) The external power supply and photoelectric sensor must be prepared by the
customer.
Note) This connection example shows the connection of the source type.
Figure 10−13 Photoelectronic Sensor Connection Example (6th General Input Signal is Used)
Connection of Equipment
10-45
11 Parameter Setting
11. Parameter Setting
This chapter explains how to set dedicated input/output signals that play the role of interface between a robot
and an external device (e.g., a Programmable Logic Controller) and parameters related to the tracking function.
Please refer to “Detailed Explanations of Functions and Operations” for how to set the parameters.
11.1. Dedicated Input/Output Parameters
“Table 11−1 List of Dedicated Input/Output Parameters” lists the setting items of dedicated input/output
parameters used to operate the robot via instructions from an external device. Set the signal numbers according
to your system using the setting values in the table as reference. It is not necessary to set these parameters
if the robot operates by itself, rather than via instructions from an external device.
Table 11−1 List of Dedicated Input/Output Parameters
Input name/output name
(parameter name)
Stop/pausing
(STOP) or (STOP2)
Servo OFF/servo ON disabled
(SRVOFF)
Error reset/error occurring
(ERRRESET)
Start/operating
(START)
Servo ON/turning servo ON
(SRVON)
Operation right/operation right
enabled (IOENA)
Program reset/program
selectable
(SLOTINIT)
General output signal reset
(OUTRESET)
User specification area 1
(USRAREA)
Explanation
Input: Stop a program
Output: Output program standby status
Input: Turn the servo off
Output: Output servo ON disabled status
Input: Cancel error status
Output: Output error status
Input: Start automatic operation
Output: Output program running status
Input: Turn the servo on
Output: Output servo on status
Input: Enable/disable operation right of external signal control
Output: Output external signal control operation enabled status
Input: Initiate a program. The program execution returns to the
first step.
Output: Output a status where program No. can be changed
Input: Reset a general output signal
Output an indication that the robot is in an area specified by a
user
Set the start number and end number
Setting
Example
(*1)
0 , -1
1 , -1
2 , -1
3,1
4,0
5 , -1
10 , -1
11 , -1
8,8
(*1) “-1” in the Setting value column means “not set.”
11.2. Operation Parameters
“Table 11−2 List of Operation Parameter” lists the setting items of parameters required to operate the robot at
the optimal acceleration/deceleration.
Parameter name
Optimal
acceleration/
deceleration hand
data
(HANDDAT1)
Optimal
acceleration/
deceleration
workpiece data
(WRKDAT1)
11-46
Table 11−2 List of Operation Parameter
Explanation
Specify hand weight and so on to make settings that allow optimal
acceleration/deceleration operations.
For example, if the hand weighs 3 kg, changing the weight setting
value from 10 kg to 3 kg makes the robot movement faster.
(Hand weight (kg), size (mm) X, Y, Z, gravity (mm) X, Y, Z)
Specify workpiece weight and so on to make settings that allow
optimum acceleration/deceleration operations.
If a workpiece is grabbed via the HClose instruction, the
acceleration/deceleration becomes slower. If a workpiece is
released via the HOpen instruction, acceleration/deceleration
becomes faster.
(Workpiece weight (kg), size (mm) X, Y, Z, gravity (mm) X, Y, Z)
Dedicated Input/Output Parameters
Reference value
(3,0,0,0,0,0,0)
The setting values
are different for
each robot model.
Use these values
as reference only.
(1,0,0,0,0,0,0)
The setting values
are different for
each robot model.
Use these values
as reference only.
11 Parameter Setting
11.3. Tracking Parameter Setting
Specify to which channel of a Encoder connector(CNENC) an encoder of a conveyer is connected.
“Table 11−3 Tracking Parameter Setting” lists the parameters to be set. Other parameters are shown in “Table
16-1 List of Tracking Parameters”; make settings as required.
Table 11−3 Tracking Parameter Setting
Parameter
Parameter Number of
name
elements
Tracking mode
TRMODE
Encoder
number
allocation
EXTENC
Explanation
1 integer
Value set at
factory
shipping
0
Enable the tracking function
Please set it to “1" when you use the tracking
function.
0: Disable/1: Enable
1,2,3,4,1,2,3,4
8 integers Set connection destinations on the connector for
encoder numbers 1 to 8.
Parameter elements correspond to encoder number
1, encoder number 2 … encoder number 8 from the
left.
In addition, the encoder physics numbers 3-8 are the
reservation number for extension. At present, it
cannot be used.
Encoder
Connection
physics
channel
number
Standard CH1
1
Standard CH2
2
Slot1 CH1
3
Slot1 CH2
4
Reservation
Slot2 CH1
5
number for
future
Slot2 CH2
6
extension
Slot3 CH1
7
Slot3 CH2
8
The value of the encoder which wired the channel 1
in case of the standard encoder input connector
[CNENC] for the robot controller is equipped with the
encoder cable with initial setting,The value of the
encoder which wired the channel 2 by the status
variable "M_Enc (1)", "M_Enc (3)", "M_Enc (5)", and
"M_Enc (7)",It can confirm by the status variable
"M_Enc (2)", "M_Enc (4)", "M_Enc (6)", and "M_Enc
(8)."
Tracking
Workpiece
judgement
distance
TRCWDST
1 integer
It is convenient to check the status variable “M_Enc”
when determining the setting value of the “EXTENC”
parameter.
Please refer to "19.1.2 List of Robot Status
Variables” for the explanation of state variable
“M_Enc".
Please refer to “Detailed Explanations of Functions
and Operations” for how to check the status variable
“M_Enc.”
Distance to judge that the same workpiece is being 5.00
tracked (mm)
The sensor reacts many times when the workpiece
with the ruggedness passes the sensor. Then, the
robot controller judged that one workpiece is two or
more pieces.
The sensor between values [mm] set to this
parameter does not react after turning on the sensor.
Tracking Parameter Setting
11-47
12 Sample Robot Programs
[Part 4] Tracking Control (common function between series)
(Take note that there are some aspects which differ between CR750-Q, CR751-Q, CRnQ-700 series and
CR750-D, CR751-D, CRnD-700 series.)
12. Sample Robot Programs
This chapter explains the structure of the sample robot programs.
Two types of sample robot programs are provided; for conveyer tracking and for vision tracking. Their
program structures are shown in “Table 12−1 List of Sample Robot Programs (Conveyer Tracking)” and
“Table 12−2 List of Sample Robot Programs (Vision Tracking)” respectively.
Refer to “RT ToolBox2 Robot Total Engineering Support Software Instruction Manual” for how to install
programs to the robot controller.
Program name
A1
C1
1
CM1
Program name
A1
B1
C1
1
CM1
12-48
Table 12−1 List of Sample Robot Programs (Conveyer Tracking)
Description
Explanation
This program matches the coordinate systems of the conveyer
Conveyer - robot coordinate
and robot and calculates the amount of robot movement per
system calibration program
encoder pulse.
Workpiece coordinate system This program calculates the coordinates at which the robot grabs
- robot coordinate system
a workpiece based on the coordinates at which a sensor is
matching program
activated.
This program handles transporting workpieces while following
recognized workpieces.
Operation program
(1) Movement to the robot origin
(2) Workpiece suction and transportation operation while
following movement
Workpiece coordinate monitor This program monitors encoder values and stores workpiece
program
coordinates.
Table 12−2 List of Sample Robot Programs (Vision Tracking)
Description
Explanation
This program matches the coordinate systems of the conveyer
Conveyer - robot coordinate
and robot and calculates the amount of robot movement per
system calibration program
encoder pulse.
Vision coordinate system –
This program matches the vision coordinate system and the robot
robot coordinate system
coordinate system.
calibration program
Workpiece coordinate system This program calculates the coordinates at which the robot grabs
- robot coordinate system
a workpiece based on the coordinates at which a vision sensor
matching program
has detected the workpiece.
This program handles transporting workpieces while following
recognized workpieces.
Operation program
(1) Movement to the robot origin
(2) Workpiece suction and transportation operation while
following movement
Workpiece coordinate monitor This program monitors encoder values and stores workpiece
program
coordinates.
Tracking Parameter Setting
13 Calibration of Conveyer and Robot Coordinate Systems (“A1” program)
13. Calibration of Conveyer and Robot Coordinate Systems (“A1” program)
This chapter explains the tasks carried out by using “A1” program.
* “A1” program contains operations required for both conveyer tracking and vision tracking.
Calibration of a conveyer refers to determining the movement direction of the conveyer in the robot
coordinate system and the amount of movement of the robot per encoder pulse. This amount of movement
is stored in the robot’s status variable “P_EncDlt.”
“A1” Program performs specified tasks and automatically calculates the amount of movement of the robot
per encoder pulse mentioned above.
The procedures of operations specified by “A1” program and items to be confirmed after the operations are
explained below.
Please refer to “Detailed Explanations of Functions and Operations” for the steps involved in each operation.
Please monitor status variable “M_Enc(1)" to “M_Enc(8)" before it works, rotate the encoder, and confirm
the value changes.
13.1. Operation procedure
1) Mount a calibration jig on the mechanical interface of a robot. Connect a personal computer on which
RT ToolBox2(option) is installed to the robot controller.
2) Set the controller mode to "MANUAL". Set the T/B to "ENABLE".
O/P
T/B
Up :DISABLE
Down:ENABLE
★
Lamp lighting
T/B rear
3) Press one of the keys (example, [EXE] key) while the <TITLE> screen is displayed. The <MENU>
screen will appear.
MELFA CR75x-D
RH-3FH5515-D
Ver. S3
<MENU>
COPYRIGHT (C) 2011 MITSUBISHI ELEC
TRIC CORPORATION ALL RIGHTS RESE
RVED
1.FILE/EDIT
3.PARAM
5.SET/INIT
○
○
2.RUN
4.ORIGIN/BRK
123
○
CLOSE
4) Select "1. FILE /EDIT" screen on the <MENU> screen.
<FILE/EDIT>
<MENU>
1.FILE/EDIT
3.PARAM
5.SET/INIT
○
○
1
A1
B1
C1
2.RUN
4.ORIGIN/BRK
123
○
CLOSE
EDIT
1/ 20Rem
07-05-30
07-05-30
07-05-30
07-05-30
POSI 123
136320
20:21:30
485
20:21:30
485
20:21:30
485
20:21:30
485
NEW
COPY
5) Press the arrow key, combine the cursor with the program name "A1" and press the [EXE] key.
Display the <program edit> screen.
<FILE/EDIT>
1
A1
B1
C1
EDIT
1/ 20Rem
07-05-30
07-05-30
07-05-30
07-05-30
POSI 123
136320
20:21:30
485
20:21:30
485
20:21:30
485
20:21:30
485
NEW
COPY
<PROGRAM> A1
1
2
3
4
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: A1.prg
'# Create/version : 2006.04.21 A1
EDIT DELETE 123 INSERT TEACH
Operation procedure
13-49
13 Calibration of Conveyer and Robot Coordinate Systems (“A1” program)
6) Press the [FUNCTION] key, and change the function display
<PROGRAM> A1
<プログラム> A1
1
2
3
4
1
2
3
4
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: A1.prg
'# Create/version : 2006.04.21 A1
EDIT DELETE 123 INSERT TEACH
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: A1.prg
'# Create/version : 2006.04.21 A1
JUMP 123
挿入
BWD
FWD
7) Press the [F1] (FWD) key and execute step feed. "(1)Encoder No ......." is displayed
<PROGRAM> A1
4
5
6
7
'# Create/version : 2006.04.21 A1
'# COPYRIGHT : MITSUBISHI ELECTRIC
'##################################
'(1)Encoder No. ....
JUMP 123
挿入
BWD
FWD
8) Work according to the comment directions in the robot program.
9) Next "' (2) On conveyor both .. Execute step feed to ".
<PROGRAM> A1
9 MECMAX=8
10 If PE.X<1 Or PE.X>MECMAX Then Er
11 MENCNO=PE.X
12 '(2)On conveyor both ....
JUMP 123
挿入
BWD
FWD
10) Repeat (7) - (8) and execute step feed to "End."
11) Press the [F2] (JUMP) key and input the step number. Press the [EXE] key. Then returns to first step
<PROGRAM> A1
STEP (1
○
<PROGRAM> A1
1
2
3
4
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: A1.prg
'# Create/version : 2006.04.21 A1
EDIT DELETE 123 INSERT TEACH
)
○
123
○
CLOSE
12) Press the [FUNCTION] key, and change the function display. Press the [F4] (close) key and close the
program.
<PROGRAM> A1
<PROGRAM> A1
1
2
3
4
1
2
3
4
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: A1.prg
'# Create/version : 2006.04.21 A1
EDIT DELETE 123 INSERT TEACH
Area recognized by
a workpiece sensor
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: A1.prg
'# Create/version : 2006.04.21 A1
挿入
CLOSE
DIRECT CHANGE 123
(3) Z-axis elevation
(1) Attach a sticker
(4) Sticker movement
(2) Robot movement
(6) Z-axis elevation
(5) Robot movement
Encoder data acquisition
Position acquisition
Encoder data acquisition
Position acquisition
* (1) - (6) in the figure shows the details of operations in the sample program.
Figure 13−1 Conveyer and Robot Calibration Operation Diagram
13-50
Operation procedure
13 Calibration of Conveyer and Robot Coordinate Systems (“A1” program)
13.2. Tasks
1) Set the encoder number to the X coordinates value of position variable: "PE."
(a) Press the function key ([F2]) corresponding to "the change", and display the position edit screen.
<PROGRAM> A1
1
2
3
4
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: A1.prg
'# Create/version : 2006.04.21 A1
挿入
CLOSE
DIRECT CHANGE 123
<POS> JNT 100% P5
X:+0000.00
A:+0000.00
Y:+0000.00
B:+0000.00
Z:+0000.00
C:+0000.00
L1:+0000.00 L2:+0000.00
FL1:00000007 FL2:00000000
TEACH 123
Prev
Next
MOVE
(b) The [F3] (Prev) key or the [F4] (Next) key is pressed, change the target variable, and display "PE"
on the position name.
<POS> JNT 100% PE
X:+0000.00
A:+0000.00
Y:+0000.00
B:+0000.00
Z:+0000.00
C:+0000.00
L1:+0000.00 L2:+0000.00
FL1:00000007 FL2:00000000
TEACH 123
Prev
Next
MOVE
(c) X coordinates are selected by the arrow key, press the [CLEAR] key for a long time, and delete the
details. Input the encoder number into X coordinates.
<POS> JNT 100% PE
X:+0001.00
A:+0000.00
Y:+0000.00
B:+0000.00
Z:+0000.00
C:+0000.00
L1:+0000.00 L2:+0000.00
FL1:00000007 FL2:00000000
TEACH 123
Prev
Next
MOVE
(d) Press the function key ([F2]) corresponding to "the change", and display the command edit screen.
<POS> JNT 100% PE
X:+0001.00
A:+0000.00
Y:+0000.00
B:+0000.00
Z:+0000.00
C:+0000.00
L1:+0000.00 L2:+0000.00
FL1:00000007 FL2:00000000
DELETE NAME 123 CHANGE CLOSE
<PROGRAM> A1
1
2
3
4
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: A1.prg
'# Create/version : 2006.04.21 A1
挿入
CLOSE
DIRECT CHANGE 123
Tasks
13-51
13 Calibration of Conveyer and Robot Coordinate Systems (“A1” program)
2) Attach a marking sticker on the conveyer (a sticker with an X mark is the best choice for the marking
sticker).
Drive the conveyer and stop it when the marking sticker comes within the robot movement range.
Robot
Robot movement of range
R
Conveyer flow
Marking sticker
Figure 13−2 Position of Marking Sticker on Conveyer
3) Move the robot to the position right at the center of the marking sticker on the conveyer.
* With this operation, encoder data and robot position are acquired.
4) Raise the robot.
5) Drive the conveyer and stop at a position where the marking sticker is immediately outside the robot
movement range.
6) Move the robot to the position right above the center of the marking sticker on the moved conveyer.
* With this operation, encoder data and robot position are acquired.
7) Raise the robot.
8) Perform step operation until “End.”
* The amount of robot movement per encoder pulse is calculated based on this operation.
13-52
Tasks
13 Calibration of Conveyer and Robot Coordinate Systems (“A1” program)
13.3. Confirmation after operation
Check the value of “P_EncDlt” using T/B.
* This value indicates the movement of each coordinate (mm) of the robot coordinate system,
corresponding to the movement of the conveyer per pulse.
Example) If ”0.5” is displayed for the Y coordinate only
This means that if the conveyer moves for 100 pulses, the workpiece moves 50 mm (0.5 x 100 =
50) in the +Y direction in the robot coordinate system.
When backing up, the data of “P_EncDlt" is not backed up.
Please work referring to "20.3.5 Restore backup data to another controller" when you restore data to
another tracking system.
13.4. When multiple conveyers are used
Carry out the same operations as above when multiple conveyers are used as well, but pay attention to the
following points.
Example) When using conveyer 2 (encoder number 2):
(a) Enter “2” for the encoder number specified for the X coordinate of the position variable “PE” in
the program.
(b) Check the value of “P_EncDlt(2)” using RT ToolBox2 when confirming the data after operation.
Refer to “RT ToolBox2 Robot Total Engineering Support Software Instruction Manual” for how to
check variable values using RT ToolBox2.
Confirmation after operation
13-53
14 Calibration of Vision Coordinate and Robot Coordinate Systems (“B1” program)
14. Calibration of Vision Coordinate and Robot Coordinate Systems (“B1” program)
This chapter explains the tasks carried out by using “B1” program.
* “B1” program only contains operations required when constructing a vision tracking system.
These operations are not necessary when constructing a conveyer tracking system.
Calibration of a vision sensor refers to converting the position of a workpiece recognized by the vision
sensor to the corresponding position in the robot coordinate system.
This calibration operation is easily performed by the “Mitsubishi robot tool” in In-Sight Explorer. Refer to
"Mitsubishi robot tool manual for EasyBuilder" for the details of this function.
“B1” program performs specified tasks and allows acquiring the workpiece coordinates recognized by
the vision sensor in the robot coordinate system (position coordinates of robot movement).
The procedures of operations specified by “B1” program and items to be confirmed after the operations
are explained below.
This chapter explains on the assumption that "Mitsubishi robot tool" is used.
Please refer to “Detailed Explanations of Functions and Operations” for the steps involved in each
operation.
14.1. Operation procedure
1)
To communicate the Mitsubishi robot tool and the vision sensor, set a necessary parameter by using RT
ToolBox2.
A necessary parameter is three (“NETIP", "Element 9 of NETTERM", and “CTERME19").
In RT ToolBox2, select [Online]-[parameter]-[parameter list].
Input the following parameters to "Parameter Name" of the displayed "Parameter list" screen and
change a “Setting value”.
Parameter Name
NETIP
Setting value
xxx.xxx.xxx.xxx
Explanation
IP address of robot controller
NETTERM(Element 9)
Initial value
Q type:192.168.100.1
D type:192.168.0.20
0
1
CTERME19
0
1
The end code is added with
communication.
The end code of port 10009 is
changed to “CR+LF”.
Please confirm whether the following parameters are initial values.
Parameter Name
Initial value
Explanation
NETPORT(Element 10)
10009
Port number allocated to device OPT19
CPRCE19
0
The protocol used is “Non-procedure”
NETMODE(Element 9)
1
Opens as “Server”.
14-54
Operation procedure
14 Calibration of Vision Coordinate and Robot Coordinate Systems (“B1” program)
In RT ToolBox2, select [Online]-[parameter]-[Ethernet setting].
“OPT12" is selected “COM2:" that exists in "Line and Device" column on the displayed "Ethernet setting"
screen. Double-click “OPT12" that exists in "Device List" .
Check "Change the parameter to connect Vision", and Input IP address of the vision sensor to "IP
Address:" column. Click [OK] button. And, click [write] button on “Ethernet setting” screen.
Double click
Turn on robot controller's power supply again to make the set parameter effective.
2)
Open “B1” program using T/B.
Set the controller mode to "MANUAL". Set the T/B to "ENABLE".
O/P
T/B
Up :DISABLE
Down:ENABLE
★
Lamp lighting
T/B rear
3)
Press one of the keys (example, [EXE] key) while the <TITLE> screen is displayed. The <MENU>
screen will appear.
MELFA CR75x-D
RH-3FH5515-D
Ver. S3
<MENU>
COPYRIGHT (C) 2011 MITSUBISHI ELEC
TRIC CORPORATION ALL RIGHTS RESE
RVED
1.FILE/EDIT
3.PARAM
5.SET/INIT
○
4)
123
○
CLOSE
Select "1. FILE /EDIT" screen on the <MENU > screen.
<MENU>
<FILE/EDIT>
1.FILE/EDIT
3.PARAM
5.SET/INIT
1
A1
B1
C1
○
5)
○
2.RUN
4.ORIGIN/BRK
○
2.RUN
4.ORIGIN/BRK
123
○
CLOSE
EDIT
1/ 20Rem
07-05-30
07-05-30
07-05-30
07-05-30
POSI 123
136320
20:21:30
485
20:21:30
485
20:21:30
485
20:21:30
485
NEW
COPY
Press the arrow key, combine the cursor with the program name "B1" and press the [EXE] key. Display
the <program edit> screen.
<FILE/EDIT>
1
A1
B1
C1
EDIT
1/ 20Rem
07-05-30
07-05-30
07-05-30
07-05-30
POSI 123
136320
20:21:30
485
20:21:30
485
20:21:30
485
20:21:30
485
NEW
COPY
<PROGRAM> B1
1
2
3
4
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: B1.prg
'# Create/version : 2006.04.21 A1
EDIT DELETE 123 INSERT TEACH
Operation procedure
14-55
14 Calibration of Vision Coordinate and Robot Coordinate Systems (“B1” program)
6)
Press the [FUNCTION] key, and change the function display
<PROGRAM> B1
<PROGRAM> B1
1
2
3
4
1
2
3
4
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: B1.prg
'# Create/version : 2006.04.21 A1
EDIT DELETE 123 INSERT TEACH
7)
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: B1.prg
'# Create/version : 2006.04.21 A1
JUMP 123
挿入
BWD
FWD
Press the [F1] (FWD) key and execute step feed. "(1)Encoder No ......." is displayed
<PROGRAM> B1
4
5
6
7
8)
9)
'# Create/version : 2006.04.21 A1
'# COPYRIGHT : MITSUBISHI ELECTRIC
'##################################
'(1)Encoder No. ....
JUMP 123
挿入
BWD
FWD
Work according to the comment directions in the robot program.
Next "' (2) Vision sensor .. Execute step feed to ".
<PROGRAM> B1
9 MECMAX=8
10 If PE.X<1 Or PE.X>MECMAX Then Er
11 MENCNO=PE.X
12 '(2) Vision sensor....
JUMP 123
挿入
BWD
FWD
10) Repeat (7) - (8) and execute step feed to "End."
11) Press the [F2] (JUMP) key and input the step number. Press the [EXE] key. Then returns to first step
<PROGRAM> B1
STEP (1
○
<PROGRAM> B1
1
2
3
4
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: B1.prg
'# Create/version : 2006.04.21 A1
EDIT DELETE 123 INSERT TEACH
)
○
123
○
CLOSE
12) Press the [FUNCTION] key, and change the function display. Press the [F4] (close) key and close the
program.
<PROGRAM> B1
<PROGRAM> B1
1
2
3
4
1
2
3
4
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: B1.prg
'# Create/version : 2006.04.21 A1
EDIT DELETE 123 INSERT TEACH
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: B1.prg
'# Create/version : 2006.04.21 A1
挿入
CLOSE
DIRECT CHANGE 123
Area recognized by
a workpiece sensor
(1)Attach stickers
(5) Z-axis elevation
(4) Robot movement
(2)
Vision
(3) Sticker movement
Encoder data acquisition
Encoder data acquisition
* (1) - (5) in the figure shows the details of operations in the sample program.
Figure 14−1 Vision Sensor and Robot Calibration Operation Procedure Diagram
14-56
Operation procedure
14 Calibration of Vision Coordinate and Robot Coordinate Systems (“B1” program)
14.2. Tasks
1)
Set the encoder number to the X coordinates value of position variable: "PE."
(a) Press the function key ([F2]) corresponding to "the change", and display the position edit screen.
<PROGRAM> B1
1
2
3
4
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: B1.prg
'# Create/version : 2006.04.21 A1
挿入
CLOSE
DIRECT CHANGE 123
<POS> JNT 100% P1
X:+0000.00
A:+0000.00
Y:+0000.00
B:+0000.00
Z:+0000.00
C:+0000.00
L1:+0000.00 L2:+0000.00
FL1:00000007 FL2:00000000
TEACH 123
Prev
Next
MOVE
(b) The [F3] (Prev) key or the [F4] (Next) key is pressed, change the target variable, and display "PE"
on the position name.
<POS> JNT 100% PE
X:+0000.00
A:+0000.00
Y:+0000.00
B:+0000.00
Z:+0000.00
C:+0000.00
L1:+0000.00 L2:+0000.00
FL1:00000007 FL2:00000000
TEACH 123
Prev
Next
MOVE
(c) X coordinates are selected by the arrow key, press the [CLEAR] key for a long time, and delete the
details. Input the encoder number into X coordinates.
<POS> JNT 100% PE
X:+0001.00
A:+0000.00
Y:+0000.00
B:+0000.00
Z:+0000.00
C:+0000.00
L1:+0000.00 L2:+0000.00
FL1:00000007 FL2:00000000
TEACH 123
Prev
Next
MOVE
(d) Press the function key ([F2]) corresponding to "the change", and display the command edit screen.
<POS> JNT 100% PE
X:+0001.00
A:+0000.00
Y:+0000.00
B:+0000.00
Z:+0000.00
C:+0000.00
L1:+0000.00 L2:+0000.00
FL1:00000007 FL2:00000000
DELETE NAME 123 CHANGE CLOSE
2)
<PROGRAM> B1
1
2
3
4
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: B1.prg
'# Create/version : 2006.04.21 A1
挿入
CLOSE
DIRECT CHANGE 123
Start In-Sight Explorer and make the vision sensor into the off-line. Select the [Live Video] of “Set Up
Image” in “Application Steps” Menu and display the picture which the vision sensor picturized on real
time. Refer to the manual obtained from the Cognex for operation of In-Sight Explorer.
Tasks
14-57
14 Calibration of Vision Coordinate and Robot Coordinate Systems (“B1” program)
3)
Paste appendix calibration seat to "Mitsubishi robot tool manual for EasyBuilder" on the conveyer.
Paste calibration seat within the field of vision checking the live images of In-Sight Explorer.
* With this operation, encoder data is acquired.
Robot
Robot movement of range
R
Calibration seat
Conveyer flow
Camera for vision sensor
Figure 14−2 Pasting Calibration seat
Figure 14−3 Screen of In-Sight Explorer from which calibration seat is taken picture
14-58
Tasks
14 Calibration of Vision Coordinate and Robot Coordinate Systems (“B1” program)
4)
5)
End [Live Video] of In-Sight Explorer, and select [Inspect Part] button of “Application Steps”.
Select [Geometry Tools] - [User-Defined Point] in “Add tool”.
Figure 14−4 Screen of In-Sight Explorer from which calibration seat is taken picture
6)
Click [Add] button. Then, the cross sign enclosed with circle on the screen is displayed.
Move it to the mark of the calibration seat, and click [OK] button.
7)
Specify the “User-Defined point” in three points or more repeating the above-mentioned work.
The example of specifying
these three points is shown.
Tasks
14-59
14 Calibration of Vision Coordinate and Robot Coordinate Systems (“B1” program)
8)
Select [Mitsubishi Robot Tool] – [Mitsubishi N-point calibration] in “Add Tool” column of this tool.
9)
Click [Add] button. Select “User-Defined point” three points specified ahead from nine displayed marks.
Then, Click [OK] button.
10) Open the [Settings] tab screen from the “Edit Tool”, and input IP address set to "Robot IP address".
11) Make the vision sensor online.
14-60
Tasks
14 Calibration of Vision Coordinate and Robot Coordinate Systems (“B1” program)
12) Move the calibration seat by starting the conveyer within the robot movement range.
13) Move the robot to the position right above the first mark on the conveyer.
Move the robot to first point
14) Click [Get position] button in “Edit Tool” column of In-Sight Explorer.
Confirm the current position of the robot was displayed in [world X] and [world Y].
15) Similarly, move the robot hand to the mark of the second point and the third point, and acquire the
current position of the robot with [Get position] button of In-Sight Explorer.
16) Input an arbitrary name to "File name" in the tool edit column of In-Sight Explorer, and click the export
button. And, confirm the calibration file of the specified name was made in the vision sensor.
17) Raise the robot.
* With this operation, encoder data is acquired.
Tasks
14-61
14 Calibration of Vision Coordinate and Robot Coordinate Systems (“B1” program)
14.3. Confirmation after operation
Check the value of “M_100()” using T/B.
Enter the encoder number in the array element.
Confirm that the differences between the encoder values acquired on the vision sensor side and the
encoder values acquired on the robot side are set in “M_100().”
14-62
Confirmation after operation
15 Workpiece Recognition and Teaching (“C1” program)
15. Workpiece Recognition and Teaching (“C1” program)
This chapter explains the tasks carried out by using “C1” program.
* “C1” program contains operations required for both conveyer tracking and vision tracking, but
different operations are performed. Refers to “15.1Program for Conveyer Tracking” for operations
in the case of conveyer tracking and “15.2Program for Vision Tracking” for operations in the case
of vision tracking.
Please refer to “Detailed Explanations of Functions and Operations” for the steps involved in each operation.
15.1. Program for Conveyer Tracking
In “C1” program for conveyer tracking, encoder data at the positions where a sensor is activated and where
the robot suctions a workpiece is acquired so that the robot can recognize the workpiece coordinates when
the sensor is activated at later times.
The operation procedure and items to be confirmed after operation in “C1” program for conveyer tracking
are explained below.
(1) Operation procedure
1) Open “C1” program using T/B.
2) Set the controller mode to "MANUAL". Set the T/B to "ENABLE".
O/P
T/B
Up :DISABLE
Down:ENABLE
★
Lamp lighting
T/B rear
3)
Press one of the keys (example, [EXE] key) while the <TITLE> screen is displayed. The <MENU>
screen will appear.
MELFA CR75x-D
RH-3FH5515-D
Ver. S3
<MENU>
COPYRIGHT (C) 2011 MITSUBISHI ELEC
TRIC CORPORATION ALL RIGHTS RESE
RVED
1.FILE/EDIT
3.PARAM
5.SET/INIT
○
4)
123
○
CLOSE
Select "1. FILE /EDIT" screen on the <MENU > screen.
<MENU>
<FILE/EDIT>
1.FILE/EDIT
3.PARAM
5.SET/INIT
1
A1
B1
C1
○
5)
○
2.RUN
4.ORIGIN/BRK
○
2.RUN
4.ORIGIN/BRK
123
○
CLOSE
EDIT
1/ 20Rem
07-05-30
07-05-30
07-05-30
07-05-30
POSI 123
136320
20:21:30
485
20:21:30
485
20:21:30
485
20:21:30
485
NEW
COPY
Press the arrow key, combine the cursor with the program name "C1" and press the [EXE] key. Display
the <program edit> screen.
<FILE/EDIT>
1
A1
B1
C1
EDIT
1/ 20Rem
07-05-30
07-05-30
07-05-30
07-05-30
POSI 123
136320
20:21:30
485
20:21:30
485
20:21:30
485
20:21:30
485
NEW
COPY
<PROGRAM> C1
1
2
3
4
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: C1.prg
'# Create/version : 2006.04.21 A1
EDIT DELETE 123 INSERT TEACH
Program for Conveyer Tracking
15-63
15 Workpiece Recognition and Teaching (“C1” program)
6)
Press the [FUNCTION] key, and change the function display
<PROGRAM> C1
<PROGRAM> C1
1
2
3
4
1
2
3
4
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: C1.prg
'# Create/version : 2006.04.21 A1
EDIT DELETE 123 INSERT TEACH
7)
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: C1.prg
'# Create/version : 2006.04.21 A1
JUMP 123
挿入
BWD
FWD
Press the [F1] (FWD) key and execute step feed. "(1)Vision No ......." is displayed
<PROGRAM> C1
4
5
6
7
8)
9)
'# Create/version : 2006.04.21 A1
'# COPYRIGHT : MITSUBISHI ELECTRIC
'##################################
'(1) Vision No. ....
JUMP 123
挿入
BWD
FWD
Work according to the comment directions in the robot program.
Next "' (2) Encoder No.. Execute step feed to ".
<PROGRAM> C1
5
6
7
3
'# COPYRIGHT : MITSUBISHI ELECTRIC
'##################################
'(1) Vision No. ....
'(2) Encoder No....
JUMP 123
挿入
BWD
FWD
10) Repeat (7) - (8) and execute step feed to "End."
11) Press the [F2] (JUMP) key and input the step number. Press the [EXE] key. Then returns to first step
<PROGRAM> C1
STEP (1
○
<PROGRAM> C1
1
2
3
4
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: C1.prg
'# Create/version : 2006.04.21 A1
EDIT DELETE 123 INSERT TEACH
)
○
123
○
CLOSE
12) Press the [FUNCTION] key, and change the function display. Press the [F4] (close) key and close the
program.
<PROGRAM> C1
<PROGRAM> C1
1
2
3
4
1
2
3
4
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: C1.prg
'# Create/version : 2006.04.21 A1
挿入
CLOSE
DIRECT CHANGE 123
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: C1.prg
'# Create/version : 2006.04.21 A1
EDIT DELETE 123 INSERT TEACH
Area recognized by
a workpiece sensor
(3) Move the robot
(1) Place a target workpiece
Encoder data acquisition
(2) Move the workpiece
Encoder data acquisition
Read the current value
Figure 15−1 Operation for Matching Workpiece Coordinates and Robot Coordinates
15-64
Program for Conveyer Tracking
15 Workpiece Recognition and Teaching (“C1” program)
(2) Tasks
1) Enter the model number, encoder number and number of the sensor that monitors the workpieces in the
X, Y and Z coordinates of the position variable “PRM1” in the program.
(a) Press the function key ([F2]) corresponding to "the change", and display the position edit screen.
<PROGRAM> C1
1
2
3
4
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: C1.prg
'# Create/version : 2006.04.21 A1
挿入
CLOSE
DIRECT CHANGE 123
<POS> JNT 100% PRM2
X:+0000.00
A:+0000.00
Y:+0000.00
B:+0000.00
Z:+0000.00
C:+0000.00
L1:+0000.00 L2:+0000.00
FL1:00000007 FL2:00000000
TEACH 123
Prev
Next
MOVE
(b) The [F3] (Prev) key or the [F4] (Next) key is pressed, change the target variable, and display
"PRM1" on the position name.
<POS> JNT 100% PRM1
X:+0000.00
A:+0000.00
Y:+0000.00
B:+0000.00
Z:+0000.00
C:+0000.00
L1:+0000.00 L2:+0000.00
FL1:00000007 FL2:00000000
TEACH 123
Prev
Next
MOVE
(c) X coordinates are selected by the arrow key, press the [CLEAR] key for a long time, and delete the
details. Input the model number into X coordinates.
<POS> JNT 100% PRM1
X:+0001.00
A:+0000.00
Y:+0000.00
B:+0000.00
Z:+0000.00
C:+0000.00
L1:+0000.00 L2:+0000.00
FL1:00000007 FL2:00000000
TEACH 123
Prev
Next
MOVE
(d) Y coordinates are selected by the arrow key, press the [CLEAR] key for a long time, and delete
the details. Input the encoder number into Y coordinates.
<POS> JNT 100% PRM1
X:+0001.00
A:+0000.00
Y:+0001.00
B:+0000.00
Z:+0000.00
C:+0000.00
L1:+0000.00 L2:+0000.00
FL1:00000007 FL2:00000000
TEACH 123
Prev
Next
MOVE
(e) Z coordinates are selected by the arrow key, press the [CLEAR] key for a long time, and delete
the details. Input the number of the sensor that monitors the workpieces into Z coordinates.
SQ series
SD series
<POS> JNT 100% PRM1
X:+0001.00
A:+0000.00
Y:+0001.00
B:+0000.00
Z:+0008.00
C:+0000.00
L1:+0000.00 L2:+0000.00
FL1:00000007 FL2:00000000
TEACH 123
Prev
Next
MOVE
Example) Input signal number is 8
<POS> JNT 100% PRM1
X:+0001.00
A:+0000.00
Y:+0001.00
B:+0000.00
Z:+0810.00
C:+0000.00
L1:+0000.00 L2:+0000.00
FL1:00000007 FL2:00000000
教示 123
Prev
Next
移動
Example)Traking enable signal number is 810.
(f) Press the function key ([F2]) corresponding to "the change", and display the command edit screen.
<POS> JNT 100% PRM1
X:+0001.00
A:+0000.00
Y:+0001.00
B:+0000.00
Z:+0008.00
C:+0000.00
L1:+0000.00 L2:+0000.00
FL1:00000007 FL2:00000000
DELETE NAME 123 CHANGE CLOSE
<PROGRAM> C1
1
2
3
4
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: C1.prg
'# Create/version : 2006.04.21 A1
挿入
CLOSE
DIRECT CHANGE 123
Program for Conveyer Tracking
15-65
15 Workpiece Recognition and Teaching (“C1” program)
2)
3)
4)
5)
Move a workpiece to the location where the sensor is activated.
* With this operation, encoder data is acquired.
Drive the conveyer to move the workpiece within the robot movement range.
Move the robot to the position where it suctions the workpiece.
* With this operation, encoder data and robot position are acquired.
Perform step operation until “End.”
* With this operation, the robot is able to calculate the position of a workpiece as soon as the
sensor is activated.
(3) Confirmation after operation
Confirm the values of “M_101(),” “P_100()” and “P_102()” using T/B.
Enter encoder numbers in array elements.
 “M_101()”: Differences between the encoder values acquired at the position of the photoelectronic sensor
and the encoder values acquired on the robot side.
 “P_100()”: Position at which workpieces are suctioned
 “P_102()”: The value of the variable “PRM1” set in step (1)
Check that each of the values above has been entered correctly.
15-66
Program for Conveyer Tracking
15 Workpiece Recognition and Teaching (“C1” program)
15.2. Program for Vision Tracking
Vision tracking “C1” program acquires encoder data at the position where the vision sensor recognizes
workpieces and where the robot suctions workpieces such that the robot can recognize the work
coordinates recognized by the vision sensor. The following explains the operation procedure and items to
confirm after operation in vision tracking “C1” program.
(1) Operation procedure
1) Register workpieces to be recognized by a vision sensor and create a vision program.
Please refer to "In-Sight Explorer manual" for the method of making the vision program.
2) Open “C1” program using T/B.
3) Set the controller mode to "MANUAL". Set the T/B to "ENABLE".
O/P
T/B
Up :DISABLE
Down:ENABLE
★
Lamp lighting
T/B rear
4)
Press one of the keys (example, [EXE] key) while the <TITLE> screen is displayed. The <MENU>
screen will appear.
MELFA CR75x-D
RH-3FH5515-D
Ver. S3
<MENU>
COPYRIGHT (C) 2011 MITSUBISHI ELEC
TRIC CORPORATION ALL RIGHTS RESE
RVED
1.FILE/EDIT
3.PARAM
5.SET/INIT
○
5)
123
○
CLOSE
Select "1. FILE /EDIT" screen on the <MENU > screen.
<MENU>
<FILE/EDIT>
1.FILE/EDIT
3.PARAM
5.SET/INIT
1
A1
B1
C1
○
6)
○
2.RUN
4.ORIGIN/BRK
○
2.RUN
4.ORIGIN/BRK
123
○
CLOSE
EDIT
1/ 20Rem
07-05-30
07-05-30
07-05-30
07-05-30
POSI 123
136320
20:21:30
485
20:21:30
485
20:21:30
485
20:21:30
485
NEW
COPY
Press the arrow key, combine the cursor with the program name "C1" and press the [EXE] key. Display
the <program edit> screen.
<FILE/EDIT>
1
A1
B1
C1
EDIT
1/ 20Rem
07-05-30
07-05-30
07-05-30
07-05-30
POSI 123
136320
20:21:30
485
20:21:30
485
20:21:30
485
20:21:30
485
NEW
COPY
<PROGRAM> C1
1
2
3
4
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: C1.prg
'# Create/version : 2006.04.21 A1
EDIT DELETE 123 INSERT TEACH
Program for Vision Tracking
15-67
15 Workpiece Recognition and Teaching (“C1” program)
7)
Press the [FUNCTION] key, and change the function display
<PROGRAM> C1
<PROGRAM> C1
1
2
3
4
1
2
3
4
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: C1.prg
'# Create/version : 2006.04.21 A1
EDIT DELETE 123 INSERT TEACH
8)
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: C1.prg
'# Create/version : 2006.04.21 A1
JUMP 123
挿入
BWD
FWD
Press the [F1] (FWD) key and execute step feed. "(1)Vision No ......." is displayed
<PROGRAM> C1
4
5
6
7
'# Create/version : 2006.04.21 A1
'# COPYRIGHT : MITSUBISHI ELECTRIC
'##################################
'(1) Vision No. ....
JUMP 123
挿入
BWD
FWD
9) Work according to the comment directions in the robot program.
10) Next "' (2) Encoder No.. Execute step feed to ".
<PROGRAM> C1
5
6
7
3
'# COPYRIGHT : MITSUBISHI ELECTRIC
'##################################
'(1) Vision No. ....
'(2) Encoder No....
JUMP 123
挿入
BWD
FWD
11) Repeat (7) - (8) and execute step feed to "End."
12) Press the [F2] (JUMP) key and input the step number. Press the [EXE] key. Then returns to first step
<PROGRAM> C1
STEP (1
○
<PROGRAM> C1
1
2
3
4
)
○
123
○
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: C1.prg
'# Create/version : 2006.04.21 A1
EDIT DELETE 123 INSERT TEACH
CLOSE
13) Press the [FUNCTION] key, and change the function display. Press the [F4] (close) key and close the
program.
<PROGRAM> C1
<PROGRAM> C1
1
2
3
4
1
2
3
4
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: C1.prg
'# Create/version : 2006.04.21 A1
EDIT DELETE 123 INSERT TEACH
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: C1.prg
'# Create/version : 2006.04.21 A1
挿入
CLOSE
DIRECT CHANGE 123
Vision sensor
recognition area
(1) Place a target
workpiece
(5) Raise the robot
(4) Move the robot
(2) Recognize a workpiece with (3) Move the workpiece
the vision sensor
 Encoder data acquisition
 Workpiece position acquisition
 Encoder data acquisition
 Read the current value
Figure 15−2 Operation for Matching Workpiece Coordinates and Robot Coordinates
15-68
Program for Vision Tracking
15 Workpiece Recognition and Teaching (“C1” program)
(2) Tasks
1) Make the vision program.
Take picture of workpiece.
Select [File] – [New Job] from the menu.
Click [Set Up Image]
“Application Steps”.
button
from
Click [Live Video] button.
Take picture of workpiece that does the
tracking.
Again, stop a live image clicking [Live
Video] button.
Specify the trigger.
Change [Trigger] from "Camera" to
"Manual”.
8640(The image trigger is abnormal) error
occurs when the robot controller outputs the
taking picture demand to the vision sensor
when you do not change.
Import the calibration data.
In [Calibration type], select "Import".
In [File Name], select “TrackingCalib.cxd"
registered when working about the B1
program.
Program for Vision Tracking
15-69
15 Workpiece Recognition and Teaching (“C1” program)
Register workpiece. (preparation)
Click [Locate Part] from “Application Steps”.
Select "PatMax Pattern" from “Add Tool”,
and click [Add] button.
Register workpiece. (Model registration)
Move the displayed "Model" frame, and
enclose workpiece.
Click [OK] button in “Directions”.
Register workpiece. (Adjustment)
Click [Settings] tab from "Edit Tool", and
change the [Rotation Tolerance] value to
“180".
(The vision sensor can recognize workpiece
up to ±180 degrees. )
Change the [Accept Threshold], and adjust
the recognition rate of workpiece.
15-70
Program for Vision Tracking
15 Workpiece Recognition and Teaching (“C1” program)
Do the communication setting.
Click [Communication] from “Application
Steps”.
Click [Addi Device] from "Communications".
Select the following from "Device Setup".
[Device:]
"Robot"
[Manufacturer:] "Mitsubishi”
[Protocol:]
"Ethernet Native String"
Click [OK] button.
Set the communication format. (preparation)
Click [Add] button from "Format Output
String".
-> "Select Output Data" screen opens.
Set the communication format. (selection)
Click [+] sign of “Pattern_1”, and select it in
the following order while pushing the [Ctrl]
key.
(1)
(2)
(3)
(4)
Pattern_1. Pass
Pattern_1. Fixture.X
Pattern_1. Fixture.Y
Pattern_1. Fixture.Angle
Click [OK] button.
Program for Vision Tracking
15-71
15 Workpiece Recognition and Teaching (“C1” program)
Confirmation of communication format
Confirm the value enclosed with a square
frame.
Data sent to the robot controller is shown in
a right square frame.
Change the value of [Decimal Places], and
change the number of decimal positions of
transmitted data.
Save the vision program
Click [Save Job] from “Application Steps”.
Click [Save] from "Save Job".
Make the name of the job that saves it
“TRK".
Change the line of “CPRG$=" C1 program
when not assuming “TRK".
Make it to online.
Click [Run Job] from “Application Steps”.
Click [Online] on "Job Status".
15-72
Program for Vision Tracking
15 Workpiece Recognition and Teaching (“C1” program)
2)
Enter the model number and encoder number in the X and Y coordinates of the position variable
“PRM1” in the program.
(a) Press the function key ([F2]) corresponding to "the change", and display the position edit screen.
<PROGRAM> C1
1
2
3
4
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: C1.prg
'# Create/version : 2006.04.21 A1
挿入
CLOSE
DIRECT CHANGE 123
<POS> JNT 100% P_100(0)
X:+0000.00
A:+0000.00
Y:+0000.00
B:+0000.00
Z:+0000.00
C:+0000.00
L1:+0000.00 L2:+0000.00
FL1:00000007 FL2:00000000
TEACH 123
Prev
Next
MOVE
(b) The [F3] (Prev) key or the [F4] (Next) key is pressed, change the target variable, and display
"PRM1" on the position name.
<POS> JNT 100% PRM1
X:+0000.00
A:+0000.00
Y:+0000.00
B:+0000.00
Z:+0000.00
C:+0000.00
L1:+0000.00 L2:+0000.00
FL1:00000007 FL2:00000000
TEACH 123
Prev
Next
MOVE
(c) X coordinates are selected by the arrow key, press the [CLEAR] key for a long time, and delete the
details. Input the model number into X coordinates.
<POS> JNT 100% PRM1
X:+0001.00
A:+0000.00
Y:+0000.00
B:+0000.00
Z:+0000.00
C:+0000.00
L1:+0000.00 L2:+0000.00
FL1:00000007 FL2:00000000
TEACH 123
Prev
Next
MOVE
(d) Y coordinates are selected by the arrow key, press the [CLEAR] key for a long time, and delete
the details. Input the encoder number into Y coordinates.
<POS> JNT 100% PRM1
X:+0001.00
A:+0000.00
Y:+0001.00
B:+0000.00
Z:+0000.00
C:+0000.00
L1:+0000.00 L2:+0000.00
FL1:00000007 FL2:00000000
TEACH 123
Prev
Next
MOVE
(f) Press the function key ([F2]) corresponding to "the change", and display the command edit screen.
<POS> JNT 100% PRM1
X:+0001.00
A:+0000.00
Y:+0001.00
B:+0000.00
Z:+0000.00
C:+0000.00
L1:+0000.00 L2:+0000.00
FL1:00000007 FL2:00000000
DELETE NAME 123 CHANGE CLOSE
3)
<PROGRAM> C1
1
2
3
4
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: C1.prg
'# Create/version : 2006.04.21 A1
挿入
CLOSE
DIRECT CHANGE 123
Start In-Sight Explorer and make the vision sensor into the off-line. Select the [Live Video] of “Set Up
Image” in “Application Steps” Menu and display the picture which the vision sensor picturized on real
time. Check the images and set the field of vision in the moving direction of the conveyer (mm) and the
length of workpieces detected by the vision sensor (length in the moving direction of the conveyer) in
the X and Y coordinates of the position variable “PRM2” in the program, respectively.
(a) Open the [Position data Edit] screen.
(b) Display “PRM2” at the position name.
(c) Enter the field of vision in the moving direction of the conveyer (mm) in the X coordinate.
(d) Enter the workpiece length detected by the vision sensor (length in the moving direction of the
conveyer (mm)) in the Y coordinate.
(d) Return to the [Command edit] screen.
Program for Vision Tracking
15-73
15 Workpiece Recognition and Teaching (“C1” program)
4)
Specify a communication line to be connected with the vision sensor.
(a) Open the [Command edit] screen.
<PROGRAM> C1
1
2
3
4
'## Ver.A1 ########################
'# tracking robot‐conveyor calibra
'# NAME
: C1.prg
'# Create/version : 2006.04.21 A1
EDIT DELETE 123 INSERT TEACH
(b)Display the command step shown in the following
<PROGRAM> C1
11
12
13
14
'COM No. of comunication line
CCOM$="COM2"
'Program neme of Vision
CPRG$="TRK.JOB"
EDIT DELETE 123 INSERT TEACH
(c) Press [F1] (edit) key and specify the line opened for the robot controller may connect with the vision
sensor to the variable "CCOM$."
example) Open COM3:
< PROGRAM > C1
12 CCOM$="COM2:"
EDIT
DELETE 123
< PROGRAM > C1
12 CCOM$="COM3:"
INSERT
TEACH
EDIT
DELETE 123
INSERT
TEACH
(d)Press the [EXE] key and edit is fixed.
<PROGRAM> C1
11
12
13
14
'COM No. of comunication line
CCOM$="COM3"
'Program neme of Vision
CPRG$="TRK.JOB"
EDIT DELETE 123 INSERT TEACH
5)
6)
7)
15-74
Specify a vision program to be started.
In the same way as in step 3), change the vision program name entered after “CPRG$=” in the program.
Place a workpiece to be recognized within the area that the vision sensor can recognize.
Using In-Sight Explorer, place the vision sensor in the online status.
Program for Vision Tracking
15 Workpiece Recognition and Teaching (“C1” program)
8)
Using T/B, close the opened “C1” program once and then run the modified “C1” program automatically
with the robot controller.
Note) When your controller has no operation panel, use the dedicated external signals corresponding to the
following step to operate the robot.
Although the image of the operation panel is the CRnD-700 controller, the operation method is the
same in other controllers.
T/B disabled
Set the T/B [ENABLE]
switch to "DISABLE".
Controller enabled
Set the controller
[MODE] switch to
"AUTOMATIC".
Servo ON
Selection of a
number
Display of
a program number
Press the [SVO ON]
key, the
servo will turn ON, and
the SVO ON lamp will
light.
program
Selection of
a program number
Press the [CHNG DISP]
key and display
"PROGRAM NO." on
the STATUS NUMBER
display.
Press the [UP] or the
[DOWN] key and
display program
name"C1"
Start of automatic operation
Start
Press the [START] key.
Program for Vision Tracking
15-75
15 Workpiece Recognition and Teaching (“C1” program)
After automatic operation, “C1” program automatically stops and the LED of the [STOP] button is turned
on. Open “C1” program again with T/B. Press the [F1](FWD) key to display the subsequent operation
messages.
* With this operation, encoder data and workpiece position recognized by the vision sensor are
acquired.
9)
Rotate the conveyer forward and move a workpiece within the vision sensor recognition area into the
robot movement range.
10) Move the robot to the position where it is able to suction the workpiece.
* With this operation, encoder data and robot position are acquired.
11) Perform step operation until “End.”
* With this operation, the robot becomes able to recognize the position of the workpiece
recognized by the vision sensor.
(3) Confirmation after operation
Check the values of the following variables using T/B.
Enter the model number for the array number.
 Value of “M_101()”: Differences between encoder values when a workpiece is within the vision sensor
area and when the workpiece is on the robot side
 Value of “P_102()”: Data in the variable “PRM1” (model number/encoder number)
 Value of “P_103()”: Data in the variable “PRM2” (recognition field of image view/workpiece size)
 Value of “C_100$()”: COM number
 Value of “C_101$()”: Vision program name
Confirm that each of the above values is entered.
15-76
Program for Vision Tracking
16 Teaching and Setting of Adjustment Variables (“1” Program)
16. Teaching and Setting of Adjustment Variables (“1” Program)
This chapter explains operations required to run “1” program.
* “1” program settings are required for both conveyer tracking and vision tracking.
“1” program instructs the robot to follow and grab workpieces recognized by a photoelectronic sensor or
vision sensor and transport the workpieces.
The teaching positions required by “1” program are explained below, along with how to set adjustment
variables prepared in the program.
16.1. Teaching
The teaching of "Starting point position (position in which it is waited that workpiece arrives)" and
"Transportation destination (position in which the held workpiece is put)" is executed.
For instance, the teaching does the following positions.
Vision sensor
recognition area
(PPT)
Transportation
point
(P1)Start
Conveyer flow
Teach the origin position and transportation destination. The following explains how to perform these
operations.
1) Open “1” program using T/B.
2) Open the [Position data Edit] screen.
3) Display “P1” in order to set the robot origin position when the system is started.
4) Move the robot to the origin position and teach it the position.
5) Display “PPT” in order to set the transportation destination position (the location where workpieces are
placed).
6) Move the robot to the transportation destination and teach it the position.
Confirm whether workpiece can be transported at the position in which the teaching was done.
7)
8)
Display “P1" at the starting point position on the [Position data Edit] screen. Turn on the servo by
gripping the deadman switch.
Move the robot to the position of “P1" pushing F1 (MOVE).
<POS> JNT 100% P1
X: +300.00
A:+0000.00
Y: +500.00
B: +90.00
Z: +400.00
C: +150.00
L1:+0000.00 L2:+0000.00
FL1:00000007 FL2:00000000
TEACH 123
Prev
Next
MOVE
9) Move the robot to an arbitrary position (position in which workpiece flows) by the jog operation.
10) Display “PPT" at the transportation point position on the [Position data Edit] screen. Turn on the servo
by gripping the deadman switch.
<POS> JNT 100% PPT
X: +50.00
A:+0000.00
Y: +500.00
B: +90.00
Z: +400.00
C: +45.00
L1:+0000.00 L2:+0000.00
FL1:00000007 FL2:00000000
TEACH 123
Prev
Next
MOVE
11) Move the robot to the position of “PPT" pushing F1 (MOVE).
Teaching
16-77
16 Teaching and Setting of Adjustment Variables (“1” Program)
16.2. Setting of adjustment variables in the program
The following section explains how to set adjustment variables, which are required at transportation, and
details about their setting.
Please refer to separate manual “Detailed Explanations of Functions and Operations” for how to set
adjustment variables.
Table 16−1 List of Adjustment Variables in Programs
Variable
Explanation
Setting example
name
PWK
Set the model number.
When you set 1 to the model number:
X = model number (1 to 10)
(X, Y, Z, A, B, C) =(+1,+0,+0,+0,+0,+0)
PRI
“1” program and “CM1” program are run
When you set to run “1” program by one
simultaneously (multitasking). “1” program moves the line and run “CM1” program by 10 lines:
robot, and “CM1” program observes the sensor.
(X, Y, Z, A, B, C) = (+1,+10,+0,+0,+0,+0)
It is possible to specify which program is processed
with a higher priority, rather than performing the
same amount of processing at the same time.
X = Set the line numbers of “1” program to be
performed (1 to 31).
Y = Set the line numbers of “CM1” program to be
performed (1 to 31).
PUP1
When operating by the adsorption of workpiece, set When the following values are set:
the height that the robot works.
Amount of elevation of the position where
Height sets the amount of elevation (mm) from the
a robot waits until a workpiece arrives
position where workpiece is adsorbed.
: 50 mm
X = Amount of elevation of the position where a robot
Amount of elevation from the workpiece
waits until a workpiece arrives.
(mm)
suction position (before suctioning)
Y = Amount of elevation from the workpiece suction
: -50 mm
position (before suctioning)
(mm)
Amount of elevation from the workpiece
Z = Amount of elevation from the workpiece
suction position (after suctioning)
suction position (after suctioning)
(mm)
: -50 mm
PUP2
PAC1
16-78
* Since the Y and Z coordinates indicate
distances in the Z direction in the tool
coordinate system, the sign varies depending
on the robot model.
When operating in putting workpiece, set the height
that the robot works.
Height sets the amount of elevation (mm) from the
position where workpiece is adsorbed.
Y = Amount of elevation from the workpiece
release position (before release).
(mm)
Z = Amount of elevation from the workpiece
release position (after release).
(mm)
* Since these values are distances in the Z
direction of the tool coordinate system, the sign
varies depending on the robot model.
When operating by the adsorption of workpiece, the
acceleration and the deceleration when moving to
the position on the workpiece are set.
X = The acceleration until moving to the position
on the workpiece. (1 to 100) (%)
Y = The deceleration until moving to the position
on the workpiece. (1 to 100) (%)
* The value set by X coordinates and Y
coordinates of “PAC*” is used for <acceleration
ratio(%)> of the Accel instruction and
<deceleration ratio(%)>.
The value is reduced when the speed of time
when the robot vibrates and the robot is fast.
Setting of adjustment variables in the program
(X, Y, Z, A, B, C) = (+50,-50,-50,+0,+0,+0)
When the following values are set:
Amount of elevation from the workpiece
release position (before release)
: -50 mm
Amount of elevation from the workpiece
release position (after release)
: -50 mm
(X, Y, Z, A, B, C) = (+0,-50,-50,+0,+0,+0)
When the following values are set:
Acceleration until moving to the position
on the workpiece. : 100%
Deceleration until moving to the
position on the workpiece.
: 100%
(X, Y, Z, A, B, C) =
(+100,+100,+0,+0,+0,+0)
16 Teaching and Setting of Adjustment Variables (“1” Program)
PAC2
PAC3
When operating by the adsorption of workpiece,
the acceleration and the deceleration when
moving to the workpiece suction position are set.
X = The acceleration until moving to the
workpiece suction position. (1 to 100) (%)
Y = The deceleration until moving to the
workpiece suction position. (1 to 100) (%)
When operating by the adsorption of workpiece,
the acceleration and the deceleration when
moving toward the position on the workpiece are
set.
X = The acceleration until moving to the position
on the workpiece. (1 to 100) (%)
Y = The deceleration until moving to the position
on the workpiece. (1 to 100) (%)
When the following values are set:
Acceleration until moving to the
workpiece suction position. : 10%
Deceleration until moving to the
workpiece suction position. : 20%
(X, Y, Z, A, B, C) =(+10,+20,+0,+0,+0,+0)
When the following values are set:
Acceleration until moving to the position
on the workpiece. : 50%
Deceleration until moving to the
position on the workpiece. : 80%
(X, Y, Z, A, B, C) =(+50,+80,+0,+0,+0,+0)
PAC11
When operating by the release of workpiece, the
When the following values are set:
acceleration and the deceleration when moving to
Acceleration until moving to the position
on the workpiece
: 80%
the position on the workpiece are set.
X = The acceleration until moving to the position
Deceleration until moving to the
release position. (1 to 100)
(%)
position on the workpiece : 70%
Y = The deceleration until moving to the position (X, Y, Z, A, B, C) =(+80,+70,+0,+0,+0,+0)
release position. (1 to 100)
(%)
PAC12
When operating by the release of workpiece, the
When the following values are set:
acceleration and the deceleration when moving to
Acceleration until moving to the
the workpiece release position are set.
workpiece release position. : 5%
X = The acceleration until moving to the
Deceleration until moving to the
workpiece release position. (1 to 100) (%)
workpiece release position. : 10%
Y = The deceleration until moving to the
(X, Y, Z, A, B, C) = (+5,+10,+0,+0,+0,+0)
workpiece release position. (1 to 100) (%)
PAC13
When operating by the release of workpiece, the
When the following values are set:
acceleration and the deceleration when moving
Acceleration until moving to the position
on the workpiece. : 100%
toward the position on the workpiece are set.
X = The acceleration until moving to the position
Deceleration until moving to the
on the workpiece. (1 to 100) (%)
position on the workpiece. : 100%
Y = The deceleration until moving to the position (X, Y, Z, A, B, C) =
on the workpiece. (1 to 100) (%)
(+100,+100,+0,+0,+0,+0)
PDLY1
Set the suction time.
X: Suction time (s).
When setting 0.5 second for the sucking
time:
(X, Y, Z, A, B, C) = (+0.5,+0,+0,+0,+0,+0)
PDLY2
Set the release time.
X: Release time (s).
When setting 0.3 second for the release
time:
(X, Y, Z, A, B, C) = (+0.3,+0,+0,+0,+0,+0)
POFSET
When the adsorption position shifts, the gap can
be corrected. Set the correction value.
* The direction of the correction is a direction
of the hand coordinate system. Please decide
the correction value after changing the job
mode to "Tool", pushing the [+X] key and the
[+Y] key, and confirming the operation of the
robot.
Setting of adjustment variables in the program
16-79
16 Teaching and Setting of Adjustment Variables (“1” Program)
PTN
Set the position of the robot and conveyer, and the When a conveyer is placed in front of the
direction where the workpiece moves.
robot and the workpiece moves from the
X = The following values. (1 to 6)
left to right: (When in view of the robot)
(X, Y, Z, A, B, C) = (+1,+0,+0,+0,+0,+0)
Setting
Conveyer
Conveyer
The relationship between PRNG and
value
position
direction
PTN is shown in “Figure 16−3 Diagram
1
Front
Right to Left
of
Relationship between Adjustment
2
Front
Left to Right
Variables
“PRNG” and “PTN” in the
3
Left side
Right to Left
Program”.
4
Left
Left to Right
5
Right side
Right to Left
6
Right side
Left to Right
PRNG
Set range of motion where the robot judges
workpiece to be able to follow.
X = The start distance of the range in which the
robot can follow a workpiece
:(mm)
Y = The end distance of the range in which the
robot can follow a workpiece
:(mm)
Z = The distance in which follow is canceled
:(mm)
(For RH-3S*HR)
The singular point neighborhood can be moved in
RH-3S*HR at the joint operation.
However, when the tracking operation passes
over the singular point neighborhood for straight
line operation, the J1 axis accelerates rapidly and
speed limit (H213x error :x= axis number) is
generated.
Then, the singular point neighborhood is limited to
the tracking by setting this parameter.
X = The Time in which the robot can move over
the workpiece
:(ms)
Y = The Maximal speed for J3 axis :(mm/s)
Z = The radius of area made singular point
neighborhood
:(mm)
P3HR
16-80
Setting of adjustment variables in the program
The relationship between PRNG and
PTN is shown in “Figure 16−3 Diagram
of Relationship between Adjustment
Variables “PRNG” and “PTN” in the
Program”.
(X, Y, Z, A, B, C) =
(+800,+1500,+60,+0,+0,+0)
Refer to “Figure 16−1 Diagram of
Relationship between Adjustment
Variables “PRNG” and “P3HR” in the
Program”
16 Teaching and Setting of Adjustment Variables (“1” Program)
<Restrictions of RH-3S*HR when using the tracking function>
The RH-3S*HR can not pass over the singular adjustment point while the tracking operation.
It is necessary to avoid singular adjustment point and place the conveyer.
As shown in Figure 16−1 or Figure 16−2, If the conveyer is installed at right under the robot, the operation range
of tracking must been setting out of range of singular adjustment point.
Conveyer
Workpiece
movement direction
Distance that the robot can follow a
workpiece calculated by X value, Y
value, speed of conveyer, and PUP1
value.
600mm
PRNG
X=300mm
PRNG
Y=300mm
Z=60mm
PRNG
Z=400mm
Figure 16−1 Diagram of Relationship between Adjustment Variables “PRNG” and “P3HR” in the Program
Setting of adjustment variables in the program
16-81
16 Teaching and Setting of Adjustment Variables (“1” Program)
Conveyer
Conveyer
<Singular Adjustment Point>
The robot can not pass over the
singular adjustment point while
the tracking operation.
Workpiece
movement direction
135mm
Y=200mm
Workpiece
movement direction
Z=230mm
60mm
X= -65mm
Y= -95mm
135mm
When the conveyer is placed at the right under
the robot and the workpiece moves from the
rear to front (= the X coordinate of PTN is “5”)
and the operation range of tracking is set at
front of the robot.
PRNG は、(X,Y,Z)=(-65,+200,+230)
60mm
Z= -75mm
X=230mm
When the conveyer is placed at the right under
the robot and the workpiece moves from the
rear to front (= the X coordinate of PTN is “5”)
and the operation range of tracking is set at
backward the robot.
PRNG は、(X,Y,Z)=(+230,-95,-75)
Figure 16−2 Relationship of singular point neighborhood and tracking area
16-82
Setting of adjustment variables in the program
16 Teaching and Setting of Adjustment Variables (“1” Program)
400mm
800mm
Y=300mm
X=500mm
Conveyer
X=300mm
Y=100mm
Z=200mm
Z=400mm
Workpiece
movement direction
Workpiece
movement direction
When the conveyer is placed in front of the
robot and the workpiece moves from the right
to left (= the X coordinate of PTN is “1”)
PRNG: (X,Y,Z)=(+500,+300,+400)
Conveyer
600mm
Conveyer
Workpiece
movement direction
X=400mm
Y=200mm
Z=300mm
When the conveyer is placed on the left side
of the robot and the workpiece moves from
the front to rear (= the X coordinate of PTN is
“4”)
When the conveyer is placed in front of the
robot and the workpiece moves from the left
to right (= the X coordinate of PTN is “2”)
PRNG: (X,Y,Z)=(+300,+100,+200)
Workpiece
movement direction
Conveyer
Z=400mm
Y=300mm
X=500mm 800mm
When the conveyer is placed on the right side
of the robot and the workpiece moves from
the rear to front (= the X coordinate of PTN is
“5”)
Figure 16−3 Diagram of Relationship between Adjustment Variables “PRNG” and “PTN” in the Program
Setting of adjustment variables in the program
16-83
17 Sensor Monitoring Program (“CM1” Program)
17. Sensor Monitoring Program (“CM1” Program)
This chapter provides an overview of “CM1” program, which is run in parallel, when “1” program is run.
Different types of “CM1” programs are used for conveyer tracking and vision tracking, and different
processing is performed for them. These programs are explained in the following.
17.1. Program for Conveyer Tracking
“CM1” program calculates the workpiece coordinates in the robot coordinate system at the moment where a
photoelectronic sensor is activated based on the following data acquired with “A1” program and “C1”
program, and then stores the coordinates in the tracking buffer(Storage area to preserve data temporarily).
<Acquired data>
 Amount of robot movement per encoder pulse (P_EncDlt)
 Difference between the encoder value when a photoelectronic sensor is activated and the encoder value
when teaching is performed on a robot
 Position at which the robot is taught to grab a workpiece
17.2. Program for Vision Tracking
“CM1” program converts the workpiece position recognized by the vision sensor to the corresponding
coordinates in the robot coordinate system based on the following data acquired with “A1” program, “B1”
program and “C1” program, and then stores the coordinates in the tracking buffer.
<Acquired data>
 Amount of robot movement per encoder pulse(P_EncDlt)
 Difference between the encoder value when a marking sticker is on the vision sensor side and the
encoder value when the marking sticker is on the robot side
 Workpiece position recognized by the vision sensor
 Difference between the encoder value when the vision sensor recognizes a workpiece and the encoder
value when teaching on the workpiece position was performed on the robot
 Position at which the robot is taught to grab a workpiece
The timing at which the vision sensor acquires images is calculated such that images of the same workpiece
are taken at least once or up to twice by the following data specified in “C1” program.
<Data specified in “C1” program>
 Field of view in the conveyer movement direction
 Length of workpieces detected by a vision sensor (length in the conveyer movement direction)
17-84
Program for Conveyer Tracking
18 Automatic Operation
18. Automatic Operation
This chapter explains how to prepare the robot before starting the system.
18.1. Preparation
1) Check that there is no interfering object within the robot movement range.
2) Prepare to run the desired program.
Note) When your controller has no operation panel, use the dedicated external signals corresponding to the
following step to operate the robot.
Although the image of the operation panel is the robot controller, the operation method is the same in
other controllers.
T/B disabled
Controller enabled
Servo ON
Selection of a
program number
Display of
a program number
Selection of
a program number
Set the T/B [ENABLE]
switch to "DISABLE".
Set the controller
[MODE] switch to
"AUTOMATIC".
Press the [SVO ON]
key, the
servo will turn ON, and
the SVO ON lamp will
light.
Press the [CHNG DISP]
key and display
"PROGRAM NO." on
the STATUS NUMBER
display.
Press the [UP] or the
[DOWN] key and
display program
name"1."
Preparation
18-85
18 Automatic Operation
18.2. Execution
1)Be sure that you are ready to press the [Emergency Stop] button of T/B in the case of any unexpected
movement of the robot.
2)Run the program from the operation panel of the robot controller.
Note) The robot of the specification without the operation panel of the controller operates by the external
signal corresponding to the following step.
Although the image of the operation panel is the robot controller, the operation method is the same in
other controllers.
Start of automatic
operation
Start
Press the [START] key.
18.3. At error occurrence
If the robot moves erroneously, refer to separate manual “Troubleshooting”.
18.4. Ending
The robot does not move unless a sensor that monitors workpieces is activated or a vision sensor
recognizes a workpiece. Stop the flow of workpieces from the upstream and press the [STOP] button of the
operation panel of the robot controller. Confirm that the [STOP] lamp is turned on.
Note) The robot of the specification without the operation panel of the controller is stopped by the external
signal.
18.5. Adjusting method
You can confirm the follow operation by automatic driving.
Refer to "Maintenance of robot program" in Chapter 19 when you want to adjust it.
And, refer to "In such a case (improvement example)" in Chapter 20.3.
18-86
Execution
19 Maintenance of robot program
19. Maintenance of robot program
This chapter explains information required when maintaining the sample programs (robot program language
MELFA-BASIC V and dedicated input/output signals).
19.1. MELFA-BASIC V Instructions
The lists of instructions, status variables and functions related to tracking operation are shown below.
Please refer to the separate manual “Detailed Explanations of Functions and Operations” for further
information about MELFA-BASIC V.
19.1.1. List of Instructions
Instruction name
TrBase
TrClr
Trk
TrOut
TrRd
TrWrt
Table 19−1 List of Instructions
Function
Specify the workpiece coordinate origin of teaching data and tracking external encoder
logic number.
Clear the tracking data buffer.
Declare start and end of the tracking mode.
Output signals from a general-purpose output and read the encoder values.
Read workpiece data from the tracking data buffer.
Write workpiece data in the tracking data buffer.
19.1.2. List of Robot Status Variables
Variable
name
M_Enc
M_EncL
P_EncDlt
M_Trbfct
P_Cvspd
M_EncMax
M_EncMin
M_EncSpd
Table 19−2 List of Robot Status Variables
Number of arrays
number of
encoders
1 to 8
Number of
encoder
1to8
number of
encoders
1 to 8
buffer No.
1 to The first
argument of
parameter
[TRBUF]
number of
encoders
1 to 8
number of
encoders
1 to 8
number of
encoders
1 to 8
number of
encoders
1 to 8
mechanism No.
1 to 3
Function
External encoder data
External encoder data can be rewritten.
If this state variable does not set parameter
“TRMODE" to “1", the value becomes like “0".
The stored encoder data
※ Possible to use from R1 and S1
※ 0 always returns in S1.
Amount of robot movement per encoder pulse
*This state variable is made by sample “A1”
program.
Number of data items stored in the tracking buffer
Attribute
Data type
(*1)
R/W
Double-precisio
n real number
R/W
Double-precisio
n real number
R/W
Position
R
Integer
Conveyer speed (mm, rad/sec)
R
Position
The maximum value of external encoder data
R
Double-precisio
n real number
The minimum value of external encoder data
R
Double-precisio
n real number
External encoder speed(Unit: pulse/sec)
R
Single-precision
real number
Tracking operation status of specified mechanism
R
Integer
1: Tracking
0: Not tracking
(*1)R: Only reading is permitted.
R/W: Both reading and writing are permitted.
M_TrkCQ
MELFA-BASIC V Instructions
19-87
19 Maintenance of robot program
19.1.3. List of Functions
Function name
Poscq(<position>)
TrWcur(<encoder number>,
<position>,<encoder value>)
TrPos(<position>)
Table 19−3 List of Functions
Function
Check whether the specified position is within the movement
range.
1: Within the movement range
0: Outside the movement range
Obtain the current position of a workpiece.
<number of encoders>
1 to 8
Acquire the coordinate position of a workpiece being tracked.
Trk On P0,P1,1,M1#
PC2=TrPos(P2)
PC2 above is obtained in the following manner.
PC1=P1+P_EncDlt*(M_Enc-M1#) ‘ The current position of P1
PC2=PC1*(P_Zero/P0*P2)
19.1.4. Explanation of Tracking Operation Instructions
The instructions related to tracking operations are explained in details below.
The explanations of instructions are given using the following format.
[Function]
: Describes the function of an instruction.
[Format]
: Describes the entry method of arguments of an instruction.
< > indicate an argument.
[ ] indicates that entry can be omitted.
 indicate that space is required.
[Term]
: Describes meaning, range and so on of an argument.
[Example]
: Presents statement examples.
[Explanation] : Provides detailed function descriptions and precautions.
19-88
MELFA-BASIC V Instructions
Result
Integer
Position
Position
19 Maintenance of robot program
TrBase (tracking base)
[Function]
Specify the workpiece coordinate system origin during the teaching operation and the encoder logic number
of an external encoder used in tracking operation.
[Format]
TrBase  <Reference position data> [ , <Encoder logic number>]
[Term]
<Reference position data> (can be omitted):
Specify the origin position of position data to be followed during the tracking mode.
<Encoder logic number> (can be omitted):
This is a logic number indicating the external encoder that performs tracking operation.
1 is set when this argument is omitted.
Setting range: 1 to 8
[Example]
1 TrBase P0
2 TrRd P1,M1,MKIND
3 Trk On,P1,M1
4 Mvs P2
5 HClose 1
6 Trk Off
' Specify the workpiece coordinate origin at the teaching position.
' Read the workpiece position data from the data buffer.
' Start tracking of a workpiece whose position measured by a sensor is P1 and
encoder value at that time is M1.
' Setting the current position of P1 as P1c, make the robot operate while following
workpieces with the target position of P1c*P_Zero/P0*P2.
' Close hand 1.
' End the tracking operation.
[Explanation]
 Specify the workpiece coordinate system origin during the teaching operation and the logic number of an
external encoder used in tracking operation.
 If an encoder logic number is omitted, the previously specified value 1 is set.
 The reference position data and encoder number are set to their initial values until they are specified by
the TrBase instruction or the Trk On instruction. The initial value is P_Zero for the reference position data
and 1 for the encoder number.
 Describes the relationship of “TrBase” and “Trk” and “Mvs P2”.
Origin of tracking
Search area
of Vision sensor
Inv(P0)
P2
P1
P0
P1c
M1
M1c
Workpiece
movement direction
P0 : Teaching position in “C1” program.
P1 : Workpieace position when captured from vision sensor in “CM1” program
P1c : Current Workpiece position.
M1c : Current encoder value
M1 : Encoder value when captured from vision sensor in “CM1” program
P2 : Target position
MELFA-BASIC V Instructions
19-89
19 Maintenance of robot program
TrClr (tracking data clear)
[Function]
Clears the tracking data buffer.
[Format]
TrClr  [<Buffer number>]
[Term]
<Buffer number> (cannot be omitted):
Specify the number of a general-purpose output to be output.
Setting range:1 to 4 (The first argument of parameter [TRBUF])
[Example]
1 TrClr 1
2 *LOOP
3 If M_In(8)=0 Then GoTo *LOOP
4 M1#=M_Enc(1)
5 TrWrt P1, M1#,MK
' Clear tracking data buffer No. 1.
' Jump to *LOOP if input signal No. 8, to which a photoelectronic
sensor is connected, is OFF.
' Acquire data of encoder number 1 at the time when input signal
No. 8 is turned on and store it in M1#.
' Write workpiece position data P1, encoder value M1# at the time
an image is acquired and model number MK in the buffer.
[Explanation]
 Clear information stored in specified tracking buffer (1 to 4).
 Execute this instruction when initializing a tracking program.
19-90
MELFA-BASIC V Instructions
19 Maintenance of robot program
Trk (tracking function)
[Function]
After Trk On is executed, the robot goes into the tracking mode and operates while following the conveyer
operation until Trk Off is executed.
[Format]
Trk  On[,<Measurement position data>[,[<Encoder data>][,[<Reference position data>][,[<Encoder logic
number>] ] ] ] ]
Trk  Off
[Term]
<Measurement position data> (can be omitted):
Specify the workpiece position measured by a sensor.
<Encoder data> (can be omitted):
Specify a value of an encoder installed on a conveyer when a workpiece is measured.
<Reference position data> (can be omitted):
Specify the origin position of position data to be followed during the tracking mode.
If this argument is omitted, the robot follows the conveyer using the position specified by the TrBase
instruction as the origin.
The initial value is PZERO.
<Encoder logic number> (can be omitted):
This is a logic number indicating the external encoder that performs tracking operation.
1 is set when this argument is omitted.
Setting range: 1 to 8
[Example]
1 TrBase P0
2 TrRd P1,M1,MKIND
3 Trk On,P1,M1
4 Mvs P2
5 HClose 1
6 Trk Off
' Specify the workpiece coordinate origin at the teaching position.
' Read the workpiece position data from the data buffer.
' Start tracking of a workpiece whose position measured by a sensor is P1 and
encoder value at that time is M1.
' Setting the current position of P1 as P1c, make the robot operate while following
workpieces with the target position of P1c*P_Zero/P0*P2 (P2 indicates the
workpiece grabbing position).
' Close hand 1.
' End the tracking operation.
[Explanation]
 Specify the position relative to the position data specified by Trk On as show in line 20 of the statement
example for the target position of the movement instruction during tracking operation.
CAUTION
A target position that moves in the tracking is calculated based on the workpiece position
when Trk On.
The H2802 error might occur when a target position doesn't exist in the robot range at
the time of Trk On.
Please execute Trk Off before the movement to the target position when the error occurs.
And, please execute Trk On again.
 “P_Zero/P0” in ”P1c*P_Zero/P0*P2” in [Example] can be replaced with INV(P0).
CAUTION •S/W Ver.R1 or later (SQ series) ,S1 or later (SD series), CR750/CR751 series.
When Hlt command is executed during tracking movement, tracking movement will be
stopped (an equivalent for the Trk Off command) and execution of the program will be
interrupted. In use of the multi-mechanism, tracking movement is stopped to the robot of
the mechanism number got by the GetM command. When you continue tracking
movement by the restart (continuation), please create the program to execute the Trk On
command.
•S/W Ver. before R1 (SQ series), before S1 (SD series)
When Hlt command is executed during tracking movement, execution of the program will
stop, but continue the conveyor tracking movement. When you stop tracking movement,
please execute the Trk Off command before executing Hlt command.
MELFA-BASIC V Instructions
19-91
19 Maintenance of robot program
TrOut (reading tracking output signal and encoder value)
[Function]
Read a tracking output value specified by a general-purpose output and read the value of an external
encoder synchronously with the output.
[Format]
TrOut  <Output number>, <Encoder 1 value read variable> [ , [<Encoder 2 value read variable>]
[ , [<Encoder 3 value read variable>] [ , [<Encoder 4 value read variable>]
[ , [<Encoder 5 value read variable>] [ , [<Encoder 6 value read variable>]
[ , [<Encoder 7 value read variable>] [ , [<Encoder 8 value read variable>] ]]]]]]]
[Term]
<Output number> (cannot be omitted):
Specify the number of a general-purpose output to be output.
<Encoder n value read variable> (can be omitted):
Specify a double-precision value variable in which read values of an external encoder are stored.
Note) n is a value in the range from 1 to 8.
[Example]
1 *LOOP1
2 If M_In(10) <> 1 GoTo *LOOP1 ' Check whether a photoelectronic sensor is activated.
3 TrOut 20, M1# , M2#
' Output from general-purpose output No. 20 and store the value of
external encoder No.1 in M1#, and store the value of external encoder
No.2 in M2# synchronously with the output.
4 *LOOP2
5 If M_In(21) <> 1 GoTo *LOOP2 ‘ Wait until the signal (general-purpose input No.21) which shows
acquiring image from the vision sensor is turned on.
6 M_Out(20)=0
‘ Turn off the No.20 general-purpose output.
[Explanation]
 This instruction is used when triggering the vision sensor that calculates positions of workpieces to be
tracked.
 It is possible to know the position where workpiece images are acquired by obtaining the external
encoder values synchronously with the output.
 The general-purpose output signal specified <Output number> is maintained. Therefore, please turn off
the signal by using the M_Out state ariable when you confirm acquiring of the vision sensor.
19-92
MELFA-BASIC V Instructions
19 Maintenance of robot program
TrRd (reading tracking data)
[Function]
Read position data for tracking operation, encoder data and so on from the data buffer.
[Format]
TrRd  <Position data> [ , <Encoder data>] [ , [<Model number>] [ , [<Buffer number>] [ , <Encoder number>] ] ] ]
[Term]
<Position data> (cannot be omitted):
Specify a variable that contains workpiece positions read from the buffer.
<Encoder data> (can be omitted):
Specify a variable that contains encoder values read from the buffer.
<Model number> (can be omitted):
Specify a variable that contains model numbers read from the buffer.
<Buffer number> (can be omitted):
Specify a number of a buffer from which data is read.
1 is set if the argument is omitted.
Setting range: 1 to 4(The first argument of parameter [TRBUF])
<Encoder number> (can be omitted):
Specify a variable that contains values of external encoder numbers read from the buffer.
[Example]
(1) Tracking operation program
1 TrBase P0
' Specify the workpiece coordinate origin at the teaching position.
2 TrRd P1,M1,MK
' Read the workpiece position data from the data buffer.
3 Trk On,P1,M1
' Start tracking of a workpiece whose measured position is P1 and encoder value
at the time of measurement is M1.
4 Mvs P2
' Setting the current position of P1 as P1c, make the robot operate while following
workpieces with the target position of P1c*P_Zero/P0*PW2.
5 HClose 1
' Close hand 1.
6 Trk Off
' End the tracking operation.
(2) Sensor data reception program
1 *LOOP
2 If M_In(8)=0 Then GoTo *LOOP
3 M1#=M_Enc(1)
4 TrWrt P1, M1#,MK
' Jump to *LOOP if input signal No. 8, to which a
photoelectronic sensor is connected, is OFF.
' Acquire data of encoder number 1 at the time when input
signal No. 8 is turned on and store it in M1#.
' Write workpiece position data P1, encoder value M1# at the
time an image is acquired and model number MK in the buffer.
[Explanation]
 Read the workpiece position (robot coordinates), encoder value, model number and encoder number
stored by the TrWrt instruction from the specified buffer.
 If the TrRd instruction is executed when no data is stored in the specified buffer, Error 2540(There is no
read data) occurs.
MELFA-BASIC V Instructions
19-93
19 Maintenance of robot program
TrWrt (writing tracking data)
[Function]
Write position data for tracking operation, encoder data and so on in the data buffer.
[Format]
TrWrt  <Position data> [ , <Encoder data>] [ , [<Model number>] [ , [<Buffer number>] [ , <Encoder number>] ] ] ]
[Term]
<Position data> (cannot be omitted):
Specify the workpiece position measured by a sensor.
<Encoder data> (can be omitted):
Specify the value of an encoder mounted on a conveyer at the time a workpiece is measured.
The encoder value acquired in the M_Enc() state variable and the TrOut instruction is
specified usually.
<Model number> (can be omitted):
Specify the model number of workpieces.
Setting range: 1 to 65535
<Buffer number> (can be omitted):
Specify a data buffer number.
1 is set if the argument is omitted.
Setting range: 1 to 4(The first argument of parameter [TRBUF])
<Encoder number> (can be omitted):
Specify an external encoder number.
The same number as the buffer number is set if the argument is omitted.
Setting range: 1 to 8
[Example]
(1) Tracking operation program
1 TrBase P0
' Specify the workpiece coordinate origin at the teaching position.
2 TrRd P1,M1,MKIND
' Read the workpiece position data from the data buffer.
3 Trk On,P1,M1
' Start tracking of a workpiece whose measured position is P1 and encoder
value at the time of measurement is M1.
4 Mvs P2
' Setting the current position of P1 as P1c, make the robot operate while
following workpieces with the target position of P1c*P_Zero/P0*PW2.
5 HClose 1
' Close hand 1.
6 Trk Off
' End the tracking operation.
(2) Sensor data reception program
1 *LOOP
2 If M_In(8)=0 Then GoTo *LOOP
3 M1#=M_Enc(1)
4 TrWrt P1, M1#,MK
' Jump to +LOOP if input signal No. 8, to which a
photoelectronic sensor is connected, is OFF.
' Acquire data of encoder number 1 at the time when input
signal No. 8 is turned on and store it in M1#.
' Write workpiece position data P1, encoder value M1# at the
time an image is acquired and model number MK in the buffer.
[Explanation]
 This function stores the workpiece position (robot coordinates) at the time when a sensor recognizes a
workpiece, encoder value, model number and encoder number in the specified buffer.
 Arguments other than the workpiece position (robot coordinates) can be omitted. If any of the arguments
are omitted, the robot operates while following changes of position data.
 Workpieces within the same workpiece judgment distance set in the “TRCWDST” parameter are
regarded as the same workpiece. Even if the data is written twice in the buffer with the TrWrt instruction,
only one data set is stored in the buffer. For this reason, data for one workpiece only is read with the
TrRd instruction even if images of the same workpiece are acquired twice with a vision sensor.
19-94
MELFA-BASIC V Instructions
19 Maintenance of robot program
M_EncL (Latched Encoder data)
[Function]
At the instant of receipt of a TREN signal for Q17EDPX module, a stored encoder data is read.
Also, 0 is written to clear the stored encoder data to zero.
[Format]
Example)<Numeric Variable>=M_EncL[(<logic encoder number>)]
M_EncL[(<logic encoder number>)]=<Constants>
[Terminology]
<Numeric Variable>
--------referencing
--------writing
Specify the numerical variable to substitute.
Available argument type
Integer
○
Variable
○:Available
Numeric value
Real
Double-precision
number
real number
○
○
-:Not available(syntax error at input time)
<logic encoder number> (can be omitted)
Available argument type
Integer
Constants
○
Variable
○
○:Available
<Constants>
○
○
Rounding
Joint
○
(member data)
○
(member data)
Character
string
Error 4220
Specify the value of an logic encoder number
Numeric value
Real
Double-precision
number
real number
Rounding
Position
Position
Joint
○
-
-
○
○
(member data)
○
(member data)
Rounding
Rounding
-:Not available(syntax error at input time)
Character
string
Error 4220
Error 4220
Specify the stored encoder data to initial value(zero or other).
Available argument type
Integer
Numeric value
Real
Double-precision
number
real number
Constants
○
○
○
Variable
○
○
○
○:Available
Joint
Error 4220
○
(member data)
Error 4220
○
(member data)
-:Not available(syntax error at input time)
[Reference Program]
1 MENC1#=M_EncL(1)
2 MENC2#=M_EncL(M1%)
3 TrWrt P1, MEncL(1), MK
4 M_EncL(1)=0
Position
Character
string
Error 4220
Error 4220
At logic encoder number 1, assign encoder data stored at the time of receipt
of a TREN signal to the variable MENC1#.
At a logic encoder number specified in the variable M1%, assign encoder
data stored at the time of receipt of a TREN signal to the variable MENC2#.
Write work position data P1, encoder value M_EncL(1) present at the time of
receipt of a TREN signal and work category number MK onto the buffer 1 for
tracking.
Use latched data to clear the encoder to zero as it is not required until next
latched data is used.
[Explanation]
• Stored encoder value corresponding to the encoder number being specified in <logical encoder number> is
acquired.
Encoder value is stored in memory at a low-to-high or high-to-low transition of TREN signal which has been
specified with a DIP switch on Q17EDPX module.
Encoder value thus acquired is written onto the buffer for tracking by using a TrWr command so as to
perform tracking operations.
MELFA-BASIC V Instructions
19-95
19 Maintenance of robot program
• As encoder value is in double-precision real number, specify <numerical variable> with a variable which is of
double-precision real-number type.
• You can omit the step to specify <logic encoder number> . When it is omitted, logic encoder number will be
treated as "1."
• Number which you can enter to specify <logic encoder number> is an integer in the range of "1" to "8."
Entering anything else causes L3110 (Out-of-range Argument) error to occur.
* If a number having a decimal part is entered, the fraction of 0.5 or over will be counted as one and the rest
will be cut away.
• As latched encoder data represents a value present at a low-to-high or high-to-low transition of TREN signal,
you should check input corresponding to input number in 810 to 817 range which has been assigned to
TREN signal when reading it out.
• You can clear the encoder to zero by typing "0" after having used latched encoder data. This step may be
performed as a precaution against using previously latched data.
19-96
MELFA-BASIC V Instructions
19 Maintenance of robot program
19.2. Timing Diagram of Dedicated Input/Output Signals
19.2.1. Robot Program Start Processing
The signal timing when a robot program is started from an external device is shown below.
PLC
Robot
①
Turning servo ON
(SRVON)
Servo ON
(SRVON)
Program selectable
(SLOTINIT)
Program reset
(SLOTINIT)
Operating
(START)
Start
(START)
Stop
(STOP)
②
③
④
H
L
H
L
H
L
H
L
H
L
H
L
H
L
 PLC sets “servo ON H” when it detects “turning servo ON L.” The robot turns the servo power supply on
and sets “turning servo ON H.” PLC acknowledges “turning servo ON H” and sets “servo ON L.”
 PLC sets “program reset H” upon receiving “program selectable L.” The robot returns to the beginning of
the program and sets “program selectable H” when the program becomes ready to be started. PLC sets
“program reset L” when it detects “program selectable H.”
 PLC acknowledges “turning servo ON H,” “program selectable H” and “operating L” and sets “start H.”
The robot sets “program selectable L” and “operating H” when it detects “start H.” PLC confirms
“operating H” and sets “start L.”
 If a stop signal is input, the following processing is performed.
Upon receiving “stop H” from PLC, the robot sets “operating L.”
Timing Diagram of Dedicated Input/Output Signals
19-97
20 Troubleshooting
20. Troubleshooting
This section explains causes of error occurrence and actions to be taken.
20.1. Occurrence of Error Numbers in the Range from 9000 to 9999
This section describes causes of errors that may occur while starting a program and how to handle them.
Error
number
9100
Table 20−1 List of Errors in Sample Programs
Error description
Communication
error
9101
Encoder number out
of range
9102
Model number out of
range
9110
Position accuracy
out of range
9199
Program error
20-98
Causes and actions
[Causes]
The network vision sensor and the robot cannot be connected by the
“C1” program or the robot cannot log on the vision sensor.
[Actions]
1) Check the Ethernet cable which connects the robot with the network
vision sensor.
[Causes]
The encoder number specified in “A1” program to “C1” program is ”0”
or ”9” or larger.
[Actions]
1) Check the X coordinate of the position variable ”PE” in the programs.
[Causes]
The model number specified in “C1” program is ”0” or ”10” or larger.
[Actions]
1) Check the X coordinate of the position variable “PRM1” in “C1”
program.
2) If there are more than 11 models, change “MWKMAX=10” line in
“C1” program.
[Causes]
The workpiece position calculated by operations in “A1” program to “C1”
program is very different from the theoretical value.
The example is shown in (*1).
[Actions]
1) Check the X and Y coordinates of the position variable ”PVTR” in
“CM1” program. These values represent the difference from the
theoretical value.
2) If the difference stored in “PVTR” is large, run “A1” program to “C1”
program again.
3) Please add the value of positional variable “PCHK" in the 'CM1'
program when the hand offsets from time when the calibration was
executed and add the amount of the offset.
4) Check that the X and Y coordinates of the position variable ”PCHK”
in “CM1” program are not ”0.” If they are ”0,” change the difference
from the theoretical value to an allowable value.
[Causes]
A return value cannot be created by the *S50WKPOS function of “1”
program.
[Actions]
1) Check the reason why “MY50STS” of the *S50WKPOS function in “1”
program does not change from”0”.
Occurrence of Error Numbers in the Range from 9000 to 9999
20 Troubleshooting
(*1) About the factor that the L9110 error occurs
Positional variable “PVTR" in ‘CM1’ program is calculated based on the setting of the A1-C1 program.
The calculation result is a difference between the position of [+] mark set with the vision sensor and the position
taught by the 'C1' program.
And, the L9110 error occurs when the difference exceeds the numerical value specified for positional variable
“PCHK".
Therefore, there is a possibility that the L9110 error occurs in the following cases.
[a] The position taught by the 'C1' program shifts to [+] mark specified with the vision sensor.
For instance, when the vision sensor output the triangular top, ● sign was taught in the 'C1' program.
In this case, the difference is recognized as a gap.
[b] There is a difference to the flange and each hand of the robot in the gap for the multi hand.
The calibration executed by using the 'B1' program, the calibration treatment device is used.
It is installed in the flange of the robot. The position that the vision sensor outputs becomes the flange
position of the robot.
However, when teaching by the 'C1' program, the gap is caused there to use and to teach the hand.
[c] In the setting of 'A1' - 'C1' program, some mistakes are found.
“P_EncDlt()" (the amount of the movement of the robot per a pulse) in the 'A1' program is an unexpected
value.
Or, in the 'B1' program, the direction of three points specified by the calibration was different or it was
the inputting error of coordinates.
Occurrence of Error Numbers in the Range from 9000 to 9999
20-99
20 Troubleshooting
20.2. Occurrence of Other Errors
Error
number
L2500
Table 20−2 List of Tracking relation Errors
Error description
Tracking encoder
data error
Causes and actions
[Causes]
The data of the tracking encoder is abnormal.
(The amount of the change is 1.9 times or more.)
[Actions]
1) Check the conveyor rotates at the fixed velocity.
2) Check the connection of the encoder.
3) Check the earth of the earth wire.
[Causes]
Tracking parameter[EXCRGMN] and [EXCRGMX] Setting value
reverses
[Actions]
1) Check the value of [ENCRGMX] and [ENCRGMN] parameters.
[Causes]
The set value is outside the range parameter [TRBUF]. The first
argument is 1 to 8, and the second argument is 1 to 64.
[Actions]
1) Check the value of [TRBUF] parameter.
[Causes]
The data of the size or more of the buffer in which the TrWrt command
was continuously set to the second argument of parameter [TRBUF]
was written.
[Actions]
1) Check the execution count of the TrWrt command is correct.
2) Check the value of the second argument of parameter [TRBUF] is
correct.
3) Check that the X and Y coordinates of the position variable ”PCHK”
in “CM1” program are not ”0.” If they are ”0,” change the difference
from the theoretical value to an allowable value.
[Causes]
The TrRd command was executed in state the data is not written in
tracking buffer.
[Actions]
1) Execute the TrRd command after confirming whether the buffer has
the data with the state variable [M_Trbfct].
2) Confirm whether the buffer number specified by the buffer number
specified in TrWrt Mende and the TrRd command is in agreement.
[Causes]
The value set as the parameter [EXTENC] is outside the range. The
ranges are 1-8.
[Actions]
Please confirm the value set to Parameter [EXTENC].
Please confirm whether the Q173DPX unit is installed in the slot
specified for parameter "ENCUNITn" (n=1-3).
Please confirm whether slot 0-2 of a basic base is not specified by
setting the parameter.
Please confirm whether the setting of "Management CPU" that exists in
"I/O unit and intelligent function unit details setting" of the parameter of
the sequencer and specification of parameter "ENCUNITn" (n=1-3) are
corresponding. There is a possibility Q173DPX is not robot CPU
management.
[Causes]
Q173DPX is installed in slot 0-2 of a basic base.
[Actions]
Slot 0-2 of the basic base is basically only for CPU. Please install
Q173DPX since slot3.
L2510
Tracking parameter
reverses
L2520
Tracking parameter is
range over
L2530
There is no area
where data is written
L2540
There is no read data
L2560
Illegal parameter of
Tracking
L2570
Installation slot error.
20-100
Occurrence of Other Errors
20 Troubleshooting
Error
number
L3982
L6632
Error description
Cannot be used
(singular point)
Input TREN signal
cannot be written
Causes and actions
[Causes]
1) This robot does not correspond to the singular point function
2) Cmp command is executed
3) A synchronous addition axis control is effective
4) Tracking mode is effective
5) Pre-fetch execution is effective
6) This robot is a setting of the multi mechanism
7) ColChk On command is executed
[Actions]
1) Check the argument of Type specification
2) Invalidate a compliance mode (execute Cmp Off)
3) Invalidate a synchronous addition axis control
4) Invalidate a tracking mode (execute Trk Off)
5) Invalidate a pre-fetch execution
6) Do not use the function of passage singular point
7) Invalidate a collision detection (execute ColChk Off)
[Causes]
During the actual signal input mode, external output signal 810 to 817
(TREN signal) cannot be written.
[Actions]
1) Use an real input signal (TREN signal)
Please refer to separate manual “Troubleshooting”.
Occurrence of Other Errors
20-101
20 Troubleshooting
20.3. In such a case (improvement example)
Explain the improvement example, when building the tracking system using the sample robot program.
20.3.1. The adsorption position shifts.
When the place that shifts from the specified adsorption position has been adsorbed, the cause is
investigated according to the following procedures.
start
Check the
position gap
The position
doesn't shift.
Adjustment completion
The position shifts.
【confirmation 1】
Confirm whether neither the
encoder nor the conveyer slip.
Check the
Slip of enc
slip
Fix the encoder
Not slip
【confirmation 2】
Check whether to recognize the
image center correctly.
Check the
vision
Recognition is
defective.
Change the setting of
the vision sensor.
correctly recognizes
【confirmation 3】
Check whether the calibration is
correct.
Check
the
calibration
Not correct
Do the work of the ‘B1’
program again.
correct
1
20-102
In such a case (improvement example)
20 Troubleshooting
1
【confirmation 4】
Check the case where work at the
center of view is recognized.
Confirm of
gap tendency
The gap is
irregular.
The gap is
constant.
Do the work of the ‘A1’
program again.
Do the work of the ‘C1’
program again.
The position shifts
when the speed of
the conveyer is fast.
start
The position
doesn't shift.
Check the
shifts
【confirmation 5】
Adjust taking picture with the
timing of the encoder input.
The position
doesn't shift.
Check the
shifts
The gap is
constant.
Adjustment completion
Adjustment completion
The gap is
constant.
【confirmation 6】
Adjustment by parameter "TRADJ1"
start
【confirmation 7】
Adjustment by parameter
"TRPACL" and "TRPDCL"
End
【confirmation 1】
1) Stop the conveyer.
2) Confirm the disk installed in the rotary encoder has come in contact with the conveyer.
3) Confirm whether the disk installed in the encoder rotates when the conveyer is made to work.
【confirmation 2】
1) Stop the conveyer.
2) Put workpiece on the center of the vision view.
3) In In-Sight Explorer(EasyBuilder), click the “Set Up Image” from the “Application Steps”. And, set
"Calibration Type" displayed in the lower right of the screen to "None".
4) Confirm workpiece is recognized by starting the job, and the recognition result (pixel level) is
correct.
(example)
When the center of view is recognized, the result of (320,240) is displayed when pixels are
640×480 vision sensors.
5) Arrange workpieces on four corners.
6) Confirm whether the workpieces put on four corners of the image is recognized similar and
correctly.
In such a case (improvement example)
20-103
20 Troubleshooting
【confirmation 3】
1) Stop the conveyer.
2) Put workpiece on the center of the vision view.
3) In In-Sight Explorer(EasyBuilder), click the “Set Up Image” from the “Application Steps”.
Set "Calibration Type" displayed in the lower right of the screen to "Import".
Specify the file that exported when the calibration is done to "File Name".
4) Confirm workpiece is recognized by starting the job, and the recognition result (robot coordinate)
is correct.
(example)
(+0, +0) is displayed as a recognition result when assuming that the robot coordinates are set as
follows when the calibration is done by using the calibration seat, and using a ○ sign in four
corners.
(the first point xy) (the second point xy)(the third point xy)(the fourth point xy)
= (+100,+100), (+100,-100), (-100,+100), and (-100,-100)
5) Arrange workpieces on four corners.
6) Confirm whether the workpieces put on four corners of the image is recognized similar and
correctly.
The recognition result becomes (+100,+100), (+100,-100), (-100,+100), and (-100,-100).
1)
2)
3)
4)
5)
6)
7)
【confirmation 4】
Stop the conveyer.
Put workpiece on the center of the vision view.
Change X coordinates of PDLY1 in ‘1’ program to a big value like the “10" second etc.
Start ‘1’ program, and start the conveyer in low-speed.
Stop the conveyer because it keeps following during the “10" second in the place where the robot
moved to the adsorption position. And, stop ‘1’ program.
Confirm whether the position in which the robot adsorbs workpiece is correct.
Confirm the tendency to a positional gap repeating this work several times.
【confirmation 5】
Stop the conveyer.
Start the ‘1’ program, and start the conveyer in the speed that you want.
Flow workpiece.
Stop the conveyer because it keeps following during the “10" second in the place where the robot
moved to the adsorption position. And, stop ‘1’ program.
5) Confirm the position in which the robot adsorbs workpiece.
1)
2)
3)
4)
<The position shifts in shape to adsorb the rear side of work >
Please adjust < delay time of NvTrg command used because of the 'CM1' program >.
Please adjust the encoder value specified by the TrWrt command as < delay time > “0" when
the adjustment by < delay time of NvTrg command > is difficult.
For instance, the 'CM1' program is changed as follows and the numerical value (for instance,
following “500") is adjusted.
MENCDATA#=MTR1#+500
TrWrt PRW, MENCDATA#, MWKNO,1,MENCNO
【confirmation 6】
1) Change parameter "TRADJ1", and adjust a positional gap.
【confirmation 7】
1) Change parameter "TRPACL" and "TRPDCL" to make the follow speed of the tracking fast.
Note it though the load factor of each axis of the robot goes up.
Confirm the state of the load of each axis by "Load factor monitor" of RT ToolBox2.
20-104
In such a case (improvement example)
20 Troubleshooting
20.3.2. Make adsorption and release of the work speedy
In the tracking system, adsorption confirmation of the work may be unnecessary. In that case,
processing of adsorption and release can be made speedy by the following methods.
(1)Adjust adsorption time and release time.
Adjust the adjustment variable "PDLY1", and the value of X coordinates of "PDLY2" of the
program 1. Refer to "Table 16−1 List of Adjustment Variables in Programs" for the adjustment
method.
20.3.3. Make movement of the robot speedy.
Adjust the following setting to make movement of the robot speedy.
(1)Adjust the acceleration and the deceleration time for the tracking by using the parameter.
Acceleration and the deceleration of the follow operation can be done fast by reducing the
value of each element of parameter "TRPACL" and "TRPDCL".
(example)
For the robot of the RH type (X,Y,Z,A,B,C) = (0.2, 0.2, 1.0, 1.0, 1.0, 1.0) : X and Y are
changed.
For the robot of the RV type (X,Y,Z,A,B,C) = (0.2, 0.2, 0.2, 1.0, 1.0, 1.0) : X, Y, and Z are
changed.
(2)Adjustment of the optimal acceleration-and-deceleration setting
Set mass, size, and center of gravity of the hand installed in the robot as the parameter
"HNDDAT1." And, set mass, size, and center of gravity of the work as the parameter
"WRKDAT1."
By this setting, the robot can move with the optimal acceleration and deceleration and speed.
Refer to "Table 11−2 List of Operation Parameter" for setting method.
(3)Adjustment of carrying height
By making low distance at adsorption and release of robot, the moving distance decreases and
motion time can be shortened as a result. Refer to the adjustment variable of "PUP1"and
"PUP2" in the "Table 16−1 List of Adjustment Variables in Programs" for change of rise distance.
20.3.4. The robot is too speedy and drops the work.
Since the robot's acceleration and deceleration are speedy, drop the work, adjustment is necessary.
Refer to the adjustment variable of 「PAC1」 to「PAC3」 and 「PAC11」 to 「PAC13」 in the "Table
16−1 List of Adjustment Variables in Programs" for the adjustment method of the acceleration and
deceleration.
In such a case (improvement example)
20-105
20 Troubleshooting
20.3.5. Restore backup data to another controller
The status variable "P_EncDlt" is not saved in the backup data from tracking system robot
controller.
To generate the value of "P_EncDlt", execute the "P_EncDlt(MENCNO) =PY10ENC" command of
"Program A" by step forward. (Moving distance per one pulse)
20.3.6. Circle movement in tracking.
Screw fastening and decoration on the work, etc are available in the tracking system. Here, explain
the example which draws the circle on the basis of the adsorption position.
<Conditions>
*The adsorption position taught by Program C is the starting point of the circle.
*The offset from the adsorption position of pass and end position of circle decided as follows.
POF1=(+50,+50,0,0,0,0,0,0)(0,0)......Relative distance to pass position from adsorption
position.
POF2=(0,+100,0,0,0,0,0,0)(0,0)........Relative distance to end position from adsorption position
*Create PGT1 (pass point) and PGT2 (end point) from the relative distance.
*Use the Mvr command (circle command) and move on the circle of PGT->PGT1 ->PGT2.
The example of program change of the above <conditions> is shown in the following.
81
82
83
84
85
20-106
Before sample program change
Trk On,PBPOS,MBENC#,PTBASE・・・
Mov PGT,PUP1.Y Type 0,0
Accel PAC2.X,PAC2.Y
Mvs PGT
HClose 1
In such a case (improvement example)
81
82
83
84
85
86
87
88
89
90
After sample program change
Trk On,PBPOS,MBENC#,PTBASE・・・
Mov PGT,PUP1.Y Type 0,0
POF1=(+50,+50,0,0,0,0,0,0)(0,0) '
POF2=(0,+100,0,0,0,0,0,0)(0,0) '
PGT1=PGT*POF1 'Pass position
PGT2=PGT*POF2 'End position
Accel PAC2.X,PAC2.Y
Mvs PGT
Mvr PGT,PGT1,PGT2 ' Circle movement
HClose 1
20 Troubleshooting
20.3.7. Draw the square while doing the tracking.
Here, explain the example which draws the outline of the following square workpiece on the basis
of the adsorption position.
Position of TrBase(P0)
Position to follow(PB)
Position to follow(PA)
Position to follow(PC)
The robot traces the outline of workpiece clockwise based on the position specified that the
following programs are executed by the TrBase instruction.
1 TrBase P0
2 TrRd P1,M1,MKIND
3 Trk On,P1,M1
' Specify the workpiece coordinate origin at the teaching position.
' Read the workpiece position data from the data buffer.
' Start tracking of a workpiece whose position measured by a sensor is
P1 and encoder value at that time is M1.
4 Cnt 0
5 Mov P0, +20 ← Please specify -20 for RV robot though RH(SCARA) robot is +20.
6 Mvs P0
7 Mvs PA
8 Mvs PB
9 Mvs PC
10 Mvs PC, +20 ← Please specify -20 for RV robot though RH(SCARA) robot is +20.
11 Trk Off
' End the tracking operation.
In such a case (improvement example)
20-107
21 Appendix
21. Appendix
This appendix provides a list of parameters related to tracking and describes Expansion serial interface
connector pin assignment as well as sample programs for conveyer tracking and vision tracking.
21.1. List of Parameters Related to Tracking
Parameter
Tracking buffer
Table 21−1 List of Parameters Related to Tracking
Number
Setting value
Parameter
of
Description
at factory
name
elements
shipment
TRBUF
2
,
64
2 integers Number of tracking buffers and their sizes (KB)
<Buffer number>
Specify the number of buffers where the tracking
data is stored.
Mainly the tracking data for each conveyors is
saved at the buffer. Change the set value, when the
conveyor for tracking is increased.
However, if the value is enlarged, the memory area
where the tracking data is saved will be secured. Be
careful because the program number which can be
saved decreases.
Setting range: 1 to 8
<Buffer size>
Specify the size in which the tracking data is
preserved.
Change this element when there is larger tracking
data saved by TrWrt command than reading by
TrRd command.
Be careful because the memory is secured like the
above-mentioned [Buffer number].
Minimum external ENCRGMN
encoder value
Maximum
external encoder
value
ENCRGMX
Tracking buffer
TRBUF
21-108
Setting range: 1 to 200
8 integers The minimum external encoder data value (pulse)
0,0,0,0,0,0,0,0
The range of the encoder value which can be
acquired in state variable “M_Enc"
(minimum value side)
8 integers The maximum external encoder data value (pulse)
The range of the encoder value which can be
acquired in state variable “M_Enc"
(maximum value side)
2 integers Number of tracking buffers and their sizes (KB)
<Buffer number>
Specify the number of buffers where the tracking
data is stored.
Setting range: 1 to 8
<Buffer size>
Specify the size in which the tracking data is
preserved.
Setting range: 1 to 64
List of Parameters Related to Tracking
100000000,
100000000,
100000000,
100000000,
100000000,
100000000,
100000000,
100000000
4 , 64
21 Appendix
Parameter
Parameter
name
Tracking
adjustment
coefficient 1
TRADJ1
Tracking
acceleration
TRPACL
Tracking
deceleration
TRPDCL
Number
of
elements
8 real
numbers
(X,Y,Z,
A,B,C,
L1,L2)
Description
Tracking adjustment coefficient 1
Set the amount of delay converted to the conveyer
speed. Convert to 100 mm/s.
Example)
 If the delay is 2 mm when the conveyer speed is
50 mm/s:
Setting value = 4.0 (2 / 50 * 100)
 If the advance is 1 mm when the conveyer speed
is 50 mm/s:
Setting value = -2.0 (-1 / 50 * 100)
8 real
Tracking acceleration.
numbers Acceleration during execution of tracking
(X,Y,Z, movement.
A,B,C,
L1,L2)
8 real
Tracking deceleration.
numbers Deceleration during execution of tracking
(X,Y,Z, movement.
A,B,C,
L1,L2)
Setting value
at factory
shipment
0.00, 0.00,
0.00, 0.00,
0.00, 0.00,
0.00, 0.00
1.0, 1.0, 1.0,
1.0, 1.0, 1.0,
1.0, 1.0
1.0, 1.0, 1.0,
1.0, 1.0, 1.0,
1.0, 1.0
List of Parameters Related to Tracking
21-109
21 Appendix
21.2. Shine of changing parameter
When the tracking function is used, the parameter need to be changed depens on operation phase. List of the
parameter is shown as follow.
List
21-2 List of the user shine of changing parameter
Model
No.
1
2
Operation phase
Power on
Setting orgin
JOG operation
Attach option
Connection with
peripherals
3
CR750-Q
CR751-Q
CRnQ-700
CR750-D
CR751-D
CRnD-700
Parameter
name
Example
-
-
-
-
●
-
ENCUNIT1
ENCUNIT2
ENCUNIT3
0, 5
-1, 0
-1, 0
●
●
TRMODE
1
EXTENC
1, 2,
3, 1,
2, 3,
1, 2
In case of robot
programming
4
21-110
●
Shine of changing parameter
●
Explanation
It is set to have installed
Q173DPX unit into 5 I/O slot
of the base unit.
By setting it, incremental three
encoders connected with
Q173DPX unit are recognized
physical encoder number 1 to 3.
It makes tracking function valid.
By being valid, incremental
encoder value can be got.
About EXTENC, because
initial value is 1,2,1,2,1,2,1,2,
physical encoder number 1 and
2 are allocated to logic
encoder(physical encoder
number3) number 1 to 8. At this
time, the encoder connected
with CH3 of Q173DPX unit is
not allocated to logic encoder
number. So by changing this
parameter to 1,2,3,1,2,3,1,2, the
encoder of CH3 is allocated to
logic encoder number 3 and 6.
Also it is possible in following
case. 3 pcs encoder are
connected with Q173DPX unit
and attach each encoder to
conveyer 1 to 3. If conveyer1
connect to encoder3, conveyer
3 connect to encoder 1, it is not
effective to change encoder, so
by changing this parameter to
3,2,1,3,2,1,1,2, encoder
attached with conveyer 1
becomes logic encoder1.
21 Appendix
Model
No.
Operation phase
In case of system
debag
5
CR750-Q
CR751-Q
CRnQ-700
CR750-D
CR751-D
CRnD-700
Parameter
name
●
●
TRCWDST
20.0
In case of system
debug
Example
6
●
●
TRADJ1
+0.00,
+4.00,
+0.00,
+0.00,
+0.00,
+0.00,
+0.00,
+0.00,
+0.00
7
●
●
TRBUF
3, 100
Explanation
In case of vision tracking, if
there is a workpiece not
recognized well by vision
sensor, it might reply over one
recognition results to one
workpiece. In this case, it makes
possible to get only one
recognition result excluding the
results with the distance which
is shorter than the distance set
by this parameter. For example,
it is recognized that 3 vision
sensors exist for 1 workpieces.
This one workpiece is got and
another 2 workpieces are not
got because the distance of
result is shorter than it set
20mm.
It is possible to adjust the gap
by using this parameter when
this gap is caused every time
in the same direction when the
tracking operates.
For example, the speed of
conveyer is 50mm/s and there is
+2mm gap (+Y direction)
+2mm,
Set value = 4.0 (2 / 50 * 100 )
+4.0 is set to the second
element that shows Y
coordinates.
When three kinds of workpieces
flow respectively on the three
conveyers for one robot
controller, three tracking buffers
where workpiece information is
preserved are needed. In this
case, the first element of this
parameter is changed to three.
Moreover, when TrWrt
command is frequently executed
and TrRd command is slow,
workpiece information collects in
the tracking buffer. Because the
error occurs when 64
workpieces information or more
on an initial value collects, it is
necessary to increase the
number in which work
information is preserved. Then,
the second element of this
parameter is changed to 100.
Shine of changing parameter
21-111
21 Appendix
Model
No.
8
Operation phase
Others
9
21-112
CR750-Q
CR751-Q
CRnQ-700
CR750-D
CR751-D
CRnD-700
Parameter
name
●
●
ENCRGMN
●
●
ENCRGMX
Shine of changing parameter
Example
Explanation
0,0,0,0,
0,0,0,0
100000000,
100000000,
100000000,
100000000,
100000000,
100000000,
100000000,
100000000
This parameter is a parameter
that sets the range of the value
of state variable M_Enc.
M_Enc becomes the range of
0-100000000, and next to
100000000, it becomes 0
encoder rotates in case of an
initial value.
Though this range is changed
by this parameter, tracking
sample program is made on the
assumption that it is used within
this range, so do not change this
parameter.
21 Appendix
21.3. Expansion serial interface Connector Pin Assignment
(CR750-D/CR751-D, CRnD-700 series controller)
“Figure 21−1 Connector Arrangement” shows the connector arrangement and “Table 21−3 Connectors:
CNENC/CNUSR Pin Assignment” shows pin assignment of each connector.
CNUSR2(CR750-D/CR751-D)
Encoder
25
1
50
CNENC(CRnD-700)
Encoder x 2CH
10B
10A
1B
1A
26
Connector: CNUSR2
CNUSR11/12/13(CR750-D)
Encoder
Connector: CNENC
1
16
Connector: CNUSR11/12/13
Figure 21−1 Connector Arrangement
Expansion serial interface Connector Pin Assignment
21-113
21 Appendix
CRnD-700
controller
(CNENC)
1A
2A
3A
4A
5A
6A
7A
8A
9A
10A
1B
2B
3B
4B
5B
6B
7B
8B
9B
10B
21-114
Table 21−3 Connectors: CNENC/CNUSR Pin Assignment
Pin NO.
Connector name – Pin name Signal
Explanation
Input/output
name
CR751-D
CR750-D
controller
controller
Control power supply 0 V
CNUSR1-28
CNUSR11-6
SG
GND
+ terminal of differential encoder
CNUSR1-21
CNUSR13-3 LAH1
Input
A-phase signal
+ terminal of differential encoder
CNUSR1-22
CNUSR13-5 LBH1
Input
B-phase signal
+ terminal of differential encoder
CNUSR1-23
CNUSR13-8 LZH1
Input
Z-phase signal
Control power supply 0 V
CNUSR1-33
CNUSR12-6
SG
GND
+ terminal of differential encoder
CNUSR2-21
CNUSR2-21 LAH2
Input
A-phase signal
+ terminal of differential encoder
CNUSR2-22
CNUSR2-22 LBH2
Input
B-phase signal
+ terminal of differential encoder
CNUSR2-23
CNUSR2-23 LAH2
Input
Z-phase signal
Empty
−
Empty
−
Control power supply 0 V
CNUSR2-15
CNUSR2-15
SG
GND
- terminal of differential encoder
CNUSR1-46
CNUSR13-4
LAL1
Input
A-phase signal
- terminal of differential encoder
CNUSR1-47
CNUSR13-6
Input
LBL1
B-phase signal
- terminal of differential encoder
CNUSR1-48 CNUSR13-10 LZL1
Input
Z-phase signal
Control power supply 0 V
CNUSR2-40
CNUSR2-40
SG
GND
- terminal of differential encoder
CNUSR2-46
CNUSR2-46
LAL2
Input
A-phase signal
- terminal of differential encoder
CNUSR2-47
CNUSR2-47
Input
LBL2
B-phase signal
- terminal of differential encoder
CNUSR2-48
CNUSR2-48
Input
LZL2
Z-phase signal
Empty
−
Empty
−
Expansion serial interface Connector Pin Assignment
Remark
CH1
CH2
CH1
CH2
21 Appendix
21.4. Chart of sample program
The chart of the sample program is shown below.
21.4.1. Conveyer tracking
(1) A1.prg
A1.prg
Start
Check
encoder number
out of
range
Error output
(9101)
inside of range
Acquire encoder data
(first time)
Acquire the current
position (first time)
Acquire encoder data
(second time)
Acquire the current
position (second time)
P_ENCDLT
calculation
processing
Store caluculation data
in P_ENCDLT
A1.prg
End
Chart of sample program
21-115
21 Appendix
(2) C1.prg
C1.prg
Start
Check the
model number
inside of
range
Check the
encorder number
inside of
range
Ten time loop
Clear the global
variable data
Acquire encoder data
( first time)
Acquire the workpiece
suction position
Acquire encoder data
(second time)
Store the acquiring
data in a global
variable
C1.prg
End
21-116
Chart of sample program
out of
range
out of
range
Error output
(9102)
Error output
(9103)
21 Appendix
(3) CM1.prg
CM1.prg
Start
Processing for acquiring
required data
<Data acquisition>
Start
The data acquired with program
A.prg and C.prg is acquired.
Calculate the workpiece
position (X,Y) when the sensor
is activated
Workpiece position writing
processing
<Data acquisition>
End
CM1.prg
End
<Position data writing>
Start
Check the
photoelectronic sensor
OFF
ON
Acquire the encoder number
Write data to
the tracking buffer
Check the
photoelectronic sensor
ON
OFF
<Position data writing>
End
Chart of sample program
21-117
21 Appendix
(4) 1.prg
1.prg
Start
Origin return
<Origin return>
Start
<Initialization>
Start
Servo ON
Set the acceleration
and deceleration
to 100%
Acquire the
current position
Set the ovrd to 100%
Initialization
Current height <
Origin heighe
Yes
Tracked workpiece takeout
Workpiece placing
Set the ovrd to 10%
Move to the
escape position
No
Turning optimal
acceleration/
deceleration ON
Turning continuous
movrment control OFF
Clear the Generalpurpose output
Open the hand
Set the ovrd to 100%
Clear the data in the
tracking buffer
1.prg
End
Move to the
Origin position
<Origin return>
End
Acquire the model
number set
by program C
Does task 2 start?
No
Start program CM1
by slot 2.
Set the priority of
each slot.
<Initialization>
End
21-118
Chart of sample program
Yes
21 Appendix
<Tracked workpiece takeout>
Start
<Workpiece placing>
Start
Move to over the
placement position
If a workpiece exists
Yes
No
Set the ACC and DCC
Move to the
placement position
Move to the escape position
Turn suction OFF
Read data from the
tracking buffer
Set the ACC and DCC
Move to over the
placement position
Transportation data setting
Set the ACC and DCC
to 100%
Acquire the
current workpiece position
<Workpiece placing>
End
Workpiece position
confirmation
Wait(1)
1
Wait flag?
Position of workpiece?
Already passed(3)
Inside the area(2)
Set the ACC and DCC
0
Move to workpiece wait
posture PWAIT
<Transportation data setting>
Start
Tracking base setting
Suction position setting
Turn on the
interrupt watch.
Tracking operation start
Wait flag=1
Move to over the
tracking position
Set the ACC and DCC
Move to a suction
position
Turn suction ON
adsorbtion confirmation
Interrupt definition
Turning continuous
movrment control ON
<Transportation data setting>
End
Set the ACC and DCC
Move to over the
suction position
Tracking operation end
Turn off the
interrupt watch.
Set the ACC and DCC
to 100%
Wait flag=0
<Tracked workpiece takeout>
End
Chart of sample program
21-119
21 Appendix
<Transportation data setting>
Start
Conveyer position
pattern?
Front1
right and left 1
Front 2
Set turning on interrupt
when the workpiece
pass more than the
Setting distance.
Set turning on interrupt
when the workpiece
pass more than the
Setting distance.
Set turning on interrupt
when the workpiece
pass more than the
Setting distance.
right and left 2
Set turning on interrupt
when the workpiece
pass more than the
Setting distance.
<Transportation data setting>
End
<Workpiece position confirmation>
Start
Conveyer position
pattern?
Front1
1
Front 2
right and left 1
1
1
<Workpiece position confirmation>
End
right and left 2
1
1
Is the position of workpiece
good at tracking?
Yes
Inside the area(2)
No
Is the workpiece
this side of range?
Yes
No
Did workpiece
pass in range?
Wait(1)
Yes
No
Is the position of
workpiece good at tracking?
No
Error output
(9199)
1
21-120
Chart of sample program
<For RH-3S*HR>
when passing over
the singular point
neighborhood. (3)
Yes
Already passed(3)
21 Appendix
21.4.2.
Vision Tracking
(1) A1.prg
The same program as the conveyer tracking.
(2) B1.prg
B1.prg
Start
Check the
encorder number
out of
range
Error output
(910 )
inside of range
Acquire encoder data
(first time)
Acquire encoder data
(second time)
Calculate the difference of the
encoder value.
B1.prg
End
Chart of sample program
21-121
21 Appendix
(3) C.prg
C1.prg
Start
Set information corresponding
to the made vision program.
Acquire the model number and
the encoder number set
by program C.
Close communication line
Open communication line and
log on
Execute the vision program and
acquire data of one
recognized workpiece
Acquire the current
encoder data(first time)
Close communication line
Acquire the current
encoder data(second time)
Acquire the
current position
Calculate the amount of
encoder movement
C1.prg
End
21-122
Chart of sample program
21 Appendix
(4) CM1.prg
CM1.prg
Start
<Data acquisition>
Start
<Opening communication>
Start
Data acquisition
Acquire the data acquired
in program A, B, and C
Close communication line
<Data acquisition>
End
Open communication line
and log on
Vision sensor initialization
Load the vision program
<Condition setting>
Start
<Opening communication>
End
Condition setting
Calculation of imaging start
setting value
Set the timing in which
the image is acquired
<Condition setting>
End
Opening communication
<Vision sensor initialization>
Start
Vision sensor
recognition check
CM1.prg
End
Calculate the robot origin when
the vision sensor recognizes
workpieces
Calculate the amount of conveyer
movement from vision sensor
recognition to workpiece teaching
Calculate theworkpiece position
recognized by the vision sensor
into the robot area
Calculate the vectors specifying the
center of gravity of the vision sensor
and grabbing position
Is the calculated
workpiece a range of
the forecast?
No
Error output
(9101)
Yes
<Vision sensor initialization>
End
Chart of sample program
21-123
21 Appendix
<Vision sensor recognition check>
Start
Calculate the difference
between last time and the
current encoder value.
Is the timing in which the
image is acquired now?
Yes
No
Imaging request +
encoder value acquisition
Is the vision sensor
logged on?
No
Error output
(9100)
Yes
Acquire information of the
workpiece that the vision sensor
recognized.
0 pieces
How many are the number
of recognized
workpieces?
Excluding 0 pieces
Preserve each element of the
recognition data in the array
variable.
<Tracking data storage processing>
Start
Tracking data storage
processing
Calculate coordinates of
workpiece in the robot
coordinate system.
<Vision sensor recognition check>
End
Conveyer position
pattern?
front 1
Write the data
in the buffer.
front 2
Write the data
in the buffer.
left 1
Write the data
in the buffer.
left 2
Write the data
in the buffer.
<Tracking data storage processing>
End
(5) 1.prg
The same program as the conveyer tracking.
21-124
Chart of sample program
right 1
Write the data
in the buffer.
right 2
Write the data
in the buffer.
21 Appendix
21.5. Sample Programs
21.5.1. Conveyer Tracking
(1) A1.Prg
1 '## Ver.A3 ######################################
2 '# Program for calibration between tracking robot and conveyer
3 '# Program type : A1.prg
4 '# Date of creation/version : 2012.07.31 A3
5 '# COPYRIGHT : MITSUBISHI ELECTRIC CORPORATION.
6 '################################################
7 '(1) Register an encoder number to the X coordinate of the "PE" variable/
8 'Check the setting value
9 MECMAX=8
'The maximum encoder number value (for checking)
10 If PE.X<1 Or PE.X>MECMAX Then Error 9101 'Encoder number out of range
11 MENCNO=PE.X
'Acquire the encoder number
12 '(2) Attach a marking sticker on the conveyer upstream side/
13 '(3) Move the robot to the position right at the center of the attached sticker/
14 MX10EC1#=M_Enc(MENCNO)
'Acquire encoder data (first time)
15 PX10PS1=P_Zero
'Set all elements to ZERO
16 PX10PS1=P_Fbc(1)
'Acquire the current position (first time)
17 '(4) Raise the robot/
18 '(5) Move the sticker in the forward direction of the conveyer/
19 '(6) Move the robot to the position right at the center of the moved sticker/
20 MX10EC2#=M_Enc(MENCNO)
'Acquire encoder data (second time)
21 PX10PS2=P_Zero
'Set all elements to ZERO
22 PX10PS2=P_Fbc(1)
'Acquire the current position (second time)
23 '(7) Raise the robot/
24 '(8) Perform step operation until END/
25 GoSub *S10ENC
'P_ENCDLT calculation processing
26 P_EncDlt(MENCNO)=PY10ENC
'Store data in P_ENCDLT
27 End
28 '
29 '##### Processing for obtaining P_ENCDLT #####
30
'MX10EC1: Encoder data 1
31
'MX10EC2: Encoder data 2
32
'PX10PS1: Position 1
33
'PX10PS2: Position 2
34
'PY10ENC: P_ENCDLT value
35 *S10ENC
36 M10ED#=MX10EC2#-MX10EC1#
37 If M10ED#>800000000.0# Then M10ED#=M10ED#-1000000000.0#
38 If M10ED#<-800000000.0# Then M10ED#=M10ED#+1000000000.0#
39 PY10ENC.X=(PX10PS2.X-PX10PS1.X)/M10ED#
40 PY10ENC.Y=(PX10PS2.Y-PX10PS1.Y)/M10ED#
41 PY10ENC.Z=(PX10PS2.Z-PX10PS1.Z)/M10ED#
42 PY10ENC.A=(PX10PS2.A-PX10PS1.A)/M10ED#
43 PY10ENC.B=(PX10PS2.B-PX10PS1.B)/M10ED#
44 PY10ENC.C=(PX10PS2.C-PX10PS1.C)/M10ED#
45 PY10ENC.L1=(PX10PS2.L1-PX10PS1.L1)/M10ED#
46 PY10ENC.L2=(PX10PS2.L2-PX10PS1.L2)/M10ED#
47 Return
48 '
49 'This program “computes how much a robot moves per 1 pulse and stores the result in P_ENCDLT."
PE=(+1.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PX10PS1=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PX10PS2=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PY10ENC=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
Sample Programs
21-125
21 Appendix
(2) C1.Prg
1 '## Ver.A3 ##########################################
2 '# Conveyer tracking, workpiece suction position registration program
3 '# Program type : C1.prg
4 '# Date of creation/version : 2012.07.31 A3
5 '# COPYRIGHT : MITSUBISHI ELECTRIC CORPORATION.
6 '####################################################
7 '(1) Register a model number in the X coordinate of the "PRM1" variable/
8 '(2) Register an encoder number in the Y coordinate of the "PRM1" variable/
9 '(3) Register the number of the sensor that monitors workpieces in the Z coordinate of the "PRM1"
variable /
10 'Check the conditions set in the "PRM1" variable
11
MWKMAX=10
'The maximum model number value (for
checking)
12
MECMAX=8
'The maximum encoder number value (for
checking)
13 MWKNO=PRM1.X
'Acquire a model number
14 MENCNO=PRM1.Y
'Acquire an encoder number
15 If MWKNO<1 Or MWKNO>MWKMAX Then Error 9102 'Model number out of range
16 If MENCNO<1 Or MENCNO>MECMAX Then Error 9101 'Encoder number out of range
17 For M1=1 To 10
'Clear the information
18
P_100(M1)=P_Zero
'A variable that stores workpiece positions
19
P_102(M1)=P_Zero
'A variable that stores operation conditions
20
M_101#(M1)=0
'A variable that stores encoder value differences
21 Next M1
22 '(4) Move a workpiece to the position where the photoelectronic sensor is activated/
23 ME1#=M_Enc(MENCNO)
'Acquire encoder data (first time)
24 '(5) Move a workpiece on the conveyer into the robot operation area/
25 '(6) Move the robot to the suction position/
26 ME2#=M_Enc(MENCNO)
'Acquire encoder data (second time)
27
P_100(MWKNO)=P_Fbc(1)
'Acquire the workpiece suction position
(current position)
28 '(7) Perform step operation until END/
29 MED#=ME2#-ME1#
'Calculate the difference of the encoder value.
30 If MED# > 800000000.0# Then MED# = MED#-1000000000.0#
31 If MED# < -800000000.0# Then MED# = MED#+1000000000.0#
32 '
33 M_101#(MWKNO)=MED#
'Store the amount of encoder movement in
a global variable
34 P_102(MWKNO).X=PRM1.Y
'Store encoder numbers in a global variable
35 P_102(MWKNO).Y=PRM1.Z
'Store the sensor number in a global variable
36 End
37 '
38 'This program is "the relation between the position at which the sensor is reacted and the position at
which
39 'the robot absorbs workpieces.
PRM1=(+1.00,+1.00,+810.00,+0.00,+0.00,+0.00,+0.00,+0.00)(,)
21-126
Sample Programs
21 Appendix
(3) 1.Prg
1 '### Ver.A3 #################################
2 '# Conveyer tracking, robot operation program
3 '# Program type : 1.prg
4 '# Date of creation/version : 2012.07.31 A3
5 '# MITSUBISHI ELECTRIC CORPORATION.
6 '############################################
7'
8 '### Main processing ###
9 *S00MAIN
10 GoSub *S90HOME
'Origin return processing
11 GoSub *S10INIT
'Initialization processing
12 *LOOP
13 GoSub *S20TRGET
'Tracked workpiece takeout processing
14 GoSub *S30WKPUT
'Workpiece placing processing
15 GoTo *LOOP
16 End
17 '
18 '### Initialization processing ###
19 *S10INIT
20 '/// Speed related ///
21 Accel 100,100
'Acceleration/deceleration setting
22 Ovrd 100
'Speed setting
23 Loadset 1,1
'Optimal acceleration/deceleration specification
24 OAdl On
'Turning optimal acceleration/deceleration ON
25 Cnt 0
26 Clr 1
27 HOpen 1
28 '/// Initial value setting ///
29 TrClr 1
'Clear tracking buffer 1
30 MWAIT1=0
'Clear workpiece wait flag 1
31 '/// Multitask startup ///
32 M_09#=PWK.X
'Model number specification
33 If M_Run(2)=0 Then
'Confirmation of conveyer 1 multitasking
34
XRun 2,"CM1",1
'Multitasking setting
35
Wait M_Run(2)=1
36 EndIf
37 Priority PRI.X,1
38 Priority PRI.Y,2
39 Return
40 '
41 '### Tracked workpiece takeout processing ###
42 *S20TRGET
43 '/// Tracking buffer check ///
44 *LBFCHK
45 If M_Trbfct(1)>=1 Then GoTo *LREAD
'If a workpiece exists
46 Mov P1
'Move to the pull-off location
47 MWAIT1=0
48 GoTo *LBFCHK
49 '/// Workpiece data acquisition ///
50 *LREAD
51 TrRd PBPOS,MBENC#,MBWK%,1,MBENCNO%
'Read data from the tracking buffer
52 GoSub *S40DTSET
'Transportation data setting
53 '/// Workpiece position confirmation ///
54 *LNEXT
55 PX50CUR=TrWcur(MBENCNO%,PBPOS,MBENC#)
'Acquire the current workpiece position
56 MX50ST=PRNG.X
'Start distance of the range where the robot can
follow a workpiece
Sample Programs
21-127
21 Appendix
57 MX50ED=PRNG.Y
'End distance of the range where the robot can
follow a workpiece
58 MX50PAT=PTN.X
'Conveyer position pattern number
59 GoSub *S50WKPOS
'Workpiece position confirmation processing
60 If MY50STS=3 Then GoTo *LBFCHK
'Already passed. Go to the next workpiece
61 If MY50STS=2 Then GoTo *LTRST
'Operable: start tracking
62 If MWAIT=1 Then GoTo *LNEXT
'Wait for incoming workpieces
63 '/// To standby position ///
64 PWAIT=P1
'Change to workpiece wait posture
65 Select PTN.X
'Conveyer position pattern number
66 Case 1 To 2
'When the conveyer is the front of the robot
67
PWAIT.X=PX50CUR.X
'X coordinates of the robot are matched to
workpiece.
68 Case 3 To 6
69
PWAIT.Y=PX50CUR.Y
'Y coordinates of the robot are matched to
workpiece.
70 End Select
71 PWAIT.Z=PX50CUR.Z+PUP1.X
72 PWAIT.C=PX50CUR.C
73 Mov PWAIT
'Move to workpiece wait posture PWAIT
74 MWAIT1=1
'Set workpiece wait flag
75 GoTo *LNEXT
76 '/// Start tracking operation ///
77 *LTRST
78 Accel PAC1.X,PAC1.Y
79 Cnt 1,0,0
80 Act 1=1
'Monitor the robot following workpieces too far
81 Trk On,PBPOS,MBENC#,PTBASE,MBENCNO%
'Tracking operation start setting
82 Mov PGT,PUP1.Y Type 0,0
'Move to tracking midair position
83 Accel PAC2.X,PAC2.Y
84 Mov PGT Type 0,0
'Move to a suction position
85 GoSub *S85CLOSE
'Turn suction ON
86 MX80ENA=PHND.X
'Check instruction
87 MX80SIG=PHND.Y
'Check signal number
88 MX80SEC=PDLY1.X
'Check second number(s)
89 GoSub *S80CWON
'adsorbtion confirmation
90 Cnt 1
91 Accel PAC3.X,PAC3.Y
92 Mov PGT,PUP1.Z Type 0,0
'Move to tracking midair position
93 Trk Off
'Tracking operation end setting
94 Act 1=0
95 Accel 100,100
96 MWAIT = 0
97 Return
98 '
99 '### Workpiece placing processing ###
100 *S30WKPUT
101 Accel PAC11.X,PAC11.Y
102 Mov PPT,PUP2.Y
'Move to over the placement position
103 Accel PAC12.X,PAC12.Y
104 Cnt 1,0,0
105 Mov PPT Type 0,0
'Move to the placement position
106 GoSub *S86OPEN
'Turn suction OFF
107 MX81ENA=PHND.X
'Check instruction
108 MX81SIG=PHND.Z
'Check signal number
109 MX81SEC=PDLY2.X
'Check second number(s)
110 GoSub *S81CWOFF
'Release confirmation
111 Cnt 1
112 Accel PAC13.X,PAC13.Y
113 Mov PPT,PUP2.Z Type 0,0
'Move to over the placement position
21-128
Sample Programs
21 Appendix
114 Accel 100,100
115 Return
116 '
117 '### Transportation data setting processing ###
118 *S40DTSET
119 PTBASE=P_100(PWK.X)
'Create reference position
120 TrBase PTBASE,MBENCNO%
'Tracking base setting
121 PGT=PTBASE*POFSET
'Suction position setting
122 GoSub *S46ACSET
'Interrupt definition
123 Return
124 '
125 '### Interrupt definition processing 1 ###
126 *S46ACSET
127 Select PTN.X
'Conveyer position pattern number
128 Case 1 'Front right -> left
129
MSTP1=PRNG.Z
'Following stop distance
130
Def Act 1,P_Fbc(1).Y>MSTP1 GoTo *S91STOP 'To *S91STOP if followed far long
131
Break
132 Case 2 'Front left -> right
133
MSTP1=-PRNG.Z
134
Def Act 1,P_Fbc(1).Y<MSTP1 GoTo *S91STOP
135
Break
136 Case 3 'Left side rear -> front
137 Case 5 'Right side rear -> front
138
MSTP1=PRNG.Z
139
Def Act 1,P_Fbc(1).X>MSTP1 GoTo *S91STOP
140
Break
141 Case 4 'Left side front -> rear
142 Case 6 'Right side front -> rear
143
MSTP1=-PRNG.Z
144
Def Act 1,P_Fbc(1).X<MSTP1 GoTo *S91STOP
145
Break
146 End Select
147 Return
148 '
149 '### Workpiece position confirmation processing ###
150
'PX50CUR:Current workpiece position
151
'MX50ST:Tracking start range
152
'MX50ED:Tracking end range
153
'MX50PAT:Conveyer position pattern number
154
'MY50STS:Result (1: Wait/2: Start tracking/3: Next workpiece)
155 *S50WKPOS
156 MY50STS=0
'Clear return value
157 Select MX50PAT
'Conveyer pattern
158 Case 1 'Front right -> left
159
M50STT=-MX50ST
'The start side has a negative value
160
M50END=MX50ED
161
If PosCq(PX50CUR)=1 And PX50CUR.Y>=M50STT And PX50CUR.Y<=M50END Then
162
MY50STS=2
'Tracking possible
163
Else 'If tracking not possible
164
If PX50CUR.Y<0 Then MY50STS=1
'Wait
165
If PX50CUR.Y>M50END Then MY50STS=3
'Move onto the next workpiece
166
If PosCq(PX50CUR)=0 And PX50CUR.Y>=M50STT And PX50CUR.Y<=M50END Then
MY50STS=3 'Outside the movement range
167
EndIf
168
Break
169 Case 2 'Front left -> right
170
M50STT=MX50ST
171
M50END=-MX50ED
'The end side has a negative value
172
If PosCq(PX50CUR)=1 And PX50CUR.Y<=M50STT And PX50CUR.Y>=M50END Then
Sample Programs
21-129
21 Appendix
173
MY50STS=2
'Tracking possible
174
Else 'If tracking not possible
175
If PX50CUR.Y>0 Then MY50STS=1
'Wait
176
If PX50CUR.Y<0 Then MY50STS=3
'Move onto the next workpiece
177
If PosCq(PX50CUR)=0 And PX50CUR.Y<=M50STT And PX50CUR.Y>=M50END Then
MY50STS=3 'Outside the movement range
178
EndIf
179
Break
180 Case 3 'Left side rear -> front
181 Case 5 'Right side rear -> front
182
M50STT=-MX50ST
'The start side has a negative value
183
M50END=MX50ED
184
If PosCq(PX50CUR)=1 And PX50CUR.X>=M50STT And PX50CUR.X<=M50END Then
185
MY50STS=2
'Tracking possible
186
Else 'If tracking not possible
187
If PX50CUR.X<0 Then MY50STS=1
'Wait
188
If PX50CUR.X>0 Then MY50STS=3
'Move onto the next workpiece
189
If PosCq(PX50CUR)=0 And PX50CUR.X>=M50STT And PX50CUR.X<=M50END Then
MY50STS=3 'Outside the movement range
190
EndIf
191
Break
192 Case 4 'Left side front -> rear
193 Case 6 'Right side front -> rear
194
M50STT=MX50ST
195
M50END=-MX50ED
'The end side has a negative value
196
If PosCq(PX50CUR)=1 And PX50CUR.X<=M50STT And PX50CUR.X>=M50END Then
197
MY50STS=2
'Tracking possible
198
Else 'If tracking not possible
199
If PX50CUR.X>0 Then MY50STS=1
'Wait
200
If PX50CUR.X<0 Then MY50STS=3
'Move onto the next workpiece
201
If PosCq(PX50CUR)=0 And PX50CUR.X<=M50STT And PX50CUR.X>=M50END Then
MY50STS=3 'Outside the movement range
202
EndIf
203
Break
204 End Select
205 If MY50STS=0 Then Error 9199
'Program modification required
206 Return
207 '
208 '### Origin return processing ###
209 *S90HOME
210 Servo On
'Servo ON
211 P90CURR=P_Fbc(1)
'Acquire the current position
212 If P90CURR.Z<P1.Z Then
'If the current height is below the origin
213
Ovrd 10
214
P90ESC=P90CURR
'Create an escape position
215
P90ESC.Z=P1.Z
216
Mvs P90ESC
'Move to the escape position
217
Ovrd 100
218 EndIf
219 Mov P1
'Move to the origin
220 Return
221 '
222 '### Tracking interruption processing ###
223 *S91STOP
224 Act 1=0
225 Trk Off
226 GoSub *S86OPEN
'Release suction
227 P91P=P_Fbc(1)
'Acquire the current position
228 P91P.Z=P1.Z
229 Mvs P91P Type 0,0
'Raise
21-130
Sample Programs
21 Appendix
230 Mov P1
'Return to the origin once
231 GoTo *LBFCHK
232 '
233 '##### Suction of substrates #####
234 *S85CLOSE
235 HClose 1
'Turn suction ON
236 Return
237 '##### Suction/release of substrates #####
238 *S86OPEN
239 HOpen 1
'Turn suction OFF
240 Return
241 '
242 '##### Turning on the signal is waited for #####
243 'MX80ENA:ENABLE/DISABLE of check(1/0)
244 'MX80SIG:Check signal number
245 'MX80SEC:Check second number(S)
246 'MY80SKP:OK/TIMEOUT(1/0)
247 *S80CWON
248 If MX80ENA=1 Then
'If the signal check is ENABLE
249
M_Timer(1)=0
250
MY80SKP=0
251
MX80SEC=MX80SEC * 1000
'Second -> Millisecond
252 *L80LOP
253
If (M_Timer(1)>MX80SEC) Or (MY80SKP<>0) Then *L80END
254
If M_In(MX80SIG)=1 Then MY80SKP=1
'If the signal specified is turned on
255
GoTo *L80LOP
256 Else
'If the signal check is DISABLE
257
Dly MX80SEC
'Wait at the specified check time
258
MY80SKP=1
'OK
259 EndIf
260 *L80END
261 Return
262 '
263 '##### Turning off the signal is waited for #####
264 'MX81ENA:ENABLE/DISABLE of check(1/0)
265 'MX81SIG:Check signal number
266 'MX81SEC:Check second number(S)
267 'MY81SKP:OK/TIMEOUT(1/0)
268 *S81CWOFF
269 If MX81ENA=1 Then
'If the signal check is ENABLE
270
M_Timer(1)=0
271
MY81SKP=0
272
MX81SEC=MX81SEC * 1000
'Second -> Millisecond
273 *L81LOP
274
If (M_Timer(1)>MX81SEC) Or (MY81SKP<>0) Then *L81END
275
If M_In(MX81SIG)=0 Then MY81SKP=1
'If the signal specified is turned off
276
GoTo *L81LOP
277 Else
'If the signal check is DISABLE
278
Dly MX80SEC
'Wait at the specified check time
279
MY81SKP=1 'OK
280 EndIf
281 *L81END
282 Return
PWK=(+1.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PRI=(+1.00,+1.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
P1=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PBPOS=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PX50CUR=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PRNG=(+300.00,+200.00,+400.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PTN=(+1.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
Sample Programs
21-131
21 Appendix
PWAIT=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PUP1=(+50.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PAC1=(+100.00,+100.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PTBASE=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PGT=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PAC2=(+100.00,+100.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PHND=(+0.00,+900.00,+900.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PDLY1=(+1.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PAC3=(+100.00,+100.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PAC11=(+100.00,+100.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PPT=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PUP2=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PAC12=(+100.00,+100.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PDLY2=(+1.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PAC13=(+100.00,+100.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
POFSET=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
P90CURR=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
P90ESC=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
P91P=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
21-132
Sample Programs
21 Appendix
(4) CM1.Prg
1 '## Ver.A3 ####################################
2 '# Conveyer tracking, sensor monitoring program
3 '# Program type : CM1.prg
4 '# Date of creation/version : 2012.07.31 A3
5 '# COPYRIGHT : MITSUBISHI ELECTRIC CORPORATION.
6 '##############################################
7'
8 '##### Main processing #####
9 *S00MAIN
10 GoSub *S10DTGET
'Processing for acquiring required data
11 *LOOP
12 GoSub *S20WRITE
'Workpiece position writing processing
13 GoTo *LOOP
14 End
15 '##### Data acquisition processing #####
16 *S10DTGET
17 'Acquire the suction position, amount of encoder movement and encoder number set with program C
18 MWKNO=M_09#
'Acquire model number
19 M10ED#=M_101#(MWKNO)
'Amount of encoder movement
20 MENCNO=P_102(MWKNO).X
'Encoder number
21 MSNS=P_102(MWKNO).Y
'Sensor number
22 'Calculate the workpiece position (X,Y) when the sensor is activated
23 PWPOS=P_100(MWKNO)-P_EncDlt(MENCNO)*M10ED#
24 Return
25 '##### Position data writing processing #####
26 *S20WRITE
27 If M_In(MSNS)=0 Then GoTo *S20WRITE 'Wait for a workpiece to activate the photoelectronic sensor
CR750-Q/CR751-Q series, CRnQ-700 series controller
28
MENC#=M_EncL(MENCNO)
'Encoder number
CR750-D/CR751-D series, CRnD-700 series controller
28
MENC#=M_Enc(MENCNO)
'Encoder number
29 TrWrt PWPOS,MENC#,MWKNO,1,MENCNO
tracking buffer
30 *L20WAIT
31 If M_In(MSNS)=1 Then GoTo *L20WAIT
32 Return
(Note)
The command is deferent between iQ
Platform controller (CR750-Q/CR751-Q
series, CRnQ-700 series) and stand alone
type controller (CR750-D/CR751-D series,
CRnD-700 series).
In the CR750-Q/CR751-Q series,
CRnQ-700 series series, it is necessary to
use the latch encoder data (M_ENCL)
after confirmation with an input signal.
'Write data (workpiece position and encoder value) to the
Sample Programs
21-133
21 Appendix
21.5.2. Vision Tracking
(1) A1.Prg
The same program as the conveyer tracking.
(2) B1.Prg
1 '### Ver.A3 ##########################################
2 '# Network vision tracking, calibration between robot and vision sensor
3 '# Program type
: B1.prg
4 '# Date of creation : 2012.07.31 A3
5 '# COPYRIGHT : MITSUBISHI ELECTRIC CORPORATION.
6 '#####################################################
7 '(1) Register an encoder number to the X coordinate of the “PE” variable/
8 'Check the setting value
9
MECMAX=8
'The maximum encoder number value (for
checking)
10 If PE.X<1 Or PE.X>MECMAX Then Error 9101 'Encoder number out of range
11 MENCNO=PE.X
'Acquire the encoder number
12 '(2) Place the calibration sheet within the vision sensor recognition area/
13 '(3) Check that the calibration sheet positions are correct by looking at vision images/
14 ME1#=M_Enc(MENCNO)
'Acquire encoder data (first time)
15 '(4) Specify the mark in three points or more by using "Mitsubishi Robot Tool" on "In-Sight Explorer"/
16 '(5) Move the calibration sheet until they are within the robot operation area/
17 '(6) Move the robot hand to the position right at the center of mark 1/
18 '(7) Acquire the robot present position by using "In-Sight Explorer"/
19 '(8) Acquire the position of the robot in three points or more repeating work/
20 '(9) Click the Export button. Then, the calibration data can be made/
21 '(10) Raise the robot arm/
22 ME2#=M_Enc(MENCNO)
'Acquire encoder data (second time)
23 MED#=ME1#-ME2#
'Calculate the difference of the encoder value.
24 If MED# > 800000000.0# Then MED# = MED#-1000000000.0#
25 If MED# < -800000000.0# Then MED# = MED#+1000000000.0#
26 M_100#(MENCNO)=MED#
27 End
PE=(+1.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
21-134
Sample Programs
21 Appendix
(3) C1.Prg
1 '### Ver.A3 #########################################
2 '# Network vision tracking, workpiece suction position registration program
3 '# Program type
: C1.prg
4 '# Date of creation/version : 2012.07.31 A3
5 '# COPYRIGHT : MITSUBISHI ELECTRIC CORPORATION.
6 '####################################################
7 '(1) Store a model number in the X coordinate of the "PRM1" variable/
8 '(2) Store an encoder number in the Y coordinate of the "PRM1" variable/
9 '(3) Check live images and register the length in the movement direction to the X coordinate of the "PRM2"
variable/
10 '(4) Store the workpiece length in the Y coordinate of the "PRM2" variable/
11 '(5) Enter the COM port number to be opened for communication after "CCOM$=" in the following line/
12 CCOM$="COM2:"
'Set the number of the port to be opened
13 '(6) Enter the vision program name after "CPRG$=" in the following line/
14 CPRG$="TRK.JOB"
'Set the vision program name
15 '(7) Place workpieces to be tracked in locations recognizable by the vision sensor/
16 '(8) Place the vision sensor in the "online" status/
17 '(9) When the program stops, open program C1 with T/B/
18 MWKNO=PRM1.X
'Acquire the model number
19 MENCNO=PRM1.Y
'Acquire the encoder number
20 'Establish a communication line with the vision sensor via the opened port
21 NVClose
'Close communication line
22 NVOpen CCOM$ As #1
'Open communication line and log on
23 Wait M_NvOpen(1)=1
'Wait to log on to the vision sensor
24 EBRead #1,"",MNUM,PVS1,PVS2,PVS3,PVS4 'Acquire data of one recognized workpiece
25 P_101(MWKNO)=PVS1
'Acquire data of the first recognized workpiece
26 ME1#=M_Enc(MENCNO)
'Acquire encoder data 1
27 NVClose #1
28 Hlt
29 '(10) Move a workpiece on the conveyer until it gets within the robot operation area/
30 '(11) Move the robot to the suction position/
31 ME2#=M_Enc(MENCNO)
'Acquire encoder data 2
32 P_100(MWKNO)=P_Fbc(1)
'Acquire position 1
33 '(12) Perform step operation until END/
34 MED#=ME2#-ME1#
'Calculate the amount of encoder movement
35 If MED# > 800000000.0# Then MED# = MED#-1000000000.0#
36 If MED# < -800000000.0# Then MED# = MED#+1000000000.0#
37 M_101#(MWKNO)=MED#
'Amount of encoder movement
38 P_102(MWKNO)=PRM1
'Encoder number
39 P_103(MWKNO)=PRM2
'Image size and workpiece size
40 C_100$(MWKNO)=CCOM$
'COM port number
41 C_101$(MWKNO)=CPRG$
'Vision program name
42 End
43 '
44 'This program is "the relation between the workpiece position recognized by the network vision sensor and
45 ' the position at which the robot suctions workpieces.
PRM1=(+1.00,+1.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PVS1=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PVS2=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PVS3=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PVS4=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PRM2=(+170.00,+30.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
Sample Programs
21-135
21 Appendix
(4) 1.Prg
The same program as the conveyer tracking.
(5) CM1.Prg
1 '### Ver.A3 ###################################
2 '# Conveyer tracking, communication processing between robot and vision sensor
3 '# Program type
: VS communication program
4 '# Date of creation/version : 2012.07.31 A3
5 '# COPYRIGHT : MITSUBISHI ELECTRIC CORPORATION.
6 '##############################################
7 Dim MX(4),MY(4),MT(4),PVS(4)
'X/Y/C/buffer
8'
9 '##### Main processing #####
10 *S00MAIN
11 GoSub *S10DTGET
'Data acquisition processing
12 GoSub *S20VSINI
'VS initialization processing
13 GoSub *S30CONST
'Condition setting
14 '
15 MEP# = M_Enc(MENCNO)+MEI#+100
16 GoSub *S70VOPEN
'Vision sensor line open + vision program load processing
17 *L00_00
18 GoSub *S40CHKS
'VS recognition check processing
19 GoTo *L00_00
20 End
21 '
22 '##### Data acquisition processing #####
23 *S10DTGET
24 MWKNO=M_09#
'Model number
25 MENCNO=P_102(MWKNO).Y
'Encoder number
26 MVSL=P_103(MWKNO).X
'VS screen size longitudinal distance
27 MWKL=P_103(MWKNO).Y
'Workpiece size longitudinal distance
28 '
29 PTEACH=P_100(MWKNO)
'Position taught to the robot
30 PVSWRK=P_101(MWKNO)
'Position recognized by VS
31 CCOM$=C_100$(MWKNO)
'COM port number
32 CPRG$=C_101$(MWKNO)
'Vision program name
33 Return
34 '
35 '##### Opening communication line #####
36 *S70VOPEN
37 NVClose
'Close communication line
38 NVOpen CCOM$ As #1
'Open communication line and log on
39 Wait M_NvOpen(1)=1
'Wait for line connection
40 NVLoad #1,CPRG$
'Load the vision program
41 Return
42 '
43 '##### VS initialization processing #####
44 *S20VSINI
45 'Move from the robot coordinate axis (P_ZERO position) to the robot origin when the vision sensor
recognizes workpieces
46 MED1#=M_100#(MENCNO)
'Amount of conveyer movement at calibration between
vision sensor and robot
47
PRBORG=P_EncDlt(MENCNO)*MED1#
'Robot origin when the vision sensor recognizes
workpieces
48 'Return a workpiece recognized by the vision sensor to the position taught to the robot
49
MED2#=M_101#(MWKNO)
'Amount of conveyer movement from vision sensor
recognition to workpiece teaching
50 PBACK=P_EncDlt(MENCNO)*MED2#
51 'Calculate the position of the workpiece that the vision sensor in the robot area recognized.
52
PWKPOS=PRBORG+PVSWRK+PBACK
'Workpiece position recognized by the vision
21-136
Sample Programs
21 Appendix
sensor into the robot area
53 PVTR=(P_Zero/PWKPOS)*PTEACH
'Vectors specifying the center of gravity of the vision
sensor and grabbing position
54 If PVTR.X<-PCHK.X Or PVTR.X>PCHK.X Then Error 9110 'The calculation result is greatly different
from the theory value.
55 If PVTR.Y<-PCHK.Y Or PVTR.Y>PCHK.Y Then Error 9110
56 Return
57 '
58 '##### Condition setting #####
59 *S30CONST
60 MDX = P_EncDlt(MENCNO).X
'Amount of movement per pulse (X)
61 MDY = P_EncDlt(MENCNO).Y
'Amount of movement per pulse (Y)
62 MDZ = P_EncDlt(MENCNO).Z
'Amount of movement per pulse (Z)
63 MD = Sqr(MDX^2+MDY^2+MDZ^2)
'Calculation of the amount of movement per pulse
64 MEI#=Abs((MVSL-MWKL)/MD)
'Calculation of imaging start setting value
65 Return
66 '
67 '##### VS recognition check processing #####
68 *S40CHKS
69 *LVSCMD
70 *LWAIT
71 MEC# = M_Enc(MENCNO)
72
MEM#=MEC#-MEP#
'Subtract the previous encoder pulse value from the
current position of the encoder
73 If MEM# > 800000000.0# Then MEM# = MEM#-1000000000.0#
74 If MEM# < -800000000.0# Then MEM# = MEM#+1000000000.0#
75 If Abs(MEM#) > MEI# GoTo *LVSTRG
'Comparison between the amount of encoder movement
and the camera startup setting value
76 Dly 0.01
77 GoTo *LWAIT
78 *LVSTRG
79
MEP#=MEC#
'Set the encoder pulse current position to the previous
value
80
NVTrg #1, 5, MTR1#,MTR2#,MTR3#,MTR4#,MTR5#,MTR6#,MTR7#,MTR8# 'Imaging request +
encoder value acquisition
81 'Acquisition of recognition data
82 If M_NvOpen(1)<>1 Then Error 9100
'Communication error
83 EBRead #1,"",MNUM,PVS(1),PVS(2),PVS(3),PVS(4) 'Imaging request
84 If MNUM=0 Then GoTo *LVSCMD
'If no workpieces are recognized
85 If MNUM>4 Then MNUM=4
'Set the maximum number (4)
86 For M1=1 To MNUM
'Repeat for the number of workpieces recognized
87
MX(M1)=PVS(M1).X
'Data acquisition
88
MY(M1)=PVS(M1).Y
89
MT(M1)=PVS(M1).C
90 Next M1
91 GoSub *S60WRDAT
'Tracking data storage processing
92 Return
93 '
94 '##### Tracking data storage processing #####
95 *S60WRDAT
96
For M1=1 To MNUM
'Perform processing for the number of workpieces
recognized
97
PSW=P_Zero
98
PSW=PRBORG
'Virtually move the robot close to the vision sensor
99
PSW.X=PSW.X+MX(M1)
'Create the grabbing position
100
PSW.Y=PSW.Y+MY(M1)
101
PSW.C=PSW.C+MT(M1)
102
PRW=P_Zero
103
PRW=PSW*PVTR
'Compensate for the error in the calculation value
104
PRW.FL1=P_100(MWKNO).FL1
105
PRW.FL2=P_100(MWKNO).FL2
106
Select MENCNO
107
Case 1
108
TrWrt PRW, MTR1#, MWKNO,1,MENCNO 'Position, encoder value, model number, buffer number,
encoder number
Sample Programs
21-137
21 Appendix
109
Break
110
Case 2
111
TrWrt PRW, MTR2#, MWKNO,1,MENCNO 'Position, encoder value, model number, buffer number,
encoder number
112
Break
113
Case 3
114
TrWrt PRW, MTR3#, MWKNO,1,MENCNO 'Position, encoder value, model number, buffer number,
encoder number
115
Break
116
Case 4
117
TrWrt PRW, MTR4#, MWKNO,1,MENCNO 'Position, encoder value, model number, buffer number,
encoder number
118
Break
119
Case 5
120
TrWrt PRW, MTR5#, MWKNO,1,MENCNO 'Position, encoder value, model number, buffer number,
encoder number
121
Break
122
Case 6
123
TrWrt PRW, MTR6#, MWKNO,1,MENCNO 'Position, encoder value, model number, buffer number,
encoder number
124
Break
125
Case 7
126
TrWrt PRW, MTR7#, MWKNO,1,MENCNO 'Position, encoder value, model number, buffer number,
encoder number
127
Break
128
Case 8
129
TrWrt PRW, MTR8#, MWKNO,1,MENCNO 'Position, encoder value, model number, buffer number,
encoder number
130
Break
131
End Select
132 Next M1
133 Return
PVS(1)=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PVS(2)=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PVS(3)=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PVS(4)=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PTEACH=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PVSWRK=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PRBORG=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PBACK=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PWKPOS=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PVTR=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PCHK=(+100.00,+100.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PSW=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
PRW=(+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00,+0.00)(0,0)
21-138
Sample Programs
21 Appendix
21.5.3. For RH-3S*HR
(1) 1.Prg
1 '### Ver.A3 #################################
2 '# Conveyer tracking, robot operation program(for RH-3SDHR)
3 '# Program type : 1.prg
4 '# Date of creation/version : 2012.07.31 A3
5 '# MITSUBISHI ELECTRIC CORPORATION.
6 '############################################
7'
8 '### Main processing ###
9 *S00MAIN
10 GoSub *S90HOME
'Origin return processing
11 GoSub *S10INIT
'Initialization processing
12 *LOOP
13 GoSub *S20TRGET
'Tracked workpiece takeout processing
14 GoSub *S30WKPUT
'Workpiece placing processing
15 GoTo *LOOP
16 End
17 '
18 '### Initialization processing ###
19 *S10INIT
20 '/// Speed related ///
21 Accel 100,100
'Acceleration/deceleration setting
22 Ovrd 100
'Speed setting
23 Loadset 1,1
'Optimal acceleration/deceleration specification
24 OAdl On
'Turning optimal acceleration/deceleration ON
25 Cnt 0
26 Clr 1
27 HOpen 1
28 '/// Initial value setting ///
29 TrClr 1
'Clear tracking buffer 1
30 MWAIT1=0
'Clear workpiece wait flag 1
31 '/// The processing to singular point of RH-3S*HR ///
32 MTUPPOS=P3HR.X
'Move time to midair position(measurement time that the slowest
J1 axis rotated from -225 to 225 degrees)
33 MTWKPOS=1000 * PUP1.Y / P3HR.Y 'Move time to suction position(calculation from speed and move
amount of J3)
34 MTWKUP=1000 * PUP1.Z / P3HR.Y 'Move time to midair position(calculation from speed and move
amount of J3)
35 MTRSTT=MTUPPOS
'Move time to midair position
36 MTREND=MTUPPOS + MTWKPOS + (PDLY1.X * 1000) + MTWKUP 'Necessary time for tracking before
it passes over singular point
37 '/// The processing to singular point of RH-3S*HR ///
38 '/// Multitask startup ///
39 M_09#=PWK.X
'Model number specification
40 If M_Run(2)=0 Then
'Confirmation of conveyer 1 multitasking
41
XRun 2,"CM1",1
'Multitasking setting
42
Wait M_Run(2)=1
43 EndIf
44 Priority PRI.X,1
45 Priority PRI.Y,2
46 Return
47 '
48 '### Tracked workpiece takeout processing ###
49 *S20TRGET
50 '/// Tracking buffer check ///
51 *LBFCHK
52 If M_Trbfct(1)>=1 Then GoTo *LREAD
'If a workpiece exists
53 Mov P1
'Move to the pull-off location
54 MWAIT1=0
Sample Programs
21-139
21 Appendix
55 GoTo *LBFCHK
56 '/// Workpiece data acquisition ///
57 *LREAD
58 TrRd PBPOS,MBENC#,MBWK%,1,MBENCNO%
'Read data from the tracking buffer
59 GoSub *S40DTSET
'Transportation data setting
60 '/// Workpiece position confirmation ///
61 *LNEXT
62 PX50CUR=TrWcur(MBENCNO%,PBPOS,MBENC#)
'Acquire the current workpiece position
63 MX50ST=PRNG.X
'Start distance of the range where the robot can
follow a workpiece
64
MX50ED=PRNG.Y
'End distance of the range where the robot can
follow a workpiece
65 MX50PAT=PTN.X
'Conveyer position pattern number
66 GoSub *S50WKPOS
'Workpiece position confirmation processing
67 If MY50STS=3 Then GoTo *LBFCHK
'Already passed. Go to the next workpiece
68 If MY50STS=2 Then GoTo *LTRST
'Operable: start tracking
69 If MWAIT=1 Then GoTo *LNEXT
'Wait for incoming workpieces
70 '/// To standby position ///
71 PWAIT=P1
'Change to workpiece wait posture
72 Select PTN.X
'Conveyer position pattern number
73 Case 1 To 2
'When the conveyer is the front of the robot
74
PWAIT.X=PX50CUR.X
'X coordinates of the robot are matched to
workpiece.
75 Case 3 To 6
76
PWAIT.Y=PX50CUR.Y
'Y coordinates of the robot are matched to
workpiece.
77 End Select
78 PWAIT.Z=PX50CUR.Z+PUP1.X
79 PWAIT.C=PX50CUR.C
80 Mov PWAIT
'Move to workpiece wait posture PWAIT
81 MWAIT1=1
'Set workpiece wait flag
82 GoTo *LNEXT
83 '/// Start tracking operation ///
84 *LTRST
85 Accel PAC1.X,PAC1.Y
86 Cnt 1,0,0
87 Act 1=1
'Monitor the robot following workpieces too far
88 Trk On,PBPOS,MBENC#,PTBASE,MBENCNO%
'Tracking operation start setting
89 Mov PGT,PUP1.Y Type 0,0
'Move to tracking midair position
90 Accel PAC2.X,PAC2.Y
91 Mov PGT Type 0,0
'Move to a suction position
92 GoSub *S85CLOSE
'Turn suction ON
93 MX80ENA=PHND.X
'Check instruction
94 MX80SIG=PHND.Y
'Check signal number
95 MX80SEC=PDLY1.X
'Check second number(s)
96 GoSub *S80CWON
'adsorbtion confirmation
97 Cnt 1
98 Accel PAC3.X,PAC3.Y
99 Mov PGT,PUP1.Z Type 0,0
'Move to tracking midair position
100 Trk Off
'Tracking operation end setting
101 Act 1=0
102 Accel 100,100
103 MWAIT = 0
104 Return
105 '
106 '### Workpiece placing processing ###
107 *S30WKPUT
108 Accel PAC11.X,PAC11.Y
109 Mov PPT,PUP2.Y
'Move to over the placement position
110 Accel PAC12.X,PAC12.Y
111 Cnt 1,0,0
112 Mov PPT Type 0,0
'Move to the placement position
113 GoSub *S86OPEN
'Turn suction OFF
114 MX81ENA=PHND.X
'Check instruction
115 MX81SIG=PHND.Z
'Check signal number
21-140
Sample Programs
21 Appendix
116 MX81SEC=PDLY2.X
'Check second number(s)
117 GoSub *S81CWOFF
'Release confirmation
118 Cnt 1
119 Accel PAC13.X,PAC13.Y
120 Mov PPT,PUP2.Z Type 0,0
'Move to over the placement position
121 Accel 100,100
122 Return
123 '
124 '### Transportation data setting processing ###
125 *S40DTSET
126 PTBASE=P_100(PWK.X)
'Create reference position
127 TrBase PTBASE,MBENCNO%
'Tracking base setting
128 PGT=PTBASE*POFSET
'Suction position setting
129 GoSub *S46ACSET
'Interrupt definition
130 Return
131 '
132 '### Interrupt definition processing 1 ###
133 *S46ACSET
134 Select PTN.X
'Conveyer position pattern number
135 Case 1 'Front right -> left
136
MSTP1=PRNG.Z
'Following stop distance
137
Def Act 1,P_Fbc(1).Y>MSTP1 GoTo *S91STOP 'To *S91STOP if followed far long
138
Break
139 Case 2 'Front left -> right
140
MSTP1=-PRNG.Z
141
Def Act 1,P_Fbc(1).Y<MSTP1 GoTo *S91STOP
142
Break
143 Case 3 'Left side rear -> front
144 Case 5 'Right side rear -> front
145
MSTP1=PRNG.Z
146
Def Act 1,P_Fbc(1).X>MSTP1 GoTo *S91STOP
147
Break
148 Case 4 'Left side front -> rear
149 Case 6 'Right side front -> rear
150
MSTP1=-PRNG.Z
151
Def Act 1,P_Fbc(1).X<MSTP1 GoTo *S91STOP
152
Break
153 End Select
154 Return
155 '
156 '### Workpiece position confirmation processing ###
157
'PX50CUR:Current workpiece position
158
'MX50ST:Tracking start range
159
'MX50ED:Tracking end range
160
'MX50PAT:Conveyer position pattern number
161
'MY50STS:Result (1: Wait/2: Start tracking/3: Next workpiece)
162 *S50WKPOS
163 MY50STS=0
'Clear return value
164 '/// The processing to singular point of RH-3S*HR ///
165 P50FWCUR=PX50CUR * Inv(P_Tool) 'Position of workpiece in flange
166 PTRST=P_Zero
167 PTRED=P_Zero
168 '/// The processing to singular point of RH-3S*HR ///
169 Select MX50PAT
'Conveyer pattern
170 Case 1 'Front right -> left
171
M50STT=-MX50ST
'The start side has a negative value
172
M50END=MX50ED
173
If PosCq(PX50CUR)=1 And PX50CUR.Y>=M50STT And PX50CUR.Y<=M50END Then
174
MY50STS=2
'Tracking possible
175 '/// The processing to singular point of RH-3S*HR ///
176
PTRST.Y = P_CvSpd(MBENCNO%).Y * MTRSTT / 1000
177
PTRST = PTRST + P50FWCUR
'Position when beginning to follow as for
workpiece.
178
PTRED.Y = P_CvSpd(MBENCNO%).Y * MTREND / 1000
179
PTRED = PTRED + P50FWCUR
'Position when having finished following
Sample Programs
21-141
21 Appendix
as for workpiece.
180
If (PTRST.X > -P3HR.Z And PTRST.X < P3HR.Z) Then 'case the singular point area
181
If (PTRST.Y < -P3HR.Z And PTRED.Y < -P3HR.Z) Then MY50STS=2 'The position of the work
peace is OK from the singular point if previous.
182
If (PTRED.Y > -P3HR.Z And PTRED.Y < P3HR.Z) Then MY50STS=3 'If the tracking end
position is singular point neighborhood, it is NG.
183
If (PTRST.Y > -P3HR.Z And PTRST.Y < P3HR.Z) Then MY50STS=3 'If the tracking start
position is singular point neighborhood, it is NG.
184
If (PTRST.Y > P3HR.Z And PTRED.Y > P3HR.Z) Then MY50STS=3 'It is NG if passing over
the singular point.
185
EndIf
186 '/// The processing to singular point of RH-3S*HR ///
187
Else 'If tracking not possible
188
If PX50CUR.Y<0 Then MY50STS=1
'Wait
189
If PX50CUR.Y>M50END Then MY50STS=3
'Move onto the next workpiece
190
If PosCq(PX50CUR)=0 And PX50CUR.Y>=M50STT And PX50CUR.Y<=M50END Then
MY50STS=3 'Outside the movement range
191
EndIf
192
Break
193 Case 2 'Front left -> right
194
M50STT=MX50ST
195
M50END=-MX50ED
'The end side has a negative value
196
If PosCq(PX50CUR)=1 And PX50CUR.Y<=M50STT And PX50CUR.Y>=M50END Then
197
MY50STS=2
'Tracking possible
198 '/// The processing to singular point of RH-3S*HR ///
199
PTRST.Y = P_CvSpd(MBENCNO%).Y * MTRSTT / 1000
200
PTRST = PTRST + P50FWCUR
'Position when beginning to follow as for
workpiece.
201
PTRED.Y = P_CvSpd(MBENCNO%).Y * MTREND / 1000
202
PTRED = PTRED + P50FWCUR
'Position when having finished following
as for workpiece.
203
If (PTRST.X > -P3HR.Z And PTRST.X < P3HR.Z) Then 'case the singular point area
204
If (PTRST.Y > P3HR.Z And PTRED.Y > P3HR.Z) Then MY50STS=2 'The position of the work
peace is OK from the singular point if previous.
205
If (PTRED.Y > -P3HR.Z And PTRED.Y < P3HR.Z) Then MY50STS=3 'If the tracking end
position is singular point neighborhood, it is NG.
206
If (PTRST.Y > -P3HR.Z And PTRST.Y < P3HR.Z) Then MY50STS=3 'If the tracking start
position is singular point neighborhood, it is NG.
207
If (PTRST.Y < -P3HR.Z And PTRED.Y < -P3HR.Z) Then MY50STS=3 'It is NG if passing over
the singular point.
208
EndIf
209 '/// The processing to singular point of RH-3S*HR ///
210
Else 'If tracking not possible
211
If PX50CUR.Y>0 Then MY50STS=1
'Wait
212
If PX50CUR.Y<0 Then MY50STS=3
'Move onto the next workpiece
213
If PosCq(PX50CUR)=0 And PX50CUR.Y<=M50STT And PX50CUR.Y>=M50END Then
MY50STS=3 'Outside the movement range
214
EndIf
215
Break
216 Case 3 'Left side rear -> front
217 Case 5 'Right side rear -> front
218
M50STT=-MX50ST
'The start side has a negative value
219
M50END=MX50ED
220
If PosCq(PX50CUR)=1 And PX50CUR.X>=M50STT And PX50CUR.X<=M50END Then
221
MY50STS=2
'Tracking possible
222 '/// The processing to singular point of RH-3S*HR ///
223
PTRST.X = P_CvSpd(MBENCNO%).X * MTRSTT / 1000
224
PTRST = PTRST + P50FWCUR
'Position when beginning to follow as for
workpiece.
225
PTRED.X = P_CvSpd(MBENCNO%).X * MTREND / 1000
226
PTRED = PTRED + P50FWCUR
'Position when having finished following
as for workpiece.
227
If (PTRST.Y > -P3HR.Z And PTRST.Y < P3HR.Z) Then 'case the singular point area
228
If (PTRST.X < -P3HR.Z And PTRED.X < -P3HR.Z) Then MY50STS=2 'The position of the work
peace is OK from the singular point if previous.
21-142
Sample Programs
21 Appendix
229
If (PTRED.X > -P3HR.Z And PTRED.X < P3HR.Z) Then MY50STS=3 'If the tracking end
position is singular point neighborhood, it is NG.
230
If (PTRST.X > -P3HR.Z And PTRST.X < P3HR.Z) Then MY50STS=3 'If the tracking start
position is singular point neighborhood, it is NG.
231
If (PTRST.X > P3HR.Z And PTRED.X > P3HR.Z) Then MY50STS=3 'It is NG if passing over
the singular point.
232
EndIf
233 '/// The processing to singular point of RH-3S*HR ///
234
Else 'If tracking not possible
235
If PX50CUR.X<0 Then MY50STS=1
'Wait
236
If PX50CUR.X>0 Then MY50STS=3
'Move onto the next workpiece
237
If PosCq(PX50CUR)=0 And PX50CUR.X>=M50STT And PX50CUR.X<=M50END Then
MY50STS=3 'Outside the movement range
238
EndIf
239
Break
240 Case 4 'Left side front -> rear
241 Case 6 'Right side front -> rear
242
M50STT=MX50ST
243
M50END=-MX50ED
'The end side has a negative value
244
If PosCq(PX50CUR)=1 And PX50CUR.X<=M50STT And PX50CUR.X>=M50END Then
245
MY50STS=2
'Tracking possible
246 '/// The processing to singular point of RH-3S*HR ///
247
PTRST.X = P_CvSpd(MBENCNO%).X * MTRSTT / 1000
248
PTRST = PTRST + P50FWCUR
'Position when beginning to follow as for
workpiece.
249
PTRED.X = P_CvSpd(MBENCNO%).X * MTREND / 1000
250
PTRED = PTRED + P50FWCUR
'Position when having finished following
as for workpiece.
251
If (PTRST.Y > -P3HR.Z And PTRST.Y < P3HR.Z) Then 'case the singular point area
252
If (PTRST.X > P3HR.Z And PTRED.X > P3HR.Z) Then MY50STS=2 'The position of the work
peace is OK from the singular point if previous.
253
If (PTRED.X > -P3HR.Z And PTRED.X < P3HR.Z) Then MY50STS=3 'If the tracking end
position is singular point neighborhood, it is NG.
254
If (PTRST.X > -P3HR.Z And PTRST.X < P3HR.Z) Then MY50STS=3 'If the tracking start
position is singular point neighborhood, it is NG.
255
If (PTRST.X < -P3HR.Z And PTRED.X < -P3HR.Z) Then MY50STS=3 'It is NG if passing over
the singular point.
256
EndIf
257 '/// The processing to singular point of RH-3S*HR ///
258
Else 'If tracking not possible
259
If PX50CUR.X>0 Then MY50STS=1
'Wait
260
If PX50CUR.X<0 Then MY50STS=3
'Move onto the next workpiece
261
If PosCq(PX50CUR)=0 And PX50CUR.X<=M50STT And PX50CUR.X>=M50END Then
MY50STS=3 'Outside the movement range
262
EndIf
263
Break
264 End Select
265 P50TRST=PTRST '/// The processing to singular point of RH-3S*HR ///
266 P50TRED=PTRED '/// The processing to singular point of RH-3S*HR ///
267 If MY50STS=0 Then Error 9199
'Program modification required
268 Return
269 '
270 '### Origin return processing ###
271 *S90HOME
272 Servo On
'Servo ON
273 P90CURR=P_Fbc(1)
'Acquire the current position
274 If P90CURR.Z<P1.Z Then
'If the current height is below the origin
275
Ovrd 10
276
P90ESC=P90CURR
'Create an escape position
277
P90ESC.Z=P1.Z
278
Mvs P90ESC
'Move to the escape position
279
Ovrd 100
280 EndIf
281 Mov P1
'Move to the origin
282 Return
Sample Programs
21-143
21 Appendix
283 '
284 '### Tracking interruption processing ###
285 *S91STOP
286 Act 1=0
287 Trk Off
288 GoSub *S86OPEN
'Release suction
289 P91P=P_Fbc(1)
'Acquire the current position
290 P91P.Z=P1.Z
291 Mvs P91P Type 0,0
'Raise
292 Mov P1
'Return to the origin once
293 GoTo *LBFCHK
294 '
295 '##### Suction of substrates #####
296 *S85CLOSE
297 HClose 1
'Turn suction ON
298 Return
299 '##### Suction/release of substrates #####
300 *S86OPEN
301 HOpen 1
'Turn suction OFF
302 Return
303 '
304 '##### Turning on the signal is waited for #####
305 'MX80ENA:ENABLE/DISABLE of check(1/0)
306 'MX80SIG:Check signal number
307 'MX80SEC:Check second number(S)
308 'MY80SKP:OK/TIMEOUT(1/0)
309 *S80CWON
310 If MX80ENA=1 Then
'If the signal check is ENABLE
311
M_Timer(1)=0
312
MY80SKP=0
313
MX80SEC=MX80SEC * 1000
'Second -> Millisecond
314 *L80LOP
315
If (M_Timer(1)>MX80SEC) Or (MY80SKP<>0) Then *L80END
316
If M_In(MX80SIG)=1 Then MY80SKP=1
'If the signal specified is turned on
317
GoTo *L80LOP
318 Else
'If the signal check is DISABLE
319
Dly MX80SEC
'Wait at the specified check time
320
MY80SKP=1
'OK
321 EndIf
322 *L80END
323 Return
324 '
325 '##### Turning off the signal is waited for #####
326 'MX81ENA:ENABLE/DISABLE of check(1/0)
327 'MX81SIG:Check signal number
328 'MX81SEC:Check second number(S)
329 'MY81SKP:OK/TIMEOUT(1/0)
330 *S81CWOFF
331 If MX81ENA=1 Then
'If the signal check is ENABLE
332
M_Timer(1)=0
333
MY81SKP=0
334
MX81SEC=MX81SEC * 1000
'Second -> Millisecond
335 *L81LOP
336
If (M_Timer(1)>MX81SEC) Or (MY81SKP<>0) Then *L81END
337
If M_In(MX81SIG)=0 Then MY81SKP=1
'If the signal specified is turned off
338
GoTo *L81LOP
339 Else
'If the signal check is DISABLE
340
Dly MX80SEC
'Wait at the specified check time
341
MY81SKP=1 'OK
342 EndIf
343 *L81END
344 Return
P3HR=(+800.000,+1500.000,+60.000,+0.000,+0.000,+0.000,+0.000,+0.000)(0,0)
PUP1=(+50.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000)(0,0)
PDLY1=(+1.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000)(0,0)
21-144
Sample Programs
21 Appendix
PWK=(+1.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000)(0,0)
PRI=(+1.000,+1.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000)(0,0)
P1=(+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000)(0,0)
PBPOS=(+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000)(0,0)
PX50CUR=(+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000)(0,0)
PRNG=(+300.000,+200.000,+400.000,+0.000,+0.000,+0.000,+0.000,+0.000)(0,0)
PTN=(+1.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000)(0,0)
PWAIT=(+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000)(0,0)
PAC1=(+100.000,+100.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000)(0,0)
PTBASE=(+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000)(0,0)
PGT=(+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000)(0,0)
PAC2=(+100.000,+100.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000)(0,0)
PHND=(+0.000,+900.000,+900.000,+0.000,+0.000,+0.000,+0.000,+0.000)(0,0)
PAC3=(+100.000,+100.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000)(0,0)
PAC11=(+100.000,+100.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000)(0,0)
PPT=(+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000)(0,0)
PUP2=(+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000)(0,0)
PAC12=(+100.000,+100.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000)(0,0)
PDLY2=(+1.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000)(0,0)
PAC13=(+100.000,+100.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000)(0,0)
POFSET=(+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000)(0,0)
P50FWCUR=(+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000)(0,0)
PTRST=(+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000)(0,0)
PTRED=(+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000)(0,0)
P50TRST=(0.000,0.000,0.000,0.000,0.000,0.000,0.000,0.000)(0,0)
P50TRED=(0.000,0.000,0.000,0.000,0.000,0.000,0.000,0.000)(0,0)
P90CURR=(+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000)(0,0)
P90ESC=(+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000)(0,0)
P91P=(+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000,+0.000)(0,0)
Sample Programs
21-145
Feb.2014 MEE Printed in Japan on recycled paper.
Specifications are subject to change without notice.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
