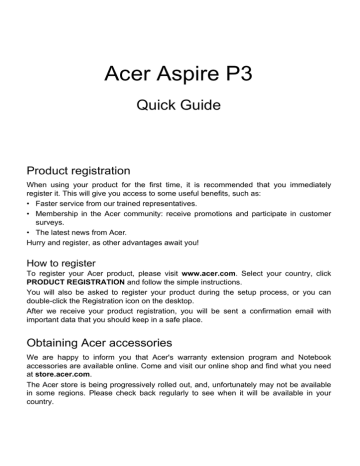

Acer Aspire P3

Quick Guide

Product registration

When using your product for the first time, it is recommended that you immediately register it. This will give you access to some useful benefits, such as:

• Faster service from our trained representatives.

• Membership in the Acer community: receive promotions and participate in customer surveys.

• The latest news from Acer.

Hurry and register, as other advantages await you!

How to register

To register your Acer product, please visit www.acer.com. Select your country, click

PRODUCT REGISTRATION and follow the simple instructions.

You will also be asked to register your product during the setup process, or you can double-click the Registration icon on the desktop.

After we receive your product registration, you will be sent a confirmation email with important data that you should keep in a safe place.

Obtaining Acer accessories

We are happy to inform you that Acer's warranty extension program and Notebook accessories are available online. Come and visit our online shop and find what you need at store.acer.com.

The Acer store is being progressively rolled out, and, unfortunately may not be available in some regions. Please check back regularly to see when it will be available in your country.

© 03/2013. All Rights Reserved.

Acer Aspire P3

Quick Guide

This revision: 29 March 2013

Model number:

Serial number:

Date of purchase:

Place of purchase:

3

First things first

We would like to thank you for making an Acer notebook your choice for meeting your mobile computing needs.

Your guides

To help you use your Acer notebook, we have designed a set of guides:

First off, the Setup Poster helps you get started with setting up your computer.

The Quick Guide introduces you to the basic features and functions of your new computer.

For more on how your computer can help you to be more productive, please refer to the User’s Manual. The User’s Manual contains useful information applying to your new computer. It covers basic topics such as using the keyboard and audio, etc.

This guide contains detailed information on such subjects as system utilities, data recovery, expansion options and troubleshooting. In addition it contains warranty information and the general regulations and safety notices for your notebook.

Follow these steps to access it:

1 Type ‘User’ from Start.

2 Click on Acer User’s Manual.

4 Your Acer computer tour

Your Acer computer tour

After setting up your device as illustrated in the setup poster, let us show you around your new Acer computer.

You can enter information into you new computer via the touchscreen.

Computer

Your device has two components: the computer and the keyboard cover. The following set of images will show you both of these. The views are labeled as if you are holding the computer with the screen towards you and the camera at the top.

Front view

1 2

3

2

3

No.

Item

1

Camera indicator light

Webcam

Windows key

Description

Lights up when camera is active.

Web camera for video communication.

Press once to open the Start menu.

5

Back view

1

2

No.

1

2

Item

Integrated webcam

Description

Web camera for video communication.

Camera indicator light Lights up when camera is active.

Top view

No.

Item

1

Ventilation and cooling fan

1

Description

Allows the computer to stay cool.

Do not cover or obstruct the openings.

Note: Display orientation may be fixed when apps designed for a specific orientation are running. These include games and other full-screen apps.

When making video calls, you should always hold the computer in landscape orientation.

6

Bottom view

No.

Item

1 Speakers

Left/right views

1

Description

Delivers stereo audio output.

1

2

3

4

5

6

7

8

Your Acer computer tour

No.

Icon

1

2

Item

Microphone micro HDMI port

3 USB 3.0 port

4

5

DC-in jack

Reset

Description

Internal microphone for sound recording.

Supports high-definition digital video connections.

Connects to USB devices.

A USB 3.0 port can be distinguished by its blue connector (see below).

Connects to an AC adapter.

Insert a paperclip into the hole and press for four seconds to reset the computer

(simulates removing and reinstalling the battery).

No.

Icon

6

7

Item

Headset/speaker jack

Power button

Description

Connects to audio devices

(e.g., speakers, headphones) or a headset with microphone.

Press to turn the computer on; press again to place the computer in Sleep mode. Press and hold to turn the computer off.

Indicates the computer's battery status. See table below.

Press to increase or decrease volume.

8

Battery LED

+

/

-

Volume key

Information on USB 3.0

• Compatible with USB 3.0 and earlier USB devices.

• For optimal performance, use USB 3.0-certified devices.

• Defined by the USB 3.0 (SuperSpeed USB) specification.

LED Indicators

LED color

Blue

State

Steady

Blue

Amber

Amber

Amber

Off

On briefly

Steady

On briefly

Blinking

Description

The computer is fully charged and plugged in.

The computer is fully charged and running on battery power.

After pressing the power button, the blue LED stays lit for a few seconds before turning off.

The computer is charging and plugged in.

The computer is not fully charged and running on battery power.

After pressing the power button, the amber LED stays lit for a few seconds before turning off.

The battery is critically low or abnormal battery situation.

The computer is off.

Environment

• Temperature:

• Operating: 5 °C to 35 °C

• Non-operating: -20 °C to 65 °C

• Humidity (non-condensing):

7

8 Your Acer computer tour

• Operating: 20% to 80%

• Non-operating: 20% to 80%

Keyboard cover

The following section describes the bundled keyboard cover.

Keyboard front view

1

2

3

4

5

3

4

5

No.

Icon

1

2

Item

Battery LED

Power button

USB connector

Function LED

Keyboard

Description

Indicates the keyboard’s battery status (see table below).

Turns the keyboard on and off.

Use the provided USB charging cable to charge the keyboard’s embedded battery.

See "Inserting the computer into the

keyboard cover" on page 9.

Indicates the keyboard’s function status

(see table below).

For entering data into your computer.

9

Battery LED

State

Blue (solid)

Orange (solid)

Orange (blinking slowly)

Orange (blinking quickly)

Orange (blinking)

Description

The keyboard is plugged in and fully charged.

The keyboard is plugged in and charging.

The keyboard is not plugged in and the battery is low.

The keyboard is not plugged in and the battery is critically low or there is an abnormal state.

The keyboard is in pairing mode (the function LED also blinks).

Function LED

State

Blue (solid)

Blue (blinking)

Blue (blinking)

Description

The LED turns solid blue for five seconds after turning the keyboard on.

The LED blinks after turning the keyboard off.

The keyboard is in pairing mode (the battery LED also blinks).

Hotkeys

The computer employs hotkeys or key combinations to access most of the computer's controls like settings and volume output. To activate hotkeys, press and hold the <Fn> key before pressing the other key in the hotkey combination.

Inserting the computer into the keyboard cover

Note: Always use caution when using and transporting the keyboard cover. Acer recommends using two hands when holding the keyboard case.

1. Place the holder into the keyboard's channel to put the holder in position.

10 Your Acer computer tour

2. Place the bottom part of the computer into the holder's bottom section. To avoid possible scratching and damage, do not insert the computer into the top section first.

3. Lean the tablet back into the holder and press the tablet's top edges to ensure the holder’s tabs secure it in place.The computer is now secure in the keyboard cover.

11

Note: To avoid possible damage, do not carry the holder with the computer facing outside.

Removing the computer from the keyboard cover

1. Press the holder’s tabs located on the top of the holder.

2. Pull the computer away from the holder.

12 Your Acer computer tour

Using the keyboard

Your Bluetooth keyboard comes pre-paired with the P3. You only need to turn on the keyboard and the P3 Bluetooth function by doing the following:

1. Tap the Settings charm > Change PC settings > Wireless.

2. Under Wireless devices, ensure the Bluetooth switch is set to On.

3. Press and hold the keyboard's Power button until the function LED comes on (the function LED will turn on for 5 seconds and then turn off).

4. To turn off the keyboard, press and hold the keyboard's Power button until the function LED blinks. Release the Power button.

Note: To save power, turn the keyboard off when not in use.

Pairing with the P3

If your Bluetooth keyboard loses connection with the P3, you will need to pair again. After the pairing process is complete, you're able to turn your keyboard off and on again without having to pair again.

1. Tap the Settings charm > Change PC settings > Devices

2. Tap the Acer Aspire P3 Bluetooth Keyboard option and then tap the minus sign to the right to remove the device (it may take a moment for the keyboard to be removed from the device list.)

3. Press and hold the Power button until both the battery and the function

LEDs blink repeatedly. Release the Power button. The keyboard is now in pairing mode.

Note: The keyboard stays in pairing mode for three minutes.

4. Tap Add a device. The P3 searches for any available Bluetooth devices to pair with.

5. Once it finds the Acer Aspire P3 Bluetooth Keyboard, tap it.

6. The screen now displays a six-digit passcode. Using the keyboard, enter the passcode and press Enter.

Note: The passcode is only valid for one minute. If the passcode disappears or if you enter a wrong passcode, repeat the steps above to pair.

7. Once pairing is complete, the function LED will stop blinking.

Charging the keyboard

The keyboard cover comes with an embedded battery and a USB charging cable. The cable's large end connects to the tablet's USB port and the small end connects to the keyboard's micro USB port. When the battery LED quickly blinks orange, the keyboard's battery is critically low and needs to be charged.

Keep the keyboard connected until the Battery LED is blue. You can still use the keyboard as normal while it is charging.

NOTE: The tablet must be on for the keyboard to charge.

13

Troubleshooting

Q: My keyboard doesn't do anything when I press the keys.

A: There could be several reasons for this. Check the following:

1. The keyboard may be turned off. Press and hold the keyboard's Power

button until the function LED comes on (the function LED will turn on for 5 seconds and then turn off). If the function LED blinks, you have turned off the keyboard. Press and hold the keyboard's Power button again until the function LED comes on.

2. The keyboard may be out of charge. Follow the instructions in the "Charging your tablet" section.

Ver.: 01.01.02
