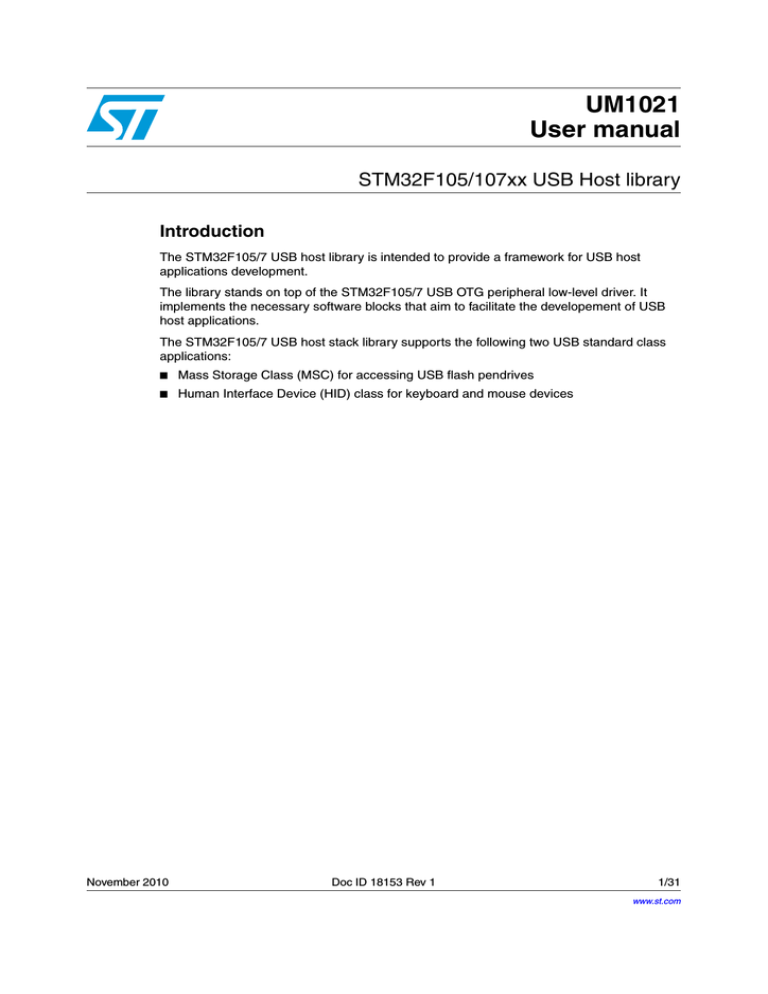

STM32F105/107xx USB Host library

Introduction

The STM32F105/7 USB host library is intended to provide a framework for USB host applications development.

The library stands on top of the STM32F105/7 USB OTG peripheral low-level driver. It implements the necessary software blocks that aim to facilitate the developement of USB host applications.

The STM32F105/7 USB host stack library supports the following two USB standard class applications:

Mass Storage Class (MSC) for accessing USB flash pendrives

Human Interface Device (HID) class for keyboard and mouse devices

November 2010 Doc ID 18153 Rev 1 1/31

www.st.com

1

2

Contents

Contents

3

4

UM1021

Folder organization of the USB host package . . . . . . . . . . . . . . . . . . . . 6

USB host library architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.1

Library block diagram organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.2

Description of the library core . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.2.1

2.2.2

2.2.3

2.2.4

2.2.5

Core state machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Device enumeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Control transfer state machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

USB I/O requests module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Host channels control module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.3

Class drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.3.1

2.3.2

USB Mass Storage Class (MSC) driver . . . . . . . . . . . . . . . . . . . . . . . . . 13

USB Human Interface Device (HID) class driver for mouse and keyboard devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Library user API and callback functions . . . . . . . . . . . . . . . . . . . . . . . . 20

3.1

Library user API . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3.2

User callback functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3.2.1

3.2.2

Class callback functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Class-independent callback functions . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Demo firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4.1

Mass storage class demo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4.1.1

4.1.2

4.1.3

4.1.4

Software initializations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Mass storage device enumeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Accessing mass storage device content . . . . . . . . . . . . . . . . . . . . . . . . 26

Flash pendrive tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4.2

HID mouse and keyboard demos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

4.2.1

4.2.2

4.2.3

4.2.4

Initializations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Mouse or keyboard device enumeration . . . . . . . . . . . . . . . . . . . . . . . . 27

Mouse demo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Keyboard demo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

4.3

Demo footprints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

2/31 Doc ID 18153 Rev 1

UM1021

5

6

Contents

Known limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Doc ID 18153 Rev 1 3/31

List of tables

List of tables

UM1021

Table 1.

Table 2.

Table 3.

Table 4.

Table 5.

Table 6.

Table 7.

Table 8.

Core files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Class files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Device enumeration requests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

USB I/O requests module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Host channels control module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Mass Storage Class modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

MSC core module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

MSC BOT module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Table 9.

MSC SCSI commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Table 10.

MSC filesystem interface functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Table 11.

EFSL main API . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Table 12.

HID class modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Table 13.

MSC core module functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Table 14.

Mouse and keyboard intialization & HID report decoding functions . . . . . . . . . . . . . . . . . . 19

Table 15.

Tested flash pendrives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Table 16.

Demo footprints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Table 17.

Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

4/31 Doc ID 18153 Rev 1

UM1021

List of figures

List of figures

Figure 1.

Folder organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Figure 2.

USB host library block diagram organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Figure 3.

Core state machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Figure 4.

Device enumeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Figure 5.

Block diagram organization of the MSC driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Figure 6.

MS device enumeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Figure 7.

MS device content access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Figure 8.

Mouse demo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Figure 9.

Keyboard demo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Doc ID 18153 Rev 1 5/31

Folder organization of the USB host package

1 Folder organization of the USB host package

UM1021

The STM32 USB host library package has the following folder organization:

Figure 1.

Folder organization

STM32_USB_HOST_LIB_PACKAGE

Librairies

CMSIS

STM32_USB_HOST_Library

Class

HID

MSC

Core

STM32_USB_HOST_Driver

STM32F10x_StdPeriph_Driver

Project

USB_HOST_Examples

HID_KBrd_Mouse

MSC

Utilities

STM32_EVAL

STM3210C_EVAL

Third_Party efsl

The package folders are organized as follows:

Libraries:

CMSIS: Cortex Microcontroller Software Interface Standard files

STM32_USB_HOST_Library: USB Host library files

STM32_USB_HOST_Driver: STM32 USB 2.0 OTG peripheral low-level driver

STM32F10x_StdPeriph_Driver: STM32 standard peripheral drivers

Project:

USB_HOST_EXAMPLES/HID_KBrd_Mouse : HID mouse and keyboard demo files

USB_HOST_EXAMPLES/MSC: Mass Storage Class demo files

Utilities:

STM32_EVAL/STM3210C_EVAL : STM3210C_EVAL evalboard functions

(configuration of GPIOs, LCD, clocks,..)

Third_Party/efsl: EFSL FAT filesystem, used for the mass storage demo

6/31 Doc ID 18153 Rev 1

UM1021 Folder organization of the USB host package

File organization of the USB host library

The USB host library folder “STM32_USB_HOST_Library” is composed of two main subfolders:

Core: this folder contains the USB host library core files. Those files implement the necessary functions, state machines and data structures required for:

– device detection and enumeration,

– USB Control transfer management,

– low-level functions for issuing control, bulk or interrupt USB transactions,

– configuration of the USB host channels.

Class: this folder contains the necessary files for USB class management. The USB host library supports two USB classes:

MSC: Mass Storage Class

HID: Human Interface Device class for boot mouse and keyboard devices

The following tables detail the Core and Class files:

Table 1.

Core files

File Description

usbh_core.c / .h

Implements the core, the device enumeration and the control transfer state machines usbh_stdreq.c / .h

USB standard requests needed during device enumeration (USB chapter 9) usbh_ioreq.c /.h

USB I/O requests: USB transaction requests for control, bulk and interrupt pipes usbh_hcs.c /.h

usbh_def.h

USB host channel control (channel configuration, allocation, freeing...)

Definitions used throughout the USB host library

Table 2.

Class

HID

MSC

Class files

File Description

usbh_hid_core.c /.h

usbh_hid_mouse.c ./h usbh_hid_keyboard.c /.h

usbh_msc_core.c /.h

HID class management

HID mouse specific routines

HID keyboard specific routines

Mass Storage Class management usbh_msc_bot.c ./.h

usbh_msc_scsi.c /.h

BOT “Bulk Only Transport” protocol implementation

SCSI standard command implementation usbh_msc_fs_interface.c ./h Interface with a filesystem for file access operations

Doc ID 18153 Rev 1 7/31

USB host library architecture

2 USB host library architecture

2.1 Library block diagram organization

The USB host library has the following block diagram organization:

Figure 2.

USB host library block diagram organization

User application

Library user APIs & callback functions

UM1021

File system

HID

MSC

Class drivers

USB host library

Core

Core state machine

Device enumeration

Control transfer state machine

USB I/O requests USB host channels control

8/31

STM32 USB OTG peripheral low-level driver

As shown in the above figure, the USB host library is composed of two main parts: the core and the class drivers.

The library core is composed of five main blocks:

■ core state machine device enumeration control transfer state machine

USB I/O requests

USB host channels control

For all class-related operations, the core state machine hands over operation to a specific class driver. In the current release version of the USB host libray, two class drivers - HID and

MSC - are implemented. These class drivers use core layer services for communicating with the low-level driver.

Both the core and the class drivers communicate with the user application mainly through defined callback functions.

The various host library blocks are described below.

Doc ID 18153 Rev 1

UM1021

2.2

2.2.1

USB host library architecture

Description of the library core

Core state machine

The following figure describes the library state machine:

Figure 3.

Core state machine

Device connection

Event

Host Initializations

USB Reset Issued

HOST_ISSUE_

CORE_RESET

HOST_IDLE

Device connected &

USB Reset Issued

HOST_DEV_ATTACHED

Device disconnection

Event

USB Full/Low speed device attached

HOST_ENUMERATION

Device enumerated

HOST_CTRL_XFER

HOST_USR_INPUT

User selects to enter

in class operation

HOST_ERROR_STATE

HOST_CLASS_REQUEST

End of class requests calls

Control transfer

Unrecovered error

HOST_CLASS

The core state machine shows 8 states:

HOST_IDLE: after host initialization , the core starts in this state, where it polls for a USB device connection. This state is also entered when a device disconnection event is detected, and also when an unrecovered error occurs.

HOST_ISSUE_CORE_RESET: this state is entered when a device is connected in order to issue a USB bus RESET.

HOST_DEV_ATTACHED: the core enters in this state when a device is attached. When a full-speed or low-speed device is detected, the state machine moves to the

HOST_ENUMERATION state.

HOST_ENUMERATION: in this state, the core proceeds with a basic enumeration of the

USB device. At the end of enumeration process, the default device configuration

(configuration 0) is selected.

Doc ID 18153 Rev 1 9/31

USB host library architecture UM1021

HOST_USR_INPUT: this is an intermediary state which follows the enumeration and which includes a wait for user input in order to enter in USB class operation.

HOST_CLASS_REQUEST: starting from this state, the class driver takes over, and a class request state machine is called in order to handle all the initial class control requests

(ex: Get_Report_Descriptor for HID). After finishing the needed class requests, the core moves to the HOST_CLASS state.

HOST_CLASS: in this state, the class state machine is called for class-related operation

(non-control and control operation).

HOST_CTRL_XFER: this state is entered whenever there is a need for a control transfer.

HOST_ERROR_STATE: this state is entered whenever there is an unrecovered error from any library state machine; in such case, a user-callback function is called (for example for displaying an unrecovered error message). Then the host library is reinitialized.

The core state machine process is implemented by function USBH_Process. This function should be called periodically from the application main loop.

The initalization of the USB host library is implemented by function USBH_init. This function should be called from the user application during initialization. More details regarding this function are provided in

Section 3

.

After detecting a full- or low-speed device, the host library proceeds with a basic enumeration of the device.

The following diagram shows the different steps involved in the device enumeration.

Figure 4.

Device enumeration

Get first 8 bytes of device descriptor

USB reset

Get full device descriptor

Set device address

Get configuration descriptor

Get string descriptors

(MFC, product and serial number)

Set device configuration

10/31 Doc ID 18153 Rev 1

UM1021 USB host library architecture

The enumeration state machine is implemented in library function USBH_HandleEnum, which is called from the core state machine process.

USBH_HandleEnum function makes calls to the following library routines (implemented in file usbh_stdreq.c):

Table 3.

Device enumeration requests

Function Description

USBH_Get_CfgDesc

USBH_Get_DevDesc

Get configuration descriptor request

Get device descriptor request

USBH_Get_StringDesc Get string descriptor request

USBH_GetDescriptor

USBH_SetCfg

1)

USBH_SetAddress

2)

Generic get descriptor request

Set configuration request

Set address request

USBH_ClrFeature Clear feature request

Note: 1 USBH_SetCfg calls select the default configuration (configuration 0)

2 USBH_SetAddress calls set the device address to 0x1.

A user callback will be called at the end of enumeration phase in order to enable the user to process the descriptor information (such as displaying descriptor data, for example). For

more details, please refer to

Section 3

.

2.2.3

2.2.4

Control transfer state machine

The control transfer state machine is entered from core or class driver whenever a control transfer is required. This state machine implements the standard stages for a control transfer, i.e. the setup stage, the optional data stage and, finally, the status stage.

The control transfer state machine is implemented in function USBH_HandleControl . It is called from the core state machine process.

USB I/O requests module

The USB I/O requests module is located in the low layer of the core. It interfaces with the

USB low-level driver for issuing control, bulk or interrupt USB transactions.

Doc ID 18153 Rev 1 11/31

USB host library architecture

2.2.5

UM1021

Table 4

shows the main functions in the I/O request module. These functions are

implemented in file usbh_ioreq.c.

Table 4.

USB I/O requests module

Function

USBH_CtlSendSetup

USBH_CtlSendData

USBH_CtlReceiveData

USBH_CtlReq

USBH_BulkSendData

USBH_BulkReceiveData

USBH_InterruptSendData

USBH_InterruptReceiveData

Description

Issue a setup transaction

Issue a control data OUT stage transaction

Issue a control data IN stage transaction high level function for issuing a control transfer (setup, data, status stages)

Issue a bulk OUT transaction

Issue a bulk IN transaction

Issue an interrupt OUT transaction

Issue an interrupt IN transaction

Host channels control module

The host channels control module is located in the lower layer of the core, it allows the configuration of a host channel for a particular operation (control, bulk or interrupt transfer type) also the allocation of a selected host channel to a device endpoint for creating a USB pipe.

The main functions for USB channel control module are defined in

Table 6

. These functions

are implemented in file usbh_hcs.c.

Table 5.

Host channels control module

Function

USBH_Open_Channel

USBH_Modify_Channel

USBH_Alloc_Channel

USBH_Free_Channel

Description

Open and configure a new host channel

Modify an existing host channel

Allocate a host channel to a device endpoint (creation of a USB pipe)

Free a host channel

12/31 Doc ID 18153 Rev 1

UM1021 USB host library architecture

At the end of the enumeration, the core calls a specific class driver function to manage all class-related operations.

Please note that the proper class driver selection is not based on the result of device enumeration, but it is “pre-defined” when initializing the host library with function call

USBH_Init.

A class driver is implemented using a structure of type USBH_Class_cb_TypeDef: typedef struct _Device_cb

{

USBH_Status (*Init) (USB_OTG_CORE_HANDLE *pdev , USBH_DeviceProp_TypeDef *hdev);

void (*DeInit) (USB_OTG_CORE_HANDLE *pdev , USBH_DeviceProp_TypeDef *hdev);

USBH_Status (*Requests)(USB_OTG_CORE_HANDLE *pdev, USBH_DeviceProp_TypeDef\

*hdev);

USBH_Status (*Machine) (USB_OTG_CORE_HANDLE *pdev , USBH_DeviceProp_TypeDef\

*hdev);

} USBH_Class_cb_TypeDef;

The structure members are described below:

Init: this function is called at the start-up of class operation for assuring all needed initializations. This includes:

– parsing interface and endpoint descriptors (please note that the current USB host library supports only one interface),

– opening and allocating host channels for non-control endpoints,

– call to a user callback (see

Section 3

), in case the device is not supported by the

class.

Denit: this function is called for freeing allocated host channels when reinitializing the host. It is called when a device is unplugged or in case of unrecovered error.

Request: this function implements the class request state machine. It is called duringthe

HOST_CLASS_REQUEST state; its purpose is to process initial class requests.

Machine: implements the class core state machine. It is called during the HOST_CLASS core state.

The Mass Storage Class driver is intended to support common USB flash pendrives, using the BOT “Bulk-Only Transport” protocol.

The following modules, located in the class\MSC folder, are used to implement the MSC driver:

Table 6.

Mass Storage Class modules

Module

usbh_msc_core.c /.h

Description

MSC core state machine implementation usbh_msc_bot.c ./.h

BOT “Bulk-Only Transport” protocol implementation usbh_msc_scsi.c /.h

SCSI command implementation usbh_msc_fs_interface.c ./h Functions for interfacing with a filesystem for file access operations

Doc ID 18153 Rev 1 13/31

USB host library architecture

The block diagram in

Figure 5

shows the interactions between those modules.

Figure 5.

Block diagram organization of the MSC driver

User MSC application callback

File access (OPEN,READ,WRITE)

Filesystem (EFSL)

Filesystem interface

Page READ/WRITE

Filesystem init

User callbacks call

MSC Class

UM1021

MSC core state machine

14/31

SCSI commands

-READ(10) / WRITE(10)

-TEST_UNIT_READY

-MODE_SENSE(6)

-READ_CAPACITY(10)

-REQUEST_SENSE

BOT state machine

BULK IN / OUT

Control Class requests:

-GET_MAX_LUN

-BOT_RESET

USB I/O requests

Operation flow description:

The MSC core state machine starts with the required device initializations, which are:

■ Issuing GET_MAX_LUN class request for detecting the number of device logical units present on the device. Please note that only devices with one logical unit are supported.

Issuing BOT_RESET class requests for resetting the device BOT state machine.

Issuing SCSI commands: MODE_SENSE for detecting if the device is write-protected and

READ_CAPACITY for detecting the size of the flash pendrive.

After the above device initializations, the MSC core state machine calls the application user callback.

The user callback can do any type of file access into the used filesystem. This operation is translated into a logical page read or write operation. The filesystem interface provides the connection between the used filesystem and the MSC driver.

At the SCSI level, the logical page read or write operations are converted into SCSI commands: READ(10) or WRITE(10). Those commands are transfered to the flash pendrive device using the “Bulk-Only Tranport” protocol.

The BOT layer state machine issues the required Bulk IN and Bulk OUT transactions using the core USB I/O request module.

Each MSC module is described below.

Doc ID 18153 Rev 1

UM1021 USB host library architecture

MSC core module:

The MSC core module “usb_msc_core.c” implements the MSC driver, which is defined in the structure MSC_cb of type USBH_Class_cb_TypeDef (see section 2.3).

USBH_Class_cb_TypeDef MSC_cb =

{

USBH_MSC_InterfaceInit,

USBH_MSC_InterfaceDeInit,

USBH_MSC_ClassRequest,

USBH_MSC_Handle,

};

Table 7.

MSC core module

Function Description

USBH_MSC_InterfaceInit

USBH_MSC_InterfaceDeInit

USBH_MSC_ClassRequest

Parses interface and endpoints descriptors and configures host channels (bulk IN and bulk OUT pipes)

De-initialization routine (freeing host channels)

In case of MSC, this function only moves the library core state machine to the HOST_CLASS state

USBH_MSC_Handle

USBH_MSC_Issue_BOTReset

Implements the MSC handler core state machine

Issues a BOT reset class request

USBH_MSC_Issue_GETMaxLUN Issues a GET_MAX_LUN class request

USBH_MSC_ErrorHandle MSC error handling

MSC BOT module:

The MSC “Bulk-Only Transport” (BOT) module implements the transport protocol for sending the SCSI commands (such as READ (10) or WRITE(10)). This module is implemented in file “usbh_msc_bot.c”.

For details about the BOT protocol, please refer to the usb.org mass storage class document.

The BOT module has the following functions:

Table 8.

MSC BOT module

Function

USBH_MSC_Init

USBH_MSC_HandleBOTXfer

Description

Initialize BOT state machine

BOT transfer state machine

MSC SCSI module:

The SCSI “Small Computer System Interface” module “usb_msc_scsi.c” stands on top of the BOT. It implements the set of SCSI commands required to access the flash pendrives.

Doc ID 18153 Rev 1 15/31

USB host library architecture

Note:

UM1021

The implemented commands are:

Table 9.

MSC SCSI commands

Function

USBH_MSC_Read10

USBH_MSC_Write10

USBH_MSC_TestUnitReady

USBH_MSC_ReadCapacity10

USBH_MSC_ModeSense6

USBH_MSC_RequestSense

Description

Command for logical block read

Command for logical block write

Command for checking device status

Command for requesting the device capacity

Command for checking the Write-protect status of the mass storage device

Command for getting error information

MSC filesystem interface module

The MSC filesystem interface module “usbh_msc_fs_interface.c” allows interfacing of filesystems with the MSC driver. This module should be ported to the selected filesystem.

The current USB host library package comes with the open source, EFSL FAT filesystem support (see next section for an overview about the EFSL API).

The implemented functions in the filesystem interface are:

Table 10.

MSC filesystem interface functions

Function

if_initInterface if_readBuf if_writeBuf if_TestUnitReady if_RequestSense

Description

Allows initalization of the filesystem (for example, reading capacity of flash pendrive)

Interface function for a logical page read

Interface function for a logical page write

Interface function for testing if unit is ready

Interface function for requesting error information using SCSI command Request Sense

For the EFSL filesystem, the page size is fixed to 512 bytes. Flash pendrives with higher page granularity are not supported.

EFSL filesystem overview

The EFSL “Embedded Filesystem Library” is an open source library for filesystems. It is intended for embedded devices and supports the Microsoft FAT12, 16 and 32 filesystems.

The following table summarizes the EFSL main API functions. For more details about EFSL, please refer to http://efsl.be/

16/31 Doc ID 18153 Rev 1

UM1021

2.3.2

USB host library architecture

Table 11.

EFSL main API

Function Prototype

efs_init esint8 efs_init(EmbeddedFileSystem *efs, eint8* opts); file_fopen esint8 file_fopen(File *file, FileSystem *fs, eint8 *filename, eint8 mode); file_fclose esint8 file_fclose(File *file); file_read euint32 file_read (File *file, euint32 size, euint8 *buf); file_write euint32 file_write(File *file, euint32 size, euint8 *buf); rmfile mkdir esint16 rmfile(FileSystem *fs,euint8* filename); esint8 mkdir(FileSystem *fs,eint8* dirname); ls_openDir esint8 ls_openDir(DirList *dlist,FileSystem

*fs,eint8* dirname); ls_getNext esint8 ls_getNext(DirList *dlist);

Description

Initializes the filesystem

Opens a file

Closes a file

Reads a file

Writes a file

Removes file

Creates directory

Opens directory

Gets next file in directory

USB Human Interface Device (HID) class driver for mouse and keyboard devices

The HID class implementation in v1.0 of the USB host library is intended to support HID boot mouse and keyboard devices.

HID reports are received using the interrupt IN transfer.

The following modules, located in class\HID folder, are used to implement the HID class:

Table 12.

HID class modules file (module)

usbh_hid_core.c /.h

Description

This module implements the HID class core state machine usbh_hid_mouse.c ./h HID mouse specific routines usbh_hid_keyboard.c /.h

HID keyboard specific routines

The main functions of each module are described below.

HID class core:

The HID core module “usb_hid_core.c” implements the HID class driver structure HID_cb of type USBH_Class_cb_TypeDef (see section 2.3).

USBH_Class_cb_TypeDef HID_cb =

{

USBH_HID_InterfaceInit,

USBH_HID_InterfaceDeInit,

USBH_HID_ClassRequest,

USBH_HID_Handle

};

The following table summarizes the functions implemented in the HID core module.

Doc ID 18153 Rev 1 17/31

USB host library architecture UM1021

Table 13.

MSC core module functions

Function Description

USBH_HID_InterfaceInit

USBH_HID_InterfaceDeInit

USBH_Set_Report

USBH_Set_Protocol

Parses interface and endpoint descriptors and configures a host channel in order to have an interrupt IN pipe (for getting

HID reports)

Frees the allocated interrupt IN pipe

USBH_HID_ClassRequest

Implements a state machine of the required class requests for

HID mouse and keyboard devices (ex: getting HID report descriptors, setting IDLE time, setting Protocol).

USBH_HID_Handle

HID class core state machine (processing of interrupt IN transfers)

USBH_Get_HID_ReportDescriptor Class request for getting HID report descriptor

USBH_ParseClassDesc

USBH_Set_Idle

Function used for parsing HID report descriptor

Class request for setting IDLE time

Class request for sending Report OUT data (not used in the demonstration software)

Class request for setting the HID protocol: Boot or Report

(1)

1.

USB_Set_Protocol is called to set the Boot protocol mode.

HID mouse & keyboard specific management:

The detection of mouse or keyboard device will be done when parsing interface descriptor in function USBH_HID_InterfaceInit.

The specific initialization for each type of device and the decoding of the received report IN data is done by two functions which are declared in a structure of type HID_cb_TypeDef, which is defined as follows: typedef struct HID_cb

{

void (*Init) (void);

void (*Decode) (uint8_t *data);

} HID_cb_TypeDef;

The implementation of the above structures in case a mouse or keyboard is respectively found in HID_MOUSE_cb and HID_MOUSE_cb is as follows:

HID_cb_TypeDef HID_MOUSE_cb =

{

MOUSE_Init,

MOUSE_Decode,

};

HID_cb_TypeDef HID_KEYBRD_cb=

{

KEYBRD_Init,

KEYBRD_Decode

};

18/31 Doc ID 18153 Rev 1

UM1021 USB host library architecture

Table 14.

Mouse and keyboard intialization & HID report decoding functions

Function Description

MOUSE_Init

MOUSE_Decode

KEYBRD_Init

KEYBRD_Decode

Initialization routine for USB mouse

HID report decoding for mouse (decoding mouse x, y positions, pressed buttons)

Initialization routine for USB keyboard

(1)

HID report decoding for keyboard (decoding of the key pressed on the keyboard)

1.

Selection of AZERTY or QWERTY keyboard is done through the defines #QWERTY_KEYBOARD ,

#AZERTY_KEYBOARD in file usbh_hid_keybrd.h.

Doc ID 18153 Rev 1 19/31

Library user API and callback functions

3 Library user API and callback functions

3.1

UM1021

Library user API

The library user API functions are limited to the following two functions:

void USBH_Process (void): this function implements core state machine process. It should be called periodically from the user main loop.

USBH_Init: this function should be called for the initialization of the USB host hardware and library.

USBH_Init has the following function prototype: void USBH_Init(USB_OTG_CORE_HANDLE *pdev,

USBH_Class_cb_TypeDef *class_cb,

USBH_Usr_cb_TypeDef *usr_cb)

– pdev: pointer on the USB host core registers structure (needed for future use)

class_cb: pointer to a class structure of type USBH_Class_cb_TypeDef. It can be either MSC_cb for handling MSC devices or HID_cb for handling HID mouse/keyboard devices.

usr_cb: pointer to a structure of type USBH_Usr_cb_TypeDef. This structure defines class-independent callbacks (see section 3.2.2).

3.2 User callback functions

User callbacks are declared in user template file usbh_usr.c.

Two types of user callbacks are defined:

Callback functions related to the class operations (MSC or HID)

Callbacks functions independent from class operations; they are mainly called during the enumeration phase. These callbacks are defined in a structure of type

USBH_Usr_cb_TypeDef.

MSC user callback functions

For MSC, the following callback is used: int USR_MSC_Application (void).

After the end of the class initializations, this function is called by the MSC state machine in order to give hand to the user for filesystem access operations.

In this callback, the user can implement any access to the FAT filesystem (file open, file read, file write...) using the EFSL filesystem API.

Also, the user can have access to an exported structure variable from the library MSC class driver, USBH_MSC_Param. This variable provides some information about the mass storage key.

20/31 Doc ID 18153 Rev 1

UM1021 Library user API and callback functions

This variable is defined using a structure of type MassStorageParameter_TypeDef defined as follows: typedef struct __MassStorageParameter

{

uint32_t MSCapacity; /*MS device capacity in bytes */

uint32_t MSSenseKey; /*Request Sense SCSI command returned value */

uint16_t MSPageLength; /* MS device Page length */

uint8_t MSBulkOutEp; /* Bulk OUT endpoint address */

uint8_t MSBulkInEp; /*Bulk IN endpoint address */

uint8_t MSWriteProtect; /*Write protection status, 0: non protected, 1:protected */

} MassStorageParameter_TypeDef;

HID user callback functions

For the HID class, the following callbacks are defined:

void USR_MOUSE_Init(void): user initialization for mouse application

void USR_KEYBRD_Init(void): user initializations for keyboard application

void USR_MOUSE_ProcessData(HID_MOUSE_Data_TypeDef *data): this callback is called when an input parameter data of type HID_MOUSE_Data_TypeDef (see Note 1 below) is available.

void USR_KEYBRD_ProcessData (uint8_t data): this callback is called when a new

ASCII character is typed. The character is received in input parameter data.

Note: 1 HID_MOUSE_Data_TypeDef is defined as follows:

typedef struct _HID_MOUSE_Data

{

uint8_t x;

uint8_t y;

uint8_t z; /* Not Supported */

uint8_t button; /*Bitmap showing pressed buttons 1:pressed, 0: non pressed */

}

HID_MOUSE_Data_TypeDef;

Doc ID 18153 Rev 1 21/31

Library user API and callback functions UM1021

22/31

The class-independent callback functions are defined in a structure of type

USBH_Usr_cb_TypeDef defined as follows: typedef struct _USBH_USR_PROP

{

void (*Init)(void);

void (*DeviceAttached)(void);

void (*ResetDevice)(void);

void (*DeviceDisconnected)(void);

void (*OverCurrentDetected)(void);

void (*DeviceSpeedDetected)(uint8_t DeviceSpeed);

void (*DeviceDescAvailable)(void *);

void (*DeviceAddressAssigned)(void);

void (*ConfigurationDescAvailable)(USBH_CfgDesc_TypeDef *,

USBH_InterfaceDesc_TypeDef *,

USBH_EpDesc_TypeDef *);

void (*ManufacturerString)(void *);

void (*ProductString)(void *);

void (*SerialNumString)(void *);

void (*EnumerationDone)(void);

USBH_USR_Status (*UserInput)(void);

void (*USBH_USR_DeviceNotSupported)(void);

void (*UnrecoveredError)(void);

}

USBH_Usr_cb_TypeDef;

The above callback functions are described below.

Init: called during initialization by USBH_Init core function. In this function, the user can implement any specific intialization related to his application.

DeviceAttached: called when a USB device is attached. It can be useful to informthe user of any device attachement using a display screen.

DeviceReset: called after an USB reset is issued from the host.

DeviceDisconnect: called when a device is disconnected.

OverCurrentDetected: called when an overcurrent is detected on USB VBUS.

DeviceSpeedDetected: called when the device speed is detected

1)

.

DeviceDescAvailable: called when a device descriptor is available

2)

.

DeviceAddressAssigned: called when the device address is assigned.

ConfigurationDescAvailable: called when configuration, interface and endpoints descriptors are available

3)

.

ManufacturingString: called when manufacturing string is extracted.

ProductString: called when product string is extractcted.

SerialNumString: called when serial num string is extracted.

EnumerationDone: called when enumeration finished.

UserInput: called after the end of the enumeration process, for prompting the user for further action, such as pressing a button to start a host class operation

4)

.

– USBH_USR_DeviceNotSupported: called when the detected device is not supported by the current class driver.

UnrecoveredError: called when the core state machine is in

HOST_ERROR_STATE” state. It allows the user to handle any error, by displaying an error message on the LCD screen, for example.

Doc ID 18153 Rev 1

UM1021 Library user API and callback functions

Note: 1 Device speed information is returned in the DeviceSpeed parameter. Possible values are:

0x1 for full-speed devices and 0x2 for low-speed devices.

2 Device descriptor information is returned in the pointer DeviceDesc, which points to a

structure of type USBH_DevDesc_TypeDef defined as follows: typedef struct _DeviceDescriptor

{

uint8_t bLength;

uint8_t bDescriptorType;

uint16_t bcdUSB; /* USB Specification Number which device complies too */

uint8_t bDeviceClass;

uint8_t bDeviceSubClass;

uint8_t bDeviceProtocol;

uint8_t bMaxPacketSize;

uint16_t idVendor; /* Vendor ID (Assigned by USB Org) */

uint16_t idProduct; /* Product ID (Assigned by Manufacturer) */

uint16_t bcdDevice; /* Device Release Number */

uint8_t iManufacturer; /* Index of Manufacturer String Descriptor */

uint8_t iProduct; /* Index of Product String Descriptor */

uint8_t iSerialNumber; /* Index of Serial Number String Descriptor */

uint8_t bNumConfigurations; /* Number of Possible Configurations */

}

USBH_DevDesc_TypeDef;

Doc ID 18153 Rev 1 23/31

Library user API and callback functions UM1021

3 Device configuration information (config, interface and endpoint descriptors) are returned with pointers on structures USBH_CfgDesc_TypeDef, USBH_InterfaceDesc_TypeDef and USBH_EpDesc_TypeDef defined as follows:

typedef struct _ConfigurationDescriptor

{

uint8_t bLength;

uint8_t bDescriptorType;

uint16_t wTotalLength;

uint8_t bNumInterfaces;

uint8_t bConfigurationValue;

uint8_t iConfiguration;

uint8_t bmAttributes;

uint8_t bMaxPower;

}

USBH_CfgDesc_TypeDef; typedef struct _InterfaceDescriptor

{

uint8_t bLength;

uint8_t bDescriptorType;

uint8_t bInterfaceNumber;

uint8_t bAlternateSetting; /* Value used to select alternative setting */

uint8_t bNumEndpoints; /* Number of Endpoints used for this interface */

uint8_t bInterfaceClass; /* Class Code (Assigned by USB Org) */

uint8_t bInterfaceSubClass; /* Subclass Code (Assigned by USB Org) */

uint8_t bInterfaceProtocol; /* Protocol Code */

uint8_t iInterface; /* Index of String Descriptor Describing this interface */

}

USBH_InterfaceDesc_TypeDef; typedef struct _EndpointDescriptor

{

uint8_t bLength;

uint8_t bDescriptorType;

uint8_t bEndpointAddress; /* indicates what endpoint this descriptor is describing */

uint8_t bmAttributes; /* specifies the transfer type. */

uint16_t wMaxPacketSize; /* Maximum Packet Size this endpoint is capable of sending or receiving */

uint8_t bInterval; /* is used to specify the polling interval of certain transfers. */

}

USBH_EpDesc_TypeDef;

4 In order to move the core state machine to HOST_CLASS_REQUEST state, UserInput

callback should return the value USBH_USR_RESP_OK of type USBH_USR_Status typedef enum {

USBH_USR_NO_RESP = 0, /*no response from user */

USBH_USR_RESP_OK = 1,

}

USBH_USR_Status;

24/31 Doc ID 18153 Rev 1

UM1021 Demo firmware

4.1 Mass storage class demo

4.1.2

The following code extract from main.c file shows the initializations required before calling the USBH_Process for managing the core state machine.

USB_Init is called with parameters defining the class driver, which is the MSC class driver, and also the user callbacks.

int main(void)

{

/* Setup STM32 Hardware Configuration */

BSP_Init();

/* Init Host Library */

USBH_Init(&USB_OTG_FS_dev, &MSC_cb , &USR_Callbacks);

while (1)

{

/* Host Task handler */

USBH_Process();

}

}

Mass storage device enumeration

When attaching a full-/low-speed device to the STM3210C_eval board, the LCD displays the following text (for example, when plugging the Kingston DataTraveler G2 flash pendrive):

Figure 6.

MS device enumeration

STM32F105/7 USB HOST DEMO

> DEVICE ATTACHED

> DEVICE IS FULL SPEED

> DEVICE SUPPORTS MASS STORAGE CLASS

VID = 0951h

PID = 1624h

NumEndpoints = 2

Manufacturer : Kingston

Product : DataTraveler G2

Serial Number : 001CC0EC309BF9C196A50D64

> ENUMERATION COMPLETED

----------------------------------------

To see the root content of the disk :

‘ Press Key B3 ...’

Doc ID 18153 Rev 1 25/31

Demo firmware UM1021

After the end of enumeration, pressing button B3 displays the screen below, which provides the following information:

Flash pendrive capacity (in Mbytes)

Root folder files

Figure 7.

MS device content access

STM32F105/7 USB HOST DEMO

* Size of the disk in MBytes:

----------------------------------------

1910

* Root folder has the following entries:

----------------------------------------

FILE1.TXT

FILE2.TXT



FILE3.BIN

To continue ‘Press key B3’

Please note that, after browsing the mass storage device content, a simple text file

“HostDemo.txt” is written into the flash pendrive (assuming that it is not write-protected).

For testing file read access, the user can start an image slideshow on the LCD screen, assuming that some bmp images are available in the root folder of the flash pendrive.

Note: 1 Some bmp images with LCD screen size are provided in the project folder.

2 If the device is write-protected, a warning message is displayed on the LCD screen.

3 Mass storage devices with multiple logical units are not supported (an error message is displayed on the LCD screen).

4 If no bmp image is available in the flash pendrive root folder, a warning message is displayed on the LCD screen and, after 2 seconds, the host re-initializes (restarts enumeration of the flash pendrive).

26/31

Because an embedded USB host is considered limited, these interoperability tests:

1. Enumeration,

2. Cold Boot with device attached,

4. Browsing root content,

5. Creation of "hostdemo.txt" file,

6. Data read from device to TFT-LCD: images slide-show,

7. Messaging to TFT-LCD (no silent failure) are successfully applied to the following table selection of various flash pendrives using the

STM32F105/7 USB host library and the demonstration provided with the mass storage example.

Doc ID 18153 Rev 1

UM1021 Demo firmware

Table 15.

Tested flash pendrives

Manufacturer Name Size

Lexar

Lexar

Lexar

Memorex

Memorex

Sandisk

Sandisk

Sandisk

Sandisk

Sandisk

Sandisk

Kingmax

Netac

PNY

PNY

Sony

Toshiba

Transcend

Corsair

Philips

JumpDrive Sport

JumpDrive FireFly

JumpDrive2.0 pro

TravelDrive Classic 003C

TravelDrive Classic 003B

USB Flash Drive

USB Flash memory

U3 Cruzer Micro -U3

Cruzer Colors+

Cruzer Pro

Cruzer Micro

USB2.0FlashDisk

USB Flash Disk

Attaché 2.0

Attaché Pro

Micro Vault Tiny

USB Flash memory

JetFlash V30

Flash Voyager Mini

FM01FD00B

2GB

265MB

265MB

256MB

512MB

2 GB

8 GB

8 GB

1 GB

4 GB

1 GB

512 MB

2 GB

128 MB

128 MB

1 GB

2 GB

2 GB

1 GB

8 GB

1 GB

PID

0x1603

0xA410

0xA575

0x0200

0x0008

0x1A00

0x5541

0x6545

0x5406

0x5170

0x0507

0x5151

0x6211

0XD202

0x0012

0x1A23

0x02A5

0x6545

0x6387

0x0B29

0X082B

VID

0x0951

0x05DC

0x05DC

0x05DC

0x08EC

0x12F7

0x0781

0x0781

0x0781

0x0781

0x08EC

0x0781

0x1687

0x0DD8

0x08EC

0x13FF

0x054C

0x0930

0x058F

0x1B1C

0x0471

4.2 HID mouse and keyboard demos

4.2.1 Initializations

Same as for mass storage devices (see section 4.1.1), except that the HID class driver is selected in the USBH_Init function:

/* Init Host Library */

USBH_Init(&USB_OTG_FS_dev, &HID_cb , &USR_Callbacks);

Similar to mass storage devices (see section 4.1.2).

Doc ID 18153 Rev 1 27/31

Demo firmware UM1021

After mouse device enumeration, pressing button B3 displays the following screen, which shows the mouse 3 buttons and the pointer (green cross).

Figure 8.

Mouse demo

USB HOST HID DEMO

USB HOST MODE

HID DEMO Device: Mouse x

After keyboard enumeration, pressing button B3 displays an LCD screen where the user can type some text:

Figure 9.

Keyboard demo

USB HOST HID DEMO

USB HOST MODE

HID DEMO Device: Keyboard

Hello testing azerty keyboard...

28/31

The following tables provide footprint data when the software is compiled using IAR EWARM v5.50.5 with high optimizations for size:

Table 16.

Demo footprints

Demo

Mass Storage class demo

HID mouse & keyboard demo

Code + RO data

~32 Kb

~24 Kb

RAM

6.4 Kb

5 Kb

Doc ID 18153 Rev 1

UM1021 Known limitations

The current version of the STM32F105/7 USB host stack has the following known limitations:

1.

It supports only two USB standard class applications, i.e: a) Mass Storage Class (MSC) for accessing USB flash pendrives, b) Human Interface Device (HID) class for keyboard and mouse devices.

2. It supports only one interface and one configuration selection (default config).

3. It does not support mass storage devices with multiple logical units.

4. It comes with the EFSL FAT filesystem support: a) The page size is fixed to 512 bytes. Flash pendrives with higher page granularity are not supported.

b) Long filenames and Unicode are not supported.

5. Very short delay between device detach/attach may result in abnormal operation.

6.

Compatibility issues have been encountered with some devices (not listed in

Table 15

)

at the enumeration phase.

7. After connecting and disconnecting a non-supported class device and then attaching a supported class device, enumeration is done properly, but the device cannot be accessed. A device reset is needed.

Doc ID 18153 Rev 1 29/31

Revision history

Table 17.

Document revision history

Date Revision

26-Nov-2010 1 Initial release.

Changes

UM1021

30/31 Doc ID 18153 Rev 1

UM1021

Please Read Carefully:

Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice.

All ST products are sold pursuant to ST’s terms and conditions of sale.

Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.

UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED

WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED

WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS

OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.

UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT

RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING

APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,

DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE

GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.

Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST.

ST and the ST logo are trademarks or registered trademarks of ST in various countries.

Information in this document supersedes and replaces all information previously supplied.

The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.

© 2010 STMicroelectronics - All rights reserved

STMicroelectronics group of companies

Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -

Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America

www.st.com

Doc ID 18153 Rev 1 31/31

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
