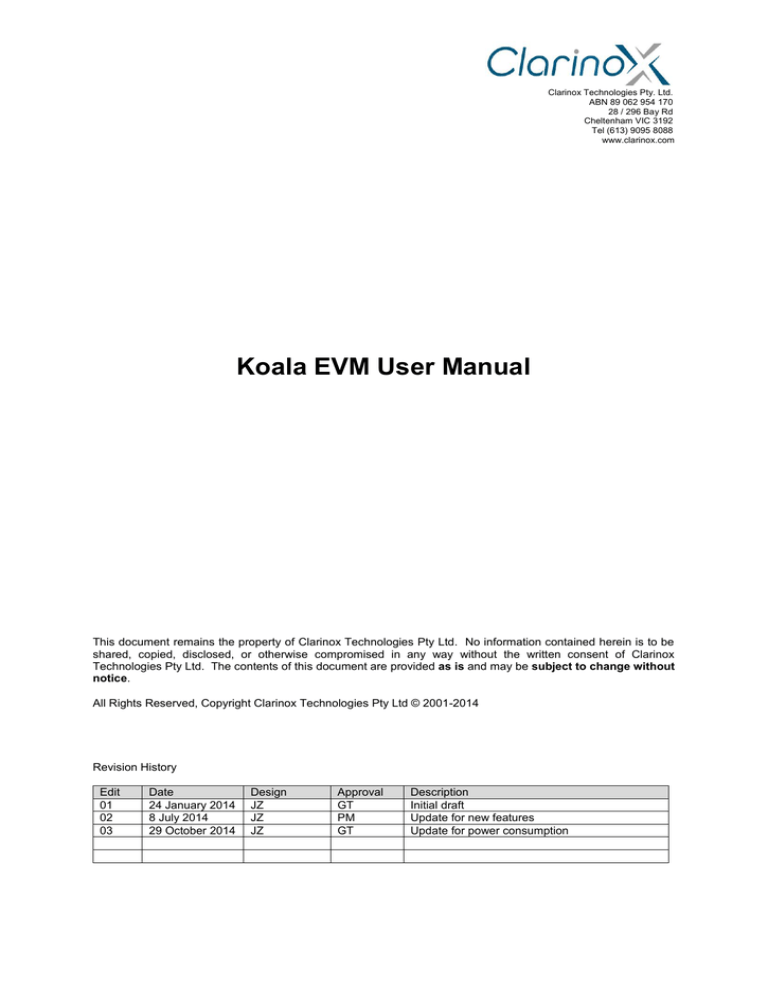

Koala EVM User Manual
This document remains the property of Clarinox Technologies Pty Ltd. No information contained herein is to be
shared, copied, disclosed, or otherwise compromised in any way without the written consent of Clarinox
Technologies Pty Ltd. The contents of this document are provided as is and may be subject to change without
notice.
All Rights Reserved, Copyright Clarinox Technologies Pty Ltd © 2001-2014
Revision History
Edit
01
02
03
Date
24 January 2014
8 July 2014
29 October 2014
Design
JZ
JZ
JZ
Approval
GT
PM
GT
Description
Initial draft
Update for new features
Update for power consumption
Koala EVM User Manual
Table of Contents
1
Introduction ...................................................................................................................................................... 4
1.1
Purpose...................................................................................................................................................... 4
2
Features ........................................................................................................................................................... 4
3
Specification Data Sheet .................................................................................................................................. 5
4
Hardware and Layout ....................................................................................................................................... 6
4.1
Block diagram ............................................................................................................................................ 6
4.2
Layout ........................................................................................................................................................ 7
5
Components..................................................................................................................................................... 8
5.1
LED Indicators ........................................................................................................................................... 8
5.2
Reset.......................................................................................................................................................... 8
5.3
Oscillators .................................................................................................................................................. 8
5.4
Voltage Level Translation........................................................................................................................... 8
6
Extension Interfaces ........................................................................................................................................ 9
6.1
6.1.1
WMI connectors ................................................................................................................................ 9
6.1.2
DCMI Camera Connector (CN4) ....................................................................................................... 9
6.1.3
LCD connector (CN19) .................................................................................................................... 10
6.2
7
Pin out of extension headers...................................................................................................................... 9
Connector information .............................................................................................................................. 10
Embedded ST-LINK programmer .................................................................................................................. 11
7.1
Programming on board STM32F407IGT6/ STM32F429II ........................................................................ 11
7.2
Programming WMI module MCU ............................................................................................................. 11
7.3
Programming support disabled ................................................................................................................ 11
7.4
ST-LINK headers ..................................................................................................................................... 12
7.4.1
7.5
Details of ST-LINK Pins................................................................................................................... 12
SWD......................................................................................................................................................... 12
8
Operating Specifications ................................................................................................................................ 13
9
Tips and Tricks............................................................................................................................................... 14
10
Electrical Schematics ............................................................................................................................... 15
10.1
STM32F4xx microcontroller, USB serial and CAN bus ........................................................................ 15
10.2
Extension Interfaces ............................................................................................................................ 16
10.3
Ethernet ............................................................................................................................................... 17
10.4
Power Supply and USB-OTG peripheral ............................................................................................. 18
10.5
ST-LINK programmer .......................................................................................................................... 19
List of Figures
Figure 1: Koala EVM Block Diagram ....................................................................................................................... 6
Figure 2: Koala EVM Hardware Layout ................................................................................................................... 7
Page 2
Koala EVM User Manual
List of Tables
Table 1: Specifications and Data Sheet .................................................................................................................. 5
Table 2: Koala EVM LED Indicators ........................................................................................................................ 8
Table 3: WMI-A connector pin out
Table 4: WMI-B connector pin out ................................................................ 9
Table 5: DCMI connector pin outs ........................................................................................................................... 9
Table 6: LCD connector pin outs ........................................................................................................................... 10
Table 7: Summary of on board connectors and interfaces .................................................................................... 10
Table 8: Jumper configurations for on board debugger / programmer .................................................................. 11
Table 9: Signals in debug connectors CN13, CN14, CN15 and CN22 .................................................................. 12
Table 10: Connector designations......................................................................................................................... 12
Table 11: SWD connector pin outs........................................................................................................................ 12
Table 12: Operating Specifications ....................................................................................................................... 13
Page 3
Koala EVM User Manual
1
Introduction
This document describes the Clarinox Koala EVM and how to access each peripheral attached to the
STM32F407IGT6 or STM32F429II microcontroller.
1.1
Purpose
The purpose of this document is providing the end user with detail about the hardware configuration and layout of
the Koala EVM.
This document will explain the hardware of the Koala EVM and provide a description of the peripherals, signals
and hardware configurations when used with the STM32F4xx microcontroller.
2
Features
The Koala EVM base board comes with the following features:











STM32F407IGT6 microcontroller with 1 MB of Flash memory, 192 KB of SRAM or STM32F429II
microcontroller with 2 MB of Flash memory, 256 KB of SRAM
On-board ST-LINK with selection jumpers for programming the Clarinox Wireless Module Interface
(WMI) module or on-board STM32F4xx microcontroller
Board power supply: through USB or from an external 5V supply
USB OTG connector
Ethernet interface
DCMI camera interface
FSMC for LCD with touch screen
CAN bus port
USB to Serial UART bridge for debug output
COM8 100 pin connector for Texas Instruments Wilink6/Wilink7/Wilink8 wireless modules, with 32.768
KHz slow clock oscillator and 3.3V/1.8V level translation for digital interfacing.
WMI connectors for development with Clarinox wireless modules.
Optional Accessories for the Koala EVM:





8 – 14 Bit digital camera module, (type OV9655 1.3MP or similar supported)
16 bit parallel LCD module (2.4” 320x240 touch screen display)
WiLink-8 wireless COM8 module
USB micro cable for On the Go peripheral
USB Mini cable for USB-Serial peripheral
Page 4
Koala EVM User Manual
3
Specification Data Sheet
Koala EVM
Chipset
Flash memory
SRAM
Clock
Current draw (no wireless module
connected)
Current draw (TI WL18xx, BT
Scanning)
Current draw (TI WL18xx, BT
Communications)
STM32F407IG
1 MB
192 KB
168 MHz
160 mA @5V
Chipset
Flash Memory
SRAM
Clock Frequency
Current draw (no wireless module
connected)
Current draw (TI WL18xx, BT Idle)
Current draw (TI WL18xx, WLAN
idle)
Current draw (TI WL18xx, WLAN
scanning)
Current draw (TI WL18xx, WLAN
connected)
STM32F429II
2 MB
256 KB
180 MHz
160 mA @5V
Supported Development Tool
Chains
Supported RTOS
IAR EWARM
Keil MDK
uC/OS-III
ThreadX
FreeRTOS
Nucleus*
5 Volts
USB
External 5V
-40 to +85 °C
200 mA @5V
210 mA @5V
Koala EVM Pro
190 mA @5V
250 mA @5V
310 mA @5V
320 mA @5V
Common Specifications
Operating Voltage
Power Supply
Operating temperature (ambient)
Storage Temperature
Supported Wireless modules
(COM8 connector)
COM8 voltage supply
-40 to +105 °C
TI Wilink6/Wilink7/Wilink8
DCMI camera interface bus width
Camera resolution
LCD interface bus width
LCD parallel interface
LCD resolution
USB serial max data rate
8-14 Bit
1M or 2M Pixel
16 Bit
FSMC/6800/8080
320 x 240 Pixel
921600 baud
3.3v, 1.8v
Peripheral Specifications
Table 1: Specifications and Data Sheet
Page 5
Koala EVM User Manual
4
Hardware and Layout
4.1
Block diagram
The Koala EVM is designed around the STM32F407IGT6 microcontroller.
The figure illustrates the connections between the microcontroller and its peripherals.
Mini USB
ST-LINK
WMI Module
STM32F407IGT6/STM32F429II
Level Translation
Slow
clock
LCD Interface
Ethernet
DCMI
UART to USB
Bridge
USB-OTG
CAN Bus
COM8
Figure 1: Koala EVM Block Diagram
Page 6
Koala EVM User Manual
4.2
Layout
The diagram below helps locate each feature on the Koala EVM.
Figure 2: Koala EVM Hardware Layout
Page 7
Koala EVM User Manual
5
Components
5.1
LED Indicators
Below is a description of on board LEDs and their function
Designator
Description
LED1
Lights up to indicate when board is powered on
LED2
ST-LINK, Lights depending on program/ debug activity
LED3
Ethernet link speed indicator, see datasheet of Ethernet PHY (DP83848I).
Table 2: Koala EVM LED Indicators
5.2
Reset
The EVM includes a user reset button for resetting the KoalaEVM STM32F4xx microcontroller. This button is
designated as SW1.
5.3
Oscillators
The following Oscillators are required for operation of the board.
5.3.1.1
Crystals for main microcontroller (STM32F4xx)
XTAL3 – 24MHz crystal for system clock, 8 MHz is suitable for most applications but DCMI and USB-OTG
require a clock of 24MHz; this should be generated from the system clock MCO
XTAL2 – 32.768 KHz crystal, Sleep/standby clock (Slow clock)
5.3.1.2
Peripherals
OSC1 – 32.768 KHz clock generator for COM8 modules slow clock.
XTAL1 – 8MHz crystal, system clock for ST-LINK MCU (STM32F103)
XTAL4 – 25MHz crystal, for Ethernet physical layer
5.4
Voltage Level Translation
All SDIO data lines require pull up resistors except for SDIO_D3, which is pulled up internally by the attached WiFi module TI WiLink-8 module. Based on the pull up requirements of the module, a suitable level translator must
be used to keep logic thresholds.
TI TXS010x pulls up each line. On the SDIO_D3 this forms an effective parallel with the internal pull up of the
wireless module. This keeps the SDIO_D3 line at the same levels as the other lines and satisfies the pull up
requirement of the SDIO interface.
Page 8
Koala EVM User Manual
6
Extension Interfaces
6.1
Pin out of extension headers
Below are the pin designations of the extension headers which require a specific pin configuration for their
function. Be sure to observe grooves or markings on the board when connecting to these headers.
6.1.1 WMI connectors
WMI-A (CN5)
Pin Function
1
USART6_RTS
2
USART6_TX
3
USART6_RX
4
USART6_CTS
5
USART2_TX
6
USART2_RX
7
USART3_RTS
8
USART3_TX
9
USART3_RX
10
USART3_CTS
11
I2C2_SCL
12
I2C2_SDA
13
I2C2_SMBA
14
WMI1_TDI
15
WMI1_TDO
16
WMI1_TMS
17
WMI1_TCK
18
WMI1_NRST
19
WMI1_JNRST
20
NC
Table 3: WMI-A connector pin out
WMI-B (CN6)
Pin Function
1
SDIO_D0
2
SDIO_D1
3
SDIO_D2
4
SDIO_D3
5
SDIO_CMD
6
SDIO_CLK
7
SPI3_NSS
8
NC
9
NC
10
NC
11
NC
12
NC
13
3.3v
14
3.3v
15
GND
16
GND
17
GND
18
GND
19
5v
20
5v
Table 4: WMI-B connector pin out
6.1.2 DCMI Camera Connector (CN4)
Pin
1
2
3
4
5
6
7
8
9
10
11
12
Function
3.3v
GND
I2C2_SCL
I2C2_SDA
DCMI_VSYNK
DCMI_HSYNC
DCMI_PIXCLK
DCMI_XCLK
DCMI_D7
DCMI_D6
DCMI_D5
DCMI_D4
Pin
13
14
15
16
17
18
19
20
21
22
23
24
Function
DCMI_D3
DCMI_D2
DCMI_D1
DCMI_D0
NC
NC
DCMI_D9
DCMI_D8
DCMI_D11
DCMI_D10
DCMI_D13
DCMI_D12
Table 5: DCMI connector pin outs
Page 9
Koala EVM User Manual
6.1.3 LCD connector (CN19)
Pin Function
1
GND
2
FSMC_D0
3
3.3v
4
FSMC_D1
5
NC
6
FSMC_D2
7
FSMC_RS
8
FSMC_D3
9
FSMC_NWE
10
FSMC_D4
11
FSMC_NE
12
FSMC_D5
13
FSMC_D8
14
FSMC_D6
15
FSMC_D9
16
FSMC_D7
17
FSMC_D10
18
SPI2_SCK
19
FSMC_D11
20
SPI2_NSS
*NC is not connected or unused pins
Pin
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Function
FSMC_D2
SPI2_MOSI
FSMC_D13
TOUCH_BUSY
FSMC_D14
SPI2_MISO
FSMC_D15
TOUCH_PIRQ
FSMC_NOE
NC
RESET
NC
NC
NC
EXTLCD_BL
NC
3.3v
3.3v
GND
GND
Table 6: LCD connector pin outs
6.2
Connector information
The table below provides details about the connectors on the board.
Reference Functionality Description
CN1
Ethernet
Wired network interface
CN2
USB
USB On The Go (Micro connector socket)
CN3
COM8
100 pin connector for wireless module
CN4
DCMI
Camera header
CN5
WMI
WMI-A connector (including Bluetooth, USART, DEBUG)
CN6
WMI
WMI-B connector (including SDIO, Power)
CN9
USB
USB to USART bridge (Mini USB connector)
CN10
CAN
Link to separate CAN bus
CN11
ST-LINK
USB debug/programming Mini connector, USB power supply
CN12
ST-LINK
ST-LINK SWD header, see section 6
CN13
ST-LINK
ST-LINK Program/debug, see section 6
CN14
ST-LINK
ST-LINK Program/debug, see section 6
CN15
ST-LINK
ST-LINK Program/debug, see section 6
CN17
JTAG
JTAG for programming STM32F4xx MCU
CN18
POWER
Power jack external supply (5v)
CN19
FSMC
Interface for LCD and SPI for touch screen
CN20
POWER
Connector for 5v external power supply
CN21
Jumper
LCD/USART2 select, short Pin 2-3 for LCD, see Start-Up manual
CN22
ST-LINK
ST-LINK Program/debug, see section 6
Table 7: Summary of on board connectors and interfaces
Page 10
Koala EVM User Manual
7
Embedded ST-LINK programmer
The ST-LINK programming and debugging tool is integrated on the EVM board. The embedded ST-LINK can be
used in different ways according to the jumper states (as shown in the diagram):


Program/debug the STM32F407IGT6/ STM32F429II MCU on board
Program/debug the MCU on external module connected to the WMI header
For more details about ST-LINK, see documentation from STMicroelectronics.
Jumper configurations:
Jumpers on pins
CN13-CN14
CN15-CN22
Off
Function
Debug to STM32F4xx microcontroller
Debug to WMI module
No ST-LINK debug support
Table 8: Jumper configurations for on board debugger / programmer
See sub-sections below for details about jumper installation.
7.1
Programming on board STM32F407IGT6/ STM32F429II
Jumpers between CN13 and CN14 pins – Select STM32F407/ STM32F429 MCU to program/debug
7.2
Programming WMI module MCU
Jumpers between CN15 and CN22 pins – Select WMI module to program/debug
7.3
Programming support disabled
No jumpers connected – ST-LINK Support disabled
Page 11
Koala EVM User Manual
7.4
ST-LINK headers
Below are details of the ST-LINK signals on the board.
7.4.1 Details of ST-LINK Pins
Pin
1
2
3
4
5
6
Signal
TDO
TDI
TMS
TCK
NRST
JNRST
Table 9: Signals in debug connectors CN13, CN14, CN15 and CN22
Table:
Connector
CN13
CN14
CN15
CN22
Description
U1: STM32F4xx microcontroller
ST-LINK
WMI module
ST-LINK
Table 10: Connector designations
These headers are used for programming the STM32F407/429 (Pro only) or WMI microcontrollers with JTAG.
See start-up manual, WMI modules manual or STMicroelectronics documentation for more details.
7.5
SWD
The SWD header is provided only for initial programming of the ST-LINK firmware to the board (STM32F103).
This is usually not required as the STM32F103 already contains the firmware for USB debug and programming
and can be updated via USB with the ST-LINK upgrade application. The SWD header cannot be used for
programming any other device.
SWD connector (CN12)
Pin CN12
1
VDD_TARGET
2
SWCLK
3
GND
4
SWDIO
5
NRST
6
SWO
Table 11: SWD connector pin outs
Designation
VDD from application
SWD clock
Ground
SWD data input/output
RESET of target MCU
Reserved
Page 12
Koala EVM User Manual
8
Operating Specifications
Below are the ratings of the Koala EVM under normal operation.*
Specification
Value
Voltage supply
5
Current draw (no module connected)
160
Current draw (Bluetooth in use)
250
Current draw (Wi-Fi in use)
340
Operating temperature (ambient)
-40 to +85
Storage temperature
-40 to +105
Unit
V
mA
mA
mA
°C
°C
*Note: ratings measured without camera or LCD peripherals connected. Actual current usage may vary
depending on software.
Table 12: Operating Specifications
Page 13
Koala EVM User Manual
9
Tips and Tricks
USB-Serial Peripheral
Functionality of the USB Serial port peripheral requires a PC driver for the on board USB-UART chip (Silicon
Labs CP210x USB to UART Bridge).
ST-Link programmer selection with single jumper
th
Jumpers can be inserted between each pin in the ST-Link headers, except for the 4 position for both the WMI
module and the on board STM32F4xx. The ST-Link programming target can then be selected by inserting a
th
jumper in the 4 position for either the module or the microcontroller. This is shown in the figures below.
Enable programming WMI module (STM32F407/STM32F429 not programmed)
Enable programming STM32F407/STM32F429 (WMI module not programmed)
By arranging the jumpers in this configuration, it disables the JTAG clock signal, making it only operable for the
device with all jumpers.
Resetting WMI modules with Koala EVM reset button
Under the above jumper configuration, pushing the on board reset button will reset both the WMI module and the
STM32F407/STM32F429 microcontroller.
Page 14
Koala EVM User Manual
10
Electrical Schematics
10.1
STM32F4xx microcontroller, USB serial and CAN bus
Page 15
Koala EVM User Manual
10.2
Extension Interfaces
Page 16
Koala EVM User Manual
10.3
Ethernet
Page 17
Koala EVM User Manual
10.4
Power Supply and USB-OTG peripheral
Page 18
Koala EVM User Manual
10.5
ST-LINK programmer
Page 19
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
