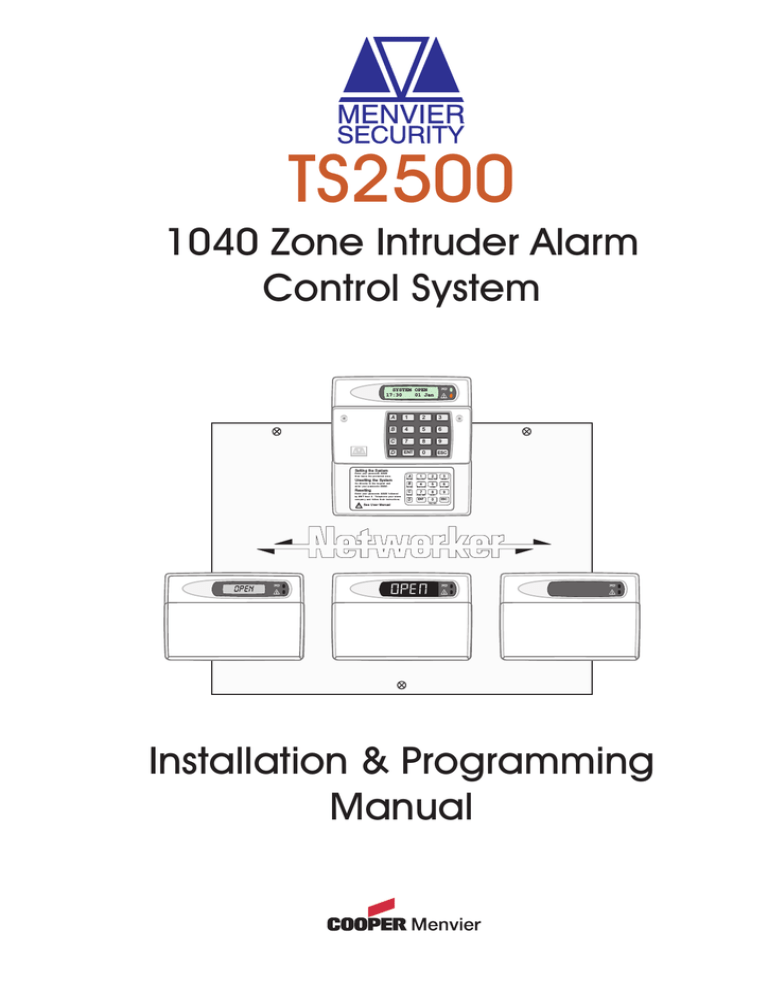

TS2500 Installation Manual

TS2500

1040 Zone Intruder Alarm

Control System

SYSTEM OPEN

17:30 01 Jan

_~

A

B

C

D

1

4

7

ENT

8

0

2

5

3

6

9

ESC th en lea v e th e p r o tec t e d a re a.

Unsetting the System

G o dir e ct ly to t h e k e yp ad an d en te r y ou r p as s c o d e X X X X .

Resetting

E n t er y ou r pa s s c o de X X X X f o llow e d by E N T the n 3 . Te leph o n e y o u r a lar m c o m pan y a nd fo llo w th eir ins tr uc t io ns .

!

See U ser Manual

A

Part Set

B

Part Set

C

Part Set

D

1

B ELL TEST

4

NEW CODE

7

ZONE OM IT

ENT

2

WALK TEST

5

CHIME

8

SILENT

0

FULL SET

3

RE SET

6

24 Hr OMIT

9

ESC

OPEN

_~

Select option :-

_~ _~

Engineers menu 2

Select option :-

_~ _~

Installation & Programming

Manual

Contents

System Overview

System Architecture . . . . . . . . . . . . . . . . . . . . . . . . 1

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Remote Keypads . . . . . . . . . . . . . . . . . . . . . . . . . . 2

32 Character LCD (NETLCD) . . . . . . . . . . . . . . . . 2

8 Character Starburst (NETSTAR) . . . . . . . . . . . . . 2

4 Character LED (NETLED) . . . . . . . . . . . . . . . . . . 2

Remote Arming Station (NETARM) . . . . . . . . . . . . 2

Expansion Devices . . . . . . . . . . . . . . . . . . . . . . . . . 2

TS700 LEC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

TS900 Node . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

XNode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

TSLEC8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

TS900 ID Node . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Other Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

CPA6.OM Output Module. . . . . . . . . . . . . . . . . . 3

DC54/58/58M Digicom and Digi-modem . . . . . 3

TSNIB Networker Interface Board . . . . . . . . . . . . 3

Technical Specifications . . . . . . . . . . . . . . . . . . . . . 3

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

LCD Remote Keypad . . . . . . . . . . . . . . . . . . . . . 3

Starburst Remote Keypad. . . . . . . . . . . . . . . . . . 3

LED Remote Keypad . . . . . . . . . . . . . . . . . . . . . 4

Arming Station . . . . . . . . . . . . . . . . . . . . . . . . . . 4

TS700 LEC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

TSXNode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

TS900 Node . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

TS900 ID Node . . . . . . . . . . . . . . . . . . . . . . . . . . 4

TSLEC8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

System Design

System Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Cable Segregation. . . . . . . . . . . . . . . . . . . . . . . 5

Calculating Voltage Drop. . . . . . . . . . . . . . . . . . 5

Voltage Drop Example 1 . . . . . . . . . . . . . . . . . . 6

Voltage Drop Example 2 . . . . . . . . . . . . . . . . . . 6

Reducing Voltage Drop - Method 1 . . . . . . . . . . 7

Reducing Voltage Drop - Method 2 . . . . . . . . . . 7

Remote Power Supplies . . . . . . . . . . . . . . . . . . . . . 7

Screened Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Electromagnetic Compatibility . . . . . . . . . . . . . . . . 8

XNode Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Wiring Remote keypads to an XNode. . . . . . . . . 9

Wiring a Loudspeaker to an XNode . . . . . . . . . . 10

Wiring an Output Module to an XNode . . . . . . . 10

Programmable Outputs on the XNode. . . . . . . . 10

TS900 Node Wiring . . . . . . . . . . . . . . . . . . . . . . . . . 10

Wiring Nodes and Remote Keypads. . . . . . . . . . . . 10

Remote Keypads and TS700.LECs . . . . . . . . . . . . . 11

TSLEC8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Detection Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Mains Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Panel Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Extension loudspeakers . . . . . . . . . . . . . . . . . . . . . . 12

External Sounders . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Plug-on Digital Communicator . . . . . . . . . . . . . . . . 13

Plug-on Digi-modem . . . . . . . . . . . . . . . . . . . . . . . 13

RedCARE or Stand-alone Digicom . . . . . . . . . . . . . 13

Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Output Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Networker Interface Boards . . . . . . . . . . . . . . . . . . . 13

System Installation

TS2500 Control Panel . . . . . . . . . . . . . . . . . . . . . . . 14

Installation Procedure . . . . . . . . . . . . . . . . . . . . . 14

Mains Connection . . . . . . . . . . . . . . . . . . . . . . . 15

Battery Connections . . . . . . . . . . . . . . . . . . . . . . 15

Main PCB Layout. . . . . . . . . . . . . . . . . . . . . . . . . 16

Connection Terminals, Plugs & Indicators . . . . . . 17

Remote Keypads . . . . . . . . . . . . . . . . . . . . . . . . . . 19

NETLCD Remote Keypad . . . . . . . . . . . . . . . . . . 19

NETSTAR Remote Keypad . . . . . . . . . . . . . . . . . . 19

NETLED Remote Keypad . . . . . . . . . . . . . . . . . . . 19

NETARM Remote Arming Station . . . . . . . . . . . . . 19

PCB Layouts & Connections . . . . . . . . . . . . . . . . 19

Installing a Remote Keypad on the XNode . . . . 20

Installing a Keypad on to the Network . . . . . . . . 20

XNode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Installing an XNode. . . . . . . . . . . . . . . . . . . . . . . 22

TS900 Node . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Installing a TS900 Node. . . . . . . . . . . . . . . . . . . . 22

TS900ID NODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Installing a TS900IDNODE . . . . . . . . . . . . . . . . . . 24

TS700 LEC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Installing a TS700 LEC . . . . . . . . . . . . . . . . . . . . . 25

TSLEC8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Installing the TSLEC8 . . . . . . . . . . . . . . . . . . . . . . 25

Detection Circuit Wiring. . . . . . . . . . . . . . . . . . . . . . 26

Double Pole . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

End Of Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

External Sounders . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Control Panel Sounder Connections. . . . . . . . . . 26

Installing an External Sounder from a Node . . . . 27

Extension Loudspeakers . . . . . . . . . . . . . . . . . . . . . 27

Control Panel Connections. . . . . . . . . . . . . . . . . 27

XNode Connections . . . . . . . . . . . . . . . . . . . . . . 27

RedCARE or Stand-alone Digicom . . . . . . . . . . . . . 27

DC54/DC58 Plug-on Digicoms . . . . . . . . . . . . . . . . 28

DC58M Plug-on Digi-modem . . . . . . . . . . . . . . . . . 28

Output Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Control Panel Connections. . . . . . . . . . . . . . . . . 28

XNode Connections . . . . . . . . . . . . . . . . . . . . . . 28

Connecting a Printer. . . . . . . . . . . . . . . . . . . . . . . . 29

Using the CPA6 Printer. . . . . . . . . . . . . . . . . . . . . 29

Using the DATAC / RS232 Printer . . . . . . . . . . . . . 29

Programmable Outputs . . . . . . . . . . . . . . . . . . . . . 29

Control Panel Outputs. . . . . . . . . . . . . . . . . . . . . 29

Node Outputs. . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Remote Keypads & TS700.LECs . . . . . . . . . . . . . 29

Monitoring a Remote Power Supply . . . . . . . . . . . . 30

Pre Power-Up Checks . . . . . . . . . . . . . . . . . . . . . . . 31

Initial Power-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Power-Up Checks . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Relearn Required Message. . . . . . . . . . . . . . . . . . . 31

Engineer’s Menu 1

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Menu contents . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Panel Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Digicom Outputs. . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Digicom Channels . . . . . . . . . . . . . . . . . . . . . . . . . 34

Programmable Output Types . . . . . . . . . . . . . . . . . 35

Circuit Output Types . . . . . . . . . . . . . . . . . . . . . . 35

System Output Types . . . . . . . . . . . . . . . . . . . . . 35

User Output Types . . . . . . . . . . . . . . . . . . . . . . . . 38

Ward Output Types . . . . . . . . . . . . . . . . . . . . . . . 38

Program Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Circuit Numbering . . . . . . . . . . . . . . . . . . . . . . . 40

Circuit Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Circuit Attributes . . . . . . . . . . . . . . . . . . . . . . . . . 40

Circuit Wards. . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

System Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Setting Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Do System Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

System Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Number of rearms . . . . . . . . . . . . . . . . . . . . . . . 45

Modem rings . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Keys until tamp . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Remote resets . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Reset algorithm . . . . . . . . . . . . . . . . . . . . . . . . . 45

Double Knocks . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Location Text. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Panel Location Text. . . . . . . . . . . . . . . . . . . . . . . 49

Keypad Location . . . . . . . . . . . . . . . . . . . . . . . . 49

Default NVM Data . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Goto User Menu 1. . . . . . . . . . . . . . . . . . . . . . . . . . 51

Log Off Engineer . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Engineer’s Menu 2

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Menu contents . . . . . . . . . . . . . . . . . . . . . . . . . . 53

View Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Set System Time . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Set System Date . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Change Passcode . . . . . . . . . . . . . . . . . . . . . . . . . 54

Alter Chime Circuits. . . . . . . . . . . . . . . . . . . . . . . . . 55

Alter 24Hr Group . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Print System Log . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Alter Circuit Wards . . . . . . . . . . . . . . . . . . . . . . . . . . 56

View System Log . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Log Event Codes . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Start Call Back. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Reset User Code 1 . . . . . . . . . . . . . . . . . . . . . . . . . 60

Set BST/GMT Date . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Rem Service Option . . . . . . . . . . . . . . . . . . . . . . . . 60

Engineers Menu 3

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Menu Contents. . . . . . . . . . . . . . . . . . . . . . . . . . 61

Time Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Part Set Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Use On-line Pad . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Edit User Names . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Part Set Text. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Circuit Text. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Circuit Text Library . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Custom Text Menu . . . . . . . . . . . . . . . . . . . . . . . . . 66

Reset Message . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Location Text . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Printer Header . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Remote Reset Message . . . . . . . . . . . . . . . . . . . 66

Printer Prefix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Banner Message. . . . . . . . . . . . . . . . . . . . . . . . . 66

Part Set Banner . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Aux. Tamper 1/2 . . . . . . . . . . . . . . . . . . . . . . . . . 66

Modem String . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Equipment O/P’s . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Built In Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Software Version . . . . . . . . . . . . . . . . . . . . . . . . . 68

Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Current Consumption . . . . . . . . . . . . . . . . . . . . . 68

View Circuit Resistance. . . . . . . . . . . . . . . . . . . . 68

Test Digicom outputs . . . . . . . . . . . . . . . . . . . . . 68

Test Panel outputs. . . . . . . . . . . . . . . . . . . . . . . . 68

Test Node outputs. . . . . . . . . . . . . . . . . . . . . . . . 69

Confirm Network devices . . . . . . . . . . . . . . . . . . 69

Test Keypad display . . . . . . . . . . . . . . . . . . . . . . 69

View Network devices . . . . . . . . . . . . . . . . . . . . . 69

View Network errors . . . . . . . . . . . . . . . . . . . . . . . 70

False Setting Routine. . . . . . . . . . . . . . . . . . . . . . 70

Test Digicom channels . . . . . . . . . . . . . . . . . . . 70

Custom Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Custom Output - Example 1. . . . . . . . . . . . . . . . 71

Custom Output - Example 2. . . . . . . . . . . . . . . . 71

Custom Output - Example 3. . . . . . . . . . . . . . . . 71

Custom Circuits. . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Digi/Modem Options. . . . . . . . . . . . . . . . . . . . . . . . 73

Call Back No.1 . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Call Back No.2 . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Call Back No.3 . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Modem Password. . . . . . . . . . . . . . . . . . . . . . . . 74

Modem Site No. . . . . . . . . . . . . . . . . . . . . . . . . . 74

Program Digicom . . . . . . . . . . . . . . . . . . . . . . . . 74

Digi Baud rate. . . . . . . . . . . . . . . . . . . . . . . . . . . 76

COM1 Baud rate . . . . . . . . . . . . . . . . . . . . . . . . 76

Internal digi. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Reset Digicom . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Activity Count . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Engineers Menu 4

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Menu Contents. . . . . . . . . . . . . . . . . . . . . . . . . . 77

Auto-set Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Network Equipment Wards . . . . . . . . . . . . . . . . . . . 79

XNodes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Remote Keypads . . . . . . . . . . . . . . . . . . . . . . . . 79

Keypad Sounder. . . . . . . . . . . . . . . . . . . . . . . . . 79

Extension loudspeakers. . . . . . . . . . . . . . . . . . . . 79

Equipment Wards . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Panel tamper . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Bell Box Tamper . . . . . . . . . . . . . . . . . . . . . . . . . 80

Aux 1 Tamper . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Aux 2 Tamper . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Phone Line Fault . . . . . . . . . . . . . . . . . . . . . . . . . 80

Mains Power Off . . . . . . . . . . . . . . . . . . . . . . . . . 80

Payment Timer . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Alarms Engineer Reset . . . . . . . . . . . . . . . . . . . . 80

Tamper Engineer Reset. . . . . . . . . . . . . . . . . . . . 80

Remote Reset. . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Panel Speaker. . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Relearn Required . . . . . . . . . . . . . . . . . . . . . . . . 80

Re-arms applies to . . . . . . . . . . . . . . . . . . . . . . . 80

Hi Security ward . . . . . . . . . . . . . . . . . . . . . . . . . 81

Digi in Part Set . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

System Bell/STB . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Ward A Foyer Mode . . . . . . . . . . . . . . . . . . . . . . 81

Unset fire Signals . . . . . . . . . . . . . . . . . . . . . . . . . 81

Double Knock Wards . . . . . . . . . . . . . . . . . . . . . 81

Unset Circuit Types . . . . . . . . . . . . . . . . . . . . . . . . . 81

Log Search Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Shunt Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

OM Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Mimic options . . . . . . . . . . . . . . . . . . . . . . . . . . 83

CCT options . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Set Volume Level . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Edit Quick Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Engineers Wards . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Code Lock Times . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Appendices

Text Editing Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Cursor Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Common Key Sequences . . . . . . . . . . . . . . . . . 85

Setup New Users . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

User Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

User Wards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Auto Sets wards. . . . . . . . . . . . . . . . . . . . . . . . . . 86

Auto Unset Wards . . . . . . . . . . . . . . . . . . . . . . . . 86

Customising Users . . . . . . . . . . . . . . . . . . . . . . . . 86

Engineer's Quick Reference . . . . . . . . . . . . . . . . . . 88

TS2500 Installation Manual

System Overview

System Architecture

Printer

Speaker

CPA6.OM

Aux 12V

Plug-on

Digicom / Modem

Bell Output

Strobe Output

Digi Outputs 1 - 8

Outputs 1 - 4

Aux Tamps 1 & 2

Data

Networks

TS2500

CONTROL

PANEL

1

2

3

4

5

6

7

8

Wiring Option 1

XNode

2 Outputs

The XNode is capable of driving

4 Remote Keypads and a

Loudspeaker

XNode

1

Remote

8 Zones

2 Outputs

XNode

2

Remote

8 Zones

TSLEC8 TSLEC8

Network Wiring = 4 Core

Wiring Option 2

Remote Keypads or LEC's

1 Output 1 Output 1 Output 1 Output 1 Output

System Overview

2 Outputs

XNode

16

Remote

8 Zones

8 Zones 8 Zones

NOTE:

Only one wiring method can be used on any one Network

2 Zones 2 Zones 2 Zones 2 Zones

Network Wiring = 6 Core (Remotes) or 4 Core (LECs)

Wiring Option 3

Using TS900 Node

2 Outputs 2 Outputs 2 Outputs 2 Outputs

2 Zones

TS900

Node

1

8 Zones

Network Wiring = 4 Core

Wiring Option 4

2 Outputs

TS900

Node

2

8 Zones

TS900

Node

3

8 Zones

TS900

Node

4

8 Zones

2 Outputs

TS900

Node

5

8 Zones

1 Output 1 Output 2 Outputs 2 Outputs

TS900

Node

1

TS900

Node

4

TS900

Node

5

8 Zones

2 Zones 2 Zones

8 Zones 8 Zones

TS900 Nodes and Keypads can be connected on the same Network

BUT NO 2 DEVICES SHOULD HAVE THE SAME ADDRESS.

Network Wiring = 6 Core

Wiring Option 5

8 Outputs

Network Wiring = 4 Core

TS900 ID Node

30 ID Zones

2 Outputs

TS900

Node

5

8 Zones

1

TS2500 Installation Manual

Introduction

The TS2500 intruder alarm control system has been designed to suit medium to large installation sites. The

TS2500 system can be expanded up to 1040 zones. The system is capable of “up” and “down” line loading, allowing remote programming and interrogation via the telephone line and a P.C.

Complex site requirements such as multi-ward setting can be achieved, as the system is capable of being broken down into 16 separately controlled areas

(Wards) so that the premises or parts of the premises can be controlled independently.

The TS2500 system is a true multi-tasking system, which allows up to maximum of eight users operating the system simultaneously.

Control Panel

The control panel is the controlling unit for the system, it has a power supply and connections for a standby battery. It has the following facilities: l l l

8 networks for connecting remote keypads and

Nodes

Connections for two 8 zone local expansion cards

(TSLEC8)

Two auxiliary tamper zones l l l l l l l l

Bell and strobe outputs

4 programmable outputs (1 x Voltage free contacts and 3 high current transistorised)

8 programmable digicom/RedCARE outputs

A connector for a Menvier plug-on digicom or digi-modem

A connector for a printer via the MPA or DCI printer adaptor

A connector for mimic modules (CPA6.OM)

Extension loudspeaker output

All system program information and the 4000 event log is stored in two removable non-volatile memory

(NVM) devices

System Overview

Remote Keypads

Up to 5 remote keypads can be connected when directly wired to the network. The XNode also provides the facility to connect up to 4 remote keypads giving a system total of 512 remote keypads. Each remote keypad has two detection circuits and a single switched

-ve output. The four types are:

32 Character LCD (NETLCD)

The NETLCD remote keypad has a back-lit 32 character super-twist Liquid Crystal Display (LCD) and a back-lit tactile rubber keypad. All system programming must be carried out from a NETLCD remote keypad.

8 Character Starburst (NETSTAR)

The NETSTAR remote keypad has a back-lit 8 character starburst display (LCD) and a back-lit tactile rubber keypad. This type of remote keypad is limited to setting and unsetting only, and cannot be used to program the system.

+

The display will always show the system time.

4 Character LED (NETLED)

The NETLED remote keypad has a 4 character

7-segment LED display and back-lit tactile rubber keypad. This type of remote keypad is limited to setting and unsetting, and cannot be used to program the system.

+

The display will always show the system time.

Remote Arming Station (NETARM)

The Remote Arming Station only allows setting and unsetting of the system. The unit has two indicator LED’s, the “Power LED” and a programmable “Function LED”

(the “Function LED” may be programmed as “Fault” or

“Area Set” etc.).

Expansion Devices

There are several options for expanding the system:

TS700 LEC

The Local Expansion Card (LEC) provides two programmable detection circuits and one programmable switched -ve output. Up to 5 TS700 LECs can be connected on any one network.

TS900 Node

The TS900 Node provides eight programmable detection circuits and two programmable outputs (one switched +ve and one switched -ve). Up to 5 TS900

Nodes can be connected on any one network.

2

TS2500 Installation Manual

XNode

The XNode provides eight programmable detection circuits, two programmable outputs (one switched +ve and one switched -ve) and a loudspeaker output for driving a 16 Ohm loudspeaker. Each XNode can also drive up to 4 remote keypads. Up to 16 XNodes can be connected on any one network.

TSLEC8

The TSLEC8 Local Expansion Card (LEC) is designed to be fitted inside the control panel it provides 8 programmable detection circuits. The control panel will accept two TSLEC8s.

TS900 ID Node

The TS900 ID Node can be used as an alternative to the standard TS900 Node. It provides a single ID Detector

Loop for connection to 30 ID devices and 8 programmable outputs. Several configuration options allow it to be used on its own or with existing TS900

Nodes.

Other Devices

Printer

A DATAC printer or any standard RS232 printer can be connected to the control panel to obtain system and log print-outs.

CPA6.OM Output Module

Each output module provides eight switched -ve outputs, the output modules can be daisy-chained together to provide multiples of eight outputs. The outputs can be used to indicate ward status information and/or circuit alarm/mimic indications.

DC54/58/58M Digicom and Digi-modem

A 4-channel DC54 or 8-channel DC58 digital communicator can be plugged onto the control panel to allow alarm status information to be transferred to a dedicated Alarm Receiving Centre. The 8 channel

DC58M digi-modem can be plugged onto the control panel, which functions as a digital communicator and

V21 modem. The modem facility is required when using the up/down loading feature.

TSNIB Networker Interface Board

A driver and receiver board that allows Nodes or remotes to be driven up to 3 Km.

System Overview

Technical Specifications

Control Panel

Part No:

Input

Supply

Current:

:

Power Supply:

Standby Battery:

Zones

Panel Outputs:

Digi Outputs 1-8:

Speaker Output:

Bell Trigger:

Strobe Trigger:

Dimensions:

Material:

Weight:

Environment:

TS2500

230V

±

10% 50Hz

220mA (normal)

300mA (alarm) with speaker

1.5A

2 x 7.0Ah or 1 x 17Ah

2 to 1040

1 = voltage free changeover

2 = Switched -ve @500mA

3 = Switched +ve @500mA

4 = Switched +ve @500mA

+ve removed

Source 5mA in 12V condition

Sink 100mA in 0V condition

16 Ohms

Switched -ve @500mA

Switched -ve @500mA

384(W) x 312(H) x 95(D) mm

1.2mm mild steel

4.9 Kg

-10 to 55

°

C

LCD Remote Keypad

Part No: NETLCD

Display: 32 Character Liquid Crystal

Current:

Zones:

Output:

Dimensions:

Material:

Weight:

Environment:

50mA (normal) 60mA (alarm)

2

Switched -ve @100mA

150(W) x 104(H) x 30(D) mm

3mm Polycarbonate

282g

-10 to 55 ° C

Starburst Remote Keypad

Part No: NETSTAR

Display:

Current:

Zones:

Output:

Dimensions:

Material:

Weight:

Environment:

8 Character Liquid Crystal

50mA (normal) 60mA (alarm)

2

Switched -ve @100mA

150(W) x 104(H) x 30(D) mm

3mm Polycarbonate

263g

-10 to 55

°

C

3

TS2500 Installation Manual

Current:

Zones:

Output:

Dimensions:

Material:

Weight:

Environment:

TS700 LEC

Part No:

Current:

Zones:

Output:

Dimensions:

Material:

Weight:

Environment:

LED Remote Keypad

Part No: NETLED

Display: 4 character seven segment

Current:

Zones:

Output:

Dimensions:

Material:

Weight:

Environment:

60mA (normal) 70mA (alarm)

2

Switched -ve @100mA

150(W) x 104(H) x 30(D) mm

3mm Polycarbonate

254g

-10 to 55

°

C

Arming Station

Part No:

Display:

NETARM

Power LED

Programmable function LED

30mA (normal) 40mA (alarm)

2

Switched -ve @100mA

150(W) x 104(H) x 30(D) mm

3mm Polycarbonate

254g

-10 to 55

°

C

TS700.LEC

30mA (normal) 40mA (alarm)

2

Switched -ve @100mA

142(W) x 82(H) x 36(D) mm

3mm Polycarbonate

213g

-10 to 55

°

C

TSXNode

Part No:

Current:

Zones:

Outputs:

Speaker Output:

Dimensions:

Material:

Weight:

Environment:

TSXNODE

60mA (normal) 60mA (alarm)

8

A = Switched +ve @100mA

B = Switched -ve @100mA

16Ohms

128(W) x 182(H) x 34(D) mm

3mm Polycarbonate

370g

-10 to 55

°

C

System Overview

TS900 Node

Part No:

Current:

Zones:

Outputs:

Dimensions:

Material:

Weight:

Environment:

TS900 ID Node

Part No:

Current:

Zones:

Outputs:

Dimensions:

Material:

Weight:

Environment:

TSLEC8

Part No:

Current:

Zones:

Dimensions:

Weight:

Environment:

TS900.NODE

60mA (normal) 60mA (alarm)

8

A = Switched +ve @100mA

B = Switched -ve @100mA

128(W) x 182(H) x 34(D) mm

3mm Polycarbonate

370g

-10 to 55

°

C

TS900.IDNODE

80mA (with 1 device)

160mA (with 30 devices)

30 (ID)

A = Switched +ve @100mA

B = Switched +ve @100mA

C = Switched +ve @100mA

D = Switched +ve @100mA

E = Switched -ve @100mA

F = Switched -ve @100mA

G = Switched -ve @100mA

H = Switched -ve @100mA

128(W) x 182(H) x 34(D) mm

3mm Polycarbonate

370g

-10 to 55 ° C

TSLEC8

20mA (normal) 20mA (alarm)

8

89(W) x 71(H) x 15(D) mm

69g

-10 to 55

°

C

4

TS2500 Installation Manual

System Design

System Design

Current

Drawn

380mA

400mA

420mA

440mA

460mA

480mA

500mA

520mA

220mA

240mA

260mA

280mA

300mA

320mA

340mA

360mA

540mA

560mA

580mA

600mA

60mA

80mA

100mA

120mA

140mA

160mA

180mA

200mA

System Wiring

The TS2500 system uses standard 7/0.2 un-screened alarm cable to inter-connect devices within the system.

The number of cores will vary depending on the device being connected.

Cable Segregation

All cables for the alarm system should be segregated from any other cables and wiring services like mains supply cables, telephone cables, computer network cables and R.F. cables. In addition to this the network and detection circuit cables should be kept clear of cables supplying sounders or extension loudspeakers. It is also advisable to avoid running more than one network down a single multi-core cable.

0.61V

0.64V

0.67V

0.70V

0.74V

0.79V

0.80V

0.83V

0.35V

0.38V

0.42V

0.45V

0.48V

0.51V

0.54V

0.58V

0.86V

0.90V

0.93V

0.96V

10m

0.10V

0.13V

0.16V

0.19V

0.22V

0.26V

0.29V

0.32V

1.22V

1.28V

1.34V

1.41V

1.47V

1.54V

1.60V

1.66V

0.70V

0.79V

0.83V

0.90V

0.96V

1.02V

1.09V

1.15V

1.73V

1.79V

1.86V

1.92V

20m

0.19V

0.26V

0.32V

0.38V

0.45V

0.51V

0.58V

0.64V

1.82V

1.92V

2.02V

2.11V

2.21V

2.30V

2.40V

2.50V

1.06V

1.15V

1.25V

1.34V

1.44V

1.55V

1.63V

1.73V

2.59V

2.69V

2.78V

2.88V

30m

0.29V

0.38V

0.48V

0.58V

0.67V

0.77V

0.86V

0.96V

Calculating Voltage Drop

In order for the system work correctly the voltage at each device must NOT drop below 10.5V even when running on the standby battery. Standard 7/0.2 alarm cable has a resistance of 8 Ohms per 100 metres per core. The voltage drop is calculated using the following formula:

V Drop = Current drawn x cable length x 0.08 x 2

The table below shows the expected voltage drop against the current drawn and cable length:

3.04V

3.20V

3.36V

3.52V

3.68V

3.84V

4.00V

4.16V

1.76V

1.92V

2.08V

2.24V

2.40V

2.56V

2.72V

2.88V

4.32V

4.48V

4.64V

4.80V

50m

0.48V

0.64V

0.80V

0.96V

1.12V

1.28V

1.44V

1.60V

Cable Length (Standard 7/0.2 alarm cable)

2.43V

2.56V

2.69V

2.82V

2.94V

3.07V

3.20V

3.33V

1.41V

1.54V

1.66V

1.79V

1.92V

2.05V

2.18V

2.30V

3.46V

3.58V

3.71V

3.84V

40m

0.38V

0.51V

0.64V

0.79V

0.90V

1.02V

1.15V

1.28V

3.65V

3.84V

4.03V

4.22V

4.42V

4.61V

4.80V

4.99V

2.11V

2.30V

2.50V

2.69V

2.88V

3.07V

3.26V

3.46V

5.18V

5.38V

5.57V

5.76V

60m

0.58V

0.79V

0.96V

1.15V

1.34V

1.54V

1.73V

1.92V

4.26V

4.48V

4.70V

4.93V

5.15V

5.38V

5.60V

5.82V

2.46V

2.69V

2.91V

3.14V

3.36V

3.58V

3.81V

4.03V

6.05V

6.27V

6.50V

6.72V

70m

0.67V

0.90V

1.12V

1.34V

1.57V

1.79V

2.02V

2.24V

4.86V

5.12V

5.38V

5.63V

5.89V

6.14V

6.40V

6.66V

2.82V

3.07V

3.33V

3.58V

3.84V

4.10V

4.35V

4.61V

6.92V

7.17V

7.42V

7.68V

80m

0.77V

1.02V

1.28V

1.54V

1.79V

2.05V

2.30V

2.56V

5.47V

5.76V

6.05V

6.34V

6.62V

6.91V

7.20V

7.49V

3.17V

3.46V

3.74V

4.03V

4.32V

4.61V

4.90V

5.18V

7.78V

8.06V

8.35V

8.64V

90m

0.86V

1.15V

1.44V

1.74V

2.02V

2.30V

2.59V

2.88V

6.08V

6.40V

6.72V

7.04V

7.36V

7.68V

8.00V

8.32V

3.52V

3.84V

4.16V

4.48V

4.80V

5.12V

5.44V

5.76V

8.64V

8.96V

9.28V

9.60V

100m

0.96V

1.28V

1.60V

1.92V

2.24V

2.56V

2.88V

3.20V

Voltage Drop Table

5

System Design TS2500 Installation Manual

Voltage Drop Example 1

Example 1 in the figure below shows two Nodes connected to the control panel, the first Node is 20 metres from the panel and has 120mA being taken from its auxiliary supply to power detectors. The second

Node is 20 metres from the first and also has 120mA being taken from its auxiliary supply to power detectors.

The voltage at each Node is calculated as follows:

1.

The total current being drawn at the first Node =

180mA + 180mA +180mA = 540mA.

2.

Voltage drop to the first Node = 540mA @ 20m =

1.73V (see table).

The voltage at each Node is calculated as follows:

1.

The total current being drawn at the first Node =

180mA + 180mA = 360mA.

3.

Voltage at first Node = control panel voltage voltage drop = 13.60 -1.73 = 11.87V.

4.

The total current being drawn at the second Node

= 180mA + 180mA = 360mA.

2.

Voltage drop to the first Node = 360mA @ 20m =

1.15V (see table).

5.

Voltage drop to the second Node = 360mA @ 20m

= 1.15V (see table).

3.

Voltage at first Node = control panel voltage voltage drop = 13.60 -1.15 = 12.45V.

6.

Voltage at second Node = first Node voltage voltage drop = 11.87 - 1.15 = 10.77V.

4.

The total current being drawn at the second Node

= 180mA.

7.

The total current being drawn at the third Node =

180mA.

5.

Voltage drop to the second Node = 180mA @ 20m

= 0.58 (see table).

8.

Voltage drop to the third Node = 180mA @ 20m =

0.58V (see table 1).

6.

Voltage at second Node = first Node voltage voltage drop = 12.45 - 0.58 = 11.87V.

9.

Voltage at third Node = second Node voltage voltage drop = 10.77 - 0.58 = 10.19V.

The example clearly demonstrates that the voltage levels at both Nodes is acceptable.

Voltage Drop Example 2

The second example shows what happens when a third

Node is connected 20 metres from the second Node.

Example 1

20m 20m

The second example demonstrates that when the third

Node is added to the network the current drawn at each device is increased and therefore the voltage drop at each device is increased. The voltage level at the third

Node is now below the 10.5V threshold and may cause problems.

Control Panel

A(+)

B(-)

Network

I = 360 mA

Node 1

Node = 60mA

Total = 180mA

I = 180 mA

Node 2

Node = 60mA

Total = 180mA

AUX AUX

Voltage at panel

13.60 V

120mA taken by detectors

Voltage at Node

12.45 V

120mA taken by detectors

Voltage at Node

11.87 V

20m 20m

Example 2

Control Panel

A (+)

B (-)

Network

20m

I = 540 mA

Node 1

Node = 60mA

Total = 180mA

I = 360 mA

Node 2

Node = 60mA

Total = 180mA

I = 180 mA

Node 3

Node = 60mA

Total = 180mA

Voltage at panel

13.60 V

AUX AUX

120mA taken by detectors 120mA taken by detectors

Voltage at Node

11.87 V

Voltage at Node

10.77 V

Figure 1. Voltage Drop Examples 1 & 2

AUX

120mA taken by detectors

Voltage at Node

10.19 V

6

TS2500 Installation Manual System Design

Method 1

Control Panel

A (+)

B (-)

Network

20m

I = 540 mA

Node 1

Node = 60mA

Total = 180mA

20m

I = 360 mA

Node 2

Node = 60mA

Total = 180mA

20m

I = 180 mA

Node 3

Node = 60mA

Total = 180mA

Voltage at panel

13.60 V

AUX

120mA taken by detectors

Voltage at Node

12.74 V

AUX

120mA taken by detectors

Voltage at Node

12.16 V

AUX

120mA taken by detectors

Voltage at Node

11.87 V

Method 2

Control Panel

A (+)

B (-)

Network

20m

I = 180 mA

Node 1

Node = 60mA

Total = 60mA

Voltage at Node

13.02 V

+Ve

-Ve

Aux

Voltage at panel

13.60 V

I = 360 mA

120mA taken by detectors

Voltage at detectors

12.45 V

20m

I = 120 mA

I = 240 mA

Node 2

Node = 60mA

Total = 60mA

Voltage at Node

12.64 V

120mA taken by detectors

Voltage at detectors

11.66 V

Figure 2. Reducing Voltage Drop - Methods 1 & 2

20m

I = 60 mA

I = 120 mA

Node 3

Node = 60mA

Total = 60mA

Voltage at Node

12.45 V

120mA taken by detectors

Voltage at detectors

11.28 V

Reducing Voltage Drop - Method 1

The simplest way to reduce voltage drop is to double up the supply connections (A & B), this will half the resistance on each core, which will half the voltage drop. When using the voltage drop table to calculate the expected voltage drop, simply divide the voltage drop by two. Figure 2 above shows the same 3 Nodes used in the previous example. The A and B network connections have been doubled up, in order to do so the network cable must have 2 spare cores. This method clearly shows that voltage levels at all Nodes is at a sufficient level.

Reducing Voltage Drop - Method 2

The second way to reduce voltage drop is to supply the detection devices from separate cores. This is the preferred method of reducing voltage drop as detectors generally operate at lower voltages (9.5V).

When using this method the network cable must have 2 spare cores. This method clearly shows that voltage levels at all Nodes is at a sufficient level.

Remote Power Supplies

When voltage drops cannot be overcome by using the two methods previously described or the demand on the control panel power supply is going to be exceeded

(1.5A max.), one or more remote power supplies will need to be installed. It is recommended that the

Menvier 519XB is used in these instances as it can be monitored using the 519FM. When installing a remote power supply it should be installed close to the equipment it is powering.

Figure 3 shows two methods of installing a remote power supply. When connected as shown in method 1, only the last two Nodes have sufficient voltage levels. If the power supply is repositioned so that it is next to Node

3 the voltage levels at each Node is increased because the current being drawn is split into two separate paths and therefore the voltage drop in each path is reduced. Method 2 is the preferred connection method.

7

System Design TS2500 Installation Manual

Method 1

Control Panel

A (+)

B ( - )

Network

20m

Node 1

Node = 60mA

Total = 180mA

Note:

The +ve supply from the panel must remain isolated from the +ve of the Remote PSU.

AUX

120mA taken by detectors

Voltage at Node

7.84 V

20m

I = 180 mA

Node 2

Node = 60mA

Total = 180mA

AUX

120mA taken by detectors

Voltage at Node

8.42 V

20m

I = 360 mA

Node 3

Node = 60mA

Total = 180mA

AUX

120mA taken by detectors

Voltage at Node

9.57 V

20m

I = 540 mA

Node 4

Node = 60mA

Total = 180mA

AUX

120mA taken by detectors

Supply voltage at the Node

11.30 V

20m

I = 720 mA

Node 5

Node = 60mA

Total = 180mA

AUX

120mA taken by detectors

Voltage at Node

13.60 V

-

+

519 XB

1A PSU

Method 2

Control Panel

A (+)

Network

20m

Node 1

Node = 60mA

Total = 180mA

Note:

The +ve supply from the panel must remain isolated from the +ve of the Remote PSU.

AUX

120mA taken by detectors

Voltage at Node

11.87 V

20m

I = 180 mA

Node 2

Node = 60mA

Total = 180mA

AUX

120mA taken by detectors

Voltage at Node

12.45 V

20m

I = 360 mA

Node 3

Node = 60mA

Total = 180mA

AUX

120mA taken by detectors

Voltage at Node

13.60 V

0V

12V

519 XB

1A PSU

20m

I = 360 mA

Node 4

Node = 60mA

Total = 180mA

AUX

120mA taken by detectors

Voltage at Node

12.45 V

20m

I = 180 mA

Node 5

Node = 60mA

Total = 180mA

AUX

120mA taken by detectors

Voltage at Node

11.87 V

Figure 3. Connecting Remote Power Supply Units

Screened Cable

Screened cable may prove necessary if the installation site has equipment that produces high levels of R.F.

(Radio Frequencies), e.g. heavy industrial plant like welding equipment etc. If screen cable is required you should adhere to the following guidelines:

1.

2.

The screen on the cable should only be connected to mains earth at the control panel.

The continuity of the cable screen is most important and screening MUST be continuous along the full length of the network.

3.

If the network cable enters any metal enclosures, make sure the screen remains isolated from the case.

1.

External cables must be connected using cable entries or knockouts provided.

2.

When routing external cables inside the product they must be:

(a) Kept as short as possible.

(b) Routed close to the housing.

(c) Kept as far as possible from the electronics.

3.

Any modifications other than those stated in this manual, or any other use of this product may cause interference and it is the responsibility of the installer to comply with the EMC and Low Voltage Directives.

Electromagnetic Compatibility

When used as intended this product complies with EMC

Directive (89 /336 /EEC) by meeting the limits set by the standards BS4737, EN50082-1 1992 and EN50130-4

1993. The following installation guidelines must be followed.

XNode Wiring

The XNode requires a 4 core cable for interconnection, and up to 16 may be connected in a “daisy-chain” or

“star” configuration. The distance between each

XNode must not exceed 100 metres. The total distance to last XNode must not exceed 1000 metres. Power for detectors is provided by the Aux. +/- terminals.

8

TS2500 Installation Manual

100 metres

Control Panel

Data

Network

4-Core

XNode

In

I/D=1

Out

100 metres

XNode

In

I/D=2

Out

1 Km (Max.)

100 metres

XNode

In

I/D=3

Out

100 metres

XNode

In

I/D=4

Out

Daisy-chained Connections

XNodes

5 to 16

System Design

XNode

In

I/D=16

Out

100 metres

Control Panel

Data

Network

4-Core

XNode

In

I/D=1

Out

100 metres

XNode

In

I/D=3

Out

1 Km (Max.)

100 metres

XNode

In

I/D=6

Out

100 metres

XNode

In

I/D=7

Out

100 metres

XNode

In

I/D=8

Out

XNode

In

I/D=2

Out

NOTE:

The maximum number of devices that can be "Star" connected from the output of the Node or control panel is 4.

XNode

In

I/D=4

Out

XNode

In

I/D=9

Out

XNode

In

I/D=5

Out

Star and Daisy-chained Connections

Figure 4. XNode Connection Methods

Wiring Remote keypads to an XNode

Up to four remote keypads can be connected to each

XNode, they can be connected in either a “star” or

“daisy-chain” configuration. The distance to the furthest remote keypad from the XNode must not exceed 100 metres. Power for detectors are provided by the A(+) and B(-) terminals.

The detection circuits in the XNode can either be mapped to the XNode or to the remote keypads by setting the 4-way “Remote Zone Enable” switch as shown in the table below:

Switch

1

2

3

4

OFF

XNode circuits A & B enabled

XNode circuits C & D enabled

XNode circuits E & F enabled

XNode circuits G & H enabled

ON

Remote keypad 1 circuits A & B enabled

Remote keypad 2 circuits A & B enabled

Remote keypad 3 circuits A & B enabled

Remote keypad 4 circuits A & B enabled

+

+

XNode

In

I/D=10

Out

XNode

I/D=11

In Out

Remote keypads cannot be multi-tasked between each other when connected to the

XNode, i.e. if remote keypad 1 is in operation, remote keypads 2, 3 and 4 are locked-out and will show “SYSTEM IS BUSY PLEASE WAIT.”.

The remote keypads follow the ward assignment of the XNode, i.e. if the XNode is assigned to ward A then remote keypads 1-4 connected to that XNode are also assigned to ward A.

+

The loudspeaker and remote keypad sounders will follow the ward assignment of the XNode.

+

The programmable output on the remote keypads are mapped as follows: Remote keypads 1 and 3 follow XNode output A and remote keypads 2 and 4 follow XNode output B.

9

System Design

From control panel

XNode

In

F

G

A

B

Remote Keypad Network

A B C D E

G

F

B

A

Out

I/D=1

Remote

Keypad

C

D

A

B

E

I/D=2

Remote

Keypad

C

D

A

B

E

I/D=3

Remote

Keypad

C

D

A

B

E

I/D=4

Remote

Keypad

C

D

A

B

E

+12V

0V

6 Core

Alarm Cable

Power for detectors

Spare core used to double up "B" to reduce voltage drop.

+12V

0V

Power for detectors

+12V

0V

Power for detectors

+12V

0V

Power for detectors

To next

XNode

Fiigure 5. Wiring Remote Keypads to an XNode

Wiring a Loudspeaker to an XNode

The XNode has set of terminals for connecting up to two

16 Ω extension loudspeakers. It is recommended that a remote power supply is connected to the XNode to provide the additional power for the loudspeaker.

Wiring an Output Module to an XNode

The XNode has a connector for a CPA6 Output Module, this can be used to provide eight switched -ve outputs to drive LED's, relays etc. The outputs will mimic the operation of the detection circuits, i.e. circuit [A] active

= output 1 active, circuit [A] healthy = output 1 inactive.

Programmable Outputs on the XNode

The XNode has two programmable outputs, each rated at 100mA, output [A+] is a switched +ve output and output [B-] is a switched -ve. The outputs can be used to drive sounders or relays etc.

TS2500 Installation Manual

TS900 Node Wiring

TS900 Nodes require a 4 core cable for interconnection, and up to 5 may be connected in a “daisy-chain” or

“star” configuration to any one network. The distance between each Node must not exceed 100 metres and the total distance to last Node must not exceed 500 metres. Power for detectors is provided by the Aux. +/terminals.

The TS900 Node has two programmable outputs, each rated at 100mA, output [A+] is a switched +ve output and output [B-] is a switched -ve. The outputs can be used to drive sounders or relays etc.

+

No two devices should have the same address

(I/D).

+

The maximum number of devices is five.

TS900 Nodes and XNodes cannot be connected on the same network.

Wiring Nodes and Remote Keypads

The TS900 Node and remote keypads can be connected on the same network. The network must be wired in 6-core cable to allow the remote keypad internal sounders to operate.

+

No two devices should have the same address

(I/D).

+

This method of connection is designed for networks 1 and 2. Although it can be used on other networks, the “D” connection for the remote keypads will have to be taken from networks 1 or 2.

+

The sounder on the remote keypads will follow the control panel sounder.

+

Remote keypads cannot be multi-tasked between each other on the same network when using this method of connection.

+

The maximum number of devices is five.

10

TS2500 Installation Manual System Design

Control Panel

A

B

F

G

Data

Network

100 metres

4 Core

I/D=1

TS900

Node

In

A

B

F

G

G

B

F

Out

100 metres

4 Core

I/D=2

TS900

Node

In

A

B

F

G

G

B

F

Out

500 meters (Max.)

100 metres

4 Core

I/D=3

TS900

Node

In

A

B

F

G

G

A

B

F

Out

100 metres

4 Core

I/D=4

TS900

Node

In

A

B

F

G

G

A

B

F

Out

Control Panel

A

B

C/F

E/G

D

Networks

1 or 2

100 metres

I/D=1

TS900

Node

100 metres

I/D=3

TS900

Node

TS900 Node Connections

100 metres

I/D=5

TS900

Node

In

A

B

F

G

G

A

B

F

Out

In

A

B

F F

G G

A

B

Out

100 metres

In

A

B

F

G

G

A

B

F

Out

Terminal strip

I/D=2

Remote Keypad

I/D=4

Remote Keypad

A

B

C

D

E

100 metres 100 metres

TS900 Nodes and Remotes Connected on the same Network

A

B

C

D

E

100 metres

4 Core

I/D=5

TS900

Node

In

A

B

A

B

F F

G G

Out

Figure 6. TS900 Node Wiring Options

Remote Keypads and TS700.LECs

Up to 5 remote keypads or TS700.LECs can be connected on any one network. The devices may be wired in a “daisy-chain” or “star” configuration. When using remote keypads the network must be wired in

6-core cable. If all devices on the network are

TS700.LECs the network can be wired in 4-core as the

“D” connection is not required.

+

No two devices should have the same address

(I/D).

+

This method of connection is designed for networks 1 and 2. Although it can be used on other networks, the “D” connection for the remote keypads will have to be taken from networks 1 or 2.

+

The sounder on the remote keypads will follow the control panel sounder.

+

Remote keypads cannot be multi-tasked between each other on the same network when using this method of connection.

11

System Design TS2500 Installation Manual

Spare Core

Control Panel

Data

Network

C/F

D

A

B

E/G

I/D=1

Remote

Keypad or LEC

A B C D E

100 Metres (Max.)

I/D=2

Remote

Keypad or LEC

A B C D E

I/D=3

Remote

Keypad or LEC

A B C D E

I/D=4

Remote

Keypad or LEC

A B C D E

I/D=ENG

Remote

Keypad or LEC

A B C D E

Power For

Detectors

Power For

Detectors

Power For

Detectors

Power For

Detectors

Figure 7. Wiring Remote Keypads or TS700.LECs

TSLEC8

Up to two TSLEC8s can be installed inside the control panel. Each LEC provides an additional 8 detection circuits. The LEC is supplied with its own connector lead which simply plugs onto the control panel PCB.

Detection Circuits

All detection circuits can be wired either in “Double

Pole” or “End of Line”. When using the “Double Pole” method, 4-core cable is required for non powered devices such as magnetic contacts and 6-core is required for powered devices such as movement sensors. When using the “End of Line” method, 4-core cable can be used for both non powered and powered devices.

Battery

The control panel must be fitted with an adequate battery in order for the system to function for eight hours in the event of a mains failure. 17Ah capacity can be provided from one single 17Ah battery or 14Ah capacity can be provided by fitting two 7Ah batteries connected in parallel.

If the mains power to the control panel fails, the standby battery will take over and maintain the system. In order to safeguard the battery from full discharge the control panel automatically isolates the standby battery when its voltage falls below 9.5V. When the mains power is restored the system will power-up and reconnect the battery, then continue to recharge.

Mains Supply

Panel Outputs

Power For

Detectors

The mains supply is connected to a 3 way “Euro Type” fused terminal block, which is fitted with a 315mA fuse.

To comply with BS4737 the supply should be fed from an un-switched fused spur fitted with a 3A fuse. All mains electrical connections should be carried out by a qualified electrician and must comply with the current

IEE regulations.

The control panel has four programmable outputs, output [1] is a set of voltage free changeover contacts, output [2-] is a switched -ve @500mA and outputs [3+]

& [4+] are switched +ve @500mA. The outputs can be used to drive relays etc.

Extension loudspeakers

Extension loudspeakers can be connected to the control panel or any XNode (not TS900 Node). The speaker output is designed to drive up to two 16

Ω loudspeakers, however it is recommended that when using two speakers that they are wired in series to reduce current draw. Each loudspeaker output can also be programmed to one or more wards so that the sounder only operates under the relevant conditions.

+

Extension loudspeaker MUST NOT be wired in the same multi-core as network or detection circuit cabling.

12

TS2500 Installation Manual

External Sounders

The control panel has one external sounder output to drive standard SAB or SCB modules, additional external sounders can be driven from Nodes using a relay interface RM3A. When using a Node to drive an external sounder it is recommended that a remote power supply is fitted next to the Node to provide the power for the external sounder. The tamper for the external sounder can be monitored using one of the Node detection circuits.

Plug-on Digital Communicator

The DC54 (4 channel) or DC58 (8 channel) can be plugged onto the control panel so that alarm status information can be transferred to an Alarm Receiving

Centre (ARC). The DC58 also offers the additional facility of reporting separate account numbers per ward. All data for the digital communicator can be programmed via the control panel.

System Design

Output Modules

An output module (CPA6.OM) provides eight switched

-ve outputs @ 100mA, which can be used to drive LED’s or relays. The control panel has a connector which allows one or more output modules to be daisy-chained together. The output modules can then be programmed to give ward status information and/or circuit alarm/mimic indications.

The XNode also has a connector for a single output module, but the outputs will only mimic the eight detection circuits of the XNode.

Networker Interface Boards

The Networker Interface Boards (NIBs) can be used when cable runs between Nodes or remote keypads exceed

100 metres. The NIBs are supplied as a driver unit and receiver unit. The driver unit connects to the output of the control panel or Node and the receiver unit can be connected up to 3 kilometres away. A separate remote power supply unit will be required to power the receiver unit and the remainder of equipment on the network.

Plug-on Digi-modem

The DC58M is a combined 8 channel digital communicator and V21 modem. The digital communicator also offers the additional facility of reporting separate account numbers per ward. If required the digicom can be disabled so that only the modem facilities are provided. The V21 modem is required to allow uploading and downloading of system data via a PC using Menvier Lineload software.

RedCARE or Stand-alone Digicom

Eight programmable switched -ve @100mA outputs are provided on the control panel to allow connection to a stand-alone RedCARE unit such as the Versus 3GSTU or DA BlueSTU. The STU can be mounted inside the control panel underneath the main PCB.

Printer

A DATAC printer or any serial RS232 printer can be connected to the control panel via a MPA or DCI (printer adaptor). The printer can be used to obtain a full printout of the system programming or event log. It can also be left connected and used as an on-line printer, i.e., all system events are printed as and when they occur.

13

System Installation

System Installation

TS2500 Installation Manual

TS2500 Control Panel

Installation Procedure

1.

Open the control panel by removing three screws from the front cover. Remove the cover and disconnect the earth bonding cable from the spade connection on on the transformer.

2.

Note the position of the cable entries as follows:

(a) Ten 20mm cable entries for detection, alarm and remote keypad cables.

(b) A 20mm cable entry for mains (230V) below the mains input terminal block.

+

The mains cable must enter the control panel through its own cable entry and must not be mixed with other cables.

3.

Hold the control panel back box in the required position and mark the centre of the middle fixing position. Remove the back box, drill and plug the hole.

4.

Screw a No 10 screw into the plugged hole.

Re-position the back box and mark the remaining two securing holes. Remove the back box, drill and plug the holes.

5.

Re-position the back box and pass all cables into the base via the appropriate cable entries, remembering to fit grommeyts where necessary.

6.

Secure the back box using not less than 30mm x No

10 screws through the three securing holes.

7.

If required install and connect the following:

(a) Stand alone digicom or RedCARE STU or other signalling device.

(b) Plug-on digicom type DC54, DC58 or DC58M.

(c) Output modules type CPA6.OM.

(d) Printer type DATAC or serial RS232 via a printer adaptor (DCI/MPA).

(e) Relay module type RM3A.

+

When replacing the cover, always ensure that the earth bonding lead is connected to the spade connection on the transformer.

Fused Terminal

Block 200mA

Mains

Transformer

Printed Circuit Board (PCB)

Spade connection for earth lead to front cover

Mains Cable

Entry

Battery

Position

Figure 8. TS2500 Control Panel Layout

14

TS2500 Installation Manual

Mains Connection

The mains supply is connected to a 3 way “Euro Type” fused terminal block,which is fitted with a 315mA fuse.

+

All electrical connections should be carried out by a qualified electrician and must comply with the current IEE regulations.

+

To comply with European regulations the supply should be fed from a readily accessible disconnect device, e.g. un-switched fused spur.

+

When making mains connections it should be ensured that if the cable slips in such a way as to place a strain on the conductors, the protective earthing conductor will be the last to take the strain.

To transformer

FUSE 315mA

Figure 9. Mains Supply Connections

System Installation

Battery Connections

A single 17Ah battery or two 7Ah batteries can be installed inside the control panel to provide continuous system operation in the event of a mains failure. A set of battery leads are provided in the spares pack to allow connection between the battery and control panel.

+

12V 17Ah Battery

-

OR

Battery

+

12V 7Ah Battery

-

+

12V 7Ah Battery

-

Battery

L

E

N

Figure 10. Battery Connections

If the mains power to the control panel fails, the standby battery will take over and maintain the system. In order to safeguard the battery from full discharge the control panel automatically isolates the standby battery when its voltage falls below 9.5V. When the mains power is restored the system will power-up and the reconnect the battery, then continue to recharge. If the system is to be tested using only the battery (no mains supply available) then the “Kick Start” pins must be momentarily shorted to enable the battery.

15

System Installation

Main PCB Layout

30 21 17 14 18 15 23

TS2500 Installation Manual

29

24

1

16

PRINTER

JP1

JP5

FACTORY

RESTART

JP6

SYSTEM

LEARN

OUTPUT

MODULE

JP2

POWER

LED 1

HEARTBEAT

LED 3

20

JP8

COMMS PORT

27

26

26

27

13

2

19

2

3

V

12

REM RESET

T +

11

10

9

8

O +

O -

B -

G -

7

6

2

5

4

28 25 22

Figure 11. Main PCB Layout

31 32

16

TS2500 Installation Manual

Connection Terminals, Plugs & Indicators

The main PCB has the following connectors etc.

1 Networks 1-8

Data networks for connecting nodes, remote keypads and LECs. Each network is protected by its respective fuse (30), the fuse is in-line with the [A] connection of the network

2 Auxiliary 12V

Three sets of auxiliary 12V terminals are provided on the main PCB, each set provides dc power for detectors etc. These outputs are protected by a

1A fuse (32).

3 Battery Terminals

Connection terminals for the red and black battery leads supplied inside the spares pack.

4 Earth Terminal

Connection to mains earth.

5 AC Input Terminals

The output from the mains transformer is connected into these two terminals.

6 External Sounder Terminals

This group of terminals are used for connection to an external sounder, for full details of their function see page 26.

7 Speaker Terminals

Up to two 16

Ω extension loudspeakers can be connected across these two terminals. The volume is controlled via a programming option,

see “Set Volume Level” on page 83.

8 Auxiliary Tampers 1 & 2

These terminals provide tamper protection to auxiliary devices such as remote power supplies, extension loudspeakers etc. If they are not used they must be linked out.

9 Remote Reset Input

After a full alarm the system will require resetting, normally this is done by the engineer or via coded remote reset. By applying a -ve to this input terminal it will cause the system to reset after a full alarm. This input could be connected to the

“Control” output on a RedCARE STU so that the central station can provide a “Remote Reset” facility.

10 Line Fault Input

When this input is applied with a +ve signal the system will generate a “Line Fault” condition. In the unset condition the system will generate a

“Chime” tone every minute. In the set condition any programmed bell delay is cancelled.

11 +DC Power

This terminal provides the +12V power to the stand-alone digital communicator or RedCARE

STU. This output is un-fused and therefore must only

System Installation

be used if the device is fitted inside the control panel housing.

12 Digicom Outputs 1 to 8

These are programmable outputs and are normally connected to the input channels on a stand-alone digital communicator or RedCARE

STU. The outputs are normally at +12V and switch to 0V when active. The outputs can be inverted so that they switch from 0V to +12V when active, see

“Configuration” on page 46. Each output will source 5mA in the +12V condition and sink

100mA in the 0V condition.

13 Panel Outputs 1 to 4

These are programmable outputs that can be used to drive relays and auxiliary equipment.

Output [1] is a set of voltage free change over contact rated at 1Amp. Output [-2] is a switched negative output rated at 500mA. Outputs [+3] and [+4] are switched positive outputs rated at

500mA.

14 Printer Output Port (JP1)

This 6-pin plug is used for connecting to either a

CPA6 printer or a standard RS232 printer via the

DCI/MPA printer adaptor.

15 Output Module (JP2)

Output modules type CPA6.OM can be connected to this 5-pin plug, and are used to provide switched -ve outputs to LED's/relays etc.

The outputs can be programmed such that they give ward status information and/or circuit mimic/alarm indications.

16 LEC 1 (JP3) / LEC 2 (JP4)

Two TSLEC8 PCBs can be connected via an interface lead to these connectors. The interface lead is provided with the TSLEC8.

17 Factory Restart (JP5)

If these pins are shorted during power-up all system parameters are reset to their factory default settings. If the engineer’s passcode is lost or forgotten it can be reset to 1234 without losing any other program data as follows:

(a) Ensure that the system is fully unset and a master user passcode is available.

(b) Remove the cover from the control panel, this will cause a panel lid tamper alarm.

(c) Enter the master user passcode to silence the alarm.

(d) Place the blade of a small screwdriver between the “FACTORY RESTART” pins. A multi-tone sound indicates that the engineer’s passcode has been reset. This action will be recorded in the system log.

17

System Installation

18 System Learn (JP6)

If these pins are shorted whilst the system is powered, the control panel will re-learn all devices on all eight networks. If after a system learn the number of devices or device types have changed the display will show "RELEARN

REQUIRED". In order to clear this message you must confirm the number of network device using the

"Confirm Network Devices" option, see page 69.

19 Digi-Modem Plug (JP7)

A plug-on digicom or digi-Modem may be connected to this 7-pin plug to allow panel alarm information to be transferred to an alarm receiving centre. The digi-Modem is used for remote communication and programming via a P.C. A

PCI/DCI lead also is also available which connects to this plug when using a P.C. with Lineload software for direct communication with the control panel.

20 Comms Port (JP8)

High speed serial communications port COM1 (for future use).

21 Engineer’s Remote Keypad Plug (JP9)

Normally all system programming will be carried out from one of the installed remote keypads.

However, an engineers remote keypad can be temporarily connected to this 6-pin plug to allow programming and testing to be carried out at the control panel. This feature can only be used if

Network 1 does not have any XNodes connected to it, any keypads addressed as 'ENG' or LECs addressed as 'NULL'.

22 Kick Start (JP10)

If the system is to be powered only from the battery

(no mains supply available) then the “Kick Start” pins must be momentarily shorted to enable the battery.

23 Power LED

This LED indicates that the system power (mains or battery) is healthy.

24 Heartbeat LED

When the system is functioning correctly this LED will continually flash on and off. If a fault occurs on the main PCB this LED will stop flashing.

25 Battery Fault

If the system battery is incorrectly connected to the control panel the “Battery Fault” LED will illuminate. The fault LED will only extinguish when the battery has been correctly connected or replaced.

26 NVM Upper & Lower

Two removable non-volatile memory (NVM) devices that store all system program parameters and the 4000 log events.

TS2500 Installation Manual

27 EPROM Upper & Lower

Two removable memory devices that store the operating software for the TS2500 system.

28 System Current Measurement (V)

The system current consumption can be calculated by measuring the voltage across this test point on the main PCB. Using a Voltmeter set to a low Voltage range measure the Voltage across the test point and multiply the reading by 10 to give the Total system current consumption i.e., a reading of 70mV = 700mA.

29 Tamper Switch

The lid tamper protection for the control panel.

30 Network Fuses 1 to 8

The supply voltage across [A] and [B] terminals each network is protected by its own fuse (1Amp).

31 Bell Fuse

The supply voltage across the [H/O+] and [H/O-] terminals that supply the external sounder is protected by this 1 Amp fuse.

32 Aux 12V Fuse

The supply voltage across the auxiliary 12V terminals are protected by this 1 Amp fuse.

18

TS2500 Installation Manual

Remote Keypads

Four types of remote keypads are available:

NETLCD Remote Keypad

The NETLCD remote keypad has a 32 character back-lit

Liquid Crystal Display (LCD). The system must have at least one NETLCD remote keypad fitted in order for system programming to be carried out.

NETSTAR Remote Keypad

The NETSTAR remote keypad has a 8 character back-lit starburst Liquid Crystal Display (LCD).

+

The NETSTAR remote keypad is limited to setting, unsetting and part-setting, and cannot be used for system programming. The display will always show the system time.

NETLED Remote Keypad

The NETLED remote keypad has a 4 character LED display.

+

The NETLED remote keypad is limited to setting, unsetting and part-setting, and cannot be used for system programming. The display will always show the system time.

NETARM Remote Arming Station

The NETARM remote arming station only has two indicator LED's, a power LED and a programmable function LED which follows the programmable output.

+

The NETARM remote arming station is limited to setting, unsetting and part-setting, and cannot be used for system programming.

PCB Layouts & Connections

Œ

Detection Circuits.

Each remote keypad has two programmable detection circuits.



Loudspeaker Volume.

For adjusting the volume of a speaker wired to the remote keypad (NETLCD only).

Ž

LED Mimic.

If this jumper link is set to the “enabled” position, the red (‹) LED on the keypad will be “ON” when the keypad output is active.



Remote I/D.

Used to select the remote keypads address. (ENG

= Engineer).



Ward Sounder Control.

If this jumper link is set to the “disabled” position, the remote keypad sounder will follow the control panel speaker output. If this link is set to “enabled”, the remote keypad sounder will only activate when the panel speaker and the output on the remote keypad are active at the same time.

System Installation

‘

Loudspeaker Output.

This terminal can be connected to a single 16

Loudspeaker (NETLCD only).

’

Network Connections & O/P.

Terminals A to E are used to connect the remote keypad to the control panel network. The O/P terminal is the programmable output.

“

Tamper Switch.

Remote Keypad case tamper

”

ENT Key Disable.

If the “ENT” key is enabled the remote keypad can be used to set/unset and access all user menus. If the “ENT” key is disabled the remote keypad can only be used to set and unset the system.

1 2

3

ENT KEY

DISABLED

Display Module

LED MIMIC

I/D

Selector

1

2

3

4

ENG

REMOTE

I/D

A B C D E

SPK

9 8 7 6

Figure 12. NETLCD, NETLED & NETARM PCB Layout

LED MIMIC

9

1

ENT KEY

DISABLED

Display Module

I/D

Selector

1

2

3

4

ENG

REMOTE

I/D

A B C D E

O/P

8 7

Figure 13. NETSTAR PCB Layout

4

5

3

4

5

19

System Installation

Installing a Remote Keypad on the XNode

1.

Separate the cover and base by using a flat blade screwdriver to gently prise the two halves apart.

Then lift the cover assembly away from the base, noting that the PCB is connected to the under side of the cover.

2.

Hold the base in position (keyhole to the top) and mark the appropriate securing holes, drill and plug the wall as required. Pass all cables into the base via the cable entry points as appropriate and secure the base to the wall.

3.

Connect the network cables to the appropriate terminals.

4.

Set the I/D jumper link to the required position, see table below, ensuring no two remote keypads on the same Node have the same I/D.

5.

Set the “Remote Zone Enable” switch on the XNode to enable zones in the remote keypads as required.

6.

If installing the NETSTAR, NETLED or NETARM it is recommended that the “ENT Key Disable” jumper is set to the disabled position. This will ensure that the keypad functions are limited to setting and unsetting.

7.

Finally clip the remote keypad cover onto the base being careful not to trap any cables or to obstruct the tamper switch.

I/D

3

4

1

2

ENG

Remote Keypads connected to XNodes

Circuit A Circuit B Output

Node Circuit A Node Circuit B Node Output A

Node Circuit C Node Circuit D Node Output B

Node Circuit E Node Circuit F Node Output A

Node Circuit G Node Circuit H Node Output B

N/A N/A N/A

TS2500 Installation Manual

Installing a Keypad on to the Network

1.

Separate the cover and base by using a flat blade screwdriver to gently prise the two halves apart.

Then lift the cover assembly away from the base, noting that the PCB is connected to the under side of the cover.

2.

Hold the base in position (keyhole to the top) and mark the appropriate securing holes, drill and plug the wall as required. Pass all cables into the base via the cable entry points as appropriate and secure the base to the wall.

3.

Connect the cables to the appropriate terminals.

4.

Set the I/D selector jumper link to the required position, see table below, ensuring no two remote keypads, LECs or nodes have the same I/D.

5.

Finally clip the remote keypad cover onto the base being careful not to trap any cables or to obstruct the tamper switch.

I/D

3

4

1

2

ENG

Remote Keypads connected to the Network

Circuit A Circuit B Output

N001

N009

N017

N025

N033

N002

N010

N018

N026

N034

N01A

N02A

N03A

N04A

N05A

N = Network Number (1 - 8)

XNode

The XNode is very similar to that of TS900 Node in that it provides the facility to add an extra eight programmable detection circuits and two programmable outputs. However, the XNode can also drive extension loudspeakers, up to 4 remote keypads and an output module. The maximum number of

XNodes that can be connected to any one network is

16.

20

TS2500 Installation Manual System Installation

Extension speaker

Zone enable selector

Output module connector

Auxiliary 12V

(for detectors)

Speaker volume control

I/D selector

XNode type

TS900 or

TS2500

Programmable detection circuits A - D

OUTPUT MODULE

SPEAKER

VOLUME

9

10

11

12

13

14

15

16

5

6

7

8

1

3

2

4

NODE I/D

JP4

REMOTE ZONE

ENABLE

1 2 3 4

JP5

JP5 FITTED =

NO TAMPER

Programmable detection circuits E - H

Tamper switch

Fit jumper-link to disable tamper switch

Auxiliary 12V fuse (500mA)

Remote keypad fuse (500mA)

AUX 12V

500mA

REMOTE

500mA

From previous

XNode

Control panel mains power indicator

On = mains on

Flashing = mains off

+

-

AUX 12V

+

A B

O/P

-

A B C D E

REMOTE KEYPAD NETWORK

To next XNode

13

14

15

16

9

10

11

12

7

8

5

6

3

4

1

2

I/D

A

N065

N073

N081

N089

N097

N105

N113

N121

N001

N009

N017

N025

N033

N041

N049

N057

N = Network number (1 - 8)

B

N066

N074

N082

N090

N098

N106

N114

N122

N002

N010

N018

N026

N034

N042

N050

N058

C

N067

N075

N083

N091

N099

N107

N115

N123

N003

N011

N019

N027

N035

N043

N051

N059

Auxiliary 12V output

(for powering detectors)

Programmable outputs:

[A+] = switched +ve @100mA

[B -] = switched -ve @100mA

Figure 14. XNode Layout

Connections to remote keypads

Detection Circuits

D E

N068

N076

N084

N092

N100

N108

N116

N124

N004

N012

N020

N028

N036

N044

N052

N060

N069

N077

N085

N093

N101

N109

N117

N125

N005

N013

N021

N029

N037

N045

N053

N061

F

N070

N078

N086

N094

N102

N110

N118

N126

N006

N014

N022

N030

N038

N046

N054

N062

G

N071

N079

N087

N095

N103

N111

N119

N127

N007

N015

N023

N031

N039

N047

N055

N063

H

N072

N080

N088

N096

N104

N112

N120

N128

N008

N016

N024

N032

N040

N048

N056

N064

Node Outputs

A+ B-

N09A

N10A

N11A

N12A

N13A

N14A

N15A

N16A

N01A

N02A

N03A

N04A

N05A

N06A

N07A

N08A

N09B

N10B

N11B

N12B

N13B

N14B

N15B

N16B

N01B

N02B

N03B

N04B

N05B

N06B

N07B

N08B

21

System Installation

Installing an XNode

1.

Separate the cover and base by using a screwdriver to push 2 of the clips (left or right) inward from the base indents, then lift the cover clear.

2.

If the XNode is being fitted inside the control panel you may remove the XNode PCB from its base and secure it to the base of the control panel using self adhesive feet. If required, the tamper switch can be disabled by fitting the jumper link across JP5, see

Figure 14.

3.

If the XNode is being fitted outside the control panel, hold the base in position and mark the four securing holes. Drill and plug the wall as required, then pass all cables into the base via the cable entry points as appropriate. Secure the base to the wall using the appropriate fixing screws.

4.

Connect the network data cables to the appropriate terminals.

5.

If required, connect the remote keypad network cables to the appropriate terminals.

6.

If required, connect the extension loudspeaker to the appropriate terminals. The volume of the speaker is controlled by the speaker volume control, see Figure 14.

7.

Set the I/D selector jumper link to the required position, see the table below, ensuring no two

XNodes on the same network have the same I/D.

8.

Set the “Remote Zone Enable” switch on the XNode to enable or disable the zones in the remote keypads as required.

9.

Set JP4 to the TS2500 position.

10.

Finally clip the XNode cover onto the base being careful not to trap any cables or to obstruct the tamper switch.

TS2500 Installation Manual

TS900 Node

The TS900 Node allows the facility to add an extra eight programmable detection circuits and two programmable outputs. Up to five can be connected to any one network.

+

TS900 Nodes and XNodes cannot be connected on the same network.

Installing a TS900 Node

1.

Separate the cover and base of the Node by using a screwdriver to push 2 of the clips (left or right) inward from the base indents, then lift the cover clear.

2.

If the Node is being fitted inside the control panel you may remove the Node PCB from its base and secure it to base of the control panel using self adhesive feet. If required, the tamper switch can be disabled by fitting the jumper link across JP2, see

Figure 15.

3.

If the Node is being fitted outside the control panel, hold the base in position and mark the four securing holes. Drill and plug the wall as required, then pass all cables into the base via the cable entry points as appropriate. Secure the base to the wall using the appropriate fixing screws.

4.

Connect the network data cables to the appropriate terminals.

5.

Set the I/D selector jumper link to the required position, see the table below, ensuring no two nodes, remote keypads or LEC’s on the same network have the same I/D.

6.

Finally clip the Node cover onto the base being careful not to trap any cables or to obstruct the tamper switch.

22

TS2500 Installation Manual

Tamper switch

Fit jumper-link to disable tamper switch

System Installation

I/D selector

Programmable detection circuits A - D

From previous

Node

JP2 FITTED = NO TAMPER

JP2

2

1

4

3

5

NODE I/D

Programmable detection circuits E - H

Auxiliary 12V fuse (500mA)

AUX 12V

500mA

A B F G

NETWORK IN

+ + - -

AUX 12V

+ -

A B

O/P

A B F G

NETWORK OUT

To next Node

Mains power indicator

On = mains on

Flashing = mains off

Auxiliary 12V output

(for powering detectors)

Programmable outputs:

[A+] = switched +ve @100mA

[B -] = switched -ve @100mA

Figure 15. TS900 Node Layout

3

4

1

2

5

I/D

A

N001

N009

N017

N025

N033

B

N002

N010

N018

N026

N034

N = Network number (1 - 8)

C

N003

N011

N019

N027

N035

Detection Circuits

D E

N004

N012

N020

N028

N036

N005

N013

N021

N029

N037

F

N006

N014

N022

N030

N038

G

N007

N015

N023

N031

N039

H

N008

N016

N024

N032

N040

Node Outputs

A+ B-

N01A

N02A

N03A

N04A

N05A

N01B

N02B

N03B

N04B

N05B

23

System Installation

TS900 ID NODE

The TS900 ID Node can be used as an alternative to the standard TS900 or XNODE. The ID Node provides a single

ID Detector Loop that allows you to connect up to 30 ID devices. Several configuration options allow you to use the TS900 ID Node on its own or with existing TS900

Nodes or XNodes. You can connect a maximum of two

ID Nodes to one network.

Tamper switch

Fit jumper link to disable tamper switch

Cable

Entry

Address

Bit-Switch

Output Module

Connector

Cable

Entry

1 Amp Auxilliary

Fuse

OUTPUT

MODULE

1 AMP

AUX 12V

3

4

1

2

JP2

JP2

FITTED

NO

TAMPER

TS900 I.D. NODE

OUTPUTS

A+

-

+

E-

F-

B+

C+

D+

G-

H-

Cable

Entry

Switched +ve

Outputs

Switched -ve

Outputs

Node Network

'IN' connections

+ -

AUX

12V

+ -

DTR

LOOP

C D E

REMOTE

NETWORK

Node Network

'OUT' connections

Cable

Entry

Mains power indicator

(flashes when mains power is off)

Auxilliary 12V output for powering detectors

Detector

Loop

Loop-in connections for the Remote Network

TS2500 Installation Manual

Installing a TS900 ID NODE

You can site the ID Node either inside the control panel or remotely. If you site the ID Node remotely the maximum cable length is 100m. Note that the supply voltage at the ID Node MUST be capable of supplying power for all the detection devices connected to the node. If there is not enough power then you will need to fit a remote power supply to the node.

1. Separate the cover. Use a screwdriver to push two of the clips (left or right) inwards from the base indents and lift the cover clear.

2. To fit an ID Node inside the control panel remove the

ID Node PCB from its base and secure it inside the control panel using self-adhesive feet. Disable the ID

Node tamper switch, if necessary, by fitting the jumper link across JP2 (see Figure 6).

3. To fit an ID Node remotely, hold the base in position and mark the four securing holes. Drill and plug the wall as required. Pass all cables into the base through the cable entry points as necessary. Secure the base to the wall using the appropriate fixing screws.

4. Connect “Node Network” cables to the appropriate terminals (see Figure 6).

5. Connect the ID Detection Loop to the + and - DTR

Loop terminals. Take power for the detectors from the + and - AUX 12V terminals (see Figure 6).

Set the Address Bit-Switch to the required position (see table below).

Figure 16. TS900 ID NODE PCB Layout

For more information see “TS900 ID Node Installation

Instructions” part number 18981.

1

ON off

ON off

2 off

ON off

ON

3 off off off off

4 off off

ON

ON

Nodes Simulated Biscuits Addressed

1, 2, 3 & 4 1 to 30

5

1, 2 & 3

4 & 5

1 to 8

1 to 24

1 to 16

Address Bit Switch Options

Node Outputs

1-8 (A-H)

9-10 (A-B)

1-6 (A-F)

7-10 (A-D)

24

TS2500 Installation Manual

TS700 LEC

The TS700 LEC allows the facility to add an extra two programmable detection circuits and one programmable output. Up to five can be connected to a network. The TS700 LEC would normally be used when upgrading existing systems that have two zone expansion devices, such as the CPA6 MKII.

Box mounting holes(2)

PCB mounting holes (4)

CABLE ENTRY

Network connections

Programmable detection circuits

NULL

System Installation

I/D

3

4

1

2

Null

TS700 LECs connected to the Network

Circuit A Circuit B Output

N001

N009

N017

N025

N033

N002

N010

N018

N026

N034

N01A

N02A

N03A

N04A

N05A

N = Network Number (1 - 8)

Programmable output switched -ve @100mA

TSLEC8

The TSLEC8s are designed to fit inside the control panel, each LEC allows the facility to add an extra eight programmable detection circuits to the system.

Mounting space and holes have been provided inside the control panel to allow two TSLEC8s to be fitted. The

TSLEC8s are assigned to “Network 0".

I/D selector

JP2

TAMPER = JP2 NOT FITTED

NO TAMPER = JP2 FITTED

CABLE ENTRY

Tamper switch

Fit jumper-link to disable tamper switch

Figure 17. TS700 LEC Layout

Programmable detection circuits

Programmable detection circuits

Installing a TS700 LEC

1.

Separate the cover and base of the LEC by using a screwdriver to push 2 of the clips (left or right) inward from the base indents, then lift the cover clear.

2.

If the LEC is being fitted inside the control panel remove the LEC PCB from its base and secure it to the base of the control panel using self adhesive feet. If required, the tamper switch can be disabled by fitting the jumper link across JP2, see Figure 17.

3.

If the LEC is being fitted outside the control panel, hold the base in position and mark the two securing holes. Drill and plug the wall, then pass all cables into the base via the cable entry points. Secure the base to the wall using the appropriate fixing screws.

4.

Connect network data cables to the appropriate terminals.

5.

Connect detection circuit cables to the appropriate terminals.

6.

Set the I/D selector jumper link to the required position, see the table below, ensuring no two nodes, remote keypads or LEC’s on the same network have the same I/D.

7.

Fit the PCB into the base being careful not to trap cables or to obstruct the tamper switch.

Figure 18. TSLEC8 Layout

To control panel plug LEC1 / LEC2

Installing the TSLEC8

1.

Insert the four mounting pillars provided into the four holes in the TSLEC8 and secure in the base of the control panel.

2.

Connect one end of the interface lead into the

TSLEC8 and the other into the control panel connector LEC 1 (detection circuits 0001 to 0008) or

LEC 2 (detection circuits 0009 to 0016).

3.

Connect detection circuit wiring to the appropriate terminals.

25

System Installation

Detection Circuit Wiring

All detection circuits may be wired as “End Of Line” (EOL) or ”Double Pole" (DP). Both methods can be used on the same equipment.

Double Pole

The DP method requires the following: l l l l l

The detector alarm and tamper contacts are connected to the zone and tamper terminals respectively.

The combined alarm and tamper loop resistance must be less than 100 Ohms.

The maximum number of detection devices allowed in a circuit is ten.

Normally open devices such as exit terminator buttons are connected across the zone terminals and then must be programmed with the “Invert” attribute.

If the detection circuit is not used links can be fitted across the zone and tamper loops or programmed as “Not Used”.

500 meters or 100 Ohms

Alarm l

TS2500 Installation Manual

normally closed devices and then must be programmed with the “Invert” attribute.

If the detection circuit is not used links can be fitted across the zone and tamper loops or programmed as Not Used.

External Sounders

500 meters or 100 Ohms

Alarm

4K7

Tamper

4K7

Alarm

Tamper

4K7

Alarm

Tamper

Max. 10 devices per circuit

4K7 = Yellow, Violet, Red

2K2 = Red, Red, Red

Figure 20. End Of Line Wiring

2K2

2K2

Tamper

Alarm

Tamper

Alarm

Tamper

Max. 10 devices per circuit

Figure 19. Double Pole Wiring

End Of Line

The EOL method requires the following: l l l l l

The detector alarm contacts must have a 4K7 shunt resistor fitted.

A 2K2 End of Line (EOL) resistor must be fitted at the point in the circuit furthest from the control panel.

Loop resistance with the EOL resistor shorted must be less than 100 Ohms.

The maximum number of detection devices allowed in a circuit is ten.

Normally open devices such as exit terminator buttons are connected in the same way as

26

Control Panel Sounder Connections

The following terminals have been provided to allow connections to an external sounder:

H/O+ This is used to provide a permanent +ve hold off to external sounders, strobes etc. It is protected by a 1A fuse (Bell 12V).

H/O This is used to provide a permanent -ve hold off to external sounders, strobes etc.

TR This is the negative tamper return connection from the external sounder unit.

STB This is the strobe trigger output which switches to 0V on alarm and is rated at 500mA.

Normally this output is connected to the strobe -ve , the strobe +ve is connected to

[H/O+].

TRG This is the bell trigger output which switches to

0V on alarm and is rated at 500mA. This output can be programmed for SAB or SCB operation, and operates as follows:

SAB - Switches to 0V on alarm and provides a maximum of 500mA.

SCB - Provides a negative hold off (500mA), which is removed on alarm.

TS2500 Installation Manual System Installation

Control Panel

H/O +

H/O -

TR -

STB -

TRG -

Typical

External Sounder

12V +

0V

Tamper In

Tamper Out

Strobe +ve

Strobe -ve

Trigger -ve

1 x 16 Ohm Loudspeaker

+

-

Figure 21. External Sounder Connections

Installing an External Sounder from a Node

Both the TS900 Node and XNode have two programmable outputs, these can be utilised to drive an external sounder. However, it is recommended that a remote power supply is fitted next to the Node in order to provide sufficient power for the external sounder. A relay module such as the Menvier RM3A is also required to drive the external sounder. The figure below shows the connection details.

Aux

12V

-

+

NODE

CIRCUIT X

Aux

0V

A+

B-

COIL +

RLY 2

COIL -

COIL +

COIL -

SPARE 1

RLY 1

SPARE 2

TAMPER

TAMPER

RLY 2

COM

N/O

N/C

COM

N/O RLY 1

N/C

SPARE 3

SPARE 4

RM3A

ZX

TX

Program circuit as:

TAMPER with the

INVERT attribute

REMOTE

POWER

SUPPLY

12V

0V

SAB

MODULE

STROBE-

STROBE +

TAMPER OUT

TAMPER IN

TRIGGER

+12V

0V

Figure 22. External Sounder Connections - Node

Extension Loudspeakers

Control Panel Connections

Up to two extension loudspeakers can be connected across the [+] and [-] SPEAKER terminals on the control panel PCB. The volume for the loudspeaker is controlled via a programming option, see "Set Volume Level" on

page 83. The control panel loudspeaker can also be assigned to one or more wards so that it only operates under relevant conditions.

XNode Connections

Up to two extension loudspeakers can be connected across the [+] and [-] SPEAKER terminals on the XNode

PCB. The volume for the loudspeaker is controlled via the “SPEAKER VOLUME.” control. The XNode loudspeaker can also be assigned to one or more wards so that it only operates under relevant conditions.

2 x 16 Ohm Loudspeakers

Figure 23. Loudspeaker Connections

RedCARE or Stand-alone Digicom

A stand-alone digital communicator, RedCARE STU or

Paknet interface card can be connected to the system to transfer panel status information to a dedicated

Alarm Receiving Centre.

The control panel has the following outputs for connection to a digicom/RedCARE:

Digicom Outputs 1 to 8

These are the programmable digicom/RedCARE output connections. They are normally at +12V and switch to 0V when active. The outputs can be inverted so that they switch from 0V to +12V when active, see

“Configuration” on page 46. Each output will source

5mA in the +12V condition and sink 100mA in the 0V condition.

+DC POWER

This provides the +12V power to the digicom/RedCARE.

This output is un-fused and therefore must only be used if the device is fitted inside the control panel. The 0V supply for the digicom/STU can be picked up from any of the auxiliary 0V terminals.

LINE FLT

When this input is switched to +12V, a “Line Fault” condition is generated. A “Line Fault” condition in the unset mode will cause a “Chime” type tone to be generated every minute, which can be silenced by entering any valid passcode. A “Line Fault” condition in the set mode will cancel the “Bell Delay”.

27

System Installation

CONTROL

PANEL

Program

As:-

Open (60)

Alarm (05)

PA (06)

Fire (07)

+DC POWER

1

LINE FLT

REM RESET

8

7

6

5

4

3

2

AUX 0V

3GSTU

Channel Inputs are

Programmed as

Positive Removed

TS2500 Installation Manual

DC58M Plug-on Digi-modem

A plug-on digi-modem DC58M can be fitted inside the control panel to allow remote interrogation and programming via a personal computer (PC). It will also function as a standard digicom (if required). The unit should be fitted in accordance with the installation instructions supplied with it and connected to the control panel plug DIGI-MODEM using the lead provided with the DC58M. The NVM within the digi-modem can be programmed via the control panel, see “Digi/Modem options” on page 73. The modem data is also programmed via the control panel.

TS2500 Control

Panel

DC58M

Figure 24. 3GSTU RedCARE Connections

Telephone

Network

Alarm Receiving

Centre

DC54/DC58 Plug-on Digicoms

A plug-on digital communicator DC54 or DC58 can be fitted inside the control panel to allow alarm status information to be transferred to a dedicated Alarm

Receiving Centre. The unit should be fitted in accordance with the installation instructions supplied with it and connected to the control panel plug

DIGI-MODEM (JP7) using the lead provided with the unit.

The NVM within the digicom can be programmed via the control panel, see “Digi/Modem options” on page

V21.

Modem

Connect to JP7

DIGI-MODEM

A

B

BC

Telephone cable

(Type 1/0.5mm CW1308)

6

5

4

3

2

1

B.T. master jack ( Type NTE5 user accessible connections )

White / Blue ring

Blue / White ring

Orange / White ring

Figure 25. DC54/DC58 Connections

73.

28

Plug-on digicom / digi-modem

Figure 26. DC58M Digi-modem Schematic

Output Modules

The Output Module provides eight switched -ve outputs each rated at 100mA. They can be used to drive LED's or relays etc. Each module is supplied with an interface lead which allows it to be connected to the control panel or XNode. Output modules are normally fitted inside the equipment they are controlling and can be positioned up to 100 metres away.

Control Panel Connections

When connected to the control panel the output modules can be programmed to give ward status indications and/or circuit mimic/alarm indications.

XNode Connections

When connected to the XNode, the output module will provide circuit mimic indications for the eight detection circuits of the XNode.

TS2500 Installation Manual

100m

PL1 PL2

System Installation

DATA IN

POWE

R

PAPER

FEED

Connect to plug labelled OUTPUT

MODULE

1 2 3 4 5 6 7 8

Connect to JP1

PRINTER

CPA6 P

CPA6 Printer

1k Resistors

LED's

Figure 27. Output Module Connections

MPA or DCI

RS232 Data

Connect to JP1

PRINTER

Figure 28. Printer Connections

1

Connecting a Printer

The TS2500 supports two type of printers, the CPA6 printer (no longer available) and any standard RS232 printer. When using an RS232 printer a DCI/MPA printer adaptor will be required. Menvier Security supply a

DATAC printer kit which consists of a portable RS232 printer, charger unit and DCI/MPA adaptor.

Using the CPA6 Printer

1.

Plug the CPA6 printer directly on to the PRINTER plug

(JP1) on the main control panel PCB.

2.

The printer will printout a header, when finished the system program details and event log can be printed.

3.

When finished unplug the printer. If the printer is left connected and the on-line printer option is enabled (see “Configuration” on page 46) events will be printed as and when they occur.

Using the DATAC / RS232 Printer

1.

Plug the DCI/MPA on to the PRINTER plug (JP1) on the main control panel PCB.

2.

Plug the other end of the DCI/MPA into the DATAC or

RS232 printer.

3.

In order for the printer to work correctly ensure the printer is set to the following:

Baud rate =4800

Parity

Start bits

Stop bits

Data bits

DTR

= None

= 1

= 2

= 8

= Normal

4.

When set-up correctly the system program details and event log can be printed.

5.

When finished unplug the MPA/DCI. If the printer is left connected and the on-line printer option is enabled (see “Configuration” on page 46) events will be printed as and when they occur.

DATAC or RS232 printer

Programmable Outputs

The TS2500 system has many programmable outputs which can be used to drive relays, LED’s etc. Each output can be programmed for a different function, see “Programmable Output Types” on pages 35 - 39.

Control Panel Outputs

The control panel has four programmable outputs:

[1]

[-2-]

Set of voltage free change-over contacts rated at 1 Amp.

Switched -ve output rated at 500mA.

[+3]

[+4]

Switched +ve output rated at 500mA.

Switched +ve output rated at 500mA.

Node Outputs

Each XNode and TS900 Node has two programmable outputs:

[+A]

[-B ]

Switched +ve output rated at 100mA.

Switched -ve output rated at 100mA.

Remote Keypads & TS700.LECs

Each remote keypad and TS700 LEC has one programmable output:

[O/P] Switched -ve output rated at 100mA.

29

System Installation

+ve O/P

(Programmed as Alarm / Bell / etc)

Aux 0V

Diode (IN418)

Relay

+ve O/P

(Programmed as Detector Reset)

+ 12 V 0V

Smoke

Detector

Aux 0V

Relay available from

RS components

P/No. 346-946.

Capable of switching mains voltages

Aux 12 V

-ve O/P

(Programmed as Alarm / Bell / etc)

TS2500 Installation Manual

Diode (IN418)

Relay

Aux 12V

-Ve O/P

(Programmed as Detector Reset)

+ 12 V 0V

Smoke

Detector

Relay available from

RS components

P/No. 346-946.

Capable of switching mains voltages

+ve O/P

Aux 0V

1K0 Ohm Resistor

LED (Light Emiting Diode)

Aux 12V

-Ve O/P

1K0 Ohm Resistor

LED (Light Emiting Diode)

+ve O/P

Aux 0V

+ve Outputs

Aux 12V

12V Buzzer

RS Part No. 245-051

-Ve O/P

Figure 29. Output Examples

-ve Outputs

12V Buzzer

RS Part No. 245-051

Monitoring a Remote Power Supply

The TS2500 can be configured to monitor a 519XB power supply unit using a 519FM fault monitor PCB. The

519FM plugs directly onto the 519XB PCB plug labelled

JP1.

The 519FM PCB monitors any combination of: l l

Supply Failure (mains)

Low Battery Voltage l

12V Failure (fuse failure)

In order to monitor all the above fault conditions, the outputs on the 519FM must be connected to three detection circuits. It is recommended that the circuits are programmed as custom circuits as shown in Figure

30. For details on configuring "Custom Circuits", see

page 72.

If required, the PSU battery can be “load tested” periodically by connecting a switched +ve output to the 519FM BATT TEST terminal. The battery test occurs at pre-programmed intervals and every time the engineer logs off the system.

Program As:-

Custom

Circuit 1

ZA

TA

Custom

Circuit 2

NODE

Custom

Circuit 3

ZB

TB

ZC

519 FM

TC

Battery

Test (045)

O/P

Aux 0V

A+

Custom Circuit Programming

Custom

Circuit 1

Bell Digi Sounder Warning

Yes

Custom o/p

Yes

Custom

Circuit 2

Yes

Custom

Circuit 3

In Unset

In Part Set

In Full Set

In Unset

In Part Set

In Full Set

In Unset

In Part Set

In Full Set

Circuit Text

PSU A.C. Fail

PSU Batt. Fault

PSU Fuse Fail

Supply

Fail

Battery

Low

12V

Fail

Batt Test

0V

Figure 30. Monitored Power Supply Connections

30

TS2500 Installation Manual

Pre Power-Up Checks

Once the system is installed, but prior to powering-up give the system one final check to ensure that:

1.

The wiring conforms to the requirements detailed in this manual and that all connections are correct (A to A, B to B etc.).

2.

All system cables are kept clear of mains supply cables, telephone cables and R.F. cables. It is recommended that cable ties are used to keep cables separated.

3.

Verify that maximum cable lengths and resistance’s are not exceeded.

4.

Mains power supply cables to the system are connected to an un-switched fused spur.

5.

Grommets are used where cables enter metal housings to ensure that the cable insulation is not compromised.

Initial Power-Up

To power the system for the first time:

1.

Place a small screwdriver blade between the pins on the control panel PCB, marked “FACTORY

RESTART". This will ensure the factory default parameters are set, see page 49 for a list of defaults.

2.

Switch on the 230V mains supply and remove the screwdriver blade after 5 seconds.

3.

Check that the power LED on the control panel PCB is illuminated.

4.

Check that the remote keypads display “Panel Lid tamper”. The remote keypad sounders and extension loudspeakers will operate.

5.

Enter the engineers passcode (default 1234) to silence the sounders.

6.

Connect the standby battery.

System Installation

Power-Up Checks

When the initial power-up checks have been completed, check the following:

1.

Switch off the 240V mains supply and ensure that the DC voltage at each device on each network is greater than 11V whilst the system is powered from its standby battery.

2.

Switch on the 240V mains supply and measure the

DC voltage between the mains earth connection and AUX +12V. Then measure the DC voltage between the mains earth connection and AUX 0V.

In both cases the measurement should be 1V or less. If the voltage is greater than 1V, the system has an “Earth Fault” and all cables should be checked for isolation to Earth.

3.

Using a voltmeter measure the DC voltage across the control panel PCB test points (V) and calculate the system current consumption. Ensure that the reading is not greater than 1.5A.

4.

Repeat test (3) with the system in an alarm condition and ensure that the reading is not greater than

1.5A.

+

The TS2500 has an overload protection circuit. If the power supply is overloaded, the display will show: “PSU OVERLOAD ! ! !” and sounder will sound.

Relearn Required Message

When the system is powered up after a factory restart, the remote keypads will display "RELEARN REQUIRED".

On entering your engineer's passcode the system will automatically select the "Confirm Network Devices" option, see "Confirm Network Devices" on page 69.

After confirming the correct number of devices the

"RELEARN REQUIRED" message will be cleared. Once cleared, entering your engineer's passcode will select

"Engineers menu 1".

31

System Installation TS2500 Installation Manual

32

TS2500 Installation Manual

Engineer’s Menu 1

Introduction

Engineers menu 1 is the first of four engineers menus, which is selected when the engineer’s passcode is entered. The Engineer may leave “Engineer menu 1" by pressing the [ESC] key. The system will return to the unset condition but the remote keypads will show

”Engineer-on- site". This message will be cleared the next time a valid user passcode is entered or by selecting the log off engineer option in engineer's menu

1.

Menu contents

Hotkey

1

2

3

4

5

6

7

8

9

A

B

C

0

Option

Program Panel Outputs

Program Digicom Outputs

Program Digicom Channels

Program Circuits, Attributes & Wards

Program System Timers

Program Setting Modes

System Print-out

Program System Options

Program Configuration

View Location Text

Default NVM data

Log Off Engineer

Goto User Menu 1

44

44

45

46

49

49

51

51

Page

34

34

34

40

42

Enter Engineer's

Passcode

1 2 3 4

Engineers menu 1

Select Option :-

C

A

4

1

2

3

5

6

7

8

9

A

B

Engineer’s Menu 1

ESC

Engineers menu 1

Panel outputs

ENT

Engineers menu 1

Digi outputs

ENT

Engineers menu 1

Digi channels

ENT

Engineers menu 1

Program circuits

ENT

Engineers menu 1

System timers

ENT

Engineers menu 1

Setting modes

ENT

Engineers menu 1

Do system print

ENT

Engineers menu 1

System options

ENT

Engineers menu 1

Configuration

ENT

Engineers menu 1

Location text

ENT

Engineers menu 1

Default NVM data

ENT

C

0

ENT

Engineers menu 1

Log off engineer

ENT

Engineers Menu 1

Goto User menu 1

ENT

Engineers menu 2

Select option :-

ESC

Engineer on Site

12:19 Wed 22 AUG

Engineers Menu 1

33

Engineer’s Menu 1

Panel Outputs [1-1]

Outputs 1 - 4 on the control panel PCB can be programmed to any of the output types shown on pages 35 - 39. The relay output [Output 1] can also be

Inverted, see “Configuration option 11” on page 46.

Digicom Outputs [1-2]

The 8 digicom outputs on the control panel PCB can be programmed to any of the output types shown on pages 35 - 39. In addition, all outputs can be inverted,

see “Configuration option 12” on page 46.

TS2500 Installation Manual

Digicom Channels [1-3]

The 8 plug-on digicom channels can be programmed to any of the output types shown on pages 35 - 39.

1 Engineers menu 1

Panel outputs

[

Panel output 1

System Strobe

Press 1 4

[ to select

Panel output number to edit

2 Engineers menu 1

Digi outputs

[

Digi output 1

Fire Alarm

Press 1 8

[ to select

Digicom output number to edit

3 Engineers menu 1

Digi channels

[

Digi channel 1

Fire Alarm

Press 1 8

[ to select digicom channel number to edit

1

=CIRCUIT

Select output

Type :- CIRCUIT

[

Select CCT type

0001 Mimic

1

2

3

4

5

[

= Mimic

= Alarm

= Tamper

= Test Fail

= Omit to accept

Select cct no.

0001 Mimic

Enter circuit No.

[ to accept

2

=SYSTEM

Select output

Type :- SYSTEM

[

System type >04

Walk Test

Enter system type No.

or / to scroll

[

A C to accept

3

=USER

Select output

Type :- USER

[

Enter user No.

001 Code entered

Enter user No.

or / to scroll

[

A C to accept

4

=WARD

Select output

Type :- WARD

[

Select WARD Req.

Ward A Strobe

Enter ward.

1 9

A C

[

/

= wards A-I to scroll I-P to accept

Ward type >01

Ward A Strobe

Enter ward type.

[ to accept

Panel Outputs, Digicom Outputs and Digicom Channels Flowchart

34

TS2500 Installation Manual

Programmable Output Types

The TS2500 output types are broken down in to four specific groups:

Circuit Output types related to the status of detection circuits 0001 to 8128.

System Output types related to the status of the alarm system in general.

User Output types related to the user codes 001 to

199 being used.

Ward Output types related to the status of wards A to

P.

Circuit Output Types

1 Mimic

Activates when the selected circuit is active, deactivates when the selected circuit is healthy.

2 Alarm

Activates when the selected circuit causes an alarm, deactivates when alarm is reset.

3 Tamper

Activates when the selected circuit is in tamper, deactivates when tamper is reset.

4 Test Fail

Activates when the selected circuit is triggered whilst on test, deactivates when the engineer clears the test failures.

5 Omit

Activates when the selected circuit is omitted, deactivates when the selected circuit is reinstated.

System Output Types

00 Bell (SAB)

Activates when the control panel bell output is on, deactivates when the control panel bell output is off.

01 System Strobe

Activate when the control panel strobe output is on, deactivates when the control panel strobe output is off.

02 Switch 12 Volts

Activates when any ward is set, deactivates when any ward goes into alarm or entry mode. This output is normally used for latching detectors

03 Detector Reset

Active all the time to power latching detectors

(smoke detectors, shock sensors etc.), deactivates for 2 seconds when a code is entered to set the first ward.

04 Walk Test

Activates when the walk test option is selected, deactivates when the walk test is exited.

Engineer’s Menu 1

05 Alarm

Activates when any ward is in alarm, deactivates when all ward alarms have been reset.

06 Panic Alarm (PA)

Activates when any PA alarm is detected, deactivates when all PA alarms have been reset.

07 Fire Alarm

Activates when any fire alarm is detected, deactivates when all fire alarms have been reset.

08 System Set

Activates when any ward is set, deactivates when all wards are unset.

09 Code Accepted

Activates for the duration of the “Access Code

Time” after any valid passcode has been entered.

10 24hr Alarm

Activates when any 24Hr alarm is detected, deactivates when all 24Hr alarms have been reset.

11 2nd Alarm

Activates for the duration of the “2nd Alarm Time” when any ward has a second detector causing an alarm (alarm confirmation).

12 Courtesy Light

Activates for the duration of the “Courtesy Time” when any ward is in entry or if any keypad is operated.

13 Engineer on site

Activates when the engineer’s code is entered, deactivates when the engineer is logged off.

14 Circuits Omitted

Activates when any circuit is omitted , deactivates when all circuits are reinstated.

15 Auxiliary Alarm

Activates when any ward auxiliary alarm is activated, deactivates when all ward auxiliary alarms are reset.

16 Always on

Active at all times.

17 Bell (SCB)

This is output type 00 inverted.

18 Auxiliary Fuse

Activates when the auxiliary fuse blows.

19 Auto-Setting

Activates for 1 minute prior to any ward being set automatically.

20 Tamper Alarm

Activates when a tamper alarm is triggered, deactivates when all tamper alarms have been reset.

35

Engineer’s Menu 1

21 Phone Line Fault

Activates when a line fault is detected, deactivates when the telephone line is restored.

22 Mains Power Off

Activates when the mains power is removed from the control panel, deactivates when the mains power is restored.

23 Exit / Entry

Activates when any ward is in entry or exit mode.

24 Test CCTS Failed

Activates when any circuit fails test, deactivates when reset by the engineer.

25 1st Knock

Activates when any double knock circuit activates for the first time, deactivates when the circuit is activated for the second time or when the system is reset.

26 Digi Failed

Activates for 5 seconds when the digicom fails to communicate (plug-on only).

27 Digi Successful

Activates for 5 seconds when the digicom communicates successfully (plug-on only).

28 Digi Active

Activates when the digicom is activated, deactivates when the digicom has finished communicating (plug-on only).

29 2nd entry only

Activates when any ward starts the second entry timer, deactivates when the second entry time expires.

30 Entry Only

Activates when any ward starts its entry mode, deactivates when the ward is unset.

31 Exit Only

Activates when any ward starts its exit mode, deactivates when the ward is set.

32 Custom o/p 1 on

Activates when a combination of output conditions occur, see “Custom Outputs” on page

71.

33 Custom o/p 2 on

Activates when a combination of output conditions occur, see “Custom Outputs” on page

71.

34 Custom o/p 3 on

Activates when a combination of output conditions occur, see “Custom Outputs” on page

71.

35 Custom o/p 4 on

Activates when a combination of output conditions occur, see “Custom Outputs” on page

71.

36

TS2500 Installation Manual

36 Custom o/p 5 on

Activates when a combination of output conditions occur, see “Custom Outputs” on page

71.

37 Custom o/p 6 on

Activates when a combination of output conditions occur, see “Custom Outputs” on page

71.

38 Custom o/p 7 on

Activates when a combination of output conditions occur, see “Custom Outputs” on page

71.

39 Custom o/p 8 on

Activates when a combination of output conditions occur, see “Custom Outputs” on page

71.

40 Time Switch 1 On

This output is controlled by the settings of “Time

Switch 1" , see "Time Switches" on page 62.

41 Time Switch 2 On

This output is controlled by the settings of “Time

Switch 2" , see "Time Switches" on page 62.

42 Time Switch 3 On

This output is controlled by the settings of “Time

Switch 3" , see "Time Switches" on page 62.

43 Access Code

If configuration option 29 is set to "Access code only" this output will only activate when an "Access" type passcode is entered and will remain active for the duration of the "Access Code Time". If configuration option 29 is set to "Access all codes" this output will activate when any valid passcode is entered and will remain active for the duration of the "Access Code Time".

44 Payment Required

Activates when the “Payment Time” has expired, deactivates when engineer resets the system.

45 Battery Test On

Activates during the battery test and for the duration of the “Battery Test” duration.

46 Rem Service Call

Activates when the system is on-line with a remote

PC and the Lineload software.

47 System Full Set

Activates when all defined wards are set, deactivates when any ward is unset.

48 24hr Omit Active

Activates when the 24Hr omit group is omitted, deactivates when the 24Hr group is reinstated.

49 PC Output 1 On

This output is controlled by a PC with Lineload software.

TS2500 Installation Manual

50 PC Output 2 On

This output is controlled by a PC with Lineload software.

51 PC Output 3 On

This output is controlled by a PC with Lineload software.

52 PC Output 4 On

This output is controlled by a PC with Lineload software.

53 Service Required

Activates when the “Service Time” has expired, deactivates when the engineer passcode is entered.

54 Reset Required

Activates when the system requires an “Engineer

Reset”, deactivates when the system is reset either by the engineer or Remote Reset.

55 Always Off

This output never activates

56 Duress Alarm

Activates when a duress code is entered, deactivates when the duress alarm is reset.

57 System Part Set

Activates when any part of the system is set, deactivates when all wards are unset or the system is fully set.

58 Battery Fault

Activates when a battery fault occurs, deactivates when the fault is cleared.

59 Set Failed

Activates when any ward fails to set, deactivates when the set fail condition is reset.

60 System Open

Activates when the system is unset, deactivates when any part of the system is set.

61 Shunt code

Activates for 5 seconds when a shunt code is entered.

62 Random Output On

Activates randomly (between 5 and 60 minutes).

63 Modem Lockout

Activates when the modem is locked-out (four failed attempts), deactivates when a master code is entered or after 4 hours.

64 Auxiliary 1 tamp

Activates when auxiliary tamper 1 is activated, deactivates when the alarm is reset.

65 Auxiliary 2 tamp

Activates when auxiliary tamper 2 is activated, deactivates when the alarm is reset.

Engineer’s Menu 1

66 Bell box tamper

Activates when the bell tamper is triggered, deactivates when the alarm is reset.

67 Panel lid tamper

Activates when the panel lid tamper is activated, deactivates when the alarm is reset.

68 Chime Mimic

Activates for 2 seconds when any chime circuit is activated.

69 24hr CCT Omitted

Activates when any 24Hr circuit is manually omitted, deactivates when all omitted circuits are reinstated.

70 Monitored O/P On

Activates when a monitored circuit is triggered and stays active for the duration of the “Monitor

Cct Time”.

71 Alarm Abort

Activates for the duration of the "Abort duration" timer when the alarm has been aborted by the user .

72 Code Lock 1 on

Activates when “Code lock timer 1" is on, deactivates when the timer is off.

73 Code Lock 2 on

Activates when “Code lock timer 2" is on, deactivates when the timer is off.

74 Code Lock 3 on

Activates when “Code lock timer 3" is on, deactivates when the timer is off.

75 Rem call enabled

Activates when a user enables remote service call, deactivates when a user disables remote service call or after four hours.

76 Auto-set timer 1

Activates when the “Auto-set timer 1" is on, deactivates when timer is off.

77 Auto-set timer 2

Activates when the “Auto-set timer 2" is on, deactivates when timer is off.

78 Auto-set timer 3

Activates when the “Auto-set timer 3" is on, deactivates when timer is off.

79 Relearn Required

Activates when the system requires a relearn, deactivates when the relearn has been performed.

80 Custom cct 1

Activates when the custom circuit 1 is triggered, deactivates when custom circuit 1 is reset.

81 Custom cct 2

Activates when the custom circuit 2 is triggered, deactivates when custom circuit 2 is reset.

37

Engineer’s Menu 1

82 Custom cct 3

Activates when the custom circuit 3 is triggered, deactivates when custom circuit 3 is reset.

83 Custom cct 4

Activates when the custom circuit 4 is triggered, deactivates when custom circuit 4 is reset.

84 Custom cct 5

Activates when the custom circuit 5 is triggered, deactivates when custom circuit 5 is reset.

85 Custom cct 6

Activates when the custom circuit 6 is triggered, deactivates when custom circuit 6 is reset.

86 Custom cct 7

Activates when the custom circuit 7 is triggered, deactivates when custom circuit 7 is reset.

87 Custom cct 8

Activates when the custom circuit 8 is triggered, deactivates when custom circuit 8 is reset.

88 Exit Fault

Activates when a circuit is in a fault condition during exit, deactivates when the fault is reset.

User Output Types

1 Code entered

If configuration option 26 is set as “Timed Code

Output” the output will activate when the selected user passcode is entered and deactivate when the “Access Code Time” has expired.

If configuration option 26 is set as “Latched Code

Output” the output will activate when the selected user passcode is entered and deactivate when the selected user passcode is re-entered.

Ward Output Types

00 Ward Bell-SAB

Activates when the selected ward is in alarm, deactivates when the selected ward bell duration timer expires.

01 Ward Strobe

Activate when the selected ward is in alarm, deactivates when the selected ward is reset.

02 Ward Switch 12

Activates when the selected ward is set, deactivates when the selected ward is in alarm or entry. This output is normally used for latching detectors.

03 Ward Det. Reset

Active all the time to power latching detectors

(smoke detectors, shock sensors etc.), deactivates for 2 seconds when a code is entered to set the selected ward.

04 Ward Walk Test

Activates when the selected ward is walk tested, deactivates when the walk test is exited.

38

TS2500 Installation Manual

05 Ward Alarm

Activates when the selected ward is in alarm, deactivates when the selected ward is reset.

06 Ward P.A. Alarm

Activates when the selected ward PA alarm is detected, deactivates when the selected ward

PA alarm is reset.

07 Ward Fire Alm.

Activates when the selected ward Fire alarm is detected, deactivates when the selected ward

Fire alarm is reset.

08 Ward Set

Activates when the selected ward is set, deactivates when the selected ward is unset.

09 Ward 2nd Entry

Activates when the selected ward second entry timer is running.

10 Ward 24hr alm.

Activates when the selected ward 24Hr alarm is detected, deactivates when the selected ward

24Hr alarm is reset.

11 Ward 2nd Alarm

Activates for the duration of the “2nd Alarm Time” when the selected ward has a second detector causing an alarm.

12 Ward Entry

Activates when the selected ward is in entry mode, deactivates when the selected ward is unset.

13 Ward Exit

Activates when the selected ward is in exit mode, deactivates when the selected ward is set.

14 Ward CCTS Omit

Activates when the selected ward has any circuits omitted, deactivates when all circuits in the selected ward are reinstated.

15 Ward Access

If configuration option 29 is set to "Access code only" this output will only activate when an "Access" type passcode assigned to the selected ward is entered and will remain active for the duration of the "Access Code Time". If configuration option 29 is set to "Access all codes" this output will activate when any valid passcode assigned to the selected ward is entered and will remain active for the duration of the "Access Code Time".

16 Ward Set Fail

Activates when the selected ward fails to set, deactivate when the selected ward is reset.

17 Ward Bell-SCB

Activates when the selected ward is not in alarm, deactivates when the selected ward bell triggers.

Re-activates when ward bell duration timer expires.

TS2500 Installation Manual

18 Ward Settling

Activates when the selected ward settling timer is running.

19 Ward Clear

Activates when the selected ward is clear of faults when setting, deactivates when the selected ward has a fault during setting or when ward is unset.

20 Ward Tamper

Activates when the selected ward detects a tamper alarm, deactivates when the selected ward tamper alarm is reset.

21 Ward Reset Req

Activates when the selected ward requires a

“Reset”, deactivates when the ward has been reset.

22 Ward Lock-Out

Activates when a security key is active in the selected ward, deactivates when the security key is healthy.

23 Ward Chime On

Activates when any circuit in the selected ward causes a chime tone.

24 Ward 24hr Omit

Activates when the selected ward has one or more 24hr circuits omitted, deactivates when the selected ward has all its 24hr circuits reinstated.

25 Ward Monitor

Activates when a monitored circuit is triggered in the selected ward and stays active for the duration of the “Monitor Cct Time”.

26 Ward Alm Abort

Activates for the "Abort Duration" when the alarm in the selected ward has been aborted by the user.

27 Ward Exit Flt

Activates when the selected ward has a fault during the setting procedure, deactivates when the fault is cleared.

28 Ward Exit/Ent.

Activates when the selected ward is in entry or exit.

29 Ward Sndr ctl.

Activates when the selected ward is in exit, entry or alarm.

30 Ward Perimeter

Activates when the selected ward has a Night

Perimeter circuit in alarm, deactivates when the alarm is reset.

31 Ward Shunted

Activates when the selected ward has one or more circuit shunted, deactivates when the circuits are reinstated.

Engineer’s Menu 1

32 Ward Auto set

Activates when the selected high security ward is unset, deactivates when the high security ward is set.

39

Engineer’s Menu 1

Program Circuits [1-4]

The TS2500 can monitor up to 1040 detection circuits, each circuit must be programmed in order for the system to respond correctly.

Circuit Numbering

The circuit number is always a 4 digit number, the first digit refers to the network number and can be 0 to 8 (0 is used for the TSLEC8s at the control panel). The next three digits refer to the circuits numbers and can be 001 to

128 (except when using network 0 which only has a range of 001 to 016). For example to select the first circuit on network 4 you would enter 4001.

Circuit Types

The circuit type defines how the circuit will respond when it is triggered. The circuit can also be programmed to respond differently when unset, see "Unset Circuit Types"

on page 81. The following circuit types are available:

Not Used

A circuit that will never generate any alarm.

Night

A circuit that will generate a full alarm when the selected ward is set.

24hr

A circuit which is monitored at all times. When triggered in the unset condition a local alarm is generated and when triggered in the set condition a full alarm is generated.

PA Silent

A circuit which is monitored at all times. When triggered it will activate any outputs programmed as P.A.

PA Audible

A circuit which is monitored at all times. When triggered it will activate any outputs programmed as P.A. and generate a full alarm condition.

Fire

A circuit that is normally connected to a smoke detector. When triggered it will generate a fire tone on the internal sounders, the external sounders are pulsed for the bell duration and any outputs programmed as fire will be activated.

Auxiliary

A circuit which is monitored at all times. When triggered it will activate any outputs programmed as Auxiliary.

Final Exit

This must be the first detector or door contact that is triggered when entering the protected area. When the setting mode for the area is programmed for Final Exit setting, opening and closing of this circuit during the exit procedure will cause the ward to set. Once set, activation of this circuit will start the entry timer for that ward.

TS2500 Installation Manual

Exit Term

A circuit that is normally connected to a push button outside the protected area, which can be used to finally set the area.

Ward Key

A circuit normally connected to a shunt-lock or keyswitch, which is used to set and unset one or more wards.

Shunt Key

A circuit normally connected to a shunt-lock or keyswitch, which is used to shunt (isolate) one or more shuntable circuits for the selected wards. If the shunt key circuit is not assigned to any wards the shuntable circuits of the device its connected to are shunted when the shunt key operated.

Tamper

A circuit monitored at all times. When triggered in the unset condition a local alarm is generated and when triggered in the set condition a full alarm is generated.

This circuit type can be used for a negative tamper return for monitoring SABs etc. When using the circuit for this type of monitoring the circuit MUST have the "Invert" attribute selected.

Security

A circuit used to lock-out keypad operation.

24hr Silent

As 24hr but remains silent in the unset and set condition.

Night Perimeter

A circuit that is used for perimeter protection. When triggered the internal and external sounders are activated but no digicom output. If any other circuit is triggered the digicom is activated.

Custom Circuits

There are eight customisable circuit types, see page 72

for details.

Circuit Attributes

Each circuit type can have one or more attributes assigned to it to alter its operation. The following circuit attributes can be programmed:

Access

Circuits programmed with this attribute are automatically isolated during the entry procedure to allow a “walk through” route for the user to access the remote keypad.

Double Knock

Circuits programmed with this attribute will only cause an alarm condition if: a) The circuit is activated twice within the Double

Knock timer, see System Timers. b) The circuit remains active for the whole duration of the Double Knock timer.

40

TS2500 Installation Manual

On Test

Circuits with this attribute will be disabled from the system for the period set by the “Test Time”, see System

Timers. If the circuit is activated during this period the activation will be logged and the user is informed of the circuit failure when operating the system. The test fail message can only be cleared with the Engineers passcode. If at the end of the test period no activation’s have occurred the test attribute is automatically removed. The test period is initiated by entering the

Engineers passcode.

Omittable

Circuits with this attribute can be omitted by the users.

Reset

This attribute is normally assigned to a circuit that is connected to a vibration or smoke detector, so that during the “Detector Reset” period the circuit is not monitored.

Activity

Circuits with this attribute are monitored so that when they activate the circuit activation is stored. When the user attempts to set the system, any circuits not activated during the “Activity Delay” period are reported, indicating that the detector may be obstructed. An example of this feature would be to assign movement detectors within a warehouse area with this attribute. This would report to the user at the time of setting any detectors that have become obstructed by pallets etc.

Entry

Circuits with this attribute will initiate the entry procedure when the system is part-set and respond as normal when full set. This attribute must be assigned to all circuits that are required to initiate the entry procedure in the part set condition.

Chime Tone 1

Circuits with this attribute will cause the internal sounders and remote keypad sounders to generate a single two-tone “chime” sound if the circuit is activated.

Chime Tone 2

Circuits with this attribute will cause the internal sounders and remote keypad sounders to generate a double two-tone “chime” sound if the circuit is activated.

Chime Tone 3

Circuits with this attribute will cause the internal sounders and remote keypad sounders to generate a triple two-tone “chime” sound if the circuit is activated.

Inverted

Circuits with this attribute are inverted so that a healthy circuit is seen as active and an active circuit is seen as healthy. This attribute should be used when monitoring normally open devices such as exit terminator buttons and pressure pads etc.

Engineer’s Menu 1

Shuntable

Circuits with this attribute are shunted (Isolated) when a

“Shunt Key” circuit is operated or when a “Shunt code” is entered.

Beam Pair

Circuits with this attribute will only cause an alarm if two or more circuits with the beam pair attribute are in alarm in the same ward within the “Beam Pair” timer.

Eng. Test

Circuits with this attribute are enabled during the engineer false setting routine.

Monitored

Circuits with this attribute activate the “Monitored" output type when triggered.

Non Latching

This attribute is used to make the "Ward Key", "Shunt Key" or "Security Key" non latching.

Circuit Wards

The TS2500 has sixteen wards which are labelled A to P, each circuit can be assigned into one or more wards.

Circuits assigned to more than one ward will only be armed when all the wards they are in are set.

Circuit No.

4

B to paste last programmed circuit details

Circuit No.

Attribute Type

Engineers menu 1

Program circuits

[

TS800 LEC 1

0001 Not used

Enter circuit No. or

A C

B

[ to scroll

=next network to edit

- NO TEXT -

0001>Night

A C to scroll through circuit types

[

0001 Night

ACCESS NO

A C to scroll

B through attributes to toggle YES / NO

[

0001 is in wards

*,*,*,*,*,*,*,*

1-8

/

= to toggle wards to toggle between wards A - H & wards I - P

[

Location

Circuit Type

Circuit Text

Circuit type

YES or NO

Program Circuits Flowchart

41

Engineer’s Menu 1

System Timers [1-5]

There are 103 programmable system timers which are listed below.

Exit time wards A to P

When using timed exit this timer sets the delay between the user initiating the exit procedure and the ward actually setting. If during the exit time an “Exit

Terminator” circuit is activated the any remaining exit time is cancelled and the ward sets immediately.

(Default = 030 Seconds).

Entry dly wards A to P

When the ward is set and the entry procedure is initiated, the entry timer starts to count down. If a valid user passcode has not been entered when the timer reaches zero, the internal sounders are activated and the “2nd entry delay” timer is started. (Default = 015

Seconds).

Digi dly wards A to P

When an alarm is triggered the communication of an alarm signal to the central station for the selected ward can be delayed by the value of this timer. (Default =

000 Seconds).

Bell dly wards A to P

When an alarm is triggered the activation of the external sounder for the selected ward can be delayed by the value of this timer. (Default = 000 Minutes).

Bell dur wards A to P

When the “Bell Delay” for the selected ward has expired the duration of the external sounder can be controlled by the value of this timer. (Default = 020 Minutes).

Exit settle time

When a ward is set by “Final Exit” or “Exit Terminator”, detectors that are on the exit route sometimes take several seconds to settle after activation. The delay programmed in this timer is used to ensure that these detectors are not active before the ward is set. (Default

= 005 Seconds).

2nd Entry delay

When the ward “Entry Dly” has expired the “2nd entry delay” timer starts to count down. If at the end of this time the ward has not been unset then an alarm will be generated for the relevant ward. (Default = 015

Seconds).

Double knock dly

This is the “Double Knock” time window in which either two circuit activations must occur to generate an alarm condition, or the circuit must remain active for the whole duration of this time to generate an alarm condition.

This will only apply to circuits with the “Double Knock” attribute. (Default = 010 Seconds).

Abort duration

This timer controls the duration of the “Abort” output.

(Default = 010 Seconds).

TS2500 Installation Manual

Abort delay

This timer sets the period in which the alarm signal may be aborted following an alarm condition. When an alarm occurs, the “Abort Output” is only activated if the system is unset within this period. If the system is unset after this period the abort output is NOT activated.

(Default =180 Seconds).

2nd alarm time

This timer controls the duration of the “Second Alarm”

(Confirmation) output. (Default = 060 Seconds).

Courtesy time

This timer is used to control the duration of the output type “Courtesy Light”. (Default = 120 Seconds).

Access code time

This timer is used to control the duration of the output types “Code Accepted”, “User code entered” and

“Ward Access”. (Default = 005 Seconds).

Menu time-out

This timer controls how long a user menu can be selected before timing out and returning the system to the unset condition. (Default = 180 Seconds).

Line fault delay

This timer delays the “audible” line fault indication when a telephone line fault occurs. The display and any outputs programmed as “Phone Line Fault” are not affected. (Default = 030 Seconds).

AC off delay

This timer delays the “audible” mains off indication when the mains power is removed. The display and any outputs programmed as “Mains Power Off” are not affected. (Default = 030 Seconds).

Monitor cct time

This timer affects the duration of the output types

“System Monitored” and “Ward Monitor”. (Default = 060

Seconds).

Beam Pair time

This is the time window in which two “Beam Pair” circuit activations must occur in order for the system to generate an alarm condition. (Default = 010 Seconds).

Battery test dur

This timer controls the duration of the battery test.

(Default = 030 Seconds).

Answer ring time

This timer is used to allow modems and faxes/answer machines to be used on the same telephone line. For example if the timer is set to 30 seconds, the PC will dial into the alarm system and allow the line to ring for 3 or 4 seconds then hang up. The PC will then dial in again and providing this has occurred within 30 seconds of the first time it rang in, the panel modem will answer the call.

(Default = 030 Seconds).

42

TS2500 Installation Manual

Global bell dly.

If the system is fully set and the Global/Ward Bell configuration option (23) is set to “Global” the system will apply this timer to all alarms for all wards, otherwise it will use the relevant ward bell delay timer. (Default = 000

Minutes).

Global bell dur.

If the system is fully set and the Global /Ward Bell configuration option (23) is set to “Global” the system will apply this timer to all alarms for all wards, otherwise it will use the relevant ward bell duration timer. (Default = 020

Minutes).

Activity delay

This timer sets the duration within which all “Activity

Monitored” circuits must be activated to ensure that the system may be set without displaying inactive circuits.

Once the timer expires it is restarted and all “Activity

Monitored” circuits must once again be re-activated.

(Default = 060 Minutes).

Defer setting by

When using the auto-set feature users may defer setting of the ward(s) by the amount set in this timer. (Default =

010 Minutes).

Battery test

The timer controls the frequency of the system battery test. (Default = 060 Minutes).

Hi Security time

This timer sets the duration in which a “High Security” ward can remain unset before it automatically attempts to set itself. When a “High Security” ward is unset activation of any circuit with that ward will reset this timer. (Default = 000 Minutes).

Cct test time

This timer varies the number of days that the “Test” attribute may be applied to a circuit. If the timer is set to

000 then circuits will remain on test until the “Test” attribute is removed. (Default = 014 Days).

Service time

The installation company may use this timer to periodically generate “SERVICE REQUIRED” message so that the user is reminded that a service call is required.

The users may continue to set and unset the system.

When the engineer attends the site and enters their passcode the message is cleared. The service timer is re-started when the engineer re-selects this timer option.

To disable this feature set the timer to 000. (Default =

000 Days).

Engineer’s Menu 1

Payment time

The installation company may use this timer to prevent the users from setting the system. When the timer expires the selected ward will lock into “Engineer Reset” and the users are unable to set the selected ward until the engineer has reset the system or the user has been provided with a “Remote Reset” code.

To disable this feature set the timer to 000. The payment timer can be selectively applied to wards A to P, see

“Equipment Wards” on page 80. (Default = 000 Days).

Test call every

If the system is fitted with a plug-on digicom (DC54,

DC58 or DC58M) it is possible for the control panel to make the digicom send a timed test call to the central station. The “Test Call” timer sets the frequency of activation in days. Once programmed the digicom will send the test call at 3.00AM. (Default = 000 Days).

Select menu time

This timer determines how long the "Set/Unset" menu is displayed after a user passcode is entered. (Default =

010 Seconds).

Custom o/p 2 tmr

This timer determines how long "Custom Output 2" will remain active after it is triggered. (Default = 000

Seconds).

5 Engineers menu 1

System timers

[

Exit time ward A

030 Second(s)

Timer

Current Time

A C

B

/ to scroll timers

=next timer group

Entry dly ward B

015 Second(s)

Timer

Current Time

To edit enter 3 digit number

Entry dly ward A

> 030 Second(s)

[

System Timers Flowchart

43

Engineer’s Menu 1

Setting Modes [1-6]

Each ward A to P can be programmed to set by one of the following modes:

Final Exit

The ward will set when the “Final Exit” circuit is activated and after the “Settle Time” has expired.

Exit Terminator

The ward will set when the “Final Exit” circuit is activated, the “Exit Terminator” button is pressed and after the

“Settle Time” has expired.

Timed Exit

The ward will set when the “Exit Time” has expired or if the

“Exit terminator” button is pressed.

Instant

The ward will set instantly.

Deferred

As Timed Exit, however, if any circuits are activated during the exit procedure the exit timer is restarted.

6

Engineers menu 1

Setting modes

[

Setting mode for

Ward A Timed Ext

Setting Mode

A C to Scroll through the Wards

Setting mode for

Ward A Timed ext

1

2

3

4

5

= Final ext

= Exit term

= Timed ext

= Instant

= Deferred

[

Setting Modes Flowchart

TS2500 Installation Manual

Do System Print [1-7]

The system print option is broken down into sections so that the engineer may print only the relevant details. The sections are as follows:

Custom Text

Prints the details of “Reset Message”, “Location Text”,

“Printer Header”, "Remote reset Message", “Printer

Prefix”, Banner Message", Part Set Banner", “Aux Tamper

1", ”Aux Tamper 2" and “Modem String”.

Modem Data

Prints the details of “Call back No.1", ”Call back No.2",

“Call back No.3", ”Modem Site No" and “Modem

Password”

User codes

Prints the “User Number”, "User Name", “User Type”, “User

Wards”, User Auto Sets" and “User Auto Unsets” for each defined user.

Configuration

Prints the details of all “Configuration Options”.

Outputs

Prints the details of “Panel Outputs”, “Digicom Outputs”,

“Digicom Channels”, “Custom Outputs” and

“Node/Rem Outputs”

Setting Modes

Prints the details of “Setting Modes” for wards A to P.

System Timers

Prints the details of all “System Timers” and “System

Options”.

Time Switches

Prints the details of “Time Switch 1", ”Time Switch 2" and

“Time Switch 3".

Code Locks

Prints the details of “Code lock Group 1", ”Code lock

Group 2" and “Code lock Group 1"

Auto-set times

Prints the details of “Auto-set Timer 1", ”Auto-set Timer 2" and “Auto-set Timer 3".

Custom Circuits

Prints the details of the eight “Custom Circuits”.

Circuits

Prints the network number, circuit number, circuit status, set circuit type, unset circuit type, circuit attributes, ward assignment and circuit resistance for each defined detection circuit.

Equipment Wards

Prints the ward assignment for all equipment.

Net Equipment

Prints the ward assignment nodes and remote keypads.

Part set groups

Prints the ward assignment and text of the ten part set groups.

44

TS2500 Installation Manual

7

Engineers menu 1

Do system print

[

Press B to Print

Custom text?

A C to scroll through the print options

B to tag for printing

Press B to Print

Configuration?

[ To send tagged options to the printer

System Print Flowchart

System Options

The system options are as follows:

[1-8]

Number of rearms

At the end of the bell duration time the system re-arms all circuits that are healthy. Circuits that are still in an alarm are isolated until they change to a healthy condition. This counter controls the number of times that a “circuit” will re-arm before it is locked out of the system.

The rearm feature can be selectively applied to wards A to P, see page 80. (Default = 003).

Modem rings

This counter is for use with the DC58M, it allows the engineer to specify how many rings are required before the DC58M answers the call. If the counter is set to 000 it will answer the call immediately. (Default = 000)

Keys until tamp

The value of this counter determines how many illegal key presses can be entered before the a code tamper occurs. A code tamper locks out the remote keypad for

5 minutes. (Default = 017)

Remote resets

This counter determines how many “Remote Resets” can occur before the system locks into engineer reset only. When the engineer attends site and enters their passcode the counter is restored to its original value.The

Remote Reset feature can be selectively applied to wards A to P, see page 80. (Default = 032)

Engineer’s Menu 1

Reset algorithm

When a ward is programmed for “Engineer Reset” the requirement to send an engineer to site can be overridden by the user by using the “Remote Reset” facility. If an alarm is generated the system will respond with a four digit “seed” code which the user quotes to the Alarm Receiving Centre or alarm company. The

“seed” code is then entered into a decoder and a unique “Remote Reset” code is generated. This is passed back to the user and on entering the “Remote

Reset” code, the system is reset. The remote reset feature can be selectively applied to wards A to P, see

page 80.

The “Remote Reset” code is generated using an algorithm identified by a 3 digit number. Alternative algorithms can be selected but these must correspond to that used by the ARC (or alarm company) otherwise the “Remote Reset” code will be incorrect. (Default =

004).

Double Knocks

This counter determines how many “Knocks” must occur on a double knock circuit before the control panel responds with an alarm condition. This counter can then be selectively applied to wards A to P, see page 80. If a ward is not selected to use this counter all double knock circuits within the ward will behave as normal double knock circuits, i.e they must activate twice within the double knock time delay or remain active for the duration of the double knock delay before causing an alarm. (Default = 002).

8 Engineers menu 1

System options

[

Number of rearms

003

A C

B

/ to scroll options

=Edit

Modem rings

000

To edit enter 3 digit number

Modem rings

002

[

Option

Value

System Options Flowchart

45

Engineer’s Menu 1

Configuration

There are 35 configuration options as follows:

[1-9]

00 Bell Is an SAB (Default)

The control panel bell output applies 0V when active.

Bell is an SCB

The control panel bell output removes 0V when active.

01 View alms P.set (Default)

When the system is part set and alarm occurs in a set ward the alarm information is displayed on all remote keypads immediately.

View alms unset

When the system is part set and alarm occurs in a set ward the alarm information is only displayed when the ward that the alarm occurred in is unset.

02 Duress Disabled (Default)

When entering a passcode with the first two digits reversed a duress alarm will NOT be generated.

Duress Enabled

When entering a passcode with the first two digits reversed a duress alarm will be generated.

03 Engr Authorised (Default)

When using Menvier Lineload software data in the control panel can be overwritten without the users knowledge.

User Authorised

When using Menvier Lineload software data in the control panel can only be overwritten with authorsation by the user.

04 On-Line Enabled (Default)

When using Menvier Lineload software the On-Line

Keypad feature is enabled.

On-Line Disabled

When using Menvier Lineload software the On-Line

Keypad feature is disabled.

05 Lo-sec Engineer (Default)

The engineer can access the engineers programming menus by entering his engineer’s passcode.

Hi-sec Engineer

The engineer can only access the engineers programming menus after entering his engineer’s passcode and obtaining a “Remote Reset” code.

06 Normal answer (Default)

When using a DC58M digi-modem the modem will answer the call after a pre-programmed number of rings, see “System Options” on page

45.

Timed answer

When using the DC58M digi-modem the digi-modem will used the “answer ring timer”, see

“System Timer” on page 45.

TS2500 Installation Manual

07 Unset ward first (Default)

When the system is part set and a passcode is entered the “0=UNSET WARDS” option will be displayed first.

Set ward first

When the system is part set and a passcode is entered the “0=SET WARDS” option will be displayed first.

08 Can set with L.F (Default)

The selected wards can be set with a telephone line fault, however the user will be asked to confirm this at the time of setting. Line fault can be assigned to any ward , see “Equipment Wards” on

page 80.

No set with L.F

The selected wards cannot be set with a telephone line fault.

09 Can set - AC off (Default)

The selected wards can be set with no mains power. Mains power off can be assigned to any ward , see “Equipment Wards” on page 80.

No set - AC off

The selected wards cannot be set when the mains power is off.

10 Quiet chimes (Default)

The level of the chime tones is determined by the volume control of the device driving the loudspeaker. If the device is a XNode the volume level set by the volume control pot on the XNode

PCB. If the device is the control panel the volume level is set via the “Set Volume Level” option, see

“Set Volume Level” on page 83.

Loud chimes

The level of the chime tones is always full volume.

11 O/P 1 normal (Default)

Panel output 1 (Relay) is normally de-energised.

O/P 1 inverted

Panel output 1 (Relay) is normally energised.

12 Digi normal (Default)

The eight digicom outputs on the control panel switch from +12V to 0V when active (+ve removed).

Digi inverted

The eight digicom outputs on the control panel switch from 0V to +12V when active (+ve applied).

13 4 digit codes (Default)

All system passcodes are 4 digits.

6 digit codes

All system passcodes are 6 digits. When using 6 digit passcode the last 2 digits of the passcode are the user number, e.g. the engineer’s passcode is 123400 and the master user’s passcode is 567801.

46

TS2500 Installation Manual

14 Modem on Com1 (Default)

The panel comms port (JP8) is used for the modem.

Printer on Com1

The panel comms port (JP8) is used for the printer.

15 Chime Audible (Default)

Circuits that are programmed as chime will only generate a chime tone.

Chime Visible

Circuits that are programmed as chime will generate a chime tone and the remote keypads will display the circuit that was triggered.

16 Manual Omits (Default)

Circuits with the omit attribute can only be omitted via the user omit routine.

Automatic Omits

Circuits with the omit attribute are automatically omitted if they are still active when the system is being set.

17 Omit Tampers No (Default)

Tamper faults cannot be omitted by the user.

Omit Tampers Yes

Tamper faults can be omitted by the user.

18 O/M’s mimic cct (Default)

The output modules connected to the control panel indicate circuit mimic activations.

O/M’s mimic alms

The output modules connected to the control panel indicate circuit alarm activations.

19 Log Time & Date (Default)

The system log will show the time and date in the following format: “17:10.57 25/12" where 25/12 is the 25 December.

Log Time & Day

The system log will show the time and day in the following format: “17:10.57 Wed 25" where Wed is

Wednesday and 25 is the date.

20 Global Setting (Default)

The user can set their allocated wards from any remote keypad.

Local Setting

The user can only set their allocated wards from a remote keypad assigned to their wards.

21 Global Unsetting (Default)

The user can unset their allocated wards from any remote keypad.

Local Unsetting

The user can only unset their allocated wards from a remote keypad assigned to their wards.

Engineer’s Menu 1

22 24hr Omit Global (Default)

Any 24hr circuit or group can be omitted from any remote keypad.

24hr Omit Local

Only 24hr circuits or group that are assigned to the same wards as the remote keypad can be omitted.

23 Ward bell time (Default)

The system uses the respective “ward bell delay” and “ward bell duration” timers when the system is full or part set.

Global bell time

When the system is part-set the respective “ward bell delay” and “ward bell duration” timers are used. When the system is full set the system uses the “global bell delay” and “global bell duration” timers.

24 Latching Fire (Default)

Fire detection circuits will cause an alarm when triggered and will only be re-armed after a full reset, i.e. Enter passcode to silence alarm, then enter passcode followed by [ESC] to reset the alarm.

Nonlatching Fire

Fire detection circuits will cause an alarm when triggered. On entering a passcode the alarm is silenced, if the same circuit is activated before carrying out a reset, the alarm re-triggered.

25 Online Printing (Default)

Events recorded in the system log are also sent to the printer port.

Offline Printing

Events recorded in the system log are not sent to the printer port.

26 Timed code o/p (Default)

The "User Code Accepted" output types are timed for the duration of the “Access code time”.

Latched code o/p

The "User Code Accepted" output types are activated when user passcode is entered and de-activated when the passcode is re-entered.

27 Activity flt ok (Default)

Users can set their wards with circuits flagged as inactive.

Acitivity flt Bar

Users cannot set the system whilst circuits are flagged as inactive (forced walk test).

47

Engineer’s Menu 1

28 Latching 24hr (Default)

24 hour detection circuits will cause an alarm when triggered and will only be re-armed after a full reset, i.e. Enter passcode to silence alarm, then enter passcode followed by [ESC] to reset the alarm.

Nonlatching 24hr

24 hour detection circuits will cause an alarm when triggered. On entering a passcode the alarm is silenced, if the same circuit is activated before carrying out a reset, the alarm re-triggered.

29 Access code only (Default)

The "System Access" and "Ward Access" output types are triggered only when a "Access" type passcode is entered.

Access all codes

The "System Access" and "Ward Access" output types are triggered when any passcode is entered.

30 Answer anytime (Default)

When using a DC58M digi-modem, the digi-modem will always attempt to answer incoming calls.

Answer o/p 1 on

The digi-modem will only attempt to answer incoming calls when "Custom Output 1" is on.

31 NVM is Unlocked (Default)

The NVM can be reset to the factory defaults by shorting the FACTORY RESTART pins during power-up.

NVM is Locked

The NVM cannot be reset by shorting the FACTORY

RESTART.

+

If the "NVM is LOCKED" option is selected it is imperative that the engineer code is not lost or forgotten. If this is the case then the only way of returning the system to its factory default setting is by returning the control panel PCB to Menvier Security.

32 Unshunt. no exit (Default)

The use of a shunt code to reinstated a selected group of circuits will not initiate the exit procedure.

Unshunt & exit

The use of a shunt code to reinstated a selected group of circuits will initiate the exit procedure.

33 Ignore errors (Default)

When attempting to set with one or more circuits in fault the system will continue with the exit procedure but will display the circuits that are in fault. If the circuits are not cleared at the end of the exit procedure a set fail condition will occur.

View exit errors

When attempting to set with one or more circuits in a fault the system will prompt the user that a fault exists and the display will scroll through the circuits

48

TS2500 Installation Manual

that are in fault. Once the faulty circuits are cleared the user will be prompted to press [ENT] to continue with the exit procedure.

34 Mimic. All times (Default)

When using output modules or outputs that are programmed as circuit mimic, the outputs will mimic the circuit at all times.

Mimic. Set only

When using output modules or outputs that are programmed as circuit mimic, the outputs will only mimic the circuit if the circuit is in a set ward.

9

Engineers menu 1

Configuration

[

Configuration 00

Bell is an SAB

No.

Setting

Enter 00 - 34 or use

B

A C to scroll.

to toggle setting

Configuration

Bell is an SCB

Configuration Flowchart

TS2500 Installation Manual

Location Text [1-A]

This option allows the engineer to view the following:-

Panel Location Text

This option displays the panel location text which is programmed in “Engineers menu 3", see “Custom Text

Menu” on page 66.

Keypad Location

This option displays the network number and device number of the keypad that is currently being used.

A

Engineers menu 1

Location text

[

Location of :-

1,Panel 2,Keypad

1

PANEL IS IN

RECEPTION CLOSET

]

2

Keypad address:-

Net 1 Device 03

]

View Location Text Flowchart

Default NVM Data [1-B]

The default NVM data option allow the engineer to reset the NVM data back to the factory defaults. The initialisation procedure has been broken down into specific sections so that the engineer can reset all data or specific areas.

B Engineers menu 1

Default NVM data

[

[ENT] to DEFAULT

Custom text?

A C to scroll through

[ options.

to DEFAULT.

[ENT] to DEFAULT

Modem data?

]

Default NVM Data Flowchart

Engineer’s Menu 1

Section

Custom Text

Modem Data

User Codes

Configuration

Option Default

21

22

23

24

17

18

19

20

25

26

Reset Message

Location Text

CALL ENGINEER TO

RESET SYSTEM

PANEL LOCATION

TEXT NOT SETUP

Printer Header MENVIER SECURITY

TS2500 SYSTEM

Printer Prefix Blank

Banner Message Blank

Part Set Banner

Aux Tamper 1

Blank

Blank

Aux Tamper 2 Blank

Remote Reset Msg RING A.R.C FOR

REM. RESET CODE

Modem String

Call Back No.1

Call Back No.1

Call Back No.1

Blank

Blank

Blank

Blank

11

12

13

14

15

16

07

08

09

10

03

04

05

06

Modem Password Blank

Modem Site No.

Blank

User 000 Engineer 1234

User 001 Master 5678

User 002 - 199

00

01

02

Not used

Bell is an SAB

View alms P.Set

Duress Disabled

Engr Authorised

On-Line Enabled

Lo-sec Engineer

Normal answer

Unset ward first

Can set with L.F

Can set - AC off

Quiet chimes

O/P 1 normal

Digi normal

4 digit codes

Modem on Com1

Chime Audible

Manual Omits

Omit Tampers No

O/M's mimic cct

Log Time & Date

Global Setting

Global Unsetting

24hr Omit Global

Ward bell time

Latching Fire

Online Printing

Timed code o/p

49

Engineer’s Menu 1

Section Option Default

Configuration

31

32

33

34

27

28

29

30

Activity flt ok

Latching 24hr

Access code only

Answer anytime

NVM is Unlocked

Unshunt & No exit

Ignore errors

Mimic. All times

Panel Output 1

Panel Output 2

Panel Output 3

Panel Output 4

Walk Test

Courtesy Light

Switch 12 Volts

Detector Reset

Digicom Output 1 Fire Alarm

Outputs

Digicom Output 2 Panic Alarm (PA)

Digicom Output 3 Alarm

Digicom Output 4 System Set

Digicom Output 5 Engineer on site

Digicom Output 6 Bell (SAB)

Digicom Output 7 Tamper Alarm

Digicom Output 8 2nd Alarm

Digi Channel 1 Fire Alarm

Digi Channel 2

Digi Channel 3

Digi Channel 4

Digi Channel 5

Panic Alarm (PA)

Alarm

System Set

Engineer on site

Digi Channel 6

Digi Channel 7

Bell (SAB)

Tamper Alarm

Digi Channel 8 2nd Alarm

All Node Outputs Circuit 0001 Alarm

All Remote Outputs Circuit 0001 Alarm

Custom outputs 1-8 Circuit 0001 Alarm

Setting Modes All Wards Timed Exit

System Timers

Exit time wards A-P 030 Seconds

Entry dly wards A-P 015 Seconds

Digi dly wards A-P 000 Seconds

Bell dly wards A-P 000 Minutes

Bell dur wards A-P 020 Minutes

Exit settle time 005 Seconds

2nd Entry delay 015 Seconds

Double Knock dly 010 Seconds

Abort duration

Abort delay

010 Seconds

180 Seconds

2nd alarm time

Courtesy time

060 Seconds

120 Seconds

Access code time 005 Seconds

Menu time-out 180 Seconds

Line fault delay

AC off delay

030 Seconds

030 Seconds

50

TS2500 Installation Manual

Section Option Default

System Timers

Time Switches

Code Locks

Auto-set Times

Monitor cct time

Beam pair time

Battery test dur

Answer ring time

Global bell dly

Global bell dur

Activity delay

Defer setting by

Battery test

Hi Security time

Cct test time

Service time

Payment time

Test call every 000 Days

Select menu time 010 Seconds

Custom o/p 2 Tmr 000 Seconds

Number of rearms 003

Modem rings keys until tamp

Remote resets

Reset algorithm

000

017

032

004

Double Knocks 002

On times 1, 2 & 3 00:00

Off times 1, 2 & 3 00:00

Timers operate on No days

Time switch output Off

On times 1, 2 & 3 00:00

Off times 1, 2 & 3 00:00

Timers operate on No days

Time lock output

User assigned

Off

None

Set times 1, 2 & 3 00:00

Unset times 1, 2 & 3 00:00

Timers operate on No days

Wards assigned

Custom Circuits Circuits 1 - 8

060 Seconds

010 Seconds

030 Seconds

030 Seconds

000 Minutes

020 Minutes

060 Minutes

010 Minutes

060 Minutes

000 minutes

014 Days

000 Days

000 Days

None

Not defined

Circuits

Equipment

Wards

Circuits 0001 - 8128 Not Used

Panel tamper

Bell box tamper

Aux 1 tamper

Aux 2 tamper

Ward A

Ward A

Ward A

Ward A

Phone line fault

Mains power off

Ward A

Ward A

Payment timer Not assigned

Alarms Eng Reset Not assigned

Tamper Eng Reset Ward A

Remote reset Ward A

Panel speaker Ward A

TS2500 Installation Manual

Section Option Default

Relearn required Not assigned

Re-arms apply to Ward A

Hi Security ward

Digi in Part Set

Not assigned

Wards A - P

Equipment

Wards

System Bell/STB Wards A - P

Ward A foyer Mode Not assigned

Unset fire sig.

Not assigned

Dble Knock wards Not assigned

Net Equipment All new devices Ward A

Part set groups Part set groups 0 - 9 Not defined

Log All 4000 Events No Event

Goto User Menu 1 [1-0]

This option allows the engineer to access “User menu 1", the flowchart below shows the options within ”User menu

1", for full details refer to the "Operators Manual".

0

Engineers menu 1

Goto User menu 1

ENT

User menu 1

Select Option :-

3

4

1

2

ESC

User menu 1

Do Bell test

User menu 1

Do Walk test

User menu 1

Use remote reset

User menu 1

Change passcode

ENT

ENT

ENT

ENT

User menu 1

Select chime

ENT

C

A

5

6

7

8

0

ENT

ESC

User menu 1

24hr omit/unomit

User menu 1

Omit circuits

User menu 1

Silent set wards

User Menu 1

Set/Unset menu

Engineers menu 2

Select option :-

ENGINEER ON SITE

12:19 Wed 22 AUG

ENT

ENT

ENT

ENT

Engineer’s Menu 1

Log Off Engineer [1-C]

Selecting this option will log off all engineers and return the system to the “SYSTEM OPEN” condition.

C

Engineers menu 1

Log off engineer

[

SYSTEM OPEN

18:10 Sun 01 JAN

Log Off Engineer Flowchart

User Menu 1 Flowchart

51

Engineer’s Menu 1 TS2500 Installation Manual

52

TS2500 Installation Manual

Engineer’s Menu 2

Introduction

Engineers menu 2 is selected by pressing the [ENT] whilst

Engineers menu 1 is selected. Each menu option can be selected by pressing the relevant “hot-key” or you can scroll forwards and backwards through the options using the [A] and [C] keys.

Menu contents

Hotkey

1

2

3

4

5

6

7

8

9

A

B

C

0

View Circuits

Set System Time

Set System Date

Option

Change Passcode (Engineers)

Alter Chime Circuits

Alter 24hr Group

Print System Log

Alter Circuit Wards

View System Log

Start Call Back Sequence

Reset User Code 1

Set BST/GMT Dates

Remote Service Options

55

55

56

56

60

60

60

60

Page

54

54

54

54

55

Engineers menu 1

Select Option :-

ENT

Engineers menu 2

Select Option :-

C

A

4

5

6

7

8

9

A

B

1

2

3

Engineer’s Menu 2

ESC

Engineers menu 2

View circuits

ENT

Engineers menu 2

Set system time

ENT

Engineers menu 2

Set system date

ENT

Engineers menu 2

Change passcode

ENT

Engineers menu 2

Chime circuits

ENT

Engineers menu 2

Alter 24hr group

ENT

Engineers menu 2

Print system log

ENT

Engineers menu 2

Alter cct wards

ENT

Engineers menu 2

View system log

ENT

Engineers menu 2

Start call back

ENT

Engineers menu 2

Reset user code1

ENT

C

0

ENT

Engineers menu 2

Set BST/GMT date

ENT

Engineers Menu 2

Rem service opt.

ENT

Engineers menu 3

Select option :-

ESC

Engineers menu 1

Select option :-

Engineer's Menu 2

53

Engineer’s Menu 2

View Circuits [2-1]

Each detection circuit may be viewed to ascertain its status. The circuit status conditions and resistance are shown below:

Status

Healthy

Active

Tamper

Shorted

Response Normal

None

Alarm

Tamper

Alarm

2.2 K

6.9 K Ω

0

Min.

54

4.1 K Ω

54 K

0

Max.

4.1K

54 K Ω

53

1 Engineers menu 2

View circuits

[

Loading bay door

0001 Healthy

A C to scroll through the circuits or enter the circuit number

Circuit No.

Circuit No.

Loading bay door

0001 Active

[ alternates between the circuit text & circuit location

TSLEC8

0001 Active AOS

Circuit text

Status

Location

]

Shunted

Omitted

No Activity

View Circuits Flowchart

TS2500 Installation Manual

Set System Date [2-3]

The system date is displayed in a day/date/month format on LCD remote keypads. it is also used to provide date stamps for events in the system log.

New date

Current day

3

Engineers menu 2

Set system date

[

Enter new date:-

01/01

Enter the date as a 4 digit number e.g. 1709

Enter new date:-

17/09

[

Today is :-

> Su............

New day

Select the day 1-7.

1=Sunday, 7=Saturday e.g. 3 for Tuesday

Today is :-

> ....Tu........

[

Set System Date Flowchart

Change Passcode [2-4]

This option allows the engineer to change their passcode. The default passcode is 1234 if 4-digit passcode are enabled and 123400 if 6-digit passcodes are enabled.

Set System Time [2-2]

The system time is displayed in a 24hr format on all remote keypads and is also used to time stamp events in the system event log. The BST/GMT changeover can be programmed to automatically occur on specific dates, see page 60.

New time

2

Engineers menu 2

Set system time

[

Enter new time:-

12:23 GMT

Enter time e.g. 1605

Enter new time:-

16:05 GMT

[

GMT or BST

B to toggle

New code

4 Engineers menu 2

Change passcode

[

Enter new code..

----

Enter new passcode e.g. 2580

Enter new code..

2580

[

Set System Time Flowchart Change Passcode Flowchart

54

TS2500 Installation Manual

Alter Chime Circuits [2-5]

This option allows an alternative method of programming circuits as “chime”. Three types of chime tones are available:

Chime 1

Generates a single two-tone chime sound.

Chime 2

Generates a double two-tone chime sound.

Chime 3

Generates a triple two-tone chime sound.

When a circuit is programmed as chime it will only generates the relevant chime tone from remote keypad sounders and extension loudspeakers assigned to the same ward(s) as the detection circuit.

If configuration option 15 is programmed as “Chime

Visible”, the display will show the circuit that caused the chime.

5

Engineers menu 2

Chime circuits

[

Circuit No.

0001 Disabled

Enter the circuit number

A C to scroll

FRONT DOOR

0002 Disabled

[

FRONT DOOR

0001>Disabled

1

2

3

0

= Chime 1

= Chmie 2

= Chime 3

= Disabled

[

Circuit text

6

Engineer’s Menu 2

Engineers menu 2

Alter 24hr group

[

Wards 24hr group

A,B,*,*,.,.,.,.

Wards

1 8

/

toggle wards.

to scroll wards A-H and wards I-P

[

Ward Status Key

.

*

A-P

= Ward not selected.

= Ward not available.

= Wards selected.

Alter 24hr Group Flowchart

Print System Log [2-7]

The system log stores 4000 events, if a printer is connected to the system it is possible to print a selected number of events. By specifying an offset you can print the selected number of events from the offset point rather than the last event, e.g. if you specify 100 events with an offset of 1000, you will get a printout of events

2900 - 3000. Once the print-out has been started it can only be stopped by selecting this option again and entering “0000" for the number of events.

7 Engineers menu 2

Print system log

[

How many events

0030

Enter number of events.

[

With offset of:-

0000

Press

Enter offset.

[ to start printing.

Chime Circuits Flowchart

Alter 24Hr Group [2-6]

Any combination of wards can be assigned to the 24hr group. Circuit types “24hr” and “Auxiliary” with the

"Omittable" attribute within the selected ward will be isolated when the selected ward is omitted using user menu 1 option 6 (24hr omit/unomit). Only the wards that are assigned to the 24hr group can be selected by the user.

Print System Log Flowchart

55

Engineer’s Menu 2

Alter Circuit Wards [2-8]

Normally the engineer will assign circuits to wards when using the “Program circuits” option in Engineers menu 1, this option allows an alternative method of configuring wards.

8

Engineers menu 2

Alter cct wards

[

Circuit No.

1001 F.Exit

.B.............

Ciruit type

Wards

Enter cct No. or

A C

B

[

/ to scroll

=Next network to edit

1001 F.Exit

*,B,*,*,*,*,*,*

1 8

/

toggle wards.

to scroll wards A-H and wards I-P

[

Ward Status Key

.

*

A-P

= Ward not selected.

= Ward not available.

= Wards selected.

Wards

Alter Circuit Wards Flowchart

TS2500 Installation Manual

View System Log [2-9]

The engineer can use this option to view the system log.

The [A] and [C] keys allow you to scroll backwards and forwards through the log events. Keys [1] to [9] can be set-up as search keys so that when pressed they take you to specific events within the log. To set-up the search keys see “Engineers menu 4".

Event type

Time & Date

9 Engineers menu 2

View system log

[

PASSCODE 000

17:00.55

02/01

B to toggle

Name/No.

Event type

Time & Date

Event type

Time & Date

A

C

= Scroll backwards

= Scroll forwards

SET WARDS:-

16:00.01

02/01

A

C

= Scroll backwards

= Scroll forwards

ALARM 8002

15:00.55

02/01

]

B to toggle event/ward

B to toggle circuit No./Text

View System Log Flowchart

56

TS2500 Installation Manual Engineer’s Menu 2

Log Event Codes

Event Description

—- NO EVENT —-

#### ACTIVATED

No event

Monitored circuit activated

#,## LEC LOST Network #, device No. ## is a LEC that has been removed

### LEC or REM’S The number of LEC or REM’s logged on to system after a re-learn

#,## NODE ADDED Network #, device No. ## is a TS900 Node that has been added to the system

#,## NODE LOST Network #, device No. ## is a TS900 Node that has been removed

### NODE’S

### XNODE’S

The number of TS900 Nodes logged on to the system after a re-learn

The number of XNodes logged on to the system after a re-learn

#### OFF TEST

#### OMITTED

Circuit number #### taken off test

Circuit number #### omitted

#### REINSTATED Circuit number #### reinstated

#,## REM ADDED Network #, device No. ## is a remote keypad that has been added to the system

#,## REM LOST

#### SHUNTED

Network #, device No. ## is a remote keypad that has been removed

Circuit number #### shunted

#,## XNODE ADDED Network #, device No. ## is a XNode that has been added to the system

#,## XNODE LOST Network #, device No. ## is a XNode that has been removed

24Hr ALARM #### 24hr alarm from circuit number ####

24Hr OMITTED: 24Hr group omitted in wards:- A - P

24Hr REINSTATED:

24Hr WARDS:-

24Hr group reinstated in wards:- A - P

24hr Alarm on wards:- A - P

ABORT ON WARDS:Alarm aborted on wards:- A - P

ABORTED ERRORS Remote service errors

ACCESS ###

ACCESS FAILED

ALARM ####

ALARM WARDS:-

Access passcode ### entered.

Access failed due to code lock in operation

Alarm from circuit number ####

Alarm in wards:- A - P

AUTOSET # OFF

AUTOSET # ON

AUXILIARY ####

AUXILIARY # TAMP

AUXILIARY FUSE

BATTERY FAULT

BATTERY RESTORE

Autoset timer 1-3 off

Autoset timer 1-3 on

Auxiliary alarm from circuit number ####

Auxiliary 1 or 2 tamper

Auxiliary Fuse failed

Battery disconnected or voltage level below 9.5V

Battery restored to healthy condition

BEAM PAIR ####

BELL BOX TAMPER

BELL TESTED:-

BELLS ACTIVE:-

First activation of a beam pair circuit number ####

External sounder/bell tamper

Bell tested for wards:- A - P

Bell active for wards:- A - P

CALL ABORTED

CALLED No. #

Remote service call aborted

Remote service call initiated via panel to remote PC 1, 2 or 3

CALLING BACK No. # Remote service call requested via PC to “Call back No” 1, 2 or 3

CCT ON TEST #### Circuit number #### put on test

CCT TESTED #### Circuit number #### tested during walk test routine

CCTS REINSTATED Circuits reinstated with a shunt code

CIRCUITS SHUNTED Circuits shunted with a shunt code

CODE LOCK # OFF Code lock number # is off

CODE LOCK # ON Code lock number # is on

CODE LOCKED ### User number ### attempted to use their passcode whilst locked-out

57

Engineer’s Menu 2 TS2500 Installation Manual

Event Description

CODE TAMPER

COMMS FAILED

Keypad locked out for 5 minutes due to invalid entry of passcode

Plug-on digicom failed to communicate with ARC

COMMS SUCCESSFUL Plug-on digicom communicated successfully with the ARC

DATE CHANGED System date changed

DEFAULT USER ### User 001 defaulted to 5678

DEFERRED SET:-

DIGI-COM FITTED

Deferred set on wards:- A - P

Plug-on digicom fitted

DIGI/MODEM LOST Plug-on digicom or modem removed

DIGI/MODEM RESET Plug-on digi-modem reset

DURESS CODE ### Duress alarm from user number ###

ENGINEER ARRIVES Engineer is logged on the system

ENGINEER DEPARTS Engineer is logged off the system

ENTRY #### Entry mode started from circuit number ####

ENTRY TIME-OUT:-

ENTRY WARDS:-

EXIT CANCELLED:-

EXIT STARTED:-

Entry mode timed out for wards:- A - P

Entry on wards:- A - P

Exit mode cancelled for wards:- A - P

Exit mode started for wards:- A - P

FACTORY RESTART Factory default loaded

FIRE ALARM #### Fire alarm from circuit number ####

FIRE WARDS:Fire alarm on wards:- A - P

FIRST KNOCK #### First activation of circuit number #### (circuit with Double-Knock attribute)

From Remote #,## Quick set perform from remote keypad (# = Network, ## =device No)

Hi Security SET: Wards A - P set using “High Security” feature

LEC #,## TAMPER Network #, LEC number ## lid tamper alarm

LINE RESTORE Telephone line restored to healthy

LINK ESTABLISHED Remote link via PC established

MAINS POWER OFF Mains power removed from control panel

MAINS POWER ON Mains power applied to control panel

MENU TIMEOUT ### User number ### entered their passcode and did not selected any functions

MODEM FITTED Plug-on digi-modem fitted

MODEM LOCK-OUT Modem locked-out (4 failed attempts made via Lineload)

NODE ### R# ADD Remote keypad added to XNode

NODE ### R# LOST Remote keypad removed from XNode

NODE ### R# TAMP Remote keypad lid tamper from remote on XNode

NODE #,## FUSE TS900 Node fuse failed

NODE #,## TAMPER TS900 Node lid tamper

NODE SHUNT #### Circuits shunted on a Node

ON-LINE ENDED Remote service call ended (PC and Lineload)

ON-LINE TO No.#

ON-SITE RESTART

On-line to remote PC

On-site restart

PA ALARM ####

P.A CODE ###

PA WARDS:-

PANEL LID TAMPER

PA Alarm from circuit number ####

PA code from user number ###

PA alarm on wards:- A - P

Control panel lid tamper

PASSCODE ###

PAYMENT EXPIRED

User number ### entered their passcode

System payment timer has expired

PC CONNECTED PC connected to control panel (PCI/DCI)

PC DISCONNECTED PC disconnected from control panel (PCI/DCI)

58

TS2500 Installation Manual

Event Description

PHONE LINE FAULT

QUICK SET KEY #

Telephone line fault detected

Quick set key A, B or C activated

Q.SET ABORTED Quick set key aborted

REARM ON WARDS:- Wards:- A - P re-armed

REINSTATED WARDS Wards A - P reinstated

REM #,## TAMPER Remote keypad lid tamper

REM RESET ACTIVE Remote reset via the REM RESET input terminal (RedCARE)

REM RESET FAILED Remote Reset failed

REM SERVICE CALL Remote service call in progress

RESET WARDS:-

SEC. KEY ####

User or engineer has reset wards:- A - P

Security key operated on circuit number ####

SERVICE CALL END Remote service finished

SERVICE REQUIRED System requires a service visit (Service Timer expired)

SET FAIL WARDS:-

SET FAIL ####

SET NO ACTIVITY

SET WARDS:-

Set fail for wards:- A - P

Set fail caused by circuit ####

System was set with inactive circuits (circuits with the activity attribute)

Wards set:- A - P

SET WITH L.FLT:Wards A - P set with a line fault present

SETTING DEFERRED Setting deferred

SHUNT CODE ### Shunt code number ### enter their passcode

SHUNT KEY #### Shunt key circuit #### operated

SYSTEM RELEARN

T.SWITCH # OFF

T.SWITCH # ON

TAMPER ####

TAMPER WARDS:-

TEST FAIL ####

TEST TOTAL ####

A system relearn has been performed

Time switch number # off

Time switch number # on

Tamper alarm from circuit number ####

Tamper alarm on wards:- A - P

Circuit number #### failed whist on test

Total number of circuit tested during walk test

TIME CHANGED

UNSET WARDS:-

System time changed

Wards:- A - P unset

USER ### DELETED User number ### deleted

WALK TESTED:Wards:- A -P walk tested

WARD KEY ####

WARDS LOCKED:-

Ward key circuit #### operated

Wards:- A - P locked via security key circuit

WARDS UNLOCKED:- Wards:- A - P unlocked via security key circuit

XNODE #,## FUSE XNode fuse failed

XNODE #,## TAMP XNode lid tamper

Engineer’s Menu 2

59

Engineer’s Menu 2

Start Call Back [2-A]

If the the system is fitted with a DC58M digi-modem, it is possible for the installation engineer to initiate an upload sequence to a remote site (normally the alarm company). Once the communication link is established with the remote site, data can be sent and received from the control panel. This feature is only compatible with Menvier Lineload software version 2.2 or above.

A Engineers menu 2

Start call back

[

01275870078

Call No.1 Office

Tel No.

Call back No.

1

2

3

B

[

= Call back No.1

= Call back No.2

= Call back No.3

= Dial this number

= Start call back

Engineer on Site

10:20 Wed 04 JAN

TS2500 Installation Manual

Set BST/GMT Date [2-C]

This option allows the engineer to specify the dates at which BST starts and ends. The system will then add an hour at 2:00 am on the BST date and subtract an hour at

2:00 am on the GMT date.

C

Engineers menu 2

Set BST/GMT date

[

Enter BST date:-

30/03

Enter BST date e.g. 30/03

[

Enter GMT date:-

26/10

Enter GMT date e.g. 26/10

[

Set BST/GMT Dates Flowchart

Rem Service Option [2-0]

This option allows the engineer to enable or disable the remote service option.

Start Call Back Flowchart

Reset User Code 1 [2-B]

This option allows the installation engineer to reset the master user (user 001) back to the factory default code of “5678". This feature is useful when the master user has forgotten their passcode or has accidentally changed it without realising. This operation is logged.

B

Engineers menu 2

Reset user code1

[

[ENT] to DEFAULT user code 1.

[ = Reset code

0 Engineers menu 2

Rem service opt.

[

Rem service call is DISABLED

[

B to toggle

Remote Service Options Flowchart

Reset User Code Flowchart

60

TS2500 Installation Manual

Engineers Menu 3

Introduction

Engineers menu 3 is selected by pressing the [ENT] whilst

Engineers menu 2 is selected. Each menu option can be selected by pressing the relevant “Hotkey” or you can scroll forwards and backwards through the options using the [A] and [C] keys.

Menu Contents

Hotkey

1

2

3

4

5

6

7

8

9

A

B

C

0

Option

Program Time Switches

Part Set Groups

Use On-Line Keypad

Edit User Names

Part Set Text

Circuit Text

Custom Text Menu

Equipment Outputs

Built In Tests

Custom Outputs

Custom Circuits

Digi-modem Options

Activity Count

64

66

67

68

71

72

73

76

Page

62

62

63

63

63

Engineers menu 2

Select Option :-

ENT

Engineers menu 3

Select Option :-

C

A

4

5

6

7

8

9

A

B

1

2

3

Engineers Menu 3

ESC

Engineers menu 3

Time switches

ENT

Engineers menu 3

Part set groups

ENT

Engineers menu 3

Use on-line pad

ENT

Engineers menu 3

Edit User Names

ENT

Engineers menu 3

Part set text

ENT

Engineers menu 3

Circuit text

ENT

Engineers menu 3

Custom text menu

ENT

Engineers menu 3

Equipment O/P's

ENT

Engineers menu 3

Built in tests

ENT

Engineers menu 3

Custom outputs

ENT

Engineers menu 3

Custom circuits

ENT

C

0

ENT

Engineers menu 3

Digi/Modem opt.

ENT

Engineers Menu 3

Activity count

ENT

Engineers menu 4

Select option :-

ESC

Engineers menu 2

Select option :-

Engineer's Menu 3

61

Engineers Menu 3

1

2

3

= On-time 1

= On-time 2

= On-time 3

Time switch 1

On-time 1 00:00

Enter On-time

[

TS2500 Installation Manual

1

Engineers menu 3

Time switches

[

Time switch 1

Select option :-

A

B

C

= Time switch 1

= Time switch 2

= Time switch 3

4

5

6

= Off-time 1

= Off-time 2

= Off-time 3

Time swicth 1

Off-time 1 00:00

Enter Off-time

[

7

8

9

= 1st operates on

= 2nd operates on

= 3rd operates on

1 Operates on :-

> SunMo..........

Enter days of operation

1 =Sunday, 7 =Saturday

[

0 = Manually switch output

Time switch 1

> output is OFF

B = Toggle ON/OFF

[

Time Switches Flowchart

Time Switches [3-1]

The TS2500 has three programmable time switches.

Each time switch can be programmed with up to three separate on/off times and made to operate on any day of the week. The time switches can be assigned to outputs which in turn can be used to control internal or external lighting via a relay etc.

Part Set Groups

2

Engineers menu 3

Part set groups

[

PART SET GROUP 0

................

Press 1 0 or A C to select part set group

[

PART SET GROUP 0

*,*,*,*,.,.,.,.

1 8

/

toggle wards.

to scroll wards A-H and wards I-P

Wards

[

[3-2]

This option allows the engineer to define up to 10 part-set groups. Each group can be programmed so that it sets any combination of wards. For example "PART

SET GROUP 1" could be allocated wards A and C, whereas "PART SET GROUP 2" could be allocated wards

A and B.

Ward Status Key

.

*

A-P

= Ward not selected.

= Ward not available.

= Wards selected.

Part Set Groups Flowchart

62

TS2500 Installation Manual

Use On-line Pad [3-3]

If the system is fitted with a DC58M digi-modem, you can use this option to connect to another TS2500 or

TS790/900 (providing the remote system also has a modem fitted). Once a connection has been established the remote keypad will behave as if it were connected to the remote site. For example you could use this option to connect to another TS2500 alarm system and once on-line you can use your own keypad to set the remote site.

+

The modem passcode on the TS2500 must match the modem passcode on the remote site in order for the feature to work.

3 Engineers menu 3

Use on-line pad

[

01275870078

Call back no.1

Tel No.

Call back No.

1

2

3

B

[

= Call back No.1

= Call back No.2

= Call back No.3

= Dial this number

= Start call back sequence

Engineers Menu 3

Edit User Names [3-4]

This option allows the engineer to assign a name (8 characters) to each user. When using the view log option you can press the [B] key to alternate between displaying the user number and user name.

4 Engineers menu 3

Edit User Names

[

User 000

Enter user number or use

A C to scroll

[

User name

User number

^ser 000

Use keys to edit text

[

Please wait.....

Dialing Nimber 1

Please wait.....

Waiting connect.

Please wait.....

Syncronising lnk

Please wait.....

Password check

Please wait.....

* ON-LINE *

SYSTEM OPEN

18:10 Sun 01 JAN

This is the display of the remote site.

Press [ESC] six times to close the link with the remote site.

Please wait.....

Closing link....

Edit User Names Flowchart

Part Set Text [3-5]

This option allows the engineer to assign 16 characters of text to each of the part set groups. When the user selects the part set options during setting, the top line of the display will show the text and the bottom line will show the wards assigned to the part set group.

5 Engineers menu 3

Part set text

[

PART SET GROUP 0

-

Select part set group: or use A C to scroll

Part Set Text

Part Set group

[

Cursor

^=Text

| = Number

+= Insert

- = Delete

^ART SET GROUP 0

Use keys to edit text

[

Edit User Names Flowchart

Use On-line Keypad Flowchart

63

Engineers Menu 3

Circuit Text [3-6]

Each detection circuit can have up to 16 characters of text assigned to it.

When you have selected the circuit that you require to program, the system will give you the following options:

1 Edit

The edit option allows you to edit text that has been previously programmed or to create new text using the text editing keys.

2 Library

The library option allows you to choose a phrase from the circuit text library, once the phrase has been selected you can further edit it, if required.

TS2500 Installation Manual

3 Delete

The delete option erases the circuit text for the selected circuit.

4 Paste

The paste option will paste the last programmed circuit text into the selected circuit. For example if you program circuit 0001 to "Roller Door 1", then select circuit 0002 and choose the paste option, circuit 0002 will also be programmed as "Roller

Door 1". After selecting the paste option you are giving the option to edit the pasted text, so in the above example it would be simple case of changing the "1" to a number "2" etc.

1 =Edit text

Cursor

Loading Bay Door

^ircuit 0001

Use keys to edit circuit text

[

6

Engineers menu 3

Circuit text

[

Loading Bay Door

Circuit 0001

Enter circuit number or use A C to scroll

[

1,Edit 2,Library

3,Delete 4,Paste

2 = Library

Access

Phrase 001

Enter library phrase or use A C to scroll

[

Admin office

^ircuit 0001

If required, use keys to edit circuit text

[

Circuit Text

Circuit number

3 = Delete 4 = Paste

Loading Bay Door

^ircuit 0001

Use keys to edit circuit text

[

Circuit text Flowchart

64

TS2500 Installation Manual

Circuit Text Library

No.

Phrase

000 Above

001 Access

002 Accountant

003 Accounts

004 Admin office

005 Animal

006 Annexe

007 Arch

008 Area

009 Assembly

010 Assistant

011 Attack

012 Attic

013 Automatic

014 Auxiliary

015 Back

016 Baggage

017 Bakery

018 Balcony

019 Ballroom

020 Bank

021 Banking

022 Bar

023 Barn

024 Basement

025 Bathroom

026 Bay

027 Beam

028 Bedroom

029 Bedroom PIR

030 Bell

031 Biology Lab

032 Board room

033 Bottom

034 Break glass

035 Cabinet

036 Cafe

037 Canteen door

038 Canteen PIR (1)

039 Cashier

040 Ceiling

041 Cellar

042 Changing room

043 Chemistry lab

No.

Phrase

044 Church

045 Classroom

046 Cleaners

047 Collection

048 Communicator

049 Computer

050 Computer room

051 Conservatory

052 Contact

053 Dark-room

054 Detector

055 Dining room PIR

056 Director

057 Dispatch

058 Door

059 Double doors

060 Entrance

061 Factory floor

062 Fire door

063 Floor

064 Front

065 Garage

066 Geography

067 Grocery

068 Ground

069 Guard

070 Hall passive

071 Heater

072 History

073 House

074 Industrial

075 Information

076 Infra-red

077 interior

078 Isolation

079 Junior

080 Kitchen PIR

081 Kitchen window

082 Landing PIR

083 Landing window

084 Laundry

085 Lavatory

086 Library

087 Loading bay door

No.

Phrase

088 Loading bay PIR

112 Penthouse

113 Perimeter

114 Personal

115 Personnel

116 Physics lab

117 Passive in

118 PIR in

119 Plumbers

120 Porch

121 Power

122 Power supply

123 Pressure

124 Processing lab

125 Production

126 PSU Battery Fail

127 PSU Fuse Blown

128 PSU Mains Fail

129 Public

130 Purchasing

131 Reception

089 Lobby

090 Lounge

091 Lounge PIR

092 Lounge window

093 Magnetic

094 Managers

095 Master

096 Medical

097 Mezzanine

098 Microwave

099 Middle

100 Monitor

101 Movement

102 Nursery

103 North

104 Office

105 Outside

106 P.A. Button

107 Panel

108 Panic

109 Partition

110 Passive

111 Patio

Engineers Menu 3

No.

Phrase

132 Refectory

133 Research

134 Restaurant

135 Roller

136 Room

137 Safe

138 Sales door

139 Sales office

140 Sales PIR

141 Secretaries

142 Secretary

143 Security

144 Sensor

145 Service door

146 Service PIR

147 Showroom

148 Shutter

149 Side

150 Sliding

151 Squash court

152 Stairwell

153 Station

154 Store room

155 Stores

156 Surgery

157 Swimming pool

158 Technical

159 Technician

160 Theatre

161 Toilet

162 Transport

163 Ultrasonic

164 Upstairs PIR

165 Upstairs Window

166 Ventilator

167 Warehouse

168 Window

169 Woodwork Shop

170 Workshop door

171 Workshop PIR

172 Workshop Window

173 X-Ray department

65

Engineers Menu 3

Custom Text Menu [3-7]

This menu option allows the installation engineer to edit the following text messages:

Reset Message

The default reset message “CALL ENGINEER TO RESET

SYSTEM” can be personalised by the engineer, e.g. the message may be programmed to read “CALL XYZ

ALARMS ON 0181-1234567".

Location Text

This option allows the engineer to program a 32 character location message. When “Engineers menu 1" is selected the engineer can view this message. This can be used to provide the location details for the control panel, e.g., ”C P located in reception area", thus assisting service engineers unfamiliar with the site.

Printer Header

This option allows the installation engineer to program a

32 character printer header message. This is printed whenever a system or log printout is taken from the system. This can be used as a site reference, e.g., “ABC

Company Job No123456".

Remote Reset Message

The default remote reset message “CALL A.R.C FOR

REM.RESET CODE” can be personalised by the engineer, e.g. the message can be programmed to read “CALL 0181 121212 FOR RESET CODE".

Printer Prefix

This option allows the engineer to specify a 16 character message which is prefixed to every event sent to the printer.

Banner Message

Normally when the system is unset the bottom line of the display shows the time and date, and the top line is left blank. This menu option allows the engineer to program or edit a 16 character “Banner” message which is displayed on the top line. This may be used to display the company’s name, e.g., “Blogg Alarms”, “ABC

Security” etc.

Part Set Banner

The part set banner is a 16 character message displayed on the top line of the display whenever the system is part set. If the message is left blank the top line of the display will show the wards that are set. If the message is programmed the top line of the display will show the message, e.g., “System Part-Set”.

TS2500 Installation Manual

Aux. Tamper 1/2

The control panel has two auxiliary tamper inputs, this option allows the engineer to program a 16 character text description for each input.

Modem String

For future use.

7

Engineers menu 3

Custom text menu

Cursor

[

[ENT] to edit :-

Reset message

A C to scroll

0 = Reset message

1

2

7

8

9

3

4

5

6

= Location text

= Printer header

= Remote reset msg

= Printer prefix

= Banner message

= Part set banner

= Aux. tamper 1

= Aux. tamper 2

= Modem string

[ to edit

MENVIER SECURITY

^anner message

Use keys to edit circuit text

[

Custom Text Menu Flowchart

66

TS2500 Installation Manual

Equipment O/P’s [3-8]

This option allows the engineer to program the two outputs on each node and the single output on each remote keypad or LEC.

8 Engineers menu 3

Equipment O/P's

Output

Device No.

Network No.

[

1,01A XNode

System Alarm

Enter network and device No.

e.g. 216 = Network 2 device 16

B

[ to toggle output [A] or [B] to edit output type

Device type

Current output type

1

=CIRCUIT

Select output

Type :- CIRCUIT

[

Select CCT type

0001 Mimic

1

2

3

4

5

[

= Mimic

= Alarm

= Tamper

= Test Fail

= Omit

To accept

2

=SYSTEM

Select output

Type :- SYSTEM

[

System type >04

Walk Test

Enter Output No.

or / to Scroll

[

A C

To accept

3

=USER

Select output

Type :- USER

[

Enter user no.

001 Code entered

Enter User No.

or / to scroll

[

A C to accept

Engineers Menu 3

4

=WARD

Select output

Type :- WARD

[

Select WARD Req.

Ward A Strobe

Enter Ward No.

1 9

A C

[

/

= wards A-I to scroll I-P to accept

Select cct no.

0001 Mimic

Enter Circuit No.

[

To accept

Ward type >01

Ward A Strobe

Enter Output No.

[

To accept

Equipment Outputs Flowchart

67

Engineers Menu 3

Built In Tests [3-9]

The TS2500 system has the following diagnostic routines:

9

Engineers menu 3

Built in tests

[

Panel version is

TS2500 - Ver 2.0

1

2

Voltage 13.60V

Current 1084mA

3

C

A

4

5

[ENT] to view :-

Cct resistance

[ENT] to test :digicom outputs

6

7

[ENT] to test :-

Panel outputs

[ENT] to test :-

Node outputs

[ENT] to CONFIRM

Network devices

8

9

[ENT] to test :-

Keypad display

[ENT] to view :-

Network devices

[ENT] to view :-

Network errors

[ENT] to do

False setting

[ENT] to test :digicom channels

TS2500 Installation Manual

View Circuit Resistance

When this test routine is selected the resistance for each detection circuit may be measured, the accuracy of this measurement is

±

0.1 KOhms.

3

[ENT] to view :-

Cct resistance

[

Device type

Circuit No.

TSLEC8

0001 2K2

Resistance

A

C

= Next circuit

= Previous circuit

]

View Circuit Resistance Flowchart

Test Digicom outputs

This test routine allows the engineer to test all eight digicom outputs on the main control panel PCB.

4

[ENT] to test :-

Digicom outputs

[

Digi outputs on

1 * 3 * * * * *

1 8 to toggle outputs

]

Outputs

*=off

Built In test Menu Flowchart

Software Version

When selecting the built in tests routine the software version is displayed until you select one of the other diagnostic routines.

Voltage

When this test option is selected the battery charging voltage at the control panel is displayed, the accuracy of this measurement is

±

0.2V.

Current Consumption

When this test option is selected the total current consumption for the system is displayed, the accuracy of this measurement is

±

50mA.

Test Digicom Outputs Flowchart

Test Panel outputs

This test routine allows the engineer to test the four control panel outputs.

5

[ENT] to test :-

Panel outputs

[

Panel outputs on

1 * 3 4

1 4 to toggle outputs

]

Outputs

*=off

Test Panel Outputs Flowchart

68

TS2500 Installation Manual

Test Node outputs

This test routine allows the engineer to test all Node outputs.

6 [ENT] to test :-

Node outputs

[

Network & device No.

2,16A XNode is turned on

Output state

Enter network & device No.

e.g. 216 = Network 2 device 16

B to toggle output on or off

]

Test Node Outputs Flowchart

Engineers Menu 3

Test Keypad display

This test routine allows the engineer to test the LCD on all

TS900 remote keypads.

8 [ENT] to test :-

Keypad display

[

888888888888888

888888888888888

]

Test Keypad Display Flowchart

Confirm Network devices

This option allows the engineer to confirm the correct number of devices are connected to the system. After confirmation any changes in the system hardware will cause the “RELEARN REQUIRED” message to be displayed on all remote keypads.

No. of devices

No. of devices

No. of devices

No. of devices

7 [ENT] to CONFIRM

Network devices

[

[ENT] to CONFIRM

002 LEC2 on sys

Number of TS700LECs

[ to confirm

[ENT] to CONFIRM

012 REMS on sys

Number of Remotes

[ to confirm

[ENT] to CONFIRM

000 NODE on sys

Number of TS900Nodes

[ to confirm

[ENT] to CONFIRM

016 XNODE on sys

Number of XNodes

[ to confirm

]

Confirm Network Devices Flowchart

View Network devices

This test routine allows the engineer to view the status of each device connected to the network. The information displayed will depend on the device type.

Remote

Keypad

9

[ENT] to view :-

Network devices

[

1,01 Remote

A-H B-H T-H

1 8

A C to select network to scroll device

Tamper Status

Circuit Status

Nodes

2,01 XNode

13.50 FH TH HH**

Rems 1 - 4 tamper status

Tamper status

Fuse status

XNode voltage

B to veiw circuits

2,01 XNode

1H2H3H4H5H6H7H8H

]

Circuit status

FH = Fuse healthy

FB = Fuse blown

TH = Tamper Healthy

TA = Tamper active

View Network Devices Flowchart

+

When selecting this option the remote keypad that you are using is the first device to be displayed.

69

Engineers Menu 3

View Network errors

This test routine allows the engineer to view the number of data transmission errors for each network.

0 [ENT] to view :-

Network errors

[

Error count

Last error

Network 1 0000

Last error 2,05

1 8

0

to select network to reset error counter

]

View Network Errors Flowchart

False Setting Routine

This option allows the engineer to set the system whilst the premises are occupied. When selecting this option the engineer can choose the following:

1.

The wards that will false set.

2.

The circuits that will remain active once the system has been false set. Included circuits will remain active during the false set and excluded circuits will remain isolated during a false set. Normally all circuit default to excluded.

3.

All outputs (digicom, bell, strobe etc.) can be enable or disabled during the false set routine.

TS2500 Installation Manual

[ENT] to do

False setting

[

False set wards:

A,B,C,D,*,*,*,*

Setting wards

1 8

A C to toggle wards to scroll wards A-H & I-P

[

Select test ccts

0001 Excluded

A C to scroll through circuits

[

All outputs will remain active

[

0=SET WARDS

A=Next option

0

EXIT FOR WARDS:-

ABCD............

B to toggle

B to toggle

WARDS SET :-

ABCD............

Activate included circuits etc.

0 to end test

TESTING COMPLETE

[ESC] to quit.

]

False Setting Flowchart

Test Digicom channels

This test routine allows the engineer to test all eight channels for the plug-on digicom.

[ENT] to test :-

Digicom channels

[

Channels active

1 * * * * * * *

1 8 to toggle channels

]

Channel

*=off

Test Digicom Channels Flowchart

70

TS2500 Installation Manual

Custom Outputs [3-A]

This option allows the engineer to program the eight custom outputs type. The diagram below represent the logic circuit for the custom output.

Input

3

4

1

2

Custom Output

5 6 7 8

Each switch in the diagram represents a programmable output type, therefore the custom output will only activate when the correct combination of output types are active.

Switches 1 - 4 perform a logical “OR” function and switches 5 - 8 perform a logical “AND” function.

Custom Output - Example 1

This example shows how the “OR” function can be used so that the “Custom Output” activates when circuit 0001 or 0005 or 0016 causes an alarm condition. The table below shows how each switch is programmed to achieve this.

OR

1 Circuit 0001 Alarm

2 Circuit 0005 Alarm

3 Circuit 0016 Alarm

4 System Always Off

AND

5 System Always Off

6 System Always Off

7 System Always Off

8 System Always Off

+

When using the “Custom Output” for “OR” logic only, all unused switches must be programmed to the type “Always Off”.

Custom Output - Example 2

This example shows how the “AND” function can be used so that the “Custom Output” only activates when the system is ward A is set and time switch 1 is active. The table below shows how each switch is programmed to achieve this.

OR

1 System Always Off

2 System Always Off

3 System Always Off

4 System Always Off

AND

5 Ward A Set

6 Time Switch 1 On

7 System Always On

8 System Always On

+

When using the “Custom Output” for “AND” logic only, switches 1-4 must be programmed to the type “Always Off” and any of the unused “AND” switches must be programmed to the type

“Always On”.

Engineers Menu 3

Custom Output - Example 3

This example shows how to use both the “AND” and “OR” functions so that the “Custom Output” activates when ward A is set and time switch 1 is active or when the courtesy light output is active. The table below shows how each switch is programmed to achieve this.

OR

1 System Courtesy Light

2 System Always Off

3 System Always Off

4 System Always Off

AND

5 Ward A Set

6 Time Switch 1 On

7 System Always On

8 System Always On

+

When using the “Custom Output” for “AND” and

“OR” logic, any of the unused “OR” switches must be programmed to the type “Always Off” and any of the unused “AND” switches (5-8) must be programmed to the type “Always On”.

71

Engineers Menu 3 TS2500 Installation Manual

A Engineers menu 3

Custom outputs

[

[ENT] to edit :-

Custom o/p 1,x

Press

[

1 8 the custom output to edit to select

Custom o/p 3,1

0001 Alarm

Press

[

1 8 to select the switch number to edit output type

Select output

Type :- CIRCUIT

1

=CIRCUIT

Select output

Type :- CIRCUIT

[

Select CCT type

0001 Mimic

1

2

3

4

5

[

= Mimic

= Alarm

= Tamper

= Test Fail

= Omit

To accept

Select cct no.

0001 Mimic

Enter Circuit No.

[

To accept

2

=SYSTEM

Select output

Type :- SYSTEM

[

System type >04

Walk Test

Enter Output No.

or / to Scroll

[

A C

To accept

3

=USER

Select output

Type :- USER

[

Enter user no.

001 Code entered

Enter User No.

or / to Scroll

[

A C

To accept

4

=WARD

Select output

Type :- WARD

[

Select WARD Req.

Ward A Strobe

Enter Ward No.

1 9

A C

[

/

= Wards A-I to Scroll I-P

To accept

Ward type >01

Ward A Strobe

Enter Output No.

[

To accept

Custom Outputs Flowchart

Custom Circuits [3-B]

This option allows the engineer to program the eight custom circuit types. Each custom circuit can be programmed to activate the following:

Bell required

A custom circuit with the “Bell required” attribute will activate the control panel bell and strobe output, and any outputs programmed as “System Bell-SAB”, “System

Strobe”. The relevant “Ward Bell-SAB” and “Ward Strobe” are also activated.

Digi required

A custom circuit with the “Digi required” attribute will activate any outputs programmed as “System Alarm” and any relevant “Ward Alarm” outputs.

Sounder required

A custom circuit with the “Sounder required” attribute will activate internal sounders assigned to the same ward as the custom circuit.

Warning required

A custom circuit with the “Warning required” attribute will generate a warning tone every minute from the internal sounder assigned to the same ward as the custom circuit.

72

TS2500 Installation Manual

Trig Custom o/p

A custom circuit with the “Trig Custom o/p” attribute will activate the relevant “Custom Circuit” output type, e.g.

If custom circuit 3 is programmed to trigger its custom output, it will activate “Custom cct 3” output (system output No 82).

Each attribute can be assigned to the custom circuit so that they are only activated for the following conditions:

Unset

Attributes assigned to the custom circuit for the unset mode will only operate when the ward that the circuit is assigned to is in an unset state.

Part

Attributes assigned to the custom circuit for the part set mode will only operate when the ward that the circuit is assigned to is set and one or more wards are unset, i.e.

the system is in a part set state.

Full

Attributes assigned to the custom circuit for the full set mode will only operate when the system is fully set, i.e.

all defined wards set.

Custom Circuit Text

Up to 11 characters can be assigned to each custom circuit. This text is displayed when programming circuits.

B Engineers menu 3

Custom circuits

[

[ENT] to edit :custom circuit 1

1 8 or A C to scroll custom circuits

[ to edit

Bell required

>Unset,Part,Full

Digi required

> , ,

Sounder required

> , ,

C

A

Warning required

> , ,

Trig Custom o/p

> , ,

1

2

3

= Toggle Unset

= Toggle Part

= Toggle Full

Custom Cct1

[B] to edit text

B to edit text

[ to accept

Custom Circuits Flowchart

Engineers Menu 3

Digi/Modem Options [3-C]

This option allows the engineer to program the plug-on digicom or digi-modem.

C

A

4

5

7

8

1

2

Engineers menu 3

Digi/Modem opt.

[

[ENT] to edit :-

Call back no.1

[ENT] to edit :-

Call back no.2

3

6

[ENT] to edit :-

Call back no.3

[ENT] to edit :-

Modem password

[ENT] to edit :-

Modem site no.

[ENT] to edit :-

Digi program

[ENT] to edit :-

Digi BAUD rate

[ENT] to edit :-

COM1 BAUD rate

9 [ENT] to edit :-

Internal digi

0 [ENT] to

Reset Digicom

Digi/Modem Options Flowchart

Call Back No.1

This option allows the first call back telephone number to be programmed.

Call Back No.2

This option allows the second call back telephone number to be programmed.

Call Back No.3

This option allows the third call back telephone number to be programmed.

73

Engineers Menu 3

1

2

[ENT] to edit :-

Call back no.1

[ENT] to edit :-

Call back no.2

Cursor

3 [ENT] to edit :-

Call back no.3

[ to edit

0181 12345678

|all No.1 Office

Enter Tel No.

[

Tel No.

TS2500 Installation Manual

Cursor

5

[ENT] to edit :-

Modem site no.

[ to edit

2500

|Modem site no.

Enter site No

(max. 4 characters).

[

Site No.

Modem Call Back Numbers Flowchart

Modem Password

This option allows the modem password to be programmed. The “Modem Password” can be up to 16 character long and provides a means of security for remote communications. When using the “Lineload” software the “Modem Password” in the site profile must match the “Modem Password” that is stored in the control panel.

Modem Site No. Flowchart

Program Digicom

This option allows the plug-on digicoms DC54, DC58 and DC58M to be programmed via the control panel.

+

When prompted to “press the [0] key to end programming”, it will take approximately 25 - 30 seconds to download the new data to the digicom.

+

When using the control panel to program a

DC54, the program options that are not applicable can be ignored, e.g. telephone number 3 and channels 5 - 8 are not used by the

DC54 and therefore do not require programming.

Cursor

4 [ENT] to edit :-

Modem password

[ to edit

1234

|Modem password

Enter password

(max. 16 characters).

[

Password

Modem Password Flowchart

Modem Site No.

This option allows the Modem site number to be programmed. The “Modem Site No.” is a 4 digit number that is used as a site reference. When using the

“Lineload” software the “Site Reference” number in the site profile must match the “Modem Site No.” that is stored in the control panel.

74

TS2500 Installation Manual Engineers Menu 3

C

Engineers menu 3

Digi/Modem opt.

ENT

[ENT] to edit :-

Call back no.1

6

TELEPHONE NO.1

018112345678

Enter Telephone No. 1

A

B

C

= Clear number

= Pulse Dial (P) or Pause (-)

= Tone Dial (T)

ENT

TELEPHONE NO.2

018112345687

Enter Telephone No. 2

ENT

TELEPHONE NO.3

018112345679

Enter Telephone No.3

ENT

ACCOUNT NO.1

0001

Enter account No.1

ENT

ACCOUNT NO.2

0001

Enter account No. 2

ENT

ACCOUNT NO.3

0001

Enter account No. 3

ENT

REPORTS TO NO.1

* * 3 4 * * * 8

Select channels that report to tel No.1 by pressing [1] - [8]

ENT

REPORTS TO NO.2

* 2 3 4 * * * 8

Select channels that report to tel No.2 by pressing [1] - [8]

ENT

REPORTS TO NO.3

* 2 3 4 * * * 8

Select channels that report to tel No.3 by pressing [1] - [8]

ENT

SET/DAY CHANNELS

* * * 4 * * * *

Select Set/Day (Open/Close) channels by pressing [1] - [8]

ENT

RESTORE CHANNELS

* * 3 4 * * * *

Select Restore channels by pressing [1] - [8]

ENT

INVERT CHANNELS

* * * * * * * *

Select Invert channels by pressing [1] - [8]

ENT

Dialling Mode is Consecutive

Select dialling mode:

1

2

3

= Consecutive

= Alternative

= All

ENT

TEST CALL PERIOD

Disabled

Select test call period:

1

2

= Disabled

= Daily

3

4

= Weekly

= Fortnightly

ENT

Digi Output 1 is

Line Fault

Select output type:

1

2

= Line Fault

= Digi Successful

3

4

5

= Digi Failed

= Digi Active

= Serial Coms Fault

ENT

Digi Output 1 is

Line Fault

Select output type:

1

2

= Line Fault

= Digi Successful

3

4

5

= Digi Failed

= Digi Active

= Serial Coms Fault

ENT

Program Digicom Flowchart

Extended Format

Will NOT Report

Select point ID reporting mode:

1

2

3

= Will NOT Report

= Limited Report

= Full Report

ENT

T.O.S Calls are

Disabled

Select Temporary Out of

Service monitoring period:

3

4

1

2

= Disabled

= Daily

= Weekly

= Fortnightly

ENT

Ring Count is

Instant

Select Ring Count

(DC58M Only):

1

2

= Instant

= Delayed

ENT

Press '0' to

Protect Numbers

Press [0] to protect telephone numbers

ENT

Press '0' to end programming

Press [0] to end programming & download new data to digicom

NOTE:

This will take approximately

25 - 30 seconds

75

Engineers Menu 3

Digi Baud rate

This option allows the engineer to set the baud rate for the plug-on digicom. For the DC54/58/58M this MUST be set at 300 baud.

COM1 Baud rate

This option allows the engineer to set the baud rate for the general communication port (For future use).

7

[ENT] to edit :-

Digi BAUD rate

8 [ENT] to edit :-

COM1 BAUD rate

[ to edit

DC58(M)BAUD rate

300

Select rate by pressing:

1 = 300

2

3

4

= 600

= 1200

= 2400

5

6

7

8

= 4800

= 9600

= 19200

= 38400

[

Baud rate

TS2500 Installation Manual

9

[ENT] to edit :-

Internal digi

[ to edit

Ward channel 1 is 07 Fire Alm.

[ to edit ward type

Ward channel 1 is 07 > Fire Alm.

A C to scroll ward types

[ to accept

Ward channel 1 is 07 Fire Alm.

A C to scroll channels 1-8 and account No.

Account No. for ward A is 0000

[ to edit account No.

Account No. for ward A is >0000

Enter account No.

[ to accept

Channel No.

Ward Type

Digi & Com1 Bauld Rate Flowchart

Internal digi

This option allows the engineer to use the DC58/58M as a multi account digicom. This in effect gives you 16 digicoms in one unit. The feature can only be used with

DC58/DC58M's fitted with version 2.8 software.

Each channel can be assigned a ward output type, e.g. channel 3 ward alarm. Each ward can then be assigned a four digit account number (if the ward account is set to '0000' then all channels for that ward are disabled).

Reset Digicom

This option resets the plug-on digicom and uploads the digicom NVM data to the control panel. The upload will take approximately 25 - 30 seconds. Once uploaded the data can be edited using the "Program Digicom" option and then sent back to the digicom.

0

[ENT] to

Reset DigiCom

[

Acceptance tone indicates reset performed

Internal Digicom Flowchart

Activity Count [3-0]

Circuits with the “Activity Monitor” attribute that have been activated whilst the system was unset cause the

“Activity Counter” to be increased by one. This option allows the engineer to view the counter value.

0 Engineers menu 3

Activity Count

[

Ward A activity:

0000

A = Next ward

C = Previous ward

B = Reset counter

Ward P activity:

0000

]

Activity count

Activity Count Flowchart

Reset Digicom Flowchart

76

TS2500 Installation Manual

Engineers Menu 4

Introduction

Engineers menu 4 is selected by pressing the [ENT] whilst

Engineers menu 3 is selected. Each menu option can be selected by pressing the relevant “hotkey” or you can scroll forwards and backwards through the options using the [A] and [C] keys.

Menu Contents

Hotkey

1

2

3

4

5

6

7

8

9

A

0

Option

Auto-set Timers

Network Equipment Wards

Equipment Wards

Unset Circuit Types

Log Search Keys

Shunt Groups

OM Configuration

Set Volume Level

Edit Quick Set Keys

Engineer wards

Code Lock Timers

83

83

84

82

83

83

Page

78

79

80

81

82

Engineers menu 3

Select Option :-

ENT

Engineers menu 4

Select Option :-

C

A

4

7

8

9

0

A

1

2

3

5

6

Engineers Menu 4

ESC

Engineers menu 4

Auto-set timers

ENT

Engineers menu 4

Net Equ. wards

ENT

Engineers menu 4

Equipment Wards

ENT

Engineers menu 4

Unset cct types

ENT

Engineers menu 4

Log search keys

ENT

Engineers menu 4

Shunt groups

ENT

Engineers menu 4

OM Configuration

ENT

Engineers menu 4

Set volume level

ENT

Engineers menu 4

Edit quick keys

ENT

Engineers menu 4

Code lock times

ENT

Engineers menu 4

Engineer wards

ENT

ENT

Engineers menu 1

Select option :-

ESC

Engineers menu 3

Select option :-

Engineer's Menu 4

77

Engineers Menu 4

Auto-set Timers [4-1]

The TS2500 has three auto-set timers, each timer has the following options:

Set times 1, 2 & 3

Each timer has three Independent setting times.

Unset time 1, 2 & 3

Each timer has three Independent unsetting times.

Days of operation 1, 2 & 3

Each of the individual set/unset timers can be programmed to operate on different days of the week.

Set/Unset Wards

Each timer can set and unset any combination of wards

A-P.

1

Engineers menu 4

Auto-set timers

[

Auto-set timer 1

Select option :-

A

B

C

= Auto-set timer 1

= Auto-set timer 2

= Auto-set timer 3

1

2

3

= Set time 1

= Set time 2

= Set time 3

Auto-set timer 1

Set 1 at 00:00

Enter Set time

[

TS2500 Installation Manual

4

5

6

= Unset time 1

= Unset time 2

= Unset time 3

Auto-set timer 1

Unset 1 at 00:00

Enter Unset time

[

7

8

9

= 1st operates on

= 2nd operates on

= 3rd operates on

1 Operates on :-

> SunMo..........

Enter days of operation

1 =Sunday, 7 =Saturday

[

0 = Manually switch output

Auto-set timer 1

> output is OFF

B = Toggle ON/OFF

[

[ = Set wards

Auto-set timer 1

AB.D............

[

Auto-set timer 1

A,B,*,D,.,.,.,.

1 -8 = Select wards

[

Auto-set Timers Flowchart

78

TS2500 Installation Manual

Network Equipment Wards [4-2]

This option allows the engineer to assign remote keypads, XNodes and Nodes to wards.This will ensure that lid tamper alarms from devices on the network have the correct response, e.g. if a Node is assigned to ward A and ward A is unset, an internal alarm is generated when the Node lid is removed. However if ward A is set then a full alarm is generated.

XNodes

The assignment of XNodes to wards will also ensure that the correct operation of remote keypads and extension loudspeaker connected to the XNode. If an XNode is assigned to ward A, the remote keypads and the extension loudspeakers connected to the XNode are also assigned to ward A.

Remote Keypads

The assignment of remote keypads to wards also ensures the correct operation of user passcodes, e.g, if a user is assigned as a “Standard Ward” user type to ward A, the user will only be able to set and unset ward A from a remote keypad that is assigned to ward A.

Keypad Sounder

The internal sounder inside each remote keypad will operate as follows:

1.

If the remote keypad is connected to an XNode the sounder will follow the assignment of the XNode. For example, if the XNode is assigned to ward B the remote keypad sounder will operate when ward B is in entry, exit or alarm.

2.

If the remote keypad is connected directly to a network, the sounder will follow the assignment of the panel speaker (see “Equipment Wards” on

page 80). For example, if the panel speaker is assigned to wards A & B the remote keypad sounder will operate when wards A or B are in entry, exit or alarm.

Extension loudspeakers

Extension loudspeakers will operate as follows:

1.

If the extension loudspeaker is connected to an

XNode the loudspeaker will follow the assignment of the XNode. For example, if the XNode is assigned to ward B the loudspeaker will operate when ward B is in entry, exit or alarm.

2.

If the extension loudspeaker is connected to the control panel, the loudspeaker will follow the assignment of the panel speaker (see “Equipment

Wards” on page 80). For example, if the panel speaker is assigned to wards A & B the loudspeaker will operate when wards A or B are in entry, exit or alarm.

Engineers Menu 4

2

Engineers menu 4

Net Equ. wards

[

1,01 XNode

A...............

Enter network and device No, e.g. 216 = Network 2 device 16

[ to edit

2,16 XNode

A,*,.,.,.,.,.,.

1-8

A-C

Toggle wards.

To scroll wards A-H and wards I-P.

[

2,16 XNode

AB.............

Wards

Ward Status Key

.

*

A-P

= Ward not selected.

= Ward not available.

= Wards selected.

Network Equipment Wards Flowchart

79

Engineers Menu 4

Equipment Wards [4-3]

This option allows the engineer to assign the following options to wards.

Panel tamper

The control panel lid tamper can be assigned to any combinations of wards, this will ensure the correct tamper response from a lid tamper alarm.

Bell Box Tamper

The bell box tamper can be assigned to any combination of wards, this will ensure that tamper alarms from external bell have the correct response.

Aux 1 Tamper

Auxiliary tamper 1 can be assigned to any combination of wards, this will ensure that tamper alarms from this input have the correct response.

Aux 2 Tamper

Auxiliary tamper 2 can be assigned to any combination of wards, this will ensure that tamper alarms from this input have the correct response.

Phone Line Fault

The phone line fault input can be assigned to any combination of wards. When a phone line fault occurs the system will respond as follows:

(a) All remote keypads will display “PHONE LINE FAULT”.

(b) All internal sounders assigned to the same wards as the “Phone Line Fault” will generate a chime tone every minute on the minute and after the line fault delay timer has expired.

(c) If “Can Set With L.F” is enabled (see configuration) users assigned to the same wards as the “Phone

Line Fault” can set their wards but will be asked to confirm that they are setting with a phone line fault present.

(d) If “No Set With L.F” is enabled (see configuration) users assigned to the same wards as the “Phone

Line Fault” cannot set their wards until the phone line fault is cleared.

Mains Power Off

The mains power off condition can be assigned to any combinations of wards. When the loss of mains power occurs the system will respond as follows:

(a) All remote keypads display “AC OFF”.

(b) All internal sounders assigned to the same wards as the “Mains Power Off” will generate a chime tone every minute on the minute and after the mains off delay timer has expired.

(c) If “Can Set-AC Off” is enabled (see configuration) users assigned to the same wards as the “Mains

Power Off” can set their wards.

80

TS2500 Installation Manual

(d) If “No Set-AC Off” is enabled (see configuration) users assigned to the same wards as the “Mains

Power Off” cannot set their wards until the mains power is restored.

Payment Timer

The payment timer can be assigned to any combination of wards, when the payment timer expires the selected wards will then be locked into engineer reset/remote reset.

Alarms Engineer Reset

Alarms can be assigned as engineer or user reset for each ward. If a ward is assigned as engineer reset, the ward can only be reset by the engineer or remote reset

(if remote reset is enabled for that ward). If a ward is not assigned as engineer reset it becomes user reset and can be reset by any user that has access for that ward.

Tamper Engineer Reset

Daytime tamper alarms can be assigned as engineer or user reset for each ward. If a ward is assigned as engineer reset, a daytime tamper alarm can only be reset by the engineer or remote reset (if remote reset is enabled for that ward). If a ward is not assigned as engineer reset it becomes user reset and can reset by any user that has access for that ward.

Remote Reset

Remote reset can be enabled or disabled for each ward. If a ward has remote reset enabled users have access to the remote reset feature. If a ward does not have remote reset enabled, only the engineer can reset after alarm.

Panel Speaker

The control panel speaker can be assigned to any combination of wards, this will ensure that the sounders only operate when the relevant ward(s) are in alarm, entry & exit etc.

Relearn Required

When the system hardware configuration changes the system requires a relearn. This option allows you to select which wards require a relearn before the ward can be set.

Re-arms applies to

The rearm facility can be applied to any combination of wards. If rearm is applied to a ward the ward will rearm according to the "Number of rearms'" specified in the

"System Options", see page 45. If rearm is not applied to a ward, the ward will not auto rearm after an alarm, i.e., one activation of the bell.

TS2500 Installation Manual

Hi Security ward

If a ward is selected as “High Security” the ward will always attempt to stay in a set condition. If the ward is unset by a user the remote keypads display "HI SECURE

UNSET" and the "Hi Security" timer is started. Every time a detector is triggered in the unset ward(s) the "Hi Security" timer is reset. When the timer expires the system will attempt to automatically set the "High Security" ward(s).

Digi in Part Set

When the system is full set (all defined wards set), an alarm in any ward will trigger the digicom. This option allows you to select which wards will trigger the digicom when the system is in a part set state.

System Bell/STB

This option allows you to select which wards will trigger the main bell and strobe outputs on the control panel.

Ward A Foyer Mode

The “Ward A Foyer Mode” allows you to create a common area that is automatically set when all the wards that are assigned to it are set. Ward A will also automatically unset when any one of the assigned wards is unset. For example if wards B, C and D are assigned to the “Ward A Foyer Mode” the system will automatically set ward A when the last ward (B, C or D) is set. The system will automatically unset ward A when the first ward (B, C or D) is unset.

Unset fire Signals

This option allows you to designate which wards will trigger the “System Fire” output and “Ward Fire” output when a fire alarm circuit is trigger within an unset ward. If a ward is assigned to this option, a fire alarm from the selected ward will activate the “System Fire” output and the respective “Ward Fire” output when the ward is set or unset. If a ward is not assigned to this option, a fire alarm from the selected ward will only activate the “System

Fire” output and the respective “Ward Fire” output when the ward is set.

Double Knock Wards

This option allows you to designate which wards will use the double knock counter (see “System Options” on

page 45). If the double knock counter is assigned to a ward, all circuits with the double knock attribute within the selected ward will use the value defined by the double knock counter (1-999). If the double knock counter is not assigned to a ward, all circuits with the double knock attribute within the selected ward will use a default value of 002.

Engineers Menu 4

3

Engineers menu 4

Equipment wards

[

Panel tamper

A...............

A C to scroll options

[ to edit

Panel tamper

*,*,.,.,.,.,.,.

1-8

A-C

Toggle wards.

To Scroll wards A-H and wards I-P.

[

Panel tamper

AB.............

Wards

Ward Status Key

.

*

A-P

= Ward not selected.

= Ward not available.

= Wards selected.

Equipment Wards Flowchart

Unset Circuit Types [4-4]

This option allows the engineer to change the circuit type when the circuit is unset, e.g. detection circuit

1001 can be programmed for night operation whilst the ward is set and then change to PA operation when the ward is unset.

+

You must program detection circuits in

“Engineers menu 1" before programming the unset circuit types. Initially the unset circuit type automatically follows the type programmed in

”Engineers menu 1" and must be altered using this option.

4 Engineers menu 4

Unset cct types

[

0001 Night

Enter circuit No. or

A C

[ to scroll to edit

Enter unset type

0001 Night

A C to scroll throughcircuit types

[ to accept

Unset Circuit Types Flowchart

81

Engineers Menu 4

Log Search Keys [4-5]

This option allows the engineer to configure the nine log search keys. When viewing the event log you would normally use the [A] and [C] keys to scroll backwards and forwards through the event log. The log search keys allow you to scroll backwards through the log, but will only display events that meet the search key criteria.

Each search key can have up to 5 search events assigned to it.

For example, log search key [1] could be set-up to search for alarms, set wards and unset wards. When viewing the log and pressing [1] the display would show the next event that met the search key criteria, i.e. it would display the next logged alarm, set or unset wards.

If you only want to search for a single event type, then assign all 5 events as the same type. The table below shows the default log search key settings:

Key Event 1 Event 2 Event 3 Event 4 Event 5

1 ALARM ALARM ALARM ALARM ALARM

2

3

24hr

ALARM

FIRE

ALARM

24hr

ALARM

FIRE

ALARM

24hr

ALARM

FIRE

ALARM

24hr

ALARM

FIRE

ALARM

24hr

ALARM

FIRE

ALARM

4 PA ALARM PA ALARM PA ALARM PA ALARM PA ALARM

5 TAMPER TAMPER TAMPER TAMPER TAMPER

6 ENTRY ENTRY ENTRY ENTRY ENTRY

7

8

9

PASS

CODE

SET

WARDS

UNSET

WARDS

PASS

CODE

SET

WARDS

UNSET

WARDS

PASS

CODE

SET

WARDS

UNSET

WARDS

PASS

CODE

SET

WARDS

UNSET

WARDS

PASS

CODE

SET

WARDS

UNSET

WARDS

TS2500 Installation Manual

Shunt Groups [4-6]

The TS2500 alarm system has 50 shunt groups each group can have up to 4 circuits assigned to it. Each circuit must have the “Shuntable” attribute assigned in order for it to be shunted. Each group can then be allocated to a user passcode (type "Shunt").

Operation

When a shunt passcode is entered the selected group of circuits are shunted (isolated), this is confirmed by the remote keypads showing “Your circuits are now shunted”. When the shunt passcode is re-entered, the selected group of circuits are reinstated and the remote keypad shows “Your circuit are reinstated”.

If the system configuration is programmed as “Unshunt, no exit”, the shunted circuits are reinstated as soon as the passcode is entered. If the system configuration is programmed as “Unshunt & exit”, the exit procedure is started when the passcode is entered and the shunted circuits are reinstated on completion of the exit procedure.

6

Engineers menu 4

Shunt groups

[

Group 00< 0001

0001 0001 0001

Enter group No.

[ to edit

Group 02 >2002

0001 0001 0001

Enter circuit No. then [ to move to next circuit

Group 02 2002

2003 2004>2009

[ to accept

5

Engineers menu 4

Log search keys

[

Key 1,Event 1 :-

ALARM XXXX

1 8

A C to scroll event No.

[

= search Key to edit

Select new event

ALARM XXXX

A C to scroll event types

[ to accept

Key 1,Event 1:-

ABORT ON WARDS:-

Shunt Groups Flowchart

Log Search Keys Flowchart

82

TS2500 Installation Manual

OM Configuration [4-7]

This option allows the engineer to define which ward and circuit status information is sent to the control panel output module port.

Mimic options

The mimic options allow you to define which ward related data is sent to the output module port.

CCT options

The circuit options allows you to define which circuit related data is sent to the output module port.

7

Engineers menu 4

OM Configuration

[

1, Mimic options

2, CCT options

Engineers Menu 4

Edit Quick Keys [4-9]

This options allows the engineer to configure the [A], [B] and [C] keys on the remote keypads to perform set functions. For example, key [A] could be programmed to follow part set group 1, whereas key [B] could be programmed to follow part set group 8.

Once defined the quick keys do NOT require the user to enter their passcode, they simply press the relevant

"Quick Set Key" and the system will perform the function assigned to that key.

9

Engineers menu 4

Edit quick keys

[

Quick set key A is DISABLED

A,B,C to select Quick Key

1-9

0 to select Part Set Group

= Disabled

Quick set key A will use group 4

1

2

00 Mimic Wrd A-H

Bell-SAB YES

A C to scroll

Mimic option 1

Start at 0001

Enter circuit No.

[

Mimic option 1

& End at 1008

Enter circuit No.

[

Repeat for remaining options

]

B To toggle

YES/NO

OM Configuration Flowchart

Set Volume Level [4-8]

This option allows the engineer to adjust the volume level of the control panel speaker output.

8

Engineers menu 4

Set volume level

[

Volume level >16

>>>>>>>>

A C to increase & decrease sound level or enter value.

[

Edit Quick Keys Flowchart

Engineers Wards [4-A]

This option allows the engineer to select wards as

“Engineer Wards”. When a ward is selected as an

“Engineer Ward” all circuits within that ward are NOT monitored whilst the engineer is logged on. If the ward is subsequently set whilst the engineer is still logged on the monitoring of circuits within that ward is resumed. The engineer cannot select a ward that is currently set. This feature allows parts of the system to be disabled and other parts to be kept live when an engineer is logged on.

A

Engineers menu 4

Engineer wards

[

Ignore alarms in

*,*,.,.,.,.,.,.

1-8

A-C

Toggle wards.

To Scroll wards A-H and wards I-P.

[

Wards

Set Volume Level Flowchart

Ward Status Key

.

*

A-P

= Ward not selected.

= Ward not available.

= Wards selected.

Engineer wards Flowchart

83

Engineers Menu 4 TS2500 Installation Manual

1

2

3

= On time 1

= On time 2

= On time 3

Codelock group 1

On-time 1 00:00

Enter On-time

[

4

5

6

= Off time 1

= Off time 2

= Off time 3

Codelock group 1

Off-time 1 00:00

Enter Off-time

[

0

Engineers menu 4

Code lock times

[

Codelock group 1

Select option :-

A

B

C

= Codelock group 1

= Codelock group 2

= Codelock group 3

7

8

9

= 1st operates on

= 2nd operates on

= 3rd operates on

1 Operates on :-

> SunMo..........

Enter days of operation

1 =Sunday, 7 =Saturday

[

0 = Manually switch output

Codelock group 1

> output is OFF

B = Toggle ON/OFF

[

[ = Users

01, 999 Not Used

A C = to scroll 01-10

[

Enter user No.

01, 002

Enter user No. 001 -199

[

Code Lock Times Flowchart

Code Lock Times [4-0]

This options allows the engineer to define up to three code lock time groups, each group has the following options:

On- times 1, 2 & 3

Each group has three Independent on times.

Off- time 1, 2 & 3

Each group has three Independent off times.

Days of operation 1, 2 & 3

Each group can be programmed to operate on different days of the week.

Users

Up to 10 users can be assigned to each code lock group.

Operation

Once a user is assigned to a code lock group their passcode is only valid when the code lock group timer is off. If the user attempts to use their passcode whilst the timer is on the display will show "Sorry. Your code is locked out"

84

TS2500 Installation Manual

Appendices

Appendices

Text Editing Keys

When programming any text the keys on the keypad function as shown below:

1

3

7

= A

= O

= Move cursor left

ENT

= Accept text

A

= Up the alphabet

2

5

8

0

B

= E

= U

= Change case

= Space

= Change cursor

3

4

9

= I

= 0 (zero)

= Move cursor right

ESC

= Abandon text editing

C

= Down the alphabet

Text Editing Keys

Cursor Types

[^] This is the normal text editing cursor. Use the text editing keys as shown above.

[|] This is the number cursor. Use the numbered keys 0

- 9 to enter numeric data.

[+] This is the insert cursor. Use text editing keys as shown above to insert text at the cursor.

[-] This is the delete cursor. Use key [7] to delete from the left of the cursor and key [9] to delete from the right of the cursor.

Common Key Sequences

Character Key Sequence Character Key Sequence

1

4C

4

4A

4AA

3A

3AA

3AAA

4CC

2A

2AA

3C

3

1A

1AA

2C

2

4AAA

5CC

5C

A

P

Q

N

O

L

M

J

K

R

S

T

H

I

F

G

D

E

B

C

U

#

$

"

!

=

>

?

@

%

&

;

<

:

Z

X

Y

V

W

5

5A

5AA

5AAA

5AAAA

5AAAAA

1CCCCCCC

1CCCCCC

1CCCCC

1CCCC

1CCC

1CC

1C

0A

0AA

0AAA

0AAAA

0AAAAA

0AAAAAA

Setup New Users

The TS2500 allows up to 199 users to operate the alarm system, each user is assigned a user type, passcode and ward access. User 001 is the master user which has a default setting of 5678.

User Types

The following user types are available:

Master

This user type has access to all fours our user menus and options. A master user is also a global user which allows the user to set and unset their assigned wards from any remote keypad.

Manager

This user type has access to "User menu 1"and "User menu 2". A manager user is also a global user which allows the user to set and unset their assigned wards from any remote keypad.

Standard Global

This user type has access to "User menu 1". A standard global user is also a global user which allows the user to set and unset their assigned wards from any remote keypad.

Standard Ward

This user type has access to "User menu 1". A standard ward user can only set and unset their assigned wards from a remote keypad that is assigned to the same ward(s) that they are trying to set/unset, For example if the user is assigned to wards A and B, then operates the system from a keypad assigned only to ward B, the user would only have the option to set/unset ward B.

Reset Only

This user type allows 24hr alarms to be reset and access to "User menu 1" options 1 to 9. A reset only user is also a global user type which allows the user to reset 24hr alarms from any remote keypad.

Panic Code

This user type does not have access to any user menus nor can it be used to set and unset the system. When this user code is entered a "Panic Alarm"' is transmitted to the alarm receiving centre and the external sounder(s) and strobe light(s) are also activated.

85

Appendices

Duress Code

This user type operates in the same way as a standard global user, but when the passcode is used a silent

"Panic Alarm" is transmitted to the alarm receiving centre.

+

If "Configuration option 02" is set to enabled, all users can generate a "Duress" alarm by entering their passcode with the first two digits reversed

(e.g. for a passcode of 2580 enter 5280 to generate a "Duress" alarm).

Access

This user type does not have access to any user menus nor can it be used to set and unset the system. When this user code is entered it will operate specific outputs which in turn can be used to operate an electric door strike or similar.

Shunt

This user type does not have access to any user menus nor can it be used to set and unset the system. When this user code is entered it will isolate a pre-defined group of detection circuits. When the code is re-entered it will reinstate the group.

Set Only

This user type operates in the same way as a standard global user, except that it only allows setting of wards.

Not in use

This user type does not perform any operation. Select this user type to delete an existing user.

User Wards

Each user must be assigned to wards. Once assigned to wards the user can then set, unset and reset the wards they have been given access to.

Auto Sets wards

Wards that are assigned as auto set will automatically be selected for setting when choosing the "SET WARDS" option. If a ward is not assigned as auto set the user is given the choice to select the ward at the time of setting.

Auto Unset Wards

Wards that are assigned as auto unset will automatically be selected for unsetting when choosing the "UNSET

WARDS" option. If a ward is not assigned as auto unset the user is given the choice to select the ward at the time of unsetting.

TS2500 Installation Manual

Customising Users

Access to user menus is initially defined by the user type, e.g. the manager user has access to user menus 1 and

2, and a standard global user has access to user menu

1 only. However, each user can be customised so that individual options within user menus are available or restricted, e.g. user 002 could be given the initial type of standard ward, then customised to allow the user to access all user menus and options.

The table below shows all four user menus and the options available:

User Menu

2

User Menu

3

User Menu

4

B

C

1

2

3

4

5

Bell Test

Remote

Reset

Change passcode

Enable

Chime

View circuits

Walk Test Set System

Time

Set System date

Setup new users

Chime

Circuits

Time

Switches

Part Set

Groups

Use On-line

Pad

Edit User

Names

Auto-set

Timers

Part Set Text Log Search

6 24hr Omit 24hr Group Circuit Text

Keys

Shunt

Groups

7 Omit Zones Print System

Log

8 Silent Set Alter Wards

9

0

View System

Log

Set/Unset Rem. Serv.

Options

Activity

Count

Set Volume

Level

Edit Quick

Keys

Code Lock

Times

A Start Call

Back

Set BST/GMT

Dates

86

TS2500 Installation Manual

Enter master user (5678) then [

User menu 1

Select option :-

[

User menu 2

Select option :-

4

User menu 2

Setup new users

[

Define new users

User no. 002

Next available user

B to view total number of users

Enter user No.

[

Enter new code..

----

Enter new passcode

[

User 002 is type

Not in use

User type

A C to scroll user types

[ to accept

User 002 wards

A,*,*,*,.,.,.,.

1 8

A C to toggle wards to scroll wards

A-H & wards I-P.

[ to accept

User wards

User Types

Master

Manager

Standard Global

Standard Ward

Reset only

Panic code

Durress code

Access

Shunt

Set only

Not in use

002 Auto sets:-

A,*,*,*,.,.,.,.

Auto set wards

1 8

A C to toggle wards to scroll wards

A-H & wards I-P.

[ to accept

002 Auto unsets:-

A,*,*,*,.,.,.,.

Auto unset wards

1 8

A C to toggle wards to scroll wards

A-H & wards I-P.

[ to accept

Ward Status Key

.

*

A-P

= Ward not selected.

= Ward not available.

= Wards selected.

[ENT] to customise user

]

[

Menu 1 options:-

> 0123456789...

Menu 2 options:-

> 0123*567*9A.C

Use keys to toggle menu options

[ to accept

Menu 3 options:-

> 0123456......

Menu 4 options:-

> 01...56.89...

[

Appendices

Setup New Users Flowchart

87

Appendices

Engineer's Quick Reference

TS2500 Installation Manual

Hotkey

1

2

3

4

5

6

Options

Program Panel Outputs

1 = Panel Output 1 (relay)

2 = Panel Output 2 (-ve)

3 = Panel Output 3 (+ve)

4 = Panel Output 4 (+ve)

Program Digicom Outputs

1 = Channel 1

2 = Channel 2

3 = Channel 3

4 = Channel 4

5 = Channel 5

6 = Channel 6

7 = Channel 7

8 = Channel 8

Program Digicom Channels

1 = Channel 1

2 = Channel 2

3 = Channel 3

4 = Channel 4

5 = Channel 5

6 = Channel 6

7 = Channel 7

8 = Channel 8

Program Circuits, Attributes & Wards

Circuit Types

0 = Not Used

1 = Night

2 = 24 Hour

3 = PA Silent

4 = PA Audiible

5 = Fire

6 = Auxiliary

7 = Final Exit

8 = Exit Terminator

9 = Ward Key

A/C = Shunt Key

A/C = Tamper

A/C = Security

A/C = 24hr Silent

A/C = Night Perimeter

A/C = Custom circuits

Circuit Attributes

1 = Access

2 = Double Knock

3 = On Test

4 = Omittable

5 = Reset

6 = Activity

7 = Entry

8 = Chime 1

9 = Chime 2

A/C = Chime 3

A/C = Inverted

A/C = Shuntable

A/C = Beam Pair

A/C = Eng. Test

A/C = Monitored

A/C = Non Latching

B = Toggle attribute between YES/NO

Wards

1 - 8 = Select/deselect wards displayed

A/C = Toggle wards A-H or I-P

B = Select/deselect all wards

Program System Timers

Exit time wards A-P

Entry dly wards A-P

Digi dly wards A-P

Bell dly wards A-P

Bell dur wards A-P

Exit settle time

2nd Entry delay

Double Knock dly

Abort duration

Abort delay

2nd alarm time

Courtesy time

Access code time

Menu time-out

Line fault delay

AC off delay

Monitor cct time

Beam pair time

Battery test dur

Answer ring time

Global bell dly

Global bell dur

Activity delay

Defer setting by

Battery test

Hi Security time

Cct test time

Service time

Payment time

Test call every

Select menu time

Custom o/p 2 Tmr

Program Setting Modes

A/C =Select ward

1 = Final Exit

2 = Exit Terminator

3 = Timed Exit

4 = Instant

5 = Deferred

Engineers Menu 1

Page

34

34

34

40

42

44

Hotkey

7

8

9

A

B

C

System Print-out

0 = Custom text

1 = Modem data

2 = User codes

3 = Configuration

4 = Outputs

5 = Setting modes

6 = System timers

7 = Time switches

Options

8 = Code locks

9 = Auto-set times

A/C = Custom Circuits

A/C = Circuits

A/C = Equipment wards

A/C = Net equipment

A/C = Part set groups

Program System Options

Number of rearms

Modem rings

Keys until tamp

Remote resets

Reset algorithm

Double Knocks

Program Configuration

00 = Bell is an SAB / Bell is an SCB

01 = View alms P.Set / View alms unset

02 = Duress Disabled / Duress Enabled

03 = Engr Authorised / User Authorised

04 = On-Line Enabled / On-Line Disabled

05 = Lo-sec Engineer / Hi-sec Engineer

06 = Normal answer / Timed answer

07 = Unset ward first / Set ward first

08 = Can set with L.F / No set with L.F

09 = Can set - AC off / No set - AC off

10 = Quiet chimes / Loud chimes

11 = O/P 1 normal / O/P1 inverted

12 = Digi normal / digi inverted

13 = 4 digit codes / 6 digit codes

14 = Modem on Com1 / Printer on COM1

15 = Chime Audible / Chime Visible

16 = Manual Omits / Automatic Omits

17 = Omit Tampers No / Omit Tampers Yes

18 = O/M's mimic cct / O/M’s mimic alms

19 = Log Time & Date / Log Time & Day

20 = Global Setting / Local Setting

21 = Global Unsetting / Local Unsetting

22 = 24hr Omit Global / 24hr Omit Local

23 = Ward bell time / Global bell time

24 = Latching Fire / Nonlatching Fire

25 = Online Printing / Offline Printing

26 = Timed code o/p / Latched code o/p

27 = Activity flt ok/ Activity flt Bar

28 = Latching 24hr / Nonlatching 24hr

29 = Access code only / Access all codes

30 = Answer anytime / Answer o/p 1 on

31 = NVM is Unlocked / NVM is Locked

32 = Unshunt & No exit / Unshunt & exit

33 = Ignore errors / View exit errors

34 = Mimic, All times / Mimic, set only

B = Toggle between two options

View Location Text

1 = Panel Location 2 = Remote Location

Default NVM data

0 = Custom text

1 = Modem data

2 = User codes

3 = Configuration

4 = Outputs

5 = Setting modes

6 = System timers

7 = Time switches

8 = Code locks

9 = Auto-set times

A/C = Custom Circuits

A/C = Circuits

A/C = Equipment wards

A/C = Net equipment

A/C = Part set groups

A/C = Log

Log Off Engineer

Page

44

45

46

49

49

51

88

TS2500 Installation Manual

Engineers Menu 2

0

Goto User Menu 1

1 = Bell Test

2 = Walk Test

3 = Remote Reset

4 = Change code

5 = Select Chime

6 = 24hr Omit

7 = Omit Circuits

8 = Silent Set Wards

0 = Set/Unset Menu

Hotkey

1

2

3

4

5

6

7

8

9

A

B

C

0

Option

View Circuits

A/C = Scroll up and down

ENT = Toggle text / location

Set System Time

B = Toggle BST / GMT

Set System Date

Change Passcode (Engineers)

Alter Chime Circuits

A/C = Scroll up and down

ENT = To edit

1 = Chime tone 1

2 = Chime tone 2

3 = Chime tone 3

0 = Disabled

Alter 24hr Group

1 - 8 = Select/deselect wards displayed

A/C = Toggle wards A-H or I-P

B = Select/deselect all wards

Print System Log

Alter Circuit Wards

A/C = Scroll up and down

ENT = To edit

1 - 8 = Select/deselect wards displayed

A/C = Toggle wards A-H or I-P

B = Select/deselect all wards

View System Log

A/C = Scroll up and down

B = Toggle user name / No

B = Toggle event / ward

B = Toggle circuit No / circuit text

Start Call Back Sequence

1 = Call Back No 1

2 = Call Back No 2

3 = Call Back No 3

B = Enter number required

ENT = Start call back sequence

Reset User Code 1

ENT = Reset user 1 to 5678

Set BST/GMT Dates

Remote Service Options

B = Toggle Enabled / Disabled

51

Page

54

54

54

54

55

55

55

56

56

60

60

60

60

Appendices

Engineers Menu 3

Hotkey

1

2

3

4

5

6

7

8

9

A

B

C

0

Option

Program Time Switches

A = Time switch 1

B = Time switch 2

C = Time switch 3

4 = Off Time 1

5 = Off Time 2

6 = Off Time 3

0 = Manually switch output

1 = On Time 1

2 = On Time 2

3 = On Time 3

7 = 1st operates on

8 = 2nd operates on

9 = 3rd operates on

Part Set Groups

1 - 9/0 = Select part set group

ENT = Edit

Use On-Line Keypad

Edit User Names

A/C = Scroll up and down

ENT = Edit text

Part Set Text

1 - 9/0 = Select part set group

ENT = Edit text

Circuit Text

A/C = Scroll up and down

ENT = Edit text

Custom Text Menu

0 = Reset message 5 = Banner message

1 = Location text

2 = Printer header

3 = Rem reset msg

4 = Printer prefix

6 = Part set banner

7 = Aux. Tamper 1

8 = Aux. Tamper 2

9 = Modem string

Equipment Outputs

A/C = Scroll up and down

B = Toggle output A / B

Built In Tests

Software Version

1 = Voltage

2 = Current

3 = Circuit Resistance

4 = Digicom Outputs (Panel)

5 = Test panel outputs

6 = Test Node outputs

7 = Confirm Network devices

8 = Test Keypad display

9 = View Network devices

A/C = Network errors

A/C = False setting routine

A/C = Test digicom channels (Plug-on)

Custom Outputs

Custom Circuits

1 - 8 = Select custom output 1 - 8

ENT = Edit

1 = Toggle unset

2 = Toggle part set

3 = Toggle set

A/C = Bell required

A/C = Digi required

A/C = Sounder required

A/C = Warning required

A/C = Trig Custom o/p

Digi-modem Options

1 = Call back No 1

2 = Call back No 2

6 = Program digicom

7 = Digi Baud rate

3 = Call back No 3 8 = COM1 Baud rate

4 = Modem password 9 = Internal digicom

5 = Modem site No 0 = Reset digicom

Activity Count

A/C = Scroll wards

B = Reset counter

Page

62

62

63

63

63

64

66

67

68

71

72

73

76

89

Appendices

Engineers Menu 4

Hotkey

1

2

3

4

5

6

7

8

9

0

Option

Auto-set Timers

A = Timer 1

B = Timer 2

C = Timer 3

4 = Unset Time 1

1 = Set Time 1

2 = Set Time 2

3 = Set Time 3

7 = 1st operates on

5 = Unset Time 2

6 = Unset Time 3

8 = 2nd operates on

9 = 3rd operates on

ENT = Select wards

0 = Manually switch output

Network Equipment Wards

A/C = Scroll up and down

ENT = Edit wards

1 - 8 = Select/deselect wards displayed

A/C = Toggle wards A-H or I-P

B = Select/deselect all wards

Equipment Wards

1 = Panel tamper

2 = Bell box tamper

3 = Aux 1 tamper

4 = Aux 2 tamper

5 = Phone line fault

6 = Mains power off

7 = Payment timer

8 = Alarms Eng Reset

9 =Tamper Eng Reset

A/C = Remote reset

A/C = Panel speaker

A/C = Relearn required

A/C = Re-arms apply to

A/C = Hi Security ward

A/C = Digi in Part Set

A/C = System Bell/STB

A/C = Ward A foyer Mode

A/C = Unset fire sig.

A/C = Dble Knock wards

Unset Circuit Types

Circuit Types

0 = Not Used

1 = Night

2 = 24 Hour

3 = PA Silent

4 = PA Audiible

5 = Fire

6 = Auxiliary

7 = Final Exit

8 = Exit Terminator

9 = Ward Key

A/C = Shunt Key

A/C = Tamper

A/C = Security

A/C = 24hr Silent

A/C = Night Perimeter

A/C = Custom circuits

Log Search Keys

Shunt Groups

OM Configuration

1 = Mimic options

2 = CCT options

Set Volume Level

A/C = Increase / Decrease

Edit Quick Set Keys

A/B/C = Quick set key A/B/C

1 - 9 = Select part set group

0 = Disabled

Code Lock Timers

A = Codelock 1

B = Codelock 2

C = Codelock 3

4 = Off Time 1

1 = On Time 1

2 = On Time 2

3 = On Time 3

7 = 1st operates on

5 = Off Time 2

6 = Off Time 3

8 = 2nd operates on

9 = 3rd operates on

ENT = Select users

0 = Manually switch output

Page

78

79

80

81

84

82

82

83

83

83

90

A

Engineers Wards

TS2500 Installation Manual

83

TS2500 Installation Manual

Index

!

24hr Circuits

Audible 40

Latching option 48

Silent 40

24hr Omit

Alter 24hr omit group 55

Global / local option 47

A

Abort

Delay timer 42

Duration timer 42

AC Off

Assigning to wards 80

Can set without option 46

Off delay timer 42

Access

Attribute 40

Code timer 42

Output options 48

User type 86

Activity

Attribute 41

Delay timer 43

Setting option 47

Viewing count 76

Alarms

Making engineer reset 80

Viewing options 46

Answer ring timer 42

Attributes 40

Auto-set Timers 78

Auxiliary

12V connections 17

12V Fuse 18

Circuit type 40

Tamper

Assigning text 66

Assigning to wards 80

Connections 17

B

Banner Message 66

Battery

Connections 15,17

Fault LED 18

General 12

Kick start pins 18

Test timer 42,43

Beam Pair

Attribute 41

Bell

Delay timer 42

Assigning to wards 81

Fuse 18

Global / ward option 47

Global delay timer 43

Global duration timer 43

SAB/SCB option 46

Ward delay timer 42

Ward duration timer 42

Bell Box Tamper

Assigning to wards 80

Connections 26

C

Chime

Alter Chime Circuits 55

Attribute 41

Audible / Visual option 47

Quiet / Loud option 46

Circuit Text Library 65

Circuit Types 40

Code accepted

Latched / timed option 47

Code Lock Timers 84

Configuration options 46

Confirmation

Network devices 69

Second alarm time 42

Control Panel

Assigning tamper to wards 80

Features 2

Installation 14

PCB Layout 16

Specifications 3

Tamper 18

Courtesy timer 42

Current

Measuring with control panel 68

Measuring with DVM 18

Custom Circuits

Circuit type 40

Programming 72

Custom Outputs

Programming 71

Timer 43

D

Date

BST/GMT change over 60

Setting 54

DC54/58 Digicom

General 13

Index

Programming via panel 74

Resetting 76

Wiring details 28

DC58M Digi modem

Answer call options 48

General 13

Normal / timed answer 46

Wiring details 28

Defer setting timer 43

Deferred setting mode 44

Detection Circuits

Assigning text 64

Changing type when unset 81

Numbering format 40

Programming 40

Viewing resistance of 68

Viewing status of 54

Wiring double pole 26

Wiring End of Line 26

Diagnostics Routines 68

Digi Baud Rate 76

Digi Modem

Call back numbers 73

Modem password 74

Modem site number 74

Options 73

Resetting 76

Digicom

Active when part set 81

Delay timer 42

Outputs 17

Plug-on connections 18

Power terminal 17

Testing outputs 68

Types 3

Digicom Channels

Programming 34

Testing 70

Digicom Outputs

Inverting option 46

Programming 34

Double Knock

Assigning to wards 81

Attribute 40

Counter 45

Delay timer 42

Duress

Disable / Enable option 46

User type 86

E

EMC Compatibility 8

Engineer access

Hi / Lo security option 46

Passcode - Changing 54

Engineer Reset

91

Index

Alarms 80

Tampers 80

Engineer Tests

Engineer test attribute 41

Test routines 68

Engineers Menus

Menu 1 33

Menu 2 53

Menu 3 61

Menu 4 77

Engineers Remote Keypad 18

Engineers Wards 83

Entry

Attribute 41

Second entry timer 42

Timer 42

EPROM

Upper & Lower 18

Viewing version 68

Equipment Outputs 67

Equipment Wards 80

Event Log

Assigning search keys 82

Codes 57

Log date / day option 47

Viewing 56

Exit settle timer 42

Exit terminator

Circuit type 40

Setting mode 44

Exit timer 42

Expansion Devices

ID Node 3

TS LEC8 3

TS700 LEC 2

TS900 Node 2

XNode 3

External Sounder

Connections 17

General 13

Wiring to a Node 27

Wiring to control panel 26

F

Factory Restart

During power up 31

Pins 17

False Setting Routine 70

Final Exit

Circuit type 40

Fire

Setting mode 44

Circuit type 40

Latching option 47

Signalling when unset 81

Foyer Mode 81

92

G

Goto user menu 1 51

H

Heartbeat LED 18

Hi Security

Assigning to wards 81

Timer 43

I

ID Node

Specifications 4

Instant setting mode 44

Internal Digi 76

Introduction 2

Invert Attribute 41

K

Keys until tamper 45

L

LEC 8

Connectors 17

Installation 25

Specifications 4

Line Drivers

General 3,13

Line Fault

Assigning to wards 80

Can set with option 46

Delay timer 42

Terminal 17

Lineload

Online keypad options 46

User / Engineer option 46

Location Text

Programming 66

Viewing 49

Log off engineer 51

Loudspeakers

Assigning to wards 79,80

Connections 17

General 12

Wiring to an XNode 27

Wiring to control panel 27

M

Mains connection 15

Manager user type 85

Master user type 85

Menu time out 42

Modem ring counter 45

Monitor time 42

TS2500 Installation Manual

Monitored Attribute 41

N

Network Equipment Wards 79

Networks

Connections 17

Fuses 18

Viewing devices 69

Viewing error count 70

Night Circuit 40

Night Perimeter Circuit 40

Non Latching Attribute 41

Not Used Circuit 40

NVM

Default values 49

Defaulting data 49

Locking option 48

Upper & Lower 18

O

Omit Attribute 41

Omitting Circuits

Manual / Auto option 47

Omit tampers option 47

On-Line Keypad 63

Output Modules

Connector 17

General 3,13

Mimic / alarms option 47

Mimic when set option 48

Programming options 83

Wiring to an XNode 28

Wiring to control panel 28

Output Types 35

P

PA

Audible circuit type 40

Silent circuit type 40

Panel Outputs

Connections 17

General 12

Inverting O/P 1 option 46

Programming 34

Testing Outputs 68

Wiring examples 29

Panic code 85

Part Set

Banner message 66

Groups 62

Text 63

Payment

Assigning to wards 80

Timer 43

Power LED 18

TS2500 Installation Manual

Power-Up

Checks 31

Sequence 31

Printer

CPA6 29

DATAC 29

General 3,13

Header text 66

Output Port 17

Prefix message 66

Printing

Online / offline option 47

Print system log 55

System printout 44

Q

Quick Set Keys 83

R

Re-arm

Assigning to wards 80

Counter 45

RedCARE

General 13

Wiring details 27

Relearn Required

Assigning to wards 80

Clearing message 69

Message 31

Remote Keypads

Assigning to wards 79

Installation 19

Outputs 29

Programming Outputs 67

Specifications 3

Testing display 69

Types 2

Viewing location address 49

Remote PSU

Monitoring 30

Remote Reset

Algorithm 45

Assigning to wards 80

Counter 45

Message 66

Terminal 17

Remote service options 60

Reset

Attribute 41

Message 66

User type 85

S

Security Circuit 40

Select menu timer 43

Service Timer 43

Setting

Global / local option 47

Modes 44

Shunt

Groups 82

Key 40

User type 86

Shuntable Attribute 41

Software version 68

Standard global user 85

Standard ward user 85

Start Call Back 60

Strobe

Assigning to wards 81

Connections 26

System Architecture 1

System Learn Pins 18

System Timers 42

T

Tamper Circuit 40

Tamper Engineer Reset 80

Test

Attribute 41

Timed test call 43

Timer 43

Text Editing Keys 85

Time - Setting 54

Time Switches 62

Timed Exit setting 44

TS700 LEC

Installation 25

Specifications 4

TS900 Node

Installation 22

Specifications 4

U

Unset / set wards option 46

Unsetting

Global / local option 47

Unshunt & Exit option 48

User Codes

4 / 6 digits option 46

Assigning to wards 86

Customising 86

Resetting the master user 60

Setting up 85

Time locking 84

User types 85

User names 63

Users mode - selecting 51

Index

V

View exit errors option 48

Voltage

Measuring at control panel 68

Measuring at XNode 69

Voltage Drop

Calculating 5

Examples 6

Reducing 7

Volume Level

Panel speaker 83

XNode speaker 22

W

Ward Key Circuit 40

Wards

Alter Circuit Wards 56

Assigning circuits 41

Wiring

Detection circuits 12

General 5

Mains supply 12

OMs to XNodes 10

Remote keypads 11

Remote PSUs 7

Remote to XNodes 9

Remotes with Nodes 10

Screen Cable 8

Speakers to XNodes 10

TS900 Nodes 10

TSLEC8 12

XNodes 8

X

XNode

Assigning to wards 79

Installation 20

Outputs 29

Programming Outputs 67

Specifications 4

Testing Outputs 69

93

Part No. 496497 Issue 1
